LC171W03

Liquid Crystal Display

Product Specification

SPECIFICATION

FOR

APPROVAL

APPROVED BY

/

/

TatungBUYER

-MODEL

SIGNATURE

DATE

17.1” WXGA TFT LCDTitle

LG.Philips LCD Co., Ltd.SUPPLIER

LC171W03*MODEL

C4MODEL

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

Jay. Yoon / G.Manager

REVIEWED BY

H. S. Song / Manager

SIGNATURE

DATE

PREPARED BY

/

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

D. E. Kim / Engineer

TV Product Development Dept.

LG. Philips LCD Co., Ltd

1/ 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

CONTENTS

PageITEMNumber

COVER

CONTENTS

GENERAL DESCRIPTION1

ABSOLUTE MAXIMUM RATINGS2

ELECTRICAL SPECIFICATIONS3

ELECTRICAL CHARACTERISTICS3-1

INTERFACE CONNECTIONS3-2

SIGNAL TIMING SPECIFICATIONS3-3

SIGNAL TIMING WAVEFORMS3-4

COLOR INPUT DATA REFERENCE3-5

POWER SEQUENCE3-6

OPTICAL SPECIFICATIONS4

MECHANICAL CHARACTERISTICS5

1

2

3RECORD OF REVISIONS

4

5

6

6

8

12

13

14

15

17

21

RELIABILITY6

INTERNATIONAL STANDARDS7

SAFETY7-1

EMC7-2

PACKING8

DESIGNATION OF LOT MARK8-1

PACKING FORM8-2

24

25

25

25

26

26

26

27PRECAUTIONS9

27MOUNTING PRECAUTIONS9-1

27OPERATING PRECAUTIONS9-2

28ELECTROSTATIC DISCHARGE CONTROL9-3

28PRECAUTIONS FOR STRONG LIGHT EXPOSURE9-4

28STORAGE9-5

28HANDLING PRECAUTIONS FOR PROTECTION FILM9-6

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/ 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

RECORD OF REVISIONS

DescriptionPageRevision DateRevision No

Preliminary Specification(First Draft)-Oct. 11, 20040.0

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/ 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

1. General Description

LC171W03 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 17.1 inch
diagonally measured active display area with WXGA resolution (768 vertical by 1280 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, a palette of more than 16,7M(true) colors.

It has been designed to apply the 8 bit LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, wide viewing angle, high color
saturation, and high color are important.

LVDS

5pair

CN1

(20pin)

VLCD

+12.0V

General Features

Active Screen Size

RGB(Mini-LVDS)

Timing Control

Block

Power Circuit

Block

CN2,5(3pin)

CN3,4 (3pin)

17.1 inches(434.38mm) diagonal

Gate Driver circuit

G768

G1

Source Driver Circuit

S1

TFT-LCD Panel

(1280 u 768 pixels)

Backlight Assembly

(6 CCFL)

S1280

Outline Dimension

Pixel Pitch

Pixel Format

Color Depth

Luminance, White

Viewing Angle (CR>10)

Power Consumption

Weight

Display Operating Mode

Surface Treatment

Ver. 0.0 Oct. 11, 2004

400.0(H) x 258.0(V) x 22.0(D) mm(Typ.)

0.291mm x 0.291mm

1280 horiz. By 768 vert. Pixels RGB stripe arrangement

8-bits, 16,7M colors

450 cd/m2 (Center 1 point (Typ.))

Viewing Angle Free [R/L 176( Typ.), U/D 176(Typ.)]

Total 31.45 Watt(Typ.), ( 3.25 Watt@VLCD

2,500 g (Typ.) , 2,650 g (Max)

Transmissive mode, normally black

Hard coating(3H) & Anti-glare treatment of the front polarizer

, 28.2 Watt@450cd/[LAMP=7mA])

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/ 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or damage to the
LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Notes

Symbol

Values

MaxMin

Units

Power Input Voltage

Operating Temperature

Storage Temperature

Operating Ambient Humidity

Storage Humidity

500TOP

60-20TST

۪C

۪C

%RH9010HOP

%RH9010HST

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 ۪C Max, and no condensation of water.

ڼۏٻڍڐٻr ڍٻ۪ڞVdc+14.0-0.3VLCD

Note 1

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/ 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and
liquid crystal. The second input power for the CCFL /Backlight, is typically generated by an
inverter. The inverter is an external unit to the LCDs.

Table 2-1. ELECTRICAL CHARACTERISTICS

Parameter Symbol

MODULE :

ILCDPower Supply Input Current

Note :

1. The specified current and power consumption are under the V
whereas mosaic pattern(8 x 6) is displayed and f

is the frame frequency.

V

2. The current is specified at the maximum current pattern.

3. The duration of rush cur

rent is about 2ms and rising time of power Input is 1ms(min.).

White : 255Gray
Black : 0Gray

Values

NotesUnit

MaxTypMin

Vdc12.612.011.4VLCDPower Supply Input Voltage

1mA310270-

2mA440340-

1Watt4.253.25-PLCDPower Consumption

3A3.0--IRUSHRush current

=12.0V, 25 r 2۪C,fV=60Hz condition

LCD

Mosaic Pattern(8 x 6)

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/ 28

www.panelook.com

Global LCD Panel Exchange Center

Product Specification

Table 2-2. ELECTRICAL CHARACTERISTICS

www.panelook.com

LC171W03

Liquid Crystal Display

Parameter Symbol

LAMP :

at 25 ۪C
at 0 ۪C

Values

MaxTypMin

770(3mA)670(7mA)660(7.5mA)VBLOperating Voltage

7.57.03.0IBLOperating Current

1,030

1,340

Operating Frequency

Discharge Stabilization Time

Power Consumption

Life Time

Note : The design of the inverter must have specifications for the lamp in LCD Assembly.

The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced by

the characteristics of the DC-AC inverter. So all the parameters of an inverter should be carefully

designed so as not to produce too much leakage cur

rent from high-voltage output of the inverter.

When you design or order the inverter, please make sure unwanted lighting caused by the mismatch
of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you confirm it, the LCD–
Assembly should be operated in the same condition as installed in you instrument.

೦ Do not attach a conducting tape to lamp connecting wire.

If the lamp wire attach to a conducting tape, TFT-LCD Module has a low luminance and the inverter
has abnormal action.Because leakage current is occurred between lamp wire and conducting tape.

V

V

RMS

RMS

RMS

RMS

NotesUnit

1, 2V

1mA

1, 3VsEstablished Starting Voltage

4kHz806045fBL

1, 5Min3Ts

6Watt31.1028.20PBL

1, 7Hrs50,000

1. Specified values are for a single lamp.

2. Operating voltage is measured at 25 r 2۪C. The variance of the voltage is r 10%.

3. The voltage above V

should be applied to the lamps for more than 1 second for start-up.

S

(Inverter open voltage must be more than lamp starting voltage.)

Otherwise, the lamps may not be turned on. The used lamp cur

rent is the lamp typical current.

4. Lamp frequency may produce interface with horizontal synchronous frequency and as a result this may
cause beat on the display. Therefore lamp frequency shall be as away possible from the horizontal

synchronous frequency and from its harmonics in order to prevent interference.

5. Let’s define the brightness of the lamp after being lighted for 5 minutes as 100%.

is the time required for the brightness of the center of the lamp to be not less than 95%.

T

S

6. The lamp power consumption shown above does not include loss of external inverter.

The used lamp cur

rent is the lamp typical current. (P

= VBLx IBLx N

BL

Lamp

)

7. The life is determined as the time at which brightness of the lamp is 50% compared to that of initial

value at the typical lamp cur

Ver. 0.0 Oct. 11, 2004

rent on condition of continuous operating at 25 r 2۪C.

7/ 28

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

8. The output of the inverter must have symmetrical(negative and positive) voltage waveform and
symmetrical cur
which has unsymmetrical voltage and unsymmetrical current and spike wave.
Requirements for a system inverter design, which is intended to have a better display performance, a

better power efficiency and a more reliable lamp, are following.
It shall help increase the lamp lifetime and reduce leakage cur

a. The asymmetry rate of the inverter waveform should be less than 10%.
b. The distortion rate of the waveform should be within ˲2 ·10%.

* Inverter output waveform had better be more similar to ideal sine wave.

rent waveform (Unsymmetrical ratio is less than 10%). Please do not use the inverter

rent.

* Asymmetry rate:

LC171W03

I p

| I

–I –p| / I

p

rms

x 100%

* Distortion rate

I -p

I

(or I –p) / I

p

rms

9. The inverter which is combined with this LCM, is highly recommended to connect coupling(ballast)
condenser at the high voltage output side. When you use the inverter which has not coupling(ballast)
condenser, it may cause abnormal lamp lighting because of biased mercury as time goes.

10.In case of edgy type back light with over 4 parallel lamps, input cur

rent and voltage wave form should

be synchronized

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/ 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

3-2. Interface Connections

LCD Connector(CN1): GT123-20P-H16 (Manufactured by LG) or Equivalent
Mating Connector : DF14-20S-1.25C (Manufactured by Hirose) or Equivalent

Table 3. MODULE CONNECTOR(CN1) PIN CONFIGURATION

LC171W03

Liquid Crystal Display

PolarityDescriptionSymbolPin No

V

LCD Power Supply +12.0V1

LCD2

Power Supply +12.0VV

Power Ground.GND3

Power GroundGND4

GroundGND7

GroundGND10

GroundGND13

GroundGND16

Output Pin #

(LVDS Tx)

PIN#48NegativeLVDS Receiver Signal(-)RXIN0-5

PIN#47PositiveLVDS Receiver Signal(+)RXIN0+6

PIN#46NegativeLVDS Receiver Signal(-)RXIN1-8

PIN#45PositiveLVDS Receiver Signal(+)RXIN1+9

PIN#42NegativeLVDS Receiver Signal(-)RXIN2-11

PIN#41PositiveLVDS Receiver Signal(+)RXIN2+12

PIN#40NegativeLVDS Receiver Clock Signal(-)RXCLK IN-14

PIN#39PositiveLVDS Receiver Clock Signal(+)RXCLK IN+15

Note: 1. 20th Pin should be ground.

2. All GND(ground) pins should be connected together and to Vss which should also be connected to
the LCD’s metal frame.

3. All V

LCD (power input) pins should be connected together.

4. Input Level of LVDS signal is based on the IEA 664 Standard.

Rear view of LCM

1

Ver. 0.0 Oct. 11, 2004

PIN#38NegativeLVDS Receiver Signal(-)RXIN3-17

PIN#37PositiveLVDS Receiver Signal(+)RXIN3+18

+3.3V / GNDInterlace image sticking optionMode19

Note 1GroundGND20

20

GT123-20P-H16(LG)

9/ 28

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Liquid Crystal Display

Product Specification

Table 4. REQUIRED SIGNAL ASSIGNMENT FOR LVDS Transmitter (DS90C385 or Compatible)

51

52

54

55

56

Red Pixel DataRed0 [LSB]TxIN0

Red Pixel DataRed1TxIN1

Red Pixel DataRed2TxIN2

Red Pixel DataRed3TxIN3

Red Pixel DataRed4TxIN4

LC171W03

OutputDescriptionSymbolPin NamePin #

Rx0-

Rx0+

2

3

4

6

7

8

10

11

12

14

15

16

18

19

20

Red Pixel DataRed7 [MSB]TxIN5

Red Pixel DataRed5TxIN6

Green Pixel DataGreen0 [LSB]TxIN7

Green Pixel DataGreen1TxIN8

Green Pixel DataGreen2TxIN9

Green Pixel DataGreen6TxIN10

Green Pixel DataGreen7 [MSB]TxIN11

Green Pixel DataGreen3TxIN12

Green Pixel DataGreen4TxIN13

Green Pixel DataGreen5TxIN14

Blue Pixel DataBlue0 [LSB]TxIN15

Blue Pixel DataBlue6TxIN16

Blue Pixel DataBlue7 [MSB]TxIN17

Blue Pixel DataBlue1TxIN18

Blue Pixel DataBlue2TxIN19

Rx3-

Rx3+

Rx0-

Rx0+

Rx1-

Rx1+

Rx3-

Rx3+

Rx1-

Rx1+

Rx3-

Rx3+

Rx1-

Rx1+

22

23

24

25

27

28

30

50

TxIN24

TxIN25

TxIN26

TxIN27

RESTxIN23

Hsync

Vsync

EN

Red6

No connection, If unnecessary

No connection, If unnecessary

Blue Pixel DataBlue3TxIN20

Blue Pixel DataBlue4TxIN21

Blue Pixel DataBlue5TxIN22

Data Enable

Red Pixel Data

Notes : 1. Refer to LVDS Transmitter Data Sheet for detail descriptions.

2. 7 means MSB and 0 means LSB at R,G,B pixel data.

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Rx2-

Rx2+

Rx3-

Rx3+

Rx2-

Rx2+

Rx3-

Rx3+

10 / 28

www.panelook.com

Global LCD Panel Exchange Center











www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

Table 5. REQUIRED SIGNAL ASSIGNMENT FOR LVDS TRANSMITTER (DS90C385 or Compatible)

Host System

24 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync
Vsync

Data Enable

CLOCK

DS90C385

or Compatible

51
52
54
55
56
3
50
2
4
6
7
11
12
14
8
10
15
19
20
22
23
24
16
18
27
28
30
31

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxCLKOUT­TxCLKOUT+

TxOUT3­TxOUT3+

GT123-20P-H16

48

47

46

45

42

41

40

39

38

37

5
6

8
9

11
12

14
15

17
18

100

100

100

100

100

LCD Module

Timing

Controller

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

Note: 1. The LCD Module uses a 100 Ohm [ࡧ] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

11 / 28

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

Table 6. BACKLIGHT CONNECTOR PIN CONFIGURATION(CN2,CN3,CN4,CN5)

The backlight interface connector is a model PHR-3(CN3/CN4) and BHR-03VS-1(CN2/CN5)
manufactured by JST.
(3pin) or equivalent. The pin configuration for the connector is shown in the table below.

The mating connector part number are S 3B-PH-KL (3pin), SM03(4.0)B-BHS-1-TB

LC171W03

Liquid Crystal Display

NotesDescriptionSymbolPinNo

1Power supply for lamp 1(High voltage side) –WhiteH11

CN2

CN3

CN4

CN5

کۊۏۀێڕٻٻٻٻڌډٻٻگۃۀٻۃۄۂۃٻۑۊۇۏڼۂۀٻۋۊےۀۍٻۏۀۍۈۄۉڼۇٻۄێٻھۊۇۊۍۀڿٻےۃۄۏۀڇێۆ۔ٻڽۇېۀڇۂۍڼ۔ډ

ڍډٻٻگۃۀٻۇۊےٻۑۊۇۏڼۂۀٻ ۋۄۉٻھۊۇۊۍٻۄێٻےۃۄۏۀڇڿڼۍۆٻڽۇېۀڇڽۇڼھۆٻډ

ڞکڍ

1Power supply for lamp 2 (High voltage side) –Sky BlueH22

1Power supply for lamp 3 (High voltage side) -GrayH33

2Power supply for lamp 1 (Low voltage side) -WhiteL11

2Power supply for lamp 2 (Low voltage side) -BlueL22

2Power supply for lamp 3 (Low voltage side) -BlackL33

2Power supply for lamp 4 (Low voltage side) -WhiteL41

2Power supply for lamp 5 (Low voltage side) -BlueL52

2Power supply for lamp 6 (Low voltage side) -BlackL63

1Power supply for lamp 4 (High voltage side) -WhiteH41

1Power supply for lamp 5 (High voltage side) –Sky BlueH52

1Power supply for lamp 6 (High voltage side) -GrayH63

High
High

High

BACK LIGHT UNIT

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

ڞکڎ

Low
Low

Low

ڞکڏ

Low
Low

Low

ڞکڐ

High
High

High

12 / 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

3-3. Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be
satisfied with the following specifications for it’s proper operation.

Table 7. Timing Table

NoteUnitMaxTypMinSymbolITEM

DCLK

Hsync

Vsync

DE

(Data

Enable)

ns18.5214.6512.20tCLKPeriod

MHz82.0068.2554.00Frequency

tCLK180014401328tHPPeriod

tCLK-3216tWHWidth

tHP1100790790tVP Period

Hz636047fVFrequency

-77tWV Width

128012801280tHVHorizontal Valid

-8016tHBPHorizontal Back Porch

-4816tHFPHorizontal Front Porch

-16048-Horizontal Blank

tHP

tCLK

Note 1)
PAL : 47~53Hz
NTSC : 57~63Hz

768768768tVVVertical Valid

-1313tVBPVertical Back Porch
tHP

-22tVFPVertical Front Porch

-2222-Vertical Blank

Note : Hsync Period and Hsync Width should be even number times of tCLK. If the value is odd number

times of tCLK, display control signal can be asynchronous. In order to operate the LCD, Hsync,
Vsync and DE(Data Enable) signals should be used.

1. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate.

2. Vsync and Hsync should be keep the above specification.

3. Hsync Period, Hsync Width and Horizontal Back Porch should be any times of character number(8).

Ver. 0.0 Oct. 11, 2004

13 / 28

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-4. Signal Timing Waveforms

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

DCLK

First data

Second data

DE(Data Enable)

Hsync, Vsync, DE, Data

tCLK

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0

Valid data

Pixel 1,0

0.7VDD

Pixel 2,0

Pixel 3,0

0.3VDD

Invalid data

Invalid data

tHP

HSync

tWH

tHBP tHV

DE(Data Enable)

tVP

tWV

VSync

tVBP

tVV tVFP

DE(Data Enable)

Ver. 0.0 Oct. 11, 2004

tHFP

14 / 28

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

3-5. Color Input Data Reference

The Brightness of each primary color(red,green,blue) is based on the 8-bit gray scale data input for the color;
the higher the binary input, the brighter the color. The table below provides a reference for color versus data
input.

Table 8. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black

Red (255)

Green (255)

Blue (255)

Cyan

Magenta

Yellow

White

RED (000)

RED (001)

RED (254)

RED (255)

...

RED

LSB

GREEN

MMSB LSB

BLUE

MSB SB LSB

B77 G6 G5 G4 G3 G2 G1 G0 B6 B5 B4 B3 B2 B1 B0GR7 R6 R5 R4 R3 R2 R1 R0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 1 1 0 0 0 1 1 1 1 1 1

0 0 0 1 1 0 0 0 0 01 1 1 0 0 1 1 1 0 0 0 0 0 0

1 1 1 0 0 1 1 1 1 10 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 11 1 1 0 0 1 1 1 0 0 0 0 0 0

1 1 1 0 0 1 1 1 1 10 0 0 1 1 0 0 0 1 1 1 1 1 1

0 0 0 1 1 0 0 0 0 01 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0 0 0 0 1

.........

0 0 0 0 0 0 0 0 0 00 0 0 1 1 0 0 0 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 00 0 0 1 1 0 0 0 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 00

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 1 0 0 0 0 0 0

0 0 0 1 1 0 0 0 0 01 1 1 0 0 1 1 0 0 0 0 0 0 0

0 0 0 1 1 0 0 0 0 01 1 1 0 0 1 1 1 0 0 0 0 0 0

0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 0 0 1 1 1 1 00 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 0 0 1 1 1 1 10 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN

BLUE

GREEN (000)

GREEN (001)

...

GREEN (254)

GREEN (255)

BLUE (000)

BLUE (001)

...

BLUE (254)

BLUE (255)

0 0 0 0 0 0

Note : Users should be input true 8 Bit data streams via LVDS transmitter.

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

.........

0 0 00 0 0 0 0 0 0 0 0 0 0 0 0 0

.........

15 / 28

www.panelook.com

Global LCD Panel Exchange Center

3-6. Power Sequence

Power Supply For LCD

V

LCD

0V

www.panelook.com

Product Specification

90% 90%

10%

T

1 T2 T5 T6 T7

LC171W03

Liquid Crystal Display

10%

Interface Signal (Tx)

Power for LAMP

Table 9. POWER SEQUENCE

Parameter

10% 10%

Valid Data

0V

T3 T4

Lamp ON

0FF 0FF

Values

MaxTypMin

--200T4

Units

ms10-0.5T1

ms50-0.5T2

ms--200T3

ms

ms50-0.5T5

Notes : 1. Please avoid floating state of interface signal at invalid period.

2. When the interface signal is invalid, be sure to pull down the power supply for LCD V

3. Lamp power must be turn on after power supply for LCD an interface signal are valid.

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

ms100--T6

s--1T7

to 0V.

LCD

16 / 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30Min in a
dark environment at 25۫2۪C. The values are specified at an approximate distance 50cm from the LCD surface
at a viewing angle of ) and T equal to 0 ۪.
It is presented additional information concerning the measurement equipment and method in FIG. 1.

LCD Module Pritchard 880 or

Optical Stage(x,y)

equivalent

FIG. 1 Optical Characteristic Measurement Equipment and Method

Table 10. OPTICAL CHARACTERISTICS

SymbolParameter

Surface Luminance, white

Luminance Variation

Rise Time

Response Time

Decay Time

RED

GREEN

Color Coordinates

[CIE1931]

BLUE

WH

WHITE

R

D

Rx

5P

50 cm

-0.03

Ta= 25۫2۪C, V

Values

0.633

0.341Ry

0.280Gx

Typ

0.603Gy

0.145Bx

0.069By

=12.0V, fV=60HzDclk=68.25MHz, IBL=7mA

LCD

MaxTypMin

-600420CRContrast Ratio

-450360L

Typ

+0.03

2

NotesUnits

1

2cd/m

31.3G

4ms12-Tr

4ms13-Tr

WHITE

Viewing Angle (CR>10)

x axis, right(I=0۪)

x axis, left (I=180۪)

y axis, up (I=90۪)

y axis, down (I=270۪)

Ver. 0.0 Oct. 11, 2004

0.289Wx

0.303Wy

8885Tl

8885Tu

8885Td

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5degree8885Tr

6-Gray Scale

17 / 28

www.panelook.com

Global LCD Panel Exchange Center

Note :

1. Contrast Ratio(CR) is defined mathematically as :

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

Contrast Ratio =

Surface Luminance with all black pixels

It is measured at center 1-point.

Surface Luminance with all white pixels

L

2. Surface Luminance(
from the surface with all pixels displaying white. For more information se

) is the luminance value at center 1-point across the LCD surface 50cm

WH

e the FIG. 2.

3. The variation of surface luminance , G WHITE is defined as :

G WHITE(5P) = Maximum(L

Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

, L

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

, L

on5

)

For more information, see the FIG. 2.

4. Response time is the time required for the display to transition from G(N) to G(M) (Rise Time, Tr

and from G(M) to G(N) (Decay Time, Tr

). For additional information see the FIG. 3. (N<M)

D

)

R

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

6. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 12.

Table 12. GRAY SCALE SPECIFICATION

L0

L15

L31

L47

L63

L79

L95

L111

L127

L143

L159

L175

L191

L207

L223

L239

L255

Luminance [%] (Typ)Gray Level

0.17

0.30

1.02

2.59

5.18

8.51

12.6

17.2

21.9

28.2

35.5

43.6

52.2

63.4

75.1

87.5

100.00

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18 / 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

Measuring point for surface luminance & measuring point for luminance variation

H

A

LC171W03

Liquid Crystal Display

2

V

1

3

B

A : H / 4 mm

4

FIG. 2 Measure Point for Luminance

The response time is defined as the following figure and shall be measured by switching the input signal for
“black” and “white”.

5

B : V / 4 mm
H : 372.48 mm
V : 223.488 mm
@ H,V : Active Area

Tr

R

Tr

D

ڌڋڋ

ڔڋ

ڪۋۏۄھڼۇ
ڭۀێۋۊۉێۀ

ڌڋ

ڋ

ےۃۄۏۀ ڽۇڼھۆڽۇڼھۆ

FIG. 3 Response Time

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19 / 28

www.panelook.com

Global LCD Panel Exchange Center

Dimension of viewing angle range

I

= 180q, Left

www.panelook.com

Product Specification

Normal

E

T

I

Y

I

= 90q, Up

LC171W03

Liquid Crystal Display

I

= 270q, Down

FIG. 4 Viewing Angle

I

= 0q, Right

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20 / 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

5. Mechanical Characteristics

The contents provide general mechanical characteristics. In addition the figures in the next page are detailed
mechanical drawing of the LCD.

Table 12. MECHANICAL CHARACTERISTICS

400.0 mmHorizontal

Outline Dimension

Bezel Area

Active Display Area

2500g (Typ.), 2650g(Max)Weight

Surface Treatment

Hard coating(3H)
Anti-glare treatment of the front polarizer

Notes : Please refer to a mechanic drawing in terms of tolerance at the next page.

258.0 mmVertical

22.0 mmDepth

376.6 mmHorizontal

227.6 mmVertical

372.48 mmHorizontal

223.488 mmVertical

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21 / 28

www.panelook.com

Global LCD Panel Exchange Center

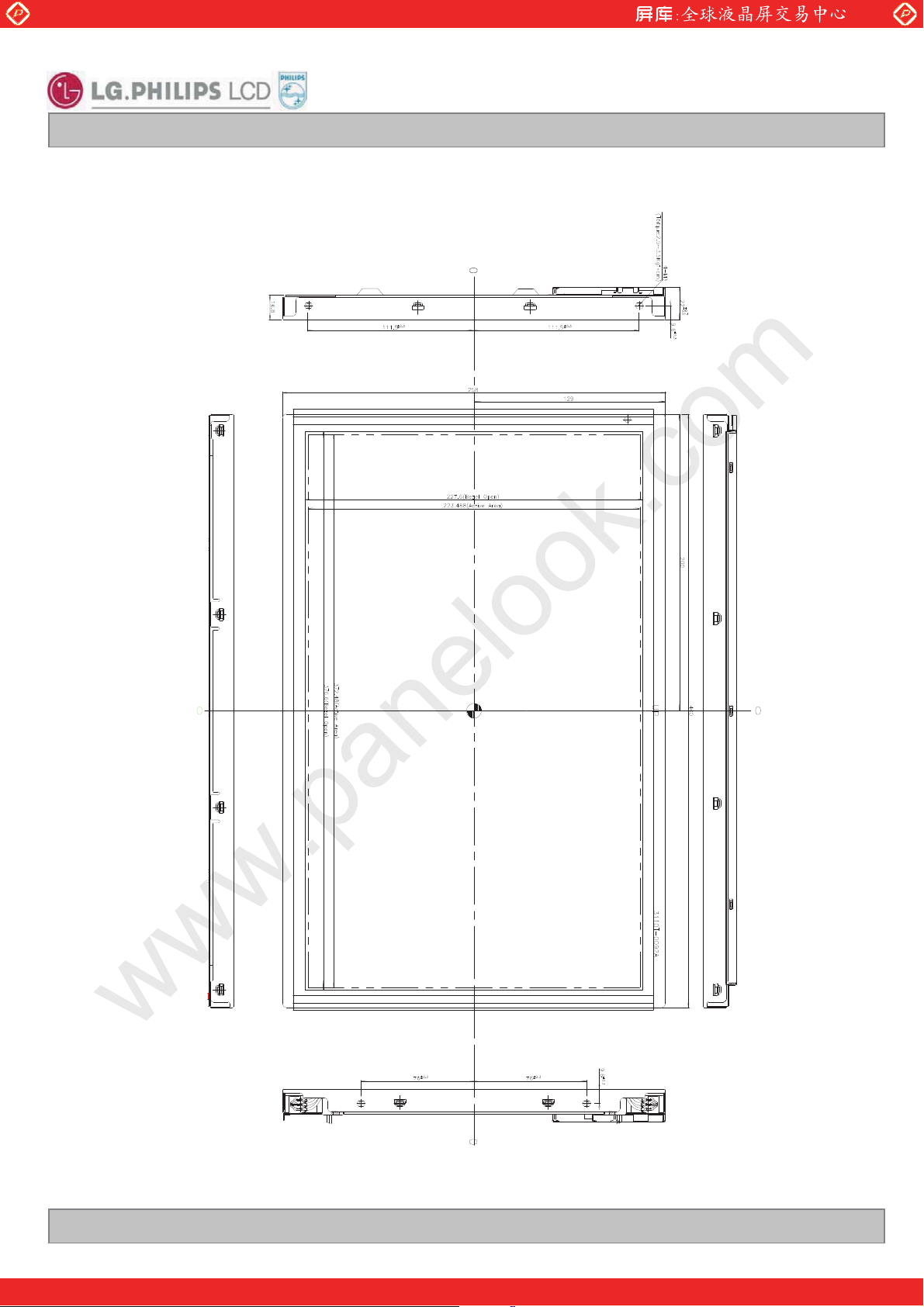

<FRONT VIEW>

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22 / 28

www.panelook.com

Global LCD Panel Exchange Center

<REAR VIEW>

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23 / 28

www.panelook.com

Global LCD Panel Exchange Center

Product Specification

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No Test Item Condition

www.panelook.com

LC171W03

Liquid Crystal Display

1

2

3

4

Ta= 60۪C 240hHigh temperature storage test

Ta= -20۪C 240hLow temperature storage test

Ta= 50۪C 50%RH 240hHigh temperature operation test

Ta= 0۪C 240hLow temperature operation test

Wave form : random

5

Vibration test
(non-operating)

Vibration level : 1.0G RMS
Bandwidth : 10-500Hz
Duration : X,Y,Z, 20 min

One time each direction

Shock level : 100G

6

Shock test
(non-operating)

Waveform : half sine wave, 2ms

Direction : ۫X, ۫Y, ۫Z

One time each direction

Altitude

7

operating
storage / shipment

0 - 10,000 feet(3048m)
0 - 40,000 feet(12,192m)

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24 / 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

7. International standards

7-1. Safety

a) UL 60950, Third Edition, Underwriters Laboratories, Inc., Dated Dec. 11, 2000.

Standard for Safety of Information Technology Equipment, Including Electrical Business Equipment.

b) CAN/CSA C22.2, No. 60950, Third Edition, Canadian Standards Association, Dec. 1, 2000.

Standard for Safety of Information Technology Equipment, Including Electrical Business Equipment.

c) EN 60950 : 2000, Third Edition

IEC 60950 : 1999, Third Edition
European Committee for Electrotechnical Standardization(CENELEC)
EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical

Business Equipment.

LC171W03

Liquid Crystal Display

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI),
1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.“ International Special Committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.“ European Committee for Electrotechnical Standardization.(CENELEC), 1998

( Including A1: 2000 )

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25 / 28

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH)
D : YEAR E : MONTH
F : PANEL CODE G : FACTORY CODE
H : ASSEMBLY CODE I,J,K,L,M : SERIAL NO.

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

Note

1. Year

Year

Mark

2. Month

Month

Mark

3. Panel Code

Panel Code1P1 Factory

Mark

4. Factory Code

Factory Code

Mark

5. Serial No

200012001

Apr5May

P2 Factory

2

LPL NanjingLPL Gumi

0

4

CK

2002320034200452005

Jun

P3 Factory

3

2

6

Jul

P4 Factory

Aug9Sep

7

4

8

2006

P5 Factory

5

6

Oct

A

2007999897

7987

Nov

B

Hydis Panel

DecMarFebJan

H

C321

Serial No.

Mark

A0001 ~ A9999, ----, Z999900001 ~ 99999

100,000 ~1 ~ 99,999

b) Location of Lot Mark

Serial NO. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 5 pcs

b) Box Size : 490mm ܑ 277mm ܑ 322mm

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26 / 28

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=۫200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes
longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.
(8) A screw which is fastened up the steels should be a machine screw.

(if not, it causes metallic foreign material and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.

Ver. 0.0 Oct. 11, 2004

27 / 28

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC171W03

Liquid Crystal Display

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5۪C and 35۪C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion­blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal­hexane.

Ver. 0.0 Oct. 11, 2004

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28 / 28

www.panelook.com
