LG Electronics USA W2600HS Users Manual

Test Report No.: GETEC-E3-08-026

FCC Class B Class II Permissive Change

APPENDIX H

: USER’S MANUAL

EUT Type: LCD Monitor

FCC ID: BEJW2600HS

User’s Guide

W2600V

Make sure to read the Important Precautions before using the product.

Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your

dealer when you ask for service.

Important Precautions

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Do not Open the Display:

There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

Do not place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen. It can cause injury to human, problem to product and damage the display.

To Prevent Fire or Hazards:

Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. When the display is to be left unattended for an extended period of time, unplug it from the wall outlet. In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous. It can cause electric shock.

Important Precautions

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. Make sure to use a screen saver on the product. Burn-in and related problems are not covered by the warranty on this product.

On Cleaning

Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display

screen because over-spraying may cause electrical shock.

On Repacking

Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of

your local authority.

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

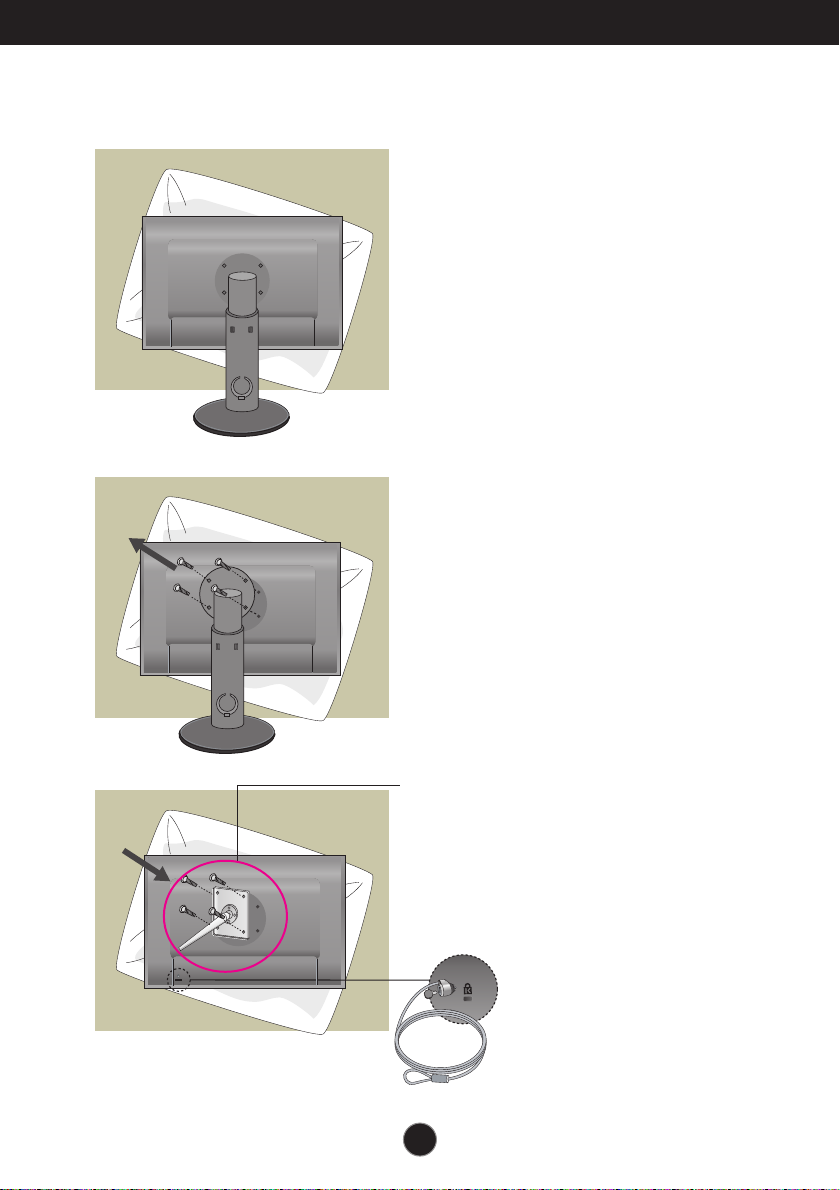

Connecting the stand base or Removing the stand base

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2. Align the hooks on the Stand Body with the matching slots in the Stand Base.

3. Insert the hooks into slots.

Stand Body

Hook

Stand Base

Warning

The tape and locking pin may only be removed from those monitors equipped with a standing base when the base is pulled up. Otherwise, you may be injured by the protruding sections of the stand.

Slot

Connecting the Display

Attach the monitor to the Stand Base by turning the screw to the right.

Screw : Turn the screw by using the screw handle.

Lift and turn the monitor to face towards the front after the connection is made to the female part of the cable you're attaching.

Take the screw out by turning to the left to separate the monitor and Stand Base.

Important

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range : -5˚~20˚ Swivel Range : 350˚

Height Range : maximum 3.94 inches (100.0mm)

100.0mm

* Please be sure to

remove the Locking pin to adjust the height.

Ergonomic

You do not need to replace the Locking pin after it is removed, to adjust its height. It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.

Connecting the Display

Using the Computer

1. Make sure to turn off the computer and product.

Connect signal input cable and power cord in order, then tighten the screw of the signal cable.

Connect D-sub Cable (PC)

Connect D-sub Cable (Mac)

Connect DVI-D Cable

Connect HDMI Cable

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown. User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain standard compliance for the product.

Power Cord

Wall-outlet type

AV equipment

(Set-Top Box,

DVD, Video, Video Game

Console)

DVI-D(This feature is not available in all countries.)

Signal Cable

Varies according to model.

MAC

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin high

density (3 row) D-sub VGA connector on the

supplied cable to a 15 pin 2 row connector.

Mac adapter

Connecting the Display

RGB

DVI

INPUT

HDMI

2. Touch the power button on the front of panel to turn

the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed

automatically. (Only RGB Mode)

NOTE '

Self Image Setting Function'? This function provides the user with optimal display settings.When the user

connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.

'AUTO/SET Function'?

or tilted screen while using the device or after changing screen resolution, touch the AUTO/SET function button to improve resolution.

When you encounter problems such as blurry screen, blurred letters, screen flicker

3. Touch the SOURCE button at the front side of the monitor.

Power button

When connecting with a DVI signal input cable.

• Select DVI : DVI digital signal.

When connecting with a D-sub signal cable.

• Select RGB : D-sub analogue signal.

When connecting with a HDMI cable.

• Select HDMI

INPUT

RGB

DVI

HDMI

Connecting the Display

Connecting the USB(Universal Serial Bus) Cable

"USB (Universal Serial Bus)" is an innovation in connecting your different desktop peripherals

conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and

other peripherals to your display instead of having to connect them to your computer. This will give you

greater flexibility in setting up your system. USB allows you to connect a chain of up to 120 devices on a

single USB port; and you can “hot” plug (attach them while the computer is running) or unplug them while

maintaining the Plug and the Plug auto detection and configuration. This display has an integrated BUS-

powered USB hub, allowing up to 2 other USB devices to be attached it.

1. Connect the upstream port of the display to the downstream port of the USB compliant

PC or another hub using the USB cable. (Computer must have a USB port)

2. Connect the USB compliant peripherals to the downstream ports of the display.

USB downstream Port x (4)

Connect the cables from USB compliant peripherals-such as mouse, memory stick or USB hard disk

, etc.

USB upstream Port x (1)

Connect to downstream connectors of desktop or laptop computers. (However, the computer must support USB and have the USB port.)

The monitor’s USB terminal supports USB 2.0 and High Speed cables.

High Speed Full Speed Low Speed

Data Rate 480Mbps 12Mbps 1.5Mbps Power 2.5W 2.5W 2.5W

Consumption

NOTE

To activate the USB hub function, the display must be connected to a USB compliant PC(OS) or another hub with the USB cable(enclosed).

When connecting the USB cable, check that the shape of the connector at the cable side matches the shape at the connecting side.

Even if the display is in a power saving mode, USB compliant devices will function when they are connected the USB ports(both the upstream and downstream) of the display.

(Max,each Port) (Max,each Port) (Max,each Port)

Connecting the Display

To arrange the cables

Connect the power cord and the signal cable as shown in the figure and then fix them to the cable holders 1 and 2.

1. Please insert the cable holder1

into the hole.

Cable holder 1

2. Please put the power cord and

the signal cable in the cable holder 1.

3. Please put the power cord and the signal cable in the cable holder 2.

While pressing the bottom of cable holder 2 with one hand, pull the top of it with the other hand as shown in the picture.

Pull

Press

Cable holder 2

Control Panel Functions

Front Panel Controls

Button

MENU Button

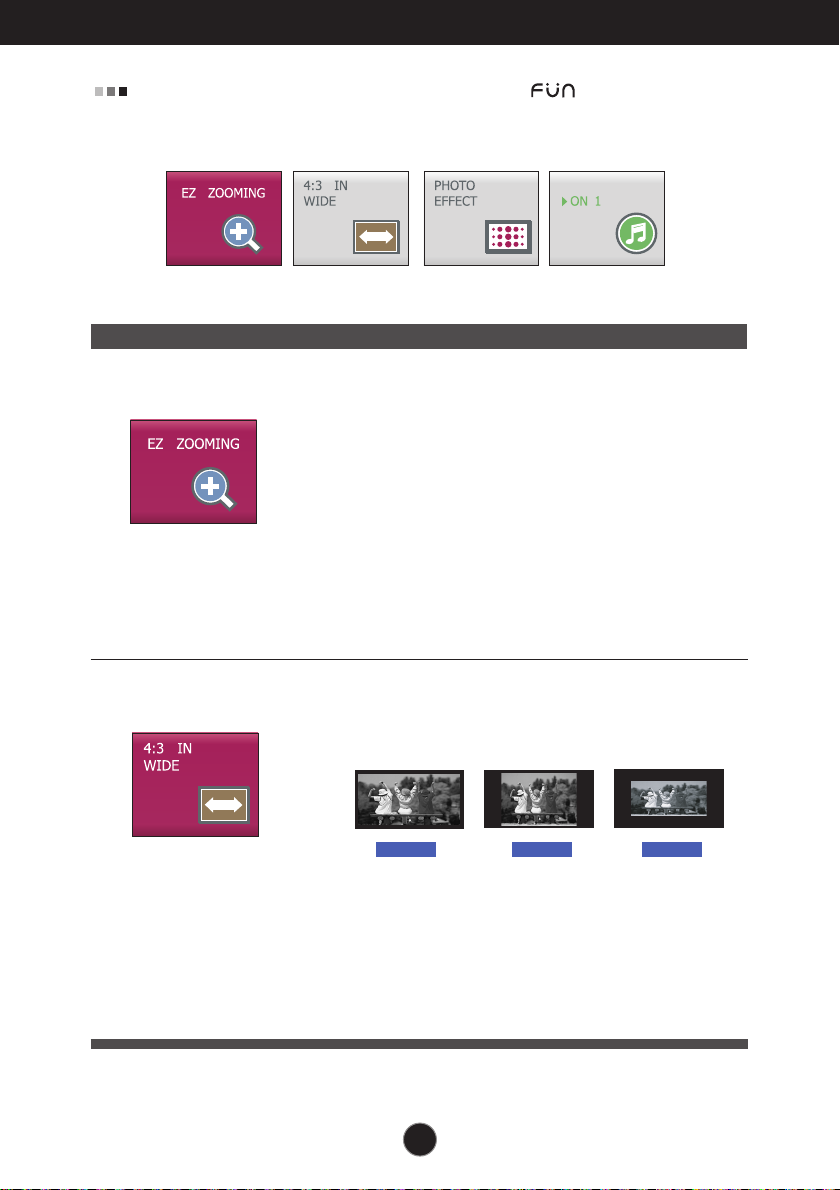

Use this button to enter EZ ZOOMING, 4:3 IN WIDE, PHOTO EFFECT, SOUND items, for more information,

refer to page 19 - 20.

Use this button to enter On Screen Display Sub-menu to adjust BRIGHTNESS directly.

Use this button to enter or exit from the On Screen Display.

OSD LOCKED/UNLOCKED

This function allows you to lock the current control settings, so that these settings are not inadvertently changed. To lock the OSD settings, press and hold the MENU button for several seconds. The message "OSD LOCKED" appears.

You can unlock the OSD settings at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" appears.

Control Panel Functions

RGB

DVI

INPUT

HDMI

Buttons

(SOURCE Hot key)

AUTO/SET Button

Use these buttons to select or adjust functions in the On Screen Display.

For more information, refer to page 21.

Use this button to make D-Sub or DVI connector active. This feature is used when two computers are connected to the display. The default setting is D-Sub.

Use this button to enter a selection in the On Screen Display.

AUTO IMAGE ADJUSTMENT

When adjusting your display settings, always touch the AUTO/SET button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).

The best display mode is

1920 x 1200

Power Button

Power Indicator

Use this button to turn the display on or off.

This Indicator lights up blue when the display operates normally(On Mode). If the display is in Sleep Mode (Energy Saving), this indicator color changes to amber.
