LG Electronics USA TU50PY22, 50PX4DRUA User Manual

60 Plasma TV
Operation
Recorded TV
Recorded TV
On playing the recorded program, edit a section
On playing the recorded program, edit a section
- You can save the desired screen in the recorded program list after editing the recorded program..
1. At the point of desired start , press the button.
• The progress bar which be editied will be showed the red color.
FF or GG), pause while editing the section.
2. At the point of desired finish , press the button.
• Stop editing the section.
3. Repeatedly play the above 1,2 phase, it can be possible to edit some programs.
4. If you press the button to stop the recorded program playback, this message is displayed as shown below.
Save: Save contents of editing the section and finish the playback
of recorded program.
Undo: Don’t save contents of editing the section and finish the
playback of recorded program.
Cancel: The screen is disappeared and the playback is continued.
Notes:
• It can be possible to play on the recording / reserved recording
• It can be possible to occur a noise by a hard-disk on playing the recorded program. The noise is irrelevant the profi­ciency and creditability of product, the noise occurred more than adequate is the same as good product.
• In case saving the content of editing the section, delete the portion not to select.
• When power off on editing, It can be possible not to save the content of editing. You do press the STOP (
JJ
) button
after checking the recording list.
• Editing the section can be possible to the maxium of 10.
• You can not save editing of less than 10 seconds.
Owner’s Manual 61
v
On playing the recorded program, repeat a section
On playing the recorded program, repeat a section
- You can set the section and repeatedly view on playig the recorded program.
1. At the point of desired start, press the button.
• At start points, it is showed as marking .
2. At the point of desired finish, press the button.
• At finiah points, it is showed as marking .
• Repeatedly play the marked section.
• You can not make sections of less than 5 seconds.
• The progress bar which be repeated will be showed the blue color.
3. Press the button to move the position of the start point.
• Return to the start point of marked section and then start the playback.
4. If you press the or button to stop playing the repeat section.
Notes:
It can be possible a function as search (Rew / FF), Pause, edit a section while repeating a section.
• When setting the section of start and finish, it can be possible both of Rew and FF.
62 Plasma TV
Operation
What is Memory Card
What is Memory Card
Precaution for Using the Memory Card
Precaution for Using the Memory Card
Notes on Memory Card
Notes on Memory Card
This is a device equipment to communicate the data between AV external equipment. It’s used to a digital cam­era, camcorder, MP3 player, notebook or PDA.
- Insert the memory card correctly.
- Don’t insert the metal substances into the slots of the memory card.
- Do not bend, drop or apply strong shock to memory card.
- After pulling the memory card out from the TV, please keep the memory stick in a appropriate case to prevent static shock.
- The stored data may be changed or lost as a result of misuse, static electricity.
- Do not turn the power off while using the memory card (loading or erasing).
- Don’t eject the memory card while using the it. Otherwise, it may cause a data loss or card damage.
- Only Insert one card to each slot.
- To prevent a change or loss for stored data, don’t misuse the TV or don’t let static electricity or electrical noise for TV.
- This Company takes no responsibility for problems such as the damage or malfunction that occurs while using the TV set, inappropriate TV settings, or any other reasons, except for defects or malfunctions intrinsic to the product.
- Ensure to use a memory card that lists the manufacturers name and serial number.
- The manufacturer shall not be responsible for damaged data. Be careful to avoid data damage, and back up your files.
- Make sure to comply with the following steps when ejecting a memory card.
- Each Memory Card is complied with standard.
Owner’s Manual 63
Operation
W
W
Inserting a Card
1. Insert the Memory Card to Memory card slots of TV side panel.
2. Two slots support defferent types of the Memory Cards.
3. If Memory Card is not inserted, each slot is disable.
W
W
Ejecting a card
1. Press the M/C EJECT button on the remote control.
2. Select the
Slot 1 or Slot 2 based on the inserted card location.
If selecting
Cancel, OSD is disappeared.
3. Eject the card with the hand.
Note: If you insert or eject a card in one slot while the card in another slot (slot 1 or slot 2) is in use, the product can
run abnormally.
A.
A.
1.Using the Memory Card
Entry Modes- 1.Using the Memory Card / 2. Enter the HOME Menu
Caution: Before you remove the memory card from the slot, do
not forget to press the M/C EJECT button on the remote control and make it safe to eject the memory card, or the memory card may be damaged.
How to insert and eject the Memory Card
How to insert and eject the Memory Card
label-side
upward
50/60PY2DR
50PX4DR
64 Plasma TV
Operation
Memory Card type and Memory Card capacity
Memory Card type and Memory Card capacity
- 9 types of Memory Card can be used for this Plasma TV.
- Playback speed can vary dependent on the card type.
-Unsupported or damaged photo or music files can cause errors. Do not try to change the file extension of unsupported file --
-types to the file extension of supported file types.
Slot 1 Slot 2
CF (CompactFlash) : 4GB
MD (Microdrive) : 4GB
CF+|| (MagicStor) :2.2GB
*MagicStor Plus card is not is complied
with the TV.
SD (Secure Digital) : 1GB
MMC (MultiMedia Card) : 1GB
MS (Memory Stick) :128MB
MS Pro (Memory Stick Pro) : 1GB
SMC (Smart Media Card) : 128MB
xD (xD-Picture Card) : 512MB
CompactFlash
Microdrive
magicstor
SmartMedía
M
EMORY
S
TICK
PRO
Secure Digtal
TM
xD-Picture Card
MultiMediaCard
TM
MEMORY STICK
Notes on Memory Card
Notes on Memory Card
Owner’s Manual 65
Operation
1. In
HOME menu, use
D / E
button and then use the ENTER or
G button to select the Photo List .
2. Use
D / E
button to select the HDD/ Memory Card 1/
Memory Card 2 and then you will see a screen filled with
thumbnail photos (pic.C,D).
A.
A.
-2.
Enter the HOME Menu
Enter the HOME Menu
- When you press the button, HOME menu is displayed.
It’s available to playback and copy the Photo file of Memory Card.or HDD.
The total storage space of photo file is 10GB.
- When you plug the Memory Card, this screen is displayed, automatically.
B.
B.
C.
C.
1. Press the F / G button to select Photo/Music. and use
D / E
button to select Slot1 or Slot2.
2. Press ENTER button to move to Photo List/Music List of the each slot. (Directly move to p.59,(C))
Note: In 30 seconds later, 'Loading" message is disappeared.
Photo List
Photo List
Select the Photo or Music
Select the Photo or Music
66 Plasma TV
Photo List
Photo List
Operation
C.
C.
3. Select the desired folder in the folder list and then press the ENTER button to view the detailed menu.
Create: Create new folder.
Delete: Delete folder (except ‘My Photo' )..
Rename: Edit folder name.
Cancel: Close the detailed menu.
D.
D.
-> Use the
D / E /
F / G
button to input the wanted name.
-> And then select
OK
and press the ENTER button to save.
E.
E.
Screen Components
Screen Components
Usable HDD
Folder List
Current page/Total page
Marked thumbnail photo number
Direct Buttons
B.
B.
Usable Card memory
Card type
Folder List
Folder List
Owner’s Manual 67
Operation
- As shown, up to current thumbnail photos listed per page.
1. Use the CH
D / E
button to navigate in the thumbnail photo page.
2. Use MARK button to mark or unmark a photo. When one or more photos are marked, you can view or slide show only
the marked ones. If no photo is marked, you can view or slide show all photos in the folder.
3. Use
D / E
/ F / G
button to navigate the appropriate thumbnail photos, then press the ENTER button to show the PopUp
menu
View: Display the selected item.
Change from still image to slide show by pressing the PLAY (
G) button.
Slide Show: Start a slide show of all photos in the folder. The slide show state can be changed to the view state by
pressing the PAUSE (||) button. Before start a slide show, you can choose the slide show interval (3,6 or 9 seconds).
Mark All: Mark all photos on the screen.
Unmark All: Unmark all marked photos.
Move: Only HDD mode, move the selected photo of this folder to another folder.
Delete: Delete the selected thumbnail photo. This menu is only available in HDD mode.
Copy to M/C: Copy the selected photo in the HDD to the Memory Card.
This menu is only appeared in HDD.
Copy to HDD: Copy the selected photo in the Memory Card to the HDD. At this time, you can also make new folder.
This menu is only available in Memory Card mode.
Cancel: Close the pop-up menu.
4. Repeatedly, press EXIT button to return to TV viewing or press button to return to the previous menu.
FF.
.
or
HDD mode
Memory Card 1or 2
Photo Selection and PopUp Menu
Photo Selection and PopUp Menu
68 Plasma TV
Operation
1. Use
D / E
button and then use the ENTER button or G button
to select the
Music List .
2. Use
D / E
button to select the HDD/ Memory Card 1/
Memory Card 2 and then you will see a list of music titles
(pic.C,D).
A.
A.
- Purchased MP3/music files may contain copyright restrictions. Playback of these files may not be supported by this
model.
- When you press the button,
HOME menu is displayed.
It’s available to play and copy the Music file of Memory Card or HDD.
The total storage space of music file is 10GB.
Music List
Music List
Screen Components
Screen Components
Usable HDD
Folder List
Current page/Total page
Marked music title number
Direct Buttons
B.
B.
Usable Card memory
Card type
Current playing time/Total playing time
Owner’s Manual 69
Operation
C.
C.
3. Select the desired folder in the folder list and then press the ENTER button to view the detailed menu.
Create: Create new folder.
Delete: Delete folder (except ‘My Photo’).
Rename: Edit folder name.
Cancel: Close the detailed menu.
D.
D.
-> Use the
D / E /
F / G
button to input the wanted name.
-> And then select
OK
and press the ENTER button to save.
E.
E.
FF.
.
or
HDD mode
Memory Card 1or 2
- As shown , up to 8 music titles are listed per page.
1. Use the CH
D / E
button to navigate in the music titles page.
2. Use MARK button to mark or unmark a music title. When one or more music titles are marked, the marked music will
be played by turns. For example, if you want to hear only 1 music repeatedly, just mark the music only and play it. If no music title is marked, all the music in the folder will be played by turns.
3. Use
D / E
/ F / G
button to navigate the appropriate music titles, then press the ENTER button to show up the pop-up
menu.
Music title Selection and PopUp Menu
Music title Selection and PopUp Menu
Folder List
Folder List
70 Plasma TV
Operation
Play: Play the selected music.
Stop Play: Stop playback.
Play With Photo: Start playing the selected music and then move to the Photo List.
Mark All: Mark all music titles in the folder.
Unmark All: Change marked musics to unmarked music titles.
Move: Move the selected music titles of this folder to another folder.
Delete: Delete the selected music titles. This menu is only available in HDD mode.
Copy to M/C: Copy the music titles in the HDD to Memory Card.
This menu is only available in HDD mode.
Copy to HDD: Copy the selected music titles in the Memory Card to the HDD. At this time, you can also make new
folder. This menu is only available in Memory Card mode.
Cancel: Close the pop-up menu.
4. Repeatedly, press EXIT button to return to TV viewing or press button to return to the previous menu.
- If you don't press any button for 40 seconds, the play information box (as shown in the below) will float as a screen saver.
Notes:
• When music is playing, is displayed in front of the music title.
• If you press any button except VOL
DD/E
, MUTE,
G
, II,
Å
, I
FF,GG
I buttons, screen saver is stopped.
• T
he
G
, II,
Å
, I
FF,GG
I buttons on the remote control are also available in this mode.
* The ‘Screen Saver’? Screen saver operates to prevent fixed image.
Music List
Music List
Owner’s Manual 71
Operation
- This function allows the unit to automatically record live TV and make it available for reviewing at any time. With Auto Buffering turned on, you may pause and rewind normal TV viewing at any time without missing any of the live broadcast.
1. Press the MENU button and then use
D / E
button to select the OPTION menu.
2. Press the
G button and then use
D / E
button to select Advanced.
3. Press the
G button and then use
D / E
button to select the TimeShift Mode.
4. Press the
G button and then use
D / E
button to select On or Off.
1. After selecting the
TimeShift Mode On, press the ENTER button. .
• As soon as Timeshift starts, a progress bar indicating current recording status is displayed in the bottom of the screen. ( Timeshift ‘Progress Bar’ is shown below)
• Press the EXIT button to hide the ‘Progress Bar’. Pressing the ENTER button will display the 'Progress Bar'.
• Stay The TimeShift even change a channel on Timeshift.
1
2
* The ‘Progress Bar’? This function indicates a possible PVR reshowing section ,a current on-screen and real on-broadcast­ing position, a section of section­recording.
1. Indicates status of current displayed video.
2. Indicates current save time.
3. Indicates 15 minute intervals from Timeshift start time. (Total - one hour).
4. Indicates Timeshift elasped time.
5. Indicates current Timeshift position.
5
4
3
TTimeShift
imeShift
Progressing the
Progressing the TT
imeshift function
imeshift function
72 Plasma TV
Operation
- If you wish to return to a initial portion of Timeshift, press the button.
- On progressing Timeshift, It can do a diversified playing .
Notes:
•PVR (Personal Video Recorder) : A device which records and plays broadcast program contents onto a hard disk in TV or SET TOP BOX.
•If available hard-disk space is low when TimeShift is initiated, It will disappear automatically from the oldest part.
•In order to save hard-disk space, no storage is done when there is no signal.
•The total storage space of hard-disk is 160GB, there are 10GB minimum reserved for TimeShift.
•When turning power on, it may take up to 3 minutes to initialize the HDD.
•The TimeShift function will not initiate for a copy-protected program.
•Because an analog broadcast is transfered to a digital signal, video that contains rapid movement may show "cross stripes". This happen when the analog signal is compressed and then restored in the digital signal. The unit will attempt to soften the video in order to reduce this effect of excessive picture noise.
•When using the PIP/POP mode, Component 1/2 TimeShift is stopped.
2. When finishing the Timeshift function, enter the Menu and then
Timeshift Mode is to be Off.
Indicates that the current broadcast and displayed video differ.
On progressing the
On progressing the TT
imeshift, play
imeshift, play
W
W
Using the remote control
- When playing, press the REW (FFF ) or FF (GG) button.
• Like -> -> -> -> in a row.
2 times 5 times 20 times 50 times 300 times
• If the button is pressed continuously, it changes like above. If the button is taken away, it changes a normal playback.
• If you wish to return to the current live broadcast, press the button. (Indicator will change to LIVE)
- You can shift playback to any point within playing the recorded program
- During playback, press the Pause ( II ) button.
• Still screen is displayed.
• Repeatedly press the Pause ( II ) button to advance frame by frame.
• When pressing the Pause ( II ) button, longly, will be showed.
• If you press the
D / E
button on piaying, the screen will be jumped back and forth
in the current screen.
• Pressing the
D
button, the screen will be jumped 20 seconds in the front.
• Pressing the
E
button, the screen will be jumped 8 seconds in the back.
• After moving the cursor using the
F/G button on playing, the point of the cursor is
directly viewed on the sereen.
- Press the PLAY (G) button to return to a normal playback.
TTimeShift
imeShift
Owner’s Manual 73
Operation
- This function is able to record channel watched on main screen of an Analog or Digital broadcasting.
- This function records the currently displayed channel.
1.Select the desired channel to record while watching program and then press the RECORD (
Ó) button.
2. Use the
F / G button to select the OK ( as shown below A.) or Options or Stop Record. If you select the OK or press
the RECORD (
Ó) button in the TV mode, recording will start as marking, and recording will begin with basic
settings.
3. You can select the
Stop Record to stop the recording.
4. You can set the duration of the recording by selecting
Options and then ENTER button, then the recording time is dis-
played. Press the
F / G repeatedly to adjust the recording length. Each press of F / G button changes the recording
duration in the sequence shown below.
30min -> 1hour -> 1hr 30min -> 2hr -> 2hr 30min -> 3hr
A.
B.
Recording
Recording
Instant Record
Instant Record
74 Plasma TV
Operation
Recording
Recording
6. After adjusting the recording time, select OK and the progress bar will be displayed.
Total recording duration
Elapsed recording time
• Press the EXIT button to hide the Progress Bar. Press the ENTER button to display the progress bar.
7. Press the STOP (
V ) to stop recording, or, when the recording duration is reached, the HD DVR will stop recording.
Although recording has stopped, the Timeshift features remain active.
Notes:
•When recording, if the available storage space becomes low, the recording will be automatically end.
•If power is interrupted or turned off too soon after recording, the program may not be saved. Therefore, first press the (
V
) button and confirm the recording list, before powering the unit off.
•If you press the POWER button while recording, the Screen Saver will initiate and recording will continue.
•Recordings of less than 10 seconds will not be saved.
•To save the disk space while recording analog or digital screen, no data is saved when no signal is present.
•The recording function will not initiate for a copy-protected program.
•After recording, marked times may be somewhat different from actual times.
•In no signal or film source, marked times may be different from actual times.
C.
5. You can also add recording time by pressing the RECORD (
Ó) button during the Instant Record. Press the FF / G repeat-
edly to add to the recording time. Each press of
F / G button changes the recording duration in the sequence shown
below.
No Change -> +10min -> +20min -> +30min -> +40min ->+50min -> +1hr
The extra recording time added to existing setting value makes final recording time length.
Owner’s Manual 75
Operation
Record
- While recording, you can change channels or inputs, without disturbing the recording. And the screen being recorded will be shown in the lower-right corner of the main screen.
1. After starting an Instant Record or Reserved Record, change the channel or input.
•You can check the screen being recorded in the lower-right corner the main screen (as shown below).
•Press the PIP button to cancel or show the screen being recorded.
•Press the SWAP button to return the screen being recorded in Watch & Record.
•When changing to the channel being recorded in Watch & Record, screen is changed to Instant Record state or
Reserved Record state.
screen being recorded
Watch & Record Input
0
X
0
0
Digital
Analog
Video
Front Video
Component1
RGB-PC/DTV
HDMI1/DVI
Digital Analog Video Front Video
00
00
00
00
00
00
00
00
00
00
00
0
0
00
00
Watch
Note: When digital broadcast is being recorded, another digital broadcast can not be tuned.
WWatching & Record
atching & Record
- if you turn the power off on recording, this message is displayed as shown below.
- If you selects Yes , recording stops and then power is off.
And if you selects
No, recording stops and then power is off.
HDMI2
00
00
Component2
76 Plasma TV
Operation
Overview
- Your new TV contains the TV Guide On Screen Interactive Program Guide.
-
The TV Guide On Screen system has features that help you get the most out of your viewing experience.
TV Guide On Screen Overview
The TV Guide On Screen system has the following features:
•Eight days of show listings (today plus seven days).
•Icons that indicate show rating, stereo, HDTV, new episode, etc.
•Intuitive up/down/left/right navigation using your remote control.
•Set shows to Record.
•Schedule show Reminders.
•Search shows by category (e.g., Movies, Sports, Children, etc.).
•Search for shows based on keywords or alphabetically by title.
•Direct tuning to a channel.
•Show information while watching TV.
•Streamlined System Setup and default setting options.
•Channel lineup customization.
•Help screens while in the Guide.
TV Guide On Screen
TV Guide On Screen
TM
System
System
Owner’s Manual 77
Operation
Screen Components
- The screens displayed in the TV Guide On Screen system share many of the same compo-
nents, as shown in the following figure:
Video Window - displays TV video while the Guide is displayed
•Service Bar - provides access to the 5 main Guide Services
•Current Service Label - indented to indicate current Service displayed
Tile - displays show title
Highlight - indicates an active tile
Info Box - provides information for a highlighted item
•Info Button - cycles through the various Info Box sizes
•Channel Logo - identifies network
•Record/Remind Icons - indicates a show is set to Record or set as a Reminder
•Panel Ad - location where show- or product-specific information appears (and also where Panel Menu appears)
78 Plasma TV
Operation
•A Panel Menu appears when the Menu key is pressed on a highlighted tile and additional options are available. It also
appears when you press ENTER on a show starting in the future.
•When a Panel Menu appears, the highlighted tile changes color to indicate the Panel Menu relates to this tile.
•The Panel Menu displays below the Video Window.
•Help is available for a displayed Panel Menu by pressing the INFO button.
•The
D / E
button move between the options within the Panel Menu.
•The left and right arrows move to adjacent options unless the highlight is on an odometer, where these arrows change the
odometer choice.
•Pressing ENTER from an odometer or number entry box moves the highlight to the default command button of that Panel
Menu, for example, Schedule Reminder.
•Pressing ENTER from a highlighted command button executes the action and closes the Panel Menu (e.g., Schedule
Reminder, Cancel).
•Select Cancel to cancel any changes and press ENTER to close this menu.
•Pressing Menu is a shortcut to Cancel. Press Menu to cancel any changes and close the menu.
•If a Panel Menu contains more menu options than can be displayed on a single screen,
D / E
button appear at the top or
bottom of a menu. Simply scroll down to access these options.
Panel Menu
TV Guide On Screen
TV Guide On Screen
TM
System
System
Owner’s Manual 79
Operation
- Access Listings by pressing the TV Guide button on your remote or on the front panel of your TV.
- Listings is always the first Service displayed in the Guide.
- With Listings highlighted, press the Info button to display a Help screen.
Press the Info button again to close the screen.
•View 8 days of show listings
•Read show descriptions
•Tune directly to a show currently airing
•Set a show to Remind
•Set a show to Record
•Lock and unlock the Video Window
•Access Panel and Channel Ads
Use the
D / E
/ F / G
buttons to move the highlight
within Listings to:
Main Services
Notes: There may be times when the TV Guide On
Screen system could display partial or no program list-
ings. The reasons for this include:
Program schedule information was not provided to TV
Guide On Screen.
The transmission of the program listings was inter-
rupted.
The phrase “No Listings” will be replaced with program
information during the next transmission, which should
occur within the next 24 hours.
Please remember to turn off your TV when not in use
in order to receive program listings.
Listings
Listings
80 Plasma TV
Operation

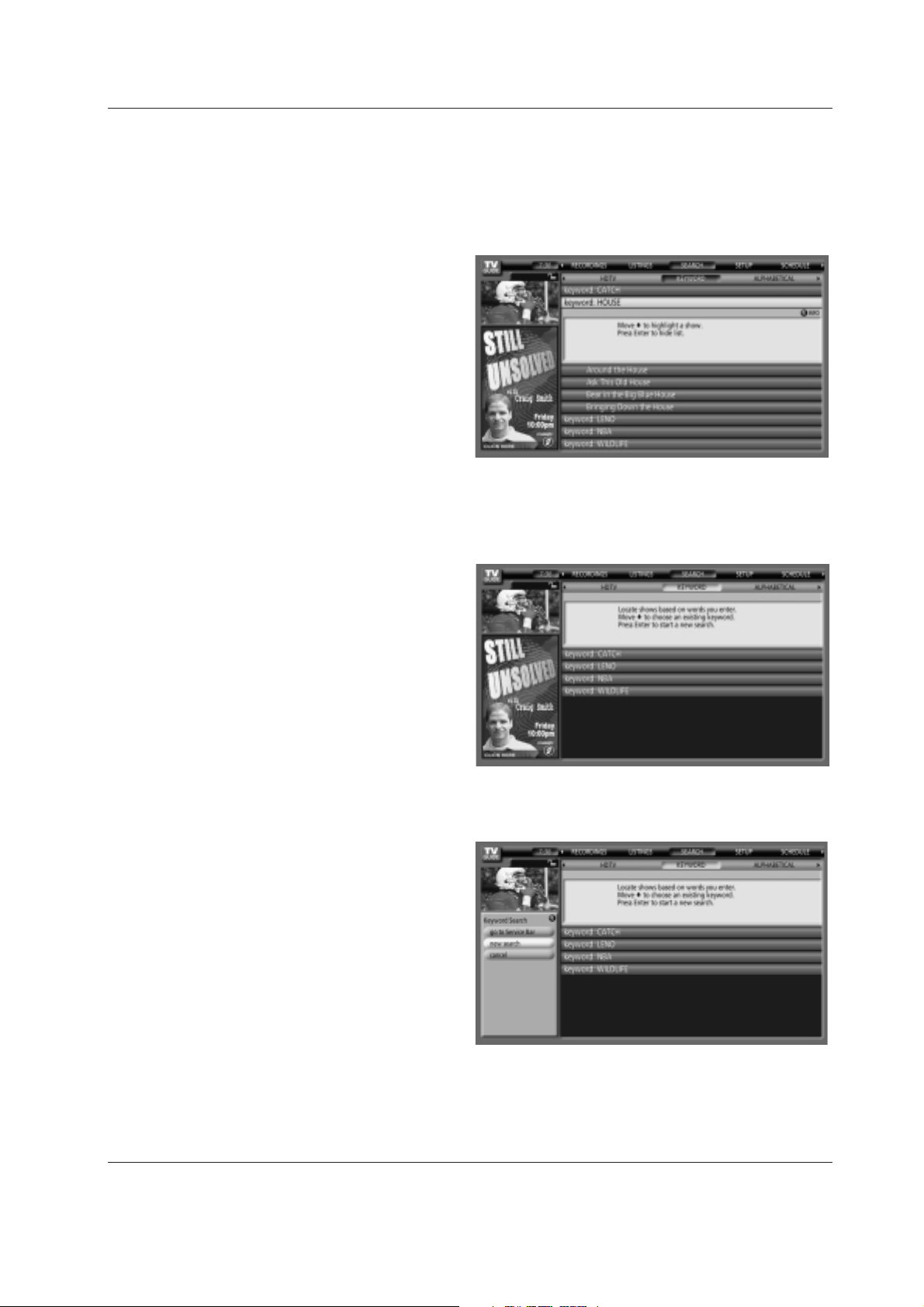

- Search lets you find shows by category (Alphabetical, Movies, Sports, Children, Educational, News, Variety, Series, HDTV) or by
Keyword.
- With Search highlighted, press the Info button to display a Help screen.
Press the Info button again to close the screen.
•Category Search Example: Movies
1. From Search, use the Ebutton to highlight Movies.
Search
Search
TV Guide On Screen
TV Guide On Screen
TM
System
System
Owner’s Manual 81
Operation

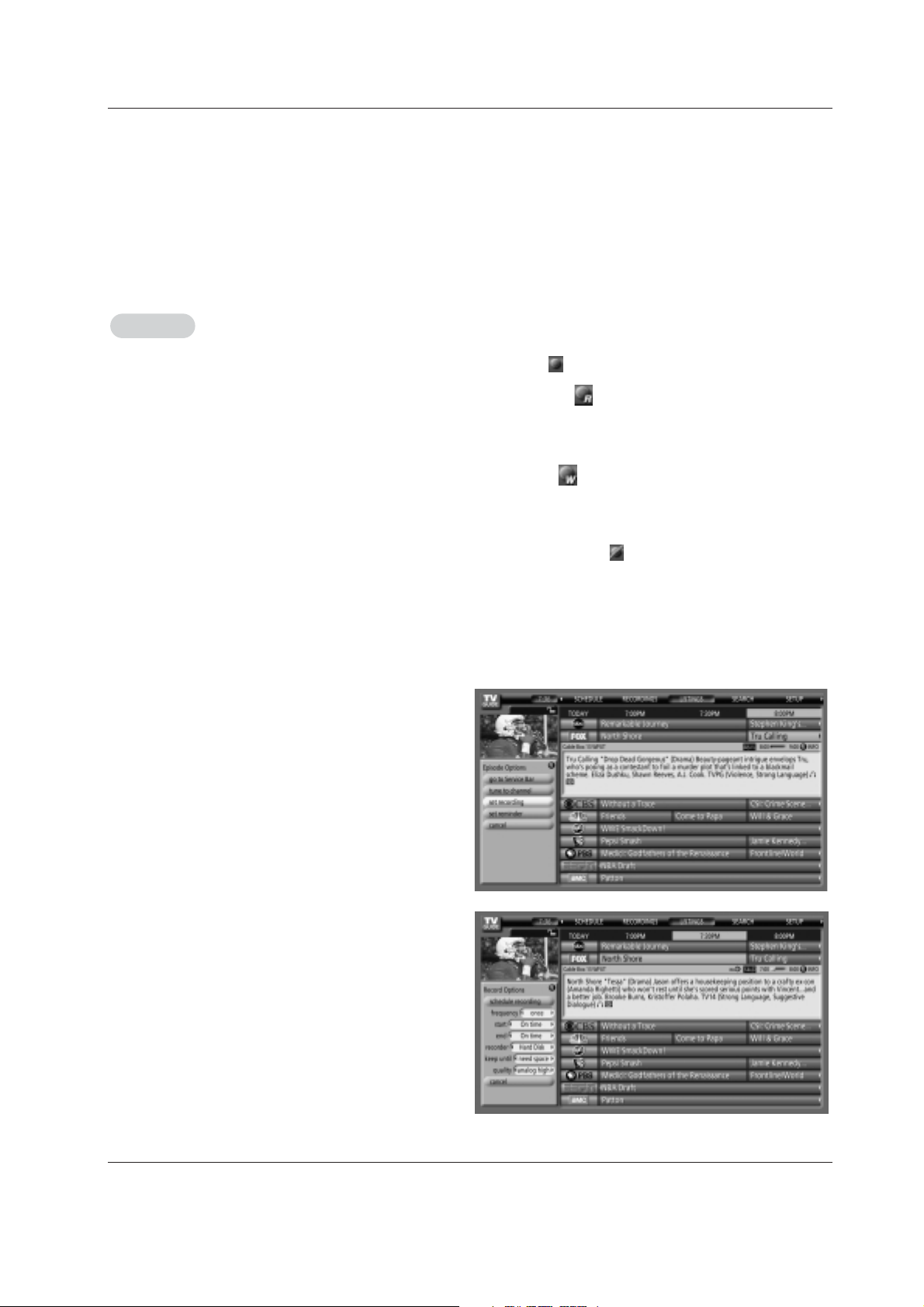

2. Use the Ebutton to highlight a subcategory (for example, All).
3. Press ENTER to display a list of all Movies, organized by date
and time.
You can choose to set a recording, a reminder, or tune to the channel.
4. Highlight a show and press ENTER to watch (if on now) or
the Menu key to display the Episode Options menu.
Go to Service Bar - closes the menu, changes no infor-
mation, and returns to the Search Service Bar.
Tune to Channel - exits the Guide and tunes to the chan-
nel of the highlighted show (show airs in the future).
Note: This option reads Watch Now if the show is cur-
rently airing.
Set Recording - displays the Record Options menu, from
which you can set frequency, start and end time, etc.
Set Reminder - displays the Remind Options menu, from
which you can set frequency, when, automatically power
On, and auto-tune the TV.
Cancel - closes the menu, changes no information, and
returns to the highlighted show.
+ 51 hidden pages
