Using the PC

TIP

The recommended network cable for the optimal network environment is CAT5 or higher.

The network (LAN) cable may be connected when the LAN adapter is used.

The LAN adapter may be separately purchased at LG Service Center.

ENGLISH

Wired LAN

LAN is the network environment that users can connect to by using a cable to connect to their internet providers or the company's network.

Using Wired LAN

Wired LAN is installed with an automatic IP (DHCP) as default value.

Please refer to the following instructions for details on setting up an automatic IP (DHCP) or manual IP.

1 Connect the LAN adapter to the USB Type-C™ port on the PC.

Using the PC

ENGLISH

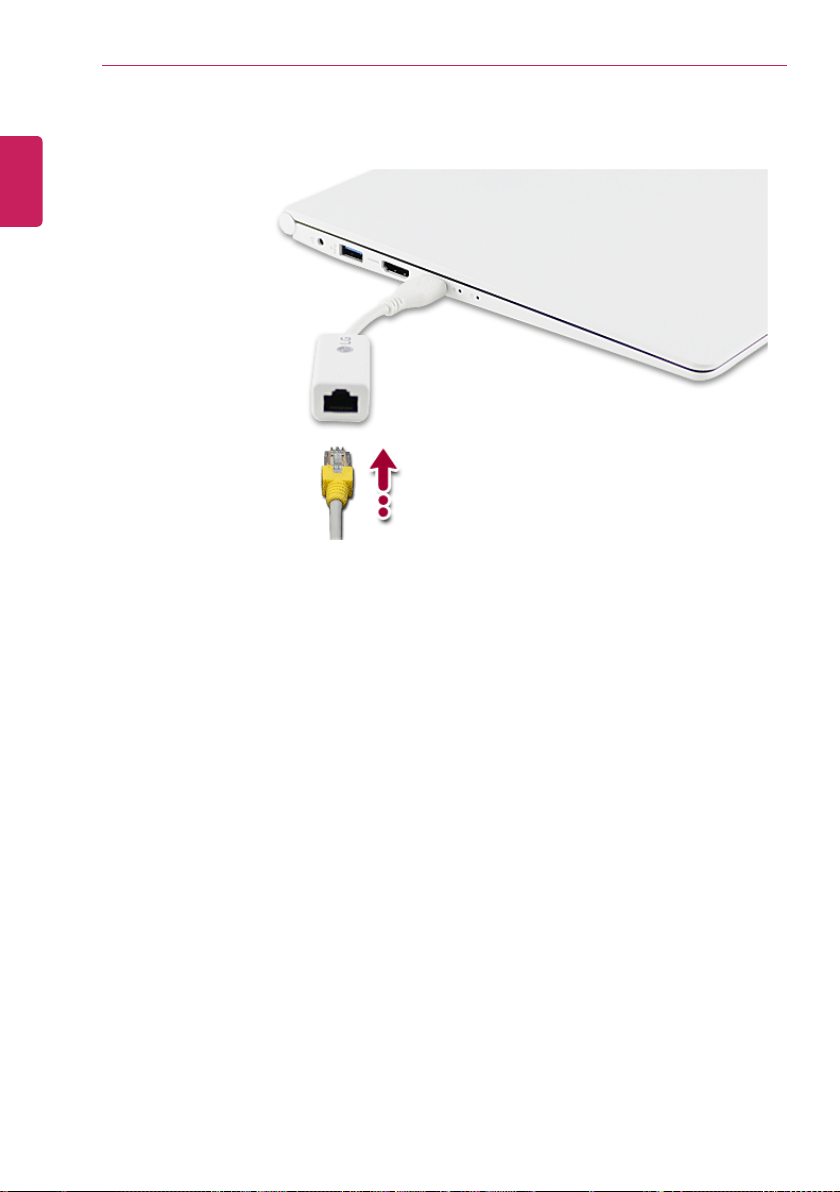

2 Connect the wired LAN cable to the LAN port.

Using the PC

] button and select the Settings menu.

TIP

Press the [

] key or [Ctrl] + [Esc] to display the Start menu.

ENGLISH

3 Press the [

Using the PC

ENGLISH

4 Select [Network & Internet] > [Status] > [Change adapter options].

5 Right-click [Ethernet] and select the [Properties] menu.

ENGLISH

Using the PC

ENGLISH

6 Select Internet Protocol Version 4 (TCP/IPv4) and then click Properties.

Using the PC

8 Press [OK] to complete the network setup. 9 Click the Internet Browser icon to check whether the internet is operating normally.

ENGLISH

7 To use an automatic IP(DHCP), select [Obtain an IP address automatically]. If you wish to use a

static IP, select [Use following IP address] to enter the address. Contact the network service provider or administrator to use a static IP.

Using the PC

OPTION

Wireless LAN is optional. Hence, it may not be installed in some models.

Turning On/Off Airplane Mode

Prior to using the wireless LAN, press [Fn] + [F6] to turn off Airplane mode.

Pressing [Fn] + [F6] keys will turn on or off the Airplane mode. If you are not going to use the product for a while, keep the Airplane mode turned on to reduce the battery power consumption.

Using the Wireless LAN

If an Access Point (wired or wireless router) is in the vicinity of the PC, the wireless LAN can easily be accessed.

During the search for a wireless network (Wireless LAN), various Access Point may be found according to the location where the PC is used.

In case no accessible wireless network (Wireless LAN) is near the PC, no Access Point might be found.

A password protected Access Point cannot be accessed without the correct password.

ENGLISH

Wireless LAN

The wireless network (Wireless LAN) is the network environment that connects a PC with the internet provider or company network through an Access Point (wireless or regular router).

Using the PC

] icon on the right side of the taskbar.

ENGLISH

1 Press the Action Center [

Using the PC

TIP

If Wi-Fi is turned of f, press the [Wi-Fi] tile.

ENGLISH

100

2 Press the [Network] tile to search for a nearby Access Point.

3 Select the Access Point you want to connect to and press [Connect].

ENGLISH

Using the PC

101

Using the PC

5 click the Internet Browser icon to check whether the internet is operating normally.

ENGLISH

102

4 If a connection is established, [Connected] appears below the Access Point name.

Using the PC

Using a Wired/Wireless Router

A wireless / regular router connects several PCs and mobile devices to one internet line and enables the use of internet and the network.

A wireless / regular router has to be bought separately. Refer to the manual provided by the manufacturer for instructions.

Connecting a Wireless or Regular Router

If one internet line is used with a wired / wireless router and several devices are connected, this may result in a slower connection.

In case of a wireless LAN, it is recommended to change the network name and security settings for a more secure connection.

Network speed can differ according to operation environment and specifications.

1 Connect the internet cable of the modem that was provided by your internet provider to the

router's WAN port.

2 Connect all devices (PC, IPTV, internet phone, etc.) with a LAN cable to LAN ports 1 to 4 of the

router.

The number of LAN ports can vary for each router model.

3 Please refer to the manual provided by the router manufacturer for setup of the network and

internet.

103

ENGLISH

Using the PC

Mounting and Using Memor y Card

This product supports one Micro SD slot.

Check the direction and insert the Micro SD into the multi-card slot until it is locked in place as shown in the following figure.

ENGLISH

104

Micro SD Slot

Checking Available Memory Card

This model supports Micro SD memory cards.

• Directly applicable memory cards

Using the PC

TIP

• When the memory card is formatted, the data stored in the memory card will be deleted.

Check whether there are important data before formatting the memory stick.

• To format a memory card, right-click the memory card drive and select Format. When the

Format window appears, press Start to continue.

• If the write protection tab of memory card is locked, the user cannot format the memory

stick nor write or delete the data.

• SD™, MMC™ memory cards can be used only as storage devices and do not support the

Removing Memory Card

Push the card with your finger to make the card spring out of the slot. Remove the memory card.

ENGLISH

105

106

TIP

To safely remove a memory card:

The figures herein may differ by language selection and are subject to change without prior notice.

1 Click Safely Remove Hardware and other Media icon on the right side of the taskbar.

2 Select Remove Multi-Card USB Device to safely remove hardware.

ENGLISH

Using the PC

Using Software

TIP

The figures herein are subject to change without prior notice.

The menus displayed in LG Control Center and its supported functions may differ depending on the model.

Running LG Control Center

Select the [

] button > [LG Software] to run [LG Control Center].

1 Minimize/Exit Button: Minimizes the size of the window, or exits the software. 2 help/info: Runs Help or displays information about the software.

ENGLISH

Using Software

LG Control Center

LG Control Center is a software that helps you to change PC Settings, Power Settings, Windows Security Settings, etc. as well as viewing system information.

107

Using Software

ENGLISH

108

3 System Settings: Sets up the screen brightness / resolution, external display, sound and other

various devices.

4 Power Management: Sets up USB charging, battery status and battery life extension. 5 Windows Security: Sets User Account Control settings and Firewall settings.

6 Instant Booting: You can set the system to automatically boot whenever you open the notebook

PC.

7 System Information: Displays the PC OS in use, processor information and other system

information.

System Settings Screen

You can use this screen to configure various devices in your PC.

Using Software

1 USB Charge Setting: Allows you to set the USB port so that you can perform charging using the

USB port even when the PC is turned off.

2 Battery State: Allows you to measure the battery lifespan so that you can repl ace it timely.

ENGLISH

109

1 Screen: Allows you to set the brightness and resolution of the screen. (This function is not

supported in a model that does not provide the brightness settings in Windows.)

2 External Display: Allows you to configure the connection mode of an external display connected

to the PC.

3 Keyboard Backlight: Allows you to configure the Keyboard backlight. 4 Hot Key Settings: Allows you to set the hot keys so that you can use them without pressing the

Fn key.

5 Sound: Allows you to adjust the volume of the sound or use the mute function.

6 Airplane Mode: Allows you to set the Airplane Mode. (It turns off the wireless LAN).

7 Silent Mode: Allows you to set the fan to the low-speed mode.

8 Touchpad: Allows you to set whether to use the touchpad. (If you select Automatic, the touchpad

is automatically set to "Do Not Use" when you connect a mouse to your PC.)

9 Touch Screen: Allows you to set whether to use the touch screen.

Power Management Screen:

You can check or change the settings related to USB charging or battery.

Using Software

1 User Account Control Settings: Allows you to change the User Account Control settings in

Windows.

2 Firewall: Turns on/off the Windows firewall. (It may not work if other vaccine software is installed

in the PC.)

Instant Booting

You can set the system to automatically boot whenever you open the notebook PC.

ENGLISH

110

3 Extend Battery Life: Allows you to increase the battery lifespan by lowering the battery charging

level to 80% of the battery capacity.

Windows Security Screen

You can change the User Account Control and firewall settings in Windows.

FAQ

Q: Battery status displays “Warning”.

• The battery is a consumable item and its lifespan may decrease depending on the usage frequency

and environment. It is recommended that you visit the LG Electronics service center to have the battery replaced.

ENGLISH

Using Software

111

Using Software

TIP

It may not work properly depending on user preferences (security tools, etc.) and the network status.

You can use the LG Update Center to quickly install the latest drivers, or reinstall any deleted drivers.

Use LG Update Center to keep your system current and optimized.

The figures herein are subject to change without prior notice.

Running LG Update Center

Select the [

] button > [LG Software] to run [LG Update Center].

1 Minimize/Exit Button: Minimizes the size of the window, or exits the software.

2 help/info: Runs Help or displays information about the software.

3 Required Update: Installs critical items that must be applied to the system.

ENGLISH

112

LG Update Center

LG Update Center allows you to install various PC drivers, applications and Windows patches easily.

4 All List: Displays and installs all required items for the system.

ENGLISH

5 Notification Setting: Sets up notifications for online updates for installed items.

Required Update

You can install essential updates and drivers that are necessary for the system.

1 Select the [Required Update] menu.

Using Software

113

Using Software

TIP

All items are selected by default.

All List

You can install all updates and drivers that can be installed in the system.

ENGLISH

114

2 When the Required Update list appears, select the updates to install and press the [Installation]

button.

1 Select the [All List] menu.

ENGLISH

Using Software

115

Using Software

TIP

All items are selected by default.

Notification Settings

You can check the critical updates to set whether to display the notifications for update installation.

TIP

The Auto Update Search function is set to [ON] by default. If you set it to [OFF], the notifications are not displayed.

ENGLISH

116

2 When the list appears, select the updates to install and press the [Installation] button.

1 Select the [Notification Setting] menu.

2 Set [Auto Update Search] to [ON] or [OFF].

ENGLISH

Using Software

117

Using Software

4 Select [Notification List Setup] menu to turn on/off the notification for each item.

FAQ

Q: Is there a way that I can install the drivers and applications easily?

• You can select [Required Update] or [All List] menu in LG Update Center to automatically install

the drivers and applications that you want.

Q: The server connection status is not displayed in the program.

• Check if your PC is properly connected to the wired or wireless LAN.

• Check if Internet connection works properly.

Q: I want to hide the update notifications.

• Select the [Notification Settings] menu and set the [Auto Update Search] to [OFF].

• Select [Notification List Settings] menu to turn on/off the notification for each item.

Q: How can I update the items that are excluded from the notification list?

• You can also install the items that are excluded from the notification list by using the [Required

Update] or [All Lists] menu.

ENGLISH

118

3 Set the [Notification Frequency].

Using Software

TIP

If LG Power Manager is not installed, visit LG Update Center to have it installed.

The menus displayed in LG Power Manager and its supported functions may differ depending on the model.

The figures herein are subject to change without prior notice.

LG Power Manager Tour

Select the [

] button > [LG Software] to run [LG Power Manager].

1 Minimize/Exit Button: Minimizes the size of the window or closes the window.

2 help/info: Runs Help or displays information about the software.

ENGLISH

119

LG Power Manager

LG Power Manager allows you to configure the power settings according to the usage environment to manage the battery efficiently.

Using Software

1 LG Hibernate: Configures the system settings so that you can use the battery for the longest

duration.

2 LG All-day (Recommended): Changes the system settings so that you can optimize the system

performance and use the battery as long as possible. (In the case of a model with standard battery, Recommended is displayed.)

3 Power saver: Saves the energy as much as possible by lowering the system performance.

4 Balanced: Maintain the balance between energy consumption and performance automatically.

ENGLISH

120

3 PC Settings: Allows you to change the PC settings, such as LG Hibernate, LG All-day

(Recommended), Sleep, Balanced, High Performance, and Customized.

4 Settings information: Displays the PC settings, such as System Performance, Energy Saving, Sharp

Screen, Put the Computer to Sleep, Turn off the Display, and Battery Charging. (A touchscreen model does not support the HD Technology.)

Using LG Power Manager

Drag the icon on the left of the screen to select the desired PC settings. Then, press the [Apply] button to apply the PC settings.
