Table of Contents

About this manual . . . . . . . . . . . . . . . . 2

Introduction

Before using the unit for the first time

. . . . .

Safety information for the infotainment system

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview of the control elements

. . . . . . . . .

General information on operating the unit

Audio mode

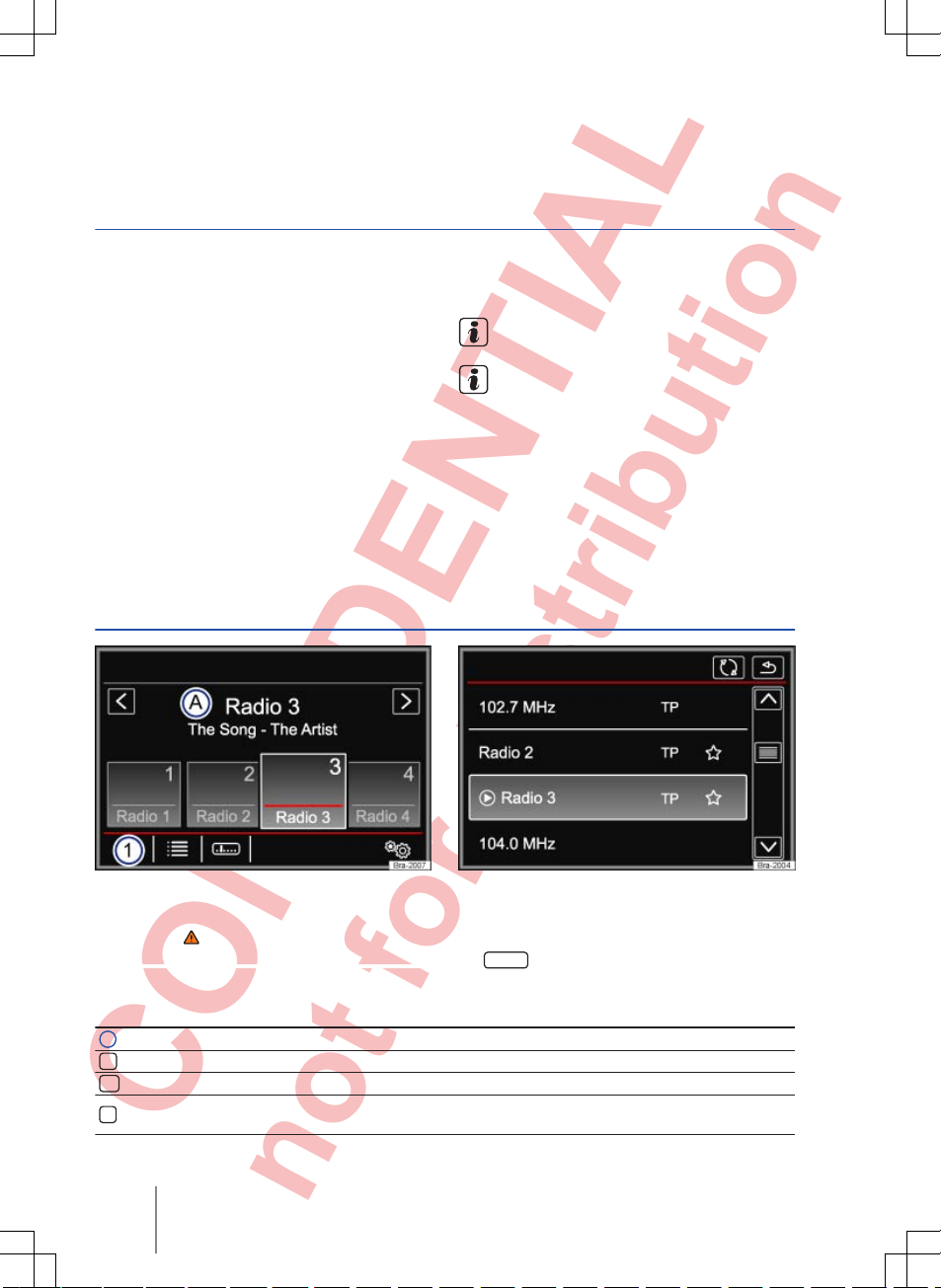

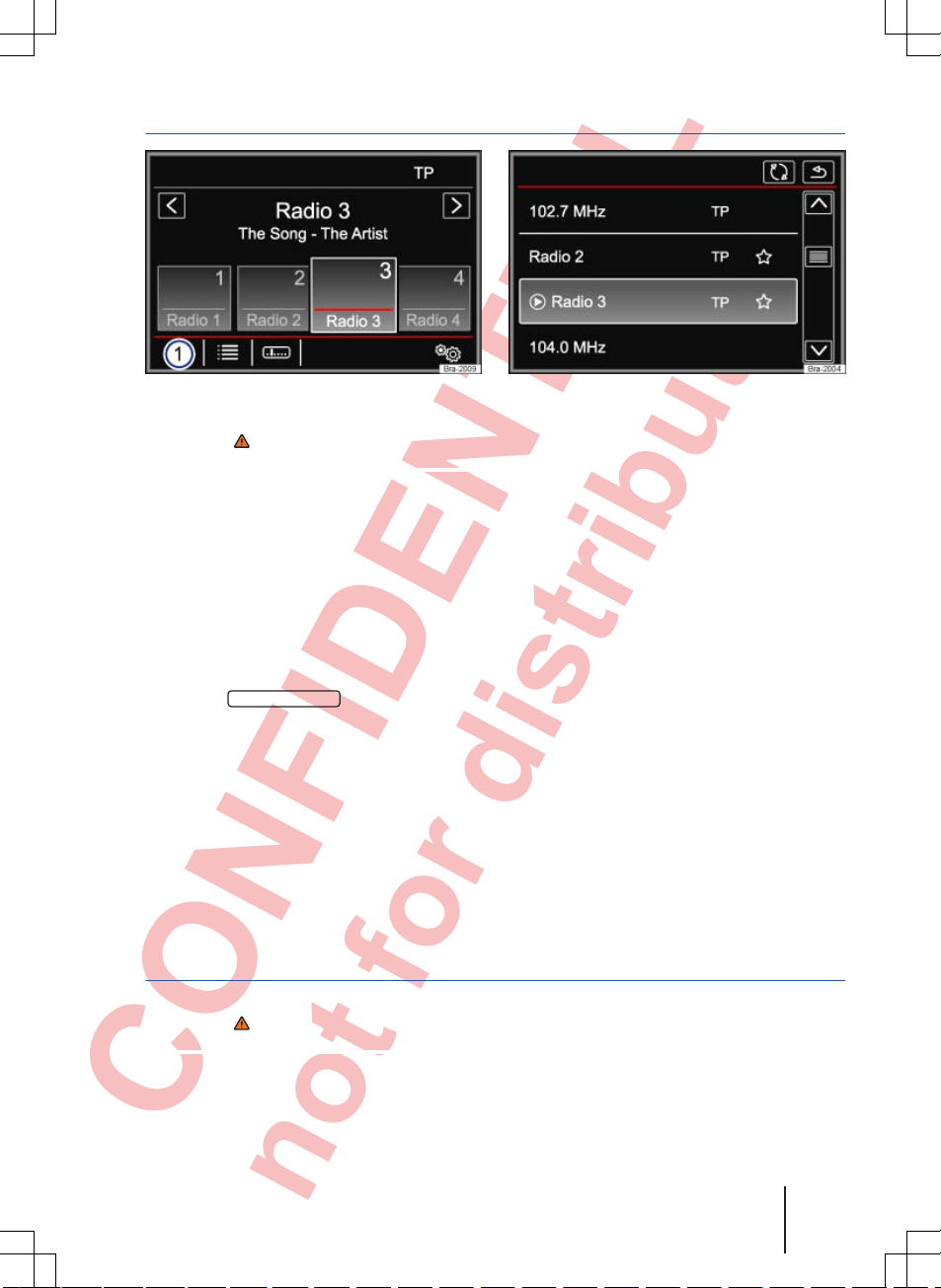

Radio mode

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Media mode

. . . . . . . . . . . . . . . . . . . . . . . . . . .

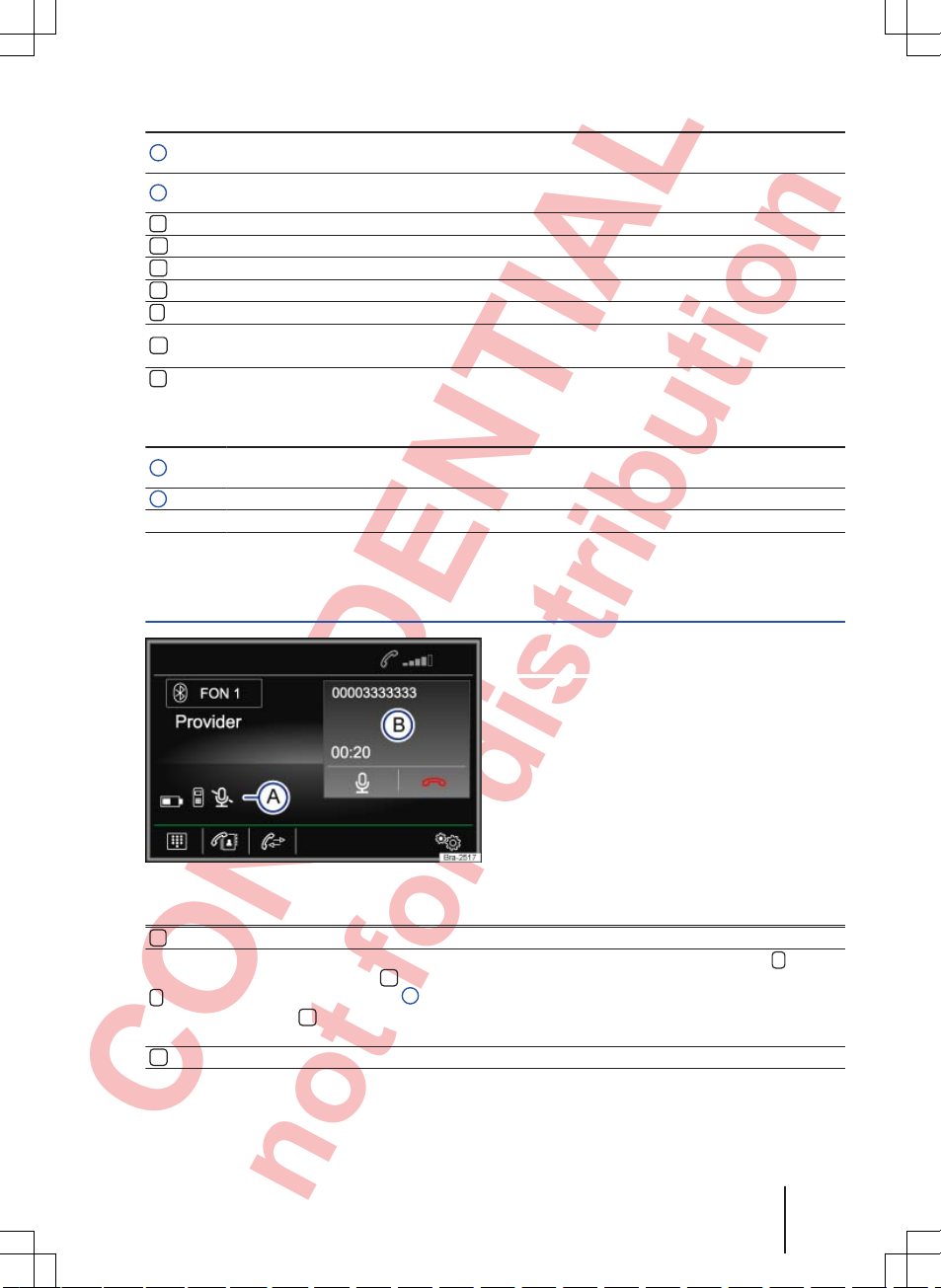

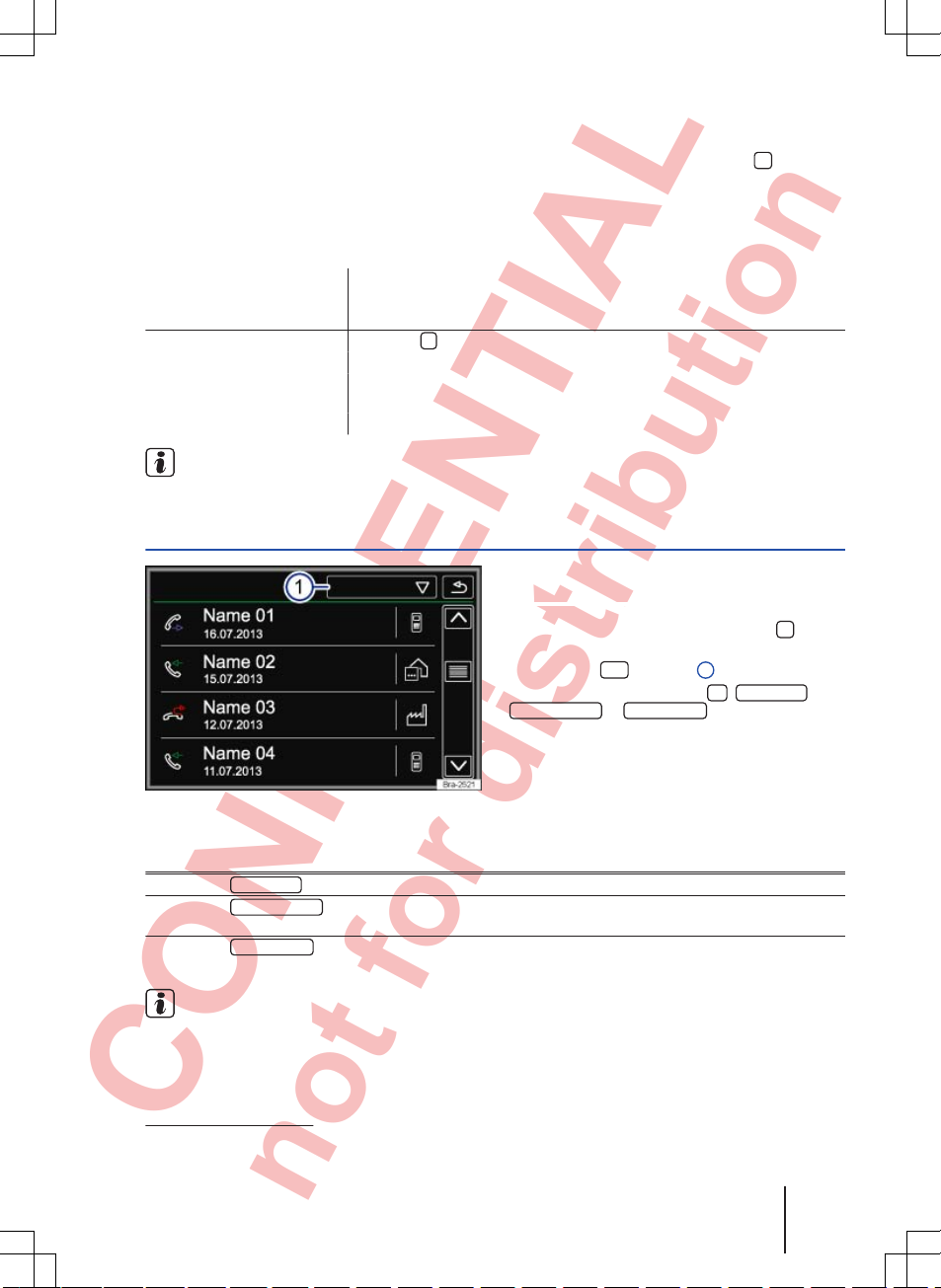

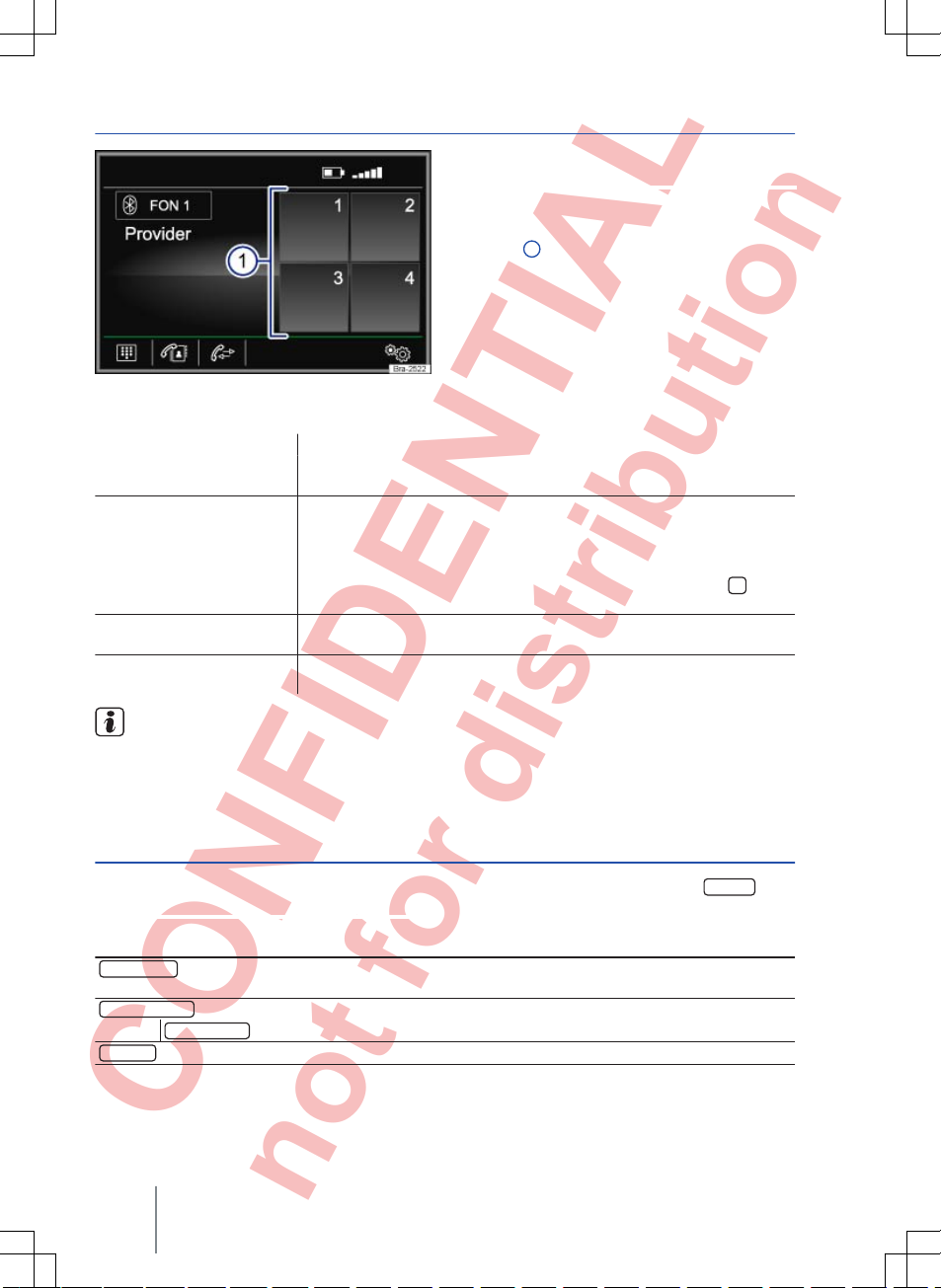

Telephone control (PHONE)

Introduction to telephone control system . .

Description of telephone control system

. .

Settings

Menu and system settings (SETUP)

. . . . . .

Sound and volume settings

. . . . . . . . . . . . . .

Abbreviations

. . . . . . . . . . . . . . . . . . . . .

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents 1

142.5R6.RCT.20



1425R6RCT20

CONFIDENTIAL

not for distribution

About this manual

● An alphabetical index

is included at the end of

this manual.

● A list of abbreviations explains technical abbreviations and terms.

● Directions and positions (e.g. right, left, front, rear) are normally relative to the vehicle's direction of travel.

● Illustrations help with orientation and should be regarded as a general guide.

● In right-hand drive vehicles the controls may sometimes be different to those displayed in illustrations or described in the text.

All equipment and models are described without indicating whether the equipment is optional or specific to the model type. This means that some

of the equipment described might not be fitted in your vehicle. Your Volkswagen dealership can provide more information on this.

All details provided in this manual correspond to the information available at the time of going to print and apply only to factory-fitted infotainment systems. Due to continuous technical improvement of the infotainment system and possible updates to the unit's software, the displays and functions on the infotainment system may differ from the details given in this manual. No claims may be derived from the differing details, illustrations or descriptions.

Please ensure that this manual is in the vehicle if you lend or sell the vehicle to someone else.



Composition Touch, Composition Colour

CONFIDENTIAL

not for distribution

Introduction

Before using the unit for the first time

Before using the infotainment system for the first time, carry out the following steps. This will enable you to use the infotainment system safely and make full use of the functions it provides:



Observe safety notes  ⇒

page 3.



Familiarise yourself with the controls for the infotainment system ⇒ page 7.



In the System setup, reset the infotainment system to its original condition (factory settings) ⇒ page 40.



Use suitable data storage devices for media mode ⇒ page 20.



Safety information for the infotainment system

WARNING

Accidents and injuries can occur if the driver is distracted. Operating the infotainment system can distract you from the road.

● Always drive carefully and responsibly.

● Select volume settings that allow signals from outside the vehicle (such as emergency services sirens) to be easily heard at all times.

● Setting the volume too high may damage your hearing. This also applies even if you are only exposed to high volumes for short periods.

WARNING

The volume level may suddenly change when you switch audio source or connect a new audio source.

● Reduce the base volume before switching audio source or connecting a new audio source.

WARNING

Connecting, inserting or removing a storage device while the vehicle is in motion can distract you from the road and lead to accidents.

WARNING

Connecting leads for external devices may obstruct the driver

● Arrange the connecting leads so that they do not obstruct the driver.

WARNING

External devices that are placed loose in the vehicle or not properly secured can be flung though the interior and cause injuries during a sudden driving or braking manoeuvre, or in the event of an accident.

● You should never position or attach an external device on a door

, on the windscreen or above or near to the areas marked “AIRBAG” on the steering wheel, the dash panel and the seat backrests, or between these areas and the vehicle occupants. External devices can cause serious injury in an accident, especially when the airbags deploy.

WARNING

The armrest may obstruct the driver's arm movements, which could cause accidents and severe injuries.

● Always keep the armrest down while the vehicle is in motion.

WARNING

Opening the housing on a CD player can lead to injuries from invisible laser radiation.

● CD players should only be repaired by a qualified workshop.

NOTICE

The infotainment system can be damaged by incorrect insertion of a storage device or insertion of an incompatible storage device.



Introduction

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

NOTICE (Continued)

● When inserting a memory card, ensure that it is correctly positioned ⇒ page 20.

● Applying force may destroy the memory card slot's locking mechanism.

● Only use suitable memory cards.

● When inserting and removing a CD, always hold it flat and at a right angle to the front of the unit. Inserting or removing a CD at an angle to the drive can lead to scratching ⇒ page 20.

● Inserting a second CD while a CD is already in the CD drive or being ejected can destroy the CD drive in the unit.

Always wait until the CD is

completely ejected!

NOTICE

The CD drive can be damaged by any foreign objects attached to a storage device, and by irregularly shaped storage devices.

NOTICE (Continued)

● Only clean 12 cm standard CDs should be used.

– Do not affix stickers or other items to the data storage device. Stickers may peel off and damage the CD drive.

– Do not use printable data storage devices. Coatings and prints may peel off and damage the drive.

– Do not insert 8 cm single CDs or irregularly shaped CDs or DVDs.

– Do not insert DVD Plus discs, dual discs or flip discs, as these are thicker than normal CDs.

NOTICE

The vehicle loudspeakers may be damaged if the volume is too high or the sound is distorted.



Composition Touch, Composition Colour

CONFIDENTIAL

not for distribution

Introduction

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Overview of the control elements

Fig. 1 Overview of the control elements

Different versions of the infotainment system are supplied.

The labelling and functions of the infotainment

buttons ⇒ Fig. 1

and the position of the CD slot 5 may vary between versions.

 Rotary/push knob:

– Press to switch on or off ⇒

page 7.

– Turn to adjust the basic volume on whichever source is in use ⇒ page 7.

Infotainment buttons: press a button to select a function. –

RADIO

: switches to radio mode and changes frequency band in radio mode ⇒ page

12.

–

MEDIA

: switches to media mode ⇒ page 20.

–

CAR

: opens vehicle and system settings ⇒ Booklet

Owner's manual, chapter Introduction to the in-

fotainment system.

–

SETUP

: opens menu and system settings ⇒ page

40.

–

SOUND

: opens sound and volume settings ⇒ page 40.

–

EJECT

: ejects the CD ⇒ page 20.

–

MUTE

: mute the audio source ⇒ page

–

PHONE

: opens the telephone control system ⇒ page 30.

The current audio source is muted if no

mobile telephone provision is installed.

Touchscreen ⇒ page 7. Setting knob: the function of this button depends on the unit's operating state.

– In all radio modes: turn for manual station or channel selection. Press to start and stop the scan

function ⇒ page 12. – In media mode: turn to open the track list. Press to start and stop the scan function ⇒ page 20. – Turn to select menu options in long lists and press to access the selected option (e.g. select a sta-

tion from the station list).

CD slot: for inserting and removing CDs ⇒ page 20. AUX-IN socket: for connecting an external audio source ⇒ page 20. Memory card slot: the slot is located underneath or to the left of the screen, depending on the unit

version ⇒ page 20.



3 4

5 6 7

Composition Touch, Composition Colour

CONFIDENTIAL

not for distribution

Overview of the control elements

Fig. 1 Overview of the control elements

Different versions of the infotainment system are supplied.

The labelling and functions of the infotainment

buttons ⇒ Fig. 1

and the position of the CD slot 5 may vary between versions.

 Rotary/push knob:

– Press to switch on or off ⇒

page 7.

– Turn to adjust the basic volume on whichever source is in use ⇒ page 7.

Infotainment buttons: press a button to select a function. –

RADIO

: switches to radio mode and changes frequency band in radio mode ⇒ page

12.

–

MEDIA

: switches to media mode ⇒ page 20.

–

CAR

: opens vehicle and system settings ⇒ Booklet

Owner's manual, chapter Introduction to the in-

fotainment system.

–

SETUP

: opens menu and system settings ⇒ page

40.

–

SOUND

: opens sound and volume settings ⇒ page 40.

–

EJECT

: ejects the CD ⇒ page 20.

–

MUTE

: mute the audio source ⇒ page

–

PHONE

: opens the telephone control system ⇒ page 30.

The current audio source is muted if no

mobile telephone provision is installed.

Touchscreen ⇒ page 7. Setting knob: the function of this button depends on the unit's operating state.

– In all radio modes: turn for manual station or channel selection. Press to start and stop the scan

tion from the station list).

version ⇒ page 20.



3 4

5 6 7

Composition Touch, Composition Colour

CONFIDENTIAL

not for distribution

Overview of the control elements

Fig. 1 Overview of the control elements

Different versions of the infotainment system are supplied.

The labelling and functions of the infotainment

buttons ⇒ Fig. 1

and the position of the CD slot 5 may vary between versions.

 Rotary/push knob:

– Press to switch on or off ⇒

page 7.

– Turn to adjust the basic volume on whichever source is in use ⇒ page 7.

Infotainment buttons: press a button to select a function. –

RADIO

: switches to radio mode and changes frequency band in radio mode ⇒ page

12.

–

MEDIA

: switches to media mode ⇒ page 20.

–

CAR

: opens vehicle and system settings ⇒ Booklet

Owner's manual, chapter Introduction to the in-

fotainment system.

–

SETUP

: opens menu and system settings ⇒ page

40.

–

SOUND

: opens sound and volume settings ⇒ page 40.

–

EJECT

: ejects the CD ⇒ page 20.

–

MUTE

: mute the audio source ⇒ page

–

PHONE

: opens the telephone control system ⇒ page 30.

The current audio source is muted if no

mobile telephone provision is installed.

Touchscreen ⇒ page 7. Setting knob: the function of this button depends on the unit's operating state.

– In all radio modes: turn for manual station or channel selection. Press to start and stop the scan

tion from the station list).

version ⇒ page 20.



3 4

5 6 7

Composition Touch, Composition Colour

CONFIDENTIAL

not for distribution

Overview of the control elements

Fig. 1 Overview of the control elements

Different versions of the infotainment system are supplied.

The labelling and functions of the infotainment

buttons ⇒ Fig. 1

and the position of the CD slot 5 may vary between versions.

 Rotary/push knob:

– Press to switch on or off ⇒

page 7.

– Turn to adjust the basic volume on whichever source is in use ⇒ page 7.

Infotainment buttons: press a button to select a function. –

RADIO

: switches to radio mode and changes frequency band in radio mode ⇒ page

12.

–

MEDIA

: switches to media mode ⇒ page 20.

–

CAR

: opens vehicle and system settings ⇒ Booklet

Owner's manual, chapter Introduction to the in-

fotainment system.

–

SETUP

: opens menu and system settings ⇒ page

40.

–

SOUND

: opens sound and volume settings ⇒ page 40.

–

EJECT

: ejects the CD ⇒ page 20.

–

MUTE

: mute the audio source ⇒ page

–

PHONE

: opens the telephone control system ⇒ page 30.

The current audio source is muted if no

mobile telephone provision is installed.

Touchscreen ⇒ page 7. Setting knob: the function of this button depends on the unit's operating state.

– In all radio modes: turn for manual station or channel selection. Press to start and stop the scan

tion from the station list).

version ⇒ page 20.



3 4

5 6 7

Composition Touch, Composition Colour

CONFIDENTIAL

not for distribution

General information on operating the unit



Introduction

This chapter contains information on the following subjects:

Rotary/push knobs and infotainment buttons .7 Switching on and off

. . . . . . . . . . . . . . . . . . . . .

Adjusting base volume

. . . . . . . . . . . . . . . . . . .

Operating function buttons and displays on the screen

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Selecting list entries and browsing lists

. . . . .

Input windows with on-screen keypad

. . . . . .

Additional display information and display options

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Changes to settings may cause the display content to vary and some aspects of the infotainment system operation to differ from the descriptions given in this manual.

Additional information and warnings:

● Safety information  for infotainment system

⇒

page 3

● Overview of the control elements ⇒ page 6

Lightly pressing the buttons or briefly touching the touchscreen is sufficient to operate

the infotainment system.

Not all listed function buttons and functions

may be available due to the device software used in your market. The equipment is not faulty if a function button is missing from the screen.

Due to country-specific legislation, certain

functions cannot be selected on the screen when the vehicle is travelling above a certain speed.

Using a mobile telephone in the vehicle may

cause noise from the vehicle loudspeakers.

There may be restrictions on the use of Blue-

tooth® devices in some countries. Information is available from the local authorities.

In some vehicles equipped with ParkPilot, the

volume of the current audio source is automatically lowered when reverse gear is engaged. Volume reduction can be set in the

Sound setup

menu⇒ page 42.



Rotary/push knobs and infotainment buttons

First read and observe the safety warnings on page 3 and the introductory

information on page 7.

Rotary/push knobs

The left-hand rotary/push knob  ⇒ Fig. 1 1 is referred to as the volume control or the on/off switch.

The right-hand rotary/push knob ⇒ Fig. 1 4 is referred to as the setting knob.



Infotainment buttons

This manual uses a button symbol with blue content and the term “infotainment button” to refer to buttons on the infotainment system, e.g. the infotainment button

MEDIA

Infotainment buttons are operated either by press- ing them or by pressing and holding.



Switching on and off

First read and observe the safety warnings on page 3 and the introductory

information on page 7.

To switch the infotainment system on or off manually, briefly press the rotary/push knob



⇒

Fig. 1 1.



After switching on, the system starts at the last selected volume setting, provided that this does not exceed the preselected maximum switch-on volume ⇒ page 42, Sound and volume settings.

Depending on the unit version and the country, the infotainment system may switch off automatically when the engine is switched off or the vehicle key



Introduction 7

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

is removed from the ignition lock. If the infotainment system is switched on again, it will switch off automatically after approximately 30 minutes (switch-off delay).

The infotainment system is permanently linked to the vehicle. It cannot be used in an-

other vehicle.

If the vehicle battery has been disconnected, the ignition must be switched on before

switching the infotainment system back on.



Adjusting base volume

First read and observe the safety warnings on page 3 and the introductory information on page 7.

Function: action Increasing the volume: turn the volume control  ⇒ Fig. 1 1 clockwise or press the  button on the

multifunction steering wheel ⇒ Booklet Owner's manual. Decreasing volume: turn the volume control  ⇒ Fig. 1 1 anticlockwise or press the  button on the

multifunction steering wheel.



Changes to the base volume are indicated by a “bar” on the screen. During this time the infotainment system cannot be operated.

It is possible to preset certain volume settings and adjustments ⇒ page 42.

Muting the infotainment system

● Turn the volume control  ⇒ Fig. 1 1 anticlockwise until  is displayed.

● OR: press the

MUTE

infotainment system but-

ton1) ⇒ Fig. 1 2.

Any media source currently being played is stopped while the infotainment system is muted.  appears on the display.

If the base volume has been considerably in-

creased to play a certain audio source, reduce the volume again before switching to another audio source.



Operating function buttons and displays on the screen

Fig. 2

Overview of possible function buttons on

the screen

First read and observe the safety warnings on page 3 and the introductory

information on page 7.

The infotainment system is equipped with a touchscreen ⇒ Fig. 1 3.

Active areas of the screen where certain functions can be accessed are called “function buttons”. These buttons are operated by briefly touching the screen or by touching and holding. Function buttons are referred to in this manual with the word “function button” and a button symbol

...

Function buttons start functions or open submenus. In submenus the name of the currently selected menu is displayed in the title bar ⇒ Fig. 2





Depending on the unit version.

Composition Touch, Composition Colour8

CONFIDENTIAL

not for distribution

Inactive (grey) function buttons cannot be selected.

Overview of displays and function buttons

Displays and function buttons: action and effect

In the title bar, the currently selected menu and any other possible function buttons are displayed.

Touch to open a further menu.

Move the crosshair across the screen with slight pressure without losing contact. OR: touch the desired position on the screen, the crosshair moves to this position.



Touch to move up one level at a time from certain lists.



Touch to move up one level at a time to the main menu from a submenu or to undo inputs made.

... 

Touch to open a pop-up window (option window), displaying further setting options.

 ...

 ...

Some functions or displays are marked with a checkbox and are activated  or deactivated  by touching this box.

Touch to confirm an input or selection.



Touch to close a pop-up window or an input window.

Touch to change settings incrementally.



Move the slider across the screen with slight pressure without losing contact.



Selecting list entries and browsing lists

Fig. 3 List entries settings menu

First read and observe the safety warnings on page 3 and the introductory

information on page 7.

List entries can be opened by touching them directly on the screen or by using the setting knob

⇒

Fig. 1 4.

Marking and selecting list entries with the setting knob

● Turn the setting knob to mark each consecutive list entry with a selection box so you can browse through the list.

●

Press the setting knob to select the marked list

entry.



Browsing lists (scrolling)

If there are more items available in a list view than can be displayed on the screen, function buttons for scrolling or a scroll bar are displayed on the right of the screen ⇒ Fig. 3.

● Browsing lists line-by-line: touch the  or



function button briefly.

● Browsing lists page-by-page: briefly touch the screen above or below the scroll marker.

● Browsing long lists quickly page-by-page: touch and hold the screen above or below the scroll marker.

● To quickly scan through a long list, place your finger on the scroll marker and move it over the screen without losing contact. Lift your finger off the screen when you reach the desired position.



Introduction 9

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Input windows with on-screen keypad

Fig. 4 Input window with on-screen keyboard

First read and observe the safety warnings on page 3 and the introductory

information on page 7.

Input windows with on-screen keyboard allow you to enter text, such as an entry name for storing a destination or a search term for searching in long lists.

Not all of the function buttons listed here are available in all countries and for all topics.

Subsequent chapters only explain those functions that differ from the general view described here.



The input line with the cursor is located on the left in the top line of the screen *. All inputs are displayed here.

Input windows for free text input

An input window for free text entry allows any letter, number and special character to be entered in any combination.

Touching the OK function button applies the sequence of characters currently displayed in the window.

Input windows for selecting a stored entry

It is only possible to select a sequence of letters, numbers and special characters that matches a stored entry.

Every time a character is entered, a destination corresponding to the specifications is proposed in the input line. When terms are made up of more than one word, the space must be entered as well.

If fewer than 99 entries are available, the number of remaining entries is displayed after the input line

⇒

Fig. 4 2. Touching this function button displays

a list of these remaining entries.

Overview of function buttons

Function buttons: action and effect

123...

: touch to open the input window for numbers and special characters.

ABC...

: touch to go back to the input window for letters.

Displays the number and opens the list of entries corresponding to the specifications that are still available.

Letters/numbers Touch to insert the character in the input line.

Letters and



Press and hold to open a pop-up window with special characters based on the letter shown.

Touch the desired character to enter it. Some special characters can also be written out (e.g. “AE” for “Ä”).



Touch to switch between upper and lower case.



Touch to enter a space.

Touch to accept the suggestion in the input line and close the input window.



Touch to delete characters in the input line from right to left. Press and hold to delete several characters at once.



Touch to close the input window.



Composition Touch, Composition Colour10

CONFIDENTIAL

not for distribution

Additional display information and display options

First read and observe the safety warnings on page 3 and the introductory

information on page 7.

The displays that appear on the screen can vary depending on the settings, and may differ from those described here.



Displays such as the current time and the current outside temperature can be displayed on the screen in the status bar.

All displays appear only after the infotainment system has completed start-up.



Introduction 11

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Audio mode

Radio mode



Introduction

This chapter contains information on the following subjects:

RADIO main menu

. . . . . . . . . . . . . . . . . . . . . .

RDS radio data service

. . . . . . . . . . . . . . . . . . .

Station buttons

. . . . . . . . . . . . . . . . . . . . . . . . . .

Selecting, setting and storing stations

. . . . . . .

Scan function (SCAN)

. . . . . . . . . . . . . . . . . . . .

Radio text

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TP function (traffic program)

. . . . . . . . . . . . . . .

Incoming traffic announcement

. . . . . . . . . . . .

FM/AM settings

. . . . . . . . . . . . . . . . . . . . . . . . .

Additional information and warnings:

● Safety information  for infotainment system

⇒

page 3

● Overview of the control elements ⇒ page 6

● Basic information on use ⇒ page 7

● Menu and system settings (SETUP)

⇒

page 40

Multi-storey car parks, tunnels, high buildings

and mountains can impair radio reception.

Foil or metal-coated stickers attached to the

windows may affect reception on vehicles with a window aerial.



RADIO main menu

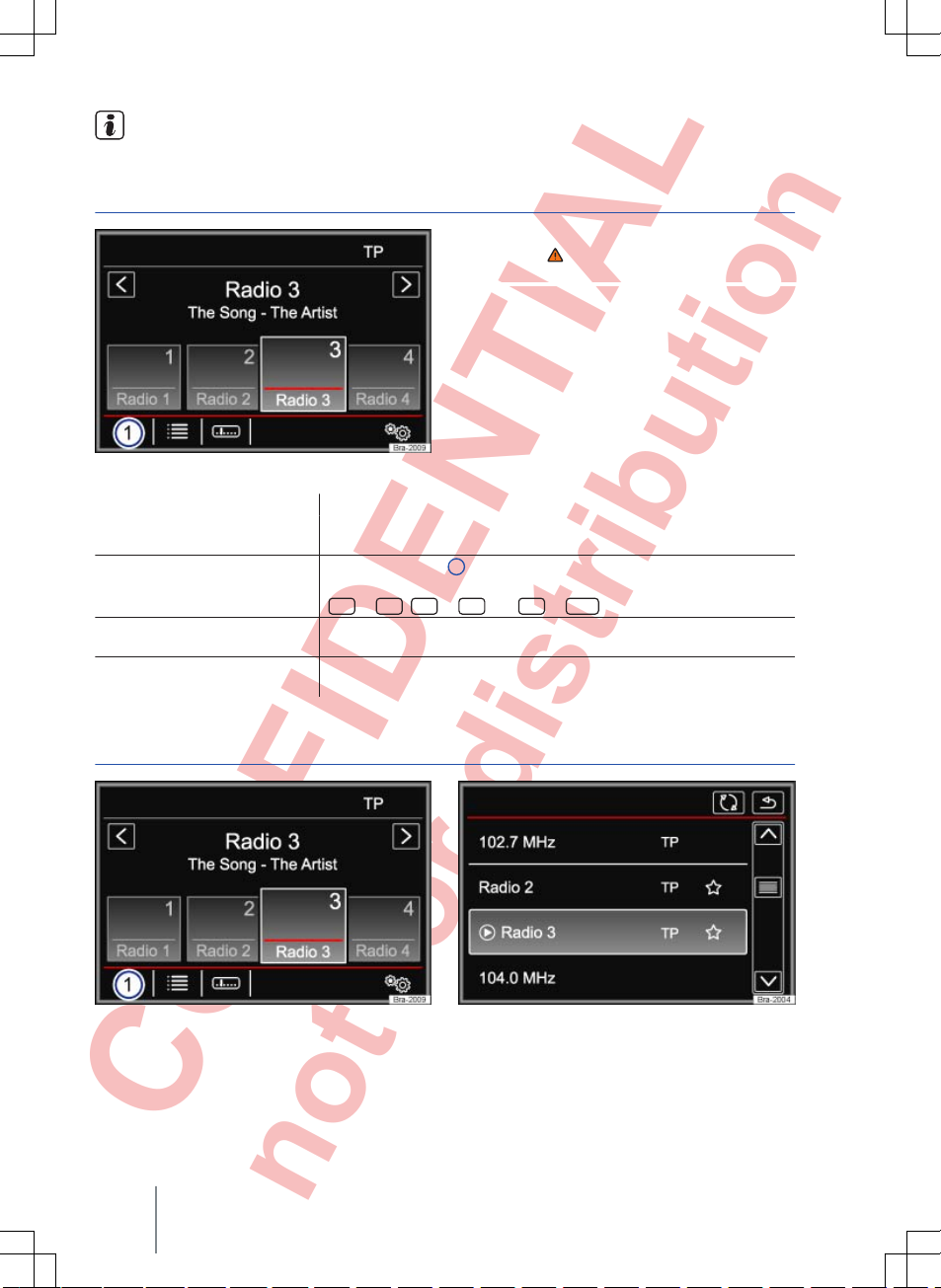

Fig. 5

RADIO main menu

Fig. 6 Radio mode station list

First read and observe the safety warnings on page 3 and the introductory

information on page 12.



Selecting the frequency band

● Select the required frequency band by pressing the

RADIO

infotainment button.

Function buttons in the RADIO main menu

Function button: effect

Changes the displayed station button group by touching the function button.



Opens the list of currently receivable radio stations ⇒ page 14.



Opens the frequency dial for the selected frequency band ⇒ page 15.



Opens the settings menu for the currently activated frequency band (FM or AM)

⇒

page 18.



Composition Touch, Composition Colour12

CONFIDENTIAL

not for distribution

Function button: effect

Browses through the available or stored stations. Setting for the arrow buttons in the

FM/AM setup

menu ⇒ page 18.

SCAN

The function button is only displayed while the scan function is on ⇒ page 16.

1...

12...

Station buttons for storing stations ⇒ page 14.



Updates the station list (AM frequency band) ⇒ page 15.

Possible displays and symbols

Display: meaning

Displays station frequency or station name, and also possibly radio text. Station name and radio text are only displayed when RDS is available and activated ⇒ page 13.

RDS off

The RDS radio data service is deactivated. RDS can be activated in the FM setup menu ⇒ page 18.

TP TP traffic news is activated and can be received ⇒ page 17. No TP No traffic news station can be received.

 The radio station is stored to a station button.

Varies by country and unit version.



RDS radio data service

Fig. 7 RADIO main menu Fig. 8 Radio mode station list

First read and observe the safety warnings on page 3 and the introductory

information on page 12.

RDS (radio data system) is a radio data service which enables additional FM services, such as the display of station names, automatic station tracking, radio text and TP traffic news (TP).

RDS is not supported by all units and is not available everywhere or on every FM radio station.

RDS can be deactivated in some country and unit versions ⇒ page 18.

Without RDS it is not possible to use radio data services.



Station name and automatic station tracking

If RDS is available, station names can be displayed in the RADIO main menu and in the

station list

FM radio stations may occasionally or continuously broadcast different content on different regional frequencies under the same station name (e.g. Radio 2).

By default, automatic station tracking always switches to the currently selected station's frequency that offers the best reception, as the vehicle travels from one area to the next. As a result, you may lose the regional programme you are listening to.

Automatic frequency changing and automatic station tracking can be deactivated in the

FM setup

⇒

page 18.



Audio mode 13

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

The radio stations are responsible for the content of the information sent.



Station buttons

Fig. 9

RADIO main menu

First read and observe the safety warnings on page 3 and the introductory

information on page 12.

In the RADIO main menu, you can store stations from the currently selected frequency band on 12 consecutively numbered function buttons. These function buttons are called station buttons.



Selecting stations via the station buttons

Touch the station button that shows the required station. When a stored station is selected via the station buttons, it will only be

played if it can be received at your current location.

Changing station button group

Touch the ⇒ Fig. 9 1 function button. The station buttons are displayed in groups of four function buttons

(

1 ...

4 ..., 5 ...

8 ...

and

9 ...

12 ...

Displaying station buttons

If radio text is shown instead of the station buttons, touch radio text in order to show the station buttons.

Storing stations to station buttons

See Storing stations ⇒ page 15.



Selecting, setting and storing stations

Fig. 10 RADIO main menu Fig. 11 Radio mode station list



Composition Touch, Composition Colour14

CONFIDENTIAL

not for distribution

First read and observe the safety warnings on page 3 and the introductory information on page 12.

Selecting stations

Selecting stations using arrow buttons

Touch the < or > ⇒ Fig. 10 function button. The unit only switches to stored or receivable stations, depending on

what settings have been made for the arrow buttons. Setting for the arrow buttons in the

FM/AM setup

menu ⇒ page 18.

Selecting stations from a station list

Touch the  ⇒ Fig. 10 function button to open the station list. Search through the list and touch the required station to select it. To close the station list, touch the  ⇒ Fig. 11 function button.

Updating the station list

In the FM frequency band the station list is updated automatically. In the AM frequency band, touch the  ⇒ Fig. 11 function button to up-

date the station list.

Tuning to a station frequency manually

Displaying the frequency dial

Turn the setting knob one stop further. OR: touch the  ⇒ Fig. 10 function button.

Adjusting the frequency in stages

Turn the setting knob. OR: touch the arrow buttons to the left or the right of the frequency

band.

Quickly browsing through the frequency band

Touch one of the arrow buttons at the top of the screen ⇒ Fig. 10. The next receivable station is set automatically.

OR: press and hold one of the arrow buttons at the top of the screen

⇒

Fig. 10. When you release the button, the unit automatically tunes to

the next available station. OR: place your finger on the slider in the frequency dial and drag it

along the dial.

Hiding the frequency band

Briefly press the setting knob. Manual frequency selection is also closed if you select a station with a

station button. The frequency band closes automatically after a period of inactivity.

Storing stations

Storing the current station to a station button

Press and hold the desired station button ⇒ Fig. 10 until a tone is soun- ded.

The station currently playing is then stored on that station button.

Storing a station from the station list to a station button

Touch the  ⇒ Fig. 10 function button to open the station list. Stations already stored on a station button are marked in the station list

with the  ⇒ Fig. 11 symbol. Select the desired station by pressing and holding on the screen. Touch the button to which you wish this station to be assigned. A signal tone sounds, and the station is then stored on this station but-

ton. Repeat the process to store further stations from the station list.

Deleting stored stations

All stored stations can be deleted individually or together in the FM/AM

setup

menu ⇒ page 18.





Audio mode 15

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Stopping station names scrolling (FM frequency)

Some radio stations transmit a very long station name, which is shown on the screen as a scrolling text.

To fix the text that is currently displayed to the screen, touch the station name and hold until a tone is sounded.

Fixed station names are indicated by a dot to each side of the name.

The fixed text is adopted for all the station buttons on which the corresponding station is stored.



Scan function (SCAN)

First read and observe the safety warnings on page 3 and the introductory

information on page 12.



When the scan function is running, all available stations on the current frequency band are played in sequence for approximately 5 seconds each.

SCAN

appears on the display.

Starting the scan function

Press the setting knob briefly. OR: touch the  function button and then select

SCAN

Stopping the scan function

Press the setting knob briefly. OR: touch the

SCAN

function button to end the scan function at the station

arrived at. Manually selecting a station with the station buttons also stops the scan

function.



Radio text

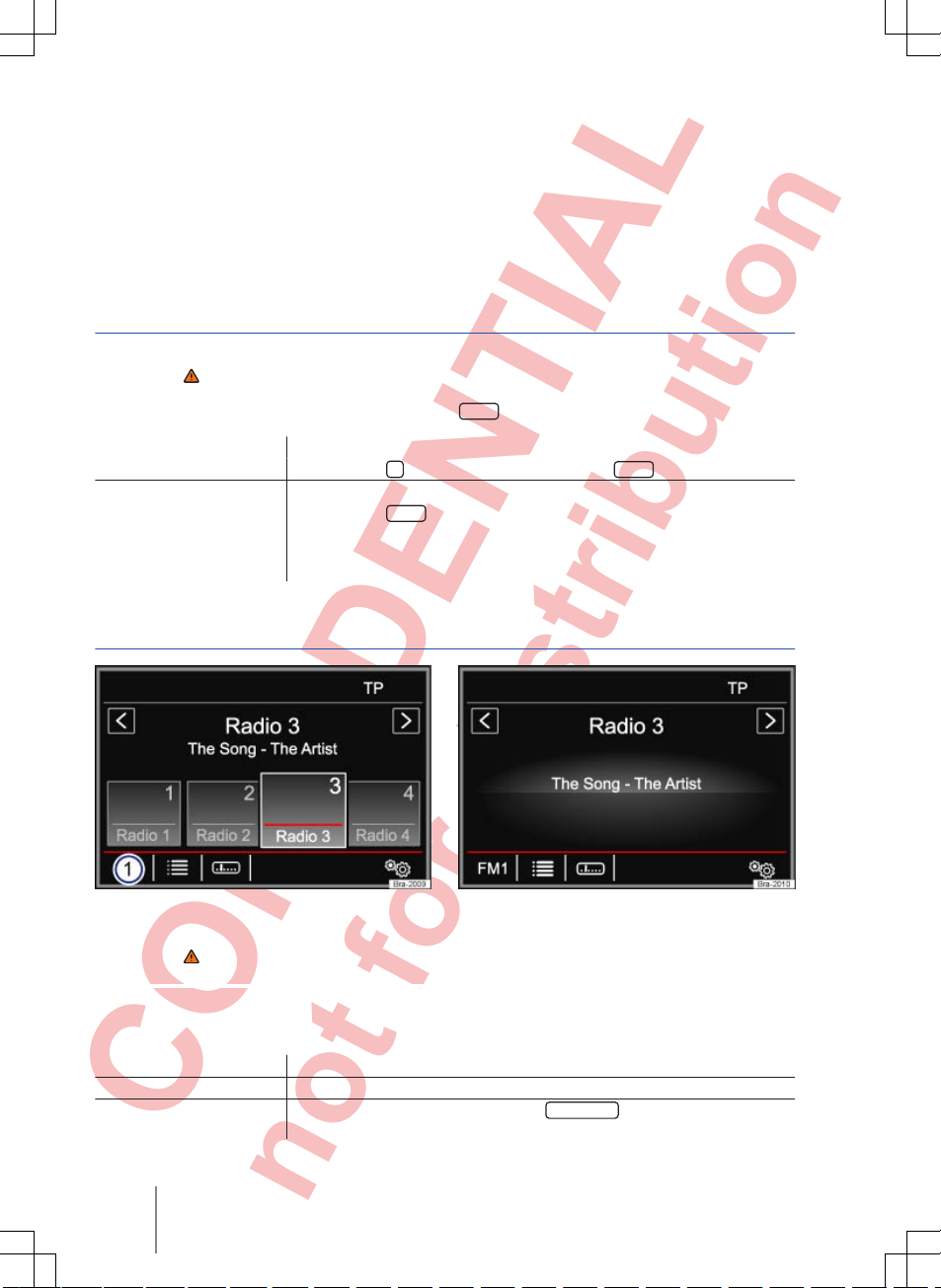

Fig. 12 RADIO main menu Fig. 13 Radio mode: radio text is visible

First read and observe the safety warnings on page 3 and the introductory

information on page 12.

Some RDS-compatible stations also broadcast additional text information known as radio text.



The station buttons can be hidden to enlarge the display area for the radio text ⇒ Fig. 13.

Hiding station buttons Touch displayed radio text ⇒ Fig. 12. Displaying station buttons Touch displayed radio text ⇒ Fig. 13. Switching off radio text per-

manently

In the FM setup menu, deactivate the

 Radio text

function button by touch-

ing it ⇒ page 18.



Composition Touch, Composition Colour16

CONFIDENTIAL

not for distribution

TP function (traffic program)

Fig. 14 RADIO main menu with TP display Fig. 15 Radio mode: station list with TP display

First read and observe the safety warnings on page 3 and the introductory

information on page 12.

Traffic news monitoring with the TP function is only possible if a traffic news station is available. Traffic news stations are indicated in the RADIO main menu and in the station list by TP ⇒ Fig. 14 and

⇒

Fig. 15.

Some stations that do not broadcast their own traffic news support the TP function through a link to a traffic news station (EON).

Switching the TP function on and off

● In the

FM/AM setup

menu, activate  or deac-

tivate  the

Traffic program (TP)

function button by

touching it ⇒ page 18.

If the station that is currently selected does not support the TP function,

No TP

will be shown in

the top right of the screen.

Activated TP function and station selection

While traffic news monitoring is on, TP is displayed at the top right in audio mode ⇒ Fig. 14. Traffic an- nouncements broadcast by the current station or a linked traffic news station will interrupt the current audio mode.



In FM mode, the selected station must support the TP function. After the TP function is switched on, if you change via the station buttons or manual selection to a station that does not support the TP function, traffic news monitoring will not be possible (display:

No TP

If the currently selected traffic news station can no longer be received,

No TP

is also displayed and

you will have to start a manual station search

⇒

page 14.

In AM mode or media mode, the unit will always automatically tune to a traffic news station in the background, provided that a TP station is available. This procedure may take some time.



Incoming traffic announcement

First read and observe the safety warnings on page 3 and the introductory

information on page 12.

Incoming traffic announcements will interrupt the active audio mode.



During the traffic announcement a pop-up window is displayed and, if required, the radio is switched to the traffic news station (EON) for the duration of the traffic announcement.

The media mode is paused and the volume is adjusted to the preset level ⇒ page 42.



Audio mode 17

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

The traffic announcement volume setting can be adjusted with the volume control  ⇒ Fig. 1 1. The adjusted volume setting will be applied to subsequent announcements.

● Touch the

Cancel

function button to end the traffic announcement. The TP function remains activated.

● OR: touch the

Deactivate

function button to end the current traffic announcement and permanently switch off the TP function.



FM/AM settings

First read and observe the safety warnings on page 3 and the introductory

information on page 12.



FM setup

● Select the FM frequency band by pressing the

RADIO

infotainment button.

● Touch the  function button to open the

setup

menu.

Function button: effect

Scan

: scan function (SCAN). When the scan function is running, all available stations on the current fre-

quency band are played in sequence for approximately 5 seconds each ⇒ page 16.

Arrow buttons

: define the settings for the < und > arrow buttons. The setting is adopted for all frequency

bands (FM, AM).

Preset list

: all stored stations on the selected frequency band can be browsed with the arrow

buttons.

Stations

: all available stations on the selected frequency band can be browsed with the arrow

buttons.

 Traffic program (TP)

: the TP function (traffic news monitoring) is activated ⇒ page 17.

 Radio text

: radio text is activated ⇒ page 16.

Delete preset list

: to delete some or all stored stations.

All

: all stored stations will be deleted (FM 1, FM 2, FM 3).

To delete individual stations, selected the desired preset list

FM 1, FM 2

FM 3

. Then touch

the station button of the station you wish to delete.

Advanced setup

: settings for the RDS radio data services.

RDS Regional

: defines the setting for automatic station tracking with RDS ⇒ page 13.

Fixed

: the unit only switches to alternative frequencies for the selected station that

broadcast the same regional service.

Automatic

: the unit always switches to the station's frequency that currently offers the

best reception. As a result, regional programmes may be interrupted.

 Radio Data System (RDS)

: the radio data system (RDS) is deactivated ⇒ page 13. If the 

checkbox is deactivated, the traffic program (TP) and radio text functions are not available.

 Alternative frequency (AF)

: automatic station tracking is activated. If the  checkbox is deactiva-

ted, automatic station tracking is switched off. The

RDS Regional

function button is then inac-

tive (greyed out).

Varies by country and unit version.

AM setup

● Select the AM frequency band by pressing the

RADIO

infotainment button.

● Touch the  function button to open the

setup

menu.



Composition Touch, Composition Colour18

CONFIDENTIAL

not for distribution

Function button: effect

Scan

: scan function (SCAN). When the scan function is running, all available stations on the current fre-

quency band are played in sequence for approximately 5 seconds each ⇒ page 16.

Arrow buttons

: define the settings for the < und > arrow buttons. The setting is adopted for all frequency

bands (FM, AM).

Preset list

: all stored stations on the selected frequency band can be browsed with the arrow

buttons.

Stations

: all available stations on the selected frequency band can be browsed with the arrow

buttons.

 Traffic program (TP)

: the TP function (traffic news monitoring) is activated ⇒ page 12.

Delete preset list

: to delete some or all stored stations.

All

: all stored stations will be deleted (AM 1, AM 2, AM 3).

To delete individual stations, select the desired preset list

AM 1, AM 2

AM 3

. Then touch the

station button of the station you wish to delete.



Audio mode 19

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Media mode



Introduction

This chapter contains information on the following subjects:

Data storage device and file requirements

. . .

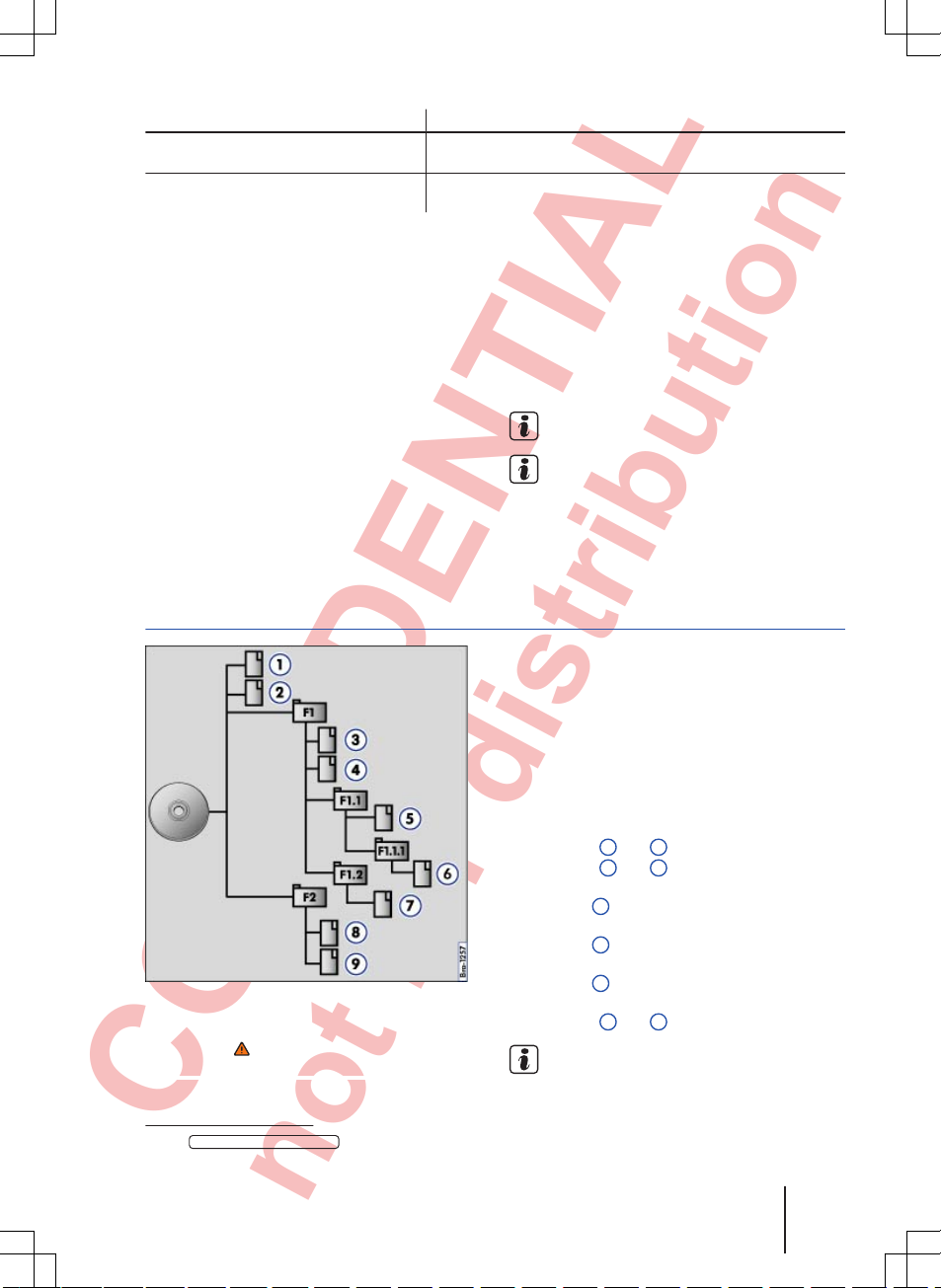

Playing order of files and folders

. . . . . . . . . . .

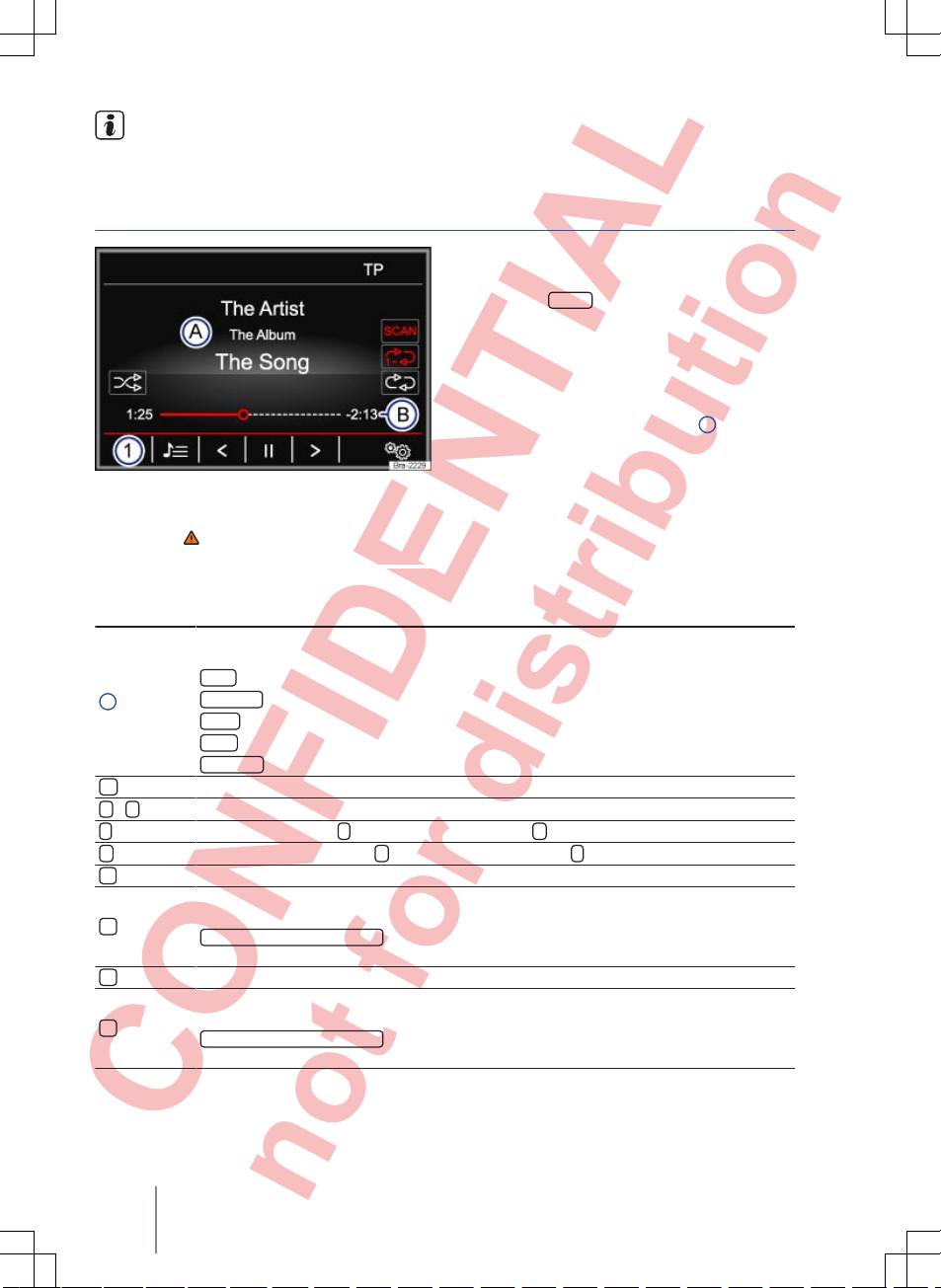

MEDIA main menu

. . . . . . . . . . . . . . . . . . . . . .

Changing the media source

. . . . . . . . . . . . . . .

Changing tracks in the MEDIA main menu

. . .

Selecting tracks from the track list

. . . . . . . . . .

Inserting or ejecting a CD

. . . . . . . . . . . . . . . . .

Inserting or removing a memory card

. . . . . . .

External data storage device connected to USB port 

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

External audio source connected to the AUXIN socket

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connecting an external audio source via Bluetooth

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Media settings

. . . . . . . . . . . . . . . . . . . . . . . . . .

“Media sources” are audio sources containing audio files on various different storage devices (e.g. CD, memory card, external MP3 player). These au-

dio files can be played by the infotainment system from its corresponding drives or audio input sockets (internal CD drive, memory card slot, AUX-IN socket etc.).

Audio and video files stored on data storage devices are normally subject to national and international copyright laws. Observe legal requirements.

Additional information and warnings:

●

Safety information  for infotainment system

⇒

page 3

●

Overview of the control elements ⇒ page 6

●

Basic information on use

⇒

page 7

This product is subject to certain intellectual

property rights and copyrights owned by the Microsoft Corporation. The use or distribution of this type of technology outside this product requires a licence from Microsoft or an authorised Microsoft company.



Data storage device and file requirements

First read and observe the safety warnings on page 3 and the introductory

information on page 20.

Factory-fitted CD drives conform to safety class 1 according to DIN IEC 76 (CO) 6/ VDE 0837.

The infotainment system only accepts standard 12 cm CDs, and memory cards measuring 32 mm x 24 mm x 2.1 mm or 1.4 mm.



The supported file formats listed are collectively referred to below as “audio files”. A CD containing audio files of these types is referred to as an “audio data CD”.

Media source Requirements for playing in the unit

 Audio CDs (up to 80 minutes). – CD Digital Audio specification .  CD-ROM, CD-R and CD-RW audio

data CDs up to max. 700 MB (megabytes) with the file systems ISO 9660 Level 1 or 2, Joliet or UDF 1.02, 1.5, 2.01



SD and MMC memory cards with the file systems FAT12, FAT16, FAT32, VFAT or exFAT up to max. 2 GB (gigabytes), SDHC memory cards up to max. 32 GB and SDXC memory cards up to max. 2 TB (terabytes).

– MP3 files (.mp3) with bit rates of between 32 and 320 kbit/s or with variable bit rate. – WMA files (.wma) up to 10 mono/stereo without copy protection. – Playlists in the formats PLS, M3U and WPL. – Playlists no larger than 20 kB and containing no more than 1,000 entries. – File name and path information not longer than 256 characters.



Composition Touch, Composition Colour20

CONFIDENTIAL

not for distribution

Media source Requirements for playing in the unit

AUX External audio source. – Playback of external audio sources via 3.5 mm jack plug

⇒

page 27.

 Audio file playback via Bluetooth

®a)

. – The external media player must support the A2DP Blue-

tooth® profile ⇒ page 28.

Bluetooth® is a registered trademark of Bluetooth® SIG, Inc.

Restrictions and notes

Contamination, exposure to high temperatures and mechanical damage can render storage devices unusable. Please observe the manufacturer's instructions.

Variations in the quality of storage devices from different manufacturers can lead to problems during playback.

Please observe copyright laws.

The unit may be unable to read individual tracks or the entire storage device due to the storage device's configuration or the devices and programs used for recording. Information about the best ways to create audio files and configure storage devices (compression rate, ID3 tag etc.) can be found online.

The reading time may vary considerably depending on the condition of the storage device (copying and deleting actions), folder structure and file type.

Playlists only determine a certain playing order. There are no files stored in a playlist. The unit will not play a playlist if the files are not stored on the storage device at the locations referred to by the playlist (relative file paths).

Do not use memory card adapters.

No liability can be accepted for damaged or lost files on the storage devices.



Playing order of files and folders

Fig. 16

Possible structure on an audio data CD

First read and observe the safety warnings on page 3 and the introductory

information on page 20.



Audio files  on storage devices are often sorted by folders  and playlists  to determine a certain playing order.

Tracks, folders and playlists on a storage device are each sorted by name in alphanumeric order.

The illustration shows a typical audio data CD that contains tracks , folders  and subfolders

⇒

Fig. 16.

The tracks are played in the following order1):

Tracks 1 and 2 in the CD's root directory Tracks 3 and 4 in the first folder F1 in the

CD's root directory Track

in the first subfolder F1.1 of the

folder F1 Track 6 in the first subfolder F1.1.1 of the

subfolder F1.1 Track 7 in the second subfolder F1.2 of

the folder F1 Tracks 8 and 9 in the second folder F2

The playing order can be altered by selecting different playback modes ⇒ page 22.



The

 Mix/Repeat including subfolders

function must be activated ⇒ page 40 in the

Media setup

menu.

Audio mode 21

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Playlists are not played automatically. Instead they must be specifically selected via

the track selection menu ⇒ page 24.



MEDIA main menu

Fig. 17 MEDIA main menu

First read and observe the safety warnings on page 3 and the introductory

information on page 20.



In the MEDIA main menu, various media sources can be selected and played.

● Press the

MEDIA

infotainment button to open

the MEDIA main menu ⇒ Fig. 17.

Playback of the media source that was most recently played resumes from the point where it stopped.

The media source currently playing is indicated at the bottom left in the function button 1.

The MEDIA main menu will indicate if no media source is available.

Function buttons in the MEDIA main menu

Function button: effect

Indicates the media source currently selected. Touch to select a different media source

⇒

page 23.

 CD

: internal CD drive ⇒ page 25.

 SD card

: memory card ⇒ page 26.

 USB

: external data storage device connected to USB port ⇒ page 26.

 AUX

: external audio source connected to AUX-IN socket ⇒ page 27.

 BT audio

: Bluetooth® audio ⇒ page 28.



Opens the track list ⇒ page 24.

Changes track when in media mode ⇒ page 24



Playback stops. The  function button changes to  ⇒ page 24.



Playback is resumed. The  function button changes to  ⇒ page 24.



Opens the Media setup menu ⇒ page 28.



Repeats all tracks. All tracks on the same memory level as the current track will be repeated. If



Mix/repeat including subfolders

is activated in

Media setup

subfolders are also inclu-

ded⇒ page 28.



Repeat current track.



Random play. All tracks on the same memory level as the current track are included. If



Mix/repeat including subfolders

is activated in

Media setup

subfolders are also inclu-

ded⇒ page 28.



Composition Touch, Composition Colour22

CONFIDENTIAL

not for distribution

Function button: effect

SCAN

When the scan function is running, all tracks in the current track list are played for approximately 10 seconds each.

The function button is only displayed while the scan function is on. To start the scan function, press setting knob ⇒ Fig. 1 4 or open the  track list and touch the

SCAN

function

button.

Displays and symbols in the MEDIA main menu

Display: meaning

Display of track information (CD text , ID3 tag with MP3 files). Audio CDs: track and track number corresponding to the track order on the CD are dis-

played. Audio files: artist name, album name and track name are displayed.

Track playing time and remaining playing time in minutes and seconds. The remaining playing time displayed may differ for audio files with variable bit rate (VBR).

RDS off

The RDS radio data service is deactivated. RDS can be activated in the FM setup menu

⇒

page 12.

TP TP is activated and can be received ⇒ page 12. No TP No traffic news station can be received.

Varies by market and unit version.



Changing the media source

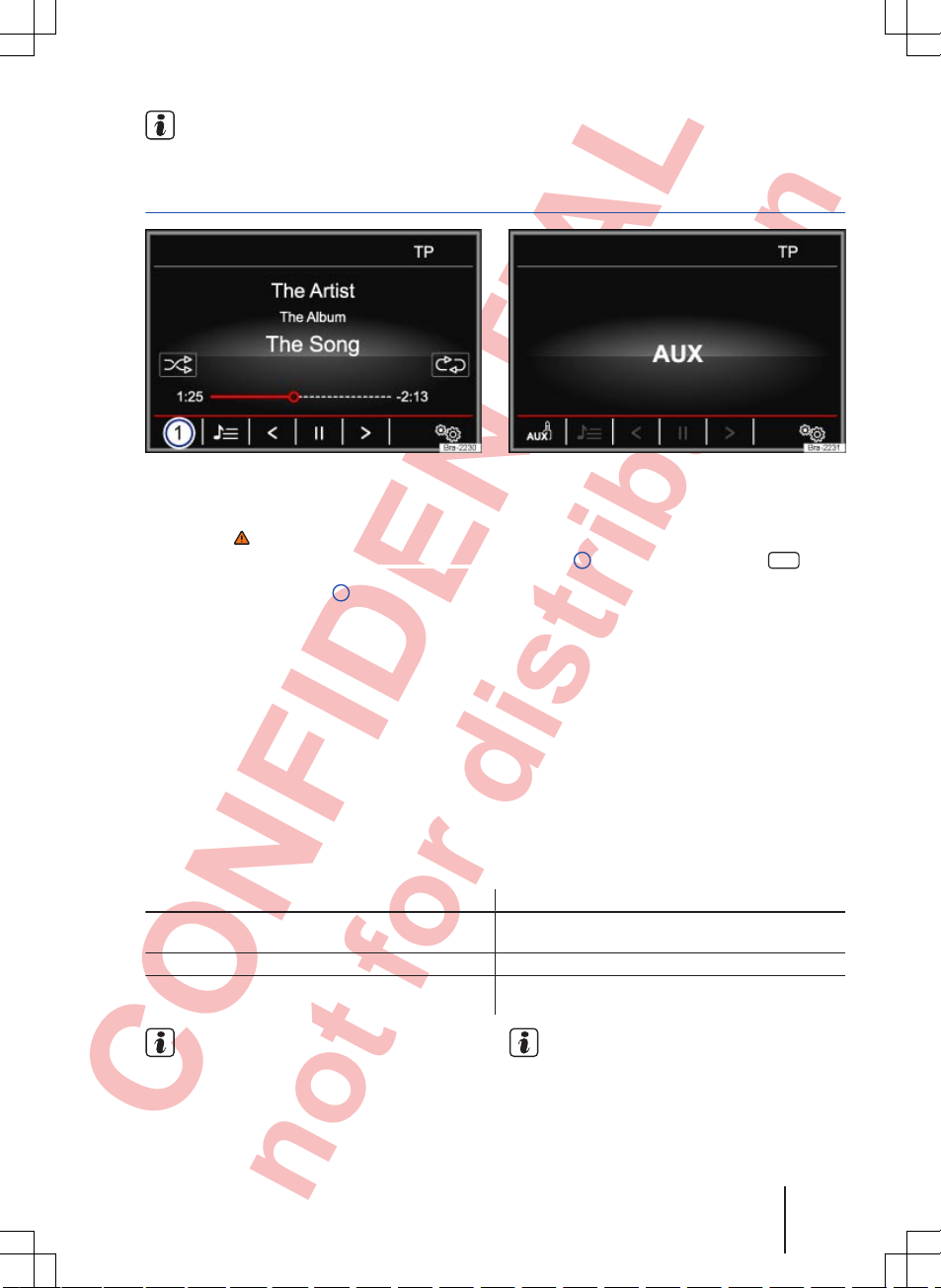

Fig. 18 MEDIA main menu

First read and observe the safety warnings on page 3 and the introductory

information on page 20.



● In the MEDIA main menu, press the

MEDIA

infotainment button as often as required to switch between the available media sources.

● OR: in the MEDIA main menu, touch the

⇒

Fig. 18 1 function button and select the desired

media source.

Media sources not currently available are shown as inactive (grey) in the pop-up window.

If a media source that has already been played is selected again, playback is resumed from the point that was last reached.

Optionally selectable media sources

Function button: media source

CD

Audio or audio data CD in the internal CD drive ⇒ page 25.

SD card

Memory card ⇒ page 26.

USB

External data storage device connected to USB ⇒ page 26.

AUX

External audio source connected to AUX-IN socket ⇒ page 27.

BT audio

Bluetooth® audio ⇒ page 28.

The media source can also be changed in the Track list view ⇒ page 24.



Audio mode 23

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Changing tracks in the MEDIA main menu

Fig. 19 MEDIA main menu

First read and observe the safety warnings on page 3 and the introductory

information on page 20.

You can browse through the tracks of the media source that is currently playing using the arrow buttons.

You cannot switch to playback from a playlist using the arrow keys. Playback from a playlist must be started manually via the track selection menu

⇒

page 24, Selecting tracks from the track list.



Controlling playback via the MEDIA main menu

Action Effect

Briefly touch the function button < once. Goes to the start of the current track. If the track is short-

er than 3 seconds, the system goes to the start of the previous track.

Briefly touch the function button < twice. Goes to the start of the previous track. Changes from the

first track to the last track on the storage device that is being played.

Briefly touch the function button > once. Goes to the next track. Changes from the last track to

the first track on the storage device that is being played.

Press and hold the < function button. Fast reverse. Press and hold the > function button. Fast forward. Briefly touch the  function button once. Playback stops. The  function button changes to . Briefly touch the  function button once. Playback is resumed. The  function button changes to





Selecting tracks from the track list

Fig. 20 Track list from a media source

First read and observe the safety warnings on page 3 and the introductory

information on page 20.

Opening the track list

● In the MEDIA main menu, touch the  function button ⇒ Fig. 19 to open the track list. The track that is currently playing is highlighted ⇒ Fig. 20.

● Search through the track list and touch the desired track.

If track information is available, the track name is displayed instead of

Track + No.





Composition Touch, Composition Colour24

CONFIDENTIAL

not for distribution

Overview of function buttons in the track list

Function button: effect



Opens the Sources menu. Touch to select a different media source.

Indicates the media source currently selected. Touch to change the media source.

 CD

: internal CD drive ⇒ page 25.

 SD card

: memory card ⇒ page 26.

 USB

: external data storage device connected to USB port ⇒ page 26.

 AUX

: external audio source connected to AUX-IN socket ⇒ page 27.

 BT audio

: external media player connected via Bluetooth® ⇒ page 28.



Touch the function button to open the parent folder of the current folder on the media source. The name of the current folder will be displayed to the right of the symbol.



Starts playback at the first track.



Repeats all tracks. All tracks on the same memory level as the current track will be repeated. If



Mix/repeat including subfolders

is activated in

Media setup

subfolders are also inclu-

ded⇒ page 28.



Repeat current track.



Random play. All tracks on the same memory level as the current track are included. If



Mix/repeat including subfolders

is activated in

Media setup

subfolders are also inclu-

ded⇒ page 28.

SCAN

When the scan function is running, all tracks in the current track list are played for approximately 10 seconds each.



Closes track list.

Tracks, folders and playlists can also be marked by turning the setting knob then loa-

ded or opened up or opened by pressing the knob.



Inserting or ejecting a CD

First read and observe the safety warnings on page 3 and the introductory

information on page 20.

The internal CD drive can play audio CDs and audio data CDs.

When an audio CD without CD text is playing, only

TITLE

and the track number, corresponding to the playing order on the data medium, are displayed in the centre line of the screen.

If the audio file CDs played contain additional track information (CD text , ID3 tag for MP3 files), it can be displayed on the screen.

Inserting a CD

● Hold the CD with the printed side facing up.

● Push the CD into the CD slot only to the point where it is drawn in automatically.

● When the CD is inserted, playback will start automatically.



Ejecting a CD

In some countries, the vehicle key must be in the ignition lock of a cabriolet vehicle in order to eject a CD (anti-theft protection).

● Press the

EJECT

infotainment button.

● The CD in the drive will be ejected and must be removed within approximately 10 seconds.

For safety reasons, the CD will be drawn back into the player if it is not removed within roughly 10 seconds, but the unit will not switch to CD mode.

CD cannot be read or is faulty

A message will be shown on the screen if the data on an inserted CD cannot be read or the CD is faulty.

Uneven road surfaces and strong vibrations can cause playback to jump.



Audio mode 25

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

When the temperature inside the infotainment system is too high, loading and play-

back of CDs is disabled.

If you insert a number of different CDs and receive the message

Error: CD drive

ev-

ery time, contact a qualified workshop.



Inserting or removing a memory card

First read and observe the safety warnings on page 3 and the introductory

information on page 20.



Only supported audio files are displayed and played. Other files are ignored.

Inserting a memory card

Fig. 1

Vertical card slot

Insert a compatible memory card into the memory card slot with the cut-off corner first and the lettering facing left (contact surfaces facing down) until the card clicks into place.

Horizontal card slot

Insert a compatible memory card into the memory card slot with the cut-off corner first and the label facing up (contact surfaces facing down) until the card clicks into place.

If a memory card cannot be inserted, ensure that it is positioned correctly and is compatible with the unit.

Playback starts automatically if supported audio files are stored on the memory card.

Removing a memory card

The inserted memory card must be prepared for removal.

● In the MEDIA main menu touch the  function button to open the

Media setup

menu.

● OR: press the

SETUP

infotainment button.

● Touch the

Remove the SD card safely

function but-

ton.

● OR: touch the

Remove safely

function button and

then select



SD card

Once the memory card has been ejected from the system, a message is shown on the screen and the function button is greyed out. The memory card can then be removed.

● Press the inserted memory card. The memory card springs out of the slot.

● Remove the memory card.

Memory card cannot be read

If you insert a memory card containing data that cannot be read, the unit will not change to memory card mode after loading.

A corresponding message is displayed.



External data storage device connected to USB port



First read and observe the safety warnings on page 3 and the introductory

information on page 20.

In some countries and with some equipment levels, the vehicle may be fitted with a USB connection  in the stowage compartment in the centre console. ⇒ Booklet Owner's Manual, chapter Prac- tical equipment.

Only supported audio files are displayed and played. Other files are ignored.

Playback starts automatically if supported audio files are stored on the data storage device.



Removing

The connected storage device must be prepared before removal.

● In the MEDIA main menu, touch the  function button to open the

Media setup

menu.

● OR: press the

SETUP

infotainment button.

● Touch the

Remove safely

function button and

then select

 USB

Data media cannot be read

The message

No playable files available

appears if the data on the connected storage device cannot be read.



Composition Touch, Composition Colour26

CONFIDENTIAL

not for distribution

Please read and observe the manufacturer's manual for the external storage device.



External audio source connected to the AUX-IN socket

Fig. 21

MEDIA main menu

Fig. 22 External audio source connected to AUXIN

First read and observe the safety warnings on page 3 and the introductory

information on page 20.

The AUX-IN socket ⇒ Fig. 1 6 can only be used with a 3.5 mm jack plug.

The connected external audio source is played over the vehicle speakers and cannot be controlled via the infotainment system.

AUX

shows on the screen when an external audio

source is connected ⇒ Fig. 22.

Connecting an external audio source to the AUX-IN socket

●

Reduce the base volume on the infotainment

system.

● Connect the external audio source to the AUXIN socket.



● Start playback on the external audio source.

● In the MEDIA main menu, touch the

⇒

Fig. 21 1 function button and select

AUX

The output volume of the external audio source should be adjusted to the volume of the other audio sources ⇒ page 42.

Information on operating an external audio source connected to the AUX-IN socket

Action Effect

Selecting another audio source on the infotainment system.

The external audio source continues to run in the

background. Stopping playback on the external audio source. The infotainment system remains in the AUX menu. Disconnecting the plug from the AUX-IN socket. The infotainment system switches to playback of

the most recently played audio source.

Please read and observe the manufacturer's manual for the external audio source.

Interference may occur if the external audio source is powered from the vehicle’s 12-volt

socket.



Audio mode 27

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Connecting an external audio source via Bluetooth

Fig. 23 MEDIA main menu

First read and observe the safety warnings on page 3 and the introductory

information on page 20.

In Bluetooth® audio mode, audio files from a Bluetooth® audio source (e.g. mobile telephone) that is connected via Bluetooth® can be played over the vehicle loudspeakers (Bluetooth® audio playback).

Conditions

●

The Bluetooth® audio source must support

the A2DP Bluetooth® profile.

●

The



Bluetooth audio (A2DP/AVRCP)

function must

be activated in the

Bluetooth setup

⇒

page 39.

Starting Bluetooth® audio transfer

● Switch on Bluetooth® visibility on the external Bluetooth® audio source (e.g. mobile telephone).

● Reduce the base volume on the infotainment system.

● Press the

MEDIA

infotainment button.

● Touch the ⇒ Fig. 23 1 function button and select



BT audio



● Touch the

Find devices

function button to connect an external Bluetooth® audio source for the first time.

● OR: touch the

Paired devices

function button to select an external Bluetooth® audio source from the list.

● Continue the process by following the prompts on the infotainment system screen and in the display on the Bluetooth® audio source.

You may then have to start playback on the Bluetooth® audio source manually.

When playback on the Bluetooth® audio source is stopped, the infotainment system remains in Bluetooth® audio mode.

Controlling playback

The extent to which the Bluetooth® audio source can be controlled via the infotainment system varies depending on what Bluetooth® audio source is connected.

With media players that support the AVRCP Bluetooth® profile, playback on the Bluetooth® audio source can be automatically started or stopped when the unit is switched to Bluetooth® audio mode or to a different audio source. In addition, track display or track change is possible via the infotainment system.

Due to the large number of possible Blue-

tooth® audio sources, it is not possible to guarantee fault-free operation of all described functions.

Always switch off the warning and service

tones on a connected Bluetooth® audio source, e.g. key tones on a mobile telephone, to prevent interference noise and malfunctions.



Media settings

First read and observe the safety warnings on page 3 and the introductory

information on page 20.



● Select the MEDIA main menu by pressing the

MEDIA

infotainment button.

● Touch the  function button to open the

Media

setup

menu.

Function button: effect

Remove the SD card safely

: memory card is ejected from the system and can then be safely removed

⇒

page 26.

Sound

: sound settings ⇒ page 42.

Bluetooth

: opens the Bluetooth setup menu ⇒ page 39.



Composition Touch, Composition Colour28

CONFIDENTIAL

not for distribution

Function button: effect

 Traffic program (TP)

: the TP function (traffic news monitoring) is activated ⇒ page 12.

 Mix/Repeat including subfolders

: subfolders will be included in the selected playback mode ⇒ page 22.

Remove safely

: disconnect data storage device (USB storage device or SD card) from the system. Once

the storage device has been ejected from the system the respective function button is greyed out.



Audio mode 29

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Telephone control (PHONE)

Introduction to telephone control system



Introduction

This chapter contains information on the following subjects:

General information

. . . . . . . . . . . . . . . . . . . . . .

Areas where special regulations apply

. . . . . .

Bluetooth

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pairing and connecting mobile telephone on the infotainment system

. . . . . . . . . . . . . . . . . .

Switching telephone control system off

. . . . . .

The telephone functions described in the following section can be controlled via the infotainment system if a mobile telephone that is switched on is paired and connected with the infotainment system.

The mobile telephone must support the Blue- tooth® function otherwise a connection cannot be made between the telephone and the infotainment system.

If a mobile telephone is not connected to the infotainment system, the telephone control system cannot be used.

Observe the notes on using a mobile telephone in the vehicle without a connection to the external aerial ⇒ Booklet Owner's manual.

Additional information and warnings:

● Safety information  for infotainment system

⇒

page 3

● Overview of the control elements ⇒ page 6

● Basic information on use ⇒ page 7

WARNING

Making telephone calls and operating the telephone control system while the vehicle is in motion can distract you from the road and lead to accidents.

● Always drive carefully and responsibly.

● Select volume settings that allow signals from outside the vehicle (such as emergency services sirens) to be easily heard at all times.

● Your call may be cut off or you may be unable to make calls if you are in an area with no mobile telephone network coverage, an

WARNING (Continued)

area where the network is very weak or, in some cases, in a tunnel, garage or underpass. This also means that no emergency calls can be made.

WARNING

If a mobile telephone is not secured or is incorrectly secured in the vehicle, it could be flung though the interior during a sudden driving or braking manoeuvre, or in the event of an accident. This can cause injuries.

● While the vehicle is in motion, always secure the mobile telephone properly outside the airbag deployment area.

WARNING

Carrying a mobile telephone that is switched on just next to a pacemaker may cause the pacemaker to malfunction.

● Maintain a gap of approximately 20 centimetres between the aerials of the mobile telephone and the pacemaker, as mobile telephones may affect the functioning of pacemakers.

● Do not carry a mobile telephone in your breast pocket above your pacemaker when the telephone is switched on or in standby mode.

● If you suspect interference, switch off the mobile telephone immediately.

WARNING

The centre armrest may obstruct the driver's arm movements if raised, which could cause accidents and severe injuries.

● Always keep the armrest down while the vehicle is in motion.

NOTICE

High speeds, poor weather and poor road conditions as well as the network quality may impair telephone calls in the vehicle.



Composition Touch, Composition Colour30

CONFIDENTIAL

not for distribution

General information

First read and observe the introductory information and safety warnings on

page 30.

How the individual telephone menus are displayed depends on the mobile telephone being used. There may be differences.

Observe the notes on using a mobile telephone in the vehicle without a connection to the external aerial ⇒ Booklet Owner's manual, chapter Vehicle care and maintenance.

Use compatible Bluetooth® devices only. Information on compatible Bluetooth® products is available from your Volkswagen dealership or online.

Follow the operating manual for your mobile telephone and the instructions provided by the accessory manufacturer.



You may experience poor reception or may be cut off in areas where the signal is weak.

Most electronic devices are shielded against highfrequency signals. In rare cases, however, electronic devices may not be shielded against highfrequency signals emitted by the telephone control system. This can cause interference.

There may be restrictions on the use of Bluetooth® devices in some countries. Information

is available from the local authorities.

When connecting the telephone control sys-

tem with a device using Bluetooth®, read the device's operating manual for detailed safety information. Use compatible Bluetooth® products only.



Areas where special regulations apply

First read and observe the introductory information and safety warnings on

page 30.

Switch off the mobile telephone and mobile telephone provision in areas with a risk of explosion. These areas are often clearly marked, but not always ⇒ in Introduction on page 30. They include, for example:

● Areas immediately around chemical pipelines and tanks.

● Lower decks of ships and ferries.

● The area around vehicles which run on liquid gas (such as propane or butane).

● Places where there are chemicals or particles such as flour, dust and metal powder in the air.

● All other places where the vehicle engine must be switched off.



WARNING

Switch off the mobile telephone in areas with a risk of explosion!

NOTICE

Your mobile telephone must always be switched off in areas where special regulations apply and when the use of mobile telephones is forbidden. The radiation produced by the mobile telephone when switched on may interfere with sensitive technical and medical equipment, possibly resulting in malfunction or damage to the equipment.



Bluetooth

First read and observe the introductory information and safety warnings on

page 30.



Bluetooth

Bluetooth® technology is used to connect a mobile telephone to the telephone control system fitted in a vehicle. A pairing process has to be carried out before the telephone control system can be used with a Bluetooth® mobile telephone.



Telephone control (PHONE) 31

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Some Bluetooth® mobile telephones are detected and connected automatically when the ignition is switched on, if a connection already exists. For this to happen, the mobile telephone itself and the Bluetooth® function in the telephone must be switched on and all active Bluetooth® connections to other units must be disconnected.

The Bluetooth® connection is free of charge.

Bluetooth® is a registered trademark of Bluetooth® SIG, Inc.

Bluetooth® profiles

When a mobile telephone is connected to the telephone control system, data is exchanged via one of the Bluetooth® profiles.

Basic telephony Bluetooth® Hands-Free Profile (HFP):

● If a mobile telephone is connected via HFP to the telephone control system, you can make calls wirelessly via the hands-free system. The vehicle's exterior aerial cannot be used with this. Observe the notes on using a mobile telephone in the vehicle without a connection to the external aerial

⇒

Booklet Owner's manual.

Music playback Bluetooth® Advanced Audio Dis- tribution Profile (A2DP):

● Bluetooth® profile for the transmission of stereo-quality audio signals.

Playback controls Bluetooth® Audio Video Re- mote Control Profile (AVRCP):

● Bluetooth® profile for displaying track information and control of playback in the mobile device.



Pairing and connecting mobile telephone on the infotainment system

First read and observe the introductory information and safety warnings on

page 30.

In order to operate a mobile telephone via the infotainment system, a single pairing process is required for both devices.

Pairing should only be performed when the vehicle is stationary.

Conditions

● Ignition is switched on.

● If necessary, disconnect any headsets from the mobile telephone.

● The Bluetooth® function must be activated or set to visible on the mobile telephone and on the infotainment system.

● The keypad lock on the mobile telephone has to be unlocked.

Follow the operating manual for the mobile telephone.

The Bluetooth® function is set to visible on the infotainment system for about 3 minutes after the ignition is switched on.



Entries have to be made on the mobile telephone keypad during the pairing process. The mobile telephone has to be at hand for this.

Starting mobile telephone pairing

● Press the

PHONE

infotainment button.

● Touch the

Find telephone

function button.

OR:

● Press the

PHONE

infotainment button.

● Touch the

Setup



function button.

● Touch the

Select telephone

function button and

then

Find telephone

Once the search process is complete, the names of all Bluetooth® devices found will be displayed on the screen.

● Select the mobile telephone to be paired from this list of Bluetooth® devices and then select

Hands-free telephone (HFP)

The infotainment system and the mobile telephone are now connected. Further input may be required on the mobile telephone and on the infotainment system to conclude the connection process.



Composition Touch, Composition Colour32

CONFIDENTIAL

not for distribution

● If necessary, confirm the pairing on the mobile telephone.

Depends on the mobile telephone:

● Enter the PIN code that is then displayed on the infotainment system into the mobile telephone and confirm it.

OR:

● Compare the PIN code displayed on the infotainment system with the PIN code displayed on the mobile telephone. If the PIN code matches, it has to be confirmed on both devices.

The PHONE main menu is displayed and the telephone book and the call lists stored in the mobile telephone are loaded automatically once pairing has been completed. The time taken by the loading process varies depending on the amount of data stored in the mobile telephone. This data is available on the infotainment system once the loading process is completed.

Pairing and connecting mobile telephones

Several mobile telephones can be paired with the infotainment system, but only one mobile telephone can be connected to the infotainment system at a time.

When you switch the infotainment system on, a connection is automatically set up with the mobile telephone that was connected last. If no connection can be set up with this mobile telephone, the telephone control system automatically attempts to set up a connection with the next mobile telephone in the list of paired devices.

Bluetooth® connections have a maximum range of 10 metres. Any active Bluetooth® connection is in- terrupted when this distance is exceeded. The connection is automatically restored as soon as the device enters the Bluetooth® range.

You will find further information on pairing

and connecting mobile telephones on the Internet at www.volkswagen.com.



Switching telephone control system off

First read and observe the introductory information and safety warnings on

page 30.

● Switch off the ignition.

● Remove the vehicle key from the ignition lock. The telephone control system is switched off and any active call is transferred to the mobile telephone.

The telephone control system is not switched off if the vehicle key is left in the ignition lock after the engine is switched off. Once a set time has ex-



pired, a message appears on the infotainment system screen informing you that the telephone control system will be switched off automatically. An active call will be transferred to the mobile telephone.

The transfer of an active call from the tele-

phone control system to the mobile telephone can take up to approximately 10 seconds (depending on the mobile telephone being used).



Telephone control (PHONE) 33

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Description of telephone control system



Introduction

This chapter contains information on the following subjects:

PHONE main menu

. . . . . . . . . . . . . . . . . . . . . .

During a telephone call

. . . . . . . . . . . . . . . . . . .

Entering a telephone number

. . . . . . . . . . . . . .

Telephone book menu (Contacts)

. . . . . . . . . .

Call lists menu

. . . . . . . . . . . . . . . . . . . . . . . . . .

Speed dial buttons

. . . . . . . . . . . . . . . . . . . . . . .

Telephone settings

. . . . . . . . . . . . . . . . . . . . . .

Bluetooth settings

. . . . . . . . . . . . . . . . . . . . . .

User profile settings

. . . . . . . . . . . . . . . . . . . . .

Some functions and settings are only available when the vehicle is stationary, and are not supported by all mobile telephones.

The range of possible settings depends on the country, the unit and the vehicle's equipment specification.

Up to 20 devices can be linked to the telephone control system. One device at a time can be connected via the hands-free profile (HFP) or audio playback profile (A2DP) ⇒ page 33.

Additional information and warnings:

● Safety information  for infotainment system

⇒

page 3

● Overview of the control elements ⇒ page 6

● Basic information on use ⇒ page 7

● Introduction to and safety information  for telephone control system ⇒ page 30

Using a mobile telephone in the vehicle may cause noise from the vehicle speakers.

Some networks might not support all language-dependent characters and services.



PHONE main menu

Fig. 24

PHONE main menu

Fig. 25 Incoming call

First read and observe the introductory information given on page 34.

Assignment to a user profile

Telephone book data, call lists and stored speed dial buttons are assigned to a user profile and stored in the telephone control system. They are available when the mobile phone is connected with the telephone control system again.

If, while connected to the radio, telephone book entries on the mobile telephone are changed, you can start a manual update of the telephone book



data via the User profile setup menu ⇒ page 39. The telephone book will be automatically updated when the telephone is connected again (e.g. on the next journey).

A maximum of 4 user profiles can be stored for mobile telephones in the telephone control system. If another mobile telephone is connected, the user profile which has not been used for the longest amount of time will be deleted automatically.

Telephone control function buttons

● Press the

PHONE

infotainment button to open

the PHONE main menu.



Composition Touch, Composition Colour34

CONFIDENTIAL

not for distribution

Function button: effect

Name of the paired mobile telephone or the user profile in use. Touch to connect or pair another mobile telephone.

Speed dial buttons which can be used to store one telephone number from the telephone book each ⇒ page 38.



Opens the keypad to enter a telephone number ⇒ page 36.



Opens the telephone book in the paired mobile telephone ⇒ page 36.



Opens the call lists in the paired mobile telephone ⇒ page 37.



Opens the Telephone setup menu ⇒ page 38.



Touch to accept a call.



Touch to end a call. OR: touch to reject an incoming call.



Touch to mute the ring tone during a call or to switch the mute off.

Telephone control displays and symbols

Display: meaning

The name of the mobile telephone network provider where the inserted SIM card or the SIM card of the paired mobile telephone is registered.

Displays the telephone number or the stored name.

 The charge level of the paired mobile telephone.  The signal strength of the current mobile telephone transmitter station.



During a telephone call

Fig. 26 During a telephone call

First read and observe the introductory information given on page 34.

When a connection is made to a dialled telephone number, the PHONE main menu changes to the telephone call view ⇒ Fig. 26.



Displays and function buttons: action and effect



Touch to make the call on the mobile telephone provision.



Touch to switch off the microphone in the mobile telephone provision during a call ( function button changes to ). The conversation in the vehicle cannot be heard at the other end.



appears on the display A.

Touch the  function button to switch on the microphone in the mobile telephone provision again.



Touch to end a call.



Telephone control (PHONE) 35

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Displays and function buttons: action and effect

: call is being made with the connected mobile telephone. Touch the



function button to

make the call on the mobile telephone provision.

: the microphone in the provision for mobile telephone is switched off.

: charge level of the paired mobile telephone.

Display of call duration and telephone number or the stored name.

This function button is only displayed when the call is made on the mobile telephone.



Entering a telephone number

Fig. 27 Entering a telephone number

First read and observe the introductory information given on page 34.

In the PHONE main menu, press the  function button.



Possible functions

Entering a telephone number

Enter the telephone number on the keypad. Touch the  function button to dial the number.

Selecting a contact from a list

Enter the first letters of the required contact on the keypad. Possible entries appear in the contact list.

Browse through the contact list and touch the desired contact to make the call.



Telephone book menu (Contacts)

Fig. 28 Contacts menu Fig. 29 Search window

First read and observe the introductory information given on page 34.





Composition Touch, Composition Colour36

CONFIDENTIAL

not for distribution

It may take a few minutes after the first pairing process until the telephone book data1) from the paired mobile telephone is available on the infotainment system. The process could take up to an hour, depending on the amount of data to be transferred. If necessary, confirm the transfer on the mobile telephone.

The telephone book can also be opened during an on-going telephone call.

In the PHONE main menu, press the  function button.

Possible functions

Selecting a contact from a list

Browse through the list and touch the desired contact to make the call. OR: if several numbers are allocated to the same contact, first touch the

contact and then the desired number to make the call.

Finding a contact in the search window

Touch the  ⇒ Fig. 28 function button to open the search window. Enter the name you are looking for in the search window ⇒ Fig. 29. The number of matching results is displayed to the right of the entry field.

Touch the function button to go to the list view. Browse through the list and touch the desired contact to make the call.

Availability of telephone book menu depends on the mobile telephone being used.



Call lists menu

Fig. 30

Call list menu

First read and observe the introductory information given on page 34.

● In the PHONE main menu, press the  function button.

● Touch the

...



⇒ Fig. 30 1 function button.

● Select the desired call list:

All, Missed calls

Dialled numbers

Received calls

If a telephone number is already stored in the telephone book, the stored name is displayed in the call list instead of the telephone number.



Possible displays in the call menu

Display Meaning



Missed calls

: shows telephone numbers of missed and unanswered calls.



Dialled numbers

: shows telephone numbers that were dialled on the mobile telephone and the

infotainment system telephone control system.



Received calls

: shows all telephone numbers that were received on the mobile telephone and

on the infotainment system via the telephone control system.

Availability of call lists depends on the mobile telephone being used.



Depending on what device is used, only contacts from the telephone memory may be loaded.

Telephone control (PHONE) 37

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Speed dial buttons

Fig. 31 PHONE main menu

First read and observe the introductory information given on page 34.

One telephone number from the telephone book can be stored to each of the speed dial buttons

⇒

Fig. 31 1.

All speed dial buttons must be assigned manually and are then specific to a user profile.



Possible functions

Assigning speed dial buttons

In the PHONE main menu, touch a free speed dial button. Select the desired contact from the list. If several telephone numbers are

stored for the selected contact, select the desired number.

Editing assigned speed dial buttons

In the PHONE main menu, press and hold an assigned speed dial button until the Contacts menu opens.

Select the desired contact from the list. If several telephone numbers are stored for the selected contact, select the desired number.

To close the Contacts menu without applying changes, touch the  function button.

Deleting assigned speed dial buttons

Any telephone number stored on a speed dial button can be deleted in the

User profile setup

menu ⇒ page 39.

Dialling with speed dial buttons

In the PHONE main menu, briefly touch an assigned speed dial button to dial the telephone number stored to that button.

Contacts stored to the speed dial buttons are

not updated automatically. If a contact stored to a speed dial button is modified on the mobile telephone, the speed dial button must be assigned again.



Telephone settings

First read and observe the introductory information given on page 34.



In the PHONE main menu, touch the

Setup 

func-

tion button.

Function button: effect

 Hands-free

: the hands-free function is activated. Touch the function button during a telephone call to

make the call on the mobile telephone.

Select telephone

: select the mobile telephone from the list view to connect it to the infotainment system.

Find telephone

: touch to connect a new mobile telephone.

Bluetooth

: opens the Bluetooth setup menu ⇒ page 39.



Composition Touch, Composition Colour38

CONFIDENTIAL

not for distribution

Function button: effect

User profile

: opens the User profile setup menu ⇒ page 39.

Select ring tone

: select the ring tone from the list of preset ring tones. The selected ring tone is played and

stored when you leave the submenu.

This function button is only active during a telephone call.

Either the selected ring tone or the ring tone set in the mobile phone is sounded, depending on what mobile phone is being used.



Bluetooth settings

First read and observe the introductory information given on page 34.



In the PHONE main menu, touch the

Setup 

func-

tion button and then

Bluetooth

Function button: effect

 Bluetooth

: touch to switch Bluetooth® off. All existing connections are ended.

Visibility

: switch Bluetooth® visibility on and off.

Visible

: Bluetooth® visibility is activated.

Not visible

: Bluetooth® visibility is deactivated. The Bluetooth® visibility has to be switched on

before a Bluetooth® device can be externally paired with the infotainment system.

Upon start

: Bluetooth® visibility is deactivated approximately 3 minutes after the engine is star-

ted.

Name

: to display or edit the device name. This name is displayed to other Bluetooth® devices in their

Bluetooth® settings.

Paired devices

: displays paired devices. Separating and connecting individual Bluetooth® devices and

Bluetooth® profiles.

Find devices

: finds Bluetooth® devices that are set to visible and are within the range of the infotainment

system. The maximum range is approximately 10 metres.

 Bluetooth audio (A2DP/AVRCP)

: this function must be activated if you want to connect an external audio

source to the infotainment system via Bluetooth

⇒

page 28.



User profile settings

First read and observe the introductory information given on page 34.



In the PHONE main menu, touch the

Setup 

func-

tion button and then

User profile

Function button: effect

Manage favourites

: to edit speed dial buttons. Assigned speed dial button: touch to delete the stored number. Unassigned speed dial button: touch to store a number from the address book to the speed

dial button.

Sort by

: set the sorting order for telephone book entries (Last name or First name).

Import contacts

: touch to import the address book from the connected telephone or to update the previously

imported address book.

Delete other profiles

: to delete individual or all non-active user profiles.



Telephone control (PHONE) 39

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Settings

Menu and system settings (SETUP)



Introduction

This chapter contains information on the following subjects:

System settings main menu (Setup)

. . . . . . . .

The range of possible settings depends on the country, the unit and the vehicle's equipment specification.

Additional information and warnings:

● Safety information  for infotainment system

⇒

page 3

● Overview of the control elements ⇒ page 6

● Basic information on use ⇒ page 7



System settings main menu (Setup)

First read and observe the introductory information given on page 40.



● Press the

SETUP

infotainment button to open

the

System setup

main menu.

● To adjust the settings for a certain function, touch the appropriate function button.

Function button: effect

Remove the SD card safely

: ejects the memory card from the system. Once the memory card has been ejec-

ted from the system the function button is greyed out.

Sound

: make sound and volume settings ⇒ page 42.

Screen

: make screen settings.

 Display off (in 10 s)

: when this function is activated, the screen switches off if no button is pressed on the infotainment system for about ten seconds. The screen is switched back on by touching the screen or pressing an infotainment button.

Brightness

: select the brightness of the screen.

 Confirmation tone

: activates the confirmation tone that sounds when a function button is

touched.

 Show clock in standby mode

: the screen shows the current time when the infotainment system is

in standby mode.

Time and date

: set the time and date.

Time

: to set the current time.

Time format

: select the format for the time display (12 or 24-hour).

 Summer (DST)

: summer time is activated.

Date

: set the current date.

Date format

: to select the format for the date display (DD.MM.YY, YY-MM-DD or MM-DD-YY).

Language

: select the desired language for text and voice output.

Keypad

: select the required layout (alphabetical or keyboard layout).

More keypad languages

: select additional keypad languages.

Units

: sets units of measurement for displays in the vehicle.

Distance, Speed, Temperature, Volume, Consumption and Pressure.

Bluetooth

: make settings relating to Bluetooth® ⇒ page 39.

Remove safely

: disconnect data storage device (USB storage device or SD card) from the system. Once

the storage device has been ejected from the system the respective function button is greyed out.



Composition Touch, Composition Colour40

CONFIDENTIAL

not for distribution

Function button: effect

Factory settings

: restoring the factory settings will erase entered data and settings depending on which

option has been selected.

System information

: displays the system information (serial number, hardware and software versions).

: copyright information.

It is important that the correct date and time are set in the vehicle to ensure the infotain-

ment system works properly.



Settings 41

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Sound and volume settings



Introduction

This chapter contains information on the following subjects:

Adjusting settings

. . . . . . . . . . . . . . . . . . . . . . .

The range of possible settings depends on the country, the unit and the vehicle's equipment specification.

Additional information and warnings:

● Safety information  for infotainment system

⇒

page 3

● Overview of the control elements ⇒ page 6

● Basic information on use ⇒ page 7



Adjusting settings

First read and observe the introductory information given on page 42.

● Press the

SOUND

infotainment button.

● OR: press the

SETUP

infotainment button and

then select

Sound

to open the

Sound setup

main

menu.

● To adjust the settings for a certain function, touch the appropriate function button.



Changes are automatically stored when a menu is closed.

Function button: effect

Bass - Mid- Treble

: sets the tonal quality (Bass - Mid - Treble).

Balance

Balance - Fader

: set the sound focus.

The crosshair shows the where the sound is currently focused in the car's interior. To move the sound focus, touch the required position on the interior view or use the arrow buttons to change the position. To place the focus of sound at the centre of the interior view, touch the function button between the arrows.

Volume

: to make volume settings.

Max. switch-on volume

: define the maximum volume at switch-on.

Announcements

: to set the output volume for announcements (e.g. traffic announcements).

Speed-dep. vol. (GALA)

: define the scope of the speed-dependent volume control. The audio vol-

ume is automatically increased as the vehicle speed increases.

Audio lower.

: set how much the volume of the infotainment system should be reduced by when

the ParkPilot is active.

AUX volume

: to set the output volume for audio sources that are connected via the AUX-IN mul-

timedia socket (

Quiet, Medium

Loud

). Please also refer to ⇒ page 42, Adjusting playback

volume of external audio sources.

BT audio

: to set the output volume for audio sources connected via Bluetooth® (quiet, medium

loud

). Please also refer to ⇒ page 42, Adjusting playback volume of external audio sour-

ces.

 Confirmation tone

: activates the confirmation tone that sounds when a function button is touched.

Adjusting playback volume of external audio sources

If you need to increase the output volume of an external audio source, first lower the base volume on the infotainment system.

If the sound from the external audio source is too quiet, increase the output volume on the external audio source if possible. If this is not sufficient, set the input volume to

Medium

Loud



Composition Touch, Composition Colour42

CONFIDENTIAL

not for distribution

If the sound from the connected external audio source is too loud or distorted, lower the output volume on the external audio source if possible. If this is not sufficient, set the input volume to

Me-

dium

Quiet



Settings 43

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Abbreviations

Abbreviation Definition

Generic technology for the transmission of audio signals via Bluetooth® (Advanced Audio Distribution Profile).

Amplitude modulation (medium wave, MW).

Auxiliary audio input.

Universal technology for remote control of audio sources via Bluetooth® (Audio Video Remote Control Profile).

German Standards Authority (Deutsches Institut für Normung).

Digital rights management.

Supporting of other networks (enhanced other network).

Frequency modulation (very high frequency, VHF).

Wireless telephony (hands-free profile).

Format for compressing audio files.

Radio data system.

Traffic news function (traffic program).

Variable bit rate.

Format for compressing audio files.

A2DP

AUX-IN

AVRCP

DIN

DRM

EON

HFP

MP3

RDS

VBR

WMA



Composition Touch, Composition Colour44

CONFIDENTIAL

not for distribution

Index

AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Areas where special regulations apply . . . . 31

AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

AUX-IN socket . . . . . . . . . . . . . . . . . . . . . . 27

External audio sources . . . . . . . . . . . . . . . 27

Selecting . . . . . . . . . . . . . . . . . . . . . . . . . . 23

AUX-IN socket . . . . . . . . . . . . . . . . . . . . . . . . 27

Base volume . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Bluetooth

Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Bluetooth audio . . . . . . . . . . . . . . . . . . . . . . . 28

Browsing lists . . . . . . . . . . . . . . . . . . . . . . . . . 9

BT audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Infotainment system . . . . . . . . . . . . . . . . . . . 6

Call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Cannot be read . . . . . . . . . . . . . . . . . . . . . 25

Ejecting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Inserting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Selecting . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Checkboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control elements (infotainment system) . . . . 6

Information . . . . . . . . . . . . . . . . . . . . . . . . . 41

Cursor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Dialling a number . . . . . . . . . . . . . . . . . . . . . 36

During a telephone call . . . . . . . . . . . . . . . . . 35

Eject

see CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 44

Explosion risk areas

Telephone . . . . . . . . . . . . . . . . . . . . . . . . . 31

External audio sources . . . . . . . . . . . . . . . . . 27

Adjusting playback volume . . . . . . . . . . . . 42

BT audio . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

External data storage device

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Factory settings . . . . . . . . . . . . . . . . . . . . . . . 40

FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 44

Frequency band

AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 12

FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Selecting . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Function buttons . . . . . . . . . . . . . . . . . . . . . . . 8

MEDIA main menu . . . . . . . . . . . . . . . . . . . 22

Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Radio main menu . . . . . . . . . . . . . . . . . . . . 12

Function buttons (soft keys)

PHONE main menu . . . . . . . . . . . . . . . . . . 34

GALA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Hard keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Hard keys (infotainment system) . . . . . . . . . . 6

Ignition off

Switch-off delay (timeout) . . . . . . . . . . . . . . . 7

Infotainment buttons . . . . . . . . . . . . . . . . . . 6, 7

Input window . . . . . . . . . . . . . . . . . . . . . . . . . 10

Interference from a mobile telephone . . . . . . 7

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Main menu

MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Settings (SETUP) . . . . . . . . . . . . . . . . . . . . 40

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

MEDIA

AUX-IN socket . . . . . . . . . . . . . . . . . . . . . . 27

Bit rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Index

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Bluetooth audio . . . . . . . . . . . . . . . . . . . . . 28

CD audio data . . . . . . . . . . . . . . . . . . . . . . 20

CD cannot be read . . . . . . . . . . . . . . . . . . . 25

CD faulty . . . . . . . . . . . . . . . . . . . . . . . . . . 25

CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing media source . . . . . . . . . . . . . . . 23

Changing tracks . . . . . . . . . . . . . . . . . . . . . 24

Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Displays and symbols . . . . . . . . . . . . . . . . 23

Ejecting a CD . . . . . . . . . . . . . . . . . . . . . . . 25

External data storage device connected to

USB port . . . . . . . . . . . . . . . . . . . . . . . . . 26

Fast forward . . . . . . . . . . . . . . . . . . . . . . . . 24

Fast reverse . . . . . . . . . . . . . . . . . . . . . . . . 24

Function buttons . . . . . . . . . . . . . . . . . . . . 22

Inserting a CD . . . . . . . . . . . . . . . . . . . . . . 25

Inserting memory card . . . . . . . . . . . . . . . . 26

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . 22

Media mode . . . . . . . . . . . . . . . . . . . . . . . . 20

Media source selection menu . . . . . . . . . . 23

Memory card cannot be read . . . . . . . . . . . 26

MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Playback modes . . . . . . . . . . . . . . . . . . . . . 22

Playing order . . . . . . . . . . . . . . . . . . . . . . . 21

Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Preparing for removal . . . . . . . . . . . . . . . . 26

Random play (Mix) . . . . . . . . . . . . . . . . . . . 22

Removing memory card . . . . . . . . . . . . . . . 26

Repeat function (Repeat) . . . . . . . . . . . . . . 22

Requirements . . . . . . . . . . . . . . . . . . . . . . . 20

Restrictions . . . . . . . . . . . . . . . . . . . . . . . . 21

Scan function (SCAN) . . . . . . . . . . . . . . . . 22

Selecting storage devices . . . . . . . . . . . . . 23

Selecting track . . . . . . . . . . . . . . . . . . . . . . 24

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Track information . . . . . . . . . . . . . . . . . . . . 23

Track list . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

WMA files . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Media sources . . . . . . . . . . . . . . . . . . . . . . . . 23

AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Memory card . . . . . . . . . . . . . . . . . . . . . . . 23

Selecting . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Memory card

Cannot be read . . . . . . . . . . . . . . . . . . . . . 26

Inserting . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Preparing memory card for removal . . . . . 26

Removing . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Selecting . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Numbers

Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

On-screen keypad . . . . . . . . . . . . . . . . . . . . . 10

Operation

Additional display information . . . . . . . . . . . 11

Adjusting the volume . . . . . . . . . . . . . . . . . . 8

Browsing lists . . . . . . . . . . . . . . . . . . . . . . . . 9

Checkboxes . . . . . . . . . . . . . . . . . . . . . . . . . 8

Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Function buttons . . . . . . . . . . . . . . . . . . . . . 8

Infotainment buttons . . . . . . . . . . . . . . . . . . 7

Input window . . . . . . . . . . . . . . . . . . . . . . . 10

Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

On-screen keypad . . . . . . . . . . . . . . . . . . . 10

PHONE . . . . . . . . . . . . . . . . . . . . . . . . 30, 34

RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Rotary/push knobs . . . . . . . . . . . . . . . . . . . . 7

Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Slider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Switching on and off . . . . . . . . . . . . . . . . . . . 7

Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . 8

PHONE

A2DP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Areas where special regulations apply . . . 31

Bluetooth profiles . . . . . . . . . . . . . . . . . . . . 31

Bluetooth settings . . . . . . . . . . . . . . . . . . . 39

Call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Connecting via infotainment system . . . . . 32

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Description of functions . . . . . . . . . . . . . . . 31

Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Displays and symbols . . . . . . . . . . . . . . . . 35

During a telephone call . . . . . . . . . . . . . . . 35

Entering telephone number . . . . . . . . . . . . 36

Explosion risk areas . . . . . . . . . . . . . . . . . . 31

Function buttons . . . . . . . . . . . . . . . . . . . . 34

General information . . . . . . . . . . . . . . . . . . 31

HFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . 34

Mobile telephone pairing . . . . . . . . . . . . . . 32

Pairing via infotainment system . . . . . . . . . 32

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Speed dial buttons . . . . . . . . . . . . . . . . . . . 38

Telephone book . . . . . . . . . . . . . . . . . . . . . 36

Telephone control . . . . . . . . . . . . . . . . . . . . 30

Telephone control system . . . . . . . . . . . . . 34

User profile settings . . . . . . . . . . . . . . . . . . 39

Playback

AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

External data storage device (USB) . . . . . . 26

MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Memory card . . . . . . . . . . . . . . . . . . . . . . . 22

RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Composition Touch, Composition Colour

CONFIDENTIAL

not for distribution

Pop-up windows . . . . . . . . . . . . . . . . . . . . . . . 8

Quick reference guide . . . . . . . . . . . . . . . . . . . 3

RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

AM settings . . . . . . . . . . . . . . . . . . . . . . . . 18

Display of station names . . . . . . . . . . . . . . 13

Displays and symbols . . . . . . . . . . . . . . . . 13

EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

FM settings . . . . . . . . . . . . . . . . . . . . . . . . 18

Frequency change . . . . . . . . . . . . . . . . . . . 12

Function buttons . . . . . . . . . . . . . . . . . . . . 12

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . 12

Radio mode . . . . . . . . . . . . . . . . . . . . . . . . 12

Radio text . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Scan function (SCAN) . . . . . . . . . . . . . . . . 16

Selecting stations . . . . . . . . . . . . . . . . . . . . 14

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setting station frequency . . . . . . . . . . . . . . 14

Setting stations . . . . . . . . . . . . . . . . . . . . . 14

Station buttons . . . . . . . . . . . . . . . . . . . . . . 14

Station list . . . . . . . . . . . . . . . . . . . . . . . . . 14

Station tracking via RDS . . . . . . . . . . . . . . 13

Stopping station name scrolling . . . . . . . . . 16

Storing stations . . . . . . . . . . . . . . . . . . . . . 14

TP (traffic program) . . . . . . . . . . . . . . . . . . 17

Traffic announcement (INFO) . . . . . . . . . . 17

Traffic news . . . . . . . . . . . . . . . . . . . . . . . . 17

Radio text (RDS) . . . . . . . . . . . . . . . . . . . . . . 16

Random play (Mix) . . . . . . . . . . . . . . . . . . . . . 22

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Automatic station tracking . . . . . . . . . . . . . 13

Radio text . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RDS Regional . . . . . . . . . . . . . . . . . . . . . . 13

TP (traffic program) . . . . . . . . . . . . . . . . . . 17

Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Repeat function (Repeat) . . . . . . . . . . . . . . . 22

Requirements for

CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

memory cards . . . . . . . . . . . . . . . . . . . . . . 20

Rotary/push knobs . . . . . . . . . . . . . . . . . . . . . 7

Rotary/push knobs (infotainment system) . . 6

Safety information

Infotainment system . . . . . . . . . . . . . . . . . . . 3

SCAN

Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Scan function (SCAN)

MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Screen

Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Screen (infotainment system) . . . . . . . . . . . . 6

Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

SD card

see Memory card . . . . . . . . . . . . . . . . . . . . 26

Setting date . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Settings

AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Factory settings . . . . . . . . . . . . . . . . . . . . . 40

FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . 40

Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Menu and system settings . . . . . . . . . . . . . 40

PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

User profile . . . . . . . . . . . . . . . . . . . . . . . . . 39

Volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Setting time . . . . . . . . . . . . . . . . . . . . . . . . . . 40

SETUP

see Settings . . . . . . . . . . . . . . . . . . . . . . . . 40

Slider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Soft keys

Infotainment system . . . . . . . . . . . . . . . . . . . 8

MEDIA main menu . . . . . . . . . . . . . . . . . . . 22

Radio main menu . . . . . . . . . . . . . . . . . . . . 12

Sound focus (balance, fader) . . . . . . . . . . . . 42

Sound settings (treble, bass) . . . . . . . . . . . . 42

Speed-dependent volume . . . . . . . . . . . . . . . 42

Speed dial buttons . . . . . . . . . . . . . . . . . . . . 38

Station buttons . . . . . . . . . . . . . . . . . . . . . . . 14

Station names . . . . . . . . . . . . . . . . . . . . . . . . 13

Stations

Scan function (SCAN) . . . . . . . . . . . . . . . . 16

Selecting . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Stopping station name scrolling . . . . . . . . . 16

Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Station search . . . . . . . . . . . . . . . . . . . . . . . . 16

Station tracking . . . . . . . . . . . . . . . . . . . . . . . 13

Switch-off delay (timeout) . . . . . . . . . . . . . . . . 7

Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Telephone control

see PHONE . . . . . . . . . . . . . . . . . . . . . . . . 30

Index

142.5R6.RCT.20

CONFIDENTIAL

not for distribution

Telephone control system (PHONE)

Switching off . . . . . . . . . . . . . . . . . . . . . . . . 33

Text input . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Things to note

AUX operation . . . . . . . . . . . . . . . . . . . . . . 27

Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Volume reduction . . . . . . . . . . . . . . . . . . . . . 7

Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Touchscreen (infotainment system) . . . . . . . 6

TP (traffic program)

EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Switching on and off . . . . . . . . . . . . . . . . . . 17

Traffic announcement (INFO) . . . . . . . . . . 17

Track list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Traffic announcement (INFO) . . . . . . . . . . . . 17

Traffic news

see TP (traffic program) . . . . . . . . . . . . . . . 17

Unit buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

USB

Connecting an external data storage device . .26

Disconnecting . . . . . . . . . . . . . . . . . . . . . . 26

Not readable . . . . . . . . . . . . . . . . . . . . . . . 26

User profile

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

VHF

see FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Volume

Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Base volume . . . . . . . . . . . . . . . . . . . . . . . . 8

Determining for external audio sources . . . 42 Speed-dependent volume increase (GALA) . .42

Traffic announcements . . . . . . . . . . . . . . . . 42

Volume distribution (balance, fader) . . . . . . 42

Volume reduction . . . . . . . . . . . . . . . . . . . . . . 7
