Instruction Manual
for Connection Guide
Data Communication Device L-02A
CON_Guide_E.book 54
DOCOMO W-CDMA GSM/GPRS
System
Thank You for Purchasing the Data Communica- tion Device L-02A
Before or while using the L-02A, be sure to thoroughly read this manual and the individual manual for other operation devices to ensure its correct use. For further information, contact the "docomo Information Center" on the back of this manual. The L-02A is designed to be your close partner. Treat it carefully at all times to ensure longterm performance.
Before Using the FOMA Terminal
•Because the FOMA terminal uses radio waves, it may not function in locations where it is difficult for radio waves to penetrate, such as tunnels, underground passages and some buildings in areas where radio wave signals are weak or out of the service area. Even when you are on a higher floor of a tall building or condominium and nothing blocks your view outside, the FOMA terminal may not be able to receive or transmit signals. Also communication may be interrupted even when the Antenna Indication Lamp on the FOMA terminal lights green indicating a strong signal reception with 3 antenna indication bar.
•Use the FOMA terminal in ways that do not disturb others in public places, crowded locations, or quiet locations.
•The FOMA terminal communicates via radio waves by converting voices into digital signals. If you move into an area where signal reception is poor, the digital signals may not be accurately decoded and what you hear may differ slightly from what was actually said.
•DOCOMO is not responsible for any economic losses incurred through lost communication opportunities caused by external factors such as malfunction or failure of the FOMA terminal, or electrical outage.
•The FOMA terminal can be operated in FOMA Plus-Areas and FOMA HIGH-SPEED Areas.
•The FOMA terminal can be used only via the FOMA network provided by DOCOMO and DOCOMO's roaming area.
•This FOMA terminal does not support i-mode functions (i-mode mail, connection to official i-mode sites or i-appli, etc.)
For Those Who Use the FOMA Terminal for the First Time
If this is the first time for you to use the FOMA terminal, it is recommended that you read this manual in the following order to learn basic operations.
1.Learning the precautions. . . . . . . . . . . . . . . . . . . . . . P61
2.Learning the names of parts and functions of the FOMA terminal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P72
3.Inserting the FOMA terminal into a PC . . . . . . . . . . P77
4.Having the FOMA terminal recognized by your PC. . .P77
5.Setting up the FOMA terminal for communication
. . . . . . . . . . . . . . . . . "L-02A INSTRUCTION MANUAL" P60
The latest version of this manual can be downloaded from the DOCOMO web site.
■The URL of PDF for Instruction Manual http://www.nttdocomo.co.jp/english/support/manual/ index.html
The URL and the information contained in the manual are subject to change without prior notice.
54
CON_Guide_E.book 55
How to Read/Refer to This Manual
Contents
L-02A Manual is composed of L-02A Instruction Manual Connection Guide (this manual) and L-02A INSTRUCTION MANUAL (included CD-ROM) recorded in CD-ROM.
■ L-02A Instruction Manual Connection Guide this manual
The following contents such as connection to computer, troubleshooting methods, specifications of L-02A are written.
•Contents/Precautions
•Before Using the FOMA Terminal
•Setting up
•Appendix/Troubleshooting
■ L-02A INSTRUCTION MANUAL (included CD-ROM)
Besides the above contents described in L-02A Instruction Manual Connection Guide , the contents of configuring communication through special application are also written.
This manual is supplied with PDF. To view this manual, Adobe Reader (Version6.0 or later is recommended) is necessary.
•L-02A Connection Software
•DOCOMO Connection Manager
•Configuring Network Manually
•Overseas Use
55
CON_Guide_E.book 56
How to Refer to This Manual
This manual offers you the following methods to easily find a page describing functions or services you want to know about.
From the Index |
|
P109 |
|
||
|
Search from the index when you know the names of functions or services.
From the Tabs on the Cover |
|
Front |
|
cover |
|
|
||
|
|
Search functions or services from the index tabs printed on the front cover.
See next page for detailed descriptions
From the Contents |
|
P59 |
|
||
|
Search from the contents that categorize functions.
From the Main Features |
|
P60 |
|
||
|
Search from the features when you want to use specific functions.
Please understand that L-02A Manual refers to the L-02A as the FOMA Terminal .
This manual describes, some steps and screens may differ depending on your operating environment.
Reprinting all or parts of this manual is prohibited.
Information contained in this manual is subject to change without prior notice.
56
CON_Guide_E.book 57
A way to find a destination page is explained with an example of "Installing L-02A connection software on Windows (including a driver)"
From the Index
XP109
Search or a function name or a service name as shown below.
From the Index Tabs on the Front Cover
XFront cover
Search for the function in the order of Front cover →Chapter title page → Target page as shown below.
P85
The page describing "Installing L-02A
connection software on Windows (including a driver)"
57
CON_Guide_E.book 58
Displays a section title.
Useful Information or suggestions relating to an operation.
The above page is an example.
Screen images and illustrations contained in this manual are for reference only. They may differ from those seen for the actual product.
58
Explains Operation steps
A key screen for an operation step. This is an image of a screen seen on the PC. Numbers, settings or characters entered are for reference only.
Index: Searching each
chapter is available.
CON_Guide_E.book 59
Contents
How to Read/Refer to This Manual 55 Contents 59 Features of the L-02A 60 Safety Precautions (ALWAYS FOLLOW THESE PRECAUTIONS) 61 Handling and Care 66 Purchased Product and Accessories 69
Before Using |
Names of Parts and Functions |
|
the FOMA |
Using FOMA Card |
|
Available Communications |
||
Terminal |
||
Connecting the FOMA Terminal with a |
||
71 |
PC |
|
|
Setting Up |
|
|
Installing L-02A Connection Soft- |
|
Setting Up |
ware on Windows (including a driver) |
|
81 |
Installing L-02A Connection Soft- |
|
ware on Macintosh (including a driver) |
||
|
Uninstalling L-02A Connection Soft- |
|
|
ware (including a driver) |
|
|
|

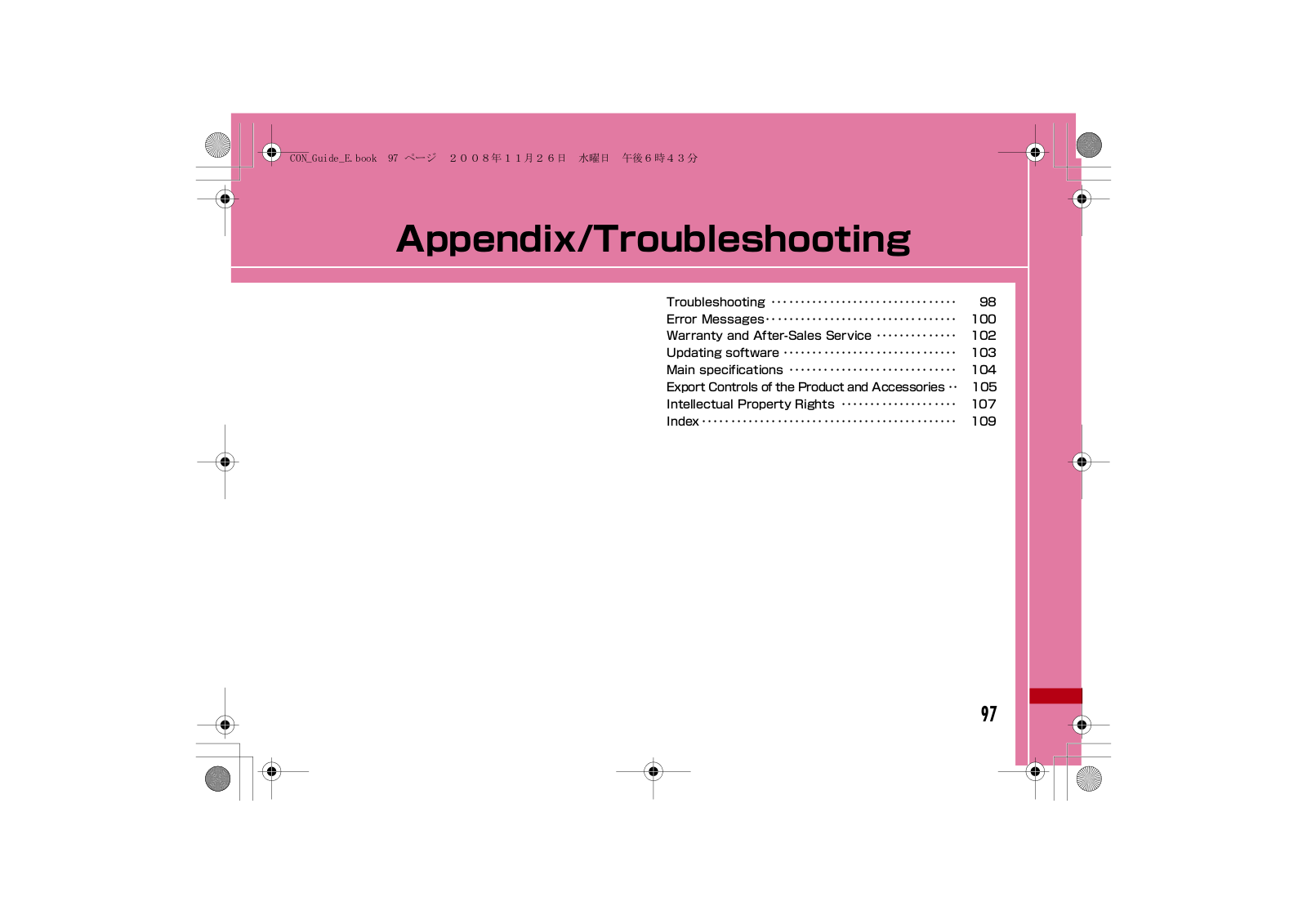

Appendix/ Trouble- shooting 97

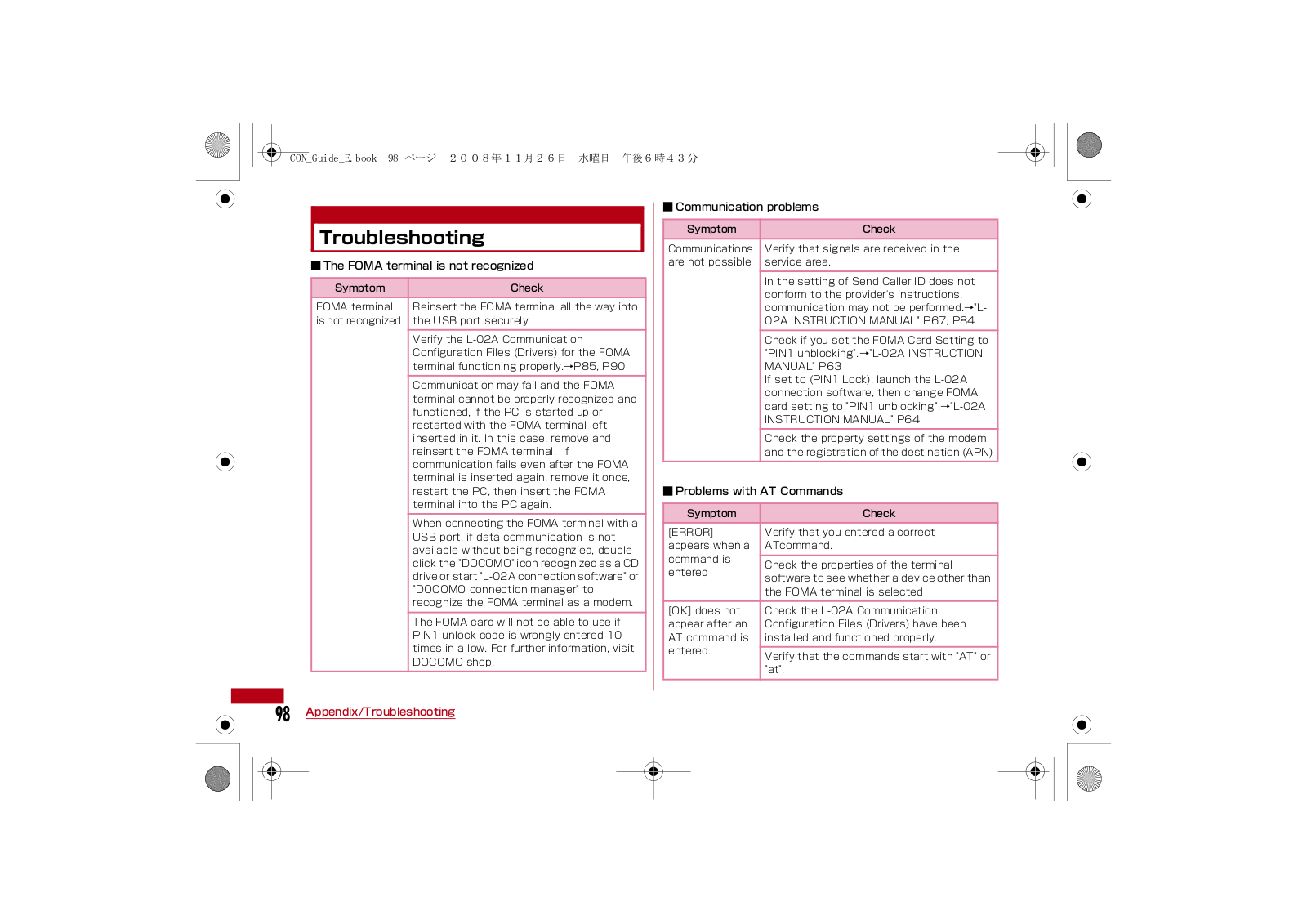

Troubleshooting

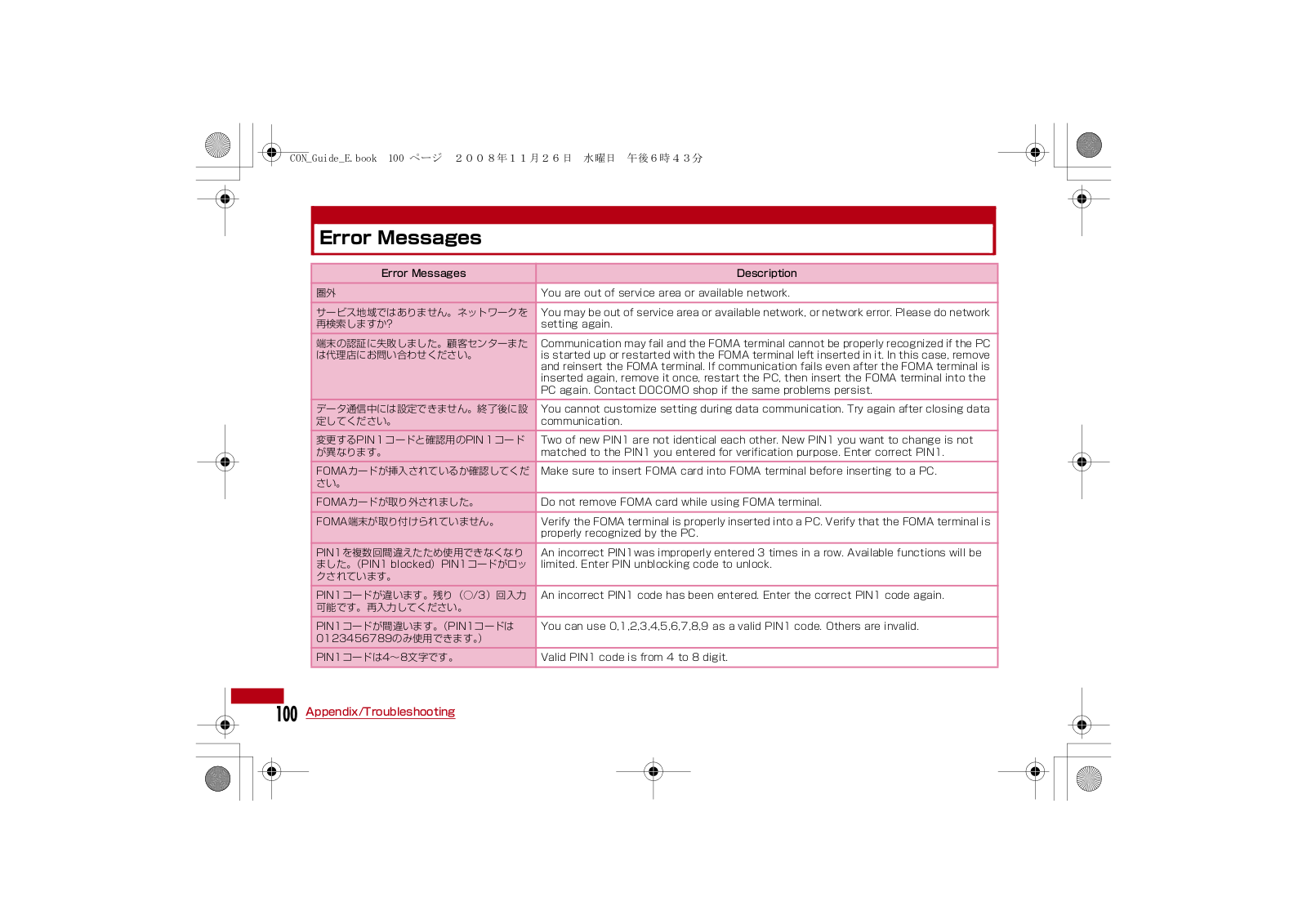

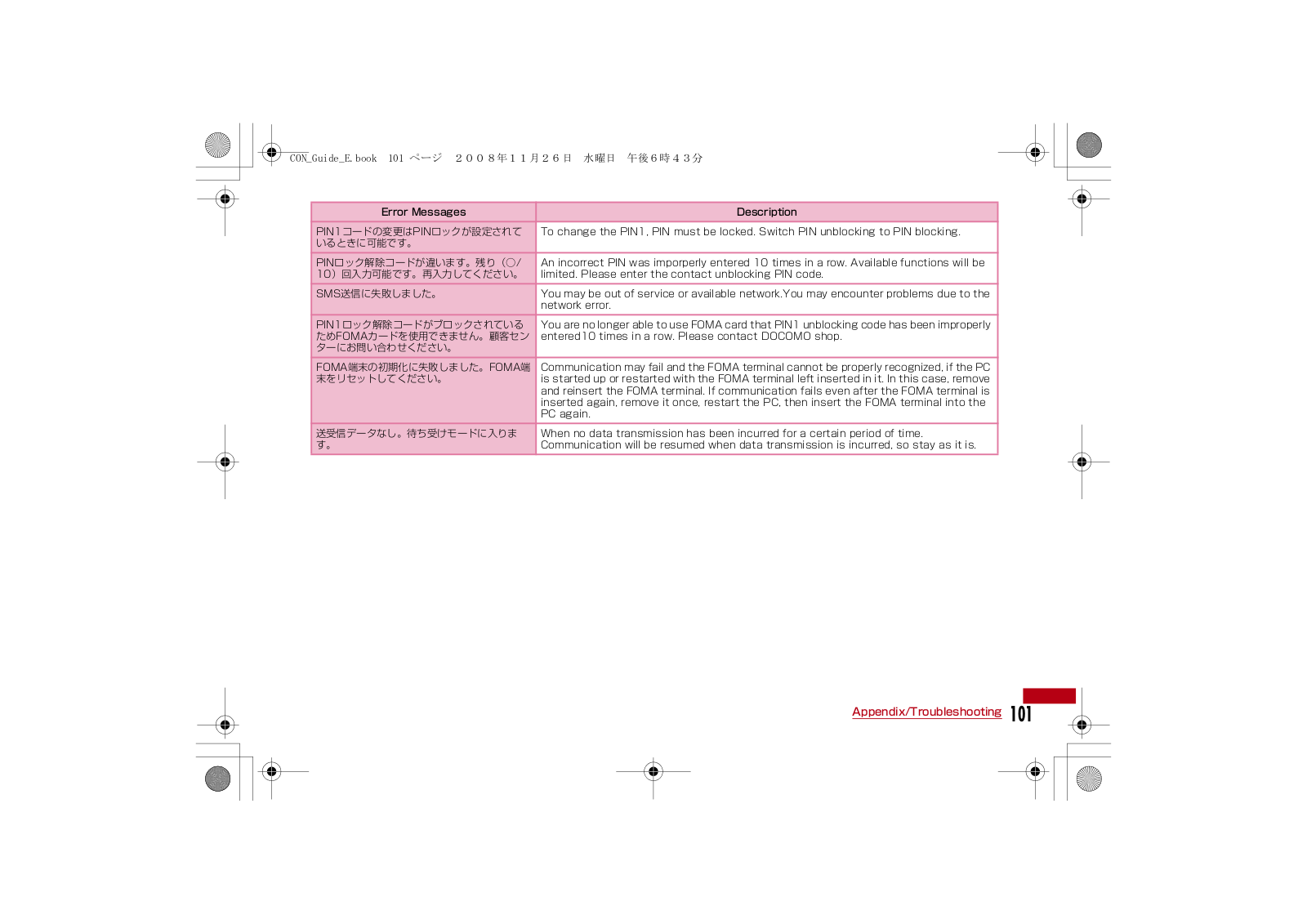

Error Messages
Warranty and After-Sales Service Software update
Main Specifications
Export Controls of the Product and Accessories
Intellectual Property Rights Index
Contents/Precautions 59
CON_Guide_E.book 60
Features of the L-02A
FOMA (Freedom Of Mobile multimedia Access) is the name of a service provided by DOCOMO based on the W-CDMA system, which is certified as one of the global standards of 3rd generation mobile communication systems (IMT-2000).
■Correspondence with the FOMA HIGH-SPEED Area
You can enjoy high speed communication (Best effort system at a maximum of 7.2Mbps for receiving and 384kbps for sending.
•The maximum speed of 7.2Mbps for receiving and 384kbps for sending are theoretical values and they do not show the actual performance.
•Out of High-Speed area, the maximum communication speed for receiving and sending is 384kbps.
•The actual communication speed varies depending on surrounding communication conditions and network condition.
•DOCOMO offers Internet connection services, such as
mopera U . For details, visit the mopera U web site http://www.mopera.net/ (Japanese only)
The packet communication in FOMA HIGHSPEED area, the amount of send/receive data is expected to increase. Note that the communication fees may become high.
■International Roaming Service
Communications are available from a PC even in foreign countries that have adapted the W-CDMA (3G) network system or GPRS network.
"L-02A INSTRUCTION MANUAL" P108
If you subscribed to the FOMA service after September1,2005 a separate subscription is not required to use WORLD WING . If you subscribed to the FOMA service on or before August 31, 2005 and have not subscribed to WORLD WING , a separate subscription is required to use it.
■FOMA Card Interchangeability
The same FOMA card can be used in more than one FOMA terminal. P74
■SMS Feature
Allows you to send and receive SMS by using L-02A
Connection Software "L-02A INSTRUCTION
MANUAL" P48
•Up to 20 simultaneous multi-messaging can be supported. Note that fees for multi-messaging will be charged depending on the number of SMS you send.
60 Contents/Precautions
CON_Guide_E.book 61
Safety Precautions (ALWAYS
FOLLOW THESE PRECAUTIONS)
•Before using your FOMA terminal, read these ″Safety Precautions″carefully so that you can use it properly. After reading the safety precautions, keep this manual in a safe place for later reference.
•These precautions are intended to protect you and others around you. Read and follow them carefully to avoid injury, damage to the product or damage to property.
■The signs below indicate the levels of danger or damage that may occur if the particular precautions are not observed .
This sign indicates that
incorrect handling has a DANGER high possibility of
causing death or serious injury.
This sign indicates that
WARNING incorrect handling poses a risk of causing death or
serious injury.
This sign indicates that
incorrect handling poses CAUTION a risk of causing injury or
damage to the product or property.
■The following symbols indicate special warnings regarding product usage.
Denotes things not to do (prohibition).
Denotes not to disassemble.
Notdisassembly
Denotes not to use where it could get
wet.
Not liquids
Denotes mandatory instructions (matters that must be complied with).
■"Safety Precautions" are explained in the following 4 sections.
General Precautions for the FOMA Terminal and FOMA Card ……………………………………………………………… 62 Precautions for the FOMA Terminal …………………… 63 Precautions for the FOMA Card ………………………… 64 Notes on Using near Electronic Medical Equipment …… 65
Contents/Precautions 61
CON_Guide_E.book 62
General Precautions for the FOMA
Terminal and FOMA Card
|
|
|
|
|
|
|
|
|
|
|
|
DANGER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Do not use or leave the FOMA terminal |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
and FOMA card in places with a high |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
temperature such as in cars under the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
blazing sun. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Deformation, malfunction heating or the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
deterioration of performance may result. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Also, part of the case could get heated, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
causing bare skin burns. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Do not disassemble Disassemble, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
remodel or solder the terminal and FOMA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
card. |
|
|
|
|
|
|
|
|
|
|
|
|
Notdisassembly |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
●Fire, injury, electric shock or |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
malfunction may result. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Do not let FOMA terminal and FOMA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
card get wet. |
|
|
|
|
|
|
|
|
|
|
|
|
Not liquids |
●Contact with water or other liquids may |
|
|
|||
|
|
|
|
|
|
|
|
|
cause heating, electric shock, fire, |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
malfunction or injury. Take care not to |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
use the terminal and FOMA card in |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
areas where they could get wet. |
|
|
|
|
|
|
|
|
|
62 Contents/Precautions |
|
|
|||||||
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WARNING
Do not put the FOMA terminal or FOMA card in microwave ovens or other heating.
●The FOMA terminal may over heat, smoke or catch fire, or its circuit parts may burst.
Do not throw the FOMA terminal or FOMA card, or subject them to severe shocks.
●Malfunction or fire may result.
Be careful not to let electro conductive materials (metal pieces, pencil leads etc.) contact with the connector terminal. Also, make sure that these are not entered into the inside of the FOMA terminal.
●Fire or other malfunctions may result from a short circuit.
Make sure you have the power of the computer which is connected with FOMA terminal switched off before you go near a flammable gas such as gasoline fumes.
●Using the terminal in such an environment may result in a fire.
CON_Guide_E.book 63
CAUTION
Do not place the FOMA terminal or FOMA card on unstable locations such as wobbly tables or slanted locations.
●The FOMA terminal or FOMA card may fall, resulting in injury or malfunction.
Do not store the FOMA terminal or FOMA card in humid or dusty places, or in hot areas.
● Malfunction may result.
If children use the FOMA terminalFOMA terminal or FOMA card, a guardian should
explain the precautions and correct operations. The guardian should also make sure that the instructions are
followed during use.
●Injury may result.
Keep out of reach of babies and infants.
●Accidental swallowing or injury may result.
Precautions for the FOMA Terminal
WARNING
Do not put the FOMA terminal in the place where it could be affected by an expanded airbag, e.g. on the dashboard.
●If the airbag expands, the FOMA terminal could hit you and others, causing accidents such as injury and the FOMA terminal could get malfunction or damaged.
Do not place the terminal in breast or inner pocket when electronic medical equipment is near by.
●Using FOMA terminal closed to electronic medical equipment may result malfunction.
Do not allow liquids such as water, or foreign materials such as metal pieces or flammable materials to get into the FOMA card opening in the FOMA terminal.
●Fire, electronic shock or malfunction may result.
Contents/Precautions 63
CON_Guide_E.book 64
Turn off the FOMA terminal in places where use is prohibited such as airplanes or hospitals.
●Electronic and electronic medical appliances may be adversely affected. For use inside medical facilities, make sure that you comply with their regulations.
Remove FOMA terminal from the USB port in places near high-precision electronic devices or devices using weak electronic signals.
●The FOMA terminal may possibly cause these devices to malfunction.
●Electronic devices that may be affected Hearing aids, implanted cardiac pacemakers, implanted defibrillators, other medical electronic devices, fire alarms, automatic doors and other automatically controlled devices.
If you are using an implanted cardiac pace maker, implanted defibrillator or any other electronic medical device, consult the manufacturer or retailer of the device for advice regarding possible effects from radio waves.
64 Contents/Precautions
CAUTION
Electronic devices in some types of cars can be affected by use of the FOMA terminal.
●For safety's sake, do not use the FOMA terminal inside such cars.
Itching, rash or eczema may be caused depending on your physical conditions or predisposition.
●If an abnormality occurs, stop using the FOMA terminal immediately, and then seek medical attention.
Metal(chrome plating) is used to the following parts.
Parts that are used: USB connector
Precautions for the FOMA Card
CAUTION
Be careful when removing the FOMA card(IC portion).
●Your hands or fingers may be injured.
CON_Guide_E.book 65
Notes on Using near Electronic Medical Equipment
■The description below meets ″Guideline on the Use of Radio-communication Equipment such as Cellular Telephones - Safeguards for Electronic Medical Equipment″ by the Electromagnetic Compatibility Conference.
WARNING
Be sure to adhere to the following regulations inside medical facilities.
●Keep the FOMA terminal out of operating rooms, intensive care units (ICUs) or coronary care units (CCUs).
●Turn off the PC in hospital wards. ●Turn off the PC in hospital lobbies and
corridors if electrical medical devices could be nearby.
●If the medical facility has specific zones where use or possession of mobile terminals is prohibited, follow those regulations.
●If the function which automatically turns on the power is set, cancel the setting before turning off your PC.
Turn off the PC in crowded trains or other public places where implanted cardiac pacemaker or defibrillator wearers could be nearby.
●Signals from the FOMA terminal may affect the operation of implanted cardiac pacemakers or defibrillators.
If you use an implanted cardiac pacemaker or implanted defibrillator, use the mobile terminal 22cm or more away from the implanted cardiac pacemaker or implanted defibrillator.
●Operation of an implanted cardiac pacemaker or implanted defibrillator may be affected by radio waves.
Patients using electronic medical equipment other than implanted cardiac pacemakers or implanted defibrillators (using outside medical facilities for treatment at home, etc.) should check the influence of radio waves upon the equipment by consulting the manufacturer.
●Operation of electronic medical equipment may be affected by radio waves.
Contents/Precautions 65
CON_Guide_E.book 66
Handling and Care
General Usage Guidelines
■Keep the FOMA terminal away from water.
The FOMA terminal and FOMA card are not waterproof. Do not use the terminal in places with high humidity such as a bath or where rain may get it wet. If you carry the card close to your body, moisture from sweat may corrode the internal parts causing a malfunction. Note that malfunctions deemed to be caused by water are not covered by the warranty, and may be impossible to repair. Since these malfunctions are not under warranty, even when repair is possible, it will be done at the user's expense.
■Clean the FOMA terminal with a dry, soft cloth (Lens cleaning cloth).
If the FOMA terminal is wiped with alcohol, paint thinner, benzine or detergent, the printing may disappear or color may fade.
■Keep the connector contacts clean with a dry, soft cloth.
Dirty contacts can result in intermittent connections.
66 Contents/Precautions
■Do not place the equipment near air conditioner outlets.
Condensation may form due to rapid changes in temperature, and this may corrode internal parts and cause malfunction.
■Do not place the FOMA terminal where excessive force will be applied to it.
If FOMA terminal is inserted to a full bag, or placed in a pocket and sat on, its internal PCBs may be damaged or malfunction. Such damage is not covered by warranty.
■Read the individual manual attached to the FOMA terminal.
FOMA Terminal
■Avoid using in extremely high or low temperatures.
The FOMA terminal should be used within a temperature range from 5 °C to 35 °C and a humidity range from 45 % to 85 %.
■FOMA terminal may affect fixed phones, televisions or radios in use nearby. Use as far as possible from such appliances.
■Keep a separate record of any information stored on the FOMA terminal and store the copies in a safe location.
DOCOMO assumes no responsibility for the loss of any of your data.
CON_Guide_E.book 67
■Remove the FOMA terminal from the PC when transporting.
Malfunction or damage may result.
■It is normal for the FOMA terminal to become warm during use. You can continue to use it even when it is warm.
■Take care not to drop the FOMA terminal when removing the FOMA terminal from the carrying case.
■When it is not in use, keep the FOMA terminal in its carrying case to keep the connector contacts clean.
Dirty contacts may result in intermittent connections.
■When putting the FOMA terminal in carrying case, keep it away from wet or high temperature place. Pay attention not to put excessive force on the FOMA terminal.
Transformation, tarnish, color staining may result.
FOMA Card
■Do not put excessive force on the FOMA card when inserting or removing it into the FOMA terminal.
■It is normal for the FOMA card to become warm during use. You can continue to use it even when it is warm.
■Always keep the IC portion of the FOMA card clean.
■Clean the FOMA card with a soft, dry cloth (Lens cleaning cloth).
■Be sure to keep a separate note of the information registered to the FOMA terminal.
DOCOMO is not responsible for any losses of registered information.
■Visit DOCOMO shop to return the FOMA card for the environmental purpose.
■Avoid extreme temperature.
■Do not scratch, touch carelessly or short circuit the IC portion.
Data loss or malfunction may result.
■Do not drop or give shock to the FOMA card .
Malfunction may result.
■Do not bend or put heavy things on the FOMA card.
Malfunction may result.
Contents/Precautions 67
CON_Guide_E.book 68
CAUTION
■Do not use the modified FOMA terminal. Using modified FOMA terminal result in violating the law of Electromagnetic Compatibility.
FOMA terminal has been complied with technical standard of wireless equipment stipulated by law of Electromagnetic Compatibility. As for the proof, the technical standard compliance mark, is indicated in the inscription seal. If FOMA terminal is modified by turning the screw to the left to disassemble, technical standard compliance becomes invalid.
Please do not use FOMA terminal during the time when technical standard compliance is being invalid, since you are in violation of the law of Electromagnetic Compatibility.
68 Contents/Precautions
CON_Guide_E.book 69
Purchased Product and Accessories
■L-02A Terminal (With Warranty) |
■L-02A CD-ROM |
|
|
• |
L-02A Connection Software (For Windows/Macintosh |
|
• |
DOCOMO Connection Manager (For Windows/Macintosh |
|
• |
L-02A Communication Configuration File (Drivers) |
|
|
(For Windows/Macintosh |
|
• |
L-02A INSTRUCTION MANUAL PDF |
■L-02A Instruction Manual Connection Guide
Software specifications are subject to change without prior notice.
■USB Extension Cable (Sample)
Use when "USB Extension Cable" is written in this manual.
■Carrying Case (Sample)
■Mounting folder (Sample)
Use when "A mounting Folder" is written in this manual.
Contents/Precautions 69
CON_Guide_E.book 70
CON_Guide_E.book 71
Before Using the FOMA Terminal
Names of Parts and Functions |
72 |
|
|
|
Using a FOMA Card |
74 |
|
|
|
Available Communications |
76 |
|
|
|
Connecting FOMA Terminal to a PC |
77 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
71
