GD910

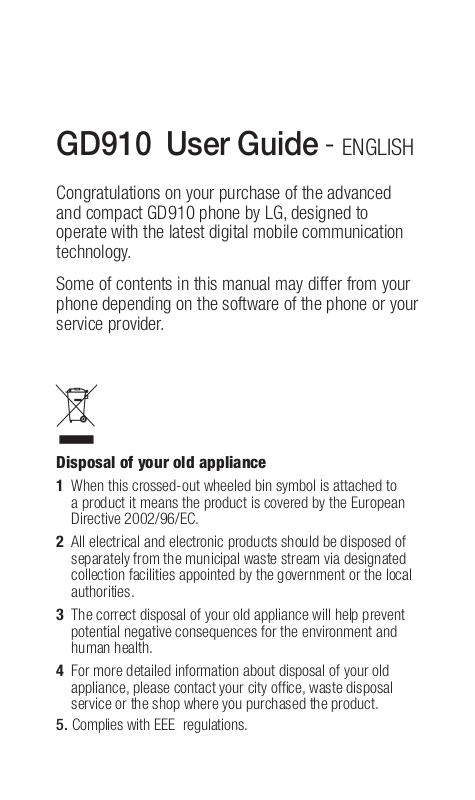

User Guide - ENGLISH

Congratulations on your purchase of the advanced
and compact GD910 phone by LG, designed to
operate with the latest digital mobile communication
technology.

Some of contents in this manual may differ from your
phone depending on the software of the phone or your
service provider.

Disposal of your old appliance

1 When this crossed-out wheeled bin symbol is attached to

a product it means the product is covered by the European
Directive 2002/96/EC.

2 All electrical and electronic products should be disposed of

separately from the municipal waste stream via designated
collection facilities appointed by the government or the local
authorities.

3 The correct disposal of your old appliance will help prevent

potential negative consequences for the environment and
human health.

4 For more detailed information about disposal of your old

appliance, please contact your city office, waste disposal
service or the shop where you purchased the product.

5. Complies with EEE regulations.

Part 15.21 statement

This device is not intended for sale in the USA.

" Change or Modifications that are not expressly approved by the manufacturer could void

the user's authority to operate the equipment. “

Part 15.105 statement

This equipment has been tested and found to comply with the limits for a class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Part 15 Class B Compliance

※ Warning Statement
This device is approved for wrist-worn only. To ensure compliance with FCC RF exposure
requirements, a separation of 1.0cm or more should be kept between the front of the watch
and the rest of the user's body while it is transmitting. The device should NOT be worn on
the inside of the wrist(palm side) or in any other configurations during transmission.
All applicable operating configurations are specified by three types; first mode is hands-free
wireless Bluetooth mode, the second mode is Speaker mode, the third mode is data transmission mode.
We'll provide these similar information and instructions separately to the user on
a single page pamphlet, within the product packing, to ensure that users are aware of the
operating requirements even if they choose not to read the manual instructions.

This device and its accessories comply with part15 of FCC rules.

Operation is subject to the following two conditions:

(1) This device & its accessories may not cause harmful interference.

(2) This device & its accessories must accept any interference received,

including interference that may cause undesired operation.

Body-worn Operation

This device has been tested for typical body-worn operations

with the distance of 0.79inches (2.0cm) from the user’s body.

To comply with FCC RF exposure requirements, a minimum separation distance

of 0.79inches(2.0cm) must be maintained from the user's body.

Additionally, Belt clips, holsters & other body-worn accessories may not contain

metallic components.

Installing the SIM card

1. Remove the SIM cap cover.

- Use the SIM cap tool to open the SIM cap cover.

WARNING: Do not remove the SIM cap cover when the

phone is switched on, as this may damage the phone. SIM
cap cover is related with power of phone.

2. Install the SIM card.

Use your SIM cap tool when installing the SIM card.
Insert the SIM card into the SIM cap tool. Make sure the
gold contact area on the
Slide the SIM card into the SIM card holder.

A B

SIM card is facing downwards.

11

12 LG GD910 | User Guide

Installing the SIM card

* Remove the SIM card.

- To remove the SIM card, gently push the edge of the SIM
card and lift it away from the SIM card holder.

A B

C

3. Replace the SIM cap cover.

Place the cover over the SIM
card holder and close the SIM
cap cover. Ensure that the
cap cover align with the SIM card
holder.

SIM

Getting to know your phone

Parts of the phone

Main screen

Send key

- Dials a phone number and answers
incoming calls.

- Open the call history menu in your home
screen. Calls to the recent number by
pressing for two seconds.

- Opens the option list when using the menu.

Back/Clear key

- Go to previous menu when using the
menu.

- Open the voice commend menu in your
home screen by pressing for two seconds.

- Use for quick access to Voice command
feature in your home screen by pressing for
two seconds.

End/Power key

- End menu and go to main clock.

- Turns the phone on/off by pressing for two
seconds.

Speaker

Camera lens

Send key

Back/Clear key

End/Power key

Microphone

13

14 LG GD910 | User Guide

Getting to know your phone

Charging Pin

SIM cap release

SIM cap cover

SIM card socket

WARNING: Do not remove the SIM cap cover when the

phone is switched on, as this may damage the phone.
SIM cap cover is related with power of the phone.

WARNING: Do not use your fingernail when removing

the SIM cap cover.

Charging your phone

1. Plug the power adapter into a working electrical outlet.

2. Connect the power adapter to the charging clip.

A B C

3. Connect the charging clip to back of the phone. Make

sure that charging pins are properly aligned with the
pins on the clip.

A B

Charging Pin

C

D

15

16 LG GD910 | User Guide

Getting to know your phone

4. When connecting the charger, the battery will begin to

charge. If the “Battery full” message appears on the
screen, charging battery is completed.

WARNING: SIM cap cover is related with power of the

phone. Before charging, please check the SIM cap cover is
placed on your phone.

NOTE: The battery must be fully charged initially to improve
battery lifetime. Disregard the first “Battery full” message
and keep the phone on charge overnight.

Your home screen

Your GD910 has a touchscreen. From here
you can access menu options, make a
quick call and change your profile - as well
as many other things.

Touchscreen tips

• There’s no need to press too hard, the touch screen is

sensitive enough to pick up on a light touch.

• Use the tip of your finger to touch the option you require.

Be careful not to touch any other keys around it.

• Don’t cover the phone with a case or cover as the touch

screen will not work with any material covering it.

• When the screen light is off, to prevent indiscreet action

of the touch keys, the touch protection function is
automatically enabled. (In this case, the touch screen
will not work even if they are pressed.) To disable touch
protection, press and hold the any keys on the right side
of the phone.

• Whenever your GD910 is not in use, it will return to the

lock screen.

Get in touch with your GD910

The controls on the GD910 touch screen change
dynamically, depending on the task you are carrying out.

Home screen: The User Interface is based on five types
of Home screens. To swap between the home screens just
wipe quickly over display from left to right or from right to
left.

17

18 LG GD910 | User Guide

Getting to know your phone

Opening Applications: To open any application, simply
touch its icon.

Scrolling: Drag from side to side to scroll. On some
screens, you can also scroll up or down.

Touch interaction legend

Tuch Down

Touch

Down & up

Touch

Down & Hold

Touch

Hold & Up

Tuch Down & Drag

(Up o Down )

Tuch Down &

Hold & Drag

(Up o Down )

Tuch Down & Drag

(Down o Up)

Tuch Down &

Hold & Drag

(Down o Up)

Flicking interaction legend

Flicking

(Up o Down )

Flicking

(Down o Up)

Tuch Down & Drag

o Right)

(Left

Tuch Down &

Hold & Drag

o Right)

(Left

Flicking

o Right)

(Left

Tuch Down & Drag

(Right o Lift )

Tuch Down &

Hold & Drag

(Right o Lift )

Flicking

(Right o Lift )

19

20 LG GD910 | User Guide

Menu map

When the screen light is off, press the
clear key for twice on the right side of
the phone to disable touch protection
and enter the home screen.
The home screen will provide a four
way arrow pad. To open your top
menu, slide your finger across from
right to left for twice.

Contacts

Utilities

1. New contact

2. Search

3. Speed dials

4.

Groups

5. Settings

6. Information

1. Tools

2. Organiser

3. Alarms

4. Voice recorder

5. Multimedia

Messaging

1. New message

2. Inbox

3. Draft

4. Outbox

5. Sent items

6. Templates

7. Emoticons

8. Settings

Settings

1. Bluetooth

2. Profiles

3. Screen

4. Phone

5. Call

6. Connectivity

Calls

Making a call or a video call

1 To open your top menu, slide your finger across from

right to left.

2 Select Video call or Voice call.

3 Type in the number on the keypad screen. To delete a

digit, press the Clear key .

4 Press the Send key to make the call.

5 To end the call, press the End key .

NOTE: Your phone has a Voice command feature that also

lets you make calls by phone number or name.

TIP! To enter + in order to make international calls,
touch and hold down 0 key.

TIP!

You can Save number, Send message, Search contacts

or set Alphabet on/off by touching and tapping .

Calling your contacts

It’s easy to call anyone whose number you have stored in
your Contacts.

1 From the home screen, slide your finger across from

right to left for twice. Touch Contacts and select

Search.

2 Scroll through the contact list or enter the first letter(s) of

the contact you want to call.

21

Calls

3 From the list, touch the contact you want to call and

select the number to use if there is more than one for
that contact.

4 Press the Send key and choose Voice call or Video

call from the options menu.

Answering and rejecting a call

When your phone rings, press the Send key to answer.

Press the End key to reject the incoming call.

TIP! You can send a message to explain why you
do not receive an incoming call by selecting and using

Excuse message before you reject an incoming call.

Adjusting call volume

To adjust the volume during a call, press the Clear key
and scroll up and down.

In-call options

You can hold a call by pressing the number displayed in
your home screen.

Touch to search your contacts during a call.

Touch to turn the speaker phone on.

To open the options menu during a call, press the Send key

. You can choose from the following:

22 LG GD910 | User Guide

Mute - You can turn the microphone off so the person you

are talking to cannot hear you.

Dialpad - You can open a numerical keypad for typing in
numbers, e.g. when dialing call centres or other automated
telephone services.

Add call - You can make a second call. Dial the number
or search your contacts then touch to connect the call.
Both calls will be displayed on the call screen. Your initial
call will be locked and put on hold. To end one or both calls
press the End key .

NOTE: You will be charged for each call you make.

Record - You can record the clip during a call.

Go to message - You can check your messages.

DTMF off - You can turn off the DTMF during a call. DTMF

lets you use numerical commands to navigate within
automated calls. DTMF default is set to on.

End call - You can end the call.

Speed dialling

You can assign a frequently-called contact to a speed dial
number.

1 From the home screen, slide your finger across from

right to left for twice. Touch Contacts and select Speed

dials.

2 Your voicemail is already set to speed dial 1. You cannot

change this. Touch any other number to assign it to a
speed dial contact.

23
