LG Electronics USA E1942SA User Manual

ENGLISH

OWNER'S MANUAL

LED LCD MONITOR

ase read this manual carefully before operating

Ple your set and retain it for future reference.

LED LCD MONITOR MODEL

E1942S E2042S E2242S E2442T

E2042T E2242T E2342T

www.lg.com

Important Precautions

NOTE

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

NOTE

This epuipment has been tested and found to comply with the limits for a class B digital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates,uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following

measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and the receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

TABLE OF CONTENTS

ENGLISH

ENG

CONTENTS

3 ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand

6 - Detaching the Stand

7 - Mounting on a table

8 - Mounting on a wall

10 USING THE MONITOR SET

10 Connecting to a PC

10 - D-SUB connection

10 - DVI-D connection

20 TROUBLESHOOTING

22 SPECIFICATIONS

E1942S 22 E2042S 23

E2042T 24 E2242S 25 E2242T 26

E2342T 27 E2442T 28 Preset Modes (Resolution)

29 Indicator

12 CUSTOMIZING SETTINGS

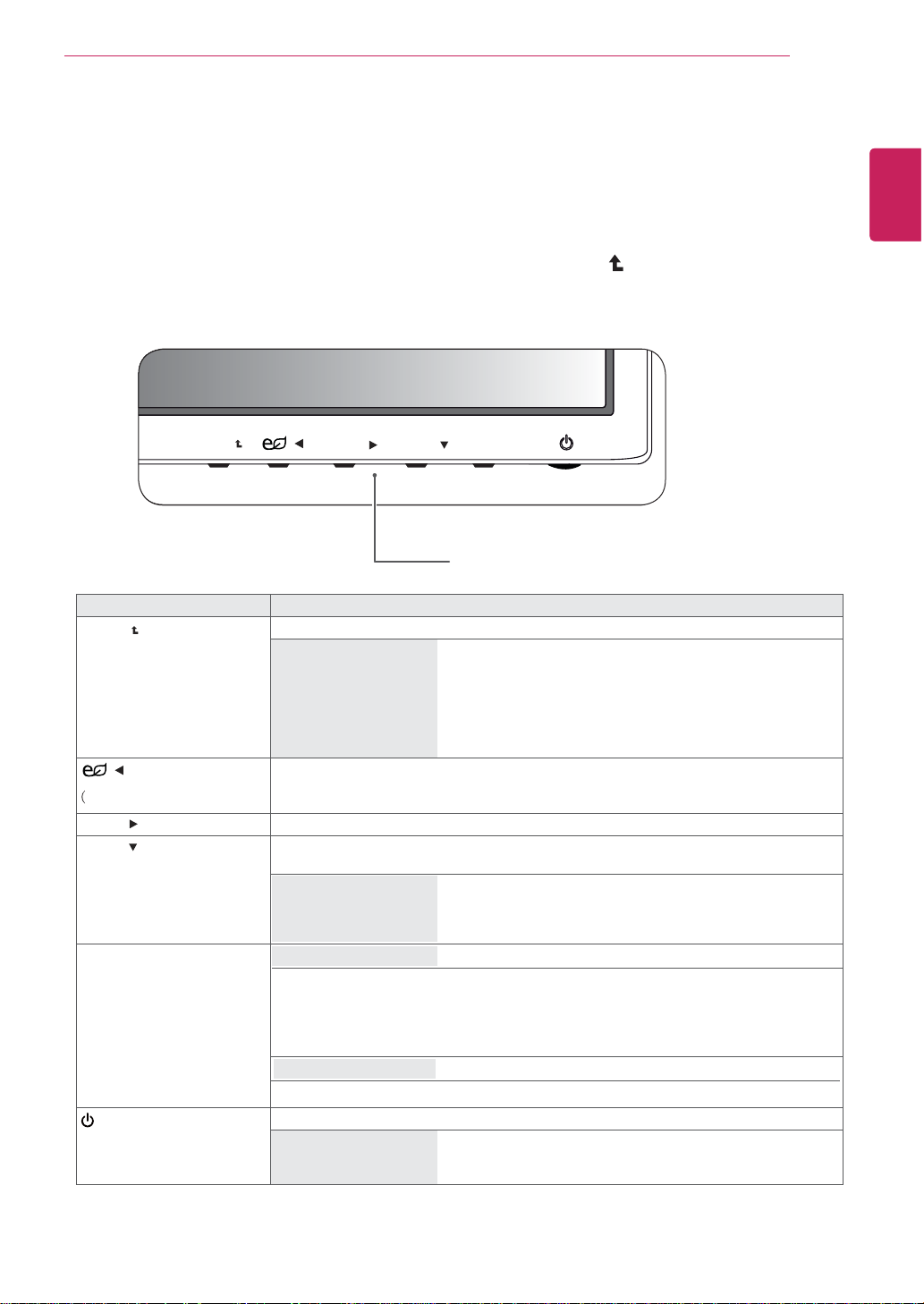

12 Accessing The Main Menus

13 Customizing Settings

13 - Menu Settings

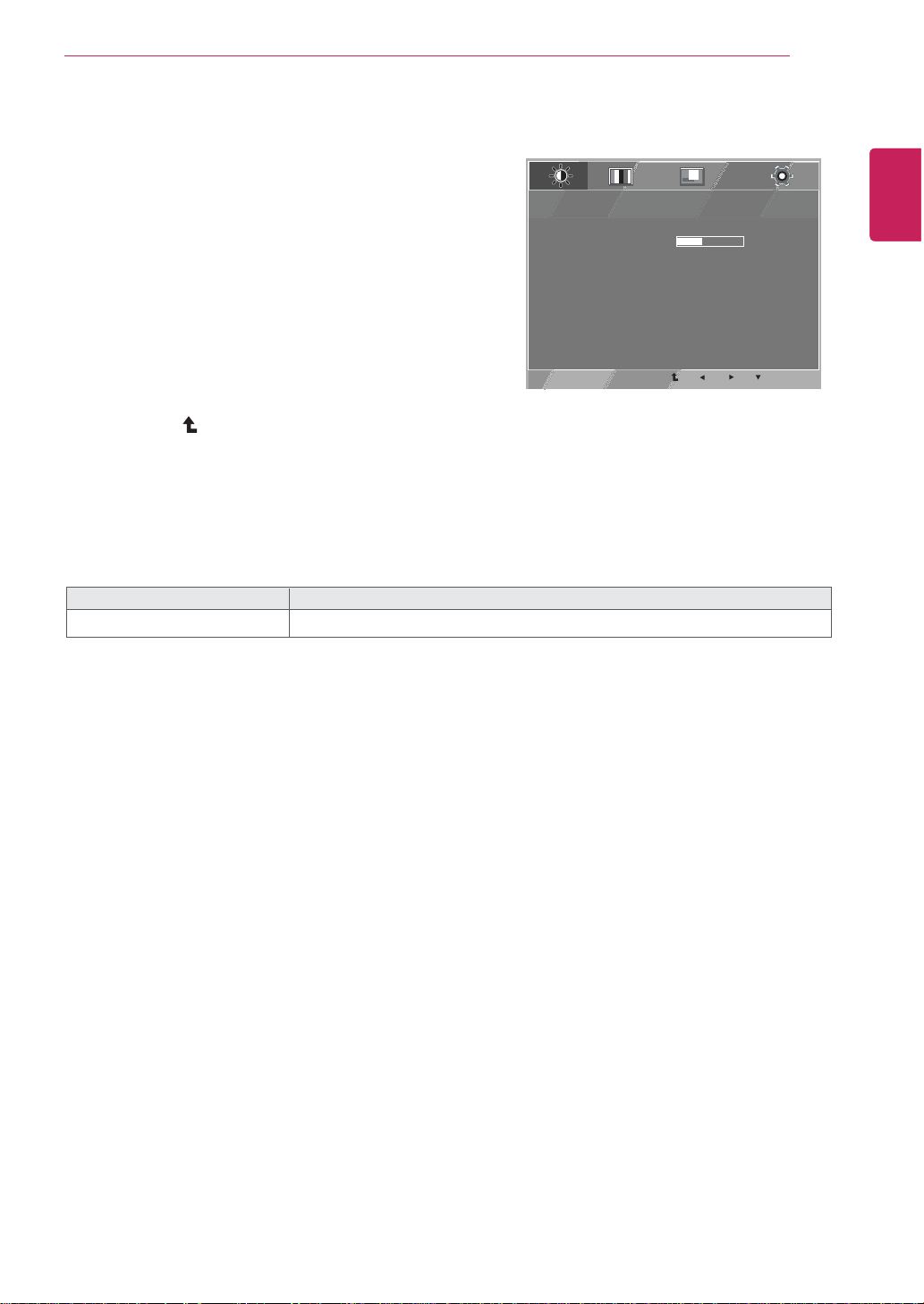

14 -PICTURE

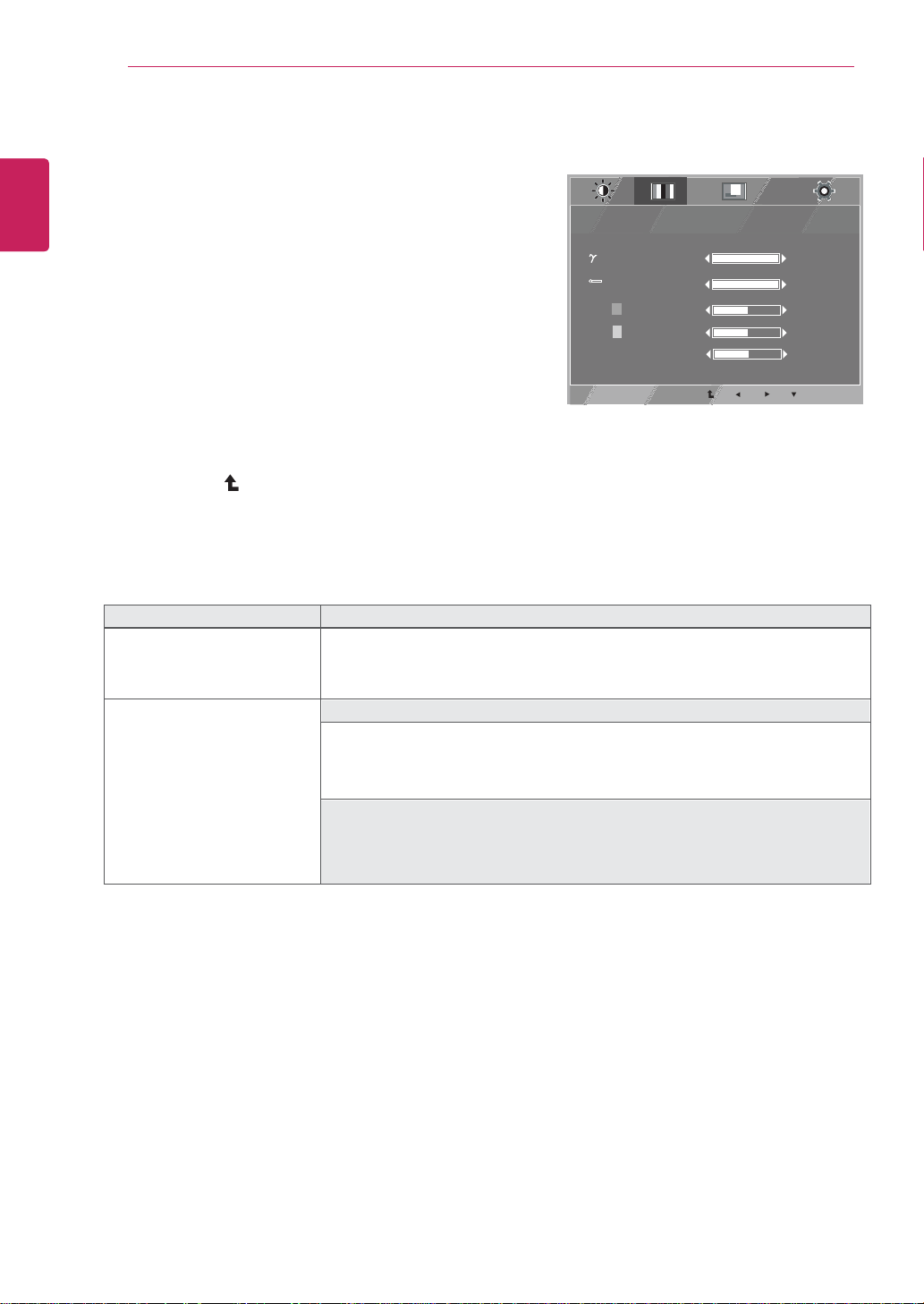

15 -COLOR

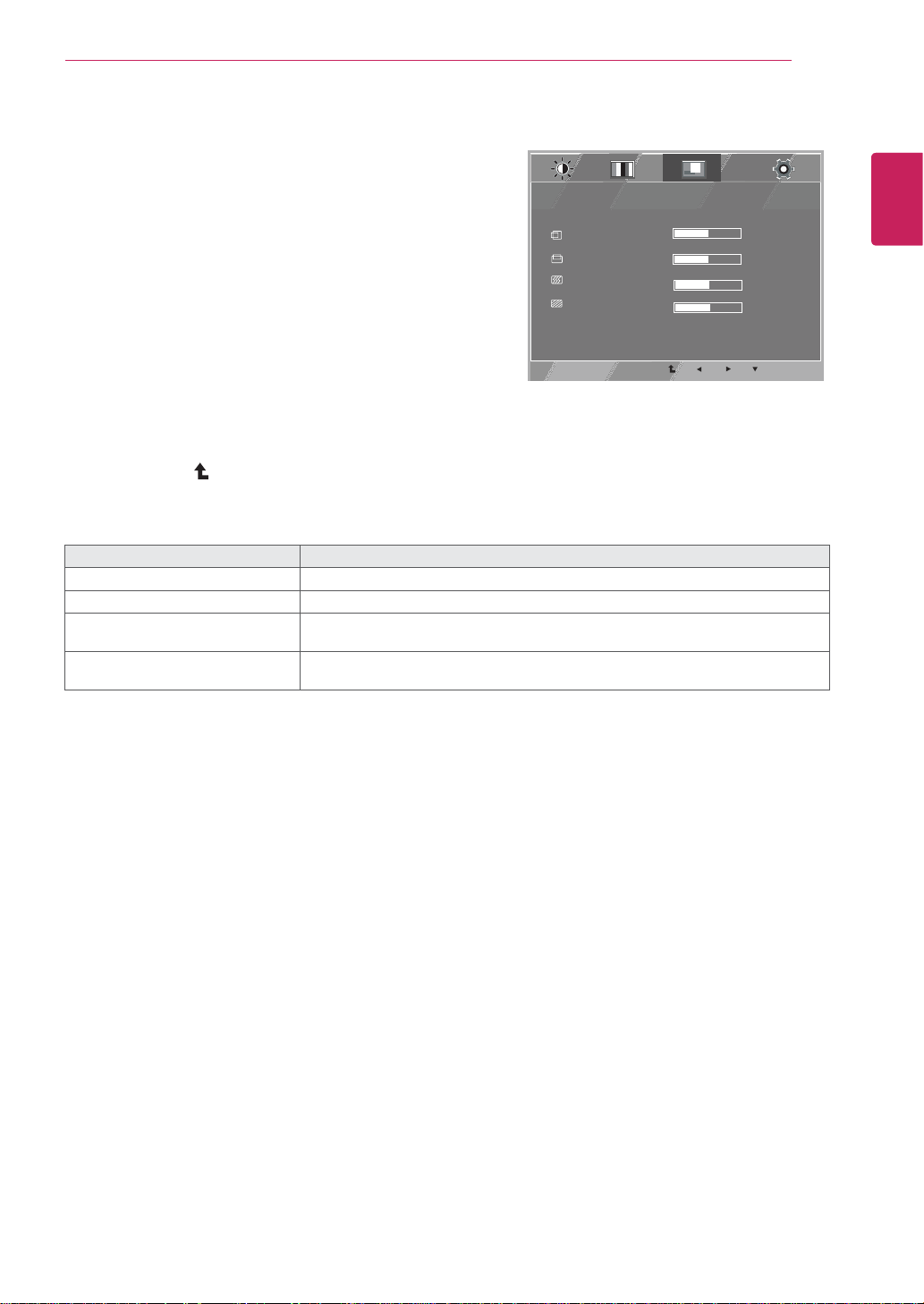

16 -DISPLAY

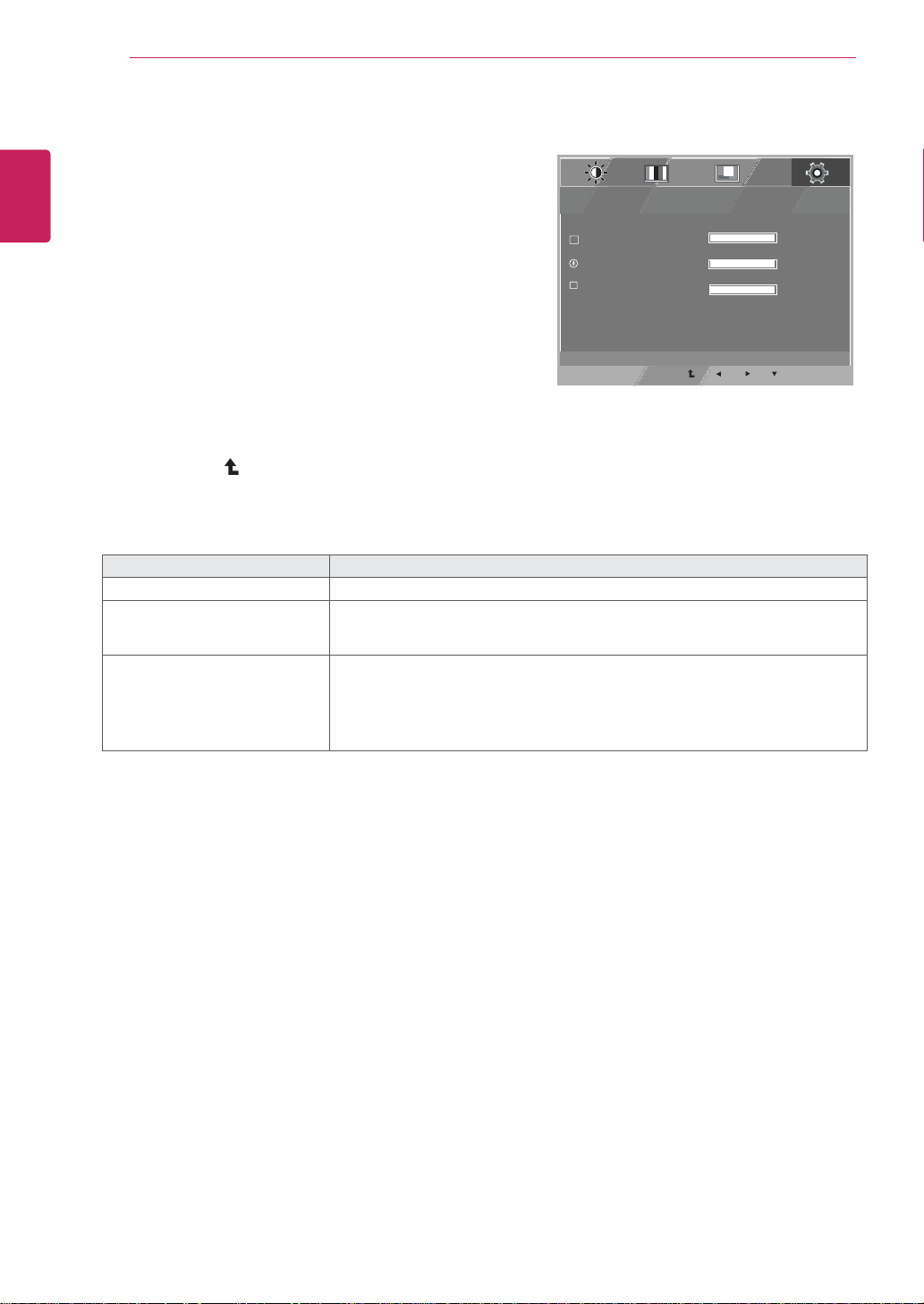

17 -OTHERS

SUPER ENERGY SAVING

MODE Setting

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

CD(Owner's Manual) /

Card

D-SUB Cable

(Only E2042T/E2242T/E2342T/E2442T)

(This cable is not included in all

DVI-D Cable

countries.)

ENGLISH

ENG

Power Cord AC-DC Adapter

(Depending on the country)

Stand Body

Stand Base

AC-DC adapter

(Depending on the country)

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.



Any damages or injuries by using unapproved accessories are not covered by the warranty.



NOTE

The accessories supplied with your product may vary depending on the model.



Product specifications or contents in this manual may be changed without prior notice due to upgrade



of product functions.

ENGLISH

ENG

ASSEMBLING AND PREPARING

Parts and buttons

MENU /

MODE /

AUTO /

INPUT /

EXIT

Power Indicator

Lighting On: Turned on



Lighting Off: Turned off



DC-IN /

D-SUB

MENU /

DC-IN /

MODE /

DVI-D

AUTO /

INPUT /

Connection panel (See p.9)

(Power Button)

EXIT

Button (See p.11)

D-SUB

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand

Place the Monitor set with the screen side

down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

Attach the Stand body and then attach the Stand

Base,then tighten the screw to the right with a Coin.

Stand Body

Detaching the Stand

Place the Monitor set with the screen side

down on a flat and cushioned surface.

Turn the screw to the left with a Coin, and then

pull out the Stand Base from the Stand Body, then pull out the set .

Stand Body

Stand Base

Stand Body

from the Monitor

ENGLISH

ENG

Stand Base

CAUTION

This illustration depicts the general model of



connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding



only the stand base. The product may fall and get damaged or injure your foot.

ASSEMBLING AND PREPARING

ENGLISH

ENG

Mounting on a table

Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

Connect the AC-DC Adapter and Power Cord to

wall outlet.

10 cm

⬉⑤䕧ܹ

Press (Power) button on the bottom switch

panel to turn the power on.

CAUTION

Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.

Using the cable holder

DC-IN

Cable holder

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Do not touch or press the screen when adjusting the angle of the monitor.

ASSEMBLING AND PREPARING

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit

Connect the Kensington security system cable between the Monitor set and a table.

http://www.kensington.com

ENGLISH

ENG

Do not hold this set like below picture. Monitor screen can detach from stand base and injure your body.

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

205

NOTE

The Kensington security system is optional. You can obtain it from most electronics stores.

Front Rear

ASSEMBLING AND PREPARING

ENGLISH

ENG

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set. When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

Please, Use the screw and wall mount interface

in accordance with VESA Standards.

If you use screw longer than standard, the

monitor might be damaged internally.

If you use improper screw, the product might be

damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

VESA compatible.

Please use VESA standard as below.

784.8 mm (30.9 inch) and under



* Wall Mount Pad Thickness : 2.6 mm * Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

787.4 mm (31.0 inch) and above



* Please use VESA standard wall mount pad

and screws.

10 cm

Model

VESA (A x B)

Standard screw M4

E1942S E2042S

E2242S

75 x 75

4Number of screws

E2042T E2242T E2342T

CAUTION

Disconnect the power cord first, and then



move or install the Monitor set. Otherwise electric shock may occur. If you install the Monitor set on a ceiling or



slanted wall, it may fall and result in severe injury. Use only an authorized LG wall mount



and contact the local dealer or qualified personnel. Do not over tighten the screws as this may



cause damage to the Monitor set and void your warranty. Use only screws and wall mounts that



meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA



standard screw specifications. The wall mount kit will include an installation



manual and necessary parts. The wall mount bracket is optional. You can



obtain additional accessories from your local dealer. The length of screws may differ depending



on the wall mount. Be sure to use the proper length. For more information, refer to the



instructions supplied with the wall mount.

E2442T

100 x 100

ASSEMBLING AND PREPARING

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.



*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

E1942S E2042S E2242S

C-IN /

D-SUB



ENGLISH

ENG

NOTE

When using a D-Sub signal input cable connector for Macintosh

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

DC-IN

RGB OUT

DVI-

D-SUB

E2242TE2042T E2342T E2442T

DVI-D connection

Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.

E2242TE2042T E2342T E2442T

DC-IN
