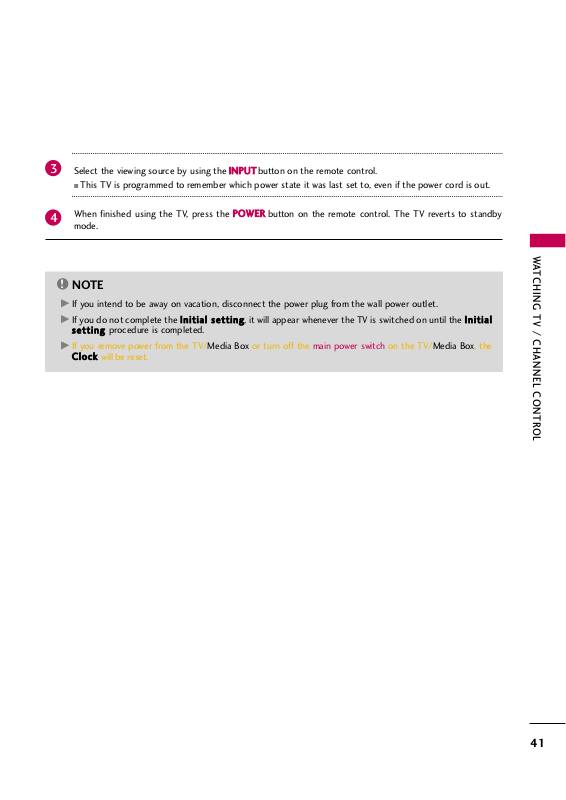

WATCHING TV / CHANNEL CONTROL

41

NOTE

!

Select the viewing source by using the

INPUT

button on the remote control.

■

This TV is programmed to remember which power state it was last set to, even if the power cord is out.

When finished using the TV, press the

POWER

button on the remote control. The TV reverts to standby

mode.

3

4

G

If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

G

If you do not complete the

Initial setting

, it will appear whenever the TV is switched on until the

Initial

setting

procedure is completed.

G

If you remove power from the TV/Media Box or turn off the main power switch on the TV/Media Box, the

Clo c k

will be reset.

WATCHING TV / CHANNEL CONTROL

42

CHANNEL SELECTION

WATCHING TV / CHANNEL CONTROL

Press the

CH (

or

)

or

NUMBER

buttons to select a channel number.

1

VOLUME ADJUSTMENT

Press the

VOL (+

or -)button to adjust the volume.

If you want to switch the sound off, press the

MUTE

button.

You can cancel the Mute function by pressing the

MUTE

or

VOL (+

or

-)

button.

Adjust the volume to suit your personal preference.

1

2

3

WATCHING TV / CHANNEL CONTROL

43

INITIAL SETTING

This Function guides the user to easily set the essential items for viewing the TV for the first time when
purchasing the TV. It will be displayed on the screen when turning the TV on for the first time. It can also be
activated from the user menus.

■

Default selection is “

Home Use

”. We recommend setting the TV to “

Home Use

” mode for the best pic-

ture in your home environment.

■

“

Store Demo

” Mode is only intended for use in retail environments. Customers can adjust the “

Pictu r e

menu -

Picture m od e

” manually while inspecting the TV, but the TV will automatically return to preset in-

store mode after 5 minutes.

■

“

Store Dem o

” Mode is an optimal setting for displaying at stores. “Store Demo” mode initializes the TV

to set the image quality.

■

You can also adjust

Initial Se t ti n g

in the

OPTIO N

menu.

Check your antenna connection and start
Auto Tu n in g

.

1

ENTER

Step3. Time setting

Step4. Auto Tuning

Language

Step1. Selecting Language

English

Español

Français

Selecting the environment.

Choose the setting mode you want.

Select [Home Use] to use this TV at home.
To use this TV at Store, select [Store Demo].

Store Demo

Home Use

Mode Setting

Step2. Mode setting

NextPrevious

NextPrevious

Select

Aut o

or

Manu a l

.

Select desired time
option.

1

2

ENTER

Month

Current Time Setting

02

Date

21

Year

2009

Hour

10 AM

Minute

10

Time Zone

Eastern

Daylight Saving

Auto

F

Auto

G

Time Setting

NextPrevious

Before starting,
be sure that the

TV antenna is connected.

Auto Tuning

Next

Simple Manual

Previous

INFO

i

Select Menu Language.

1

ENTER

Select

Home Use

.

1

ENTER

WATCHING TV / CHANNEL CONTROL

44

ON-SCREEN MENUS SELECTION

WATCHING TV / CHANNEL CONTROL

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Display each menu.

Select a menu item.

Accept the current selection.

1

MENU

3

2

ENTER

ENTER

Return to TV viewing.

4

MENU

Enter

Move

Auto Tuning

Manual Tuning

Channel Edit

CHANNEL

CHANNEL

OPTION


LOCK

AUDIO

INPUT

TIME

USB

Enter

Move

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Standard

• Backlight 70

• Contrast 90

• Brightness 50

• Sharpness 70


E

Enter

Move

Auto Volume : On

Clear Voice II : On

• Level 3

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

AUDIO

E

Enter

Move

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

TIME

Enter

Move

Photo List

Music List

Movie List

DivX Reg.Code

Deactivation

USB

Enter

Move

TV

AV1

AV2

Component1

Component2

RGB-PC

HDMI1

HDMI2

INPUT

E

Enter

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

Enter

Move

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Caption : Off

Power Indicator

OPTION

For USA For Canada

E

LR

-+

WATCHING TV / CHANNEL CONTROL

45

QUICK MENU

Display each menu.

Make appropriate adjustments.

Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.
Q.Menu (Quick Menu) is a menu of features which users might use frequently.

1

Q. MENU

2

3

Q. MENU

Return to TV viewing.

A

16:9

F

Aspect Ratio

G

Aspect Ra ti o

: Selects the desired picture format.

Picture Mode

: Selects the desired preset picture setting.

Sound Mo de

: Selects the desired preset sound setting.

Mult i Audio

: Changes the audio language (Digital signal).

SAP

: Selects MTS sound (Analog signal).

Sleep Ti me r

: Select the amount of time before your TV

turns off automatically.
Del/Add/Fav

: Select channel you want to add/delete or

add the channel to the Favorite List.
Capti o n

: Select on or off.

USB D

evice

: Select “Eject” in order to eject a USB

device.

A

WATCHING TV / CHANNEL CONTROL

46

CHANNEL SETUP

WATCHING TV / CHANNEL CONTROL

Auto Scan (Auto Tuning)

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the
channel list.

Run this function if you change your residence or move the TV. Also, make sure to run this function with the
antenna connected during TV broadcasting hours.

Auto Tuning memorizes only the channels available at the time.

Select

CHANN E L

.

Select

Auto Tu n in g

.

Select

Ye s

.

Run

Auto tu n in g

.

Enter

Move

CHANNEL

Enter

Move

CHANNEL

1

MENU

3

2

ENTER

ENTER

4

ENTER

Auto Tuning

Manual Tuning

Channel Edit

Auto Tuning

Manual Tuning

Channel Edit

■

The TV will ask for a password if parental
control has been activated (LOCK
Menu). Use the password you set up in
the LOCK Menu to allow a channel
search.

■

When setting the Auto tuning or Manual
tuning, the number of maximum channels
you can store is 1000.

It is subject to change depending on the
broadcasting signal environment.

■

Memorizes all the available channels in
the order of DTV, TV, CADTV and CATV.

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

Check your antenna connection.
The previous channel information
will be updated during Auto
Tuning.

Yes

No

WATCHING TV / CHANNEL CONTROL

47

Select

CHANN E L

.

1

MENU

2

ENTER

When selecting DTV or CADTV input signal in the Manual Tuning menu, you can view the on-screen signal
strength monitor to see the quality of the signal being received.

Add/Delete Channel (Manual Tuning)

Enter

Move

CHANNEL

Enter

Move

CHANNEL

Channel

Select channel type and
RF-channel number.

F

DTV

G

2

Close

Delete

Auto Tuning

Manual Tuning

Channel Edit

DTV 2-1

Bad Normal Good

Select

Manual Tu n in g

.

Select

DT V, T V, CADT V

, or

CAT V

.

Select channel you want to add
or delete.

3

ENTER

4

Select

Add

or

Dele t e

.

5

ENTER

Auto Tuning

Manual Tuning

Channel Edit

■

The TV will ask for a password if parental
control has been activated (LOCK
Menu). Use the password you set up in
the LOCK Menu to allow a channel
search.

■

When setting the Auto tuning or Manual
tuning, the number of maximum channels
you can store is 1000.

It is subject to change depending on the
broadcasting signal environment.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

WATCHING TV / CHANNEL CONTROL

48

WATCHING TV / CHANNEL CONTROL

Select a channel.

Add or delete a channel.

3

ENTER

4

The channels in the Channel Edit List are displayed in black and the channels deleted from the Channel Edit
List are displayed in blue.

When a channel number is deleted, it means that you will be unable to select it using

CH

button during TV

viewing.
If you wish to select the deleted channel, directly enter the channel number with the NUMBER buttons or select

it in the

Channel Edit

menu.

Channel Editing

Enter

Move

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Select

CHANN E L

.

1

MENU

2

ENTER

Select

Channel Edit

.

Return to the previous menu.

5

RETURN

Return to TV viewing.

MENU

Ch. Change

Page Change

CH

Navigation

Previous

Add/Delete

■

Keep pressing the button and use the

or buttons to move between DTV,

TV, CADTV and CATV.

■

If the channel list is too long, use the

CH or button to move between

pages.

BLUE

WATCHING TV / CHANNEL CONTROL

49

CHANNEL LIST

Exit

2-1

3-1

4-1

DTV

DTV

DTV

Channel List

You can check which channels are stored in the memory by displaying the channel list.

Display the

Channel List

.

1

LIST

Displaying Channel List

Select a channel.

1

Switch to the chosen channel number.

2

ENTER

Selecting a channel in the channel list

Turn the pages.

1

CH

P
A
G
E

Return to TV viewing.

2

RETURN

Paging through a channel list

This padlock is displayed
when the channel is locked
with parental control.

WATCHING TV / CHANNEL CONTROL

50

FAVORITE CHANNEL SETUP

WATCHING TV / CHANNEL CONTROL

FAVORITE CHANNEL LIST

Favorite Channels are a convenient feature that lets you quickly select channels of your choice without waiting
for the TV to select all the in-between channels.

To tune to a favorite channel, press the

FA V

(Favorite) button repeatedly.

Return to TV viewing.

4

Q. MENU

Select

Favori t e

.

3

Select your desired channel.

1

CH

P
A
G
E

1

456

7809

23

2

Q. MENU

Select

Del/Add / F a v

.

or

A

Favorite

F

Del/Add/Fav

G

Exit

2-1

3-1

4-1

DTV

DTV

DTV

Favorite List

Select a channel.

1

Switch to the chosen channel number.

2

ENTER

Selecting a channel in the favorite channel list

Turn the pages.

1

CH

P
A
G
E

Return to TV viewing.

2

RETURN

Paging through a favorite channel list

Display the Favorite channel list.

1

MARK

FAV

Displaying the favorite channel list

WATCHING TV / CHANNEL CONTROL

51

BRIEF INFORMATION

1

INFO i

Brief Info shows the present screen information.

Show the Brief Info on the screen.

2

RETURN

Return to TV viewing.

4

5

6

7

Program title

Day, Month, Year

Program start time

Program progress bar

Program finish time

Present time

Banner information

1

2

3

4

5

6

7

Brief Info Title Test..

Sat, Feb 21, 2009 10:10 AM 11:40 AM

CNN

DOLBY DIGITAL

10:40 AM

Multilingual CaptionD 1080i TV-PG D L S V

CC

1 2 3 4 5 67

Wireless
Signal

8

Multilingual

: The program contains two or more

audio services. Use the

Q.MENU

menu to select

wanted Audio.

Caption

: The program contains one or more caption

services. Use the

Q.MENU

menu to select wanted

Closed caption.

Dolb y Digi tal

: The program contains a Dolby Digital

audio signal in TV, HDMI input source, or DivX.

The original aspect ratio of the video is 4:3
The original aspect ratio of the video is 16:9 (wide)

The video resolution is 720x480i
The video resolution is 720x480p
The video resolution is 1280x720p
The video resolution is 1920x1080i
The video resolution is 1920x1080p

V-C h ip

: The program contains V-Chip information.
Refer to the LOCK menu: A (Age), D (Dialogue), L
(Language), S (Sex), V (Violence), FV (Fantasy Violence)

480i
480p
720p

10 8 0 i

10 8 0 p

4:3

16:9

CC

Received wireless signal strengh

indicator.

The signal strength meter changes con-
tinuously due to external influences.

The performance of wireless signal may
differ depending on where the TV and
Media Box are located. Make sure to
install the Media Box where the sensi­tivity of radio-signal reception is
“GOOD".

8

Good Middle Poor

D

WATCHING TV / CHANNEL CONTROL

52

INPUT LIST

WATCHING TV / CHANNEL CONTROL

TV AV1 AV2

HDMI4

HDMI5

HDMI3 HDMI2 HDMI1

Component1 Component2

RGB-PC

Select the desired input source.

■

You can also select the desired input source in the

INPUT

menu.

1

INPUT

ENTER

TV AV1 AV2 Component1 Component2

TV AV1 AV2 Component1 Component2

Input Label

Exit

Select a desired input source (except

T V

).

Then, you can select your desired

Input

Label

with using Blue button.

G

p.53

ie)

ie) In case of changing the input label using Blue button

Only these input signals which are connected to a TV can be activated and selected.

■

T V

: Select it to watch over-the-air, cable and digi-

tal cable broadcasts.

■

A V

: Select them to watch a VCR or other external

equipment.

■

Compon e n t

: Select them to watch DVD or a

Digital set-top box.

■

RGB- P C

: Select it to view PC input.

■

HD M I

: Select them to watch high definition

devices.

VCR Game DVD Set Top Box

■

When a new external device is connected, this popup menu is
displayed automatically.

If selecting

Ye s

, you can select input source that you want to

appreciate.

■

But, when selecting “

SIMPLINK- O n

”, popup menu for HDMI

input will not be displayed.

No

Ye s

!

New external input is connected.
Do you want to use this?

AV2

Disconnected inputs are inactive (grayed out)

■

Some menus are not available when using HDMI 5.

■

HDMI 5 doesn't support SIMPLINK (HDMI-CEC).

WATCHING TV / CHANNEL CONTROL

53

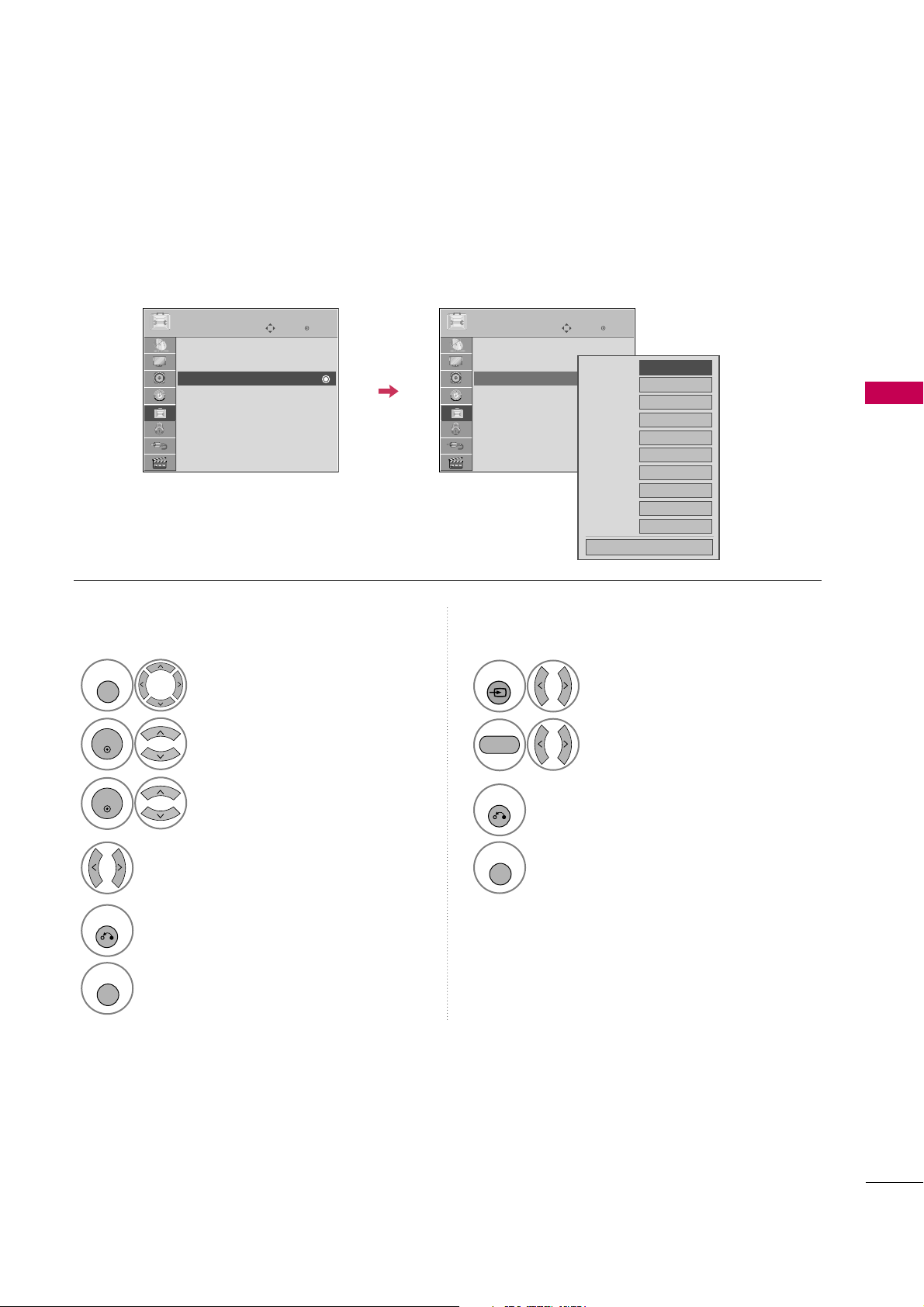

INPUT LABEL

You can set a label for each input source when it's not in use.

This indicates which device is connected to which input port.

Enter

Move

OPTION

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Caption : Off

Power Indicator

Select

OPTI O N

.

Select

Input La be l

.

Select the label.

1

MENU

2

ENTER

Select the source.

3

ENTER

4

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

With using OPTION menu

Select the source.

Select the label.

1

INPUT

2

3

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

With using INPUT button

AV1

AV2

Component1

Component2

RGB-PC

HDMI1

HDMI2

HDMI3

HDMI4

HDMI5

F G

Close

E

Enter

Move

OPTION

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Caption : Off

Power Indicator

E

BLUE

WATCHING TV / CHANNEL CONTROL

54

AV MODE

WATCHING TV / CHANNEL CONTROL

AV Mode toggles through preset Video and Audio settings.

1

AV MODE

2

Off Cinema

Game Sport

Press the

AV M ODE

button repeatedly to

select the desired source.

ENTER

■

If you select “

Cine m a

” in AV mode,

Cinem a

will be selected both for “PIC­TURE menu - Picture Mode” and “AUDIO
menu - Sound Mode” respectively.

■

If you select “

Of f

” in AV mode, the

“

Picture Mode

” and “

Sound Mode

”

return to previous selected value.

■

Of f

: Disables the AV MODE.

■

Cine m a

: Optimizes video and audio for

watching movies.

■

Spor t

: Optimizes video and audio for

watching sports events.

■

Gam e

: Optimizes video and audio for

playing games.

SIMPLE MANUAL

Enter

Move

OPTION

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Caption : Off

Power Indicator

E

You can easily and effectively access the TV information by viewing a simple manual on the TV.
During the Simple Manual operation, audio will be muted.

Select

OPTI O N

.

Select

Simple Ma nu a l

.

1

MENU

2

ENTER

Select the part of the manual
you want to see.

3

ENTER

4

RETURN

Return to TV viewing.

Working

WATCHING TV / CHANNEL CONTROL

55

KEY LOCK

This feature can be used to prevent unauthorized viewing by locking out the front panel controls, so that it can

only be used with the remote control.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

Select

OPTI O N

.

Select

Key Lock

.

1

MENU

2

ENTER

Select

O n

or

Of f

.

3

ENTER

■

In

Key Lock‘O n

’, if the TV is turned off,

press the

r

r

/ I, INPUT, CH

( )

button

on the TV or POWER, INPUT, CH

(

)

or NUMBER buttons on the remote

control.

■

With the

Key L oc k On

, the display

‘

Key Lo c k

’ appears on the screen if
any button on the front panel is pressed
while viewing the TV.

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

!

Enter

Move

OPTION

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : On

Simple Manual

Caption : Off

Power Indicator

E

Enter

Move

OPTION

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Caption : Off

Power Indicator

E

Off

On

WATCHING TV / CHANNEL CONTROL

56

WATCHING TV / CHANNEL CONTROL

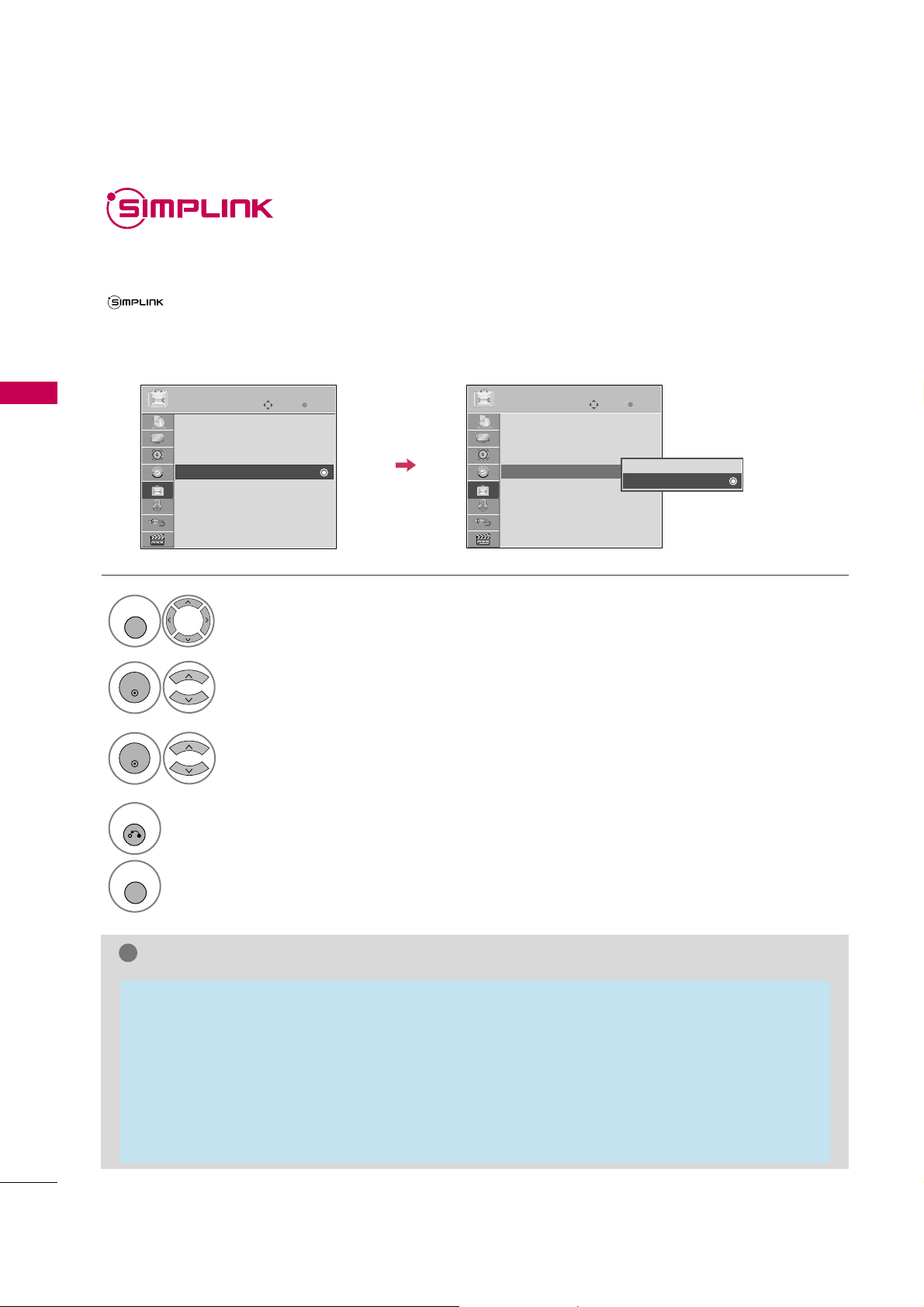

SIMPLINK allows you to control and play other AV devices connected with HDMI cable without additional
cables and settings. This TV may work with devices with HDMI-CEC support, but only devices with the

logo are fully supported.
SIMPLINK can be turned on and off in the user menus.

SIMPLINK is not supported by the HDMI IN 5 input.

Enter

Move

OPTION

Select

OPTI O N

.

Select

SIMPLI N K

.

Select

On orOf f

.

Enter

Move

OPTION

E

1

MENU

3

2

ENTER

ENTER

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Caption : Off

Power Indicator

Menu Language : English

Audio Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Caption : Off

Power Indicator

Off

On

NOTE

!

G

Connect the HDMI/DVI IN or HDMI IN terminal of the Media Box to the rear terminal (HDMI terminal) of
the SIMPLINK device with an HDMI cable.

G

When you switch the Input source with the INPUT button on the remote control, the SIMPLINK device
will stop.

G

When you select a device with home theater functionality, the sound output automatically switches to
the home theater speakers and the TV speakers are turned off.

G

If a connected SIMPLINK home theater system doesn't play the audio from the TV, connect the DIGITAL
AUDIO OUT terminal on the back of the Media Box to the DIGITAL AUDIO IN terminal on the back of
the SIMPLINK device with an OPTICAL cable.

E

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

WATCHING TV / CHANNEL CONTROL

57

SIMPLINK Menu

TV v i e w i n g

: Switch to the previous TV

channel regardless of the current mode.
DISC playback

: Select and play discs.
When multiple discs are available, the titles
of discs are conveniently displayed at the
bottom of the screen.

VCR p l a y b a c k

: Control the connected

VCR.
HDD Re c o r d i n g s playback

: Control

recordings stored in HDD.
Audio O u t to Home T h e a t e r speak-

er/

Audio Out to TV

: Select Home
Theater speaker or TV speaker for Audio
Out.

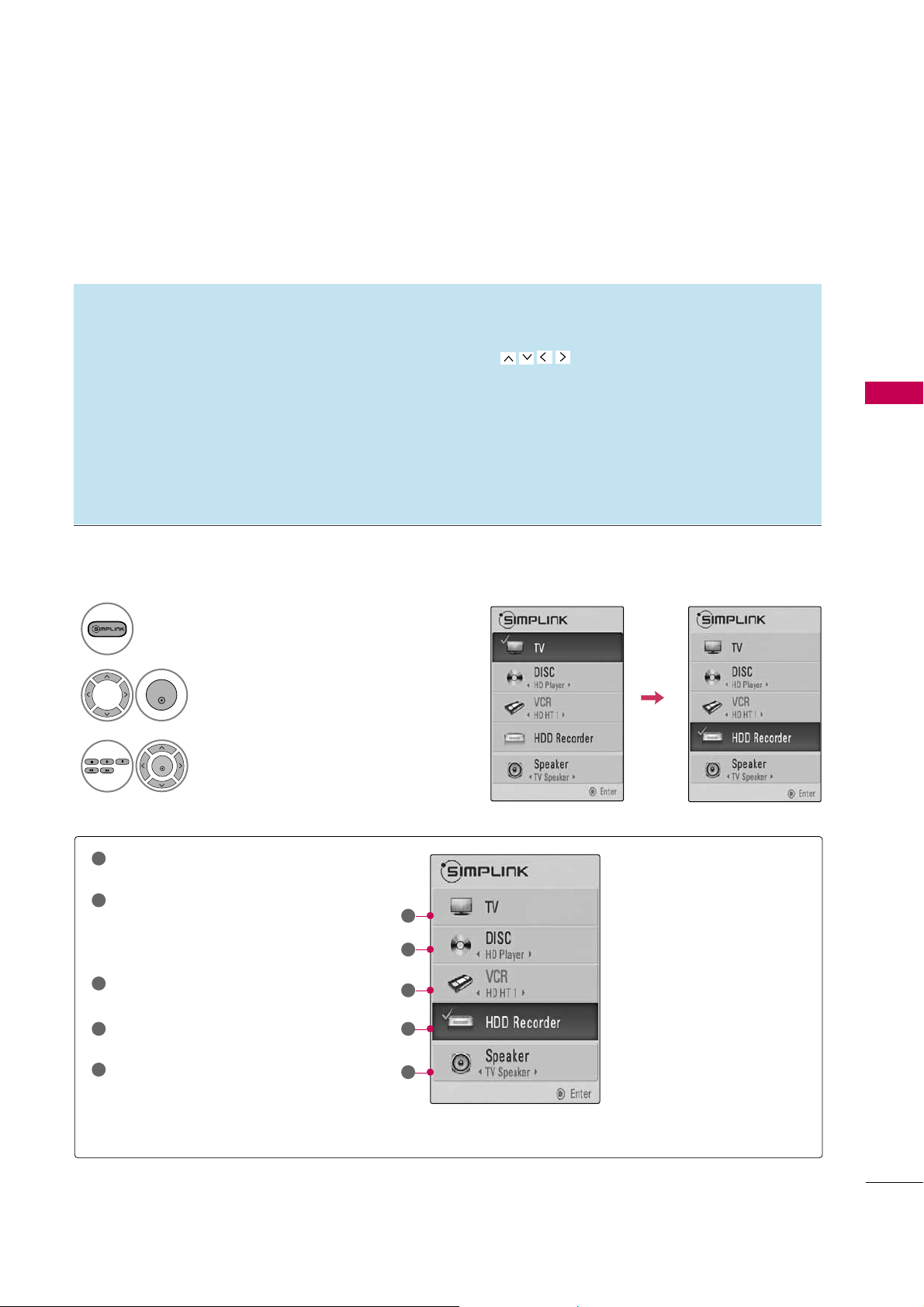

SIMPLINK Functions

1

2

3

4

5

G

When no device is connected
(displayed in gray)

G

Selected Device

G

When a device is connected
(displayed in bright color)

1

2

3

4

5

Display

SIMPLI N K

menu.

Select the desired device.

Control connected AV devices.

1

3

2

ENTER

ENTER

■

Direct Play:

After connecting AV devices to the Media Box, you can directly control the devices and play media

without additional settings.

■

Select AV de v i c e :

Enables you to select one of the AV devices connected to the Media Box.

■

Disc playback :

Control connected AV devices by pressing the ,

ENTER, G, A,

l l

, FFand GGbuttons.

■

Power off all devices:

When you power off the TV, all connected devices are turned off.

■

Switch audio-out:

Offers an easy way to switch audio-out.

Note: To operate SIMPLINK, an HDMI cable over Version 1.3 with *CEC function should be used (*CEC: Consumer
Electronics Control).

(A device, which is connected to the Media Box through a HDMI cable but does not support SIMPLINK, does not
provide this function)

ENTRY MODES

USB

58

USB

Precautions when using the USB device

G

Only a USB storage device is recognizable.

G

Connecting a USB storage device through a USB
hub is not supported

G

A USB storage device which uses its own driver
may not be recognized.

G

The recognition speed of a USB storage device
may depend on each device.

G

In case of several paritions or a card reader, up to
four memory cards are concurrently recognizable.

G

If your USB memory device has multiple parti­tions, or if you use a USB multi-card reader, you
can use up to 4 partitions or USB memory
devices.

G

Please do not turn off the TV or unplug the USB
device when the connected USB storage device is
working. When such device is suddenly separat­ed or unplugged, the stored files or the USB stor­age device may be damaged.

G

Only use a USB storage device which has normal
music files, image files, or movie files.

G

Please use only a USB storage device which was
formatted as a FAT 32 or NTFS file system provid­ed with the Windows operating system. Others

may not be recognized.

G

Data in a USB storage device cannot be deleted in
the NTFS file system.

G

Some USB storage devices require a power
adapter. The power adapter must be connected in
order to be seen by the TV.

G

If a device is not recognized by the TV, try a dif-

ferent cable. Excessively long cables are not sup­ported.

G

Some USB storage devices may not be supported
or operate properly.

G

Please backup important files because data on
the USB device could be damaged. Data manage­ment is the consumer's responsibility and as a
result, the manufacturer does not cover data
damage.

G

A USB storage device with several partitions may
not work properly.

G

If the USB memory device does not work proper­ly, disconnect and reconnect it.

G

Connect an external power source to a USB stor­age device if required.

G

When using a USB extension cable, a USB hard
disk without an external power source is not sup­ported.

G

File alignment method of USB storage device is
similar to Window XP and file names can be up to
100 English characters.

G

The recommended capacity is 1TB or less for a
USB external hard disk and 32 GB or less for USB
memory.

G

If a USB external hard disk with a “Energy Saving”
function doesn’t work, turn the hard disk off and
on again to make it work properly. Refer to the
user manual of the application USB external hard
disk.

When removing the USB device

Connect the USB device to the

USB IN

jacks on the Media Box.

3

Select

PHOTO LIST, MUSI C LIS T

or

MOVI E L IST

.

1

USB IN

IN 4

TV COM1 COM2 AV1 AV2

1

RGB WIRELESS

2 3 4

Memory Key

Select

USB D ev ic e

.

Select

Ejec t

.

Select the

USB D ev ic e

menu before removing the

USB device.

2

ENTER

1

Q. MENU

2

ENTER

■

This TV supports JPG, MP3 files, and HD DivX.

When you connect a USB device, this pop up menu is displayed automatically.
When the Pop Up menu does not appear, you can select Photo List, Music List or Movie List in the USB menu.

On a USB device, you can not add a new folder or delete an existing folder.

PHOTO LIST MUSIC LIST MOVIE LIST

PHOTO LIST

USB

59

You can view .JPG files from USB storage devices.
The On-Screen Display on your model may be slightly different.

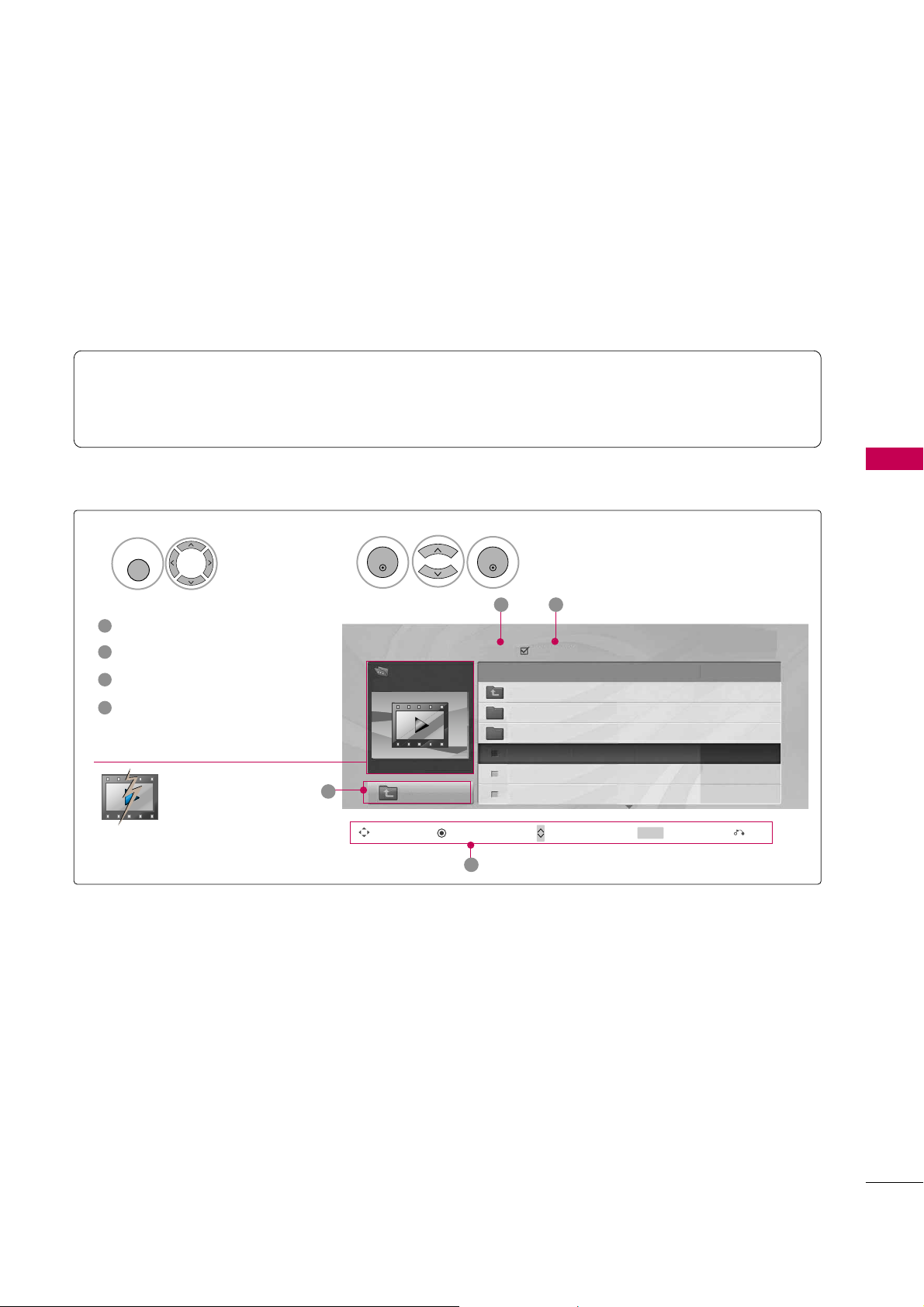

Screen Components

Moves to upper level folder

Preview: Display the
thumbnail/folder name of
the photo in the selected
folder

Current page/Total pages

Total number of marked photos

Corresponding buttons on
the remote control

Select

US B

.

Select

Photo List

.

2

1

MENU

ENTER

ENTER

1

2

3

4

5

Navigation Popup Menu Page Change Mark Exit

CH

MARK

5

Page 2/3

No Marked

Photo List

Up Folder

1366x768, 125KB

KY101

06/10/2008

KY102

04/03/2008

JMJ001

01/01/2000

JMJ002

06/15/2008

JMJ003

04/03/2008

JMJ004

02/18/2008

KY103

03/30/2008

KY104 06/19/2008

KY105

01/31/2008

JMJ005

05/13/2008

JMJ006

05/26/2008

JMJ007

02/18/2008

JMJ008

02/18/2008

Up Folder

Drive1

JMJ001

3 4

2

1

Supported photo file: *.JPG

■

You can play JPG files only.

■

Only baseline scan is supported among JPG (not progressive).

■

Available JPG size: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)

USB

60

USB

Photo Selection and Popup Menu

Select the target folder or drive.

Select the desired photos.

2

Show the Popup menu.

3

1

■

Use the

CH

button to navigation in the

photo page.

■

Use the

MARK

button to mark or unmark a
photo. When one or more photos are marked,
you can view individual photos or a slide show
of the marked photos. If no photos are marked,
you can view all photos individually or all pho­tos in the folder in a slide show.

4

Select the desired option in the

Popup menu.

ENTER

ENTER

ENTER

Page 2/3

No Marked

Photo List

Up Folder

1366x768, 125KB

KY101

06/10/2008

KY102

04/03/2008

JMJ001

01/01/2000

JMJ002

06/15/2008

JMJ003

04/03/2008

JMJ004

02/18/2008

KY103

03/30/2008

KY104

06/19/2008

KY105

01/31/2008

JMJ005

05/13/2008

JMJ006

05/26/2008

JMJ007

02/18/2008

JMJ008

02/18/2008

Up Folder

Page 2/3

No Marked

Photo List

Up Folder

1366x768, 125KB

KY101

06/10/2008

KY102

04/03/2008

JMJ001

01/01/2000

JMJ002 06/15/2008

JMJ003

04/03/2008

JMJ004

02/18/2008

KY103

03/30/2008

KY104

06/19/2008

KY105

01/31/2008

JMJ005

05/13/2008

JMJ006 05/26/2008

JMJ007

02/18/2008

JMJ008

02/18/2008

Up Folder

Drive1

Drive1

JMJ001

JMJ001

1366x768, 125KB

View

Mark All

Delete

Close

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

When you select a file (not folder), this PopUp
menu is displayed.

G

View

: Display the selected item.

G

Mark All

: Mark all photos on the screen.

G

Unmark All

: Deselect all marked photos.

G

Dele t e

: Delete the selected photo item.

G

Clos e

: Close the pop-up menu.

USB

61

Full Screen Menu

You can change the Photo List view so that it fills the screen. More operations are available in full
screen mode.

■

Use the

CH

button to navigation in the

photo page.

Select the target folder or drive.

Select the desired photos.

Show the Popup menu.

5

Select

Vie w

.

The selected photo is displayed in
full size.

2

3

1

4

ENTER

ENTER

ENTER

Page 2/3

No Marked

Photo List

Up Folder

1366x768, 125KB

KY101

06/10/2008

KY102

04/03/2008

JMJ001 01/01/2000

JMJ002 06/15/2008

JMJ003 04/03/2008

JMJ004

02/18/2008

KY103

03/30/2008

KY104

06/19/2008

KY105

01/31/2008

JMJ005 05/13/2008

JMJ006 05/26/2008

JMJ007 02/18/2008

JMJ008 02/18/2008

Up Folder

Page 2/3

No Marked

Photo List

Up Folder

1366x768, 125KB

KY101

06/10/2008

KY102

04/03/2008

JMJ001

01/01/2000

JMJ002

06/15/2008

JMJ003

04/03/2008

JMJ004

02/18/2008

KY103

03/30/2008

KY104

06/19/2008

KY105

01/31/2008

JMJ005

05/13/2008

JMJ006

05/26/2008

JMJ007

02/18/2008

JMJ008

02/18/2008

Up Folder

Drive1

Drive1

JMJ001

JMJ001

1366x768, 125KB

View

Mark All

Delete

Close

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

The aspect ratio of a photo may change the size of
the photo displayed on the screen in full size.

1/17

Slideshow BGM Del ete Opti on Hide

USB

62

USB

Select the

Slideshow, BGM

,

(Rotate)

,

Delete,Option

, or

Hide.

■

Use button to select the previous or
next photo.

■

Use button to select and control
the menu on the full-sized screen.

ENTER

6

NOTE

!

G

This TV will not be able to decode
most JPG images saved using the
Progressive option.

1/17

Slideshow BGM Delete Option Hide

Press

F G

to set the time interval between slides.

Slide Speed

Fast

Cancel

...

Music Album

Enter

G

Slides h o w

: Selected photos are displayed during the
slide show. If no photo is selected, all photos in the cur­rent folder are displayed during slide show.

■

Set the time interval of the slide show in

Opti o n

.

G

BG M

: Listen to music while viewing photos in full size.

■

Set the BGM device and album in

Opti o n

.

G

(Rotat e )

: Rotate photos.

■

Rotates the photo 90°, 18 0 °, 270°, 360° clockwise.

■

Photo cannot be rotated if its width is greater than
the available supported resolution height.

G

Dele t e

: Delete photos.

G

Opti o n

: Set values for

Slide Sp e e d

and

Musi c

Albu m

.

■

Use button and

ENTE R

button to set

values. Then go to and press

ENTE R

to save

the settings.

■

You cannot change

Music Album

while BGM is

playing.

G

Hide

: Hide the menu on the full-sized screen.

■

To see the menu again on the full-sized screen, press
ENTE R

button to display.

MUSIC LIST

USB

63

You can use the Music List menu to play MP3 files form a USB storage device.
This TV cannot play back copy-protected files.
The On-Screen Display on your model may be slightly different.

Screen Components

Supported music file: *.MP3

Bit rate range 32 Kbps - 320 Kbps

• Sampling rate (Sampling Frequency)
MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz
MPEG2 layer 3: 16 kHz, 22.05 kHz, 24 kHz
MPEG2.5 layer 3: 8 kHz, 11.025 kHz, 12 kHz

Moves to upper level folder

Preview: If any album jacket
for the file exists, this jack­et is displayed.

Current page/Total pages

Total number of marked
musics

Corresponding buttons on
the remote control

1

3

4

5

2

Select

US B

.

Select

Music List

.

1

2

MENU

ENTER

ENTER

Music List

Up Folder

Title Duration

3 4

2

1

Page 2/3

No Marked

Drive1

Navigation Popup Menu Page Change Mark Exit

CH

MARK

5

A

00:00 / 04:16

Up Folder

USB

64

USB

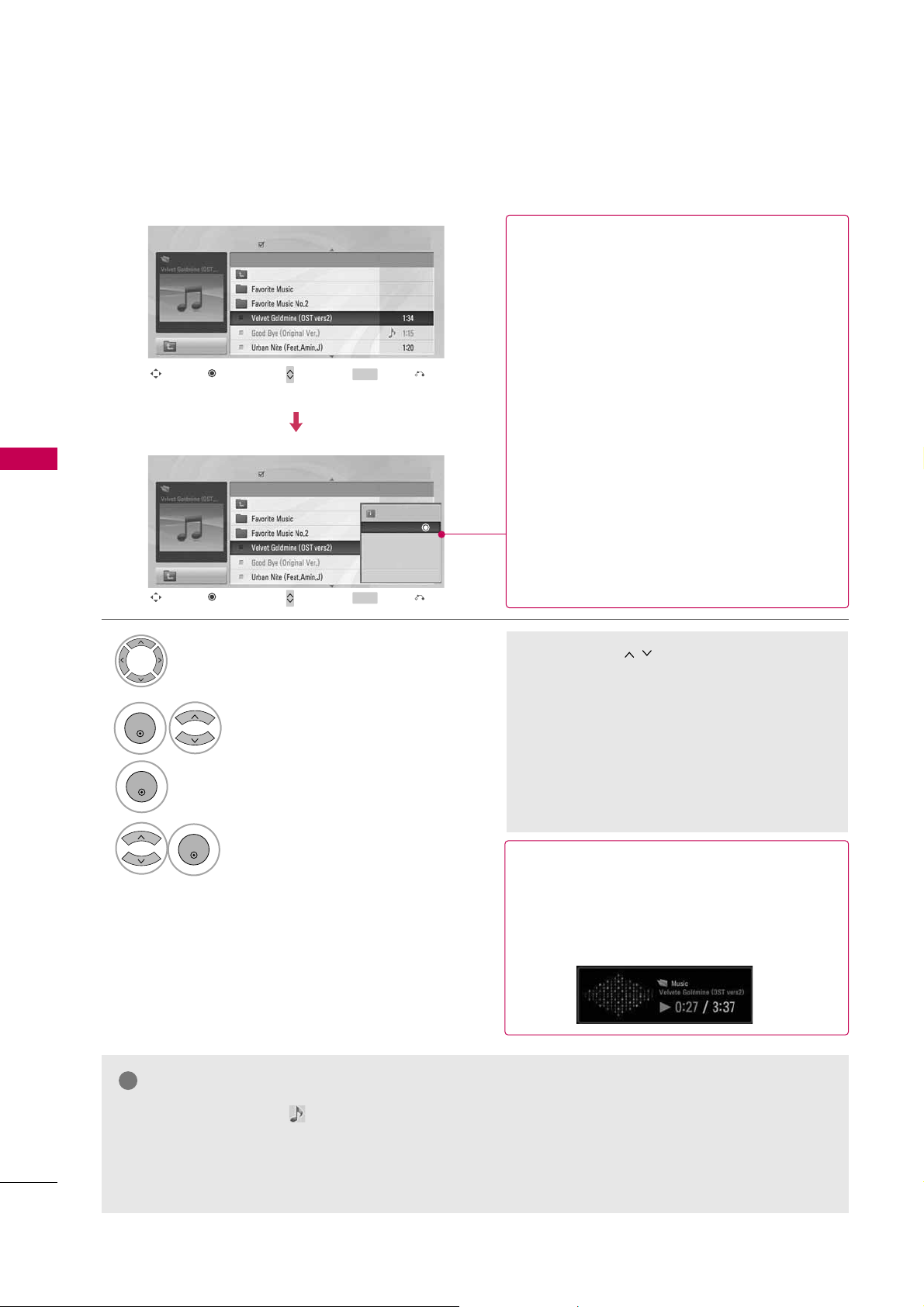

Music Selection and Popup Menu

■

The play information box (as shown below)
will automatically move across the screen
when there is no user input to prevent a fixed
image remaining on the screen for a extended
period of time.

NOTE

!

G

When music is playing, is displayed in front of the music play time.

G

A damaged or corrupted music file that does not play displays 00:00 as the play time.

G

Music files with copy-protection will not play.

G

Press

ENTE R

, A, or

RETUR N

button to stop the screen saver.

■

Use the

CH

button to navigation in

the music page.

■

Use

MARK

button to mark or unmark a music
file. If no music is marked, all the music in the
folder will be played in sequence. When one or
more music files are marked, the marked music
files will be played in sequence. If you want to
listen to only one song repeatedly, just mark
that one file and play.

Select the target folder or drive.

Select the desired musics.

Show the Popup menu.

Select the desired Popup menu.

2

3

1

4

ENTER

ENTER

ENTER

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

Page 2/3

No Marked

Music List

Up Folder

A

00:00 / 04:16

Up Folder

Drive1

Title

Duration

Page 2/3

No Marked

Music List

Up Folder

A

00:00 / 04:16

Up Folder

Drive1

Title

Duration

3945 KB
128 Kbps

Play

Play with Photo

Mark All

Delete

Close

G

Play

(During stop): Play the selected song.

Once a song finishes playing, the next selected
one will be played. When there are no selected

songs to play, the next one in the current fold-

er will be played. If you go to a different folder
and press the

ENTE R

button, the current

songs in playback will stop.

G

Play Marked

: Play the selected songs. Once
a song finishes playing, the next selected one
will be played automatically.

G

Stop Play

(During playback): Stop the play-

ing the song.

G

Play with Photo

: Start playing the selected

songs and then move to the Photo List.

G

Mark All

: Mark all songs in the folder.

G

Unmark All

: Deselect all marked song.

G

Delete

(USB file only): Delete the selected song.

G

Clos e

: Close the pop-up menu.

MOVIE LIST

USB

65

The movie list is activated once a USB drive is detected. It is used when playing movie files on the TV.

It displays all of the video files it recognizes.

The On-Screen Display on your model may be slightly different.

Screen Components

Moves to upper level folder

Current page/Total pages

Total number of marked movie

Corresponding buttons on
the remote control

1

3

4

2

Select

US B

.

Select

Movi e L ist

.

1

2

MENU

ENTER

ENTER

Movie List

Up Folder

Title Duration

2 3

1

Page 1/2

No Marked

Drive1

Navigation Popup Menu Page Change Mark Exit

CH

MARK

4

640x480, 707MB

Up Folder

KR1

KR2

SJS001

SJS002

SJS003

00:00:00

00:00:00

00:00:00

SJS001

Non-supported
files are displayed

using this graphic.

■

Max bitrate of playable movie file: 20Mbps (Mega bit per second)

■

Bit rate of audio format: within 32 ~ 320kbps (MP3)

■

Supported subtitle format : *.smi, *.srt, *.sub (MicroDVD, SubViewer1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb(PowerDivx)

USB

66

USB

MPEG1, MPEG2

MPEG1

MPEG2, H.264/AVC

MPEG4 SP, MPEG4 ASP, DivX 3.11, DivX 4.12,

DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01, Xvid

1.02, Xvid 1.03, Xvid 1.10-beta 1, Xvid 1.10-
beta 2, H.264/AVC

MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11,

DivX 4, DivX 5, DivX 6, Xvid 1.00, Xvid 1.01,

Xvid 1.02, Xvid 1.03, Xvid 1.10-beta 1,

Xvid 1.10-beta 2, H.264/AVC

H.264/AVC, MPEG 1, MPEG 2, MPEG 4 SP,

MPEG4 ASP

MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11,

DivX 4, DivX 5, DivX 6, Xvid 1.00, Xvid 1.01,

Xvid 1.02, Xvid 1.03, Xvid 1.10-beta 1,

Xvid 1.10-beta 2, H.264/AVC

Dolby Digital, MPEG, MP3, LPCM

Dolby Digital, MPEG, MP3, LPCM

Dolby Digital, AAC, MPEG

Dolby Digital, HEAAC, AAC,

MPEG, MP3, LPCM

Dolby Digital, HEAAC, AAC,

MPEG, MP3, LPCM

Dolby Digital, HEAAC, AAC,

MPEG, MP3, LPCM

Dolby Digital, HEAAC, AAC,

MPEG, MP3, LPCM

1920x1080P

@25/30P

1280x720P

@50/60P

File Extension Video Decoder Audio Codec Resolution

Supported DivX file

(*.avi/*.dat/*.divx/*.mkv/*.mp4/*.mpeg/*.mpg/*.tp/*.trp/*.ts/*.vob)

mpg, mpeg, vob

dat

tp, trp, ts

mp4

avi

mkv

divx

Precautions when playing the video files

G

Some user-created subtitles may not work properly.

G

Some special characters are not supported in sub­titles.

G

HTML tags are not supported in subtitles.

G

Subtitles in languages other than the supported
languages are not available.

G

Time information in an external subtitle file should
be arranged in ascending order to be played.

G

The screen may suffer temporary interruptions
(image stoppage, faster playback, etc.) when the
audio language is changed.

G

A damaged video file may not be played correctly,
or some player functions may not be usable.

G

Video files produced with some encoders may not
be played correctly.

G

If the video and audio structure of recorded file is
not interleaved, either video or audio is outputted.

G

Video with resolution higher than maximum reso­lution supported for each frame, cannot be guar­anteed for smooth playback.

G

Movie files other than the specified types and for­mats may not work properly.

G

The movie file encoded by the GMC (Global

Motion Compensation) is not supported.

G

Only the files saved in ASCII Code is supported in
subtitles.

G

Only 250 Korean characters, 500 alphabets and
500 numbers are supported for each line of the
subtitle.

G

Only 10,000 of sync blocks can be supported
within the subtitle file.

G

Max bitrate of playable movie file is 20Mbps.

G

We do not guarantee smooth playback of profiles
encoded level 4.1 or higher in H.264.

G

DTS Audio codec is not supported.

G

A video file more than 30GB in file size is not sup­ported for playback.

G

Playing a video via a USB connection that doesn’t
support high speed may not work properly.

G

USB storage devices below USB 2.0 are support­ed as well. But they may not work properly in the
movie list.

G

The video file and its subtitle file must be located
in the same folder.

At this time, a video file name and its subtitle file
name must be identical for it to be displayed.

USB

67

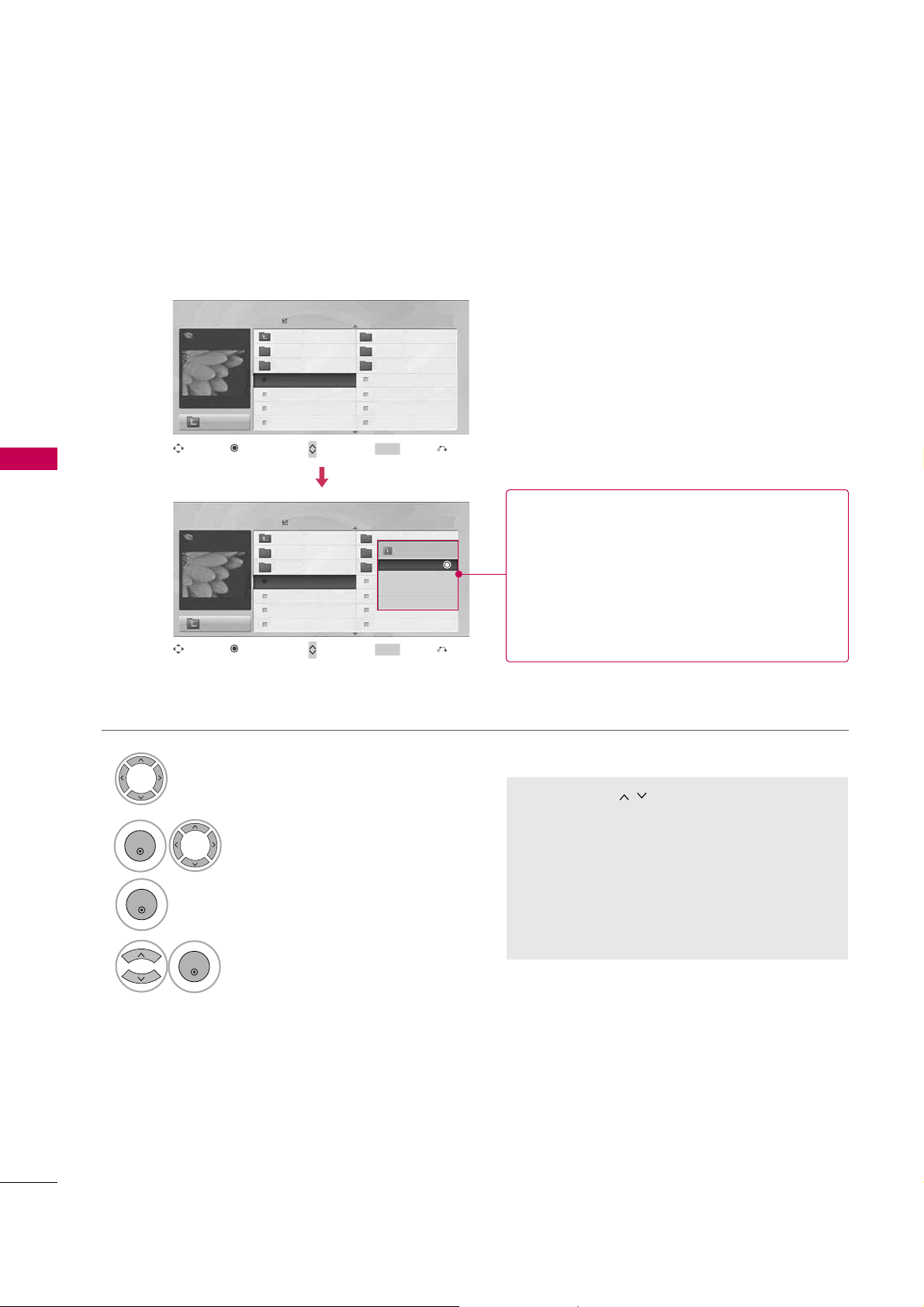

Movie Selection and Popup Menu

Page 1/2 N o M arked

Movie List

Up Folder

640x480, 707MB

Up Folder

Title

Duration

KR1

KR2

SJS001

SJS002

SJS003

SJS001

Drive1

■

Use the

CH

button to navigation in

the movie page.

■

Use the

MARK

button to mark or unmark a
movie file. When one or more movie files are
marked, the marked movie files will be played
in sequence.

Select the target folder or drive.

Select the desired movies.

Show the Popup menu.

Select the desired Popup menu.

2

3

1

4

ENTER

ENTER

ENTER

Page 1/2 N o M arked

Movie List

Up Folder

640x480, 707MB

Up Folder

Title

Duration

KR1

KR2

SJS001

SJS002

SJS003

00:00:00

00:00:00

00:00:00

SJS001

Drive1

624x352, 699MB

Play

Mark All

Delete

Close

00:00:00

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

G

Pla y

: Play the selected file.

Divx Play is executed while the screen changes.

G

Play Marke d

: Play the selected file. Once a
movie finishes playing, the next selected one
will be played automatically.

G

Mark All

: Mark all files in the folder.

G

Unmark All

: Deselect all marked movies.

G

Dele t e

or

Delete m a r k ed

(FAT32 file sys-

tem only): Delete the selected file.

G

Clos e

: Close the pop-up menu.

USB

68

USB

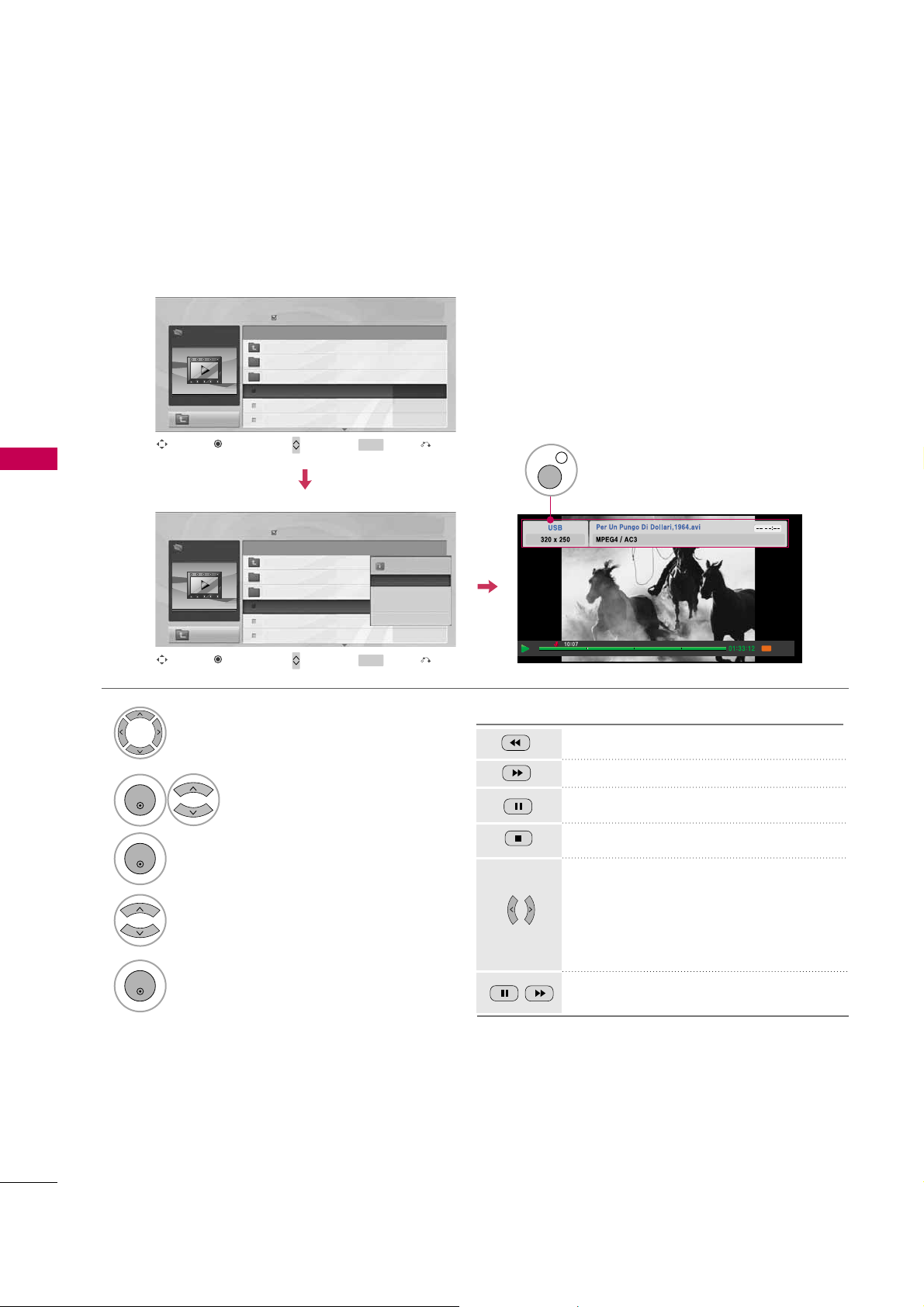

Playing the Movie

Select the target folder or drive.

Select the desired movies.

Show the Popup menu.

Select

Pla y

.

2

3

1

4

ENTER

Display the current movie status progress
bar in the bottom of the screen.

5

ENTER

ENTER

Option

You can adjust various method during the movie play.

Display the DivX Banner in the
top of the screen.

INFO i

Using t h e remote co n t r ol

Press it to rewind.

Press it to forward fast.

Displayed the still screen.

Stopped the screen.

Move to a specific frame forward or back­ward while playing a movie. A cursor indi­cating the position can be viewed on the
screen. It may not work properly for some
files while playing a movie.)

Displays a slow motion.

Page 1/2 N o M arked

Movie List

Up Folder

640x480, 707MB

Up Folder

Title

Duration

KR1

KR2

SJS001

SJS002

SJS003

SJS001

Drive1

Page 1/2 N o M arked

Movie List

Up Folder

640x480, 707MB

Up Folder

Title

Duration

KR1

KR2

SJS001

SJS002

SJS003

00:00:00

00:00:00

00:00:00

SJS001

Drive1

624x352, 699MB

Play

Mark All

Delete

Close

00:00:00

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

Navigation Page Change Mark Exit

CH

MARK

Popup Menu

USB

69

Option Menu Selection

Option

Select

Opti o n

.

1

3

Select the desired option.

4

RETURN

Return to movie viewing

Select

Picture Size, A u d i o La n g u a g e ,

Subtitle Language, S y n c

or

Position

.

2

RED

Picture Size

Audio Language

Subtitle Language

.

Sync

.

Position

FF

Full

G

1

0

0

Close

Off

During the movie play, the following options are available.

G

Picture Size

: Select the Full screen or Original size.

G

Audio L an g ua g e

: Select the language.

But, the file with only one audio can not be selected.

G

Subtitle La n gu a g e

: The subtitles can be turned on or off.

If there are two or more subtitles, you can select one of them.

•

Syn c

: When the video is not synchronized with the captions,

it can be adjusted by 0.5 second.

•

Positi o n

: Move the location of the subtitle.

Latin1

Korean

English, Spanish, French

English, Korean

Subtitle Language Group Supported Language

DIVX REGISTRATION CODE

USB

70

USB

Display

DivX R e g. Code

.

3

ENTER

Select

US B

.

Select

DivX R e g. Code

.

1

MENU

2

ENTER

Confirm the DivX registration code number of the TV. Using the registration number, movies can be rented or
purchased at www.divx.com/vod.

With a DivX registration code from other TV, playback of rented or purchased DivX file is not allowed. (Only DivX
files matched with the registration code of the purchased TV are playable.)

NOTE

!

G

When loading, some buttons may not work.

G

If you use the DivX registration code of another device, the rented or purchased DivX file cannot be played.
Therefore always use the DivX registration code assigned to this product.

G

The video or audio of a file converted based on a standard other than the DivX codec standard may be cor­rupted or unable to be played.

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

Enter

Move

USB

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Enter

Move

USB

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Close

DivX(R) Video On Demand

Your registration code is : xxxxxxxxxx

To learn more visit www.divx.com/vod

ii

DEACTIVATION

USB

71

Select

US B

.

1

MENU

Select

Ye s

.

3

Select

Deactiva t i o n

.

2

ENTER

5

RETURN

Return to the previous menu.

Display

Deactiva t i o n

.

MENU

Return to TV viewing.

ENTER

4

The purpose of deactivation is to allow deactivation of devices for users who have activated all the available
devices through the web_server and are blocked from activating more devices. DivX VOD allows the consumer
to activate up to 6 devices under one account.

Delete the existing authentication information to receive a new DivX user authentication for TV. Once this func­tion is executed, a DivX user authentication is required again to see DivX DRM files.

Close

ENTER

Enter

Move

USB

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Enter

Move

USB

Photo List

Music List

Movie List

DivX Reg. Code

Deactivation

Yes No

DivX(R) Video On Demand

This device is deactivated.

Your deactivation code is : xxxxxxxxx

To learn more visit www.divx.com/vod

i

DivX(R) Video On Demand

Do you want to deactivate your device?

i

PICTURE CONTROL

72

PICTURE SIZE (ASPECT RATIO) CONTROL

PICTURE CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

HDMI/RGB-PC input only support 4:3 or 16:9 aspect ratio. But you can select all aspect ratios in HDMI-PC

1920X1080 input.
You can select a different aspect ratio depending on input source (analog broadcasting, digital broadcasting,

aux).

■

You can also adjust

Aspect Ra ti o

in

the

Q.MENU

.

Select

PICTU R E

.

Select

Aspect Ra ti o

.

Select the desired picture format.

1

MENU

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

Enter

Move


E

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Standard

• Backlight 70

• Contrast 90

• Brightness 50

• Sharpness 70

Enter

Move


E

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

16:9

Just Scan

Set By Program

4:3

Zoom

Cinema Zoom 1

PICTURE CONTROL

73

16:9

Adjust the picture horizontally, in a linear pro­portion to fill the entire screen.

Just Scan

Normally the edges of video signals are cropped
1-2%. Just Scan turns off this cropping and
shows the complete video.

Notes: If there is noise on the edges of the original
signal, it will be visible when Just Scan is activated.

Just Sc an

operates only in
DTV/CADTV/Component/HDMI-DTV/DVI-DTV
(720p/1080i/1080p) input source.

Set By Program

Selects the proper picture proportion to match
the source’s image.

4:3

Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio.

Zoom

Choose Zoom when you want to view the picture
without any alteration. However, the top and
bottom portions of the picture will be cropped.

■

When adjusting in Q.MENU menu,
a. or button: Adjust proportion of Zoom.
b. or button: Move the image on the screen.

Cinema Zoom

Choose Cinema Zoom when you want to
enlarge the picture in correct proportion.

This enlarges an image with cinemascope aspect
ratio (2.35:1) without distortion.

Note: When enlarging or reducing the picture,
the image may become distorted.

■

or button: Adjust proportion of

Cinema Zoom. The adjustment range is 1-16.

■

or button: Move the image on the screen.

JUST SCAN

(4:3 4:3)

(16:9 16:9)

Set By Program

Set By Program

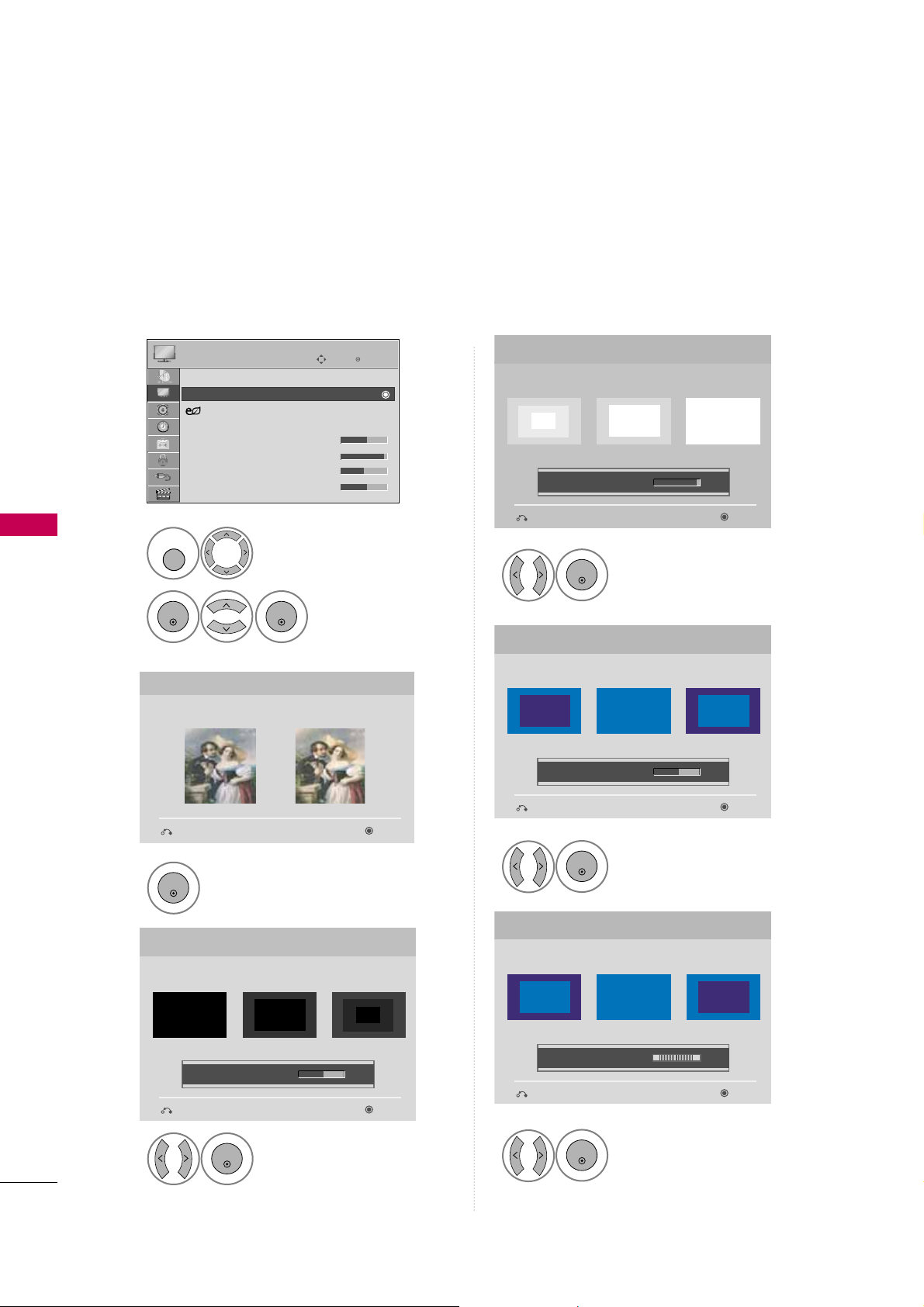

PICTURE CONTROL

74

PICTURE WIZARD

PICTURE CONTROL

Select

PICTU R E

.

Select

Pictu r e

Wiza r d

.

1

MENU

2

ENTER

ENTER

Adjust

Picture Wi za r d

.

Adjust

White Le ve l

.

3

ENTER

Adjust

Black Le ve l

.

4

ENTER

5

ENTER

Adjust

Colo r

.

6

ENTER

Adjust

Tin t

.

7

ENTER

Picture Wizard

With Picture Wizard, you can adjust the picture quality of the
original image.

G

Black Level

Set the screen above identical to the Recommended sample
below.

NextPrevious

NextPrevious

• Brightness 50

EE

E

Low HighRecommended

Color

Set the screen above identical to the Recommended sample
below.

NextPrevious

• Color 50

E

E

Low HighRecommended

White Level

Set the screen above identical to the Recommended sample
below.

NextPrevious

Low HighRecommended

• Contrast 90

E

E

Tint

Set the screen above identical to the Recommended sample
below.

NextPrevious

Low HighRecommended

• Tint 0

E

E

RG

Enter

Move


E

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Standard

• Backlight 70

• Contrast 90

• Brightness 50

• Sharpness 70

This feature lets you adjust the picture quality of the original image.
Use this to calibrate the screen quality by adjusting the Black and White Level etc. You can calibrate the screen

quality by easily following each step.
When you adjust the image to

L

Lo w, Recomme n d e d

or

Hig h

, you can see the example of the changes you

made.

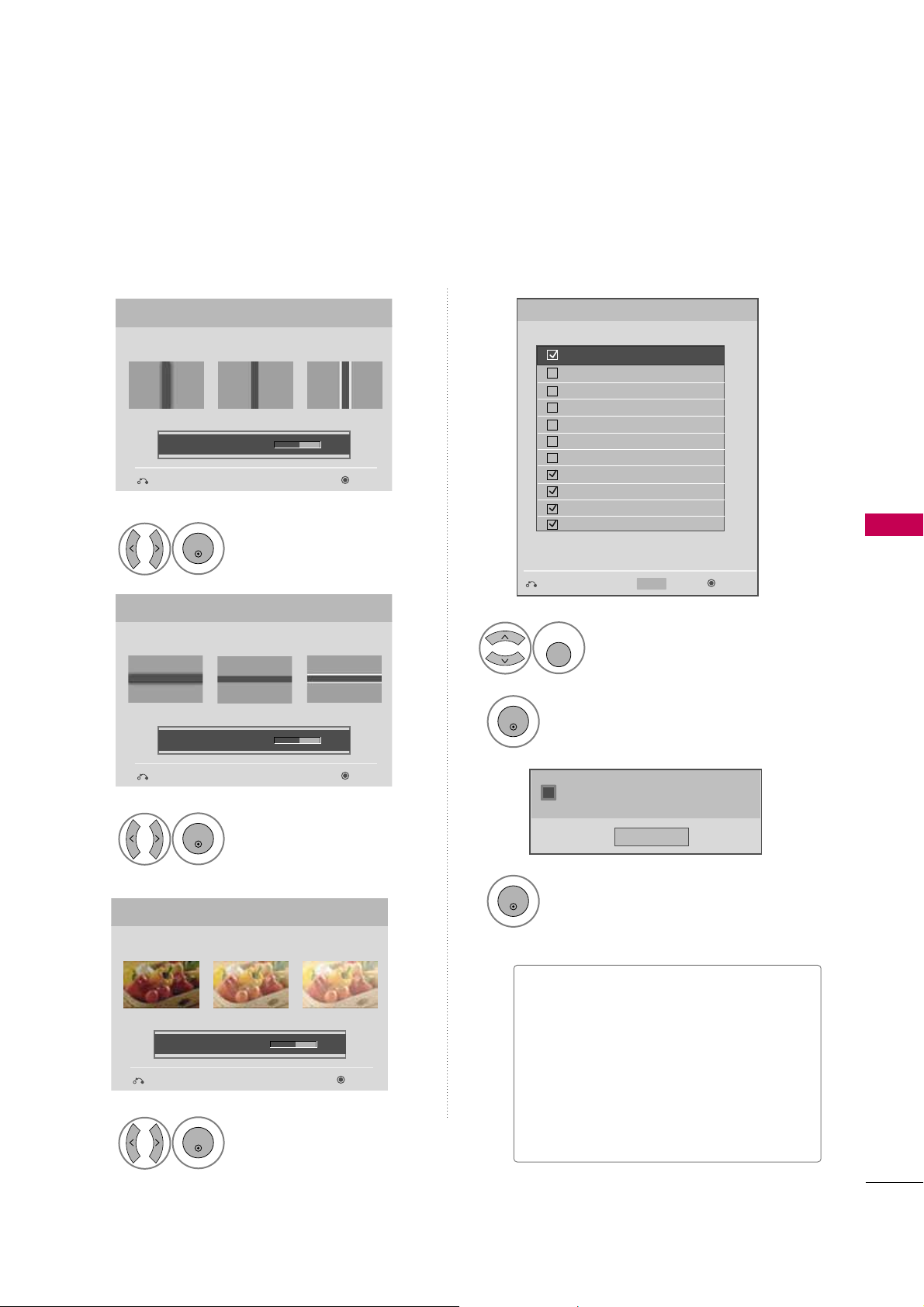

PICTURE CONTROL

75

Adjust

Horizon t a l

Sharpn e s s

.

8

ENTER

Select input source to apply the
settings.

11

MARK

FAV

Adjust

Vertic a l

Sharpn e s s

.

9

ENTER

Adjust

Backli g h t

.

10

ENTER

Finish the Picture Wizard.

13

ENTER

Save.

12

ENTER

Complete

ConfirmMovePrevious

Horizontal Sharpness

Set the screen above identical to the Recommended sample
below.

NextPrevious

• H Sharpness 50

E

E

Low HighRecommended

Vertical Sharpness

Set the screen above identical to the Recommended sample
below.

NextPrevious

• V Sharpness 50

E

E

Low HighRecommended

Backlight

Set the Backlight to your Brightness preference.

NextPrevious

• Backlight 50

E

E

Dark BrightRecommended

DTV

TV

AV1

AV2

Component1

Component2

RGB-PC

HDMI1
HDMI2
HDMI3
HDMI4

Select (an) input(s) to apply the settings.

Warning: The picture quality may vary according to the
different types of signal and inputs.

E

E

Mark

MARK

■

If you stop the setting before the final
step, the changes will not be saved to
the TV.

■

Once the

Picture W i z ar d

sets the pic-

ture quality,

Energy S a v in g

is changed

to

Off

automatically.

■

Picture Wi z a r d

setup value is not

applied for the HDMI5 input source.

Close

The current adjustment value is saved to
Expert1.

i

PICTURE CONTROL

76

PRESET PICTURE SETTINGS (PICTURE MODE)

PICTURE CONTROL

There are factory presets for picture settings available in the user menus. You can use a preset, change each
setting manually, or use the Intelligent Sensor.

Select

PICTU R E

.

Select

Picture Mode

.

Select

Int e lligent Se nsor, Vivid

,

Stand a r d, Natural, Cinema, Sport

,

or

Game

.

1

MENU

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

Enter

Move


E

Enter

Move


E

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Standard

• Backlight 70

• Contrast 90

• Brightness 50

• Sharpness 70

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Standard

• Backlight 70

• Contrast 90

• Brightness 50

• Sharpness 70

Intelligent Sensor

Vivid

Standard

Natural

Cinema

Sport

Game

Expert1

Expert2

■

When selecting

Intelligent Sensor

,

Energy Saving

is changed to

Aut o

automatically.

■

When selecting

Intelligent Se n s o r

, it
is changed contrast, brightness, sharp­ness, color and tint automatically.

■

Vivi d, Standa r d, Natur a l, Cine m a

,

Spor t

, and

Gam e

Settings are preset
for the optimum picture quality at the
factory.

■

Intelligent Se n so r

: The most suitable
picture is automatically adjusted accord­ing to the surrounding conditions.

■

Vivi d

: This is the mode to maximize the
effect of the video in the retail store.
Strengthen the contrast, brightness,
color and sharpness for vivid picture.

■

Standa r d

: This is the mode to realize
optimum viewing condition for the gen­eral user.

■

Natur a l

: This is the mode to display the

most natural screen status.

■

Cine m a

: This mode optimizes video for

watching movies.

■

Sp or t

: This is the video mode to
emphasize dynamic video and primary
color (e.g, white, uniform, grass, sky blue
etc.) by realizing the optimal screen for
sports.

■

Gam e

: This is the mode to realize fast

response speed in a fast gaming screen.

■

Expe r t

: This is the mode to adjust the
video in detail for video quality expert
and general user.

■

You can also adjust

Picture Mode

in

the

Q.MENU

.

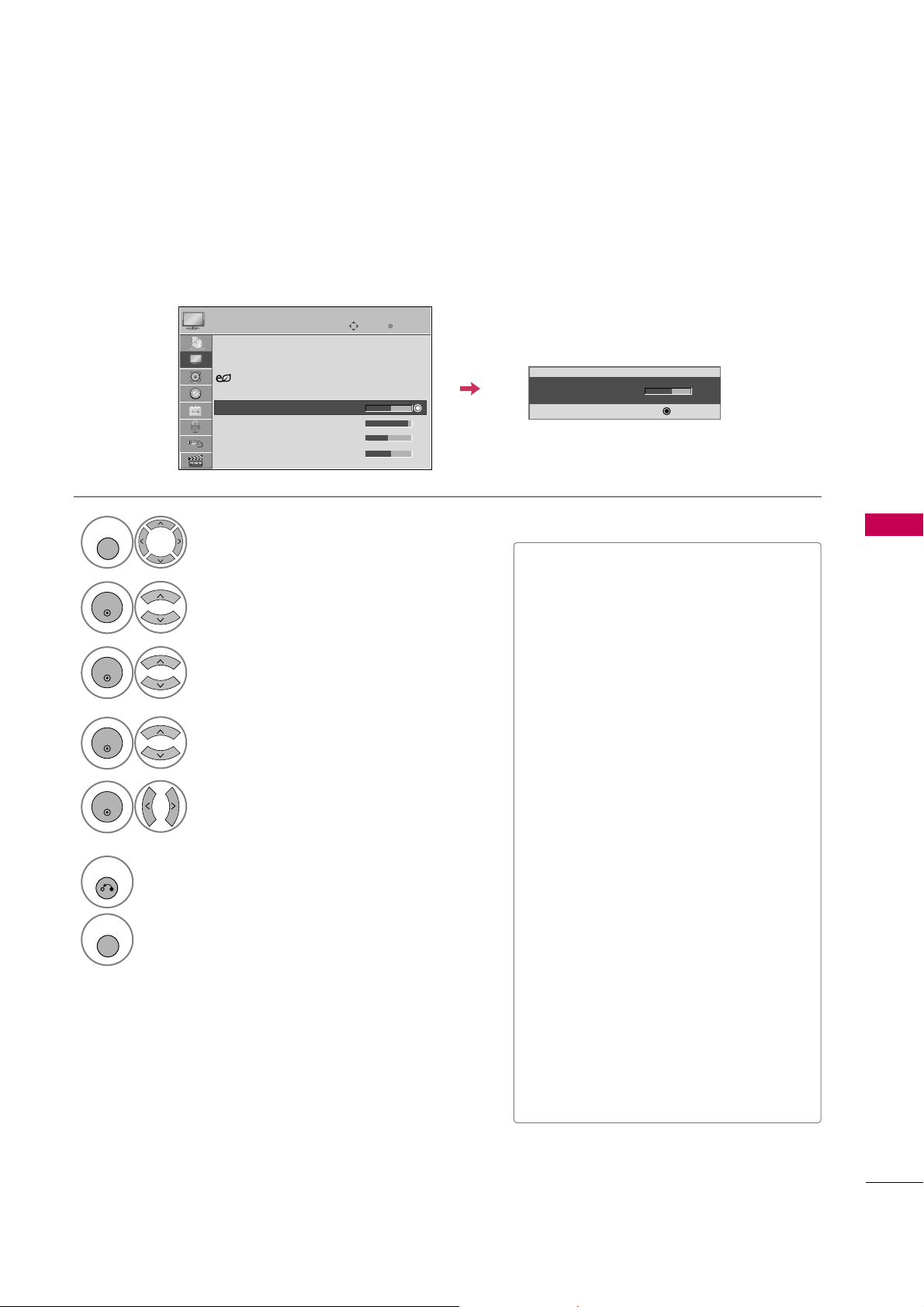

PICTURE CONTROL

77

MANUAL PICTURE ADJUSTMENT - USER MODE

Adjust the picture appearance to suit your preference and viewing situations.

Select

PICTU R E

.

1

MENU

Select

Picture Mode

.

2

ENTER

Enter

Move


E

• Backlight 70

E

E

E

E

Enter

Make appropriate adjustments.

Select

Backli g h t, Contra s t, Brightn e s s

,

Sharpn e s s, Colo r

, or

Tin t

.

Select

Vivid,Stand a r d, Natural

,

Cinema, Sport

, or

Game

.

3

ENTER

4

ENTER

5

ENTER

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■

When adjusting Energy Saving,
Backli g h t

function is disabled.

■

Backli g h t

: This function adjusts the
brightness of LCD panel, to control the
brightness of the screen. Adjusting the
backlight is recommended when setting
the brightness of the set. When decreas­ing the backlight, the brightness of the
black becomes darker without any loss in
video signal and the power consumption
is reduced.

■

Contra s t

: Increase or decrease the gra­dient of the video signal. You may use
Contrast when the bright part of the pic-
ture is saturated.

■

Brightn e s s

: Adjusts the base level of
the signal in the picture. You may use
Brightness when the dark part of the pic­ture is saturated.

■

Sharpn e s s

: Adjusts the level of crisp­ness in the edges between the light and
dark areas of the picture. The lower the
level, the softer the image.

■

Colo r

: Adjusts intensity of all colors.

■

Tin t

: Adjusts the balance between red

and green levels.

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Standard

• Backlight 70

• Contrast 90

• Brightness 50

• Sharpness 70

PICTURE CONTROL

78

PICTURE IMPROVEMENT TECHNOLOGY

PICTURE CONTROL

Select

PICTU R E

.

Select

Advanced Co nt r o l

.

Select your desired options.

1

MENU

3

2

ENTER

ENTER

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

Make appropriate adjustments.

4

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Picture Reset

Screen (RGB-PC)

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Picture Reset

Screen (RGB-PC)

You can calibrate the screen for each Picture Mode or set the video value according to the special video screen.
You can set the video seeing differently for each input.
To reset to the factory default after making adjustments to each input source, execute the

Picture Reset

function for each Picture Mode.

Color Temperature

F

Medium

G

Dynamic Contrast

Off

Dynamic Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

TruMotion 120Hz

Low

Color Gamut

High

Close

E

PICTURE CONTROL

79

EXPERT PICTURE CONTROL

Select

PICTU R E

.

Select

Picture Mode

.

Select

Expert Co n tr o l

.

Select

Exper t 1

or

Exper t 2

.

1

MENU

3

2

ENTER

ENTER

4

ENTER

Make appropriate adjustments.

6

7

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

Enter

Move


E

RG

• Brightness 50

• H Sharpness 50

• V Sharpness 50

• Color 50

• Tint 0

• Expert Control

• Picture Reset

Screen (RGB-PC)

Dynamic Contrast

F

Off

G

Noise Reduction

Low

Gamma

Medium

Black Level

Low

Real Cinema

Off

TruMotion 120Hz

Low

Color Standard

HD

Color Gamut

Standard

Edge Enhancer

High

Close

E

Select your desired menu option.

5

ENTER

Enter

Move


E

Aspect Ratio : 16:9

Picture Wizard

Energy Saving

: Off

Picture Mode : Expert1

• Backlight 70

• Contrast 90

• Brightness 50

• H Sharpness 50

Intelligent Sensor

Vivid

Standard

Natural

Cinema

Sport

Game

Expert1

Expert2

By segmenting categories,

Exper t 1

and

Exper t 2

provide more categories which users can set as they see

fit, offering the optimal picture quality for users.
This may also be used by a professional to help optimize the TV performance in the environment the TV is in.

PICTURE CONTROL

80

PICTURE CONTROL

■

Set to warm to enhance hotter colors such as red, or set to cool to enhance cooler

colors such as blue.

■

Adjusts the contrast to keep it at the best level according to the brightness of the
screen. The picture is improved by making bright parts brighter and dark parts darker.

■

Adjusts screen colors so that they look livelier, richer and clearer. This feature
enhances hue, saturation and luminance so that red, blue, green and white look
more vivid.

■

Reduces screen noise without compromising video quality.

Low : Make dark and middle gray level area of the picture brighter.
Medium: Express original picture levels.
High: Make dark and middle gray level area of the picture darker.

■

You can adjust brightness of dark area and middle gray level area of the picture.

Low: The reflection of the screen gets darker.
High: The reflection of the screen gets brighter.

■

Set black level of the screen to proper level.

■

This function is available in the following modes: AV (NTSC-M), HDMI or
Component.

■

Adjust the brightness of the screen to prevent the screen from being too bright.
Dims extremely bright pictures.

■

This feature is disabled in “

Picture Mode-V i v i d, Cine m a, Intelligent Se n s o r

”.

■

Makes video clips recorded in film look more natural by eliminating judder effect.

■

DVD and Blu-ray movies are filmed at 24 frames per second (fps). With LG Real
Cinema, every frame is consistently processed 5 times in 1/24 of a second produc­ing 120 fps with TruMotion or 2 times in 1/24 of a second producing 48 fps with­out TruMotion, thus totally eliminating the judder effect.

■

This function can work when TruMotion is off.

High: Provides smoother picture movement.
Low: Provides smooth picture movement. Use this setting for standard use.
Off: Use this setting when "High" and "Low" settings result in noise.

■

TruMotion works with all inputs except PC mode.

■

If you enable "TruMotion", noise may appear on the screen.
If this occurs, set "TruMotion" to "Off".

Dynamic Contrast

Dynamic Color

Noise Reduction

Gamma

Black Level

Eye Care

Real Cinema

TruMotion

Color Temperature
