LG Electronics USA 50PY3DFUA User Manual

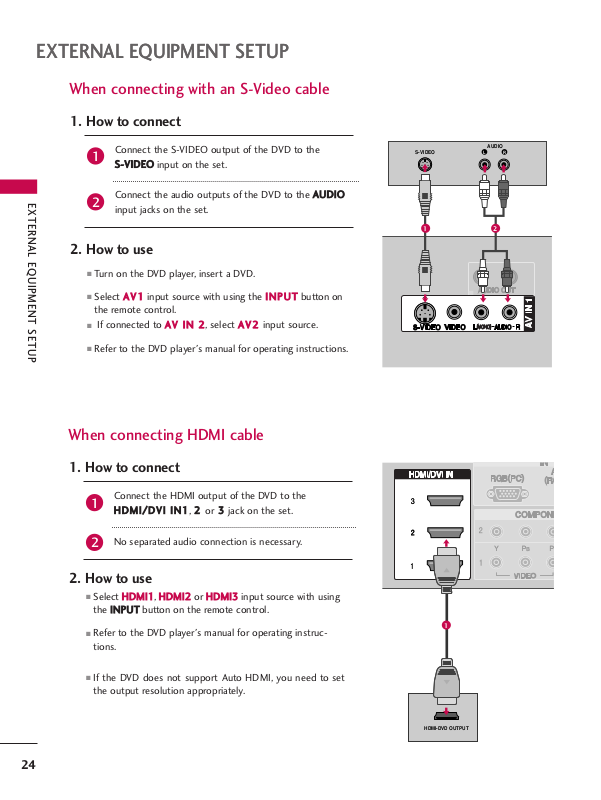

When connecting with an S-Video cable
HDMI-DVD OUTPUT
L R
S-VIDEO
AUDIO
Connect the S-VIDEO output of the DVD to the
SS--VVIIDDEEOO
input on the set.
Connect the audio outputs of the DVD to the
AAUUDDIIOO
input jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
AAVV 11
input source with using the
IINNPP UUTT
button on
the remote control.
■
If connected to
AAVV IINN 22
, select
AAVV 22
input source.
■
Refer to the DVD player's manual for operating instructions.
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII II NN11, 22 or33
jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■
Select
HHDDMMII11,HHDDMMII22 orHHDDMMII33
input source with using
the
IINNPPUUTT
button on the remote control.
■
Refer to the DVD player's manual for operating instructions.
■
If the DVD does not support Auto HDMI, you need to set
the output resolution appropriately.
2
1
2
1
24
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
1 2
1
VCR SETUP
When connecting with an antenna
■
To avoid picture noise (interference), leave an adequate distance between the VCR and TV
■
Use the ISM feature in the Option menu to avoid having a fixed image remain on the screen for a long pe-
riod of time
(Only
Plasma TV model). If the 4:3 picture format is used; the fixed images on the sides of the
screen may remain visible on the screen.
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
ANTENNA/ANTENNA/
CABLE INCABLE IN
Wall Jack
Antenna
Connect the RF antenna out socket of the VCR to the
AAnntteennnnaa
socket on the set.
Connect the antenna cable to the RF antenna in socket of the VCR.
1. How to connect
■
Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
■
Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.
)
2. How to use
2
1
25
EXTERNAL EQUIPMENT SETUP
1
2
EXTERNAL EQUIPMENT SETUP
26
EXTERNAL EQUIPMENT SETUP
When connecting with a RCA cable
In the event that you connect
both Video and the S-Video
cables, only the S-Video will work.
CAUTION
L R
S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
ANTENNA/
CABLE IN
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
ANTENNA/
CABLE IN
Connect the
AAUUDDIIOO/VVIIDDEEOO
jacks between TV and
VCR. Match the jack colors(Video = yellow, Audio Left =
white,and Audio Right = red)
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.
)
■
Select
AAVV 11
input source with using the
IINNPP UUTT
button on
the remote control.
■
If connected to
AAVV IINN 22
, select
AAVV 22
input source.
If you have a mono VCR, connect the audio cable from the
VCR to the
AAUUDDIIOO
LL//MMOO NNOO
jack of the set.
NOTE
When connecting with an S-Video cable
Connect the S-VIDEO output of the VCR to the
SS --
VVII DDEE OO
input on the set. The picture quality is
improved; compared to normal composite (RCA cable
)
input.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the set.
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the VCR.
(
Refer to the VCR owner’s manual.
)
■
Select
AAVV11
input source with using the
IINNPPUUTT
button on the
remote control.
■
If connected to
AAVV IINN 22
, select
AAVV22
input source.
1
2
1
1
1
2
EXTERNAL EQUIPMENT SETUP
27
OTHER A/V SOURCE SETUP
Camcorder
Video Game Set
Connect the
AAUUDDIIOO/VVIIDDEEOO
jacks between TV and
external equipment. Match the jack colors
.
(
Video = yellow, Audio Left = white, and Audio Right = red
)
1. How to connect
2. How to use
■
Select
AAVV22
input source with using the
IINNPPUUTT
button on
the remote control.
■
If connected to
AAVV IINN 11
input, select
AAVV11
input source.
■
Operate the corresponding external equipment.
1
S-VIDEO
L R
VIDEO
1
EXTERNAL EQUIPMENT SETUP
28
EXTERNAL EQUIPMENT SETUP
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
GG
Check the image on your TV. There may be noise associated
with the resolution, vertical pattern, contrast or brightness in
PC mode. If noise is present, change the PC output to another
resolution, change the refresh rate to another rate or adjust
the brightness and contrast on the VIDEO menu until the
picture is clear. If the refresh rate of the PC graphic card can
not be changed, change the PC graphic card or consult the
manufacturer of the PC graphic card.
NOTE
RGBRGB
RGB OUTPUT
AUDIO
RGB
When connecting D-sub 15 pin cable
Connect the RGB output of the PC to the
RRGGBB
((
PPCC
))
jack on the set.
Connect the PC audio output to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
2. How to use
■
Turn on the PC and the set.
■
Select
RRGGBB--PPCC
input source with using the
IINNPPUUTT
button
on the remote control.
2
1
1 2
EXTERNAL EQUIPMENT SETUP
29
When connecting HDMI to DVI cable
GG
If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
GG
If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the
best picture quality, adjust the output resolution of PC graphics card's output resolution to 1920x1080,
60Hz. (32LB9D model: 1360x768, 60Hz)
NOTE
DVI-PC OUTPUT
AUDIO
RGBRGB
Connect the DVI output of the PC to the
HHDDMMII//DDVVII IINN11, 22
or
33
jack on the set.
(Use the HDMI to DVI cable)
Connect the PC audio output to the
AAUUDDIIOO((RRGGBB//DDVVII
))
jack on the set.
1. How to connect
■
Turn on the PC and the set
■
Select
HHDDMMII11,HHDDMMII22 orHHDDMMII33
input source with using the
IINNPPUUTT
button on the remote control.
2. How to use
2
1
1
2
EXTERNAL EQUIPMENT SETUP
30
EXTERNAL EQUIPMENT SETUP
GG
Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
GG
Check the image on your TV. There may be noise
associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is
present, change the PC output to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the PICTURE menu until the picture is clear. If the refresh
rate of the PC graphic card can not be changed,
change the PC graphic card or consult the manufacturer of the PC graphic card.
GG
Avoid keeping a fixed image on the screen for a
long period of time. The fixed image may become
permanently imprinted on the screen.
GG
The synchronization input form for Horizontal and
Vertical frequencies is separate.
NOTES
EXTERNAL EQUIPMENT SETUP
31
Supported Display Specifications (RGB/HDMI-PC
)
Horizontal Vertical
Frequency(KHz)Frequency(Hz
)
31.468 70.09
31.469 70.08
31.469 59.94
37.861 72.80
37.50 0 75. 00
35.156 56.25
37.879 60.31
48.077 72.18
46 .875 75 .0 0
48.363 60.00
56.476 70.06
60.023 75.02
47.776 59 .870
60.289 74.893
47.712 60.015
63.981 60.020
79.976 75.025
75.00 60.00
67.50 60.00
Resolution
720x400
1360x768
640x350
* RGB-PC mode only: 1280x768(H-60.289, V-74.893)
640x480
800x600
1024x768
Supported Display Specifications (HDMI-DTV
)
Horizontal Vertical
Frequency(KHz)Frequency(Hz
)
31.47 60.00
31.47 59.94
45.00 60.00
44.96 59.94
33.75 60.00
33.72 59.94
67.50 60.00
67.432 59 .939
27.00 24.00
26.97 23.94
33.75 30.00
33.71 29.97
Resolution
720x480
1280x720
1920x1080
1280x1024
1600x1200
1920x1080
1280x768
1280x768
Supported Display Specifications (Y, CB /PB,CR /P
R
)
Horizontal Vertical
Frequency(KHz)Frequency(Hz
)
15.73 60.00
15.73 59.94
31.47 59.94
31.47 60.00
45.00 60.00
44.96 59.94
33.75 60.00
37.72 59.94
67.50 60.00
67.432 59 .939
27.00 24.00
26.97 23.94
33.75 30.00
33.71 29.97
Resolution
1280x720
1920x1080
720x480
EXTERNAL EQUIPMENT SETUP
32
EXTERNAL EQUIPMENT SETUP
Screen Setup for PC mode
Overview
When the RGB input, of the set is connected to a PC Output, Select
RGB-PC with using the
IINNPPUUTT
button on the remote control.
When you change the resolution, select the proper resolution in
present input to see the best picture appearance.
Picture Mode
Color Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
G
Selection ( Gor ) leads you to
thescreen adjustment menu.
Picture Mode : User1
Color Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen

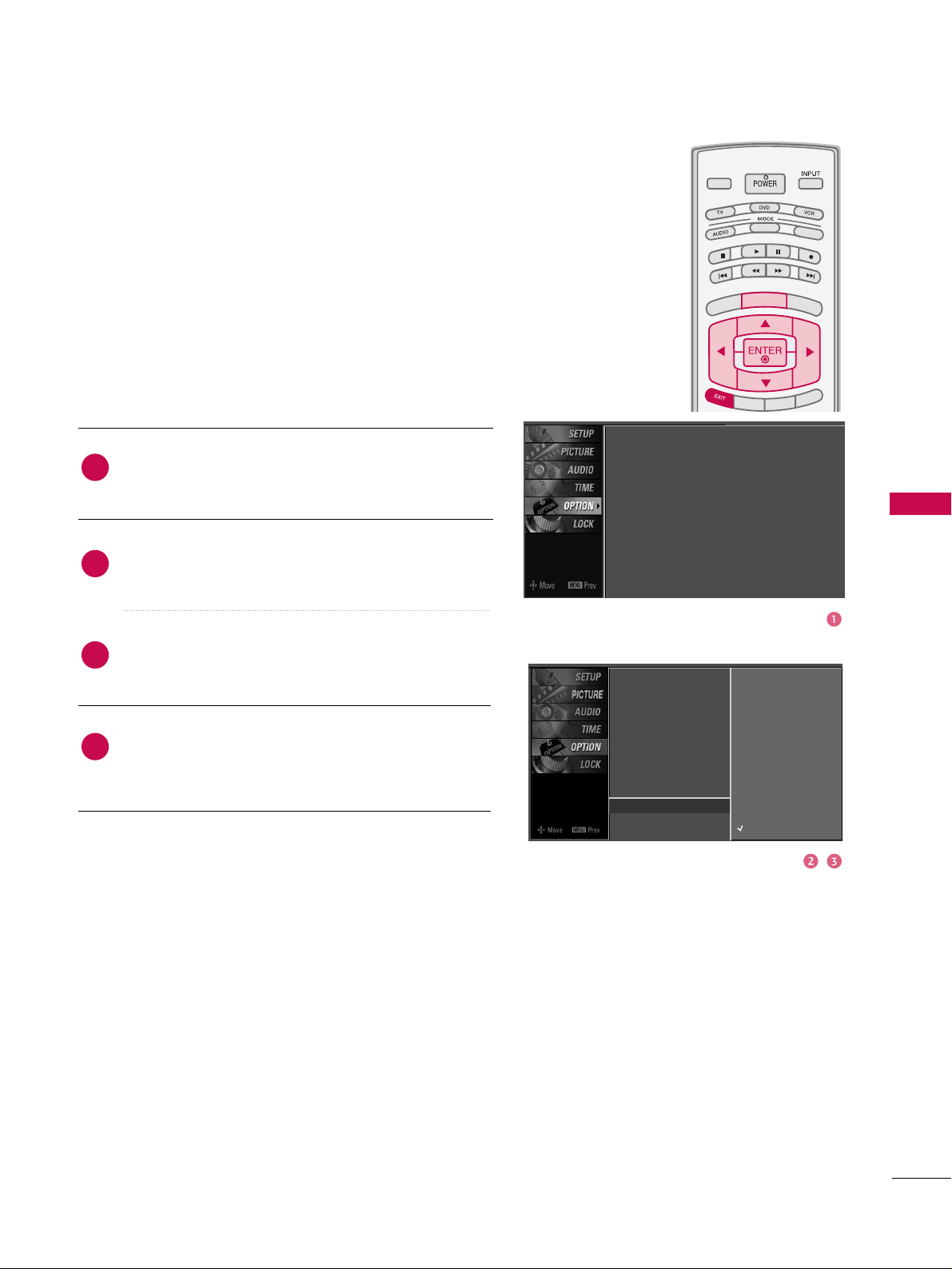

Press the
MMEENNUU
button and then useDDor EEbutton
to select the
PPIICCTTUURREE
menu.
Press the
GG
button and then useDDor EEbutton to
select
SSccrreeeenn
.
Press the
GG
button to enter the screen adjustment
menu.
2
3
1
EXTERNAL EQUIPMENT SETUP
33

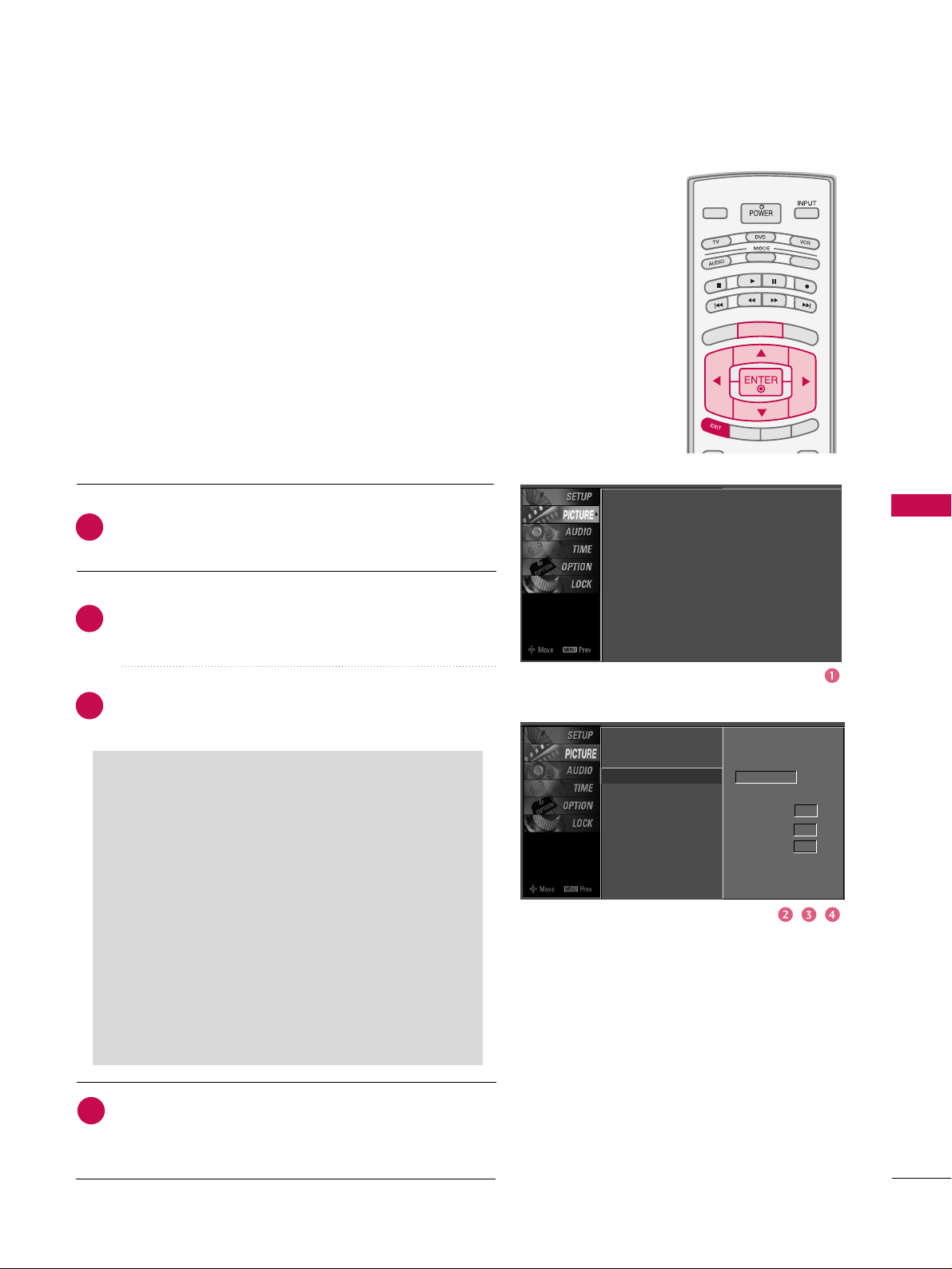

Resolution
Position
GG
Size
Phase
Reset
Move Prev
Resolution
Position
Size
Phase
Reset
GG
Initialize Settings.
Yes
No
Prev
Select
OK
RReessoolluuttiioonn
XGA(1024, 1280, 1360) isn’t
distinguished because of having
the same H/V Sync Time.
This function is you to select the
Default Sync Time.
PPoossiittiioonn
This function is to adjust picture
to left/right and up/down as you
prefer.
SSiizzee
This function is to minimize any
vertical bars or stripes visible on
the screen background. And the
horizontal screen size will also
change.
PPhhaassee
This function allows you to
remove any horizontal noise and
clear or sharpen the image of characters.
Use DDor EEbutton to select
RReessoolluuttiioonn, PPoossiittiioonn, SSiizzee
,
or
PPhhaassee
.
Press the
EENNTTEERR
button and then use
DD / EE
or
FF / GG
button to make appropriate adjustments.
■
The
PPhhaassee
adjustment range is
--1166~++1166
.
■
The
SSiizzee
adjustment range is
--3300~++3300
.
Press the
EENNTTEERR
button.
Adjustment for screen Resolution, Position, Size, Phase, Reset
Use DDor EEbutton to select
RReesseett
.
Press the
EENNTTEERR
button and then use
FF
or GGbutton to
select
YYeess
.
Press the
EENNTTEERR
button.
Initializing (Reset to original factory values
)
2
3
1
2
3
1
To initialize the adjusted values.
EXTERNAL EQUIPMENT SETUP
34
EXTERNAL EQUIPMENT SETUP
USB IN SETUP
The TV has a special signal output capability which allows you to hook up the second TV or monitor.
AV IN 2V IN 2
L/L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
S-VIDEO
USB INUSB IN
Connect the USB device to the
UUSS BB IINN
(or
UUSSBB
) jacks
on the side of TV.
1. How to connect
1
2. How to use
■
After connecting the
UUSS BB IINN
(or
UUSSBB
) jacks, you use the
function. (
GG
pp..4499
)
MEDIAMEDIA
HOST HOST
1
or
EXTERNAL EQUIPMENT SETUP
35
AUDIO OUT SETUP
Send the TV’s audio to external audio equipment via the Audio Output port.
GG
When connecting with external audio equipment, such as
amplifers or speakers, please turn the TV speakers off.
(
GG
pp..7744
)
NOTE
GG
Do not look into the optical output port. Looking at the
laser beam may damage your vision.
GG
Block the SPDIF out(optical/coaxial) about the contents
with ACP(Audio Copy Protection) function.
CAUTION
Connect one end of the optical or coaxial cable to the
TV’s
OOPPTTII CCAALL
or
CCOOAAXXIIAALL
port of
DDIIGGIITTAALL AAUUDDIIOO
OOUUTT
.
Connect the other end of the optical or coaxial cable
to the digital audio input on the audio equipment.
Set the “TV Speaker option - Off” in the AUDIO menu.
(
GG
pp..7744
). See the external audio equipment instruction
manual for operation.
1. How to connect
2
3
1
1
2
L R
S-VIDEO
Analog
Digital
Connect audio outputs to the TV’s
AAUUDDIIOO OOUUTT
jacks
Set the “TV Speaker option - Off” in the AUDIO menu.
(
GG
pp..7744
). See the external audio equipment instruction
manual for operation.
2
1
1
WATCHING TV / CHANNEL CONTROL
36
REMOTE CONTROL FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
APM
CC
AUTO DEMO
M/C EJECT
TV INPUTTV INPUT
STBSTB
MENU
BRIGHT +
B
RIGHT -
TIMER
RATIO
SIMP
LINK
BACKBACK
TV INPUT
STB
BACK
TV INPUT
STB
BACK
SOUND
SAP
CC
MARK
USB EJECT
MEDIA HOSTMEDIA HOST
MEDIA HOST
MEDIA HOST
BRIGHT +/-
THUMBSTICK
(Up/Down/Left
Right/ENTER)
EXIT
TIMER
RATIO
SIMPLINK
VOLUME UP
/DOWN
MUTE
FAV
CHANNEL
UP/DOWN
BACK
— (DASH)
■
Controls the mode.
■
Control video cassette recorders or DVD players.
Displays the main menu.
■
Adjust brightness on screen.
■
It turns to the default settings brightness by changing
mode source.
■
Navigate the on-screen menus and adjust the system
settings to your preference.
Clear all on-screen displays and return to TV viewing from
any menu.
Select the amount of time before your TV turns off automatically.
GG
pp..8844
Change the aspect ratio.
GG
pp..5566
See a list of AV devices connected to TV.
When you toggle this button, the SimpLink menu appears
at the screen.
Increase/decrease the sound level.
Switch the sound on or off.
pp..4400
Scroll through the programmed Favorite channels.
Select available channels.
Tune to the last channel viewed.
Used to enter a program number for multiple
program channels such as 2-1, 2-2, etc.
MEDIAMEDIA
HOST HOST
mode control
buttons
MEDIAMEDIAMEDIA
HOST HOST HOST
MEDIA
HOST
NUMBER button
VCR/DVD
buttons
MENU
WATCHING TV /CHANNEL CONTROL
WATCHING TV / CHANNEL CONTROL
37
TV INPUT
STB
BACK
SOUND
SAP
CC
MARK
USB EJECT
MEDIA HOST
Turns your TV or any other programmed equipment on or off, depending on the mode.
In AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2 and HDMI3 input sources, screen returns to
the last TV channel.
External input modes rotate in regular sequence: Antenna, Cable, AV1-2, Component 1-2, RGB-PC,
HDMI1, HDMI2, HDMI3 (Antenna, Cable, AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2,
HDMI3 input sources are linked automatically, only if these are connected ).
Select the remote operating mode: TV, DVD, VCR, AUDIO or STB.
* If the mode of another product is selected, a button on the remote control which is not used
for the selected product can control the TV.
Enter to the mode.
MEDIAMEDIA
HOST HOST
Inside the Sliding Cover
SOUND
SAP
CC
MARK
USB EJECT
Adjust the factory preset picture depend
on the viewing environment.
Select the appropriate type of sound for
type of program.
Select MTS sound: Mono, Stereo, and SAP
analog mode. Change the audio language
DTV mode.
GG
pp.. 7733
Select the Caption On/Off.
GG
pp..7777
Enter the selected functions.
GG
pp..5511
Remove the USB device.
GG
pp..3344
Installing Batteries
■
Open the battery compartment cover on the
back side and install the batteries matching correct polarity (+with +,-with -).
■
Install two 1.5V AA batteries. Don’t mix old or
used batteries with new ones.
■
Close cover.
■
Use a remote control up to 7 meters distance and 30
degree (left/right) within the receiving unit scope.
■
Dispose of used batteries in a recycle bin to preserve environment.
Remote control effective range
POWER
TV INPUT
INPUT
MODE
MEDIAMEDIAMEDIA
HOST HOST HOST
MEDIA
HOST
47LC7DF
50/60PY3D
R
MODE
D
A
Y
-
D
A
Y
+
LIVE TV
INPUT
MODE
D
A
Y
-
D
A
Y
+
LIVE TV
INPUT
32LB9D
MARK
SOUND
USB EJECT
SAP
BACK
CC
LIVE TV
D
Y
A
INPUT
MODE
D
A
Y
+
WATCHING TV / CHANNEL CONTROL
38
WATCHING TV /CHANNEL CONTROL
TURNING ON TV
NOTE
GG
If you intend to be away on vacation, disconnect
the power plug from the wall power outlet.
First, connect power cord correctly.
At this moment, the TV switches to standby mode.
■
In standby mode, press the
(
or ON/OFF),
IINNPPUUTT
,
CCHH
((
DD
or
EE
))
button on the TV or press the
PPOOWWEERR
,
IINNPPUUTT, TTVV IINNPPUUTT, CCHH
((
DD
or
EE
))
,
NNuummbbeerr ((00~99
))
but-
ton on the remote control.
Select the viewing source by using the
IINNPPUUTT
button on
the remote control.
■
This TV is programmed to remember which mode it was
last set to, even if you turn the TV off.
When finished using the TV, press the
PPOOWWEERR
button on
the remote control. The TV reverts to standby mode.
TV INPUT
STB
SOUND
SAP
CC
MARK
USB EJECT
BACK
MEDIA HOST
2
3
1
MENU
INPUT
STB
MEDIA HOST
BRI
G
HT +
MPLINK
I
S
RATIO
TV INPUT
RIG
B
-
T
H
TIMER
BACK
CC
SAP
SOUND
MARK
USB EJECT
WATCHING TV / CHANNEL CONTROL
39
CHANNEL SELECTION
Press the
CCHH
DD
or
EE
or
NNUUMMBBEERR
buttons to select a
channel number.
TV INPUT
STB
TIMER
RATIO
SIMPLINK
SOUNDSOUND
SAPSAP
CCCC
MARKMARK
USB EJECTUSB EJECT
BACKBACK
TV INPUT
STB
BACK
SAP
CC
MARK
USB EJECT
TV INPUT
STB
BACK
SOUND
CC
MARK
USB EJECT
TV INPUT
STB
BACK
SOUND
SAP
MARK
USB EJECT
MEDIA HOST
MEDIA HOST
MEDIA HOST
MEDIA HOST
1
WATCHING TV / CHANNEL CONTROL
40
WATCHING TV /CHANNEL CONTROLWATCHING TV /CHANNEL CONTROL
VOLUME ADJUSTMENT
Press the
VVOOLL
DD
or
EE
button to adjust the volume.
If you want to switch the sound off, press the
MMUUTTEE
but-
ton.
You can cancel the Mute function by pressing the
MMUUTTEE
or
VVOOLL
DD
or
EE
button.
Adjust the volume to suit your personal preference.
TV INPUTTV INPUT
STBSTB
MENU
BR
IGHT +
BRI
GHT -
TIMER
RATIO
S
IMPLINK
TV INPUT
STB
TV INPUT
STB
TV INPUT
STB
M
ED
IA
H
O
ST
MEDIA HOST
MEDIA HOST
MEDIA HOST
MEDIA HOST
2
3
1
WATCHING TV / CHANNEL CONTROL
41
ON-SCREEN MENUS SELECTION
Press the
MMEENNUU
button and then use DDor EEbutton to select each menu.
Press the
GG
button and then use
DD EE FF GG
button to display the available menus.
Your TV's OSD (On Screen Display)may differ slightly from what is shown in this manual.
SETUP
TIME
Auto Tuning
Manual Tuning
Channel Edit
2
1
AUDIO
Picture Mode : User1
Color Temperature : Cool
XD
Advanced
Aspect Ratio : 16:9
Picture Reset
Screen
Sound Mode : Standard
Auto Volume : On
Balance : 0
TV Speaker : On
Clock : Oct 19, 2006, 03:44 AM
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
Language :
English
Input Label
SimpLink : Off
Key Lock : Off
Caption : Off
ISM Method : Orbiter
Low Power : Off
Front Display : Bright
Set ID : 1
Lock System : Off
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
OPTION
LOCK
Only Plasma TV model
Lock System : Off
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
For USA
For Canada
WATCHING TV / CHANNEL CONTROL
42
WATCHING TV /CHANNEL CONTROL
Auto Tuning
G
Manual Tuning
Channel Edit
Selection ( Gor ) leads you to
the Auto Tuning screen.
TV INPUT
STB
TV INPUT
STB
TV INPUT
STB
TV INPUT
STB
TV INPUT
STB
MEDIA HOST
MEDIA HOST
MEDIA HOST
MEDIA HOST
Press the
MMEENNUU
button and then use DDor EEbut-
ton to select the
SSEETTUUPP
menu.
Press the
GG
button and then use DDor EEbutton to
select
AAuuttoo TTuunniinngg
.
Press the
EENNTTEERR
button to begin the channel
search. Allow
AAuuttoo TTuunniinngg
to complete the channel
search cycle for
AANNTTEENNNNAA
and
CCAABBLLEE
.
Automatically finds all channels available through antenna or
cable inputs, and stores them in memory on the channel list.
Run Auto Tuning again after any Antenna/Cable connection
changes.
A password is required to gain access to Auto Tuning menu if
the Lock System is turned on.
Auto Tuning
Manual Tuning
Channel Edit
Selection ( Gor ) leads
you to the Auto Tuning
screen.
2
3
1
NOTE
Analog TV antenna
Digital DTV antenna
Analog CATV cable
Digital CADTV cable
Processing Auto Tuning...
DTV Ch.23
Found Channel(s): 16
Press to stop the current
scan and start ANALOG
ANTENNA channel scan.
MENU Prev
Next
Auto Tuning
Manual Tuning
Channel Edit
CHANNEL SETUP
Auto Scan(Auto Tuning)
TV INPUT
STB
M
ED
IA
H
O
ST
MENU
HT -
G
BRI
TIMER
BRIGHT +
IMPLINK
S
TIO
A
R
WATCHING TV / CHANNEL CONTROL
43
Auto Tuning
Manual Tuning
G
Channel Edit
A password is required to gain access to Manual Tuning
menu if the Lock System is turned on.
If selecting DTV or CADTV input signal, you can view the
on-screen signal strength monitor to see the quality of
the signal being received.
Press the
MMEENNUU
button and then use
DD
or EEbutton
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use DDor EEbutton to
select
MMaannuuaall TTuunniinngg
.
Press the
GG
button and then use DDor EEbutton to
select DTV, TV, CADTV, and CATV.
Press the
GG
button and then use DDor EEbutton to
select channel number you want to add or delete.
Press the
EENNTTEERR
button to add or delete for the
channel number.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
TV INPUTTV INPUT
STBSTB
BRIGHT +
BRI
G
HT -
TI
ME
R
R
A
TIO
S
I
M
P
LINK
MENU
TV INPUT
STB
TV INPUT
STB
TV INPUT
STB
TV INPUT
M
ED
IA
H
O
ST
MEDIA HOST
MEDIA HOST
MEDIA HOST
MEDIA HOST
Select channel type and
RF-channel number.
DTV 2
4
5
6
2
3
1
Auto Tuning
Manual Tuning
Channel Edit
Select channel type and
RF-channel number.
DTV
GG
12
Press to delete the channel.
DTV 12-0
DD
EE
Bad Normal Good
Auto Tuning
Manual Tuning
Channel Edit
Add/Delete Channel(Manual Tuning)
NOTE
GG
This digital channel number is a physical channel
number, which is different from the normal channel
number shown in Channel Edit.
WATCHING TV / CHANNEL CONTROL
44
WATCHING TV /CHANNEL CONTROL
Press the
MMEENNUU
button and then use DDor EEbutton
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use DDor EEbutton to
select
CChhaannnneell EE ddiitt
.
Press the
GG
button. You will now see a screen filled
with channel numbers and a preview picture.
Use
DD EE FF GG
button to select a channel and then
use the
EENNTTEERR
button to add or delete it. Press
FFAAVV
button to add the channel to the Favorite List.
The surfing icon will appear in front of that channel
number.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
TV INPUTTV INPUT
STBSTB
BR
IGHT +
BRI
G
HT -
TI
ME
R
R
A
TIO
S
I
M
P
LINK
MENU
TV INPUT
STB
TV INPUT
STB
TV INPUT
STB
TV INPUT
M
ED
IA
H
O
S
T
MEDIA HOST
MEDIA HOST
MEDIA HOST
MEDIA HOST
From the default channel list created from the Auto Tuning
channel search, you can create two different types of channel
lists in memory: “custom list” and “favorite channel list”.
A custom list can be created by toggling each channel on or off
with ENTER button. The channels in the Custom List are displayed in black and the channels deleted from the Custom List
are displayed in gray. Once a channel is highlighted you can add
or delete the channel by referring to the small window at the
top-left corner of the screen.
You can create your own Favorite List. Use the
FFAAVV
button on
the remote control when a channel is highlighted and then add
or delete the channel to/from your Favorite List.
Auto Tuning
Manual Tuning
Channel Edit
G
Selection (Gor ) leads you to the
channel edit screen.
4
5
2
3
1
Auto Tuning
Manual Tuning
Channel Edit
Channel Editing
WATCHING TV / CHANNEL CONTROL
45
INPUT LIST
AAnntteennnnaa
: Select it when watching the DTV/TV.
CCaabbllee
: Select it when watching the CADTV/CATV.
AAVV 11,, AAVV 22
: Select it when watching the VCR or external equipment.
CCoommppoonneenntt 11--22
: Select it when using the DVD or the Digital set-top box depend on connector.
RRGGBB--PPCC
: Select it when using PC depend on connector.
HHDDMMII,, HHDDMMII22,, HHDDMMII33
: Select it when using DVD, PC or Digital set-top box depend on connector.
Antenna
Cable
AV 1
AV 2
Component1
EE
Input List
AV 2
Press the
IINNPPUUTT
button to display external device that is
connected to the unit, on screen.
Press the
EENNTTEERR
button to change the input to the active
external device. Use the
DD
or
EE
button to select the
input source.
TV INPUT
STBSTB
MENU
BR
I
GH
T +
B
RIGH
T -
TIMER
RATIO
S
IMPLINK
INPUT
M
ED
IA
H
O
ST
MEDIA HOST
AAnntteennnnaa CCaabbllee
If all external input sources are connected:
If no external input sources are not connected:
If there is any external input source connected:
(ex: When connected only to AV 2)
AAnntteennnnaa CCaabbllee
AAVV11
AAnntteennnnaa CCaabbllee AAVV22
AAVV22 CCoommppoonneenntt11
HHDDMMII22 HHDDMMII11 RRGGBB--PPCC CCoommppoonneenntt22
2
3
1
HHDDMMII33
WATCHING TV / CHANNEL CONTROL
46
WATCHING TV /CHANNEL CONTROLWATCHING TV /CHANNEL CONTROL
This operates only for the devices with the
logo. Please check the logo.
This allows you to control and play other AV devices
connected to the display through HDMI cable without
additional cables and settings.
TV INPUTTV INPUT
STBSTB
MENU
BRIGHT
+
B
RIGH
T -
TIMER
RATIO
SIM
P
LINK
M
ED
IA
H
O
ST
MEDIA HOST
TV INPUT
STB
MEDIA HOST
MENU
Connect the HDMI/DVI IN 1, 2 or 3 terminal of the
TV to the rear terminal (HDMI output) of the
SimpLink device with the HDMI cable.
After connecting the HDMI jack for the home theater
with simpLink function in the above method, connect
the DIGITAL AUDIO OUT OPTICAL on the back of
the TV to the DIGITAL AUDIO IN terminal on the
back of the simpLink device with the Optical cable.
Press the
MMEENNUU
button and then use
DD
or EEbutton
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use DDor EEbutton to
select
SSii mmpp LLiinn kk
.
Press the
GG
button and then useDDor EEbutton to
select
OOnn
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
4
2
3
1
Language : English
Input label
SimpLink : Off
Key Lock : Off
Caption : Off
ISM Method : Orbiter
Low Power : Off
Front Display : Bright
Set ID : 1
Language
Input label
SimpLink
G
Key Lock
Caption
ISM Method
Low Power
Front Display
Set ID
Off
On
NOTE
GG
When operating the external device with SimpLink, press the TV button among the MODE button on
the remote control.
GG
When you switch the Input source with the INPUT button on the remote control, you can stop the
operation of device worked by SimpLink.
GG
When you select or operate the media device with home theater function, the speaker automatically
switches to home theater speaker (HT speaker).
GG
When you execute ‘Photo List, Music List ’function during DVD playback included in home theater supported the SimpLink stops and the applicable function is executed after switching the input to TV.
SimpLink Preparations
5
WATCHING TV / CHANNEL CONTROL
47
SimpLink Functions
DDiirreecctt PPll aayy
After connecting AV devices to TV, you can directly control the devices and play media
without additional settings.
SSeelleecctt AA VV ddeevv iiccee
Enables you to select one of AV devices connected to TV and play it.
DDiiss cc pp llaayybbaacckk
Control connected AV devices by pressing the
, , , , , ,
,
DDEE
FF GG
,
EENNTTEE RR
buttons and buttons for play, pause, stop, fast reverse, fast forward,
chapter skip.
PPoowwee rr oo ffff aallll dd eevviicceess
When you power off TV, all connected devices are turned off.
SSwwiittcchh aauudd iioo--oouu tt
Offers an easy way to switch audio-out.
(A device, which is connected to TV through HDMI cable but does not support
Simplink, does not provide this function)
SimpLink Menu
DDIISSCC ppllaayybbaacckk
: Select and play discs.
When multiple discs are available, the
titles of the discs are conveniently displayed at the bottom of the screen.
VVCCRR ppll aayy bbaacckk
: Play and control the
connected VCR.
HHDDDD RRee ccoorrdd iinnggss ppll aayybbaacckk
: Play and
control recordings stored in HDD.
AAuuddiioo OOuu tt tt oo HHTT ssppeeaakkee rr //AAuuddiioo
OOuutt ttoo TTVV
: Select HT speaker or TV
speaker for Audio Out.
TTVV vviieewwiinngg
: Switch to the previous TV
channel regardless of the current mode.
GG
Selected Device
GG
When no device is
connected (displayed in gray)
GG
When a device is
connected (displayed in
bright color)
1
2
3
4
5
TV INPUTTV INPUT
STBSTB
MENU
BR
I
GH
T +
B
RIG
H
T -
TIM
ER
R
A
TIO
S
I
MPLINK
M
ED
IA
H
O
S
T
MEDIA HOST
SIMPL
IN
KSIMPL
IN
K
After selecting the
TT VV
button of the MODE on the remote control,
press the
SSIIMMPPLLIINNKK
button.
Use
DD EE FF GG
button to select the desired device and then press
the
EENNTTEERR
button.
Control connected AV devices by pressing the
, , ,
,,,
,
DDEE
FF GG
,
EENNTTEE RR
buttons.
2
1
3
1
2
3
4
5
WATCHING TV / CHANNEL CONTROL
48
WATCHING TV /CHANNEL CONTROLWATCHING TV /CHANNEL CONTROL
INPUT LABEL
Sets a label to each input source which is not in use when you
press INPUT button.
Press the
MMEENNUU
button and then use
DD
or EEbut-
ton to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then useDDor EEbutton to
select
IInnppuutt LLaabbeell
.
Press the
GG
button and then useDDor EEbutton to
select the source: AV1, AV2, Component1,
Component2, RGB-PC, HDMI1, HDMI2 or HDMI3.
Press the
FF
or GGbutton to select the label.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
TV INPUTTV INPUT
STBSTB
BR
IGHT +
BRI
GHT -
TI
ME
R
R
A
TIO
S
I
M
P
LINK
MENU
TV INPUT
STB
TV INPUT
STB
TV INPUT
STB
TV INPUT
M
ED
IA
H
O
ST
MEDIA HOST
MEDIA HOST
MEDIA HOST
MEDIA HOST
Language
Input label
G
SimpLink
Key Lock
Caption
ISM Method
Low Power
Front Display
Set ID
AV1 Cable Box
AV2 VCR
Component1 DVD
Component2 Set Top Box
RGB-PC VCR
HDMI1 Game
HDMI2 Satellite
HDMI3 Cable Box
2
3
4
1
5
Language : English
Input label
SimpLink : Off
Key Lock : Off
Caption : Off
ISM Method : Orbiter
Low Power : Off
Front Display : Bright
Set ID : 1
MEDIA HOST
49
MEDIAMEDIAMEDIA
HOST HOST HOST
MEDIA
HOST
When you connect a USB device or press the button, this screen is
displayed, automatically.
In USB device, you can not add a new folder or delete the existing folder.
M
ED
IA
H
O
ST
MEDIA HOST
ENTRY MODES
Press the
DD
or EEbutton to select the desired item.
Press the
EENNTTEERR
button to move to
PPhhoottoo LLiisstt orMMuussiicc LLiisstt
of
USB device.
Press the
UUSSBB EEJJEECCTT
button of remote control before removing
the USB device.
1
2
NOTE
3
BACKBACK
SOUNDSOUND
SAPSAP
MARKMARK
USB EJECTUSB EJECT
CCCC
[Media Host Menu]
Press the
UUSSBB EEJJEECCTT
button of remote control before removing the USB device.
Only a USB storage device is recognizable.
If the USB storage device is connected through a USB hub, the device is not recognizable.
A USB storage device using an automatic recognition program may not be recognized.
A USB storage device which uses its own driver may not be recognized.
In case of a card reader, up to four memory cards are concurrently recognizable.
The recognition speed of a USB storage device may depend on each device.
Please do not turn off the TV or unplug the USB device when the connected USB storage
device is working. When such device is suddenly separated or unplugged, the stored files or
the USB storage device may be damaged. To unplug the USB storage device, please press the
UUSSBB EEJJEECCTT
button on the remote control, and then unplug it safely.
Please do not connect the USB storage device which was artificially maneuvered on the PC.
The device may cause the product to malfunction or fail to be played. Never forget to use only
a USB storage device which has normal music files or image files.
Please use only a USB storage device which was formatted as a FAT or a NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different
utility program which is not supported by Windows, it may not be recognized.
In case of a hard disk drive (HDD) formatted as NTFS, writing and deletion are not allowable.
Please connect power to a USB storage device which requires an external power supply. If not,
the device may not be recognized.
Please connect a USB storage device with cable is offered by USB maker. If connected with
cable is not offered by USB maker or an excessively long cable, the device may not be recognized.
Some USB storage devices may not be supported or operated smoothly.
If the name of a folder or file is too long, it will not be displayed or recognized.
MEDIA HOST
50
MEDIAMEDIA
HOST HOST
Screen Components
Current page/Total pages
Total number of marked
thumbnail photos
Corresponding buttons
on the remote control
Usable USB memory

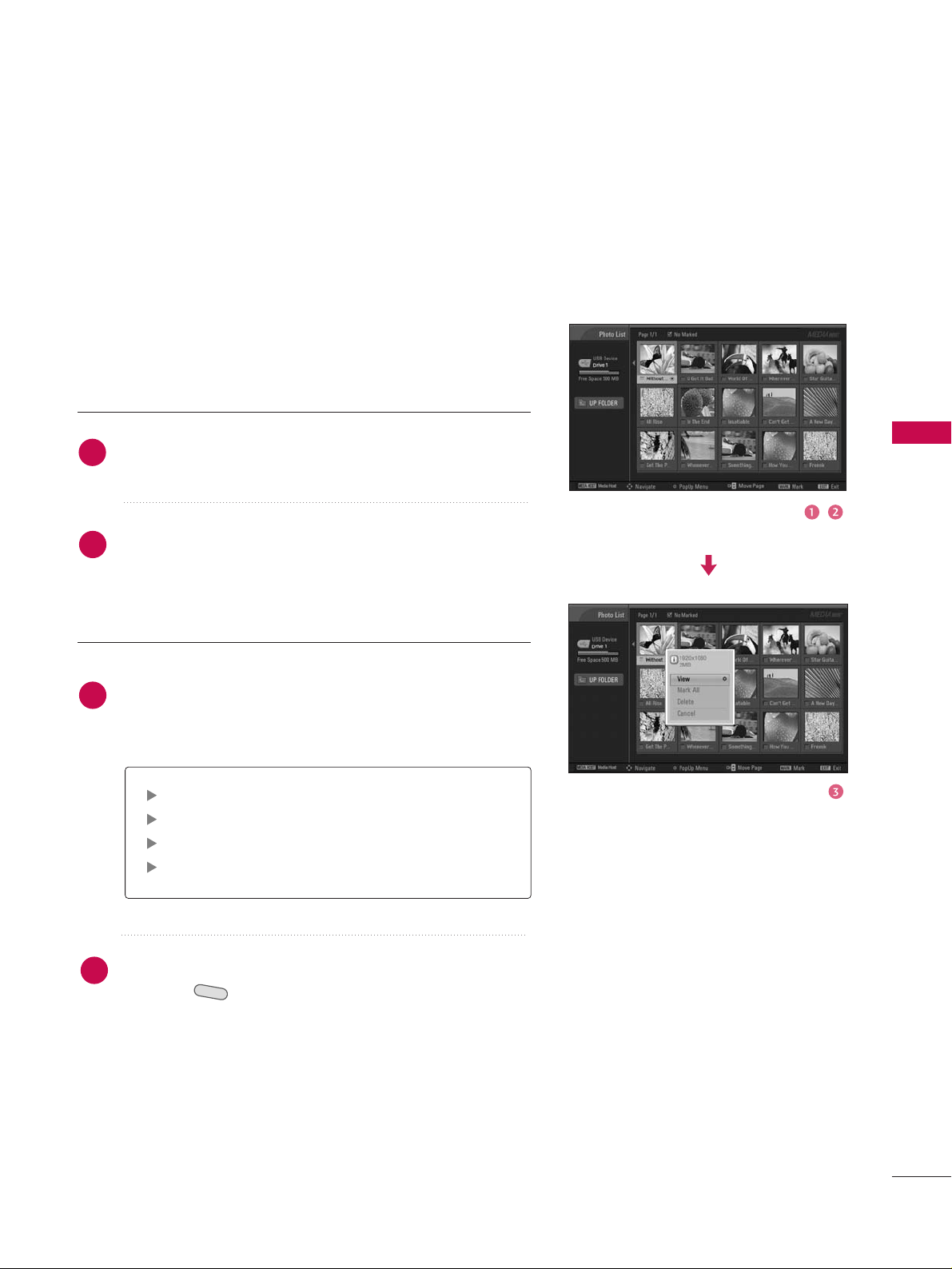

It’s available to playback the photo file(*.jpg) in the USB device.
The On Screen Display may be different from your set. Images
are an example to assist with the TV operation.
PHOTO LIST
Loading...
