Owner’s Manual 81

TV Guide On Screen System

General Default Options lets you set defaults for the following:

•The initial Info Box size when the TV guide on screen system is

entered.

Choices are No, Small, Large, and Last Used

(Default = Last Used).

•The Info Box size rotation when the Info key is pressed while in

the TV guide on screen system.

Choices are No only, Small only, Large only, No & Small, No &

Large, Small & Large, All (Default = All)

•Automatic entry into the TV guide on screen system (Auto-Guide)

when the TV is powered On.

Choices are On and Off (Default = On).

Highlight General Default Options, and press the Menu key to dis-

play the General Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information, and

return to the highlighted option.

• Change Default Options

Change Default Options lets you change default settings in the

following categories:

•General Default Options

•Record Defaults

•Remind Defaults

Highlight Change Default Options, and press ENTER.

TV Guide On Screen

System continued

82 Plasma TV

TV Guide On Screen System

< Record Defaults>

Record Default Options lets you set defaults for the following:

• When to start the record event. Choices are 120 minutes early

to 120 minutes late, to On time. (Default = On time)

• When to end the record event. Choices are 120 minutes early

to 120 minutes late, to On time. (Default = On time)

• Recorder choice: Please choose the HDD only. This TV does

not provide other devices with a recording feature.

Highlight Record Defaults, and press the Menu key to display

the Record Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

TV Guide On Screen

System continued

< Remind Defaults>

Remind Default Options lets you set defaults for the following:

•Power On the TV, if Off, when a Reminder is scheduled.

Choices are Yes and No.

(Default = No)

•Automatically tune the TV to the channel (TV must be On),

when a Reminder is scheduled. Choices are Yes and No.

(Default = No)

•When to display the reminder screen. Choices are 30 seconds

to 15 minutes early, to 30 seconds to 15 minutes late, to On

time.

(Default = 1 min early)

Highlight Remind Defaults, and press the Menu key to display

the Remind Default Options menu.

Highlight Go to Service Bar to close the menu, change no

information, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information,

and return to the highlighted option.

Owner’s Manual 83

W Once —records the show one time

W Regularly —records the show every time the

show airs on the same channel and starts at the same

time

W Weekly —records the show each time the show

airs on the same day of the week, on the same channel

and starts at the same time

W Off (not cancel) —keeps the show in the list but

will not record this show until the frequency is changed

W Cancel (no icon displayed)—does not record

TV Guide On Screen System

TV Guide On Screen

System continued

Record

And Remind Features

V < Record >

You can set a show to Record in Listings, Search, and

Schedule or change Record settings for a show in Schedule.

There are 3 ways to set a show to Record:

1) Using the Record Button on the Remote

• Press the Record button on the remote to record the show

Once with current default settings (Start and End recording

On Time). Each time you press the Record button, you

change the record frequency (but not the default settings)

among Once (default), Regularly, Daily, Weekly and then

Cancel.

Note: The proper Record icon appears on the show tile, as the

Record button is pressed.

2) From a Panel Menu

•Highlight a show, and press Menu to display the Episode

Options menu.

•Highlight Set Recording, and press ENTER to display the

Record Options menu.

•Highlight the Frequency option, and use the left and right

arrows to choose among Once, Regularly, Weekly, and Off,

as previously described.

• Recorder choice: Please choose the HDD only. This TV does

not provide other devices with a recording feature.

•Note: Video Window Lock is operated to on or off using PIP

button in Listings mode.

84 Plasma TV

TV Guide On Screen System

When finished, press ENTER to highlight Schedule Recording.

Press ENTER again to close the menu. You see a Record icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

TV Guide On Screen

System continued

3) Manual Recording

•Highlight the Schedule Service label, and press Menu to display

the Schedule Options menu.

•Use the

D / E

/ F / G buttons to move through the options. Use

the number or Use the

D / E

/ F / G buttons to change the infor-

mation, as necessary.

•Highlight New Manual Recording and press ENTER to display the

Record Options menu.

•Current information (i.e., date, start and end times, channel,

input) is displayed.

• Recorder choice: Please choose the HDD only. This TV does

not provide other devices with a recording feature.

Owner’s Manual 85

•Use the left and right arrows to choose between Once, Daily,

Weekly, and Off, as follows.

W Once —records the time, channel, input, recorder combi-

nation one time.

W Daily —records the time, channel, input, recorder combi-

nation Monday through Friday.

W Weekly —records the time, channel, input, recorder com-

bination once a week on this selected day of the week

W Off (not cancel) —keeps the time, channel, input, recorder

combination in the list without recording until the frequency is

changed.

TV Guide On Screen System

TV Guide On Screen

System continued

Record Conflict

A conflict message appears for the following reasons:

• a show set to Record overlaps with any part of another show pre-

viously set to Record,

• a show set to Record overlaps with a show previously set to auto-

tune

Select one of these options:

W record anyway - this show will override an existing show

set to Record or auto-tune

W don't record this show - cancel the Recording

Before a recording begins, a notification screen appears

if you are using a Cable box and your TV is On. At that

time, you can choose to start or cancel recording. If the

TV is not On, the recording occurs as scheduled. If there

is no activity for 3 minutes, the notification screen auto-

matically closes and completes the highlighted item.

When finished, press ENTER to highlight Schedule

Recording.

Press ENTER again to close the menu. You see a

Record icon for the selected frequency next to the show

title.

Note: Manual recording is listed by channel number.

Highlight Cancel to close the menu, change no informa-

tion, and return to the highlighted show.

86 Plasma TV

TV Guide On Screen System

TV Guide On Screen

System continued

V < Remind >

You can set a show Reminder in Listings, Search, and

Schedule or change Reminder settings for a show in Schedule.

There are 2 ways to set a show Reminder:

1) From a Panel Menu

• Highlight a show, and press Menu to display the Episode

Options menu.

• Highlight Set Reminder, and press ENTER to display the

Remind Options menu.

•Highlight the Frequency option, and use the left and right arrows

to choose between:

W Once —sets a show reminder one time

W Regularly —sets a show reminder every time the show

airs on the same channel and starts at the same time

W Weekly —sets a show reminder each time the show airs

on the same day of the week, on the same channel and starts

at the same time

W Off —keeps the show in the list but will not remind until

the frequency is changed

•Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No. (Default = No)

•Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No. (Default =

No)

•When to display the reminder screen. Choices are 30 seconds to

15 minutes early, to 30 seconds to 15 minutes late, to On time.

(Default = 1 min early)

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

Owner’s Manual 87

TV Guide On Screen System

TV Guide On Screen

System continued

2) Manual Reminder

•Highlight the Schedule Service label, and press the Menu key to

display the Schedule Options menu.

•Use the

D / E

/ F / G buttons to move through the options. Use

the number or

D / E

/ F / G buttons to change the information,

as necessary.

•Highlight New Manual Reminder and press the ENTER key to

display the Remind Options menu.

•Current information (i.e., date, start and end times, channel,

input, frequency, etc.) is displayed.

•Highlight the Frequency option, and use the F / G buttons to

choose among Once, Daily, Weekly, and Off, as follows.

W Once —sets a show reminder for the time, channel, input,

recorder combination one time

W Daily —reminds for the time, channel, input, recorder

combination Monday through Friday

W Weekly —sets a show reminder for the time, channel,

input, recorder combination once a week on this selected day

of the week

W Off (not cancel) —keeps the time, channel, input, desti-

nation combination in the list without reminding until the fre-

quency is changed

•Power On the TV, if Off, when a Reminder is scheduled.

Choices are Yes and No (Default =No).

•Automatically tune the TV to the channel (TV must be On),

when a Reminder is scheduled. Choices are Yes and No

(Default = No).

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon

for the selected frequency next to the show title.

Note: Manual reminder is listed by channel number.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

88 Plasma TV

TV Guide On Screen System

Based on your option settings, a notification screen will

appear, if your TV is On at the reminder time. You can

then choose to hide the reminder, or highlight the show,

and press ENTER to tune to the show. If there is no activ-

ity for 3 minutes, the notification screen automatically

closes and completes the highlighted item (hide

reminders).

If you choose Hide Reminders, the window closes for the

show or shows, but does not affect other Reminders you

set.

Note: If more than 2 reminders are set for the same time,

arrows appear on the Reminder screen. Use the

D / E

buttons to view the shows.

Remind Conflict

A conflict message appears for the following reasons:

• a show set with an Auto-Tune Reminder has the same

start time as an existing Auto-Tune Reminder.

• If you are using a cable box, a show set with an Auto-

Tune Reminder overlaps with a Recording already

scheduled.

Select one of these options:

W auto-tune anyway - this show will override an exist-

ing show set to auto-tune

W proceed, no auto-tune - set the show as a Reminder

but do not auto-tune

W don't set this reminder - cancel the Reminder

TV Guide On Screen

System continued

Owner’s Manual 89

- Schedule lets you review, edit, or delete Record and Remind events that you set previously.

- With Schedule highlighted, press the Info button to display a Help screen. Press the Info button again to close the screen.

- An icon identifies the event type:

Record

W Once —records the show one time

W Regularly , Daily —records the show every time

the show airs on the same channel and starts at the same

time

W Weekly —records the show each time the show airs on

the same day of the week, on the same channel and starts at

the same time

W Off —keeps the show in the list but will not record this

show until the frequency is changed.

Remind

W Once —sets a show reminder one time

W Regularly , Daily —sets a show reminder

every time the show airs on the same channel and

starts at the same time

W Weekly —sets a show reminder each time the

show airs on the same day of the week, on the same

channel and starts at the same time

W Off —keeps the show in the list but will not remind

until the frequency is changed

Highlight an event, and press the Menu key for options.

Go to Service Bar - closes the menu, changes no information, and returns to the Schedule Service Bar. Tune to channel - exits the tv guide on screen system and tunes to the highlighted show. Delete Recording - removes the recording from the Schedule, after a Confirm screen. Edit Recording - opens a menu from which you can change existing recording information. Set Reminder - opens a menu from which you can set a Reminder for the show (Record is not cancelled). Cancel - closes the menu, changes no information, and returns to the highlighted show.

Schedule Functions

Schedule

90 Plasma TV

IEEE 1394

- It's available to communicate to either direction and you can give and take a image, sound, or each control command with one cable.

- Only use the DVHS and MicroMV Camcorder to work the 1394.

How to connect the 1394

•To work the 1394, this 3 methods can used.

1. When connecting the DVHS or the MicroMV Camcorder, as shown in the (a) or (b) figure, select the IEEE 1394 in HOME menu to show the control panel.

(a) TV DVHS

(b) TV MicroMV Camcorder

<TV>

<DVHS>

2. When connecting the DVHS and the MicroMV Camcorder, as shown in the (c) figure, select the IEEE 1394 in HOME menu to show the contents panel and then select the DVHS or the MicroMV Camcorder to show the control panel.

<TV>

<DVHS>

When connecting the 1394 and then playing, you must use the original DVHS tape. If not, it may be occurred the errors.

IEEE 1394 Functions

Owner’s Manual 91

IEEE 1394

IEEE 1394 functions continued

DVHS

VHow to play the DVHS

<TV>

<DVHS>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394 jack of the DVHS with IEEE 1394 Cable.

2. When watching the TV, press the button to move

the

IEEE 1394 in HOME menu and then ENTER button.

* Supported DVHS List

VICTOR(HM-DH35000U)

JVC(HM-DH30000U)

JVC(HM-DH40000U)

MITSUBISHI(HS-HD1100U)

MITSUBISHI(HS-HD2000U)

Hitachi(DT-DR20000)

Hitachi(DT-DRX100)

PANASONIC(NV-DH1)

PANASONIC(NV-DH2)

PANASONIC(NV-DHE20)

TOSHIBA(A-HD2000)

• The control panel of DVHS

-Depending on the connected equipment, marked control panel may differ.

1. DVHS Company

2. DVHS Model

3. Connected Equipment to the 1394

4. DVHS Operating Status

5. Power On/Off

6. DVHS Play Time

7. Tape Status

• Tape shape Icon - Tape in or not

• Lock shape Icon - Use or not use

8. Initializing Play Time

9. DVHS Play, Pause, Stop, Search or Skip

(Notes:

• Skip- This function is for a fast search.

It searches the program’s start

point and then plays.

On skipping, Search (

GG, FF

Rec(") Pause ( ) and Play (G)

are displayed on the Control

Panel.

In some models, it’s not available

to operate the Skipping (

FF, GG

)

function.

2. Press the

D / E

buttons to select the DVHS and

then use the ENTER button.

• Show the control panel of DVHS.

92 Plasma TV

IEEE 1394 functions continued

VHow to play the instant reecord to the DVHS

. Press the

D / E

buttons to select the DVHS and then use

the ENTER button.

• Show the control panel of DVHS.

The instant record function couldn’t use copy-protected programs.

1. When watching the TV, press the button to move

the

IEEE 1394 in HOME menu and then ENTER button.

3. Press the

D / E

/ F / G buttons to move to

and then use the

ENTER button. You can record the current program to the DVHS.

4. Press the

D / E

/ F / G buttons to move to

and then

use the ENTER button.

Owner’s Manual 93

IEEE 1394 functions continued

VHow to save the DVHS to the DVR

1. On playing the DVHS, press the

D / E

/ F / G buttons to move to DVR

and then use the ENTER button.

• Save the current screen to the DVR.

2. Press the

D / E

/ F / G buttons to move to DVR

and then use the ENTER button to end a saving.

When you save the program which is copy - protected to the PVR, “This tape is copy-protected” is display on the screen and don’t save to the PVR.

94 Plasma TV

IEEE 1394 functions continued

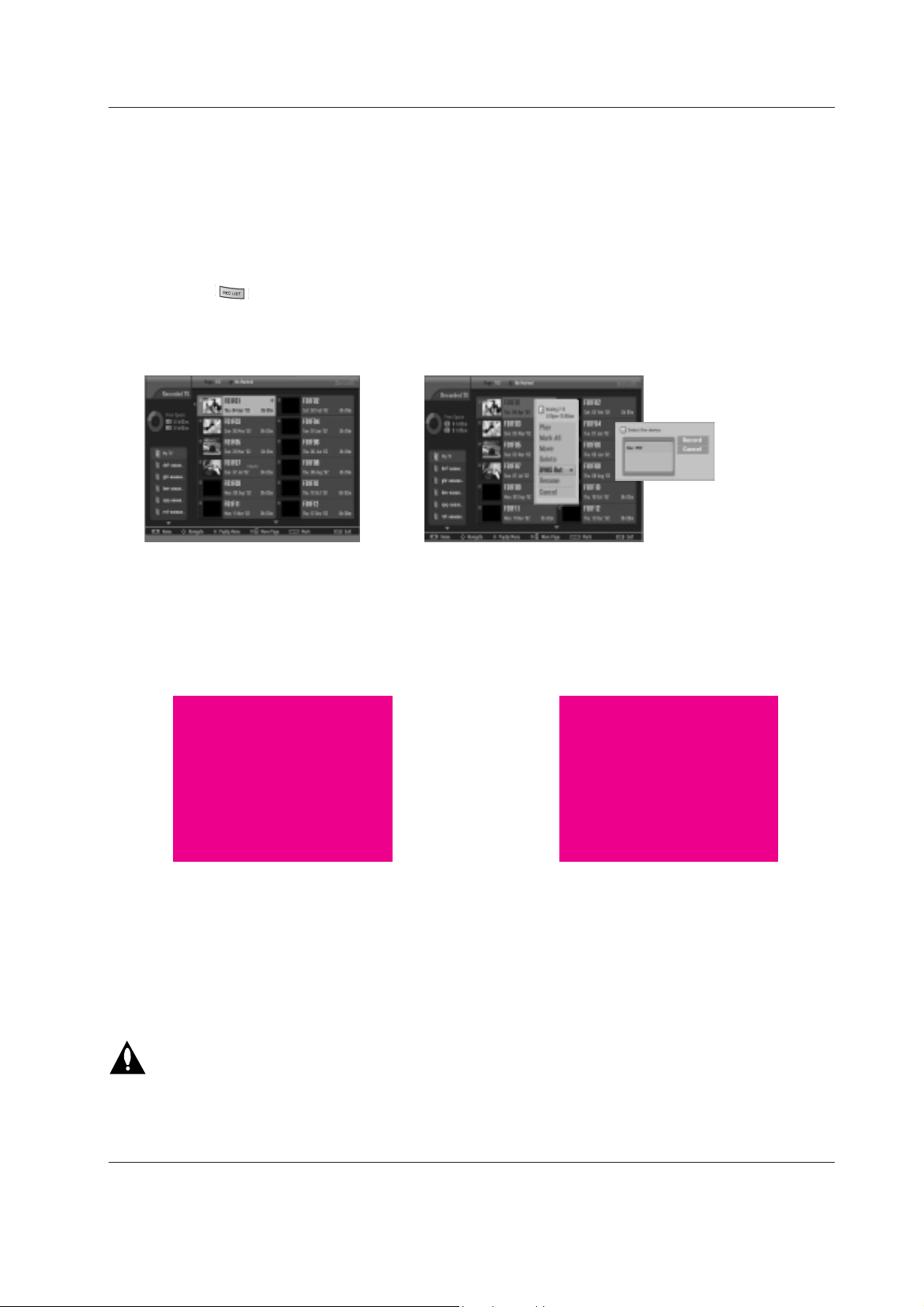

VHow to save the DVR to the DVHS

1. When press the button, record list is displayed. You can select the wanted program by pressing the

D / E

/ F / G buttons.

And then press the ENTER button.

The copy-protected contents couldn’t save to the DVHS.

2. Select the DVHS Out by pressing the

D / E

/ F / G buttons and then press the

ENTER button.

4. Press the

D / E

/ F / G buttons to move to the START and

then press the ENTER button to save to DVHS.

5. Press the F / G buttons to move to the STOP and then

press the ENTER button to stop a saving.

• By pressing the RESUME button, you can con-

tiously save the recorded contents from a point of stopping time.

3. Press the

D / E

buttons to

select the wanted device and move to the Record

Owner’s Manual 95

IEEE 1394

IEEE 1394 functions continued

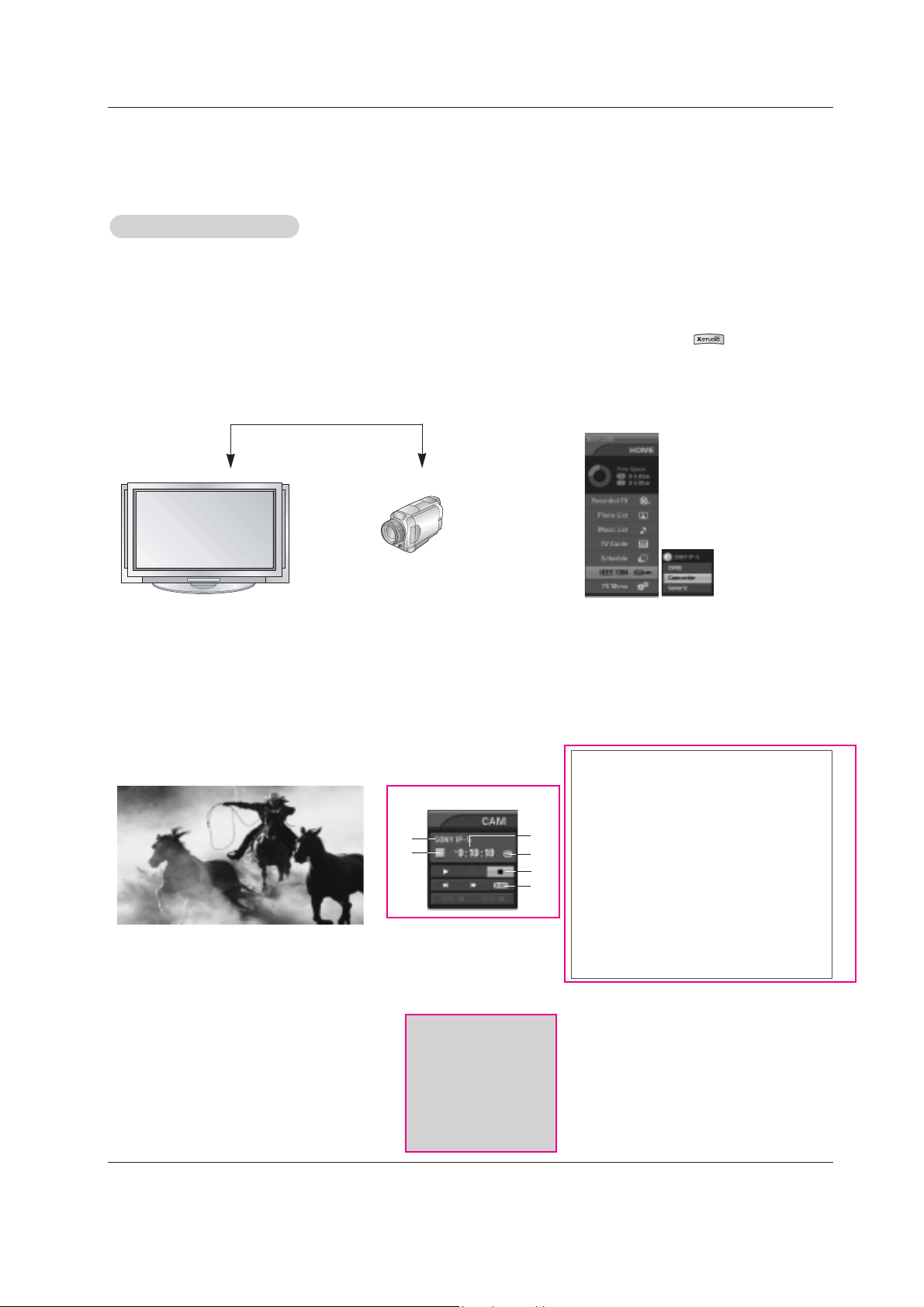

How to play the MicroMV Camcorder

MicroMV Camcorder

<TV>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394 jack of the MicroMV Camcorder with IEEE 1394 Cable.

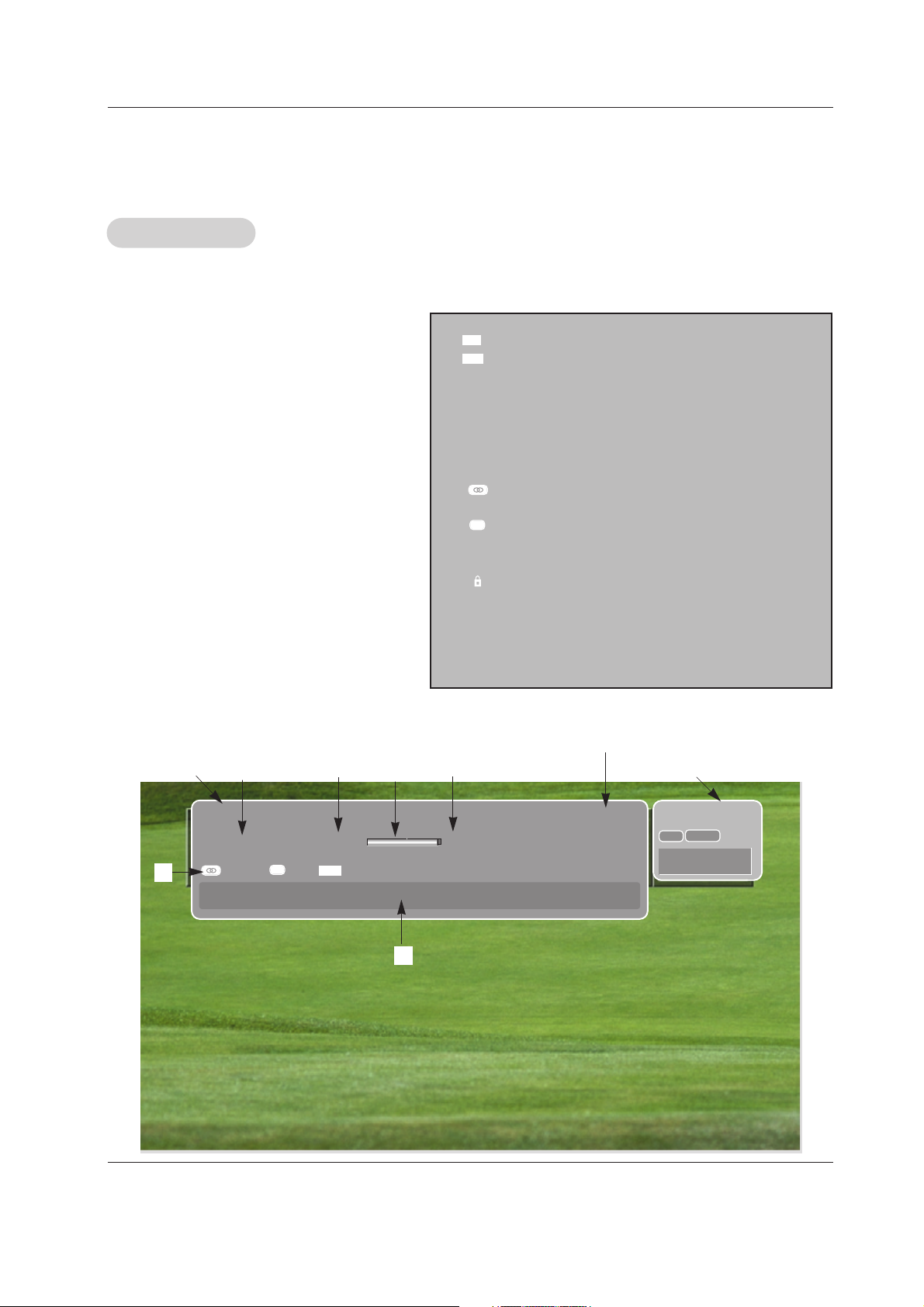

• The control panel of MicroMV Camcorder

-Depending on the connected equipment, marked control panel may differ.

1. MicroMV Camcorder Company

2. MicroMV Camcorder Model

3. Connected Equipment to the 1394

4. MicroMV Camcorder Operating Status

5. MicroMV Camcorder Play Time

6. Tape Status

• Tape shape Icon - Tape in or not

• Lock shape Icon - Use or not use

7. MicroMV Camcorder Play, Search or Stop

8. Initializing Play Time

* Supported MicroMV Camcorder List

SONY MICORMV IP-5

SONY MICORMV IP-45

SONY MICORMV IP-210

SONY MICORMV IP-7

SONY MICORMV IP-55

SONY MICORMV IP-220

2. When watching the TV, press the button to move

the

IEEE 1394 in HOME menu and then ENTER button.

2. Press the

D / E

buttons to select the

Camcorder and then use the ENTER button.

• Show the control panel of DVHS.

7 8

96 Plasma TV

IEEE 1394

IEEE 1394 functions continued

how to save the MicroMV Camcorder to the DVR

1. On playing the MicroMV Camcorder, press the

D / E

/ F / G buttons to move to DVR

and then use the

ENTER button.

• Save the current screen to the DVR.

2. Press the

D / E

/ F / G buttons to move to DVR

and then use the ENTER button to end a saving.

Owner’s Manual 97

IEEE 1394

IEEE 1394 functions continued

How to connect the 1394

• When connecting these 3 methods, the 1394 will not work properly.

(a) LOOP Connection

<TV>

(b) Daisy Chain

<TV>

<DVHS>

<Connect

the IEEE139 4 Cable>

<TV>

<DVHS>

<Connect

the IEEE1394 Cable>

VHow to save the DVHS to the DVR

1. On playing the DVHS, press the

D / E

/ F / G buttons to move to

and then use the ENTER button.

98 Plasma TV

Owner’s Manual 99

Operation

CableCARD

™

Function

Cable menu options

- The Cable sub menu displays when inserting the CableCARDTMto the TV.

- The CableCARDTMtype is Motorola, Scientific Atlanta (SA), or SCM etc. The OSD (On screen display) is different from your TV according to your CableCARDTMtype.

Scrambled channel

- Insert the CableCARDTM. If you do it at first, it takes about 1 minute to exchange the data between the TV and the CableCARDTM. Then, TV screen displays as shown right.

- Let your cable TV service provider know CableCARDTMID and Host ID.

- If your cable TV service provider is registered CableCARDTMID and Host ID, you can watch the premium or high value channel.

- If you ever registered to the cable TV service provider, you can watch the premium or high value channel without a message.

- If the certificate don’t match between the TV and the CableCARD

the OSD (On screen display) displays as shown left.

In case of Scientific Atlanta CableCARD™

i.e) CableCARD™/ Host ID Screen

1. Press the MENU button and then use

D / E

button to select the CABLE menu.

2. Press the G button and then use

D / E

button to select your desired item.

3. Press the G button.

4. Press EXIT button to return to TV viewing.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

SA CableCARD™ Diag Screen G

SA CableCARD™/Host ID Screen

Exit

In order to start service for this device, please contact customer service at Ph#: 1-866-303-0422

CableCARD™(tm): 0-010-405-698-001 HOST ID: 0-080-000-000-226

EXIT

CableCARD™ Message

Exit

In order to start cable service for this device, please contact SuperVision Cable at 1-800-555-8888

POD ID: 7-561-034-449-009

Host ID: 0-100-331-784-018

EXIT

CableCARD™ Message

Please call your operator and report an invalid CableCARDTM.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help

the TV operation.

- As shown, the pairing number means your TV and CableCARDTMID. For further information regarding cable TV service, contact your local cable TV service provider(s).

100 Plasma TV

Operation

- If an emergency situation occur during watching the TV, you can receive a message from cable TV service provider(s).

- When receiving an emergency message, the message is displayed on the screen as shown below or the channel is changed automatically to a channel that maintains the emergency message. The message automatically disappeared.

Emergency Action Notification

Hurricane will be coming!!!

Cable Channel List

Emergency

Alert Message

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

EZ Scan

Manual Scan

Channel Edit G

DTV Signal

Channel Label

Main Input

Sub Input

Input Label

Set ID

Selection ( Gor ) leads

you to the channel edit

screen.

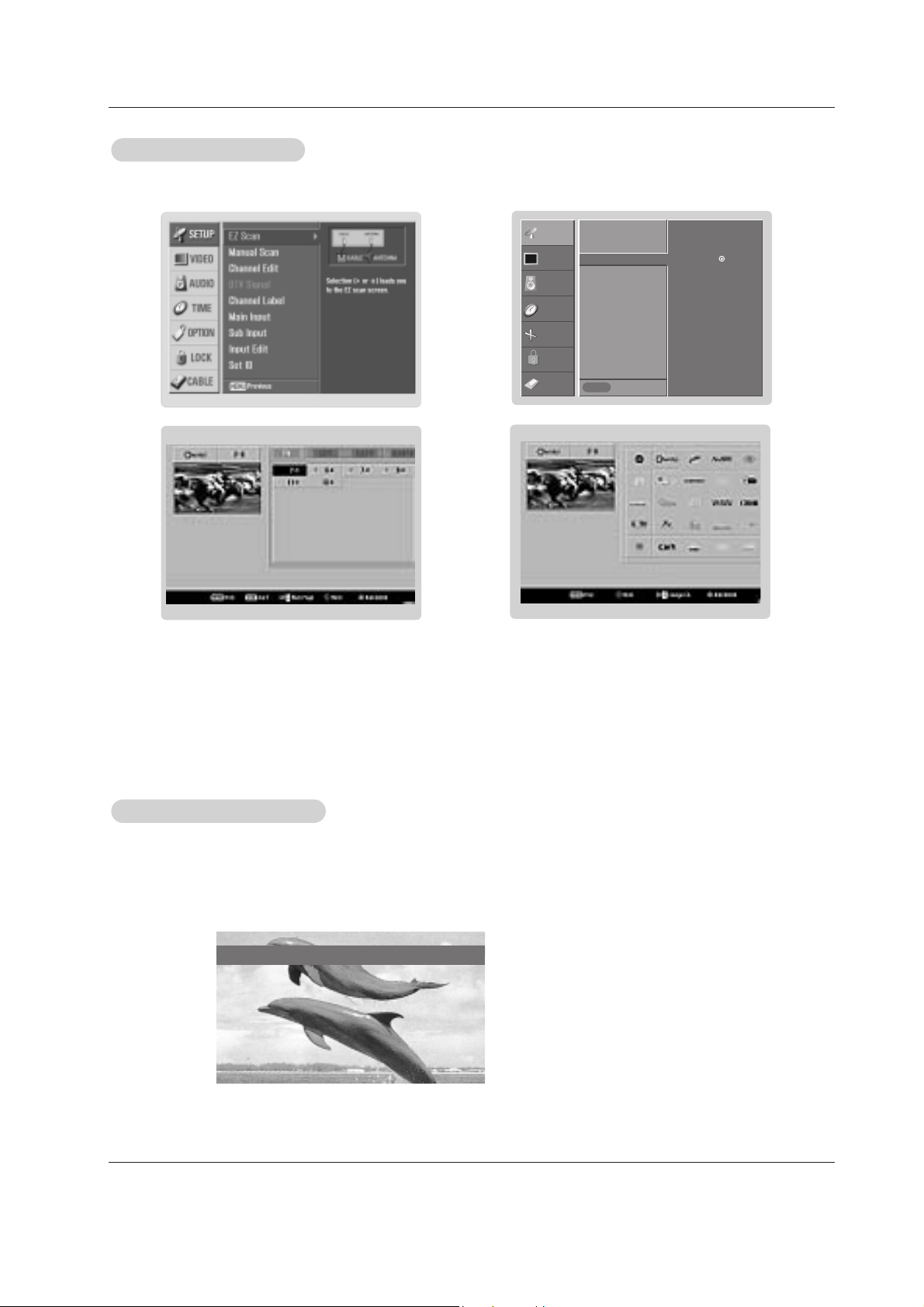

1. If you enter the Channel Edit after running the EZ Scan, you can see the cable channel list.

2. Inserting the CableCARDTM. Then, the TV receive a new cable channel list. At this time, it takes about 2~3 minutes.

(Occasionally more than that time).

Note:

• As data gathering of CableCARDTM, it may make a noise by fan in standby mode.

1. 2.

3. 4.

Owner’s Manual 101

Operation

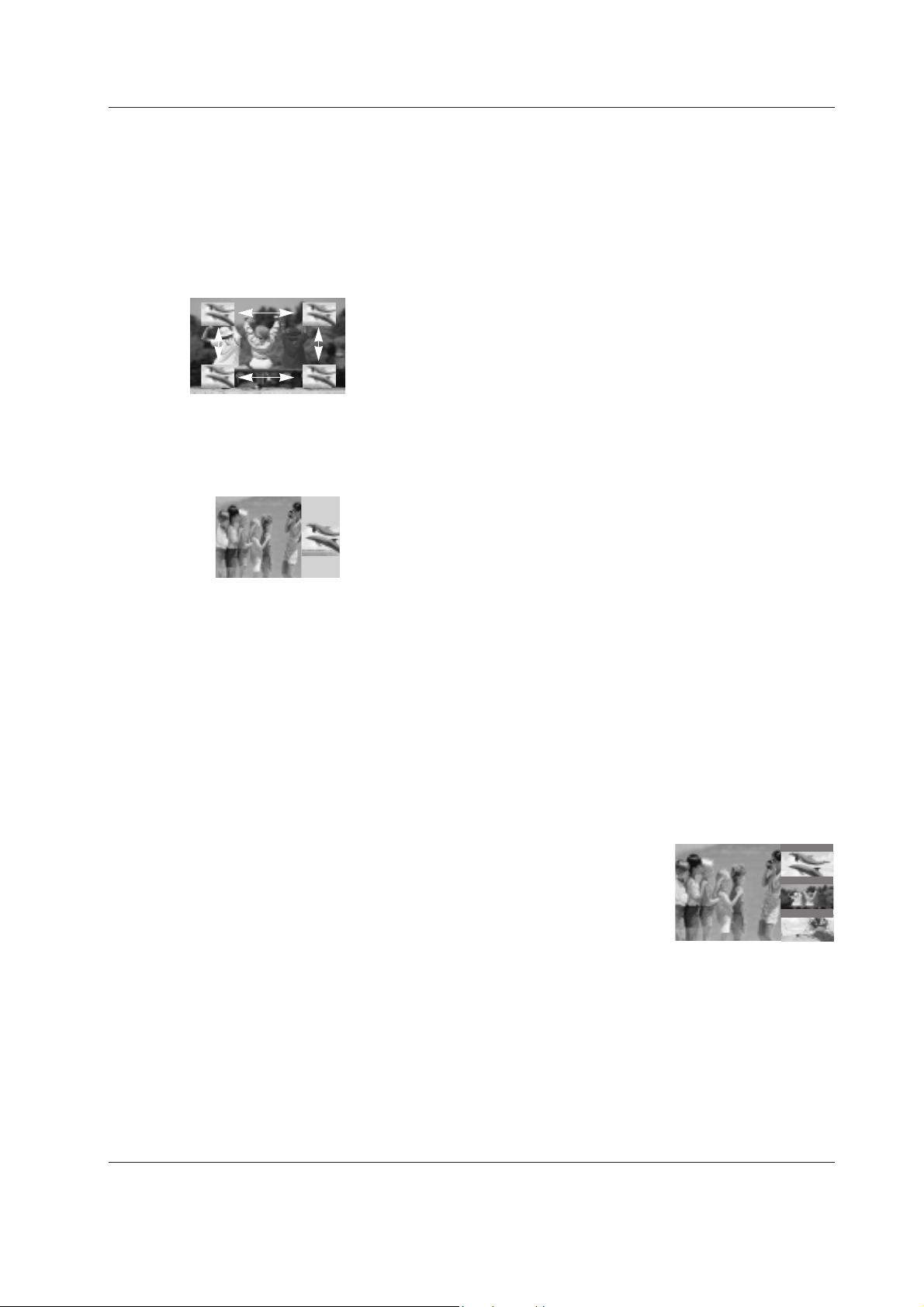

WWatching PIP/POP/T

atching PIP/POP/T

win Picture

- PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other source will show a smaller inset image.

- Twin Picture mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each source is given half the screen.

- If you set the block/rating for Lock menu options in PIP/Twin Picture mode, “Rating Blocked” doesn’t display on screen.

Press the PIP button to access the sub picture. Each press of PIP changes the PIP options as shown below.

PIP Off

PIP Mode POP Mode

Twin Picture Mode

TV Program selection for PIP

1. Press the PIP button.

2. Select the Antenna or Cable option on the Sub input menu or with the PIP INPUT button. Use the PIPCH+

PIPCH- button to select a channel for the sub picture.

(You can’t select DTV for main and sub picture simultaneously).

Swapping the PIP

Swapping the PIP/T/T

win Picture

Repeatedly, use the SWAP button to switch the main and sub pictures.

• Component 1, Component 2, RGB-PC (or RGB-DTV), HDMI1/DVI,HDMI2 input sources for the main picture can’t

be used to swap the main and sub pictures.

Selecting an Input Signal Source for PIP/T

win Picture

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes the PIP source. You can also select sources for the Sub Input in the SETUP menu.

Main Picture Source

Available Sub Picture Sources

DTV Analog

Analog, Video, and Front Video DTV, Analog, Video, and Front Video

Main Picture Sub Picture Main Picture Sub Picture

F TV 2-0

TV 4-0

TV 6-0

Remote Control

PIP

(Picture-In-Picture) / POP

/ T

win Picture

102 Plasma TV

Operation

Moving the PIP

sub picture

In PIP mode, press the

D / E

/ F / G button to move the sub picture to a different location on the

screen.

Adjusting Main and Sub Picture Sizes for

Adjusting Main and Sub Picture Sizes for TT

win Picture

Use the

D / E

/ F / G button to change main and sub picture sizes in Twin Picture mode.

If screen is adjusted to the maximal size, the large screen is filled with entire screen vertically as shown.

i.e)

1. Press the PIP button to activate the POP mode while in PIP mode.

• Channel selection: Use F button to enlarge the selected channel being searched on the PIP

screen to shift it for viewing on the Main screen.

• PIP selection: Use

D / E

button to select one of 3 PIP screen pictures in POP mode.

• When watching TV/CATV on Main picture, TV/CATV or DTV/CADTV on Sub pictures are in channel scanning. However, when watching DTV/CADTV on Main picture, only TV/CATV on Sub picture is in channel scanning.

2. Press the EXIT button to cancel POP mode.

POP

(Picture-out-of-Picture: Channel Scan)

- Use POP to search the programs of all the memorized channels one-by-one on the 3 PIP screen display, (while the main picture source remains the current channel). The pictures of all the programmed channels are searched with the 3 POP screen.

- Notes:

•Run EZ Scan channel search before using POP mode.

•When Sub pictures are changed from the TV/DTV to CATV/CADTV in POP mode, it may make a noise from the Tuner switch.

F TV 2-0

TV 4-0

TV 6-0

Owner’s Manual 103

Operation

4 : 3

16 : 9

Screen Ratio of Input Signal 4:3

Screen Ratio of Input Signal 16:9

Resolution of Input Signal 720x480i

Resolution of Input Signal 720x480p

Resolution of Input Signal 1280x720p

Resolution of Input Signal 1920x1080i

Multilingual : Input Signal have over two Audio infor-

mation. Press the SAP button to select wanted Audio.

Caption: Input Signal have over one Close service.

Press the CC button to select wanted Closed caption.

Input Signal have rating information . Refer to the

<Lock Menu>.

D (Dialogue), L (Language), S (Sex), V (Violence), FV

(Fantasy Violence)

480i 480p 720p

1080i

Operation: • Watching TV/DTV/CATV/CADTV

• Watching Video, Front Video

• Watching IEEE 1394

• In Component1, Component2, RGB,

HDMI1/DVI,HDMI2 modes, INFO button

is not working.

Function: • Show the present screen information.

• On Watching with the upper Input signal,

press the INFO button.

• Press the INFO button or EXIT button to

exit.

A: Banner information, Refer to the

<Channel Banner>. B: Program title C: Day, Month, Year D: Program start time E: Program finish time F: Show the prosessing rate G: Present time H: Added information. Refer to the icon

explanation. I: Gemster information

Information

Live Eden 1080I

Sat, Dec 20, 2003

7:00PM

9:00PM

Caption

16 : 9

Wide

Multilingual

CNBC

MONO

STEREO

TV 6-0

104 Plasma TV

Operation

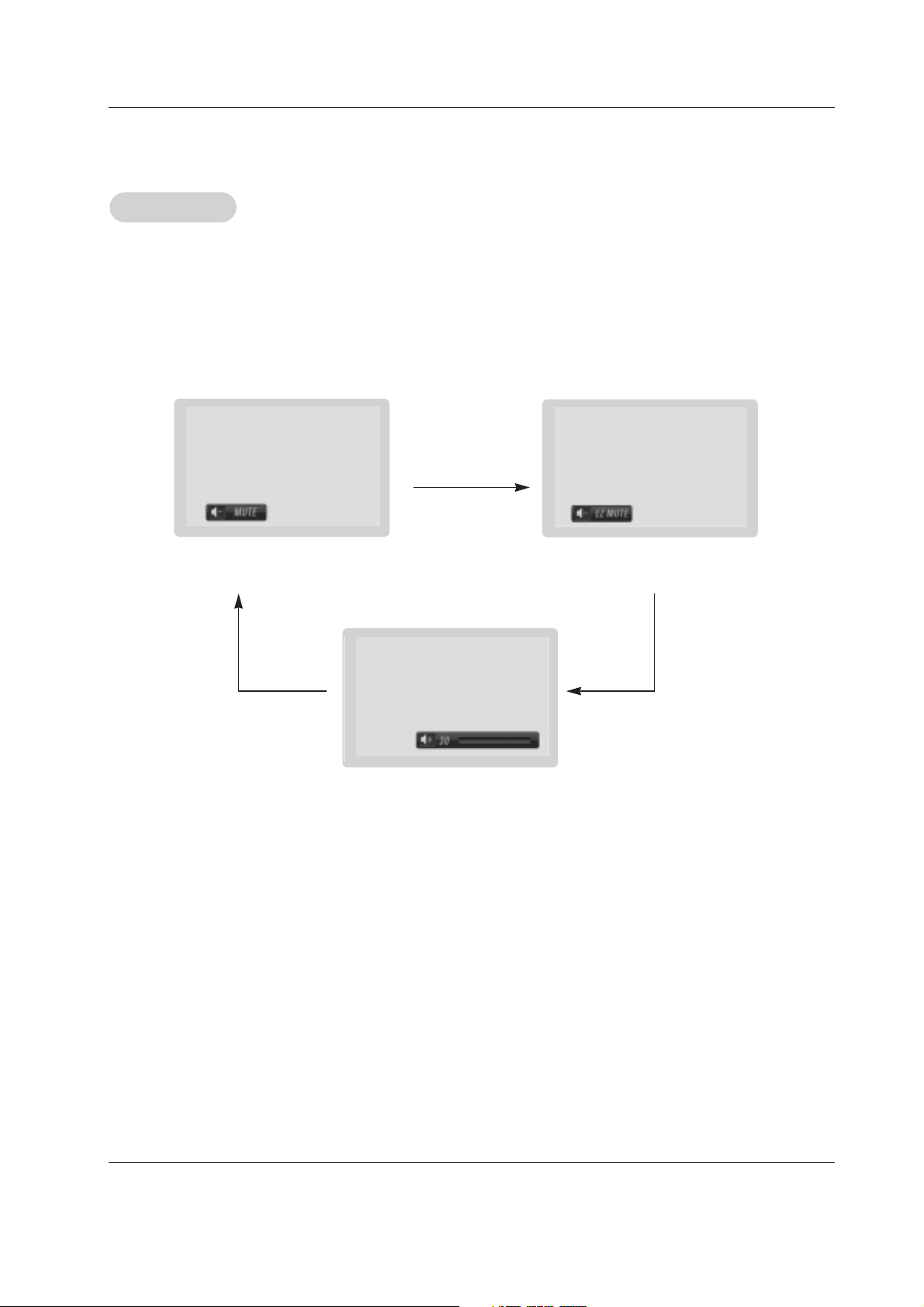

- Nothing to do with Caption on/Off using Mute button, the mode selected Caption/Text is to be displayed.

- When you repeatedly press the Mute button, the screen is displayed in turn. (Refer to the lower picture)

EZ Mute

Note:

• EZ Mute only operates in DTV/Analog/Video/Front Video/IEEE1394.

Owner’s Manual 105

External Control Device Setup

No. Pin Name 1 No connection 2 RXD (Receive data) 3 TXD (Transmit data) 4 DTR (DTE side ready) 5 GND 6 DSR (DCE side ready) 7 RTS (Ready to send) 8 CTS (Clear to send) 9 No Connection

2 3 5 4 6 7 8

RXD TXD GND DTR DSR RTS CTS

TXD RXD

GND

DSR DTR CTS RTS

7-Wire Configurations

(Standard RS-232C cable)

D-Sub 9

3 2 5 6 4 8 7

PDP

D-Sub 9

2 3 5 4 6 7 8

RXD TXD GND DTR DSR RTS CTS

TXD RXD

GND

DTR

DSR

RTS CTS

3-Wire Configurations

(Not standard)

D-Sub 9

3 2 5 4 6 7 8

PDP

D-Sub 9

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the Monitor.

TType of Connector; D-Sub 9-Pin Male

ype of Connector; D-Sub 9-Pin Male

RS-232C Configurations

External Control Device Setup

RS-232C Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO INPUT

COMPONENT

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2 INPUT

OUTPUT

AUDIO INPUT

RGB INPUT

VIDEO INPUT

I E E E

1 3 9 4

HDMI 2

HDMI /DVI

COMPONENT

MONITOR OUTPUT

A/V

INPUT1

VIDEO

AUDIO

(MONO)

V I D E O

DVD /DTV INPUT

106 Plasma TV

External Control Device Setup

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

* Use a crossed (reverse) cable.

• Stop bit : 1 bit

• Communication code : ASCII code

Communication Parameters

Transmission

[Command 1]: First command to control the set. (j or k)

[Command 2]: Second command to control the set.

[Set ID]: You can adjust the set ID to choose desired monitor

ID number in Setup menu. Adjustment range is 1 ~ 99. When selecting Set ID ‘0’, every connected the TV is controlled. Set ID is indicated as decimal (1~99) on menu and as Hexa decimal (0x0~0x63) on transmission/receiving protocol.

[DATA]: To transmit command data.

Transmit ‘FF’ data to read status of command.

[Cr]: Carriage Return

ASCII code ‘0x0D’

[ ]: ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

TTransmission / Receiving Protocol

ransmission / Receiving Protocol

OK Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from non-viable functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Data 1: Illegal Code

2: Not supported function 3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 9

03. Aspect Ratio k c

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 2

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote Control Lock Mode

k m 0 ~ 1

14. PIP/Twin k n 0,1,2,5

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19. Color Temperature k u 0 ~ 2

20. PIP Input Source k y 0 ~ 3

21. ISM Method j p

22. Low Power j q 0 ~ 1

23. Orbiter Time Setting j r 1 ~ FE

24. Orbiter Pixel Setting j s 1 ~3

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

Command Reference List

Set ID

Use this function to specify a monitor ID number. Refer to ‘Real Data Mapping’. See page 82.

1. Press the MENU button and then use

D / E

button to select the SETUP menu.

2. Press the G button and then use

D / E

button to select SET ID.

3. Press the G button and then use

D / E

button to adjust SET ID to choose the

desired monitor ID number. The adjustment range of SET ID is 1 ~ 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Channel Label

Main Input

Sub Input

Input Label

Set ID G

25. Channel Tuning m a 01 ~ 87 01 ~ 87 00 ~ FE 00 ~ FF 00 ~ FF 00 ~ FF

26. Channel Add/Del m b 00 ~ 01

27. Key m c

28. Input Select x b

29. PIP Input Select x y

COMMAND 2

COMMAND 1

DATA 0

(Hexadecimal)

DATA 1

(Hexadecimal)

DATA 2

(Hexadecimal)

DATA 3

(Hexadecimal)

DATA 4

(Hexadecimal)

DATA 5

(Hexadecimal)

Owner’s Manual 107

External Control Device Setup

02. Input Select (Command2:b) (Main Picture Input)

G To select input source for the Monitor.

Transmission

Data 0: DTV

1: Analog 2: Video1 3: Video2 4: Component 1

5: Component 2 6: RGB-DTV 7: RGB-PC 8: HDMI1/DVI 9: HDMI2

Date 1: 4:3

2: 16:9 3: Horizon 4: Zoom 1 5: Zoom 2

6: Set by program 10: Cinema Zoom (1)

1F: Cinema Zoom (16)

[k][b][ ][Set ID][ ][Data][Cr]

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

01. Power (Command2:a)

G To control Power On/Off of the Monitor.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback presents status about each function.

Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99) 64 : Step 100

05. Volume Mute (Command2:e)

G To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

ransmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

[k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command2:c) (Main picture format)

G To adjust the screen format.

You can also adjust the screen format using the RATIO button on remote control or in the Option menu.

ransmission

[k][c][ ][Set ID][ ][Data][Cr]

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command2:d)

G To select screen mute on/off.

ransmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

G To adjust volume.

You can also adjust volume with the volume buttons on remote control.

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][f][ ][Set ID][ ][Data][Cr]

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command2:g)

G To adjust screen contrast.

You can also adjust contrast in the Video menu.

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][g][ ][Set ID][ ][Data][Cr]

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

G To adjust screen brightness.

You can also adjust brightness in the Video menu.

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’ as shown below.

[k][h][ ][Set ID][ ][Data][Cr]

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

108 Plasma TV

External Control Device Setup

09. Color (Command2:i)

G To adjust the screen color.

You can also adjust color in the Video menu.

ransmission

Data Min : 0 ~ Max : 64

• Refer to ‘Real data mapping’. See page 82.

[k][i][ ][Set ID][ ][Data][Cr]

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command2:j)

G To adjust the screen tint.

You can also adjust tint in the Video menu.

ransmission

Data Red : 0 ~ Green : 64

• Refer to ‘Real data mapping’. See page 82.

[k][j][ ][Set ID][ ][Data][Cr]

Acknowledgement

[ j ][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

G To lock the remote control and the front panel controls on

the set.

ransmission

[k][m][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Lock off 1: Lock on

[m][ ][Set ID][ ][OK][Data][x]

14. PIP / POP / Twin Picture (Command2:n)

G To control the PIP (Picture-in-Picture)/POP/Twin picture.

You can also control the PIP/POP/Twin picture using the PIP button on the remote control.

ransmission

Data 0: PIP off

1: PIP

2: POP 3: Twin Picture

[k][n][ ][Set ID][ ][Data][Cr]

Acknowledgement

[n][ ][Set ID][ ][OK][Data][x]

G To adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

Transmission

11. Sharpness (Command2:k)

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 82.

[k][k][ ][Set ID][ ][Data][Cr]

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

G To select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: OSD off 1: OSD on

[l][ ][Set ID][ ][OK][Data][x]

15. PIP Position (Command2:q)

G To select sub picture position for PIP.

Transmission

[k][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Right down on screen

1: Left down on screen 2: Left up on screen 3: Right up on screen

[q][ ][Set ID][ ][OK][Data][x]

16. Treble (Command2:r)

G To adjust treble.

You can also adjust treble in the Audio menu.

ransmission

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 82.

[k][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

18. Balance (Command2:t)

G To adjust balance.

You can also adjust balance in the Audio menu.

ransmission

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 82.

[k][t][ ][Set ID][ ][Data][Cr]

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

17. Bass (Command2:s)

G To adjust bass.

You can also adjust bass in the Audio menu.

ransmission

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping’. See page 82.

[k][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 109

External Control Device Setup

19. Color Temperature (Command2:u)

G To adjust color temperature.

You can also adjust color temperature in the Video menu.

ransmission

Data 0: Cool 1: Medium 2: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

23. Orbiter Time Setting (Command2:r)

G To adjust orbiter operation time term.

ransmission

Data Min: 1 ~ Max: FE

[ j ][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

24. Orbiter Pixel Setting (Command2:s)

G To adjust pixel number in orbiter function.

Transmission

Data Min: 1 ~ Max: 3

[ j ][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

25. Tune Command (Command: m a)

G To tune channel to following physical/major/minor number

Transmission

Data 0:

Physical channel number Min: 1~ Max: 0x87

Data 1, Data 2:

Major Channel Number (two part)/ Channel Number (One part) (Data 1: High, Data 2: Low)

Data 3, Data 4:

Minor Channel Number (Data3: High, Data4: Low)

Data 5:

* All data are transmitted by Hexadecimal code

*Two/One part Channel: 6

th bit

This bit is used in a cable-ready system.

*Using physical channel: 5

th bit

If the channel band is NTSC air or NTSC cable, channel tuning can be done by only physical channel. In this case, using physical channel bit must be low(0). But if the channel band is ATSC air or ATSC cable, there are two cases that physical channel enable or disable. If the physical channel sending is meaningful, you should set this bit low(0). If the physical channel sending is meaningless, you should set this bit high(1). Example)

1. Analog channel: NTSC cable, channel number(35), main picture Command: ma 00 23 xx xx xx xx 01 attribute(0x01): main picture, two part(it’s not mandatory), using physical chan- nel, NTSC cable ‘xx’ data: don’t care major and minor channel number in case analog channel tuning.

2. Digital channel: ATSC air, channel number(don’t know phys- ical channel, major(30), minor(3)), sub picture Command: ma 00 xx 00 1E 00 03 A2 attribute(0xA2): sub picture, two part, not using physical channel, ATSC air ‘xx’ data: don’t care analog channel number in case digital channel tuning.

3. Digital channel: ATSC air, channel number(physical(20),major(20), minor(3)), sub picture Command: ma 00 14 00 14 00 03 82 attribute(0x82): sub picture, two part, using physical channel, ATSC air.

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][x] [a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

20. PIP Input Select (Command2:y)

G To select input source for sub picture in PIP/Twin pic-

ture mode.

ransmission

Data 0: DTV

1: Analog 2: Video1 3: Video2

[k][y][ ][Set ID][ ][Data][Cr]

Acknowledgement

[y][ ][Set ID][ ][OK][Data][x]

21. ISM Method (Command2:p)

G To avoid having a fixed image remain on screen.

Transmission

Data 1: Inversion

2: Orbiter 4: White Wash 8: Normal

[ j ][p][ ][Set ID][ ][Data][Cr]

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

22. Low Power (Command2:q)

G To control the low power function on/off.

ransmission

Data 0: low power off

1: low power on

[ j ][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

Main/Sub Picture

Two/One

Part

Channel

Using Physical Channel

Reserv

Step

Main

Sub

Two

One

Use

No Use

NTSC Air

ATSC

cable_auto

ATSC

Cable_irc

ATSC

Cable_hrc

ATSC

Cable_std

NTSC Cable

ATSC Air

Reserved

...

Reserved

110 Plasma TV

26. Channel Add/Del (Command: m b)

G To add and delete the channels

Transmission

Data 0: Channel Delete

1: Channel Add

[m][b][ ][Set ID][ ][Data][Cr]

[b][ ][Set ID][ ][OK][Data][x] [b][ ][Set ID][ ][NG][Data][x]

Acknowledgement

27. Key (Command: m c)

G To send IR remote key code

Transmission

Data Key code: Refer to page 86.

[m][c][ ][Set ID][ ][Data][ ][Cr]

[c][ ][Set ID][ ][OK][Data][x]

Acknowledgement

External Input

Data

DTV

Analog

Reserved

Component

RGB_DTV

RGB_PC

Reserved

HDMI1

Reserved

28. Input select(Command: x b) (Main Picture Input)

G To select input source for TV.

Transmission

Data Structure

[x][b][][Set ID][][Data][Cr]

[b][][Set ID][][OK/NG][Data][x]

Acknowledgement

0000

External Input Input Number

Input Number

Data

Input1

Input2

Input3

Input4

Input5

Input6

Input7

Input8

Input9

Input10

Input11

Input12

Input13

Input14

Input15

Input16

Note:

• In case Video/S-Video is selected automatically by TV, use only single Video input.

• In case Video/S-Video is selected by user manually, use separate Video/S-Video inputs.

29. PIP Input Select(Command: x y)

G To adjust input source for sub picture in PIP mode

ransmission

[x][y][][Set ID][][Data][Cr]

Data Structure

0000

External Input Input Number

External Input

Data

DTV

Analog

Reserved

Input Number

Data

Input1

Input2

Input3

Input4

Input5

Input6

Input7

Input8

Input9

Input10

Input11

Input12

Input13

Input14

Input15

Input16

[y][][Set ID][][OK/NG][Data][x]

Acknowledgement

Reserved

MSB

LSB

MSB

LSB

Owner’s Manual 111

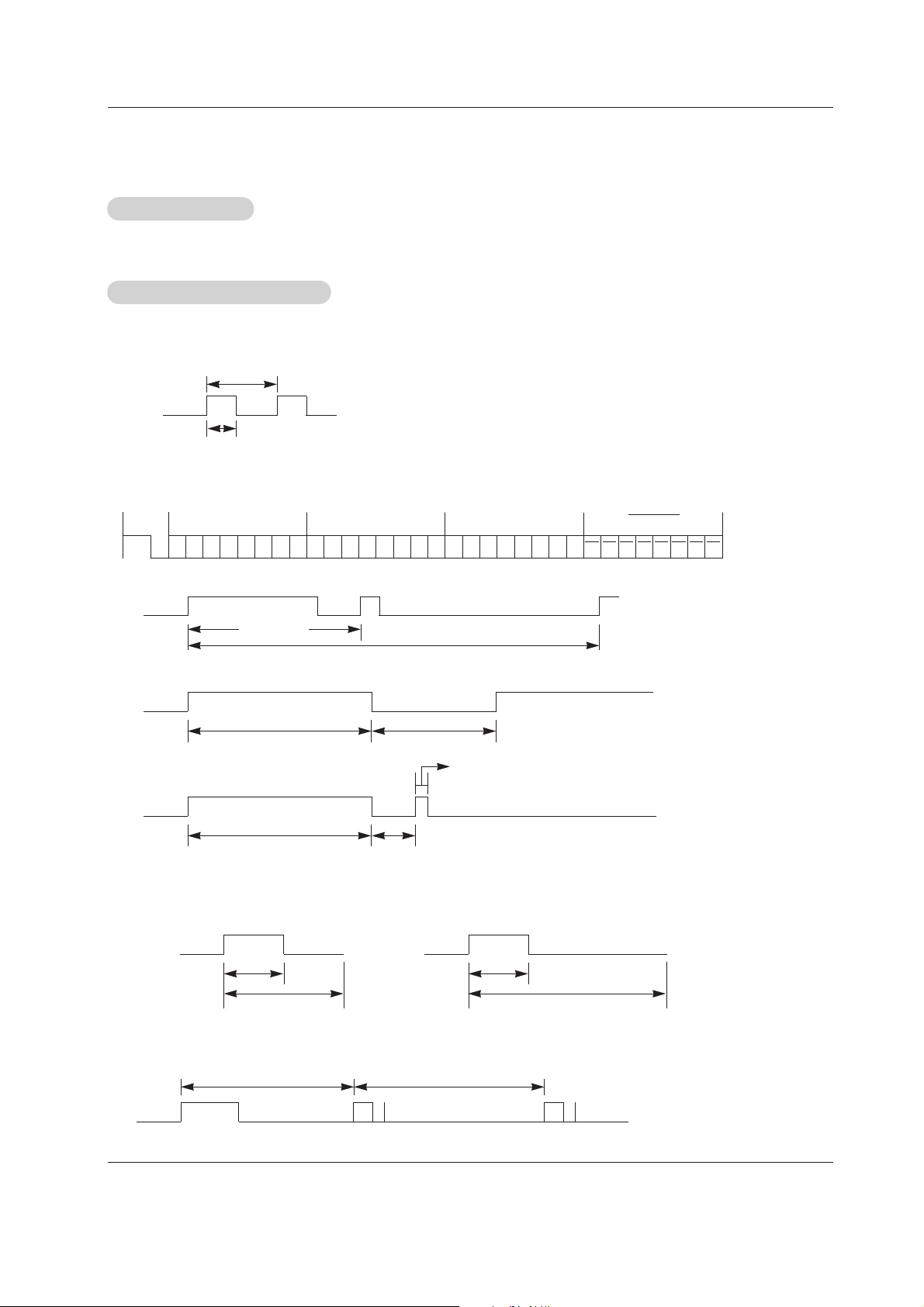

IR Codes

G Connect your wired remote control to the Remote Control port on the TV.

G Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

G Configuration of frame

G Repeat code

G Lead code

• 1st frame

Low custom code

Lead code

High custom code

Data code

Carrier frequency

FCAR = 1/TC = fOSC/12 Duty ratio = T1/TC = 1/3

• Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G Bit description

G Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

• Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

• Bit “1”

2.24 ms

How to Connect

Remote Control IR Codes

IR Codes

112 Plasma TV

IR Codes

0B 08 C4 C5 79 0E 10 ~ 19 4C 1A 09 02 03 00 01 1E AA 39 40 41 07 06 44 43 52 4D 5B 60 72 71 61 63 65 0A CB D6 5A D0 BF D4 D5 D7 C6 CC 76 77 AF 70 87 B0 BA B1 BD 8F 8E B2 B3 A9 92 C4 80 C8 7D

R/C Button R/C Button (Power On/Off) Discrete IR Code (Only Power On) Discrete IR Code (Only Power Off) R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button Discrete IR Code (TV Input Selection) Discrete IR Code (Video Input Selection) Discrete IR Code (Front Video Input Selection) Discrete IR Code (Component1 Input Selection) Discrete IR Code (Component2 Input Selection) Discrete IR Code (RGB-PC Input Selection) Discrete IR Code (RGB-DTV Input Selection) Discrete IR Code (HDMI1/DVI Input Selection) Discrete IR Code (Only 4:3 Mode) Discrete IR Code (Only 16:9 Mode) Discrete IR Code (Only Zoom1 Mode) Discrete IR Code (Channel Search) R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button

Code (Hexa) Function Note

TV/VIDEO POWER POWER ON POWER OFF RATIO TIMER Number Key 0~ 9

- (Dash) FLASHBK MUTE VOL

VOL

FAV INFO CC

D E F G

ENTER MENU EZ SOUND EZ PIC EXIT PIP PIPCH PIPCH + PIP INPUT SWAP FREEZE SAP ADJUST TV VIDEO Front Video COMPONENT 1 COMPONENT 2 RGB-PC RGB-DTV HDMI1/DVI HDMI2 Ratio 4:3 Ratio 16:9 Ratio Zoom POP 1394 PLAY PAUSE STOP REC REW FF GOTOPREV GOTONEXT TV GUIDE APM MC EJECT AUTO DEMO X STUDIO MARK

Owner’s Manual 113

Programming Codes

G The remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable

devices of other manufacturers. Note that the remote control may not control all models of other brands.

Programming a code into a remote mode

Programming the Remote

1. Test your remote control. To find out whether your remote control can operate the component without programming, turn on the component such as a VCR and press the corresponding the desired component button on the remote control, while illuminating at the selected component. Test the POWER and CH D/Ebuttons to see if the component responds properly. If not, the remote requires programming to operate the device.

2. Turn on the component to be programmed, then press the corresponding the desired component button on the remote control.

3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.

4. There are two ways to find the right code for the component. A. If you press the CH

D/E

buttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code

change. If the right code is found, the device will turn off.

B. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component

can be found on the following pages. Again, if the code is correct, the device will turn off.

5. Press the MENU button to store the code.

6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

114 Plasma TV

Programming the Remote

Programming Codes

VCRs

CACATV

AIWA 034 AKAI 016 043 046 124

125 146 AMPRO 072 ANAM 031 033 103 AUDIO DYNAMICS

012 023 039 043 BROKSONIC 035 037 129 CANON 028 031 033 CAPEHART 108 CRAIG 003 040 135 CURTIS MATHES 031 033 041 DAEWOO 005 007 010 064

065 108 110 111

112 11 6 11 7 11 9 DAYTRON 108 DBX 012 023 039 043 DYNATECH 034 053 ELECTROHOME 059 EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153 FISHER 003 008 009 010 FUNAI 034 GE 031 033 063 072

107 109 144 147 GO VIDEO 132 136 HARMAN KARDON

012 045 HITACHI 004 018 026 034

043 063 137 150 INSTANTREPLAY 031 033 JCL 031 033 JCPENNY 012 013 015 033

040 066 101 JENSEN 043 JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123 LLOYD 034 LXI 003 009 013 014

017 034 101 106 MAGIN 040 MAGNAVOX 031 033 034 041

067 068 MARANTZ 012 031 033 067

069 MARTA 101 MATSUI 027 030 MEI 031 033 MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139 MGA 045 046 059 MINOLTA 013 020 MITSUBISHI 013 020 045 046

049 051 059 061

151 MTC 034 040 MULTITECH 024 034 NEC 012 023 039 043

048 NORDMENDE 043 OPTONICA 053 054 PANASONIC 066 070 074 083

133 140 145 PENTAX 013 020 031 033

063 PHILCO 031 034 067 PHILIPS 031 033 034 054

067 071 101 PILOT 101 PIONEER 013 021 048

PORTLAND 108 PULSAR 072 QUARTZ 011 014 QUASAR 033 066 075 145 RCA 013 020 033 034

040 041 062 063 107 109 140 144 145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101 RICO 058 RUNCO 148 SALORA 014 SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125 SANSUI 022 043 048 135 SANYO 003 007 010 014

102 134 SCOTT 017 037 112 129

131 SEARS 003 00 009 010 013 014 017 020

031 042 073 081

101 SHARP 031 054 149 SHINTOM 024 SONY 003 009 031 052

056 057 058 076

077 078 149 SOUNDESIGN 034 STS 013 SYLVANIA 031 033 034 059

067 SYMPHONIC 034 TANDY 010 034

TATUNG 039 043 TEAC 034 039 043 TECHNICS 031 033 070 TEKNIKA 019 031 033 034

101 THOMAS 034 TMK 006 TOSHIBA 008 013 042 047

059 082 112 131 TOTEVISION 040 101 UNITECH 040

VECTOR RESEARCH

012 VICTOR 048 VIDEO CONCEPTS

012 034 046 VIDEOSONIC 040 WARDS 003 013 017 024

031 033 034 040

053 054 131 YAMAHA 012 034 039 043 ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053 AJIN 112 ANTRONIK 014 ARCHER 005 007 014 024 CABLE STAR 026 CENTURION 092 CENTURY 007 CITIZEN 007 COLOUR VOICE 065 090 COMBANO 080 081 COMTRONICS 019 030 DIAMOND 023 EAGLE 020 030 040 EASTERN 057 062 066 ELECTRICORD 032 GE 072 GEMINI 008 022 025 054 GI 052 074

GOLDEN CHANNEL

030 HAMLIN 049 050 055 HITACHI 052 055 HOSPITALITY 070 077 JERROLD 002 003 004 008

009 010 052 069

074 LG (GOLDSTAR) 001 106 101 005 M-NET 037 MACOM 033 MAGNAVOX 010 012 064 079 MEMOREX 100 MOVIE TIME 028 032 NSC 015 028 038 071

073 OAK 016 031 037 053 PANASONIC 044 047 PARAGON 100 PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016 PRUCER 059 PTS 011 048 071 072

073 074 PULSAR 100 RCA 047 REGAL 049 050 REGENCY 057 REMBRANT 025 RK 091 SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046 SHERITECH 022 SIGNAL 030 SIGNATURE 052

SL MARX 030 SPRUCER 047 078 STARCOM 002 004 008 009 STARGATE 008 030 SYLVANIA 067 TADIRAN 030 TAEKWANG 110 TAIHAN 105 TANDY 017 TEXSCAN 029 067 TOCOM 039 040 056 TOSHIBA 100 UNIKA 007 014 024 UNITED CABLE 004 053 UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

Owner’s Manual 115

Programming Codes

Audio

APEX DIGITAL 022 DENON 020 014 GE 005 006 HARMAN KARDON 027 JVC 012 LG 001 010 016 025

MAGNAVOX 013 MARANTZ 024 MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009

PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006 RCA 005 006 SAMSUNG 011 015

SONY 007 THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025

DVD

ALPHASTAR DSR

123 AMPLICA 050 BIRDVIEW 051 126 129 BSR 053 CAPETRONICS 053 CHANNEL MASTER

013 014 015 018

036 055 CHAPARRAL 008 009 012 077 CITOH 054 CURTIS MATHES 050 145 DRAKE 005 006 007 010

011 052 112 116

141 DX ANTENNA 024 046 056 076 ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122 ELECTRO HOME 089

EUROPLUS 114 FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029 031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104 HUGHES 068 HYTEK 053 JANIEL 060 147 JERROLD 061 KATHREIN 108 LEGEND 057 LG 001 LUTRON 132 LUXOR 062 144 MACOM 010 059 063 064

065

MEMOREX 057 NEXTWAVE 028 124 125 NORSAT 069 070

PACE SKY SATELLITE

143 PANASONIC 060 142 PANSAT 121 PERSONAL CABLE 117 PHILIPS 071 PICO 105 PRESIDENT 019 102 PRIMESTAR 030 110 111 PROSAT 072 RCA 066 106 REALISTIC 043 074 SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138 SONY 103

STARCAST 041 SUPER GUIDE 020 124 125 TEECOM 023 026 075 087

088 090 107 130

137 TOSHIBA 002 127 UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 UNIDEN 135 136 VIEWSTAR 115 WINEGARD 128 146 ZENITH 081 082 083 084

091 120

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230 AKAI 163 ANAM 003 014 017 023

059 106 189 216

217 235 236 BURMECTER 252 CARVER 086 CLARION 199 DAEWOO 027 053 060 084

102 148 198 221 DENON 015 075 130 143 FANTASIA 071 FINEARTS 022 FISHER 089 099 LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239 HAITAI 034 035 188 222 HARMAN/KARDON 068 INKEL 037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141 KEC 185 186 187 KENWOOD 038 050 067 089

170 171 197 206

215 222 KOHEL 030 NAD 045 046 LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240 LXI 103 MAGNAVOX 111 MARANTZ 002 018 020 025

034 041 081 090

097 112 MCINTOSH 049 MCS 104 MEMOREX 107 NAD 046 ONKYO 013 040 041 047

048 056 057 132

133 140 OPTIMUS 158 PANASONIC 007 033 064 113

142 220 241 251 PENNEY 104

PHILIPS 026 112 143 253 PIONEER 039 042 043 063

065 091 093 094

115 123 127 250 QUASAR 113 RCA 080 RCX 092 REALISTIC 103 106 SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246 SANSUI 011 135 138 144 SANYO 019 083 234 SCOTT 106 186 SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209 SHERWOOD 005 006 158 SONY 044 045 109 114

118 126 248 249 TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

254 TEAC 010 085 106 136

185 187 237 TECHNICS 101 113 128 134

147 218 TOSHIBA 137 THE 061 VICTOR 088 131 WARDS 089 YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

116 Plasma TV

Troubleshooting Checklist

No output from one of

the speakers

• Adjust Balance in the AUDIO menu. (Refer to p.63)

Unusual sound from

inside the TV

• A change in ambient humidity or temperature may result in an unusual noise when the plasma display is turned on or off and does not indicate a fault with the TV.

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

• Test the wall power outlet, plug another product’s power cord into the outlet where the TV’s power cord was plugged in.

No or poor color

or poor picture

• Select Color in the Video menu and press the VOLUME (G) button. (Refer to p.61)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

• Check to see if there is any object between the TV and the remote control causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)? (Refer to p.10)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.10)

Picture OK &

No sound

• Press the VOLUME (G) button.

• Sound muted? Press MUTE button.

Picture appears slowly

after switching on

• This is normal, the image is muted during the TV startup process. Please contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking

• Check for local interference such as an electrical appliance or power tool.

TTroubleshooting Checklist

roubleshooting Checklist

Owner’s Manual 117

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Cabinet

Extended

Absence

Maintenance

118 Plasma TV

Specification

• The specifications shown above may be changed without prior notice for quality improvement.

Product Specifications

MODELS

AC100-240V ~ 60Hz

NTSC-M, ATSC

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135. DTV 2 ~ 69

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

55.2 / 1402

31.4 / 798.5

11.9 / 302.5

122 / 55.3

67.24 / 1708

36.6 / 931

12.6 / 320.7

189.2 / 85.8

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

TU-50PY22/

TU-50PY2DR-UA

TU-60PY22/

TU-60PY2DR-UA

1366 x 768 (Dot)

Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.

LG ELECTRONICS, INC.

PLASMA TV — U.S. LIMITED WARRANTY

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV typically contain a small number of pixels that do not function normally. Your display has been inspected and is in compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use of your display.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new, substitute model or factory reconditioned unit, at LGE’s option. If repaired, parts used in the repair may be new or remanufactured. Replacement Units and Repair Parts are warranted for the remaining portion of the original unit’s warranty period.

EFFECTIVE DATE OF WARRANTY: Your warranty period begins on the date of sale to the original consumer/end user. KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF DELIVERY as evidence of the purchase date. You will be required to submit a legible copy of your bill of sale or proof of delivery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer’s

dated bill of sale or delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided.

Please call 1-201-816-2000 to locate your nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your

product online. This information will allow us to reach you promptly should we discover a safety or reliability problem that could affect you.

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactive Center P.O. Box 240007 201 James Record Road Huntsville, Alabama 35824 http://www.lgservice.com

FOR SERVICE: Before you call for warranty service, check your operating guide – you may avoid a service call.

For warranty service information, please contact the LGE Customer Interactive Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective unit to the LG

Brand Service Center.

Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product information or Dealer or Service locations

Call 1-201-816-2000

24 hours a day, 365 days per year

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

● damage caused in shipping or transit

● service required as a result of improper installation,

including incorrect or insufficient AC supply (please consult the owner’s manual for power supply requirements)

● installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or other components in a video system

● set-up or adjustment on consumer controls, or

damage caused by improper adjustments

● damage caused by other system components

● any panel that has been modified or incorporated

into any other product

● replacement of batteries on the remote control.

● damage (including cosmetic damage), failure, loss

or personal injury due to misuse, abuse, negli-

gence, improper maintenance or storage, or to acts of nature or other causes beyond our control. (Causes beyond our control include but are not limited to lightning strike, power surges, power outages and water damage.)

● image burn-in

● repair or replacement of warranted parts by other

than LGE authorized service centers.

● units purchased or serviced outside of the coverage

area.

● product where the original factory serial numbers

have been removed, defaced or changed in any way.

● product sold and labeled as “as is, where is” or sim-

ilar disclaimer.

P/NO : 3828VA0528A

LG Electronics USA 60PY2DRUA, 50PY2DRUA Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
