TV MENU

VIDEO ADJUSTMENT

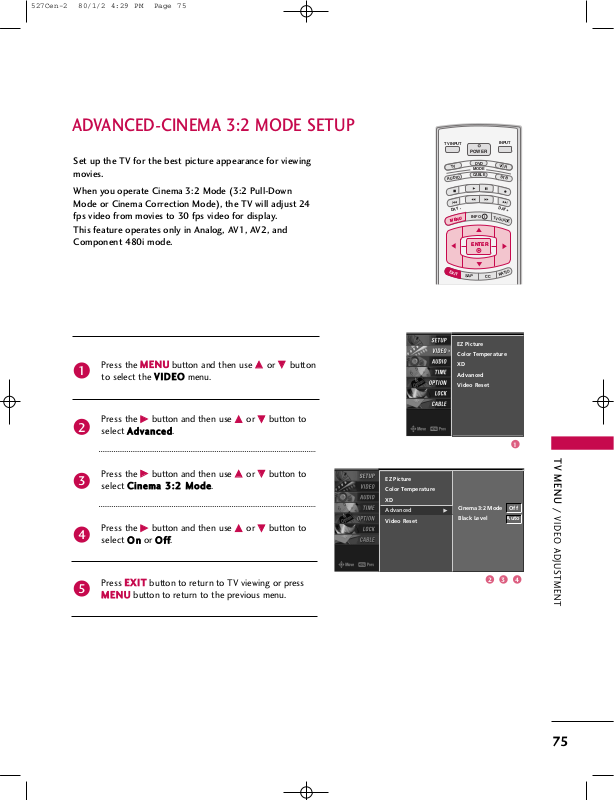

ADVANCED-CINEMA 3:2 MODE SETUP

Press the MMEENNUU button and then use

button

to select the VVIIDDEEOO menu.

Press the

button and then use

button to

select AAddvvaanncc eedd.

Press the

button and then use

button to

select CC iinn eemmaa 33::22 MMoodd ee.

Press the

button and then use

button to

select OO nn or OOffff.

Press EE XX IITT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Set up the TV for the best picture appearance for viewing movies.

When you operate Cinema 3:2 Mode (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps video from movies to 30 fps video for display.

This feature operates only in Analog, AV1, AV2, and Component 480i mode.

EZ Picture

Color Temperature

Advanced

Video Reset

Cinema 3:2 Mode Off

Black Level Auto

EZ Picture

Color Temperature

Advanced

Video Reset

2 3 4

527Cen-2 80/1/2 4:29 PM Page 75

TV MENU

VIDEO ADJUSTMENT

ADVANCED-BLACK LEVEL

TV MENU

VIDEO ADJUSTMENT

Press the MMEENNUU button and then use

button

to select the VVIIDDEEOO menu.

Press the

button and then use

button to

select AAddvvaanncc eedd.

Press the

button and then use

button to

select BBllaa cckk lleevveell.

Press the

button and then use

button to

select AAuutt oo, LL ooww, or HHiigghh.

■

AAuu tt oo Realizing the black level of the screen and set it to

High or Low automatically.

■

LL ooww The screen gets darker.

■

HHiigghh The screen gets brighter.

Press EE XX IITT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature operates only in AV1, AV2, HDMI1/DVI, or HDMI2mode.

EZ Picture

Color Temperature

Advanced

Video Reset

Cinema 3:2 Mode Off

Black Level Auto

EZ Picture

Color Temperature

Advanced

Video Reset

3 42

527Cen-2 80/1/2 4:29 PM Page 76

TV MENU

VIDEO ADJUSTMENT

VIDEO RESET

Press the MMEENNUU button and then use

button

to select the VVIIDDEEOO menu.

Press the

button and then use

button to

select VViiddeeoo RReesseett.

Press the

button to reset the Video menu options

to original values.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Use to quickly reset all the Video menu options to their original factory preset values.

EZ Picture

Color Temperature

Advanced

Video Reset

Selection ( Gor ) resets to the factory settings (default).

EZ Picture

Color Temperature

Advanced

Video Reset

2 3

527Cen-2 80/1/2 4:29 PM Page 77

TV MENU

AUDIO ADJUSTMENT

AUDIO LANGUAGE

AUDIO ADJUSTMENT

Other languages may be available if a digital signal is provided by the broadcasting station.

This feature operates only in DTV/CADTV mode.

Press the MMEENNUU button and then use

button

to select the AAUUDD IIOO menu.

Press the

button and then use

button to

select AAuuddiioo LLaa nn gg uu aaggee.

Press the

button and then use

button to

select : EEnngglliisshh, SSpp aanniisshh, or FFrr eenncchh.

Press EE XX IITT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

English Spanish French

TV MENU

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

2 3

527Cen-2 80/1/2 4:29 PM Page 78

TV MENU

AUDIO ADJUSTMENT

AUTO VOLUME LEVELER (EZ SOUNDRITE

)

Press the MMEENNUU button and then use

button

to select the AAUUDD IIOO menu.

Press the

button and then use

button to

select EEZZ SSoouunnddRRiittee.

Press the

button and then use

button to

select OO nn or OOff ff.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

Scans for changes in sound levels during commercials, then adjusts the sound to match the specified audio level. SoundRite makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

Off On

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

2 3

527Cen-2 80/1/2 4:29 PM Page 79

TV MENU

AUDIO ADJUSTMENT

AUTO SOUND CONTROL (EZ SOUND

)

TV MENU

AUDIO ADJUSTMENT

EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound options based on the program content.

Normal, Stadium, News, Music and Theater are preset for good sound quality at the factory and are not adjustable.

Press the EEZZ SSOO UU NNDD button repeatedly to select the appropriate sound setup as below :

NNoorrmmaall, SStt aaddiiuumm, NNee ww ss, MMuussii cc, TThh eeaatteerr, and UUsseerr

(your own settings).

Press EE XX II TT button to return to TV viewing.

APM

TIMER

ADJUST

SWAP

PIP CH +PIP CH -

PIP

PIP INPUT

1 2 3

456

7809

FLASHBK

EZ SOUNDEZ SOUND

EZ PIC

■

You can also adjust EEZZ SSoouu nn dd in the AAUUDDIIOO menu.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

Normal Stadium News Music Theater User

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

527Cen-2 80/1/2 4:29 PM Page 80

TV MENU

AUDIO ADJUSTMENT

MANUAL SOUND CONTROL

(

EZ SOUND-UUss eerr option

)

Press the MMEENNUU button and then use

button

to select the AAUUDD II OO menu.

Press the

button and then use

button to

select EEZZ SSoo uunndd.

Press the

button and then use

button to

select UUssee rr.

Press the

button and then use

button to select the desired sound option (TTrr eebbll ee,BBaassss,or FFrroonntt SSuurr rroo uu nn dd).

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Adjust the sound to suit your taste and room situations.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

Selection ( Gor ) leads you to the detailed setting screen.

Normal Stadium News Music Theater

User

Treble 50

Bass 50

Front Surround Off

Press to confirm.

(Continued on next page)

21 3

527Cen-2 80/1/2 4:29 PM Page 81

TV MENU

AUDIO ADJUSTMENT

MANUAL SOUND CONTROL Continued

TV MENU

AUDIO ADJUSTMENT

Press the

button and then use

button to

make appropriate adjustments.

SSeell ee cctt iinn gg tthhee FFrroonntt ssuurrrroouunn dd Press the

button and then use

button to

select OO ff ff,33 DD EE cchhooSSoouunndd SSyyss tteemm or SS RRSS (

Sound Retrieval System) TTrr uuSSuurrrroouunndd XXTT.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

Front Surround 3D EchoSound System

SSRRSS TTrr uu SSuurrrr oouunn dd XXTT Takes advantage of any multi-channel format without

needing to add extra speakers or equipment. Dialog clarity, bass enrichment, and the addition of stereo audio enhancement produces an immersive sound experience from standard stereo material.

33 DD EEcchhoo SSoouunndd SSyyss tteemm Creates a stunning simulated stereo effect from any mono

sound and a realistic three-dimensional sound with a very wide and deep sound stage.

527Cen-2 80/1/2 4:29 PM Page 82

BALANCE

TV MENU

AUDIO ADJUSTMENT

Press the MMEENNUU button and then use

button

to select the AAUUDD II OO menu.

Press the

button and then use

button to select BBaa ll aanncc ee.

Press the

button and then use

button to

make appropriate adjustments.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Adjust the left/right sound of speaker to suit your taste and room situations.

L R

Balance 0

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

Audio Language

EZ SoundRite

EZ Sound

Balance 0

TV Speaker

BBE

L R

527Cen-2 80/1/2 4:29 PM Page 83

TV MENU

AUDIO ADJUSTMENT

TV SPEAKERS ON/OFF SETUP

TV MENU

AUDIO ADJUSTMENT

Press the MMEENNUU button and then use

button

to select the AAUUDD II OO menu.

Press the

button and then use

button to

select TTVV SS ppeeaa kk ee rr.

Press the

button and then use

button to

select OO nn or OOff ff.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

V GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Turn the TV speakers off if using external audio equipment. Feature turns the TV Speakers option On or Off.

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

Off On

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

527Cen-2 80/1/2 4:29 PM Page 84

TV MENU

AUDIO ADJUSTMENT

BBE

Press the MMEENNUU button and then use

button

to select the AAUUDDIIOO menu.

Press the

button and then use

button to

select BBBBEE.

Press the

button and then use

button to

select OOnn or OOffff.

Press EEXXIITT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

BBE High Definition Sound restores clarity for better speech intelligibility and musical realism.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

Off On

Audio Language

EZ SoundRite

EZ Sound

Balance

TV Speaker

BBE

527Cen-2 80/1/2 4:29 PM Page 85

TV MENU

AUDIO ADJUSTMENT

STEREO/SAP BROADCAST SETUP

TV MENU

AUDIO ADJUSTMENT

INFO i

TV GUIDE

ENTER

EXIT

RATIO

POWER

DAY -

AY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

SAPSAP

This TV can receive MTS stereo programs and any SAP (

Secondary Audio Program)that accompanies the stereo program if the station transmits an additional sound signal as well as the original one and when you select Stereo or SAP on the remote control.

Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

Select Mono if you want to listen to the mono sound in remote areas during stereo/SAP broadcasting.

Stereo or SAP can be received in Analog channel.

Use the SSAAPP button to select your desired MTS mode in analog signal. Each time you press the SSAAPP button, MM oonnoo, SStteerree oo, or SS AAPP appear in turn.

■

If other languages available on the digital signal, select them with the SSAAPP button.

Press EE XX II TT button to save and return to TV viewing.

527Cen-2 80/1/2 4:29 PM Page 86

TV MENU

TIME SETTING

AUTO CLOCK SETUP

The time is set automatically from a digital channel signal. The digital channel signal includes information for the cur-

rent time provided by the broadcasting station. Set the clock manually if the current time is set incorrectly

by the auto clock function. Note: When you set up the TV Guide On Screen system,

Auto Clock menu is not available.

Press the MMEENNUU button and then use

button

to select the TTIIMMEE menu.

Press the

button and then use

button to

select AAuuttoo CCll oocckk.

Press the

button and then use

button to

select OO nn.

Press the

button and then use

button to

select your viewing area time zone: U.S.A : EEaa sstteerrnn, CCeenntt rr aall, MMoouunntt aaiinn, PPaacciiff ii cc,

AAll aasskkaa or HHaa wwaaii ii.

Canada : EEaa sstteerrnn, CCee nn ttrraa ll, MMoouu nn ttaa iinn, PPaacciiff ii cc,

NNee ww FF .. llaanndd or AAtt llaanntt iicc.

Press the

button and then use

button to select AAuutt oo, OO ff ff, OO nn, depending on whether or not your viewing area observes Daylight Saving time.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

V GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

TV MENU

TIME SETTING

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Off On

Time Zone Eastern

Auto

Daylight

Saving

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

32 54

527Cen-2 80/1/2 4:29 PM Page 87

TV MENU

TIME SETTING

MANUAL CLOCK SETUP

TV MENU

TIME SETTING

Press the MMEENNUU button and then use

button

to select the TTIIMMEE menu.

Press the

button and then use

button to

select MMaannuuaall CCll oocc kk.

Press the

button and then use

to select either the year, date, or time option. Once selected, use the

button to set the year, date, and time

options.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

V GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

If the current time setting is wrong, reset the clock manually. When you set up the TV Guide On Screen system, the

Manual Clock menu is not available.

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Year - - - Date - - / - Time - - : - - - -

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

527Cen-2 80/1/2 4:29 PM Page 88

TV MENU

TIME SETTING

ON/OFF TIMER SETUP

Press the MMEENNUU button and then use

button

to select the TTIIMMEE menu.

Press the

button and then use

button to

select OO ffff TTiimmeerr or OOnn TTiimmeerr.

Press the

button and then use

button to

select OO nn.

■

To cancel the OOnn//OOffff ttii mmee rr function, select OO ff ff.

Press the

button and then use

button to

set the hour.

Press the

button and then use

button to

set the minutes.

OOnnllyy OOnn tt iimmee rr Press the

button and then use

to select

the channel at turn-on.

Press the

button and then use

to set the

sound level at turn-on.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

The timer function operates only if the current time has been set.

The Off-Timer function overrides the On-Timer function if they are both set to the same time.

The TV must be in standby mode for the On-Timer to work.

If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to standby mode.

32 54 6

Off On Time 6 : 30 AM

Ch. TV 2-0 Vol 17

527Cen-2 80/1/2 4:29 PM Page 89

TV MENU

TIME SETTING

SLEEP TIMER

TV MENU

TIME SETTING

Press the TTII MMEERR button repeatedly to select the number of minutes. First the OO ff ff option appears on the screen, followed by the following sleep timer options : 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

When the number of minutes you want is displayed on the screen, press the

EE NNTTEERR button. The timer begins to count down from the number of min-

utes selected.

To check the remaining minutes before the TV turns off, press the TTIIMMEERR button once.

To cancel the Sleep Timer, press the TTII MMEERR button repeatedly to select

OO ff ff.

APM

TIMERTIMER

ADJUST

SWAP

PIP CH +PIP CH -

PIP

PIP INPUT

1 2 3

4 5 6

7809

FLASHBK

EZ SOUND

EZ PIC

The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

■

You can also set up the SSll eeeepp TTiimmee rr in the TTIIMMEE menu.

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Off

10 min

20 min

30 min

60 min

90 min

120 min

180 min

240 min

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

527Cen-2 80/1/2 4:29 PM Page 90

TV MENU

TIME SETTING

AUTO OFF

If set to on and there is no input signal, the TV turns off automatically after 10 minutes.

Press the MMEENNUU button and then use

button

to select the TTIIMMEE menu.

Press the

button and then use

button to

select AAuuttoo OOffff.

Press the

button and then use

button to

select OO nn or OOff ff.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

V GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

Off On

TV will be automatically turned

off, in case of No Signal for

10 minutes.

Auto Clock

Manual Clock

Off Timer

On Timer

Sleep Timer

Auto Off

527Cen-2 80/1/2 4:29 PM Page 91

TV MENU

OPTIONAL FEATURES

ASPECT RATIO CONTROL

TV MENU

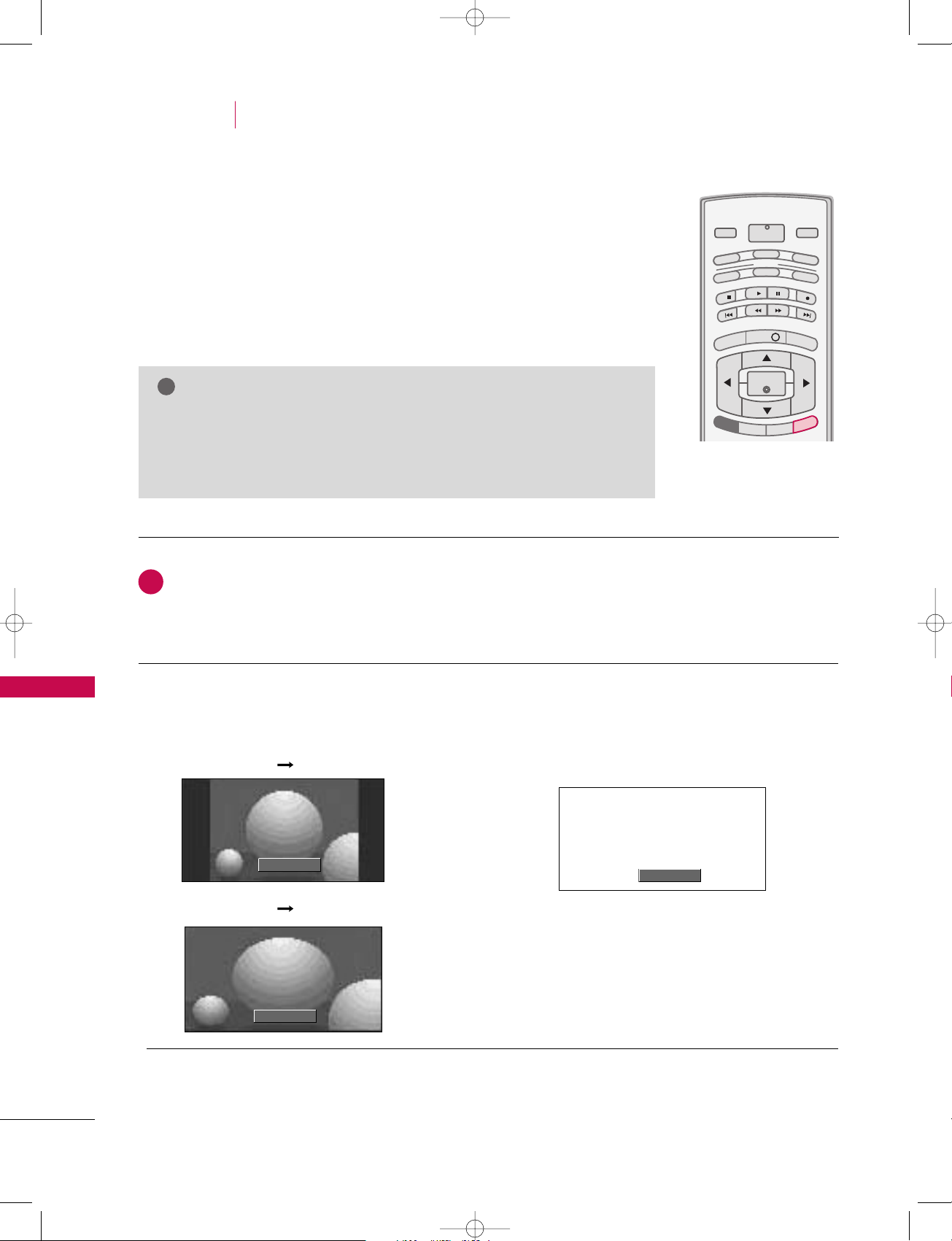

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed.

■

RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.

Set by program

Selects the proper picture proportion to match the source’s image.

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

NOTE

If a fixed image is displayed on the screen for a long time, the image may become imprinted on the screen and remain visible. This phenomenon is common to all manufactures and in consequence the manufactures warranty does not cover the product bearing this phenomenon.

OPTIONAL FEATURES

INFO i

TV GUIDE

ENTER

EXIT

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

SAP

ORATIO

Press the RRAATTIIOO button repeatedly to select the desired picture format.

You can also adjust AAssppeecctt RRaa ttiioo in the OO PP TTIIOONN menu.

Set By Program

4:3

Set By Program

4:3 4:3

16:9 16:9

527Cen-2 80/1/2 4:29 PM Page 92

TV MENU

OPTIONAL FEATURES

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

Horizon

The screen size is, more enlarged at both sides, to create a spectacular view.

Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage.

Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

You can adjust the enlarge proportion of Cinema Zoom using

or EEbutton.

The adjustment range is 1-16.

16:9

Horizon

Zoom 1

Zoom 2

Cinema Zoom DD1

527Cen-2 80/1/2 4:29 PM Page 93

TV MENU

OPTIONAL FEATURES

TV MENU

OPTIONAL FEATURES

CAPTION / TEXT

Analog Broadcasting System Captions

Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog.

Text displays information, usually at the bottom position and is used for a data service, generally not program related. Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable.

This TV is programmed to memorize the caption/text mode which was last set when you turn the power off.

INFO i

TV GUIDE

ENTER

EXIT

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

CCC

SAP

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

Off CC 1 CC 2 CC 3 CC 4 Text 1 Text 2 Text 3 Text 4

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

Use the CCCC button repeatedly to select Caption OO ff ff, CC CC 11, CC CC 22, CCCC 33, CCCC44, TTeexxtt11, TTee xxtt22, TTeexxtt 33 or TTeexxtt 44.

■

CCAAPPTTII OONN

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

■

TTEE XXTT

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

Press EE XX II TT to save and return to TV viewing.

■

You can also use the OOPPTTIIOO NN menu to select CCaa ppttiioonn/TTee xxtt.

527Cen-2 80/1/2 4:29 PM Page 94

TV MENU

OPTIONAL FEATURES

Press the MMEENNUU button and then use

button

to select the OOPPTTIIOONN menu.

Press the

button and then use

button to

select CC aapp ttii oonn/TTeexxtt.

Press the

button and then use

button to select available caption languages : EEnngglliisshh, SSppaann ii sshh or FF rree nn cchh.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

V GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in.

Languages can be chosen for digital sources only if they are included on the program.

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

Off English Spanish French

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

527Cen-2 80/1/2 4:29 PM Page 95

TV MENU

OPTIONAL FEATURES

TV MENU

OPTIONAL FEATURES

CAPTION OPTION

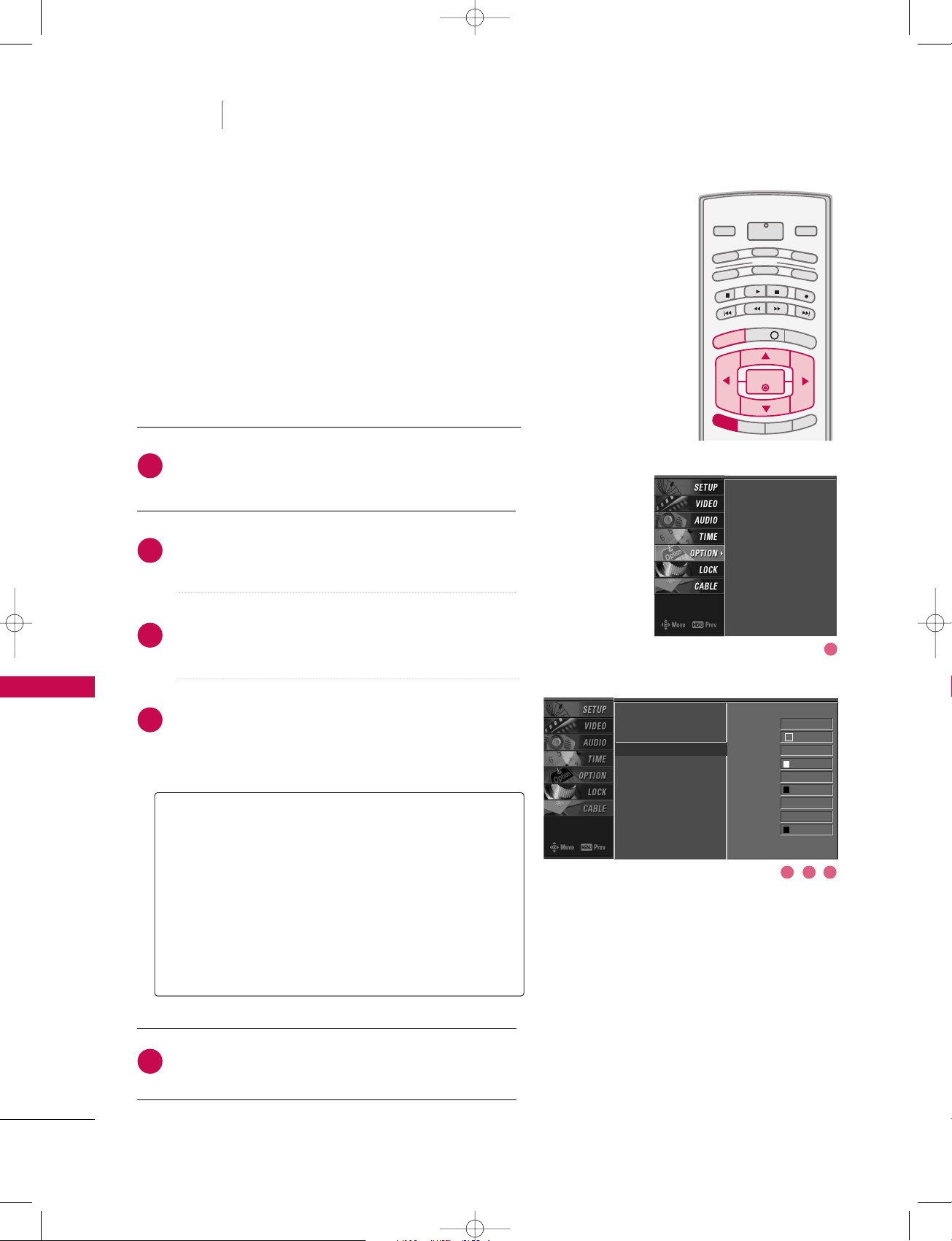

Customize the DTV/CADTV captions that appear on your screen.

Press the MMEENNUU button and then use

button

to select the OOPPTTIIOONN menu.

Press the

button and then use

button to

select CC aappttiioonn OOpp ttiioo nn.

Press the

button and then use

button to

select CC uu ssttoomm.

Use

button to customize the SS tt yy llee, FFoo nntt,

etc., to your preference. A preview icon is provided at the bottom of the

screen, use it to see the caption language.

Press EE XX II TT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

INFO i

V GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

SSiizzee : Set the word size.

FFoonntt : Select a typeface for the text.

TTeexxtt CCoolloorr : Choose a color for the text.

TTeexxtt OOppaacciittyy : Specify the opacity for the text color.

BBgg ((BBaacckkggrroouunndd))CCoolloorr : Select a background color.

BBgg ((BBaacckkggrroouunndd))OOppaacciittyy : Select the opacity for the background color.

EEddggee TTyyppee : Select an edge type.

EEddggee CCoolloorr : Select a color for the edges.

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

Style Custom Size A Standard Font Font 0 Text Color White Text Opacity

Solid Bg Color Black Bg Opacity Solid Edge Type None Edge Color Black

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

3 42

527Cen-2 80/1/2 4:29 PM Page 96

TV MENU

OPTIONAL FEATURES

ISM(IMAGE STICKING MINIMIZATION) METHOD

Press the MMEENNUU button and then use

button

to select the OOPPTTIIOONN menu.

Press the

button and then use

button to

select IISSMM MMeetthhoo dd.

Press the

button and then use

button to select

either NNoorrmmaall, WWhhiittee wwaasshh, OOrrbbiitteerr or IInnvveerrssiioonn.

■

NNoorrmmaall If image sticking is never a problem, ISM is not

necessary - set to Normal.

■

WWhh iitt ee wwaass hh

White Wash removes permanent images from the screen.

■

OOrrbb iitt eerr Orbiter may help prevent ghost images. However, it

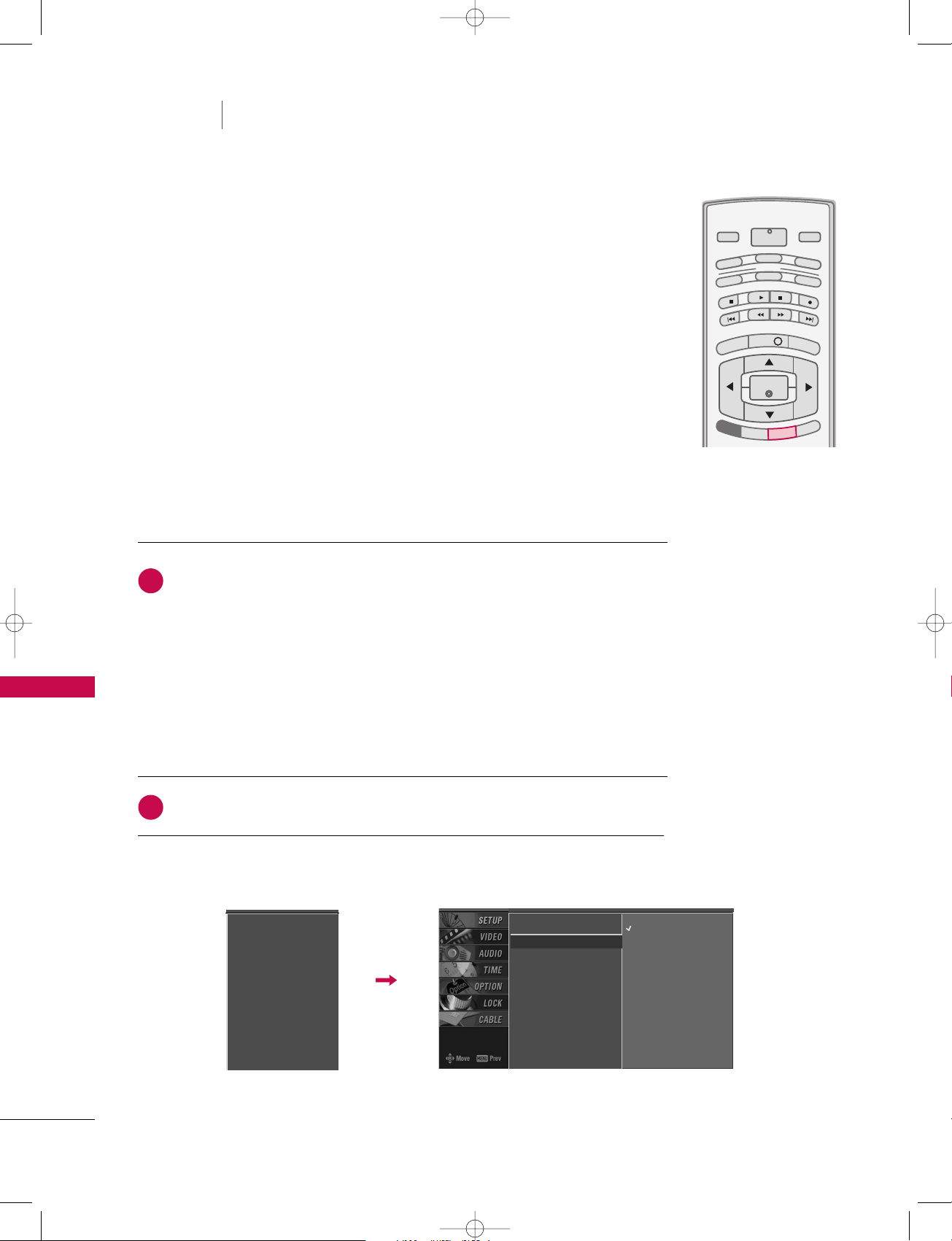

is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the image will move once per 2 minutes : Left Right Upside Downside Right Left Downside Upside.

■

II nn vvee rr ssii oonn Inversion will automatically invert the plasma display

panel color every 30 minutes.

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image. Use our unique method to minimize any fixed image on the screen.

NOTE

An excessive permanent image may be impossible

to clear entirely with White Wash. To return to normal viewing, press any button.

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

Normal White Wash Orbiter Inversion

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

527Cen-2 80/1/2 4:29 PM Page 97

TV MENU

OPTIONAL FEATURES

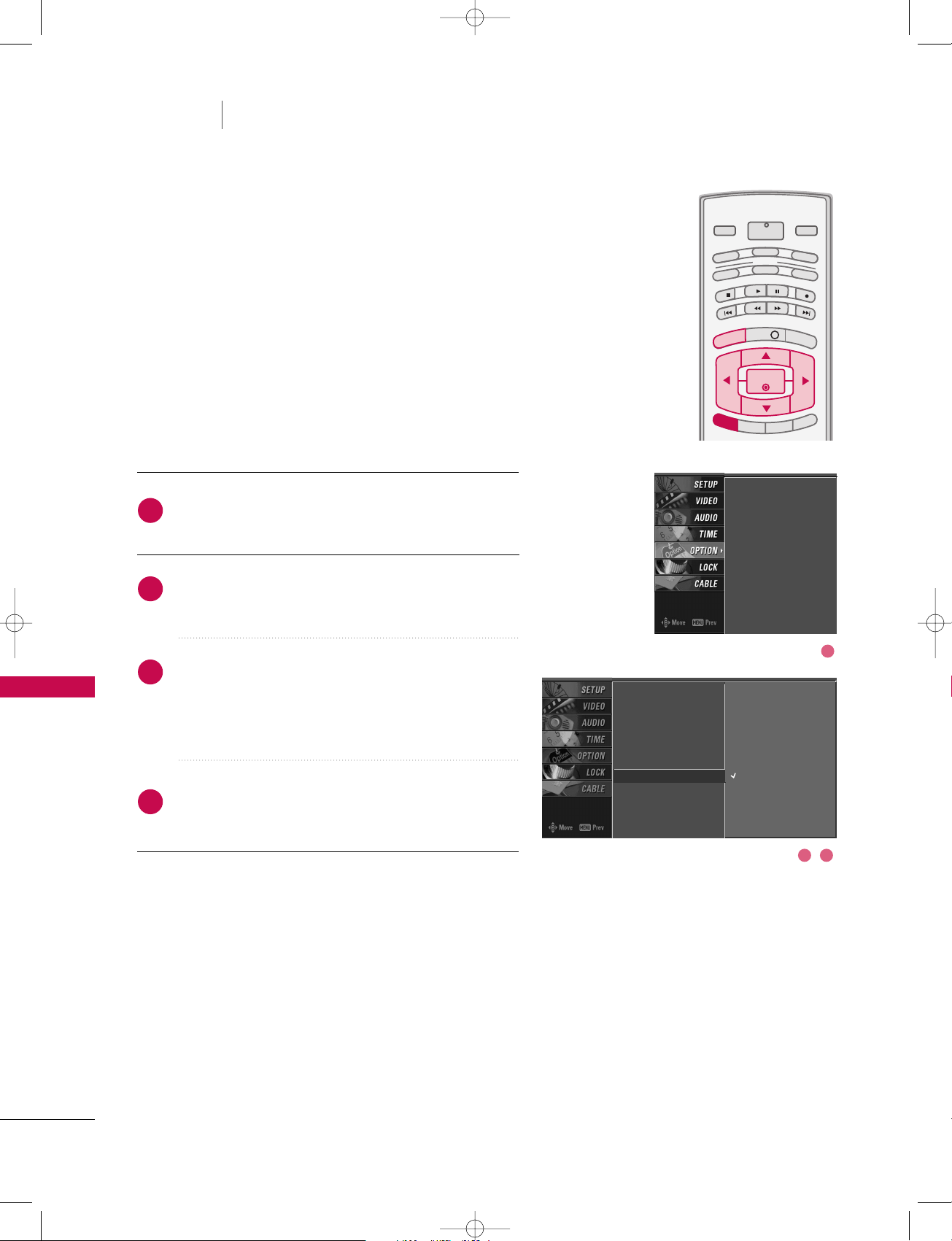

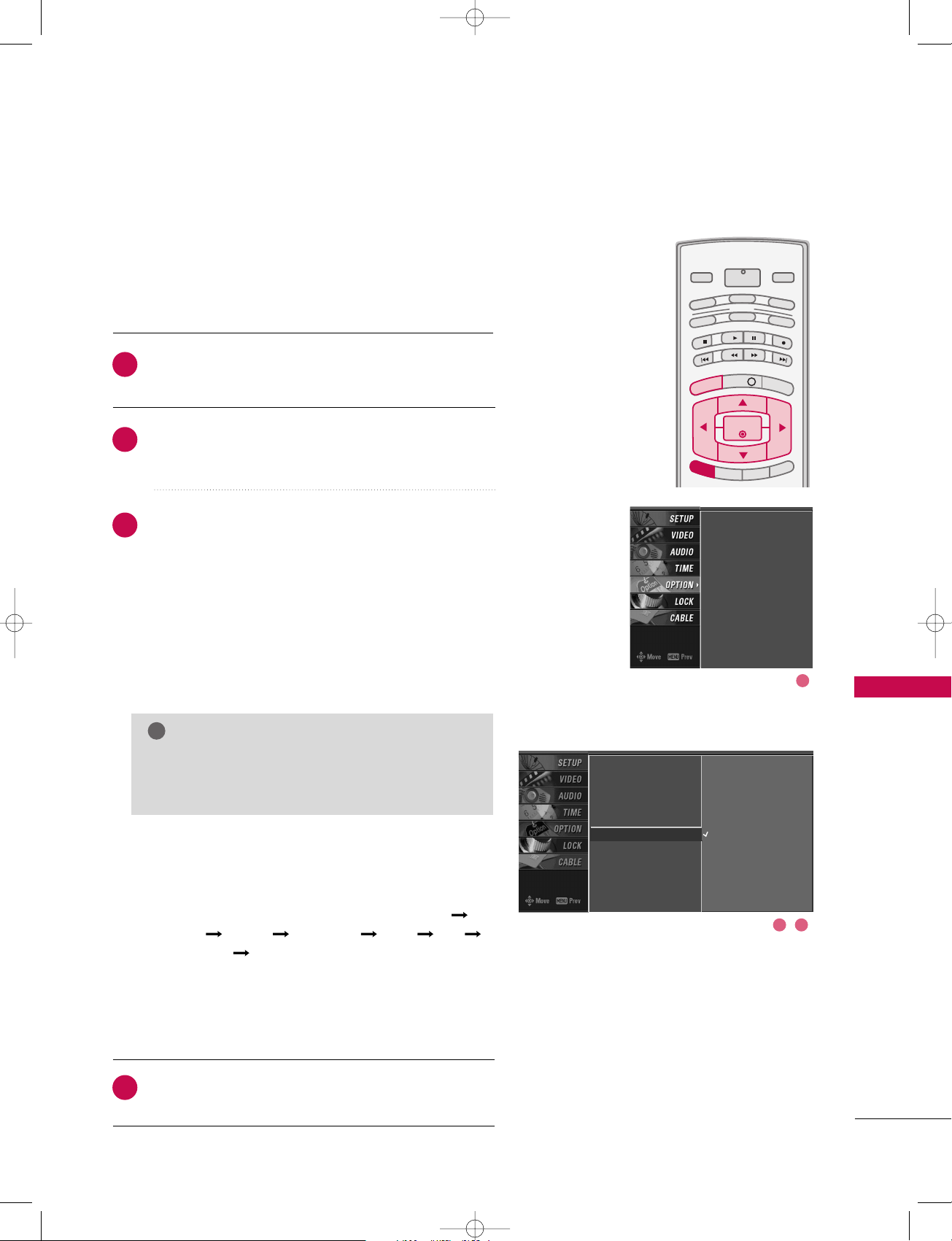

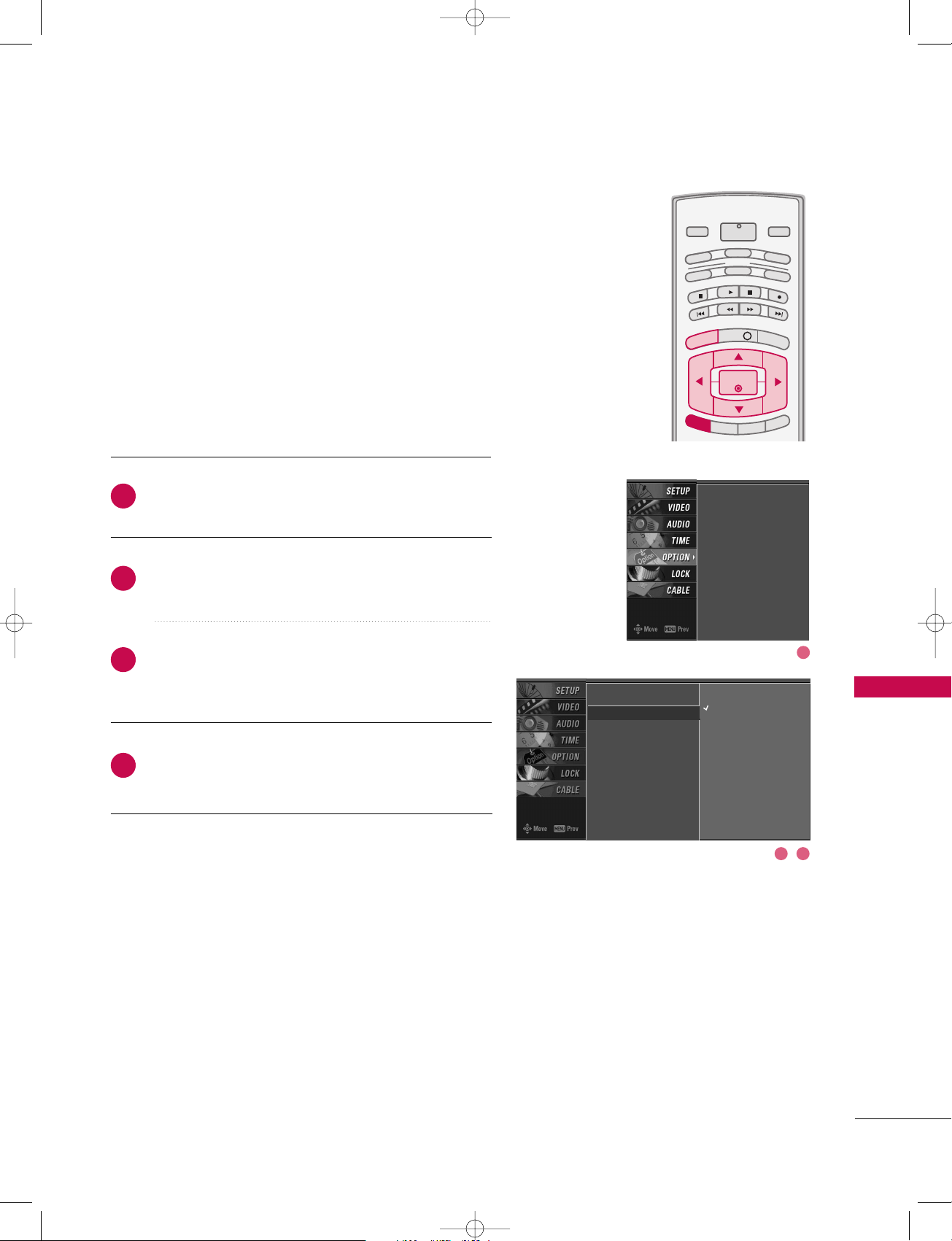

LOW POWER

TV MENU

OPTIONAL FEATURES

Low power reduces the plasma display power consumption.

Press the MM EENNUU button and then use

button

to select the OOPPTTIIOONN menu.

Press the

button and then use

button to

select LL ooww ppoo ww eerr.

Press the

button and then use

button to

select OO nn or OOff ff.

■

When you select OOnn, the screen darkens.

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

Aspect Ratio

Caption/Text

Caption Option

Language

ISM Method

Low Power

Off On

527Cen-2 80/1/2 4:29 PM Page 98

TV MENU

OPTIONAL FEATURES

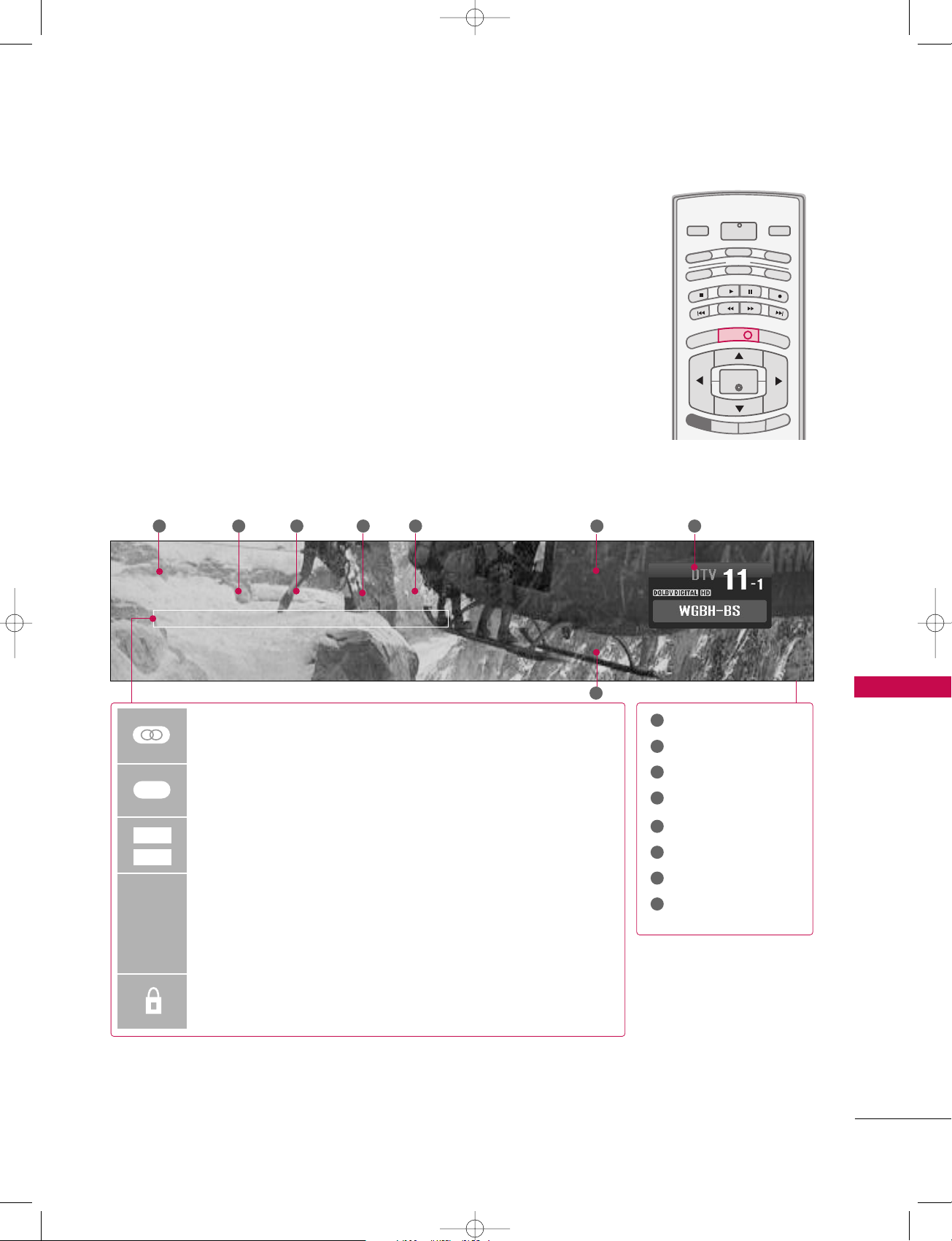

BRIEF INFO.

What is Brief Info.?

: Brief Info shows the present screen information. : On Watching with the upper Input signal, press the IINNFFOO button.

How To Use?

1. Press the IINNFFOO button to show the Brief Info on the screen.

2. Press the IINNFFOO button or EEXXIITT button to exit.

MMuullttiilliinngguuaall : Press the SS AAPP button to select your choice.

CCaappttiioonn : Press the CC CC button to select wanted Closed caption.

Screen Ratio of Input Signal 4:3 Screen Ratio of Input Signal 16:9

Resolution of Input Signal 720x480i Resolution of Input Signal 720x480p Resolution of Input Signal 1280x720p Resolution of Input Signal 1920x1080i

Input Signal have rating information. Refer to the <Lock Menu>. D(Dialogue), L(Language), S(Sex), V(Violence), FV(Fantasy Violence

)

480i 480p 720p

10 8 0 i

4:3

16:9

Program title

Day, Month, Year

Program start time

Program progress bar

Program finish time

Present time

Program information

Banner information

NNoo ddeess cc rriipp ttiioonn iiss aavvaa iillaa bb llee

1 2 3 4 5 6 8

527Cen-2 80/1/2 4:29 PM Page 99

TV INPUT

DAY -

DVD MODE CABLE

INPUT

VCR

V GUIDE

STB

AY+

POWER

INFO iINFO i

ENTER

EXIT

SAP

RATIO

TV MENU

LOCK ADJUSTMENT

100

TV MENU

LOCK ADJUSTMENT

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System (MPAA)only.

Ratings for Television programs including made-for-TV movies :

■

TV-G(General audience

)

■

TV-PG(Parental guidance suggested

)

■

TV-14(Parents strongly cautioned

)

■

TV-MA (Mature audience only

)

■

TV-Y(All children

)

■

TV-Y7(Children 7 years older

)

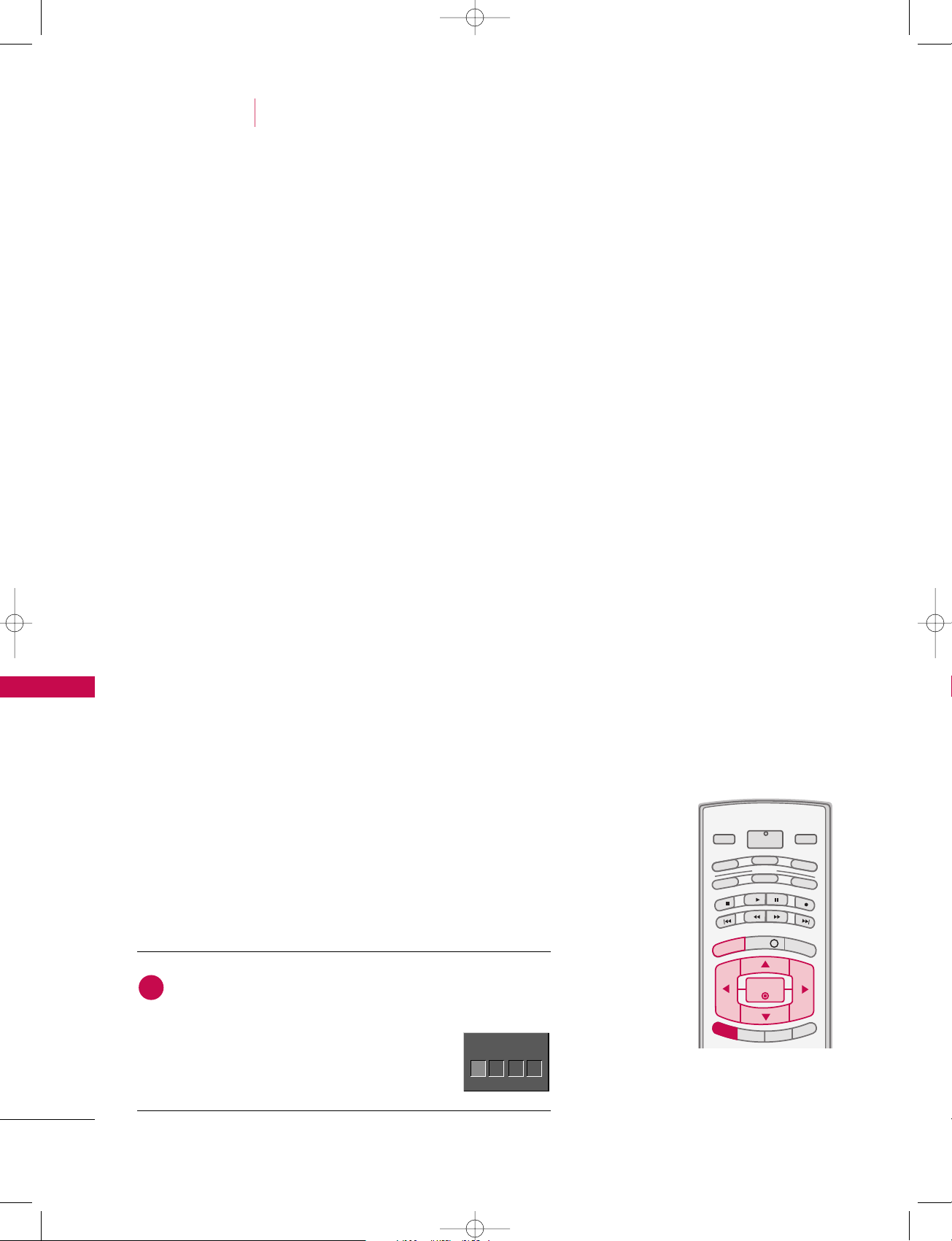

SETTING UP YOUR PASSWORD

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

Press the MM EENNUU button and then use the

button

to select the LLOO CC KK menu. Then, press the

button.

■

Enter the password as requested.

■

The TV is set up with the initial

password “0-0-0-0”.

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

Enter Password

** **

527Cen-2 80/1/2 4:29 PM Page 100

TV MENU

LOCK ADJUSTMENT

101

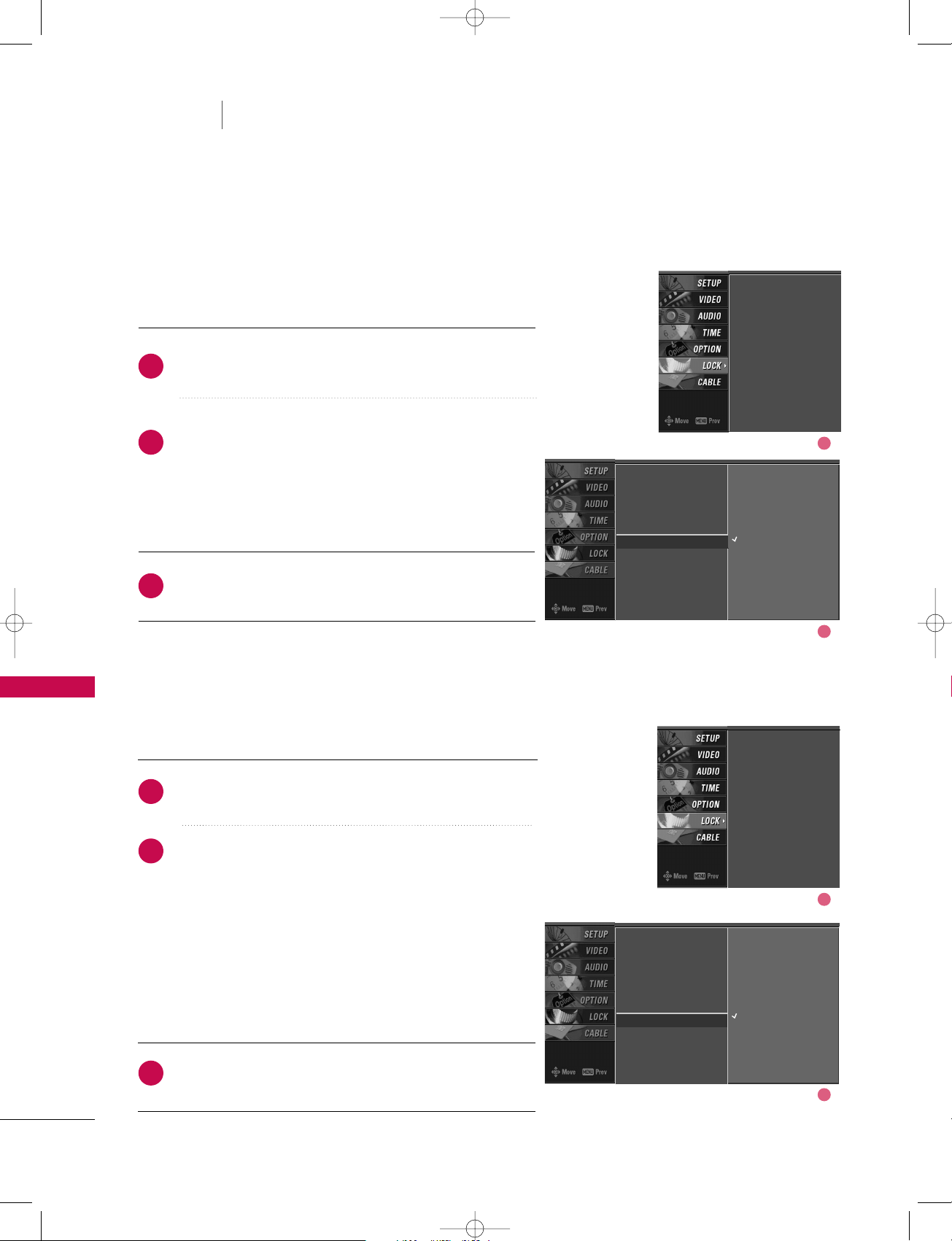

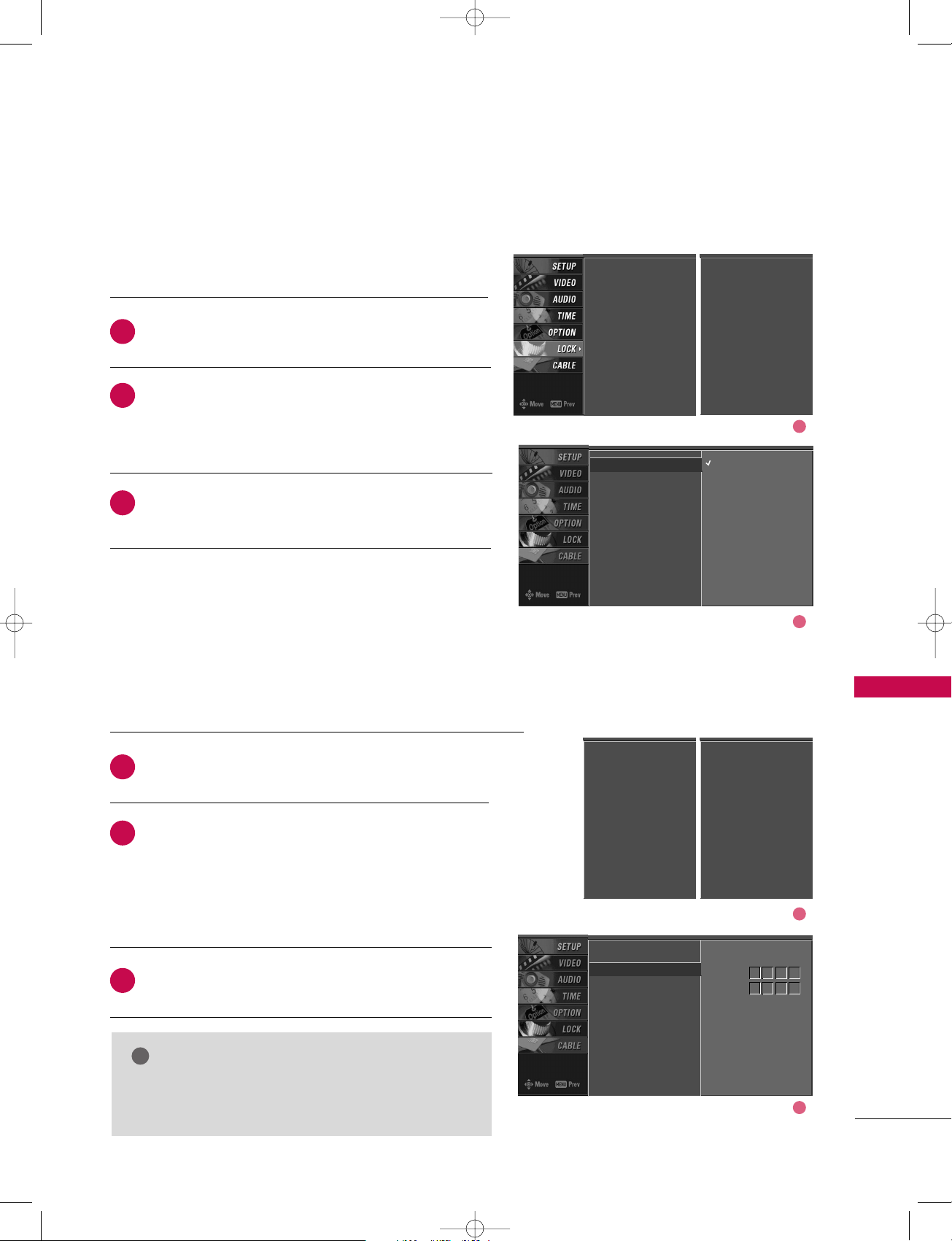

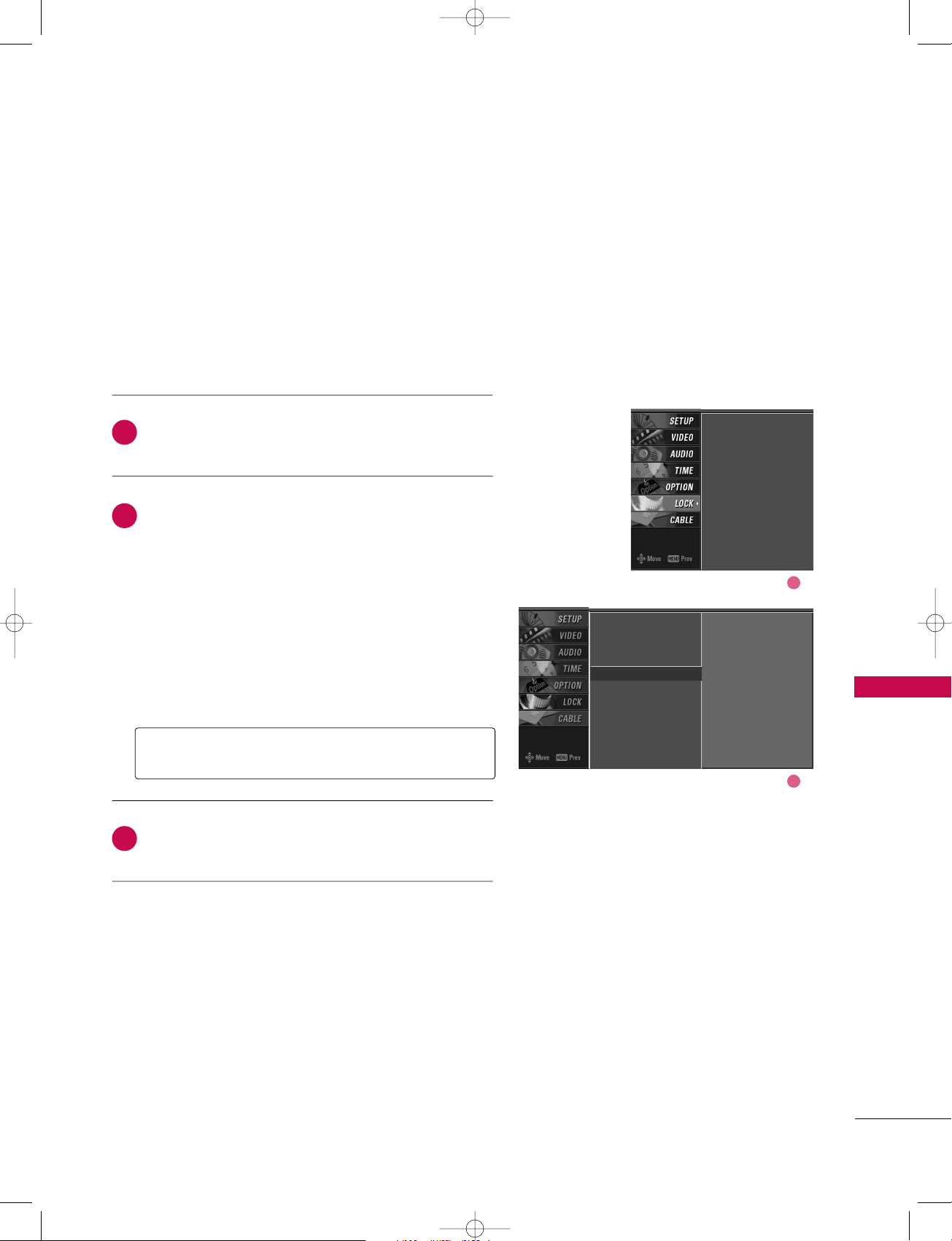

LOCK SYSTEM

SET PASSWORD

After inputting the password, use the

button

to choose SS eett ppaassssww oorrdd.

Press the

button and then choose any 4 digits for

your new password.

As soon as the 4 digits are entered, re-enter the same 4 digits on the CC oonn ffii rr mm.

Then your changed password has been memorized.

Press EE XX II TT to return to TV viewing or press MM EE NN UU to return to the previous menu.

Change the password by inputting a new password twice.

After inputting the password, use the

button

to choose LL oocc kk SSyyssttee mm.

Press the

button and then use the

button

to select OO nn or OO ff ff.

■

When you select OOnn, the Lock System is enable.

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

Enables or disables the blocking scheme you set up previously.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Off On

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

New

Confirm

**** ****

NOTE

GG If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’

on the remote control.

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA For Canada

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA For Canada

527Cen-2 80/1/2 4:29 PM Page 101

TV MENU

LOCK ADJUSTMENT

102

TV MENU

LOCK ADJUSTMENT

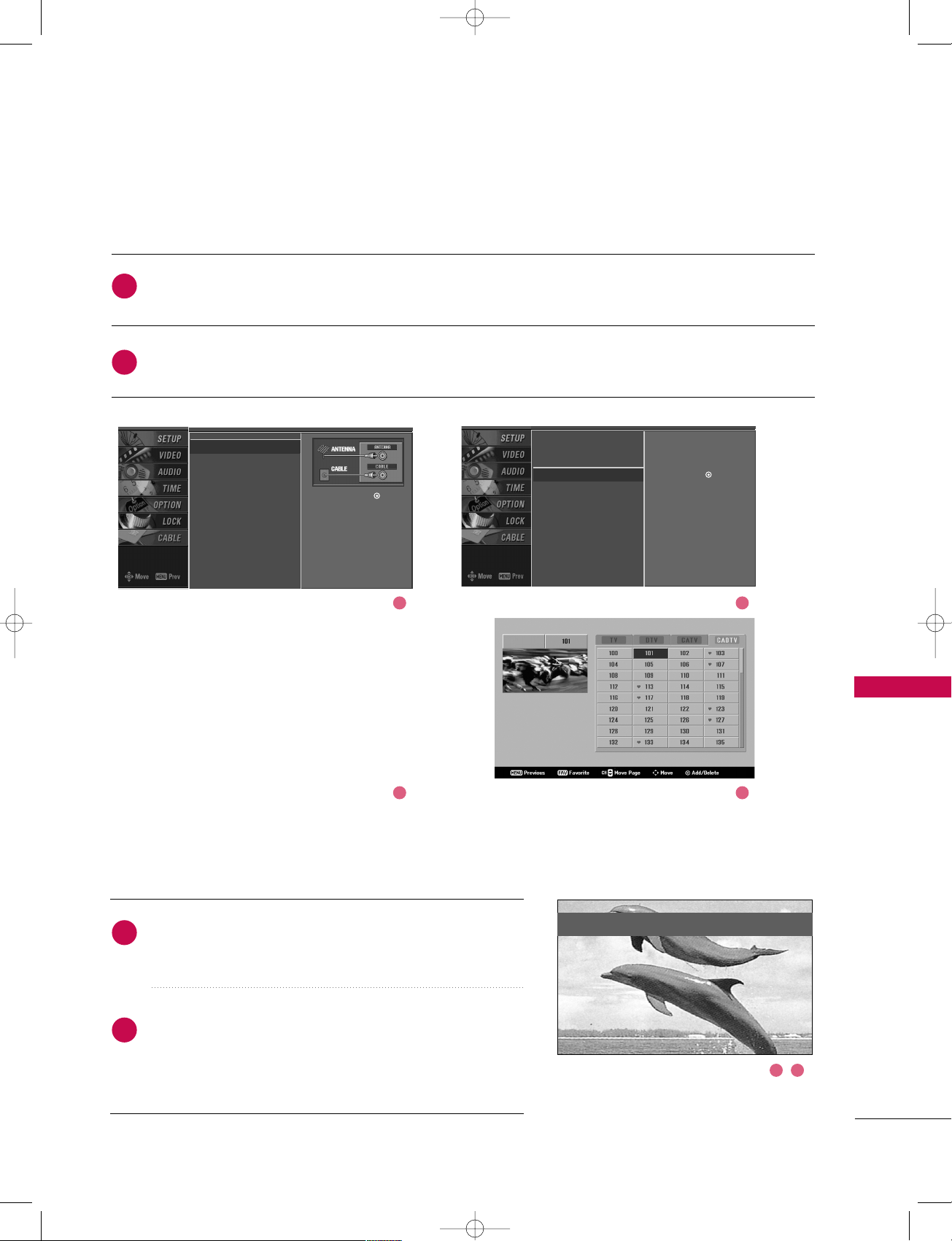

BLOCK CHANNEL

Blocks any channels that you do not want to watch or that you do not want your children to watch.

After inputting the password, use the

button

to choose BBlloo cckk CChhaannnneell.

Press the

button. You will now see a screen filled

with channel numbers and a preview picture.

Use

DD EE FF GG

button to select a channel and then

use the EENNTTEERR button to block or unblock it.

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Selection (

) leads you to the block channel screen.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA For Canada

527Cen-2 80/1/2 4:29 PM Page 102

TV MENU

LOCK ADJUSTMENT

103

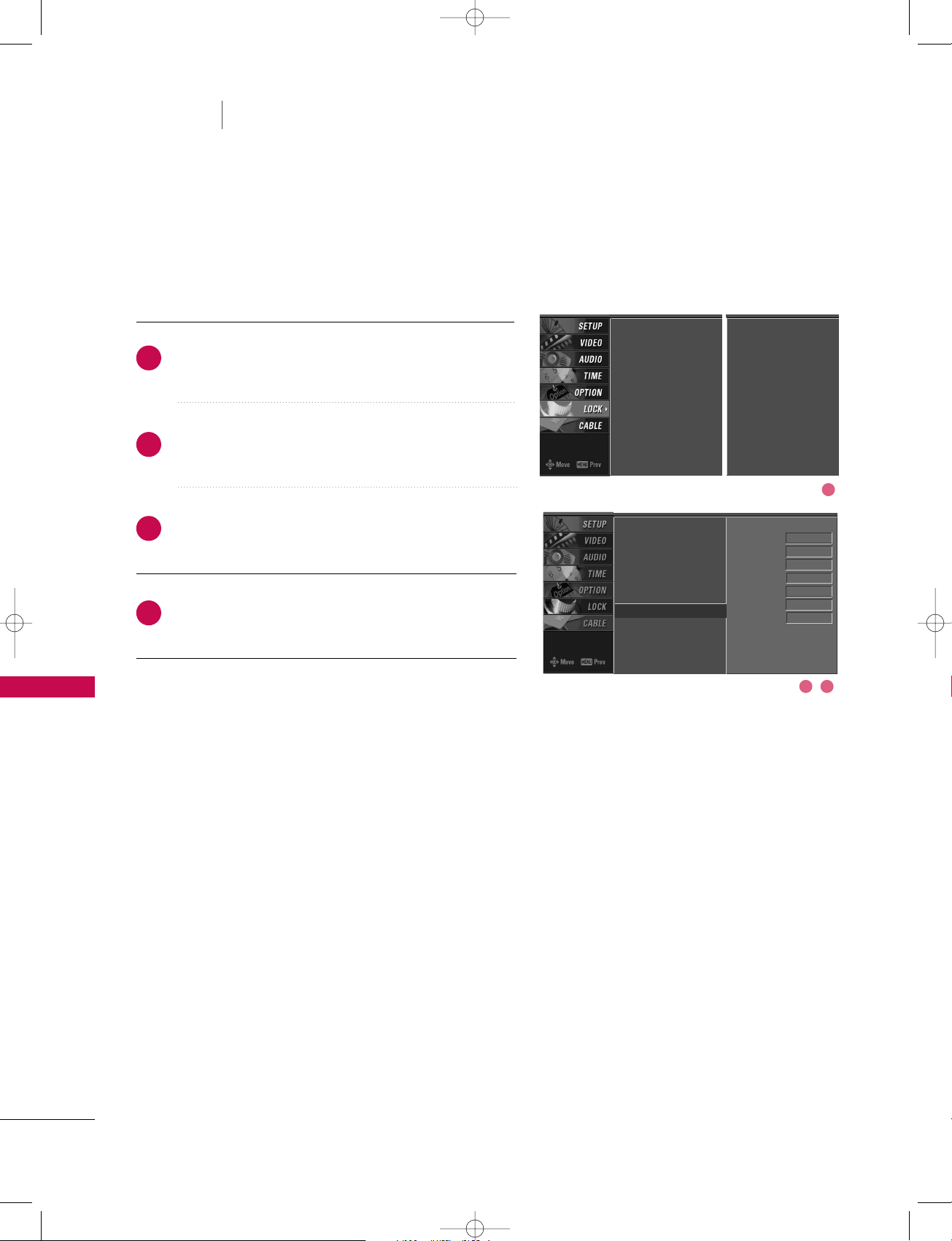

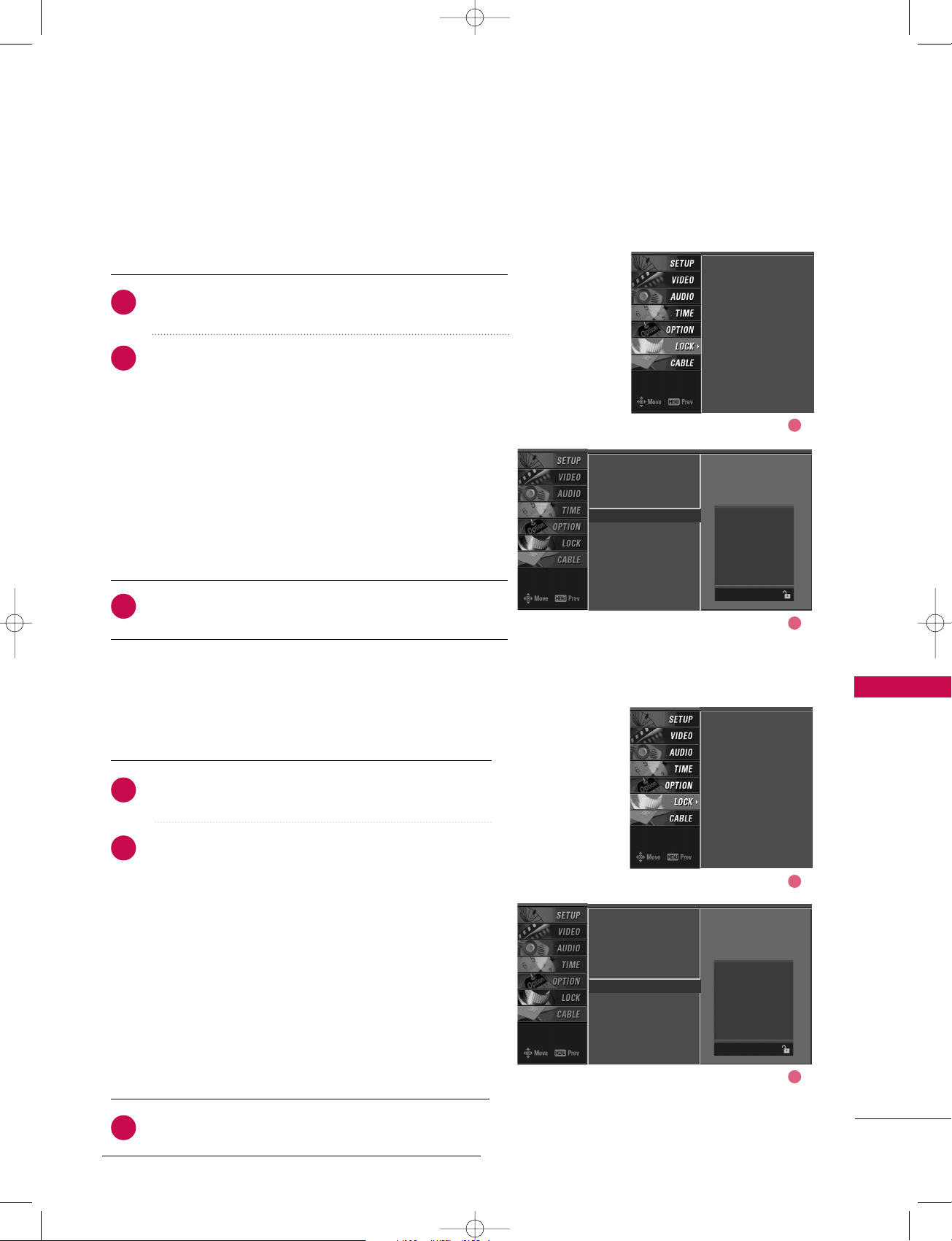

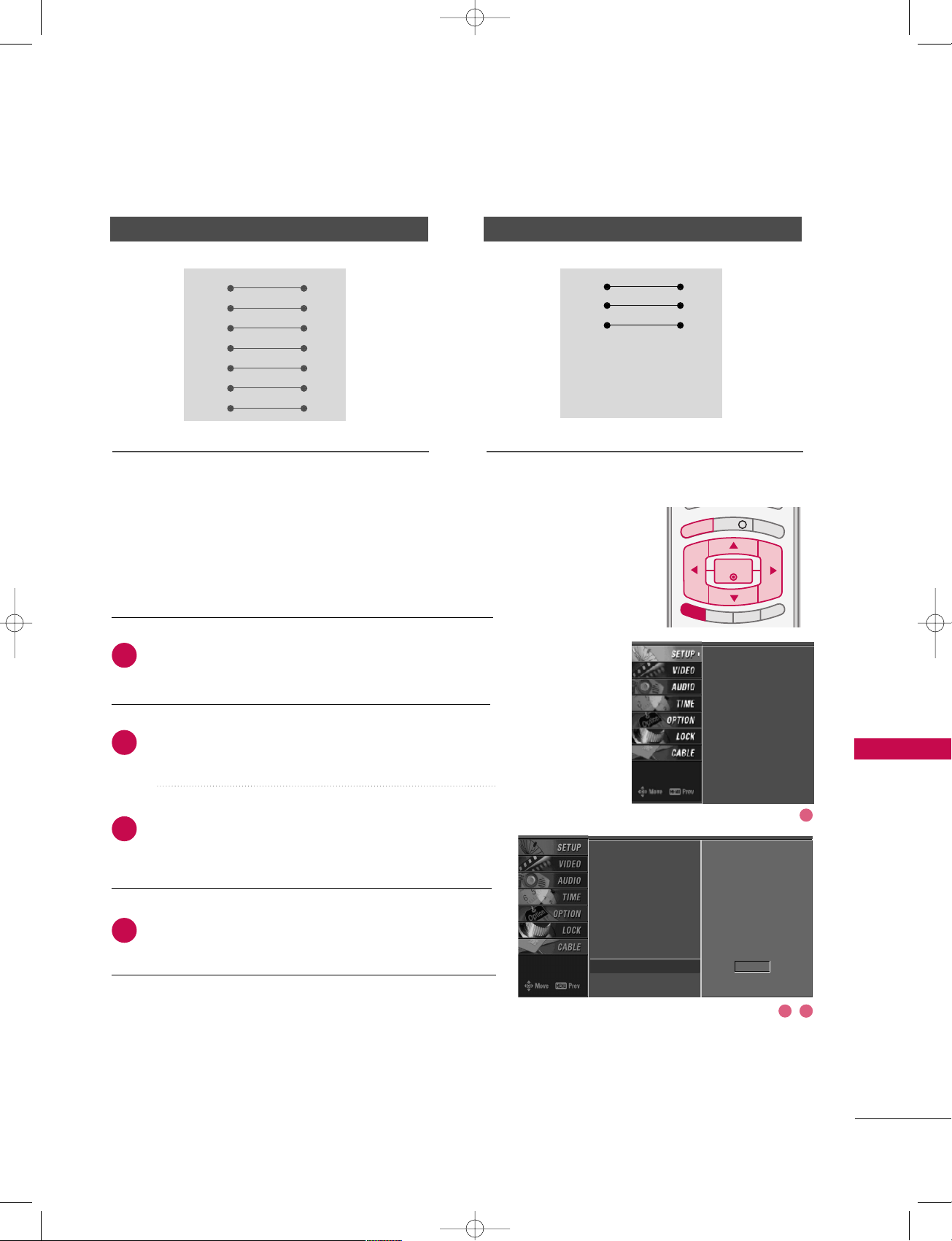

MOVIE RATING (MPAA) -

for USA only

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

After inputting the password, use the

button

to choose MMoovviiee RRaa ttiinngg.

Press the

button and then use the

button

to select GG, PPGG, PPGG--1133, RR, NNCC--1177 or XX.

■

G (General audience)

■

PG (Parental guidance suggested)

■

PG-13 (Parents strongly cautioned)

■

R (Restricted)

■

NC-17 (No one 17 and under admitted)

■

X (Adult only)

■

Blocking Off (Permits all programs)

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

GG If you set PG-13 : G and PG movies will be available,

PG-13, R, NC-17 and X will be blocked.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Blocking off : permits all programs

G PG PG-13 R NC-17

X Blocking Off

527Cen-2 80/1/2 4:29 PM Page 103

TV MENU

LOCK ADJUSTMENT

104

TV MENU

LOCK ADJUSTMENT

TV RATING CHILDREN -

for USA only

After inputting the password, use the

button to

choose TTVV RRaa ttiinngg--CChhiilldd rreenn.

Press the

button and then use the

button to

select AAggee, or FF aannttaa ssyy VViioolleenn ccee. Press the

button and then use the

button to

select block options.

■

Age(applies to TV-Y, TV-Y7)

■

Fantasy Violence(applies to TV-Y7)

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

TV RATING GENERAL -

for USA only

After inputting the password, use the

button to

choose TTVV RRaa ttiinngg--GGeenneerraall.

Press the

button and then use the

button to

select AAggee, DDiiaa lloogguuee, LLaanngguuaaggee, SS eexx or VViioo ll eennccee. Press the

button and then use the

button to

select block options.

■

Age(applies to TV-G,TV-PG,TV-14,TV-MA)

■

Dialogue-sexual dialogue (applies to TV-PG,TV-14)

■

Language-adult language (applies to TV-PG,TV-14,TV-MA)

■

Sex-sexual situations (applies to TV-PG,TV-14,TV-MA)

■

Violence (applies to TV-PG,TV-14,TV-MA)

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Age Fantasy Violence

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Age Dialogue Language Sex Violence

527Cen-2 80/1/2 4:29 PM Page 104

TV MENU

LOCK ADJUSTMENT

105

TV RATING ENGLISH -

for CANADA only

After inputting the password, use the

button to

choose TTVV RRaa ttiinngg--EEnngg lliisshh.

Press the

button and then use the

button to

select EE, CC, CC88 ++, GG, PP GG, 1144++, 1188++, or BBlloocckkii nn gg OOffff.

■

E (Exempt)

■

C (Children)

■

C8+ (Children eight years and older)

■

G (General programming, suitable for all audiences)

■

PG (Parental Guidance )

■

14+ (Viewers 14 years and older)

■

18+ (Adult programming)

■

Blocking Off (Permits all programs)

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

Selecting canadian english language rating system.

TV RATING FRENCH -

for CANADA only

After inputting the password, use the

button

to choose TTVV RRaattiinngg --FF rr ee nn cchh.

Press the

button and then use the

button to select EE, GG, 88aannss++, 1133aannss++, 1166aannss++, 1188aannss++, or BBlloo cckkiinngg ooff ff.

■

E(Exempt)

■

G(General)

■

8ans+ (General-Not convenient for little children)

■

13ans+ (Not convenient for children of 13 years and younger)

■

16ans+ (Not convenient for children of 16 years and younger)

■

18ans+ (This programs is only for adults)

■

Blocking off (Permits all programs)

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

Selecting canadian french language rating system.

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

Blocking off : permits all programs

E C C8+ G PG 14+ 18+

Blocking Off

Blocking off : permits all programs

E G 8 ans+ 13 ans+

16 ans+

18 ans+

Blocking Off

527Cen-2 80/1/2 4:29 PM Page 105

TV MENU

LOCK ADJUSTMENT

106

TV MENU

LOCK ADJUSTMENT

INPUT BLOCK

Enables you to select a source to block from the external source devices you have hooked up.

After inputting the password, use the

button

to choose IInnppuu tt BB ll oocc kk.

Press the

button and then use the

button

to select a source.

Press the

button and then use the

button

to select OO nn or OO ff ff on the each source.

Press EE XX II TT button to return to TV viewing or press

MM EENNUU button to return to the previous menu.

Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General

Input Block

AV1 On AV2 On Component1 Off Component2 On RGB

Off HDMI1/DVI On HDMI2 Off

Lock System

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Input Block

Lock System

Set Password

Block Channel

TV Rating-English

TV Rating-French

Input Block

For USA For Canada

527Cen-2 80/1/2 4:29 PM Page 106

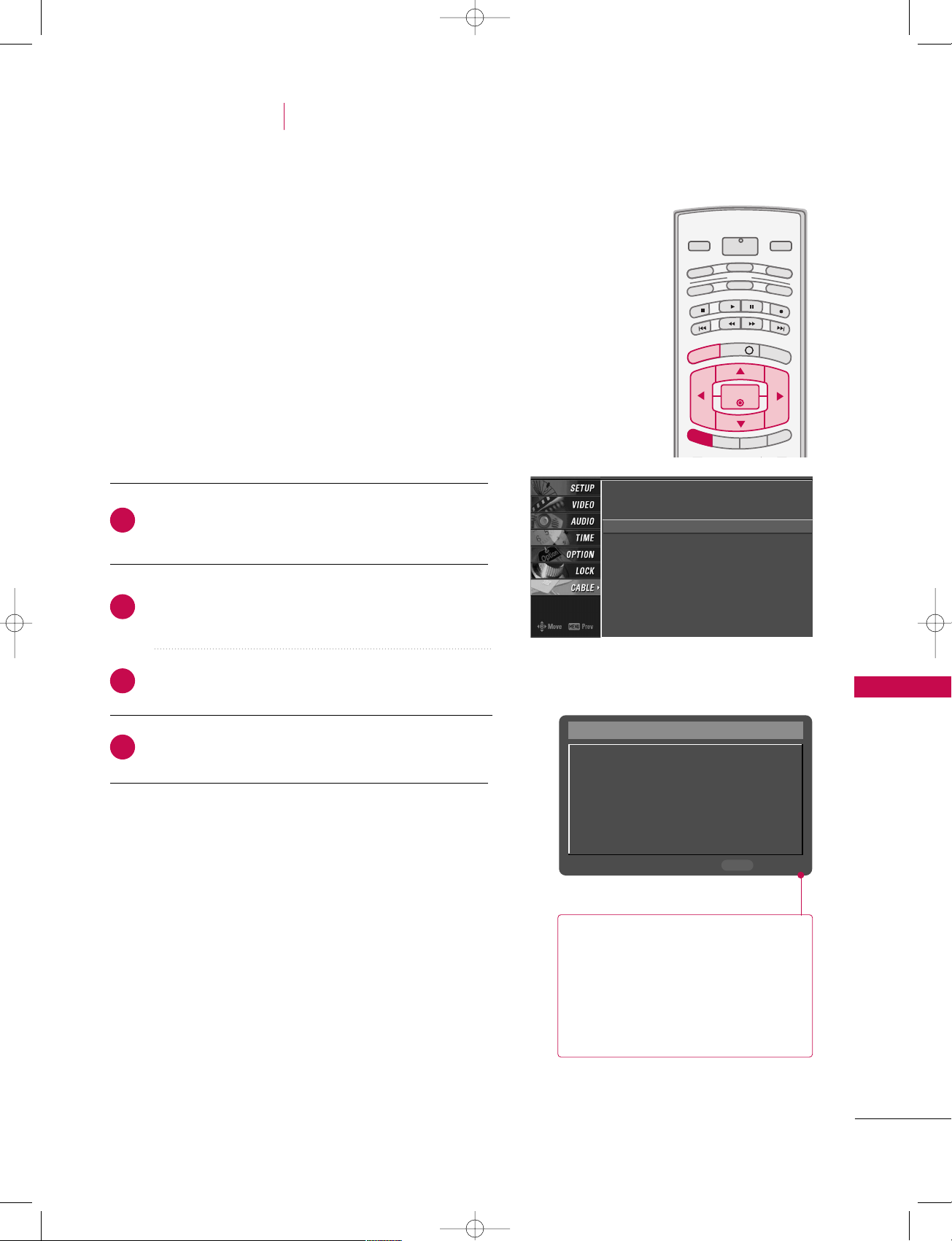

TV MENU

CableCARD

FUNCTION

107

TV MENU

In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help the TV operation.

In case of Scientific Atlanta CableCARD™

CableCARD™/ Host ID Screen As shown, the pairing number means

your TV and CableCARDTM ID. For further information regarding cable TV service, contact your local cable TV service provider(s).

Press the MM EENNUU button and then use

button

to select the CCAABBLLEE menu.

Press the

button and then use

button to

select your desired item.

Press the

button.

Press EE XX II TT button to return to TV viewing.

INFO i

V GUIDE

ENTERENTER

SAP

RATIO

POWER

DAY -

DAY+

VCR

DVD

CABLE

STB

MODE

TV INPUT

INPUT

MENUMENU

EXIT

The Cable sub menu displays when inserting the CableCARD

to the TV.

The CableCARD

type is Motorola, Scientific Atlanta (SA), or SCM etc. The OSD (On screen display) is different from your TV according to your CableCARD

type.

CableCARD(tm) Message

In order to start service for this device, please contact customer service at Ph#: 1-866-303-0422

CableCARD(tm): 0-010-405-698-001 HOST ID: 0-080-000-000-226

Exit

EXIT

SA CableCARD CP Screen

SA CableCARD Diag Screen

SA CableCARD Host ID Screen

CableCARDTMFUNCTION

CABLE MENU OPTIONS

527Cen-2 80/1/2 4:29 PM Page 107

TV MENU

CableCARD

FUNCTION

108

SCRAMBLED CHANNEL

TV MENU

CableCARDTMFUNCTION

PPllee aassee ccaa llll yy oouurr oo ppeerraa tt oorr aa nndd rreeppoo rrtt aann iinnvv aalliidd CCaabbllee CC AA RRDD

TTMM

Insert the CableCARDTM. It takes about 1 minute to exchange data between the TV and the CableCARD

The screen displays information as shown to the right.

Let your cable TV service provider know the CableCARD

ID and Host ID.

If your cable TV service provider registers the CableCARD

ID and Host ID, you can watch premium

or high value channel. If you are subscribed to them.

If you registered with the cable TV service provider, you can watch premium or high value channel without a message.

If the certificates don’t match between the TV and the CableCARD

, the OSD (On screen display)displays

as shown right.

CableCARD™ Message

In order to start service for this device, please contact customer service at Ph#: 1-866-303-0422

CableCARD(tm): 0-010-405-698-001 HOST ID: 0-080-000-000-226

Exit

EXIT

21 453

527Cen-2 80/1/2 4:29 PM Page 108

POWER

DVD MODE CABLE

INFO i

ENTERENTER

INPUT

VCR

STB

DAY+

TV GUIDE

RATIO

TV INPUT

DAY -

MENUMENU

EXIT

SAP

TV MENU

CableCARD

FUNCTION

109

CABLE CHANNEL LIST

EMERGENCY MESSAGE ALERT

If an emergency situation occurs while you are watching the TV/DTV/CATV/CADTV, you may receive a message from your cable TV service provider(s).

When receiving an emergency message, the message is displayed on the screen as shown or the channel is changed to one that maintains the emergency message. When the broadcast is complete the TV returns to the channel you were viewing.

EEmmeerrggeenn ccyy AA cc tt iioo nn NN oottii ffiiccaa ttiioo nn

HH uurrrriicc aa nnee wwiillll bbee cc oomm iinngg!!!!!!

If you select CChhaa nnnneell EEddiitt after running the EZ Scan without a CableCARDTM, the cable channel list displays, as in the picture below.

Insert the CableCARD

. After a few minutes(about 2~3 minutes), the TV receives a new cable channel

list. (Occasionally more time will be needed)

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Main Input

Sub Input

Input Label

Set ID

Selection (Gor ) leads you to the EZ scan screen.

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Main Input

Sub Input

Input Label

Set ID

Selection ( Gor ) leads you to the channel edit screen.

1 2

3 4

527Cen-2 80/1/2 4:29 PM Page 109

APPENDIX

110

EXTERNAL CONTROL DEVICE SETUP

APPENDIX

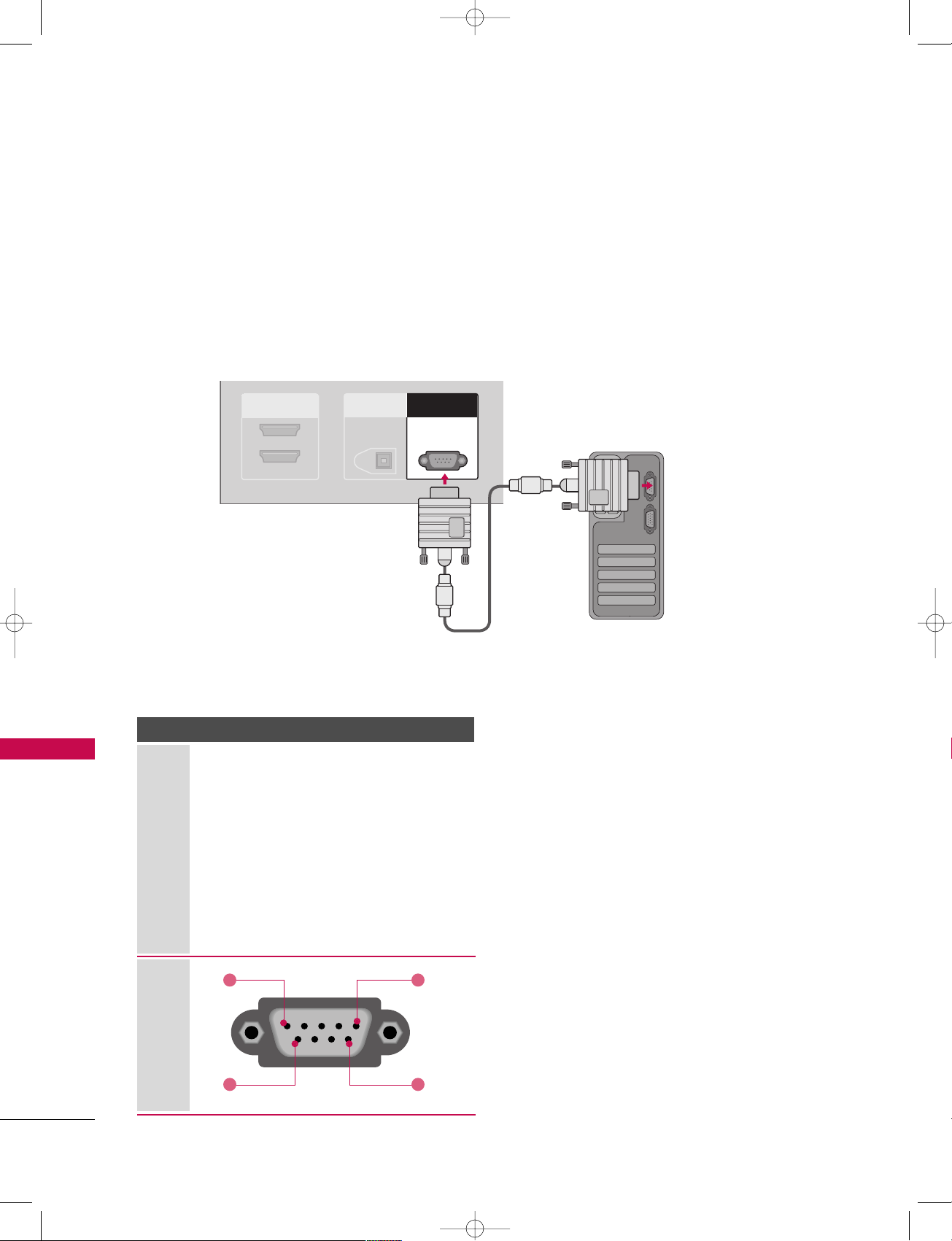

RS-232C Setup

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.

Connect the serial port of the control device to the RS-232C jack on the product back panel. Note: RS-232C connection cables are not supplied with the product.

HDMI IN

1(DVI)

DIGITAL AUDIO

OUT

OPTICAL

RS-232C INRS-232C IN

(CONTROL(CONTROL & SERVICE)SERVICE)

Type of Connector; D-Sub 9-Pin Male

No. Pin Name

1 No connection 2 RXD (Receive data

)

3 TXD (Transmit data

)

4 DTR (DTE side ready

)

5 GND 6 DSR (DCE side ready

)

7RTS

(

Ready to send

)

8 CTS (Clear to send

)

9 No Connection

527Cen-2 80/1/2 4:29 PM Page 110

APPENDIX

111

Press the MMEENNUU button and then use

button

to select the SSEETTUUPP menu.

Press the

button and then use

button to

select SSeett IIDD.

Press the

button and then use

button to adjust SSeett IIDD to choose the desired TV ID number. The adjustment range of Set ID is 1~ 99.

Press EEXXIITT button to return to TV viewing or press

MMEENNUU button to return to the previous menu.

Use this function to specify a TV ID number. Refer to ‘Real Data Mapping 1’.

GG pp..111133.

Set ID

INFO i

TV GUIDE

ENTERENTER

SAP

RATIO

DAY -

DAY+

MENUMENU

EXIT

Communication Parameters

■

Baud rate : 9600 bps (UART

)

■

Data length : 8 bits

■

Parity : None

■

Stop bit : 1 bit

■

Communication code : ASCII code

■

Use a crossed (reverse) cable.

RS-232C Configurations

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Main Input

Sub Input

Input Label

Set ID

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Main Input

Sub Input

Input Label

Set ID

PC TV

RXD 2 3 TXD TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

PC TV

RXD 2 3 TXD TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DTR DSR 6 4 DSR

RTS 7 7 RTS CTS 8 8 CTS

D-Sub 9 D-Sub 9

7-Wire Configurations (Standard RS-232C cable

)

3-Wire Configurations(Not standard

)

2312

527Cen-2 80/1/2 4:29 PM Page 111

APPENDIX

112

APPENDIX

Transmission / Receiving Protocol

Command Reference List

CC OOMMMMAA NN DD11 CC OOMMMM AA NN DD22

28. Channel Tuning

29. Channel Add/Del

30. Key

31. Input Select

32. PIP Input Select

DATA

(Hexadecimal)

CC OOMMMMAA NN DD11 CC OOMMMM AA NN DD22

DATA

(Hexadecimal)

CC OOMMMMAANN DD11 CCOOMMMM AANNDD22

DATA0

(Hexadecimal)

DATA1

(Hexadecimal)

DATA2

(Hexadecimal)

DATA3

(Hexadecimal)

DATA4

(Hexadecimal)

DATA5

(Hexadecimal)

physical major major low minor high minor low attribute

program high program low

TT rraa nnss mmiissss iioonn

[Command 1] : First command to control the set.(j, k, m or x)

[Command 2] : Second command to control the set.

[Set ID] : You can adjust the set ID to choose desired TV ID

number in Setup menu. Adjustment range is 1

~ 99.

When selecting Set ID ‘0’, every connected the TV is controlled. Set ID is indicated as decimal (1

99)on menu and as Hexa decimal (0x0~ 0x63)on transmission/receiving protocol.

[DATA] : To transmit command data.

Transmit ‘FF’ data to read status of command.

[Cr] : Carriage Return

ASCII code ‘0x0D’

[ ] : ASCII code ‘space (0x20)’

OOKK AAcckknnooww lleeddggeemmeenn tt

The TV transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

EE rr rroorr AAcc kknnooww lleeddggeemmeenn tt

The TV transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data1: Illegal Code

Data2: Not supported function

Data3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 9

03. Aspect Ratio k c (

p.113)

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 1

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13. Remote Control Lock Mode

14. PIP/POP/Twin k n 0,1,2,5

k m

m a

mb0 ~ 1

mc (

p.116)

xb(

p.116)

xy(

p.116)

[[ CC oommmmaanndd11]][[CCoomm mmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[DDaattaa]] [[ CC rr]]

[[ CC oommmmaanndd22]][[ ]][[SS eett IIDD]][[ ]][[OOKK ]] [[DDaatt aa ]][[xx]]

[[ CC oommmmaanndd22]][[ ]][[SS eett IIDD]][[ ]][[NNGG]] [[DDaatt aa ]][[xx]]

0 ~ 1

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19 .

Color Temperature

k u 0 ~ 3

20. Red adjustment k v 0 ~ C8

21. Green adjustment k w 0 ~ C8

22. Blue adjustment k $ 0 ~ C8

23. PIP Input Select k y 0 ~ 3

24. ISM Method j p (

p.115)

25. L ow Po wer j q 0 ~ 1

26. Orbiter Time jr1

Setting

27. Orbiter Pixel js1

Setting

527Cen-2 80/1/2 4:29 PM Page 112

APPENDIX

113

0011 .. PPoowweerr ((CCoommmmaanndd22::aa))

To control Power On/Off of the TV.

Transmission [k][a][ ][Set ID][ ][Data][Cr]

Data 0 : Power Off Data 1 : Power On

Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback presents status about each function.

0022.. IInnppuutt SSeelleecctt ((CCoommmmaanndd22::bb)) ((MMaaiinn PPiiccttuurree IInnppuutt))

To select input source for the TV.

Transmission [k][b][ ][Set ID][ ][Data][Cr]

Data 0: DTV Data 1: Analog Data 2: AV1 Data 3: AV2 Data 4: Component 1 Data 5: Component 2 Data 6: RGB-DTV Data 7: RGB-PC Data 8: HDMI1/DVI Data 9: HDMI2

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

0033.. AAssppeecctt RRaattiioo ((CCoommmmaanndd22::cc)) ((MMaaiinn ppiiccttuurree ffoorrmmaatt))

To adjust the screen format. You can also adjust the screen format using the RATIO

button on remote control or in the Option menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Date 1: 4:3 5: Zoom 2

2: 16:9 6: Set by program 3: Horizon 10: Cinema Zoom (1) 4: Zoom 1

1F: Cinema Zoom (16)

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

0044 .. SSccrreeeenn MMuuttee ((CCoommmmaanndd22::dd))

To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 0 : Screen mute off (Picture on) Data 1 : Screen mute on (Picture off)

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

0055.. VVoolluummee MMuuttee ((CCoommmmaanndd22::ee))

To control volume mute on/off. You can also adjust mute using the MUTE button on

remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 0 : Volume mute off (Volume on) Data 1 : Volume mute on (Volume off)

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

0066.. VVoolluummee CCoonnttrrooll ((CCoommmmaanndd22::ff))

To adjust volume. You can also adjust volume with the volume buttons on

remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping1’ as shown below.

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

0077.. CCoonnttrraasstt ((CCoommmmaanndd22::gg))

To adjust screen contrast. You can also adjust contrast in the Video menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping1’ as shown below.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

0088 .. BBrriigghhttnneessss ((CCoommmmaanndd22::hh))

To adjust screen brightness. You can also adjust brightness in the Video menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64(*transmit by Hexadecimal code)

Refer to ‘Real data mapping1’ as shown below.

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

0099.. CCoolloorr ((CCoommmmaanndd22::ii))

To adjust the screen color. You can also adjust color in the Video menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping1’ as shown below.

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

*Real data mapping 1

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99) 64 : Step 100

527Cen-2 80/1/2 4:29 PM Page 113

APPENDIX

114

APPENDIX

1100 .. TTiinn tt ((CCoommmmaa nndd22 ::jj ))

To adjust the screen tint. You can also adjust tint in the Video menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 0 ~ Green : 64

*Refer to ‘Real data mapping1’.

p.113 .

Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]

1111 .. SS hhaarrppnneessss ((CCoommmmaanndd22::kk ))

To adjust the screen sharpness. You can also adjust sharpness in the Video menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

*Refer to ‘Real data mapping1’.

p.113 .

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

1122 .. OOSSDD SSee lleecctt (( CCoo mmmm aa nndd22 ::ll ))

To select OSD (On Screen Display) on/off.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 0: OSD off Data 1: OSD on

Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]

1133 .. RRee mmoottee CC oonnttrrooll LL oo cc kk MM oo ddee (( CC oo mmmm aanndd22::mm))

To lock the remote control and the front panel controls on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 0: Lock off Data 1: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you’re not using the remote control and front panel controls on the TV, use this mode. When main power is on/off, remote control lock is released.

1144 .. PP II PP // PPOOPP // TTwwiinn PP iiccttuurree ((CCoommmmaanndd 22:: nn))

To control the PIP (Picture-in-Picture)/POP/Twin picture. You can also control the PIP/POP/Twin picture using the PIP button on the remote control.

Transmission [k][n][ ][Set ID][ ][Data][Cr]

Data 0: PIP Off 2: Twin picture

1: PIP 5: POP4(POP Scan)

Acknowledgement [n][ ][Set ID][ ][OK/NG][Data][x]

1155 .. PP II PP PP oossii tt iioo nn ((CCoommmmaanndd22::qq ))

To select sub picture position for PIP.

Transmission [k][q][ ][Set ID][ ][Data][Cr]

Data 0: Right down on screen Data 1: Left down on screen Data 2: Left up on screen Data 3: Right up on screen

Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]

11 66.. TT rr ee bbll ee (( CC oo mmmm aa nndd22 ::rr ))

To adjust treble. You can also adjust treble in the Audio menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)

*Refer to ‘Real data mapping1’.

p.113 .

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

11 77.. BB aa ssss ((CCoommmmaanndd22::ss))

To adjust bass. You can also adjust bass in the Audio menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)

*Refer to ‘Real data mapping1’.

p.113 .

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

1188 .. BBaallaann cc ee ((CCoo mmmm aa nndd22 ::tt))

To adjust balance. You can also adjust balance in the Audio menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)

*Refer to ‘Real data mapping1’.

p.113 .

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

1199 .. CCooll oorr TTee mmppeerraa tt uurree ((CCoommmmaa nndd22 ::uu))

To adjust color temperature. You can also adjust color temperature in the Video

menu.

Transmission [k][u][ ][Set ID][ ][Data][Cr]

Data 0: Medium 1: Cool 2: Warm 3: User

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

2200 .. RReedd aaddjjuussttmmeenn tt ((CCoo mmmmaanndd:: vv))

To adjust red in color temperature

Transmission [k][v][ ][Set ID][ ][Data][Cr]

Data Min:0 ~ Max:C8 *Refer to "Real data mapping 2".

p.115 .

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

527Cen-2 80/1/2 4:29 PM Page 114

APPENDIX

115

2211.. GGrreeeenn aaddjjuussttmmeenntt((CCoommmmaanndd::ww))

To adjust green in color temperature.

Transmission [k][w][ ][Set ID][ ][Data][Cr]

Data Min:0 ~ Max:C8 *Refer to "Real data mapping 2" as shown below.

Acknowledgement [w][ ][Set ID][ ][OK/NG][Data][x]

2222.. BBlluuee aaddjjuussttmmeenntt((CCoommmmaanndd::$$))

To adjust blue in color temperature.

Transmission [k][$][ ][Set ID][ ][Data][Cr]

Data Min:0 ~ Max:C8 *Refer to "Real data mapping 2" as shown below.

Acknowledgement [$][ ][Set ID][ ][OK/NG][Data][x]

*Real data mapping 2

0 : -20 5 : -19 A : -18

5F: -1 64: 0 69: + 1

C3 : +19 C8 : +20

2233..

PPIIPP IInnppuutt SSeelleecctt

((CCoommmmaanndd22::yy))

To select input source for sub picture in PIP/Twin picture mode.

Transmission [k][y][ ][Set ID][ ][Data][Cr]

Data 0: DTV 1: Analog

2: AV1 3: AV2

Acknowledgement [y][ ][Set ID][ ][OK/NG][Data][x]

2244.. IISSMM MMeetthhoodd ((CCoommmmaanndd22::pp))

To avoid having a fixed image remain on screen.

Transmission [ j ][p][ ][Set ID][ ][Data][Cr]

Data 1: Inversion 2: Orbiter

4: White Wash 8: Normal

Acknowledgement [p][ ][Set ID][ ][OK/NG][Data][x]

2255.. LLooww PPoowweerr ((CCoommmmaanndd22::qq))

To control the low power function on/off.

Transmission [ j ][q][ ][Set ID][ ][Data][Cr]

Data 0: Low power off

1: Low power on

Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]

2266.. OOrrbbiitteerr TTiimmee SSeettttiinngg ((CCoommmmaanndd22::rr))

To adjust orbiter operation time term.

Transmission [ j ][r][ ][Set ID][ ][Data][Cr]

Data Min: 1~ Max: FE (*transmit by Hexadecimal code) Unit: Second

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

2277.. OOrrbbiitteerr PPiixxeell SSeettttiinngg ((CCoommmmaanndd22::ss))

To adjust pixel number in orbiter function.

Transmission [ j ][s][ ][Set ID][ ][Data][Cr]

Data Min: 1~ Max: 3

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

2288.. CChhaannnneell TTuunniinngg ((CCoommmmaanndd:: mm aa))

To tune channel to following physical/major/minor number.

Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1]

[ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]

Data 0: Physical Channel Number(Transmit by Hexadecimal

code) NTSC air:02~45 NTSC cable: 01, 0E~7D ATSC air:01~45 ATSC cable:01~87

Data1,Data2: Major Channel Number (two part) /

Channel Number (One part) Data1: High byte Data2: Low byte Two part channel number: Major number-Minor number One part channel number: If the channel band is ATSC digital cable, it can be

used. In case of using one part channel number, minor channel does not need.

Data3, Data 4: Minor Channel Number

Data3: High byte , Data4: Low byte

527Cen-2 80/1/2 4:29 PM Page 115

APPENDIX

116

APPENDIX

Data5:

All data are transmitted by Hexadecimal code

* Two/One part Channel: 6th bit

This bit is used in a cable-ready system.

* Using physical channel: 5th bit

If the channel band is NTSC air or NTSC cable, channel tuning can be done by only physical channel. In this case, using physical channel bit must be low(0).

But if the channel band is ATSC air or ATSC cable, there are two cases that physical channel enable or disable.

If the physical channel sending is meaningful, you should set this bit low(0). If the physical channel sending is meaningless, you should set this bit high(1).

Example)

1. Analog channel: NTSC cable, channel number(35), main picture Command: ma 00 23 xx xx xx xx 01 attribute(0x01): main picture, two part(it’s not mandatory), using physical channel, NTSC cable ‘xx’ data: don’t care major and minor channel number in case analog channel tuning.

2. Digital channel: ATSC air, channel number(don’t know physical channel, major(30), minor(3)), sub picture Command: ma 00 xx 00 1E 00 03 A2 attribute(0xA2): sub picture, two part, not using physical channel, ATSC air ‘xx’ data: don’t care analog channel number in case digital channel tuning.

3. Digital channel: ATSC air, channel number(physical(20),major(20), minor(3)), sub picture Command: ma 00 14 00 14 00 03 82

attribute(0x82): sub picture, two part, using physical channel, ATSC air.

Acknowledgement[a][ ][Set ID][ ][OK][Data0][Data1] [Data2][Data3][Data4][x][a][ ][Set ID]

[ ][NG][Data0][x]

2299.. CChhaannnneell AAdddd//DDeell ((CCoommmmaanndd:: mm bb))

To add and delete the channels

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 0: Channel Delete Data 1: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

3300.. KKeeyy ((CCoommmmaanndd:: mm cc))

To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code: Refer to page 118.

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

3311.. IInnppuutt sseelleecctt((CCoommmmaanndd:: xx bb)) ((MMaaiinn PPiiccttuurree IInnppuutt))

To select input source for TV.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data 00 : DTV (Antenna) Data 01 : DTV (Cable)

Data 10 : Analog (Antenna) Data 11 : Analog (Cable)

Data 20 : AV1 Data 21 : AV2

Data 40 : Component 1 Data 41 : Component 2

Data 50 : RGB DTV Data 60 : RGB PC

Data 90 : HDMI1/DVI Data 91 : HDMI2

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

3322.. PPIIPP IInnppuutt SSeelleecctt((CCoommmmaanndd:: xx yy))

To adjust input source for sub picture in PIP mode.

Transmission [x][y][ ][Set ID][ ][Data][Cr]

Data 00 : DTV (Antenna)

Data 01 : DTV (Cable)

Data 10 : Analog (Antenna)

Data 11 : Analog (Cable)

Data 20 : AV1

Data 21 : AV2

Acknowledgement [y][ ][Set ID][ ][OK/NG][Data][x]

Step

NTSC Air

NTSC Cable

ATSC Air ATSC Cable_std ATSC Cable_hrc

ATSC Cable_irc

ATSC cable_auto

Reserved

01Use

No Use

Using Physical Channel

01Tw o

One

Two/One Part Channel

01Main

Sub

Main/Sub Picture

527Cen-2 80/1/2 4:29 PM Page 116

APPENDIX

117

IR CODES

■

Configuration of frame

1st frame

Repeat frame

■

Lead code

■

Repeat code

■

BBiitt ddeessccrriipp ttiioo nn

■

FFrraammee iinntteerrvvaall:: TTff

The waveform is transmitted as long as a key is depressed.

C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Lead code Low custom code High custom code Data code Data code

Repeat code

4.5 ms

9 ms

2.25 ms

9 ms

0.55 ms

0.56 ms

1.12 ms

0.56 ms

2.24 ms

Tf Tf

Tf=108ms @455KHz

Bit ”0”

Bit ”1”

1. How to Connect

■

Connect your wired remote control to the Remote Control port on the TV.

2. Remote Control IR Codes

■

Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

Carrier frequency

FCAR = 1/TC = fOSC/12 Duty ratio = T1/TC = 1/3

527Cen-2 80/1/2 4:29 PM Page 117

APPENDIX

118

APPENDIX

Code

Function Note

(Hexa)

Code

Function Note

(Hexa)

0F TV INPUT Remote control Button

0B INPUT Remote control Button

08 POW ER

Remote control Button (Power On/Off)

79 RATIO Remote control Button

0E TIMER Remote control Button

10-19 Number Key 0-9 Remote control Button

4C - (Dash) Remote control Button

1A FLASHBK Remote control Button

09 MUTE Remote control Button

02 VOL

Remote control Button

03 VOL

Remote control Button

00 CH

Remote control Button

01 CH

Remote control Button

1E FAV Remote control Button

AA INFO Remote control Button

39 CC Remote control Button

Remote control Button

44 ENTER Remote control Button

43 MENU Remote control Button

52 EZ SOUND Remote control Button

4D EZ PIC Remote control Button

5B EXIT Remote control Button

60 PIP Remote control Button

72 PIPCH - Remote control Button

71 PIPCH + Remote control Button

61 PIP INPUT Remote control Button

63 SWAP Remote control Button

0A SAP Remote control Button

CB ADJUST Remote control Button

D6 TV Discrete IR Code

(TV Input Selection)

5A AV1 Discrete IR Code

(AV1 Input Selection)

D0 AV2 Discrete IR Code

(AV2 Input Selection)

BF COMPONENT1 Discrete IR Code

(Component1 Input Selection)

D4 COMPONENT2 Discrete IR Code

(Component2 Input Selection)

D5 RGB-PC Discrete IR Code

(RGB-PC Input Selection)

D7 RGB-DTV Discrete IR Code

(RGB-DTV Input Selection)

C6 HDMI1/DVI Discrete IR Code

(HDMI1/DVI Input Selection)

CC HDMI2 Discrete IR Code

(HDMI2 Input Selection)

76 Ratio 4:3 Discrete IR Code

(Only 4:3 Mode)

77 Ratio 16:9 Discrete IR Code

(Only 16:9 Mode)

AF Ratio Zoom Discrete IR Code

(Only Zoom1 Mode)

70 POP Discrete IR Code

(Channel Search)

C4 POWER ON Discrete IR Code

(Only Power On)

C5 POWER OFF Discrete IR Code

(Only Power Off)

A9 TV GUIDE Remote control Button

92 APM Remote control Button

527Cen-2 80/1/2 4:29 PM Page 118

APPENDIX

119

Programming a code into a remote mode

To find out whether your remote control can operate each device without programming, turn on the device (such as a VCR) and press the corresponding mode button on the remote.

After that, press the PPOOWWEERR button. If the device is turned off and it responds properly the remote control need not be programmed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.

Press the MMEENNUU and MMUUTTEE button continuously at the same time for two seconds; the currently selected device button is illuminated.

If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from step 2.

Enter the appropriate code from the code table on the following pages. When pressing the button, the light blinks at a time. If the device turned off, the programming is successful.

Press the MMEENNUU button to store the code. After blinking twice, this code is stored.

Test the remote control functions to see if the device responds properly. If not, steps 2-5.

The provided universal remote control can be programmed to operate most remote-controllable devices. Note that the remote may not control all models of other brands.

PROGRAMMING THE REMOTE CONTROL

527Cen-2 80/1/2 4:29 PM Page 119

APPENDIX

120

APPENDIX

PROGRAMMING CODES

VCRs

Brand Codes Brand Codes Brand Codes

AIWA 034 AKAI 016 043 046 124

12 5 14 6 AMPRO 072 ANAM 031 033 103 AUDIO DYNAMICS

012 02 3 0 39 0 43 BROKSONIC 035 037 129 CANON 028 031 033 CAPEHART 108 CRAIG 003 040 135 CURTIS MATHES 031 033 041 DAEWOO 005 007 010 064

0 6 5 10 8 110 111

112 116 117 119 DAYTRON 108 DBX 012 023 039 043 DYNATECH 034 053 ELECTROHOME 059 EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

12 9 131 13 8 15 3 FISHER 003 008 009 010 FUNAI 034 GE 031 033 063 072

10 7 10 9 14 4 147 GO VIDEO 132 136 HARMAN KARDON 012 045 HITACHI 004 018 026 034

043 063 137 150 INSTANTREPLAY 031 033 JCL 031 033 JCPENNY 012 013 015 033

040 066 101 JENSEN 043 JVC 012 031 033 043

048 050 055 060

13 0 15 0 15 2 KENWO OD 014 034 039 0 43

047 048 LG (GOLDSTAR) 001 012 013 020

101 10 6 114 12 3 LLOYD 034 LXI 003 009 013 014

017 03 4 101 10 6 MAGIN 040

MAGNAVOX 031 033 034 041

067 068 012 031 03 3 0 67

MARANTZ 069

MARTA 101 MATSUI 027 030 MEI 031 033 MEMOREX 003 010 014 031

033 034 053 072

101 10 2 13 4 13 9 MGA 0 45 0 46 059 MINOLTA 013 020 MITSUBISHI 013 020 045 046

049 051 059 061

151 MTC 034 040 MULTITECH 024 034 NEC 012 023 039 043

048 NORDMENDE 043 OPTONICA 053 054 PANASONIC 066 070 074 083

13 3 14 0 14 5

PENTAX 013 020 031 033

063 PHILCO 031 034 067 PHILIPS 031 033 034 054

067 071 101 PILOT 101 PIONEER 013 021 048 PORTLAND 108 PULSAR 072 QUARTZ 011 014 QUASAR 033 066 075 145 RCA 013 020 033 034

040 041 062 063

10 7 10 9 14 0 14 4

14 5 14 7 REALISTIC 003 008 010 014

031 033 034 040

053 054 101 RICO 058 RUNCO 148 SALORA 014

SAMSUNG 032 040 102 104

10 5 10 7 10 9 112 113 115 12 0 12 2

12 5 SANSUI 022 043 048 135 SANYO 003 007 010 014

10 2 13 4 SCOTT 017 037 112 129

131 SEARS 003 008 009 010

013 014 017 0 20

031 042 073 081

101 SHARP 031 054 149 SHINTOM 024 SONY 003 009 031 052

056 057 058 076

077 078 149 SOUNDESIGN 034 STS 013 SYLVANIA 031 033 034 059

067 SYMPHONIC 034 TANDY 010 034 TATUNG 039 043 TEAC 034 039 0 43 TECHNICS 031 033 070 TEKNIKA 019 031 033 034

101 THOMAS 034 TMK 006 TOSHIBA 008 013 042 047

059 082 112 131 TOTEVISION 040 101 UNITECH 040 VECTOR RESEARCH

012 VICTOR 048 VIDEO CONCEPTS

012 03 4 0 4 6 VIDEOSONIC 040 WARDS 003 013 017 024

031 033 034 040

053 054 131 YAM AH A 012 034 039 0 43 ZENITH 034 048 056

058 072 080 101

527Cen-2 80/1/2 4:29 PM Page 120

APPENDIX

121

Cable Box

Brand Codes Brand Codes Brand Codes

HDSTB

ABC 003 004 039 042

046 052 053 AJIN 112 ANTRONIK 014 ARCHER 005 007 014 024 CABLE STAR 026 CENTURION 092 CENTURY 007 CITIZEN 007 COLOUR VOICE 065 090 COMBANO 080 081 COMTRONICS 019 030 DIAMOND 023 EAGLE 020 030 040 EASTERN 057 062 066 ELECTRICORD 032 GE 072 GEMINI 008 022 025 054 GI 052 074 GOLDEN CHANNEL

030 HAMLIN 049 050 055 HITACHI 052 055 HOSPITALITY 070 077 JERROLD 002 003 004 008

009 010 052 069

074 LG (GOLDSTAR) 001 106 101 005 M-NET 037 MACOM 033 MAGNAVOX 010 012 064 079 MEMOREX 100 MOVIE TIME 028 032 NSC 015 028 038 071

073 OAK 016 031 037 053 PANASONIC 044 047 PARAGON 100

PHILIPS 006 012 013 020

065 085 090 PIONEER 034 051 052 063

076 POST NEWS WEEK016 PRUCER 059 PTS 011 048 071 072

073 074 PULSAR 100 RCA 047 REGAL 049 050 REGENCY 057

REMBRANT 025 SAMSUNG 102 107 030 068 SCIENTIFIC ATLANTA

003 011 041 042

043 045 046 SHERITECH 022 SIGNAL 030 SIGNATURE 052 SL MARX 030 SPRUCER 047 078 STARCOM 002 004 008 009 STARGATE 008 030 TADIRAN 030 TAEKWANG 110 TAIHAN 105 TANDY 017 TEXSCAN 029 TOCOM 039 040 056 TOSH I BA 100 UNIKA 007 014 024 UNITED CABLE 004 053 UNIVERSAL 005 007 014 024

026 027 032 035 VIEWSTAR 012 015 018 086

087 088 089 ZENITH 100 114 060 093

ALPHASTAR DSR 123 AMPLICA 050 BIRDVIEW 051 126 129 CHANNEL MASTER

013 014 015 018

036 055 CHAPARRAL 008 009 012 077 CI TOH 054 CURTIS MATHES 050 145 DRAKE 005 006 007 010

011 05 2 112 116

141 DX ANTENNA 024 046 056 076 ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

12 2 ELECTRO HOME 089 EUROPLUS 114 FUJITSU 017 021 022 027

13 3 13 4 GENERAL INSTRUMENT

003 004 016 029

031 059 101 HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104 HUGHES 068 JANIEL 060 147 JERROLD 061 KATHREIN 108 LEGEND 057 LG 001 LUTRON 132 LUXOR 062 144 MACOM 010 059 063 064

065 MEMOREX 057 NEXTWAVE 028 124 125 NORSAT 069 070 PACE SKY SATELLITE

14 3 PANASONIC 060 142 PANSAT 121 PERSONAL CABLE 117 PHILIPS 071 PICO 105 PRESIDENT 019 102 PRIMESTAR 030 110 111

PROSAT 072 RCA 066 106 REALISTIC 043 074 SAMSUNG 123 SATELLITE SERVICE CO

028 035 047 057 085

SCIENTIFIC ATLANTA

032 138 SONY 103 STARCAST 041 SUPER GUIDE 020 124 125 TEECOM 023 026 075 087

088 090 107 130

13 7 TOSH I BA 002 127 UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136 VIEWSTAR 115 WINEGARD 128 146 ZENITH 081 082 083 084

091 120

527Cen-2 80/1/2 4:30 PM Page 121

APPENDIX

122

APPENDIX

Brand Codes Brand Codes Brand Codes

DVD

Audio

AIWA 014 028 070 096

125 129 139 229

230 AKAI 163 ANAM 003 014 017 023

059 106 189 216

217 2 35 23 6 BURMECTER 252 CARVER 086 CLARION 199 DAEWOO 027 053 060 084

10 2 14 8 19 8 2 21 DENON 015 075 130 143 FANTASIA 071 FINEARTS 022 FISHER 089 099 LG(GOLDSTAR) 001 021 024 029

087 107 108 110

19 0 191 19 2 210

211 212 23 9 HAITAI 034 035 188 222 HARMAN/KARDON 068 JVC 004 013 141 KEC 185 186 187 KOHEL 030 NAD 045 046 KENWOOD 038 050 067 089

17 0 171 197 2 0 6

215 2 22 INKEL 037 058 062 069

078 079 095 121

12 2 14 9 15 0 151

15 2 15 3 15 4 15 5

15 7 15 8 15 9 16 0 189 207 222 224 225 226 227 243 247

LOTTE 014 016 036 098

10 0 172 17 3 174 17 5 176 17 7 17 8 17 9 18 0 181 183 201 202 208 213 214 219 223 232

238 240 LXI 103 MAGNAVOX 111 MARANTZ 002 018 020 025

034 041 081 090

097 112 MCINTOSH 049 MCS 104 MEMOREX 107 NAD 046 ONKYO 013 040 041 047

048 056 057 132

13 3 14 0 OPTIMUS 158 PANASONIC 007 033 064 113

14 2 2 2 0 2 4 1 2 5 1 PENNEY 104 PHILIPS 026 112 143 PIONEER 039 042 043 063

065 091 093 094

115 1 2 3 12 7 2 5 0 QUASAR 113 RCA 080

RCX 092 REALISTIC 103 106 SAMSUNG 124 145 146 182

19 3 19 4 19 5 2 0 3

204 244 245 246 SANSUI 011 135 138 144 SANYO 019 083 234 SCOTT 106 186 SHARP 031 032 051 052

072 0 82 117 119

156 184 199 200

206 209 SHERWOOD 005 006 158 SONY 044 045 109 114

118 1 2 6 2 4 8 2 4 9 TAEKWANG 012 020 073 074

076 077 105 161

16 2 16 3 16 4 16 5

16 6 16 7 16 8 16 9

205 231 233 242

TEAC 010 085 106 136

18 5 18 7 23 7 TECHNICS 101 113 128 134

14 7 2 18 TOSHIBA 137 THE 061 VICTOR 088 131 WARDS 089 YAMAHA 054 055 066 092

19 9

APEX DIGITAL 022 DENON 020 014 GE 005 006 HARMAN KARDON 027 JVC 012 LG 001 010 016 025 MAGNAVOX 013 MARANTZ 024

MITSUBISHI 002 NAD 023 ONKYO 008 017 PANASONIC 003 009 PHILIPS 013 PIONEER 004 026 PROCEED 021 PROSCAN 005 006

RCA 005 006 SAMSUNG 011 015 SONY 007 THOMPSON 005 006 TOSHIBA 019 008 YAMAHA 009 018 ZENITH 010 016 025

527Cen-2 80/1/2 4:30 PM Page 122

APPENDIX

123

TROUBLESHOOTING CHECKLIST

TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..

TThhee vviiddeeoo ffuunnccttiioonn ddooeess nnoott wwoorrkk..

No picture &No sound

No or poor color

or poor picture

Poor reception on

some channels

Lines or streaks

in pictures

Horizontal/vertical bars

or picture shaking

Picture appears slowly

after switching on

The remote control

doesn’t work

Power is suddenly

turned off

■

Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.

■

Ensure that the batteries are installed with correct polarity (+ to +, - to -).

■

Ensure that the correct remote operating mode is set: TV, VCR etc.

■

Install new batteries.

■

Is the sleep timer set?

■

Check the power control settings. Power interrupted.

■

No broadcast on station tuned with Auto off activated.

■

Check whether the product is turned on.

■

Try another channel. The problem may be with the broadcast.

■

Is the power cord inserted into wall power outlet?

■

Check your antenna direction and/or location.

■

Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in.

■

This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.

■

Adjust Color in menu option.

■

Keep a sufficient distance between the product and the VCR.

■

Try another channel. The problem may be with the broadcast.

■

Are the video cables installed properly?

■

Activate any function to restore the brightness of the picture.

■

Check for local interference such as an electrical appliance or power tool.

■

Station or cable product experiencing problems, tune to another station.

■

Station signal is weak, reorient antenna to receive weaker station.

■

Check for sources of possible interference.

■

Check antenna (Change the direction of the antenna).

527Cen-2 80/1/2 4:30 PM Page 123

APPENDIX

124

APPENDIX

■

Press the VOL or VOLUME button.

■

Sound muted? Press MUTE button.

■

Try another channel. The problem may be with the broadcast.

■

Are the audio cables installed properly?

■

Adjust Balance in menu option.

■

A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.

Picture OK & No sound

Unusual sound from

inside

the product

No output from one

of the speakers

TThheerree iiss aa pprroobblleemm iinn PPCC mmooddee.. ((OOnnllyy PPCC mmooddee aapppplliieedd))

■

Adjust resolution, horizontal frequency, or vertical frequency.

■

Check the input source.

■

Work the Auto configure or adjust clock, phase, or H/V position. (Option)

■

Check the signal cable.

■

Reinstall the PC video card.

The signal is out of range

Screen color is unstable

or single color

Vertical bar or stripe on

background &

Horizontal Noise &

Incorrect position

TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..

527Cen-2 80/1/2 4:30 PM Page 124

APPENDIX

125

■

You should begin to receive listings again within 24 hours.

■

You can correct them using Change Channel Display under the Setup menu.

■

Listings usually appear within 24 hours after a successful Setup.

■

It may take up to a week to fill the Listings grid with the full 8 days of listings.

■

If you see a Listings grid with the message "No Listings" displayed you should start to receive updated program listings within 24 hours.

■

If the message "No data for this screen" is displayed:

- Check the connections between the TV, cable, antenna.

- Verify Setup information under Change System Settings.

- If this message is still displayed after multiple days, please contact the LG

Brand Customer Support.

■

Check the Schedule menu and verify that the show is listed as a reminder.

■

Check the Schedule menu and verify that the show is listed as a Reminder.

■

Highlight the show under Listings and do the following:

- Press the MMEE NN UU button on the remote.

- Use the down arrow to highlight Edit Reminder, and press the EE NNTT EERR.

- Verify the Auto-Tune option reads Yes.

■

The TV must be On at the scheduled time for Auto-Tune.

■

Check the Schedule menu and verify that the show is listed as a Reminder.

■

Highlight the show under Listings and do the following:

- Press the MMEE NN UU button on the remote.

- Use the down arrow to highlight Edit Reminder, and press the EE NNTT EERR.

- Verify the Power On TV option reads Yes.

My Guide listings disap-

peared after a power failure

I have not received any

Guide listings.

I set a show to Auto-Tune

and it did not.

I set a show with the Power

On TV option and it did not

A show I set to Remind

did not.

Some channel numbers

in the Guide are incorrect.

TThheerree iiss aa pprroobblleemm oonn tthhee TTVV GGuuiiddee OOnn SSccrreeeenn

TTMM

ffuunnccttiioonn..

527Cen-2 80/1/2 4:34 PM Page 125

APPENDIX

126

MAINTENANCE

APPENDIX

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

■

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

■

Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

CAUTION

527Cen-2 80/1/2 4:34 PM Page 126

APPENDIX

127

PRODUCT SPECIFICATIONS

■

The specifications shown above may be changed without prior notice for quality improvement.

Z42PX3D Z60PC1D

MODELS

44.4 x 29.6 x 15.0 inches

1129.0 x 752.5 x 380.0 mm

44.4 x 27.4 x 3.9 inches

1129.0 x 695.0 x 98.5 mm

64.6 pounds / 29.3 kg

56.2 pounds / 25.5 kg

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ohm

32 ~ 104°F (0 ~ 40°C)

Less than 80%

-4 ~ 140°F (-20 ~ 60°C)

Less than 85%

Dimensions

(Width x Height x Depth)

Weight

Power requirement

Television System

Program Coverage

External Antenna Impedance

Environment condition

Including stand

Excluding stand

including stand

excluding stand

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

527Cen-2 80/1/2 4:34 PM Page 127

Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date of original consumer/end user purchase. This warranty is good only to the original consumer/end user of the product and is effective only when used in the United States.

ZENITH ELECTRONICS CORPORATION

PLASMA TV Z42PX1D / Z50PX2D LIMITED WARRANTY – USA

CONCERNING PIXEL FUNCTIONALITY: Your Plasma Television contains about one million individual pixels. Plasma TVs typically contain a small number of pixels that do not function normally. Your display has been inspected and is in compliance with manufacturer’s specifications, indicating that any pixel defects do not affect the operation or use of your display.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

To obtain customer assistance, product information, or Dealer or Service locations

Call 1-877-9Zenith (1-877-993-6484) (24 hours a day,

365 days per year) and select appropriate options from the menu. Or visit our website at http://www.zenithservice.com

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING, WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or conse-

quential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from stat to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The costs of repair or replacement under these excluded circumstances shall be borne by the consumer.

WARRANTY PERIOD:

LABOR: ONE YEAR from the Date of Purchase.

PARTS: ONE YEAR from the Date of Purchase.

Effective Date of Warranty: Your warranty period

Begins on the date of sale to the original consumer/end user. KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF DELIVERY as evidence of the purchase date. You will be required to submit a legible copy of your bill of sale or proof of delivery when requesting warranty service.

Repair Parts and Replacement Units are warranted for the remaining period of the original warranty.

HOW SERVICE IS HANDLED:

In Home Service. Please Call the Zenith Interactive

Center at 1-877-9ZENITH (1-877-993-6484) to schedule a service appointment.

Your unit will be repaired or replaced with a new, substitute model or factory reconditioned unit, at Zenith’s option. If repaired, parts used in the repair may be new or remanufactured.

Visit our website at http://www.zenithservice.com

● damage caused in shipping or transit

● service required as a result of improper installation,

including incorrect or insufficient AC supply (please consult the owner’s manual for power supply requirements)

● installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or other components in a video system

● set-up or adjustment on consumer controls, or

damage caused by improper adjustments

● damage caused by other system components

● any unit that has been modified or incorporated

into any other product

● replacement of batteries on the remote control.

● damage (including cosmetic damage), failure, loss

or personal injury due to misuse, abuse, negligence, improper maintenance or storage, or to acts of nature or other causes beyond Zenith’s control. (Causes beyond Zenith’s control include but are not limited to lightning strike, power surges, power outages and water damage.)

● Image burn-in

● repair or replacement of warranted parts by other

than Zenith Authorized Service Centers.

● units purchased or serviced outside of the U.S.A.

● product where the original factory serial numbers

have been removed, defaced or changed in any way.

● product sold and labeled as “as is, where is” or sim-

ilar disclaimer.

Operating Guide 3

TO CONTACT ZENITH BY MAIL:

LG Customer Interactive Center

201 James Record Road Huntsville, Alabama 35824 http://www.zenithservice.com

BEFORE CALLING FOR SERVICE:

● Please check your operating guide – you may avoid a service call.

● Please have your product model number, serial number and the date of purchase or the date of original instal-

lation available.

● If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

Zenith against a credit card number as surety for advanced shipment. Your credit card will not be charged if you return the defective unit within 10 working days.

● If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to Zenith.

● Parts and service in accordance with the Zenith warranty are Zenith’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory warranty service, write or call the Zenith Customer Interactive Center. Service may be provided by independently owned and operated service organizations.

● To assure proper credit and avoid unnecessary charges, you must obtain a Return Authorization before return-

ing any product for Zenith Warranty Service. Contact the number below or your authorized Zenith repair facility for details.

IMPORTANT: Please fill out and mail your Product Registration Card or go to www.zenithservice.com to register your product online. This information allows Zenith to reach you promptly should we discover a safety or reliability problem that could affect you.

LG Electronics USA 42PX3DUE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
