OWNER’S MANUAL

LED LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

32LS5700 42LS5700 47LS5700 55LS5700

P/NO : MFL67468101 (1111-REV00)

32LS5750 42LS5750 47LS5750 55LS5750

42LM6200 47LM6200 55LM6200 65LM6200

42LM6250 47LM6250 55LM6250

42LM6700 47LM6700 55LM6700

47LM7600 55LM7600

www.lg.com

Page 4

ENGLISH

ENG

IMPORTANT SAFETY INSTRUCTIONS

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.

Do not use this apparatus near water.

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle,

is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

y

Clean only with a dry cloth.

y

Do not block any ventilation openings. Install

y

in accordance with the manufacturer’s instructions.

Do not install near any heat sources such

y

as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the

y

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet (Can differ by country).

Page 5

IMPORTANT SAFETY INSTRUCTIONS

Protect the power cord from being walked on

y

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified

y

by the manufacturer.

Use only with a cart, stand, tripod, bracket,

y

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning

y

storms or when unused for long periods of time.

Refer all servicing to qualified service

y

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Never touch this apparatus or antenna during

y

a thunder or lightning storm.

When mounting a TV on the wall, make sure

y

not to install the TV by hanging the power and signal cables on the back of the TV.

Do not allow an impact shock or any objects

y

to fall into the product, and do not drop anything onto the screen.

CAUTION concerning the Power Cord

y

(Can differ by country): It is recommended that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

Warning

y

electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

- To reduce the risk of fire or

ENGLISH

ENG

Page 6

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

ENG

Do not expose to dripping or splashing and

y

do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

Grounding

y

Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Power Supply

Short-circuit Breaker

DISCONNECTING DEVICE FROM THE MAIN

y

POWER

The power outlet must remain readily accessed in the event the device needs to be unplugged.

As long as this unit is connected to the AC

y

wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

Do not attempt to modify this product in any

y

way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.

ANTENNAS Outdoor antenna grounding

y

(Can differ by country): If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of

the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National Electrical Code, ANSI/NFPA 70

Antenna Lead in Wire

Ground Clamp

Electric Service

Equipment

Ground Clamp

Cleaning

y

NEC: National Electrical Code

Antenna Discharge Unit (NEC Section 810-20)

Grounding Conductor (NEC Section 810-21)

Power Service Grounding Electrode System (NEC Art 250, Part H)

When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzine.

Moving

y

Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

Ventilation

y

Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.

If you smell smoke or other odours coming

y

from the TV, unplug the power cord contact an authorized service center.

Do not press strongly upon the panel with

y

hand or sharp object such as nail, pencil or pen, or make a scratch on it.

Keep the product away from direct sunlight.

y

Page 7

IMPORTANT SAFETY INSTRUCTIONS

T s

ḫ

Dot Defect

y

The Plasma or LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

Generated Sound

y

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a highspeed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

Take care not to touch the ventilation

y

openings. When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product.

Viewing 3D Imaging (For 3D TV)

y

- The vision of young children may still be developing. 3D contents should not be viewed by children under the age of 5. All other children’s viewing of 3D content should be supervised by a responsible adult.

- Some viewers may experience symptoms of discomfort such as nausea, eye strain, fatigue and dizziness when viewing 3D content. All viewers should take regular breaks to help avoid these symptoms. If you experience any symptoms of discomfort, discontinue viewing and take a break until the symptoms go away. If symptoms continue, consult a doctor.

- Following the guideline below may lessen the likelihood of experiencing such discomfort:

· Viewing angle: watch 3D contents at the eye level of the center of the TV screen.

· Viewing distance: watch 3D contents from the minimum distance of 2 times the diagonal size of the TV screen.

If the TV feels cold to the touch, there may

y

be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

DISPOSAL (Hg lamp only used in LCD TVs)

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority.

Preventing “Image burn” or “Burn-in” on your TV screen

If a fixed image displays on the TV screen for

y

a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the warranty. If the aspect ratio of the TV is set to 4:3 for a

y

long period of time, image burn may occur on the letterboxed area of the screen. Avoid displaying a fixed image on the TV screen

y

for a long period of time (2 or more hours for LCD, 1 or more hours for the Plasma TV) to prevent image burn.

For USA and Canada

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

ENGLISH

ENG

Page 8

TABLE OF CONTENTS

ENGLISH

ENG

2 IMPORTANT SAFETY INSTRUCTIONS

6 TABLE OF CONTENTS

7 INSTALLATION PROCEDURE

7 ASSEMBLING AND PREPARING

7 Unpacking 9 Optional Extras 10 Parts and buttons 11 Lifting and moving the TV 12 Setting up the TV

12 - Attaching the stand 13 - Mounting on a table 14 - Mounting on a wall 15 - Tidying cables

16 MAKING CONNECTIONS

16 Connecting to an antenna or cable 17 Connecting to a HD receiver, DVD, or VCR

player 17 - HDMI Connection 18 - DVI to HDMI Connection 19 - Component Connection 20 - Composite Connection

21 Connecting to a PC 21 - HDMI Connection, DVI to HDMI Connec-

tion or RGB Connection

23 Connecting to an Audio System 23 - Digital Optical Audio Connection

24 Connecting to a USB

25 REMOTE CONTROL

25 Magic Remote Control Functions 26 - Registering Magic Remote Control

26 - How to use Magic Remote Control 26 - Precautions to Take when Using the

Magic Remote Control

27 WATCHING TV

27 Turning the TV on for the first time

27 USING THE USER GUIDE

28 ENTERTAINMENT

28 Network Connection 28 - Connecting to a wired network 30 - Connecting to a wireless network

31 TROUBLESHOOTING

31 OPEN SOURCE SOFTWARE NOTICE

32 SPECIFICATIONS

35 MAINTENANCE

35 Cleaning Your TV 35 - Screen and frame 35 - Cabinet and stand 35 - Power cord

NOTE

Image shown may differ from your TV.

y

Your TV’s OSD (On Screen Display) may

y

differ slightly from that shown in this manual. The available menus and options may differ

y

from the input source or product model that you are using. New features may be added to this TV in the

y

future.

Page 9

ASSEMBLING AND PREPARING

INSTALLATION PROCEDURE

Open the package and make sure all the accessories are included.

Attach the stand to the TV set.

Connect an external device to the TV set.

Make sure the network connection is available.

You can use the TV functions only when the network connection is made.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

NOTE

The items supplied with your product may vary depending on the model.

y

Product specifications or contents of this manual may be changed without prior notice due to

y

upgrade of product functions. For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39

y

inches) thick and 18 mm (0.7 inches) width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit

y

into your TV's USB port.

*A 10 mm (0.39 inches) *B

18 mm (0.7 inches)

CAUTION

Do not use any unapproved items to ensure the safety and product life span.

y

Any damages or injuries by using unapproved items are not covered by the warranty.

y

In case of some model, the thin film on screen is a part of TV, So don’t take it off.

y

ENGLISH

ENG

Page 10

ASSEMBLING AND PREPARING

ENGLISH

ENG

Magic Remote Control, Batteries (AA)

(See p.25)

Screws for assembly

8 EA, M4 x 20 (See p.12)

Power Cord Composite gender cable

Owner’s manual Cable holder

Screw for fixing

Except 55LM6700)

(

(See p.13)

(See p.19, 20)

(See p.15)

Ring spacers

4 EA (See p.15)

Component gender cable

(See p.19)

Cinema 3D Glasses

Except LS5700, LS5750

(

series) The number of 3D glasses may differ depending on the model or country.

Polishing cloth

(Depending on model) Gently wipe the spots on the cabinet with the polishing cloth.

Page 11

ASSEMBLING AND PREPARING

Optional Extras

Optional extras can be changed or modified for quality improvement without any notification. Contact your dealer for buying these items. These device only works with compatible LG TV.

AG-F2**

Cinema 3D Glasses The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.

Compatibility

AG-F2**

AN-WF100

AN-MR300

Cinema 3D Glasses

Wi-Fi Dongle

Magic Remote Control

AN-WF100

Wi-Fi dongle

LS5700 LS5750



AN-MR300

Magic Remote Control

LM6200 LM6250

LM6700 LM7600





ENGLISH

ENG

Page 12

ASSEMBLING AND PREPARING

Parts and buttons

Screen

ENGLISH

ENG

Speakers

SETTINGS

Touch Button Description

- + Adjusts the volume level.

SETTINGS Accesses the main menu, or saves your input and exits the menus.

INPUT Changes the input source.

Scrolls through the saved channels.

Selects the highlighted menu option or confirms an input.

Turns the power on or off.

INPUT

Remote control and intelligent

sensors

Power indicator

Touch buttons

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

You can set the power indicator light to on or off by selecting

y

OPTION

in the main menus.

Page 13

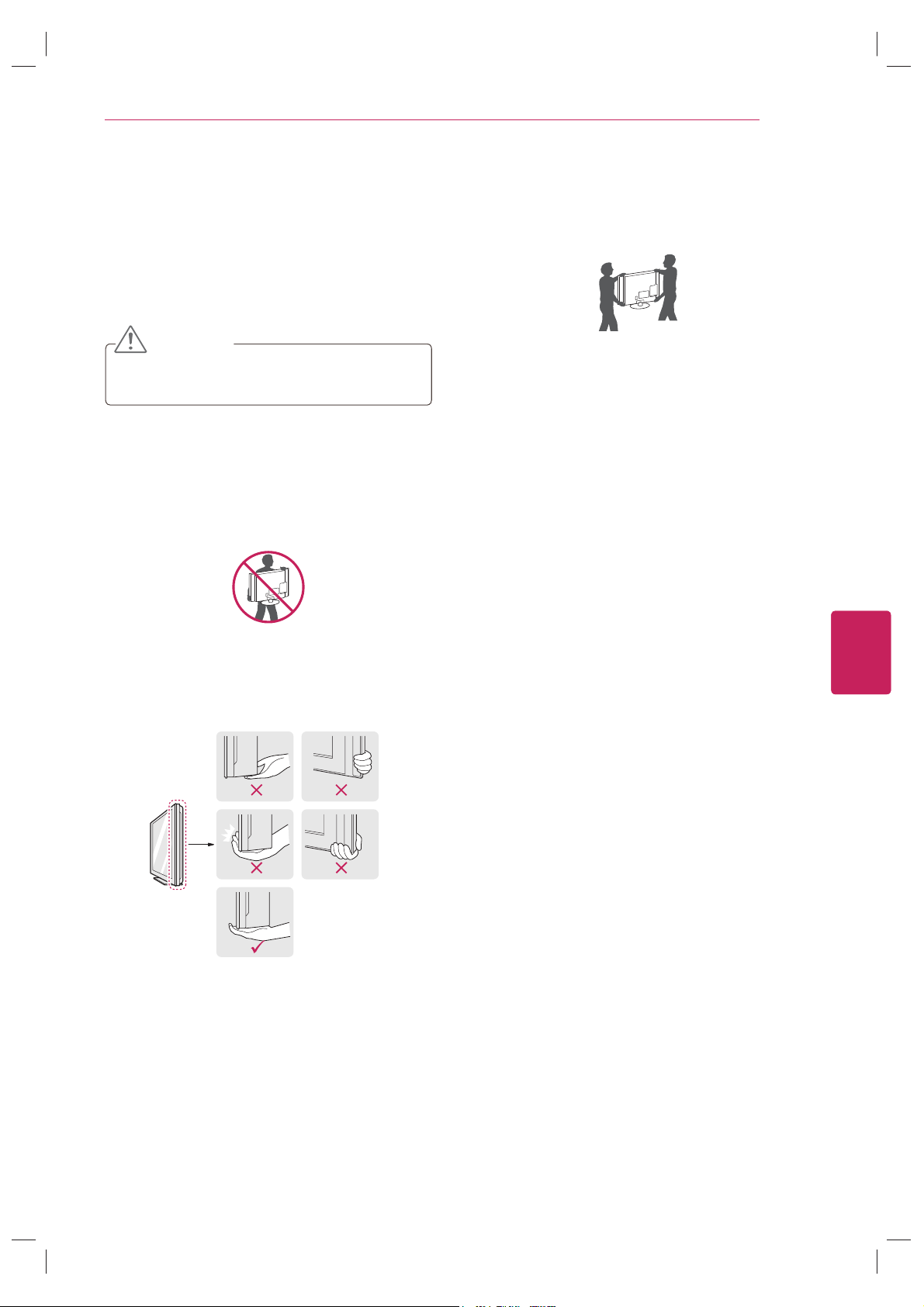

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as

y

this may result in damage to the screen.

It is recommended to move the TV in the

y

box or packing material that the TV originally came in. Before moving or lifting the TV, disconnect

y

the power cord and all cables. When holding the TV, the screen should face

y

away from you to avoid damage.

ASSEMBLING AND PREPARING

When transporting a large TV, there should

y

be at least 2 people. When transporting the TV by hand, hold the

y

TV as shown in the following illustration.

When transporting the TV, do not expose the

y

TV to jolts or excessive vibration. When transporting the TV, keep the TV

y

upright, never turn the TV on its side or tilt towards the left or right.

Hold the top and bottom of the TV frame

y

firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

ENGLISH

ENG

Page 14

ASSEMBLING AND PREPARING

Setting up the TV

Put your TV on a pedestal stand and mount the TV on a table or wall.

Attaching the stand

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

ENGLISH

ENG

4 EA

M4 x 20

Front

Top View

CAUTION

When attaching the stand to the TV

y

set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

NOTE

Remove the stand before installing the TV

y

on a wall mount by performing the stand attachment in reverse.

4 EA

M4 x 20

CAUTION

Tighten the screws firmly to prevent

y

the TV from tilting forward. Do not over tighten.

Page 15

ASSEMBLING AND PREPARING

Mounting on a table

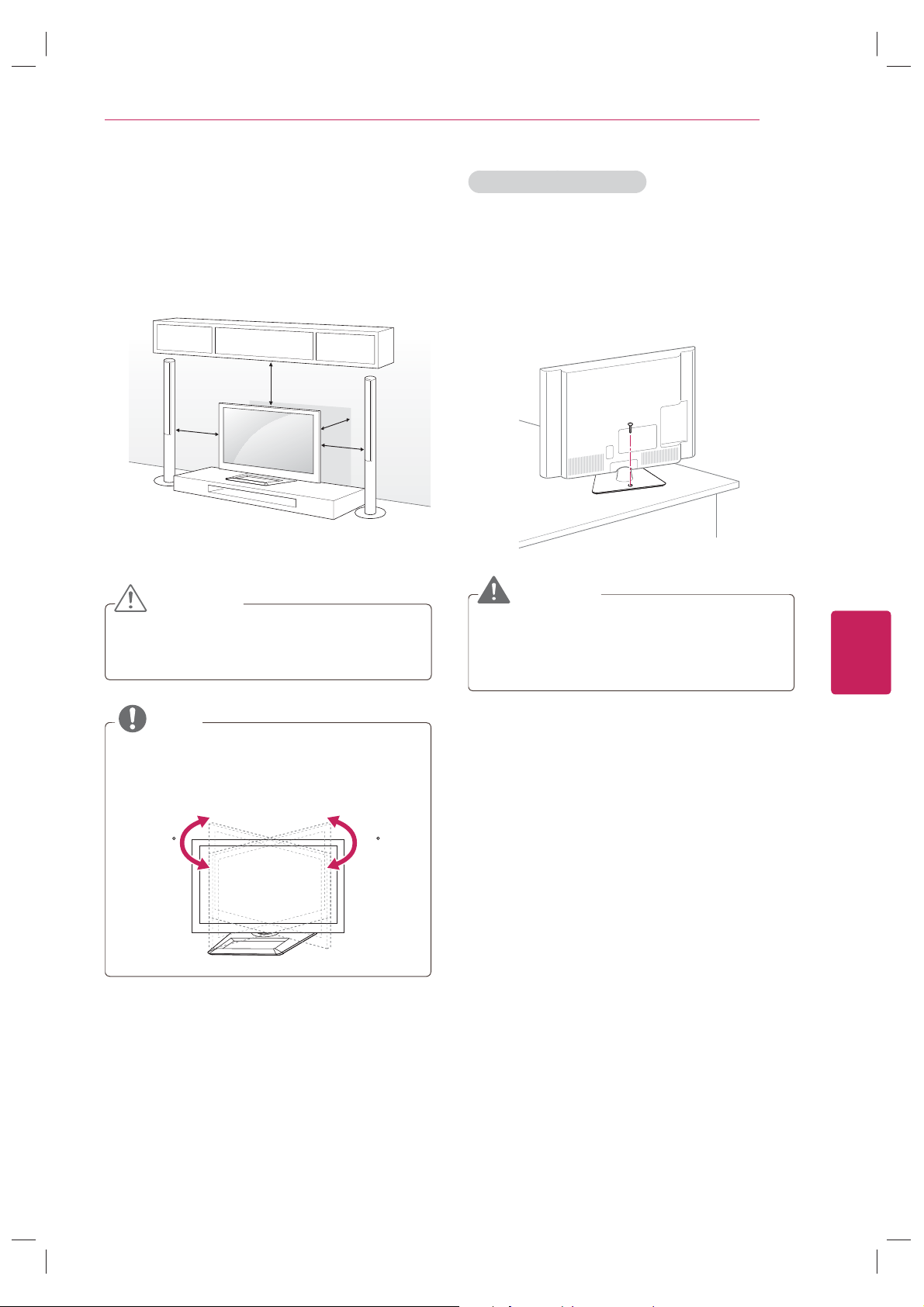

Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (4 inches) (minimum) space

from the wall for proper ventilation.

10 cm

(4 inches)

10 cm

Connect the power cord to a wall outlet.

CAUTION

Do not place the TV near or on sources

y

of heat, as this may result in fire or other damage.

10 cm

Securing the TV to a table

(Except 55LM6700) Fix the TV to a table to prevent from tilting forward, damage, and potential injury. Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand.

WARNING

To prevent TV from falling over, the TV

y

should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

ENGLISH

ENG

NOTE

Swivel 20 degrees to the left or right and

y

adjust the angle of the TV to suit your view. When adjusting the angle of the TV, watch

y

out for your fingers.

2020

Page 16

ASSEMBLING AND PREPARING

ENGLISH

ENG

Securing the TV to a wall (optional)

Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

Mount the wall brackets with the bolts to the

wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

Connect the eye-bolts and wall brackets tightly

with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or

y

hang on the TV.

NOTE

Use a platform or cabinet that is strong and

y

large enough to support the TV securely. Brackets, bolts and ropes are optional. You

y

can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

10 cm

(4 inches)

10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Model 32LS5700

VESA 200 x 200 400 x 400 Standard screw M6 M6 Number of screws 44 Wall mount bracket

(optional)

42LS5700 32LS5750 42LS5750 42LM6200 42LM6250 42LM6700

LSW200BX, LSW200BXG

47LS5700 55LS5700 47LS5750 55LS5750 47LM6200 55LM6200 65LM6200 47LM6250 55LM6250 47LM6700 55LM6700 47LM7600 55LM7600

LSW400BX, LSW400BXG

Page 17

ASSEMBLING AND PREPARING

CAUTION

Disconnect the power first, and then move

y

or install the TV. Otherwise electric shock may occur. If you install the TV on a ceiling or slanted

y

wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. Do not over tighten the screws as this may

y

cause damage to the TV and void your warranty. Use the screws and wall mounts that meet

y

the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA

y

standard screw specifications. The wall mount kit includes an installation

y

manual and necessary parts. The wall mount bracket is optional. You can

y

obtain additional accessories from your local dealer. The length of screws may differ depending

y

on the wall mount. Make sure to use the proper length. For more information, refer to the manual

y

supplied with the wall mount.

Tidying cables

Gather and bind the cables with the cable

holder.

Cable holder

CAUTION

Do not move the TV by holding the cable

y

holder, as the cable holders may break, and injuries and damage to the TV may occur.

ENGLISH

ENG

NOTE

Place the ring spacers on the set before

y

installing the wall mounting bracket so that the inclination of the backside of the set can be adjusted perpendicularly.

Ring spacers

Page 18

MAKING CONNECTIONS

Connect various external devices to the TV and switch input modes to select an external device. For more information on external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable

y

to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device. The external device connection may differ from the model.

y

Connect external devices to the TV regardless of the order of the TV port.

y

If you connect a gaming device to the TV, use the cable supplied with the gaming device.

y

Refer to the external equipment’s manual for operating instructions.

y

Connecting to an antenna or cable

ENGLISH

ENG

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and a RF cable is optional.

VHF Antenna

UHF Antenna

Antenna

ANTENNA / CABLE

Coaxial (75Ω)

Terminal

CAUTION

Make sure not to bend the copper wire of

y

the RF cable.

Copper wire

Complete all connections between devices,

y

and then connect the power cord to the power outlet to prevent damage to your TV.

NOTE

Use a signal splitter to use more than 2 TVs.

y

Visit http://lgknowledgebase.com for more

y

information about the antenna and cable connection. Search for antenna.

Page 19

MAKING CONNECTIONS

Connecting to a HD receiver, DVD, or VCR player

Connect a HD receiver, DVD, or VCR player to the TV and select an appropriate input mode.

HDMI Connection

HDMI is the best way to connect a device.

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown in the following illustration.

NOTE

Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.

y

High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

y

Choose any HDMI input port to connect. It does not matter which port you use.

(PC)

2 3 1

(ARC)

NOTE

DTV Audio Supported Codec: MPEG, Dolby

y

Digital HDMI Audio Supporeted Format: Dolby

y

Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/ 88k/96k/176k/192k) -> Not supported DTS.

HDMI

(*Not Provided)

DVD/ Blu-Ray / HD Cable Box / HD STB

ARC (Audio Return Channel)

Dq#h{whuqdo#dxglr#ghylfh#wkdw#vxssruwv#

y

VLPSOLQN#dqg#DUF#pxvw#eh#frqqhfwhg# xvlqj#KGPL#lqsxw#4#+DUF,#sruw1 Zkhq#frqqhfwhg#zlwk#d#kljk0vshhg#

y

KGPL#fdeoh/#wkh#h{whuqdo#dxglr#ghylfh# wkdw#vxssruwv#DUF#rxwsxwv#rswlfdo# VSGLI#zlwkrxw#dgglwlrqdo#rswlfdo#dxglr# fdeoh#dqg#vxssruwv#wkh#VLPSOLQN# ixqfwlrq1

ENGLISH

ENG

Page 20

MAKING CONNECTIONS

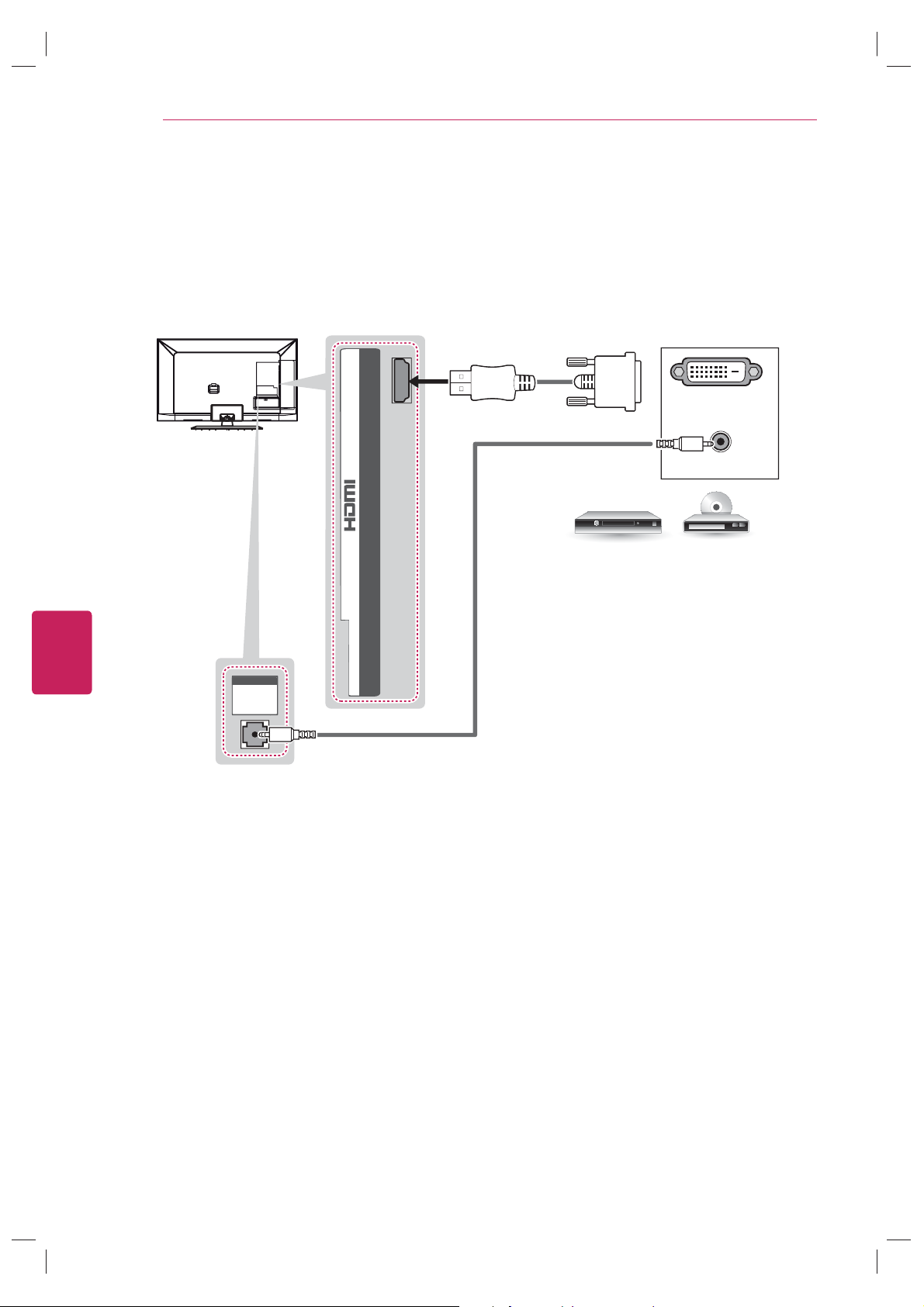

DVI to HDMI Connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.

(PC)

(*Not Provided)

DVI OUT

ENGLISH

ENG

(RGB/HDMI-PC)

AUDIO

(*Not Provided)

DVD/ Blu-Ray / HD Cable Box

AUDIO OUT

Page 21

MAKING CONNECTIONS

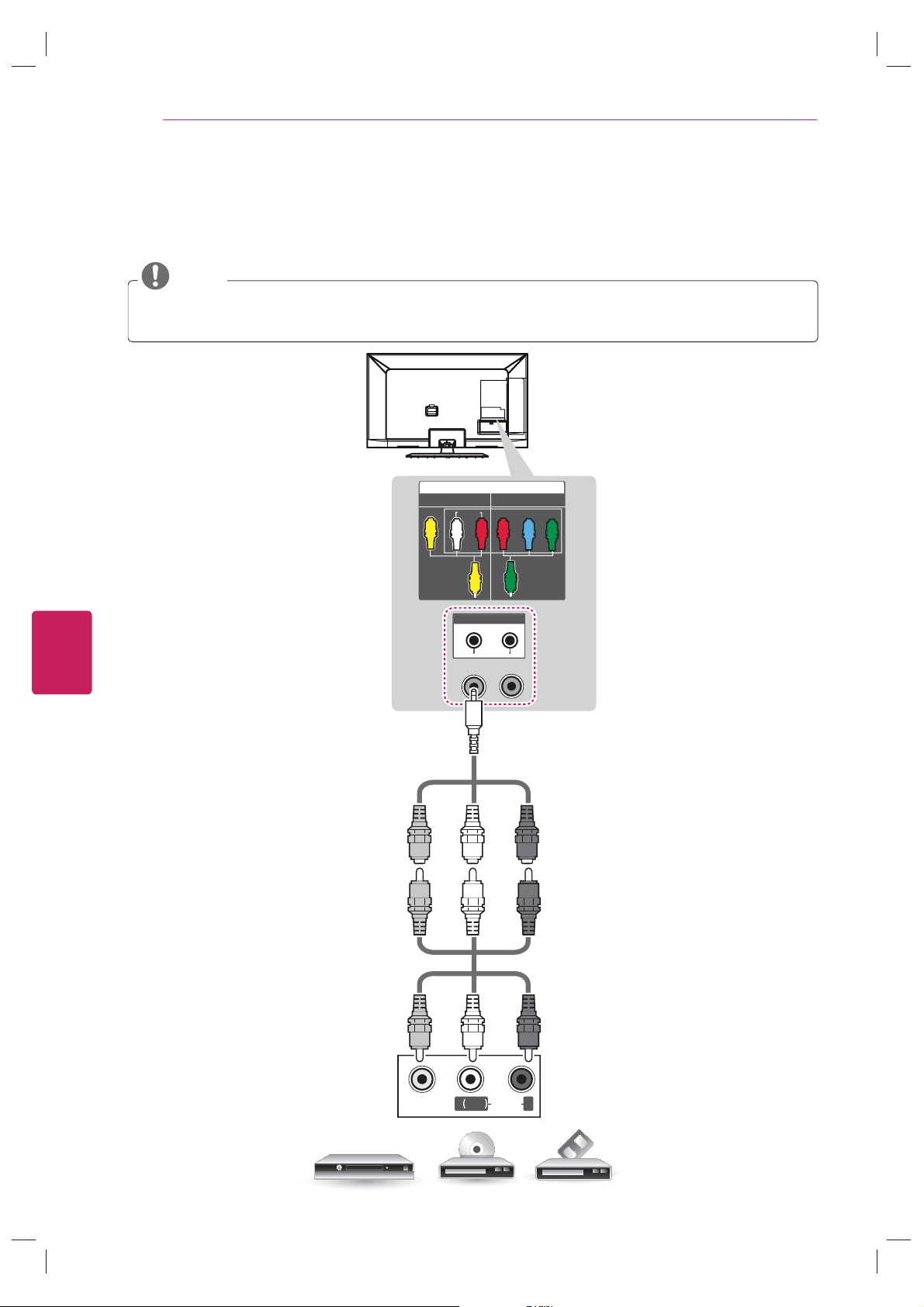

Component Connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the component cable as shown in the following illustration.

NOTE

If cables are installed incorrectly, it could case the image to display in black and white or with

y

distorted color.

Check to ensure the cable are matched with the corresponding color connection.

y

VIDEO

AUDIO

COMPONENT

PB Y

(Use the composite gender cable provided.)

YELLOW

WHITE

(*Not Provided)

WHITE

(Use the component gender cable provided.)

RED

GREEN

BLUE

RED

(*Not Provided)

RED

GREEN

BLUE

RED

ENGLISH

ENG

AUDIO

VIDEO

DVD/ Blu-Ray / HD Cable Box

Page 22

MAKING CONNECTIONS

Composite Connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration.

NOTE

If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.

y

Check to ensure the cable are matched with the corresponding color connection.

y

VIDEO

AUDIO

COMPONENT

PB Y

ENGLISH

ENG

YELLOW

(Use the composite gender cable provided.)

RED

YELLOW

WHITE

(*Not Provided)

YELLOW

WHITE

RED

VIDEO

( )

MONO

AUDIOLR

VCR / DVD/ Blu-Ray / HD Cable Box

Page 23

MAKING CONNECTIONS

Connecting to a PC

NOTE

It is recommended to use the TV with the HDMI connection for the best image quality.

y

Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

y

In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or

y

brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. The synchronization input form for Horizontal and Vertical frequencies is separate.

y

Depending on the graphics card, some resolution settings may not allow the image to be positioned

y

on the screen properly.

HDMI Connection, DVI to HDMI Connection or RGB Connection

Choose method A, B, or C to make connection.

Method A: HDMI Connection

Choose any HDMI input port to connect. It does not matter which port you use.

(PC)

2 3 1

(*Not Provided)

HDMI

ENGLISH

ENG

(ARC)

Page 24

MAKING CONNECTIONS

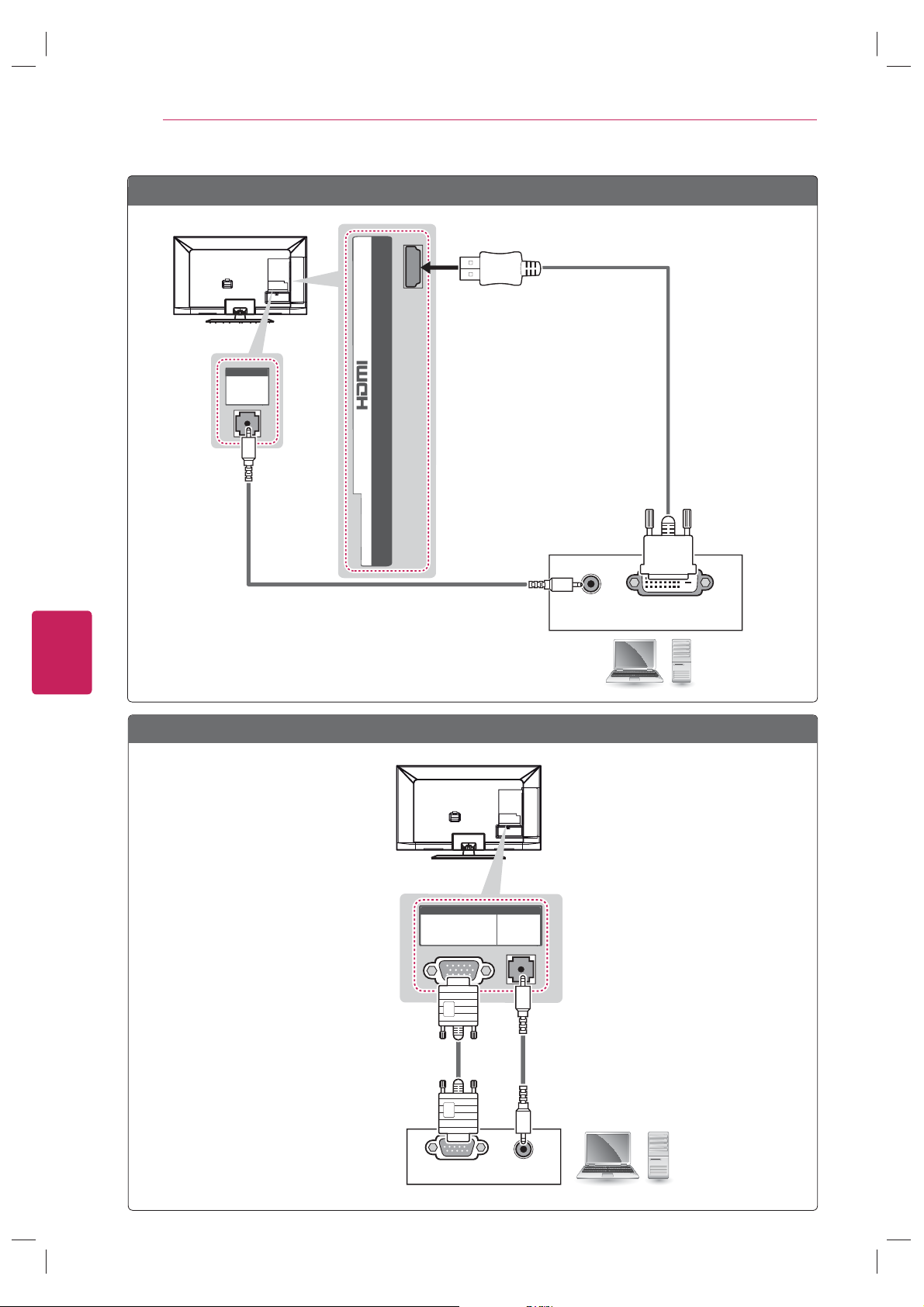

Method B: DVI to HDMI Connection

(RGB/HDMI-PC)

AUDIO

(PC)

(*Not Provided)

ENGLISH

ENG

(*Not Provided)

Method C: RGB Connection

(*Not Provided)

(PC)

RGB

(RGB/HDMI-PC)

AUDIO

(*Not Provided)

AUDIO OUT

DVI OUT

RGB OUT (PC)

AUDIO OUT

Page 25

MAKING CONNECTIONS

Connecting to an Audio System

Use an optional external audio system instead of the built-in speaker.

NOTE

If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature

y

to off.

Digital Optical Audio Connection

Transmits the digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration.

NOTE

Do not look into the optical output port. Looking at the laser beam may damage your vision.

y

Audio with ACP (Audio Copy Protection) function may block digital audio output.

y

OUT

OPTICAL

DIGITAL

AUDIO

(*Not Provided)

OPTICAL AUDIO IN

ENGLISH

ENG

Digital Audio System

Page 26

MAKING CONNECTIONS

Connecting to a USB

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files.

NOTE

To store apps in the USB storage device, make sure that it is connected to the USB IN 3 USB Apps

y

port. To use USB Hub device, make sure that it is connected to the USB IN 2 USB Hub port.

y

Choose any USB input port to connect. It does not matter which port you use.

(*Not Provided)

USB

ENGLISH

ENG

USB Hub USB Apps

USB IN

HDD IN

Page 27

REMOTE CONTROL

Magic Remote Control Functions

Please read this manual carefully and use the TV correctly. When the message “Magic remote control battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching

and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control at the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

y

Make sure to point the remote control at the remote control sensor on the TV.

REMOTE CONTROL

Turns the TV on or off.

Returns to the previous level.

Selects menus or options and confirms

If you press the navigation button while

moving the pointer on the screen,

the pointer disappears, and the Magic

remote control works as a regular

To display the pointer again, shake the

Magic remote control from side to side.

(POWER

BACK

(Wheel)

your input.

remote control.

$0



%ULHI,QIR7LWOH7HVW



᱈

,QIR

Pointer (RF & Bluetooth transmitter)

)

Blinks the light when operating.

ENGLISH

ENG

VOL

HOMEBACK

MY APPS

If you press control, the following screen appears.

Views the information of the current program and screen.

If you press control, the following screen appears. Set the channel you want.

You can press the CH button on the remote control to set the channel.

If you move the Magic remote control on the bottom of the screen.

You can selcet Quick Menu.

Home

Accesses the Home menu.

Navigation buttons

Scrolls through menus or options.

+ VOL -

Adjusts the volume level.

^ CH v

Scrolls through the saved channels.

(MUTE)

Mutes all sounds.

MY APPS

Sees MY APPS.

(User Guide)

Sees User Guide.

(Wheel)

(up/down/left/right)

on the Magic remote

Page 28

REMOTE CONTROL

ENGLISH

ENG

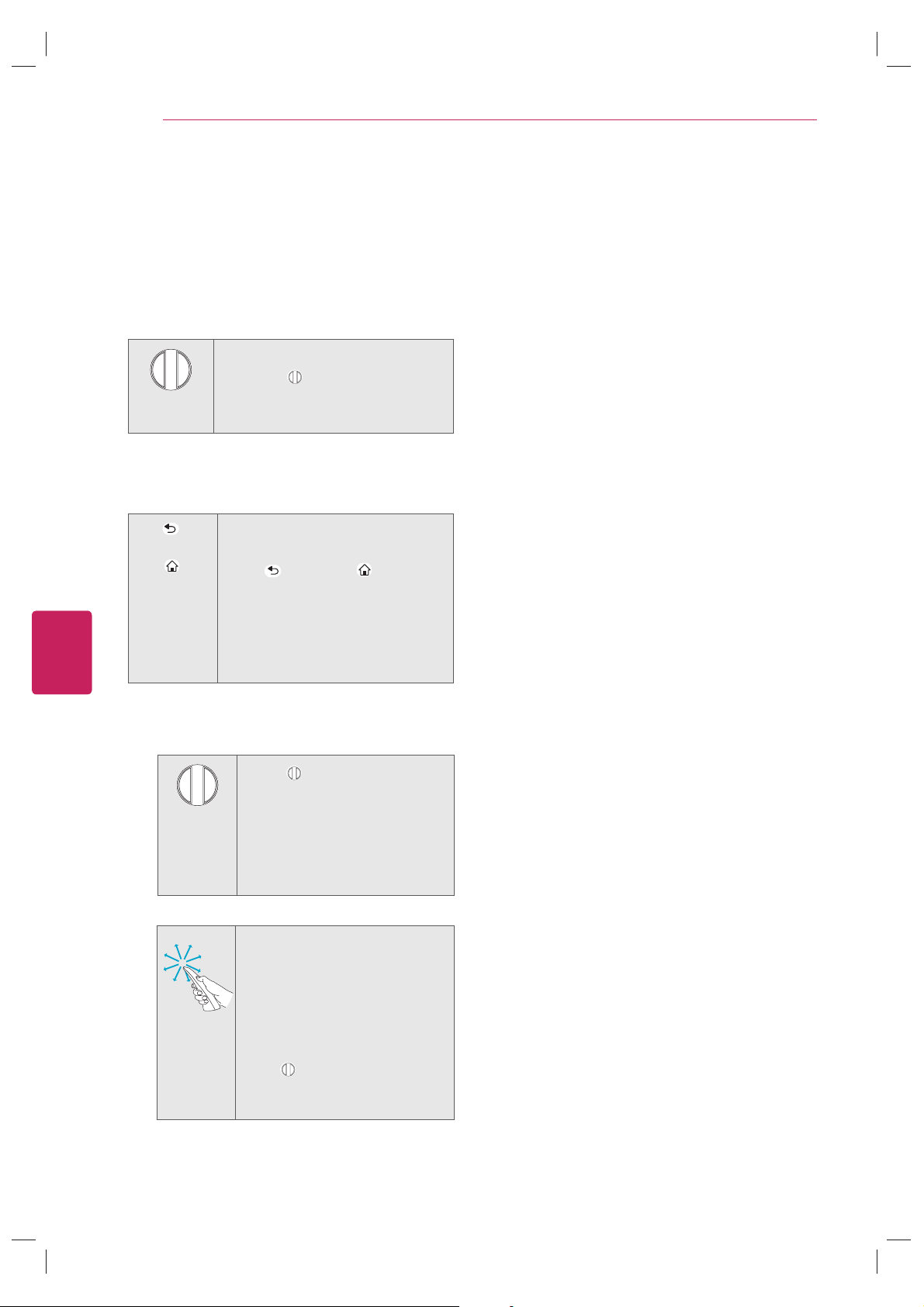

Registering Magic Remote Control

The Magic Remote Control operates by pairing with your TV.

How to register the Magic Remote Control

To register the remote control, press the

the remote control while aiming it at your TV.

How to Re-register the Magic Remote Control after Registration Failure

BACK

HOME

Reset the remote control by pressing and holding both the

BACK

for 5 seconds. (Once the reset is complete, the light on the Pointer blinks.) Then repeat the above procedure to register the remote control.

(Wheel)

and

HOME

button on

buttons

How to use Magic Remote Control

Press there is no pointer on your TV

screen. The pointer will then appear on the screen.

(Wheel)

If the pointer has not been



used for a certain period of time, it will disappear.

button if

Precautions to Take when Using the Magic Remote Control

Use the remote control within the maximum

y

communication distance (10 m, 32.8ft). Using the remote control beyond this distance, or with an object obstructing it, may cause a communication failure. A communication failure may occur due to

y

nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as this will use the same bandwidth (2.4 GHz) as the Magic Remote Control. The Magic Remote Control may be damaged

y

or may malfunction if it is dropped or receives a heavy impact. Take care not to bump into nearby furniture

y

or other people when using the Magic Remote Control. Manufacturer and installer cannot provide

y

service related to human safety as the applicable wireless device has possibility of electric wave interference. It is recommended that an Access Point (AP)

y

be located more than 1 m (3.28 ft) away from the TV. If the AP is installed closer than 1 m (3.28 ft), the magic remote control may not perform as expected due to frequency interference.

You can move the pointer by aiming the Pointer Receiver of the remote control at your TV then move it left, right, up or down.

If the pointer does not work



properly after clicking the

(Wheel)

the remote control for 10 seconds then use it again.

button, leave

Page 29

WATCHING TV

Turning the TV on for the first time

When you turn the TV on for the first time, the Initial setting screen appears. Select a language and customize the basic settings.

Connect the power cord to a power outlet.

In Standby mode, press the power button on

the remote control to turn the TV on.

The Initial setting screen appears if you turn the TV on for the first time.

NOTE

You can also access

y

accessing

Follow the on-screen instructions to customize

your TV settings according to your preferences.

Language Selection*

OPTION

Initial Setting

in the main menu.

Selects a language to display.

Using the Magic remote

control

Sets the Magic remote contol.

Enviroment Selection

Selects home environment.

Network Connection

Time Zone Setting

Sets your network to enable network-related feature on the TV.

Selects the time zone and daylight saving.

Auto Tuning

Scans and saves available channels automatically.

Auto Energy Saving

mode Setting

Selects Auto Energy Saving mode.

3D-On-Start Setting

Selects 3D-On-Start option. (For 3D TV)

Setting is complere.

Confirms the setting options.

Home*

for the

NOTE

To display images in the best quality for

y

your home environment, select

is suitable for the retail

Store*

y

environment. If you select

y

settings will switch back to the default settings of Power Indicator feature is disabled in

y

Store Demo mode.

When the basic settings are complete,

press

Store*

(Wheel)

, the any customized

Store*

in 5 minutes.

Home*

NOTE

If you do not complete the Initial setting,

y

it will appear whenever the TV turns on. Disconnect the power cord from the

y

power outlet when you do not use the TV for a long period of time.

To turn the TV off, press the power button on

the remote control.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

Move the Magic remote control on the bottom

of the screen.

Select

Move the Magic remote control, select

SETTINGS

SUPPORT

and press

Guide

NOTE

You can also access the User Guide by

y

pressing control.

and press

(Wheel)

(User Guide)

(Wheel)

in the remote

User

ENGLISH

ENG

Page 30

ENTERTAINMENT

ENGLISH

ENG

ENTERTAINMENT

Network Connection

Connecting to a wired network

Connect the TV to a local area network (LAN) via the LAN port as shown in the following illustration and set up the network settings. After making a physical connection, a small number of home networks may require the TV network settings to be adjusted. For most home networks, the TV will connect to automatically without any adjustments. For detail information, contact your internet provider or router manual.

&RQQHFWLQJZLUHGQHWZRUN

CAUTION

Do not connect a modular phone cable to the

y

LAN port. Since there are various connection methods,

y

please follow the specifications of your telecommunication carrier or internet service provider. After connecting the LAN port, use the

y

Premium or LG Apps menu.

LAN

(*Not Provided)

External modem / Wall outlet / PC

Page 31

ENTERTAINMENT

To set up the network settings: (Even if your TV has already connected automatically, running setup again will not harm anything)

Press

Press the Navigation buttons to scroll to

SETTINGS

NETWORK

Press the Navigation buttons to select

Network Connection

Press the Navigation buttons to select

Setting (Wheel)

1HWZRUN6HWWLQJ

,QVHUWWKH,3DGGUHVV

,30RGH

ᯘ,3$GGUHVV

ᯘ6XEQHW0DVN

ᯘ*DWHZD\

'160RGH

ᯘ'166HUYHU

to access the Home menu.

and press

IP Manual Setting

܁,30DQXDO6HWWLQJ۽







,30DQXDO6HWWLQJ



and press

(Wheel)

IP Auto

NOTE

If the network setting screen do not

y

appear automatically, press

NETWORK

If the network settings are not set correctly,

y

䮫

Network Connection

SETTINGS

䮫

the functions or services that require the network connection may not work properly. If the options in

y

Network Connection

are not

set properly, check your Internet connection and contact your Internet service provider. To use Internet on TV, you must have active

y

broadband Internet connection at all times. If you cannot access the Internet, check the

y

network status of your computer. If the auto IP setting of the router

y

expires, when using

IP Auto Setting

, you may experience temporary network disconnection. Refer to the owner's manual of the router for details.

ENGLISH

ENG

(QWHU

ᰳ3UHYLRXV ᯙ1H[W

- If selecting

IP Manual Setting

, press the Navigation and Number buttons. IP addresses will need to be input manually.

IP Auto Setting

: Select this if there is a DHCP server (Router) on the local area network (LAN) via wired connection, the TV will automatically be allocated an IP address. If you’re using a broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. The IP address will automatically be determined.

IP Manual Setting

: Select if there is no DHCP server on the network or you want to set the IP address manually.

When you are finished, press

Enter

Page 32

ENTERTAINMENT

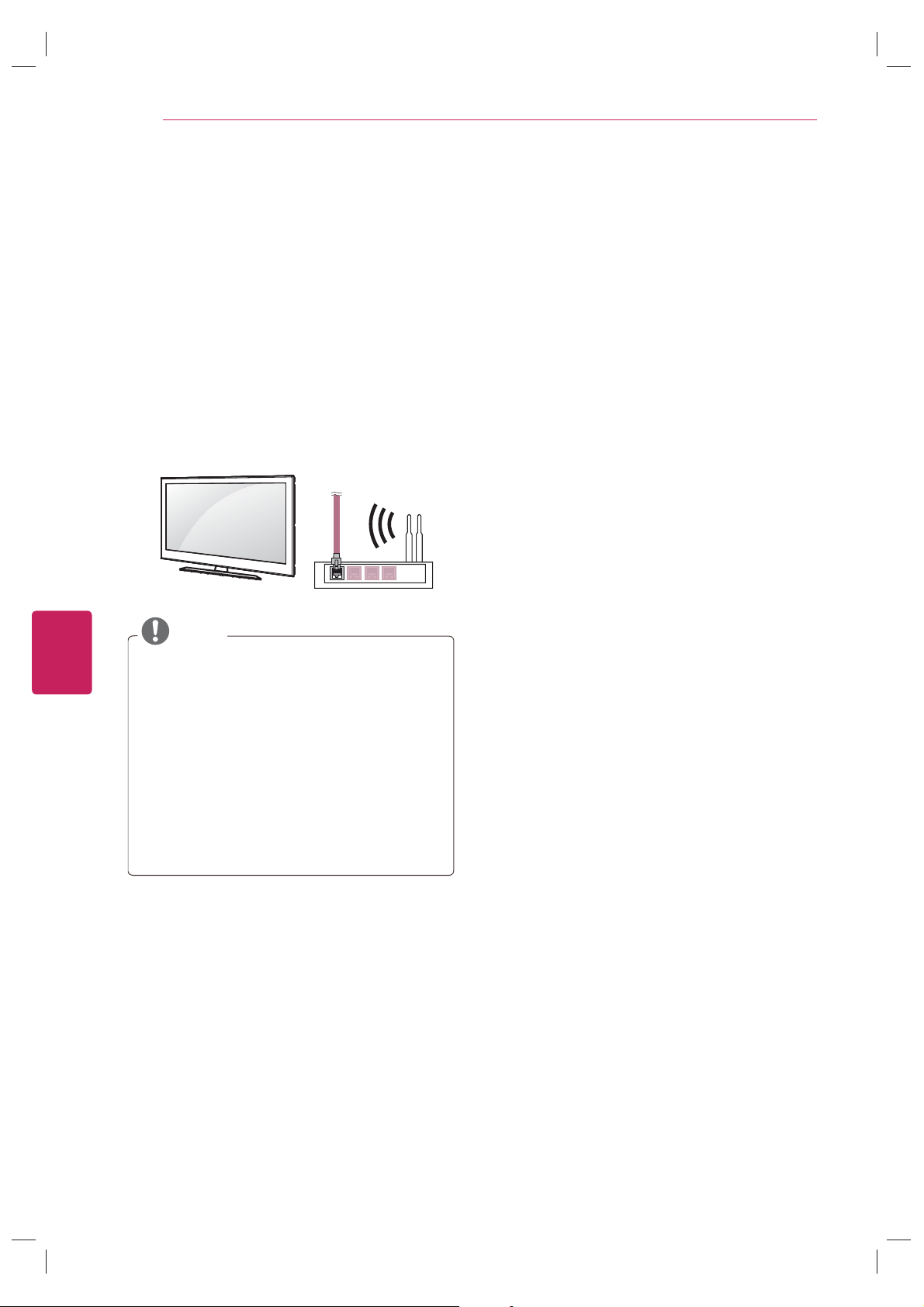

Connecting to a wireless network

The LG Wireless LAN for Broadband/DLNA Adaptor allows the TV to connect to a wireless LAN network. The network configuration and connection method may vary depending on the equipment in use and the network environment. Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings. Setting up the AP (Access Point) or the wireless router is required before connecting the TV to the network. The easiest method is the WPS button method (Third method in this section).

ENGLISH

ENG

Wireless line sharer

NOTE

For enjoying pictures, music, or video stored

y

on a PC using the router, a wired connection is recommended. When the wireless port of the router is used,

y

there may be restrictions on some functions. It is recommended that an Access Point (AP)

y

be located more than 1 m (3.28 ft) away from the TV. If the AP is installed closer than 1 m, the magic motion remote control may not perform as expected due to frequency interference.

Page 33

TROUBLESHOOTING

General

Problem Resolution

Cannot control the TV with the remote control.

No image display and no sound is produced.

The TV turns off suddenly.

Check the remote control sensor on the product and try again.

y

Check if there is any obstacle between the product and the remote control.

y

Check if the batteries are still working and properly installed (

y

Check if the product is turned on.

y

Check if the power cord is connected to a wall outlet.

y

Check if there is a problem in the wall outlet by connecting other products.

y

Check the power control settings. The power supply may be interrupted.

y

Check if the Auto sleep feature is activated in the Time settings.

y

If there is no signal while the TV is on, the TV will turn off automatically after

y

15 minutes of inactivity.

TROUBLESHOOTING

to , to ).

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

ENGLISH

ENG

Page 34

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

ENGLISH

ENG

Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz

Television System NTSC-M, ATSC, 64 & 256 QAM

Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

External Antenna Impedance

Environment condition

Dimensions (Width x Height x Depth)

Weight With stand 29.8 kg (65.6 lbs) 15.1 kg (33.2 lbs)

Current Value / Power consumption 0.7 A / 70 W 1.1 A / 110 W

Operating Temperature

Operating Humidity Less than 80 %

Storage Temperature -20 - 60 °C

Storage Humidity Less than 85 %

MODELS

With stand

Without stand

Without stand 27.5 kg (60.6 lbs) 12.7 kg (27.9 lbs)

Other Country: AC 100 - 240 V ~ 50 / 60 Hz

0 - 40 °C

32LS5700

(32LS5700-UA)

32LS5750

(32LS5750-UA)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm

(46.1 inch x 28.0 inch x 2.0 inch)

979.0 mm x 660.0 mm x 269.0 mm (38.5 inch x 25.9 inch x 10.5 inch)

979.0 mm x 593.0 mm x 35.5 mm

38.5

(

42LS5700

(42LS5700-UA)

42LS5750

(42LS5750-UA)

inch x 23.3 inch x 1.3 inch)

47LS5700

MODELS

Dimensions (Width x Height x Depth)

Weight With stand 17.8 kg (39.2 lbs) 29.8 kg (65.6 lbs)

Current Value / Power consumption 1.4 A / 140 W 1.6 A / 160 W

With stand

Without stand

Without stand 15.4 kg (33.9 lbs) 27.5 kg (60.6 lbs)

1089.0 mm x 720.0 mm x 269.0 mm

1089.0 mm x 655.0 mm x 35.5 mm

(47LS5700-UA)

47LS5750

(47LS5750-UA)

(42.8 inch x 28.3 inch x 10.5 inch)

(42.8 inch x 25.7 inch x 1.3 inch)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm

(46.1 inch x 28.0 inch x 2.0 inch)

55LS5700

(55LS5700-UA)

55LS5750

(55LS5750-UA)

Page 35

SPECIFICATIONS

42LM6200

MODELS

Dimensions (Width x Height x Depth)

Weight With stand 29.8 kg (65.6 lbs) 29.8 kg (65.6 lbs)

Current Value / Power consumption 1.1 A / 110 W 1.4 A / 140 W

Dimensions (Width x Height x Depth)

Weight With stand 42.6 kg (93.9 lbs) 29.8 kg (65.6 lbs)

Current Value / Power consumption 1.6 A / 160 W 1.7 A / 170 W

Dimensions (Width x Height x Depth)

Weight With stand 29.8 kg (65.6 lbs) 29.8 kg (65.6 lbs)

Current Value / Power consumption 1.1 A / 110 W 1.4 A / 140 W

With stand

Without stand

Without stand 27.5 kg (60.6 lbs) 27.5 kg (60.6 lbs)

MODELS

With stand

Without stand

Without stand 38.5 kg (84.8 lbs) 27.5 kg (60.6 lbs)

MODELS

With stand

Without stand

Without stand 27.5 kg (60.6 lbs) 27.5 kg (60.6 lbs)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm

1390.8 mm x 905.2 mm x 334.7

(54.7 inch x 35.6 inch x 13.1 inch)

1390.8 mm x 835.5 mm x 52.5 mm

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm

(42LM6200-UA)

42LM6250

(42LM6250-UA)

(46.1 inch x 28.0 inch x 2.0 inch)

55LM6200

(55LM6200-UA)

55LM6250

(55LM6250-UA)

(54.7 inch x 32.8 inch x 2.0 inch)

42LM6700

(42LM6700-UA)

(46.1 inch x 28.0 inch x 2.0 inch)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm (46.1 inch x 28.0 inch x 2.0 inch)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm (46.1 inch x 28.0 inch x 2.0 inch)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm (46.1 inch x 28.0 inch x 2.0 inch)

47LM6200

(47LM6200-UA)

47LM6250

(47LM6250-UA)

65LM6200

(65LM6200-UA)

47LM6700

(47LM6700-UA)

ENGLISH

ENG

MODELS

Dimensions (Width x Height x Depth)

Weight With stand 25.0 kg (55.1 lbs)

Current Value / Power consumption 1.6 A / 160 W

Dimensions (Width x Height x Depth)

Weight With stand 29.8 kg (65.6 lbs) 29.8 kg (65.6 lbs)

Current Value / Power consumption 1.4 A / 140 W 1.6 A / 160 W

With stand 1232.0 mm x 795.0 mm x 54.5 mm

Without stand 1232.0 mm x 716.0 mm x 54.5 mm

Without stand 21.3 kg (46.9 lbs)

MODELS

With stand

Without stand

Without stand 27.5 kg (60.6 lbs) 27.5 kg (60.6 lbs)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm

(47LM7600-UA)

(46.1 inch x 28.0 inch x 2.0 inch)

(48.5 inch x 31.2 inch x 2.1 inch)

(48.5 inch x 28.1 inch x 2.1 inch)

47LM7600

55LM6700

(55LM6700-UA)

55LM7600

(55LM7600-UA)

1171.9 mm x 770.9 mm x 289.8 mm (46.1 inch x 30.3 inch x 11.4 inch)

1171.9 mm x 712.2 mm x 52.5 mm (46.1 inch x 28.0 inch x 2.0 inch)

Page 36

ENGLISH

ENG

SPECIFICATIONS

Wireless LAN for Broadband/DLNA Adaptor SPEC

This device only works with compatible LG TV.

Standard

Frequency Range

Modulation

Output Power (Typical)

Data rate

Antenna Gain (Typical)

Occupied bandwidth

IEEE802.11a/b/g/n

2402 to 2483 MHz 5150 to 5250 MHz 5725 to 5850 MHz

CCK / OFDM / MIMO

802.11a: 14 dBm

802.11b: 17 dBm

802.11g: 14 dBm

802.11n: 13 dBm

802.11a/g: 54 Mbps

802.11b: 11 Mbps

802.11n: 300 Mbps

2402 to 2483 MHz: 1.17 dBi 5150 to 5250 MHz: 4.67 dBi 5725 to 5850 MHz: 3.30 dBi

802.11a/b/g: HT20

802.11n: HT20/40

Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

FCC ID of Wi-Fi module inside TV

y

FCC ID: BEJTWFMB003D

RF module (BM-LDS302) specification

For TV By using a 2.4 GHz bandwidth radio frequency(RF).

Output: 10 dBm or lower

y

Maximum Communication Distance: Line of Open Sight approx. 10 m (30 ft)

y

Bandwidth: 2.4 GHz (2.400 GHz ~ 2.4835 GHz)

y

Transfer Rate: 3 Mbps

y

FCC ID of RF module inside TV

y

FCC ID: BEJLDS302

Page 37

MAINTENANCE

Update and clean your TV regularly to keep the best performance and to extend the product lifespan.

Cleaning Your TV

CAUTION

Make sure to turn the power off and

y

disconnect the power cord and all other cables first. When the TV is left unattended and unused

y

for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen and frame

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

Cabinet and stand

To remove dust or light dirt, wipe the cabinet with a dry, clean, and soft cloth. To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a small amount of mild detergent. Then wipe immediately with a dry cloth.

CAUTION

Do not spray liquid onto the surface. If water

y

enters the TV, it may result in fire, electric shock, or malfunction. Do not use any chemicals as this may

y

deteriorate the surface.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

ENGLISH

ENG

CAUTION

Do not push, rub, or hit the surface with

y

your fingernail or a sharp object, as this may result in scratches on the screen and image distortions. Do not use any chemicals, such as waxes,

y

benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may damage the screen’s finish and cause discoloration.

Page 38

ederal Communications Commission(FCC) Statement) Federal Communications Commission(FCC) Statement

for compliance could void the user s authority to operate the equipment

interf

particular installation

which the receiver is connectedwhich the receiver is connected

ou are cautioned that changes or modifications not expressly approved by You are cautioned that changes or modifications not expressly approved by

the part responsiblethe part responsible

’

This equipment has been tested and found to comply with the limits for a This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC rules.Class B digital device, pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful These limits are designed to provide reasonable protection against harmful

erence in a residential installation.

This equipment generates, uses and can radiate radio frequency energy This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a However, there is no guarantee that interference will not occur in a

If this equipment does cause harmful interference to radio or television If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the the user is encouraged to try to correct the

interference by one or more of the following measures:interference by one or more of the following measures:

--. Reorient or relocate the receiving antenna.. Reorient or relocate the receiving antenna.

--. Increase the separation between the equipment and receiver.. Increase the separation between the equipment and receiver.

--. Connect the equipment into an outlet on a circuit different from that to . Connect the equipment into an outlet on a circuit different from that to

--. Consult the dealer or an experienced radio/TV technician for help.. Consult the dealer or an experienced radio/TV technician for help.

Page 39

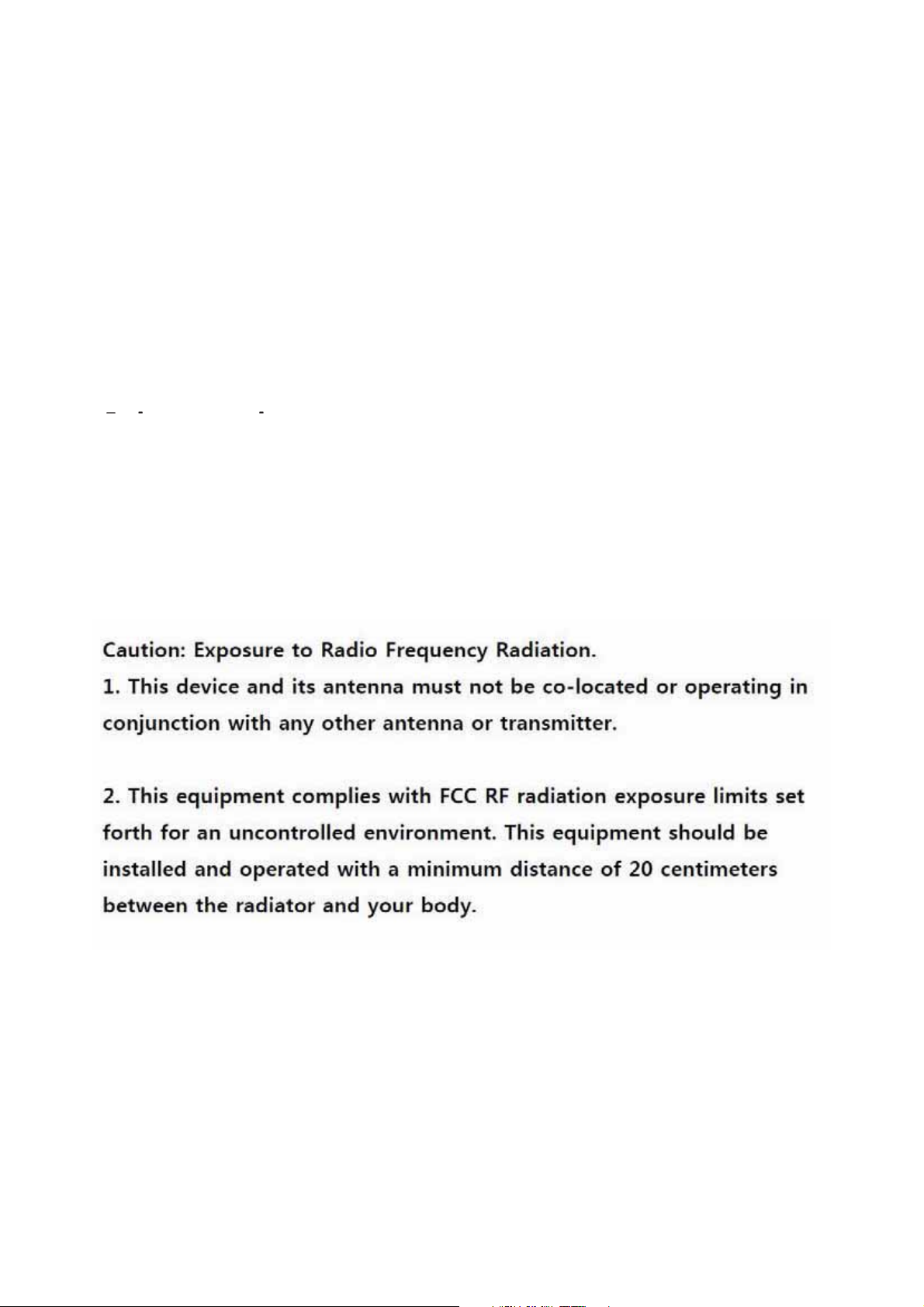

This device complies with Part 15 of the FCC Rules.This device complies with Part 15 of the FCC Rules.

Ind

lyInd

Operation is subject to the following two conditions:Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference 2) this device must accept any interference received, including interference that may cause undesired operation of the device.that may cause undesired operation of the device.

oor use on

FCC Caution: Any changes or modifications not expressly approved by the FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate party responsible for compliance could void the user's authority to operate

this equipment.this equipment.

Page 40

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-800-243-0000 1-888-865-3026 1-888-542-2623

USA, Consumer User

USA, Commercial User

CANADA

www.lg.com

The model and serial number of the TV is located on the back and/or one side of the TV. Record it below should you ever need service.

MODEL

SERIAL

(For LS5700/LM6700/LM7600 series, 42/47/55LS5750, 42/47/55LM6200 USA, Canada, Mexico)

This product qualiﬁes for ENERGY STAR in the “factory default (Home Use)” setting.

Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR.
