PARENTAL CONTROL / RATINGS

DVD OPERATION

51

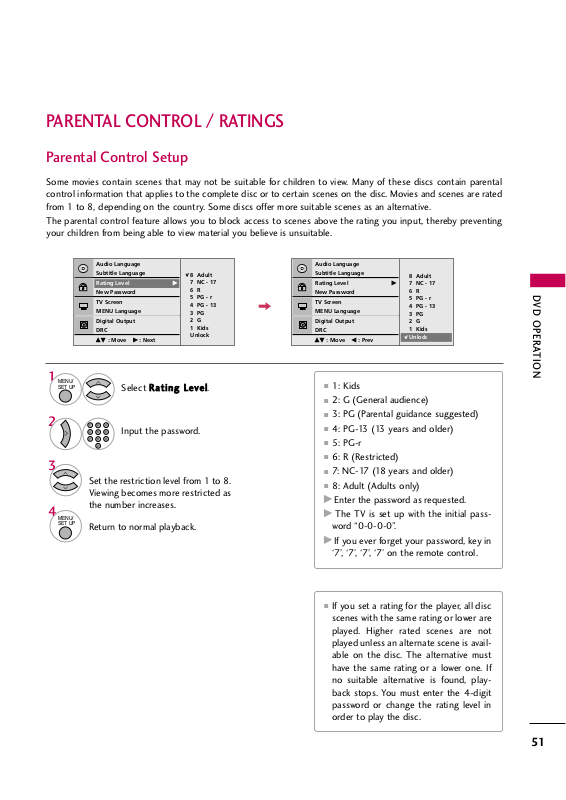

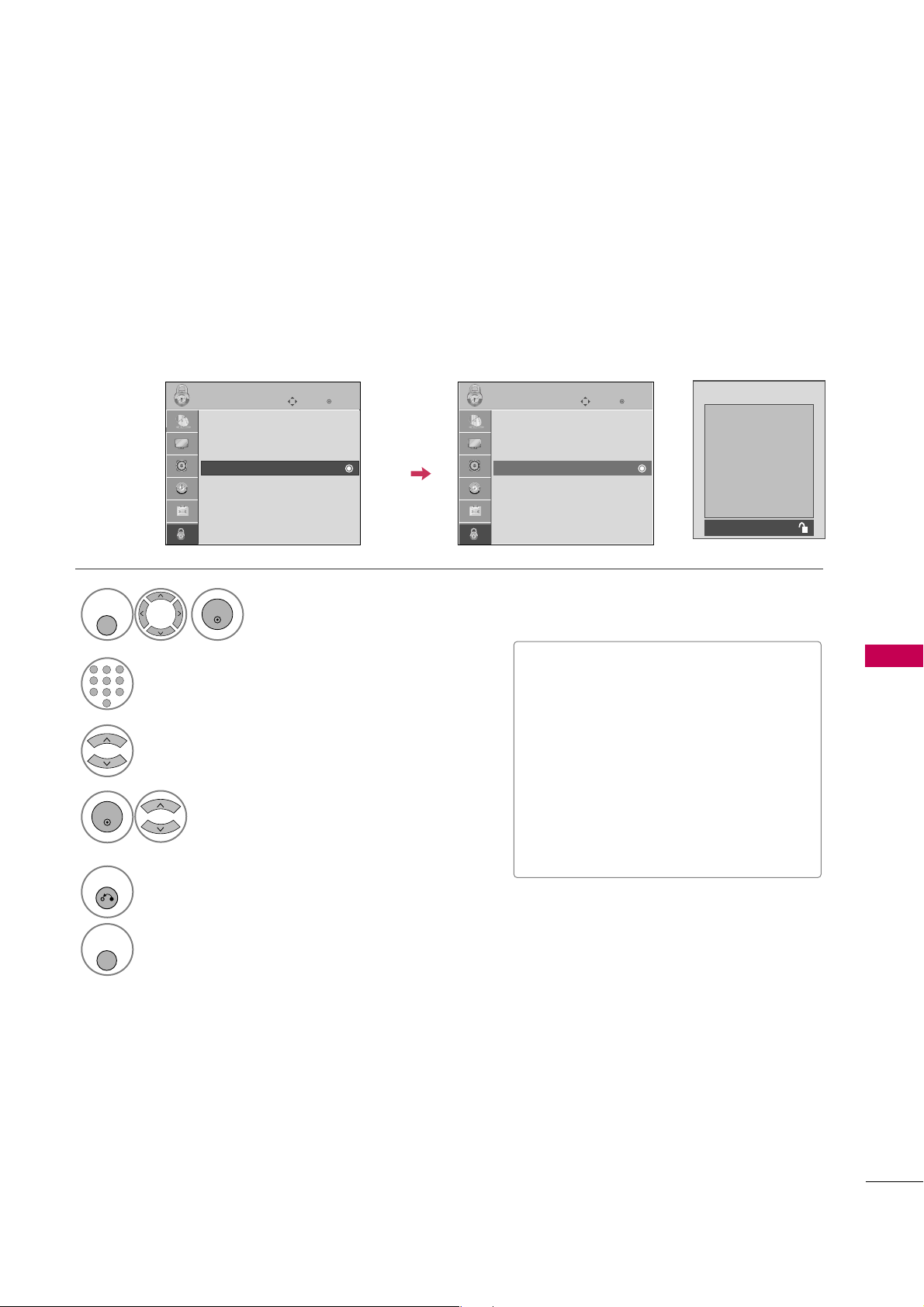

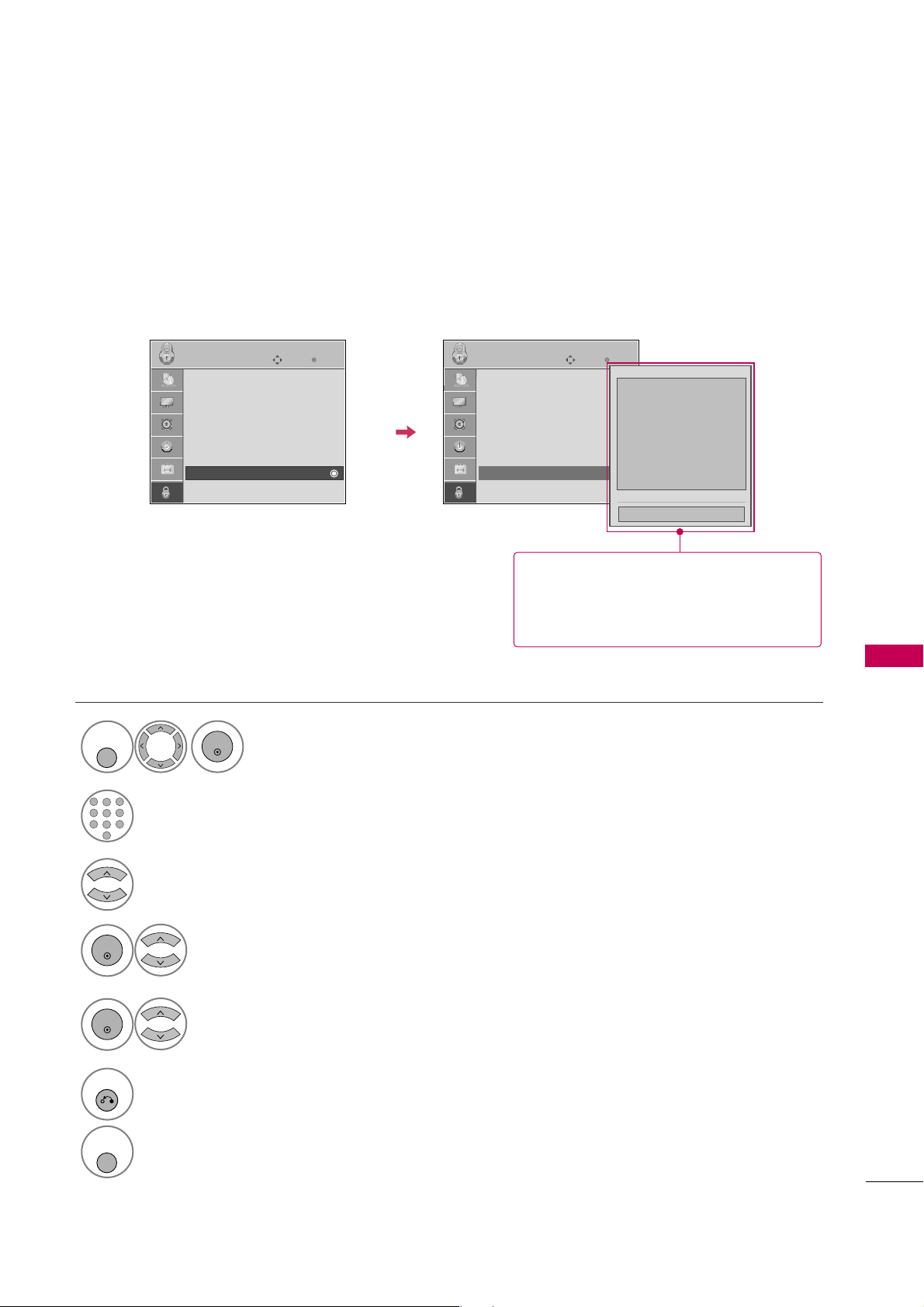

Parental Control Setup

Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental
control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated
from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative.

The parental control feature allows you to block access to scenes above the rating you input, thereby preventing
your children from being able to view material you believe is unsuitable.

Select

Rating Level

.

Input the password.

1

MENU/
SET UP

2

1

456

7809

23

3

Set the restriction level from 1 to 8.
Viewing becomes more restricted as
the number increases.

4

MENU/
SET UP

Return to normal playback.

8 Adult
7 NC - 17
6 R
5 PG - r
4 PG - 13
3 PG
2 G
1 Kids
Unlock

Audio Language

Subtitle Language

Rating Level

G

New Password

TV Screen

MENU Language

Digital Output

DRC

D E

: Move G : Next

Audio Language

Subtitle Language

Rating Level

G

New Password

TV Screen

MENU Language

Digital Output

DRC

D E

: Move F : Prev

8 Adult
7 NC - 17
6 R
5 PG - r
4 PG - 13
3 PG
2 G
1 Kids

Unlock

■

1: Kids

■

2: G (General audience)

■

3: PG (Parental guidance suggested)

■

4: PG-13 (13 years and older)

■

5: PG-r

■

6: R (Restricted)

■

7: NC-17 (18 years and older)

■

8: Adult (Adults only)

G

Enter the password as requested.

G

The TV is set up with the initial pass-

word “0-0-0-0”.

G

If you ever forget your password, key in

‘7’, ‘7’, ‘7’, ‘7’ on the remote control.

■

If you set a rating for the player, all disc
scenes with the same rating or lower are
played. Higher rated scenes are not
played unless an alternate scene is avail­able on the disc. The alternative must
have the same rating or a lower one. If
no suitable alternative is found, play­back stops. You must enter the 4-digit
password or change the rating level in
order to play the disc.

DVD OPERATION

52

DVD OPERATION

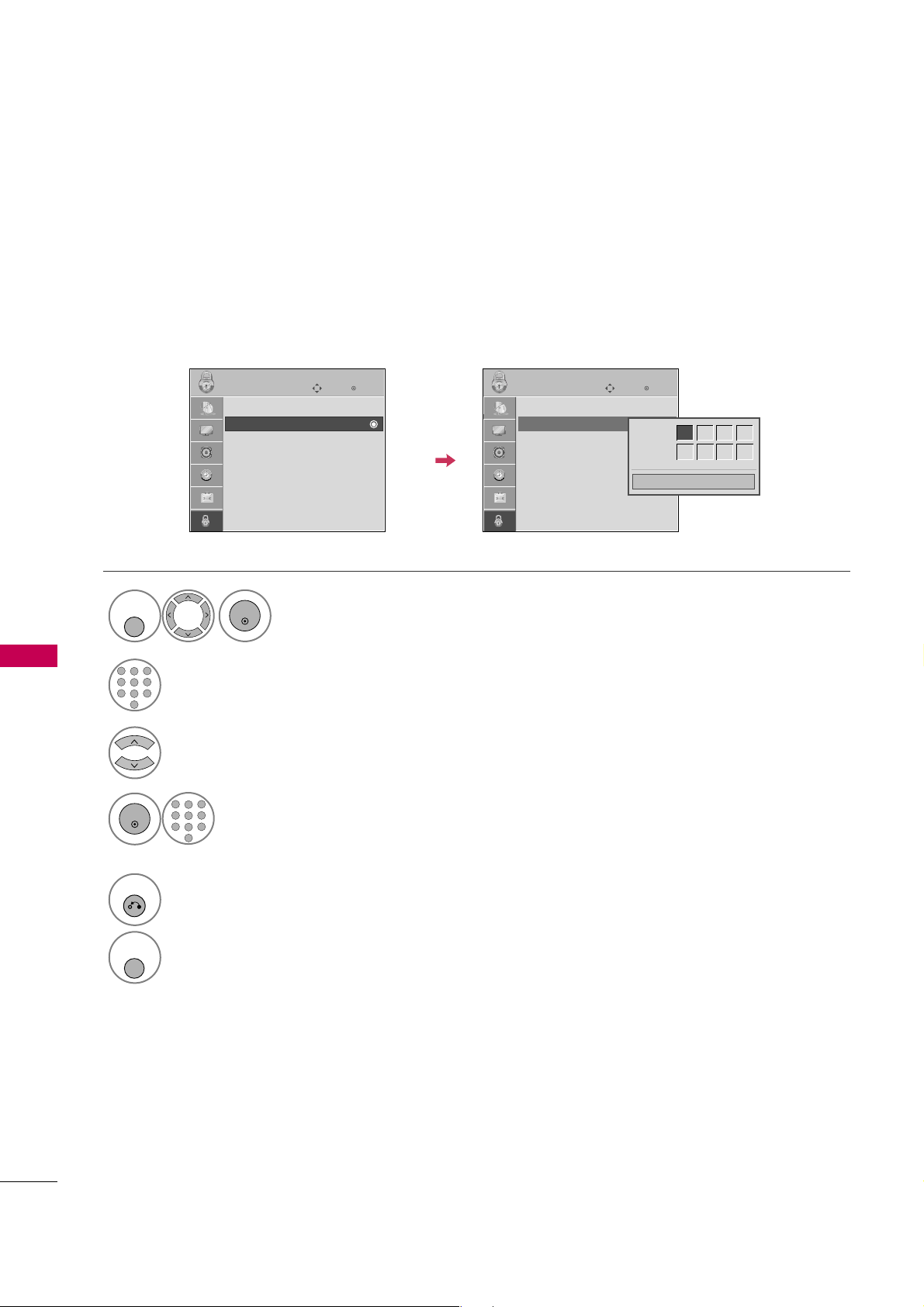

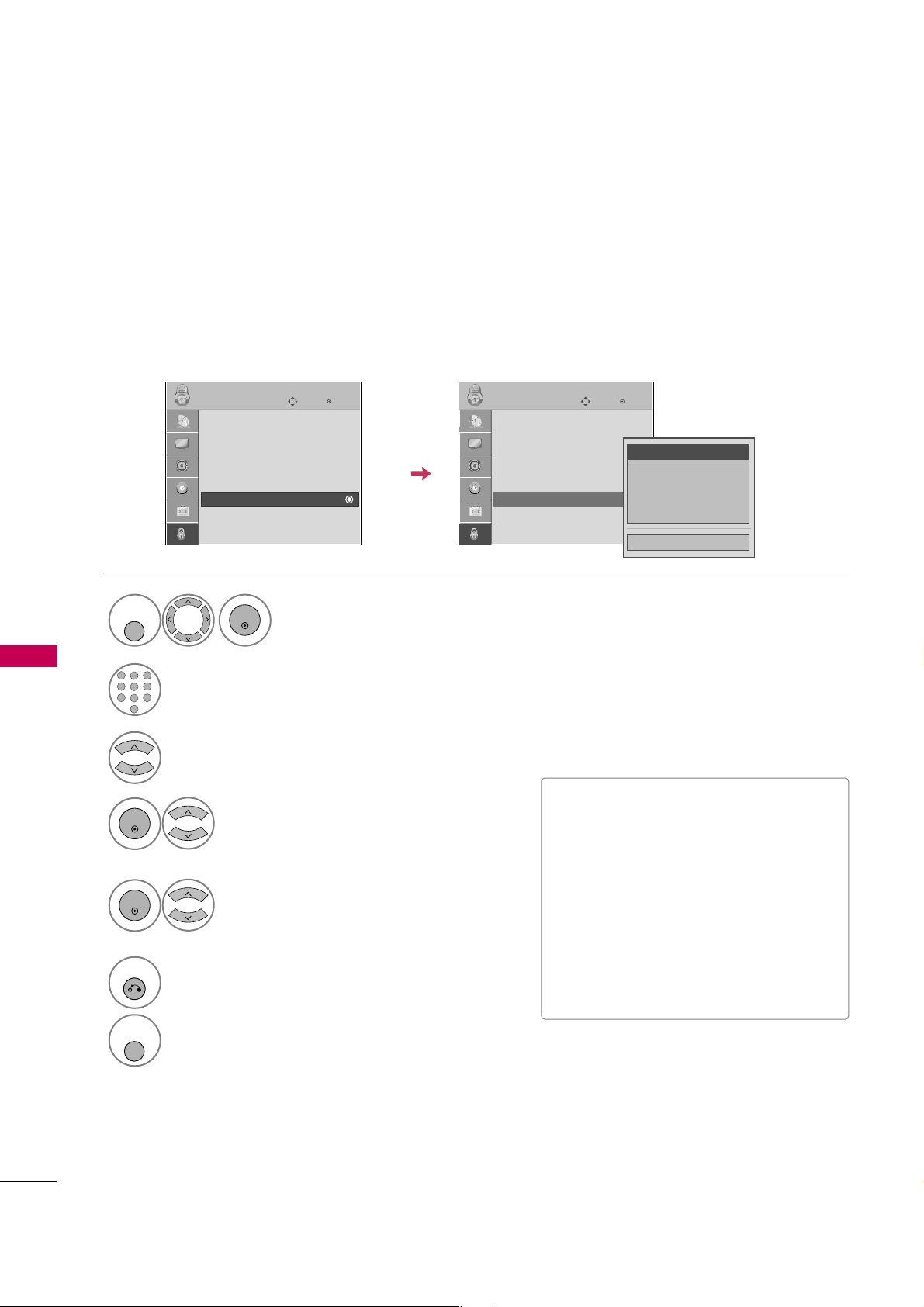

Changing the password

Select

New Password

.

Input the password.

1

MENU/
SET UP

2

1

456

7809

23

3

1

456

7809

23

Enter it again when requested.

4

MENU/
SET UP

Return to normal playback.

- - - -

Audio Language

Subtitle Language

Rating Level

New Password

G

TV Screen

MENU Language

Digital Output

DRC

D E

: Move G : Next

Audio Language

Subtitle Language

Rating Level

New Password

G

TV Screen

MENU Language

Digital Output

DRC

D E

: Move F : Prev

- - - -

PICTURE SIZE CONTROL

DVD OPERATION

53

Select

TV S c r e e n

.

Select

4:3 L B, 4:3 P S

, or

16: 9

.

1

MENU/
SET UP

2

3

MENU/
SET UP

Return to normal playback.

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

G

MENU Language

Digital Output

DRC

D E

: Move G : Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

G

MENU Language

Digital Output

DRC

D E

: Move F : Prev

You can watch TV in various picture formats.

4 : 3 LB
4 : 3 PS

16 : 9

■

Depending on the disc, the TV screen
feature may not be available.

■

4:3 LB (Letter Box)

■

4:3 PS (Pan & Scan)

■

16:9

4 : 3 LB
4 : 3 PS
16 : 9

DIGITAL AUDIO OUTPUT

DVD OPERATION

54

DVD OPERATION

Select

Digital Output

.

Select

Of f, Bitstream

, or

PC M

.

1

MENU/
SET UP

2

3

MENU/
SET UP

Return to normal playback.

Off
Bitstream
PCM

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

G

DRC

D E

: Move G : Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

G

DRC

D E

: Move F : Prev

You can select the output for SPDIF (Sony/Philips Digital Interface).
Each DVD disc has a variety of audio output options.
Set the player’s AUDIO options according to the type of audio system you use.

Off

Bitstream
PCM

■

Bitstream: Select Bitstream if you con­nect the DVD Player’s DIGITAL OUT
jack to an amplifier or other equipment
with a Dolby Digital, or MPEG decoder.

■

PCM (Pulse Code Modulation): Select
when connected to a two-channel digi­tal stereo amplifier. DVDs encoded in
Dolby Digital, or MPEG will be automat­ically downmixed to two-channel PCM
audio.

DYNAMIC RANGE COMPRESSION (DRC)

DVD OPERATION

55

Select

DR C

.

Select

Off

(Decrease the DRC range) or

O n

(Reset the DRC range to original values).

1

MENU/
SET UP

2

3

MENU/
SET UP

Return to normal playback.

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

G

D E

: Move G : Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

G

D E

: Move F : Prev

Confines the audio range to prevent excessively loud sound yet allows you to hear the low sounds clearly.

Off

On

Off
On

■

With the DVD format, you can hear a
program’s soundtrack in the most accu­rate and realistic presentation possible,
thanks to digital audio technology.
However, you may wish to compress the
dynamic range of the audio output (the
difference between the loudest sounds
and the quietest ones).

■

This allows you to listen to a movie at a
lower volume without losing clarity of
sound. Set DRC to On for this effect.

PLAYING A DVD OR VIDEO CD

DVD OPERATION

56

DVD OPERATION

Turn TV on.

Slide your chosen disc into the disc slot
on the side panel. Be sure to face the top
of the disc (with title etc.) toward the
front of the screen. Playback starts.

Remove the disc.
The Disc will come out halfway.

1

POWER

3

2

EJECT

Press this button during playback.
Select the required speed:
X2, X4, X8, X16 or X32 (backward/

forward).

Return to normal playback.

1

2

Basic Playback Fast Forward/Backward

Stop playback. At this time, DVD/VCD
player stops playback temporarily and
maintains the current playback position.(At
this time, if you press

pla y

button,
Playback will resume from the location
where you stopped playback.)

Press this button again to stop playback
fully. (At this time, if you press

play

button,

disc playback start from the beginning.)

1

2

Stop Playback/Ejection

Press this button during playback.

1

Pause Playback (Still Mode)

Press this button during playback.
Select the required speed:

F

I

1/2,

F

I

1/4,

F

I

1/8,

F

I

1/16

(backward), or

I

G

1/2,

I

G

1/4,

I

G

1/8,

I

G

1/16 (forward).

Return to normal playback.

1

SLOW -

SLOW +

2

Slow Motion

Press it briefly during playback to
select the next chapter/track or to
return to the beginning of the cur­rent chapter/track.

1

SKIP -

SKIP +

Press it twice briefly to step back to the
previous chapter/track.

SKIP -

Skip a Chapter/Track

■

There is no sound during fast or slow playback
for DVDs or Video CDs.

■

Slow motion playback in reverse is not possi­ble with Video CDs.

Use this button again to
return to normal playback.

or

2

■

If you have a disc problem during playback,
remove the disc by pressing and holding down
the button on the side panel for 5 seconds.
The Disc will come out completely.

After that, turn the TV off and then on again.

DVD OPERATION

57

Exit still motion mode.

3

Press this button during playback.

1

Press this button during playback.

1

DISC MENU

Return to normal playback.

3

RETURN

FLASHBK

Select the desired item.

Press this button during playback.

2

ENTER

1

TITLE MENU

6

Press it repeatedly to change OSD.

Press this button during playback.
Title, Chapter information appears on

screen.

2

DISPLAY

1

1

DISPLAY

1

Still Picture and Frame-by-Frame
Playback

Title Menu (DVD only)

OSD (On-Screen Display)

Press this button during playback.
Press it repeatedly to advance the

picture frame-by-frame.

2

SKIP -

SKIP +

Use this button during playback.
Press it repeatedly to change the repeat

mode.
DVD: Chapter, Title, ALL,

Repeat Off.
VCD: Track, ALL, Repeat Off.

You can play a specific title, chapter, track, or segment
repeatedly.

You can display the playback status on TV screen as
following; Title, Chapter number, Playing time.

1

REPEAT

4

Repeat Playback

Disc Menu (DVD only)

■

On a Video CD with PBC, you must set

PB C

-

Of f

using

PB C

button to use the repeat

function.

Select the desired menu option.

2

ENTER

■

The TV may not be able to select the disc or
title menu depending on a sort of DVD disc.

■

OSD display may different depending on a
sort of DVD disc.

Title Elapsed

TT 01/03 CH 01/09 0:28:22

Title Number

Chapter Number

Playing Time

DVD:

Title Elapsed → Title Remain → Chapter

Elapsed

→

Chapter Remain

→

Display off.

A

Audio C D :

Single Elapsed →Single Remain

→

Total Elapsed →Total Remain.

DVD OPERATION

58

DVD OPERATION

Select the start point during back.
“ A” is displayed on TV screen and

the starting point of your selected seg­ment is set up.

Resume normal playback.

A-B repeat playback allows you to repeat material
between two selected points.

1

A-B

5

Select the end point.
“ AB” is displayed on TV screen and

the ending point is set up.
Playback starts at the point that you

selected. Playback stops at the end point,
returns to Point A automatically, then
starts again.

2

A-B

5

3

A-B

5

Press it during playback to see the differ­ent subtitle languages.

1

SUBTITLE

7

A-B Repeat Playback

Press this button during playback.

If the scene was recorded from multiple angles,
you can easily change the camera angle of the
scene you are currently watching.

When enlarging the picture, it may become distorted.

1

ANGLE

3

Press it repeatedly to select the desired
angle.

2

ANGLE

3

Camera Angle (DVD only)

Subtitles

■

You can only change the angle for DVDs that
provide multiple angles of scenes.

■

The angle function will not work on DVD video
discs that do not contain scenes recorded at
different angles.

■

The number of angles varies from disc to disc.

Press this button during playback.

1

ZOOM

2

Press it repeatedly to change the TV
screen in the sequence: 2x, 3x, 4x.

2

ZOOM

2

Adjust the main picture position while in
the enlarged picture mode.

3

Zoom

Set Playback Control (PBC) to On or Off.

Select

O n

or

Of f

.

■

On: Video CDs with PBC are played
according to the PBC.

■

Off: Video CDs with PBC are played the
same way as Audio CDs.

1

PBC

PBC

■

Zoom may not work on some DVDs.

MP3 OPERATION

DVD OPERATION

59

When inserted, the MP3 menu screen appears
automatically depending on the MP3 disc’s folder
(directory) structure.

1

MP3 Files Playback Options

Select desired folder.

2

ENTER

Use this button again to
return to normal playback.

or

2

ENTER

Select desired file and play the
MP3 file.

3

02 : 30 03 : 37
001 / 011

/

D

E

..
PICTURE 2
PICTURE 1
O.S.T. - 3
PICTURE 3
O.S.T. - 4

Resolution 500 x 375

G

Stop Playback

Pause Playback

Stop playback.

1

Pause playback.

1

Press it briefly during playback to
go to the next track or to return to
the beginning of the current track.

1

SKIP -

SKIP +

Press it twice briefly to go back to the
previous track.

SKIP -

Move to another Track

Use this button during playback.
Press it repeatedly to change the repeat

mode: Shuffle, Random, Repeat One,
Repeat All, Repeat Off.

You can play a specific track repeatedly.

1

REPEAT

4

Repeat Playback

Fast Forward/Backward

Press this button during playback.
Select the required speed:
2X, 4X, 8X, 16X or 32X.

Return to normal playback.

1

2

Select the start point during playback.
“ A” is displayed on TV screen and

the starting point of your selected seg­ment is set up.

A-B repeat playback allows you to repeat material
between two selected points.

1

A-B

5

A-B Repeat Playback

Resume normal playback.

Select the end point.
“ AB” is displayed on TV screen and

the ending point is set up.
Playback starts at the point that you

selected. Playback stops at the end point,
returns to Point A automatically, then
starts again.

2

A-B

5

3

A-B

5

AUDIO CD OPERATION

DVD OPERATION

60

DVD OPERATION

Press this button during playback.
Press it repeatedly to change track infor-

mation: Single Elapsed, Single Remain,
Total Elapsed, or Total Remain.

You can display the Track, and Playback time status
on the TV screen.

1

DISPLAY

1

On-Screen Display

Single Elapse

Track 01/21 01:00

Track Number

Playing Time

Stop Playback

Pause Playback (Still Mode)

Stop playback.
At this time the CD player stops playback

temporarily and maintains the current
playback position.

1

Press it repeatedly to stop playback fully.
(At this time if you press the

G

button,

disc playback starts from the beginning.)

2

Pause playback.

1

Fast Forward/Backward

Press this button during playback.
Select the required speed:
2X, 4X, 8X, 16X or 32X.

Return to normal playback.

1

2

Use this button during playback.
Press it repeatedly to change the repeat

mode: Track, All, Repeat Off.

You can play a specific track repeatedly.

1

REPEAT

4

Repeat Playback

Move to another Track

Select the start point during playback.
“ A” is displayed on TV screen and

the starting point of your selected seg­ment is set up.

A-B repeat playback allows you to repeat material
between two selected points.

1

A-B

5

A-B Repeat Playback

Resume normal playback.

Select the end point.
“ AB” is displayed on TV screen and

the ending point is set up.
Playback starts at the point that you

selected. Playback stops at the end point,
returns to Point A automatically, then
starts again.

2

A-B

5

3

A-B

5

Use this button during playback.
Press it repeatedly to skips to the

next/previous track.

1

SKIP -

SKIP +

Return to normal playback.or

2

JPG FILE VIEWING OPTIONS

DVD OPERATION

61

Select the desired picture. The selected
JPG file appears as shown.

As a JPG file is loaded, the table of contents
appears on the TV screen.

1

Rotate a JPG file clockwise or counter
clockwise during showing a picture.

1

R

O

T

A

T

E

+

R

O

T

A

T

E

-

Picture Selection

Rotation

■

If you press the

ENTER

button while playing

an MP3 disc, the slide show starts.

■

If you play play MP3 and JPG slide show simul­taneously, repeat function is applied to both
MP3 and JPG files.

02 : 30 03 : 37
001 / 011

/

D

E

..
PICTURE 2
PICTURE 1
O.S.T. - 3
PICTURE 3
O.S.T. - 4

Resolution 500 x 375

G

Start Slide show mode.

2

Return to play list.

3

Use this button during playback.
Press it repeatedly to change the repeat

mode: Shuffle, Random, Repeat One,
Repeat All, Repeat Off.

You can show JPG files repeatedly.

1

REPEAT

4

Repeat Playback

PICTURE CONTROL

62

PICTURE SIZE (ASPECT RATIO) CONTROL

PICTURE CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

NOTE

!

G

If a fixed image is displayed on the screen for very long time, the image could become imprinted on the
screen and remain visible. This phenomenon is common to all manufacturers and is not covered by war­ranty. Normally it will dissipate after a few minutes.

■

You can also adjust

Aspect Ratio

in

the

Q-Menu

.

Set By Program

4:3

16:9

Zoom1

Zoom2

Just Scan

Select


.

Select

Aspect Ratio

.

Select the desired picture format.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

Enter

Move


E

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

RG RG

PICTURE CONTROL

63

Set by program

Selects the proper picture proportion to match
the source’s image.

4:3

Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio.

16:9

Adjust the picture horizontally, in a linear pro­portion to fill the entire screen.

Zoom 1

Choose Zoom 1 when you want to view the pic­ture without any alteration. However, the top and
bottom portions of the picture will be cropped.

Zoom 2

Choose Zoom 2 when you want the picture to be
altered, both vertically extended and cropped.
The picture taking a halfway trade off between
alteration and screen coverage.

Just Scan

Normally the edges of video signals are cropped
1-2%. Just Scan turns off this cropping and
shows the complete video.

Notes: If there is noise on the edges of the original
signal, it will be visible when Just Scan is activated.

Just S c a n

operates only in
DTV/CADTV/Component/HDMI-DTV/DVI-DTV
(720p/1080i/1080p) input source.

(4:3 4:3)

(16:9 16:9)

PICTURE CONTROL

64

PRESET PICTURE SETTINGS

PICTURE CONTROL

Picture Mode - Preset

There are factory presets for picture settings available in the user menus. You can use a preset, change each
setting manually.

Select


.

Select

Picture Mode

.

Select

Vivid,Stan dard, Cinem a

,

Sport

, or

Game

.

■

Vivid, Stan dard, Cinem a, Sport

, and

Game

Settings are preset for the opti­mum picture quality at the factory and
are not adjustable.

■

You can also adjust

Picture Mode

in

the

Q. Menu

.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

Enter

Move


E

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

RG

RG

Vivid

Standard

Cinema

Sport

Game

Expert1

Expert2

PICTURE CONTROL

65

Color Tone - Preset

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to
cool to see less intense colors with more blue.

Select


.

Select

Color Temperature

.

1

MENU/
SET UP

3

ENTER

Select

Coo l, Medium

, or

War m

.

4

Select

Advanced Control

.

2

ENTER

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

F

Medium

G

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

Close

PICTURE CONTROL

66

MANUAL PICTURE ADJUSTMENT

PICTURE CONTROL

Picture Mode - User Mode

Adjust the picture appearance to suit your preference and viewing situations.

Select


.

Make appropriate adjustments.

Select

Backlight, Contrast, Brightness

,

Sharpness, Color

, or

Tin t

.

1

MENU/
SET UP

Select

Picture Mode

.

2

ENTER

Select

Vivid,Stan dard, Cinem a, Sport

, or

Game

.

3

ENTER

4

ENTER

5

ENTER

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

• Backlight 80

E

E

E

E

Enter

RG

PICTURE CONTROL

67

Select your desired menu option.

Select


.

Select

Picture Mode

.

Select

Expert Control

.

Select

Expert1

or

Expert2

.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

ENTER

5

ENTER

Make appropriate adjustments.

6

Picture Mode - Expert Control

By segmenting categories,

E

Expert1

and

Expert2

provide more categories which users can set as they see

fit, offering the optimal picture quality for users.

7

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

• Expert Control

• Reset

Screen (RGB-PC)

Enter

Move


E

RG

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

Vivid

Standard

Cinema

Sport

Game

Expert1

Expert2

F

Off

G

Fresh Contrast

Noise Reduction

Off

Gamma

Medium

Black Level

Off

Off

Real Cinema

Color Standard

SD

White Balance

Normal

• Method

2 Points

• Red Contrast

50

• Green Contrast

50

• Blue Contrast

50

E

PICTURE CONTROL

68

PICTURE IMPROVEMENT TECHNOLOGY

PICTURE CONTROL

Fresh Contrast: Optimizes the contrast automatically according to the brightness of the reflection.
Fresh Color: Adjusts the color of the reflection automatically to reproduce as close as possible natural colors.
Noise Reduction: Removes interference up to the point where it does not damage the original picture.
Gamma: High gamma values display whitish images and low gamma values display high contrast images.

Select


.

Select

Advanced Control

.

Select

Fresh Contrast, Fresh C o l o r

,

Noise Reduction

, or

Gamma

.

1

MENU/
SET UP

3

2

ENTER

ENTER

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Select your desired options.

4

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

F

Off

G

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

Close

PICTURE CONTROL

69

ADVANCED CONTROL - BLACK (DARKNESS) LEVEL

Adjusting the contrast and the brightness of the screen using the black level of the screen.
This feature is disable in DTV and RGB-PC mode.

Select


.

Select

Advanced Control

.

Select

Black Le v e l

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select

Lo w

or

Hig h

.

4

■

Lo w

: The reflection of the screen gets

darker.

■

Hig h

: The reflection of the screen gets

brighter.

■

Auto

: Realizing the black level of the
screen and set it to High or Low auto­matically.

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

F

Low

G

Eye Care

Off

Real Cinema

Off

Close

PICTURE CONTROL

70

ADVANCED CONTROL - EYE CARE

PICTURE CONTROL

Dims extremely bright pictures.
This feature is disabled in “

Picture Mode-Vivid, Cinema

”.

Select


.

Select

Advanced Control

.

Select

Eye C a r e

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select

O n

or

Of f

.

4

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

F

Off

G

Real Cinema

Off

Close

PICTURE CONTROL

71

ADVANCED CONTROL - REAL CINEMA

Set up the TV for the best picture appearance for viewing movies.
When you operate Real Cinema (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps

video from movies to 30 fps video for display.
This feature operates only in TV (Analog TV/CATV, Digital DTV/CADTV), AV1, AV2, Component 480i/1080i,

and HDMI 1080i mode.

Select


.

Select

Advanced Control

.

Select

Real Cinema.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select

O n

or

Of f

.

4

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

F

Off

G

Close

PICTURE CONTROL

72

PICTURE RESET

PICTURE CONTROL

Settings of the selected picture modes return to the default factory settings.

Select


.

Select

Reset

.

Initialize the adjusted value.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

MENU/
SET UP

Return to TV viewing.

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


E

RG

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Resetting video configuration...

ii

PICTURE CONTROL

73

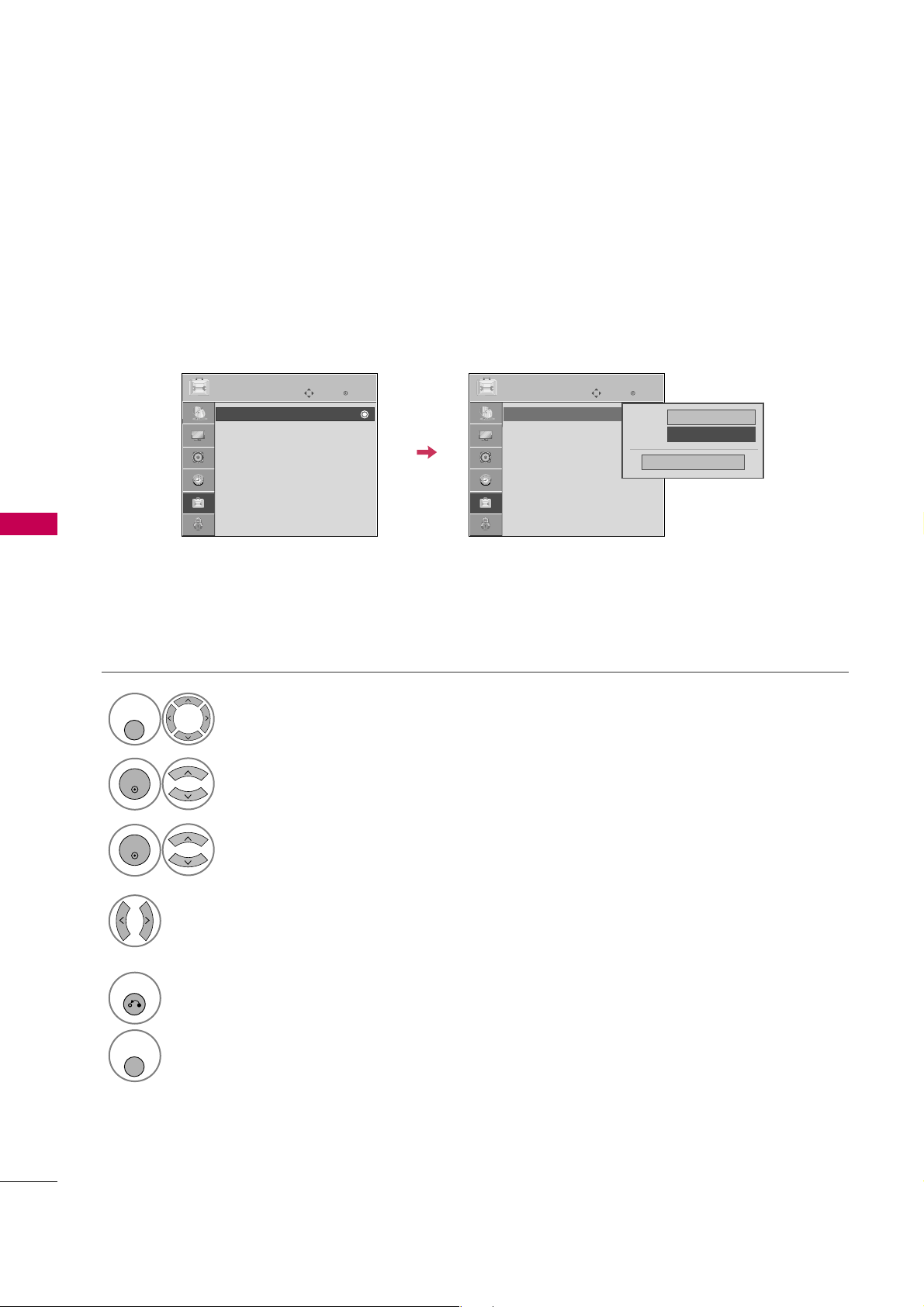

POWER INDICATOR

Select

OPTION

.

Select

Power Indicator

.

1

MENU/
SET UP

2

ENTER

Select

Standby LightorPower Li g h t

.

3

ENTER

Select your desired options.

4

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

■

Standby Light

: You can set the
brightness of the LED on the front side
of the TV during power standby.

■

Power Lig h t

: You can set the the LED
on the front side of the TV to be turned
on or off while watching the TV.

Enter

Move

OPTION

Language : English

Input Label

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Power Light

Standby Light

On

Close

F

On

G

SOUND & LANGUAGE CONTROL

74

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER (AUTO VOLUME)

Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a
regular TV program.

Select

AUDIO

.

Select

Auto Volume

.

Select

O n

or

Of f

.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

AUDIO

LR

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

LR

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Off

On

E E

SOUND & LANGUAGE CONTROL

75

CLEAR VOICE

By differentiating the human sound range from others, it improves the sound quality of voices.

■

If you select “

Clear Voice-On

”,

SR S

Tru S u rr o u nd XT

feature will not

work.

■

You can also adjust

Clear Voice

in the

Q-Menu

.

Select

AUDIO

.

Select

Clear Voi c e

.

Select

O n

or

Of f

.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

LR

LR

E E

Off

On

SOUND & LANGUAGE CONTROL

76

SOUND & LANGUAGE CONTROL

PRESET SOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment as the TV sets the appropriate
sound options based on the program content.

Standard, Music, Cinema, Sport

, and

Gam e

are preset for optimum sound quality at the factory and are

not adjustable.

Select

AUDIO

.

Select

Sound M o d e

.

Select

Standard, Music

,

Cinema, Sport

, or

Gam e

.

1

MENU/
SET UP

3

2

ENTER

ENTER

■

You can also adjust

Sound M o d e

in

the

Q. Menu

.

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

E E

LRLR

Standard

Music

Cinema

Sport

Game

SOUND & LANGUAGE CONTROL

77

SOUND SETTING ADJUSTMENT - USER MODE

SRS TRUSURROUND XT

Adjust the sound to suit your taste and room situations.

Select

AUDIO

.

Select

Sound M o d e

.

Select

Treble

or

Bas s

.

1

MENU/
SET UP

4

2

ENTER

Select

Standard, Music

,

Cinema, Sport

, or

Gam e

.

3

ENTER

ENTER

Make appropriate adjustments.

5

ENTER

Select

AUDIO

.

Select

SRS TruSurround X T

.

Select

O n

or

Of f

.

1

MENU/
SET UP

3

2

ENTER

ENTER

■

SRS TruSurrou n d XT

: Takes advantage of
any multi-channel format without needing to
add extra speakers or equipment. Dialog clarity,
bass enrichment, and the addition of stereo
audio enhancement produces an immersive
sound experience from standard stereo material.

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

LR

LR

Close

E

E

Treble 50

Bass 50

SRS TruSurround XT

Off

E E

SOUND & LANGUAGE CONTROL

78

SOUND & LANGUAGE CONTROL

BALANCE

Select

AUDIO

.

Select

Balance

.

Make appropriate adjustments.

1

MENU/
SET UP

3

2

ENTER

ENTER

Adjust the left/right sound of speaker to suit your taste and room situations.

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

LR

LR

E E

Close

E

E

Balance 0

LR

SOUND & LANGUAGE CONTROL

79

TV SPEAKERS ON/OFF SETUP

Turn the TV speakers off if using external audio equipment.

Select

AUDIO

.

Select

TV Sp e a k e r

.

Select

O n

or

Of f

.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

AUDIO

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

TV Speaker : On

Enter

Move

AUDIO

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

TV Speaker : On

LR

LR

EE

Off

On

SOUND & LANGUAGE CONTROL

80

AUDIO RESET

SOUND & LANGUAGE CONTROL

Settings of the selected Sound Mode return to the default factory settings.

Select

AUDIO

.

Select

Reset

.

1

MENU/
SET UP

2

ENTER

Initialize the adjusted value.

3

ENTER

4

MENU/
SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

LR

LR

E E

Resetting audio configuration...

i

SOUND & LANGUAGE CONTROL

81

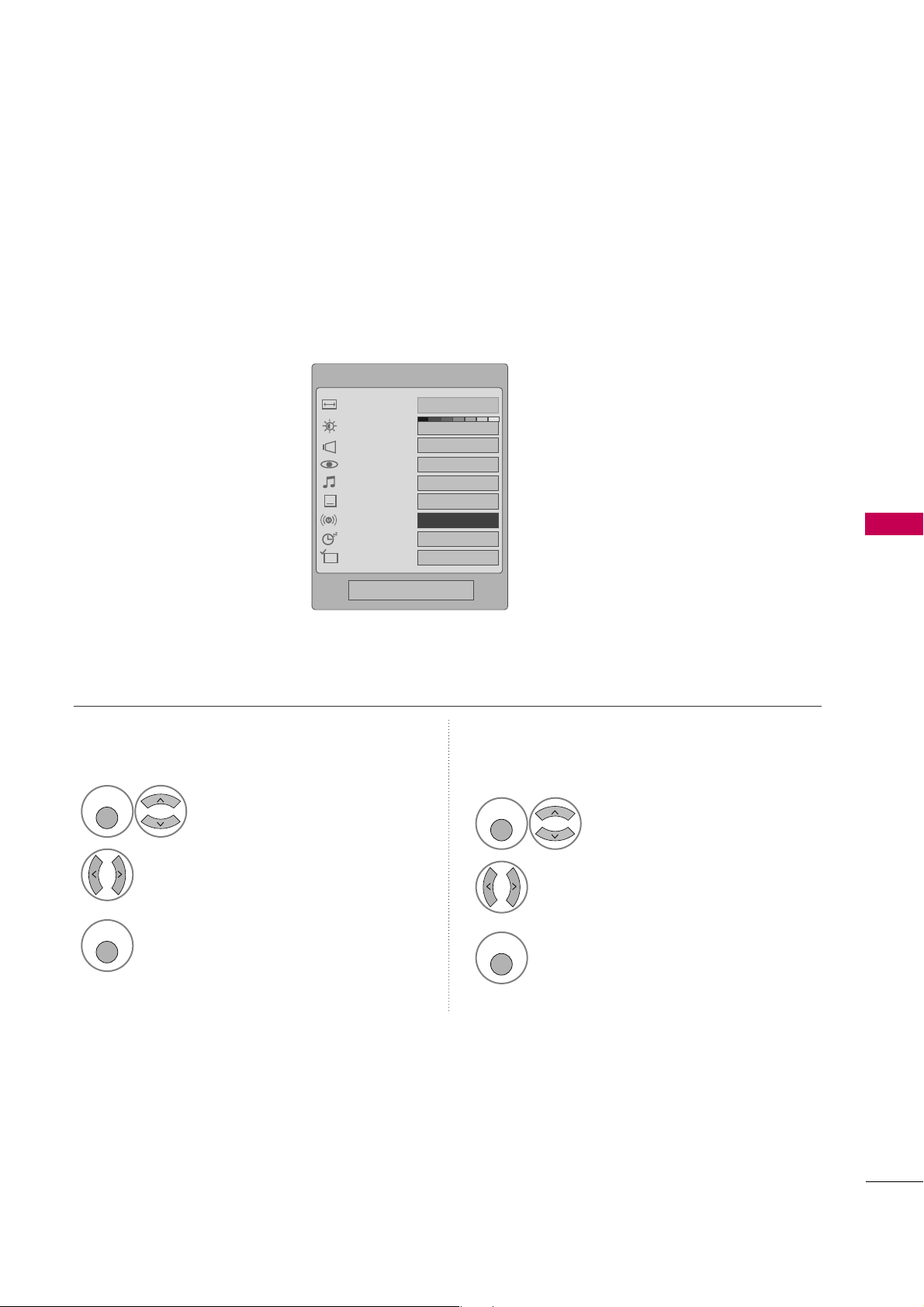

STEREO/SAP BROADCAST SETUP

For Analog only: This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accom­panies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used
if the broadcast is only in Mono.

Select

SAP

.

Select

Mono, Stereo

, or

SA P

.

Return to TV viewing.

1

Q. MENU

3

2

Q. MENU

Select

Multi Au d i o

.

Select other languages.

Return to TV viewing.

1

Q. MENU

3

2

Q. MENU

Analog TV Digital TV

Q.Menu

3

16:9

Vivid

Off

Standard

Off

F

English

G

Off

Add

Aspect Ratio

Backlight

Clear Voice

Picture Mode

Sound Mode

Caption

Multi Audio

Sleep Timer

Del/Add/Fav

CH

Close

SOUND & LANGUAGE CONTROL

82

AUDIO LANGUAGE

SOUND & LANGUAGE CONTROL

Other languages may be available if a digital signal is provided by the broadcasting station.
This feature operates only in DTV/CADTV mode.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Menu

English

Audio

F

English

G

Close

Select

OPTION

.

Select

Language

.

Select

Audio

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select your desired language:

English, Spanish

, or

French

4

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

SOUND & LANGUAGE CONTROL

83

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Menu

F

English

G

Audio

English

Close

Select

OPTION

.

Select

Language

.

Select

Menu

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select your desired language.
From this point on, the on-screen menus

will be shown in the selected language.

4

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

SOUND & LANGUAGE CONTROL

84

CAPTION MODE

SOUND & LANGUAGE CONTROL

Caption must be provided to help people with hearing loss watch TV. Select a caption mode for displaying cap­tioning information if provided on a program. Analog caption displays information at any position on the screen
and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would be available for both
digital and analog channels on the Antenna/Cable. This TV is programmed to memorize the caption/text mode
which was last set when you turned the power off. This function is only available when

Caption

Mode is set

O n

.

Select

OPTION

.

Select

Caption

.

Select

O n

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select

CC1-4

or

Text1-4

.

4

Analog Broadcasting System Captions

■

When selecting

Of f

, Sub-menus for
Analog, DTV, and Digital Option
become disabled.

■

CAPTION

The term for the words that scroll
across the bottom of the TV screen;
usually the audio portion of the pro­gram provided for the hearing impaired.

■

TEX T

The term for the words that appear in a
large black frame and almost cover the
entire screen; usually messages provid­ed by the broadcaster.

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : On

Set ID : 1

Power Indicator

Initial Setting : Home

Mode

CC1

Close

Digital Option

F

On

G

SOUND & LANGUAGE CONTROL

85

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in.
Other Languages can be chosen for digital sources only if they are included on the program.
This function in only available when Caption Mode is set On.

Select

OPTION

.

Select

Caption

.

Select

O n

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select

CC1-4, Text1-4

, or

Service1- 6

.

4

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : On

Set ID : 1

Power Indicator

Initial Setting : Home

Mode

CC1

Close

Digital Option

F

On

G

SOUND & LANGUAGE CONTROL

86

SOUND & LANGUAGE CONTROL

Caption Option

Customize the DTV/CADTV captions that appear on your screen.
This function in only available when Caption Mode is set On.

Select

OPTION

.

Select

Caption

Select

O n

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select

Custom

.

5

ENTER

Customize the

Style, Font

, etc., to your
preference. A preview icon is provided at
the bottom of the screen, use it to see the
caption language.

6

Select

Digital Option

.

4

■

Siz e

: Set the word size.

■

Font

: Select a typeface for the text.

■

Text C o l o r

: Choose a color for the

text.

■

Text Opacity

: Specify the opacity

for the text color.

■

Bg (Background) Color

: Select a

background color.

■

Bg (Background) Opacity

: Select

the opacity for the background color.

■

Edge T y p e

: Select an edge type.

■

Edge C o l o r

: Select a color for the

edges.

7

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : On

Set ID : 1

Power Indicator

Initial Setting : Home

Mode

Service1

Close

Digital Option

F

On

G

Size

A Standard

Font

Font 1

Text Color

White

Text Opacity

Solid

Edge Type

None

Edge Color

Black

Bg Color

Black

Bg Opacity

Solid

Close

F

Custom

G

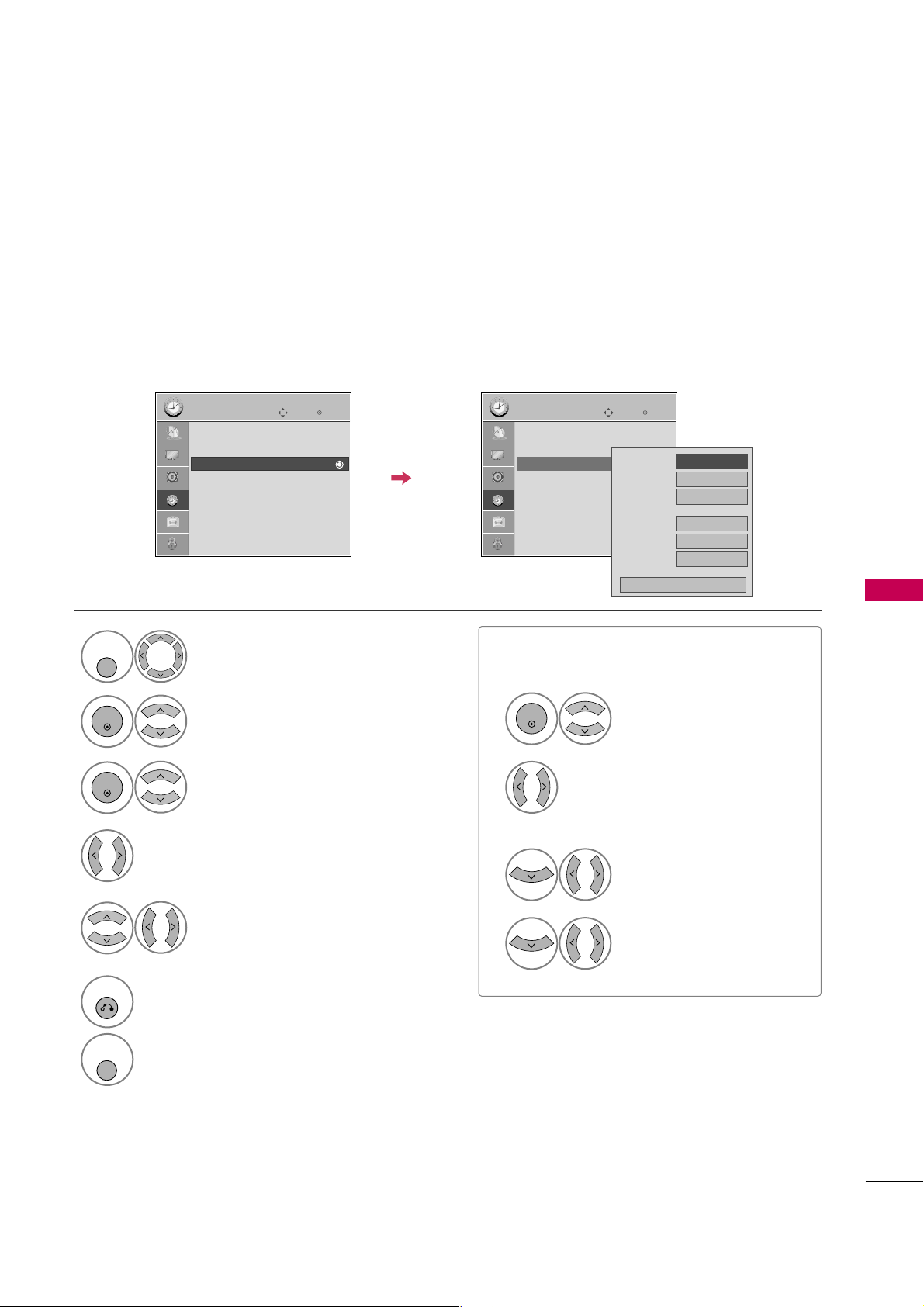

TIME SETTING

87

CLOCK SETTING

TIME SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.
The digital channel signal includes information for the current time provided by the broadcasting station.
Set the clock manually if the current time is set incorrectly by the auto clock function.

Select

TIM E

.

Select

Clock

.

Select

Auto

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select your viewing area time zone.

• U.S.A:

Ea s t e rn, Ce n t r al, Mo u nt a i n

,

Pacific, Alaska

, or

Hawaii

.

• Canada:

Eastern, Central, Mountain

,

Pacific, New F.land

, or

Atlantic

.

4

Select

Auto, O n

, or

Off

(depending on
whether or not your viewing area observes
Daylight Saving time).

5

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008/ 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008/ 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Year

Month

2

Date

21

Hour

2 AM

2008

Minute

10

Time Zone

Eastern

Daylight
Saving

Auto

Close

F

Auto

G

TIME SETTING

88

TIME SETTING

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Year

Month

2

Date

21

Hour

2 AM

2008

Minute

10

Time Zone

Eastern

Daylight
Saving

Auto

Close

F

Manual

G

Select

TIM E

.

Select

Clock

.

Select

Manual

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select the Year, Month, Date, Hour, or Minutes
option.

4

Set the Year, Month, Date, Hour, or Minutes
option.

5

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

TIME SETTING

89

AUTO ON/OFF TIME SETTING

This function operates only if the current time has been set.
The

Off T i m e

function overrides the

On T i m e

function if they are both set to the same time.

The TV must be in standby mode for the

On T i m e

to work.

If you do not press any button within 2 hours after the TV turns on with the

On Tim e

function, the TV will

automatically revert to standby mode.

■

To cancel

On/Off T i m e

function, select

Of f

.

■

Only for On Time function

Select

Input

.

Select TV,

AV1

,

AV2, Compone nt

,

Built - I n DVD, RGB-PC, HDMI1

,

HDMI2

, or

HDMI3

.

Select

TIM E

.

Select

Off t i m e

or

On t i m e

.

Select

Repeat

.

1

MENU/
SET UP

3

2

ENTER

ENTER

Select

Of f, Onc e, Everyday, Mo n~Fr i

,

Mo n~Sa t, Weekend

, or

Sunday

.

4

Select and set

Hour

or

Minute

.

5

1

ENTER

3

4

2

When Selecting

T V

:

set the channel at turn-on.

Adjust to sound level at
turn-on.

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : 6:30 AM (Once)

Sleep Timer : Off

Auto Sleep : Off

Repeat

F

Once

G

Hour

6 AM

Minute

30

Input

TV

Channel

TV 2-0

Volume

30

Close

TIME SETTING

90

TIME SETTING

SLEEP TIMER SETTING

The Sleep Time turns the TV off at the preset time.
Note that this setting is cleared when the TV is turned off.

■

You can also adjust

Sleep T i m e r

in

the

Q.Menu

.

Select

TIM E

.

Select

Sleep T i m e r

.

Select

Off, 1 0, 2 0, 3 0, 6 0, 9 0

,

120, 180

, or

240

minutes.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Close

F

Off

G

TIME SETTING

91

AUTO SHUT-OFF SETTING

TV will be automatically turned off, in case of no signal for 10 minutes.

Select

TIM E

.

Select

Auto S l e e p

.

Select

O n

or

Of f

.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : On

Off

On

TV will be automatically turned off,
in case of No Signal for 10 minutes.

PARENTAL CONTROL / RATING

92

PARENTAL CONTROL / RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broad­casting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the
type of the program and the categories. It is also possible to block all program viewing for a time period. To use
this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be
blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to­video movies use the Movie Rating System (MPAA)only.

Ratings for Television programs including made-for-TV movies:

■

TV-G(General audience

)

■

TV-PG(Parental guidance suggested

)

■

TV-14(Parents strongly cautioned

)

■

TV-MA (Mature audience only

)

■

TV-Y(All children

)

■

TV-Y7(Children 7 years older

)

Set up blocking schemes to block specific channels, ratings, and external viewing sources.
A password is required to gain access to this menu.

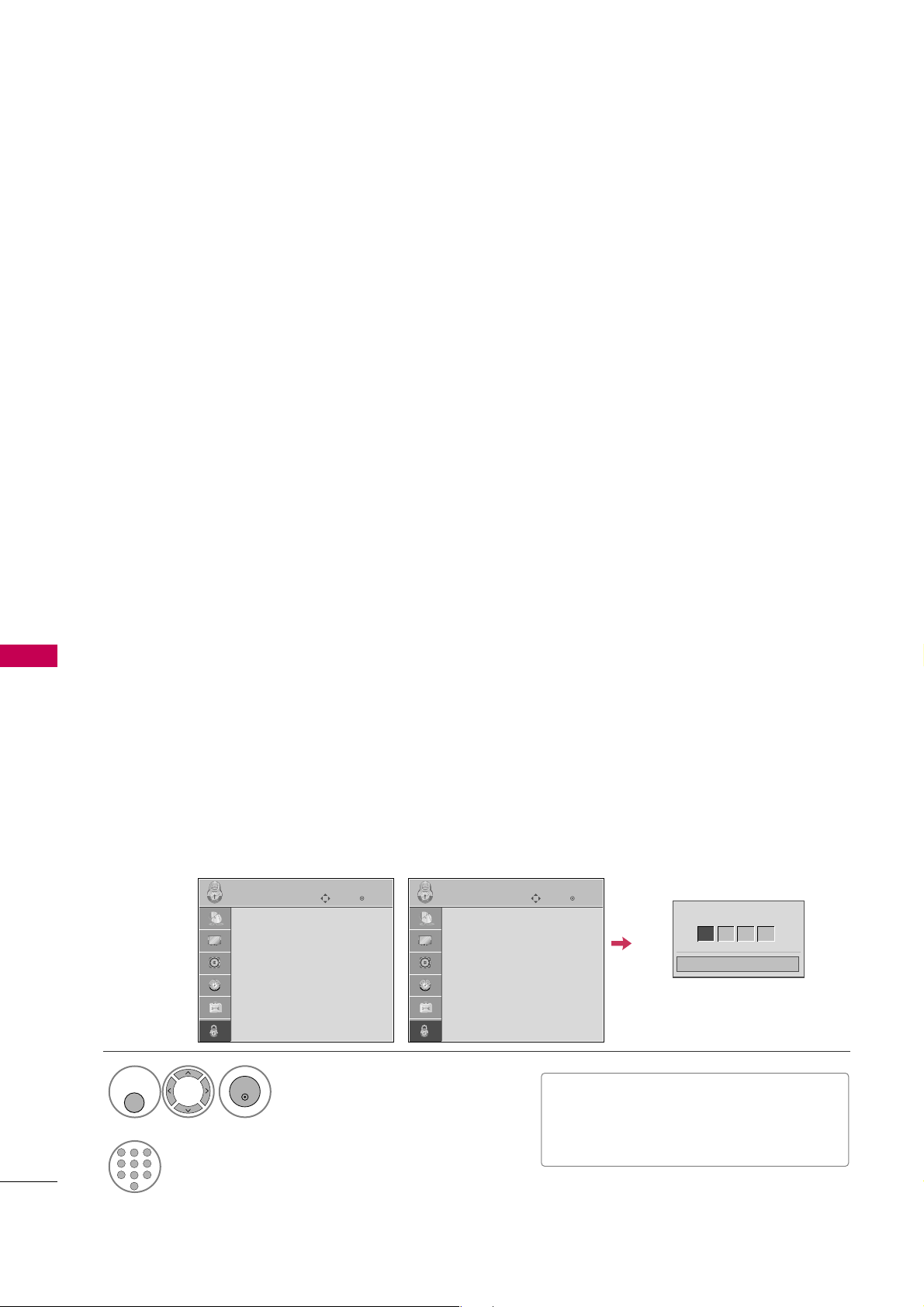

Setting up Your Password

For USA For Canada

Close

Enter Password

* * * *

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

■

Enter the password as requested.

■

The TV is set up with the initial password
“0-0-0-0”.

SET PASSWORD & LOCK SYSTEM

Enter

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

LOCK

Enter

Move

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

LOCK

PARENTAL CONTROL / RATING

93

Enables or disables the blocking scheme you set up previously.

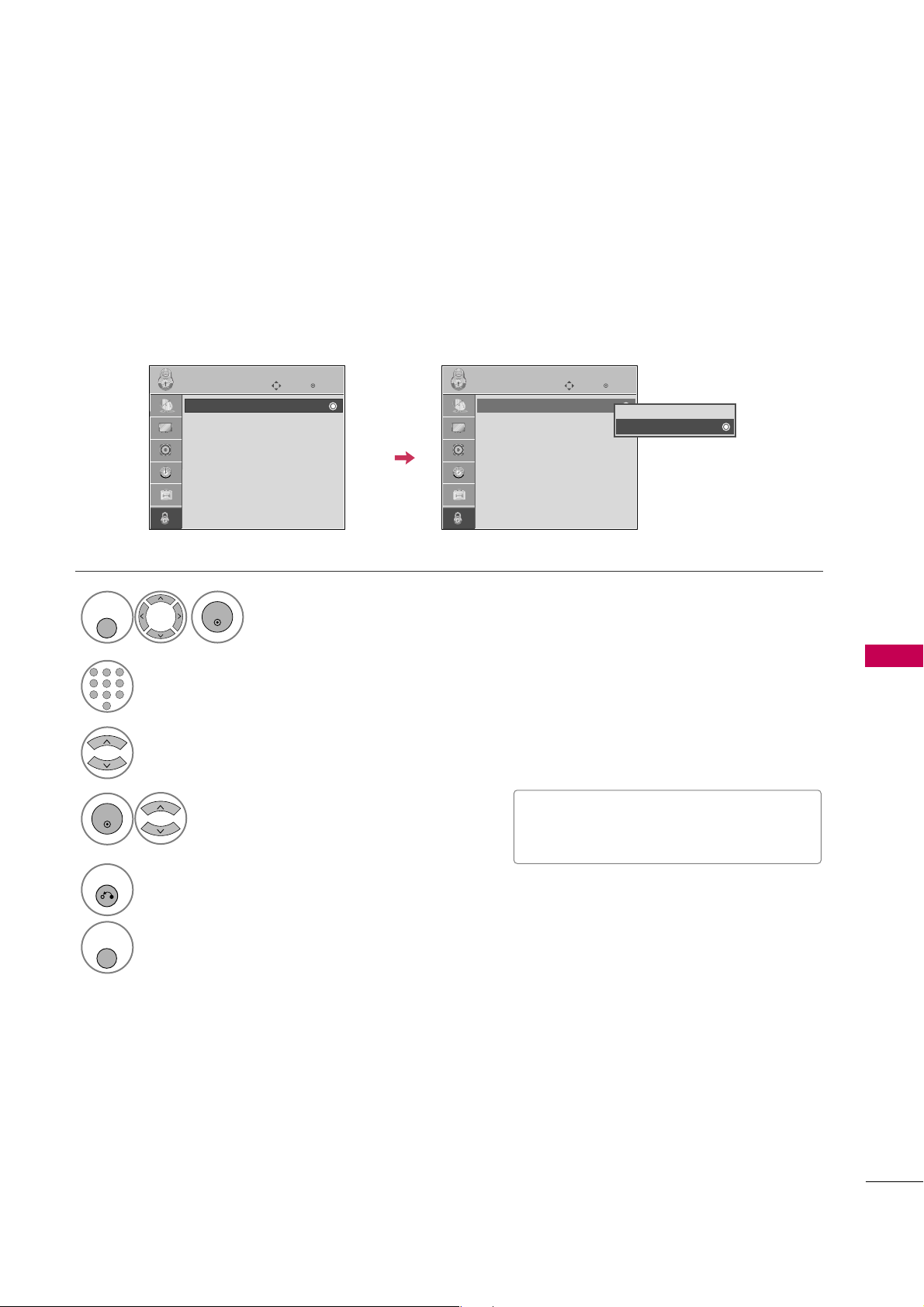

Lock System

Select

Lock Sy s t e m

.

Select

O n

or

Of f

.

4

3

ENTER

■

When you select

O n

, the Lock System

is enable.

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : On

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Off

On

PARENTAL CONTROL / RATING

94

PARENTAL CONTROL / RATINGS

Change the password by inputting a new password twice.

Set Password

Select

Set password

.

Choose any 4 digits for your new password.
As soon as the 4 digits are entered, re-enter

the same 4 digits on the

Confirm

.

4

3

ENTER

1

456

7809

23

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Close

New

* * * *

Confirm

* * * *

PARENTAL CONTROL / RATING

95

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

Select

Block Channel

.

Select a channel to block or
unblock it.

4

3

ENTER

Block or unblock a channel.

5

ENTER

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

6

MENU/
SET UP

Return to the previous menu.

RETURN

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Block/Unblock

Move Page

CH

Move

Previous

MENU

Exit

RETURN

PARENTAL CONTROL / RATING

96

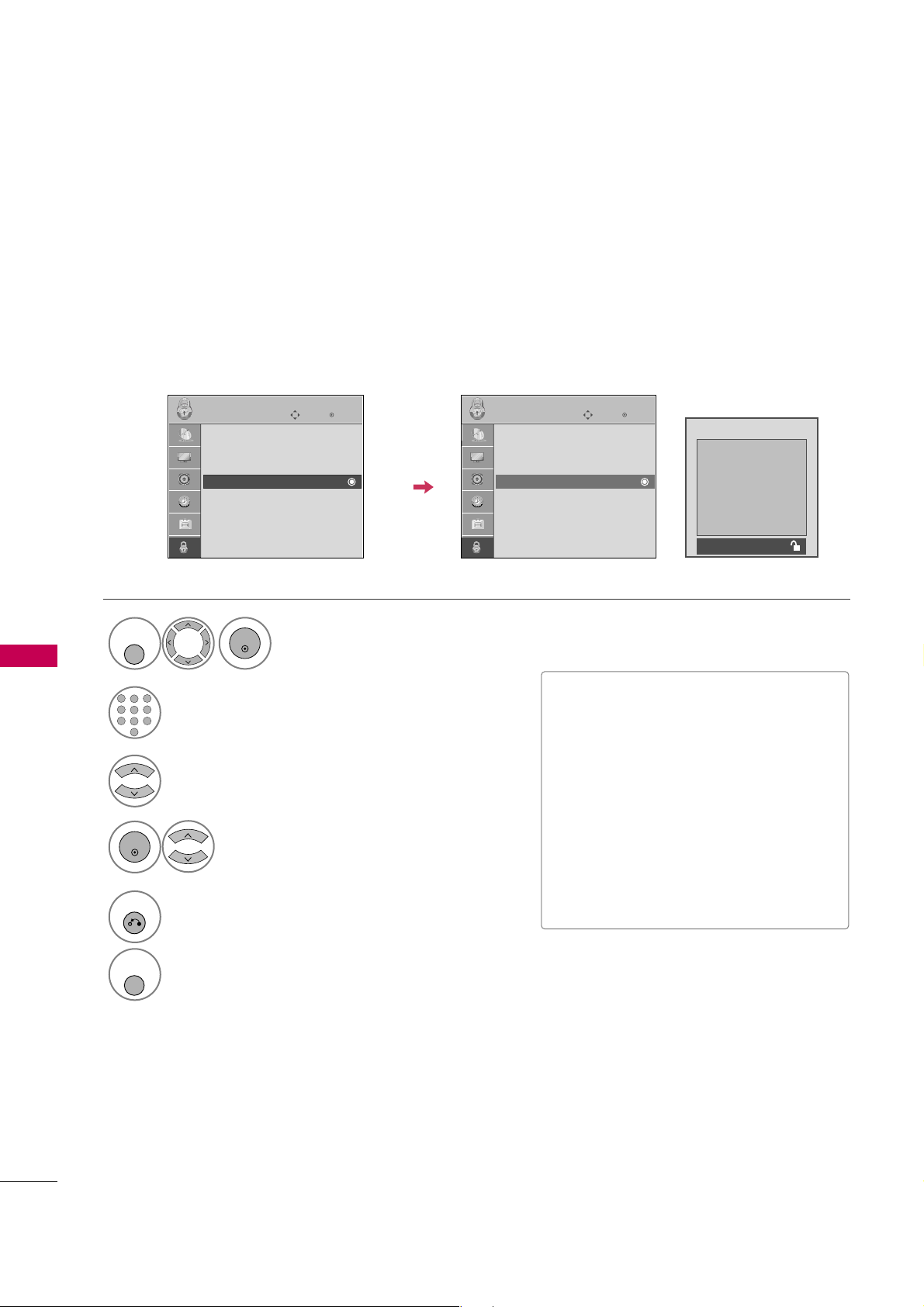

MOVIE & TV RATING

PARENTAL CONTROL / RATINGS

Movie Rating (MPAA)

-

Only for USA

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can
set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that
the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

Select

Movie Rating

.

Select G,

P G, PG-13, R, NC-17

or X.

4

3

ENTER

Blocking off : Permits all programs

G

PG

PG-13

R

NC-17

X

Blocking Off

■

G (General audience)

■

PG (Parental guidance suggested)

■

PG-13 (Parents strongly cautioned)

■

R (Restricted)

■

NC-17 (No one 17 and under admitted)

■

X (Adult only)

■

Blocking Off (Permits all programs)

G

If you set PG-13: G and PG movies will
be available, PG-13, R, NC-17 and X will
be blocked.

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

PARENTAL CONTROL / RATING

97

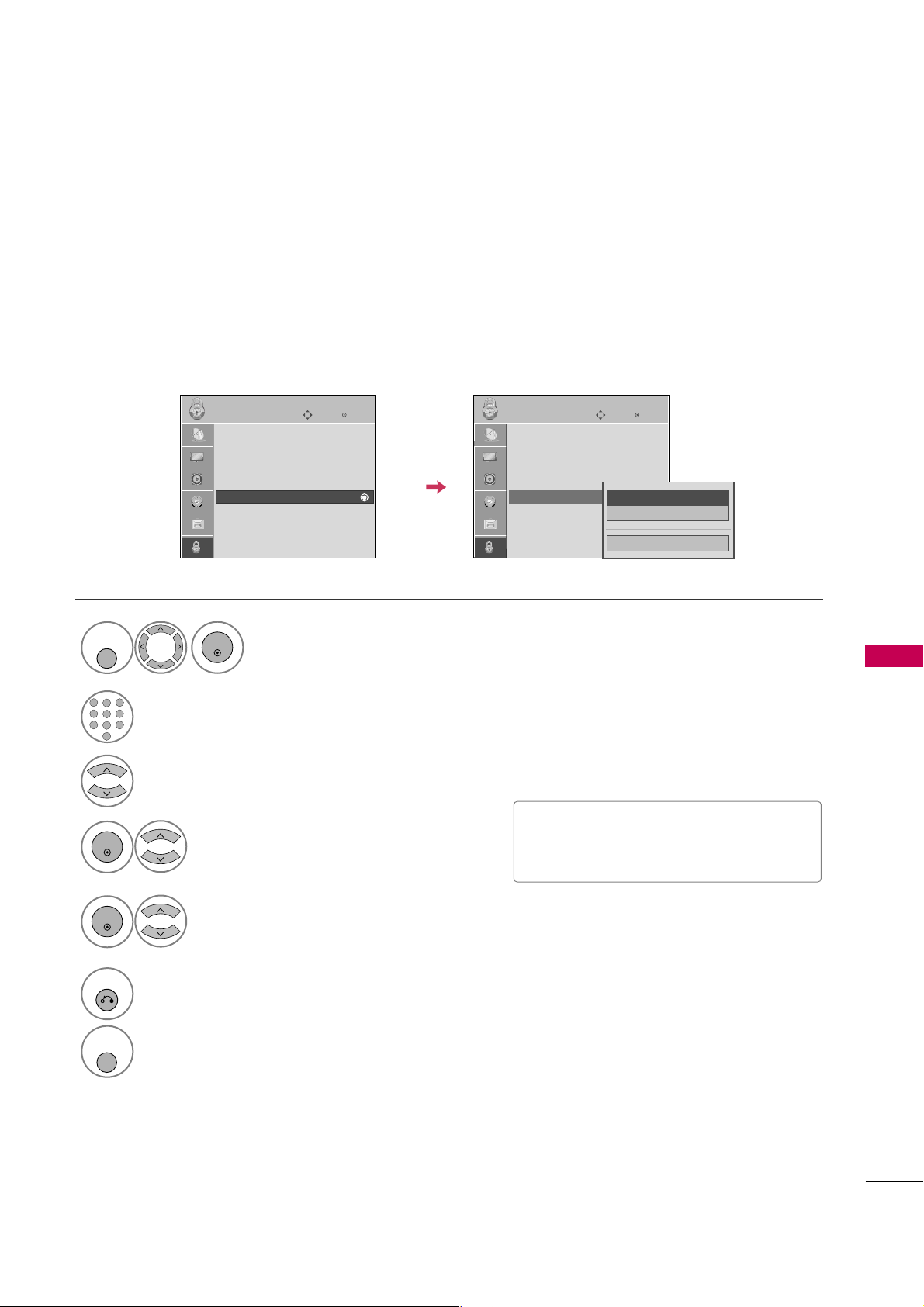

Select

TV Rating-Ch i l d ren

.

Select

Age

or

Fantas y Violence

.

4

3

ENTER

Select block options.

5

ENTER

■

Age (applies to TV-Y, TV-Y7)

■

Fantasy Violence (applies to TV-Y7)

TV Rating Children

-

Only for USA

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children
rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audi­ences in the TV Rating - sub menu, your children can view those programs.

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Close

Age

Fantasy Violence

PARENTAL CONTROL / RATING

98

PARENTAL CONTROL / RATINGS

TV Rating General

-

Only for USA

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

Select

TV Rating-Ge n e r al

.

Select

Ag e, Dialogu e, Languag e

,

Sex

or

Violence

.

4

3

ENTER

Select block options.

5

ENTER

■

Age (applies to TV-G,TV-PG,TV-14,TV­MA).

■

Dialogue-sexual dialogue (applies to
TV-PG,TV-14).

■

Language-adult language (applies to
TV-PG, TV-14, TV-MA).

■

Sex-sexual situations (applies to TV-PG,
TV-14, TV-MA).

■

Violence (applies to TV-PG, TV-14, TV­MA).

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Close

Age

Dialogue

Language

Sex

Violence

PARENTAL CONTROL / RATING

99

TV Rating English

-

Only for CANADA

Selecting canadian english language rating system.

Select

TV Rating-En g l i sh

.

Select E, C,

C8 +, G, P G

,

14 +, 18 +

, or

Blocking Off

.

4

3

ENTER

Blocking off : Permits all programs

E

C

C8+

G

PG

14+

18+

Blocking Off

■

E (Exempt)

■

C (Children)

■

C8+ (Children eight years and older)

■

G (General programming, suitable for
all audiences)

■

PG (Parental Guidance)

■

14+ (Viewers 14 years and older)

■

18+ (Adult programming)

■

Blocking Off (Permits all programs)

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

PARENTAL CONTROL / RATING

100

PARENTAL CONTROL / RATINGS

TV Rating French

-

Only for CANADA

Selecting canadian french language rating system.

Select

TV Rating-Fre n c h

.

Select E, G,

8ans+, 13ans+

,

16ans+, 18ans+

, or

Blocking off

.

4

3

ENTER

Blocking off : Permits all programs

E

G

8ans+

13ans+

16ans+

18ans+

Blocking Off

■

E (Exempt)

■

G (General)

■

8ans+ (General-Not convenient for lit­tle children)

■

13ans+ (Not convenient for children of
13 years and younger)

■

16ans+ (Not convenient for children of
16 years and younger)

■

18ans+ (This programs is only for
adults)

■

Blocking off (Permits all programs)

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

5

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

PARENTAL CONTROL / RATING

101

DOWNLOADABLE RATING

This function may become available in the future and will be available only for digital channel signals.
This function operates only when TV has received Region5 Rating data.

Select

Downlo a d able R ating

.

Select desired

Downloa d a b l e

Rating

option.

4

3

ENTER

Select desired option and block it.

5

ENTER

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Humor

Sports

Cruelty

Language

Sadness

Genre

Age

Close

E

E

■

Based on rating table, your TV's OSD
(On Screen Display) may differ slightly
from what is shown in this manual.

PARENTAL CONTROL / RATING

102

PARENTAL CONTROL / RATINGS

EXTERNAL INPUT BLOCKING

Enables you to block an input.

Select

Input Block

.

Select input source.

4

3

Select

O n

or

Off

.

5

ENTER

Select

LOC K

.

1

MENU/
SET UP

ENTER

Input the password.

2

1

456

7809

23

6

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

AV1

F

Off

G

AV2

Off

Component

Off

HDMI1

Off

RGB-PC

Off

Built-In DVD

Off

HDMI2

Off

HDMI3

Off

Close

PARENTAL CONTROL / RATING

103

KEY LOCK

The TV can be set up so that it can only be used with the remote control.
This feature can be used to prevent unauthorized viewing by locking out the front panel controls.
This TV is programmed to remember which option it was last set to even if you turn the TV off.

Select

OPTION

.

Select

Key Lock

.

1

MENU/
SET UP

2

ENTER

Select

O n

or

Of f

.

3

ENTER

■

In

Key L o c k‘O n

’, if the TV is turned

off, press the

r

r

/ I, INPUT, CH
button on the TV or POWER, INPUT,
CH or NUMBER buttons on the
remote control.

■

With the

Key Lock On

, the display

‘

Key L o c k

’ appears on the screen if
any button on the front panel is pressed
while viewing the TV.

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Off

On

!

APPENDIX

104

APPENDIX

TROUBLESHOOTING

The operation does not work normally.

The video function does not work.

No picture &No sound

No or poor color

or poor picture

Poor reception on

some channels

Lines or streaks

in pictures

No picture

when connecting HDMI

Horizontal/vertical bars

or picture shaking

Picture appears slowly

after switching on

The remote control

doesn’t work

Power is suddenly

turned off

■

Check to see if there is any object between the product and the remote control
causing obstruction. Ensure you are pointing the remote control directly at the TV.

■

Ensure that the batteries are installed with correct polarity (+ to +, - to -).

■

Ensure that the correct remote operating mode is set: TV, VCR etc.

■

Install new batteries.

■

Is the sleep timer set?

■

Check the power control settings. Power interrupted.

■

Check whether the product is turned on.

■

Try another channel. The problem may be with the broadcast.

■

Is the power cord inserted into wall power outlet?

■

Check your antenna direction and/or location.

■

Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.

■

This is normal, the image is muted during the product startup process. Please
contact your service center, if the picture has not appeared after a few minutes.

■

Adjust Color in menu option.

■

Try unplugging any others electronics that are near by to see if interference is
causing the problem.

■

Try another channel. The problem may be with the broadcast.

■

Are the video cables installed properly?

■

Activate any function to restore the brightness of the picture.

■

Check for local interference such as an electrical appliance or power tool.

■

Station or cable product experiencing problems, tune to another station.

■

Station signal is weak, reorient antenna.

■

Check for sources of possible interference.

■

Check antenna (Change the direction of the antenna).

■

Check HDMI cable over version 1.3.

If the HDMI cables don’t support HDMI version 1.3, it can cause flickers or no
screen display. In this case use the latest cables that support HDMI version 1.3.

APPENDIX

105

There is a problem in PC mode. (Only PC mode applied)

■

Adjust resolution, horizontal frequency, or vertical frequency.

■

Check the input source.

■

Run the Auto configure or adjust clock, phase, or H/V position. (Option)

■

Check the signal cable.

■

Update video card drivers.

The signal is out of range

Screen color is unstable

or single color

Vertical bar or stripe on

background &

Horizontal Noise &

Incorrect position

Picture OK but No sound

Unusual sound from

inside the product

No sound

when connecting HDMI

or USB

No output from one

of the speakers

The audio function does not work.

■

Press the VOL or VOLUME button.

■

Sound muted? Press MUTE button.

■

Try another channel. The problem may be with the broadcast.

■

Are the audio cables installed properly?

■

Adjust Balance in menu option.

■

A change in ambient humidity or temperature may result in an unusual noise
when the product is turned on or off and does not indicate a fault with the
product.

■

Check HDMI cable over version 1.3.

■

Check USB cable over version 2.0.

*This feature is not available for all models.

APPENDIX

106

APPENDIX

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you enjoy
your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

■

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

■

Please be sure not to use a wet cloth.

Extended Absence

G

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.

CAUTION

2

1

APPENDIX

107

PRODUCT SPECIFICATIONS

■

The specifications shown above may be changed without prior notice for quality improvement.

MODELS

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ohm

480i

32 ~ 104°F (0 ~ 40°C)

Less than 80%

-4 ~ 140°F (-20 ~ 60°C)

Less than 85%

Dimensions
(Width x Height
x Depth)

Weight

Power requirement
Television System
Program Coverage
External Antenna Impedance
Built-In DVD Video Format

Environment
condition

With stand

Without stand

With stand
Without stand

Operating Temperature
Operating Humidity

Storage Temperature
Storage Humidity

26LG40

(26LG40-UA)

(26LG40-UG)

32LG40

(32LG40-UA)

(32LG40-UG)

26.2 x 20.6 x 10.5 inches

666.8 x 524.5 x 267.0 mm

26.2 x 18.0 x 4.0 inches

666.8 x 457.8 x 103.0 mm

24.4 pounds / 11.1 kg

21.1 pounds / 9.6 kg

31.8 x 24.8 x 11.7 inches

808.8 x 630.3 x 299.2 mm

31.8 x 21.7 x 4.2 inches

808.8 x 551.6 x 108.0 mm

34.1 pounds / 15.5 kg

29.7 pounds / 13.5 kg

APPENDIX

108

PROGRAMMING THE REMOTE CONTROL

APPENDIX

The provided universal remote control can be programmed to operate most remote-controllable devices.
Note that the remote may not control all models of other brands.

Programming a code into a remote mode

Testing your remote control.
To find out whether your remote control can operate other components without programming, turn on a

component such as a STB and press the corresponding mode button (such as a

STB

) on the remote con-

trol, while pointing at the component. Test the

POWER

and

C H

buttons to see if the component
responds correctly. If the component does not operate correctly, the remote control requires programming
to operate the device.

Turn on the component to be programmed, then press the corresponding mode button (such as

STB

) on

the remote control. The remote control button of the desired device is illuminated.

Press the

MENU

and

MUTE

buttons simultaneously, and the remote control is ready to be programmed with

the code.

Enter a code number using the number buttons on the remote control. Programming code numbers for the
corresponding component can be found on the following pages. If the code is correct, the device will turn
off.

Press the

MENU

button to store the code.

Test the remote control functions to see if the component responds correctly. If not, repeat from step 2.

2

3

4

5

6

1

APPENDIX

109

Remote Control Code

Brand Codes Brand Codes Brand Codes

AIWA 034
AKAI 016 043 046 124

12 5 14 6
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS

012 0 23 0 39 0 43
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

12 9 131 13 8 15 3
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072

10 7 10 9 14 4 147
GO VIDEO 132 136
HARMAN KARDON 012 045
HITACHI 004 018 026 034

043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033

040 066 101
JENSEN 043
JVC 012 031 033 043

048 050 055 060

13 0 15 0 15 2
KENWOOD 014 034 039 043

047 048
LG (GOLDSTAR) 001 012 013 020

101 10 6 114 12 3
LLOYD 034
LXI 003 009 013 014

017 03 4 101 10 6
MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031

033 034 053 072

101 10 2 13 4 139
MGA 045 0 46 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046

049 051 059 061

151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043

048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083

13 3 14 0 14 5

PENTAX 013 020 031 033

063
PHILCO 031 034 067
PHILIPS 031 033 034 054

067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034

040 041 062 063

107 109 140 144

14 5 147
REALISTIC 003 008 010 014

031 033 034 040

053 054 101
RICO 058
RUNCO 148
SALORA 014

SAMSUNG 032 040 102 104

10 5 10 7 10 9 112
113 115 12 0 12 2

12 5
SANSUI 022 043 048 135
SANYO 003 007 010 014

10 2 13 4
SCOTT 017 037 112 129

131
SEARS 003 008 009 010

013 014 017 0 20

031 0 42 073 081

101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052

056 057 058 076

077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059

067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEA C 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034

101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047

059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH

012
VICTOR 048
VIDEO CONCEPTS

012 03 4 0 46
VIDEOSONIC 040
WARDS 003 013 017 024

031 033 034 040

053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056

058 072 08 0 101

VCR

APPENDIX

110

APPENDIX

Brand Codes Brand Codes Brand Codes

ALPHASTAR DSR 123
AMPLICA 050
BIRDVIEW 051 126 129
CHANNEL MASTER

013 014 015 018

036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010

011 05 2 112 116

141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

12 2
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027

13 3 13 4
GENERAL INSTRUMENT

003 004 016 029

031 059 101
HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104
HUGHES 068
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064

065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE

14 3
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111

PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO

028 035 047 057
085

SCIENTIFIC ATLANTA

032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087

088 090 107 130

13 7
TOSHIBA 002 127
UNIDEN 016 025 042 043

044 045 048 049

078 079 08 0 086

101 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084

091 120

HDSTB

APPENDIX

111

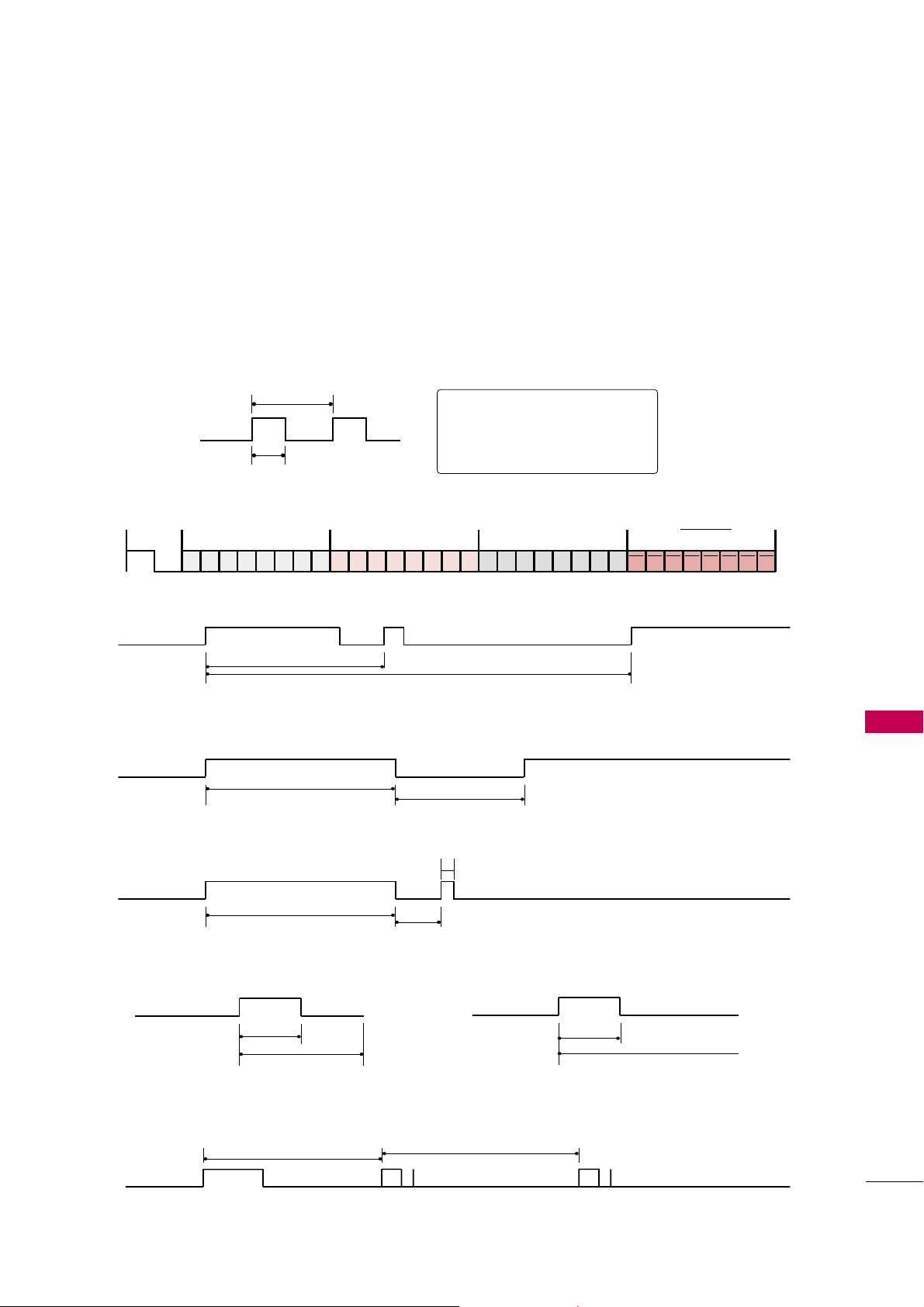

IR CODES

■

Configuration of frame

1st frame

Repeat frame

■

Lead code

■

Repeat code

■

Bit descripti o n

■

Frame interval: Tf

The waveform is transmitted as long as a key is depressed.

C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Lead code Low custom code High custom code Data code Data code

Repeat code

Tf

4.5 ms

9 ms

2.25 ms

9 ms

0.55 ms

0.56 ms

1.12 ms

0.56 ms

2.24 ms

Tf Tf

Tf=108ms @455KHz

Bit ”0” Bit ”1”

1. How to Connect

■

Connect your wired remote control to the Remote Control port on the TV.

2. Remote Control IR Codes

■

Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

T1

Tc

Carrier frequency

FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3

APPENDIX

112

APPENDIX

Code

Function Note

(Hexa)

Code

Function Note

(Hexa)

08 POWER

Remote control Button (Power On/Off)

45 Q.MENU Remote control Button

43 MENU Remote control Button

0B INPUT Remote control Button

10-19 Number Key 0-9 Remote control Button

4C - (Dash) Remote control Button

1A FLASHBK Remote control Button

09 MUTE Remote control Button

02 VOL + Remote control Button

03 VOL - Remote control Button

00 CH Remote control Button

01 CH Remote control Button

1E FAV Remote control Button

40 Remote control Button

41 Remote control Button

07 Remote control Button

06 Remote control Button

44 ENTER Remote control Button

5B RETURN Remote control Button

7E SIMPLINK Remote control Button

30 AV MODE Remote control Button

B0 PLAY Remote control Button

BA PAUSE Remote control Button

B1 STOP Remote control Button

BD REC Remote control Button

8F REW Remote control Button

8E FF Remote control Button

CA EJECT Remote control Button

6B DISC MENU Remote control Button

B3 SKIP + Remote control Button

B2 SKIP - Remote control Button

3C SLOW + Remote control Button

3D SLOW - Remote control Button

D6 TV Discrete IR Code

(TV Input Selection)

C4 POWER ON Discrete IR Code

(Only Power On)

C5 POWER OFF Discrete IR Code

(Only Power Off)

5A AV1 Discrete IR Code

(AV1 Input Selection)

D0 AV2 Discrete IR Code

(AV2 Input Selection)

BF COMPONENT Discrete IR Code

(Component Input Selection)

D4 Built-In DVD Discrete IR Code

(Built-In DVD Input Selection)

D5 RGB-PC Discrete IR Code

(RGB-PC Input Selection)

CE HDMI1 Discrete IR Code

(HDMI1 Input Selection)

CC HDMI2 Discrete IR Code

(HDMI2 Input Selection)

E9 HDMI3 Discrete IR Code

(HDMI3 Input Selection)

76 Ratio 4:3 Discrete IR Code

(Only 4:3 Mode)

77 Ratio 16:9 Discrete IR Code

(Only 16:9 Mode)

AF Ratio Zoom Discrete IR Code

(Only Zoom1 Mode)

APPENDIX

113

EXTERNAL CONTROL THROUGH RS-232C

RS-232C Setup

The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the TV’s functions externally.

■

Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software.

The instructions below are provided to help with programming software or to test functionality using telenet
software.

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

AV IN 1

VIDEO

MONO

( )

AUDIO

S-VIDEO

RGB IN

Type of Connector; D-Sub 9-Pin Male

No. Pin Name

1 No connection
2 RXD (Receive data

)

3 TXD (Transmit data

)

4 DTR (DTE side ready

)

5 GND
6 DSR (DCE side ready

)

7 RTS (Ready to send

)

8 CTS (Clear to send

)

9 No Connection

1

6

5

9

PC

Communication Parameters

■

Baud rate : 9600 bps (UART

)

■

Data length : 8 bits

■

Parity : None

■

Stop bit : 1 bit

■

Communication code : ASCII code

■

Use a crossed (reverse) cable.

NOTE

!

G

This TV has command echo back.

APPENDIX

114

RS-232C Configurations

APPENDIX

Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping1’.

G

p.118

.

Either cable below can be used.

Set ID

PC TV

RXD 2 3 TXD
TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR
DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

PC TV

RXD 2 3 TXD
TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DTR
DSR 6 4 DSR

RTS 7 7 RTS

CTS 8 8 CTS

D-Sub 9 D-Sub 9

7-Wire Configuration

(

Serial female-female NULL modem cable

)

3-Wire Configurations

(

Not standard

)

Select

OPTION

.

Select

Set ID

.

Choose the desired TV ID number.
The adjustment range of Set ID is

1~99.

1

MENU/
SET UP

3

2

ENTER

ENTER

4

RETURN

Return to the previous menu.

MENU/
SET UP

Return to TV viewing

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

F

1

G

Close

APPENDIX

115

Command Reference List

COM M AND 1 C OMMA N D2

19. Channel Tuning

DATA

(Hexadecimal)

COM M AND 1 C OMMA N D2

DATA

(Hexadecimal)

COMMAND1 CO MM AN D2

DATA00

(Hexadecimal)

DATA01

(Hexadecimal)

DATA02

(Hexadecimal)

DATA03

(Hexadecimal)

DATA04

(Hexadecimal)

DATA05

(Hexadecimal)

physical major major low minor high minor low attribute

program high program low

ma

01. Power k a 00 ~ 01

02. Input Select x b (

G

p.117)

03. Aspect Ratio k c (

G

p.117)

04. Screen Mute k d 00 ~ 01

05. Volume Mute k e 00 ~ 01

06. Volume Control k f 00 ~ 64

07. Contrast k g 00 ~ 64

08. Brightness k h 00 ~ 64

09. Color k i 00 ~ 64

10. Tint k j 00 ~ 64

11. Sharpness k k 00 ~ 64

12. OSD Select k l 00 ~ 01

13. Remote Control

Lock Mode

14. Treble k r 00 ~ 64

15. Bass k s 00 ~ 64

16. Balance k t 00 ~ 64

17.

Color Temperature

k u 00 ~ 02

18. Auto Configuration j u (

G

p.118)

20. Channel Add/Del m b 00 ~ 01

21 . K e y m c (

G

p.119)

22. Backlight m g 00 ~ 64

00 ~ 01

k m

APPENDIX

116

APPENDIX

Transmission / Receiving Protocol

Tra n smiss i on

[Command 1] : First command to control the set.

(j, k, m or x)

[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired TV ID

number in Setup menu. Adjustment range is 1

~ 99.

When selecting Set ID ‘0’, every connected TV is
controlled. Set ID is indicated as decimal (1

~ 99

)

on

menu and as Hexa decimal (0x0

~0x63

)

on transmission

/receiving protocol.

[DATA] : The data command. Responds with an acknowledgement

after transmitting.

[Cr] : Carriage Return

ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
* In this model, TV will not send the status during standby mode.

OK Ack nowle dgeme n t

The TV transmits ACK (acknowledgement) based on this for­mat when receiving normal data. At this time, if the data is
data read mode, it indicates present status data. If the data
is data write mode, it returns the data of the PC computer.

* In this model, the TV will not send the status during the

standby mode.

* Data Format
[Command 2] : Use as command.
[Set ID] : Uses lower case, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Uses lower case, if data is 0 x ab, it will send the ‘a’, ‘b’.
[OK] : Uses upper case.

Err or Ackn owled gemen t

The TV transmits ACK (acknowledgement) based on this for­mat when receiving abnormal data from non-viable functions
or communication errors.

Data1: Illegal Code
Data2: Not supported function

Data3: Wait more time
* In this model, TV will not send the status during the standby mode.
* Data Format
[Command 2] : Use as command.
[Set ID] : Uses lower case, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Uses lower case, if data is 0 x ab, it will send the ‘a’, ‘b’.
[NG] : Uses upper case.

[Co mman d 1][C o mman d2][ ][ S et ID] [ ][Da t a][C r]

[Co mmand 2][ ][Set I D][ ][OK] [Dat a ][x]

[Co mmand 2][ ][Set I D][ ][N G][Da ta][x ]

APPENDIX

117

01. Pow e r (Comm a nd: k a)

To control Power On/Off of the TV.

Transmission [k][a][ ][Set ID][ ][Data][Cr]

Data 00: Power Off Data 01: Power On

Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]

* Note: The TV will send the acknowledgement after

power on processing completion.

There might be a time delay between command and
acknowledgement.

02. I n put Sel e ct (Co m mand: x b )

To select an input source for the TV.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data 00: DTV (Antenna) Data 01: DTV (Cable)

Data 10: Analog (Antenna) Data 11: Analog (Cable)

Data 20: AV1 Data 21: AV2

Data 40: Component Data 41: Built-In DVD

Data 60: RGB-PC Data 90: HDMI1

Data 91: HDMI2 Data 92: HDMI3

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

03. A s pect Ratio ( C omma n d: k c)

To adjust the screen format.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01: 4:3 05: Zoom 2

02: 16:9 06: Set by program

04: Zoom 1 09: Just scan

Reserved

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

04. Scr e en Mute ( C omman d : k d)

To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00: Screen mute off (Picture on)

Data 01: Screen mute on (Picture off)

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

05. V o lume Mute (Co m mand: k e )

To control volume mute on/off.

You can also adjust mute using the MUTE button on
remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00: Volume mute on (Volume off)

Data 01: Volume mute off (Volume on)

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

06. V o lume Con t rol (Comm a nd: k f)

To adjust volume.

You can also adjust volume with the volume buttons on
remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

07. C o ntras t ( Comma n d: k g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

08. B r ightn e ss (Com m and: k h )

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

09. C o lor (Co m mand: k i )

To adjust screen color.

You can also adjust color in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

10. T i nt (Com m and: k j)

To adjust screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]

11. S h arpne s s (Comm a nd: k k)

To adjust screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

APPENDIX

118

APPENDIX

12. O S D Selec t ( Comma n d: k l)

To select OSD (On Screen Display) on/off.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD off Data 01: OSD on

Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]

13. R e mote C o ntrol L o ck Mod e ( Comma n d: k m)

To lock the remote control and the front panel controls
on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off Data 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you’re not using the remote control and front panel
controls on the TV, use this mode. When main power is
on/off, remote control lock is released.

14. T r eble (Comm a nd: k r)

To adjust treble.

You can also adjust treble in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’ as shown.

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

15. B ass (Co m mand: k s)

To adjust bass.

You can also adjust bass in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’ as shown.

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

16. B a lance ( C omman d : k t)

To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’ as shown.

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

17. C o lor Tem perat u re (Com m and: k u)

To adjust color temperature.

You can also adjust color temperature in the PICTURE menu.

Transmission [k][u][ ][Set ID][ ][Data][Cr]

Data 00: Medium 01: Cool 02: Warm

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

18. A u to Con f igura t ion (Co m mand : j u )

To adjust picture position and minimize image shaking
automatically. Auto configuration only works in RGB-PC
mode.

Transmission [ j ][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

19. C h annel T u ning ( C omman d : m a)

To tune channel to following physical/major/minor number.

Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel
number. The Physical number is the actual digital channel
number, the Major is the number that the channel should
be mapped to, and the Minor is the sub-channel. Since
the ATSC tuner automatically maps the channel to the
Major number, the Physical number is not required when
sending a command.

Data 00: Physical Channel Number

NTSC air: 02~45, NTSC cable: 01, 0E~7D

ATSC air: 01~45, ATSC cable: 01~87

Data 01 & 02: Major Channel Number

Data 01: High byte Data 02: Low byte

Two bytes are available for the Major and Minor, nor­mally only the second byte is used.

Data 03 & 04: Minor Channel Number

Not needed for NTSC.

*Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

APPENDIX

119

Data5:

The table above lists the binary code which must be

converted to Hexadecimal before sending. For example:

The binary code to tune the sub source to an NTSC

cable channel is “1000 0001”, which translates to “81”

in Hex.

* 7th bit : For which source do you want to change the

channel.

* 6th bit: Use a two part or one part channel. Most cases

just use 0 since it’s ignored when using NTSC.

* 5th bit: Use 0 with NTSC since it can only use the phys-

ical channel number. Normally use 1 for ATSC since most

times it doesn’t matter what the physical number is.

* 4th bit: Set to 0.

* 3-0 bits: Choose signal type.

* Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35.

Data 00 = Physical of 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = 0000 0001 in binary = 01

Total = ma 00 23 00 00 00 00 01

2. Tune to the digital (ATSC) local channel 30-3.

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = 0010 0010 in binary = 22

Total = ma 00 00 00 1E 00 03 22

Acknowledgement[a][ ][Set ID][ ][OK][Data00][Data01]
[Data02][Data03][Data04][x][a][ ][Set ID]

[ ][NG][Data00][x]

20. C h annel A d d/De l ( Comma n d: m b)

To add and delete the channels.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00: Channel Delete Data 01: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

21. K e y (Comm a nd: m c)

To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code: Refer to page 112.

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

22. B a cklig h t (Comm a nd: m g)

To adjust screen backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:00 ~ Max:64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

Step

NTSC Air

NTSC Cable

ATSC Air

ATSC Cable_std

ATSC Cable_hrc

ATSC Cable_irc

ATSC cable_auto

Reserved

...

Reserved

1

0

0

1

1

0

0

1

1

x

1

2

0

0

0

0

1

1

1

1

x

1

3

0

0

0

0

0

0

0

0

x

1

4

x

x

x

x

x

x

x

x

x

x

Reserved

5

01Use

No Use

Using Physical
Channel

6

01Tw o

One

Two/One
Part Channel

7

01Main

Sub

Main/Sub

0

0

1

0

1

0

1

0

1

x

1

APPENDIX

120

OPEN SOURCE LICENSE

-

This feature is not available for all models.

APPENDIX

Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of
this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share
and change free software - to make sure the software is free for
all its users. This General Public License applies to most of the
Free Software Foundation's software and to any other program
whose authors commit to using it. (Some other free software
foundation software is covered by the GNU Lesser General Public
License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not
price. Our General Public Licenses are designed to make sure that
you have the freedom to distribute copies of free software (and
charge for this service if you wish), that you receive source code
or can get it if you want it, that you can change the software or
use pieces of it in new free programs; and that you know you can
do these things.

To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the
rights. These restrictions translate to certain responsibilities for
you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether
gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get
the source code. And you must show them these terms so they
know their rights.

We protect your rights with two steps: (1) copyright the soft­ware, and (2) offer you this license which gives you legal permis­sion to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make cer­tain that everyone understands that there is no warranty for this
free software. If the software is modified by someone else and
passed on, we want its recipients to know that what they have is
not the original, so that any problems introduced by others will
not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software
patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making

the program proprietary. To prevent this, we have made it clear
that any patent must be licensed for everyone's free use or not
licensed at all.

The precise terms and conditions for copying, distribution and
modification follow.

GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION
AND MODIFICATION

0. This license applies to any program or other work which con­tains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The
"Program", below, refers to any such program or work, and a
"work based on the Program" means either the Program or any
derivative work under copyright law: that is to say, a work con­taining the Program or a portion of it, either verbatim or with
modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the
term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification
are not covered by this license; they are outside its scope.
The act of running the Program is not restricted, and the out­put from the program is covered only if its contents constitute
a work based on the program (independent of having been
made by running the program). Whether that is true depends
on what the program does.

1. You may copy and distribute verbatim copies of the program's
source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this license and to the
absence of any warranty; and give any other recipients of the
program a copy of this license along with the Program.

You may charge a fee for the physical act of transferring a
copy, and you may at your option offer warranty protection in
exchange for a fee.

2. You may modify your copy or copies of the program or any
portion of it, thus forming a work based on the Program, and
copy and distribute such modifications or work under the
terms of section 1 above, provided that you also meet all of
these conditions:

a) You must cause the modified files to carry prominent

notices stating that you changed the files and the date of
any change.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

APPENDIX

121

b) You must cause any work that you distribute or publish,

that in whole or in part contains or is derived from the
Program or any part there of, to be licensed as a whole at
no charge to all third parties under the terms of this
license.

c) If the modified program normally reads commands interac-

tively when run, you must cause it, when started running
for such interactive use in the most ordinary way, to print
or display an announcement including an appropriate
copyright notice and a notice that there is no warranty (or
else, saying that you provide a warranty) and that users
may redistribute the program under these conditions, and
telling the user how to view a copy of this license.
(Exception: if the Program itself is interactive but does not
normally print such an announcement, your work based on
the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and
separate works in themselves, then this license, and its terms,
do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as
part of a whole which is a work based on the Program, the dis­tribution of the whole must be on the terms of this license,
whose permissions for other licensees extend to the entire
whole, and thus to each and every part regardless of who
wrote it.

Thus, it is not the intent of this section to claim rights or con­test your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of
derivative or collective works based on the program.

In addition, mere aggregation of another work not based on
the program with the Program (or with a work based on the
program) on a volume of a storage or distribution medium
does not bring the other work under the scope of this license.

3. You may copy and distribute the program (or a work based on
it, under section 2) in object code or executable form under
the terms of sections 1 and 2 above provided that you also
do one of the following:
a) Accompany it with the complete corresponding machine-

readable source code, which must be distributed under the
terms of sections 1 and 2 above on a medium customarily
used for software interchange; or,

b) Accompany it with a written offer, valid for at least three

years, to give any third party, for a charge no more than
your cost of physically performing source distribution, a
complete machine-readable copy of the corresponding
source code, to be distributed under the terms of sections
1 and 2 above on a medium customarily used for software
interchange; or,

c) Accompany it with the information you received as to the

offer to distribute corresponding source code. (This alter­native is allowed only for noncommercial distribution and
only if you received the program in object code or exe­cutable form with such an offer, in accord with Subsection
b above.)

The source code for a work means the preferred form of the
work for making modifications to it. For an executable work,
complete source code means all the source code for all mod­ules it contains, plus any associated interface definition files,
plus the scripts used to control compilation and installation
of the executable. However, as a special exception, the source
code distributed need not include anything that is normally
distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating
system on which the executable runs, unless that component
itself accompanies the executable.

If distribution of executable or object code is made by offer­ing access to copy from a designated place, then offering
equivalent access to copy the source code from the same
place counts as distribution of the source code, even though
third parties are not compelled to copy the source along with
the object code.

4. You may not copy, modify, sublicense, or distribute the Program
except as expressly provided under this license. Any attempt
otherwise to copy, modify, sublicense or distribute the
Program is void, and will automatically terminate your rights
under this license. However, parties who have received copies,
or rights, from you under this license will not have their licens­es terminated so long as such parties remain in full compli­ance.

5. You are not required to accept this license, since you have not
signed it. However, nothing else grants you permission to
modify or distribute the Program or its derivative works.
These actions are prohibited by law if you do not accept this
license. Therefore, by modifying or distributing the program
(or any work based on the program), you indicate your accep­tance of this license to do so, and all its terms and conditions
for copying, distributing or modifying the program or works
based on it.

6. Each time you redistribute the program (or any work based on
the Program), the recipient automatically receives a license
from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not
impose any further restrictions on the recipients' exercise of
the rights granted herein. You are not responsible for enforc­ing compliance by third parties to this license.

APPENDIX

122

APPENDIX

7. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the con­ditions of this license, they do not excuse you from the con­ditions of this license. If you cannot distribute so as to satis­fy simultaneously your obligations under this license and any
other pertinent obligations, then as a consequence you may
not distribute the program at all. For example, if a patent
license would not permit royalty-free redistribution of the
program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and
this license would be to refrain entirely from distribution of
the program.

If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section
is intended to apply and the section as a whole is intended to
apply in other circumstances.

It is not the purpose of this section to induce you to infringe
any patents or other property right claims or to contest valid­ity of any such claims; this section has the sole purpose of
protecting the integrity of the free software distribution sys­tem, which is implemented by public license practices. Many
people have made generous contributions to the wide range
of software distributed through that system in reliance on
consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute
software through any other system and a licensee cannot
impose that choice.

This section is intended to make thoroughly clear what is
believed to be a consequence of the rest of this license.

8. If the distribution and/or use of the program is restricted in
certain countries either by patents or by copyrighted inter­faces, the original copyright holder who places the program
under this license may add an explicit geographical distribution
limitation excluding those countries, so that distribution is
permitted only in or among countries not thus excluded. In
such case, this license incorporates the limitation as if written
in the body of this license.

9. The Free Software Foundation may publish revised and/or
new versions of the General Public License from time to time.
Such new versions will be similar in spirit to the present ver­sion, but may differ in detail to address new problems or con­cerns.

Each version is given a distinguishing version number. If the
program specifies a version number of this license which
applies to it and "any later version", you have the option of
following the terms and conditions either of that version or of

any later version published by the Free Software Foundation.
If the program does not specify a version number of this
license, you may choose any version ever published by the
Free Software Foundation.

10.If you wish to incorporate parts of the program into other free
programs whose distribution conditions are different, write to
the author to ask for permission. For software which is copy­righted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this.
Our decision will be guided by the two goals of preserving the
free status of all derivatives of our free software and of pro­moting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE
EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD­ERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS
IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE
RISK AS TO THE QUALITY AND PERFORMANCE OF THE
PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.

12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE PRO­GRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA
OR DATA BEING RENDERED INACCURATE OR LOSSES SUS­TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE
PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),
EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

APPENDIX

123

END OF TERMS AND CONDITIONS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the great­est possible use to the public, the best way to achieve this is to
make it free software which everyone can redistribute and change
under these terms.

To do so, attach the following notices to the program. It is safest
to attach them to the start of each source file to most effective­ly convey the exclusion of warranty; and each file should have at
least the "copyright" line and a pointer to where the full notice is
found.

one line to give the program's name and a brief idea of what it
does.
Copyright (C) <year> <name of author>

This program is free software; you can redistribute it and/or
modify it under the terms of the GNU General Public License as
published by the Free Software Foundation; either version 2 of
the license, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY; without even the implied warranty
of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR­POSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public
License along with this program; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA
02110-1301 USA.

Also add information on how to contact you by electronic and
paper mail.

If the program is interactive, make it output a short notice like
this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY; for
details type ‘show w’. This is free software, and you are welcome
to redistribute it under certain conditions; type ‘show c’ for
details.

The hypothetical commands ‘show w’ and ‘show c’ should show
the appropriate parts of the General Public License. Of course,
the commands you use may be called something other than
‘show w’ and ‘show c’; they could even be mouse-clicks or menu
items-whatever suits your program.

You should also get your employer (if you work as a programmer)
or your school, if any, to sign a “copyright disclaimer” for the pro­gram, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the pro­gram ‘Gnomovision’ (which makes passes at compilers) written by
James Hacker.

signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice

This General Public License does not permit incorporating your
program into proprietary programs. If your program is a subrou­tine library, you may consider it more useful to permit linking pro­prietary applications with the library. If this is what you want to
do, use the GNU Lesser General Public License instead of this
license.

APPENDIX

124

APPENDIX

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of
this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also
counts as the successor of the GNU Library Public License, ver­sion 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General
Public Licenses are intended to guarantee your freedom to share
and change free software - to make sure the software is free for
all its users.

This license, the Lesser General Public License, applies to some
specially designated software packages - typically libraries - of
the Free Software Foundation and other authors who decide to
use it. You can use it too, but we suggest you first think careful­ly about whether this license or the ordinary General Public
License is the better strategy to use in any particular case, based
on the explanations below.

When we speak of free software, we are referring to freedom of
use, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free soft­ware (and charge for this service if you wish); that you receive
source code or can get it if you want it; that you can change the
software and use pieces of it in new free programs; and that you
are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid
distributors to deny you these rights or to ask you to surrender
these rights. These restrictions translate to certain responsibilities
for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis
or for a fee, you must give the recipients all the rights that we
gave you. You must make sure that they, too, receive or can get
the source code. If you link other code with the library, you must
provide complete object files to the recipients, so that they can
relink them with the library after making changes to the library
and recompiling it. And you must show them these terms so they
know their rights.

We protect your rights with a two-step method: (1) we copyright
the library, and (2) we offer you this license, which gives you legal
permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that
there is no warranty for the free library. Also, if the library is mod­ified by someone else and passed on, the recipients should know
that what they have is not the original version, so that the origi­nal author's reputation will not be affected by problems that
might be introduced by others.

Finally, software patents pose a constant threat to the existence
of any free program. We wish to make sure that a company can­not effectively restrict the users of a free program by obtaining a
restrictive license from a patent holder. Therefore, we insist that
any patent license obtained for a version of the library must be
consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the
ordinary GNU General Public License. This license, the GNU
Lesser General Public License, applies to certain designated
libraries, and is quite different from the ordinary General Public
License. We use this license for certain libraries in order to per­mit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or
using a shared library, the combination of the two is legally
speaking a combined work, a derivative of the original library. The
ordinary General Public License therefore permits such linking
only if the entire combination fits its criteria of freedom. The
Lesser General Public License permits more lax criteria for linking
other code with the library.

We call this license the "Lesser" General Public License because
it does Less to protect the user's freedom than the ordinary
General Public License. It also provides other free software devel­opers Less of an advantage over competing non-free programs.
These disadvantages are the reason we use the ordinary General
Public License for many libraries. However, the Lesser license pro­vides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to
encourage the widest possible use of a certain library, so that it
becomes a de-facto standard. To achieve this, non-free programs
must be allowed to use the library. A more frequent case is that
a free library does the same job as widely used non-free libraries.
In this case, there is little to gain by limiting the free library to free
software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free
programs enables a greater number of people to use a large body
of free software. For example, permission to use the GNU C
Library in non-free programs enables many more people to use
the whole GNU operating system, as well as its variant, the
GNU/Linux operating system.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

APPENDIX

125

Although the Lesser General Public License is Less protective of
the users' freedom, it does ensure that the user of a program that
is linked with the Library has the freedom and the wherewithal to
run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and
modification follow. Pay close attention to the difference between
a "work based on the library" and a "work that uses the library".
The former contains code derived from the library, whereas the
latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION
AND MODIFICATION

0. This license agreement applies to any software library or other
program which contains a notice placed by the copyright hold­er or other authorized party saying it may be distributed
under the terms of this Lesser General Public License (also
called “this license”). Each license is addressed as "you".

A “library” means a collection of software functions and/or
data prepared so as to be conveniently linked with application
programs (which use some of those functions and data) to
form executables.

The “Library”, below, refers to any such software library or work
which has been distributed under these terms. A “work based
on the Library” means either the Library or any derivative work
under copyright law: that is to say, a work containing the
library or a portion of it, either verbatim or with modifications
and/or translated straightforwardly into another language.
(Hereinafter, translation is included without limitation in the
term “modification”.)

“Source code” for a work means the preferred form of the
work for making modifications to it. For a library, complete
source code means all the source code for all modules it con­tains, plus any associated interface definition files, plus the
scripts used to control compilation and installation of the
library.

Activities other than copying, distribution and modification
are not covered by this license; they are outside its scope.
The act of running a program using the Library is not restrict­ed, and output from such a program is covered only if its con­tents constitute a work based on the library (independent of
the use of the Library in a tool for writing it). Whether that is
true depends on what the library does and what the program
that uses the library does.

1. You may copy and distribute verbatim copies of the library's
complete source code as you receive it, in any medium, pro­vided that you conspicuously and appropriately publish on

each copy an appropriate copyright notice and disclaimer of
warranty; keep intact all the notices that refer to this license
and to the absence of any warranty; and distribute a copy of
this license along with the Library.

You may charge a fee for the physical act of transferring a
copy, and you may at your option offer warranty protection in
exchange for a fee.

2. You may modify your copy or copies of the Library or any
portion of it, thus forming a work based on the Library, and
copy and distribute such modifications or work under the
terms of section 1 above, provided that you also meet all of
these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent

notices stating that you changed the files and the date of
any change.

c) You must cause the whole of the work to be licensed at no

charge to all third parties under the terms of this license.

d) If a facility in the modified Library refers to a function or a

table of data to be supplied by an application program that
uses the facility, other than as an argument passed when
the facility is invoked, then you must make a good faith
effort to ensure that, in the event an application does not
supply such function or table, the facility still operates, and
performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots
has a purpose that is entirely well-defined independent of the
application. Therefore, Subsection 2d requires that any appli­cation-supplied function or table used by this function must be
optional: if the application does not supply it, the square root
function must still compute square roots.)

These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the
library, and can be reasonably considered independent and
separate works in themselves, then this license, and its terms,
do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as
part of a whole which is a work based on the library, the dis­tribution of the whole must be on the terms of this license,
whose permissions for other licenses extend to the entire
whole, and thus to each and every part regardless of who
wrote it.
Thus, it is not the intent of this section to claim rights or con­test your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of
derivative or collective works based on the library.

In addition, mere aggregation of another work not based on
the library with the library (or with a work based on the
library) on a volume of a storage or distribution medium does
not bring the other work under the scope of this license.

APPENDIX

126

APPENDIX

3. You may opt to apply the terms of the ordinary GNU General
Public License instead of this License to a given copy of the
Library. To do this, you must alter all the notices that refer to
this License, so that they refer to the ordinary GNU General
Public License, version 2, instead of to this License. (If a newer
version than version 2 of the ordinary GNU General Public
License has appeared, then you can specify that version
instead if you wish.) Do not make any other change in these
notices.
Once this change is made in a given copy, it is irreversible for
that copy, so the ordinary GNU General Public License applies
to all subsequent copies and derivative works made from that
copy.
This option is useful when you wish to copy part of the code
of the library into a program that is not a library.

4. You may copy and distribute the library (or a portion or deriv­ative of it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you
accompany it with the complete corresponding machine­readable source code, which must be distributed under the
terms of sections 1 and 2 above on a medium customarily
used for software interchange.
If distribution of object code is made by offering access to
copy from a designated place, then offering equivalent access
to copy the source code from the same place satisfies the
requirement to distribute the source code, even though third
parties are not compelled to copy the source along with the
object code.

5. A program that contains no derivative of any portion of the
Library, but is designed to work with the Library by being
compiled or linked with it, is called a “work that uses the
Library”. Such a work, in isolation, is not a derivative work of
the Library, and therefore falls outside the scope of this
license.

However, linking a “work that uses the library” with the Library
creates an executable that is a derivative of the Library
(because it contains portions of the library), rather than a
“work that uses the library”. The executable is therefore cov­ered by this license. Section 6 states terms for distribution of
such executable.

When a “work that uses the library” uses material from a head­er file that is part of the library, the object code for the work
may be a derivative work of the library even though the source
code is not.
Whether this is true is especially significant if the work can be
linked without the library, or if the work is itself a library. The
threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data
structure layouts and accessories, and small macros and small
inline functions (ten lines or less in length), then the use of

the object file is unrestricted, regardless of whether it is legal­ly a derivative work. (Executable containing this object code
plus portions of the library will still fall under Section 6.)

Otherwise, if the work is a derivative of the library, you may
distribute the object code for the work under the terms of
Section 6. Any executable containing that work also fall under
Section 6, whether or not they are linked directly with the
library itself.

6. As an exception to the sections above, you may also combine
or link a "work that uses the library" with the library to pro­duce a work containing portions of the library, and distribute
that work under terms of your choice, provided that the terms
permit modification of the work for the customer's own use
and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work
that the library is used in it and that the Library and its use
are covered by this license. You must supply a copy of this
license. If the work during execution displays copyright
notices, you must include the copyright notice for the library
among them, as well as a reference directing the user to the
copy of this license. Also, you must do one of these things:

a) Accompany the work with the complete corresponding

machine-readable source code for the library including
whatever changes were used in the work (which must be
distributed under Sections 1 and 2 above); and, if the work
is an executable linked with the Library, with the complete
machine-readable “work that uses the Library”, as object
code and/or source code, so that the user can modify the
library and then relink to produce a modified executable
containing the modified library. (It is understood that the
user who changes the contents of definitions files in the
library will not necessarily be able to recompile the appli­cation to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the

library. A suitable mechanism is one that (1) uses at run time
a copy of the library already present on the user’s computer
system, rather than copying library functions into the exe­cutable, and (2) will operate properly with a modified version
of the library, if the user installs one, as long as the modified
version is interface-compatible with the version that the
work was made with.

c) Accompany the work with a written offer, valid for at least

three years, to give the same user the materials specified in
Subsection 6, above, for a charge no more than the cost of
performing this distribution.

d) If distribution of the work is made by offering access to

copy from a designated place, offer equivalent access to
copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these

materials or that you have already sent this user a copy.

APPENDIX

127

For an executable, the required form of the "work that uses
the library" must include any data and utility programs need­ed for reproducing the executable from it. However, as a spe­cial exception, the materials to be distributed need not
include anything that is normally distributed (in either source
or binary form) with the major components (compiler, kernel,
and so on) of the operating system on which the executable
runs, unless that component itself accompanies the exe­cutable.

It may happen that this requirement contradicts the license
restrictions of other proprietary libraries that do not normal­ly accompany the operating system. Such a contradiction
means you cannot use both them and the library together in
an executable that you distribute.

7. You may place library facilities that are a work based on the
library side-by-side in a single library together with other
library facilities not covered by this license, and distribute
such a combined library, provided that the separate distribu­tion of the work based on the Library and of the other library
facilities is otherwise permitted, and provided that you do
these two things:

a) Accompany the combined library with a copy of the same

work based on the Library, uncombined with any other
library facilities. This must be distributed under the terms
of the sections above.

b) Give prominent notice with the combined library of the

fact that part of it is a work based on the library, and
explaining where to find the accompanying uncombined
form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute
the library except as expressly provided under this license.
Any attempt otherwise to copy, modify, sublicense, link with,
or distribute the library is void, and will automatically termi­nate your rights under this license. However, parties who have
received copies, or rights, from you under this license will not
have their licenses terminated so long as such parties remain
in full compliance.

9. You are not required to accept this license, since you have not
signed it. However, nothing else grants you permission to mod­ify or distribute the library or its derivative works. These
actions are prohibited by law if you do not accept this license.
Therefore, by modifying or distributing the library (or any work
based on the library), you indicate your acceptance of this
license to do so, and all its terms and conditions for copying,
distributing or modifying the library or works based on it.

10.Each time you redistribute the library (or any work based on
the Library), the recipient automatically receives a license
from the original licensor to copy, distribute, link with or mod­ify the library subject to these terms and conditions. You may
not impose any further restrictions on the recipients' exercise

of the rights granted herein.
You are not responsible for enforcing compliance by third
parties with this license.

11. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the con­ditions of this license, they do not excuse you from the con­ditions of this license. If you cannot distribute so as to satis­fy simultaneously your obligations under this license and any
other pertinent obligations, then as a consequence you may
not distribute the library at all. For example, if a patent license
would not permit royalty-free redistribution of the library by
all those who receive copies directly or indirectly through
you, then the only way you could satisfy both it and this
license would be to refrain entirely from distribution of the
library.
If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section
is intended to apply, and the section as a whole is intended to
apply in other circumstances.
It is not the purpose of this section to induce you to infringe
any patents or other property right claims or to contest valid­ity of any such claims; this section has the sole purpose of
protecting the integrity of the free software distribution sys­tem which is implemented by public license practices. Many
people have made generous contributions to the wide range
of software distributed through that system in reliance on
consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute
software through any other system and a license cannot
impose that choice.
This section is intended to make thoroughly clear what is
believed to be a consequence of the rest of this license.

12.If the distribution and/or use of the library is restricted in cer­tain countries either by patents or by copyrighted interfaces,
the original copyright holder who places the library under this
license may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case,
this license incorporates the limitation as if written in the body
of this license.

13.The Free Software Foundation may publish revised and/or
new versions of the Lesser General Public License from time to
time. Such new versions will be similar in spirit to the present
version, but may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version number. If the
library specifies a version number of this license which applies
to it and “any later version”, you have the option of following
the terms and conditions either of that version or of any later
version published by the Free Software Foundation.

APPENDIX

128

APPENDIX

If the library does not specify a license version number, you
may choose any version ever published by the Free Software
Foundation.

14.If you wish to incorporate parts of the library into other free
programs whose distribution conditions are incompatible with
these, write to the author to ask for permission. For software
which is copyrighted by the Free Software Foundation, write
to the Free Software Foundation; we sometimes make excep­tions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software
and of promoting the sharing and reuse of software generally.

NO WARRANTY

15.BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE LIBRARY, TO THE
EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD­ERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS
IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE
RISK AS TO THE QUALITY AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.

16.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA
OR DATA BEING RENDERED INACCURATE OR LOSSES SUS­TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE
LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE),
EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new libraries

If you develop a new library, and you want it to be of the great­est possible use to the public, we recommend making it free soft­ware that everyone can redistribute and change. You can do so
by permitting redistribution under these terms (or, alternatively,
under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library.
It is safest to attach them to the start of each source file to most
effectively convey the exclusion of warranty; and each file should
have at least the “copyright” line and a pointer to where the full
notice is found.

one line to give the library's name and a brief idea of what it does.
Copyright (C) <year> <name of author>

This library is free software; you can redistribute it and/or modify
it under the terms of the GNU Lesser General Public License as
published by the Free Software Foundation; either version 2.1 of
the license, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY; without even the implied warranty
of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR­POSE. See the GNU Lesser General Public License for more
details.

You should have received a copy of the GNU Lesser General
Public License along with this library; if not, write to the Free
Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston,
MA 02110-1301 USA

Also add information on how to contact you by electronic and
paper mail.

You should also get your employer (if you work as a programmer)
or your school, if any, to sign a “copyright disclaimer” for the
library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the
library ‘Frob’ (a library for tweaking knobs) written by James
Random Hacker.

signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice

APPENDIX

129

1.Definitions.

1.0.1. “Commercial use” means distribution or otherwise making
the covered code available to a third party.

1.1. “Contributor” means each entity that creates or con­tributes to the creation of modifications.

1.2. “Contributor version” means the combination of the orig­inal code, prior modifications used by a contributor, and
the modifications made by that particular contributor.

1.3. “Covered code” means the original code or modifications
or the combination of the original code and modifications,
in each case including portions thereof.

1.4. “Electronic distribution mechanism” means a mechanism
generally accepted in the software development communi­ty for the electronic transfer of data.

1.5. “Executable” means covered code in any form other than
source code.

1.6. “Initial developer” means the individual or entity identified
as the initial Developer in the Source Code notice required
by exhibit A.

1.7. “Larger work” means a work which combines covered code
or portions thereof with code not governed by the terms
of this License.

1.8. “License” means this document.

1.8.1. “Licensable” means having the right to grant, to the maxi­mum extent possible, whether at the time of the initial
grant or subsequently acquired, any and all of the rights
conveyed herein.

1.9. “Modifications” means any addition to or deletion from
the substance or structure of either the original code or
any previous modifications. When covered code is
released as a series of files, a modification is:

A. Any addition to or deletion from the contents of a file
containing original code or previous modifications.

B. Any new file that contains any part of the original code
or previous modifications.

1.10. “Original code” means source code of computer software

code which is described in the source code notice
required by exhibit as original code, and which, at the time
of its release under this license is not already covered
code governed by this license.

1.10.1.

“Patent claims” means any patent claim(s), now owned or
hereafter acquired, including without limitation, method,
process, and apparatus claims, in any patent licensable by
grantor.

1.11. “Source code” means the preferred form of the covered
code for making modifications to it, including all modules
it contains, plus any associated interface definition files,
scripts used to control compilation and installation of an
executable, or source code differential comparisons
against either the original code or another well known,
available covered code of the contributor's choice. The
source code can be in a compressed or archival form, pro­vided the appropriate decompression or de-archiving soft­ware is widely available for no charge.

1.12. “You” (or “Your”) means an individual or a legal entity
exercising rights under, and complying with all of the terms
of, this license or a future version of this license issued
under section 6.1.
For legal entities, “You” includes any entity which controls,
is controlled by, or is under common control with You. For
purposes of this definition, “control” means (a) the power,
direct or indirect, to cause the direction or management of
such entity, whether by contract or otherwise, or (b) own­ership of more than fifty percent (50%) of the outstand­ing shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The initial developer grant.
The initial developer hereby grants You a world-wide, roy­alty-free, non-exclusive license, subject to third party intel­lectual property claims:

a) under intellectual property rights (other than patent or

trademark) licensable by initial developer to use, repro­duce, modify, display, perform, sublicense and distrib­ute the original code (or portions thereof) with or with­out modifications, and/or as part of a larger work; and

(b) under patents claims infringed by the making, using or

selling of original code, to make, have made, use, prac­tice, sell, and offer for sale, and/or otherwise dispose
of the original code (or portions there of).

MOZILLA PUBLIC LICENSE

Version 1.1

---------------

APPENDIX

130

APPENDIX

(c) the licenses granted in this section 2.1(a) and (b) are

effective on the date Initial developer first distributes
original code under the terms of this license.

(d) Notwithstanding section 2.1(b) above, no patent

license is granted: 1) for code that You delete from the
original Code; 2) separate from the original code; or

3) for infringements caused by: i) the modification of
the original code or ii) the combination of the original
code with other software or devices.

2.2. Contributor Grant.
Subject to third party intellectual property claims, each
contributor hereby grants You a world-wide, royalty-free,
non-exclusive license

(a) under intellectual property rights (other than patent

or trademark) licensable by contributor, to use,
reproduce, modify, display, perform, sublicense and
distribute the modifications created by such contribu­tor (or portions thereof) either on an unmodified
basis, with other modifications, as covered code
and/or as part of a larger work; and

(b) under patent claims infringed by the making, using, or

selling of modifications made by that contributor
either alone and/or in combination with its contributor
version (or portions of such combination), to make,
use, sell, offer for sale, have made, and/or otherwise
dispose of: 1) modifications made by that contributor
(or portions thereof); and 2) the combination of mod­ifications made by that contributor with its contributor
version (or portions of such combination).

(c) the licenses granted in sections 2.2(a) and 2.2(b) are

effective on the date contributor first makes commer­cial use of the covered code.

(d) Notwithstanding section 2.2(b) above, no patent

license is granted: 1) for any code that contributor has
deleted from the contributor version; 2) separate from
the contributor version; 3) for infringements caused
by: i) third party modifications of contributor version
or ii) the combination of modifications made by that
contributor with other software (except as part of the
contributor version) or other devices; or 4) under
patent claims infringed by covered code in the
absence of modifications made by that contributor.

3. Distribution Obligations.

3.1. Application of license.
The modifications which You create or to which you con­tribute are governed by the terms of this license, including
without limitation section 2.2. The source code version of
covered code may be distributed only under the terms of
this license or a future version of this license released
under section 6.1, and you must include a copy of this
license with every copy of the source code you distribute.

You may not offer or impose any terms on any source code
version that alters or restricts the applicable version of
this license or the recipients' rights hereunder. However,
you may include an additional document offering the
additional rights described in section 3.5.

3.2. Availability of source code.
Any modification which you create or to which you con­tribute must be made available in source code form under
the terms of this license either on the same media as an
executable version or via an accepted electronic distribu­tion mechanism to anyone to whom you made an exe­cutable version available; and if made available via elec­tronic distribution mechanism, must remain available for at
least twelve (12) months after the date it initially became
available, or at least six (6) months after a subsequent
version of that particular modification has been made
available to such recipients. You are responsible for ensur­ing that the source code version remains available even if
the electronic distribution mechanism is maintained by a
third party.

3.3. Description of modifications.
You must cause all covered code to which you contribute to
contain a file documenting the changes You made to create
that covered code and the date of any change. You must
include a prominent statement that the modification is
derived, directly or indirectly, from original code provided by
the initial developer and including the name of the initial
developer in (a) the source code, and (b) in any notice in an
executable version or related documentation in which you
describe the origin or ownership of the covered code.

3.4. Intellectual property matters
(a) Third party claims.
If contributor has knowledge that a license under a third
party's intellectual property rights is required to exercise
the rights granted by such contributor under sections 2.1
or 2.2, contributor must include a text file with the source
code distribution titled "LEGAL" which describes the claim
and the party making the claim in sufficient detail that a
recipient will know whom to contact. If contributor obtains
such knowledge after the modification is made available as
described in section 3.2, contributor shall promptly modi­fy the LEGAL file in all copies contributor makes available
thereafter and shall take other steps (such as notifying
appropriate mailing lists or newsgroups) reasonably calcu­lated to inform those who received the covered code that
new knowledge has been obtained.
(b) Contributor APIs.
If contributor's modifications include an application
programming interface and contributor has knowledge of
patent licenses which are reasonably necessary to implement
that API, contributor must also include this information in
the LEGAL file.

APPENDIX

131

(c) Representations.
contributor represents that, except as disclosed pursuant
to section 3.4(a) above, contributor believes that contributor's
modifications are contributor's original creation(s)
and/or contributor has sufficient rights to grant the rights
conveyed by this license.

3.5. Required notices.
You must duplicate the notice in exhibit A in each file of
the source code. If it is not possible to put such notice in
a particular source code file due to its structure, then You
must include such notice in a location (such as a relevant
directory) where a user would be likely to look for such a
notice. If You created one or more modification(s), you
may add your name as a contributor to the notice
described in exhibit A. you must also duplicate this license
in any documentation for the source code where You
describe recipients' rights or ownership rights relating to
covered code. You may choose to offer, and to charge a
fee for, warranty, support, indemnity or liability obligations
to one or more recipients of covered code. However, you
may do so only on your own behalf, and not on behalf of
the Initial developer or any contributor. You must make it
absolutely clear than any such warranty, support, indemni­ty or liability obligation is offered by you alone, and You
hereby agree to indemnify the Initial developer and every
contributor for any liability incurred by the Initial develop­er or such contributor as a result of warranty, support,
indemnity or liability terms you offer.

3.6. Distribution of executable versions.
You may distribute covered code in executable form only if
the requirements of section 3.1-3.5 have been met for
that covered code, and if you include a notice stating that
the source code version of the covered code is available
under the terms of this license, including a description of
how and where you have fulfilled the obligations of section

3.2. The notice must be conspicuously included in any
notice in an executable version, related documentation or
collateral in which you describe recipients' rights relating
to the covered code. You may distribute the executable
version of covered code or ownership rights under a
license of your choice, which may contain terms different
from this license, provided that you are in compliance with
the terms of this license and that the license for the exe­cutable version does not attempt to limit or alter the recip­ient's rights in the source code version from the rights set
forth in this license. If you distribute the executable ver­sion under a different license you must make it absolutely
clear that any terms which differ from this license are
offered by you alone, not by the Initial developer or any
contributor. You hereby agree to indemnify the initial
developer and every contributor for any liability incurred
by the initial developer or such contributor as a result of
any such terms You offer.

3.7. Larger works.
You may create a larger work by combining covered code
with other code not governed by the terms of this license
and distribute the larger work as a single product. In such
a case, you must make sure the requirements of this
license are fulfilled for the covered code.

4. Inability to comply due to statute or regulation.
If it is impossible for you to comply with any of the terms
of this license with respect to some or all of the covered
code due to statute, judicial order, or regulation then you
must: (a) comply with the terms of this license to the max­imum extent possible; and (b) describe the limitations and
the code they affect. Such description must be included in
the LEGAL file described in section 3.4 and must be
included with all distributions of the source code. Except
to the extent prohibited by statute or regulation, such
description must be sufficiently detailed for a recipient of
ordinary skill to be able to understand it.

5. Application of this license.
This license applies to code to which the initial developer has
attached the notice in exhibit A and to related covered code.

6. Versions of the license.

6.1. New versions.
Netscape communications corporation (“Netscape”) may
publish revised and/or new versions of the license from
time to time. Each version will be given a distinguishing
version number.

6.2. Effect of new versions.
Once covered code has been published under a particular
version of the license, you may always continue to use it
under the terms of that version. You may also choose to
use such covered code under the terms of any subsequent
version of the license published by netscape. No one
other than netscape has the right to modify the terms
applicable to covered code created under this license.

6.3. Derivative works.
If You create or use a modified version of this license
(which you may only do in order to apply it to code which
is not already covered code governed by this license), You
must (a) rename Your license so that the phrases
"Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL",
"NPL" or any confusingly similar phrase do not appear in
your license (except to note that your license differs from
this license) and (b) otherwise make it clear that Your
version of the license contains terms which differ from the
Mozilla Public license and netscape Public License. (Filling
in the name of the initial developer, original code or con­tributor in the notice described in exhibit A shall not of
themselves be deemed to be modifications of this license.)

APPENDIX

132

APPENDIX

7. DISCLAIMER OF WARRANTY.
COVERED CODE IS PROVIDED UNDER THIS LICENSE
ON AN “AS IS” BASIS, WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,
WITHOUT LIMITATION, WARRANTIES THAT THE COV­ERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT
FOR A PARTICULAR PURPOSE OR NON-INFRINGING.
THE ENTIRE RISK AS TO THE QUALITY AND PERFOR­MANCE OF THE COVERED CODE IS WITH YOU.
SHOULD ANY COVERED CODE PROVE DEFECTIVE IN
ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR
ANY OTHER CONTRIBUTOR) ASSUME THE COST OF
ANY NECESSARY SERVICING, REPAIR OR CORRECTION.
THIS DISCLAIMER OF WARRANTY CONSTITUTES AN
ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY
COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT
UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This license and the rights granted hereunder will terminate
automatically if you fail to comply with terms herein and
fail to cure such breach within 30 days of becoming aware
of the breach. All sublicenses to the covered code which
are properly granted shall survive any termination of this
license. Provisions which, by their nature, must remain in
effect beyond the termination of this license shall survive.

8.2. If you initiate litigation by asserting a patent infringement
claim (excluding declatory judgment actions) against ini­tial developer or a contributor (the initial developer or
contributor against whom you file such action is referred
to as “Participant”) alleging that:

(a) such participant's contributor version directly or indi-

rectly infringes any patent, then any and all rights
granted by such participant to you under sections 2.1
and/or 2.2 of this license shall, upon 60 days notice
from Participant terminate prospectively, unless if within
60 days after receipt of notice you either: (i) agree in
writing to pay participant a mutually agreeable reasonable
royalty for your past and future use of modifications
made by such participant, or (ii) withdraw your litigation
claim with respect to the contributor version against
such participant. If within 60 days of notice, a reasonable
royalty and payment arrangement are not mutually
agreed upon in writing by the parties or the litigation
claim is not withdrawn, the rights granted by partici­pant to you under sections 2.1 and/or 2.2 automati­cally terminate at the expiration of the 60 day notice
period specified above.

(b) any software, hardware, or device, other than such par-

ticipant's contributor Version, directly or indirectly
infringes any patent, then any rights granted to You by

such participant under sections 2.1(b) and 2.2(b) are
revoked effective as of the date you first made, used,
sold, distributed, or had made, modifications made by
that participant.

8.3. If you assert a patent infringement claim against partici­pant alleging that such participant's contributor version
directly or indirectly infringes any patent where such claim
is resolved (such as by license or settlement) prior to the
initiation of patent infringement litigation, then the rea­sonable value of the licenses granted by such participant
under sections 2.1 or 2.2 shall be taken into account in
determining the amount or value of any payment or
license.

8.4. In the event of termination under sections 8.1 or 8.2
above, all end user license agreements (excluding distributors
and resellers) which have been validly granted by you or
any distributor hereunder prior to termination shall survive
termination.

9. LIMITATION OF LIABILITY.
UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL
THEORY, WHETHER TORT (INCLUDING NEGLIGENCE),
CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL
DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DIS­TRIBUTOR OF COVERED CODE,OR ANY SUPPLIER OF
ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR
ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN­TIAL DAMAGES OF ANY CHARACTER INCLUDING, WITH­OUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL,
WORK STOPPAGE, COMPUTER FAILURE OR MALFUNC­TION, OR ANY AND ALL OTHER COMMERCIAL DAM­AGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE
BEEN INFORMED OF THE POSSIBILITY OF SUCH DAM­AGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY
TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULT­ING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT
APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAM­AGES, SO THIS EXCLUSION AND LIMITATION MAY NOT
APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.
The covered code is a "commercial item," as that term is
defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of
"commercial computer software" and "commercial computer
software documentation," as such terms are used in 48
C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R.

12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4
(June 1995), all U.S. Government end users acquire cov­ered code with only those rights set forth herein.

APPENDIX

133

11. MISCELLANEOUS.
This license represents the complete agreement concerning
subject matter hereof. If any provision of this license is
held to be unenforceable, such provision shall be reformed
only to the extent necessary to make it enforceable. This
License shall be governed by California law provisions
(except to the extent applicable law, if any, provides oth­erwise), excluding its conflict-of-law provisions. With
respect to disputes in which at least one party is a citizen
of, or an entity chartered or registered to do business in
the united states of america, any litigation relating to this
License shall be subject to the jurisdiction of the federal
courts of the northern district of california, with venue
lying in santa clara county, california, with the losing party
responsible for costs, including without limitation, court
costs and reasonable attorneys' fees and expenses. The
application of the united nations convention on contracts
for the International sale of goods is expressly excluded.
Any law or regulation which provides that the language of
a contract shall be construed against the drafter shall not
apply to this license.

12. RESPONSIBILITY FOR CLAIMS.
As between initial developer and the contributors, each
party is responsible for claims and damages arising, directly
or indirectly, out of its utilization of rights under this
license and you agree to work with initial developer and
contributors to distribute such responsibility on an equitable
basis. Nothing herein is intended or shall be deemed to
constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.
Initial developer may designate portions of the covered
code as "Multiple-Licensed". "Multiple-Licensed" means
that the initial developer permits you to utilize portions of
the covered code under your choice of the NPL or the
alternative licenses, if any, specified by the initial developer
in the file described in exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public License
Version 1.1 (the “license”); you may not use this file except in
compliance with the License. You may obtain a copy of the
license at http://www.mozilla.org/MPL/

Software distributed under the license is distributed on an "AS
IS" basis, WITHOUT WARRANTY OF ANY KIND, either express
or implied. See the license for the specific language governing
rights and limitations under the License.

The Original Code is ______________________________________.

The Initial Developer of the Original Code
is___________________.
Portions created by ______________________ are Copyright (C)
_______________________. All Rights Reserved.

Contributor(s): ______________________________________.

Alternatively, the contents of this file may be used under the
terms of the _____ license (the "[___] License"), in which case
the provisions of [______] license are applicable instead of those
above. If you wish to allow use of your version of this file only
under the terms of the [____] license and not to allow others to
use your version of this file under the MPL, indicate your decision
by deleting the provisions above and replace them with the
notice and other provisions required by the [___] license. If you
do not delete the provisions above, a recipient may use your version
of this file under either the MPL or the [___] license."

NOTE: The text of this exhibit A may differ slightly from the text
of the notices in the source code files of the original code. You
should use the text of this exhibit A rather than the text found in
the original code/source code for Your modifications.
