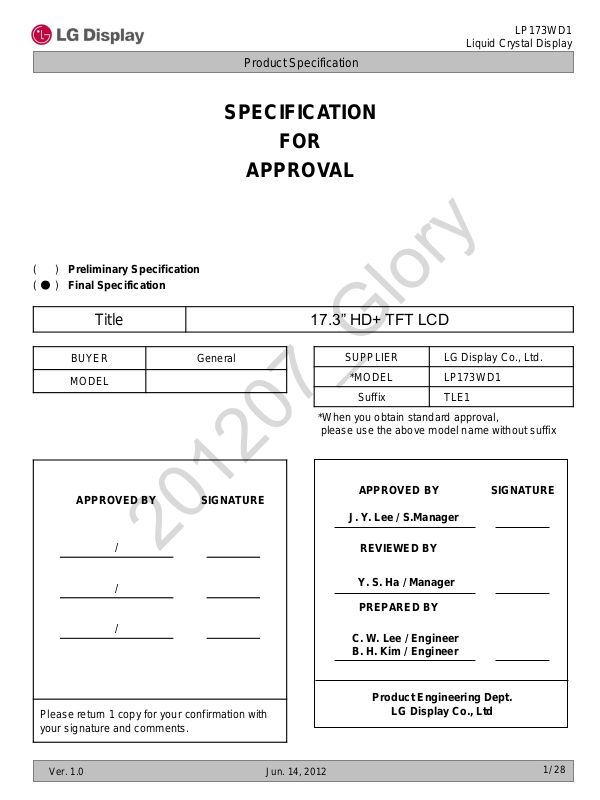

LG Display LP173WD1-TLE1 Specification

( ) Preliminary Specification (●) Final Specification

Title 17.3” HD+ TFT LCD

LP173WD1

Liquid Crystal Display

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER General

MODEL

APPROVED BY

/

SIGNATURE

SUPPLIER LG Display Co., Ltd.

*MODEL LP173WD1

Suffix TLE1

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY SIGNATURE

J. Y. Lee / S.Manager

REVIEWED BY

Y. S. Ha / Manager

PREPARED BY

C. W. Lee / Engineer B. H. Kim / Engineer

Please return 1 copy for your confirmation with your signature and comments.

Ver. 1.0 Jun. 14, 2012

Product Engineering Dept.

LG Display Co., Ltd

1/ 28

Product Specification

Contents

LP173WD1

Liquid Crystal Display

No

COVER CONTENTS RECORD OF REVISIONS

1 2

3

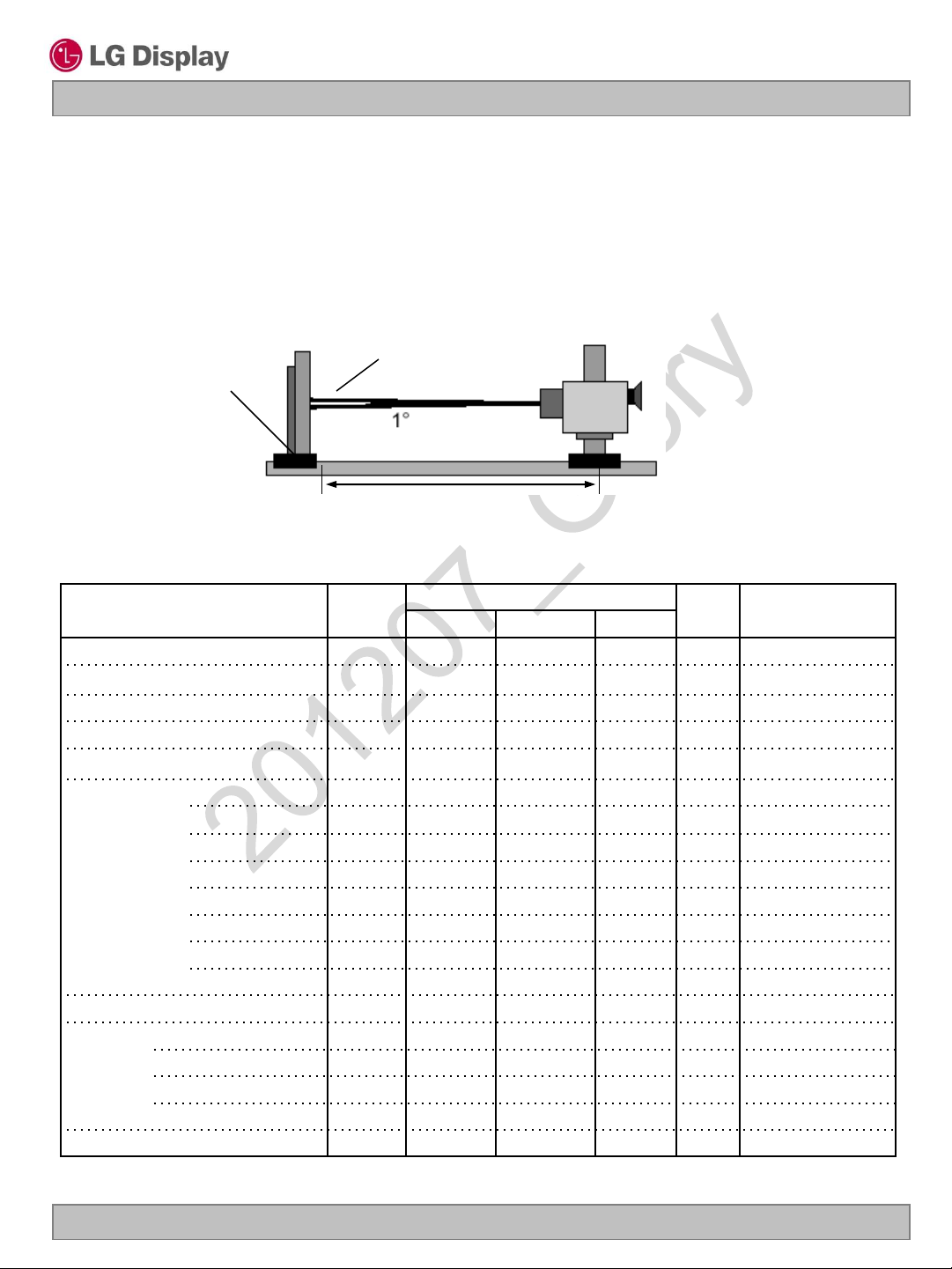

4 OPTICAL SFECIFICATIONS

GENERAL DESCRIPTION ABSOLUTE MAXIMUM RATINGS

ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS

3-1

INTERFACE CONNECTIONS

3-2

LVDS SIGNAL TIMING SPECIFICATIONS

3-3 3-4 SIGNAL TIMING SPECIFICATIONS 3-5 SIGNAL TIMING WAVEFORMS

3-6 COLOR INPUT DATA REFERNECE 3-7 POWER SEQUENCE

ITEM

Page

1 2 3 4 5

6-7

8

9-10

11 11

12 13

14-16

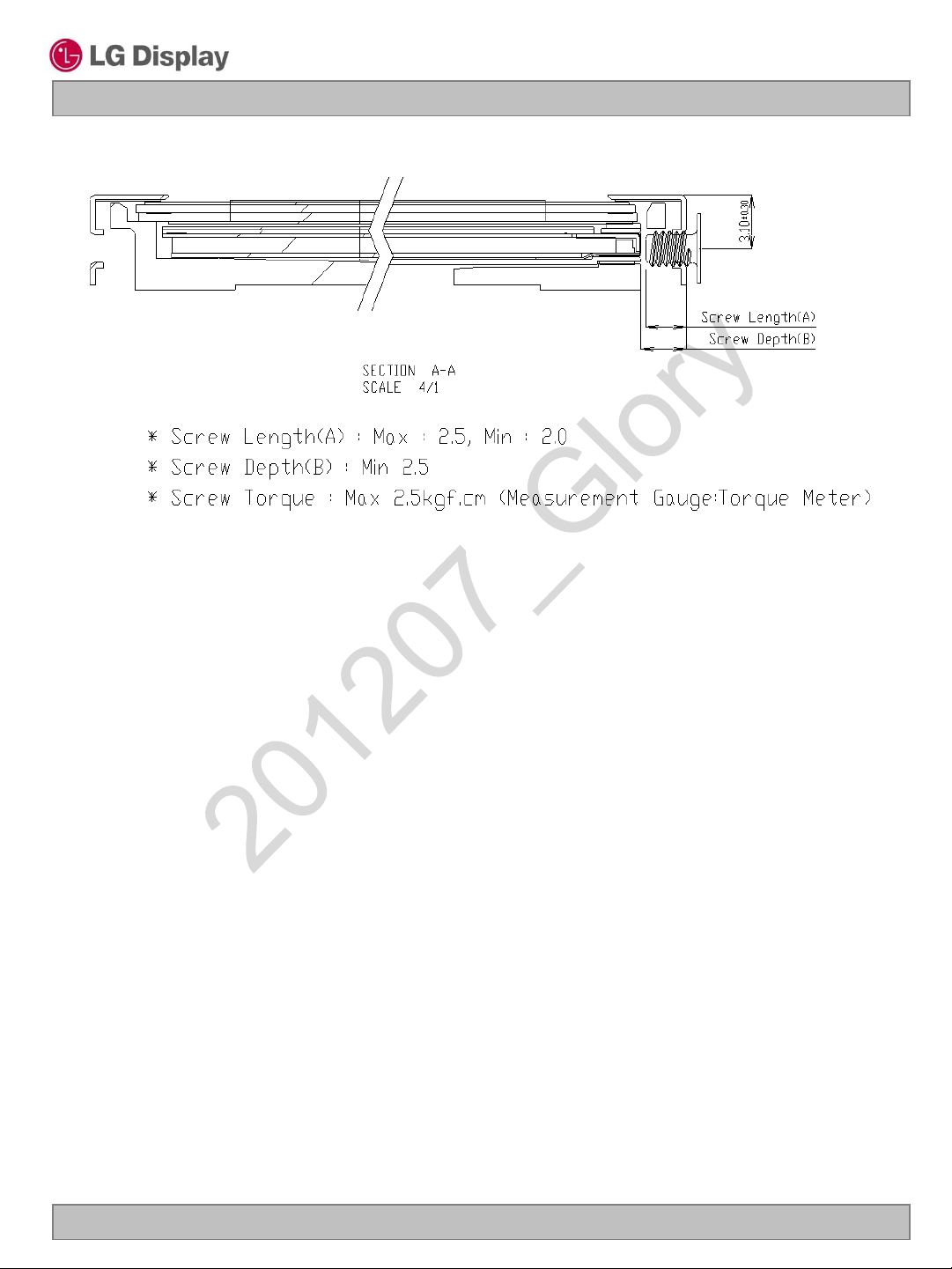

5 MECHANICAL CHARACTERISTICS 6 RELIABLITY 7 INTERNATIONAL STANDARDS

7-1 SAFETY 7-2 EMC

8 PACKING

8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM

9 PRECAUTIONS

A APPENDIX A. Enhanced Extended Display Identification Data

Ver. 1.0 Jun. 14, 2012

17-20

21 22

23

24

26-28

2/ 28

Product Specification

RECORD OF REVISIONS

LP173WD1

Liquid Crystal Display

Revision No Revision Date Page Description

0.0 Mar. 2, 2012 - First Draft (Preliminary Specification)

0.1 May.11, 2012 26-28 Update EDID 0.0

0.2 May.15, 2012 4 Update General Features 0.0 6 Update Electrical Specifications 8 Update Connector

14-15 Update Optical Specification

19 Update Rear View

1.0 Jun.14, 2012 3 Update EDID Ver. For Final Draft (v0.0 → v1.0) 1.0

EDID

ver

Ver. 1.0 Jun. 14, 2012

3/ 28

LP173WD1

Liquid Crystal Display

Product Specification

1. General Description

The LP173WD1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 17.3 inches diagonally measured active display area with WHD+ resolution(1600 horizontal by 900 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP173WD1 has been designed to apply the interface method that enables low power, high speed, low EMI. The LP173WD1 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP173WD1 characteristics provide an excellent flat display for office automation products such as Notebook PC.

EEPROM Block

for EDID

EEPROM Block

User connector

for Tcon Operating

1

TFT-LCD Panel

40

LVDS

2port

VCC

VLED

LED_EN

PWM

Timing Control

(Tcon) Block

DVCC

Power

Block

LED Driver

Block

TCLKs

VGH, VGL, GMA

Control & Data Power

900

AVCC, AVDD

GIP CLKs, DSC

(HD, GIP, TN)

Source Driver (Bottom Bent)

FB 1~4

EDID signal & Power

General Features

Active Screen Size 17.3 inches diagonal Outline Dimension Pixel Pitch 0.23868 X 0.23868 mm Pixel Format 1600 horiz. by 900 vert. Pixels RGB strip arrangement Color Depth 6-bit, 262,144 colors Luminance, White 220 cd/m2(Typ., @I Power Consumption Total : 6.1 W (Typ.) [ Logic : 1.3 W (Typ.) @Mosaic, Back Light : 4.8 W (Typ.) ] Weight 570g (Max.) Display Operating Mode Transmissive mode, normally white

Surface Treatment Glare treatment of the front Polarizer RoHS Comply Yes BFR / PVC / As Free Yes for all

398.1(H, Typ.) × 232.8(V, Typ.) × 6.0(D, Max.) mm

=27mA)

LED

1600

LED Backlight Ass‟y

VOUT_LED

Ver. 1.0 Jun. 14, 2012

4/ 28

LP173WD1

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage Operating Temperature Storage Temperature Operating Ambient Humidity Storage Humidity

VCC -0.3 4.0 Vdc at 25  5C

TOP 0 50 C 1 HST -20 60 C 1 HOP 10 90 %RH 1 HST 10 90 %RH 1

Values

Units Notes

Min Max

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39C Max, and no condensation of water.

90% 80%

60%

Humidity[(%)RH]

Storage

40%

Operation

20%

10%

Wet Bulb Temperature [℃]

20

10

0

60

50

40

30

-20

10

20 30 40 50

60 70 800

Dry Bulb Temperature [℃]

Ver. 1.0 Jun. 14, 2012

5/ 28

LP173WD1

Liquid Crystal Display

Product Specification

3. Electrical Specifications 3-1. Electrical Characteristics

The LP173WD1 requires two power inputs. The first logic is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second backlight is the input about LED BL.with LED Driver.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Unit Notes

Min Typ Max

LOGIC :

Power Supply Input Voltage VCC 3.0 3.3 3.6 V 1 Power Supply Input Current Mosaic ICC - 400 460 mA 2 Power Consumption PCC - 1.3 1.5 W 2 Power Supply Inrush Current ICC_P - - 1500 mA 4 LVDS Impedance ZLVDS 90 100 110 Ω 5

BACKLIGHT : ( with LED Driver)

LED Power Input Voltage VLED 7.0 12.0 20.0 V 6 LED Power Input Current ILED - 400 435 mA 7 LED Power Consumption PLED - 4.8 5.2 W 7 LED Power Inrush Current ILED_P - - 2000 mA 8 PWM Duty Ratio 6 - 100 % 9

Values

PWM Jitter

-

0 - 0.2 % 10

PWM Impedance ZPWM 20 40 60 kΩ PWM Frequency FPWM 200 - 1000 Hz 11 PWM High Level Voltage V

PWM Low Level Voltage V

PWM_H

PWM_L

3.0 - 3.6 V 0 - 0.3 V

LED_EN Impedance ZPWM 20 40 60 kΩ LED_EN High Voltage VLED_EN_H 3.0 - 3.6 V LED_EN Low Voltage VLED_EN_L 0 - 0.3 V Life Time 12,000 - - Hrs 12

Ver. 1.0 Jun. 14, 2012

6/ 28

LP173WD1

Liquid Crystal Display

Product Specification

Note)

1. The measuring position is the connector of LCM and the test conditions are under 25℃, fv = 60Hz, Black pattern.

2. The specified Icc current and power consumption are under the Vcc = 3.3V , 25℃, fv = 60Hz condition and Mosaic pattern.

3. This Spec. is the max load condition for the cable impedance designing.

4. The below figures are the measuring Vcc condition and the Vcc control block LGD used. The Vcc condition is same as the minimum of T1 at Power on sequence.

Rising time Vcc

0V

10%

90%

3.3V

0.5ms

5. This impedance value is needed for proper display and measured form LVDS Tx to the mating connector.

6. The measuring position is the connector of LCM and the test conditions are under 25℃.

7. The current and power consumption with LED Driver are under the Vled = 12.0V , 25℃, Dimming of Max luminance and White pattern with the normal frame frequency operated(60Hz).

8. The below figures are the measuring Vled condition and the Vled control block LGD used. VLED control block is same with Vcc control block.

Rising time VLED

0V

10%

90%

12.0V

0.5ms

9. The operation of LED Driver below minimum dimming ratio may cause flickering or reliability issue.

10. If Jitter of PWM is bigger than maximum, it may induce flickering.

11. This Spec. is not effective at 100% dimming ratio as an exception because it has DC level equivalent

to 0Hz. In spite of acceptable range as defined, the PWM Frequency should be fixed and stable for more consistent brightness control at any specific level desired.

12. The life time is determined as the time at which brightness of LCD is 50% compare to that of minimum

value specified in table 7. under general user condition.

Ver. 1.0 Jun. 14, 2012

7/ 28

LP173WD1

Liquid Crystal Display

Product Specification

3-2. Interface Connections

This LCD employs two interface connections, a 40 pin connector is used for the module electronics interface and the other connector is used for the integral backlight system. .

Table 3. MODULE CONNECTOR PIN CONFIGURATION (CN1)

Pin Symbol Description Notes

1 2 3 4 5 6 7

8

9

10

11

12

13

14

15

16

17

18

19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

34

35 36 37 38 39 40

NC No Connection VCC LCD Logic and driver power (3.3V Typ.) VCC LCD Logic and driver power (3.3V Typ.)

V EEDID DDC Power (3.3V)

NC No Connection

Clk EEDID DDC Clock

DATA EEDID DDC Data

ORX0- Negative LVDS differential data input

ORX0+ Positive LVDS differential data input

GND LCM Ground

ORX1- Negative LVDS differential data input

ORX1+ Positive LVDS differential data input

GND LCM Ground

ORX2- Negative LVDS differential data input

ORX2+ Positive LVDS differential data input

GND LCM Ground

ORXC- Negative LVDS differential clock input

ORXC+ Positive LVDS differential clock input

GND LCM Ground

ERX0- Negative LVDS differential data input

ERX0+ Positive LVDS differential data input

GND LCM Ground

ERX1- Negative LVDS differential data input

ERX1+ Positive LVDS differential data input

GND LCM Ground

ERX2- Negative LVDS differential data input

ERX2+ Positive LVDS differential data input

GND LCM Ground

ERXC- Negative LVDS differential clock input

ERXC+ Positive LVDS differential clock input

GND LCM Ground (LED Backlight Ground) GND LCM Ground (LED Backlight Ground) GND LCM Ground (LED Backlight Ground)

NC

No Connection

PWM System PWM Signal input for dimming

LED_EN LED Backlight On/Off

NC

No Connection

VLED LED Backlight Power VLED LED Backlight Power VLED LED Backlight Power

[Interface Chip]

1.1 LCD : SW, SW0656 (LCD Controller) including LVDS Receiver

1.2 System : SiW LVDSRx or equivalent

* Pin to Pin compatible with LVDS

[Connector]

Hirose KN38-40S-0.5H or equivalent

[Mating Connector]

Mating of IPEX 20455-040E or equivalent

[Connector pin arrangement]

40

[LCD Module Rear View]

1

Ver. 1.0 Jun. 14, 2012

8/ 28

Product Specification

LVDS +

LVDS -

0V

V

CM

# |VID| = |(LVDS+) – (LVDS-)| # VCM = {(LVDS+) + (LVDS-)}/2

|VID|

V

IN_MAXVIN_MIN

LVDS Data

t

SKEW

LVDS Clock

T

clk

t

SKEW (Fclk

= 1/T

clk

)

1) 85MHz > Fclk ≥ 65MHz : -400 ~ +400

2) 65MHz > Fclk ≥ 25MHz : -600 ~ +600

3-3. LVDS Signal Timing Specifications

3-3-1. DC Specification

LP173WD1

Liquid Crystal Display

Description

Symb

ol

Min Max Unit Notes

LVDS Differential Voltage |VID| 100 600 mV LVDS Common mode Voltage V LVDS Input Voltage Range V

CM

IN

0.6 1.8 V -

0.3 2.1 V -

3-3-2. AC Specification

Description Symbol Min Max Unit Notes

85MHz > Fclk ≥

65MHz > Fclk ≥

LVDS Clock to Data Skew Margin

t

SKEW

t

SKEW

- 400 + 400 ps

- 600 + 600 ps

65MHz

25MHz

LVDS Clock to Clock Skew Margin (Even to Odd)

Maximum deviation of input clock frequency during SSC

Maximum modulation frequency of input clock during SSC

Ver. 1.0 Jun. 14, 2012

t

SKEW_EO

F

DEV

F

MOD

- 1/7 + 1/7 T

-

± 3

clk

% -

- 200 KHz -

-

9/ 28

LVDS Even Data

LVDS Odd Clock

LVDS Even Clock

t

SKEW_EO

T

clk

T

clk

Freq.

OG0 OR5 OR4 OR3 OR2 OR1 OR0

OB1 OB0 OG5 OG4 OG3 OG2 OG1

DE

VSYNC HSYNC

OB5 OB4 OB3 OB2

X OB7 OB6 OG7 OG6 OR7 OR6

Current(Nth) CyclePrevious(N-1)th Cycle Next(N+1)th Cycle

RCLK +

RXinO0 +/-

Tclk * 4/7 Tclk * 3/7

Tclk

Tclk * 1/7

MSB R7

R6 R5 R4 R3 R2 R1 R0LSB

EG0 ER5 ER4 ER3 ER2 ER1 ER0

EB1 EB0 EG5 EG4 EG3 EG2 EG1

DE

VSYNC HSYNC

EB5 EB4 EB3 EB2

X EB7 EB6 EG7 EG6 ER7 ER6

* ODD = 1st Pixel EVEN = 2nd Pixel

RXinO1 +/-

RXinO2 +/-

RXinO3 +/-

RXinE0 +/-

RXinE1 +/-

RXinE2 +/-

RXinE3 +/-

OR3 OR2 OR1 OR0

OG4 OG3 OG2 OG1

OB5 OB4 OB3 OB2

OG7 OG6 OR7 OR6

ER3 ER2 ER1 ER0

EG4 EG3 EG2 EG1

EB5 EB4 EB3 EB2

EG7 EG6 ER7 ER6

OG0 OR5 OR4

OB1 OB0 OG5

DE

VSYNC HSYNC

X OB7 OB6

EG0 ER5 ER4

EB1 EB0 EG5

DE

VSYNC HSYNC

X EB7 EB6

F

max

F

center

F

min

Product Specification

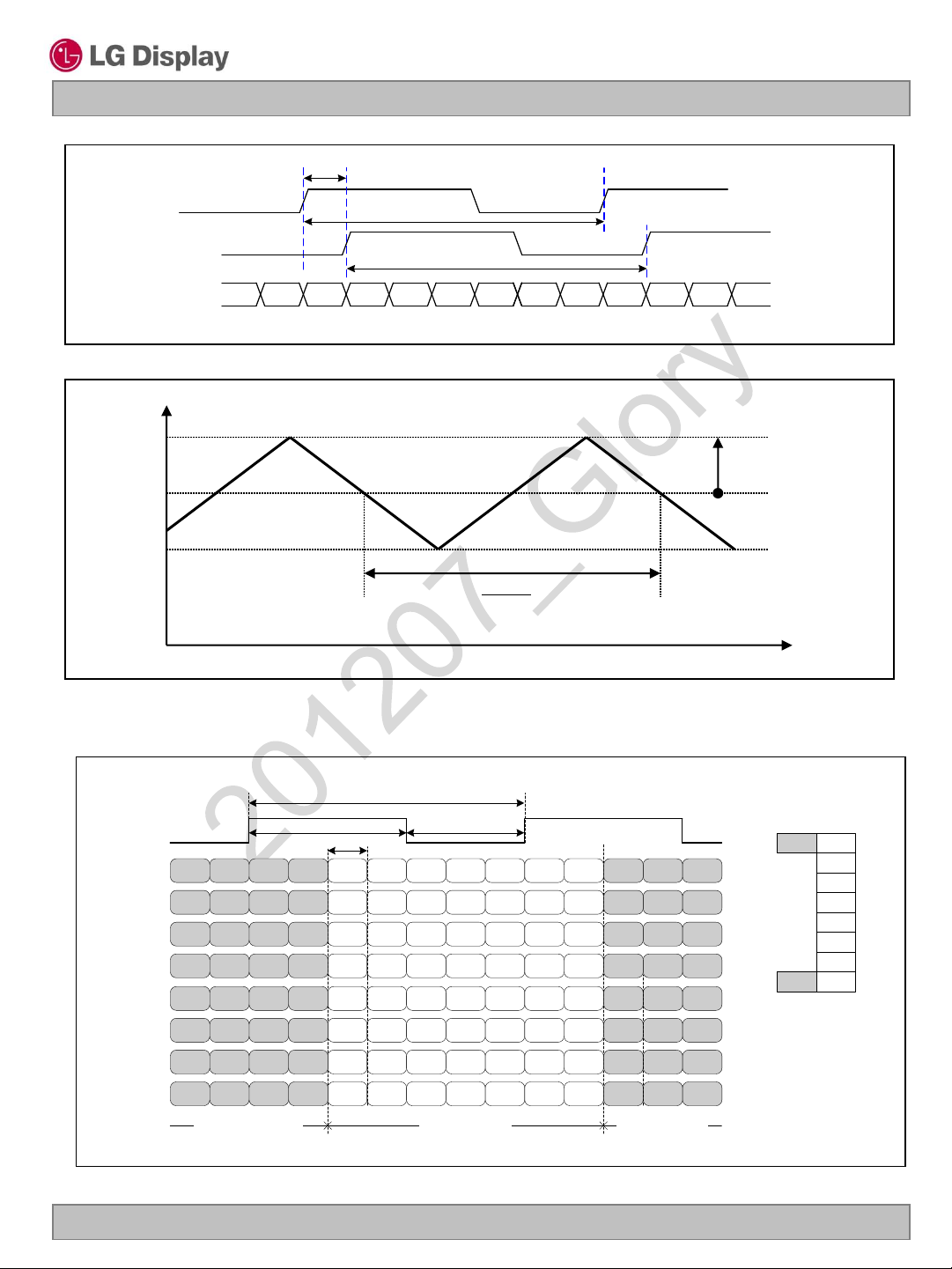

< Clock skew margin between channel >

LP173WD1

Liquid Crystal Display

F

* F

center

DEV

3-3-3. Data Format

1) LVDS 2 Port

Ver. 1.0 Jun. 14, 2012

1

F

MOD

< Spread Spectrum >

< LVDS Data Format >

Time

10/ 28

LP173WD1

Liquid Crystal Display

Product Specification

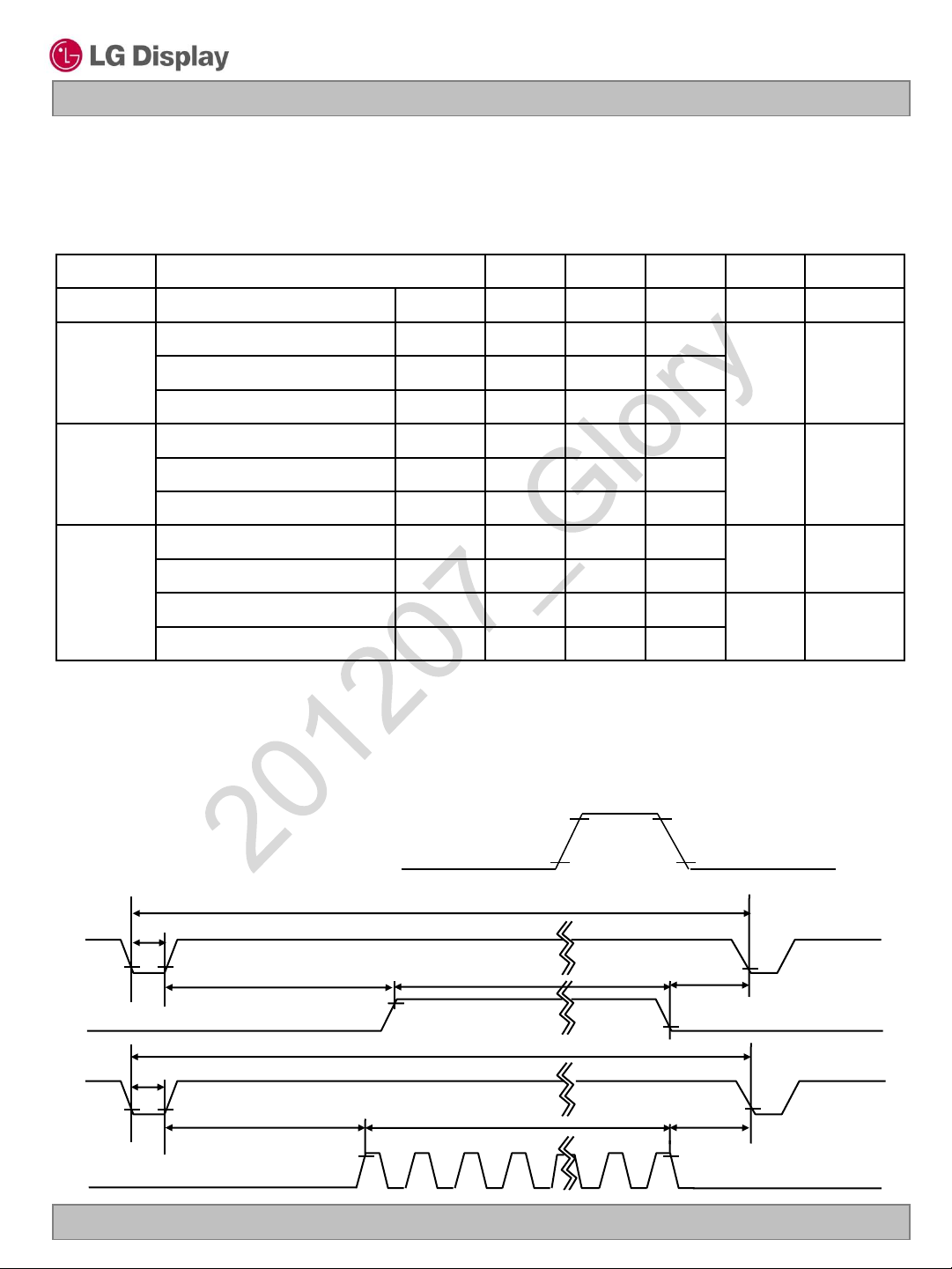

3-4. Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications and specifications of LVDS Tx/Rx for its proper operation.

Table 5. TIMING TABLE

ITEM Symbol Min. Typ. Max. Unit Note

DCLK Frequency f

Period

Hsync

Vsync

Data

Enable

Width

Width-Active

Period

Width

Width-Active

Horizontal back porch

Horizontal front porch

Vertical back porch

Vertical front porch

t

tw

t

CLK

t

HBP

HFP

VBP

VFP

HP

WH

HA

VP

WV

VA

- 50.85 -

886 912 940

16 16 16

800 800 800

928 928 928

5 5 5

900 900 900

46 72 100

24 24 24

20 20 20

3 3 3

MHz 2 Port

tCLK 2 Port

tHP

tCLK 2 Port

tHP

Appendix) all reliabilities are specified for timing specification based on refresh rate of 60Hz. However, LP173WD1 has a good actual performance even at lower refresh rate (e.g. 40Hz or 50Hz) for power saving mode, whereas LP173WD1 is secured only for function under lower refresh rate. 60Hz at Normal mode,

50Hz, 40Hz at Power save mode. Don‟t care Flicker level (power save mode).

3-5. Signal Timing Waveforms

Condition : VCC=3.3V

High: 0.7VCC

Low: 0.3VCC

t

Hsync

t

WH

t

HBP

HP

tWHA

Date Enable

t

VP

t

WV

Vsync

t

VBP

tWVA

Date Enable

Ver. 1.0 Jun. 14, 2012

t

HFP

t

VFP

11/ 28

LP173WD1

Liquid Crystal Display

Product Specification

3-6. Color Input Data Reference

The brightness of each primary color (red,green and blue) is based on the 6-bit gray scale data input for the color ; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Table 6. COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

GREEN

BLUE

Color

Black Red Green Blue Cyan Magenta Yellow White RED (00) RED (01)

…

RED (62) RED (63) GREEN (00) GREEN (01)

... GREEN (62) GREEN (63) BLUE (00) BLUE (01)

…

BLUE (62) BLUE (63)

RED

MSB LSB

R 5 R 4 R 3 R2 R1 R 0 G 5 G 4 G 3 G 2 G 1 G 0 B 5 B 4 B 3 B 2 B 1 B 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0

… … …

1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0

… … …

0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

… … …

0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

MSB LSB

GREEN

BLUE

MSB LSB

Ver. 1.0 Jun. 14, 2012

12/ 28

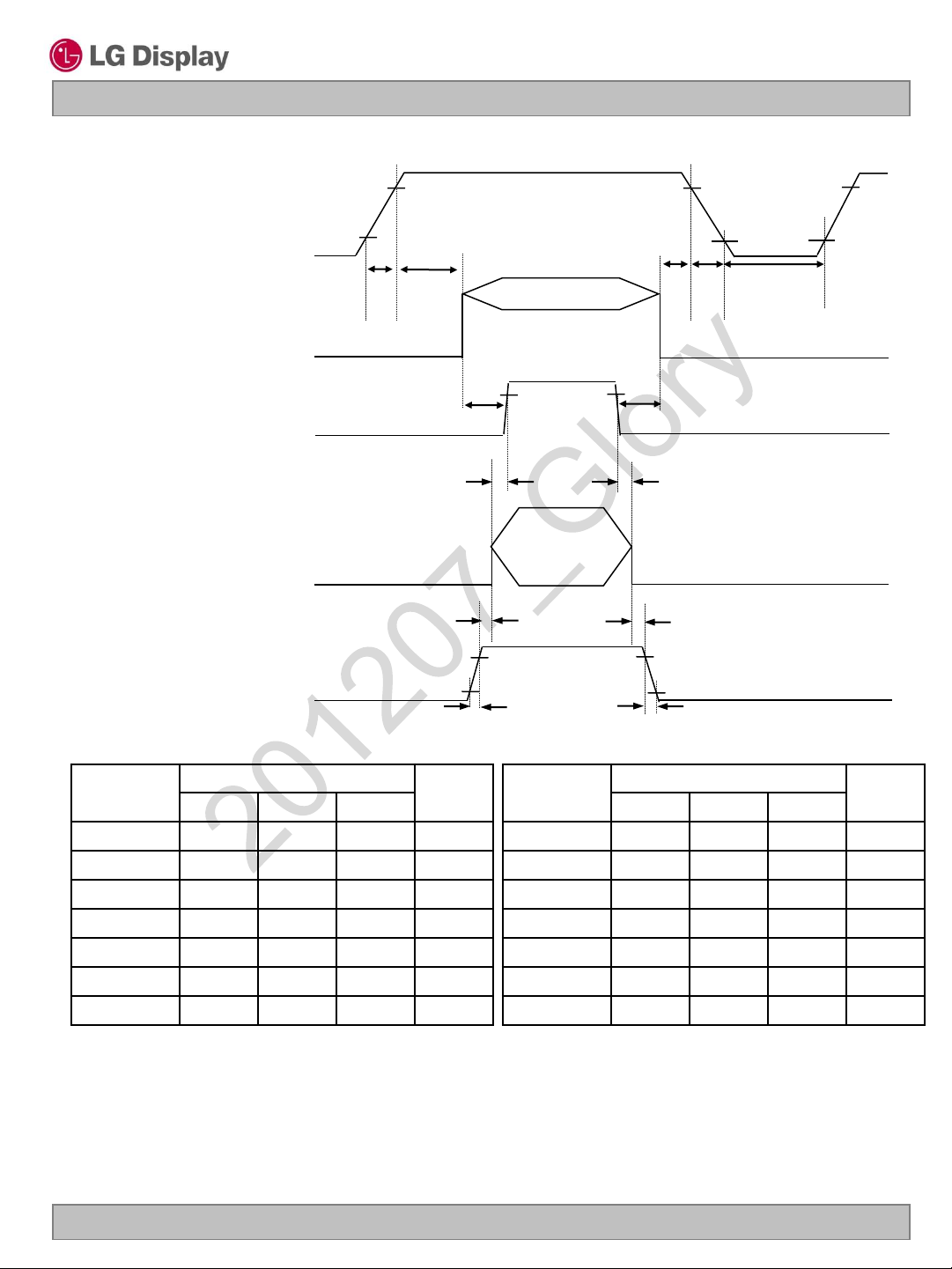

3-7. Power Sequence

Power Supply Input

VCC

0V

Product Specification

90%

LP173WD1

Liquid Crystal Display

90%

10%10%

Interface Signal, V

i

LVDS

LED BL On/Off Control Signal

LED_EN

LED BL Dimming Control Signal

PWM

LED Driver Input Voltage

VLED

Logic

Parameter

T

1

T

2

T

3

T

4

T

5

T

6

T

7

Min. Typ. Max.

0.5 - 10 ms 0 - 50 ms 0 - 50 ms

400 - - ms 200 - - ms 200 - - ms

3 - 10 ms

Value

T

1

2

Valid Data

0V

T

5

3.0V

0V (Off)

T

9

Valid Data

0V (Low)

T

8

90%

0V

10%

T

12

Table 6. POWER SEQUENCE TABLE

Units

LED

Parameter

T

8

T

9

T

10

T

11

T

12

T

13

T

3

7

T

6

T

10

T

11

90%

T

10%

13

T

4

Value

Min. Typ. Max.

10 - - ms

0 - - ms 0 - - ms

10 - - ms

0.5 - - ms 0 - 5000 ms

Units

Note)

1. Do not insert the mating cable when system turn on.

2. Valid Data have to meet “3-3. LVDS Signal Timing Specifications”

3. LVDS, LED_EN and PWM need to be on pull-down condition on invalid status.

4. LGD recommend the rising sequence of VLED after the Vcc and valid status of LVDS turn on.

Ver. 1.0 Jun. 14, 2012

13/ 28

LP173WD1

Liquid Crystal Display

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been „ON‟ and stable for approximately 20 minutes in a dark environment at 25C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of  and  equal to 0. FIG. 1 presents additional information concerning the measurement equipment and method.

FIG. 1 Optical Characteristic Measurement Equipment and Method

Optical Stage(x,y)

LCD Module

Table 8. OPTICAL CHARACTERISTICS

Parameter Symbol

500mm±50mm

Ta=25C, VCC=3.3V, fV=60Hz, f

Values

Min Typ Max

Equipment

Units Notes

= 50.85MHz

CLK

Contrast Ratio CR 500 - - 1 Surface Luminance, white L Luminance Variation 

Response Time

Tr

WH

WHITE

R + TrD

185 220 - cd/m

1.4 1.6 3

- - 16 ms 4

2

Color Coordinates

RED RX 0.585 0.615 0.645

RY 0.341 0.371 0.411

GREEN GX 0.317 0.347 0.377

GY 0.578 0.608 0.638

BLUE BX 0.119 0.149 0.179

BY 0.080 0.110 0.140

WHITE WX 0.283 0.313 0.343

WY 0.299 0.329 0.359

Viewing Angle 5

x axis, right(=0) r 40 - - degree x axis, left (=180) l 40 - - degree y axis, up (=90) u 10 - - degree y axis, down (=270) d 30 - - degree

Gray Scale 6

2

Ver. 1.0 Jun. 14, 2012

14/ 28

Liquid Crystal Display

Product Specification

Note)

1. Contrast Ratio(CR) is defined mathematically as Surface Luminance with all white pixels

Contrast Ratio =

Surface Luminance with all black pixels

2. Surface luminance is the average of 5 point across the LCD surface 50cm from the surface with

all pixels displaying white. For more information see FIG 1.

LP173WD1

LWH= Average(L1,L

3. The variation in surface luminance , The panel total variation (

, … L

2

)

5

) is determined by measuring L

WHITE

N

at each test position 1 through 13 and then defined as followed numerical formula.

For more information see FIG 2.



WHITE

Maximum(L1,L

=

Minimum(L1,L

, … L

2

, … L

2

)

13

)

13

4. Response time is the time required for the display to transition from white to black (rise time, TrR) and

from black to white(Decay Time, TrD). For additional information see FIG 3.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined

for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the

LCD surface. For more information see FIG 4.

6. Gray scale specification * fV = 60Hz

Gray Level Luminance [%] (Typ)

L0

L7 L15 L23 L31 L39 L47 L55 L63

0.12

1.23

5.5

13.1

23.9

38.3

56.7

78.1

100

Ver. 1.0 Jun. 14, 2012

15/ 28

Product Specification

Normal

Y

Eye







= 0



,

Right



= 180



,

Left



= 270



,

Down



= 90, Up

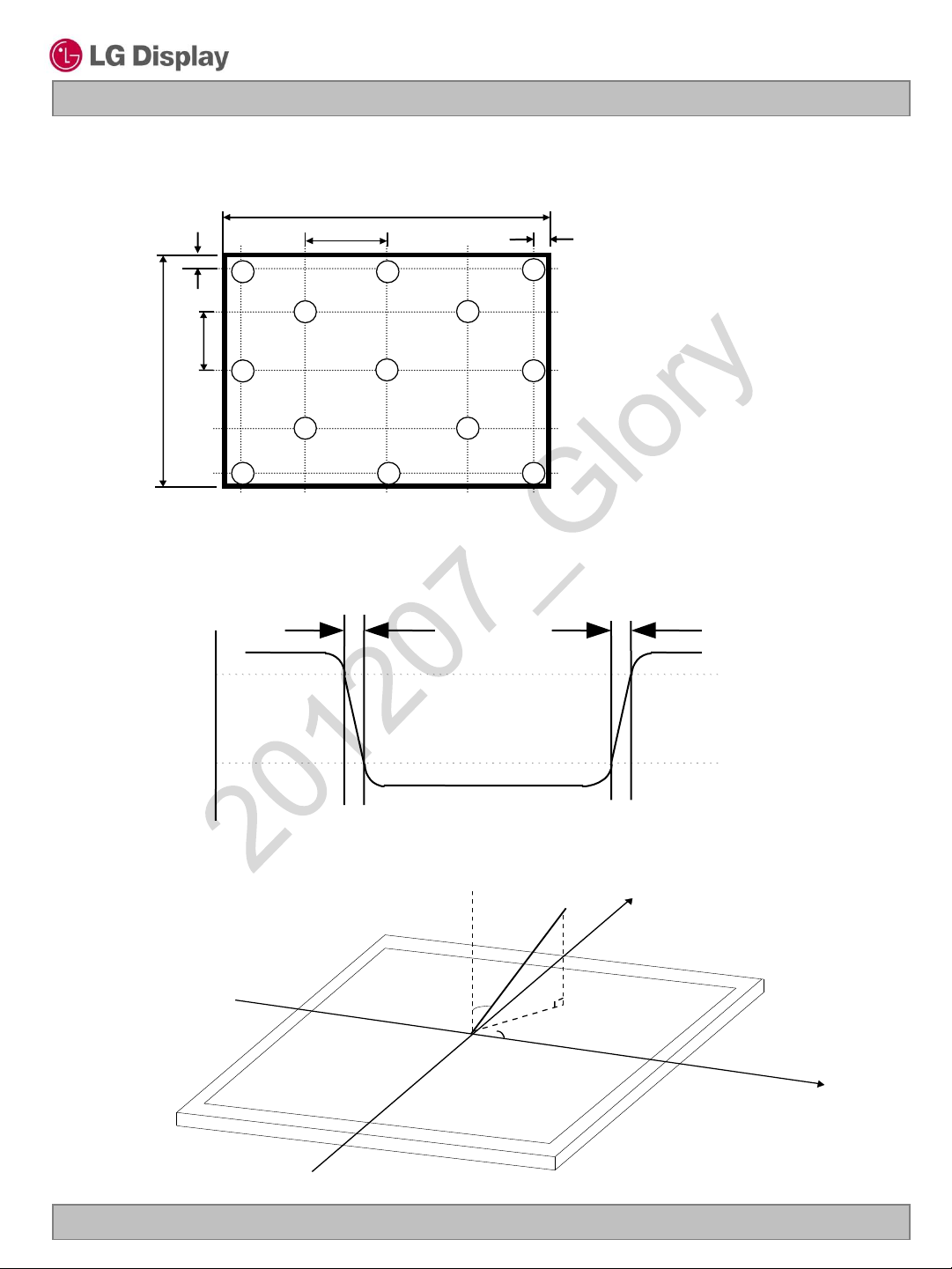

FIG. 2 Luminance

H

A

D

LP173WD1

Liquid Crystal Display

L6

C

L2

B

V

L9

L4 L5

L11 L13

L7

L3

L1

Center Point

L12

L8

L10

H,V : ACTIVE AREA A : H/4 mm B : V/4 mm C : 10 mm D : 10 mm POINTS : 13 POINTS

FIG. 3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal

for “black” and “white”.

Tr

R

D

%

100

90

Optical

Response

10

0

white

black

FIG. 4 Viewing angle

Ver. 1.0 Jun. 14, 2012

16/ 28

Product Specification

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model LP173WD1. In addition the figures in the next page are detailed mechanical drawing of the LCD.

Horizontal 398.1  0.50mm

LP173WD1

Liquid Crystal Display

Outline Dimension

Bezel Area

Active Display Area

Weight 570g (Max.)

Surface Treatment Glare treatment of the front Polarizer

Vertical 232.8  0.50mm Depth 6.0mm(Max.) Horizontal 1.5mm Min.( Lager than Active Display Area ) Vertical 1.5mm Min.( Lager than Active Display Area ) Horizontal 381.89mm Vertical 214.81 mm

Ver. 1.0 Jun. 14, 2012

17/ 28

Product Specification

LP173WD1

Liquid Crystal Display

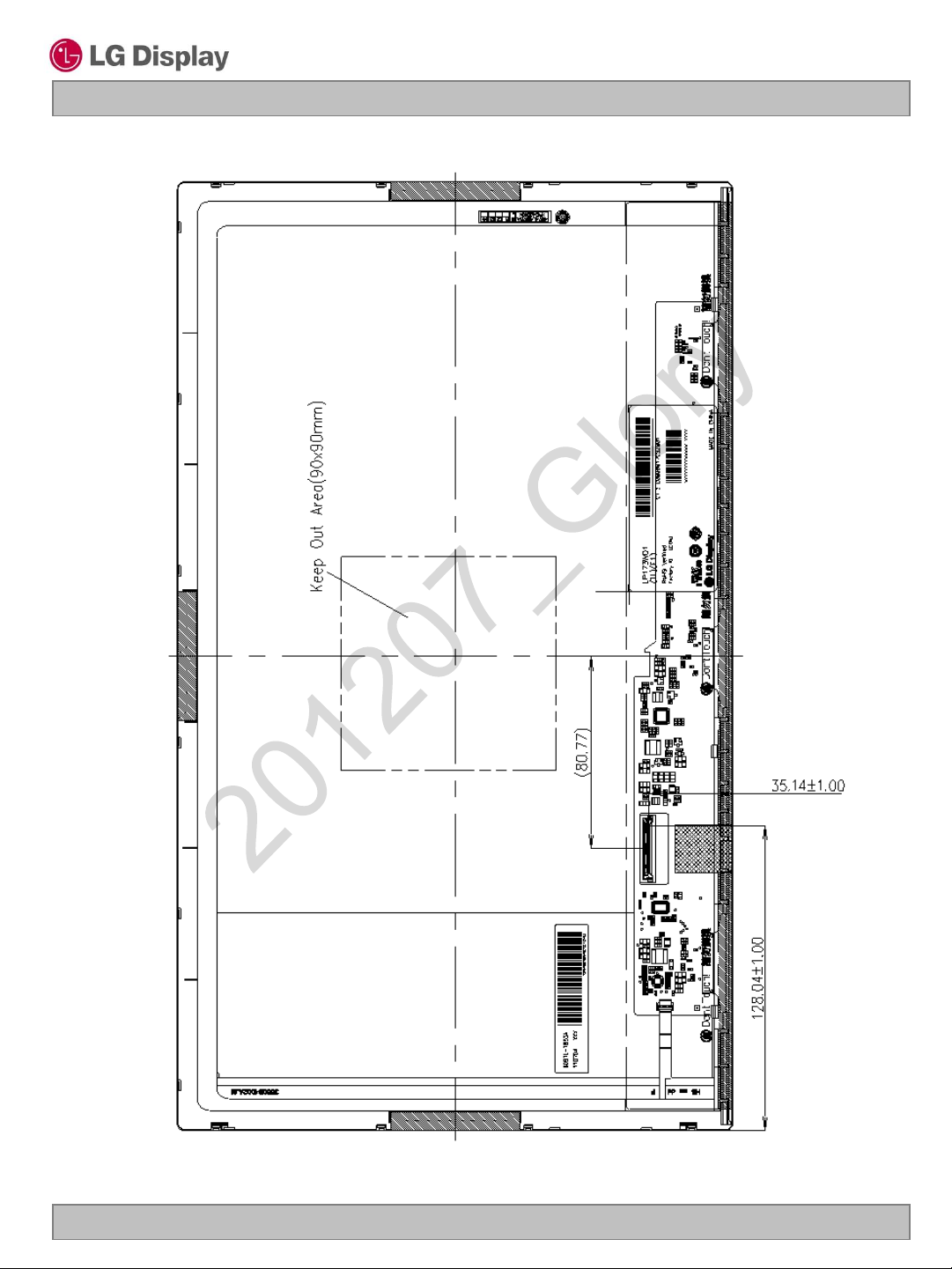

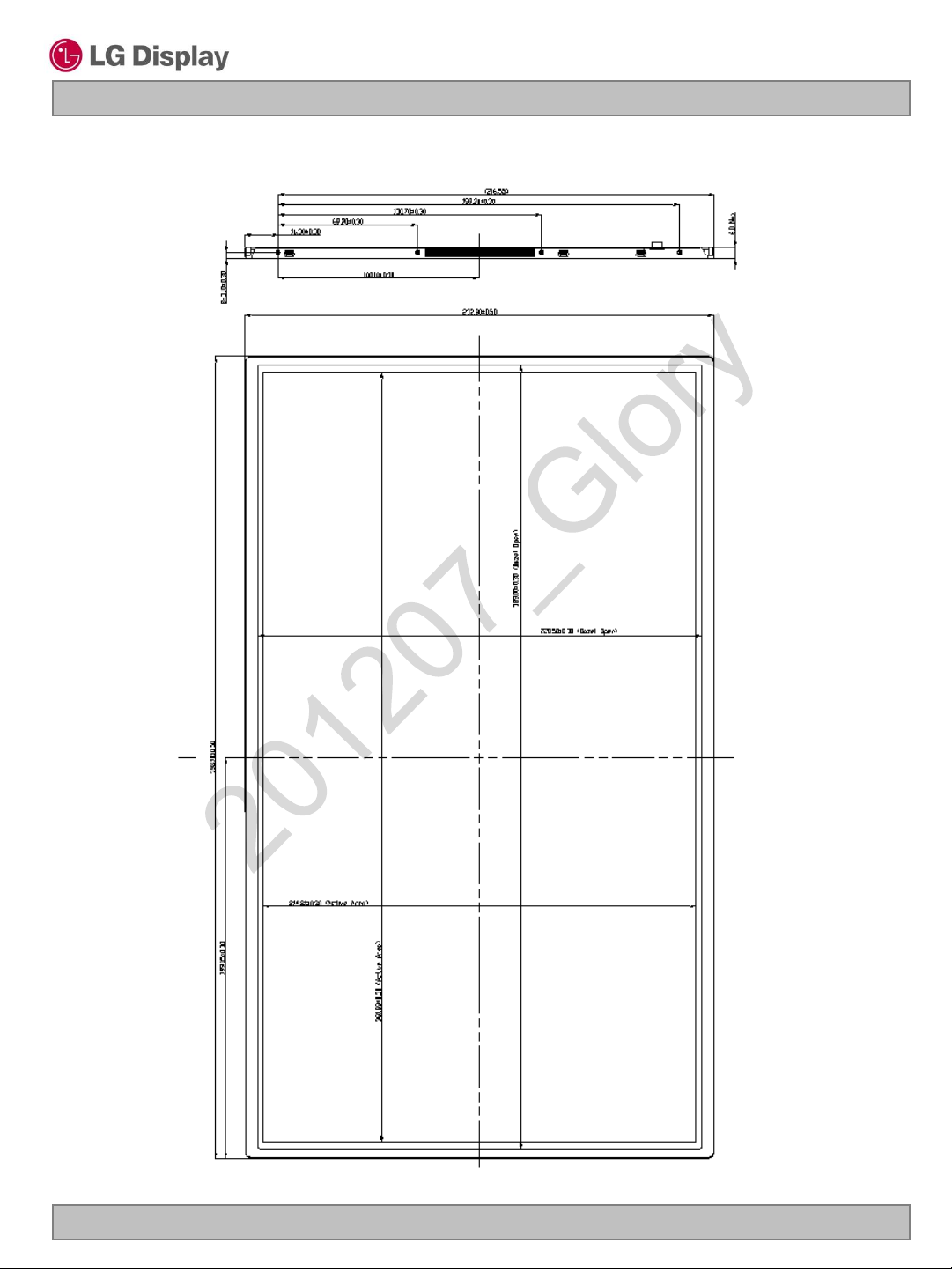

Note) Unit:[mm], General tolerance:  0.5mm

Ver. 1.0 Jun. 14, 2012

18/ 28

Product Specification

LP173WD1

Liquid Crystal Display

Note) Unit:[mm], General tolerance:  0.5mm

Ver. 1.0 Jun. 14, 2012

19/ 28

Product Specification

[ DETAIL DESCRIPTION OF SIDE MOUNTING SCREW ]

LP173WD1

Liquid Crystal Display

Ver. 1.0 Jun. 14, 2012

20/ 28

Product Specification

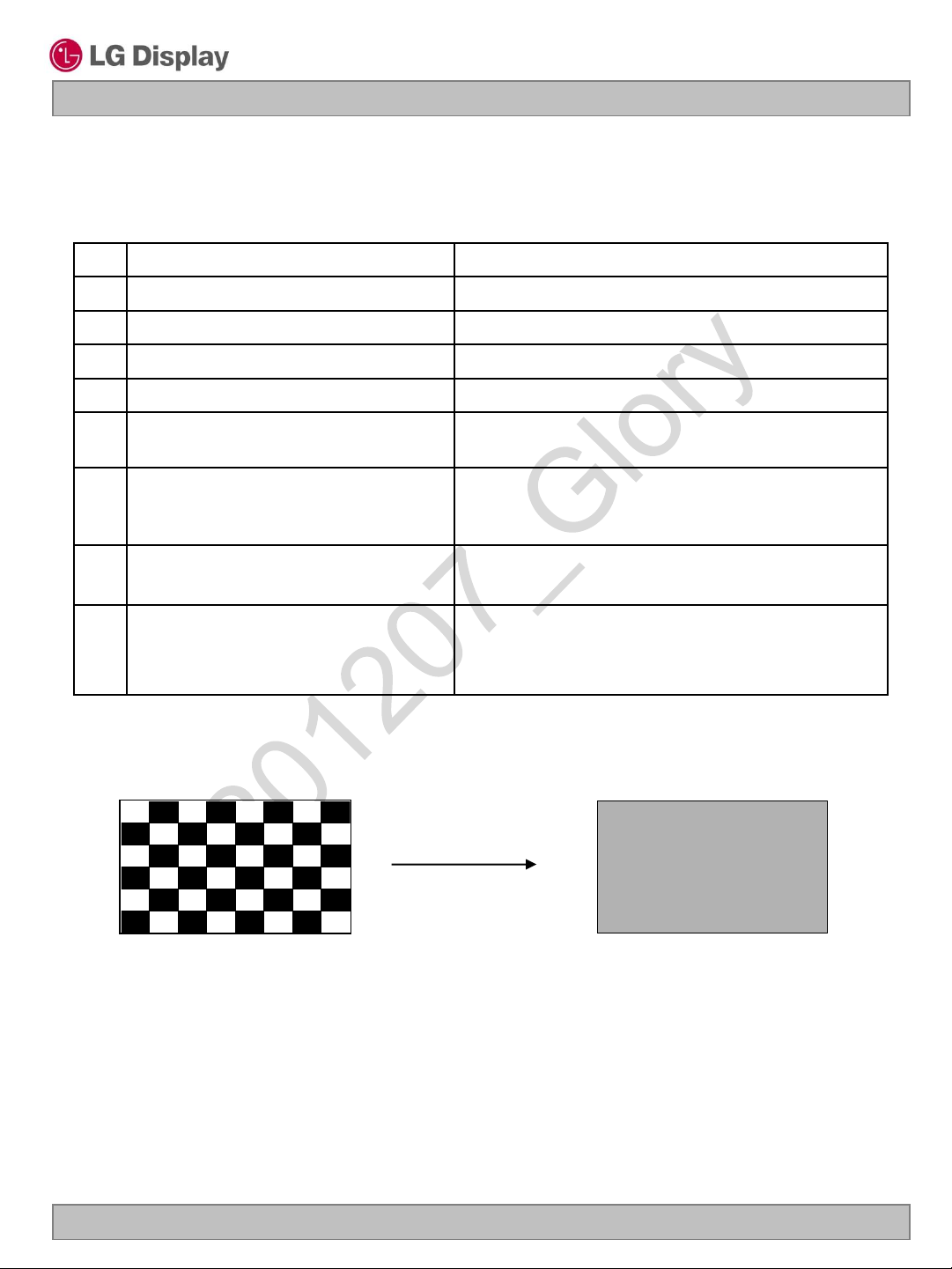

6. Reliability

Environment test condition

No. Test Item Conditions

1 High temperature storage test Ta= 60C, 240h 2 Low temperature storage test Ta= -20C, 240h 3 High temperature operation test Ta= 50C, 50%RH, 240h 4 Low temperature operation test Ta= 0C, 240h 5 Vibration test (non-operating) Sine wave, 5 ~ 150Hz, 1.5G, 0.37oct/min

3 axis, 30min/axis

6 Shock test (non-operating) Half sine wave, 180G, 2ms

one shock of each six faces(I.e. run 180G 2ms for all six faces)

LP173WD1

Liquid Crystal Display

7 Altitude operating

storage / shipment

8 Image Sticking

1)

0 ~ 10,000 feet (3,048m) 24Hr 0 ~ 40,000 feet (12,192m) 24Hr

Ta= 25C, Pattern : Mosaic(8 by 6), Operating Time : 30 min Lamp Operating Current : 6.0mA

{ Result Evaluation Criteria }

There should be no change which might affect the practical display function when the display quality

test is conducted under normal operating condition.

1)

After 30 minutes

Mosaic Pattern(8 by 6)

Half Gray

: Operating during 30 minutes with Mosaic Pattern(8 by 6), there is no Image Sticking

after 10 second with half gray pattern.

Ver. 1.0 Jun. 14, 2012

21/ 28

Liquid Crystal Display

Product Specification

7. International Standards

7-1. Safety

a) UL 60950-1, Underwriters Laboratories Inc.

Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Canadian Standards Association.

Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1, European Committee for Electrotechnical Standardization (CENELEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1, The International Electrotechnical Commission (IEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.” American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference (CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio Interference (CISPR), 2006.

LP173WD1

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 1.0 Jun. 14, 2012

22/ 28

Product Specification

8. Packing 8-1. Designation of Lot Mark

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

LP173WD1

Liquid Crystal Display

Year Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun

6

Jul8Aug9Sep

7

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module. This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one box : 20pcs b) Box Size : 478X365X328

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

Ver. 1.0 Jun. 14, 2012

23/ 28

LP173WD1

Liquid Crystal Display

Product Specification

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1. MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to t h e

module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=± 200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.) (3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes

longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.

Ver. 1.0 Jun. 14, 2012

24/ 28

LP173WD1

Liquid Crystal Display

Product Specification

9-3. ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that

treatment persons are connected to ground through wrist band etc. And don‟t touch interface pin directly.

9-4. PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5. STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5C and 35C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) The protection film is attached to the polarizer with a small amount of glue. If some stress is applied

to rub the protection film against the polarizer during the time you peel off the film, the glue is apt to remain on the polarizer. Please carefully peel off the protection film without rubbing it against the polarizer.

(3) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the polarizer after the protection film is peeled off.

(4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is

recognized, please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

Ver. 1.0 Jun. 14, 2012

25/ 28

Product Specification

Byte

(Dec)

Byte

(Hex)

Field Name and Comments

Value (Hex)

Value

(Bin)

0

00

Header

00

00000000

1

01

Header

FF

11111111

2

02

Header

FF

11111111

3

03

Header

FF

11111111

4

04

Header

FF

11111111

5

05

Header

FF

11111111

6

06

Header

FF

11111111

7

07

Header

00

00000000

8

08

EISA manufacture code ( 3 Character ID ) LGD

30

00110000

9

09

EISA manufacture code (Compressed ASCⅡ)

E4

11100100

10

0A

Panel Supplier Reserved - Product Code 0391h

91

10010001

11

0B

( Hex. LSB first )

03

00000011

12

0C

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

13

0D

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

14

0E

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

15

0F

LCD Module Serial No - Preferred but Optional ("0" If not used)

00

00000000

16

10

Week of Manufacture 00 weeks

00

00000000

17

11

Year of Manufacture 2012 years

16

00010110

18

12

EDID structure version # = 1

01

00000001

19

13

EDID revision # = 3

03

00000011

20

14

Video input Definition = Digital signal

80

10000000

21

15

Max H image size (Rounded cm) = 38cm

26

00100110

22

16

Max V image size (Rounded cm) = 21cm

15

00010101

23

17

Display gamma = (gamma*100)-100 = Example:(2.2*100)-100=120

78

01111000

24

18

Feature Support (no_DPMS, no_Active Off/Very Low Power, RGB color display, Timing BLK 1,no_

0A

00001010

25

19

Red/Green Low Bits (RxRy/GxGy)

8F

10001111

26

1A

Blue/White Low Bits (BxBy/WxWy)

55

01010101

27

1B

Red X Rx = 0.615

9D

10011101

28

1C

Red Y Ry = 0.371

5F

01011111

29

1D

Green X Gx = 0.347

58

01011000

30

1E

Green Y Gy = 0.608

9B

10011011

31

1F

Blue X Bx = 0.149

26

00100110

32

20

Blue Y By = 0.110

1C

00011100

33

21

White X Wx = 0.313

50

01010000

34

22

White Y Wy = 0.329

54

01010100

35

23

Established timing 1 (00h if not used)

00

00000000

36

24

Established timing 2 (00h if not used)

00

00000000

37

25

Manufacturer's timings (00h if not used)

00

00000000

38

26

Standard timing ID1 (01h if not used)

01

00000001

39

27

Standard timing ID1 (01h if not used)

01

00000001

40

28

Standard timing ID2 (01h if not used)

01

00000001

41

29

Standard timing ID2 (01h if not used)

01

00000001

42

2A

Standard timing ID3 (01h if not used)

01

00000001

43

2B

Standard timing ID3 (01h if not used)

01

00000001

44

2C

Standard timing ID4 (01h if not used)

01

00000001

45

2D

Standard timing ID4 (01h if not used)

01

00000001

46

2E

Standard timing ID5 (01h if not used)

01

00000001

47

2F

Standard timing ID5 (01h if not used)

01

00000001

48

30

Standard timing ID6 (01h if not used)

01

00000001

49

31

Standard timing ID6 (01h if not used)

01

00000001

50

32

Standard timing ID7 (01h if not used)

01

00000001

51

33

Standard timing ID7 (01h if not used)

01

00000001

52

34

Standard timing ID8 (01h if not used)

01

00000001

53

35

Standard timing ID8 (01h if not used)

01

00000001

Header

Vendor / Product

EDID Version

Display

Parameters

Panel Color

Coordinates

Established

Timings

Standard Timing ID

APPENDIX A. Enhanced Extended Display Identification Data (EEDIDTM) 1/3

Ver. 1.0 Jun. 14, 2012

LP173WD1

Liquid Crystal Display

26/ 28

Liquid Crystal Display

Byte

(Dec)

Byte

(Hex)

Field Name and Comments

Value (Hex)

Value

(Bin)

54

36

Pixel Clock/10,000 (LSB) 101.7 MHz

BA

10111010

55

37

Pixel Clock/10,000 (MSB)

27

00100111

56

38

Horizontal Active (HA) (lower 8 bits) 1600

40

01000000

57

39

Horizontal Blanking (HB) (lower 8 bits)

E0

11100000

58

3A

Horizontal Active (HA) / Horizontal Blanking (HB) (upper 4:4bits)

60

01100000

59

3B

Vertical Avtive (VA)

84

10000100

60

3C

Vertical Blanking (VB) (DE Blanking typ.for DE only panels)

1C

00011100

61

3D

Vertical Active (VA) / Vertical Blanking (VB) (upper 4:4bits)

30

00110000

62

3E

Horizontal Front Porch in pixels (HF) (lower 8 bits) 48

30

00110000

63

3F

Horizontal Sync Pulse Width in pixels (HS) (lower 8 bits) 32

20

00100000

64

40

Vertical Front Porch in lines (VF) : Vertical Sync Pluse Width in lines (VS) (lower 4 bits) 3 lines : 5

35

00110101

65

41

Horizontal Front Porch/ Sync Pulse Width/ Vertical Front Porch/ Sync Pulse Width (upper 2bits)

00

00000000

66

42

Horizontal Vedio Image Size (mm) (lower 8 bits)

7E

01111110

67

43

Vertical Vedio Image Size (mm) (lower 8 bits)

D7

11010111

68

44

Horizontal Image Size / Vertical Image Size (upper 4 bits)

10

00010000

69

45

Horizontal Border = 0 (Zero for Notebook LCD)

00

00000000

70

46

Vertical Border = 0 (Zero for Notebook LCD)

00

00000000

71

47

Non-Interlace, Normal display, no stereo, Digital Separate ( Vsync_NEG, Hsync_NEG ), DE only note : LSB is set to '1' if panel is DE-timing only. H/V can be ignored.

19

00011001

72

48

Flag

00

00000000

73

49

Flag

00

00000000

74

4A

Flag

00

00000000

75

4B

Data Type Tag (Descriptor Defined by manufacturer )

00

00000000

76

4C

Flag

00

00000000

77

4D
