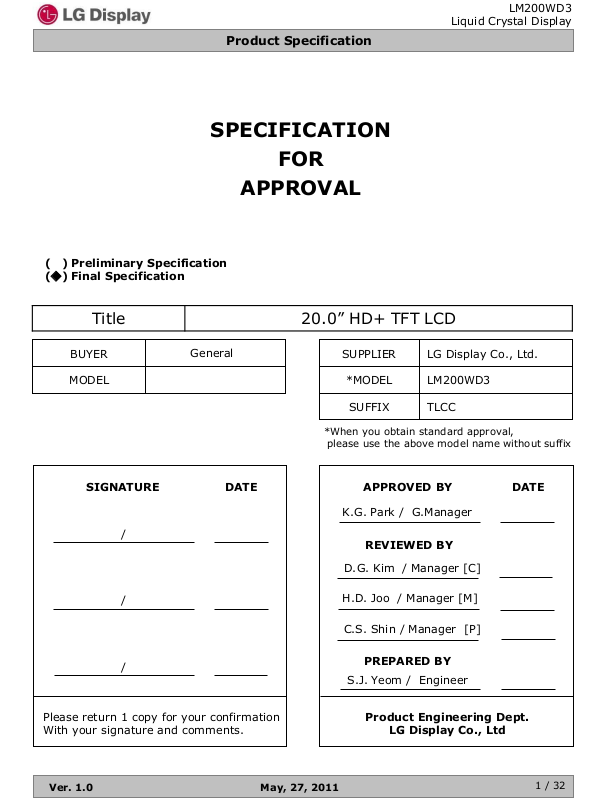

LG Display LM200WD3-TLCC Specification

SPECIFICATION

( ) Preliminary Specification (◆) Final Specification

Title 20.0” HD+ TFT LCD

LM200WD3

Liquid Crystal Display

Product Specification

FOR

APPROVAL

BUYER

MODEL

SIGNATURE DATE

/

General

SUPPLIER LG Display Co., Ltd.

*MODEL LM200WD3

SUFFIX TLCC

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

K.G. Park / G.Manager

REVIEWED BY

D.G. Kim / Manager [C]

H.D. Joo / Manager [M]

C.S. Shin / Manager [P]

PREPARED BY

S.J. Yeom / Engineer

DATE

Please return 1 copy for your confirmation With your signature and comments.

Ver. 1.0 May, 27, 2011

Product Engineering Dept.

LG Display Co., Ltd

1 / 32

Product Specification

Contents

LM200WD3

Liquid Crystal Display

No ITEM

COVER 1

CONTENTS 2

RECORD OF REVISIONS 3

1 GENERAL DESCRIPTION 4

2 ABSOLUTE MAXIMUM RATINGS 5

3 ELECTRICAL SPECIFICATIONS 6

1) ELECTRICAL CHARACTERISTICS 6

2) INTERFACE CONNECTIONS 8

3) LVDS characteristics 11

4) SIGNAL TIMING SPECIFICATIONS 14

5) SIGNAL TIMING WAVEFORMS 15

6) COLOR INPUT DATA REFERNECE 16

7) POWER SEQUENCE 18

8) POWER DIP CONDITION 19

4 OPTICAL SFECIFICATIONS 19

Page

5 MECHANICAL CHARACTERISTICS 25

6 RELIABILITY 28

7 INTERNATIONAL STANDARDS 29

1) SAFETY 29

2) EMC 29

3) ENVIRONMENT 29

8 PACKING 30

1) DESIGNATION OF LOT MARK 30

2) PACKING FORM 30

9 PRECAUTIONS 31

1) MOUNTING PRECAUTIONS 31

2) OPERATING PRECAUTIONS 31

3) ELECTROSTATIC DISCHARGE CONTROL 32

4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32

5) STROAGE 32

6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32

Ver. 1.0 May, 27, 2011

2 / 32

Product Specification

Record of revisions

Revision No DescriptionDate Page

Ver.0.1 Preliminary Specifications.Apr.,19,2011

LM200WD3

Liquid Crystal Display

Final Specifications.Ver.1.0 May,27,2011

Ver. 1.0 May, 27, 2011

3 / 32

LM200WD3

Liquid Crystal Display

Product Specification

1. General description

LM200WD3-TLCC is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode(LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. It has a 20.0 inch diagonally measured active display area with HD+ resolution (900 vertical by 1600 horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LM200WD3-TLCC characteristics provide an excellent flat panel display for office automation products such as monitors.

FIG. 1 Block diagram

LVDS

pair #1

LVDS

pair #2

CN1

+5V

VLCD

Power circuit

block

Timing

controller

RGB

S1

G1

G900

VLED 2ch

Source driver circuit

S1600

TFT-LCD Panel

(1600×RGB×900 pixels)

Backlight assembly (White LED)

General features

Active screen size 20.0 inches (508.05mm) diagonal

Outline Dimension 462.8(H) x 272.0(V) x 10.2(D) mm(Typ.)

Pixel Pitch 0.0922*RGB(H)mm x 0.2766(V)mm

Pixel Format 1600 horizontal By 900 vertical Pixels. RGB stripe arrangement

Interface LVDS 2Port

Color depth 16.7M colors

Luminance, white 360 cd/m2 ( Center 1Point, typ)

Viewing Angle (CR>10) R/L 170(Typ.), U/D 160(Typ.)

Power Consumption

Total 14.2 W(Typ.), (4.3 W@V

, 9.9 W@IBL= 110 mA)

LCD

Weight 1,190 g (Typ.)

Display operating mode Transmissive mode, normally White

Surface treatments

Ver. 1.0 May, 27, 2011

Hard coating (3H), Anti-glare treatment of the front polarizer

4 / 32

Product Specification

2. Absolute maximum ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. Absolute maximum ratings

LM200WD3

Liquid Crystal Display

Parameter Symbol

Units Notes

Min Max

Values

Power Supply Input Voltage V

Operating Temperature T

Storage Temperature T

Operating Ambient Humidity H

Storage Humidity H

LCD

OP

ST

OP

ST

-0.3 +6.0 Vdc At 25℃

0 50 °C

-20 60 °C

10 90 %RH

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 °C Max, and no condensation of water.

Note : 2. Storage condition is guaranteed under packing condition.

FIG. 2 Temperature and relative humidity

90%

60

60%

Wet Bulb Temperature [℃]

20

10

0

30

40

50

40%

10%

Humidity

[(%)RH]

Storage

Operation

1

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [℃]

Ver. 1.0 May, 27, 2011

5 / 32

LM200WD3

Liquid Crystal Display

Product Specification

3. Electrical specifications 3-1. Electrical characteristics

It requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the LED/Backlight, is typically generated by an LED Driver. The LED driver is an external unit to the LCDs.

Table 2. Electrical characteristics

Parameter Symbol

Values

Unit Notes

Min Typ Max

MODULE :

Power Supply Input Voltage V

Permissive Power Input Ripple V

I

LCD-MOSAIC

Power Supply Input Current

I

LCD-BLACK

I

LCD-L80

P

Power Consumption

P

LCD MAX

Inrush current I

LCD

LCD TYP

RUSH

4.5 5.0 5.5 Vdc

- - 0.4 V 3

- 860 1120 mA 1

- 1100 1430 mA 2

- 800 1040 mA 2

- 4.3 5.6 Watt 1

- 5.5 7.15 Watt

1,Black pattern

- - 3.0 A 4

Note :

1. The specified current and power consumption are

under the VLCD=5.0V, 25  2°C,fV=60Hz condition whereas mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. Permissive power ripple should be measured under VCC=5.0V, 25°C, fV (frame frequency)=75Hz

condition and At that time, we recommend the bandwidth configuration of oscilloscope is to be under 20MHz.

4. The duration of rush current is about 5ms and rising time of power Input is 500us  20%.

FIG.3 pattern for Electrical characteristics

power consumption

power input ripple

White : 255Gray Black : 0Gray

Mosaic Pattern(8 x 6)

Ver. 1.0 May, 27, 2011

Full Black Pattern

Energy star 5.0

White : 255Gray (80%) Black : 0Gray (20%)

L80 Pattern

6 / 32

Product Specification

Table 3. LED array ELECTRICAL CHARACTERISTICS

LM200WD3

Liquid Crystal Display

Parameter Symbol Condition

LED : 1 LED String Current Is - 110 120 mA 2 LED String Voltage Vs 40.6 44.8 49.0 V 3

Power Consumption

LED Life Time LED_LT 30,000 - - Hrs 5

LED driver design guide

: The design of the LED driver must have specifications for the LED in LCD Assembly.

The performance of the LED in LCM, for example life time or brightness, is extremely influenced by the characteristics of the LED driver. So all the parameters of an LED driver should be carefully designed and output current should be Constant current control. Please control feedback current of each string individually to compensate the current variation among the strings of LEDs. When you design or order the LED driver, please make sure unwanted lighting caused by the mismatch of the LED and the LED driver (no lighting, flicker, etc) never occurs. When you confirm it, the LCD module should be operated in the same condition as installed in your instrument.

Parray - 9.9 10.8 Watt 4,6

Min. Typ. Max.

Values

Unit Notes

Notes :

1. Specified values are for a single LED bar.

2. The specified current is input LED chip 100% duty current.

3. The specified voltage is input LED string voltage at typical 110mA 100% duty current.

4. The specified power consumption is input LED bar power consumption at typical 110mA 100% duty current.

5. The life time is determined as the time at which luminance of the LED is 50% compared to that of initial

value at the typical LED current on condition of continuous operating at 25  2°C.

6. The LED bar power consumption shown above does not include loss of external driver. The used LED string current is the LED typical current. Typ Power Consumption is calculated with PBar = Vs(Typ.) x Is(Typ.) x Nstring Max Power Consumption is calculated with PBar = Vs(Max.) x Is(Typ) x Nstring

Ver. 1.0 May, 27, 2011

7 / 32

Liquid Crystal Display

Product Specification

3-2. Interface connections

3-2-1. LCD Module

LCD connector(CN1) : GT103-30S-HF15-E2500 (LSM) , UJU(IS100-L30O-C23) Mating connector : FI-X30H and FI-X30HL (JAE) or Equivalent

Table 4. Module connector(CN1) pin configuration

LM200WD3

Pin No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

Symbol Description

RXO0-

RXO0+

RXO1-

RXO1+

RXO2-

RXO2+

GND

RXOC-

RXOC+

RXO3-

RXO3+

RXE0-

RXE0+

GND

RXE1-

RXE1+

GND

RXE2-

RXE2+

RXEC-

RXEC+

RXE3-

RXE3+

GND

NC

PWM_OUT

VLCD

Minus signal of 1st channel 0 (LVDS)

Plus signal of 1st channel 0 (LVDS)

Minus signal of 1st channel 1 (LVDS)

Plus signal of 1st channel 1 (LVDS)

Minus signal of 1st channel 2 (LVDS)

Plus signal of 1st channel 2 (LVDS)

Ground

Minus signal of 1st clock channel (LVDS)

Plus signal of 1st clock channel (LVDS)

Minus signal of 1st channel 3 (LVDS)

Plus signal of 1st channel 3 (LVDS)

Minus signal of 2nd channel 0 (LVDS)

Plus signal of 2nd channel 0 (LVDS)

Ground

Minus signal of 2nd channel 1 (LVDS)

Plus signal of 2nd channel 1 (LVDS)

Ground

Minus signal of 2nd channel 2 (LVDS)

Plus signal of 2nd channel 2 (LVDS)

Minus signal of 2nd clock channel (LVDS)

Plus signal of 2nd clock channel (LVDS)

Minus signal of 2nd channel 3 (LVDS)

Plus signal of 2nd channel 3 (LVDS)

Ground

No Connection (For LCD internal use only.)

Reference signal for inverter control

Power Supply (5.0V)

Ver. 1.0 May, 27, 2011

8 / 32

FIG. 4 Connector diagram

#1 #30

1’st signal pairs

Product Specification

GT103-30S-HF15-ES2500 (LSM)

# 1

2’nd signal pairs

PWM_OUT

Rear view of LCM

#30

Power(+5V)

LM200WD3

Liquid Crystal Display

Note:

1. NC: No Connection.

2. All GND(ground) pins should be connected together and to Vss which should also

be connected to the LCD’s metal frame.

3. All V

(power input) pins should be connected together.

LCD

4. Input Level of LVDS signal is based on the IEA 664 Standard.

5. PWM_OUT is a reference signal for inverter control. This PWM signal is synchronized with vertical frequency. Its frequency is 3 times of vertical frequency, and its duty ratio is 50%.

If the system don’t use this pin, do not connect.

Ver. 1.0 May, 27, 2011

9 / 32

Liquid Crystal Display

Product Specification

3-2-2. LED Interface

The LED interface connector is a model 10019HR-H06B manufactured by Yeonho Electronics. The mating connector is a FFC/FPC specified in LED interface connector specification. The pin configuration for the connector is shown in the table below.

Table 5. LED connector pin configuration

Pin Symbol Description Notes

1 FB1 Channel1 Current Feedback

2 NC No connection

3 VLED LED Power Supply

LM200WD3

4 VLED LED Power Supply

5 NC No connection

6 FB2 Channel2 Current Feedback

FIG. 5 Backlight connector view

LED

1

Back View

6

PCB

Ver. 1.0 May, 27, 2011

10 / 32

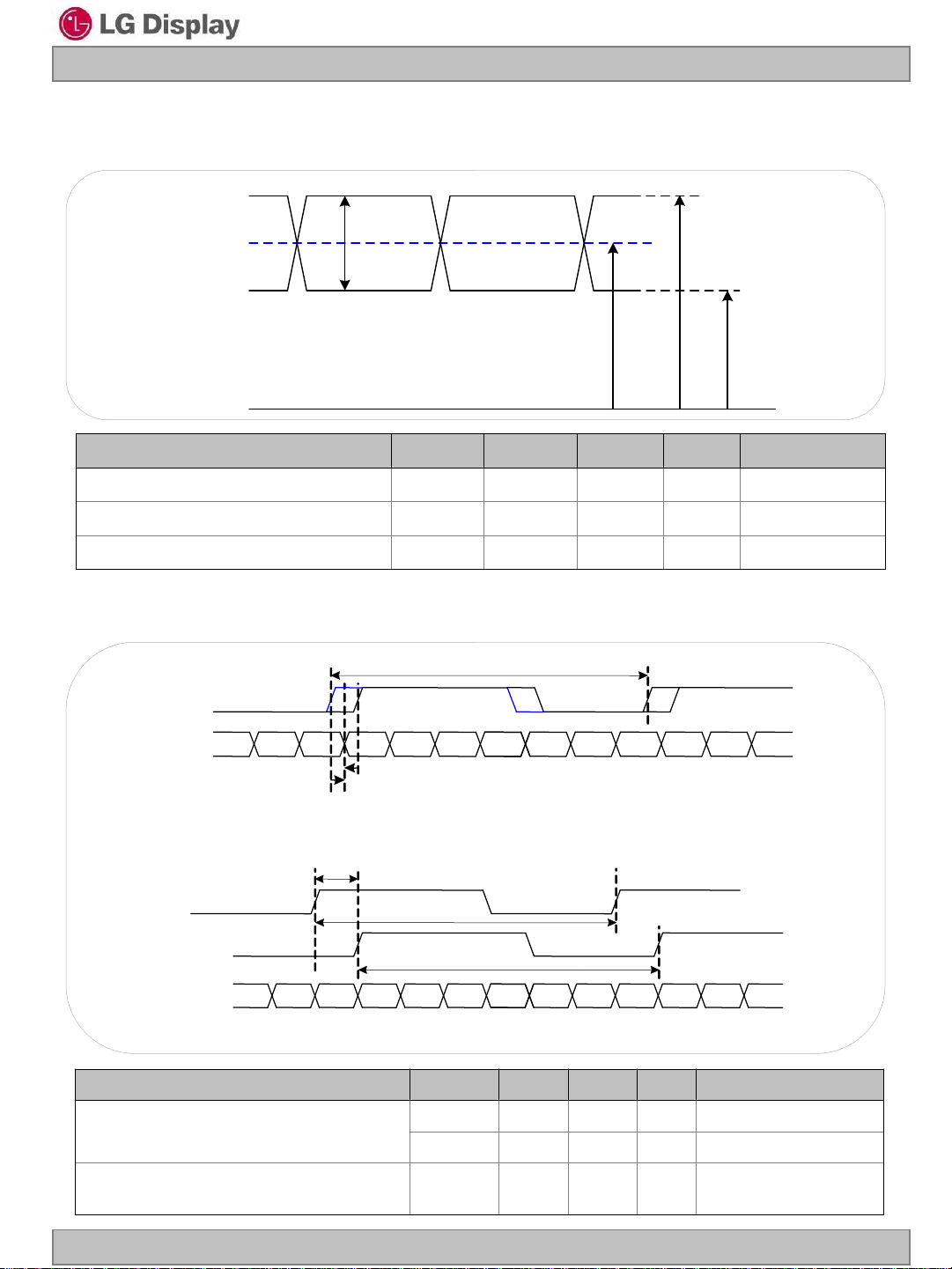

3-3. LVDS characteristics

L V D S +

L V D S -

0 V

V

C M

# | V

I D

| = | ( L V D S + ) – ( L V D S - ) |

# V

C M

= { ( L V D S + ) + ( L V D S - ) } / 2

| V

I D

|

V

I N _ M A XVI N _ M I N

3-3-1. DC Specification

Description Symbol Min Max Unit Notes

LVDS Differential Voltage |VID| 200 600 mV -

LM200WD3

Liquid Crystal Display

Product Specification

LVDS Common mode Voltage V

LVDS Input Voltage Range V

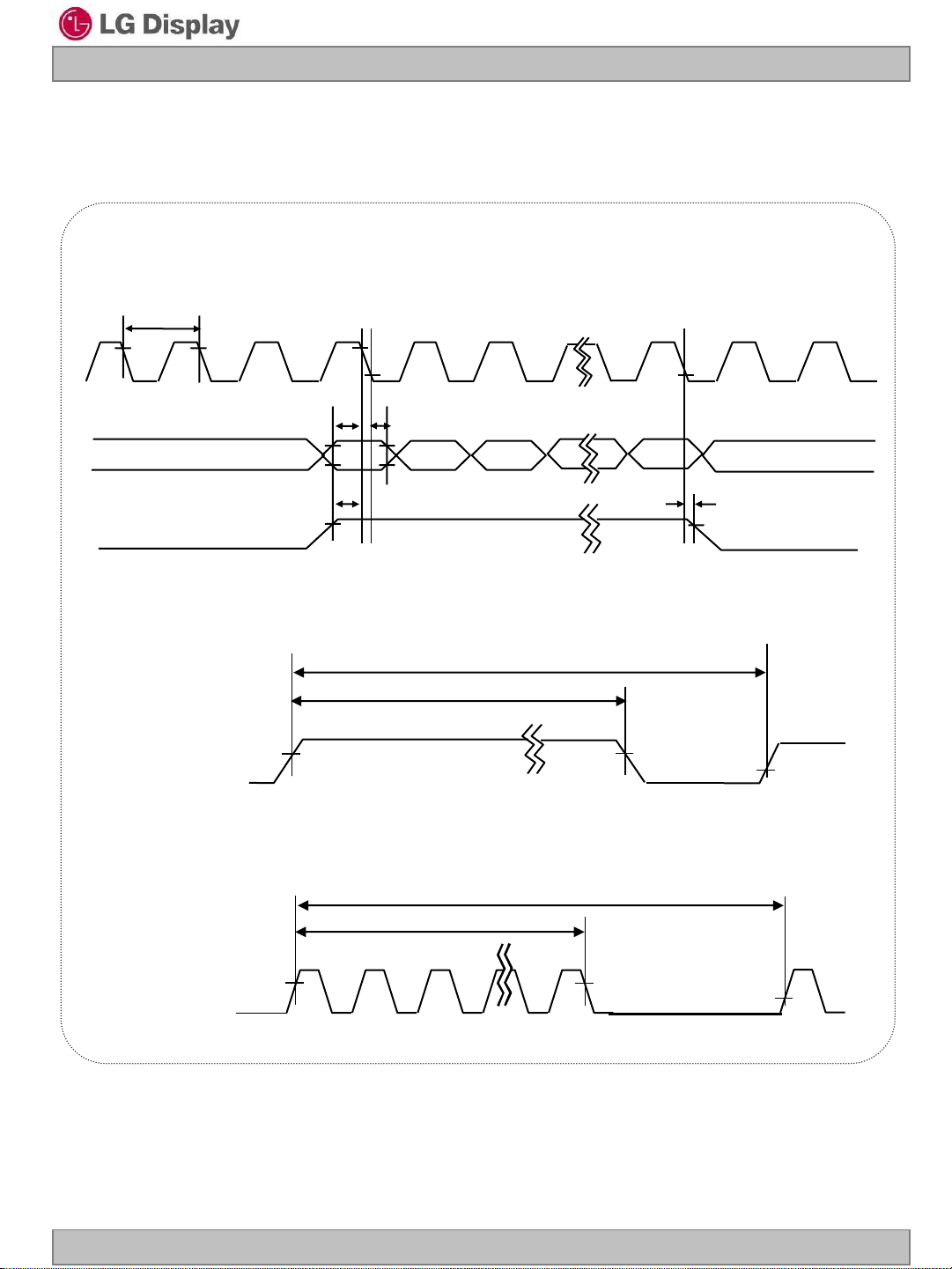

3-3-2. AC Specification

LVDS Clock

LVDS Data

LVDS Odd Clock

LVDS Even Clock

LVDS Even Data

0.6 1.8 V -

0.3 2.1 V -

T

clk

)

t

SKEW

CM

IN

SKEW (Fclk

t

= 1/T

1) 85 MHz > Fclk ≥65MHz : -400 ~ +400

2) 65 MHz > Fclk ≥25MHz : -600 ~ +600

< Clock skew margin between channel >

SKEW_ EO

t

clk

T

clk

T

< Clock skew margin between clock (Even/Odd) >

Description Symbol Min Max Unit Notes

t

LVDS Clock to Data Skew Margin

LVDS Clock to Clock Skew Margin (Even to Odd)

SKEW

t

SKEW

t

SKEW_EO

Ver. 1.0 May, 27, 2011

- 400 + 400 ps

- 600 + 600 ps

- 1/7 + 1/7 T

85MHz > Fclk ≥ 65MHz

65MHz > Fclk ≥ 25MHz

clk

-

11 / 32

3-3-3. LVDS Data format

LM200WD3

Liquid Crystal Display

Product Specification

Tclk

RCLK +

RXinO0 +/-

RXinO1 +/-

RXinO2 +/-

RXinO3 +/-

RXinE0 +/-

RXinE1 +/-

RXinE2 +/-

RXinE3 +/-

OR3 OR2 OR1 OR0

OG4 OG3 OG2 OG1

OB5 OB4 OB3 OB2

OG7 OG6 OR7 OR6

ER3 ER2 ER1 ER0

EG4 EG3 EG2 EG1

EB5 EB4 EB3 EB2

EG7 EG6 ER7 ER6

Tclk * 4/7 Tclk * 3/7

Tclk * 1/7

OG0 OR5 OR4 OR3 OR2 OR1 OR0

OB1 OB0 OG5 OG4 OG3 OG2 OG1

VSYNC HSYNC

DE

X OB7 OB6 OG7 OG6 OR7 OR6

EG0 ER5 ER4 ER3 ER2 ER1 ER0

EB1 EB0 EG5 EG4 EG3 EG2 EG1

VSYNC HSYNC

DE

X EB7 EB6 EG7 EG6 ER7 ER6

OB5 OB4 OB3 OB2

EB5 EB4 EB3 EB2

Current(Nth) CyclePrevious(N-1)th Cycle Next(N+1)

< LVDS Data Format >

OG0 OR5 OR4

OB1 OB0 OG5

VSYNC HSYNC

DE

X OB7 OB6

EG0 ER5 ER4

EB1 EB0 EG5

VSYNC HSYNC

DE

X EB7 EB6

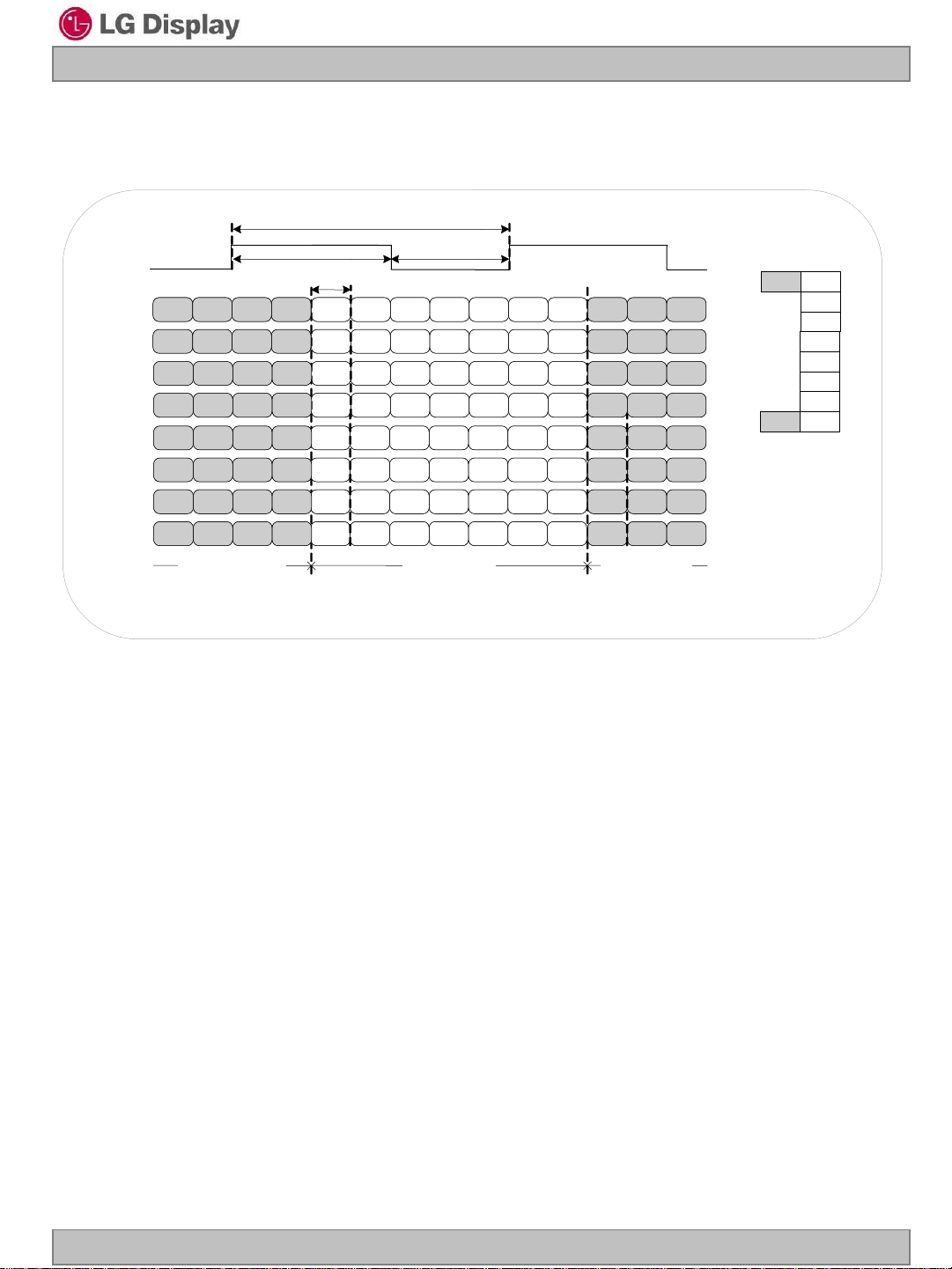

th Cycle

MSB R7

R6

R5

R4

R3

R2

R1

R0LSB

* ODD = 1st Pixel

EVEN = 2nd Pixel

Ver. 1.0 May, 27, 2011

12 / 32

Liquid Crystal Display

Product Specification

Table 6. Required signal assignment for Flat Link(NS:DS90CF383) transmitter

Pin # Require SignalPin Name Pin # Require SignalPin Name

1 Power Supply for TTL InputVCC 29 Ground pin for TTLGND

2 TTL Input (R7)D5 30 TTL Input (DE)D26

3 TTL Input (R5)D6 31 TTL Level clock InputTXCLKIN

4 TTL Input (G0)D7 32 Power Down InputPWR DWN

5 Ground pin for TTLGND 33 Ground pin for PLLPLL GND

6 TTL Input (G1)D8 34 Power Supply for PLLPLL VCC

7 TTL Input (G2)D9 35 Ground pin for PLLPLL GND

8 TTL Input (G6)D10 36 Ground pin for LVDSLVDS GND

LM200WD3

9 Power Supply for TTL InputVCC 37 Positive LVDS differential data output 3

10 TTL Input (G7)D11 38 Negative LVDS differential data output 3

11 TTL Input (G3)D12 39 Positive LVDS differential clock output

12 TTL Input (G4)D13 40 Negative LVDS differential clock output

13 Ground pin for TTLGND 41 Positive LVDS differential data output 2

14 TTL Input (G5)D14 42 Negative LVDS differential data output 2

15 TTL Input (B0)D15 43 Ground pin for LVDSLVDS GND

16 TTL Input (B6)D16 44 Power Supply for LVDSLVDS VCC

17 Power Supply for TTL InputVCC 45 Positive LVDS differential data output 1

18 TTL Input (B7)D17

19 TTL Input (B1)D18

20 TTL Input (B2)D19

22 TTL Input (B3)D20

23 TTL Input (B4)D21

24 TTL Input (B5)D22

25 TTL Input (RSVD)D23

46 Negative LVDS differential data output 1

47 Positive LVDS differential data output 0

48 Negative LVDS differential data output 0

49 Ground pin for LVDSLVDS GND21 Ground pin for TTL InputGND

50 TTL Input (R6)D27

51 TTL Input (R0)D0

52 TTL Input (R1)D1

53 Ground pin for TTLGND

TxOUT3＋

TxOUT3－

TXCLKOUT＋

TXCLKOUT－

TXOUT2＋

TXOUT2－

TXOUT1＋

TXOUT1－

TXOUT0＋

TXOUT0－

26 Power Supply for TTL InputVCC 54 TTL Input (R2)D2

55 TTL Input (R3)D327 TTL Input (HSYNC)D24

56 TTL Input (R4)D428 TTL Input (VSYNC)D25

Notes : Refer to LVDS Transmitter Data Sheet for detail descriptions.

Ver. 1.0 May, 27, 2011

13 / 32

LM200WD3

Liquid Crystal Display

Product Specification

3-4. Signal timing specifications

This is the signal timing required at the input of the User connector. All of the interface signal

timing should be satisfied with the following specifications for it’s proper operation.

Table 7. Timing table

D

CLK

Horizontal

Vertical

DE (Data Enable)

Data

Parameter

Period

Frequency

Horizontal Valid

H Period Total

Hsync Frequency

Vertical Valid t

V Period Total t

Vsync Frequency

DE Setup Time t

DE Hold Time

Data Setup Time

Data Hold Time

Symbol Min. Typ. Max. Unit Notes

t

f

t

f

t

CLK

HV

HP

H

VV

VP

V

SI

HI

SD

HD

14.6 18.5 23.1 ns

43.2 54.0 68.4 MHz

800 800 800

t

CLK

840 900 1200

48.0 60.0 76.0 kHz

900 900 900

t

908 1000 1300

48 60 76 Hz

4 - -

ns For D

4 - -

ns For D

4 - -

Pixel frequency : Typ.108.0MHz

HP

CLK

Note:

1. DE Only mode operation. The input of Hsync & Vsync signal does not have an effect on LCD normal operation.

2. The performance of the electro-optical characteristics may be influenced by variance of the

vertical refresh rates.

3. Horizontal period should be even.

Ver. 1.0 May, 27, 2011

14 / 32

Product Specification

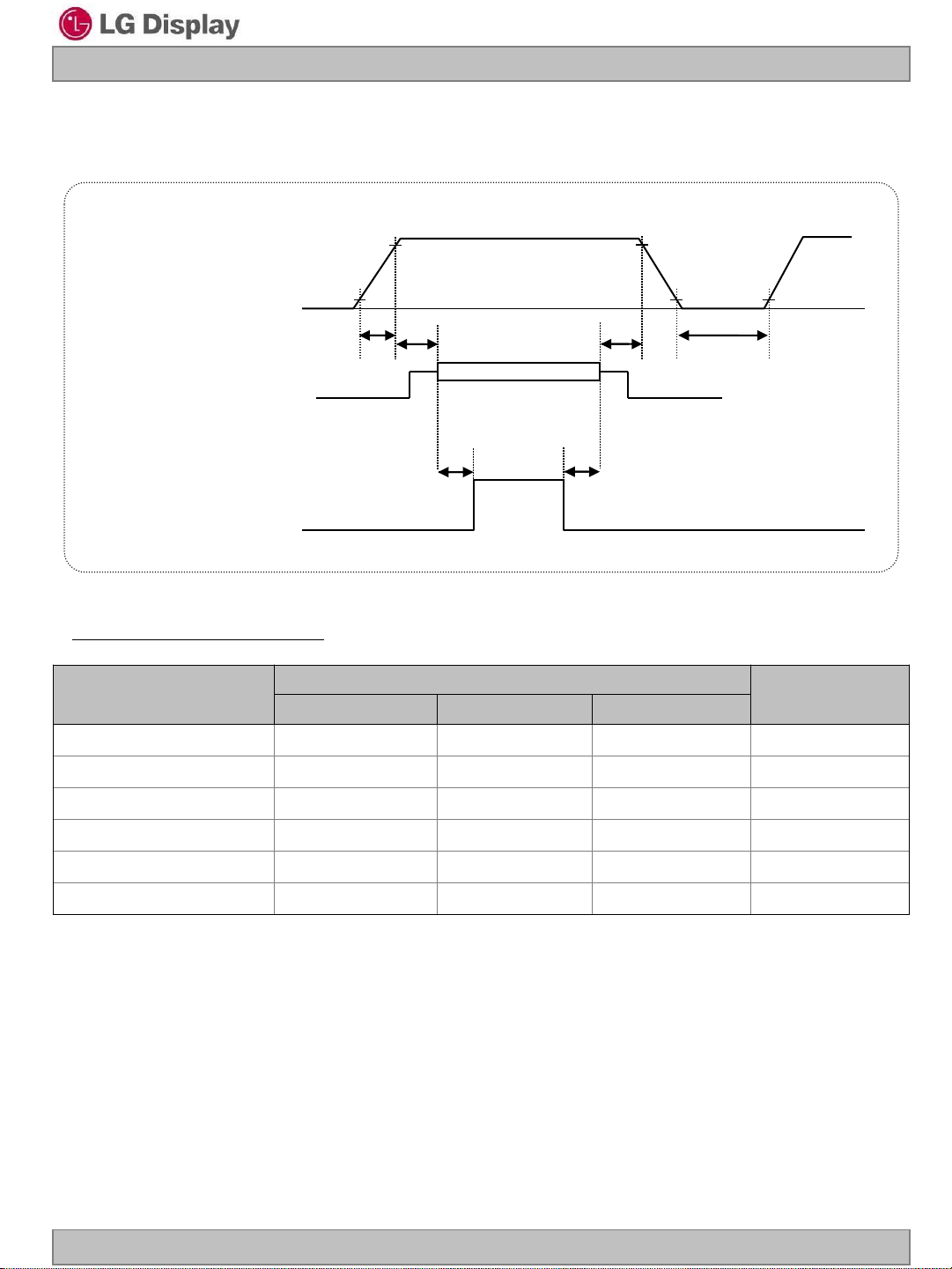

3-5. Signal timing waveforms

1. DCLK , DE, DATA waveforms

t

CLK

Dclk

t

SD

Invalid

Data

DE(Data Enable)

t

SI

LM200WD3

Liquid Crystal Display

t

HD

Valid

Invalid

t

HI

2. Horizontal waveform

DE(Data Enable)

3. Vertical waveform

DE(Data Enable)

tHV

tVV

tHP

t

DE

VP

DE

Ver. 1.0 May, 27, 2011

15 / 32

LM200WD3

Liquid Crystal Display

Product Specification

3-6. Color input data reference

The brightness of each primary color (red,green and blue) is based on the 8bit gray scale data input for the color ; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Table 8. Color data reference

Input Color Data

Color

Red

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

MSB LSB

Green

Blue

MSB LSB

Basic Color

Red

Green

Blue

Black Red (255)

Green (255) Blue (255) Cyan Magenta Yellow White

Red(000) Dark Red(001)

Red(002)

- - - - - - - - -

- - - - - - - - Red(253) Red(254) Red(255) Bright

Green(000) Dark Green(001)

Green(002)

- - - - - - - - -

- - - - - - - - Green(253) Green(254) Green(255)Bright

Blue(000) Dark Blue(001)

Blue(002)

- - - - - - - - -

- - - - - - - - Blue(253) Blue(254) Blue(255) Bright

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

-

1

0

1

0

1

0

1

0

1

0

1

0

-

0

1

0

1

0

1

0

1

0

1

0

1

0

-

0

1

0

1

0

1

0

1

Ver. 1.0 May, 27, 2011

16 / 32

3-7. Power sequence

LM200WD3

Liquid Crystal Display

Product Specification

90% 90%

VLCD Power Supply For LCD

Interface Signal (Tx)

Power for Backlight

Table 9. Power sequence

Parameter

T1 0.5 - 10 ms

T2 0.01 - 50 ms

10%

T2 T5 T7

T1

Valid data

0V

OFF

Min Typ Max

T3

LED on

Values

T4

10%

OFF

Units

T3 500 - - ms

T4 200 - - ms

T5 0.01 - 50 ms

T7 1000 - - ms

Notes :

1. Please avoid floating state of interface signal at invalid period.

2. When the interface signal is invalid, be sure to pull down the power supply for LCD V

LCD

to 0V.

3. LED power must be turn on after power supply for LCD an interface signal are valid.

Ver. 1.0 May, 27, 2011

17 / 32

Product Specification

LM200WD3

Liquid Crystal Display

3-8. V

Power dip condition

LCD

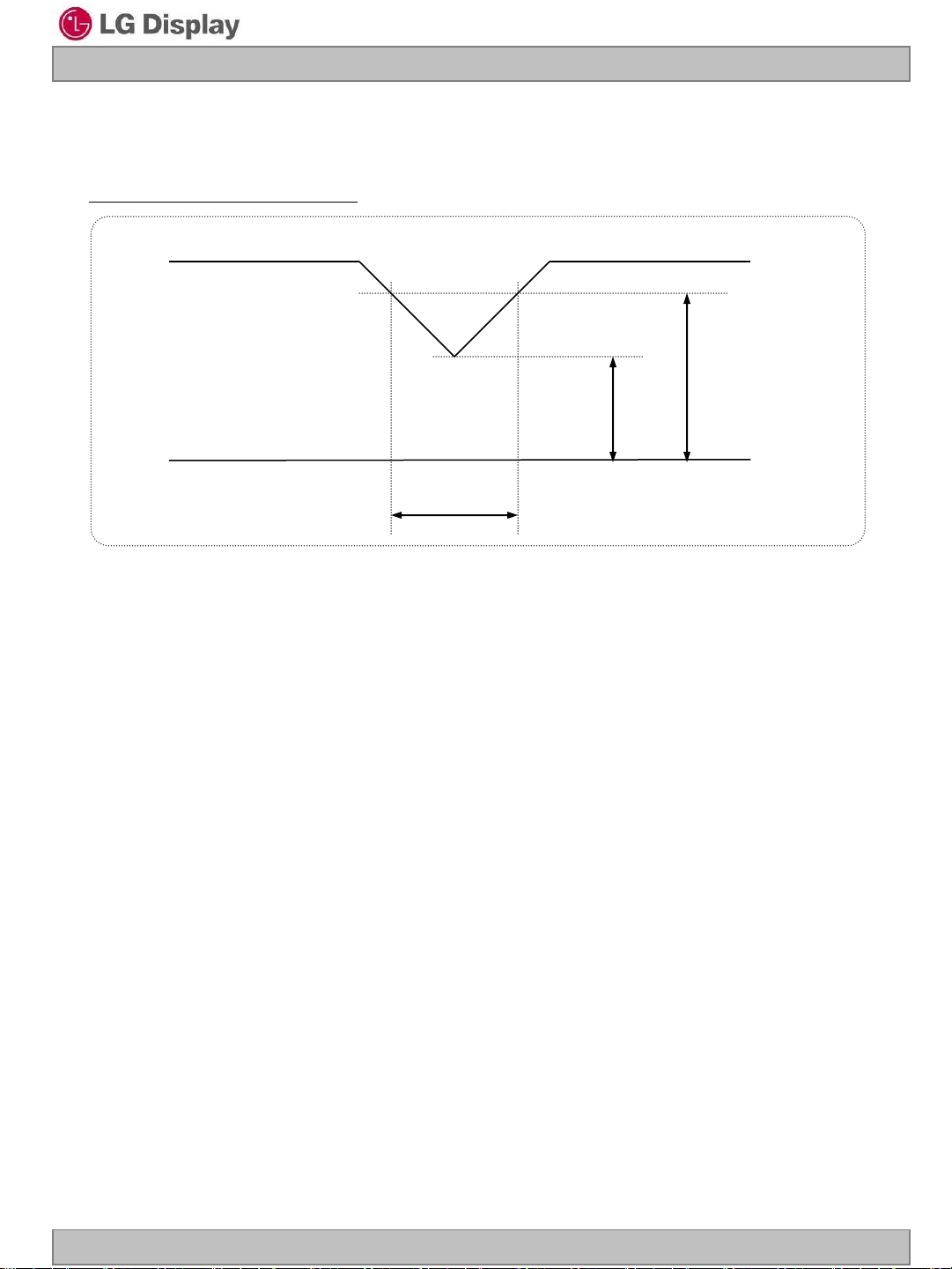

FIG. 6 Power dip condition

1) Dip condition

3.5V ≤V

＜ 4.5V , td≤20ms

LCD

V

LCD

4.5V

3.5V

t

d

GND(ground)

2) V

＜ 3.5V

LCD

V

-dip conditions should also follow the Power On/Off conditions for supply voltage.

LCD

Ver. 1.0 May, 27, 2011

18 / 32

LM200WD3

Liquid Crystal Display

Product Specification

4. Optical specification

Optical characteristics are determined after the unit has been ‘ON’ for 30 minutes in a dark

environment at 25°C.

Table 10. Optical characteristics

Parameter Symbol

Contrast Ratio CR 700 1000 -

Surface Luminance, white L

Surface Luminance, Black L

Luminance Variation 

Response Time

Rise Time Tr

Decay Time Tr

WH

BL

WHITE

R

D

Ta= 25°C, V

Min Typ Max

=5.0V, fV=60Hz f

LCD

Values

=54.0MHz, IBL=110mA

CLK

Units Notes

290 360 - cd/m

- - 0.6 cd/m

9P 75 - - %

- 1.1 2.6 ms

- 3.9 7.4 ms

2

1

(PR-880)

2

(PR-880)

2

(PR-880)

3

(PR-880)

4

(PR-880)

Color Gamut 67.5 72 - % (PR-650)

Color Coordinates [CIE1931]

RED

GREEN

BLUE

WHITE

Rx

Ry 0.330

Gx 0.304

Gy 0.629

Bx 0.154

Typ

-0.03

By 0.070

Wx 0.313

Wy 0.329

0.636

Typ

+0.03

(PR-650)

Viewing Angle (CR>5)

x axis, right(=0°) r 75 88 Degree x axis, left (=180°) l 75 88 y axis, up (=90°) u 70 85

y axis, down (=270°) d 70 85

5

(PR-880)

Viewing Angle (CR>10)

x axis, right(=0°) r 70 85 Degree x axis, left (=180°) l 70 85 y axis, up (=90°) u 60 75 y axis, down (=270°) d 70 85

Crosstalk 1.5 %

Luminance uniformity Angular dependence (TCO5.0)

LR - - 1.73

Color grayscale linearity Δu’v’ 0.018

6

(PR-880)

7

(PR-880)

8

(PR-650)

Ver. 1.0 May, 27, 2011

19 / 32

LM200WD3

Liquid Crystal Display

Product Specification

The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of  and  equal to 0 °. FIG. 7 presents additional information concerning the measurement equipment and method.

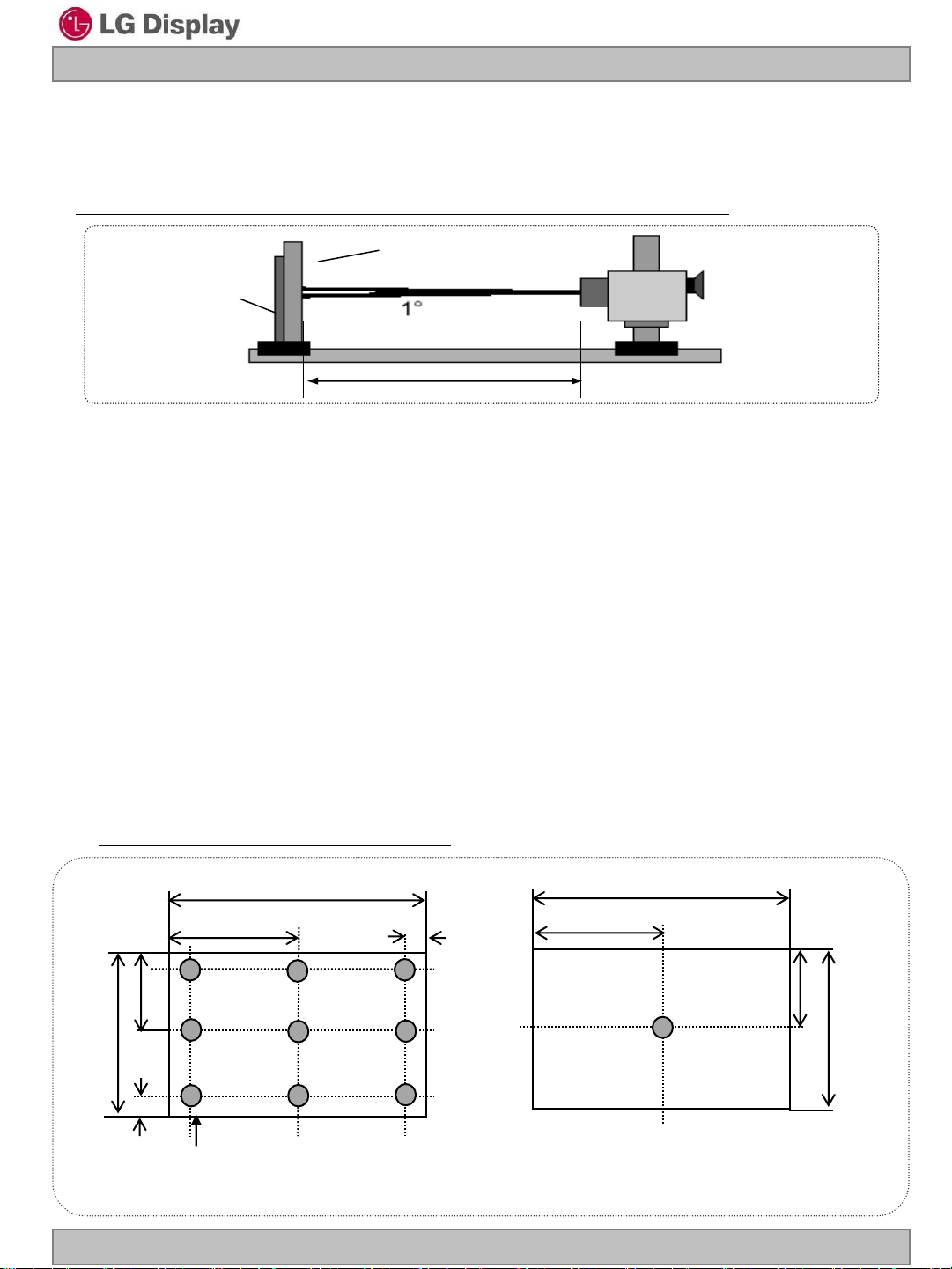

FIG. 7 Optical characteristic measurement equipment and method

Optical

LCD Module

Stage(x,y)

Pritchard 880 or equivalent

50cm

Notes :

1. Contrast ratio(CR) is defined mathematically as :It is measured at center point(1)

Surface luminance with all white pixels

Contrast ratio = ---------------------------------------------------------

Surface luminance with all black pixels

2. Surface luminance is the luminance value at center 1 point(1) across the LCD surface 50cm from the surface with all pixels displaying white. For more information see FIG 8.

3. The variation in surface luminance , 

is defined as

WHITE

Minimum (P1,P2 …..P9)



= --------------------------------------------- *100

WHITE

Maximum (P1,P2 …..P9)

For more information see Figure 8.

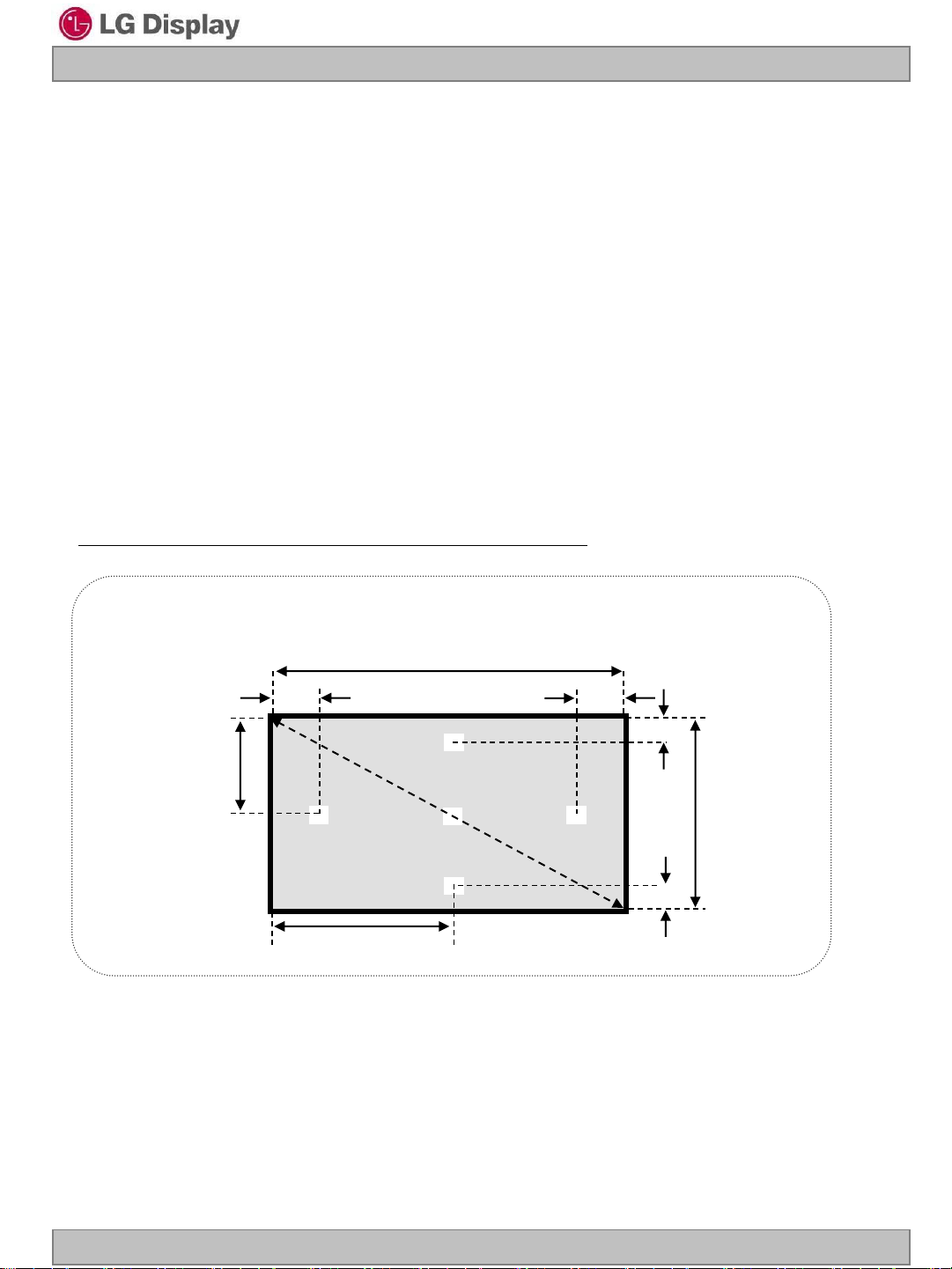

FIG. 8 Luminance measuring point

V

V/2

V/10

Active Area

H

H/2

3

5 6

7

1

8

H/10

H : 442.8 mm

H/2

42

9

H

V/2

V : 249.075 mm @ H,V : Active Area

Ver. 1.0 May, 27, 2011

V

20 / 32

Liquid Crystal Display

Normal

Y

E







= 0, Right



= 180, Left



= 270, Down



= 90, Up

Product Specification

Notes :

4. Response time is the time required for the display to transition from black to white (Decay Time, TrD) and from white to black (Rise Time, TrR)

The sampling rate is 2,500 sample/sec. For additional information see FIG. 9.

The response time is defined as the following figure and shall be measured by switching the input signal for each gray to gray.

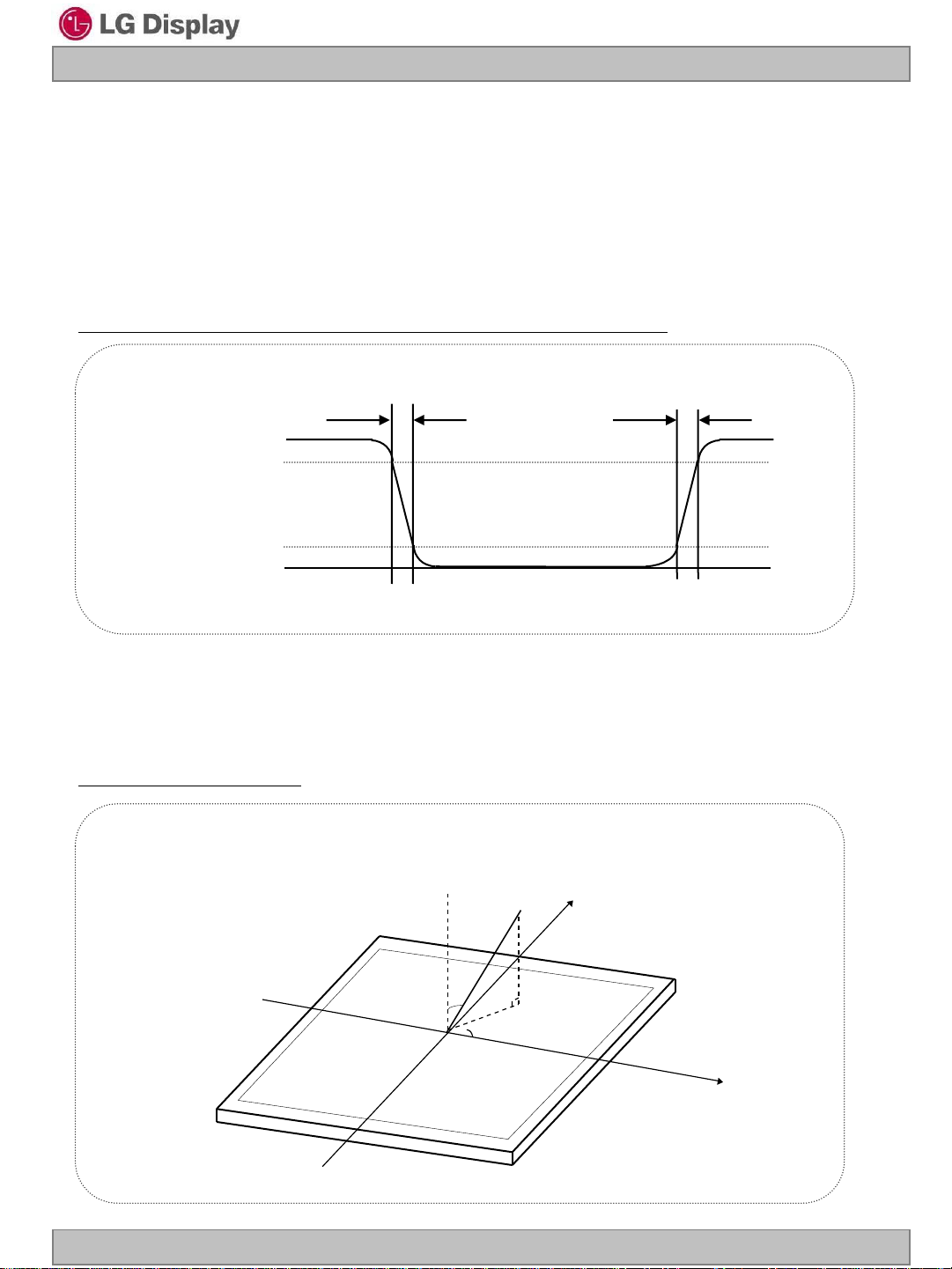

FIG. 9 Response time (measurement equipment : RD-80S)

LM200WD3

Tr

R

Tr

D

100

90

Optical

white black white

response

[%]

10

0

5. Viewing angle is the angle at which the contrast ratio is greater than 10 or 5. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG. 10 .

FIG. 10 Viewing angle

Ver. 1.0 May, 27, 2011

21 / 32

Notes :

6. Crosstalk is defined as

LM200WD3

Liquid Crystal Display

Product Specification

The equation of crosstalk : (L

A[or C]2-LA[or C]1

(L

B[or D]2-LB[or D]1

For more information see Figure 11.

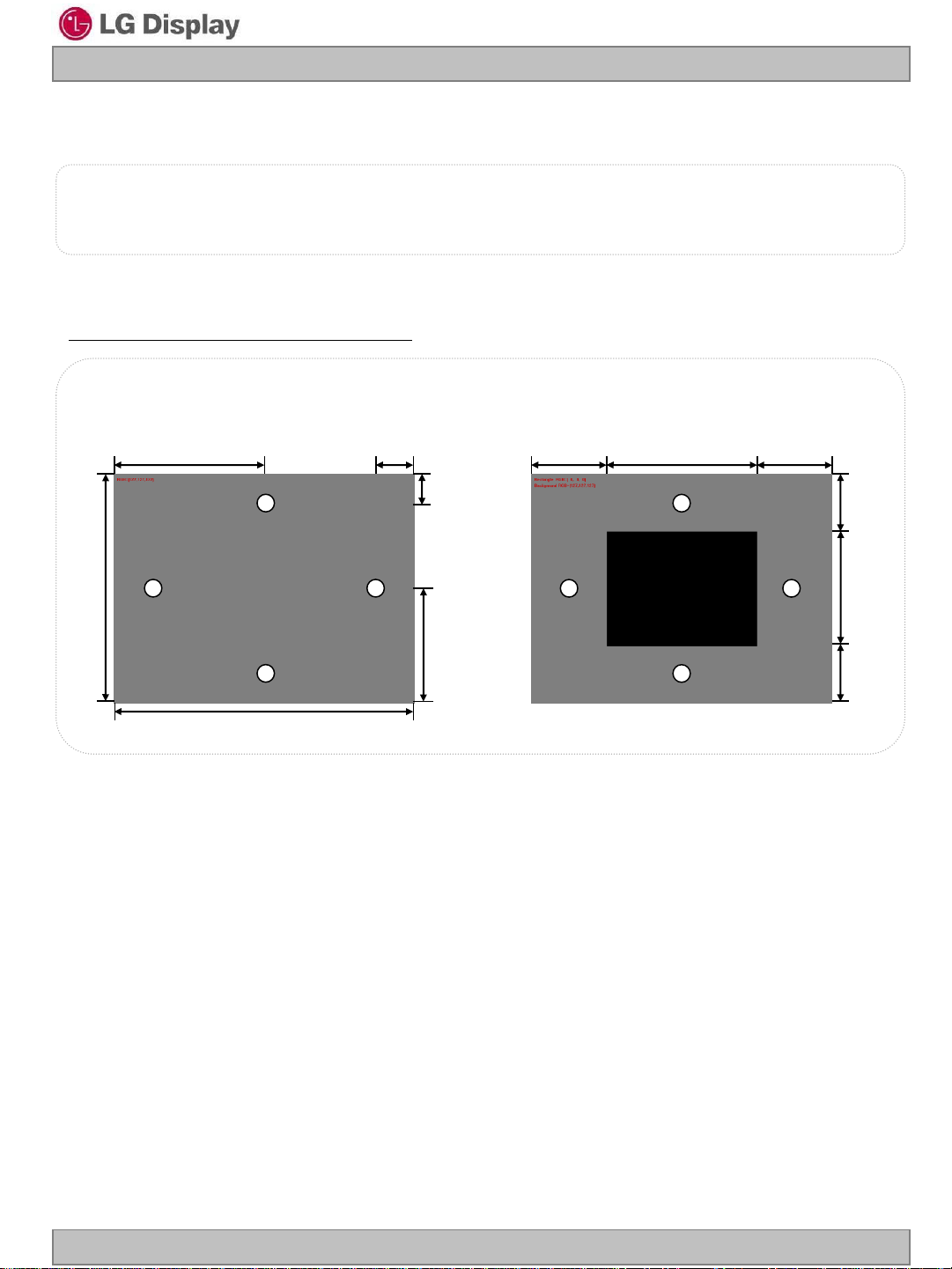

FIG. 11 Crosstalk measuring point

Pattern 1

(Half gray: gray 127)

A/2

L

A1

A/8

B

L

B1

L

C1

L

D1

/L /L

(Background: gray 127, Rectangular: gray 0, gray255 )

) 100(%) [Vertical],

A[or C]1

) 100(%) [Horizontal]

B[or D]1

Pattern 2

A/4 A/2 A/4

B/8

L

B2

L

A2

L

D2

B/4

B/2

L

C2

B/4

A

Ver. 1.0 May, 27, 2011

22 / 32

Liquid Crystal Display

Product Specification

Notes :

7. Luminance Uniformity - angular – dependence (LR& TB)

TCO 5.0 Luminance uniformity – angular dependence, is the capacity of the VDU

to present the same Luminance level independently of the viewing direction. The angular-dependent luminance uniformity is calculated as the ratio of maximum luminance to minimum luminance in the specified measurement areas.

- Test pattern : Full white 4˚× 4˚square size, back ground shall be set to 80%

image loading, RGB 204, 204, 204

- Test luminance : ≥150cd/㎡

- Test point : 5-point

- Test distance : D * 1.5 = 76.22㎝

- Test method : LR= ((L TB = ((L

max.+30deg.

max.+15deg.

/ L

min. +30deg.

/ L

min. +15deg.

) + (L

)

max. -30deg.

/ L

min. -30deg.

LM200WD3

)) / 2

FIG. 12 Luminance Uniformity angular dependence

< Luminance uniformity - angular dependence measuring point >

H

H/10

V/2

D

H/2

V/10

V

V/10

Ver. 1.0 May, 27, 2011

23 / 32

Liquid Crystal Display

22

)''()''( BABA vvuu  

Product Specification

Notes :

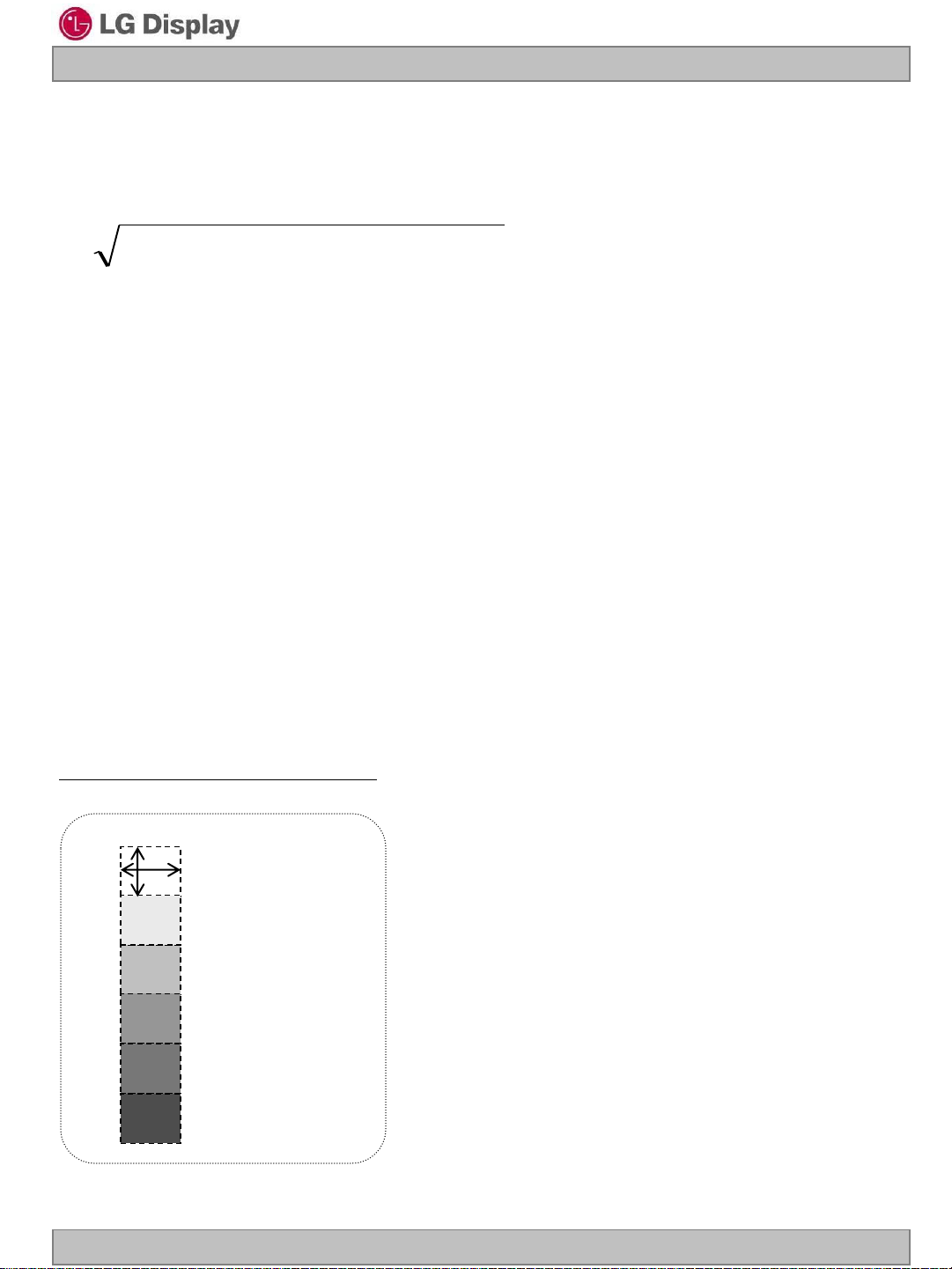

8. Color grayscale linearity , Δu’v’ is defined as

Where indices A and B are the two gray levels found to have the largest color differences between them.

i.e. get the largest Δu’ and Δv’ of each 6pairs of u’ and v’ and calculate Δu’v’ .

-Test pattern : 100% full white pattern with a test pattern as shown FIG.12 Squares of 40mm by 40mm in size, filled with 255, 225, 195, 165, 135 and 105 grayscale steps should be arranged in the center of the screen.

LM200WD3

-Test method

First gray step : move a square of 255 gray level should be moved into the center of the screen

and measure luminance and u’ and v’ coordinates.

Next gray step : move a 255 gray square into the center and measure both luminance and

u’ and v’ coordinates.

The same procedure shall then be repeated for gray steps 195, 165, 135 and 105.

FIG. 13 Color grayscale linearity

40mm

Ver. 1.0 May, 27, 2011

24 / 32

LM200WD3

Liquid Crystal Display

Product Specification

5. Mechanical characteristics

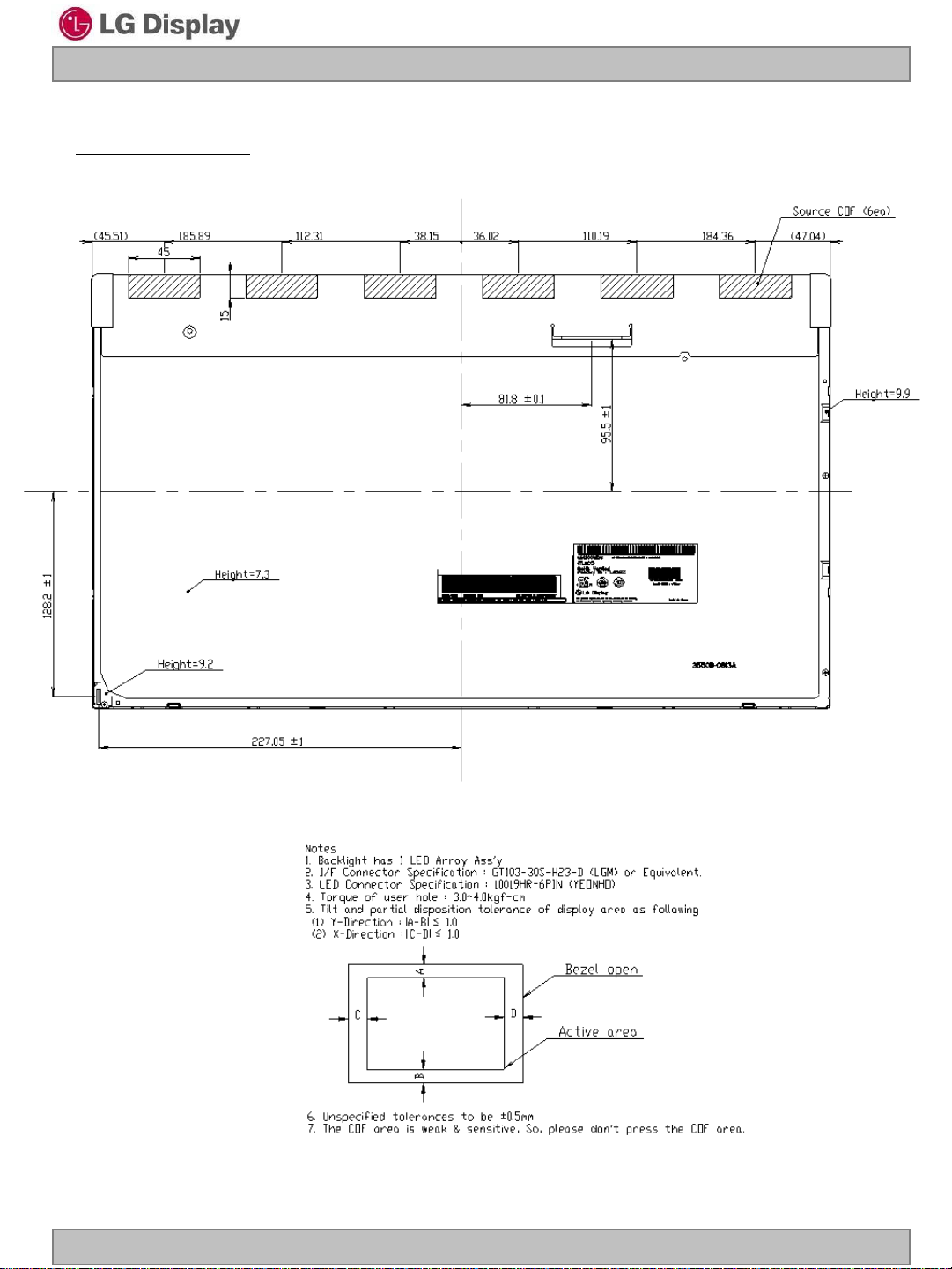

The contents provide general mechanical characteristics. In addition the figures in the next page are detailed mechanical drawing of the LCD.

Table 11. Mechanical characteristics

Horizontal 462.8 mm

Outline dimension

Bezel area

Active display area

Weight 1,190g (Typ.), 1,250g (Max)

Surface treatment

Notes : Please refer to a mechanic drawing in terms of tolerance at the next page.

Vertical 272.0 mm

Depth 10.2 mm

Horizontal 446.8 mm

Vertical 253.1 mm

Horizontal 442.8 mm

Vertical 249.075 mm

Hard coating(3H) Anti-glare treatment of the front polarizer

Ver. 1.0 May, 27, 2011

25 / 32

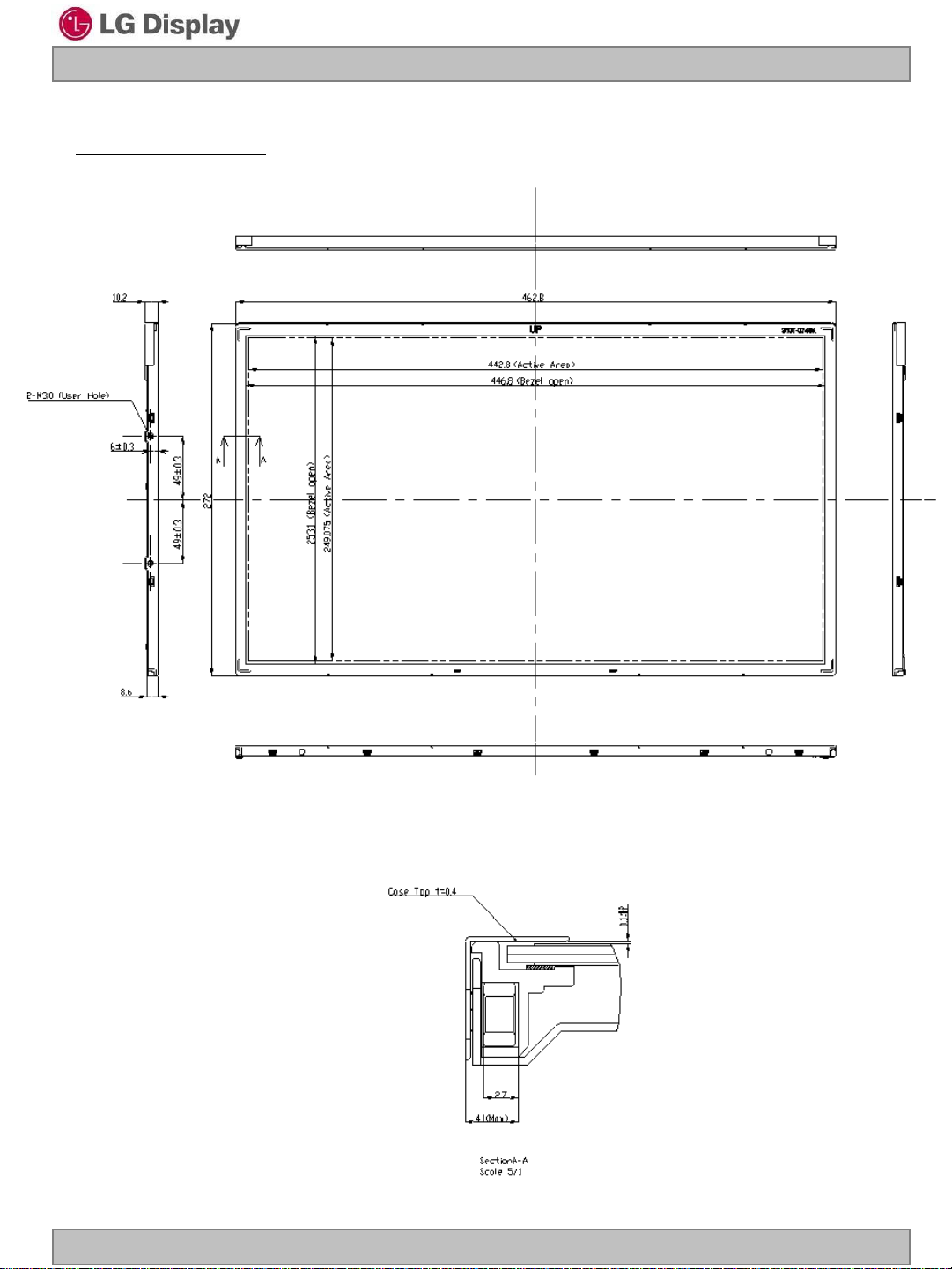

LM200WD3

Liquid Crystal Display

Product Specification

Ver. 1.0 May, 27, 2011

26 / 32

LM200WD3

Liquid Crystal Display

Product Specification

Ver. 1.0 May, 27, 2011

27 / 32

Product Specification

6. Reliability

Table 12. Environment test conditions

No Test Item Condition

Ta= 60°C 240hrsHigh temperature storage test1

Ta= -20°C 240hrsLow temperature storage test2

Ta= 50°C 50%RH 240hrsHigh temperature operation test3

Ta= 0°C 240hrsLow temperature operation test4

Wave form : random

5

6

Vibration test (non-operating)

Shock test (non-operating)

Vibration level : 1.0GRMS Bandwidth : 10-300Hz Duration : X,Y,Z, 20 min

One time each direction

Shock level : 120G Waveform : half sine wave, 2msec Direction : ±X, ±Y, ±Z

One time each direction

LM200WD3

Liquid Crystal Display

Altitude

7

{ Result evaluation criteria } There should be no change which might affect the practical display function when the display

quality test is conducted under normal operating condition.

operating storage / shipment

0 - 16,400 feet(5,000m) 0 - 40,000 feet(12,192m)

Ver. 1.0 May, 27, 2011

28 / 32

LM200WD3

Liquid Crystal Display

Product Specification

7. International standards

7-1. Safety

a) UL 60950-1, Second Edition, Underwriters Laboratories Inc.

Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Second Edition, Canadian Standards Association.

Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1:2006 + A11:2009, European Committee for Electrotechnical Standardization(CENELEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1:2005, Second Edition, The International Electrotechnical Commission (IEC).

Information Technology Equipment - Safety - Part 1 : General Requirements. (Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Information

Class 1M LED Product

IEC60825-1 : 2001

Embedded LED Power (Class1M)

2. Caution : LED inside.

Class 1M laser (LEDs) radiation when open. Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.” American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference (CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 1.0 May, 27, 2011

29 / 32

Product Specification

8. Packing

8-1. Designation of lot mark

a) Lot mark

A B C D E F G H I J K L M

A,B,C : Size (Inch) D : Year E : Month F ~ M : Serial No.

Note:

1. Year

LM200WD3

Liquid Crystal Display

Year

Mark

2016G2017H2018J2019

F

CBA

2014E2015

D

201320122011

2020

K

2. Month

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

Oct

A

b) Location of lot mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module. This is subject to change without prior notice.

8-2. Packing form

a) Package quantity in one box : 12 pcs(2 Modules are packed in 1 AL Bag.)

b) Box size : 366mm x 315mm X 578mm

Nov

B

DecMarFebJan

C321

Ver. 1.0 May, 27, 2011

30 / 32

LM200WD3

Liquid Crystal Display

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using holes arranged in left sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is

not applied to the Module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect

the polarizer. Transparent protective plate should have sufficient strength in order to the

resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because

the former generates corrosive gas of attacking the polarizer at high temperature and the

latter causes circuit break by electro-chemical reaction. (6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder

than HB pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.

(Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft

materials like chamois soaks with petroleum benzene. Normal-hexane is recommended

for cleaning the adhesives used to attach front / rear polarizers. Do not use acetone,

toluene and alcohol because they cause chemical damage to the polarizer. (8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer

causes deformations and color fading. (9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following

voltage : V=±200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.) (3) Brightness depends on the temperature. (In lower temperature, it becomes higher.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage

to polarizer or electrical contacted parts. And after fading condensation, smear or spot will

occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimized the interference.

(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can

not be operated its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw (if not, it causes metal

foreign material and deal LCM a fatal blow) (9) Please do not set LCD on its edge.

Ver. 1.0 May, 27, 2011

31 / 32

LM200WD3

Liquid Crystal Display

Product Specification

9-3. Electrostatic discharge control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc. And

don’t touch interface pin directly.

9-4. Precautions for strong light exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep

the temperature between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. Handling precautions for protection film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time,

sometimes there remains a very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or

its vestige is recognized, please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

Ver. 1.0 May, 27, 2011

32 / 32
