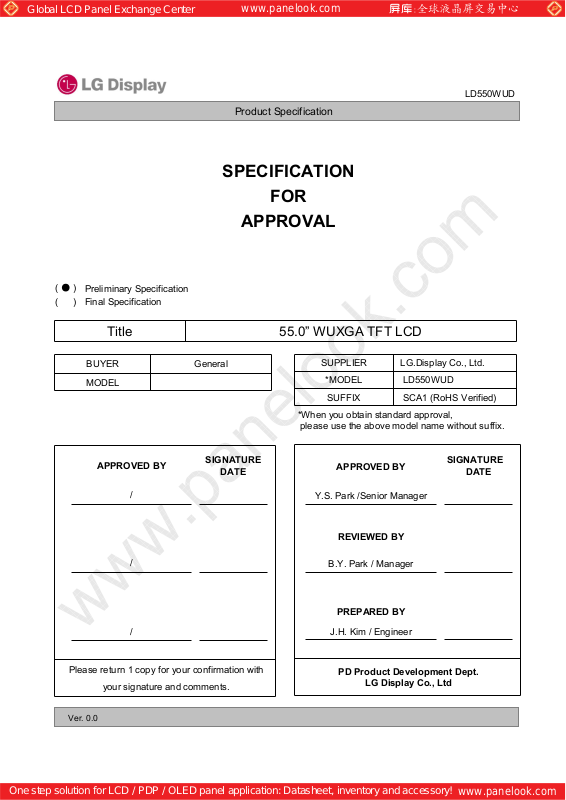

LD550WUD

Product Specification

SPECIFICATION

FOR

APPROVAL

)

(

●

Preliminary Specification

)

(

Final Specification

Title 55.0” WUXGA TFT LCD

BUYER General

MODEL

APPROVED BY

/

/

SIGNATURE

DATE

SUPPLIER LG.Display Co., Ltd.

*MODEL LD550WUD

SUFFIX SCA1 (RoHS Verified)

*When you obtain standard approval,

please use the above model name without suffix.

APPROVED BY

Y.S. Park /Senior Manager

REVIEWED BY

B.Y. Park / Manager

SIGNATURE

DATE

PREPARED BY

/

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.0

Ver. 0.0

J.H. Kim / Engineer

PD Product Development Dept.

LG Display Co., Ltd

0 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

LD550WUD

Product Specification

CONTENTS

Number ITEM

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

3-4 LVDS SIGNAL SPECIFICATIONS

3-5 COLOR DATA REFERENCE

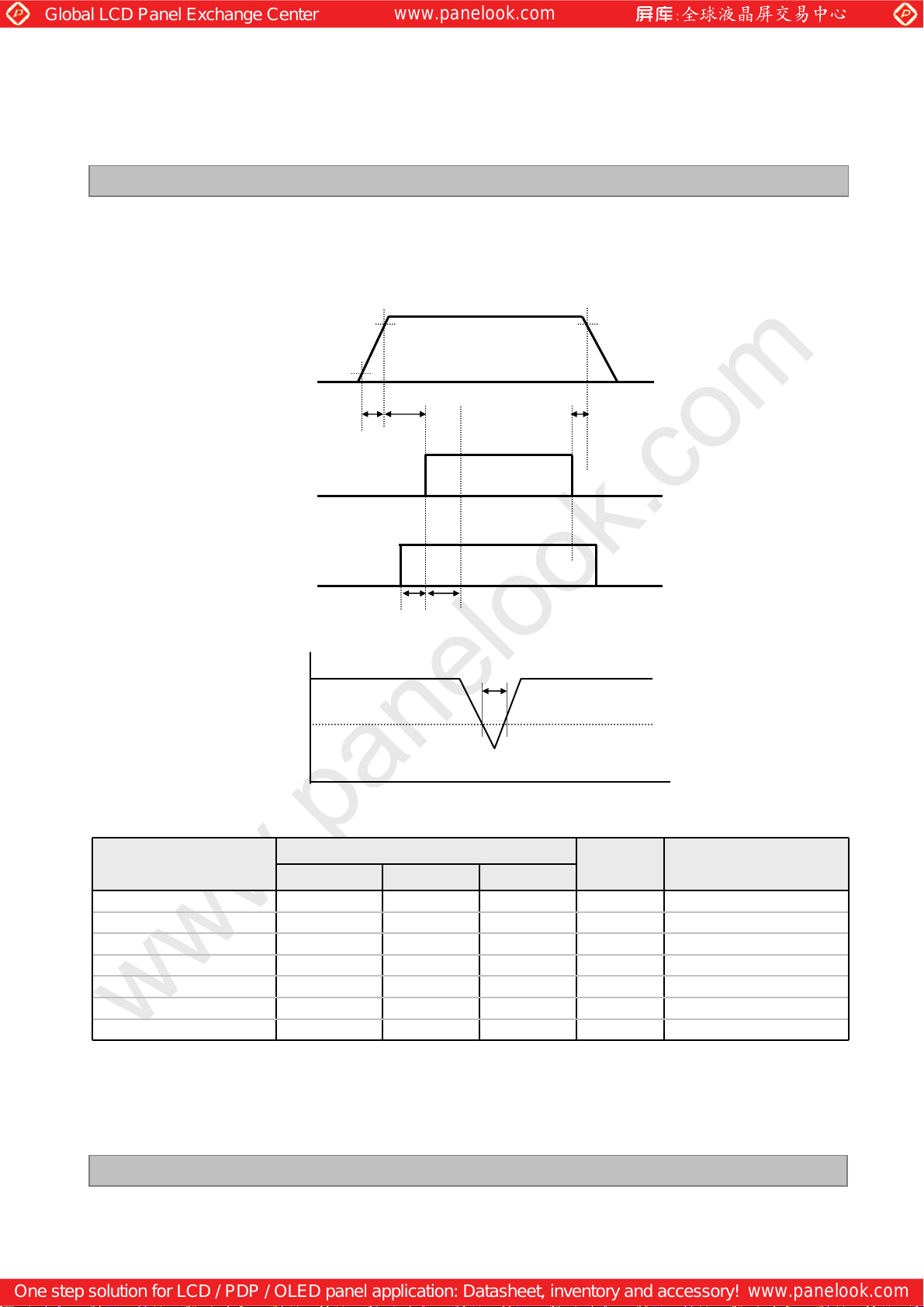

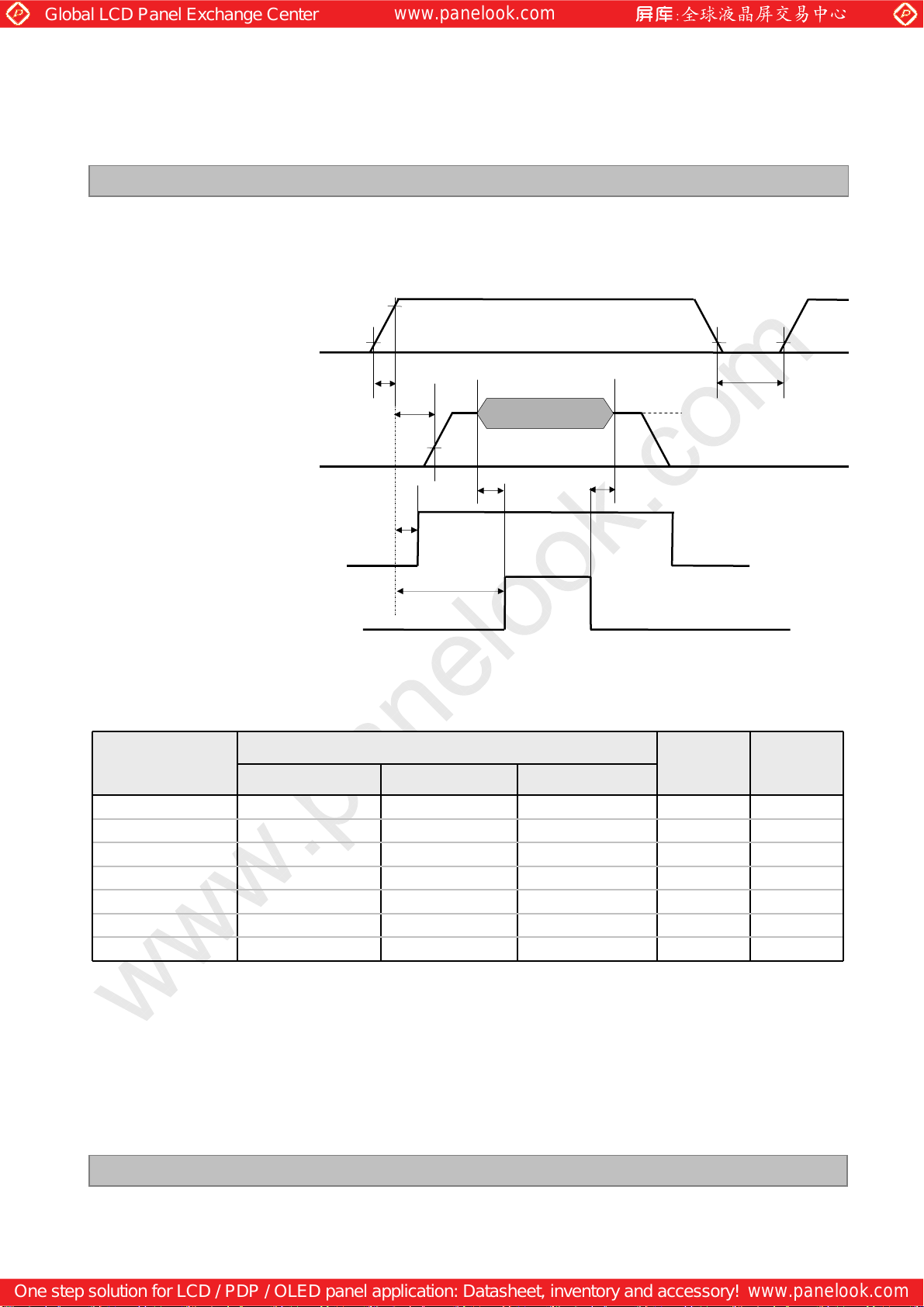

3-6 POWER SEQUENCE

4 OPTICAL SPECIFICATIONS

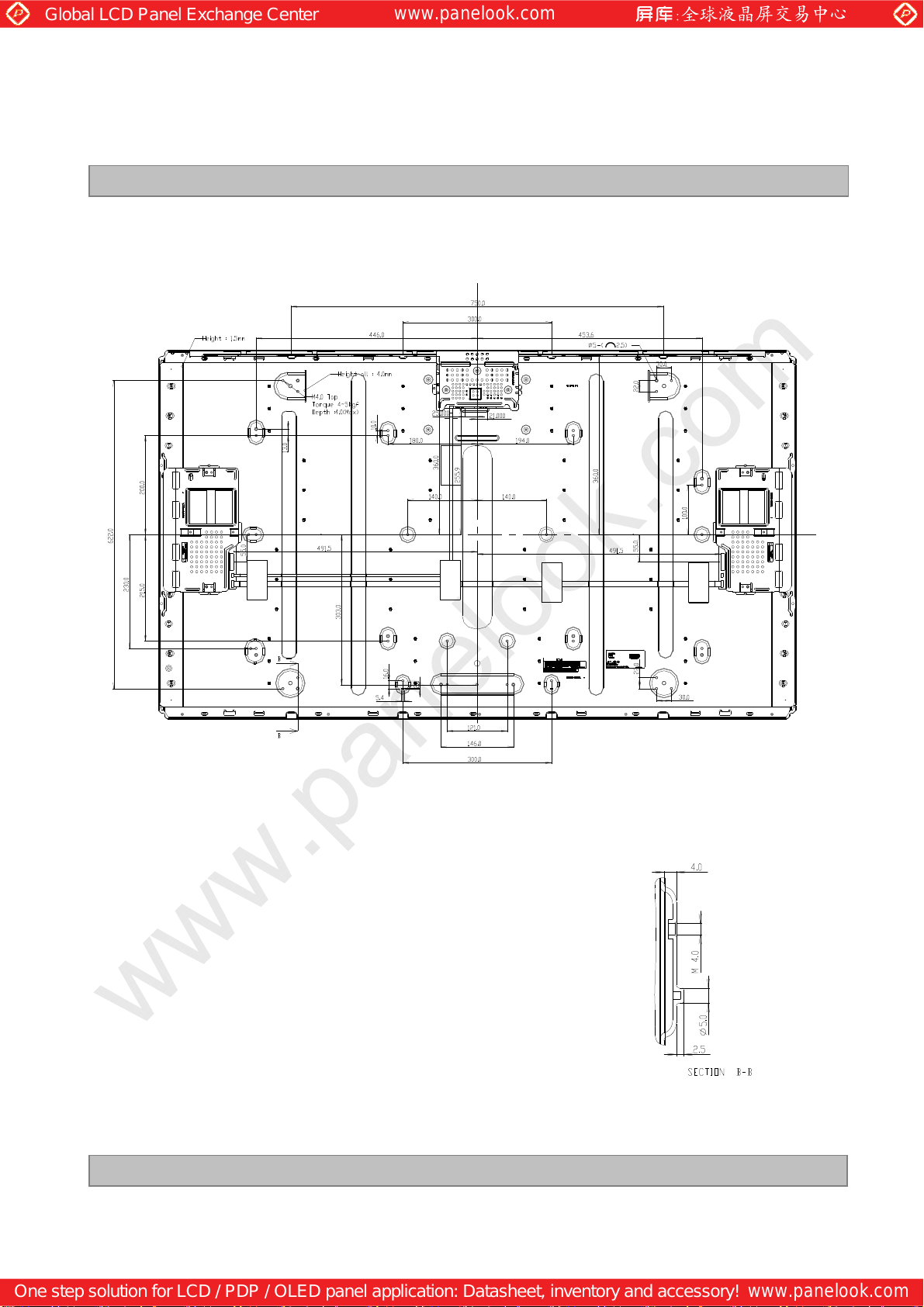

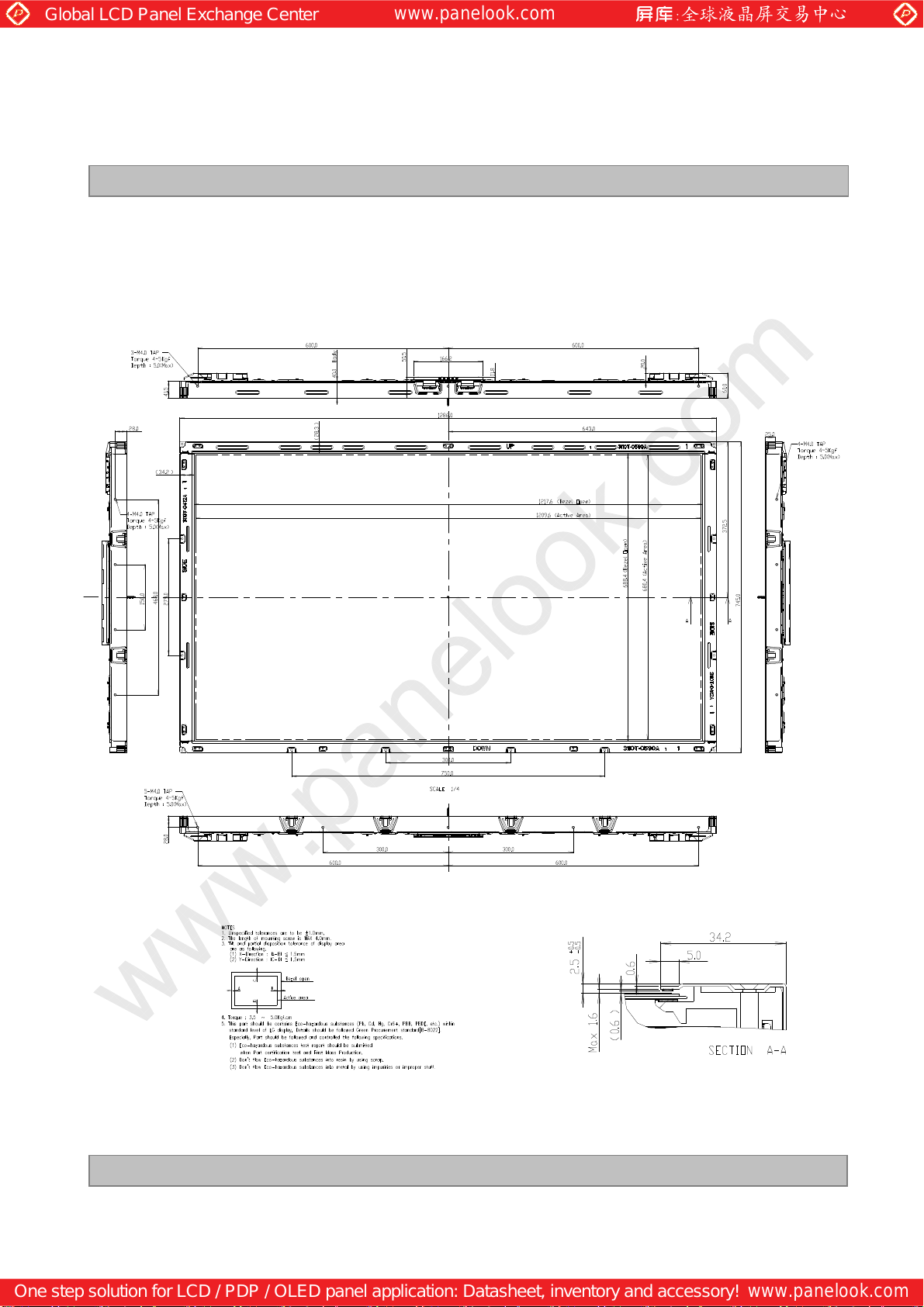

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY

Page

-

1

2

3

4

5

5

7

10

11

14

15

17

21

24

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

7-3 ENVIRONMENT

8 PACKING

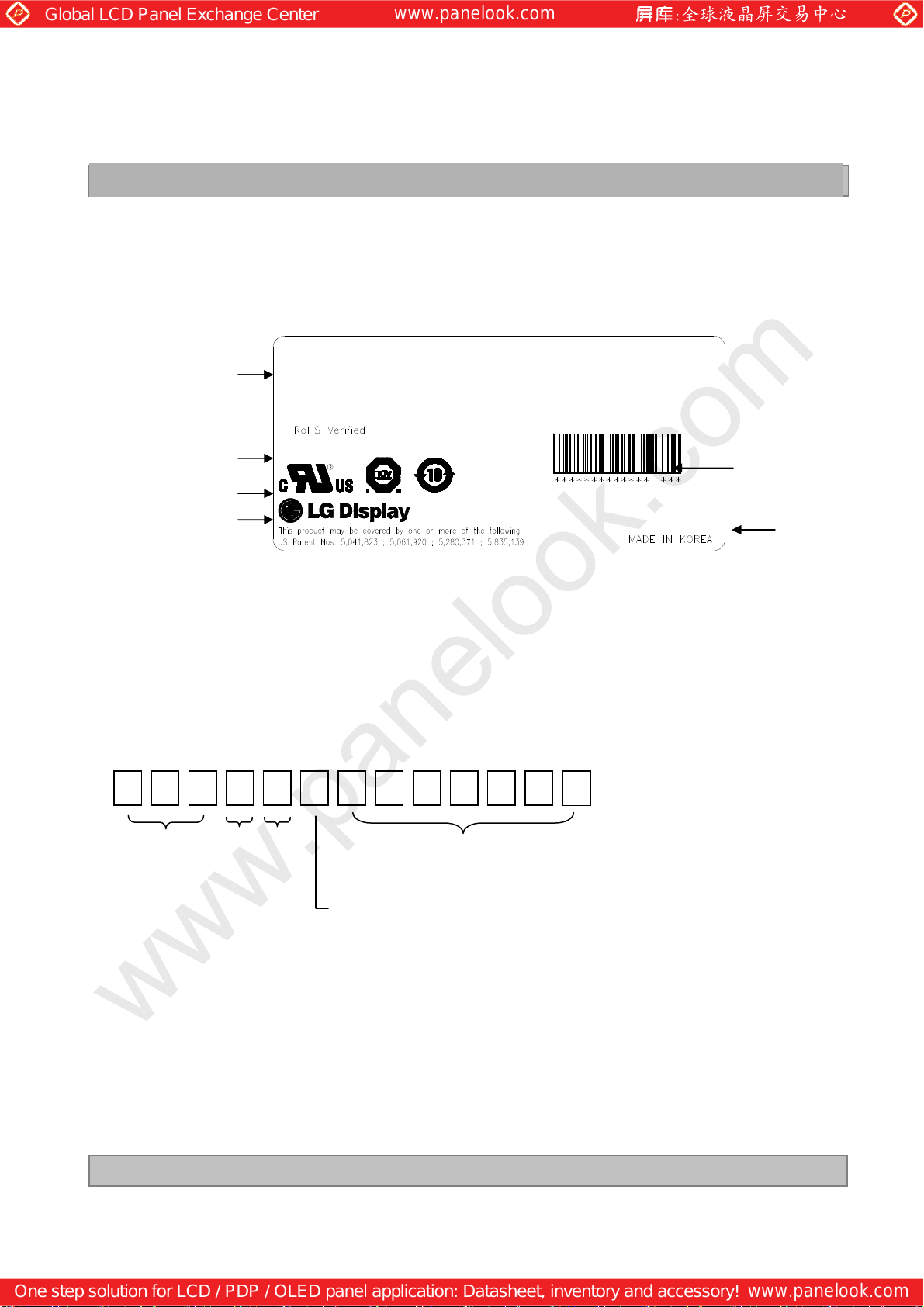

8-1 INFORMATION OF LCM LABEL

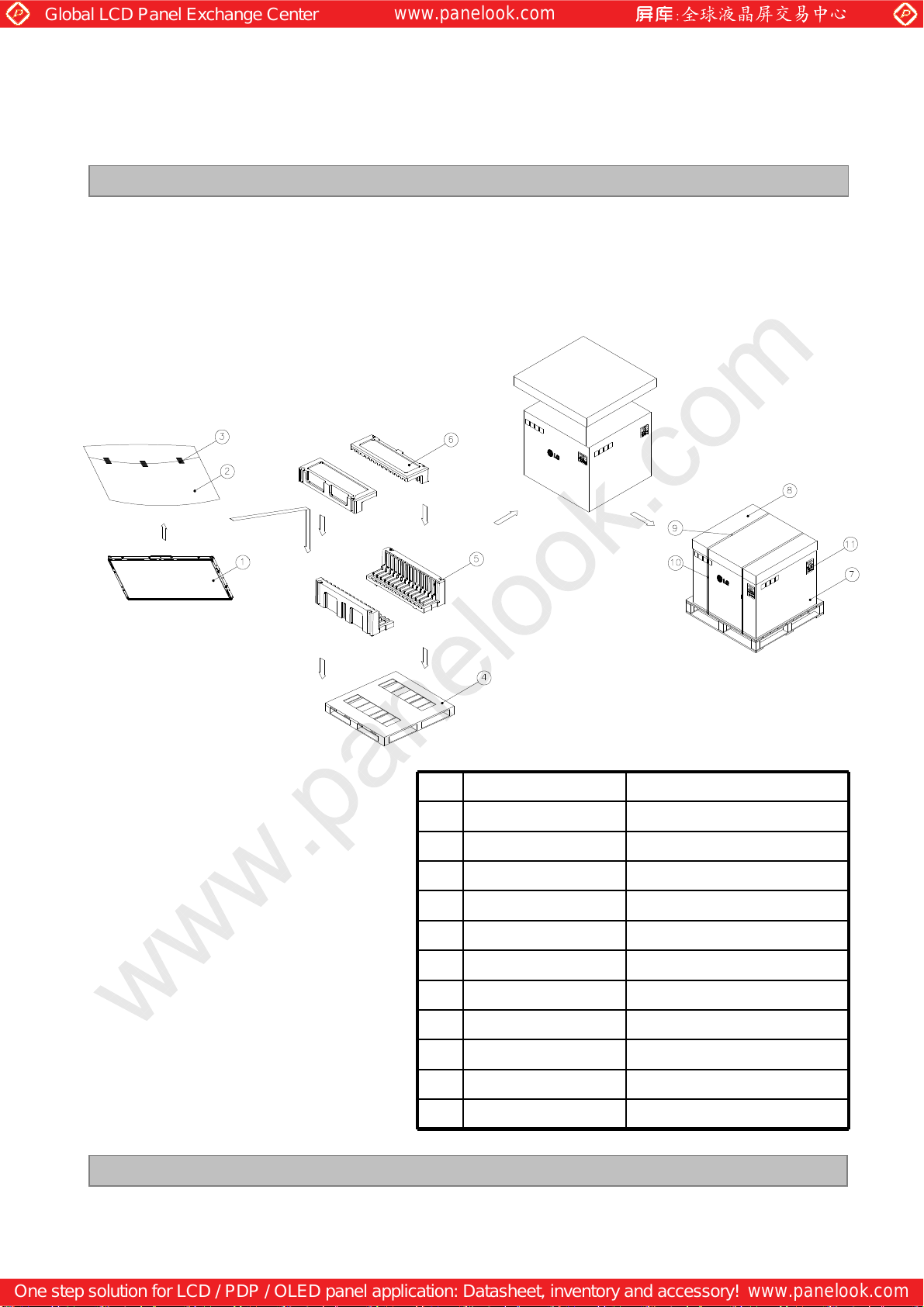

8-2 PACKING FORM

9 PRECAUTIONS

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

HANDLING PRECAUTIONS FOR PROTECTION FILM9-6

9-7 APPROPRIATE CONDITION FOR PUBLIC DISPLAY

Ver. 0.0

25

25

25

25

26

26

26

27

27

27

27

27

27

27

27

1 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Revision No. Revision Date Page Description

0.0 Jan. 22. 2010 - Preliminary Specification (First Draft)

LD550WUD

Product Specification

RECORD OF REVISIONS

Ver. 0.0

2 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

1. General Description

The LD550WUD is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

LD550WUD

Product Specification

Mini-LVDS(RGB)

SDA

3PinX1CN(High)

3PinX1CN(High)

Source Driver Circuit

Gate Driver Circuit

S1 S1920

G1

TFT - LCD Panel

(1920 × RGB × 1080 pixels)

G1080

Back light Assembly

LVDS

2Port

+12.0V

LVDS

2Port

LVDS Select

Bit Select

OPC Enable

ExtVBR-B

VBR-B out

+24.0V, GND,
VBR-A, ExtVBR-B,Status

CN2

(41pin)

CN1

(51pin)

+24.0V, GND

LVDS 3,4

LVDS 1,2

Option
signal

I2C

EEPROM

SCL

Timing Controller

[LVDS Rx + OPC + ODC

DGA+SSIC+SDRAM

integrated]

Power Circuit

Block

Inverter(Master)

Inverter(Slave)

General Features

Active Screen Size 54.64 inches(1387.80mm) diagonal

Outline Dimension 1286.0(H) x 745.0 (V) x 60.0 mm(D) (Typ.)

Pixel Pitch 0.630 mm x 0.630 mm

Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement

Color Depth 8-bit, 16.7 M colors (※ 1.06B colors @ 10 bit (D) System Output )

Luminance, White 700 cd/m2 (Center 1point ,Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))

Power Consumption Total 248W (Typ.) (Logic=8.0(TBD)W, Backlight=240W)

Weight 19.5Kg (Typ.)

Display Mode Transmissive mode, Normally black

Hard coating (3H), Anti-reflection treatment of the front polarizer (Reflectance : < 2%)Surface Treatment

Possible Display Mode Landscape and Portrait

Ver. 0.0

3 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or damage to the
LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

LD550WUD

Product Specification

Parameter Symbol

Power Input Voltage

Inverter Control Voltage

Brightness Control Voltage EXTVBR-B

T-Con Option Selection Voltage VLOGIC

Operating Temperature TOP

Storage Temperature TST

Panel Front Temperature TSUR - TBD °C 3

Operating Ambient Humidity HOP

Storage Humidity HST 10 90 %RH

1. Ambient temperature condition (Ta = 25 ± 2 °C )

Note

2. Temperature and relative humidity range are shown in the figure below.

LCD Circuit VLCD

Inverter VBL -0.3 + 27.0 VDC

ON/OFF VOFF / VON

Brightness VBR

Value

Min Max

-0.3 +14.0

-0.3 +5.5

0.0 +5.0

-0.3 +4.0

-0.3 +4.0

0 +50

-20 +60

10 90

Unit Note

VDC

VDC

VDC

VDC

VDC

°C

°C

%RH

Wet bulb temperature should be Max 39°C, and no condensation of water.

3. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 65°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 65℃. The range of operating temperature may degraded in case of
improper thermal management in final product design.

90%

1

2

2

60

60%

Ver. 0.0

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [°C]

30

40

50

40%

Humidity [(%)RH]

10%

Storage

Operation

4 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the CCFL
backlight and inverter circuit.

Table 2. ELECTRICAL CHARACTERISTICS

LD550WUD

Product Specification

Parameter Symbol

Min Typ Max

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Power Input Current ILCD

Power Consumption PLCD TBD TBD Watt 1

Rush current IRUSH - - 5.0 A 3

Note

1. The specified current and power consumption are under the V

- TBD TBD mA 1

- TBD TBD mA 2

Value

Unit Note

=12.0V, Ta=25 ± 2°C, fV=120Hz

LCD

condition whereas mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

White : 1023 Gray
Black : 0 Gray

Mosaic Pattern(8 x 6)

Ver. 0.0

5 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

LD550WUD

Product Specification

Parameter Symbol

Inverter :

Power Supply Input Voltage VBL 22.8 24.0 25.2 VDC 1

Power Supply
Input Current

Power Supply Input Current (In-Rush) IRUSH - - 15 A

Power Consumption PBL -

Input Voltage for

Control System

Signals

Lamp:

After Aging IBL_A - 10

Before Aging IBL_B - 12

On/Off

Brightness Adjust EXTVBR-B 30 - 100 %

PWM Frequency for
NTSC & PAL

Pulse Duty
Level (PWM)
(Burst mode)

On VON 2.5 - 5.0 VDC

Off VOFF -0.3 0.0 0.8 VDC

PAL 100 Hz 5

NTSC 120 Hz 5

High Level 2.5 - 5.0 VDC

Low Level 0.0 - 0.8 VDC

Min Typ Max

Discharge Stabilization Time Ts

Life Time 50,000 60,000 Hrs 4

Values

240 264

Unit Note

11

13.2

3 min 3

A 1

A 2

VBL = 22.8V

EXTVBR-B = 100%

W 1

High: Lamp on
Low : Lamp off

On Duty

6

7

Note

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 120

minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (EXTVBR-B : 100%), it is total power consumption.

2. Electrical characteristics are determined within 30 minutes at 25±2°C.

The specified currents are under the typical supply Input voltage 24V.

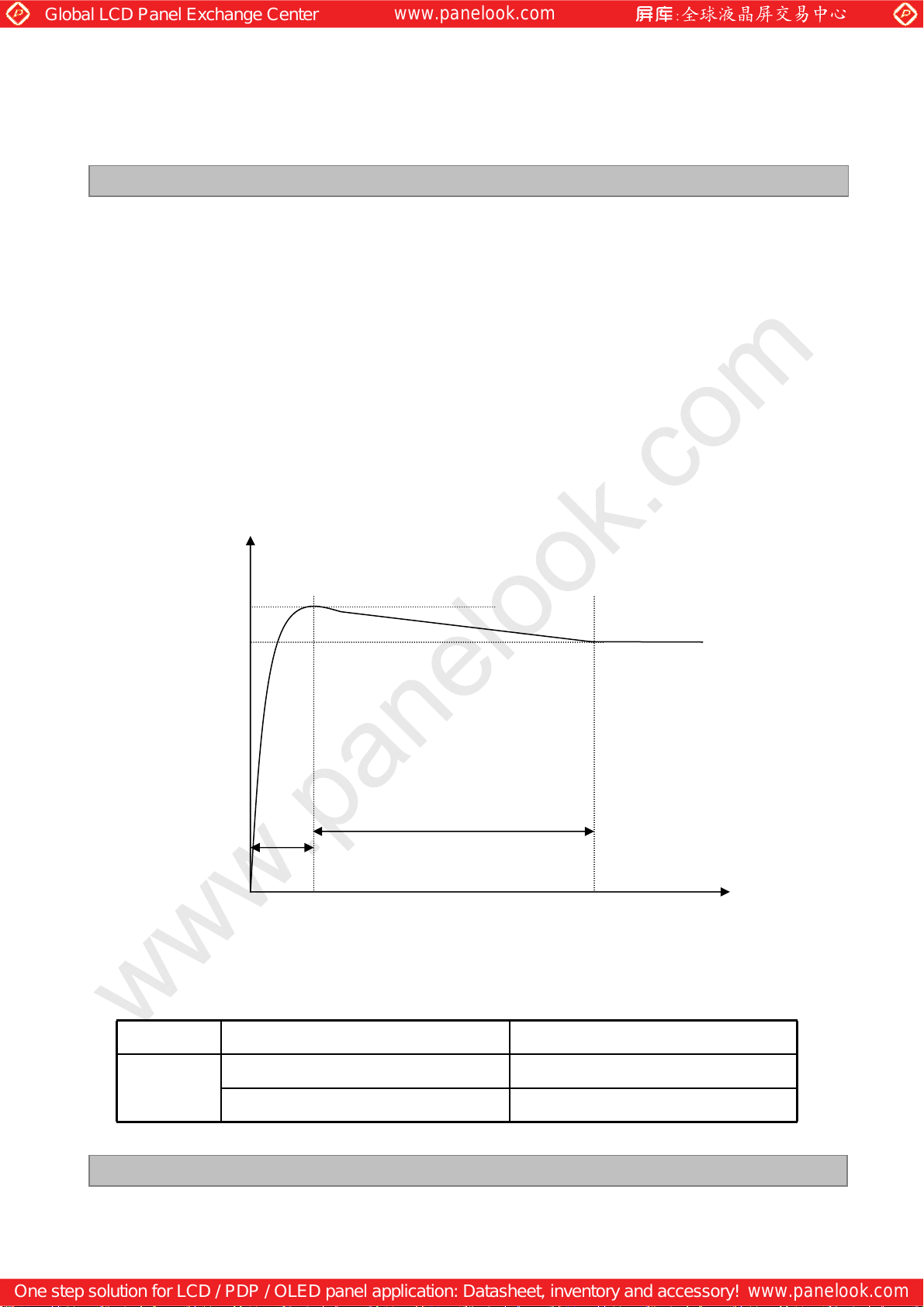

3. The brightness of the lamp after lighted for 5minutes is defined as 100%.
TS is the time required for the brightness of the center of the lamp to be not less than 95% at typical current.

The screen of LCD module may be partially dark by the time the brightness of lamp is stable after turn on.

4. Specified Values are for a single lamp which is aligned horizontally.
The life time is determined as the time which luminance of the lamp is 50% compared to that of initial value
at the typical lamp current (EXTVBR-B :100%), on condition of continuous operating at 25± 2°C

5. LGD recommend that the PWM freq. is synchronized with One times harmonic of Vsync signal of system.

6. The duration of rush current is about 10ms.

7. EXTVBR-B is based on input PWM duty of the inverter.

Ver. 0.0

6 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Product Specification

3-2. Interface Connections

This LCD module employs three kinds of interface connection, 51-pin, 41-pin and 4-pin connector are used
for the module electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector : FI-R51S-HF(manufactured by JAE) or KN25-51P-0.5SH(manufactured by Hirose)
(CN1) Refer to below and next Page table

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4-1. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

Reverse ‘H’ = Enable , ‘L’ or NC = Disable

1

2

3

4

5

6

7

8

9

10
11

12

13

14

15

16

17

18

19

20
21
22

23

24
25
26

NC No Connection

NC No Connection

NC No Connection (Reserved for LGD)

NC No Connection (Reserved for LGD)

NC No Connection (Reserved for LGD)

LVDS Select

EXTVBR-B External VBR (From System)

VBR-B out OPC output (From LCM)

OPC Enable ‘H’ = Enable , ‘L’ or NC = Disable

GND

R1AN

R1AP

R1BN

R1BP

R1CN

R1CP

GND

R1CLKN
R1CLKP

GND
R1DN

R1DP

R1EN
R1EP

NC

‘H’ =JEIDA , ‘L’ or NC = VESA

Ground

FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)

FIRST LVDS Receiver Signal (B-)

FIRST LVDS Receiver Signal (B+)

FIRST LVDS Receiver Signal (C-)

FIRST LVDS Receiver Signal (C+)
Ground

FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)
Ground

FIRST LVDS Receiver Signal (D-)

FIRST LVDS Receiver Signal (D+)

FIRST LVDS Receiver Signal (E-)
FIRST LVDS Receiver Signal (E+)

No Connection

27

Bit Select

28

29

30

31

32

33

34

35

36

37

38

39
40

41

42

43

44

45

46
47
48

49

50
51

- - -

R2AN

R2AP

R2BN

R2BP

R2CN

R2CP

GND

R2CLKN

R2CLKP

GND

R2DN

R2DP

R2EN

R2EP

NC

NC

GND Ground

GND Ground

GND Ground

NC No connection
VLCD Power Supply +12.0V

VLCD Power Supply +12.0V

VLCD Power Supply +12.0V
VLCD Power Supply +12.0V

‘H’ or NC= 10bit(D) , ‘L’ = 8bit

SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)

SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (B+)

SECOND LVDS Receiver Signal (C-)

SECOND LVDS Receiver Signal (C+)
Ground

SECOND LVDS Receiver Clock Signal(-)

SECOND LVDS Receiver Clock Signal(+)
Ground

SECOND LVDS Receiver Signal (D-)

SECOND LVDS Receiver Signal (D+)

SECOND LVDS Receiver Signal (E-)

SECOND LVDS Receiver Signal (E+)
No Connection

No Connection

LD550WUD

Note

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. Specific pins(pin No. #2~#6) are used for internal data process of the LCD module.
These pins should be no connection.

5. Specific pins(pin No. # 8~#10) are used for OPC function of the LCD module.
If not used, these pins are no connection. (Please see the Appendix III-4 for more information.)

6. LVDS pin (pin No. #24,25,40,41) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.

7. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

Ver. 0.0

7 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

-LCD Connector : FI-RE41S-HF (manufactured by JAE) or KN25-41P-0.5SH (manufactured by Hirose)

(CN2)

- Mating Connector : FI-RE41HL

Table 4-2. MODULE CONNECTOR(CN2) PIN CONFIGURATION

No Symbol Description No Symbol Description

1

2

3

4 NC

5

6

7

8

9

10

11

12

13 RB3P

14

15

16

17

18 RCLK3P

19

20

21

NC
NC

NC

NC

NC

NC

NC

GND

RA3N

RA3P

RB3N

RC3N

RC3P

GND

RCLK3N

GND

RD3N

RD3P

No connection(Reserved) 22

No connection 23

No connection 24 GND Ground
No connection

No connection

No connection 27

No connection 28

No connection 29 RB4P
Ground

THIRD LVDS Receiver Signal (A-)

THIRD LVDS Receiver Signal (A+)

THIRD LVDS Receiver Signal (B-)

THIRD LVDS Receiver Signal (B+)

THIRD LVDS Receiver Signal (C-)

THIRD LVDS Receiver Signal (C+)
Ground

THIRD LVDS Receiver Clock Signal(-)

THIRD LVDS Receiver Clock Signal(+)
Ground

THIRD LVDS Receiver Signal (D-)

THIRD LVDS Receiver Signal (D+)

Product Specification

25 GND Ground

26

30

31

32

33

34 RCLK4P

35

36

37

38

39

40 GND Ground

41 GND Ground

RCLK4N

-

RE3N

RE3P

RA4N

RA4P

RB4N

RC4N

RC4P

GND

GND

RD4N

RD4P

RE4N

RE4P

LD550WUD

THIRD LVDS Receiver Signal (E-)

THIRD LVDS Receiver Signal (E+)

FORTH LVDS Receiver Signal (A-)

FORTH LVDS Receiver Signal (A+)

FORTH LVDS Receiver Signal (B-)

FORTH LVDS Receiver Signal (B+)

FORTH LVDS Receiver Signal (C-)

FORTH LVDS Receiver Signal (C+)
Ground

FORTH LVDS Receiver Clock Signal(-)

FORTH LVDS Receiver Clock Signal(+)
Ground

FORTH LVDS Receiver Signal (D-)

FORTH LVDS Receiver Signal (D+)

FORTH LVDS Receiver Signal (E-)

FORTH LVDS Receiver Signal (E+)

Note : 1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. LVDS pin (pin No. #22,23,38,39) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.

- Part/No. : FI-RE41S-HF(JAE)

- Mating connector : FI-RE41HL
(Manufactured by JAE) or compatible

1

51

1

41

CN1 CN2

[Figure 4-2]

Ver. 0.0

Rear view of LCM

8 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3-2-2. Backlight Module

LD550WUD

Product Specification

[ Master ]

-Inverter Connector : 20022WR-14B1(Yeonho)
or Equivalent

- Mating Connector : 20022HS-14 or Equivalent

[ Slave ]

-Inverter Connector : 20022WR-12B1(Yeonho)
or Equivalent

-Mating Connector : 20022HS-12 or Equivalent

Table 5. INVERTER CONNECTOR PIN CONFIGULATION

Pin No Symbol Description Master Slave Note

1

2

3

4

5

6

7

8

9

10

11

VBL Power Supply +24.0V VBL VBL

VBL Power Supply +24.0V VBL VBL

VBL Power Supply +24.0V VBL VBL

VBL Power Supply +24.0V VBL VBL

VBL Power Supply +24.0V VBL VBL

GND Backlight Ground GND GND

GND Backlight Ground GND GND

GND Backlight Ground GND GND

GND Backlight Ground GND GND

GND Backlight Ground GND GND

NC No Connection NC Don’t care 2

1

12

13

14

Note

1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : High (upper 3.0V)
Please see Appendix IV-1 for more information.

3. The impedance of pin #12 is over 50[KΩ]

◆◆◆◆ Rear view of LCM

◆◆◆◆ Rear view of LCM

Ver. 0.0

ON/OFF

V

NC No Connection NC -

Status Lamp Status Status - 3

14

14

1

1

Backlight ON/OFF control V

PCB

PCB

…

…

…

<Master>

<Master>

…

ON/OFF

…

…

1

1

12

12

Don’t care

PCB

PCB

<Slave>

<Slave>

…

…

9 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6-1. TIMING TABLE for NTSC (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

LD550WUD

Product Specification

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 40 70 200 tCLK 1

Total tHP 520 550 680 tCLK

Display

Period

Blank tVB 16 45 86 Lines 1

Total tVP 1096 1125 1166 Lines

DCLK fCLK 66.97 74.25 78.00 MHz

Horizontal fH 121.8 135 140 KHz 2

Vertical fV 108 120 122 Hz 2

tHV 480 480 480 tCLK 1920 / 4

tVV 1080 1080 1080 Lines

Table 6-2 TIMING TABLE for DVB/PAL (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Display

Period

Blank tHB 40 70 200 tCLK 1

tHV 480 480 480 tCLK 1920 / 4

Total tHP 520 550 680 tCLK

Vertical

Frequency

Display

Period

Blank tVB 228 270 300 Lines 1

Total tVP 1308 1350 1380 Lines

DCLK fCLK 66.97 74.25 78.00 MHz

Horizontal fH 121.8 135 140 KHz 2

Vertical fV 95 100 104 Hz 2

tVV 1080 1080 1080 Lines

Note 1. The Input of HSYNC & VSYNC signal does not have an effect on normal operation(DE Only Mode).

If you use spread spectrum for EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency.

Ver. 0.0

10 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

LD550WUD

Product Specification

DCLK

First data

Second data

Third data

Forth data

DE(Data Enable)

tCLK

0.5 VDD

Invalid data

Invalid data

Invalid data

Invalid data

DE, Data

Valid data

Pixel 0

Valid data

Pixel 1

Valid data

Pixel 2

Valid data

Pixel 3

Pixel 4

Pixel 5

Pixel 6

Pixel 7

0.7VDD

0.3VDD

Invalid data

Invalid data

Invalid data

Invalid data

DE(Data Enable)

Ver. 0.0

* tHB = tHFP + tWH +tHBP

* tVB = tVFP + tWV +tVBP

1 1080

tVV

tVP

11 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LD550WUD

Product Specification

# VCM= {(LVDS +) + ( LVDS - )}/ 2

0V

V

CM

V

IN _ MAXVIN _MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM 250 mV -

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

(F

= 1 /T

)

clk

A

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

tSKEW

tSKEW

t

SKEW_mintSKEW_max

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit Note

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew Margin t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew Margin (Even to Odd) t

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

Note

2. If tRFisn’t enough, t

should be meet the range.

eff

V

TH

V

TL

SKEW

RF

eff

SKEW_EO

3. LVDS Differential Voltage is defined within t

Ver. 0.0

100 300 mV

-300 -100 mV

|(0.25*T

260 (0.3*T

)/7| ps -

clk

)/7 ps 2

clk

±360 ps -

1/7* T

clk

eff

T

clk

3

-

12 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

LD550WUD

Product Specification

360ps

V+
data

Vcm

V­data

V+
clk

Vcm

0.5tui

tui

VTH

VTL

360ps

teff

tui : Unit Interval

V­clk

Ver. 0.0

13 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 10bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

LD550WUD

Product Specification

Input Color Data

Basic

Color

RED

Color

MSB LSB

Black

Red (1023)

Green (1023)

Blue (1023)

Cyan

Magenta

Yellow

White

RED (0000)

RED (0001)

… ...

RED (1022)

RED (1023)

GREEN (0000)

RED

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 1

... ... ...

......

1 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 01 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

GREEN

BLUE

MSB LSB

GREEN

BLUE

GREEN (0001)

...

GREEN (1022)

GREEN (1023)

BLUE (0000)

BLUE (0001)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

... ...

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

… ... ... ...

BLUE (1022)

BLUE (1023)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 1

... ...

......

1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 01 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 1

1 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 01 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

Ver. 0.0

...

......

14 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3-6. Power Sequence

3-6-1. LCD Driving circuit

Power Supply For LCD

V

LCD

0V

10%

Product Specification

90%

LD550WUD

10%

10%

Interface Signal (Tx)

User Control Signal

(LVDS_select, BIT_select)

Power for Lamp

Table 8. POWER SEQUENCE

Parameter

T1 0.5 - 20 ms

T2 0 - - ms 4

T3 200 - - ms 3

T4 200 - - ms 3

T5 1.0 - - s 5

T6 - - T2 ms 4

T7 0.5 - s

T1

T2

30%

0V

100%

T6

T7

Value

Min Typ Max

Valid Data

T3 T4

Lamp ON

T5

Vcm : LVDS Common mode Voltage

Unit Notes

Note :

1. Please avoid floating state of interface signal at invalid period.

2. When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. If the on time of signals(Interface signal and user control signals) precedes the on time of Power(V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

5. T5 should be measured after the Module has been fully discharged between power off and on
period.

Ver. 0.0

),

LCD

15 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3-6-2. Sequence for Inverter

LD550WUD

Product Specification

Power Supply For Inverter

VBL

0V

1)

VON/OFF

EXTVBR-B

3-6-3. Dip condition for Inverter

VBL(Typ.) x 0.8

10%

90%

T1 T2

T4

24V (typ.)

T7

Lamp ON

T6

T5

90%

V

: 24V

BL

0 V

Table 9. Power Sequence for Inverter

Parameter

Min Typ Max

T1 20 - - ms 1

T2 500 - - ms

T4 0 - ms 2

T5 10 - - ms

T6 - - 10 ms VBL(Typ) x 0.8

T7 1000 - - ms 3

Values

Units Note

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

2. T4(max) is less than T2.

3. It is the recommendation to input Max Duty to T-Con for EXTVBR-B during T7 period.

1)

The recommendation of VON/OFF rising time is under 10ms.

Ver. 0.0

16 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

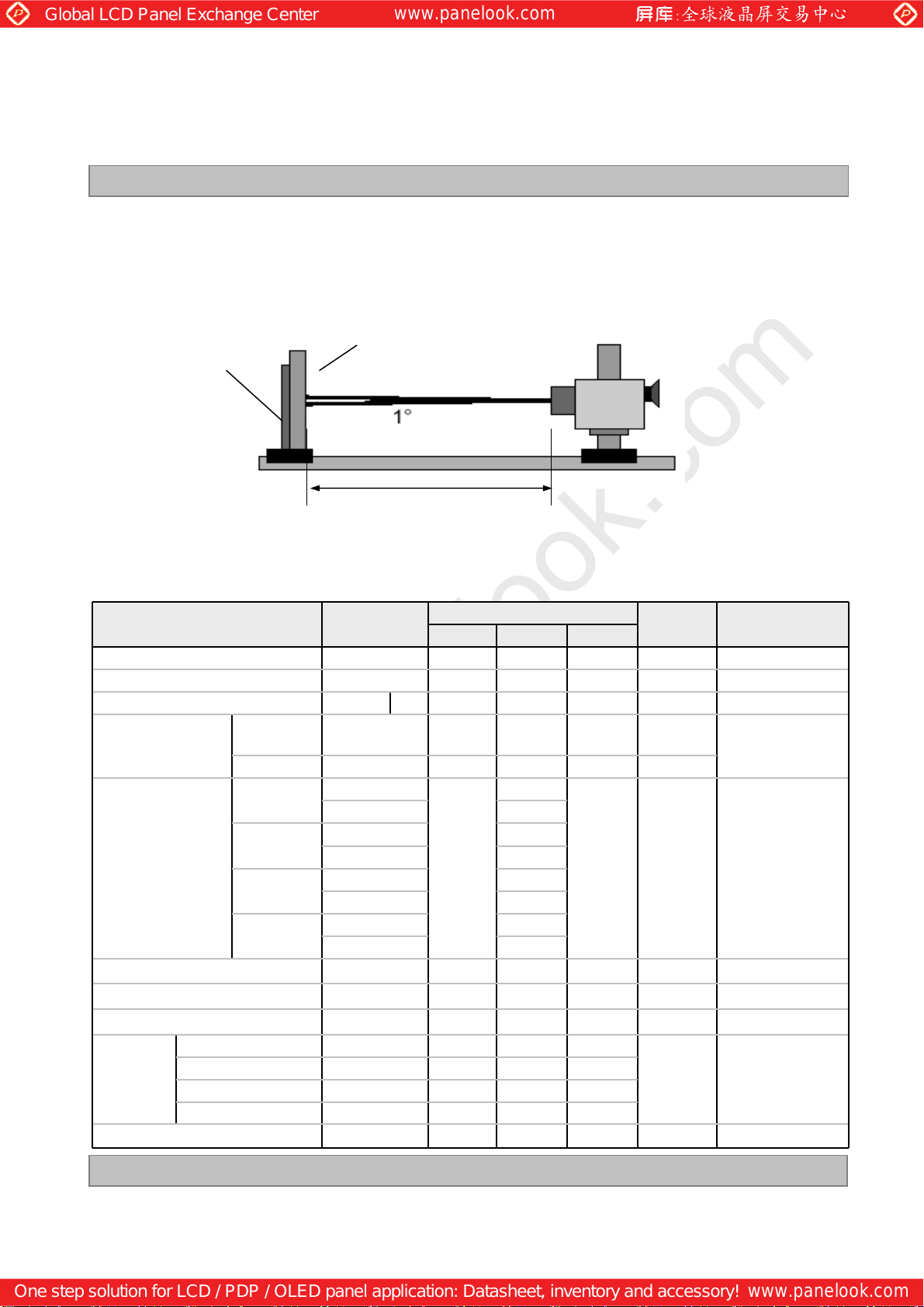

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at
25±2°C. The values are specified at an approximate distance 50cm from the LCD surface at a viewing angle
of Φ and θ equal to 0 °.
It is presented additional information concerning the measurement equipment and method in FIG. 1.

LD550WUD

Product Specification

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Ta= 25±2°C, V

Table 10. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 1000 TBD - 1

Surface Luminance, white L

Luminance Variation δ

Response Time

Color Coordinates
[CIE1931]

Color Temperature 10,000 K

Color Gamut 72 %

Viewing Angle (CR>10)

x axis, right(φ=0°) θr 89 - ­x axis, left (φ=180°) θl 89 - ­y axis, up (φ=90°) θu 89 - ­y axis, down (φ=270°) θd 89 - -

Gray Scale - - - 7

MPRT MPRT -

Uniformity δ

RED

GREEN

BLUE

WHITE

WH

WHITE

5P - - 1.3 3

MPRT

Rx

Ry TBD

Gx TBD

Gy TBD

Bx TBD

By TBD

Wx 0.279

Wy 0.292

Min Typ Max

640 700 - cd/m

- - 1

Typ

-0.03

EXTVBR-B =100%

Value

TBD

10

TBD

=12.0V, fV=120Hz, Dclk=74.25MHz,

LCD

Unit Note

2

TBD

15

Typ

+0.03

ms

degree 6

2

4,5

Ver. 0.0

17 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Note : 1. Contrast Ratio(CR) is defined mathematically as :

CR(Contrast Ratio) = Maximum CRn (n=1, 2, 3, 4, 5)

Surface Luminance at position n with all white pixels

CRn =

Surface Luminance at position n with all black pixels

n = the Position number(1, 2, 3, 4, 5). For more information, see FIG 2.

2. Surface luminance are determined after the unit has been ‘ON’ and 60 minutes after lighting the

backlight in a dark environment at 25±2°C. Surface luminance is the luminance value

at center 1-point across the LCD surface 50cm from the surface with all pixels displaying white.

For more information see the FIG. 2.

3. The variation in surface luminance , δ WHITE is defined as :
δ WHITE(5P) = Maximum(L
Where L

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from G(N) to G(M) (Rise Time, TrR)
and from G(M) to G(N) (Decay Time, TrD). For additional information see the FIG. 3. (N<M)

※ G to G Spec stands for average value of all measured points.

Photo Detector : RD-80S / Field : 2˚

5. MPRT is defined as the 10% to 90% blur-edge width Bij(pixels) and scroll speed U(pixels/frame)at
the moving picture. For more information, see FIG 4

6. Gray to Gray / MPRT Response time uniformity is Reference data. Please see Appendix V-1 / V-2.

7. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 5.

8. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 11.

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

Product Specification

, L

on1,Lon2

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

, L

LD550WUD

)

on5

Table 11. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ)

L0 TBD

L15 0.27

L31 1.04

L47 2.49

L63 4.68

L79 7.66

L95 11.5

L111 16.1

L127 21.6

L143 28.1

L159 35.4

L175 43.7

L191 53.0

L207 63.2

L223 74.5

L239 86.7

L255 100

Ver. 0.0

18 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

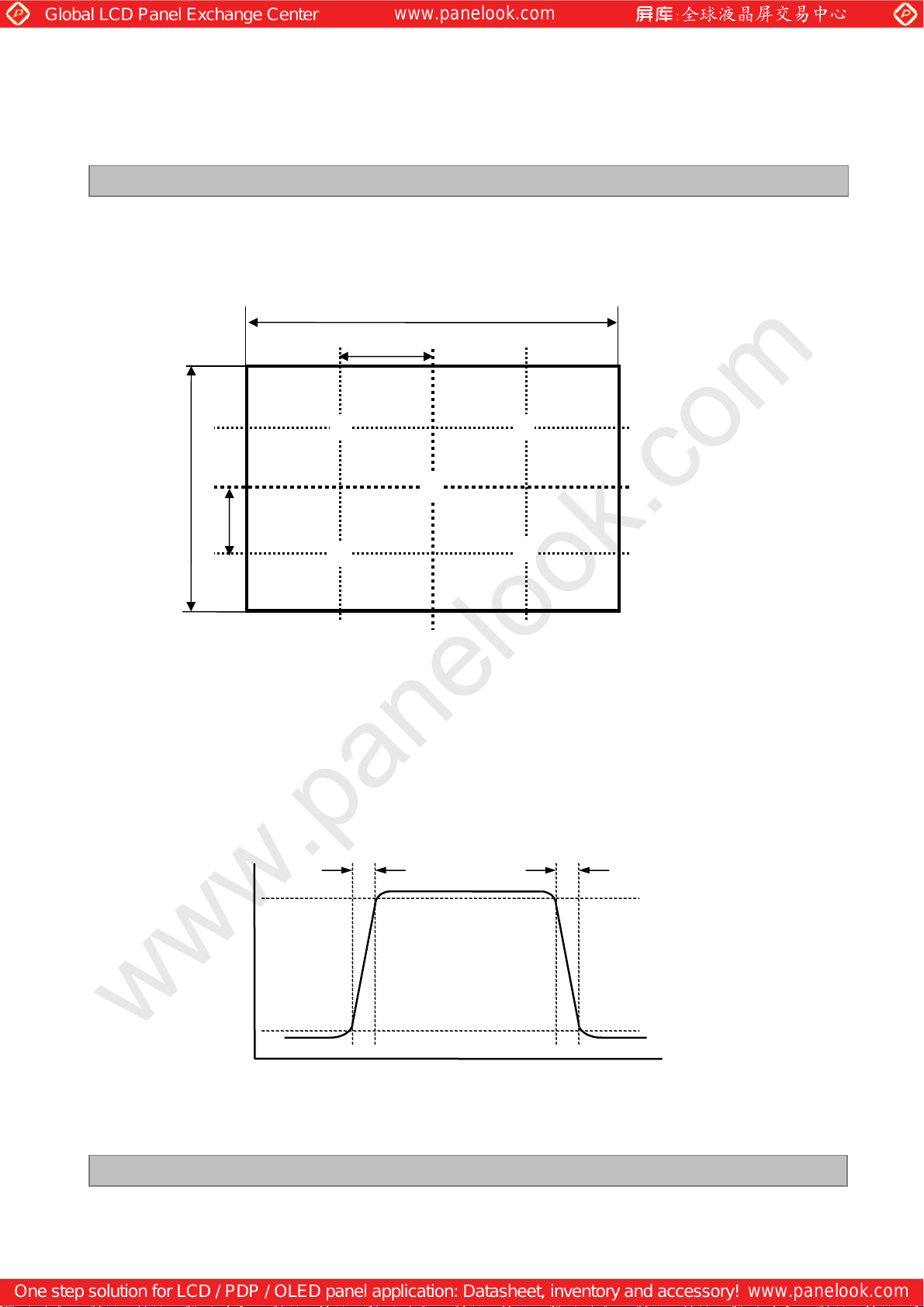

Measuring point for surface luminance & luminance variation

LD550WUD

Product Specification

H

A

③②

V

①

B

A : H / 4 mm

④

FIG. 2 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

TrR

100

90

⑤

TrD

B : V / 4 mm
@ H,V : Active Area

Optical
Response

Ver. 0.0

10

0

Gray(N)

N,M = Black~White, N<M

FIG. 3 Response Time

Gray(M)

Gray(N)

19 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

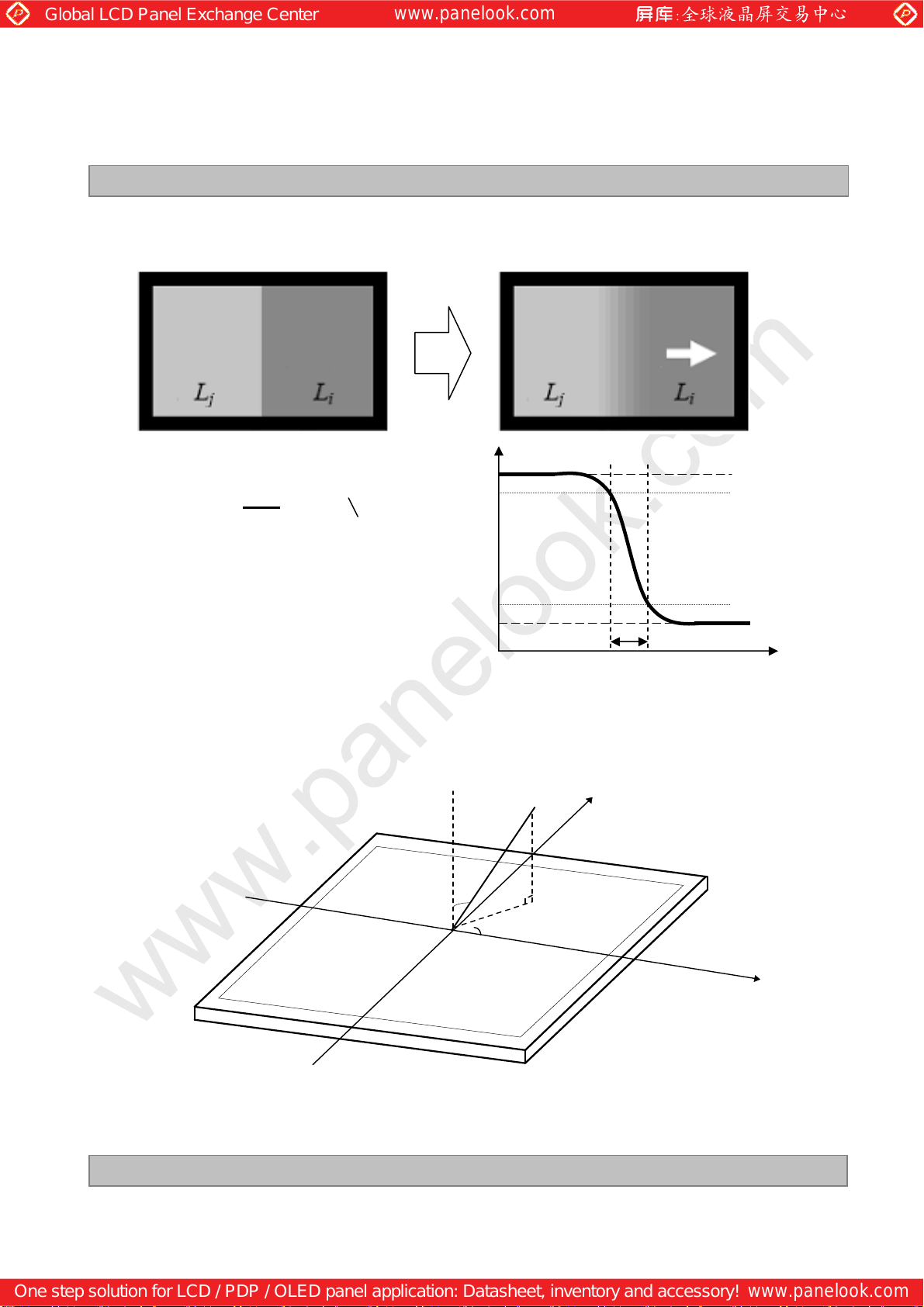

MPRT is defined as the 10% to 90% blur-edge with Bij(pixels) and scroll speed U(pixels/frame)at the moving
picture.

LD550WUD

Product Specification

1

M =

Bij (i=j)

U

Example) Bij = 12pixels, U = 10pixels / 120Hz

M = 12pixels / (10pixels / 120Hz)

= 12pixels / {10pixels / (1/120)s}
= 12 / 1,200 s
= 10 ms

Dimension of viewing angle range

φ

= 180°, Left

Lj

Li

FIG. 4 MPRT

Normal

θ

90%

10%

Bij

E

Y

φ

= 90°, Up

φ

φ

= 0°, Right

φ

= 270°, Down

FIG. 5 Viewing Angle

Ver. 0.0

20 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

Item Value

LD550WUD

Product Specification

Horizontal 1286.0 mm

Outline Dimension

Bezel Area

Active Display Area

Weight 19.5 Kg (Typ.) , 21 Kg (Max.)

Vertical 745.0 mm

Depth 60.0 mm

Horizontal 1217.6 mm

Vertical 688.4 mm

Horizontal 1209.6 mm

Vertical 680.4 mm

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 0.0

21 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

[ FRONT VIEW ]

LD550WUD

Product Specification

Ver. 0.0

22 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

[ REAR VIEW ]

LD550WUD

Product Specification

Ver. 0.0

23 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60°C 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

LD550WUD

Product Specification

Wave form : random

Vibration test

5

(non-operating)

Shock test

6

(non-operating)

7 Humidity condition Operation Ta= 40 °C ,90%RH

Altitude operating

8

storage / shipment

Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : 10 min for X,Y,Z, axis

One time each direction

Shock level : 50Grms(X,Y axis), 35G(Z axis)
Waveform : half sine wave, 11ms
Direction : ±X, ±Y, ±Z

One time each direction

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.0

24 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

7. International Standards

7-1. Safety

a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

LD550WUD

Product Specification

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.0

25 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

8. Packing

8-1. Information of LCM Label

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

Year

Product Specification

200320022001

200452005

2006720078200892009

LD550WUD

2010

Mark

321

4

6

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial NO. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one Pallet : 10 pcs

b) Pallet Size : 1440 mm X 1140 mm X 970 mm.

0

Oct

A

Nov

B

DecMarFebJan

C421

Ver. 0.0

26 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

LD550WUD

Product Specification

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=±200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer

(4) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.

(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) The conductive material and signal cables are kept away from transformers to prevent abnormal display,

sound noise and temperature rising.

(11) Partial darkness may happen during 3~5 minutes when LCM is operated initially in condition that

luminance is under 40% at low temperature (under 5℃). This phenomenon which disappears naturally
after 3~5 minutes is not a problem about reliability but LCD characteristic.

Ver. 0.0

27 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

(12) Partial darkness may happen under the long-term operation of any dimming without power on/off.

This phenomenon which disappears naturally after 5 minutes is not a problem about reliability but

LCD characteristics.

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

LD550WUD

Product Specification

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape

When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion­blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal­hexane.

.

9-7. Appropriate Condition for Public Display

- Generally large-sized LCD modules are designed for consumer applications (TV).
Accordingly, a long-term display like in Public Display (PD) application, can cause uneven display including
image sticking. To optimize module's lifetime and function, several operating usages are required.

1. Normal operating condition

- Temperature: 0 ~ 40℃

- Operating Ambient Humidity : 10 ~ 90 %

- Display pattern: dynamic pattern (Real display)
Note) Long-term static display can cause image sticking.

2. Operating usages under abnormal condition
a. Ambient condition

- Well-ventilated place is recommended to set up PD system.

b. Power and screen save

- Periodical power-off or screen save is needed after long-term display.

Ver. 0.0

28 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

3. Operating usages to protect against image sticking due to long-term static display
a. Suitable operating time: under 18 hours a day.
b. Static information display recommended to use with moving image.

- Cycling display between 5 minutes' information(static) display and 10 seconds' moving image.

c. Background and character (image) color change

- Use different colors for background and character, respectively.

- Change colors themselves periodically.

d. Avoid combination of background and character with large different luminance.

1) Abnormal condition just means conditions except normal condition.

2) Black image or moving image is strongly recommended as a screen save.

LD550WUD

Product Specification

4. Lifetime in this spec. is guaranteed only when PD is used according to operating usages.

Ver. 0.0

29 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

# APPENDIX-I

■■■■ LD550WUD-SCA1 – Pallet Ass’y

LD550WUD

Product Specification

Ver. 0.0

NO. DESCRIPTION MATERIAL

1 LCD Module

2 BAG

3 TAPE

4 PALLET

5 PACKING,BOTTOM

6 PACKING,TOP

7 ANGLE,PACKING

8 ANGLE,COVER

9 BAND

10 BAND,CLIP

11 LABEL

55INCH

MASKING 20MMX50M

PLYWOOD

EPS

EPS

PAPER

PAPER

PP

STEEL

YUPO 80G 100X70

30 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

# APPENDIX- II-1

■ LD550WUD-SCA1-LCM Label

LD550WUD

Product Specification

Model

LD550WUD
(SC)(A1)

UL, TUV Mark

LGD Logo

US PATENT No.

■■■■ Serial No. (See CAS 27page for more information)

1 2 3 4 5 6 7 9 10 11 12

8

13

Serial No.

Origin

Ver. 0.0

Inch

Year

Month

Serial No.

M Ass’y Factory code

31 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

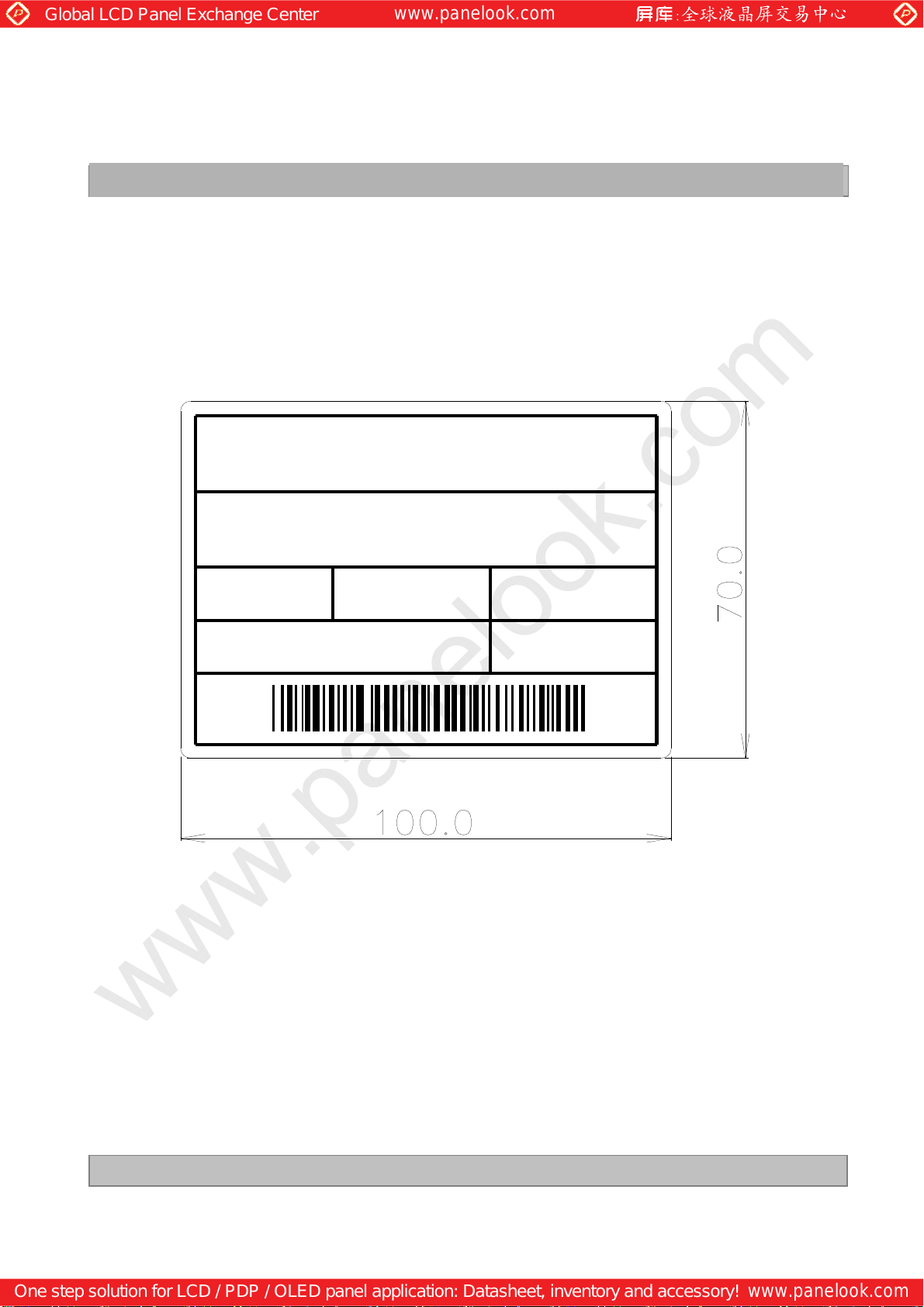

# APPENDIX- II-2

■ LD550WUD-SCA1-Pallet Label

LD550WUD

Product Specification

LD550WUD

SCA1

10 PCS 001/01-01

MADE IN KOREA

XXXXX XXXXXXXX XXX XXX XXXX

RoHS Verified

Ver. 0.0

32 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

# APPENDIX- III-1

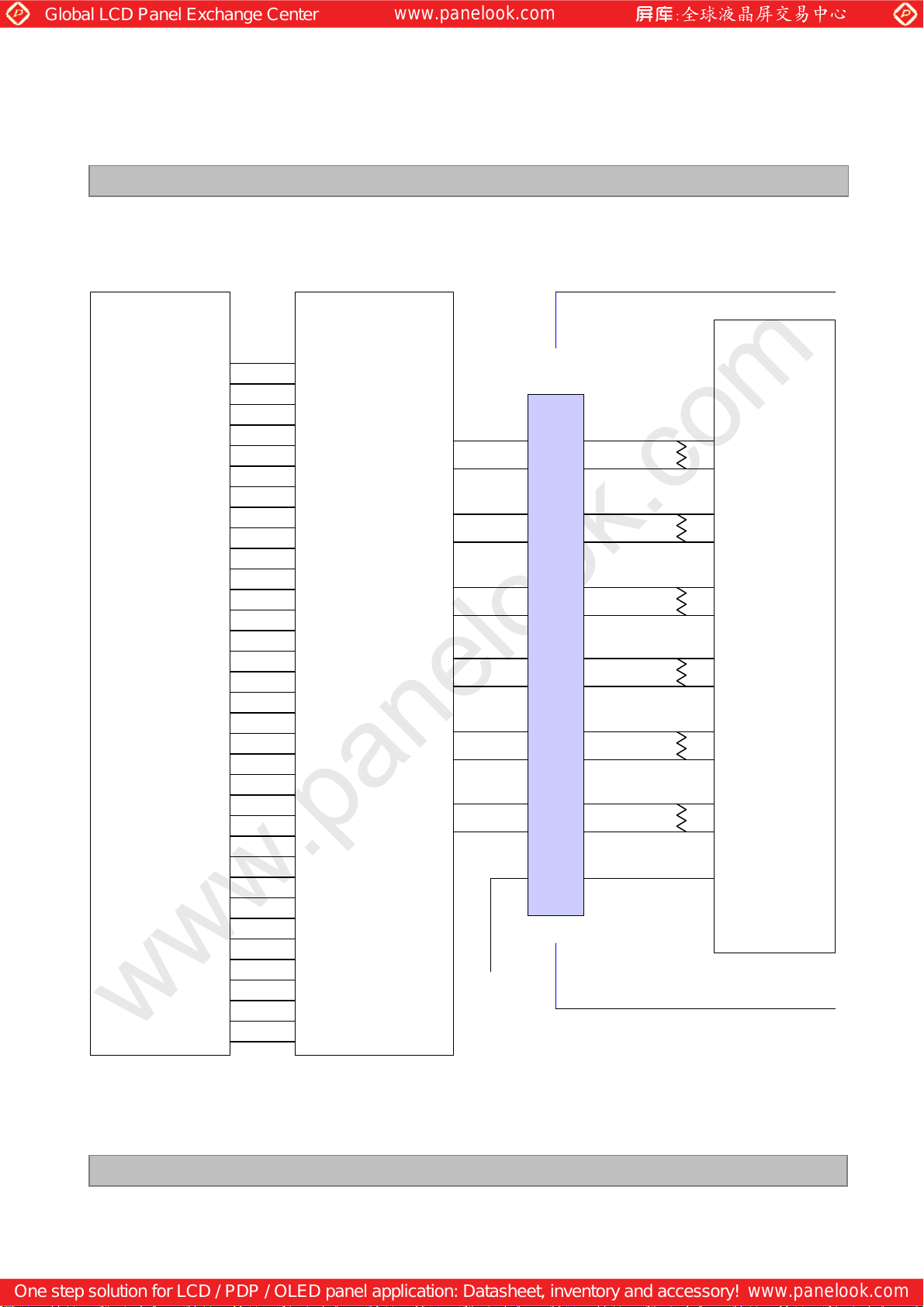

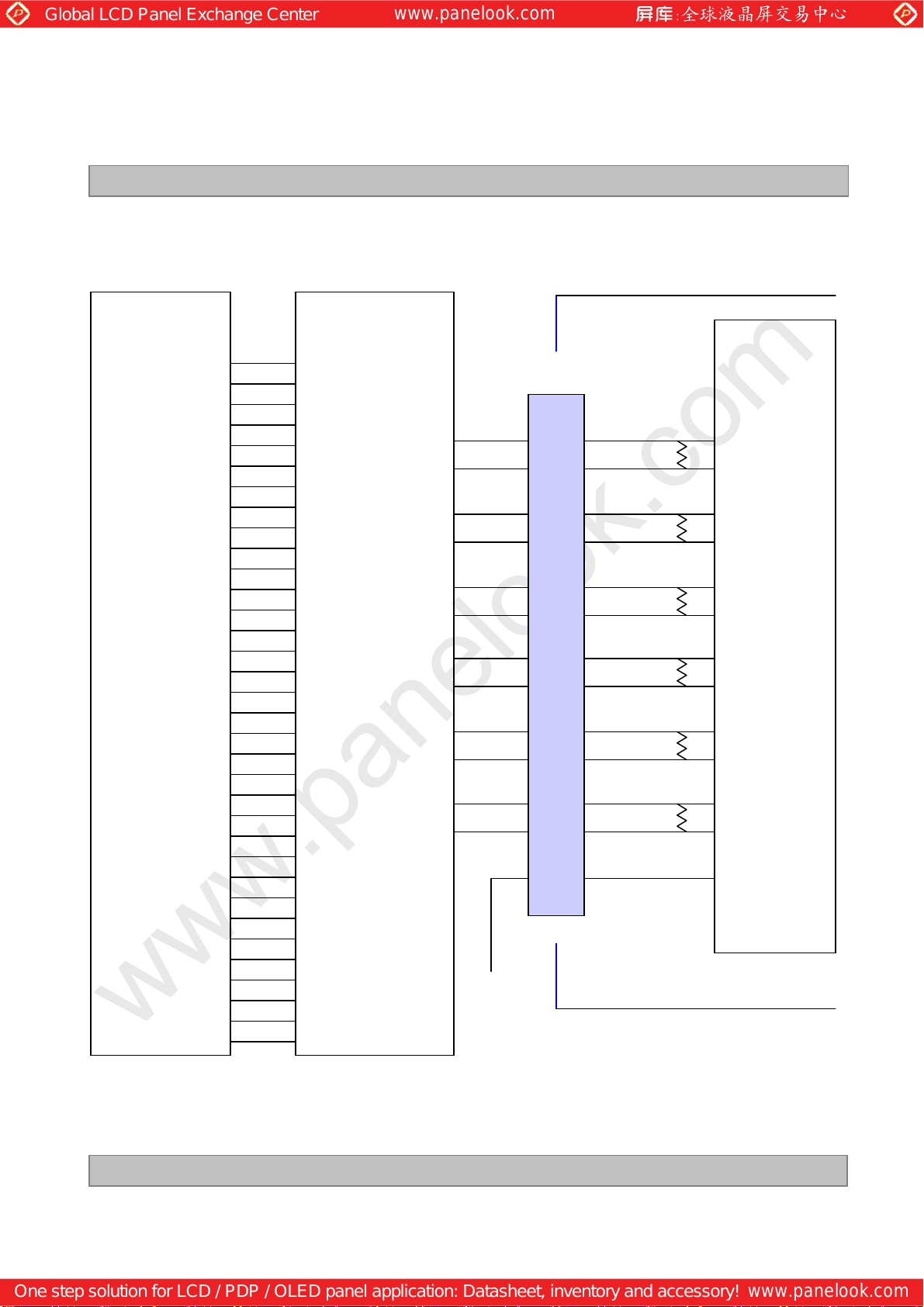

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7=“L”)

LD550WUD

Product Specification

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync
Vsync

Data Enable

CLOCK

THC63LVD103
or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

TE-

TE+

31

30

29

28

25

24

23

22

21

20

19

18

GND

FI-RE51S-HF

12

13

14

15

16

17

19

20

22

23

24

25

7

100Ω

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

Timing

Controller

RO0N

RO0P

RO1N

RO1P

RO2N

RO2P

ROCLKN

ROCLKP

RO3N

RO3P

RO4N

RO4P

VESA/ JEIDA

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.0

33 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

# APPENDIX- III-1

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7=“H”)

LD550WUD

Product Specification

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103
or Compatible

4
5
59
61
33
34
35
36
37
38
6
8
62
63
40
41
42
44
45
46
9
11
64
1
48
49
50
52
53
54
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

TE-

TE+

31

30

29

28

25

24

23

22

21

20

19

18

VCC

FI-RE51S-HF

12

13

14

15

16

17

19

20

22

23

24

25

7

100Ω

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

Timing

Controller

RO0N

RO0P

RO1N

RO1P

RO2N

RO2P

ROCLKN

ROCLKP

RO3N

RO3P

RO4N

RO4P

VESA /JEIDA

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.0

34 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

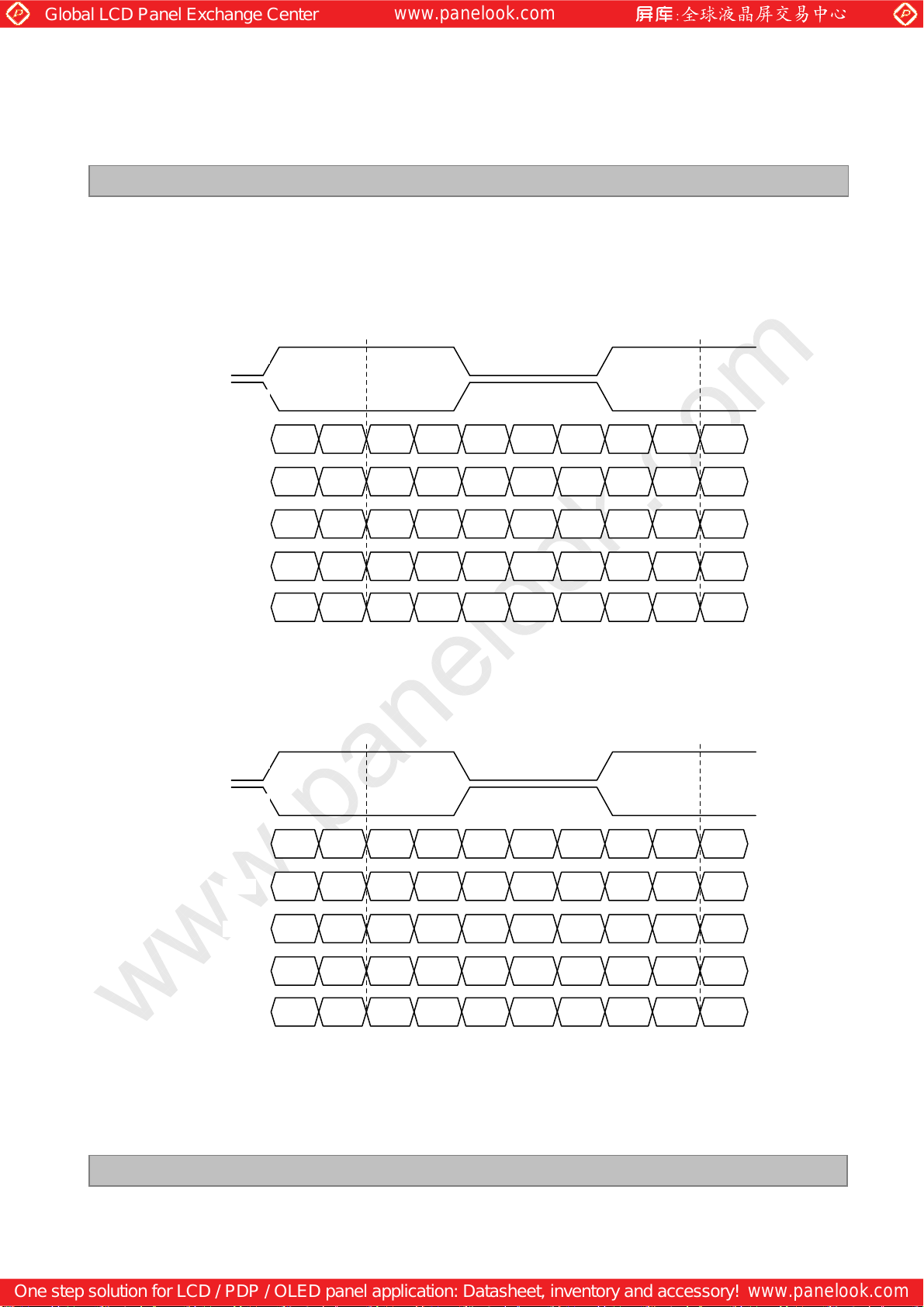

# APPENDIX- III-2

■ LVDS Data-Mapping Information (10 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LD550WUD

Product Specification

RAP

RBP

RCP

RDP

REP

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R19 R18 R17 R16G14 R15R14’ R14R15’ G14”

B14 G19 G18 G17B15 G16G15’ G15G16’ B15”

V

SYNCHSYNC

B13 B12 G13 G12X R13R12’ R12R13’ X”

B11 B10 G11 G10X R11R10’ R10R11’ X”

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

B19 B18DE B17B16’ B16B17’ DE”

Ver. 0.0

RCP

RDP

REP

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B19 B18 G19 G18X R19R18’ R18R19’ X”

B15 B14DE B13B12’ B12B13’ DE”

35 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

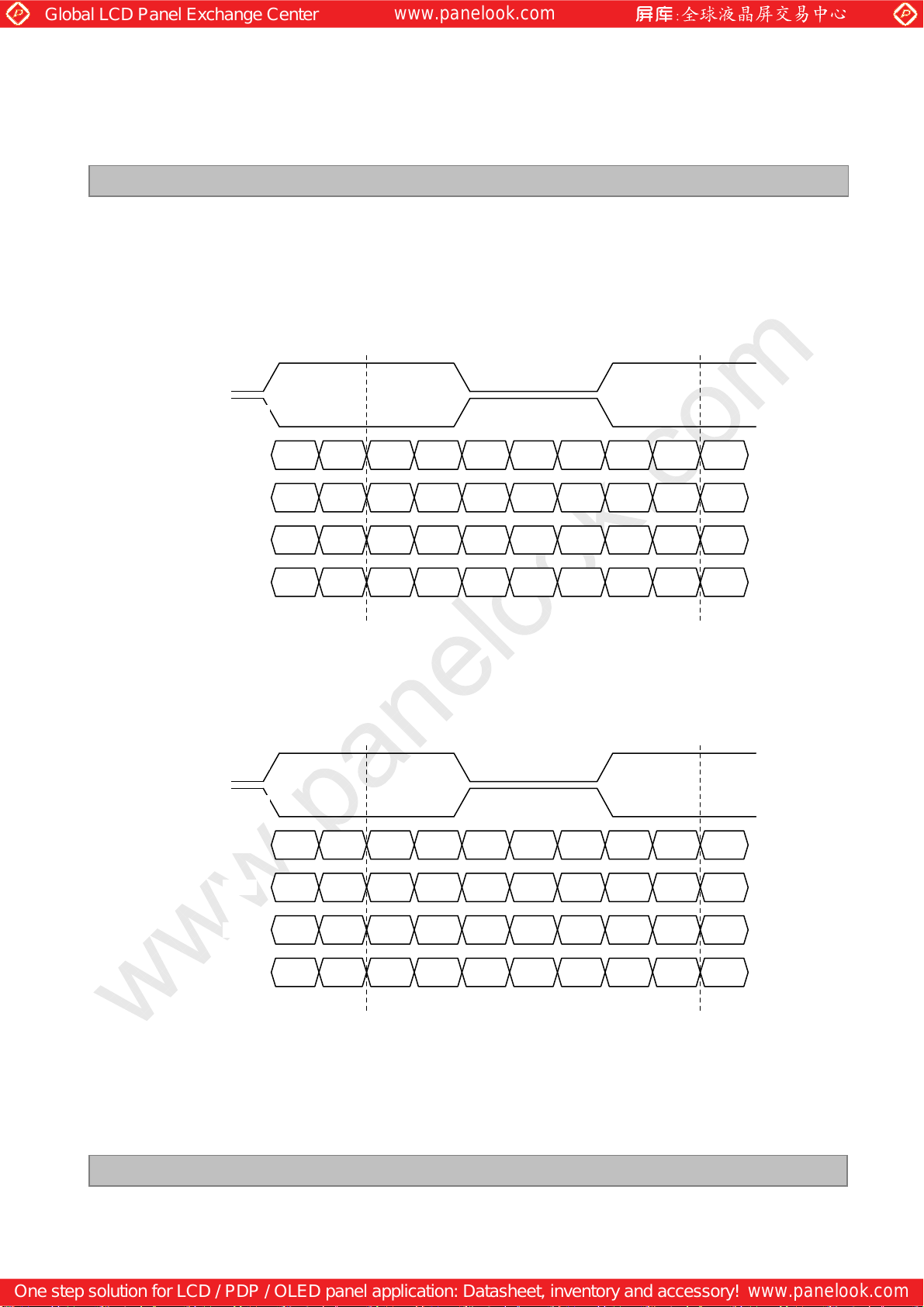

# APPENDIX- III-2

■ LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LD550WUD

Product Specification

RAP

RBP

RCP

RDP

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

V

SYNCHSYNC

B11 B10 G11 G10X R11R10’ R10R11’ X”

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

B17 B16DE B15B14’ B14B15’ DE”

Ver. 0.0

RCP

RDP

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B15 B14DE B13B12’ B12B13’ DE”

36 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

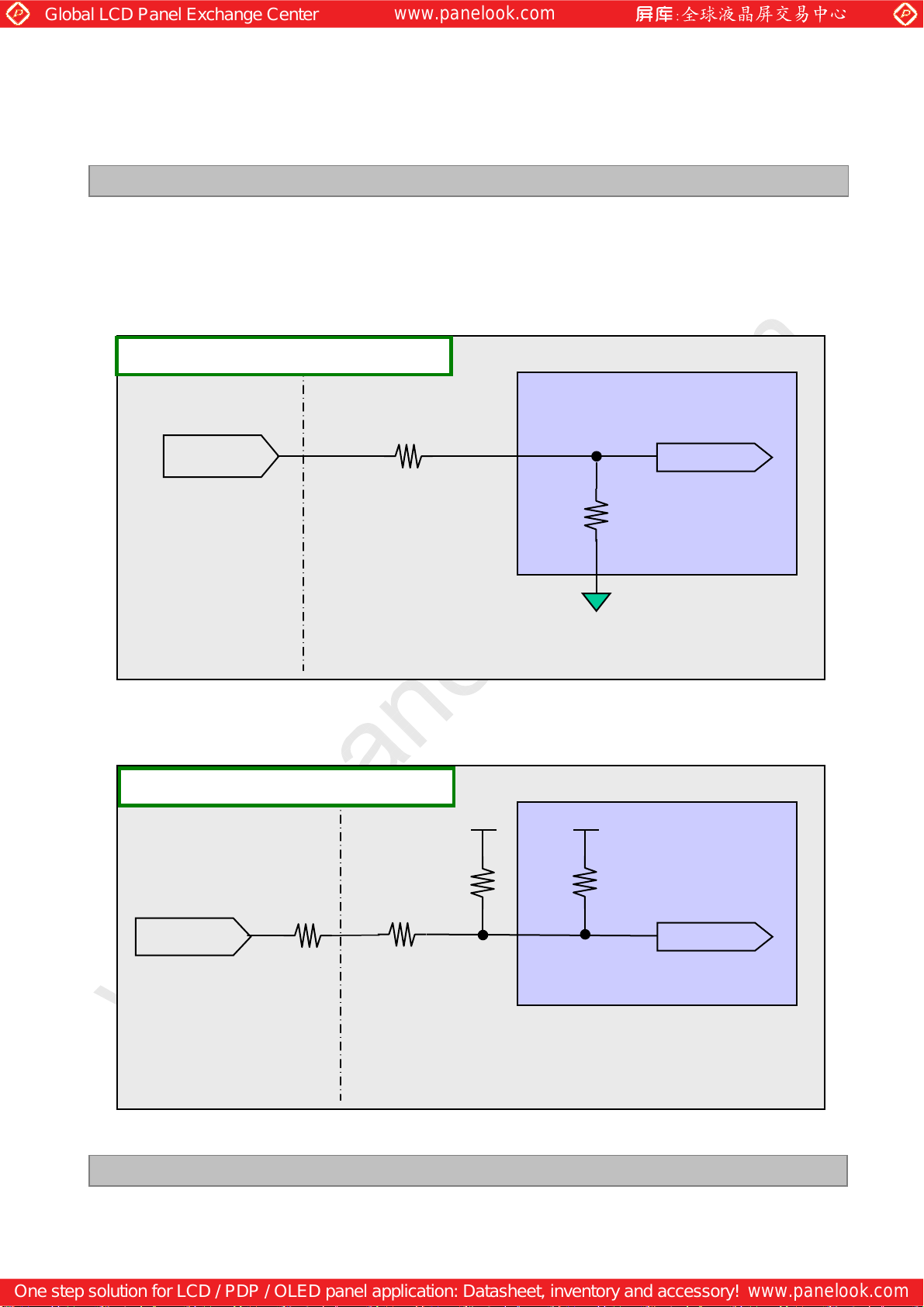

# APPENDIX- III-3

■ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 9

LVDS Select

(Pin 9)

LD550WUD

Product Specification

1KΩΩΩΩ

LVDS Select

System Side LCM Side

2) Circuit Block Diagram of OPC Enable Selection pin

OPC Enable Pin : Pin 10

VCC

OPEN

R1

OPC_Enable

(Pin 10)

1KΩΩΩΩ

50KΩΩΩΩ

ASIC

(TCON)

VCC

50KΩΩΩΩ

OPC_Enable

ASIC

(TCON)

System Side

R1 ≤≤≤≤ 1KΩΩΩΩ

Ver. 0.0

LCM Side

37 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

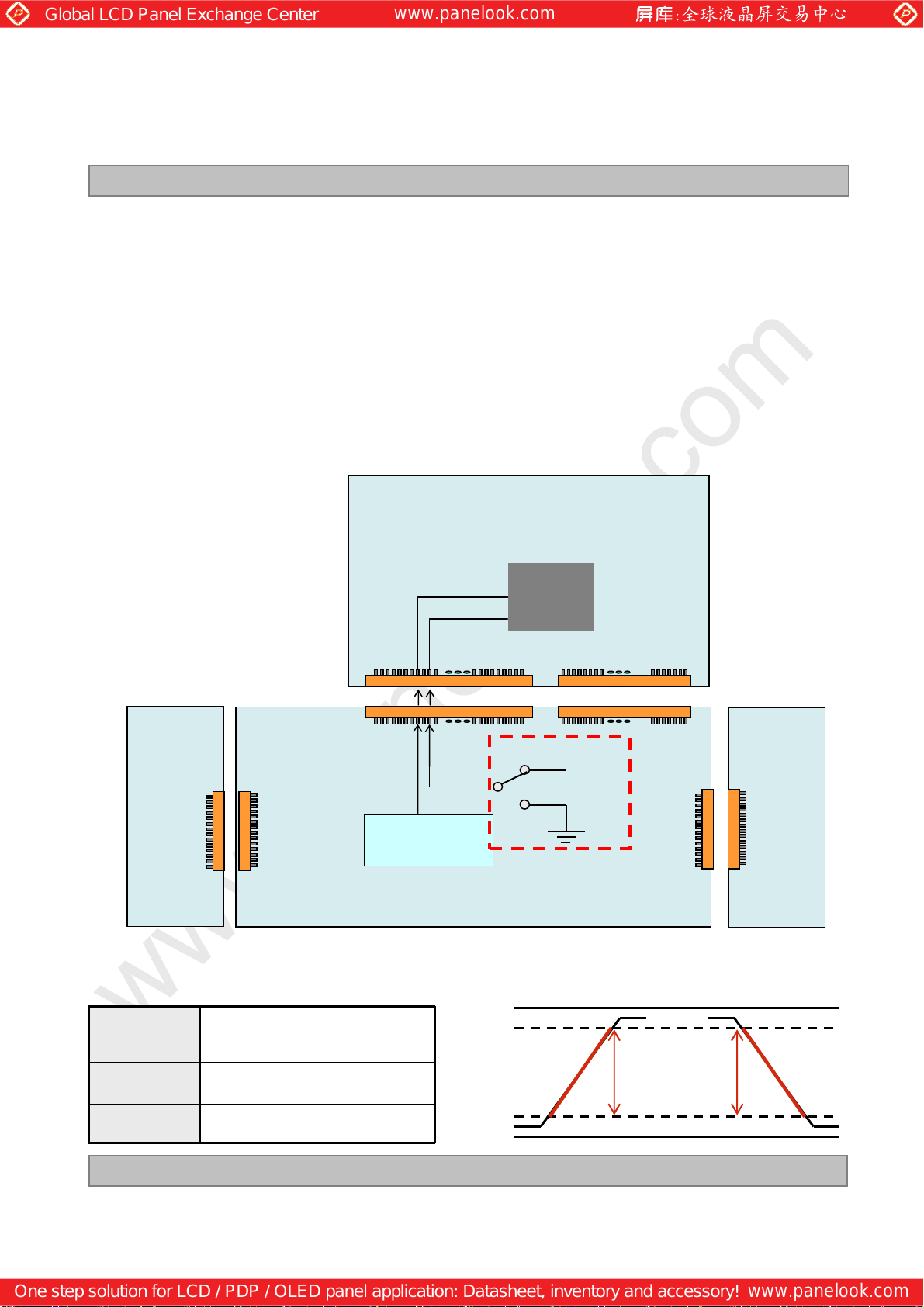

# APPENDIX- III-4

■ EXTVBR-B & OPC Design Guide

1) When OPC Enable is “L", SCAN_BLK1 & SCAN_BLK2 = System Dimming with 100Hz or 120Hz frequency.

2) SCAN_BLK1& SCAN_BLK2 signals are synchronized with V-Sync Freq. of System in T-Con Board.

3) Regardless of OPC, System should always give dimming Signal (EXTVBR-B) to T-con during operation.

4) EXTV

EXTVBR-B Specification ( VCC = 3.3V ) @ OPC

EXTVEXTV

a) High Voltage Range : 2.5 V ~ 3.6 V

b) Low Voltage Range : 0.0 V ~ 0.8 V

LD550WUD

Product Specification

INV

14pin

LCM T-con Board

T-Con

#1 51 #1 41

CNT1 51pin CNT2 41pin

CNT4 CNT4

OPC On

3.3V

System
Main IC

(PWM Generator)

OPC Off

12pin

Chassis

INV

<With Inverter Model>

1Khz

EXTVBR-B

Frequency

Rising Time MAX 10.0 μs

Falling Time MAX 10.0 μs

Ver. 0.0

MAX
Recommendation: 100 Hz for PAL

120 Hz for NTSC

VCC

VCC*0.9

Rising Time

Falling Time

VCC*0.1

0

38 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

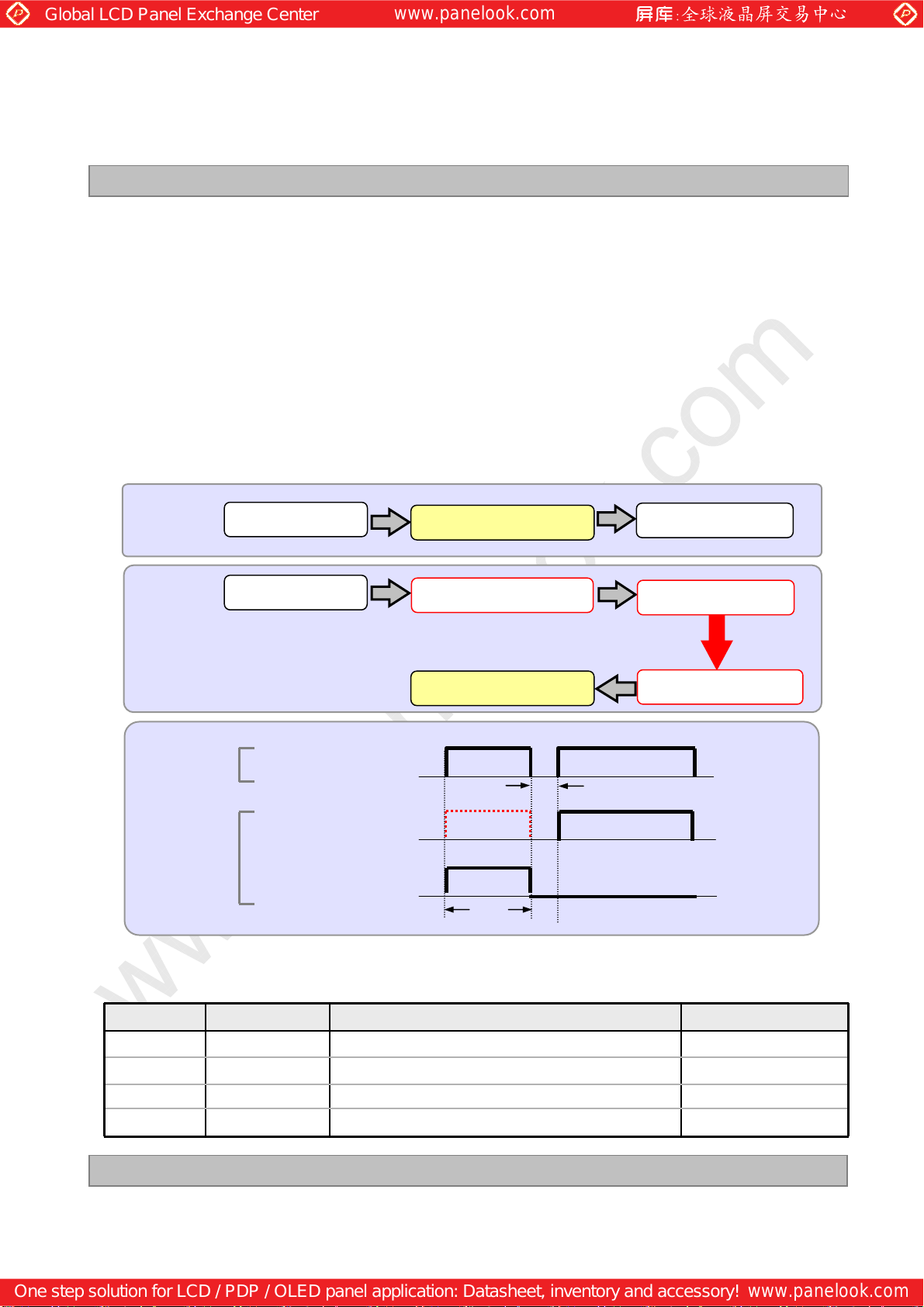

# APPENDIX- IV-1

■ Inverter 14thPin (Status) Design Guide

1) Function of Status pin

- Purpose : Preventing of backlight off by restarting the inverter technically

- Purpose : Preventing of backlight off by restarting the inverter technically

- How to : When inverter is abnormal operation, TV system inputs the Von signal

- How to : When inverter is abnormal operation, TV system inputs the Von signal

in the inverter once more to turn on the lamp safely

in the inverter once more to turn on the lamp safely

- Attention : Restart system’s Von signal when status pin is high for some time (min:1sec , max:4sec).

- Attention : Restart system’s Von signal when status pin is high for some time (min:1sec , max:4sec).

(The turn on time of lamp can be late such as the low temperature or the storage time)

(The turn on time of lamp can be late such as the low temperature or the storage time)

2) Status operation modes in TV set2) Status operation modes in TV set

LD550WUD

Product Specification

Normal

Mode

Status

operation

mode

System

Inverter

System Von

System Von

VON/OFF [12pin]

Backlight

Status [14pin]

Lamp turn on

Fail of Lamp turn on

Lamp turn on

V

ON

Fail

Status

1sec

~4sec

Status level low

Status level High

Feedback to system

Again System Von

Restart V

More than 0.1sec

Lamp ON

ON

3) Inverter pin map3) Inverter pin map

Pin No Symbol Description Inv.

11 NC

ON/OFF

12

13

14 Status Normal : Under 0.7V / Abnormal : Upper 3.0V status

Ver. 0.0

V

NC No Connection NC

No Connection

0.0V ~ 5.0V On/Off

NC

39 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

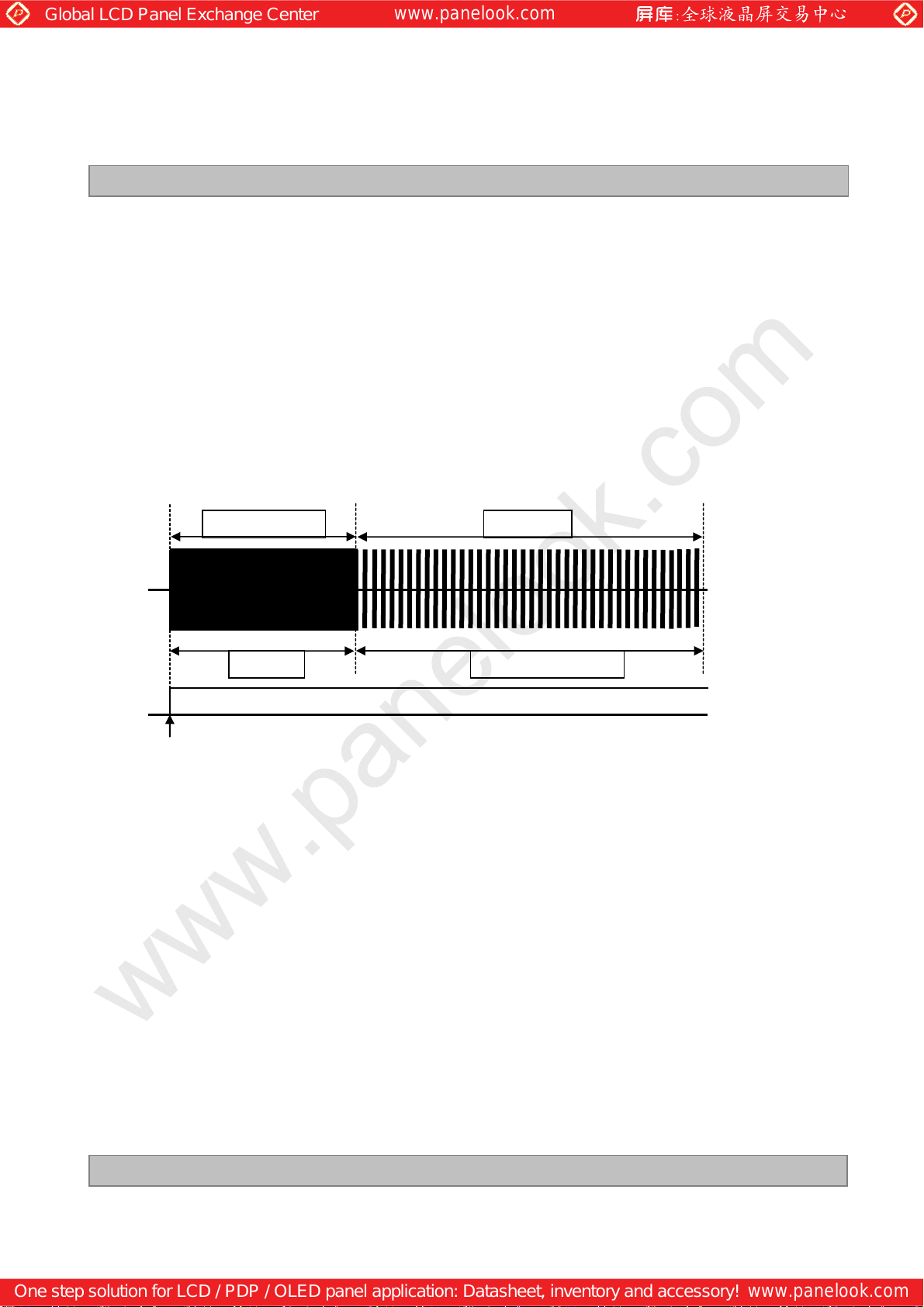

# APPENDIX- IV-2

■ Mega DCR Using Condition (1)

● The Deep Dimming means using the input PWM duty less than Min duty.

The input PWM duty (Min & Max duty) refer to the table 3 on the page 7.

The Deep Dimming must be used very carefully due to limitation of lamp characteristics and specification.

1) For stable lamp on, its duty condition should follow below the condition.
After Inverter ON signal, T0 duration should be sustained.

LD550WUD

Product Specification

Output current

Output current

Output currentOutput current

T0 = Min 1 [sec] Min 3[min]

Max duty Duty (Min ~ Max duty)

LAMP ON

LAMP ON

LAMP ONLAMP ON

Inverter ON signal

Inverter ON signal

Inverter ON signalInverter ON signal

2) B/L may not satisfy some of LCM specification at the Deep Dimming.

- Duration : The Deep Dimming must be limited within 10 minutes.

- Ratio : The operation time of the Deep Dimming must be less than 1/5 time of the Normal

Duty (Min ~ Max duty) operation in a certain period to prevent unwanted operation.

- FOS : Partial darkness or darkness of center area during the Deep Dimming might be happened

due to insufficient lamp current.

- Warm up : The Normal Duty (Min ~ Max duty) must be used 3 min after the lamps “ON”. In case of low
temperature, more warm up time may be needed.

Ver. 0.0

40 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

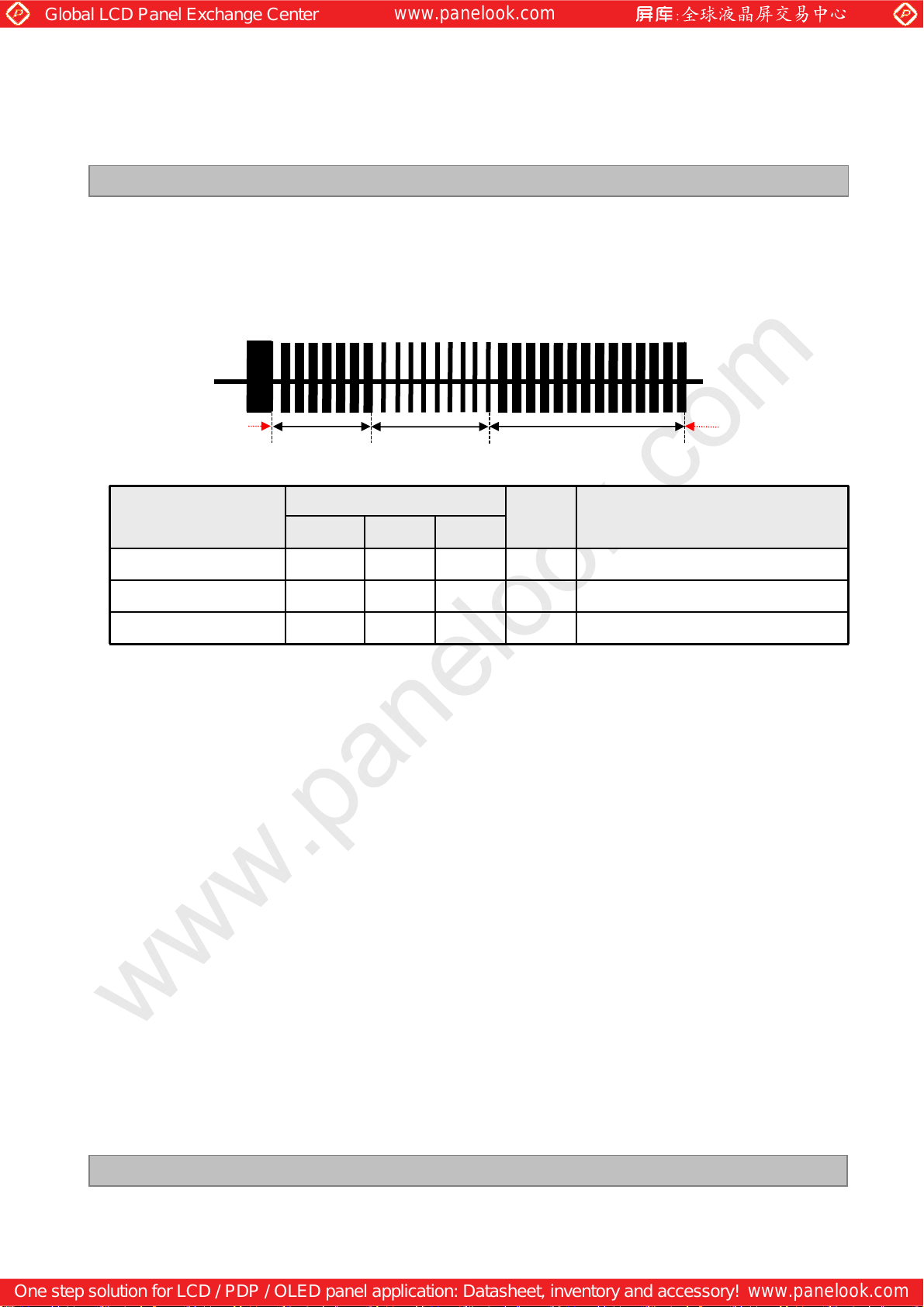

# APPENDIX- IV-2

■ Mega DCR Using Condition (2)

Output current

LD550WUD

Product Specification

T0

Value

Parameter

Min Typ Max

T1 3 - - min Min ~ Max duty

T2 - - 10 min 0 ~ Min duty

T3 T2 x 5 - - min Min ~ Max duty

T2 T3T1 T2

Unit Condition

3) Following the recommended conditions as aforementioned, there is no difference of lamp

lifetime between conventional method and new one.

Ver. 0.0

41 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

# APPENDIX- IV-3

■ Inverter Input Current ( Iin (A) vs Time )

LD550WUD

Product Specification

Iin (A)

Before Aging
Current : 12A

After Aging
Current 10A

T1

: 1min

Time

T2

: 120min

Aging TimeCurrent Max

Inverter Input current @ EXTVBR-B=100%

Time (m)

After 1min After 120min

12 Arms 10 Arms

Iin

12 Apeak 10 Apeak

Ver. 0.0

42 / 43

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

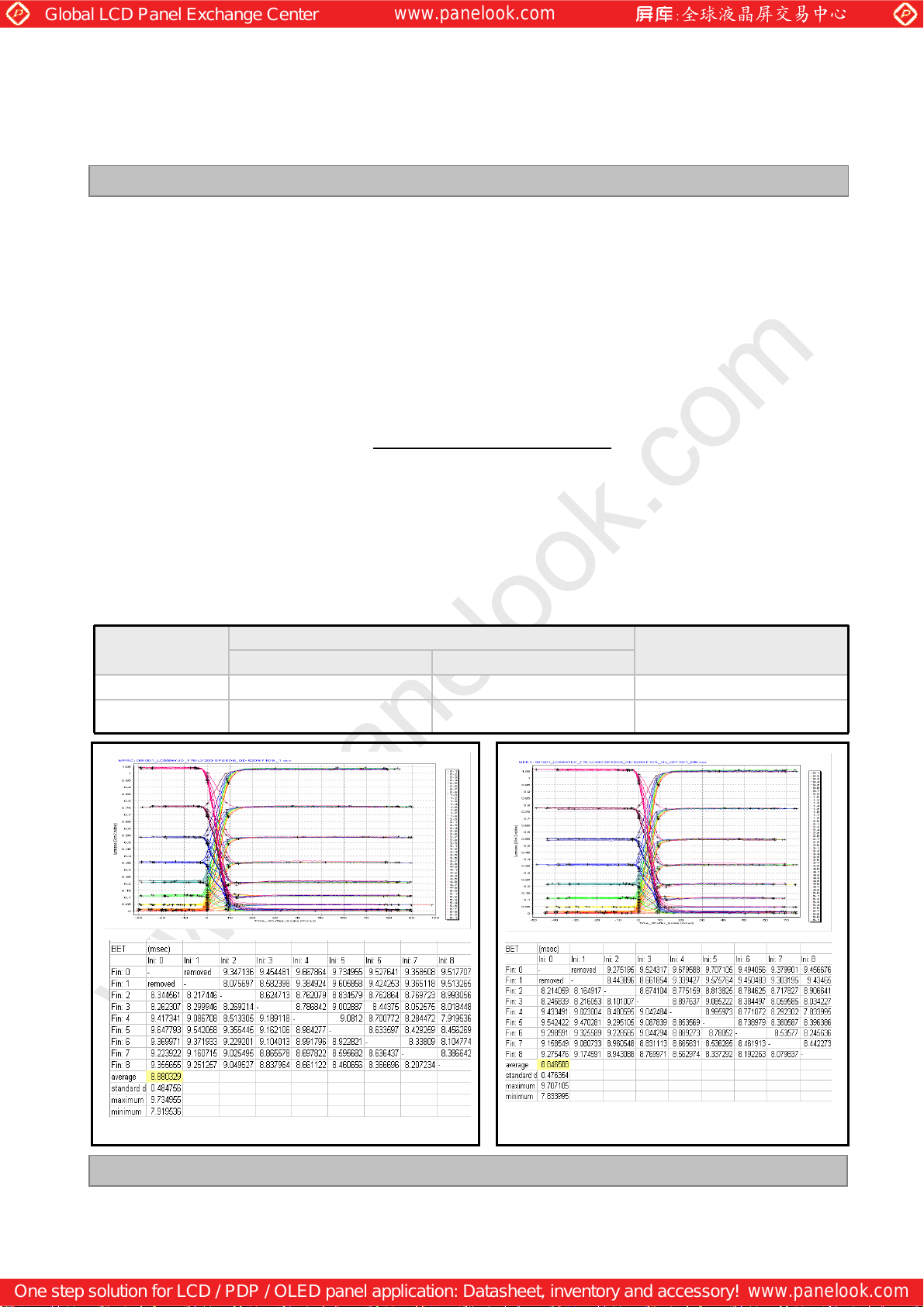

# APPENDIX- V

LD550WUD

Product Specification

■ MPRT Response Time Uniformity (δδδδ

This is only the reference data of MPRT and uniformity for

1. MPRT Response Time :
Response time is defined as Figure3

2. MPRT Uniformity
The variation of MPRT Uniformity , δ MPRT is defined as :

MPRT Uniformity =

3. Sampling Size : 2 pcs

4. Measurement Method : Follow the same rule as optical characteristics measurement.

5. Current Status

Below table is actual data of production on TBD. TBD. 2009 ( LGD RV Event Sample)

Sample

Min. Max.

# 1 TBD TBD TBD

# 2 TBD TBD TBD

Maximum (MPRT) - Typical (MPRT)

MPRT Response Time [ms]

)

MPRT

Typical (MPRT)

LD550WUD-SCA1 model.

≤1

Uniformity

Ver. 0.0

43 / 43
