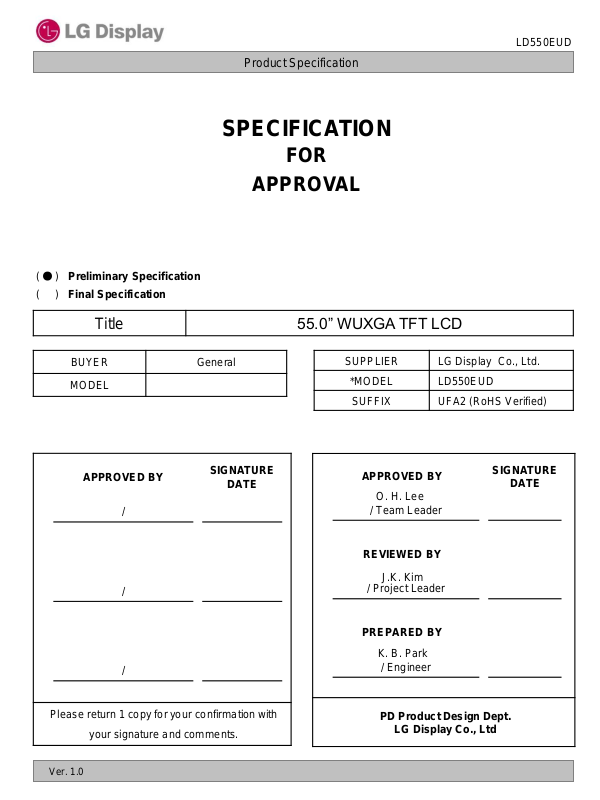

LG Display LD550EUD-UFA2 Specification

( ● ) Preliminary Specification
( ) Final Specification

Title 55.0” WUXGA TFT LCD

LD550EUD

Product Specification

SPECIFICATION

FOR

APPROVAL

BUYER General

MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LD550EUD

SUFFIX UFA2 (RoHS Verified)

APPROVED BY

O. H. Lee

/ Team Leader

REVIEWED BY

/ Project Leader

PREPARED BY

J.K. Kim

K. B. Park

/ Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 1.0

PD Product Design Dept.

LG Display Co., Ltd

Product Specification

CONTENTS

LD550EUD

Number ITEM

COVER
CONTENTS

RECORD OF REVISIONS 2

1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

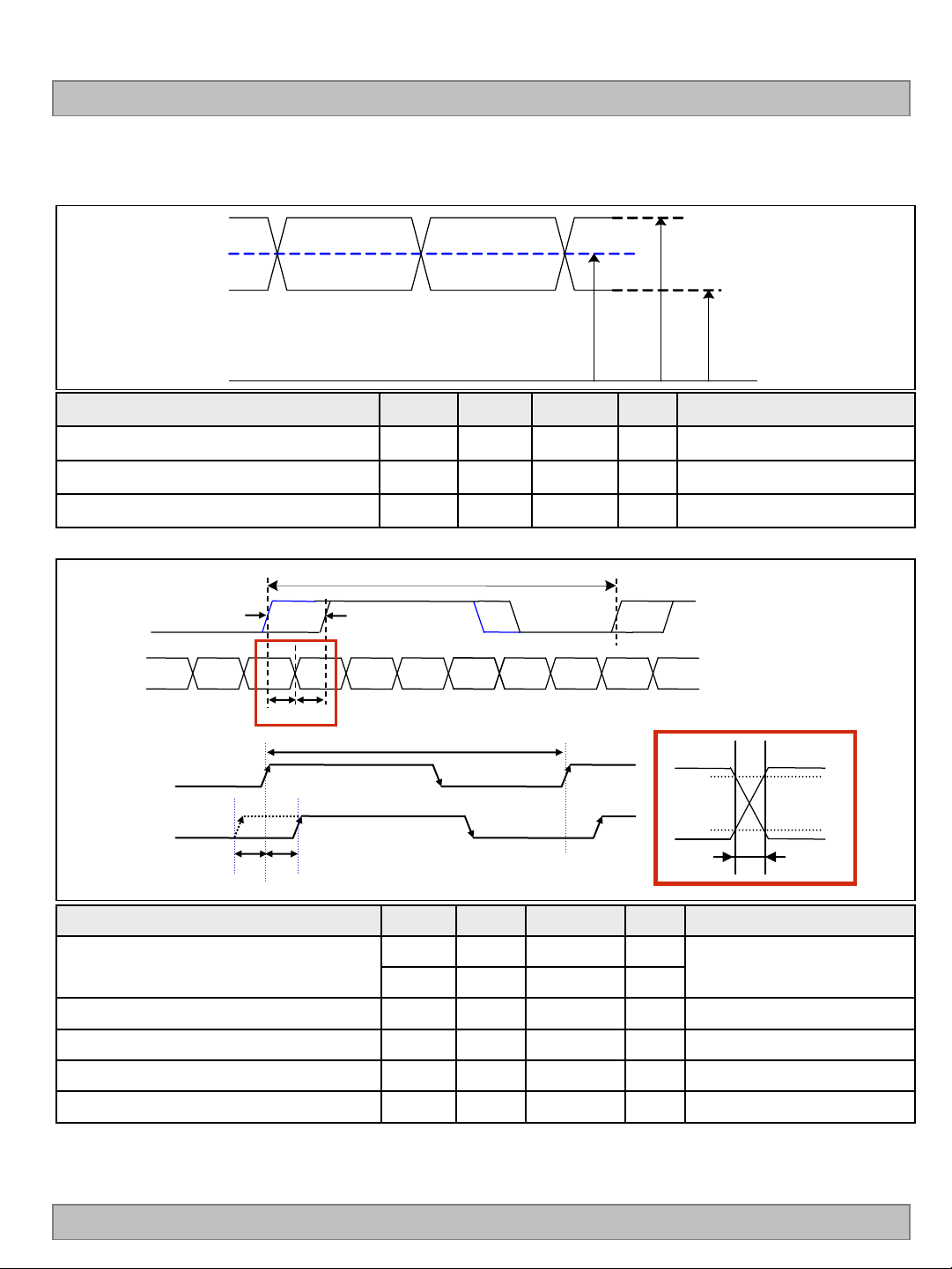

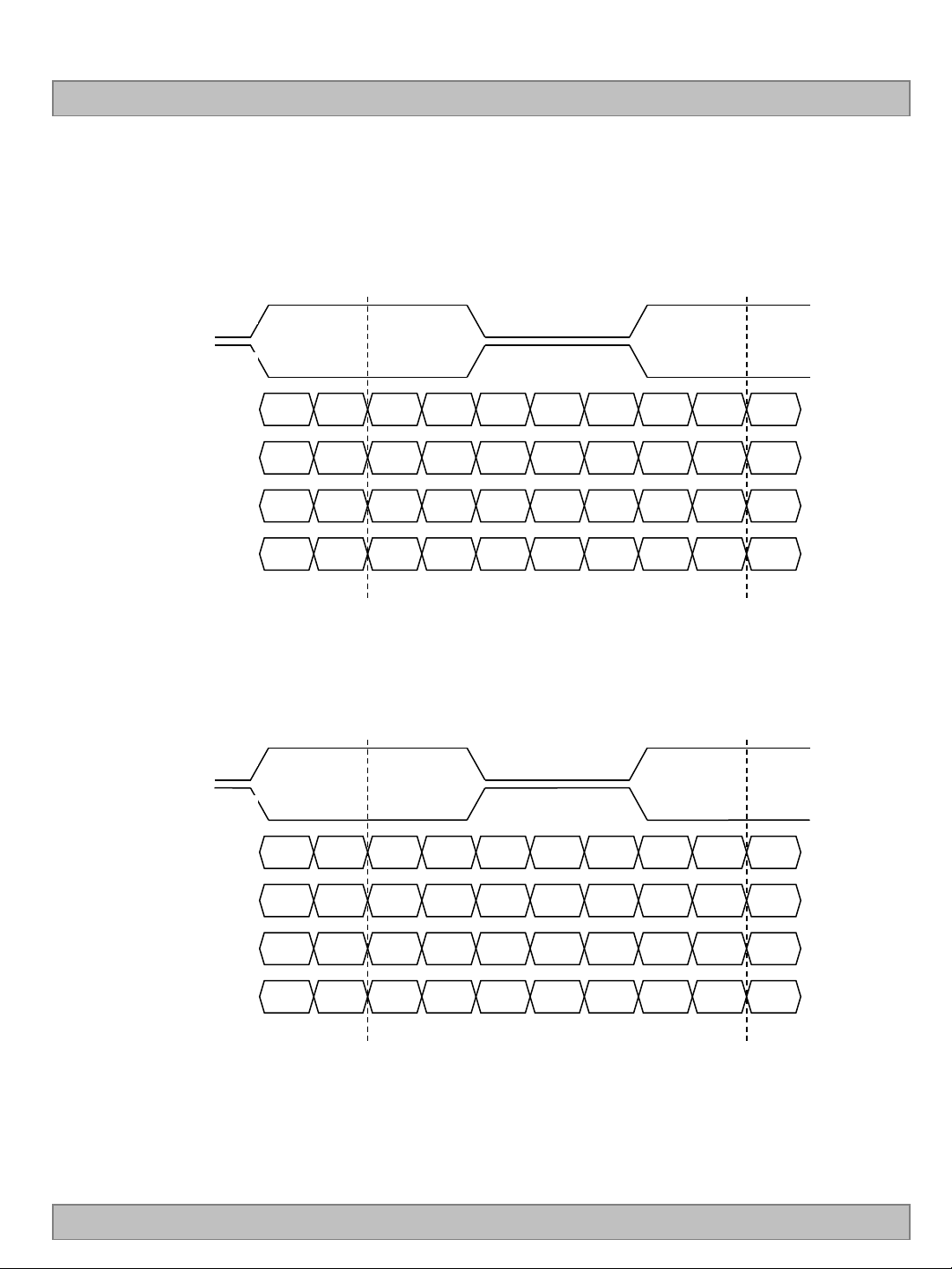

3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR DATA REFERENCE

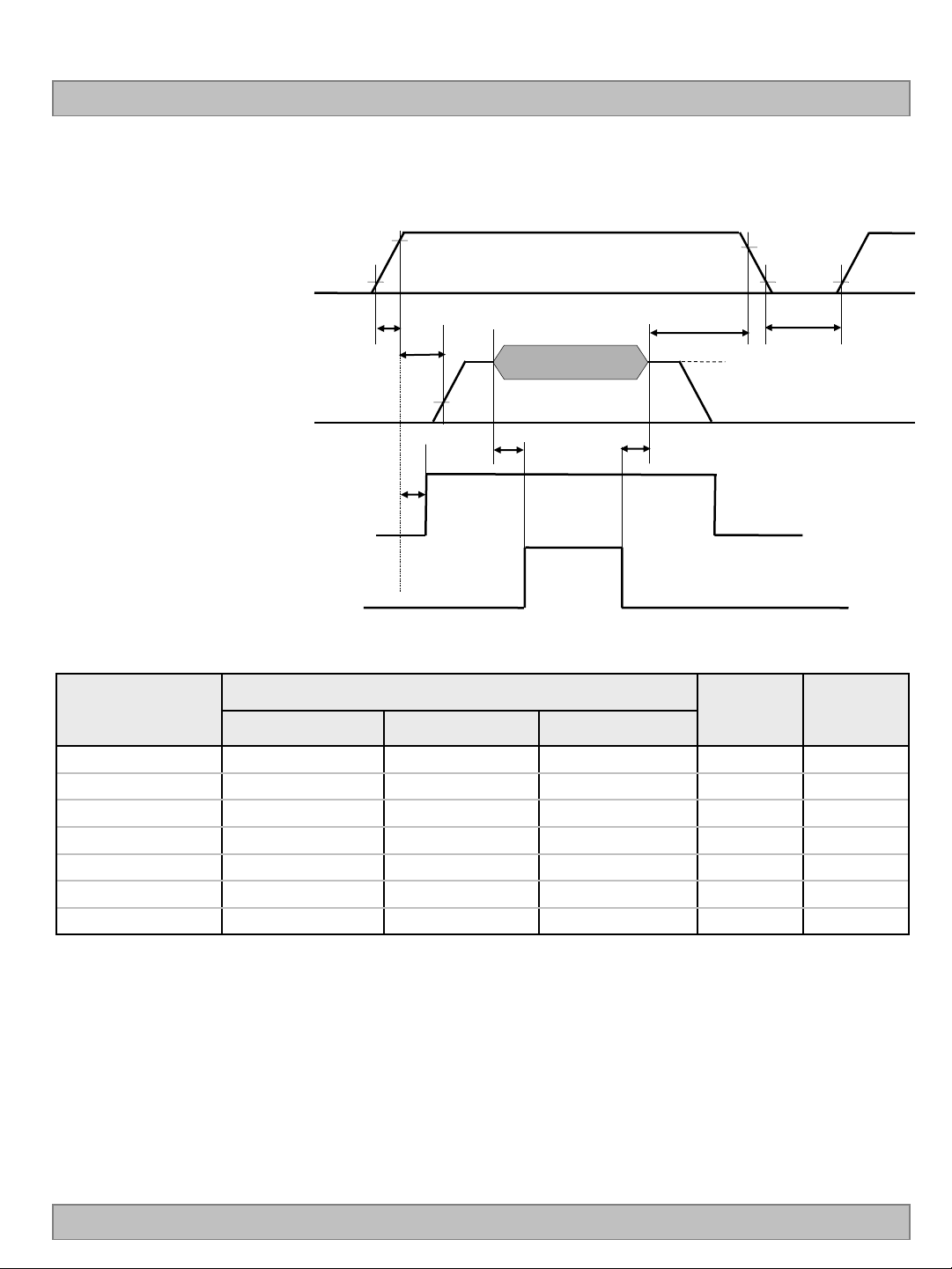

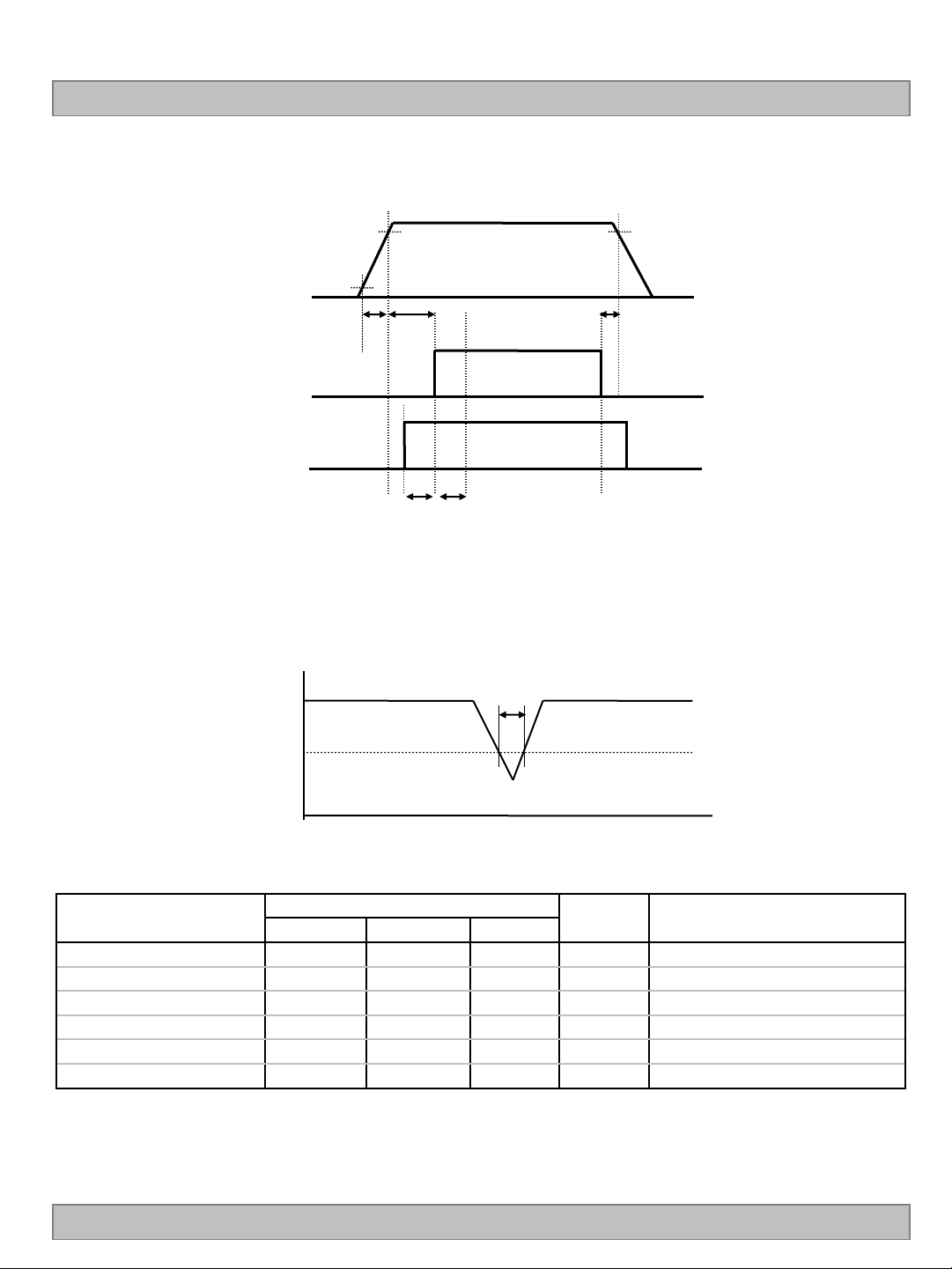

3-6 POWER SEQUENCE

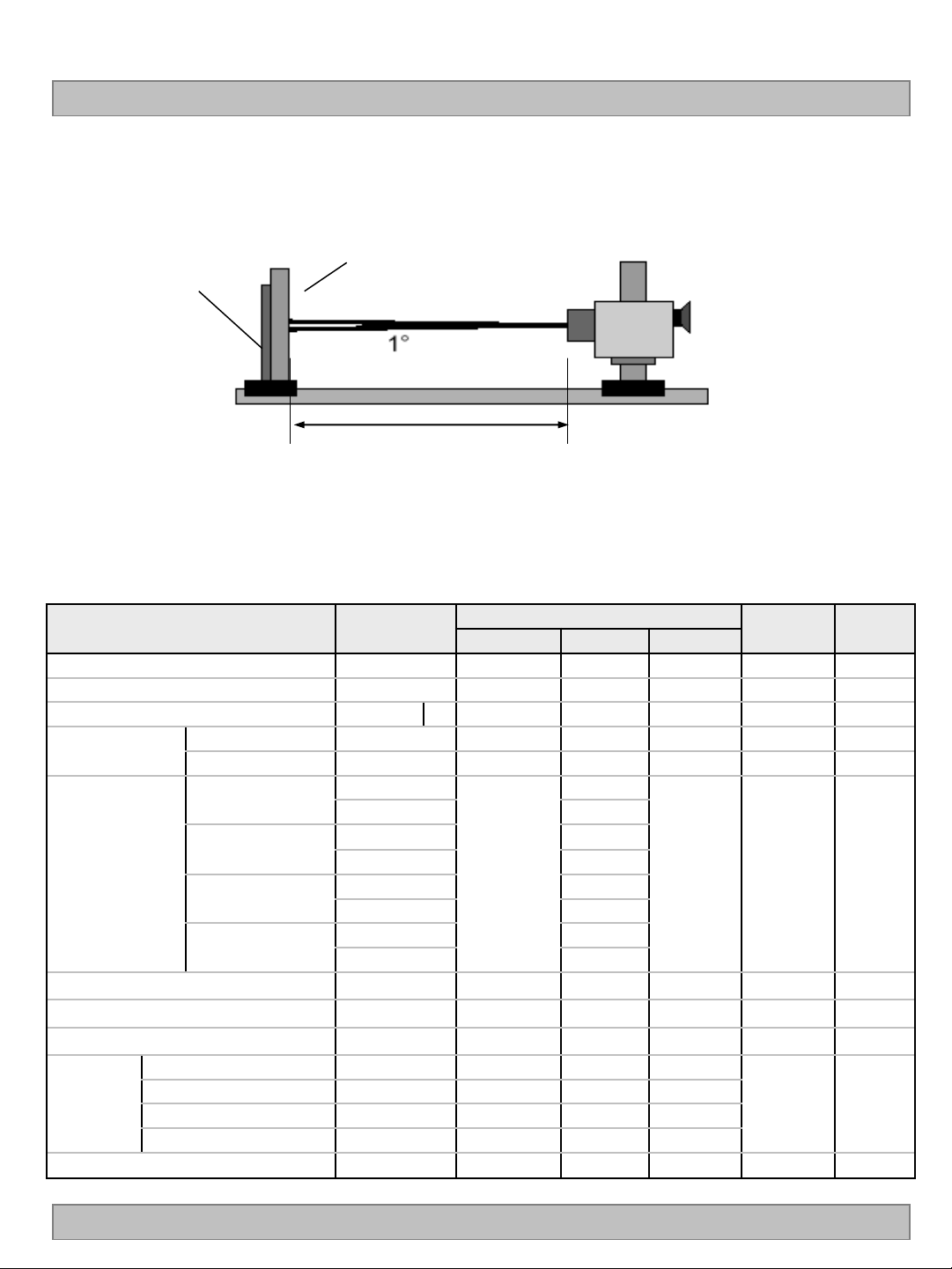

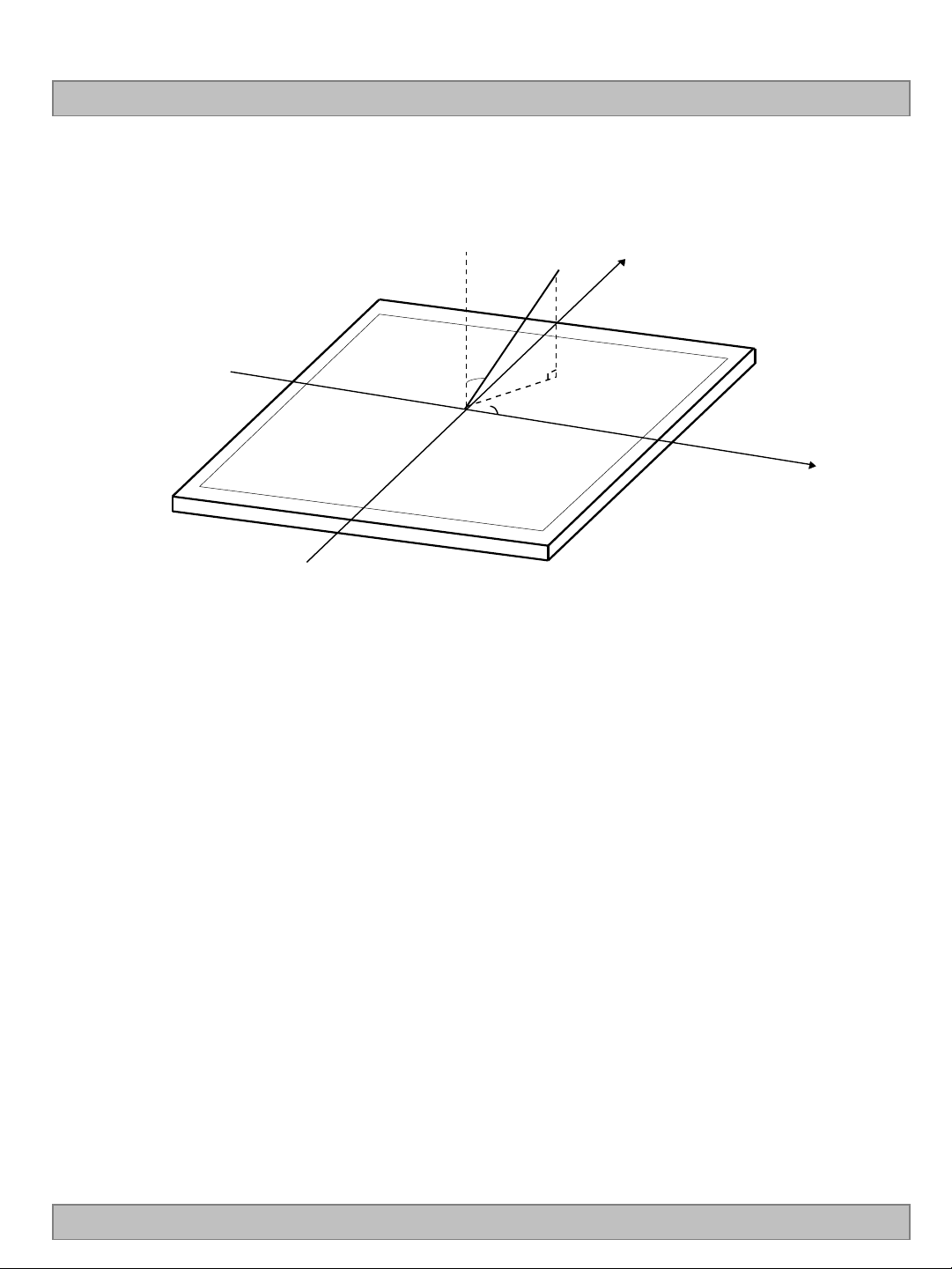

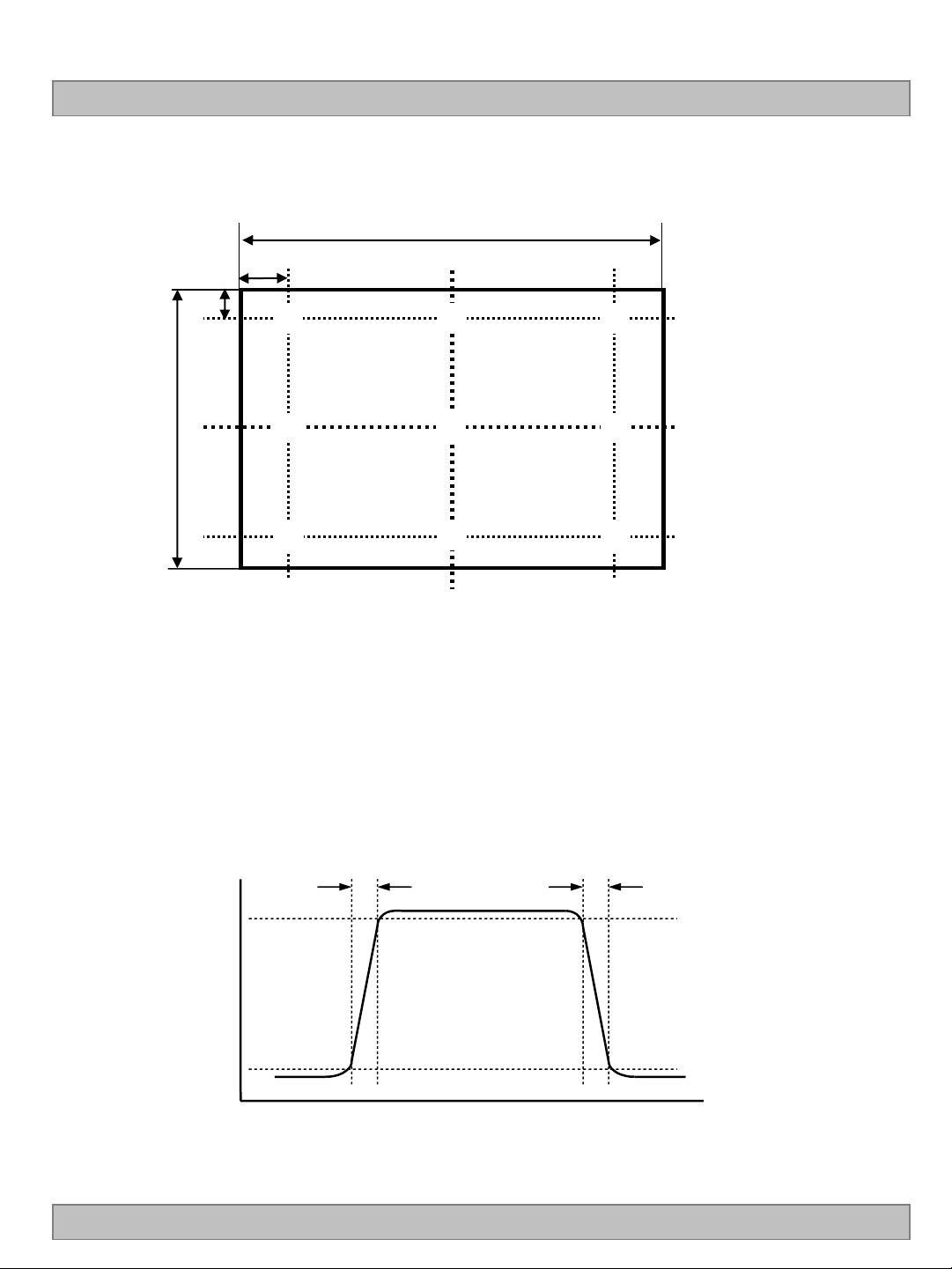

4 OPTICAL SPECIFICATIONS

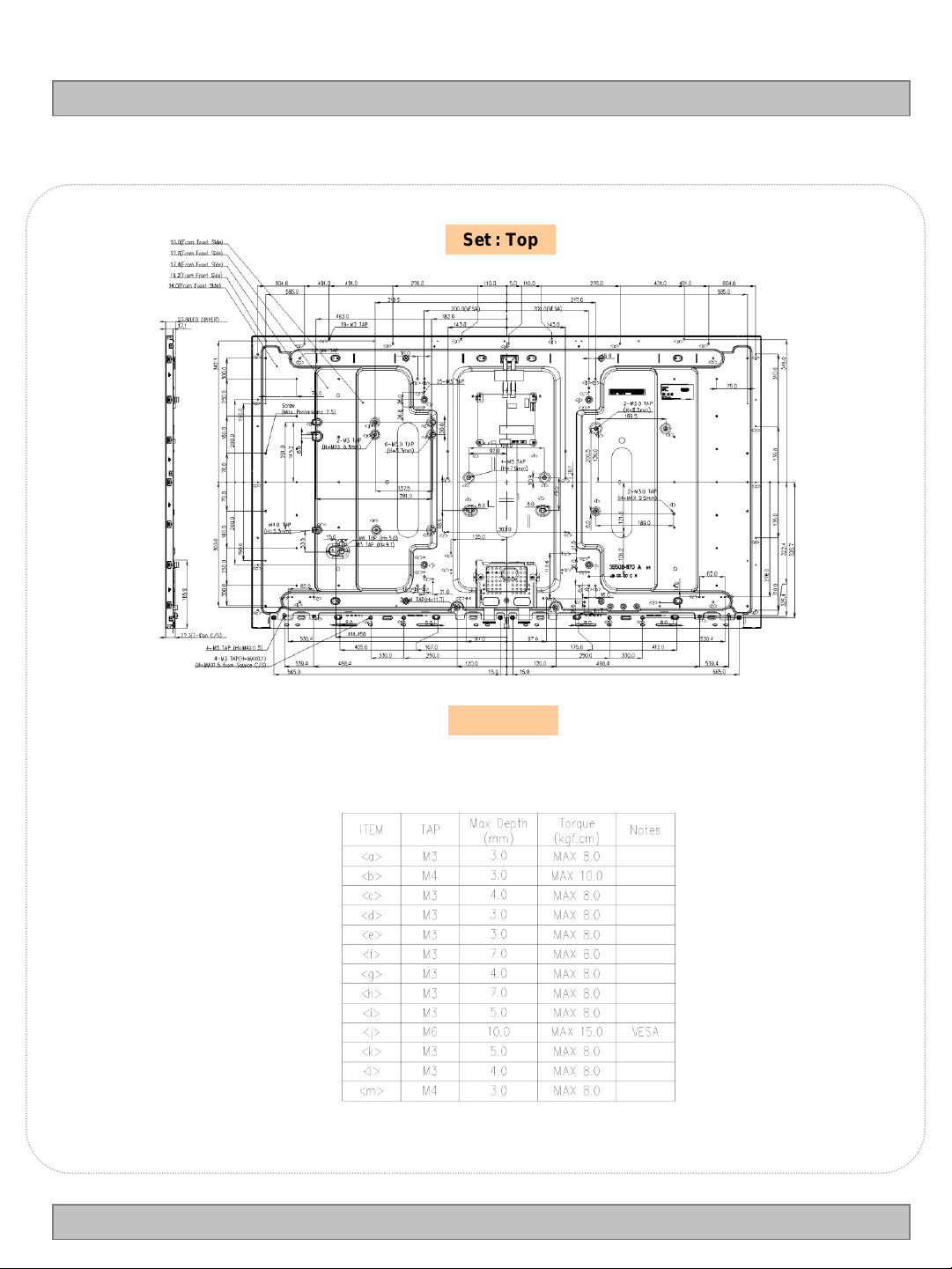

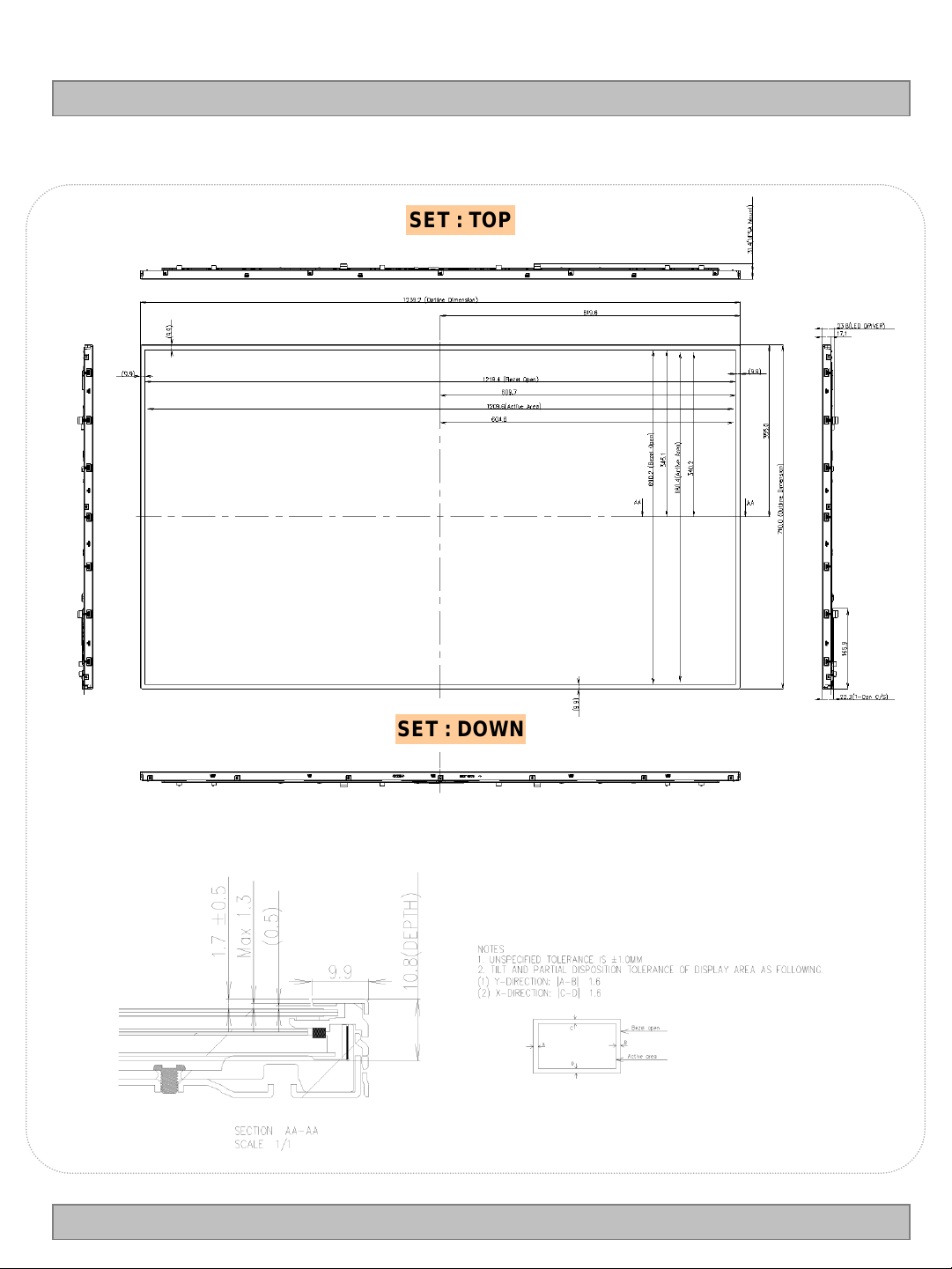

5 MECHANICAL CHARACTERISTICS
6 RELIABILITY

Page

0
1

3
4
5
5
7
9

15
16
18
22
25

7 INTERNATIONAL STANDARDS

7-1 SAFETY
7-2 EMC 26

7-3 ENVIRONMENT 26

8 PACKING

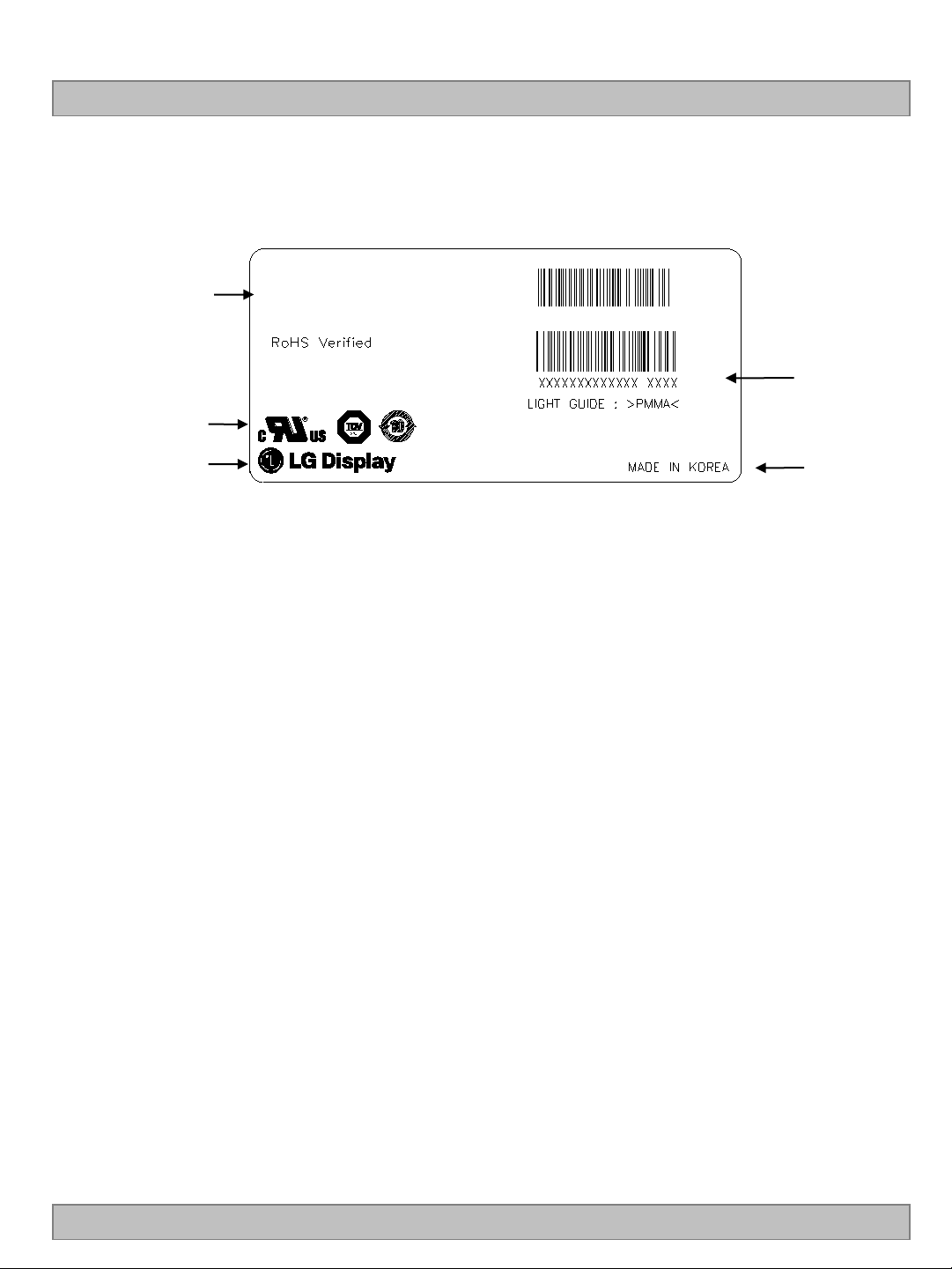

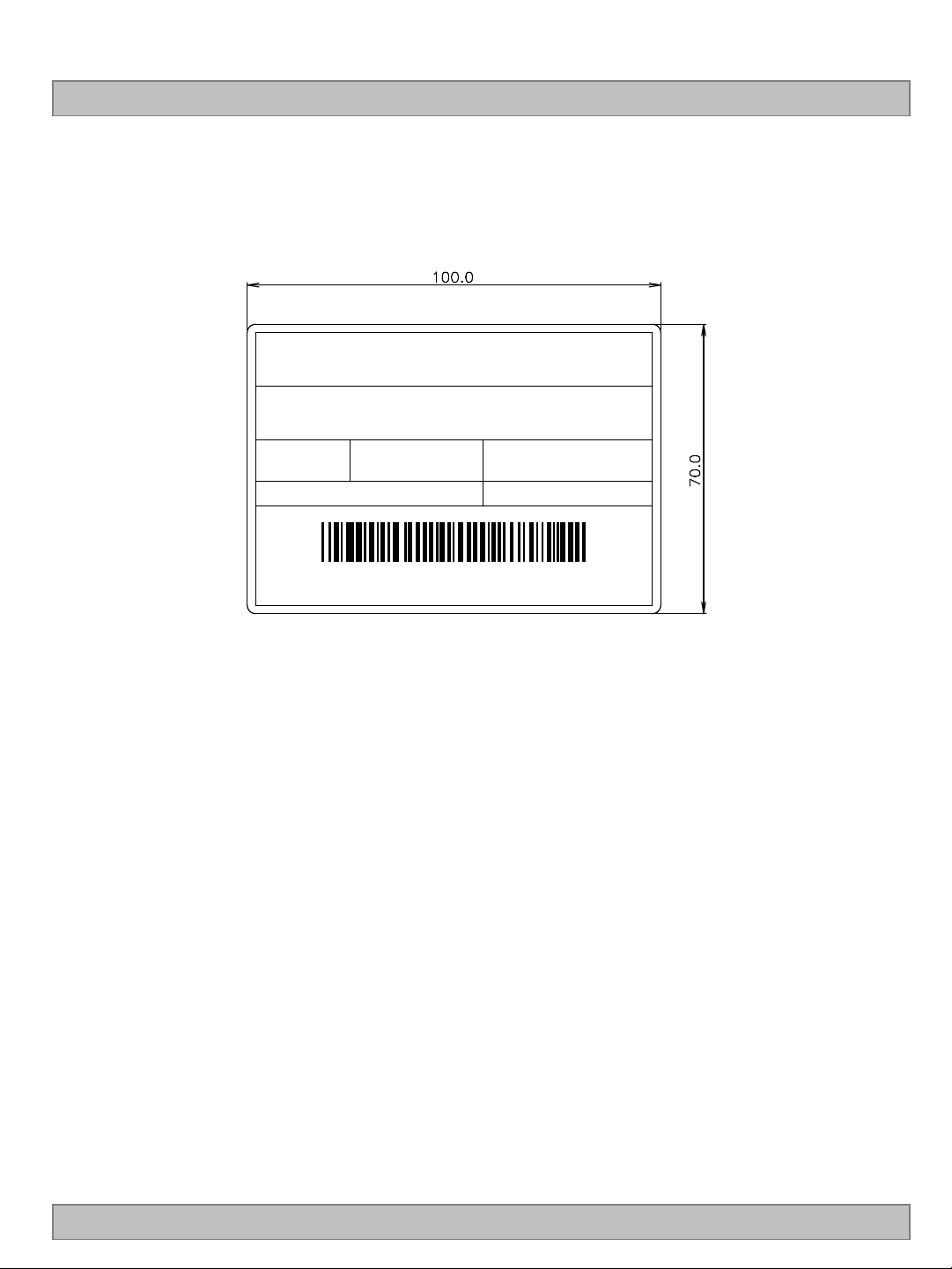

8-1 Information of LCM Label

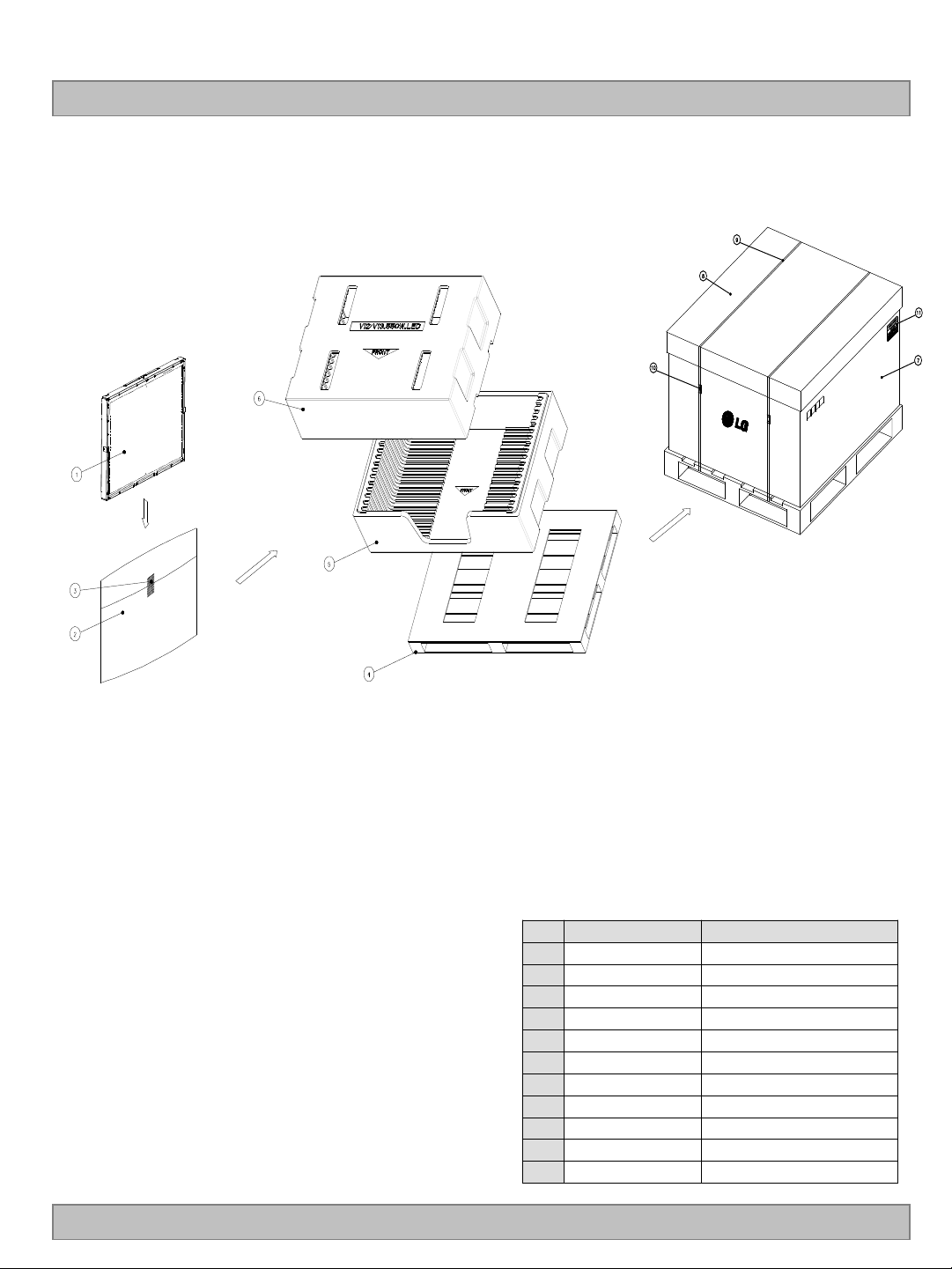

8-2 PACKING FORM

9 PRECAUTIONS 28
9-1 MOUNTING PRECAUTIONS 28
9-2 OPERATING PRECAUTIONS 28
9-3 ELECTROSTATIC DISCHARGE CONTROL 29
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 29
9-5 STORAGE 29
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 29
9-7 APPROPRATE CONDITION FOR PUBLIC DISPLAY 29

Ver. 1.0

26
26

27
27
27

1 /39

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.1 Oct, 5, 2012 - Preliminary Specification (First Draft)

0.2 Oct, 23, 2012 25 Shock level 15G20G

LD550EUD

0.3 Dec, 13, 2012 38

1.0 May, 13, 2013 - Final specification

TCON Pull up/down resister value change
(Pull up 65㏀  93㏀, Pull down 50㏀  95㏀)

Ver. 1.0

2 /39

LD550EUD

Product Specification

1. General Description

The LD550EUD is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 54.64 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06Bilion colors.
It has been designed to apply the 10-bit 4-port LVDS interface.
It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

EPI(RGB)

Control
Signals

Power Signals

G1

G1080

Source Driver Circuit

S1 S1920

TFT - LCD Panel

(1920 × RGB × 1080 pixels)

[Gate In Panel]

LVDS

2Port

LVDS

2Port

LVDS
Select

L-DIM
Enable

Bit
Select

+12.0V

CN2

(41pin)

CN1

(51pin)

LVDS 3,4

LVDS 1,2

Option
signal

I2C

EEPROM

SCL

SDA

Timing Controller

LVDS Rx + ODC + DGA

Integrated

Power Circuit

Block

EXT_PWM

+24.0V, GND, On/Off

LED Driver

Back Light Assembly

General Features

Active Screen Size 54.64 inches(1387.80mm) diagonal
Outline Dimension
Pixel Pitch 0.630 mm x 0.630 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 10bit, 1.06 Bilion colors
Luminance, White 700 cd/m2 (Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 117.2W (Typ.) [Logic= 8.0W, LED Driver=109.2W(ExtVbr_B=100% )]
Weight 17.5Kg (Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)
Possible Display Type Landscape and Portrait Enabled

1239.2(H) × 710.0(V) × 10.8(B) / 23.8(D) mm (Typ.)

Ver. 1.0

3 /39

LD550EUD

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Unit Note

Min Max

LCD Circuit VLCD -0.3 +14.0 VDC

Power Input Voltage

Driver VBL -0.3 + 27.0 VDC

Value

ON/OFF VOFF / VON -0.3 +5.5 VDC

1

Driver Control Voltage

Brightness EXTVBR-B -0.3 +5.5 VDC
T-Con Option Selection Voltage VLOGIC
Operating Temperature TOP 0 +50

-0.3 +4.0 VDC
°C

2,3

Storage Temperature TST -20 +60

Panel Front Temperature TSUR

- +68

°C

°C

4

Operating Ambient Humidity HOP 10 90 %RH

2,3

Storage Humidity HST 10 90 %RH

Notes

1. Ambient temperature condition (Ta = 25  2 °C )

2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.

90%

Ver. 1.0

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 80 0 -20
Dry Bulb Temperature [°C]

30

40

50

60

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

4 /39

LD550EUD

Product Specification

3. Electrical Specifications
3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Min Typ Max

Circuit :
Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Power Input Current ILCD

Power Consumption PLCD - 8 10.4 Watt 1
Rush current IRUSH - - 5.0 A 3

- 665 865 mA 1

- 937 1218 mA 2

Value

Unit Note

Notes

1. The specified current and power consumption are under the V

=12.0V, Ta=25  2°C, fV=120Hz

LCD

condition, and mosaic pattern(8 x 6) is displayed and fV is the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. Ripple voltage level is recommended under ±5% of typical voltage

White : 1023 Gray
Black : 0 Gray

Ver. 1.0

Mosaic Pattern(8 x 6)

5 /39

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

LD550EUD

Parameter Symbol

Unit notes

Min Typ Max

LED Driver :

Values

Power Supply Input Voltage VBL
Power Supply Input Current IBL

22.8 24.0 25.2 Vdc 1

-

4.55

5.0

A 1

VBL = 22.8V

Power Supply Input Current (In-Rush) In-rush - - 6.7 A

Power Consumption PBL

-

109.2 120

W 1

ExtV

BR-B

On V on 2.5 - 5.0 Vdc

Input Voltage for

Control System

Signals

On/Off

Brightness Adjust ExtV

ExtV

Frequency

BR-B

Pulse Duty Level
(PWM)

Off V off -0.3 0.0 0.7 Vdc

5 - 100 %

BR-B

1 - 100 %

PAL 100 Hz 3

NTSC 120 Hz 3

High Level 2.5 - 5.0

Low Level 0.0 - 0.7

Vdc
Vdc

On Duty

HIGH : on duty

LOW : off duty

LED :
Life Time 50,000 60,000 - Hrs 2

= 100%

4

6

notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60
minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25±2°C.

3. LGD recommend that the PWM freq. is synchronized with Two time harmonic of V_sync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.

4. The duration of rush current is about 200ms. This duration is applied to LED on time.

5. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

6. ExtV
After Driver ON signal is applied, ExtV

signal have to input available duty range and sequence.

BR-B

After that, ExtV

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

Ver. 1.0

6 /39

LD550EUD

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-RE51S-HF(manufactured by JAE) or GT05P-51S-H38(manufactured by LSM) or
IS050-C51B-C39(manufactured by UJU)

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1
2
3
4
5
6
7
8
9

10
11 GND

12 R1AN
13 R1AP
14 R1BN
15
16 R1CN
17 R1CP
18 GND
19 R1CLKN
20
21 GND
22 R1DN
23 R1DP
24 R1EN

25 R1EP
26

notes

NC
NC
NC
NC
NC
NC

LVDS Select

NC
NC
NC

R1BP

R1CLKP

NC or GND

1. All GND (ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #8~#9 NC (No Connection): These pins are used only for LGD (Do not connect)

5. LVDS pin (pin No. #24,25,40,41) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.

6. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB (No Signal Black) while the system interface signal is not.
If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).

No Connection (notes 4)
No Connection (notes 4)
No Connection (notes 4)
No Connection (notes 4)
No Connection (notes 4)
No Connection (notes 4)

‘H’ =JEIDA , ‘L’ or NC = VESA
No Connection (notes 4)

No Connection (notes 4)
No Connection (notes 4)

Ground
FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)

Ground
FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)
Ground

FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)
FIRST LVDS Receiver Signal (E-)

FIRST LVDS Receiver Signal (E+)
No Connection or Ground

27

Bit Select
28
29
30
31
32
33
34
35
36
37
38
39

40 R2EN
41 R2EP
42
43
44
45
46

47
48
49
50
51

- - -

R2AN
R2AP
R2BN

R2BP

R2CN

R2CP

GND
R2CLKN
R2CLKP

GND

R2DN

R2DP

NC or GND
NC or GND

GND Ground (notes 6)

GND Ground

GND Ground

NC No connection
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V

‘H’ or NC= 10bit(D) , ‘L’ = 8bit
SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)

SECOND LVDS Receiver Signal (C+)
Ground

SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)

Ground
SECOND LVDS Receiver Signal (D-)

SECOND LVDS Receiver Signal (D+)
SECOND LVDS Receiver Signal (E-)
SECOND LVDS Receiver Signal (E+)

No Connection or Ground
No Connection or Ground

Ver. 1.0

7 /39

LD550EUD

Product Specification

-LCD Connector (CN2) : FI-RE41S-HF(manufactured by JAE) or GT05P-41S-H38(manufactured by LSM)
or IS050-C41B-C39(manufactured by UJU)

- Mating Connector : FI-RE41HL or compatible

Table 4-2. MODULE CONNECTOR(CN2) PIN CONFIGURATION

No Symbol Description No Symbol Description

1
2
3
4 NC
5
6
7
8

9
10
11
12
13 RB3P
14
15
16
17
18 RCLK3P
19
20
21

NC
NC
NC

NC
NC
NC
NC

GND
RA3N
RA3P
RB3N

RC3N
RC3P

GND

RCLK3N

GND
RD3N
RD3P

No connection 22
No connection 23
No connection 24 GND Ground

No connection
No connection

No connection 27
No connection 28
No connection 29 RB4P

Ground
THIRD LVDS Receiver Signal (A-)

THIRD LVDS Receiver Signal (A+)
THIRD LVDS Receiver Signal (B-)
THIRD LVDS Receiver Signal (B+)
THIRD LVDS Receiver Signal (C-)
THIRD LVDS Receiver Signal (C+)

Ground
THIRD LVDS Receiver Clock Signal(-)

THIRD LVDS Receiver Clock Signal(+)
Ground

THIRD LVDS Receiver Signal (D-)
THIRD LVDS Receiver Signal (D+)

25 GND Ground
26

30
31
32
33
34 RCLK4P
35
36
37
38
39
40 GND Ground
41 GND Ground

-

RE3N
RE3P

RA4N
RA4P
RB4N

RC4N
RC4P

GND

RCLK4N

GND
RD4N
RD4P
RE4N
RE4P

THIRD LVDS Receiver Signal (E-)
THIRD LVDS Receiver Signal (E+)

FORTH LVDS Receiver Signal (A-)
FORTH LVDS Receiver Signal (A+)
FORTH LVDS Receiver Signal (B-)
FORTH LVDS Receiver Signal (B+)
FORTH LVDS Receiver Signal (C-)
FORTH LVDS Receiver Signal (C+)

Ground
FORTH LVDS Receiver Clock Signal(-)

FORTH LVDS Receiver Clock Signal(+)
Ground

FORTH LVDS Receiver Signal (D-)
FORTH LVDS Receiver Signal (D+)
FORTH LVDS Receiver Signal (E-)
FORTH LVDS Receiver Signal (E+)

Note : 1. All GND (ground) pins should be connected together to the LCD module’s metal frame.

2. LVDS pin (pin No. #22,23,38,39) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.

CN1 CN2

#1 #51 #1 #41

CN1 CN2

#1 #51

#1 #41

Rear view of LCM

Ver. 1.0

8 /39

Product Specification

3-2-2. Backlight Module

Master

-LED Driver Connector
: 20022WR - H14B2(Yeonho) or Compatible

- Mating Connector
: 20022HS - 14B2 (Yeonho) or Compatible

Table 5-1. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LD550EUD

1
2
3
4
5
6
7
8

9
10
11
12

13
14

VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V

VBL Power Supply +24.0V
GND
GND
GND
GND
GND

Status

ON/OFF

V

NC Don’t care

EXTVBR-B External PWM 3

Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Back Light Status 2
Backlight ON/OFF control 4

1

Notes :1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )

4. Each impedance of pin #12 and 14 is over 50 [KΩ] .

◆ Rear view of LCM

1

Ver. 1.0

◆ Status

PCB

14

1

…

14

…

<Master>

9 /39

LD550EUD

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit notes

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 40 70 200 tCLK 1

Total tHP 520 550 680 tCLK

Display

Period

Blank tVB

Total tVP

ITEM Symbol Min Typ Max Unit notes

DCLK fCLK 66.97 74.25 78.00 MHz

Horizontal fH 121.8 135 140 KHz 2

Vertical fV

tHV 480 480 480 tCLK 1920 / 4

tVV 1080 1080 1080 Lines

20

(228)

1100

(1308)

108
(95)

45

(270)
1125

(1350)

120

(100)

86

(300)
1166

(1380)

122

(104)

Lines 1

Lines

Hz

NTSC
(PAL)

2

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

3. Spread Spectrum Rate (SSR) for 50KHz ~ 100kHz Modulation Frequency(FMOD) is calculated by
(7 – 0.06*Fmod), where Modulation Frequency (FMOD) unit is KHz.
LVDS Receiver Spread spectrum Clock is defined as below figure

※ Timing should be set based on clock frequency.

Ver. 1.0

10 /39

LD550EUD

Product Specification

※ Please pay attention to the followings when you set Spread Spectrum Rate(SSR) and Modulation
Frequency(FMOD)

1. Please set proper Spread Spectrum Rate(SSR) and Modulation Frequency (FMOD) of TV system
LVDS output.

2. Please check FOS after you set Spread Spectrum Rate(SSR) and Modulation Frequency(FMOD)
to avoid abnormal display. Especially, harmonic noise can appear when you use Spread Spectrum

under FMOD 30 KHz.

Ver. 1.0

11 /39

3-4. LVDS Signal Specification

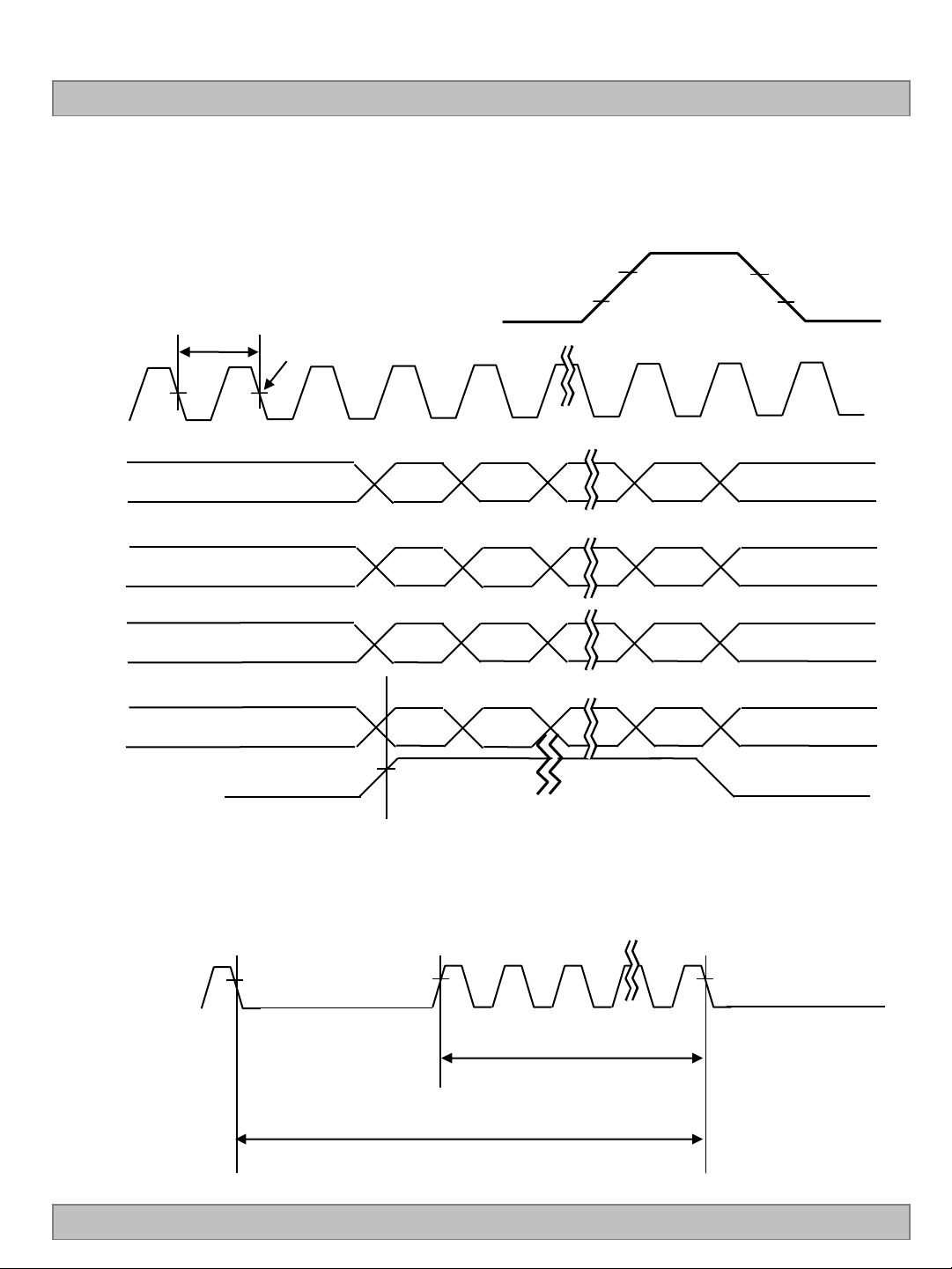

3-4-1. LVDS Input Signal Timing Diagram

LD550EUD

Product Specification

DCLK

First data

Second data

Third data

Forth data

DE(Data Enable)

tCLK

0.5 VDD

Invalid data

Invalid data

Invalid data

Invalid data

DE, Data

Valid data

Pixel 0

Valid data

Pixel 1

Valid data

Pixel 2

Valid data

Pixel 3

Pixel 4

Pixel 5

Pixel 6

Pixel 7

0.7VDD

0.3VDD

Invalid data

Invalid data

Invalid data

Invalid data

DE(Data Enable)

Ver. 1.0

1 1080

tVV

tVP

* tHB = tHFP + tWH +tHBP

* tVB = tVFP + tWV +tVBP

12 /39

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LD550EUD

Product Specification

0 V

# V

= { ( LVDS +) + ( LVDS - ) } / 2

CM

V

CM

V

IN _ MAX V IN _ MIN

Description Symbol Min Max Unit notes

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM - 250 mV -

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

( F

= 1 / T

)

clk

A

LVDS 1’st Clock

LVDS 2nd / 3rd / 4th Clock

tSKEW

tSKEW

t

SKEW_min tSKEW_max

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit notes

VTH 100 600 mV

LVDS Differential Voltage

VTL -600 -100 mV

LVDS Clock to Data Skew t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew (Even to Odd) t

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

notes

2. If tRF isn’t enough, t

should be meet the range.

eff

SKEW

RF

eff

SKEW_EO

3. LVDS Differential Voltage is defined within t

Ver. 1.0

- |(0.25*T

260 |(0.3*T

|±360|

- |1/7* T

eff

)/7| ps

clk

)/7| ps 2

clk

- ps

| ps -

clk

Tested with Differential Probe

3

-

-

13 /39

Product Specification

LD550EUD

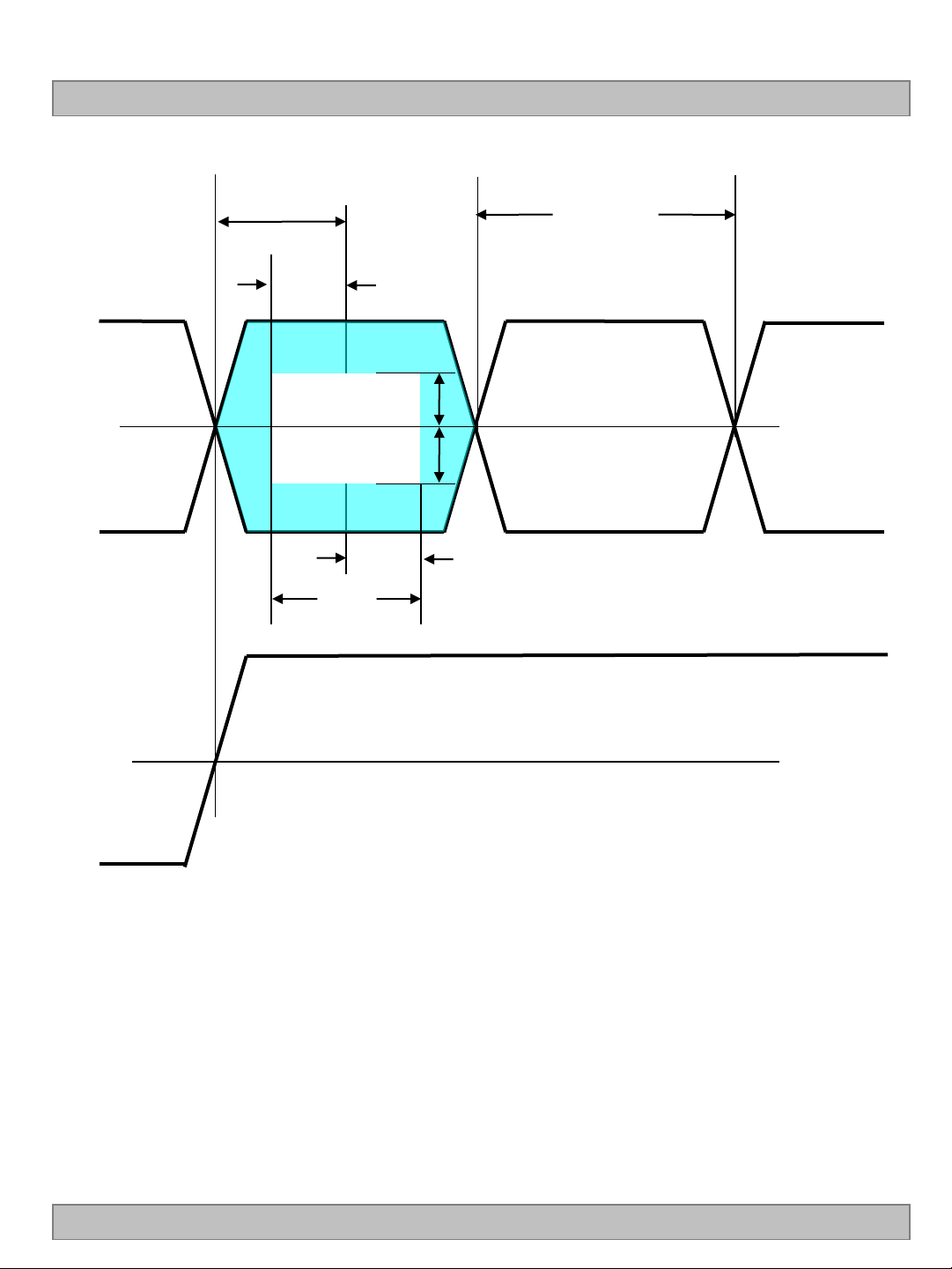

LVDS Data

0V

(Differential)

LVDS CLK

0.5tui

360ps

tui

VTH

VTL

360ps

teff

tui : Unit Interval

0V

(Differential)

* This accumulated waveform is tested with differential probe

Ver. 1.0

14 /39

LD550EUD

Product Specification

3-5. Color Data Reference

The brightness of each primary color (red, green, blue) is based on the 10bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black

Red (1023)

Green (1023)

Blue (1023)

Cyan

Magenta

Yellow

White

RED (0000)

RED (0001)

RED

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

GREEN

MSB LSB

… ... ... ...

RED (1022)

RED (1023)

GREEN (0000)

1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE

GREEN

BLUE

Ver. 1.0

GREEN (0001)

...

GREEN (1022)

GREEN (1023)

BLUE (0000)

BLUE (0001)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

... ... ...

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

… ... ... ...

BLUE (1022)

BLUE (1023)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

15 /39

3-6. Power Sequence

3-6-1. LCD Driving circuit

LD550EUD

Product Specification

Power Supply For LCD
V

LCD

Interface Signal (Tx_clock)

User Control Signal
(LVDS_select)

Power for LED

Table 8. POWER SEQUENCE

Parameter

90%

10%

0V

T1

T2

Valid Data

30%

0V

100%

T6

T3 T4

LED ON

Value

Min Typ Max

90%

10%

T7

T5

Vcm : LVDS Common mode Voltage

Unit Notes

10%

Note :

Ver. 1.0

T1 0.5 - 20 ms 1
T2 0 - - ms 2
T3 400 - - ms 3
T4 200 - - ms 3
T5 1.0 - - s 4
T6 0 - T2 ms 5
T7 0 - - ms 6

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

6. It is recommendation specification that T7 has to be 0ms as a minimum value.

※ Please avoid floating state of interface signal at invalid period.
※ When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

LCD

),

16 /39

3-6-2. Sequence for LED Driver

Power Supply For LED Driver

VBL

0V

10%

Product Specification

24V (typ.)

90%

LD550EUD

90%

VON/OFF

ExtVBR-B

3-6-3. Dip condition for LED Driver

VBL(Typ.) x 0.8

T1 T2

T4 T6

LED ON

T5

T3

V

BL

0 V

: 24V

Table 9. Power Sequence for LED Driver

Parameter

T1 20 - - ms 1
T2 500 - - ms
T3 10 - - ms
T4 0 - - ms
T5 - - 10 ms VBL(Typ) x 0.8
T6 500 - - ms 2

Min Typ Max

Values

Units Remarks

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.
Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. In T6 section, ExtVBR-B should be sustained from 5% to 100% .

Ver. 1.0

17 /39

LD550EUD

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C.
The values are specified at 50cm from the LCD surface at a viewing angle of  and  equal to 0 °.
FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Table 10. OPTICAL CHARACTERISTICS

Ta= 25±2°C, V

Parameter Symbol

Contrast Ratio CR 900 1300 - 1
Surface Luminance, white L
Luminance Variation 

Response Time

Color Coordinates
[CIE1931]

Color Temperature 10,000 K
Color Gamut 72 %
Viewing Angle (CR>10)

Gray Scale - - - 7

Gray-to-Gray G ot G - 12 15 ms 4
Uniformity 

RED

GREEN

BLUE

WHITE

x axis, right(=0°)
x axis, left (=180°)
y axis, up (=90°)
y axis, down (=270°)

WH

9P 60 70 - % 3

WHITE

G TO G

Rx

Ry 0.335
Gx 0.312
Gy 0.605

Bx 0.151

By 0.061

Wx 0.281
Wy 0.288

r 89 - -

l 89 - -
u 89 - -
d 89 - -

Min Typ Max

360 450 - cd/m2 2

- - 1 5

Typ

-0.03

Value

0.647

=12.0V, fV=120Hz, Dclk=74.25MHz,

LCD

EXTVBR-B =100%

Unit notes

Typ

+0.03

degree 6

Ver. 1.0

18 /39

LD550EUD

Product Specification

Note : 1. Contrast Ratio(CR) is defined mathematically as :
CR(Contrast Ratio) = Maximum CRn (n=1,2,3,4,5)
Surface Luminance at position n with all white pixels

CRn =
Surface Luminance at position n with all black pixels

n = The Postion number (1,2,3,4,5). For more information, see Fig 2.

2. Surface luminance are determined after the unit has been ‘ON’ and 1 Hour after lighting the
backlight in a dark environment at 25±2°C. Surface luminance is the luminance value at center

1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface luminance ,  WHITE is defined as :
 WHITE(9P) = Minimum (L
Where L

on1

to L

are the luminance with all pixels displaying white at 9 locations .

on9

on1,Lon2

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from G(N) to G(M) (Rise Time, TrR)
and from G(M) to G(N) (Decay Time, TrD). For additional information see the FIG. 3.(N<M)
※ G to G Spec stands for average value of all measured points.
Photo Detector : RD-80S / Field : 2 °

5. Gray to Gray Response time uniformity is Reference data. Appedix VI.

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 11.

~ L

on8

, L

) / Maximum (L

on9

on1,Lon2

~ L

on8

, L

on9

)*100

Table 11. Gray scale specification

Gray Level Luminance [%] (Typ)

L0 0.076
L15 0.27
L31 1.04
L47 2.49
L63 4.68
L79 7.66
L95 11.5

L111 16.1
L127 21.6
L143 28.1
L159 35.4
L175 43.7
L191 53.0
L207 63.2
L223 74.5
L239 86.7
L255 100

Ver. 1.0

19 /39

Product Specification

Measuring point for surface luminance & measuring point for luminance variation.

H

A

H / 2

LD550EUD

B

②

V / 2

V

⑤

⑦

FIG. 2 9 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

③

①

⑧

④

⑥

A : H / 9 mm
B : V / 9 mm
@ H,V : Active Area

⑨

Ver. 1.0

100

90

Optical
Response

10

0

Gray(N)

TrR

Gray(M)

N,M = Black~White, N<M

FIG. 3 Response Time

TrD

Gray(N)

20 /39

Dimension of viewing angle range

Normal

Y

E







= 0, Right



= 180, Left



= 270, Down



= 90, Up

LD550EUD

Product Specification

FIG. 4 Viewing Angle

Ver. 1.0

21 /39

Product Specification

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

Item Value

LD550EUD

Outline Dimension

Bezel Area

Active Display Area

Weight

Horizontal
Vertical
Depth
Horizontal
Vertical
Horizontal
Vertical

17.5 Kg (Typ.), 18.0 kg (Max.)

1239.2 mm

710.0 mm

10.8 mm

1219.4 mm

690.2 mm

1209.6 mm

680.4 mm

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 1.0

22 /39

[ FRONT VIEW ]

LD550EUD

Product Specification

SET : TOP

Ver. 1.0

SET : DOWN

23 /39

[ REAR VIEW ]

LD550EUD

Product Specification

Set : Top

Ver. 1.0

Set : Down

24 /39

Product Specification

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

LD550EUD

1 High temperature storage test

2 Low temperature storage test

3 High temperature operation test

4 Low temperature operation test

Vibration test

5

(non-operating)

Shock test

6

(non-operating)

7 Humidity condition Operation

Altitude operating

8

storage / shipment

Ta= 60°C 240h

Ta= -20°C 240h

Ta= 50°C 50%RH 240h

Ta= 0°C 240h

Wave form : random
Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z,
Each direction per 10 min

Shock level : 20Grms
Waveform : half sine wave, 11ms
Direction : ±X, ±Y, ±Z
One time each direction

Ta= 40 °C ,90%RH
0 - 16,400 ft

0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 1.0

25 /39

Product Specification

7. International Standards

7-1. Safety

a) UL 60950-1, Underwriters Laboratories Inc.
Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Canadian Standards Association.
Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1, European Committee for Electrotechnical Standardization (CENELEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1, The International Electrotechnical Commission (IEC).
Information Technology Equipment - Safety - Part 1 : General Requirements.
(Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Information
Class 1M LED Product

IEC60825-1 : 2001

Embedded LED Power (Class1M)

LD550EUD

2. Caution

: LED inside.
Class 1M laser (LEDs) radiation when open.
Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.
b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.
c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance
characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 1.0

26 /39

8. Packing

8-1. Information of LCM Label

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

Year

Product Specification

2013 2012 2011

2014 E 2015

2016 G 2017 H 2018 J 2019

LD550EUD

2020

Mark

C B A

D

F

2. MONTH

Month

Mark

Apr 5 May

4

Jun 7 Jul 8 Aug 9 Sep

6

b) Location of Lot Mark

Serial NO. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one Pallet : 18 pcs
b) Pallet Size : 1440 mm(W) X 1140 mm(D) X 950 mm(H)

K

Oct

A

Nov

B

Dec Mar Feb Jan

C 3 2 1

Ver. 1.0

27 /39

LD550EUD

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
the module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(2) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer
(3) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(4) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(5) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
(6) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated
its full characteristics perfectly.
(7) A screw which is fastened up the steels should be a machine screw.
(if not, it can causes conductive particles and deal LCM a fatal blow)
(8) Please do not set LCD on its edge.
(9) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal
display, sound noise and temperature rising.

Ver. 1.0

28 /39

LD550EUD

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be
recovered when the LCD module returns to the normal condition.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.
When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-
blown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a very
small amount of glue still on the bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal­ hexane.

9-7. Appropriate Condition for Public Display

- Generally large-sized LCD modules are designed for consumer applications (TV).
Accordingly, a long-term display like in Public Display (PD) application, can cause uneven display including
image sticking. To optimize module's lifetime and function, several operating usages are required.

1. Normal operating condition

- Temperature: 0 ~ 40℃

- Operating Ambient Humidity : 10 ~ 90 %

- Display pattern: dynamic pattern (Real display)
Note) Long-term static display can cause image sticking.

2. Operating usages under abnormal condition
a. Ambient condition

- Well-ventilated place is recommended to set up PD system.
b. Power and screen save

- Periodical power-off or screen save is needed after long-term display.

Ver. 1.0

29 /39

Product Specification

3. Operating usages to protect against image sticking due to long-term static display
a. Suitable operating time: under 18 hours a day.
b. Static information display recommended to use with moving image.

- Cycling display between 5 minutes' information(static) display and 10 seconds' moving image.
c. Background and character (image) color change

- Use different colors for background and character, respectively.

- Change colors themselves periodically.
d. Avoid combination of background and character with large different luminance.

1) Abnormal condition just means conditions except normal condition.

2) Black image or moving image is strongly recommended as a screen save.

4. Lifetime in this spec. is guaranteed only when PD is used according to operating usages.

5. Module should be turned clockwise based on front view when used in portrait mode.

LD550EUD

Ver. 1.0

30 /39

# APPENDIX-I

■ Pallet Ass’y

■ Pallet Ass’y

LD550EUD

Product Specification

Ver. 1.0

NO DESCRIPTION MATERIAL

1 LCD Module ­2 BAG 55INCH
3 TAPE
4 PALLET
5 PACKING_BOTTOM EPS
6 PACKING_TOP EPS
7 ANGLE PACKING PAPER
8 ANGLE COVER PAPER

9 BAND PP
10 BAND,CLIP STEEL
11 LABEL

MASKING 20MM X 50M

Plywood (1440X1140X134.5)

YUPO PAPER 80G 100X70

31 /39

# APPENDIX- II-1

■ LCM Label

LD550EUD

Product Specification

Model

UL, TUV Mark

LGD Logo

LD550EUD
(UF)(A2)

Serial No.

Origin

Ver. 1.0

32 /39

# APPENDIX- II-2

■ Pallet Label

LD550EUD

Product Specification

LD550EUD

UFA2

18 PCS

MADE IN KOREA

001/01-01

XXXXXXXXXXXXX XXX

RoHS Verified

Ver. 1.0

33 /39

LD550EUD

Product Specification

# APPENDIX- III-1

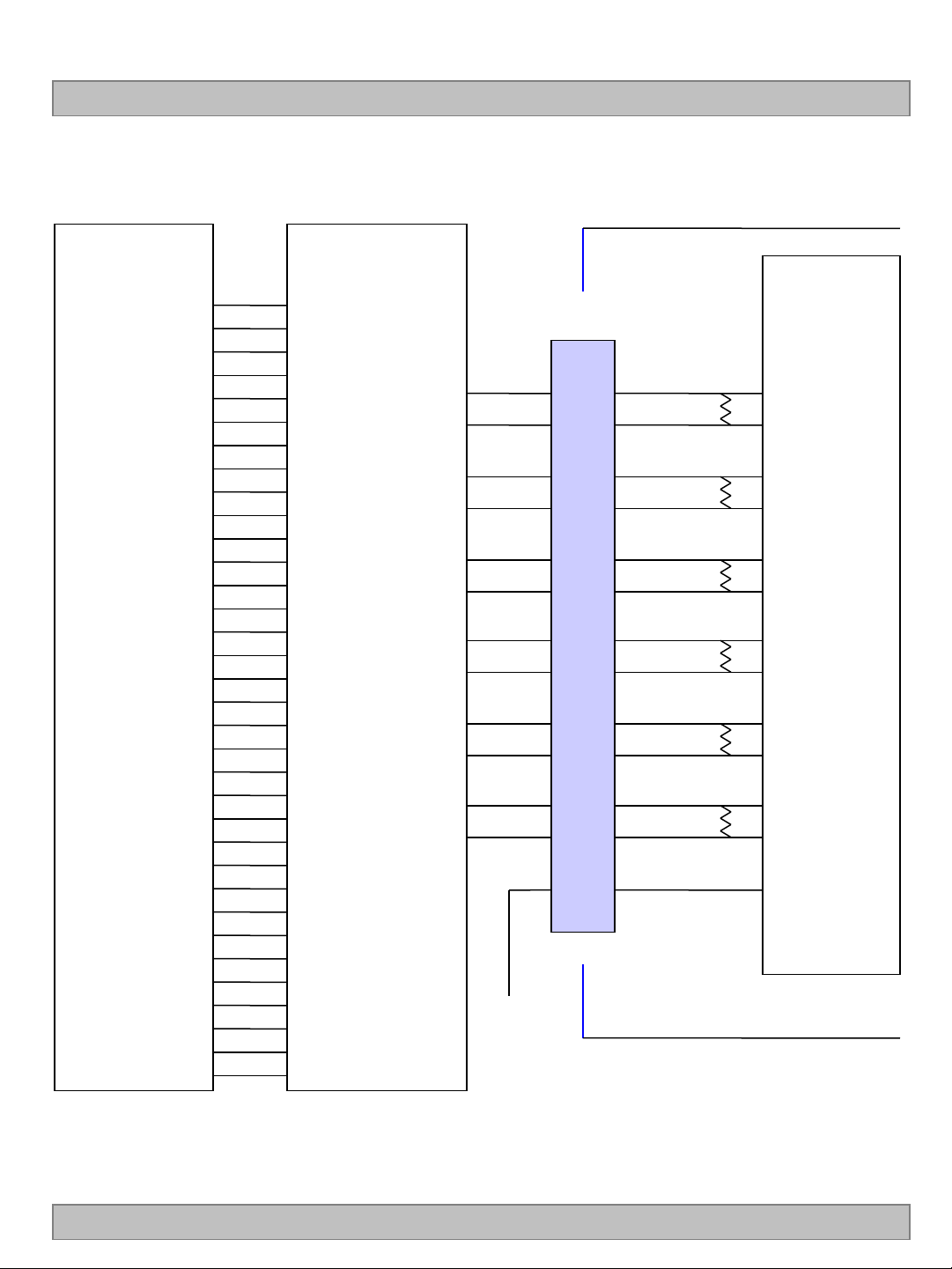

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “L” or “NC”)

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

TE-

TE+

Timing

Controller

FI-RE51S-HF

31
30

29
28

25
24

23
22

21
20

19
18

GND

12
13

14
15

16
17

19
20

22
23

24
25

7

100Ω

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

RO0N
RO0P

RO1N
RO1P

RO2N
RO2P

ROCLKN
ROCLKP

RO3N
RO3P

RO4N
RO4P

VESA/ JEIDA

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 1.0

34 /39

Product Specification

# APPENDIX- III-2

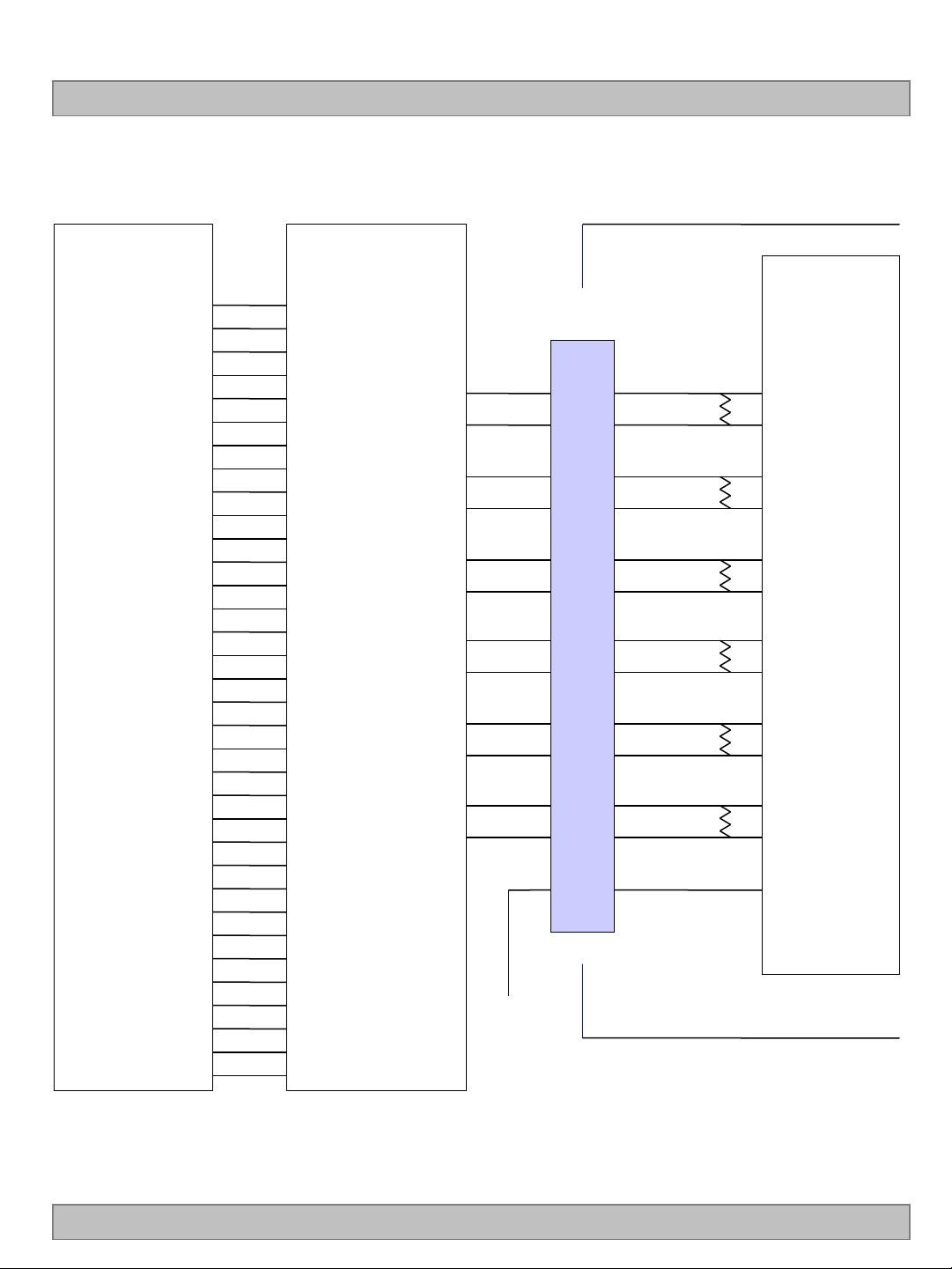

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “H” )

LD550EUD

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103
or Compatible

4
5
59
61
33
34
35
36
37
38
6
8
62
63
40
41
42
44
45
46
9
11
64
1
48
49
50
52
53
54
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

TE-

TE+

Timing

Controller

FI-RE51S-HF

31
30

29
28

25
24

23
22

21
20

19
18

VCC

12
13

14
15

16
17

19
20

22
23

24
25

7

100Ω

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

RO0N
RO0P

RO1N
RO1P

RO2N
RO2P

ROCLKN
ROCLKP

RO3N
RO3P

RO4N
RO4P

VESA /JEIDA

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 1.0

35 /39

Product Specification

# APPENDIX- IV

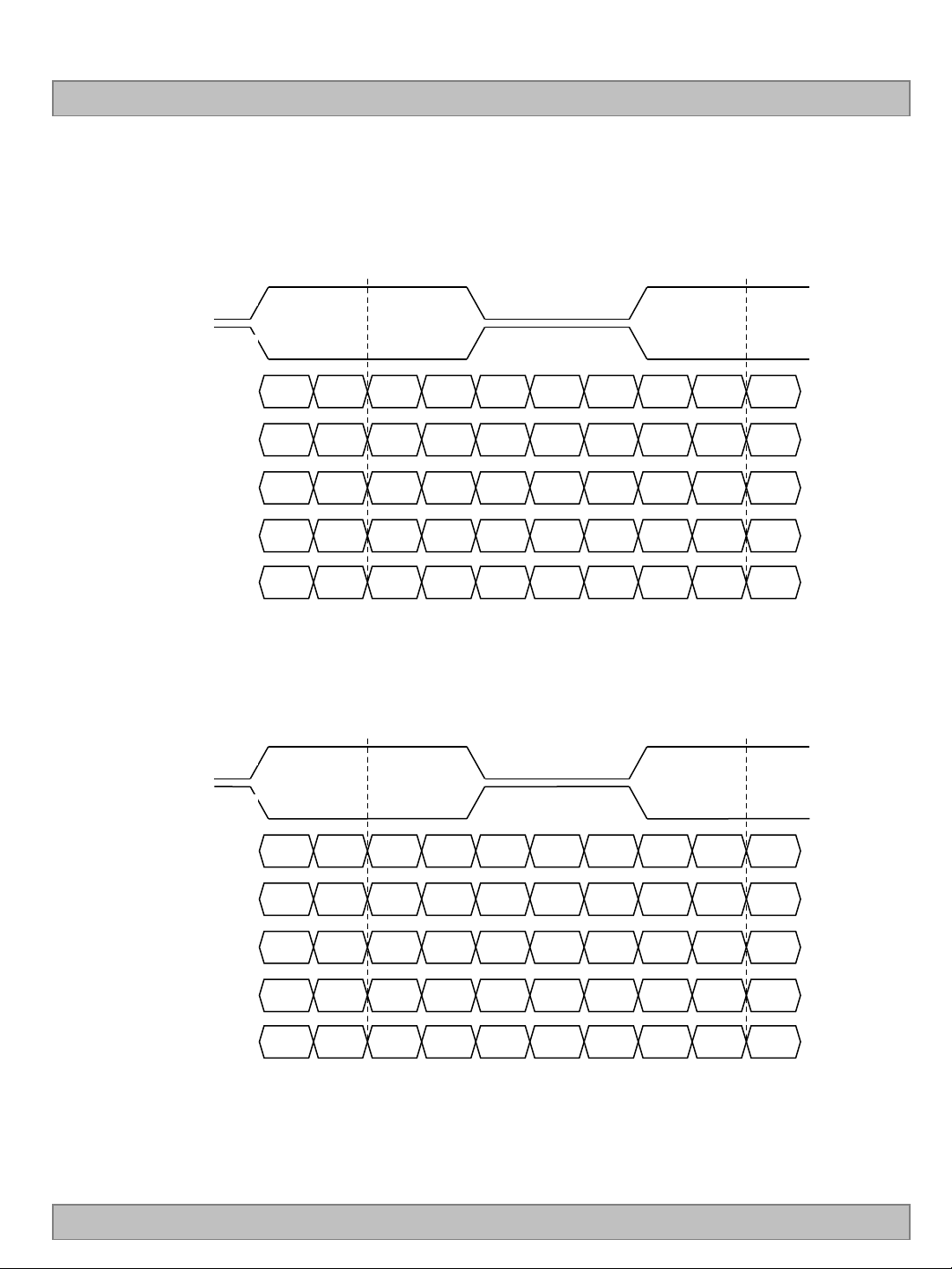

■ LVDS Data-Mapping Information (10 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LD550EUD

RAP

RBP

RCP

RDP

REP

R19 R18 R17 R16 G14 R15 R14’ R14 R15’ G14”

B14 G19 G18 G17 B15 G16 G15’ G15 G16’ B15”

V

SYNC HSYNC

B19 B18 DE B17 B16’ B16 B17’ DE”

B13 B12 G13 G12 X R13 R12’ R12 R13’ X”

B11 B10 G11 G10 X R11 R10’ R10 R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12 G10 R11 R10’ R10 R11’ G10”

B10 G15 G14 G13 B11 G12 G11’ G11 G12’ B15”

Ver. 1.0

RCP

RDP

REP

V

SYNC HSYNC

B15 B14 DE B13 B12’ B12 B13’ DE”

B17 B16 G17 G16 X R17 R16’ R16 R17’ X”

B19 B18 G19 G18 X R19 R18’ R18 R19’ X”

36 /39

Product Specification

# APPENDIX- IV

■ LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LD550EUD

RAP

RBP

RCP

RDP

R17 R16 R15 R14 G12 R13 R12’ R12 R13’ G12”

B12 G17 G16 G15 B13 G14 G13’ G13 G14’ B13”

V

SYNC HSYNC

B17 B16 DE B15 B14’ B14 B15’ DE”

B11 B10 G11 G10 X R11 R10’ R10 R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12 G10 R11 R10’ R10 R11’ G10”

B10 G15 G14 G13 B11 G12 G11’ G11 G12’ B15”

Ver. 1.0

RCP

RDP

V

SYNC HSYNC

B15 B14 DE B13 B12’ B12 B13’ DE”

B17 B16 G17 G16 X R17 R16’ R16 R17’ X”

37 /39

Product Specification

# APPENDIX- V

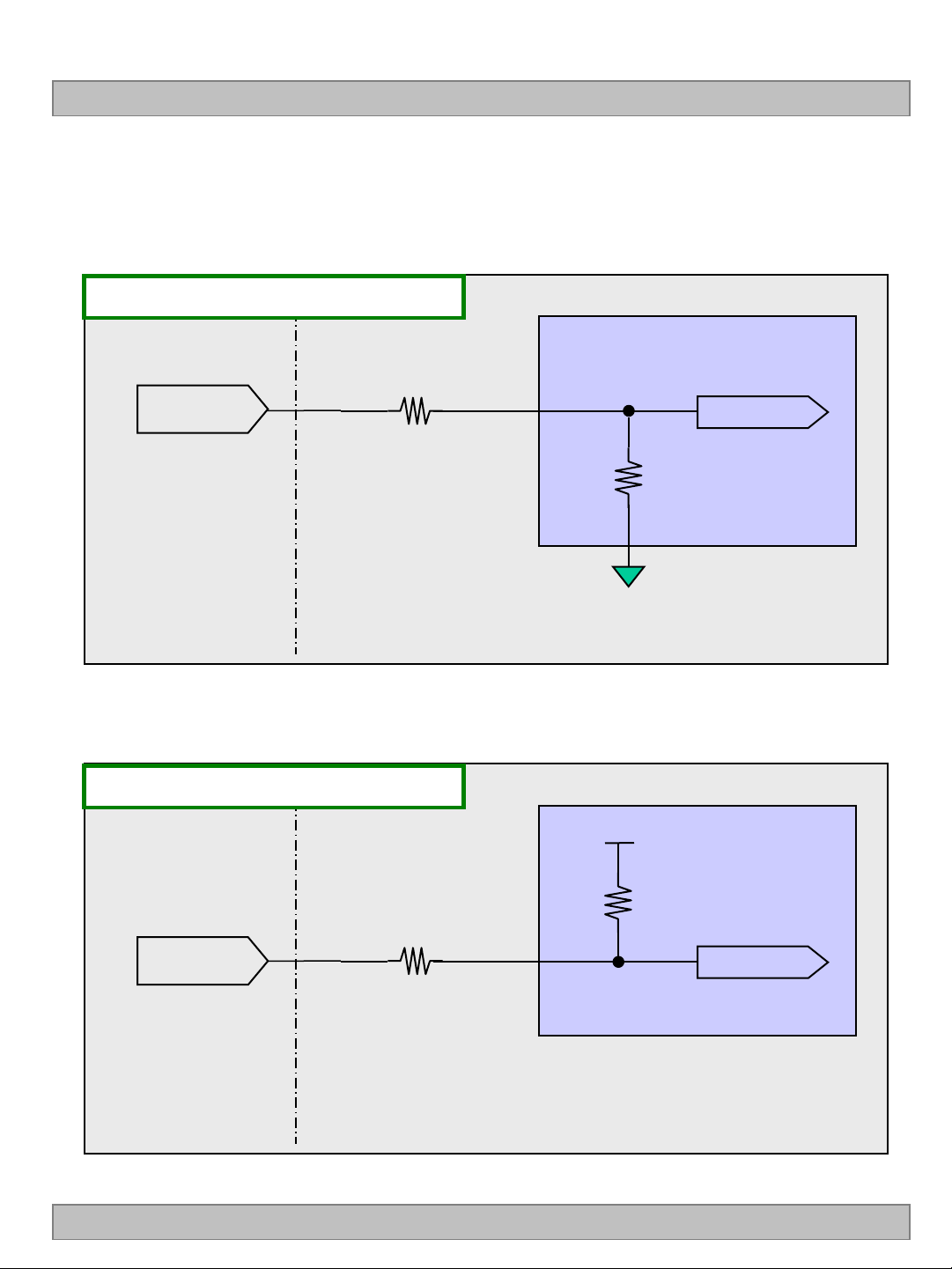

■ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 7

1KΩ

LVDS Select

(Pin 7)

95kΩ

LVDS Select

ASIC

(TCON)

LD550EUD

System Side LCM Side

2) Circuit Block Diagram of Bit Selection pin

Bit Select Pin : Pin 27

1KΩ

Bit Select

(Pin 27)

System Side LCM Side

93kΩ

VCC

ASIC

(TCON)

Bit Select

Ver. 1.0

38 /39
