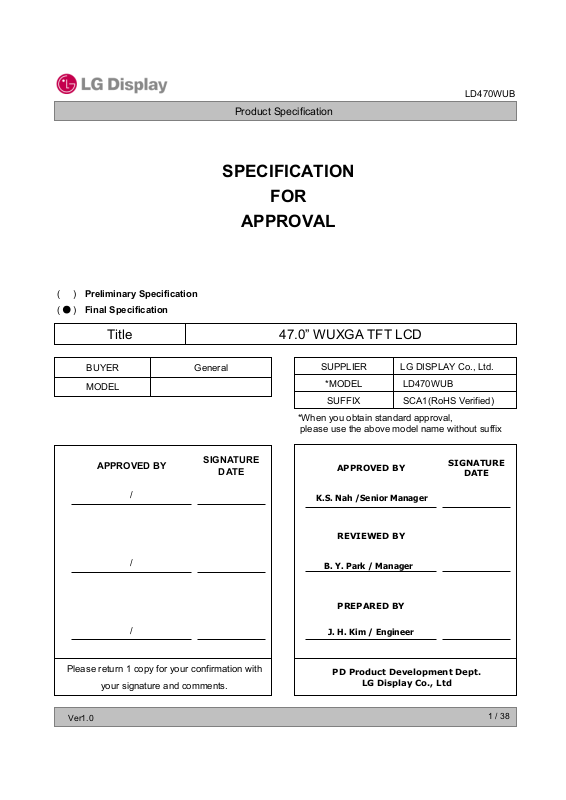

LG Display LD470WUB-SCA1 Specification

Preliminary Specification

)

(

)

(

Final Specification

●

LD470WUB

Product Specification

SPECIFICATION

FOR

APPROVAL

47.0” WUXGA TFT LCDTitle

MODEL

APPROVED BY

/

/

/

GeneralBUYER

SIGNATURE

DATE

LG DISPLAY Co., Ltd.SUPPLIER

LD470WUB*MODEL

SCA1(RoHS Verified)SUFFIX

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

K.S. Nah /Senior Manager

REVIEWED BY

B. Y. Park / Manager

PREPARED BY

J. H. Kim / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver1.0

PD Product Development Dept.

LG Display Co., Ltd

1 / 38

Product Specification

CONTENTS

LD470WUB

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION1

ABSOLUTE MAXIMUM RATINGS2

ELECTRICAL SPECIFICATIONS3

ELECTRICAL CHARACTERISTICS3-1

INTERFACE CONNECTIONS3-2

SIGNAL TIMING SPECIFICATIONS3-3

SIGNAL TIMING WAVEFORMS3-4

COLOR DATA REFERENCE3-5

POWER SEQUENCE3-6

OPTICAL SPECIFICATIONS4

MECHANICAL CHARACTERISTICS5

ITEMNumber

Page

1COVER

2

3

4

5

6

6

8

10

11

14

15

17

21

Ver1.0

RELIABILITY6

INTERNATIONAL STANDARDS7

SAFETY7-1

EMC7-2

PACKING8

DESIGNATION OF LOT MARK8-1

PACKING FORM8-2

PRECAUTIONS9

MOUNTING PRECAUTIONS9-1

OPERATING PRECAUTIONS9-2

ELECTROSTATIC DISCHARGE CONTROL9-3

PRECAUTIONS FOR STRONG LIGHT EXPOSURE9-4

STORAGE9-5

HANDLING PRECAUTIONS FOR PROTECTION FILM9-6

APPROPRIATE CONDITION FOR PUBLIC DISPLAY9-7

24

25

25

25

26

26

26

27

27

27

28

28

28

28

28

2 / 38

Product Specification

RECORD OF REVISIONS

DescriptionPageRevision DateRevision No.

Preliminary Specification (First Draft) -Jan. 14. 20100.0

Pin Configuration(Pin 7/8/9)8Mar. 3. 20100.1

Power Sequence(T3)15-

Color Coordinates (R/G/B)18-

Added contents about Panel surface in Notes 5April. 6 . 20100.2

Final Specification-April. 7 . 20101.0

OPC block is deleted. 4

Change in pin configurations8

Change in Response Time17

Final Specification-Jun. 01. 20101.1

LD470WUB

Ver1.0

3 / 38

LD470WUB

Product Specification

1. General Description

The LD470WUB is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 46.96 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.07 Billion colors.
It has been designed to apply the 10-bit 2-port LVDS interface.
It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

LVDS

2Port

LVDS
Select

Bit
Select

+12.0V

LVDS 1,2

Option
signal

CN1

(51pin)

I2C

EXTVBR-B

Status

+24.0V, GND

General Features

EEPROM

SCL

Timing Controller

LVDS Rx +

Power Circuit

SDA

DGA + ODC

Integrated

Block

Inverter

46.96 inch (1192.87mm) diagonalActive Screen Size

1068.0(H) x 613.2.0 (V) x 54.7 mm(D) (Typ.)Outline Dimension

0.5415 mm x 0.5415 mmPixel Pitch

1920 horiz. by 1080 vert. Pixels, RGB stripe arrangementPixel Format

Mini-LVDS(RGB)

Control
Signals

Power Signals

3PinX1CN(High)

3PinX1CN(High)

Source Driver Circuit

S1 S

G1

TFT - LCD Panel

(

1920 × RGB × 1080 pixels)

[Gate In Panel]

G1080

Back light Assembly

1920

Ver1.0

10Bit (D), 1.07 Billion colorsColor Depth

700 cd/m2 (Center 1point ,Typ.)Luminance, White

Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))Viewing Angle (CR>10)

Total 219.7W (Typ.) [Logic=6.7 W, Backlight=213W(V

13.5 Kg (Typ.) Weight

Transmissive mode, Normally blackDisplay Mode

Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)Surface Treatment

Landscape and Portrait Enabled Possible Display Type

BR-A

=1.65V)]Power Consumption

4 / 38

LD470WUB

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or damage to the
LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Remark

Symbol

MaxMin

Value

Power Input

Voltage

Notes

1. Ambient temperature condition (Ta = 25 ± 2 °C )

LCM

+500TOPOperating Temperature

+60-20TSTStorage Temperature

2. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39°C, and no condensation of water.

Unit

at 25 ± 2 °CVDC+14.0-0.3VLCD

VDC+27.0-0.3VBLBacklight inverter

VDC+5. 5-0.3VON/OFFON/OFF Control Voltage

VDC+5.00VBRBrightness Control Voltage

°C

°C

Note 1

%RH9010HOPOperating Ambient Humidity

%RH9010HSTStorage Humidity

Ver1.0

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [°C]

30

40

50

60

90%

60%

40%

10%

Storage

Operation

Humidity

[(%)RH]

5 / 38

LD470WUB

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the CCFL
backlight and inverter circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Value

Circuit :

Power Input Voltage

Power Input Current

Power Consumption

Rush current

LCD

I

LCD

LCD

RUSH

-P

-I

Notes: 1. The specified current and power consumption are under the V

condition whereas mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

White : 1023Gray
Black : 0Gray

MaxTypMin

12.612.011.4V

700570450

1070920750

-6.72

5.0-

=12.0V, 25 ± 2°C, fV=60Hz

LCD

V

DC

NoteUnit

1mA

2mA

1Watt

3A

Ver1.0

Mosaic Pattern(8 x 6)

6 / 38

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

Parameter Symbol

Inverter :

LD470WUB

Values

NotesUnit

MaxTypMin

Power Supply
Input Current

Power Consumption

Input Voltage for

Control System

On/Off

Signals

Brightness Adjust

Lamp:

Discharge Stabilization Time

IBL_AAfter Aging

IBL_BBefore Aging

On Vdc5.0-2.5V on

Off

Ts

Vdc25.224.022.8VBLPower Supply Input Voltage

1

1Vp-p0.5--Power Supply Input Voltage Ripple

8.9-

10.0-

11.0-

12.0-

10.3

11.0

12.0

13.0

VBR-A = 1.65V … 1A

VBR-A = 3.3V … 1A

VBR-A = 1.65V … 2A

VBR-A = 3.3V … 2A

VBL = 22.8V
VBR-B = 3.3V

A14.0--IrushPower Supply Input Current (In-Rush)

VBR-A = 1.65V

-PBL

250213

VBR-A = 1.65V … 1W

Vdc3.31.650.0VBR-ABrightness Adjust

Vdc0.80.0-0.3V off

V3.3-0VBR-B

3min3

Hrs50,000Life Time

4

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 120

minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (VBR-A : 1.65V & VBR-B :3.3V), it is total power consumption.

The ripple voltage of the power supply input voltage is under 0.5 Vp-p. LPL recommend Input Voltage is

24.0V ± 5%.

2. Electrical characteristics are determined within 30 minutes at 25±2°C.

The specified currents are under the typical supply Input voltage 24V.

3. The brightness of the lamp after lighted for 5minutes is defined as 100%.
TS is the time required for the brightness of the center of the lamp to be not less than 95% at typical current.

The screen of LCD module may be partially dark by the time the brightness of lamp is stable after turn on.

4. Specified Values are for a single lamp which is aligned horizontally.
The life time is determined as the time which luminance of the lamp is 50% compared to that of initial value
at the typical lamp current (VBR-A : 1.65V & VBR-B :3.3V), on condition of continuous operating at 25± 2°C

5. The duration of rush current is about 10ms.

Ver1.0

7 / 38

LD470WUB

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 51-pin connector is used for the module
electronics and Master 14-pin and Slave 12-pin connectors are used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-RE51S-HF or Equivalent, Refer to below table.

- Mating Connector : FI-RE51HL

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

10

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

DescriptionSymbolNo

1
2
3
4
5
6
7

8
9

GND

GND
RO0N
RO0P
RO1N
RO1P

RO2N
RO2P

GND

ROCLKN

ROCLKP

GND
RO3N
RO3P
RO4N
RO4P

Reserved

FIRST CLOCK CHANNEL C-

FIRST CLOCK CHANNEL C+

FIRST CHANNEL 4- (For 10bit D)

FIRST CHANNEL 4+ (For 10bit D)

Ground
No ConnectionNC
No ConnectionNC
No ConnectionNC
No ConnectionNC
No ConnectionNC

‘H’ =JEIDA , ‘L’ = VESA LVDS Select

No ConnectionNC
No ConnectionNC
No ConnectionNC

Ground

FIRST CHANNEL 0-

FIRST CHANNEL 0+

FIRST CHANNEL 1-

FIRST CHANNEL 1+

FIRST CHANNEL 2-

FIRST CHANNEL 2+

Ground

Ground

FIRST CHANNEL 3-

FIRST CHANNEL 3+

No connection or GND

No

27
28
29
30
31
32
33

34
35
36
37
38
39
40
41
42
43

44

45
46

47

48
49
50
51

-

Symbol

Bit Selection

RE0N
RE0P
RE1N
RE1P
RE2N
RE2P

GND
RECLKN
RECLKP

GND

RE3N
RE3P
RE4N

RE4P
Reserved
Reserved

GND

GND
GND

NC

VLCD
VLCD
VLCD
VLCD

-

SECOND CLOCK CHANNEL C-

SECOND CLOCK CHANNEL C+

SECOND CHANNEL 4- (For 10bit D)

SECOND CHANNEL 4+ (For 10bit D)

Description

‘L’=8bit,’H’=10bit (D)

SECOND CHANNEL 0-

SECOND CHANNEL 0+

SECOND CHANNEL 1-

SECOND CHANNEL 1+

SECOND CHANNEL 2-

SECOND CHANNEL 2+

Ground

Ground

SECOND CHANNEL 3-

SECOND CHANNEL 3+

No connection or GND
No connection or GND

Ground

Ground
Ground

No Connection

Power Supply +12.0V
Power Supply +12.0V
Power Supply +12.0V
Power Supply +12.0V

-

Note

Ver1.0

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. Specific pins(pin No. #2~#6) are used for internal data process of the LCD module.
These pins should be no connection.

5. Specific pins(pin No. # 8~#10) are used for OPC function of the LCD module.
If not used, these pins are no connection. (Please see the Appendix III-4 for more information.)

6. LVDS pin (pin No. #24,25,40,41) are used for 10Bit(D) of the LCD module.
If used for 8Bit(R), these pins are no connection.

7. Specific pin No. #47 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

8 / 38

Product Specification

3-2-2. Backlight Inverter

Master

-Inverter Connector : S14B-PH-SMC (JST)
or Equivalent

- Mating Connector : PHR-14 or Equivalent

Table 5. INVERTER CONNECTOR PIN CONFIGULATION

LD470WUB

Slave

-Inverter Connector : S12B-PH-SMC (JST)
or Equivalent

-Mating Connector : PHR-12 or Equivalent

Master

Slave

NoteDescriptionSymbolPin No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

VBR-A

ON/OFF

VBR-B

Status

Power Supply +24.0VVBL

Power Supply +24.0VVBL

Power Supply +24.0VVBL

Power Supply +24.0VVBL

Power Supply +24.0VVBL

Backlight GroundGND

Backlight GroundGND

Backlight GroundGND

Backlight GroundGND

Backlight GroundGND

Analog dimming voltage
DC 0.0V ~ 3.3V (Typ : 1.65V)

Burst dimming voltage
DC 0.0V ~ 3.3V

Normal : Upper 3.0V

Abnormal : Under 0.7V

VBL

VBL

VBL

VBL

VBL

GND

GND

GND

GND

GND

VBR-B

Status

Notes : 1. GND should be connected to the LCD module’s metal frame.

2. If Pin #11 is open, VBR-A = 1.65V. When apply over 1.65V( ~ 3.3V) continuously,
its luminance is increasing however lamp’s life time is decreasing.
It could be usable for boost up luminance when using DCR (=Dynamic contrast ratio) function only.

3. Minimum Brightness : VBR-B =0V Maximum Brightness : VBR-B = 3.3V

4. Even though Pin #14 is open, there is no effect on inverter operating, The output terminal of inverter.

5. Each impedance of pin #11,12 and 13 is 140[KΩ], 41[KΩ],125[KΩ]

Don’t careOn/Off0.0V ~ 5.0VV

VBL

VBL

VBL

VBL

VBL

GND

GND

GND

GND

GND

-

1

2, 3Don’t careVBR-A

3

4-

◆◆◆◆ Rear view of LCM

14

1

Ver1.0

…

<Master>

PCB

…

PCB

1

…

…

12

<Slave>

9 / 38

LD470WUB

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6-1. TIMING TABLE for NTSC (DE Only Mode)

Symbol

Display Period

Horizontal

Vertical tHP694511tVBBlank

Frequency

Blank

Total

DCLK

Horizontal

Vertical

tHV

tHB

tHP

fCLK

fH

fV

Table 6-2. TIMING TABLE for PAL (DE Only Mode)

Symbol

Display Period

tHV

NoteUnitMaxTypMinITEM

tclk-960-

tclk240140100

2200/2tclk120011001060

tHP-1080-tVVDisplay Period

tHP114911251091tVPTotal

148.5/2MHz7774.2570

KHz7067.565

Hz636057

NoteUnitMaxTypMinITEM

tclk-960-

Horizontal

Vertical tHP300270228tVBBlank

Frequency

Note

The Input of HSYNC & VSYNC signal does not have an effect on normal operation(DE Only Mode).
The performance of the electro-optical characteristics may be influenced by variance of the vertical

refresh rate.

Ver1.0

Blank

Total

DCLK

Horizontal

Vertical

tHB

tHP

fCLK

fH

fV

tclk240140100

2200/2tclk120011001060

tHP-1080-tVVDisplay Period

tHP138013501308tVPTotal

148.5/2MHz7774.2570

KHz7067.565

Hz535047

10 / 38

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

LD470WUB

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0

Valid data

Pixel 1,0

tHP

Pixel 2,0

Pixel 3,0

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver1.0

1 1080

tVV

tVP

11 / 38

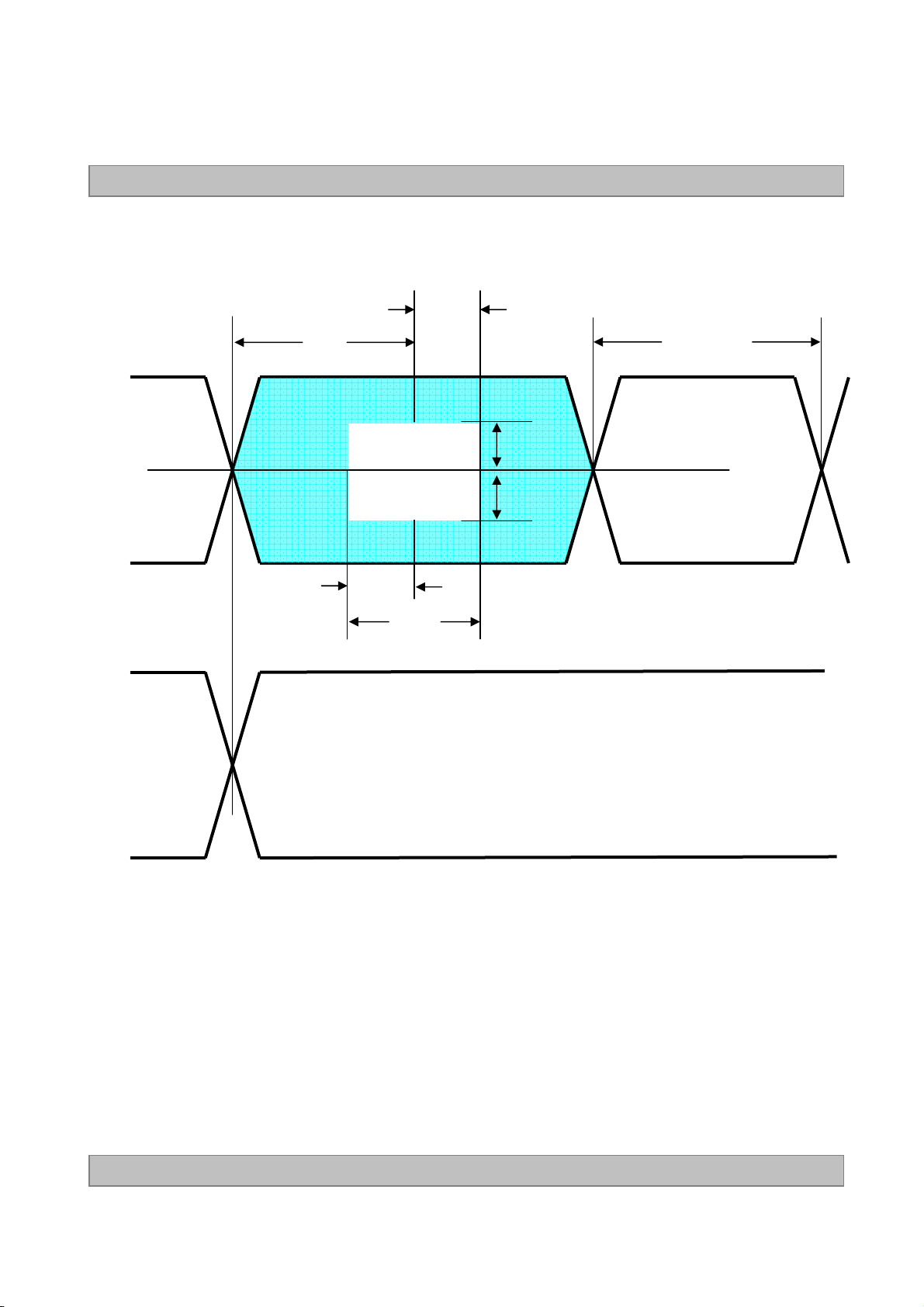

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LD470WUB

Product Specification

0V

LVDS Common mode Voltage

LVDS Input Voltage Range

2) AC Specification

LVDS Clock

LVDS Data

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

t

SKEW_mintSKEW_max

# VCM= {(LVDS +) + ( LVDS - )} /2

CM

A

(F

tSKEW

tSKEW

clk

T

clk

IN

= 1/T

V

CM

V

IN _ MAXVIN _MIN

NoteUnitMaxMinSymbolDescription

-V1.51.0V

-V1.80.7V

-mV250ΔVCMChange in common mode Voltage

T

clk

)

clk

A

80%

20%

t

RF

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew Margin

LVDS Clock/DATA Rising/Falling time

Effective time of LVDS

LVDS Clock to Clock Skew Margin (Even to Odd)

Note

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

2. If tRFisn’t enough, t

should be meet the range.

eff

3. LVDS Differential Voltage is defined within t

Ver1.0

TH

TL

SKEW

RF

eff

t

SKEW_EO

260 ps(0.3*T

eff

1/7* T

NoteUnitMaxMinSymbolDescription

mV300100V

3

mV-100-300V

)/7|t

clk

)/7t

clk

-ps|(0.25*T

2

-ps±360t

T

clk

clk

-

12 / 38

Product Specification

360ps

LD470WUB

V+
data

Vcm

V­data

V+
clk

Vcm

0.5tui

tui

VTH

VTL

360ps

teff

tui : Unit Interval

V­clk

Ver1.0

13 / 38

LD470WUB

Product Specification

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 10-bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 8 provides a reference for color versus data input.

Table 8. COLOR DATA REFERENCE

Input Color Data

BLUE

Color

RED

RED

REDRED

MSB LSB

GREEN

GREEN

GREENGREEN

MSB LSB

MSB LSB

B9 B8 B7 B6 B5 B4 B3 B2 B1 B0G9 G8 G7 G6 G5 G4 G3 G2 G1 G0R9 R8 R7 R6 R5 R4 R3 R2 R1 R0

BLUE

BLUEBLUE

Basic
Color

RED

GREEN

Black

Red (1023)
Green

(1023)
Blue (1023)

Cyan

Magenta

Yellow

White

RED (000)

RED (001)

...

RED (1022)

RED (1023)

GREEN (000)

GREEN (001)

...

GREEN
(1022)

GREEN
(1023)

BLUE (000)

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 1

...

...

......

1 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 01 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 1

...

......

......

1 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 00 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 01 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 01 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 01 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 01 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 01 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

......

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0

...

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

BLUE

Ver1.0

BLUE (001)

...

BLUE (1022)

BLUE (1023)

0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 1

...

.........

......

1 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 00 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 01 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 11 1 1 1 1 1 1 1 1 1

14 / 38

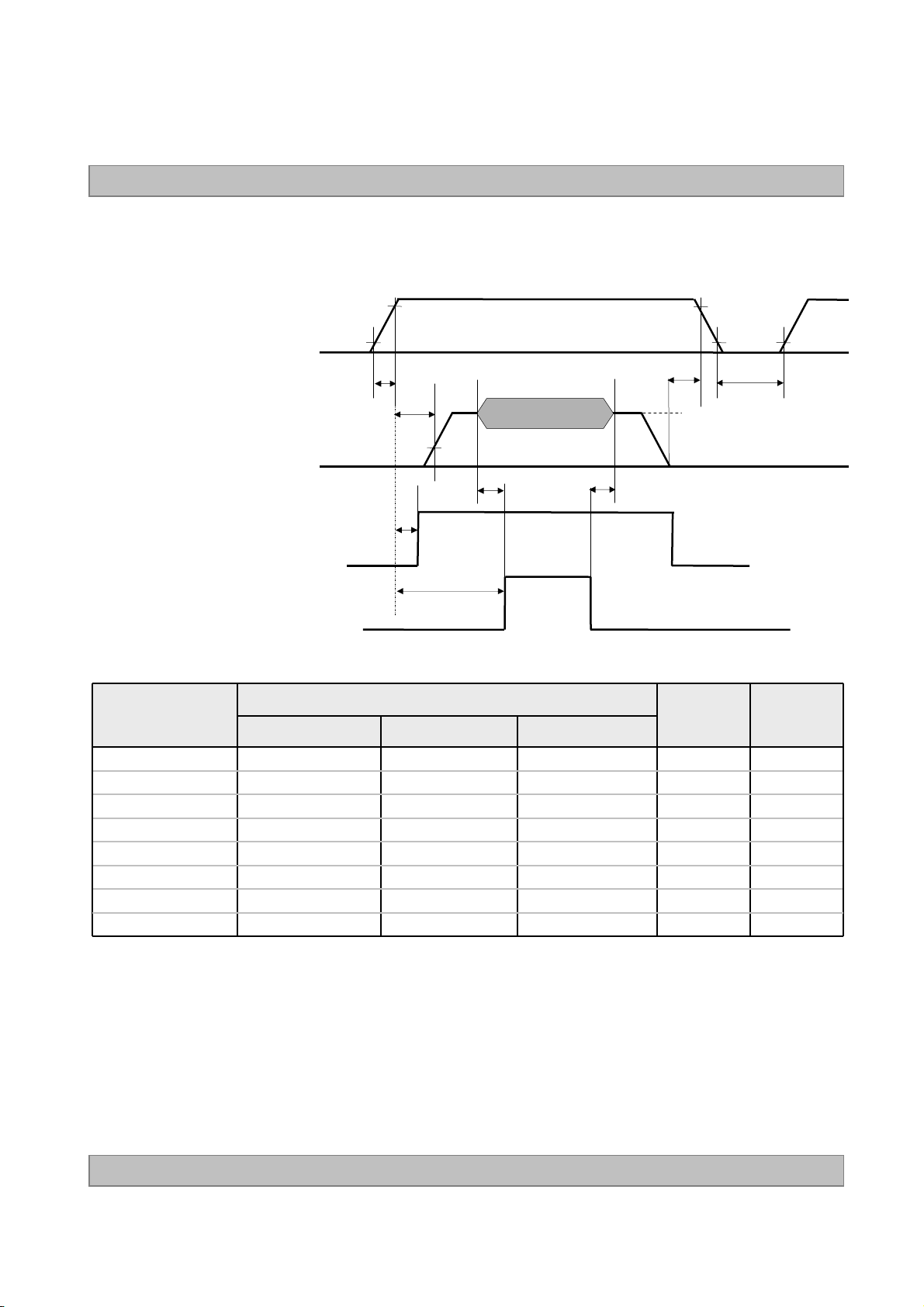

3-6. Power Sequence

3-6-1. LCD Driving circuit

LD470WUB

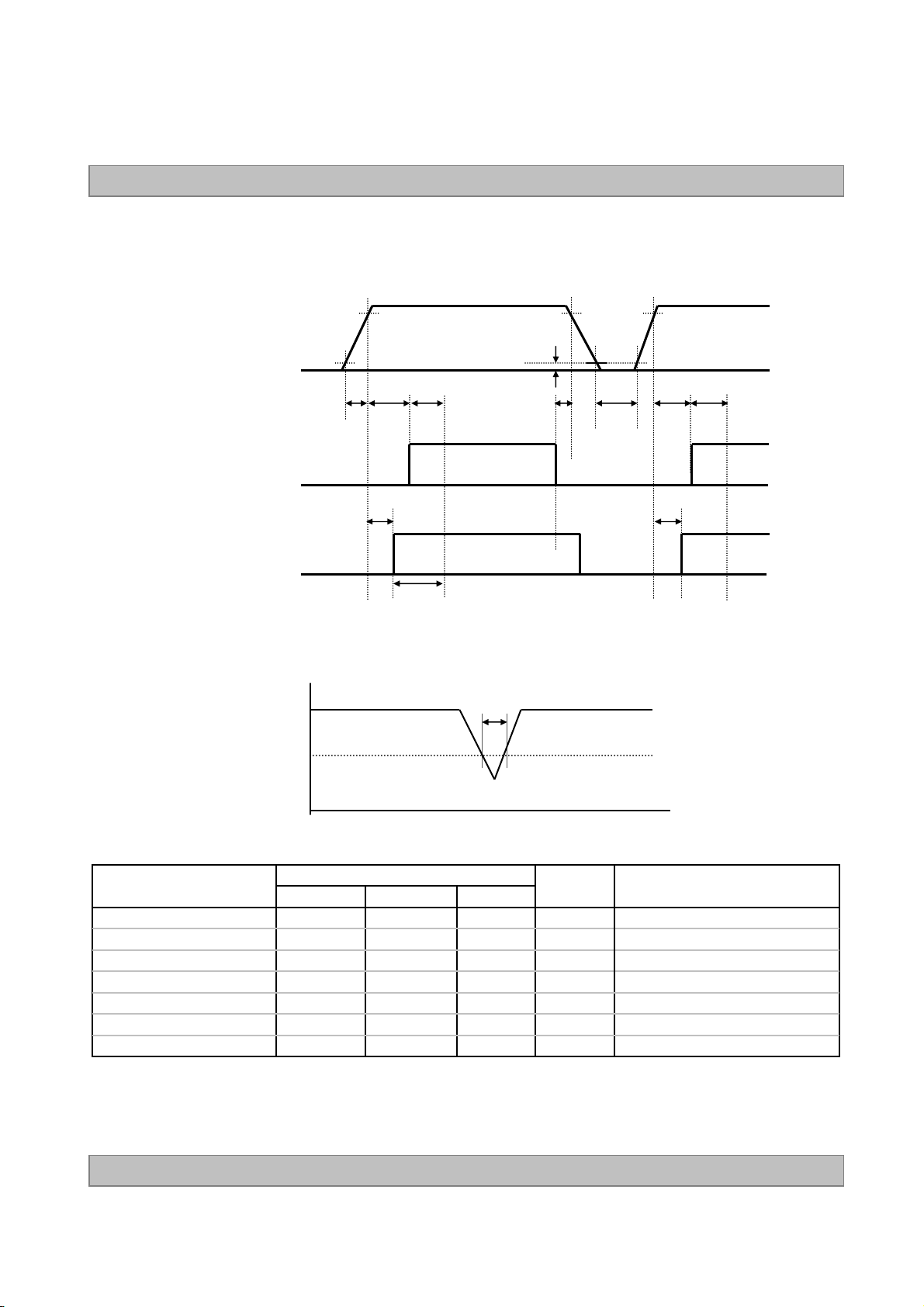

Product Specification

Power Supply For LCD

V

LCD

Interface Signal (Tx)

User Control Signal

(LVDS_select, BIT_select)

Power for Lamp

Table 8. POWER SEQUENCE

Parameter

90%

10%

0V

T1

T2

30%

0V

100%

T6

T7

Value

Min Typ Max

Valid Data

T3 T4

Lamp ON

90%

10%

T8

10%

T5

Vcm : LVDS Common mode Voltage

Unit Notes

T1 0.5 - 20 ms

T2 0 - - ms 4

T3 200 - - ms 3

T4 200 - - ms 3

T5 1.0 - - s 5

T6 - - T2 ms 4

S--0.5T7

T8 100 - - ms 6

Note :

1. Please avoid floating state of interface signal at invalid period.

2. When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. If the on time of signals(Interface signal and user control signals) precedes the on time of Power(V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

5. T5 should be measured after the Module has been fully discharged between power off and on
period.

6. It is recommendation specification that T8 has to be 100ms as a minimum value.

Ver1.0

LCD

15 / 38

),

3-6-2. Sequence for Inverter

Power Supply For Inverter

VBL

0V

10%

LD470WUB

Product Specification

24V (typ.)

90%

0.7V

T1 T2

VON/OFF

VBR-A &
VBR-B

3-6-3. Deep condition for Inverter

VBL(Typ.) x 0.8

Table 10. Power Sequence for Inverter

Parameter

1000ms (Min) 1000ms (Min)

T4

T5

T3 T2

T4

Lamp ON

T7

T6

V

: 24V

BL

0 V

Values

MaxTypMin

-

Units

ms--20T1

ms--500T2

ms--200T3

ms--10T5

VBL(Typ) x 0.8ms10--T6

Remarks

1

2ms0T4

3ms--1000T7

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

2. T4(max) is less than T2.

3. In T7 section, VBR-B is recommended 3.3V & VBR-A = 1.65V

Ver1.0

16 / 38

LD470WUB

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C.
The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of Φ and θ
equal to 0 °.

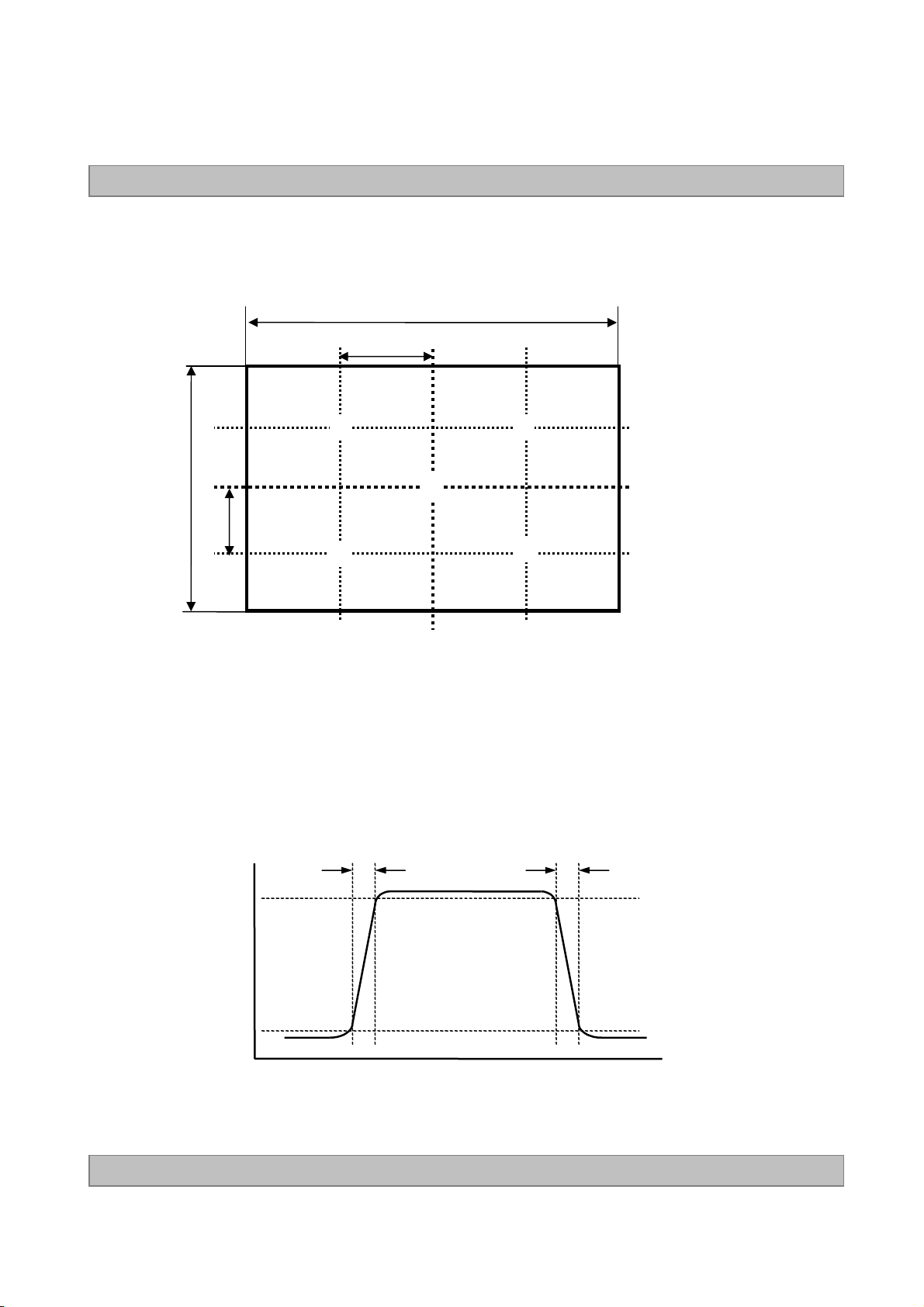

FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

FIG. 1 Optical Characteristic Measurement Equipment and Method

Table 11. OPTICAL CHARACTERISTICS

SymbolParameter

Contrast Ratio

Surface Luminance, white

Luminance Variation

Gray-to-Gray

RED

GREEN
Color Coordinates
[CIE1931]

BLUE

WHITE

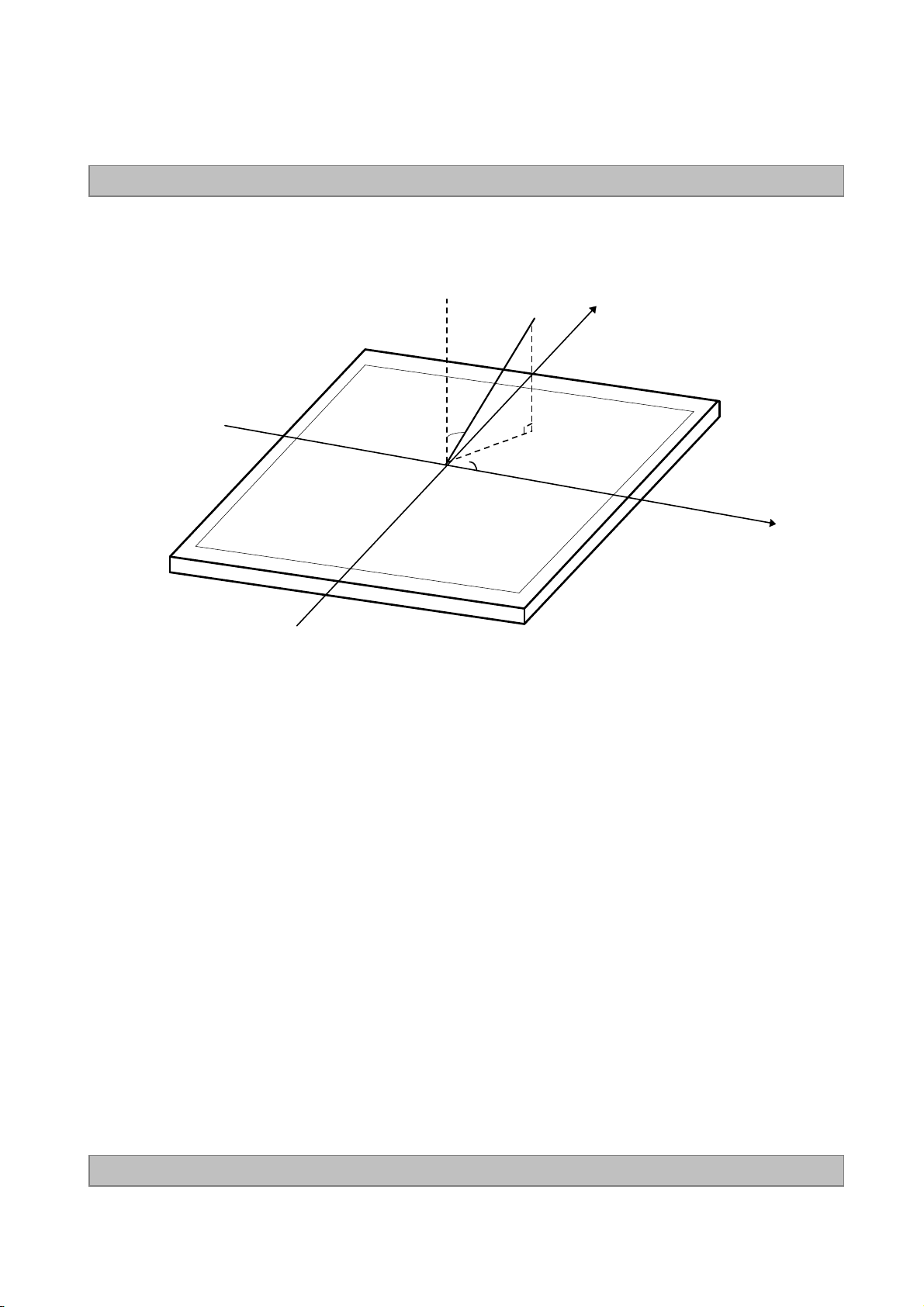

Viewing Angle (CR>10)

WH

WHITE

Rx

50cm

Typ

-0.03

Pritchard 880 or
equivalent

Ta= 25±2°C, V

Dclk=148.5MHz VBR_A=1.65V, VBR-B=3.3V

=12.0V, fV=60Hz,

LCD

Value

MaxTypMin

2

ms

0.639

0.334Ry

0.290Gx

0.606Gy

0.146Bx

0.058By

0.279Wx

0.292Wy

-700550L

Typ

+0.03

NoteUnit

1-12001000CR

2cd/m

31.3--5Pδ

4159-G to GResponse Time

Ver1.0

x axis, right(φ=0°)

x axis, left (φ=180°)

y axis, up (φ=90°)

y axis, down (φ=270°)

--89θr

--89θl

--89θu

--89θd

5degree

6---Gray Scale

17 / 38

Product Specification

Notes :1. Contrast Ratio(CR) is defined mathematically as :

CR(Contrast Ratio) = Maximum CRn (n=1, 2, 3, 4, 5)

CRn =

n = the Position number(1, 2, 3, 4, 5). For more information, see FIG 2.

2. Surface luminance are determined after the unit has been ‘ON’ and 60min after lighting the

backlight in a dark environment at 25±2°C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface luminance , δ WHITE is defined as :

Where L
For more information, see the FIG. 2.

4. Response time is the time required for the display to transition from G(N) to G(M) (Rise Time, TrR)
and from G(M) to G(N) (Decay Time, TrD). For additional information see the FIG. 3. (N<M)
※ G to G Spec is average of measured time (N, M = 0 (Black) ~ 1023(White), 128 gray step).

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

Surface Luminance at position n with all white pixels

Surface Luminance at position n with all black pixels

δ WHITE(5P) = Maximum(L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

, L

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

LD470WUB

, L

)

on5

6. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 12.

Table 12. GRAY SCALE SPECIFICATION

Gray Level

L0

L63

L127

L191

L255

L319

L383

L447

L511

L575

L639

L703

L767

L831

L895

L959

L1023

Luminance [%] (Typ.)

0.07

0.27

1.04

2.49

4.68

7.66

11.5

16.1

21.6

28.1

35.4

43.7

53.0

63.2

74.5

86.7

100

Ver1.0

18 / 38

Product Specification

Measuring point for surface luminance & measuring point for luminance variation.

H

A

③③③③②②②②

LD470WUB

V

①①①①

B

A : H / 4 mm

④④④④

FIG. 2 5 Points for Luminance Measure

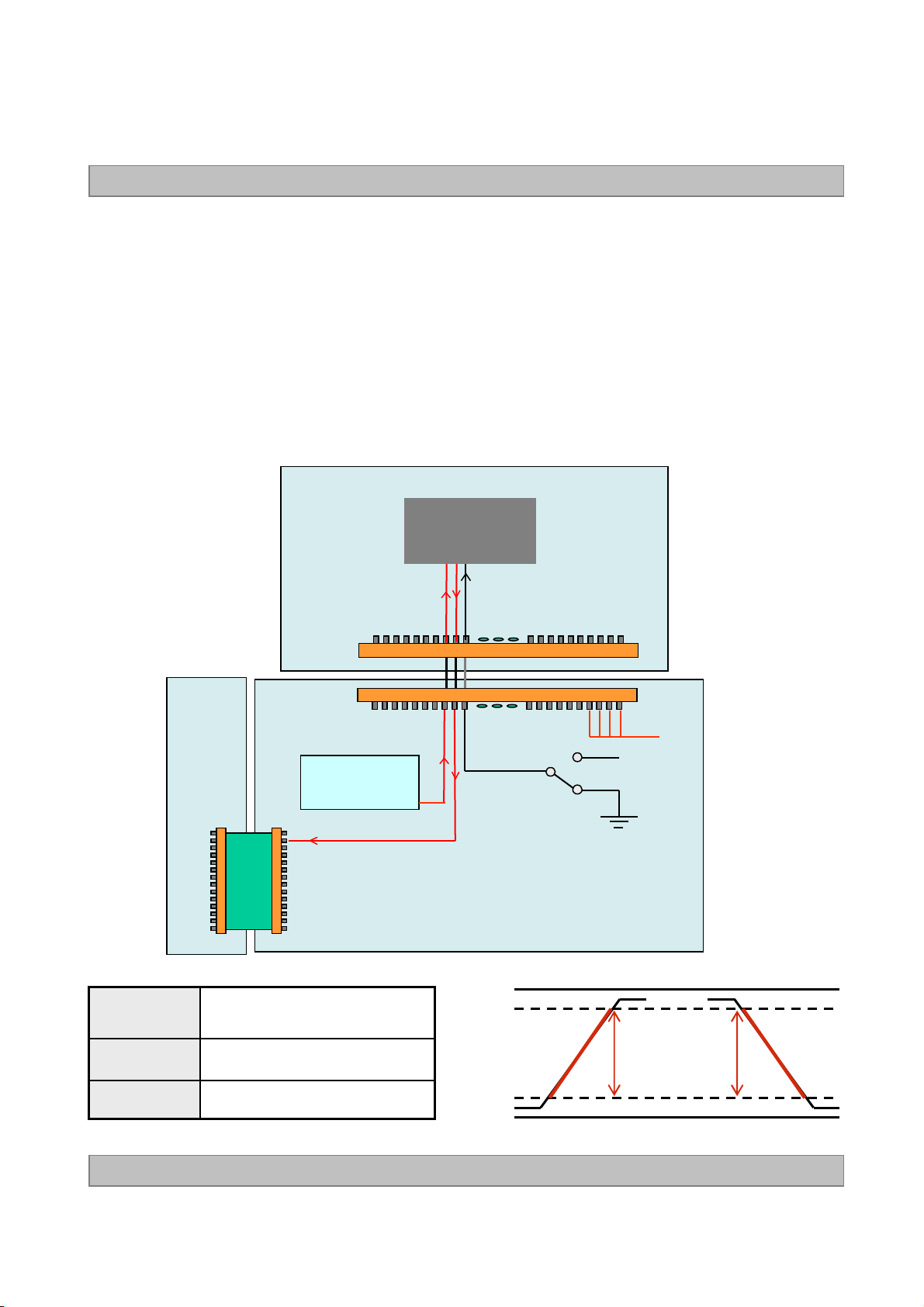

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

TrR

100

90

⑤⑤⑤⑤

TrD

B : V / 4 mm
@ H,V : Active Area

Ver1.0

Optical
Response

10

0

Gray(N)

N,M = Black~White, N<M

FIG. 3 Response Time

Gray(M)

Gray(N)

19 / 38

Dimension of viewing angle range

φ

= 180°, Left

Product Specification

Normal

E

θ

φ

Y

φ

= 90°, Up

φ

= 0°, Right

LD470WUB

φ

= 270°, Down

FIG. 4 Viewing Angle

Ver1.0

20 / 38

Product Specification

5. Mechanical Characteristics

Table 13 provides general mechanical characteristics.

Table 13. MECHANICAL CHARACTERISTICS

LD470WUB

ValueItem

1068.0 mmHorizontal

Outline Dimension

Bezel Area

Active Display Area

13.5 Kg (Typ.), 15.0 Kg (Max.)Weight

Note : Please refer to a mechanic drawing in terms of tolerance at the next page.

613.2 mmVertical

54.7 mmDepth

1046 mmHorizontal

591.2 mmVertical

1039.68 mmHorizontal

584.82 mmVertical

Ver1.0

21 / 38

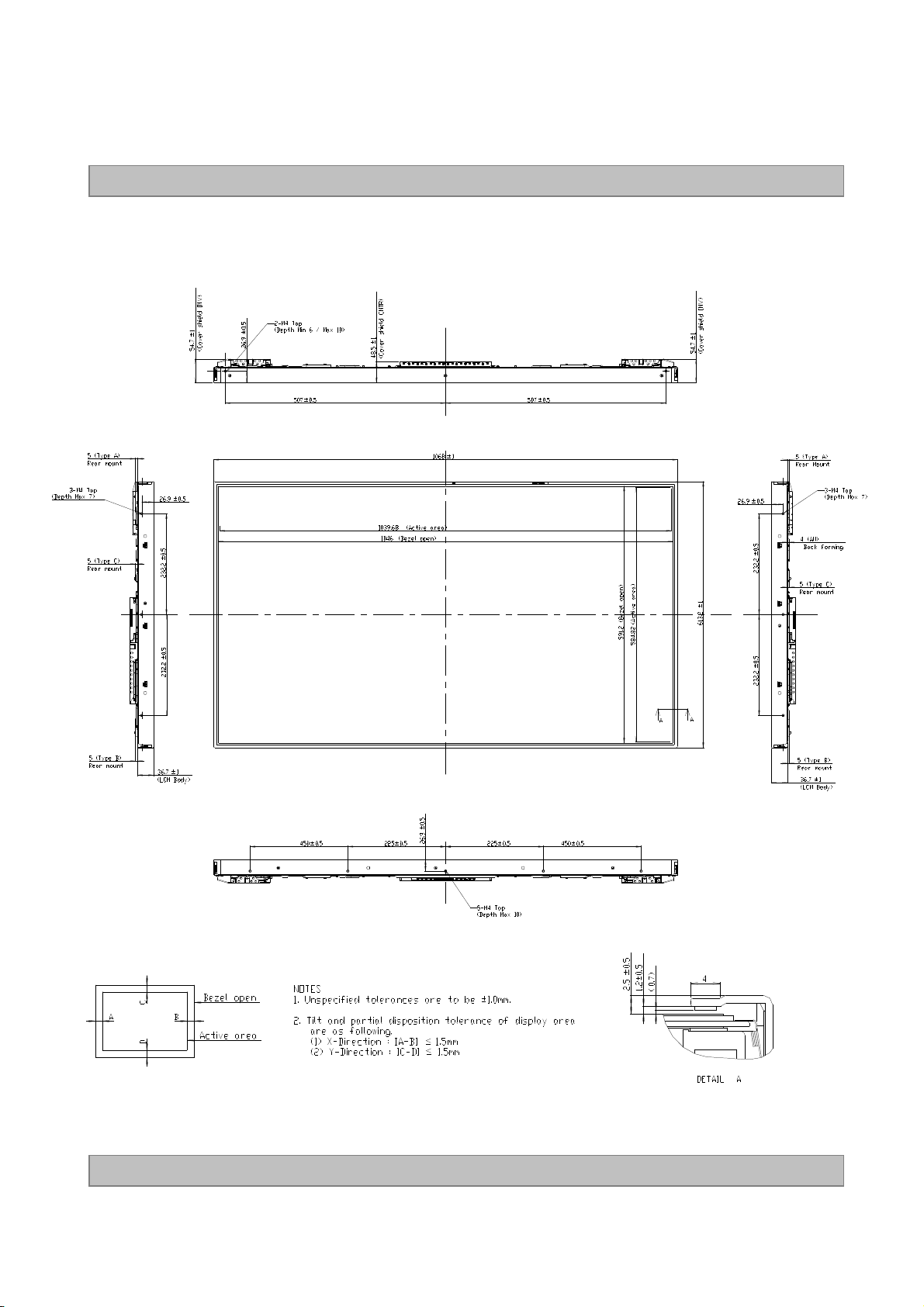

<FRONT VIEW>

LD470WUB

Product Specification

Ver1.0

22 / 38

<REAR VIEW>

LD470WUB

Product Specification

Ver1.0

23 / 38

Product Specification

6. Reliability

Table 14. ENVIRONMENT TEST CONDITION

Vibration test

5

(non-operating)

LD470WUB

ConditionTest ItemNo.

Ta= 60°C 240hHigh temperature storage test1

Ta= -20°C 240hLow temperature storage test2

Ta= 50°C 50%RH 240hHigh temperature operation test3

Ta= 0°C 240hLow temperature operation test4

Wave form : random
Vibration level : 1.0G RMS
Bandwidth : 10-300Hz
Duration : X,Y,Z, 30 min

One time each direction

Shock level :50G(X,Y axis) , 35G(Z axis)

Shock test

6

(non-operating)

Altitude operating

8

storage / shipment

Waveform : half sine wave, 11ms
Direction : ±X, ±Y, ±Z

One time each direction

Ta= 40 °C, 90%RHHumidity condition Operation7

0 - 15,000 feet
0 - 40,000 feet

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver1.0

24 / 38

Product Specification

7. International Standards

7-1. Safety

a) UL 60950-1:2003, First Edition, Underwriters Laboratories, Inc.,

Standard for Safety of Information Technology Equipment.

b) CAN/CSA C22.2, No. 60950-1-03 1st Ed. April 1, 2003, Canadian Standards Association,

Standard for Safety of Information Technology Equipment.

c) EN 60950-1:2001, First Edition,

European Committee for Electrotechnical Standardization(CENELEC)
European Standard for Safety of Information Technology Equipment.

d) IEC 60950-1:2001, First Edition, The International Electrotechnical Commission (IEC)

Standard for Safety of Information Technology Equipment.

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI),
1992

b) CISPR13 "Limits and Methods of Measurement of Radio interference characteristics of Sound

and Television broadcast receivers and associated equipment"

CISPR22 "Limits and Methods of Measurement of Radio interference characteristics of Information

Technology Equipment" International Special Committee on Radio Interference.

c) EN55013 "Limits and Methods of Measurement of Radio interference characteristics of Sound and

Television broadcast receivers and associated equipment"

EN55022 "Limits and Methods of Measurement of Radio interference characteristics of Information

Technology Equipment" European Committee for Electro Technical Standardization.(CENELEC),
1988(Including A1:2000)

LD470WUB

Ver1.0

25 / 38

Product Specification

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH)
D : YEAR E : MONTH
F : PANEL CODE G : FACTORY CODE
H : ASSEMBLY CODE I,J,K,L,M : SERIAL NO.

Note

1. YEAR

Year

200320022001

200452005

2006720078200892009

LD470WUB

2010

Mark

321

4

6

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial NO. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one Pallet : 12 pcs

b) Pallet Size : 1220mm(W) X 1140mm(D) X 860mm(H)

0

Oct

A

Nov

B

DecMarFebJan

C421

Ver1.0

26 / 38

LD470WUB

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=±200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer

(4) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.

(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) It is recommended to avoid the signal cable and conductive material over the inverter transformer

for it can cause the abnormal display and temperature rising.
(11) Partial darkness may happen during 3~5 minutes when LCM is operated initially in condition that

luminance is under 40% at low temperature (under 5℃). This phenomenon which disappears naturally
after 3~5 minutes is not a problem about reliability but LCD characteristic

Ver1.0

27 / 38

LD470WUB

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape

When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion­blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal­hexane.

.

9-7. Appropriate Condition for Public Display

- Generally large-sized LCD modules are designed for consumer applications (TV).
Accordingly, a long-term display like in Public Display (PD) application, can cause uneven display including
image sticking. To optimize module's lifetime and function, several operating usages are required.

1. Normal operating condition

- Temperature: 0 ~ 40℃

- Operating Ambient Humidity : 10 ~ 90 %

- Display pattern: dynamic pattern (Real display)
Note) Long-term static display can cause image sticking.

2. Operating usages under abnormal condition
a. Ambient condition

- Well-ventilated place is recommended to set up PD system.

b. Power and screen save

- Periodical power-off or screen save is needed after long-term display.[3.2)]

Ver1.0

28 / 38

Product Specification

3. Operating usages to protect against image sticking due to long-term static display
a. Suitable operating time: under 18 hours a day.
b. Static information display recommended to use with moving image.

- Cycling display between 5 minutes' information(static) display and 10 seconds' moving image.

c. Background and character (image) color change

- Use different colors for background and character, respectively.

- Change colors themselves periodically.

d. Avoid combination of background and character with large different luminance.

1) Abnormal condition just means conditions except normal condition.

2) Black image or moving image is strongly recommended as a screen save.

4. Lifetime in this spec. is guaranteed only when PD is used according to operating usages.

LD470WUB

Ver1.0

29 / 38

Product Specification

# APPENDIX-I-1

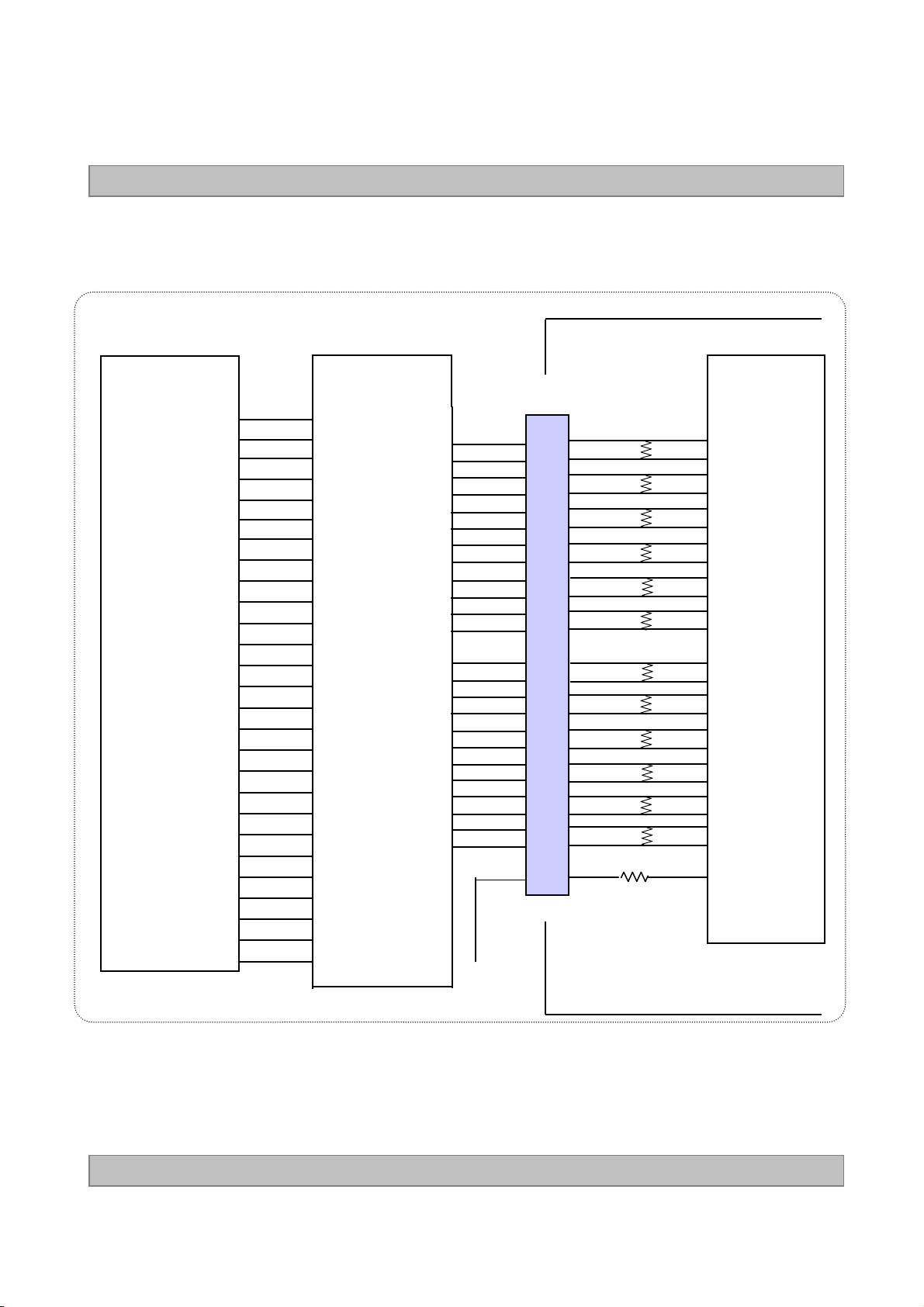

■■■■ REQUIRED SIGNAL ASSIGNMENT FOR LVDS TRANSMITTER ( Pin7=“L or NC”)

LD470WUB

Host System

24 Bit

R10/R20
R11/R21
R12/R22
R13/R23
R14/R24
R15/R25
R16/R26

R17/R27
G10/G20
G11/G21
G12/G22
G13/G23
G14/G24
G15/G25
G16/G26
G17/G27

B10/B20

B11/B21

B12/B22

B13/B23

B14/B24

B15/B25

B16/B26

B17/B27

Hsync
Vsync

Data Enable

CLOCK

THC63LVD823

or Compatible

51/79
52/80
53/81
54/82
57/83
58/84
59/85
60/86
61/89
62/90
63/91
64/92
65/93
66/94
67/95
68/96
69/97
70/98
73/99
74/100
75/1
76/2
77/5
78/6
7
8
9
10

TA1-TA1+

TB1-/TB1+

TC1-/TC1+

TCLK1-

TCLK1+

TD1-/TD1+

TE1-/TE1+

TA2-/TA2+

TB2-/TB2+

TC2-/TC2+

TCLK2-

TCLK2+

TD2-/TD2+

TE2-/TE2+

40
39
38
37
36
35

33

32
30
29

28
27

24

23

22
21

20

19

17

16
14

13

12
11

GND

FI-R51S-HF

12
13
14
15
16
17
19
20
22
23
24
25

28
29
30
31
32
33
35
36
38
39
40
41

7

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

LCD Module

Timing

Controller

RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
RO4N
RO4P

RE0N
RE0P
RE1N
RE1P
RE2N
RE2P
RECLKN
RECLKP
RE3N
RE3P
RE4N
RE4P

VESA / JEIDA

Notes :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver1.0

30 / 38

Product Specification

# APPENDIX-I-2

■ Required signal assignment for Flat Link (Thine : THC63LVD823) Transmitter(Pin7=“H”)

LD470WUB

Host System

24 Bit

R10/R20
R11/R21
R12/R22
R13/R23
R14/R24
R15/R25
R16/R26

R17/R27
G10/G20
G11/G21
G12/G22
G13/G23
G14/G24
G15/G25
G16/G26
G17/G27

B10/B20

B11/B21

B12/B22

B13/B23

B14/B24

B15/B25

B16/B26

B17/B27

Hsync
Vsync

Data Enable

CLOCK

THC63LVD823

or Compatible

51/79
52/80
53/81
54/82
57/83
58/84
59/85
60/86
61/89
62/90
63/91
64/92
65/93
66/94
67/95
68/96
69/97
70/98
73/99
74/100
75/1
76/2
77/5
78/6
7
8
9
10

TA1-TA1+

TB1-/TB1+

TC1-/TC1+

TCLK1-

TCLK1+

TD1-/TD1+

TE1-/TE1+

TA2-/TA2+

TB2-/TB2+

TC2-/TC2+

TCLK2-

TCLK2+

TD2-/TD2+

TE2-/TE2+

40
39
38
37
36
35

33

32
30
29

28
27

24

23

22
21

20

19

17

16
14

13

12
11

VCC

FI-R51S-HF

12
13
14
15
16
17
19
20
22
23
24
25

28
29
30
31
32
33
35
36
38
39
40
41

7

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

100ΩΩΩΩ

LCD Module

Timing

Controller

RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCLKN
ROCLKP
RO3N
RO3P
RO4N
RO4P

RE0N
RE0P
RE1N
RE1P
RE2N
RE2P
RECLKN
RECLKP
RE3N
RE3P
RE4N
RE4P

VESA / JEIDA

Notes:

1. The LCD module uses a 100 Ohm(Ω) resistor between positive and negative lines

of each receiver input.

2. Refer to LVDS transmitter data sheet for detail descriptions. (THC63LVD823 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver1.0

31 / 38

Product Specification

# APPENDIX- II

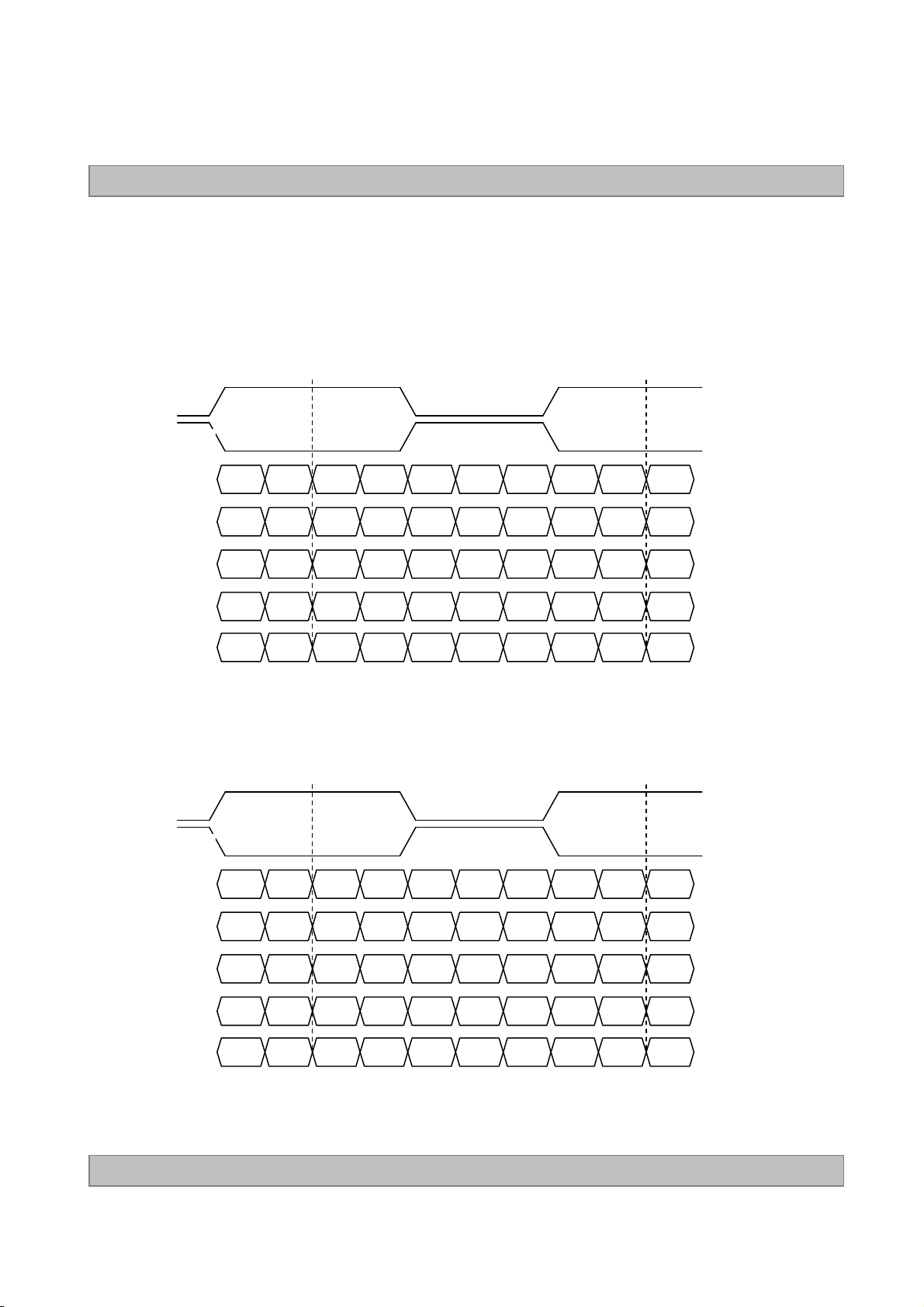

LVDS Data-Mapping info. (10bit)

■ LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LD470WUB

RAP

RBP

RCP

RDP

REP

R19 R18 R17 R16G14 R15R14’ R14R15’ G14”

B14 G19 G18 G17B15 G16G15’ G15G16’ B15”

V

SYNCHSYNC

B13 B12 G13 G12X R13R12’ R12R13’ X”

B11 B10 G11 G10X R11R10’ R10R11’ X”

B19 B18DE B17B16’ B16B17’ DE”

■ LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

Ver1.0

RCP

RDP

REP

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B19 B18 G19 G18X R19R18’ R18R19’ X”

B15 B14DE B13B12’ B12B13’ DE”

32 / 38

# APPENDIX-II

■ Pallet Ass’y

LD470WUB

Product Specification

Ver1.0

MATERIALDESCRIPTIONNO.

LCD Module1

47INCHBAG2

MASKING 20MMX50MTAPE3

PAPER 1300X1140X130MMPALLET4

EPSPACKING,BOTTOM5

EPSPACKING,TOP6

PAPER ANGLE,POST7

PAPERANGLE,PACKING8

STEELBAND,CLIP9

PPBAND10

YUPO 80G 100X100LABEL11

33 / 38

LD470WUB

# APPENDIX 2

# APPENDIX- III

■ LCM Label

Model

UL, TUV Mark

LGD Logo

US PATENT No.

LD470WUB
(SC)(A1)

RoHS Verified

Product Specification

MADE IN KOREA

Serial No.

Origin

■■■■ Serial No. (See CAS 24page for more information)

1 2 3 4 5 6 7 9 10 11 12

Year

Inch

Ver1.0

Month

M Ass’y Factory code

8

13

Serial No.

34 / 38

LD470WUB

# APPENDIX 3

# APPENDIX- IV

■ Pallet Label

Product Specification

LD470WUB

SCA1

12 PCS

MADE IN KOREA RoHS Verified

001/01-01

XXXXX XXXXXXXX XXX XXX XXXX

Ver1.0

35 / 38

Product Specification

# APPENDIX- III-3

■ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 9

1KΩΩΩΩ

LVDS Select

(Pin 9)

LD470WUB

LVDS Select

50KΩΩΩΩ

ASIC

(TCON)

System Side LCM Side

2) Circuit Block Diagram of OPC Enable Selection pin

OPC Enable Pin : Pin 10

VCC

OPEN

R1

OPC_Enable

(Pin 10)

1KΩΩΩΩ

System Side

R1 ≤≤≤≤ 1KΩΩΩΩ

LCM Side

LVDS Select

50KΩΩΩΩ

ASIC

(TCON)

Ver1.0

36 / 38

Product Specification

# APPENDIX- III-4

■ EXTVBR-B & OPC Design Guide

1) When OPC Enable is “L", OPC Output = System Dimming.

2) OPC Output( PWM Signal) is synchronized with V-Sync Freq. of System in T-Con Board.

3) Regardless of OPC, System should always give dimming Signal (EXTVBR-B) to T-con.

4) PWM Specification ( VCC = 3.3V ) @ OPC

a) PWM High Voltage Range : 2.5 V ~ 3.6 V

b) PWM Low Voltage Range : 0.0 V ~ 0.8 V

FHD LCM Control Board

T-Con

#8 : EXTVBR-B Input

#9 : OPC-OUT

#10 : OPC Enable Pin

51#1

LD470WUB

Input

Frequency

Falling Time

LCM

Master

Inverter

14

1

MAX 1Khz
(Recommendation:

System

EXTVBR-B PWM

( Async. or Sync.)

OPC Output PWM ( Sync.), Open(MAX)

13

MAX 10.0 μsRising Time

MAX 10.0 μs

50~300Hz)

VCC

VCC*0.9

VCC*0.1

0

OPC On

OPC Off

12V

3.3V

Rising Time

Falling Time

Ver1.0

37 / 38

Product Specification

# APPENDIX- IV-1

■ Inverter 14thPin (Status) Design Guide

1) Function of Status pin

- Purpose : Preventing of backlight off by restarting the inverter technically

- Purpose : Preventing of backlight off by restarting the inverter technically

- How to : When inverter is abnormal operation, TV system inputs the Von signal

- How to : When inverter is abnormal operation, TV system inputs the Von signal

in the inverter once more to turn on the lamp safely

in the inverter once more to turn on the lamp safely

- Attention : Restart system’s Von signal when status pin is high for some time (min:1sec , max:4sec).

- Attention : Restart system’s Von signal when status pin is high for some time (min:

(The turn on time of lamp can be late such as the low temperature or the storage time)

(The turn on time of lamp can be late such as the low temperature or the storage time)

2) Status operation modes in TV set2) Status operation modes in TV set

1sec , max:4sec).

LD470WUB

Normal

Mode

Status

operation

mode

System

Inverter

System Von

System Von

VON/OFF [12pin]

Backlight

Status [14pin]

Lamp turn on

Fail of Lamp turn on

Lamp turn on

V

ON

Fail

Status

1sec

~4sec

Status level low

Status level High

Feedback to system

Again System Von

Restart V

More than 0.1sec

Lamp ON

ON

3) Inverter pin map3) Inverter pin map

12

Ver1.0

V

EXTVBR-B13

NC11

ON/OFF

No Connection

Burst Dimming Control PWM signal input

Inv.DescriptionSymbolPin No

NC

On/Off0.0V ~ 5.0V

External PWM

statusNormal : Under 0.7V / Abnormal : Upper 3.0VStatus14

38 / 38
