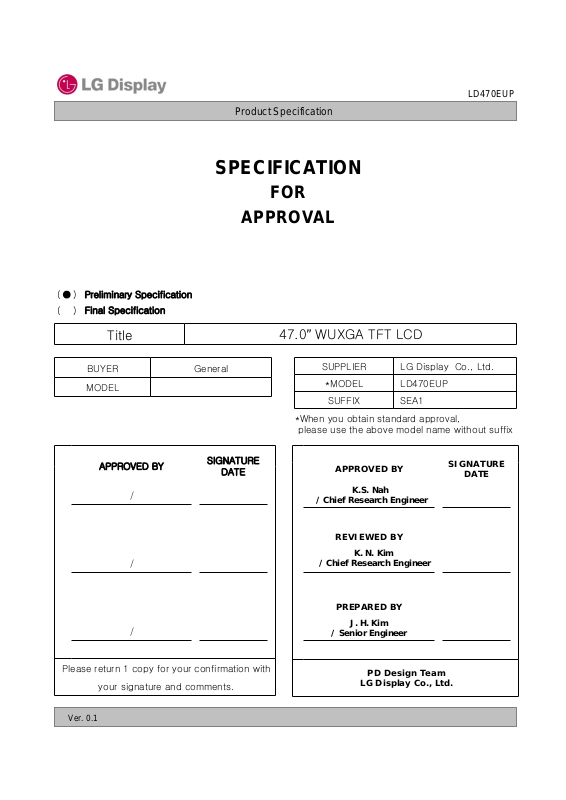

LG Display LD470EUP-SEA1 Specification

Download

Page 1

( ● ) Preliminary Specification

( ) Final Specification

LD470EUP

Product Specification

SPECIFICATION

FOR

APPROVAL

Title

BUYER General

MODEL

APPROVED BY

SIGNATURE

DATE

47.0” WUXGA TFT LCD

SUPPLIER LG Display Co., Ltd.

*MODEL LD470EUP

SUFFIX SEA1

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

K.S. Nah

/ Chief Research Engineer

REVIEWED BY

K. N. Kim

/ Chief Research Engineer

PREPARED BY

J. H. Kim

/ Senior Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.1

PD Design Team

LG Display Co., Ltd.

Page 2

Product Specification

CONTENTS

LD470EUP

Number

3-1

3-2

3-3

3-4

3-5

3-6

COVER

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

INTERFACE CONNECTIONS

SIGNAL TIMING SPECIFICATIONS

LVDS SIGNAL SPECIFICATIONS

COLOR DATA REFERENCE

POWER SEQUENCE

OPTICAL SPECIFICATIONS

MECHANICAL CHARACTERISTICS

RELIABILITY

ITEM

Page

7-1

7-2

7-3

8-1

8-2

9-1

9-2

9-3

9-4

9-5

9-6

9-7 APPROPRIATE CONDITION FOR PUBLIC DISPLAY

INTERNATIONAL STANDARDS

SAFETY

EMC

ENVIRONMENT

PACKING

INFORMATION OF LCM LABEL

PACKING FORM

PRECAUTIONS

MOUNTING PRECAUTIONS

OPERATING PRECAUTIONS

ELECTROSTATIC DISCHARGE CONTROL

PRECAUTIONS FOR STRONG LIGHT EXPOSURE

STORAGE

HANDLING PRECAUTIONS FOR PROTECTION FILM

Ver. 0.1 1/39

Page 3

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.0 Feb. 04. 2012 - Preliminary Specification (First Draft)

LD470EUP

0.1 Mar.

09.

2012 3 Changed Outline Dimension

21 Changed the contents in Table 12

22,23 Changed the Front/Rear view

24 Changed the Test Condition in Table 13(Vibration/Shock Test)

Ver. 0.1 2/39

Page 4

LD470EUP

Product Specification

1. General Description

The LD470EUP is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode. It has a 46.96 inch d iagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes. Gray scale or the luminance of the sub-p ixel color is determined with a 10-bit gray scale signal for each dot. Therefore, it can present a palette of more than 1.06Bilion colors. It has been designed to apply the 10-bit 4-port LVDS interface.

It is intended to support Public Display where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.

EPI (RGB)

Control Signals

Power Signals

G1080

Source Driver Circuit

S1 S1920

TFT - LCD Panel

(1920 ×

RGB ×

1080 pixels)

[Gate In Panel]

LVDS

2Port

LVDS

2Port

LVDS Select

L-DIM Enable

Bit Select

+12.0V

CN2

(41pin)

CN1

(51pin)

LVDS 3,4

LVDS 1,2

Option signal

I2C

EEPROM

SCL

SDA

Timing Controller

LVDS Rx + L/D + DGA + ODC

Integrated

Power Circuit

Block

SIN, SCLK, V_Sync

+24.0V, GND, On/Off

ExtV

BR-B

LED Driver

L-Dimming : 12 Block

General Features

Active Screen Size 46.96 inches(1192.87mm) diagonal

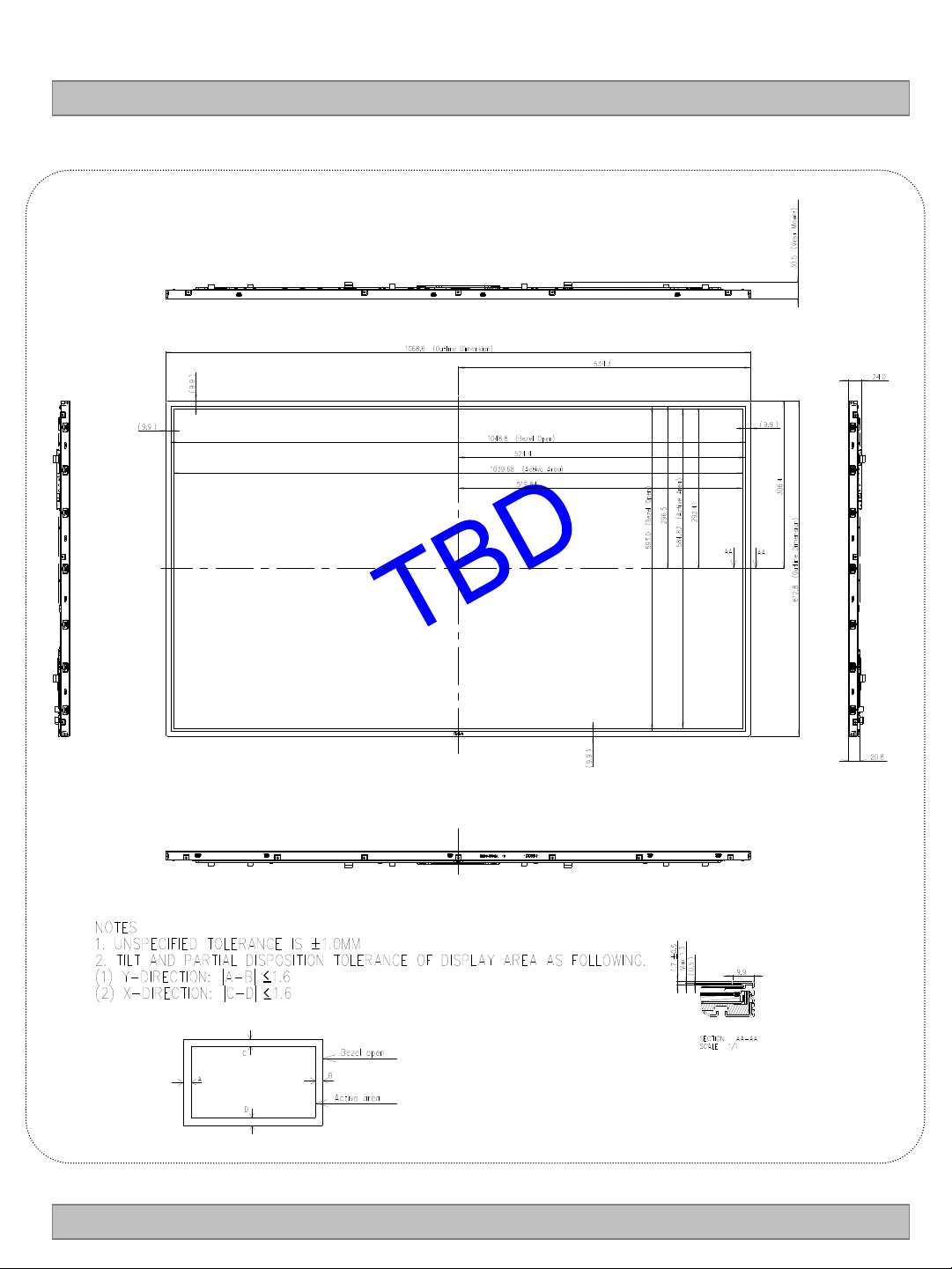

Outline Dimension 1068.8(H)

Pixel Pitch 0.5415 mm x 0.5415 mm

Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement

Color Depth 10bit(D), 1.06Billon colors

Luminance, White 700 cd/m2 (Center 1point ,Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))

Power Consumption Total 100.4W (Typ.) [Logic=8.0W, LED Driver=92.4W (ExtVbr_B=100% )] [TBD]

Weight 10.9 Kg (Typ.)

Display Mode Transmissive

Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)

Possible Display

Type Landscape & Portrait enabled

x 612.8(V)

x10.8(B)/24.0 mm(D) (Typ.)

mode, Normally black

Ver. 0.1 3/39

Page 5

LD470EUP

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC

Operating Temperature TOP 0 +50 °C

Storage Temperature TST -20 +60 °C

Panel Front Temperature TSUR - +60 °C 4

Operating Ambient Humidity HOP 10 90 %RH

Storage Humidity HST 10 90 %RH

Note

1. Ambient temperature condition (Ta =

LCD Circuit VLCD -0.3 +14.0 VDC

Driver VBL -0.3 + 27.0 VDC

ON/OFF VOFF / VON -0.3 +5.5 VDC

Brightness EXTVBR-B 0.0 +5.5 VDC

25 

2 °C )

Value

Unit Note

Min Max

2. Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 50°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 60°C with LCD module alone in a temperature controlled chamber. Thermal management should be considered in final product design to prevent the surface temperature of display area from being over 60℃. The range of operating temperature may be degraded in case of improper thermal management in final product design.

90%

2,3

60%

Storage

Operation

40%

Humidity [(%)RH]

10%

°C]

Wet Bulb Temperature [

Ver. 0.1 4/39

°C]

10 20 30 40 50 60 70 800-20 Dry Bulb Temperature [

Page 6

LD470EUP

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Min Typ Max

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Power Input Current ILCD

Power Consumption PLCD 8.0(TBD) 10.4(TBD) Watt 1

Rush current IRUSH - - 3.0 A 3

Note

1. The specified current and power consumption are under the V

- 670(TBD) 871(TBD) mA 1

- 970(TBD) 1261(TBD) mA 2

condition, and mosaic pattern(8 x 6) is displayed and f

Value

=12.0V, Ta=25 

LCD

is the frame frequency.

Unit Note

2°C, fV =120Hz

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. Ripple voltage level is recommended under ±5% of typical voltage

White : 1023 Gray Black : 0 Gray

Mosaic Pattern(8 x 6)

Ver. 0.1 5/39

Page 7

Product Specification

LD470EUP

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

Parameter Symbol

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Power Supply Input Current IBL

Power Supply Input Current (In-Rush) In-rush - - (TBD) A

Power Consumption PBL -

On/Off

Input Voltage for

Control System

Signals

LED :

Life Time 30,000 50,000 Hrs 2

Brightness Adjust ExtV

PWM Frequency for NTSC & PAL

Pulse Duty Level (PWM)

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

BR-B 1 - 100 %

PAL 100 Hz 3

NTSC 120 Hz 3

High Level 2.4 - 5.0

Low Level 0.0 - 0.7

Min Typ Max

Values

3.85(TBD) (TBD) A 1

92.4

(TBD)

Unit Notes

Ext V

W 1

On Duty

Vdc

HIGH : on duty

LOW : off duty

TBD

= 22.8V

BR-B

= 100%

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60 minutes at 25± 24Vand V

2°C. The specified current and power consumption are under the typical supply Input voltage

BR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at 25±2°C.

3. LGD recommend that the PWM freq. is synchronized with One time harmonic of V_sync signal of system. Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.

4. The duration of rush current is about 200ms. This duration is applied to LED on time.

5. Even though inrush current is over the specified value, there is no problem if I

T spec of fuse is satisfied.

6. Ext_PWM Signal have to input available duty range. Between 99% and 100%

ExtVBR-B 0% and 100% are available.

But

High

ExtVBR-B duty have to be avoided. ( 99% < ExtVBR-B < 100%)

Available duty range

Low

Ver. 0.1 6/39

99% 100%Ext_PWM Input Duty

Page 8

LD470EUP

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector and 41-pin connector are used for the module electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-RE51S-HF(manufactured by JAE) or compatible

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4-1. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

‘H

1 NC No 2

3 4 5 6 7

8 9

10 11

12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

Note

NC NC NC NC NC

LVDS Select

NC NC

L-DIM Enable

GND R1AN R1AP R1BN R1BP

R1CN R1CP

GND

R1CLKN R1CLKP

GND R1DN R1DP R1EN R1EP

NC or GND

1. All GND (ground) pins should be connected together to the LCD module’s metal frame.

2. All V

LCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #8~#9 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pin (#10) is used for Local Dimming function of the LCD module. If not used, these pins are no connection. (Please see the Appendix III-3 for more information.)

6. LVDS pin (pin No. #24,25,40,41) are used for 10Bit(D) of the LCD module. If used for 8Bit(R), these pins are no connection.

7. Specific pin No. #44 is used for “No signal detection” of system signal interface. It should be GND for NSB (No Signal Black) while the system interface signal is not. If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).

Connection (Note 4) No Connection (Note 4) No Connection (Note 4) No Connection (Note 4) No Connection (Note 4) No Connection (Note 4)

‘H

’ =JEIDA , ‘L

No Connection (Note 4) No Connection (Note 4)

‘H

’ = Enable , ‘L

Ground

FIRST LVDS Receiver Signal (A-) FIRST LVDS Receiver Signal (A+) FIRST LVDS Receiver Signal (B-) FIRST LVDS Receiver Signal (B+) FIRST LVDS Receiver Signal (C-) FIRST LVDS Receiver Signal (C+)

Ground

FIRST LVDS Receiver Clock Signal(-) FIRST LVDS Receiver Clock Signal(+)

Ground

FIRST LVDS Receiver Signal (D-) FIRST LVDS Receiver Signal (D+) FIRST LVDS Receiver Signal (E-) FIRST LVDS Receiver Signal (E+)

No Connection or Ground

’ or NC

= VESA

’ or NC = Disable

Bit Select

28 29 30 31 32 33 34 35 36 37 38 39

40 41 42 43 44 45 46 47 48 49 50 51

- - -

R2AN R2AP R2BN R2BP R2CN R2CP

GND R2CLKN R2CLKP

GND

R2DN R2DP R2EN R2EP

NC or GND NC or GND

GND Ground (Note 7)

GND Ground

NC No connection VLCD Power Supply +12.0V VLCD Power Supply +12.0V VLCD Power Supply +12.0V VLCD Power Supply +12.0V

’ or NC=

SECOND LVDS Receiver Signal (A-) SECOND LVDS Receiver Signal (A+) SECOND LVDS Receiver Signal (B-) SECOND LVDS Receiver Signal (B+) SECOND LVDS Receiver Signal (C-) SECOND LVDS Receiver Signal (C+)

Ground

SECOND LVDS Receiver Clock Signal(-) SECOND LVDS Receiver Clock Signal(+)

Ground

SECOND LVDS Receiver Signal (D-) SECOND LVDS Receiver Signal (D+) SECOND LVDS Receiver Signal (E-) SECOND LVDS Receiver Signal (E+)

No Connection or Ground No Connection or Ground

10bit(D) , ‘L

’ = 8bit

Ver. 0.1 7/39

Page 9

Product Specification

-LCD Connector (CN2) : FI-RE41S-HF (manufactured by JAE) or compatible

- Mating Connector : FI-RE41HL

Table 4-2. MODULE CONNECTOR(CN2) PIN CONFIGURATION

No Symbol Description No Symbol Description

1 2 3 4 NC 5 6 7 8

9 10 11

12 13 RB3P 14 15 16 17 18 RCLK3P 19 20 21

NC NC NC

NC NC NC NC

GND

RA3N RA3P RB3N

RC3N RC3P

GND

RCLK3N

GND RD3N RD3P

No connection 22 No connection 23 No connection 24 GND Ground

No connection No connection

No connection 27 No connection 28 No connection 29 RB4P

Ground

THIRD LVDS Receiver Signal (A-) THIRD LVDS Receiver Signal (A+) THIRD LVDS Receiver Signal (B-) THIRD LVDS Receiver Signal (B+) THIRD LVDS Receiver Signal (C-) THIRD LVDS Receiver Signal (C+)

Ground

THIRD LVDS Receiver Clock Signal(-) THIRD LVDS Receiver Clock Signal(+)

Ground

THIRD LVDS Receiver Signal (D-) THIRD LVDS Receiver Signal (D+)

25 GND Ground 26

30 31 32 33 34 RCLK4P 35 36 37 38 39 40 GND Ground 41 GND Ground

RE3N RE3P

RA4N RA4P

RB4N

RC4N

RC4P

GND

RCLK4N

GND RD4N RD4P

RE4N RE4P

THIRD LVDS Receiver Signal (E-) THIRD LVDS Receiver Signal (E+)

FORTH LVDS Receiver Signal (A-) FORTH LVDS Receiver Signal (A+) FORTH LVDS Receiver Signal (B-) FORTH LVDS Receiver Signal (B+) FORTH LVDS Receiver Signal (C-) FORTH LVDS Receiver Signal (C+)

Ground

FORTH LVDS Receiver Clock Signal(-) FORTH LVDS Receiver Clock Signal(+)

Ground

FORTH LVDS Receiver Signal (D-) FORTH LVDS Receiver Signal (D+) FORTH LVDS Receiver Signal (E-) FORTH LVDS Receiver Signal (E+)

LD470EUP

Note : 1. All GND (ground) pins should be connected together to the LCD module’s metal frame.

2. LVDS pin (pin No. #22,23,38,39) are used for 10Bit(D) of the LCD module. If used for 8Bit(R), these pins are no connection.

CN3

CN1 CN2

#1 #51 #1 #41

TBD

CN3

#1 #8

CN1 CN2

#1 #51

#1 #41

TBD

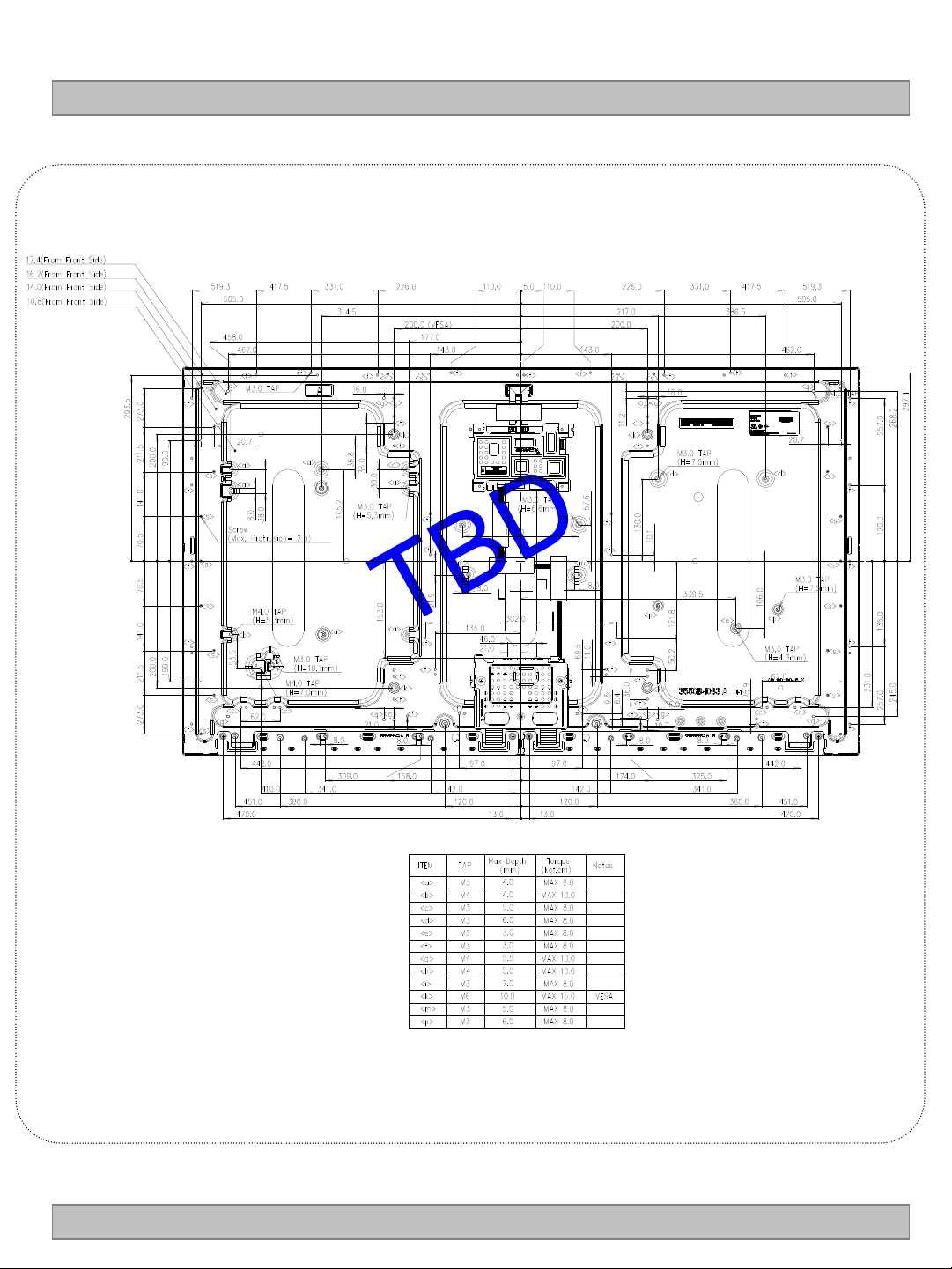

Rear view of LCM

Ver. 0.1 8/39

Page 10

Product Specification

3-2-2. Backlight Module

Master

-LED Driver Connector

: 20022WR - H14B2(Yeonho)

Mating Connector

: 20022HS - 14B2(Yeonho)

Table 5. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LD470EUP

VBL Power Supply +24.0V

GND Backlight Ground

Status

ON/OFF

EXTVBR-B

Back Light Status

Backlight ON/OFF control Don’t care

External PWM

Notes 1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )

4. Each impedance of pin #12 and 14 is over 50 [KΩ] .

◆

Rear view of LCM

Status

PCB

…

Ver. 0.1 9/39

Page 11

LD470EUP

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Vertical

Frequency

Display

Period

Blank t

Total t

Display

Period

Blank tVB

Total t

HV 480 480 480 tCLK 1920 / 4

HB 40 70 200 tCLK 1

HP 520 550 680 tCLK

VV 1080 1080 1080 Lines

(228)

1100

(1308)

(270)

1125

(1350)

(300)

1166

(1380)

Lines 1

Lines

ITEM Symbol Min Typ Max Unit Note

DCLK f

Horizontal f

Vertical f

CLK 66.97 74.25 78.00 MHz

H 121.8 135 140 KHz 2

108

(95)

120

(100)

122

(104)

2 NTSC (PAL)

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical refresh rate and the horizontal frequency

※ Timing should be set based on clock frequency.

Ver. 0.1 10 /39

Page 12

3-4. LVDS Signal Specification

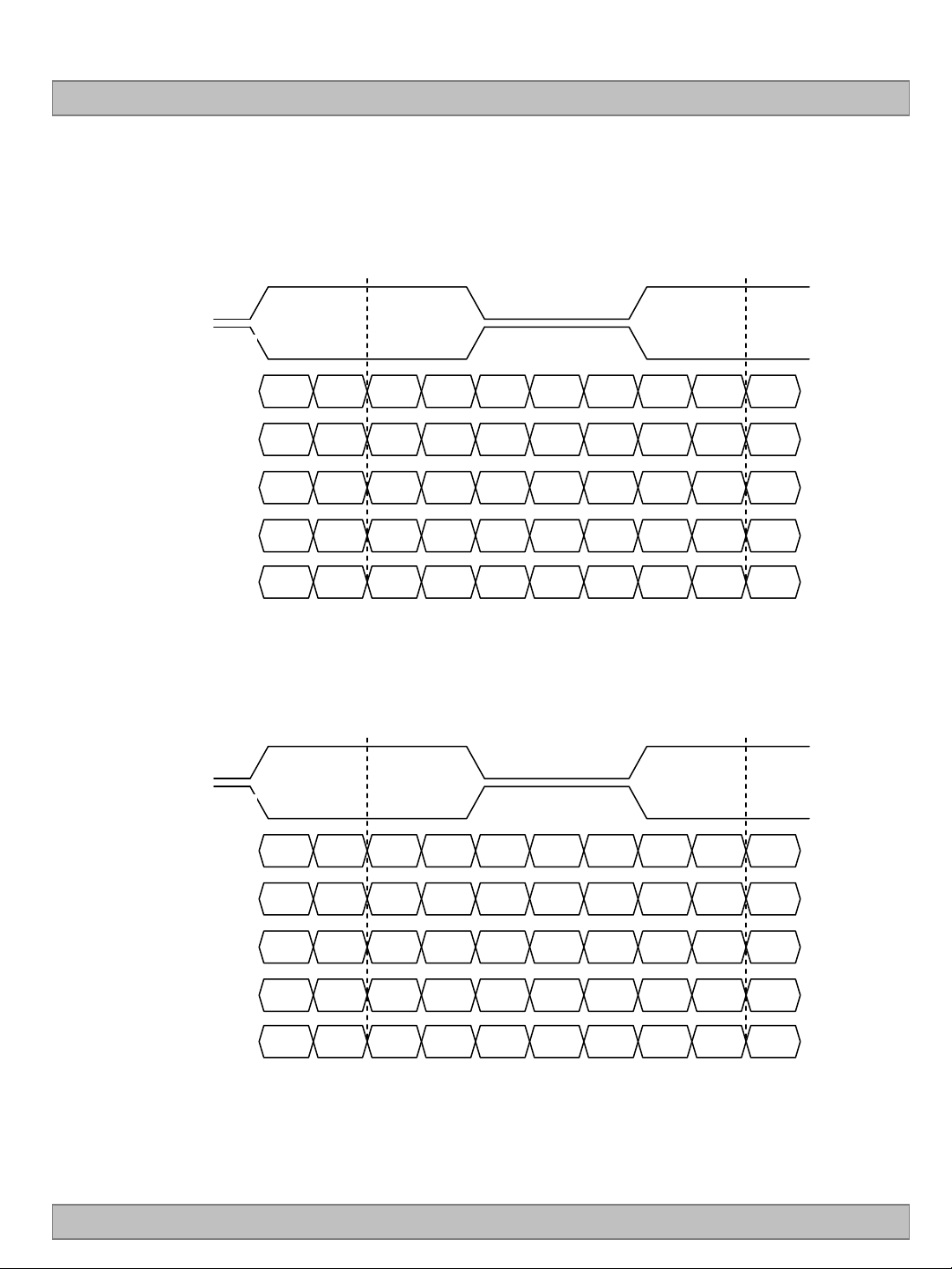

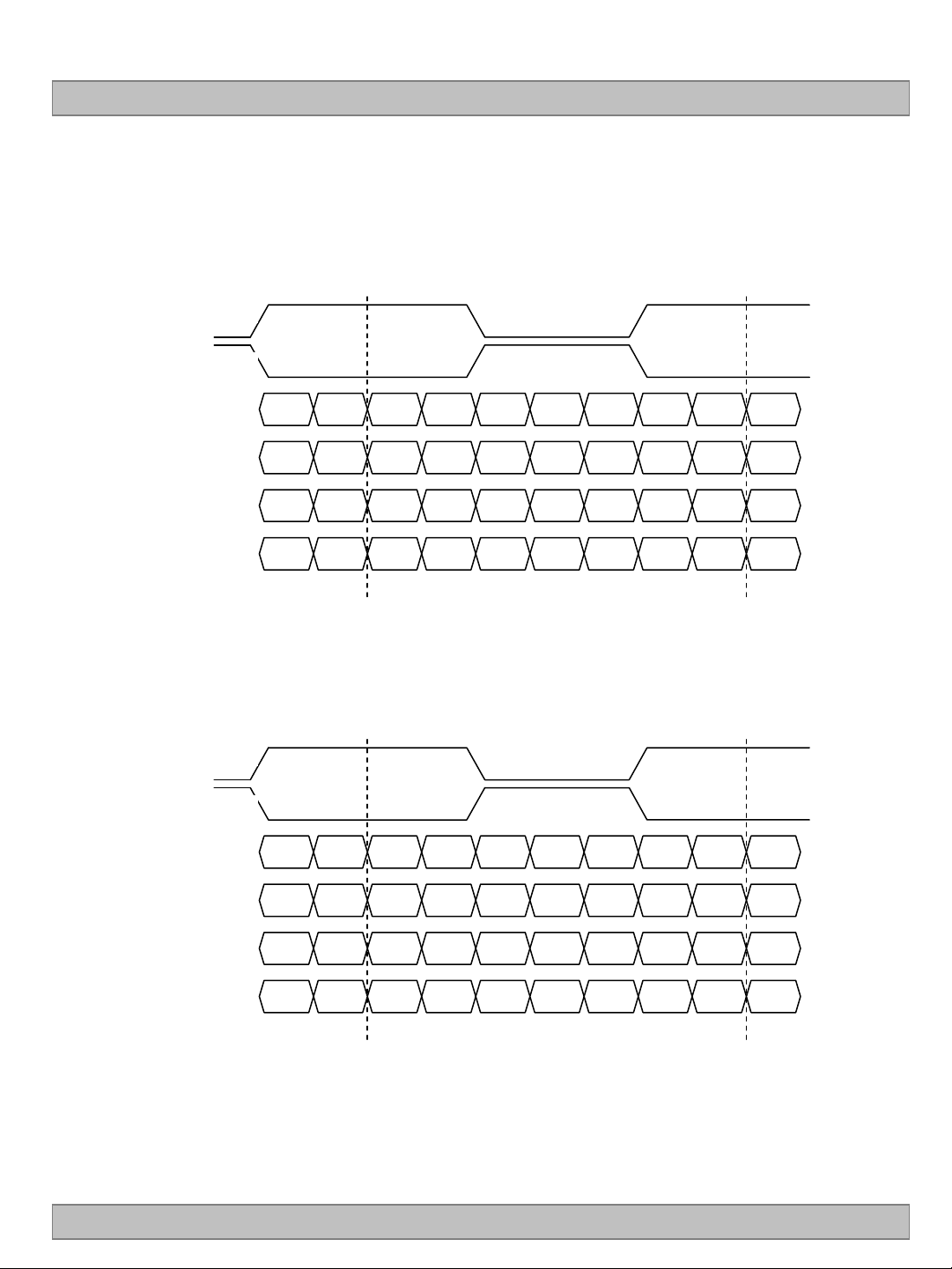

3-4-1. LVDS Input Signal Timing Diagram

LD470EUP

Product Specification

DCLK

First data

Second data

Third data

Forth data

DE(Data Enable)

tCLK

0.5 VDD

Invalid data

DE, Data

Valid data

Pixel 0

Valid data

Pixel 1

Valid data

Pixel 2

Valid data

Pixel 3

Pixel 4

Pixel 5

Pixel 6

Pixel 7

0.7VDD

0.3VDD

Invalid data

* tHB = tHFP + tWH +tHBP

* tVB = tVFP + tWV +tVBP

1 1080

DE(Data Enable)

tVV

tVP

Ver. 0.1 11 /39

Page 13

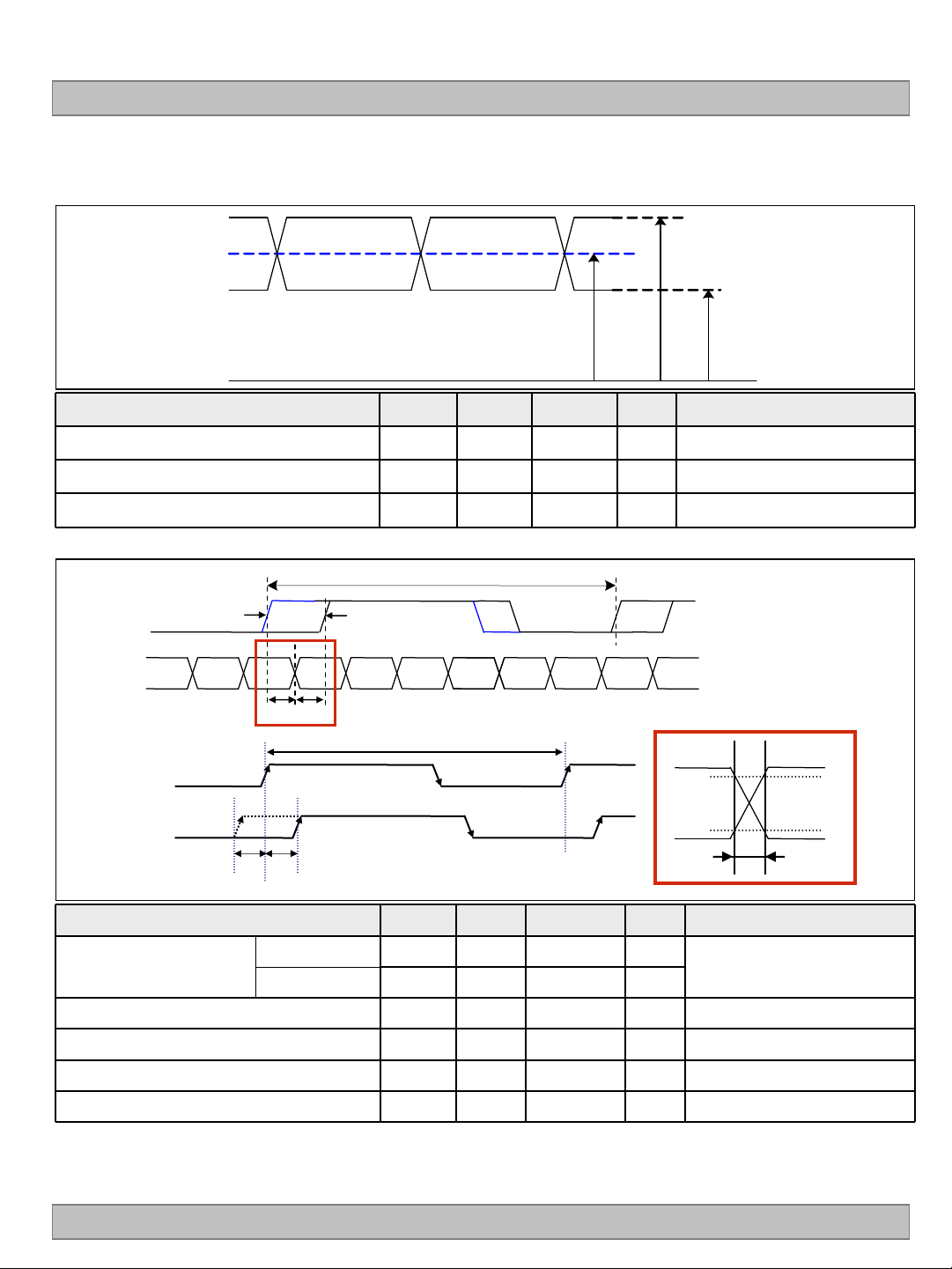

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LD470EUP

Product Specification

IN _ MAXVIN _MIN

# VCM= {(LVDS +) + ( LVDS -)}/2

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V LVDS Input Voltage Range V

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM - 250 mV -

2) AC Specification

clk

LVDS Clock

LVDS Data

= 1/T

)

clk

LVDS 1’st Clock

LVDS 2

/ 3

tSKEW

/ 4

Clock

SKEW_mintSKEW_max

clk

80%

20%

Description Symbol Min Max Unit Note

LVDS Differential Voltage

High Threshold

Low Threshold LVDS Clock to Data Skew t LVDS Clock/DATA Rising/Falling time t Effective time of LVDS t LVDS Clock to Clock Skew (Even to Odd) t

Note

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

2. If t

isn’t enough, t

should be meet the range.

eff

SKEW

eff

SKEW_EO

3. LVDS Differential Voltage is defined within t

Ver. 0.1 12 /39

100 600 mV

-600 -100 mV

- |(0.25*T

260 |(0.3*T

)/7| ps -

clk

)/7| ps 2

clk

|±360| - ps -

- |1/7* T

eff

| ps -

clk

Page 14

Product Specification

LD470EUP

LVDS Data

(Differential)

LVDS CLK

0.5tui

360ps

tui

VTH

VTL

360ps

teff

tui : Unit Interval

(Differential)

* This accumulated waveform is tested with differential probe

Ver. 0.1 13 /39

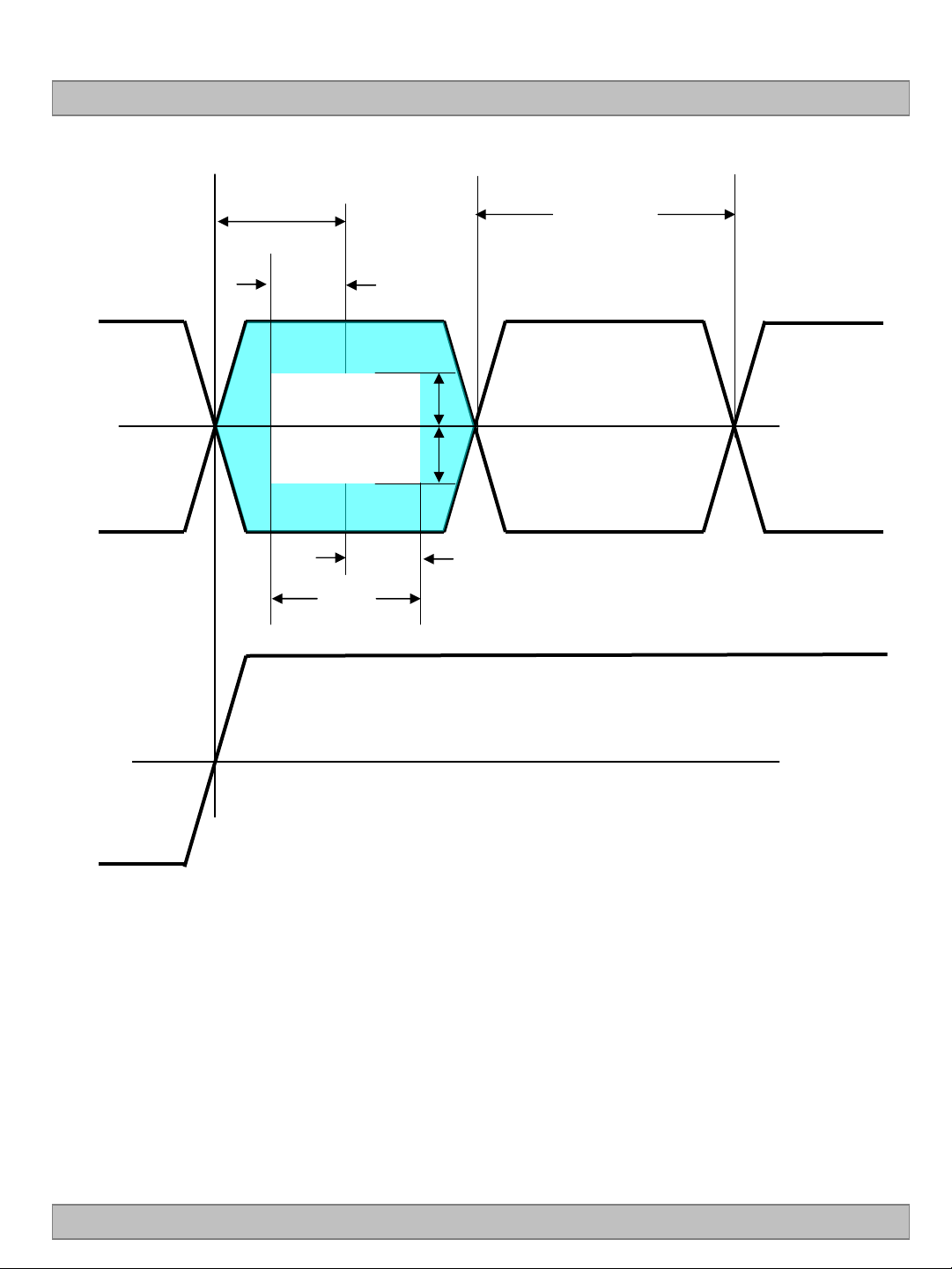

Page 15

LD470EUP

Product Specification

3-5. Color Data Reference

The brightness of each primary color (red, green, blue) is based on the 10bit gray scale data input for the color. The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

Color

Black

Red (1023)

Green (1023)

Blue (1023)

Cyan

Magenta

Yellow

White

RED (0000)

RED (0001)

RED

MSB LSB

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

GREEN

MSB LSB

… ... ... ...

RED (1022)

RED (1023)

GREEN (0000)

1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

... ... ...

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1

GREEN

BLUE

GREEN (0001)

...

GREEN (1022)

GREEN (1023)

BLUE (0000)

BLUE (0001)

… ... ... ...

BLUE (1022)

BLUE (1023)

Ver. 0.1 14 /39

Page 16

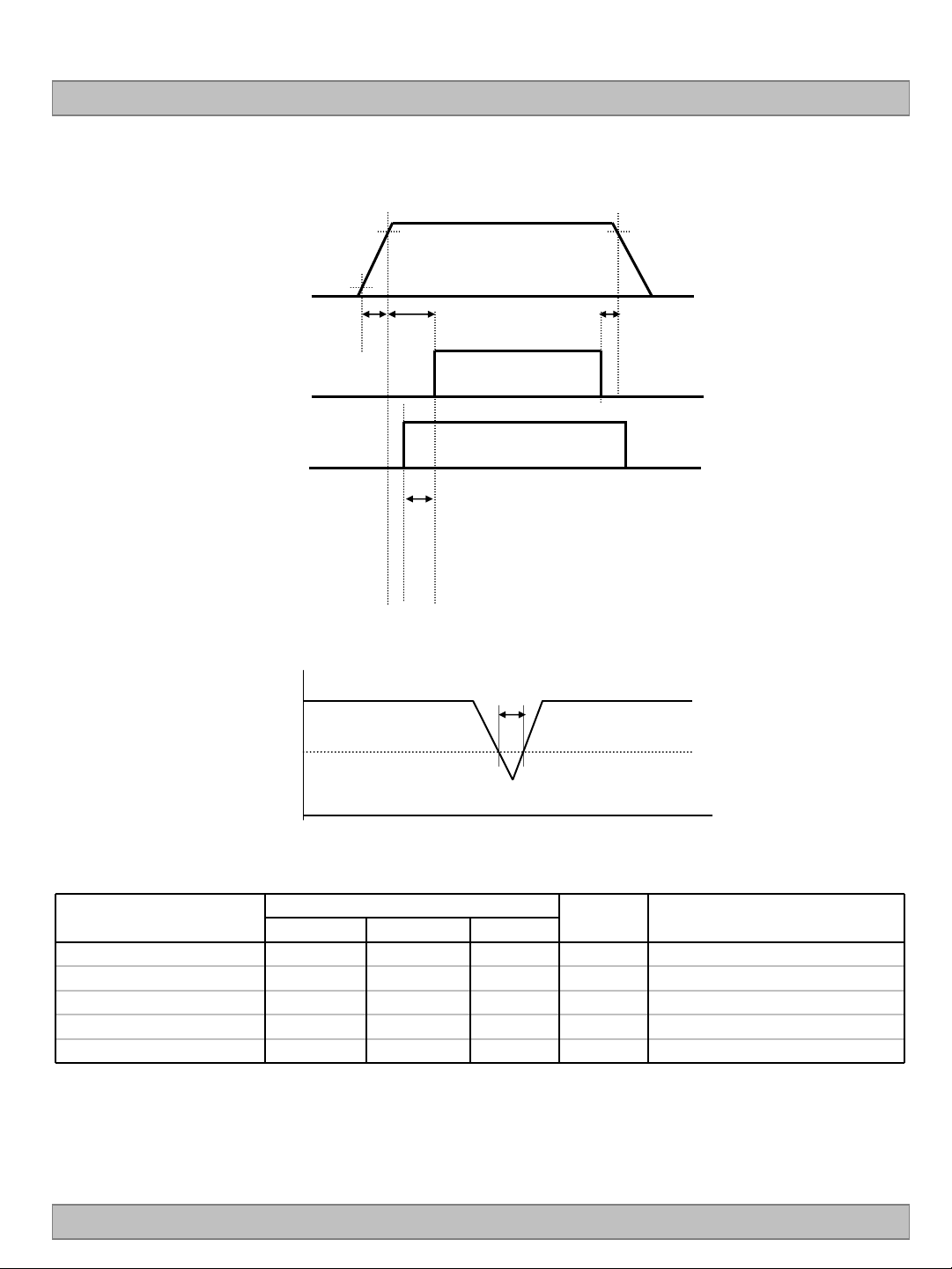

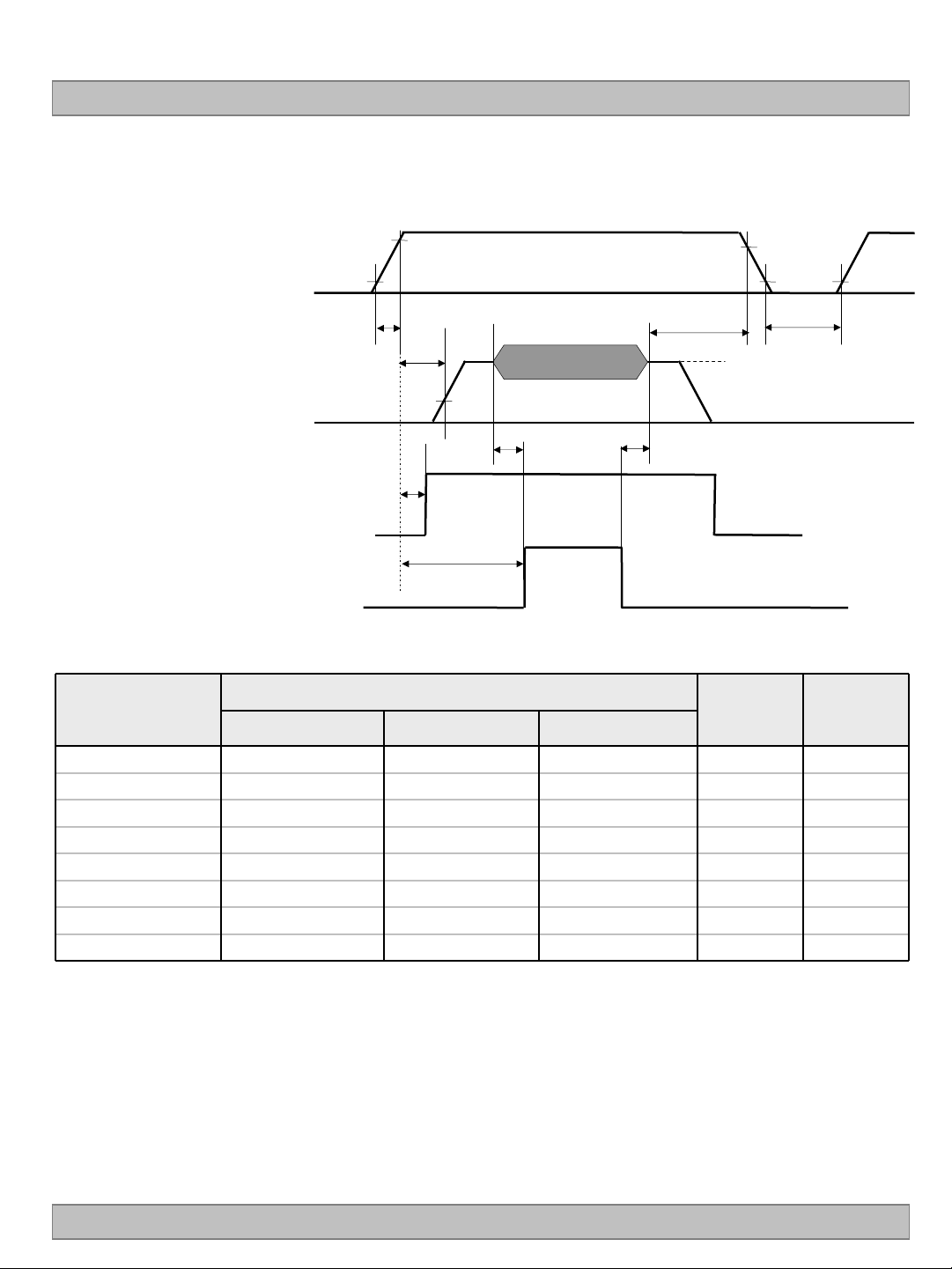

3-6. Power Sequence

3-6-1. LCD Driving circuit

LD470EUP

Product Specification

Power Supply For LCD

LCD

Interface Signal (Tx_clock)

10%

User Control Signal

(LVDS_select, BIT _select, L-DIM Enable)

Power for LED

Table 8. POWER SEQUENCE

Parameter

Min Typ Max

90%

30%

100%

Value

Valid Data

T3 T4

LED ON

90%

10%

Vcm : LVDS Common mode Voltage

Unit Notes

10%

T1 0.5 - 20 ms 1

2 0 - - ms 2

3 200 - - ms 3

4 200 - - ms 3

5 1.0 - - s 4

6 - - T2 ms 5

7 0.5 - - s 6

8 100 - - ms 7

Note :

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification, abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

6. If there is no abnormal display, no problem.

7. It is recommendation specification that T8 has to be 100ms as a minimum value.

※ Please avoid floating state of interface signal at invalid period. ※ When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

Ver. 0.1 15 /39

LCD

Page 17

3-6-2. Sequence for LED Driver

Power Supply For LED Driver

VBL

10%

Product Specification

24V (typ.)

90%

LD470EUP

90%

VON/OFF

Ext-VBR-B

3-6-3. Dip condition for LED Driver

(Typ.) x 0.8

T1 T2

LED ON

0 V

: 24V

Table 9. Power Sequence for LED Driver

Parameter

T1 20 - - ms 1 T2 500 - - ms T3 10 - ms T4 0 - - ms T5 - - 10 ms V

Min Typ Max

Values

Units Remarks

(Typ) x 0.8

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

Even though T1 is over the specified value, there is no problem if I

Ver. 0.1 16 /39

T spec of fuse is satisfied.

Page 18

LD470EUP

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C. The values are specified at distance 50cm from the LCD surface at a viewing angle of  FIG. 1 shows additional information concerning the measurement equipment and method.

and 

equal to 0 °.

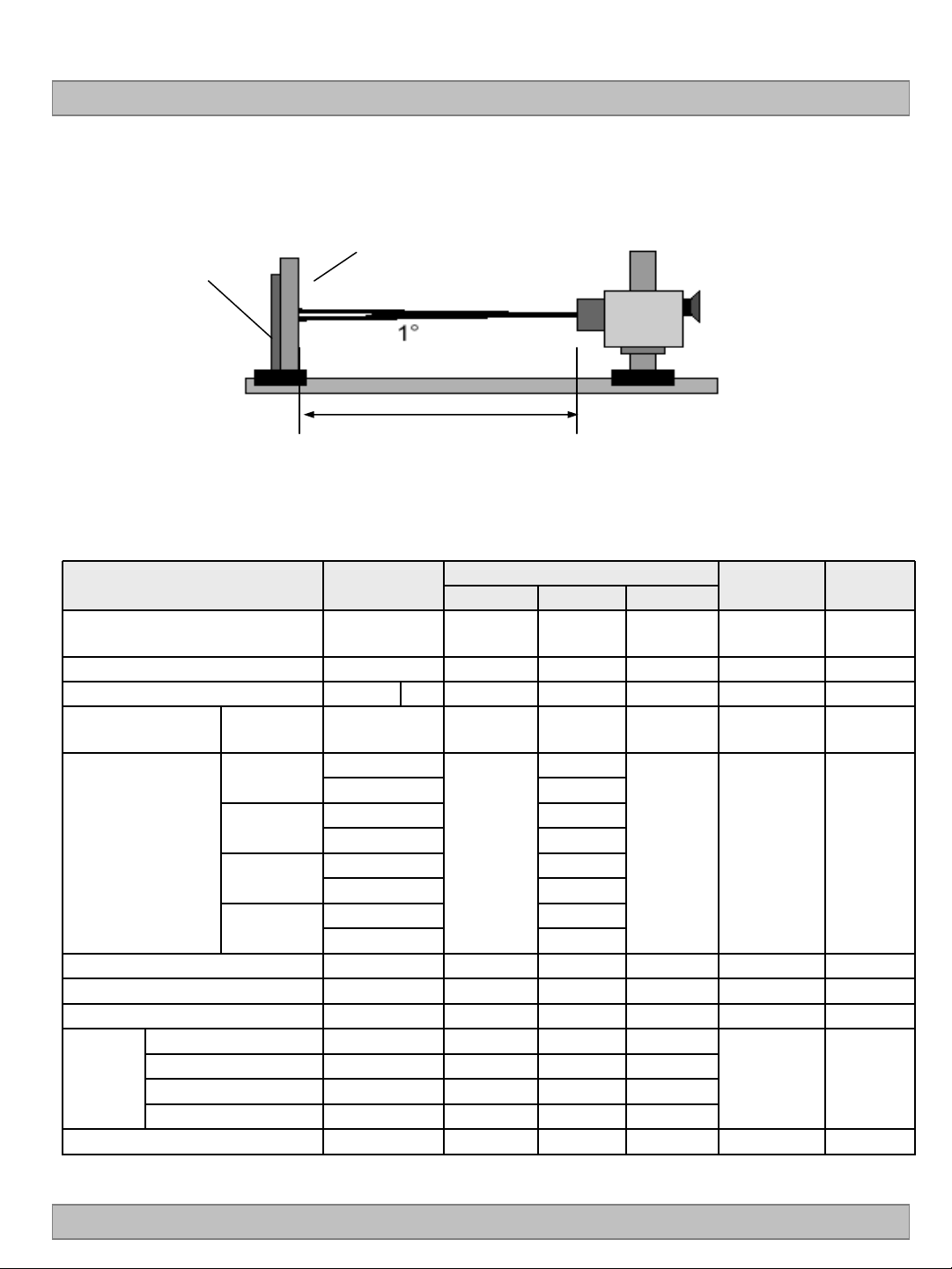

Optical Stage(x,y)

LCD Module

Pritchard 880 or equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Ta= 25±2°C, V

Table 10. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 1200

Surface Luminance, white L Luminance Variation

Response Time

Color Coordinates [CIE1931]

Color Temperature 10,000 K Color Gamut 72 %

Viewing Angle (CR>10)

x axis, right(=0°) r x axis, left (=180°) l y axis, up (=90°) u y axis, down (=270°) d

Gray Scale - - - 6

Gray-toGray

RED

GREEN

BLUE

WHITE



WHITE

G to G -

5P - - 1.3 3

Rx Ry TBD Gx TBD Gy TBD Bx TBD

By TBD Wx 0.279 Wy 0.292

Min Typ Max

560 700 - cd/m

Typ

-0.03

89 - 89 - 89 - 89 - -

Value

1500

[TBD]

TBD

=12.0V, fV=120Hz, Dclk=74.25MHz,

LCD

EXTVBR-B =100%

Unit Note

- 1

16 ms 4

Typ

+0.03

degree 5

Ver. 0.1 17 /39

Page 19

Product Specification

Note : 1. Contrast Ratio(CR) is defined mathematically as :

LD470EUP

Contrast Ratio =

Surface Luminance with all white pixels Surface Luminance with all black pixels

It is measured at center 1-point.

2. Surface luminance is determined after the unit has been ‘ON’ and 1 Hour after lighting the backlight in a dark environment at 25±2°C. Surface luminance is the luminance value at center 1-point across the LCD surface 50cm from the surface with all pixels displaying white. For more information see the FIG. 2.

3. The variation in surface l umin ance , 



WHITE(5P) = Maximum(L

Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1 ,Lon2

WHITE is defined as :

, L

on3

on4

) / Minimum(L

on5

on1 ,Lon2

, L

on3

, L

on4

, L

on5

)

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from G(N) to G(M) (Rise Time, Tr and from G(M) to G(N) (Decay Time, Tr

). For additional information see the FIG. 3. (N<M)

※ G to G Spec stands for average value of all measured points.

Photo Detector : RD-80S / Field : 2˚

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD module surface. For more information, see the FIG. 5.

6. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 11.

)

Table 11. GRAY SCALE SPECIFICATION

Gray Level

Min Typ Max

Luminance [%]

L0 - 0.063 0.071

L63 0.08 0.27 0.90 L127 0.35 1.04 2.40 L191 0.80 2.49 4.88 L255 1.60 4.68 8.18 L319 2.90 7.66 13.5 L383 5.50 11.5 19.2 L447 9.20 16.1 25.8 L511 13.4 21.6 32.6 L575 18.6 28.1 41.5 L639 24.2 35.4 50.7 L703 31.2 43.7 60.6 L767 39.6 53.0 70.6 L831 49.4 63.2 81.1 L895 60.6 74.5 90.6 L959 75.1 86.7 97.4

L1023 100 100 100

Ver. 0.1 18 /39

Page 20

Product Specification

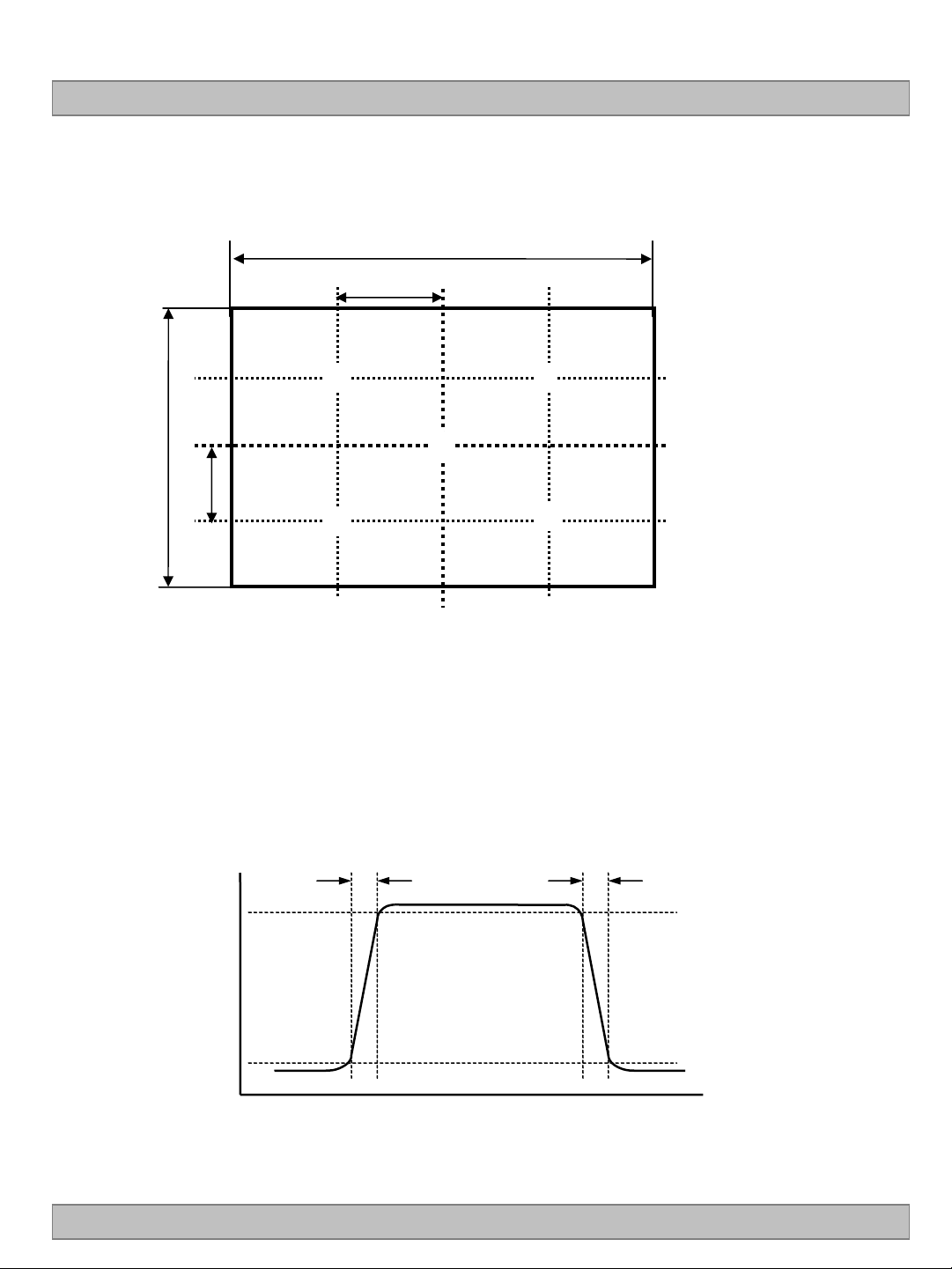

Measuring point for surface luminance & measuring point for luminance variation.

③②

LD470EUP

①

A : H / 4 mm

④

FIG. 2 5 Points for Luminance Me asure

Response time is defined as the following figure and shall be measured by switching the input signal for “Gray(N)” and “Gray(M)”.

TrR

100

⑤

TrD

B : V / 4 mm @ H,V : Active Area

Optical Response

Ver. 0.1 19 /39

Gray(N)

N,M = Black~White, N<M

FIG. 3 Response Time

Gray(M)

Gray(N)

Page 21

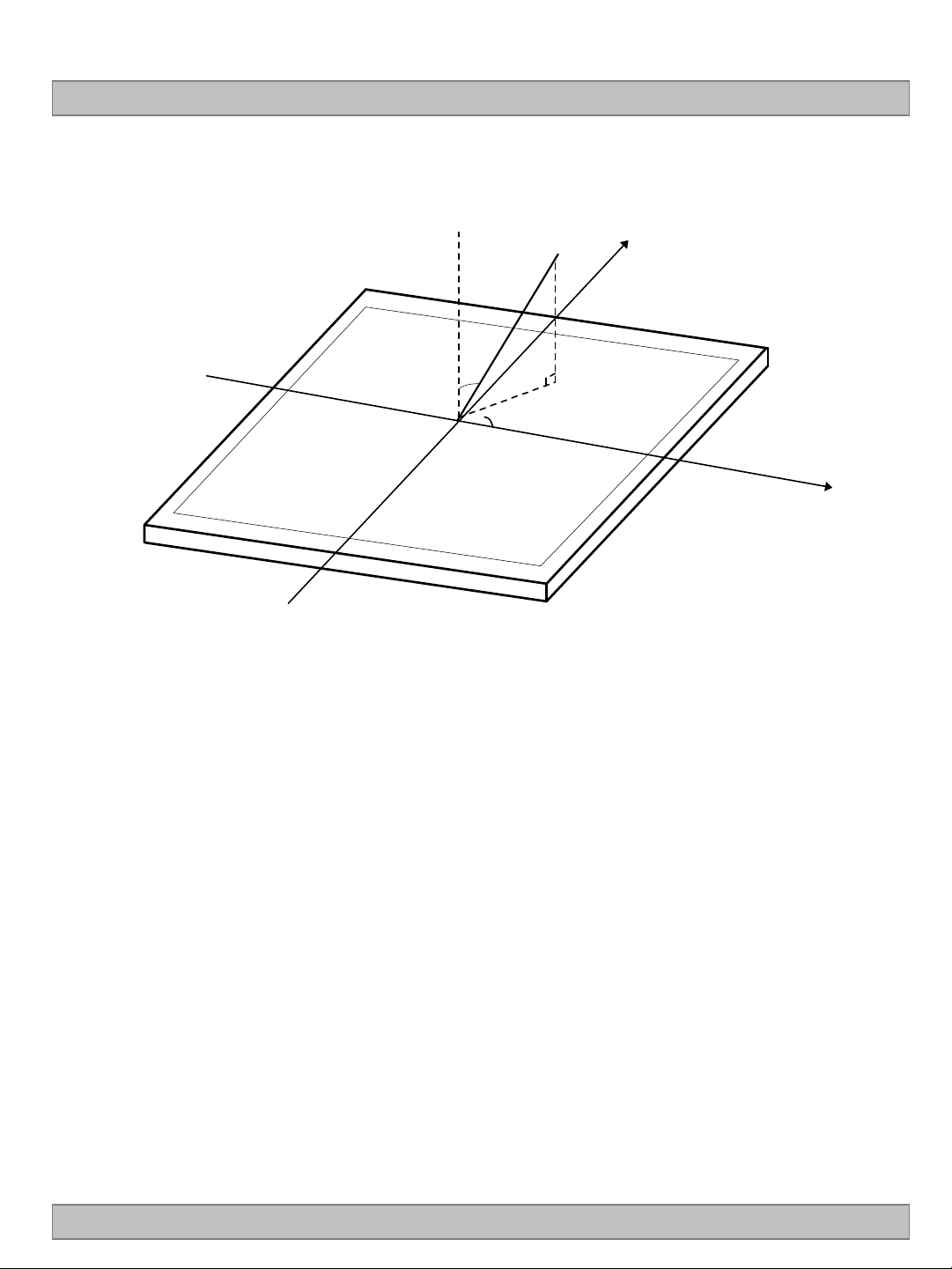

Dimension of viewing angle range



= 180, Left

Product Specification

Normal





= 90, Up



= 0, Right

LD470EUP



= 270, Down

FIG. 5 Viewing Angle

Ver. 0.1 20 /39

Page 22

Product Specification

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTE RISTIC S

Item Value

LD470EUP

1068.8mm

612.8mm

10.8mm(B)/24.0 mm(D)

1048.8mm

593.0mm

1039.68mm

584.82mm

Outline Dimension

Bezel Area

Active Display Area

Weight

Horizontal

Vertical

Depth

Horizontal

Vertical

Horizontal

Vertical

10.9 Kg (Typ.), 11.5 kg (Max.)

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 0.1 21 /39

Page 23

[ FRONT VIEW ]

LD470EUP

Product Specification

Ver. 0.1 22 /39

Page 24

[ REAR VIEW ]

LD470EUP

Product Specification

Ver. 0.1 23 /39

Page 25

Product Specification

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60°C 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

Wave form : random

Vibration test

(non-operating)

Shock test

(non-operating)

Vibration level : 1.0 Grms Bandwidth : 10-300Hz Duration : X,Y,Z,

Each direction per 10 min

Shock level : 30 Grms Waveform : half sine wave, 11ms Direction :

±X, ±Y, ±Z

One time each direction

LD470EUP

7 Humidity condition Operation Ta= 40 °C ,90%RH

Altitude operating

storage / shipment

0 0 -

15,000 ft 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.1 24 /39

Page 26

Product Specification

7. International Standards 7-1. Safety

a) UL 60950-1, Underwriters Laboratories Inc.

Information Technology Equipment - Safety - Part 1 : General Requirements.

b) CAN/CSA C22.2 No.60950-1-07, Canadian Standards Association.

Information Technology Equipment - Safety - Part 1 : General Requirements.

c) EN 60950-1, European Committee for Electrotechnical Standardization (CENELEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

d) IEC 60950-1, The International Electrotechnical Commission (IEC).

Information Technology Equipment - Safety - Part 1 : General Requirements.

(Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Informati on Class 1M LED Product

IEC60825-1 : 2001

Embedded LED Power (Class1M)

LD470EUP

2. Caution : LED inside.

Class 1M laser (LEDs) radiation when open. Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.” American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference (CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.1 25 /39

Page 27

8. Packing

8-1. Information of LCM Label

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

Year

Product Specification

201320122011

2014E2015

2016G2017H2018J2019

LD470EUP

2020

Mark

CBA

2. MONTH

Month

Mark

Apr5May

Jun7Jul8Aug9Sep

b) Location of Lot Mark

Serial NO. is printed on the label. The label is attached to the backside of the LCD module. This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one Pallet : 18 pcs b) Pallet Size : 1300 mm(W) X 1140 mm(D) X 848.5 mm(H)

Oct

Nov

DecMarFebJan

C321

Ver. 0.1 26 /39

Page 28

LD470EUP

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings). (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlor ine type materials for the cover case are not des irable because the former

generates corrosive gas of attacking the polarizer at high tempe rature and the latte r causes ci rcuit br eak by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft mater ials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) Response time depends on the temperature.(In lower temperature, it becomes longer.) (2) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes longer

(3) Be careful for condensation at sudden temperature change.Condensation makes damage to polar izer or

electrical contacted parts. And after fading condensation, smear or spot will occur. (4) When fixed patterns are displayed for a long time, remnant image is likely to occur. (5) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the interference.

(6) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(7) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow) (8) Please do not set LCD on its edge. (9) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal

display, sound noise and temperature rising.

Ver. 0.1 27 /39

Page 29

LD470EUP

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to elec trostatic di scharge. Make certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary. (1) Store them in a dark place. Do not exp ose t h e mo dul e t o sunli ght or flu oresce nt light. K e ep t h e t emp erat ure

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped. (3) Storage condition is guaranteed under packing conditions. (4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be

recovered when the LCD module returns to the normal condition

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and care fully by people who are electrically g rounded and with well ion-

blown equipment or in such a condition, etc.

(2) When the module with protection film a ttached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recogn ized,

please wipe them off with absorbent cotton waste or other soft materia l like chamois soaked with normal-

hexane.

9-7. Appropriate Condition for Public Display

- Generally large-sized LCD modules are designed for consumer applications (TV). Accordingly, a long-term display like in Public Display (PD) application, can cause uneven display including image sticking. To optimize module's lifetime and function, several operating usages are required.

1. Normal operating condition

- Temperature: 0 ~ 40℃

- Operating Ambient Humidity : 10 ~ 90 %

- Display pattern: dynamic pattern (Real display) Note) Long-term static display can cause image sticking.

2. Operating usages under abnormal condition a. Ambient condition

- Well-ventilated place is recommended to set up PD system.

b. Power and screen save

- Periodical power-off or screen save is needed after long-term display.

Ver. 0.1 28 /39

Page 30

LD470EUP

Product Specification

3. Operating usages to protect against image sticking due to long-term static display a. Suitable operating time: under 18 hours a day. b. Static information display recommended to use with moving image.

- Cycling display between 5 minutes' information(static) display and 10 seconds' moving image.

c. Background and character (image) color change

- Use different colors for background and character, respectively.

- Change colors themselves periodically.

d. Avoid combination of background and character with large different luminance.

1) Abnormal condition just means conditions except normal condition.

2) Black image or moving image is strongly recommended as a screen save.

4. Lifetime in this spec. is guaranteed only when PD is used according to operating usages.

5. Module should be turned counterclockwise or clockwise based on front view when used in portrait mode.

Ver. 0.1 29 /39

Page 31

# APPENDIX-I

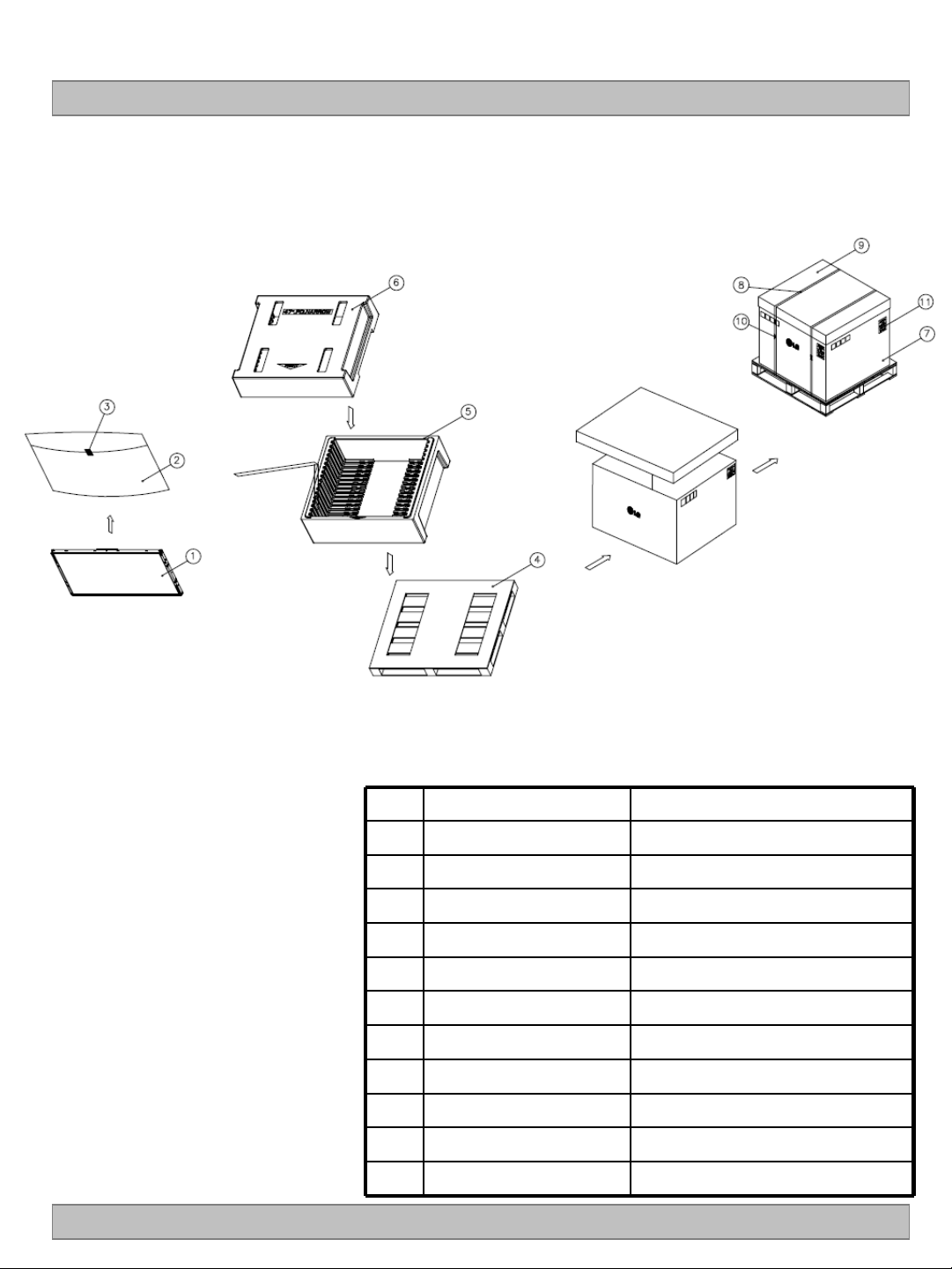

■ Pallet Ass’y

LD470EUP

Product Specification

NO. DESCRIPTION MATERIAL

1 LCD Module

2 BAG AL Bag

3 TAPE MASKING 20MMX50M

4 PALLET Plywood 1300X1140X125.5mm

5 PACKING,BOTTOM EPS

6 PACKING,TOP EPS

7 ANGLE,PACKING PAPER

8 BAND PP

9 ANGLE,COVER PAPER

10 BAND STEEL OR PP

11 LABEL YUPO 80G 100X70

Ver. 0.1 30 /39

47” LCD

Page 32

# APPENDIX- II-1

■

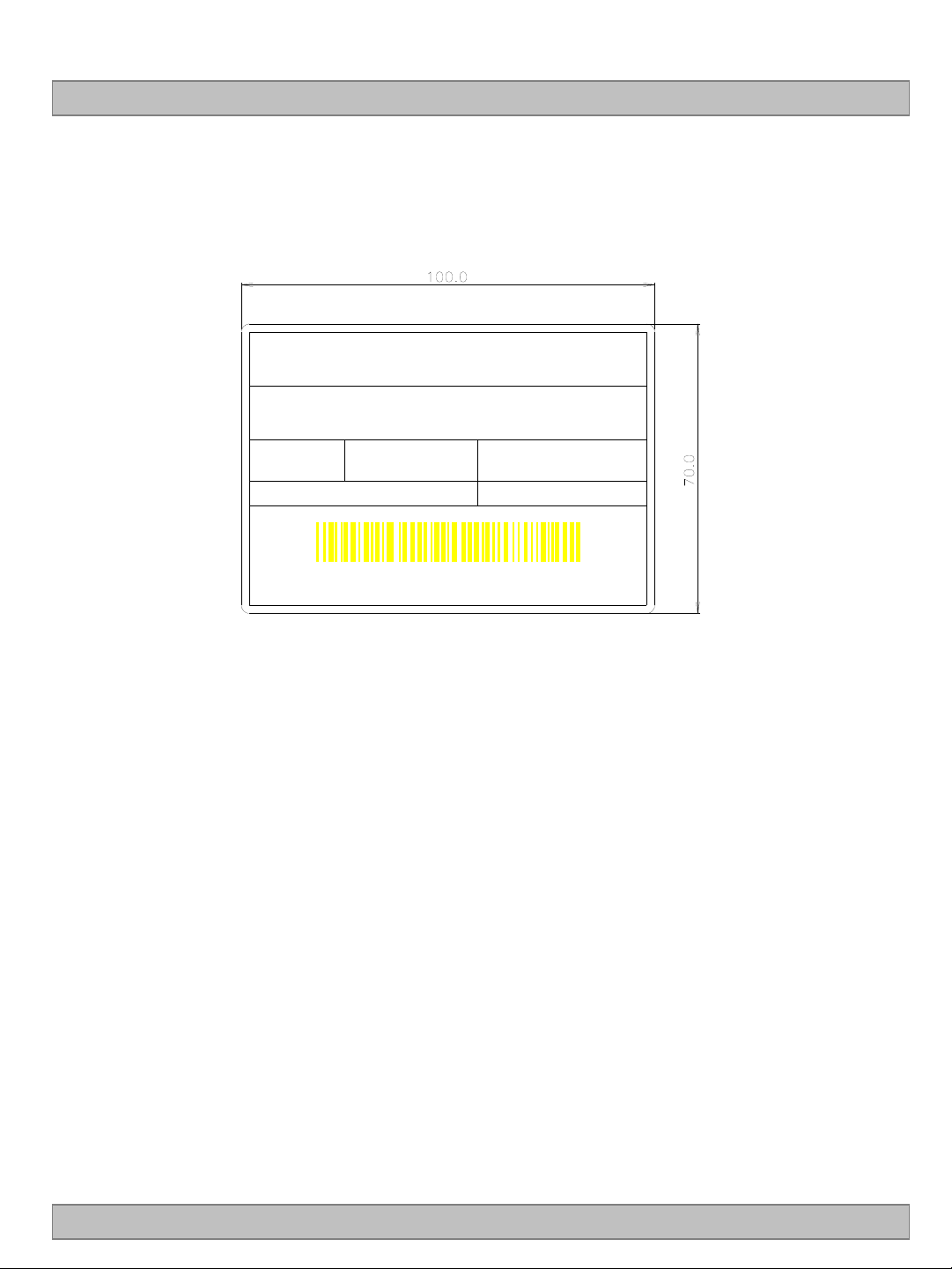

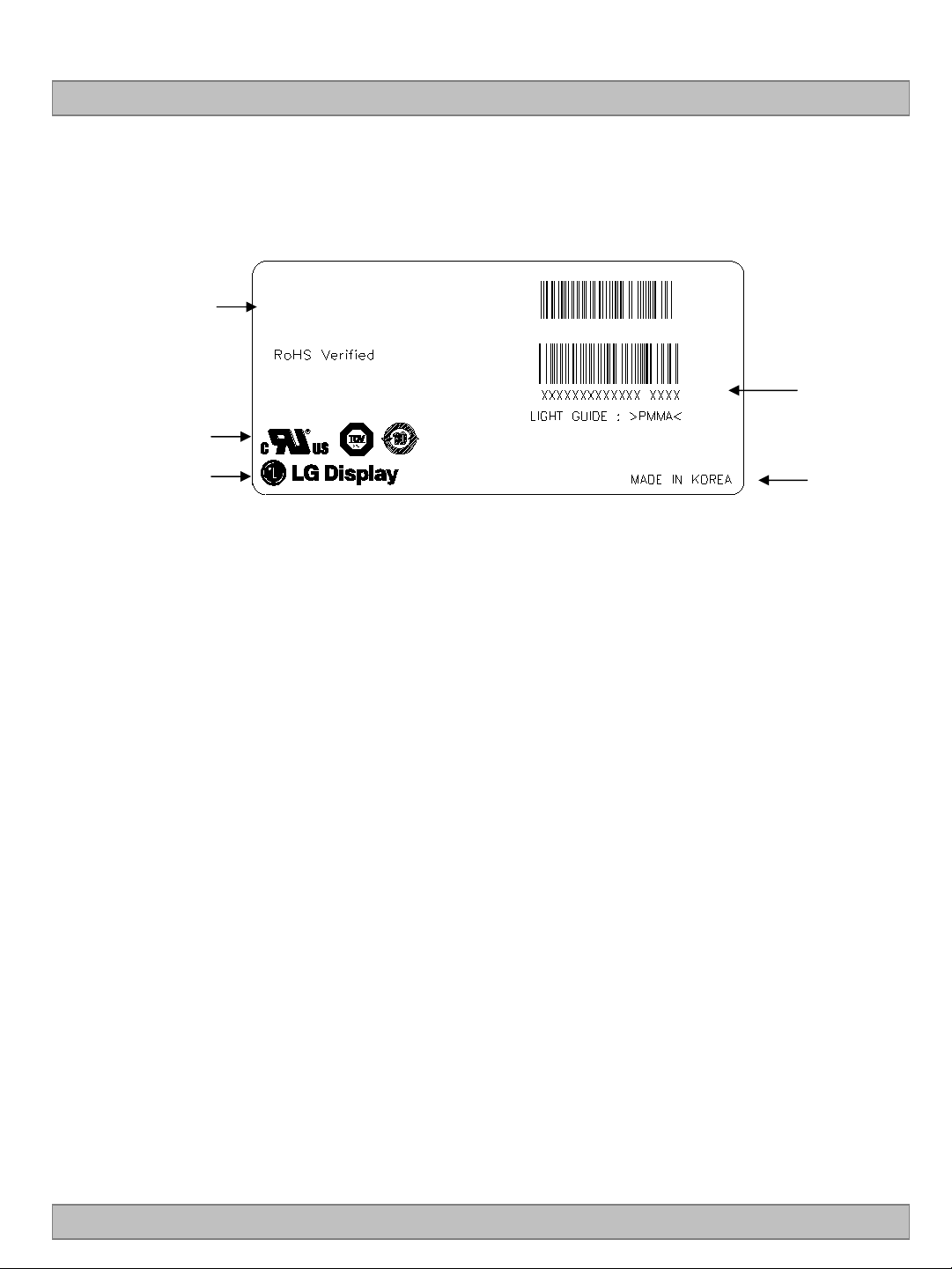

LCM Label

LD470EUP

Product Specification

Model

UL, TUV Mark

LGD Logo

LD470EUP (SE)(A1)

Serial No.

Origin

Ver. 0.1 31 /39

Page 33

# APPENDIX- II-2

■

Pallet Label

LD470EUP

Product Specification

LD470EUP

SEA1

18 PCS

MADE IN KOREA

001/01-01

XXXXXXXXXXXXX XXX

RoHS Verified

Ver. 0.1 32 /39

Page 34

Product Specification

# APPENDIX- III-1

■

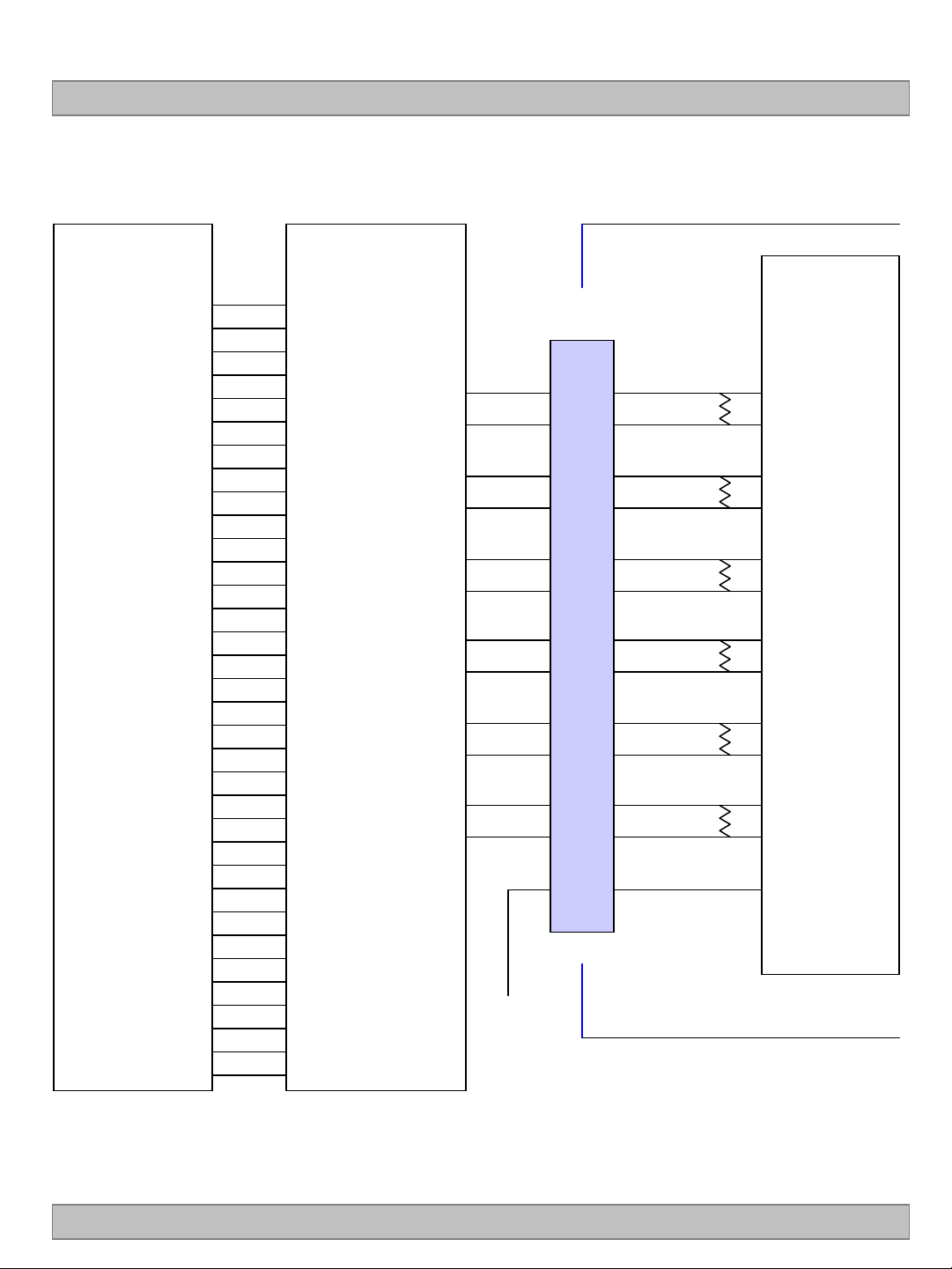

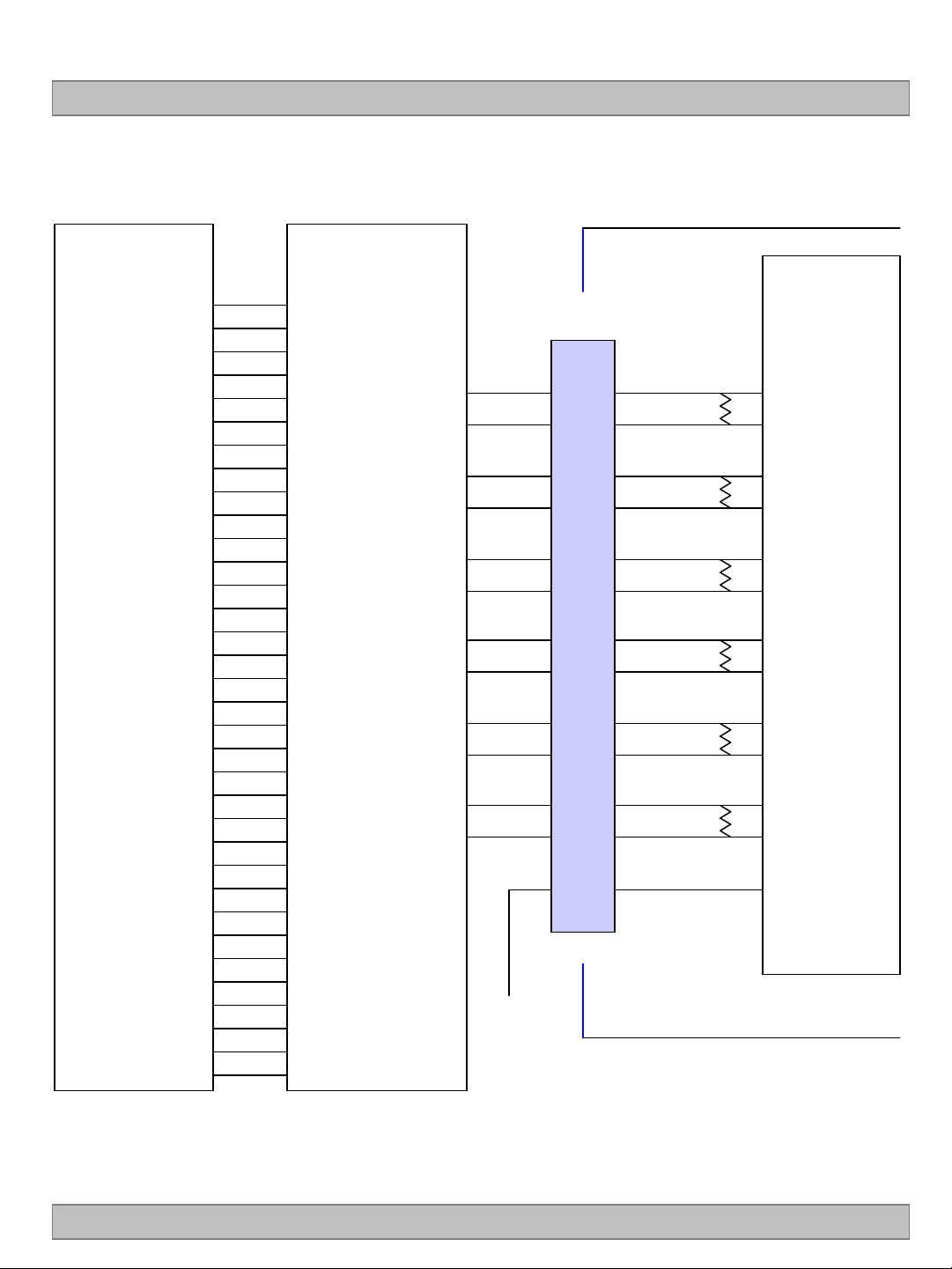

Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “L” or “NC”)

LD470EUP

Host System

30 Bit

RED0 RED1 RED2 RED3 RED4 RED5 RED6 RED7 RED8

RED9 GREEN0 GREEN1 GREEN2 GREEN3 GREEN4 GREEN5 GREEN6 GREEN7 GREEN8 GREEN9

BLUE0 BLUE1 BLUE2 BLUE3 BLUE4 BLUE5 BLUE6 BLUE7 BLUE8 BLUE9

Hsync Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33 34 35 36 37 38 59 61 4 5 40 41 42 44 45 46 62 63 6 8 48 49 50 52 53 54 64 1 9 11 55 57 58 12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

TE-

TE+

31 30

29 28

25 24

23 22

21 20

19 18

GND

FI-RE51S-HF

12 13

14 15

16 17

19 20

22 23

24 25

100Ω

LCM Module

Timing

Controller

RO0N RO0P

RO1N RO1P

RO2N RO2P

ROCLKN ROCLKP

RO3N RO3P

RO4N RO4P

VESA/ JEIDA

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.1 33 /39

Page 35

Product Specification

# APPENDIX- III-2

■

Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “H” )

LD470EUP

Host System

30 Bit

RED0

RED1

RED2

RED3

RED4

RED5

RED6

RED7

RED8

RED9 GREEN0 GREEN1 GREEN2 GREEN3 GREEN4 GREEN5 GREEN6 GREEN7 GREEN8 GREEN9

BLUE0 BLUE1 BLUE2 BLUE3 BLUE4 BLUE5 BLUE6 BLUE7 BLUE8 BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103 or Compatible

4 5 59 61 33 34 35 36 37 38 6 8 62 63 40 41 42 44 45 46 9 11 64 1 48 49 50 52 53 54 55 57 58 12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

TE-

TE+

31 30

29 28

25 24

23 22

21 20

19 18

VCC

FI-RE51S-HF

12 13

14 15

16 17

19 20

22 23

24 25

100Ω

LCM Module

Timing

Controller

RO0N RO0P

RO1N RO1P

RO2N RO2P

ROCLKN ROCLKP

RO3N RO3P

RO4N RO4P

VESA /JEIDA

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.1 34 /39

Page 36

Product Specification

# APPENDIX- IV-1

■

LVDS Data-Mapping Information (10 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LD470EUP

RAP

RBP

RCP

RDP

REP

R19 R18 R17 R16G14 R15R14’ R14R15’ G14”

B14 G19 G18 G17B15 G16G15’ G15G16’ B15”

SYNCHSYNC

B19 B18DE B17B16’ B16B17’ DE”

B13 B12 G13 G12X R13R12’ R12R13’ X”

B11 B10 G11 G10X R11R10’ R10R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

RCP

RDP

REP

Ver. 0.1 35 /39

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B19 B18 G19 G18X R19R18’ R18R19’ X”

B15 B14DE B13B12’ B12B13’ DE”

Page 37

Product Specification

# APPENDIX- IV-2

■

LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LD470EUP

RAP

RBP

RCP

RDP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

SYNCHSYNC

B17 B16DE B15B14’ B14B15’ DE”

B11 B10 G11 G10X R11R10’ R10R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

RCP

RDP

Ver. 0.1 36 /39

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B15 B14DE B13B12’ B12B13’ DE”

Page 38

# APPENDIX- V-1

■

Option Pin Circuit Block Diagram

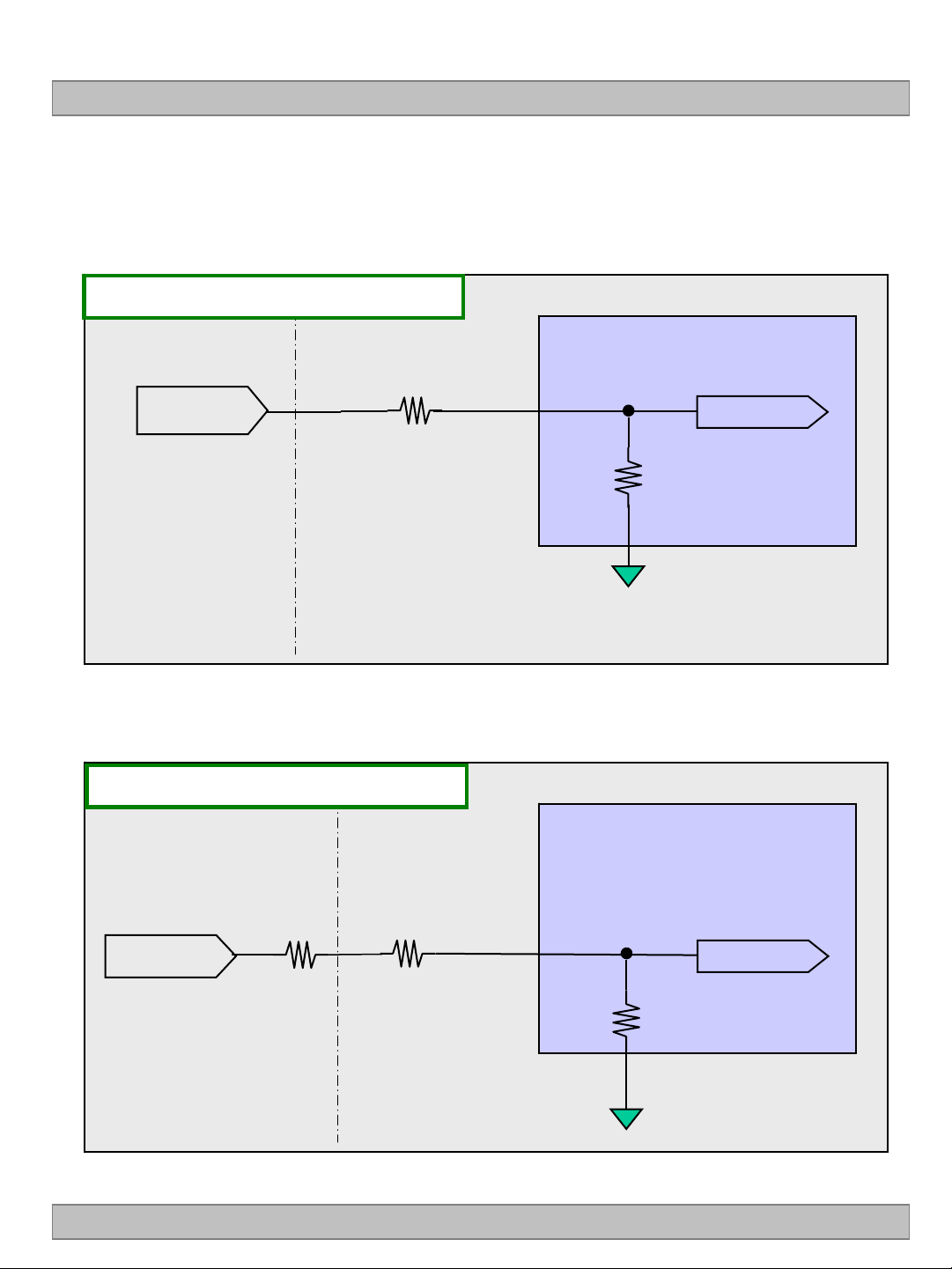

1) Circuit Block Diagram of LVDS Selection pin

LVDS Select Pin : Pin 7

LVDS Select

(Pin 7)

LD470EUP

Product Specification

1KΩ

LVDS Select

50kΩ

ASIC

(TCON)

System Side LCM Side

2) Circuit Block Diagram of L-DIM Enable Selection pin

L-DIM Enable Pin : Pin 10

L-DIM _Enable

(Pin 10)

System Side

R1 ≤ 1KΩ

1KΩ

LCM Side

50kΩ

L-DIM _Enable

ASIC

(TCON)

Ver. 0.1 37 /39

Page 39

# APPENDIX- V-2

■

Option Pin Circuit Block Diagram

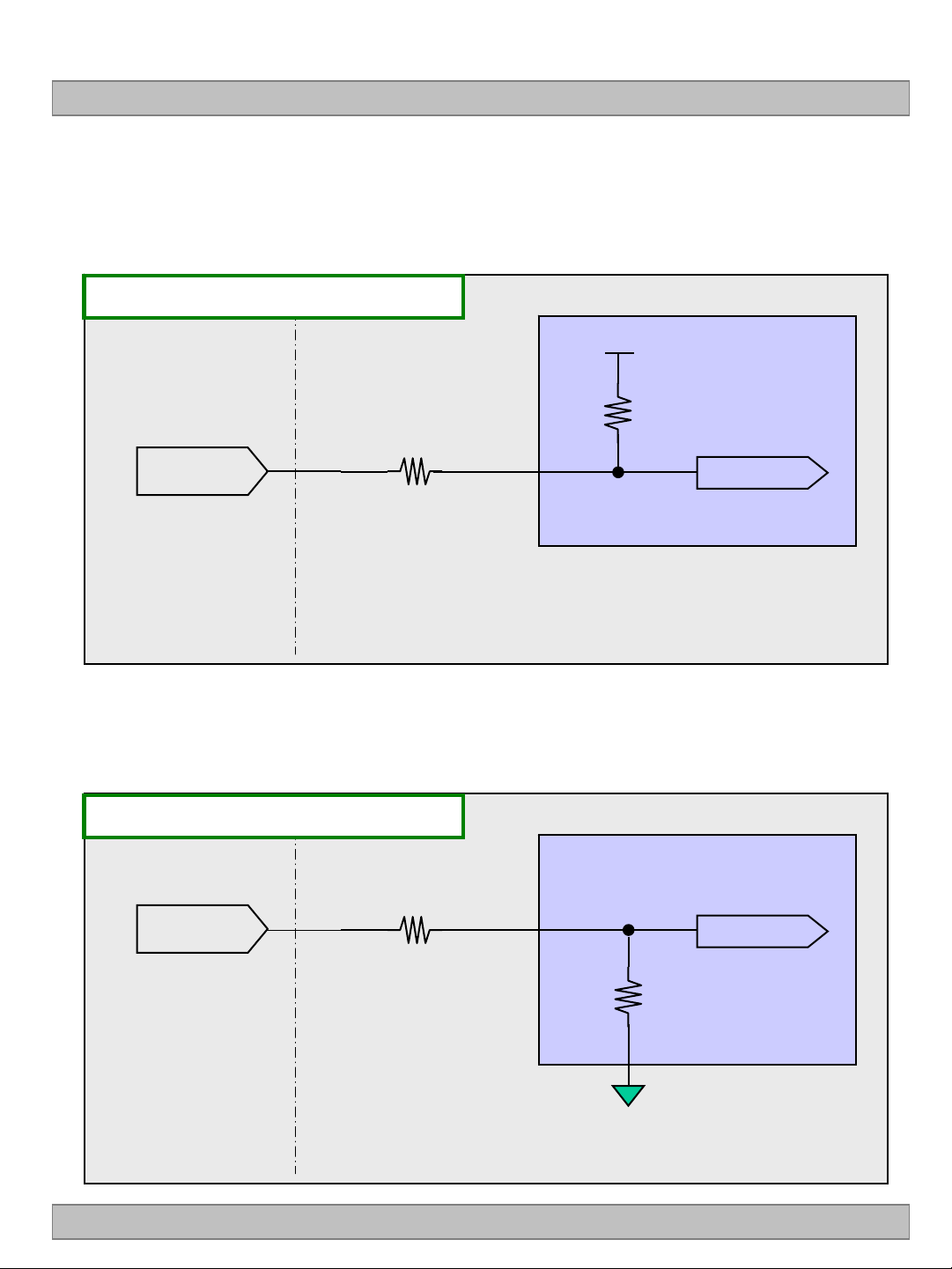

3) Circuit Block Diagram of Bit Selection pin

Bit Select Pin : Pin 27

Bit Select

(Pin 27)

LD470EUP

Product Specification

VCC

50kΩ

1KΩ

Bit Select

ASIC

(TCON)

System Side LCM Side

4) Circuit Block Diagram of PCID_EN Selection pin

PCID_EN: Pin 1

1KΩ

PCID_EN

(Pin 1)

LVDS Select

50kΩ

ASIC

(TCON)

System Side LCM Side

Ver. 0.1 38 /39

Page 40

Product Specification

# APPENDIX- VI

■

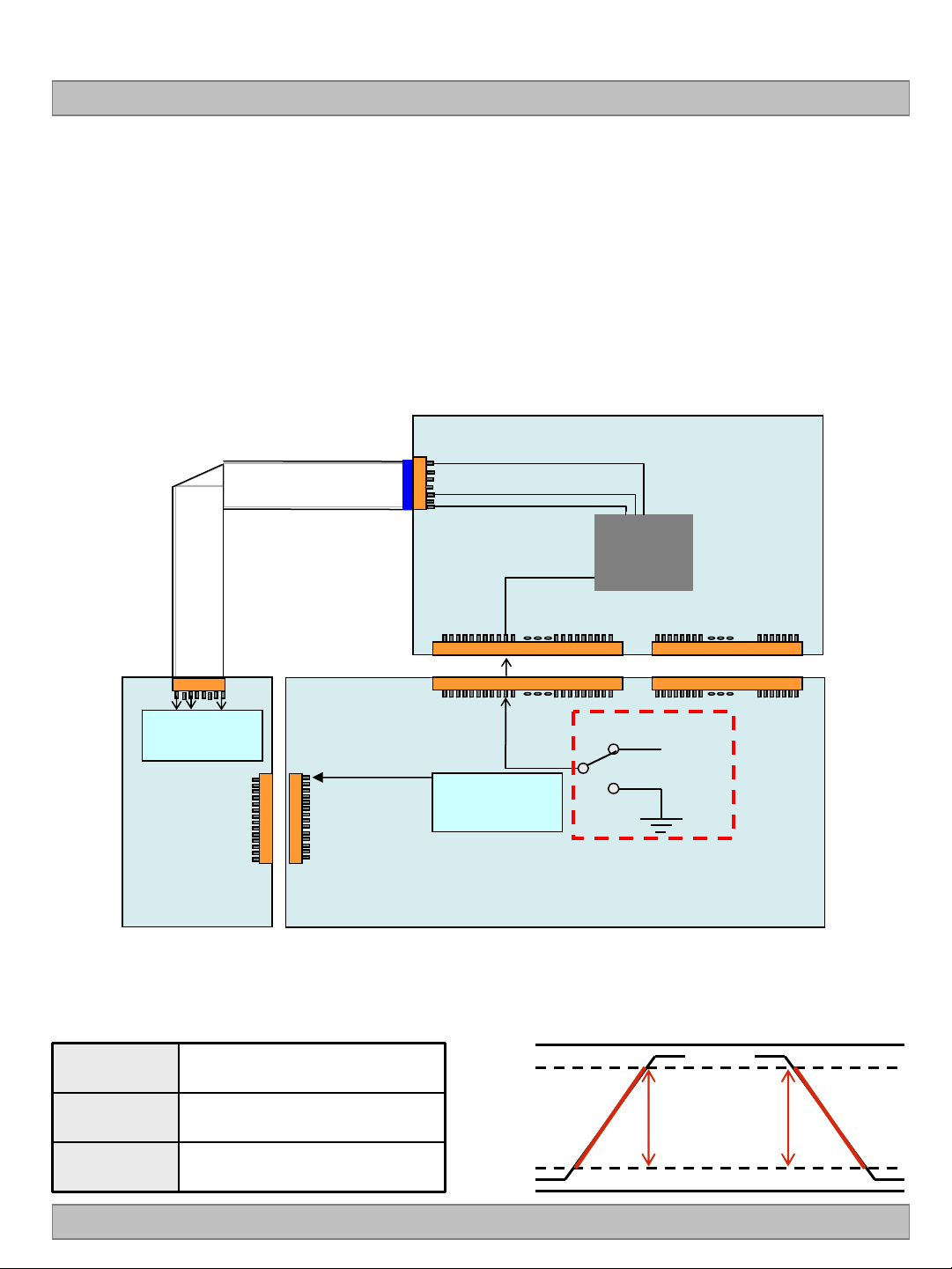

EXTVBR-B & Local Dimming Design Guide

1) When L-Dim Enable is “L", Vertical Sync Signal = System Dimming with 100Hz or 120Hz frequency.

2) Local Dimming signals are synchronized with V-Sync Freq. of System in T-Con Board.

BR-B

3) EXTV

Specification ( VCC = 3.3V ) @ Local Dimming a) High Voltage Range : 2.5 V ~ 3.6 V b) Low Voltage Range : 0.0 V ~ 0.8 V

(8pin) #4 : Local Dim Serial Data #5 : GND #6 : Local Dimming Serial Clock #8 : Vertical Sync signal

LCM T-con Board

T-Con

LD470EUP

(51pin) #8 : NC

#9 : NC

#10 : L-DIM Enable

#11 : GND

B/L Signal Generation

Block

LED

#14 : EXTVBR-B

14pin

Driver

EXTVBR-B

Frequency

Rising Time MAX 10.0 μs

Falling Time MAX 10.0 μs

100 Hz for PAL 120 Hz for NTSC

#1 51 #1 41

CNT1 51pin CNT2 41pin

CNT4 CNT4

Local Dimming On

3.3V

System Main IC

(PWM Generator)

Local Dimming Off

Chassis

VCC

VCC*0.9

Rising Time

Falling Time

VCC*0.1

Ver. 0.1 39 /39
