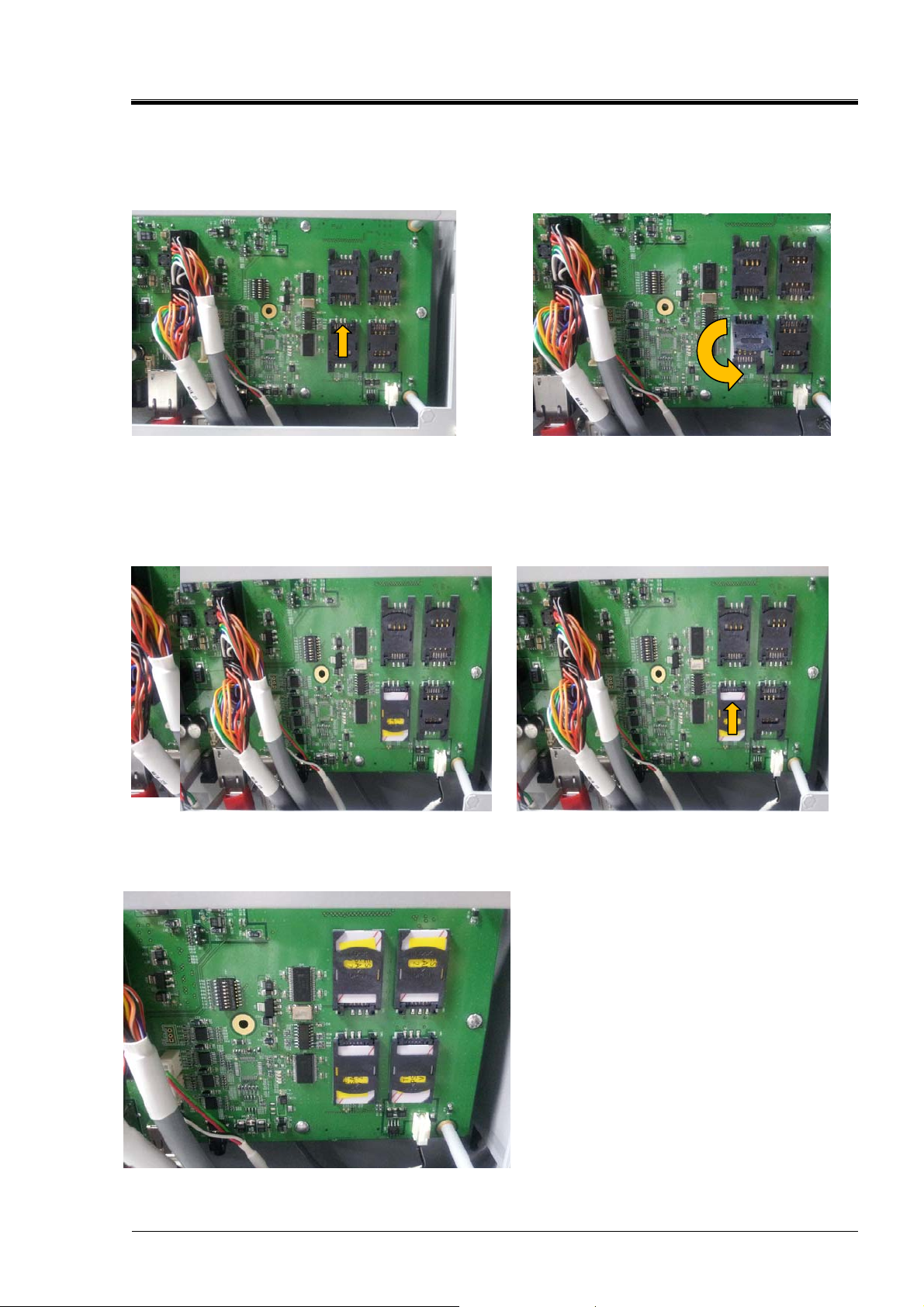

4.1.2.2 SAM Card Mounting ....................................................................................... ５３
4.1.2.3 USB Mounting Method .................................................................................... ５４
CB-EDR-HM-00-V1.0
Automatic
Recharger
Page iii of All
Page 5
Bogota SIRCI Project User Requirement Definition
5. AUTOMATIC RECHARGER HEAVY MAINTENANCE ....................................... ５５
5.1 CPU Board ........................................................................................................ ５５
5.1.1 CPU BOARD Specification ........................................................................... ５５
5.1.1.1 CPU Board Specification ................................................................................ ５５

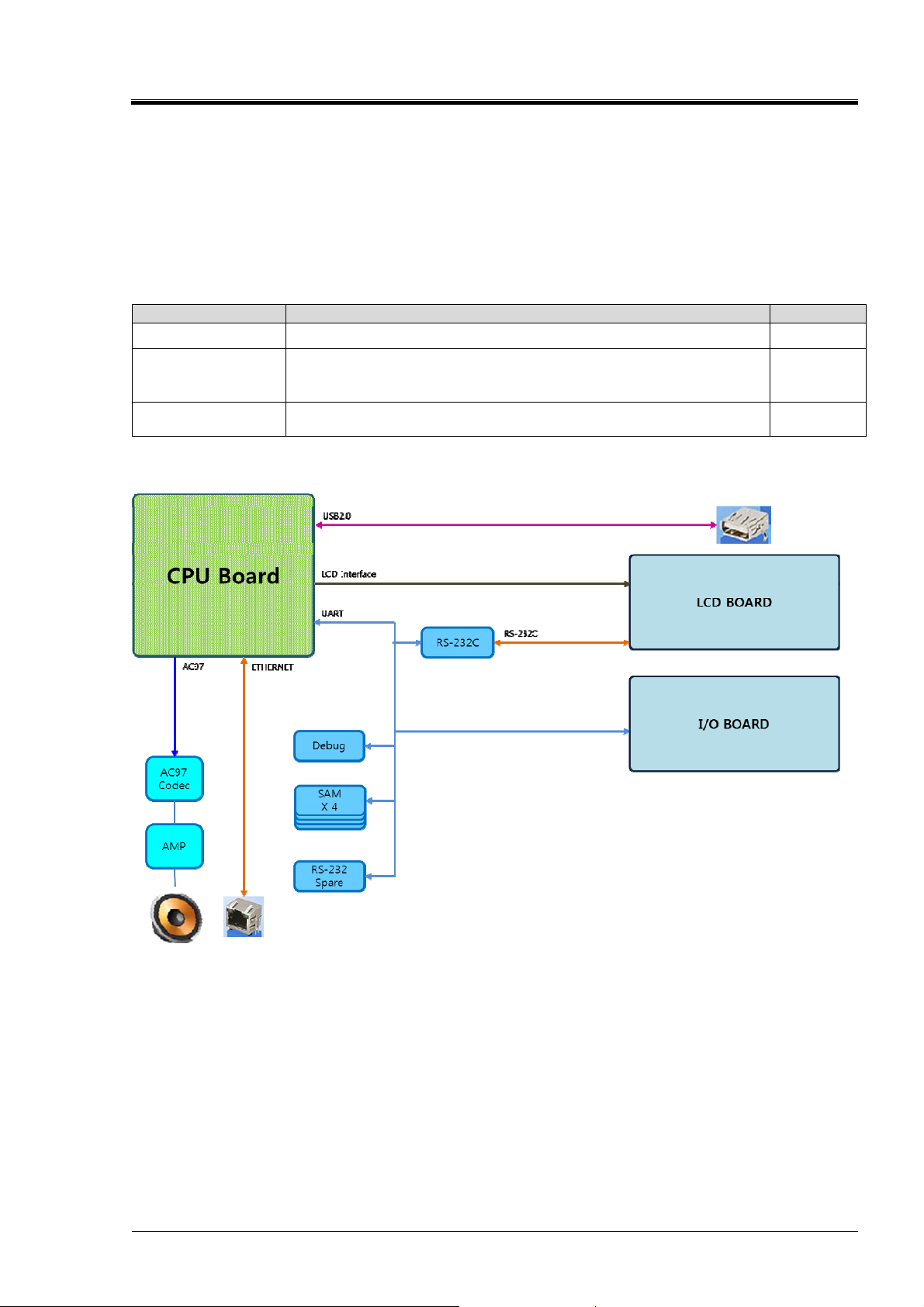

5.1.1.2 CPU Board Block Diagram ............................................................................. ５５

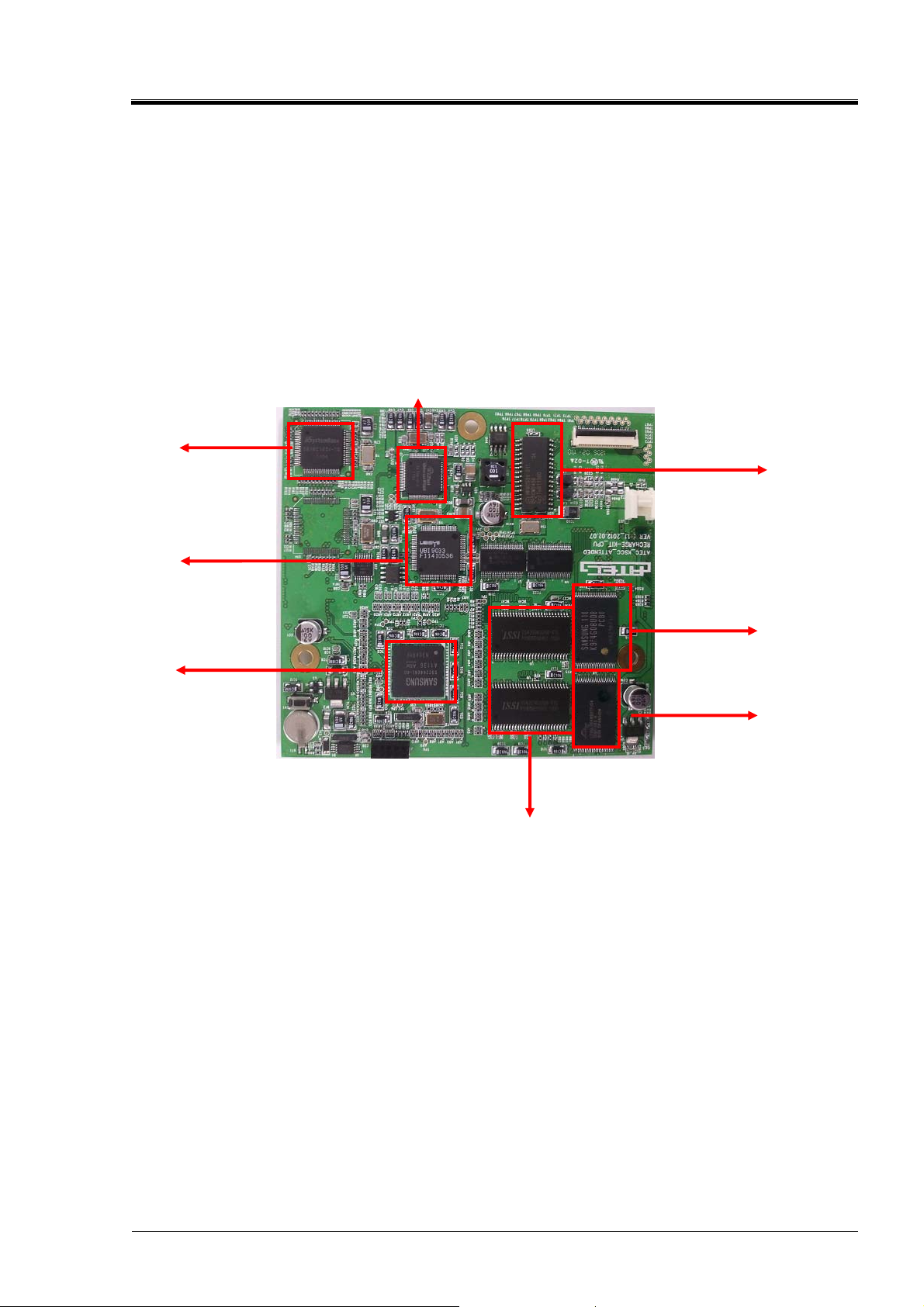

5.1.1.3 CPU Board Check point .................................................................................. ５６
5.1.2 Sub BOARD Specification ............................................................................ ５７
5.1.2.1 Sub Main Board Specification ......................................................................... ５７
5.1.2.2 Sub Main Board Block Diagram ...................................................................... ５７
5.1.2.3 Sub Main Check point ..................................................................................... ５８
CB-EDR-HM-00-V1.0
Automatic
Recharger
Page iv of All
Page 6
Bogota SIRCI Project User Requirement Definition
1. Automatic Recharger Equipment Structure
1.1 Overview
The Automatic Recharger is recharged the transit card.
1.2 External / Internal Structure and Main Module

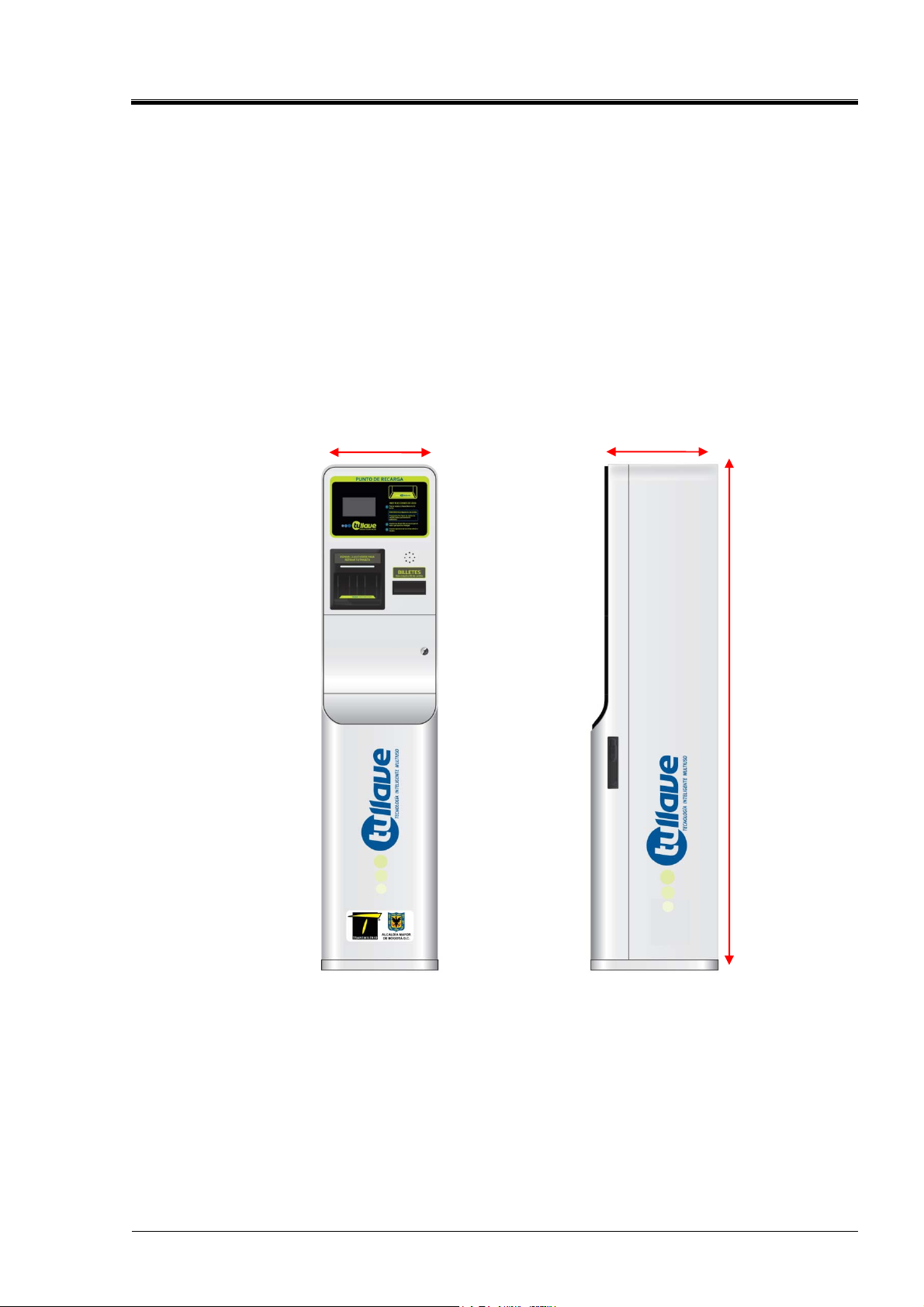

1.2.1 External Structure
390mm (W)
[Automatic Recharger]
440mm (D)
1500mm (H)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１
of All
Page 7
Bogota SIRCI Project User Requirement Definition
)
)
)
Division 내 용
Size
440mm(D) x 1500mm(H) x 390mm(W)
Material BASE PLATE(SUS), Exterior (STEEL, Painted_SLIVER)

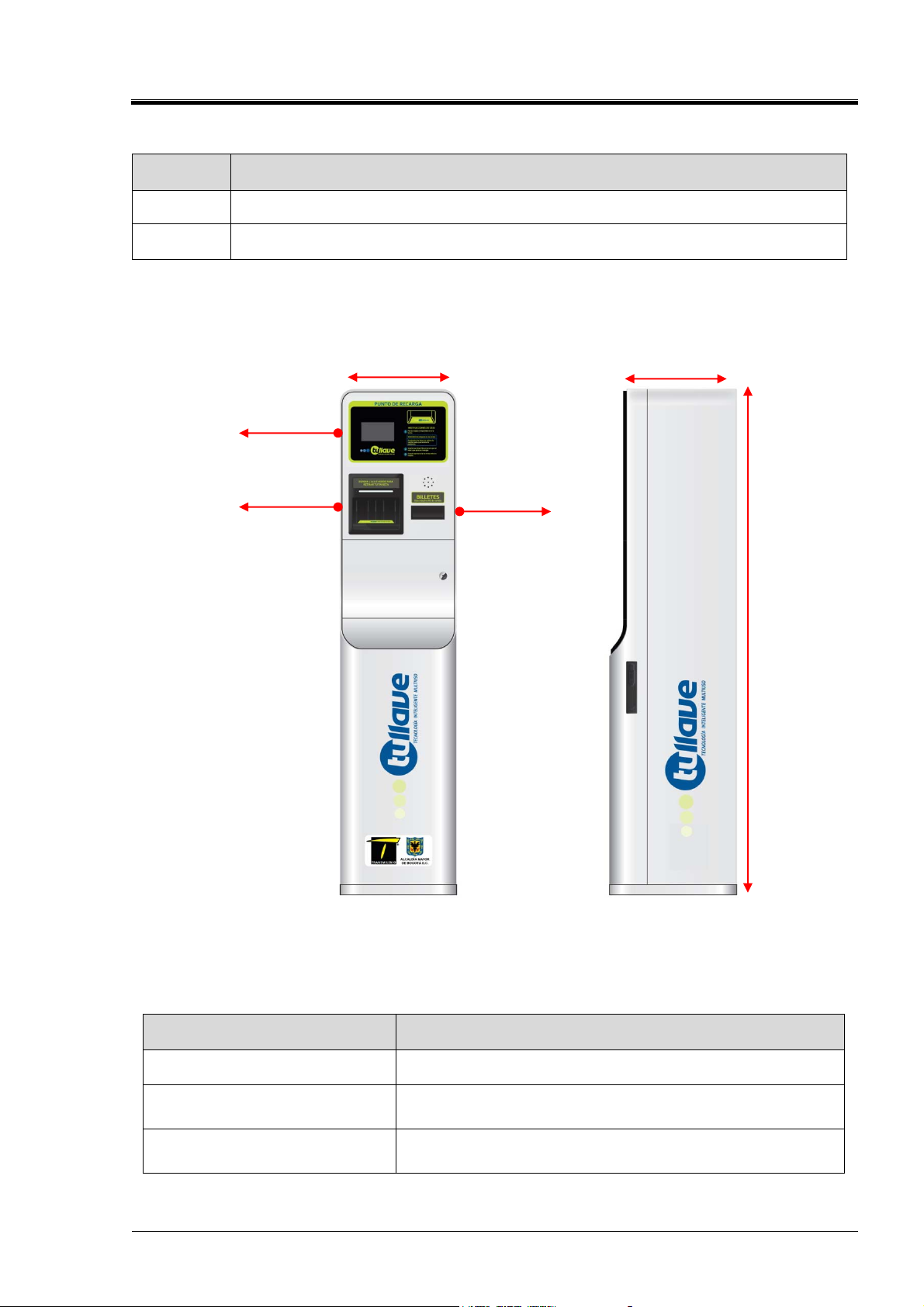

1.2.2 Main Module Structure I
390mm (W)
1
2
3
Automatic Recharger
440mm (D)
1500mm (H)
Name Explanation
1) 4.3’ LCD Display of operation information
2) RFID Antenna
3) Bill Module
ISO14443 Type A, 13.56MHz card recognition and
charging
6 varieties of colombia bill
Insert each 1 bill
Page
２
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 8
Bogota SIRCI Project User Requirement Definition
y

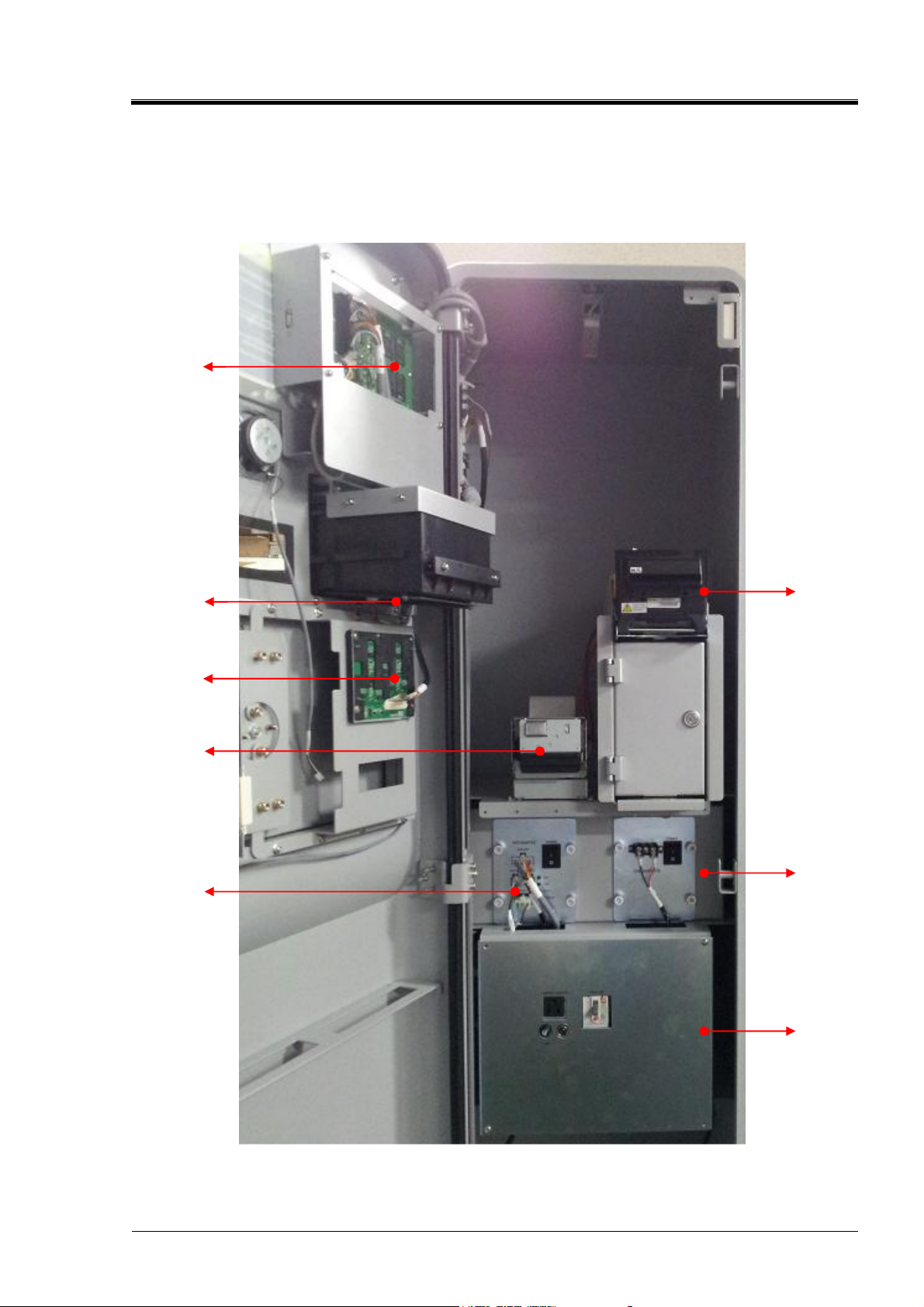

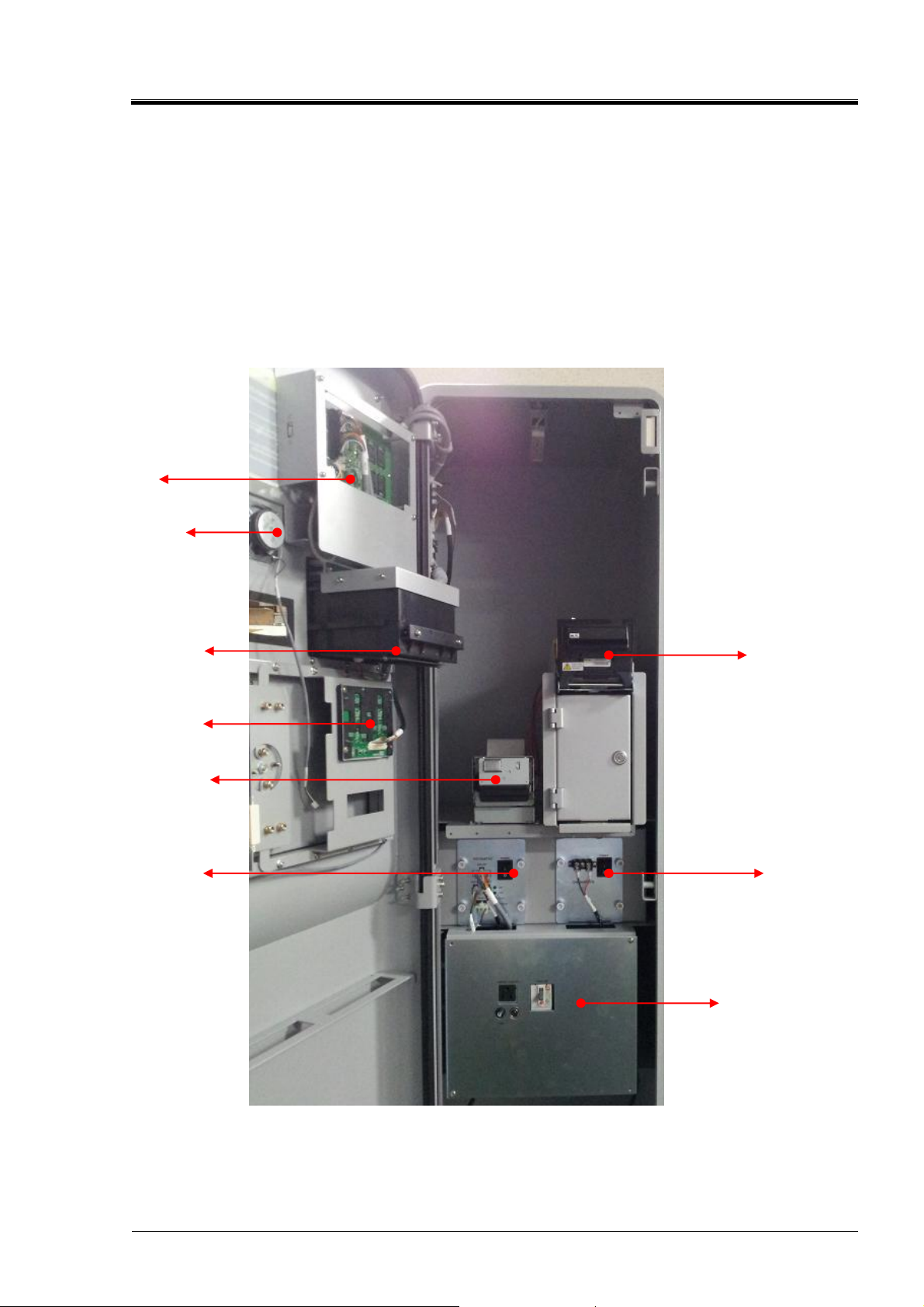

1.2.3 Internal Structure
CPU, SUB,
LCD Board
RF Antenna
Keypad
Printer
SMPS
Bill Module
Batter
Power Panel
Page
３
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 9
Bogota SIRCI Project User Requirement Definition
1.2.4 Main Module Structure II
1) Printer Module
Print daily closing , accounting statement.
2) RFID Antenna
13.56MHz RF Card
ISO 14443 Type A
3) CPU Board
Control all attached equipment of Automatic Recharger and transfer data to main server.
CPU
- S3C2440(ARM9 Core) : 400MHz
Memory
- SDRAM : 128MByte
- Nor : 8MByte
- Nand : 512Myte
RF Module
- RC531( Type A)

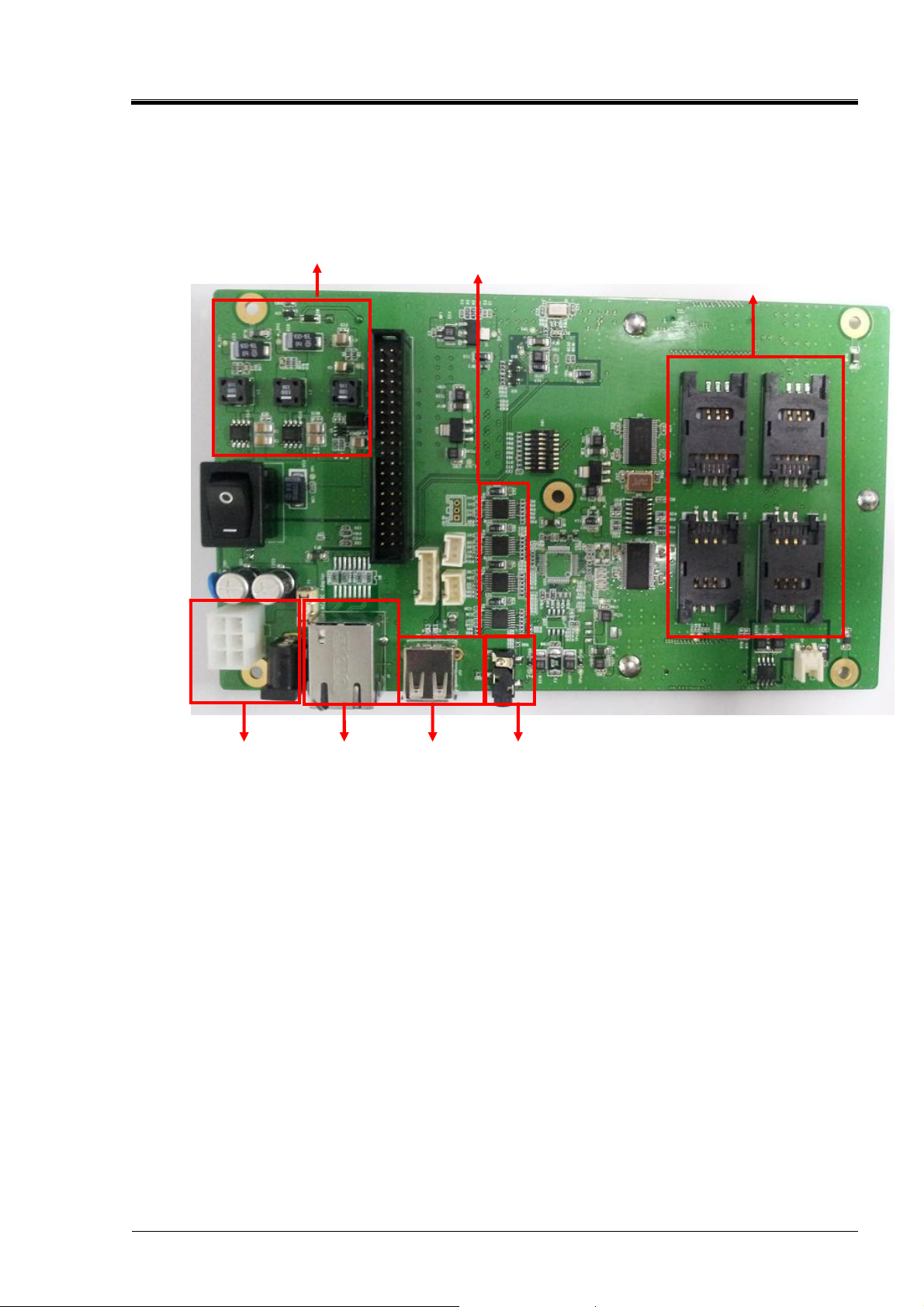

4) Sub Main Board
Control I/O communicating CPU Board.
Exterior PORT
- Ethernet : 1
- USB : 1
- RS -232 : 5
SAM
- Socket 4EA(SIM Type)
Sound
- SW Codec controal
- Speaker : 5W * 1
5) I/O Board
Control I/O communicating CPU Board and Sub Main Board.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４
of All
Page 10
Bogota SIRCI Project User Requirement Definition
6) Bill Module
: Recognize 6 varieties of Colombian Bill.
7) SMPS
: AC 110V, DC24V, DC12V
8) Battery
: Operate for 2 minute by using SMPS sub power.
9) Power Panel
: Input AC120V, output AC120V
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５
of All
Page 11
Bogota SIRCI Project User Requirement Definition
2. Error Handling

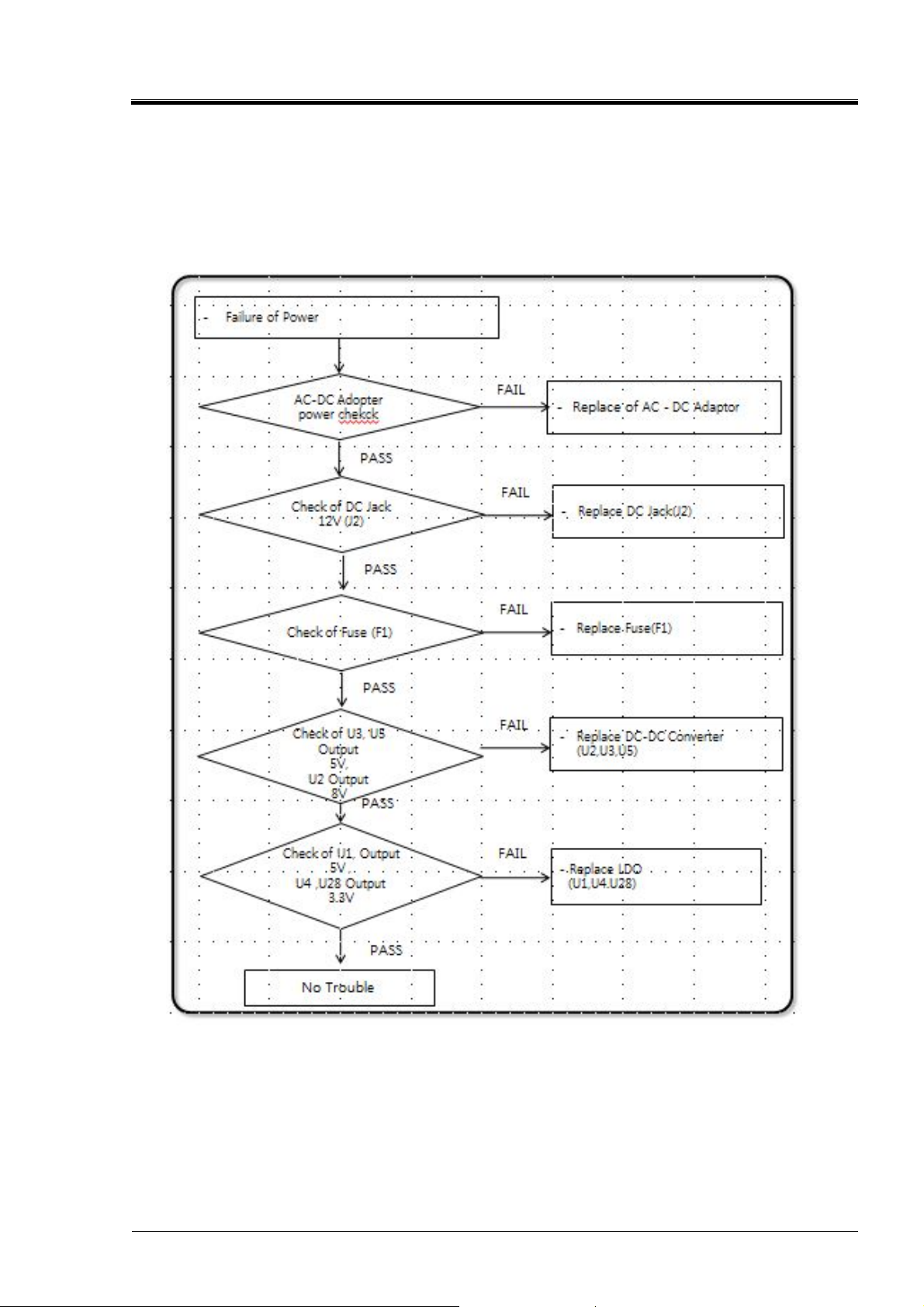

2.1.1 Supply of the power (1/3)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
６
of All
Page 12
Bogota SIRCI Project User Requirement Definition

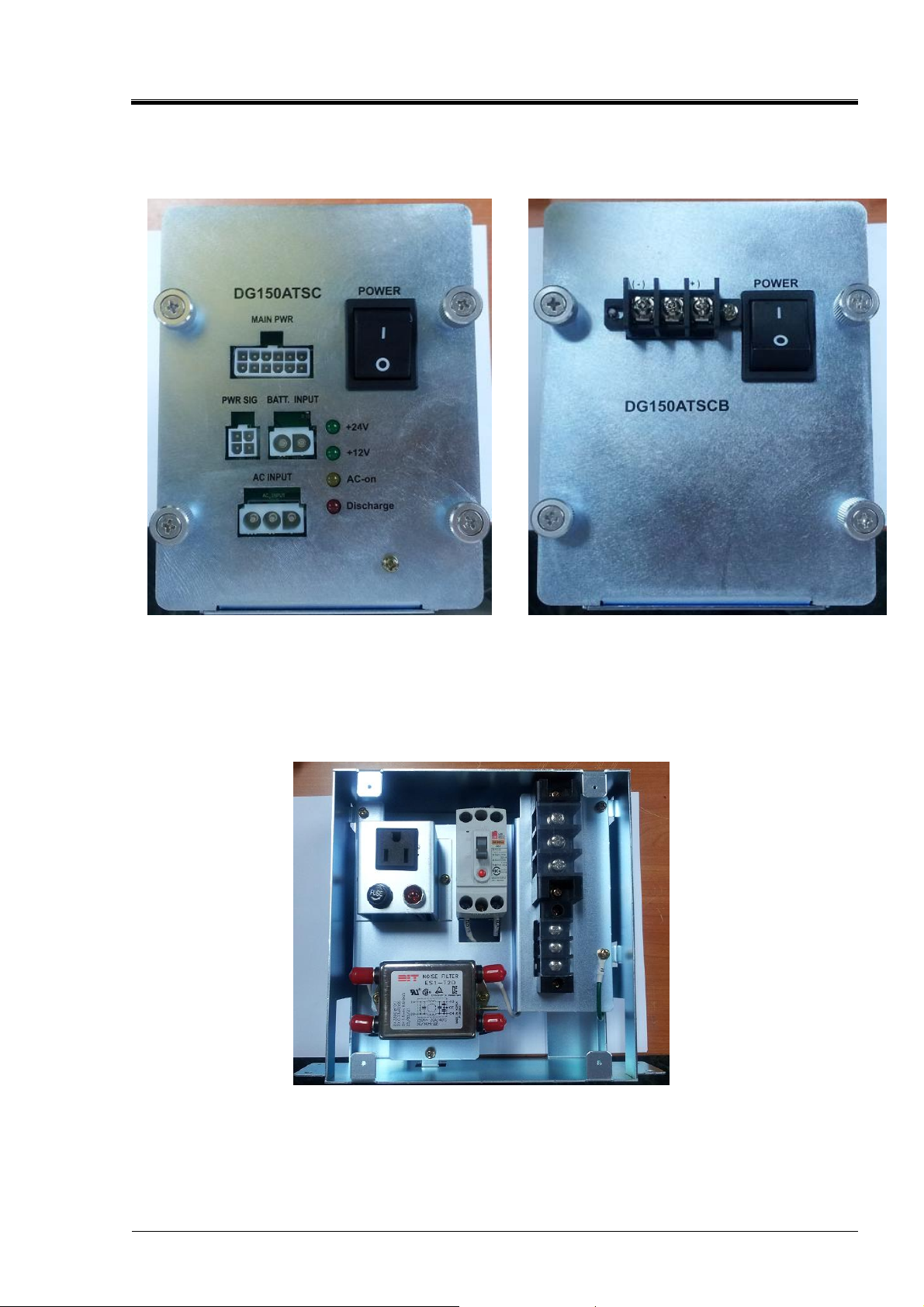

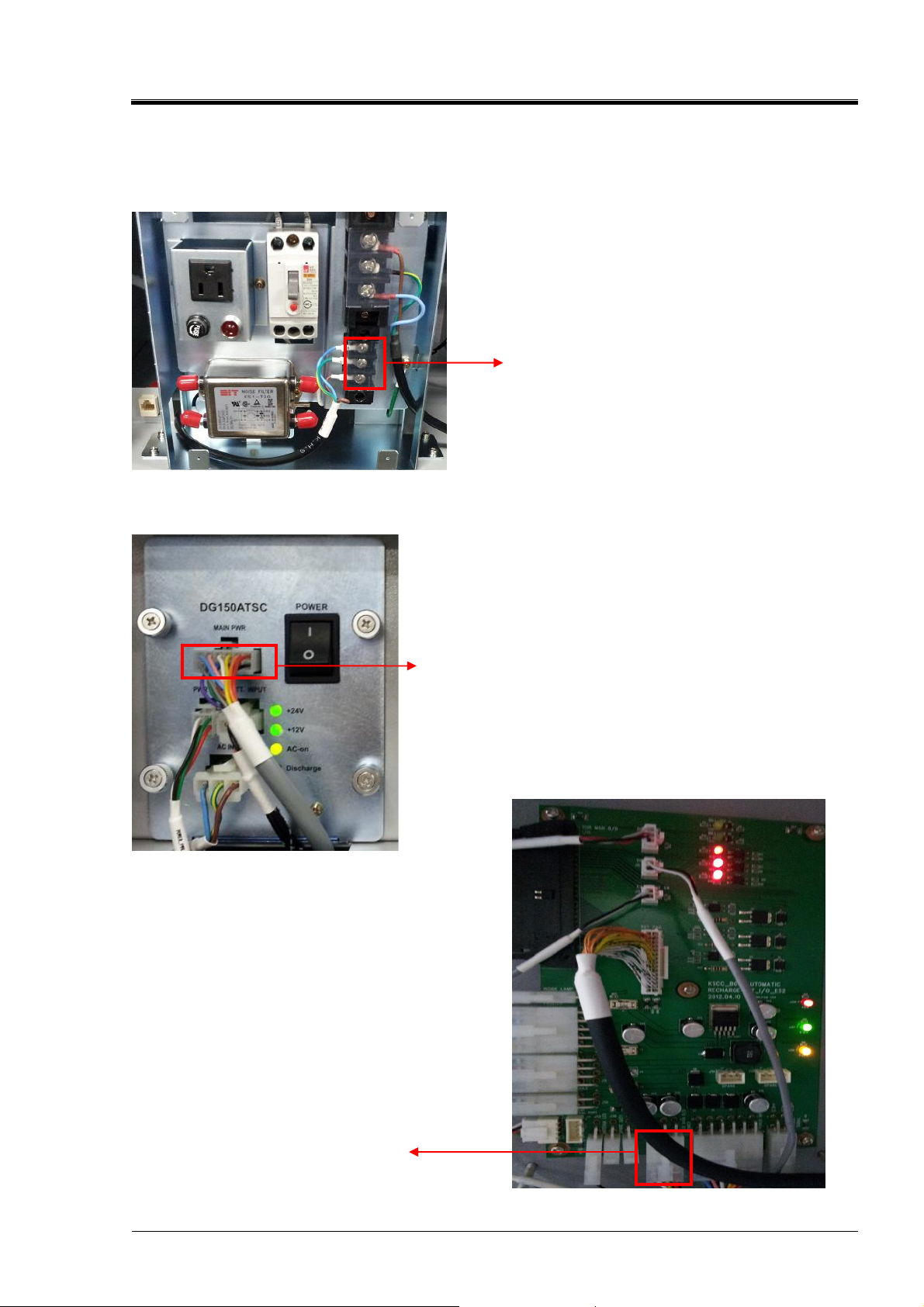

2.1.2 Power Supply (2/3)
Output Voltage
AC 110V
Check
<Power Panel>
Output Voltage
DC12V Check
<SMPS>
Output Voltage
DC12V Check
<Connecter Board>
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
７
of All
Page 13
Bogota SIRCI Project User Requirement Definition
p
p
p
p

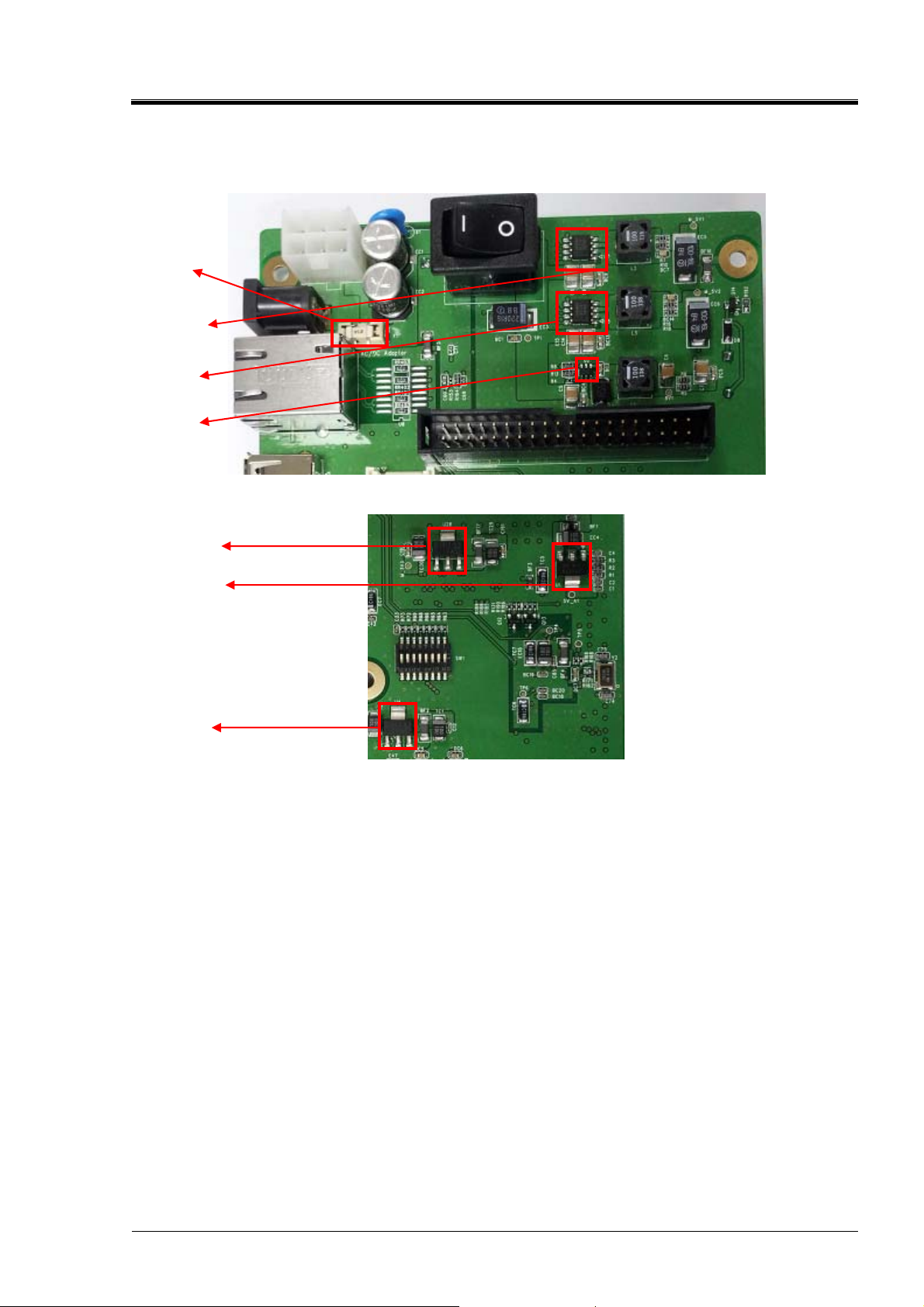

2.1.3 Power Supply (3/3)
Fuse(F1) Check
U3 Out
U5 Out
U2 Out
ut 5V Check
ut 5V Check
ut 8V Check
U28 Output 3.3V
U1 Output 5V Check
U4 Out
ut 3.3V Check
Page
８
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 14
Bogota SIRCI Project User Requirement Definition
(
2.1.4 USB Trouble (1/2)
Cannot update USB
Check USB Memory
PASS
Check USB file system
FAT32 is not
PASS
Check CPU board USB
PASS
Check USB power
FAIL
FAIL
FAIL
FAIL
- Replace USB Memory stick
- Format USB by FAT file system
- Replace CPU PCB
- Replace SUB Main PCB
PASS
FAIL
Check USB Cable
- Replace USB Cable
PASS
No trouble
Page
９
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 15
Bogota SIRCI Project User Requirement Definition

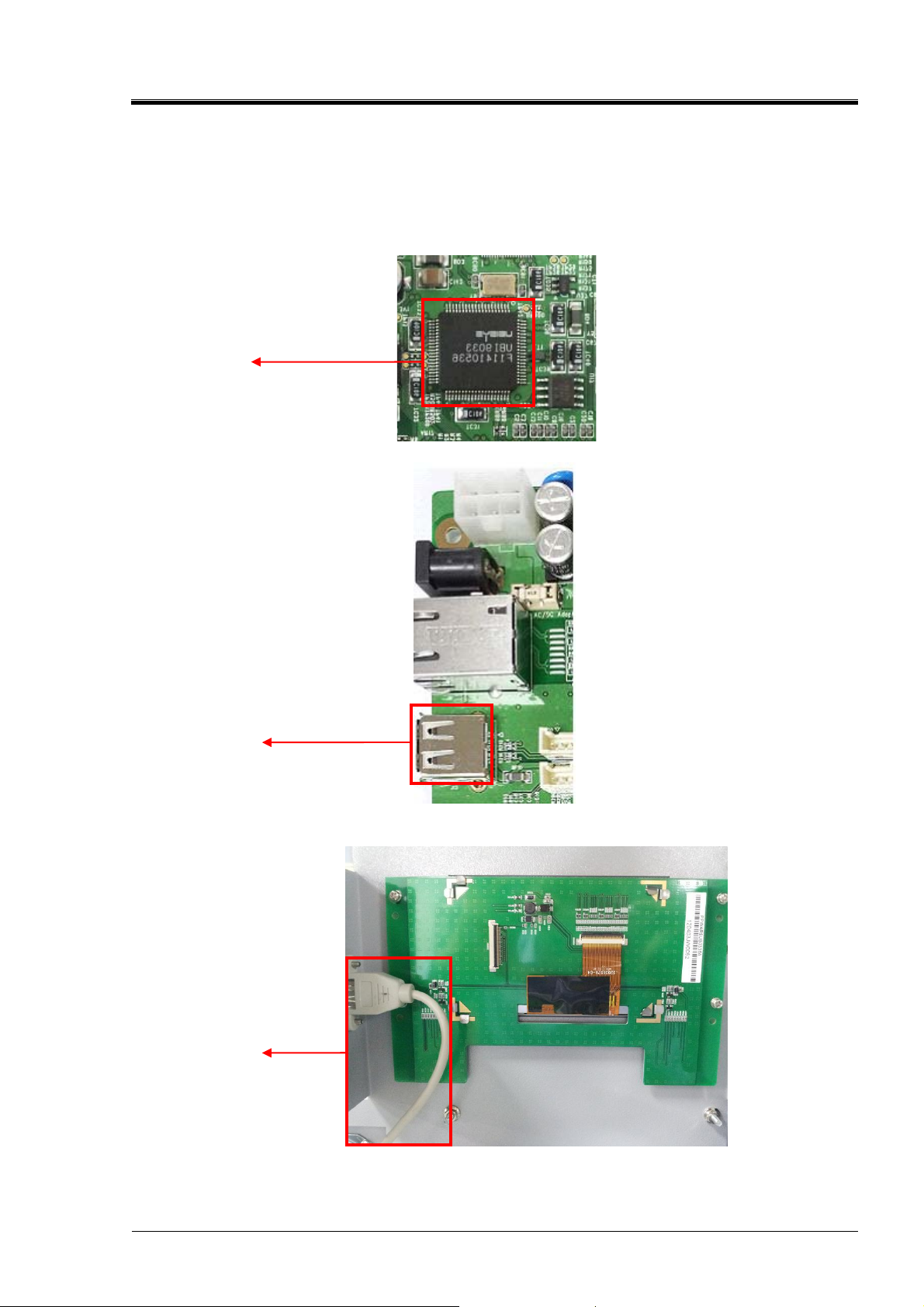

2.1.5 USB Trouble (2/2)
Check of U21 USB
Controller
Check USB Power
Pin No. 1 5V
Check USB Cable
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１０
of All
Page 16
Bogota SIRCI Project User Requirement Definition

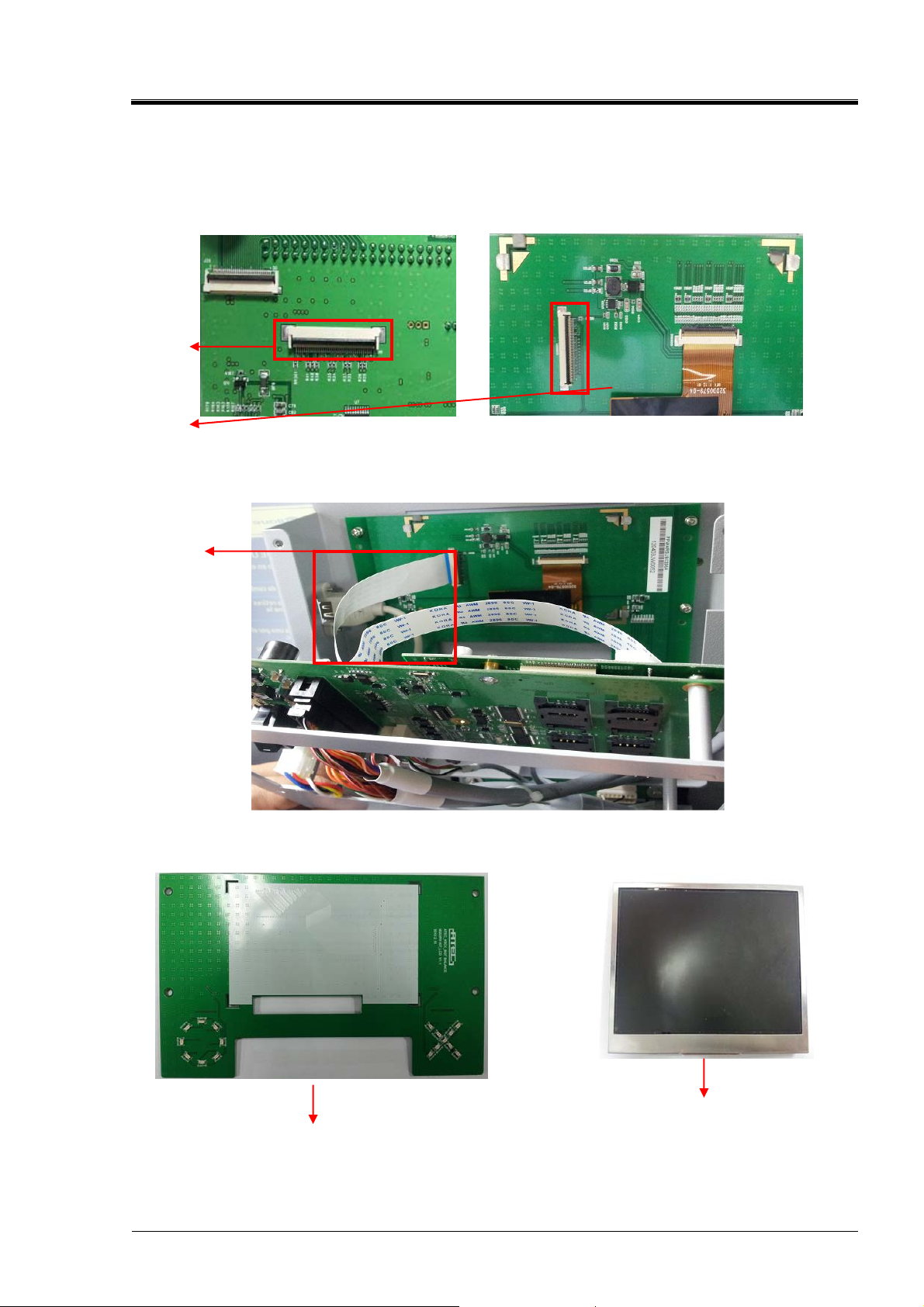

2.1.6 LCD Screen Trouble (1/2)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１１
of All
Page 17
Bogota SIRCI Project User Requirement Definition

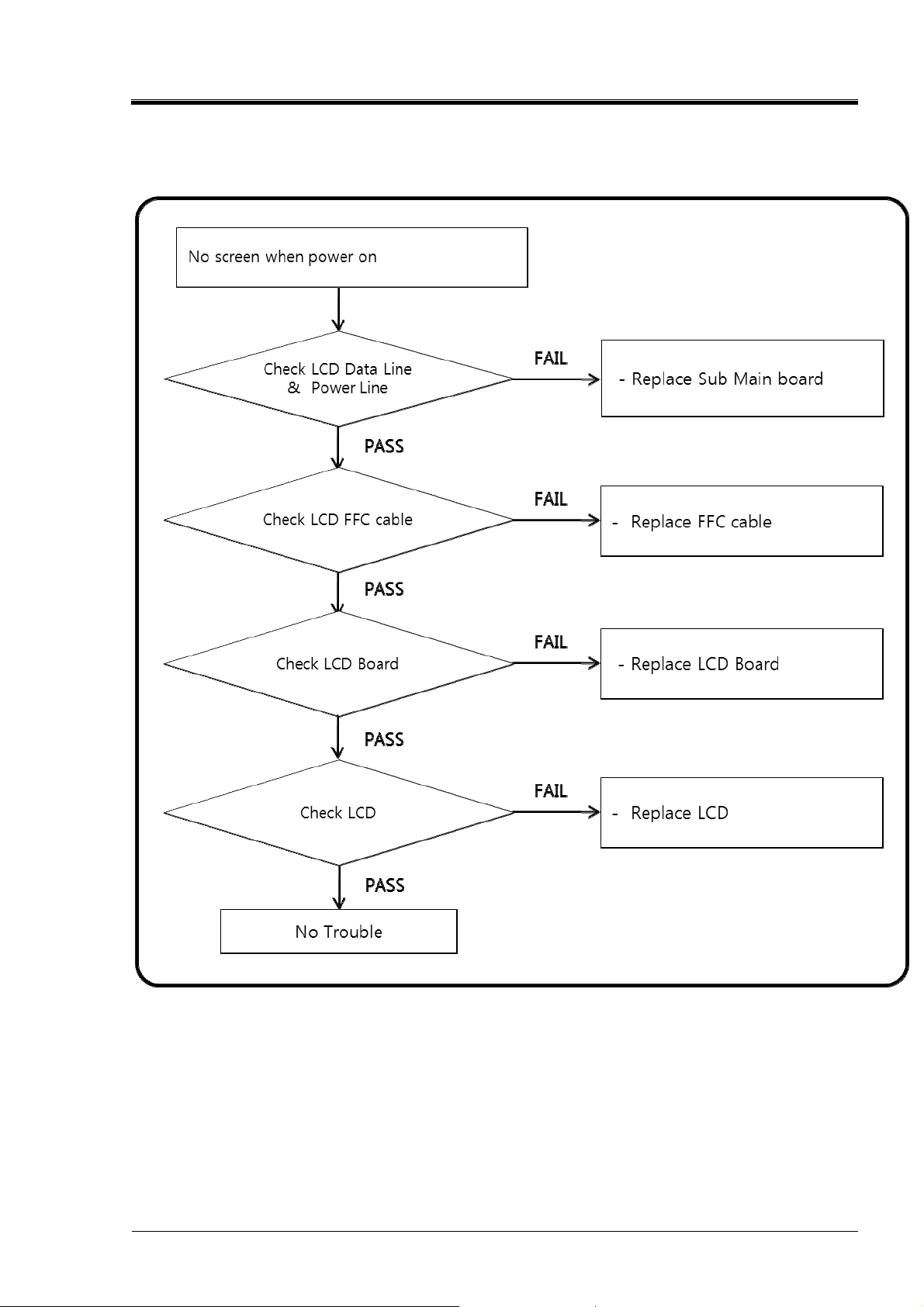

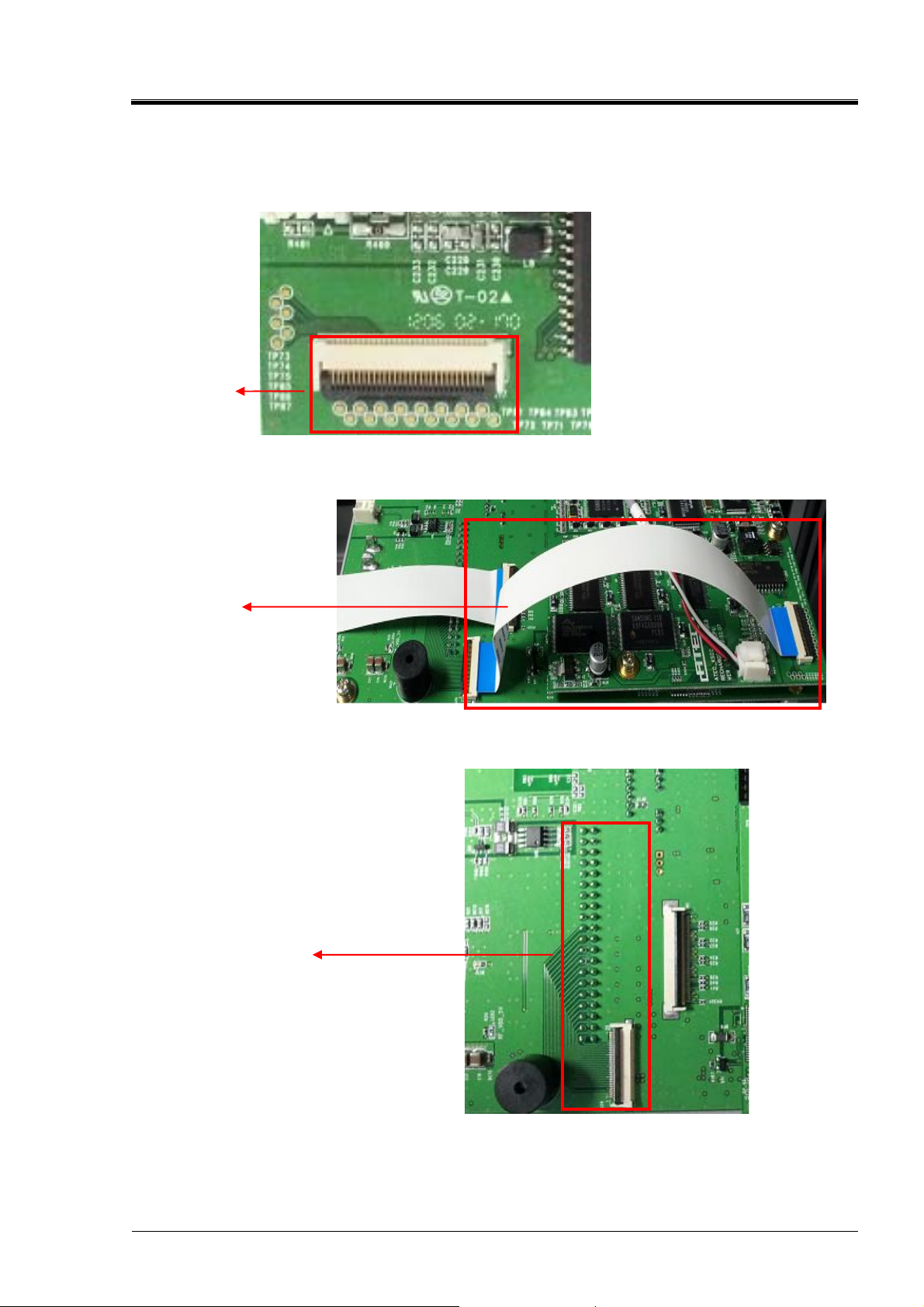

2.1.7 LCD Screen Trouble (2/2)
Check LCD Data &
Power Line (Sub Main)
Check LCD Data &
Power Line (LCD B/D)
Check LCD FFC Cable
Check LCD Board
CB-EDR-HM-00-V1.0 Automatic Recharger
Check LCD
Page
１２
of All
Page 18
Bogota SIRCI Project User Requirement Definition

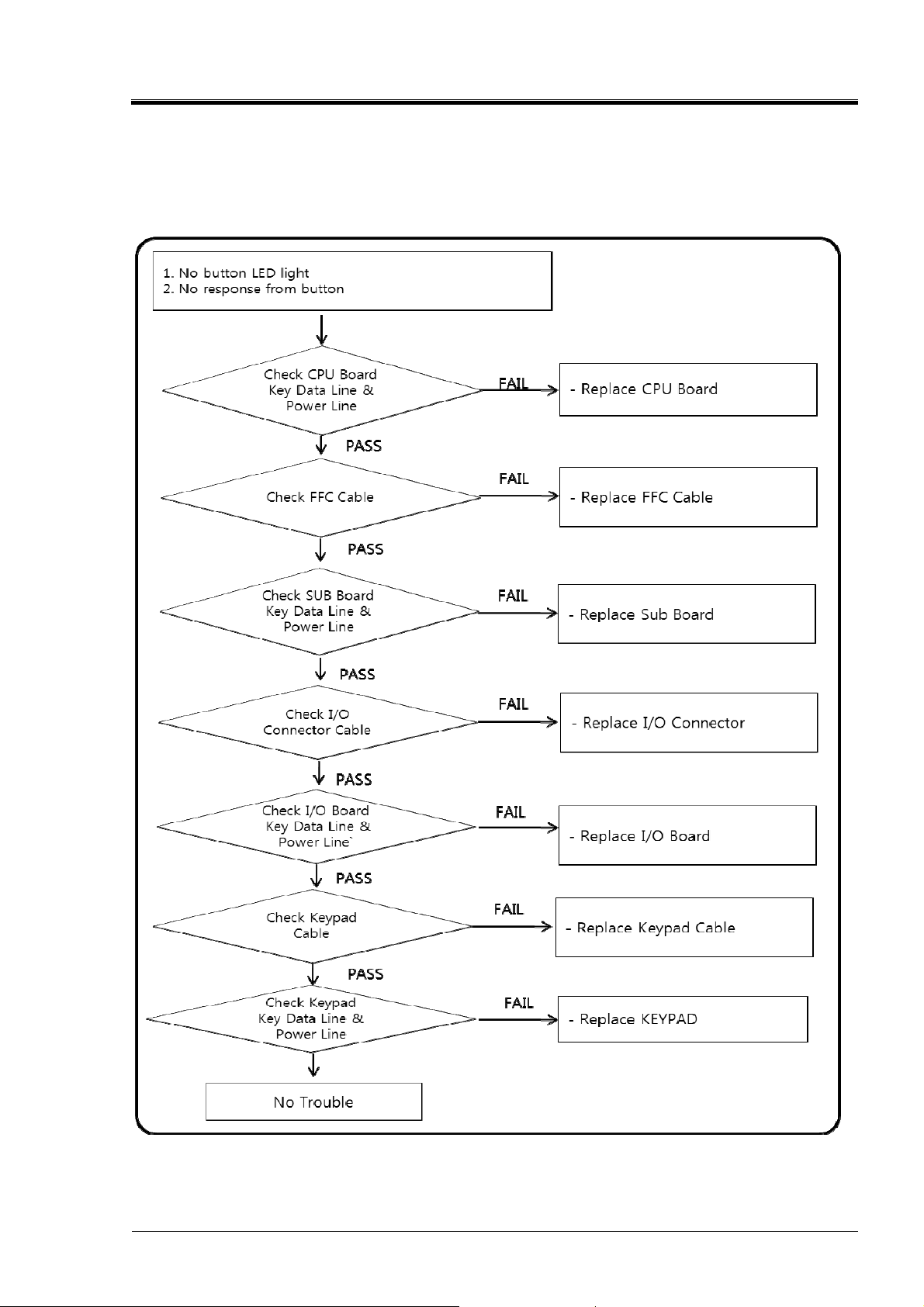

2.1.8 Keypad Trouble (1/2)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１３
of All
Page 19
Bogota SIRCI Project User Requirement Definition

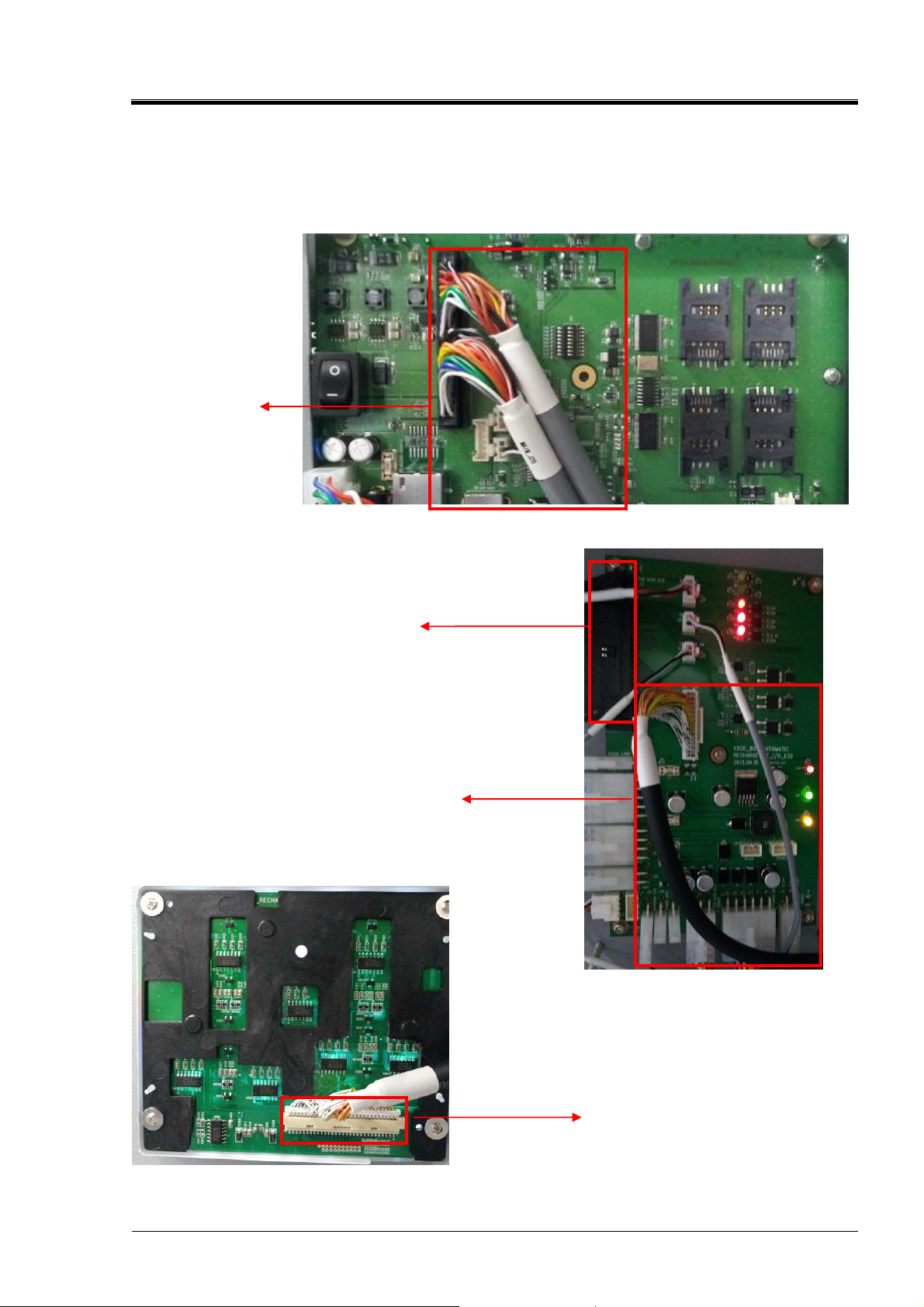

2.1.9 Keypad Trouble (2/3)
Check CPU Board
Key Data Line
& Power Line
Check FFC
Check SUB Board Key
Data Line & Power
Line
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１４
of All
Page 20
Bogota SIRCI Project User Requirement Definition

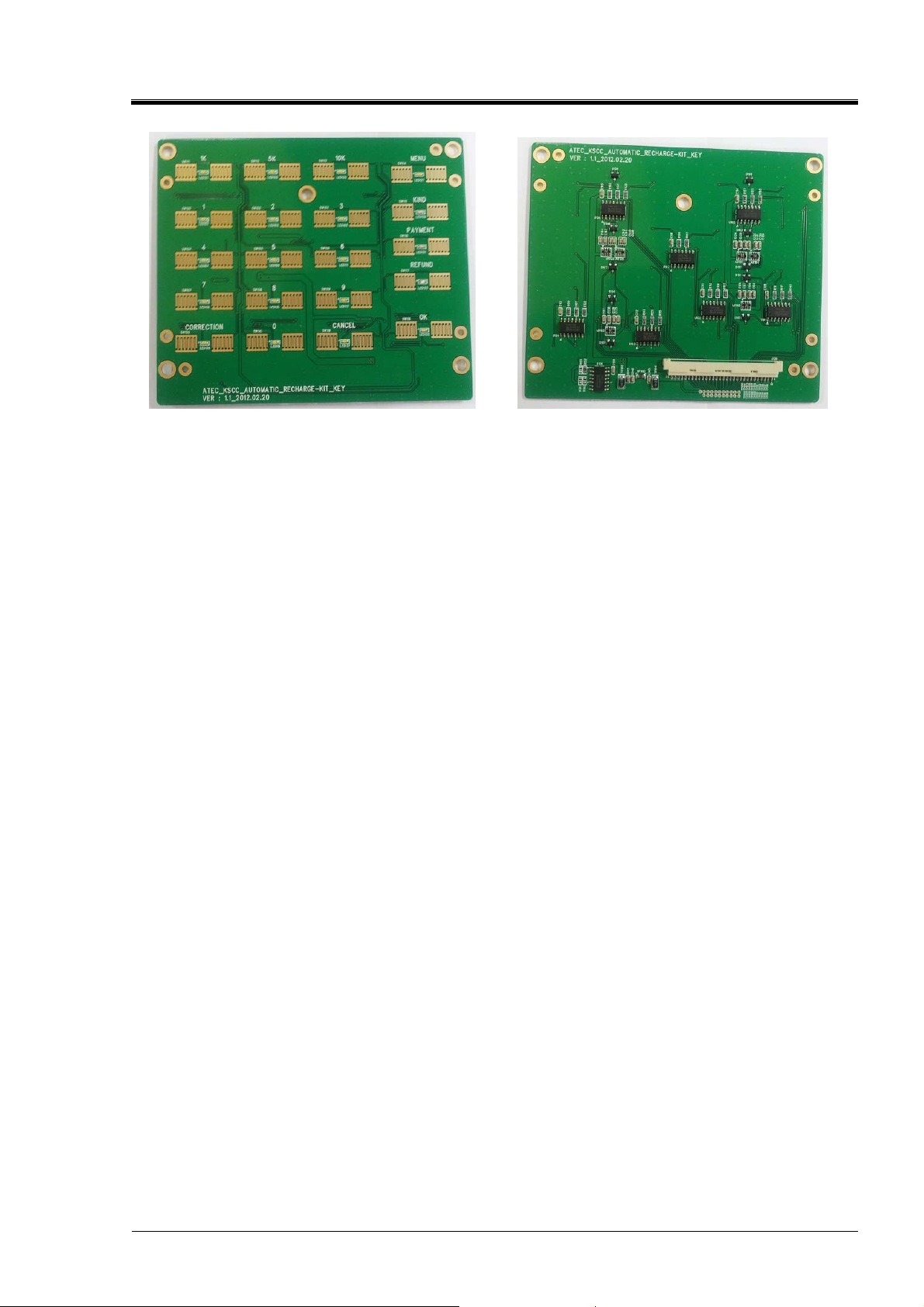

2.1.10 Keypad Trouble (3/3)
Check I/O
Check I/O Board
Key Data Line &
Power Line
Check Keypad
Cable
CB-EDR-HM-00-V1.0 Automatic Recharger
Check Keypad
Key Data Line &
Page
１５
of All
Page 21
Bogota SIRCI Project User Requirement Definition

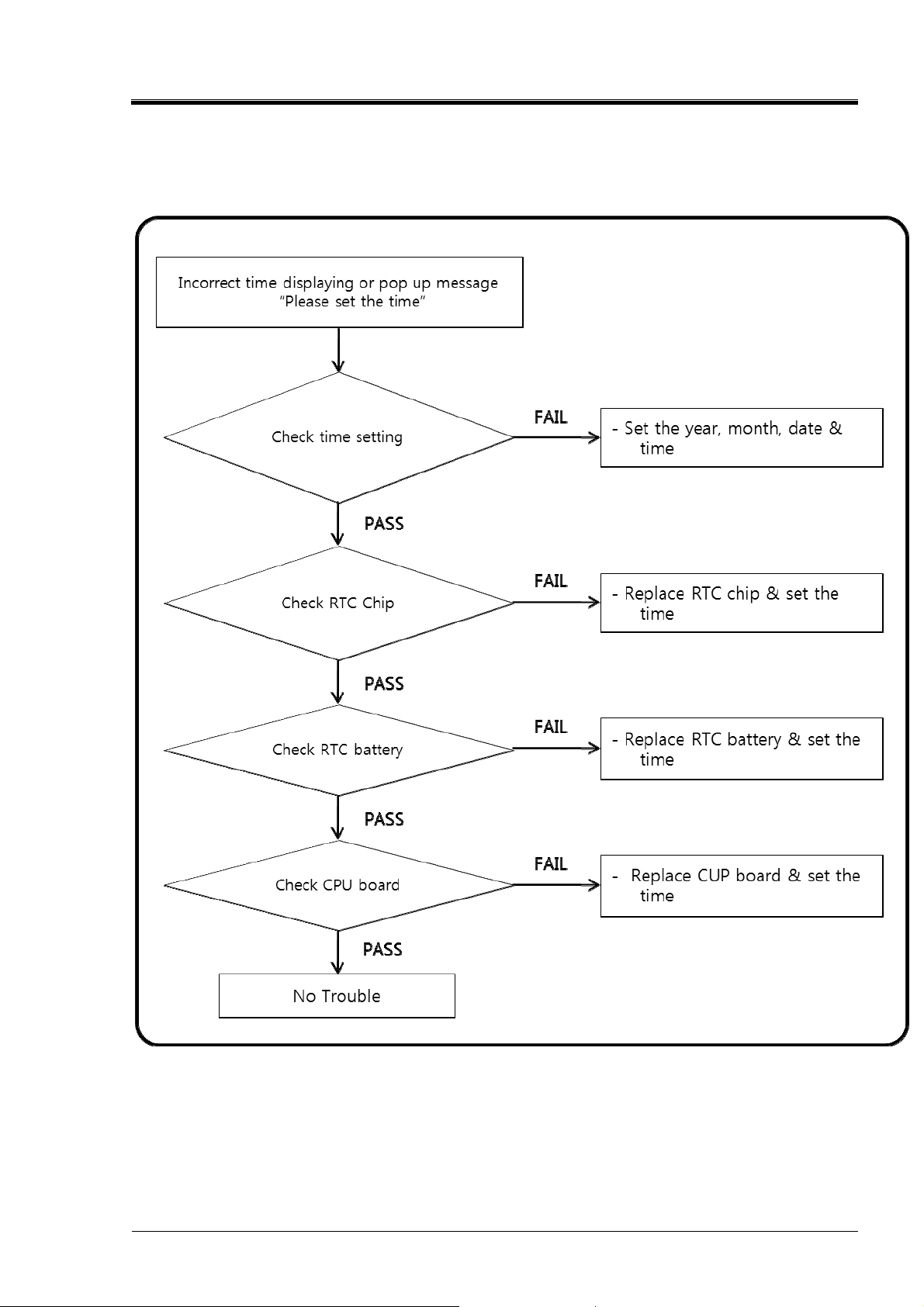

2.1.11 RTC Trouble (1/2)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１６
of All
Page 22
Bogota SIRCI Project User Requirement Definition

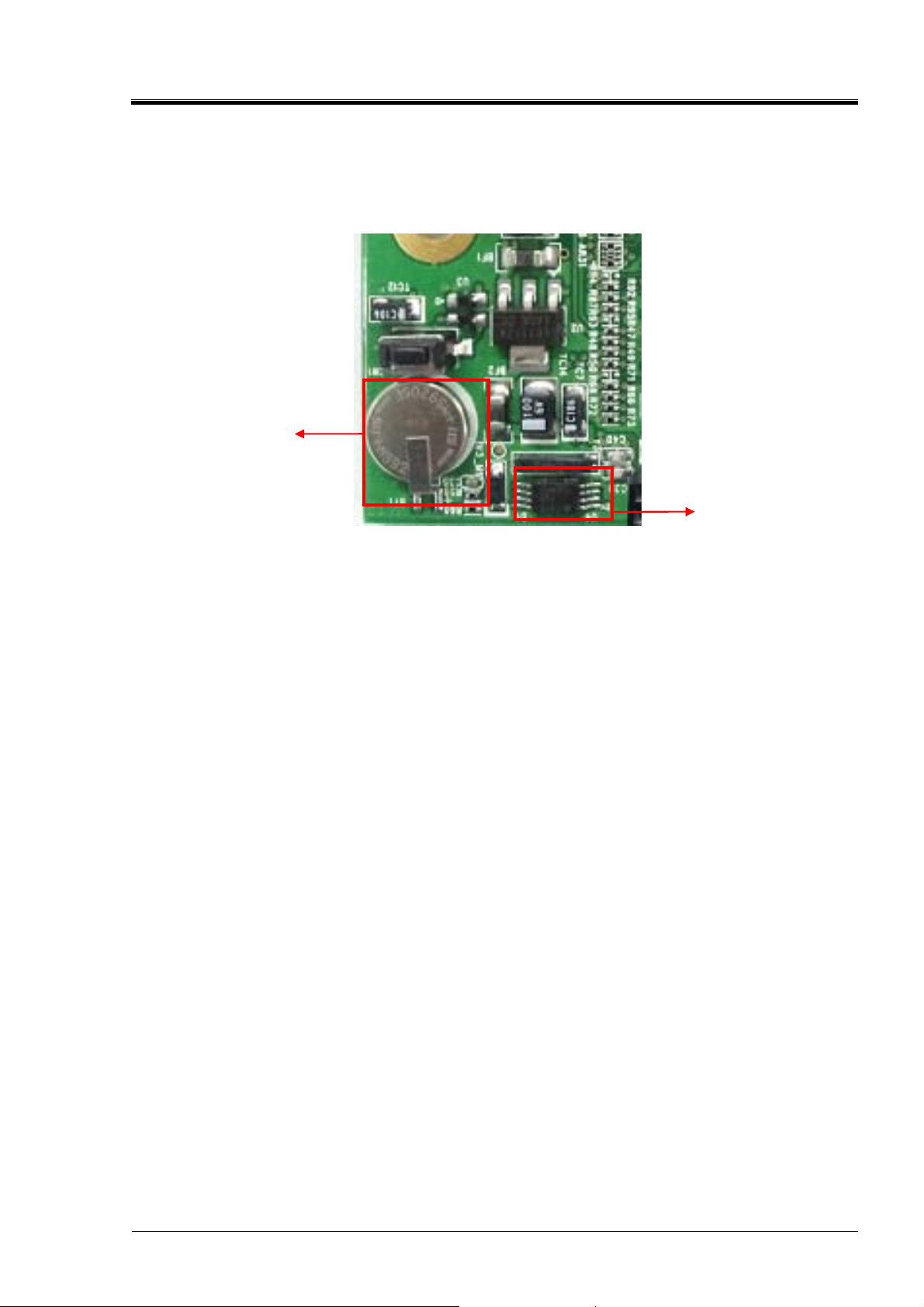

2.1.12 RTC Trouble (2/2)
Check RTC Battery
Check RTC IC
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１７
of All
Page 23
Bogota SIRCI Project User Requirement Definition

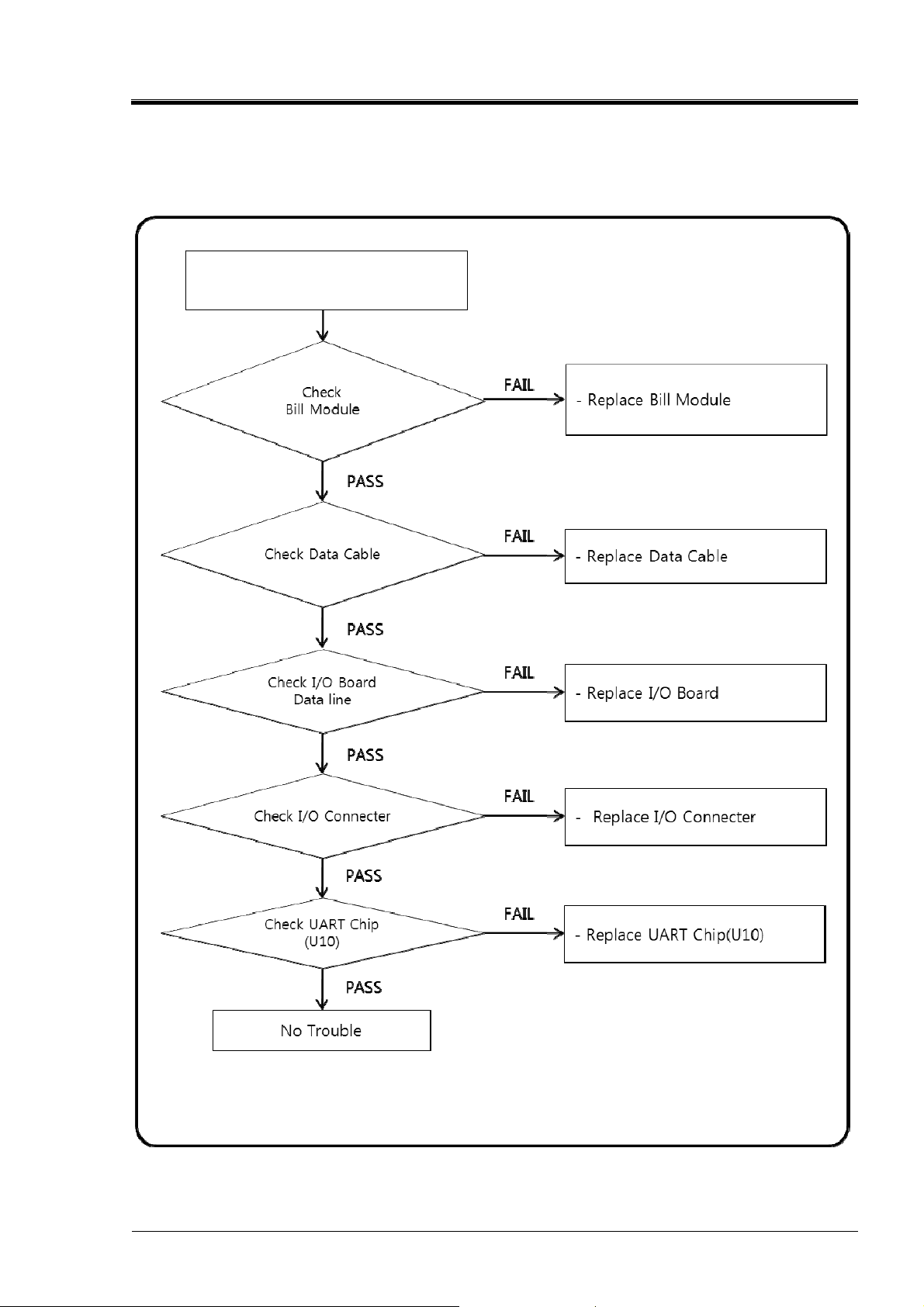

2.1.13 Bill Module Trouble (1/3)
Bill Module Trouble
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１８
of All
Page 24
Bogota SIRCI Project User Requirement Definition

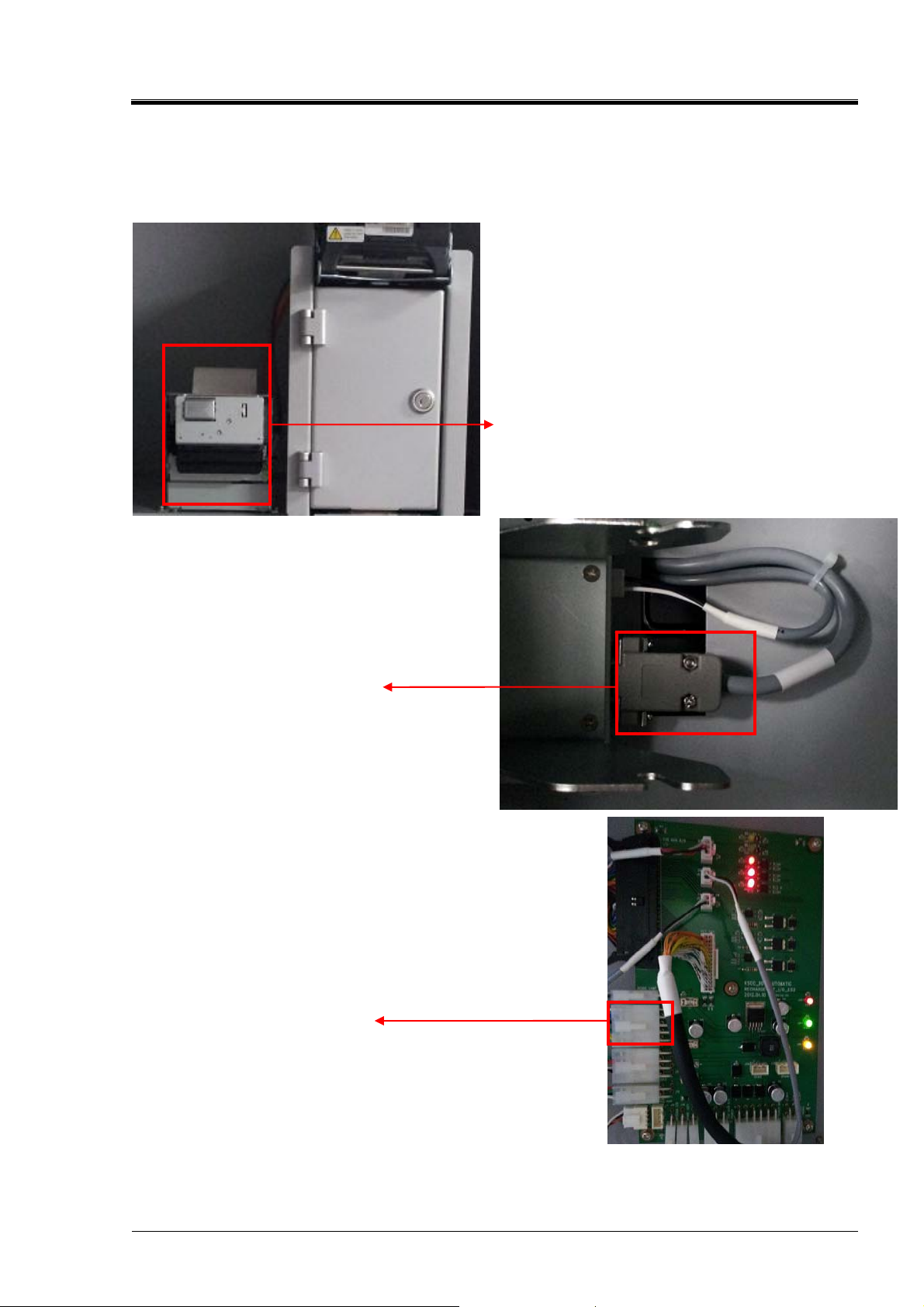

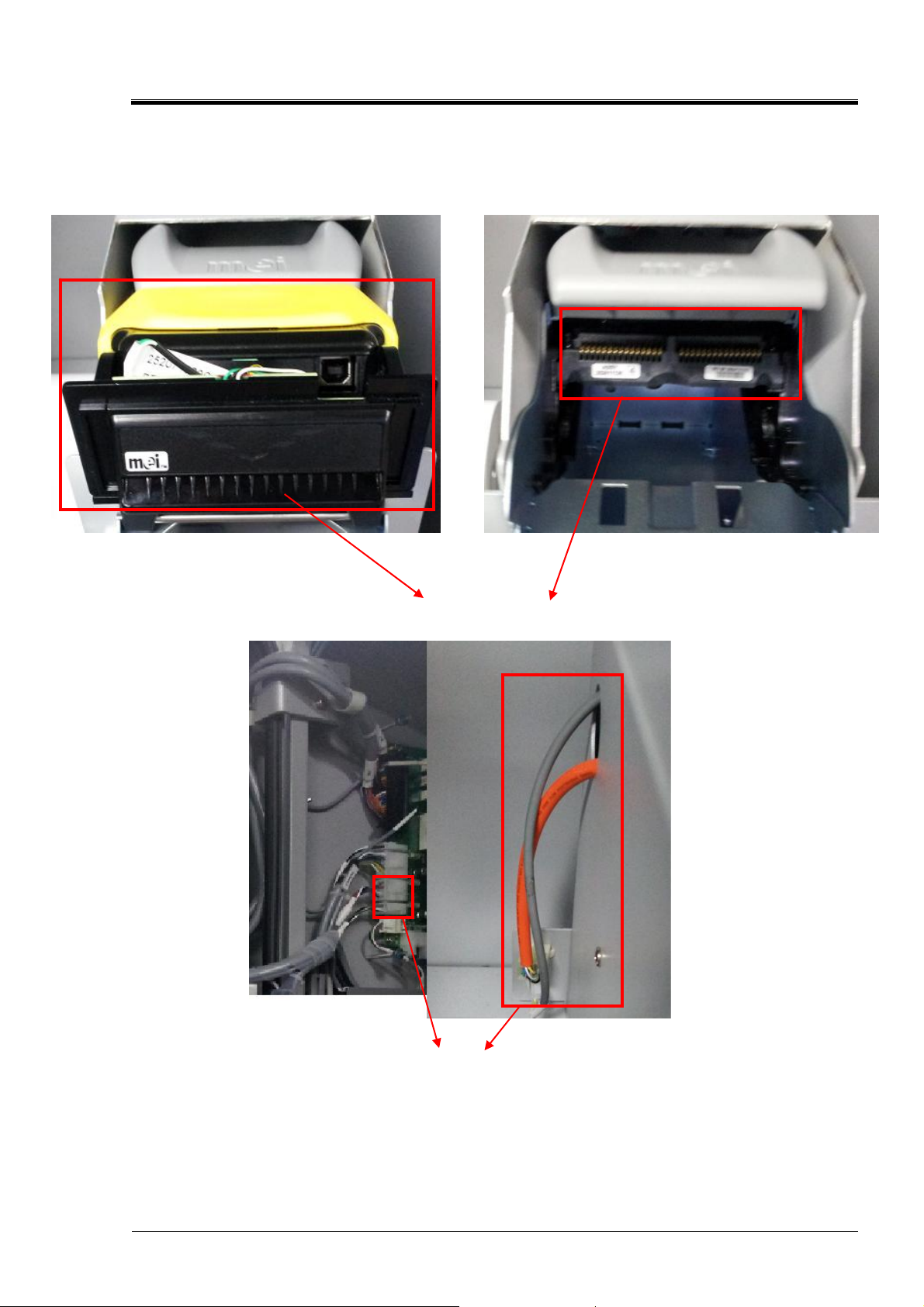

2.1.14 Bill Module Trouble (2/3)
Check Bill Module
Check Data Cable
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
１９
of All
Page 25
Bogota SIRCI Project User Requirement Definition

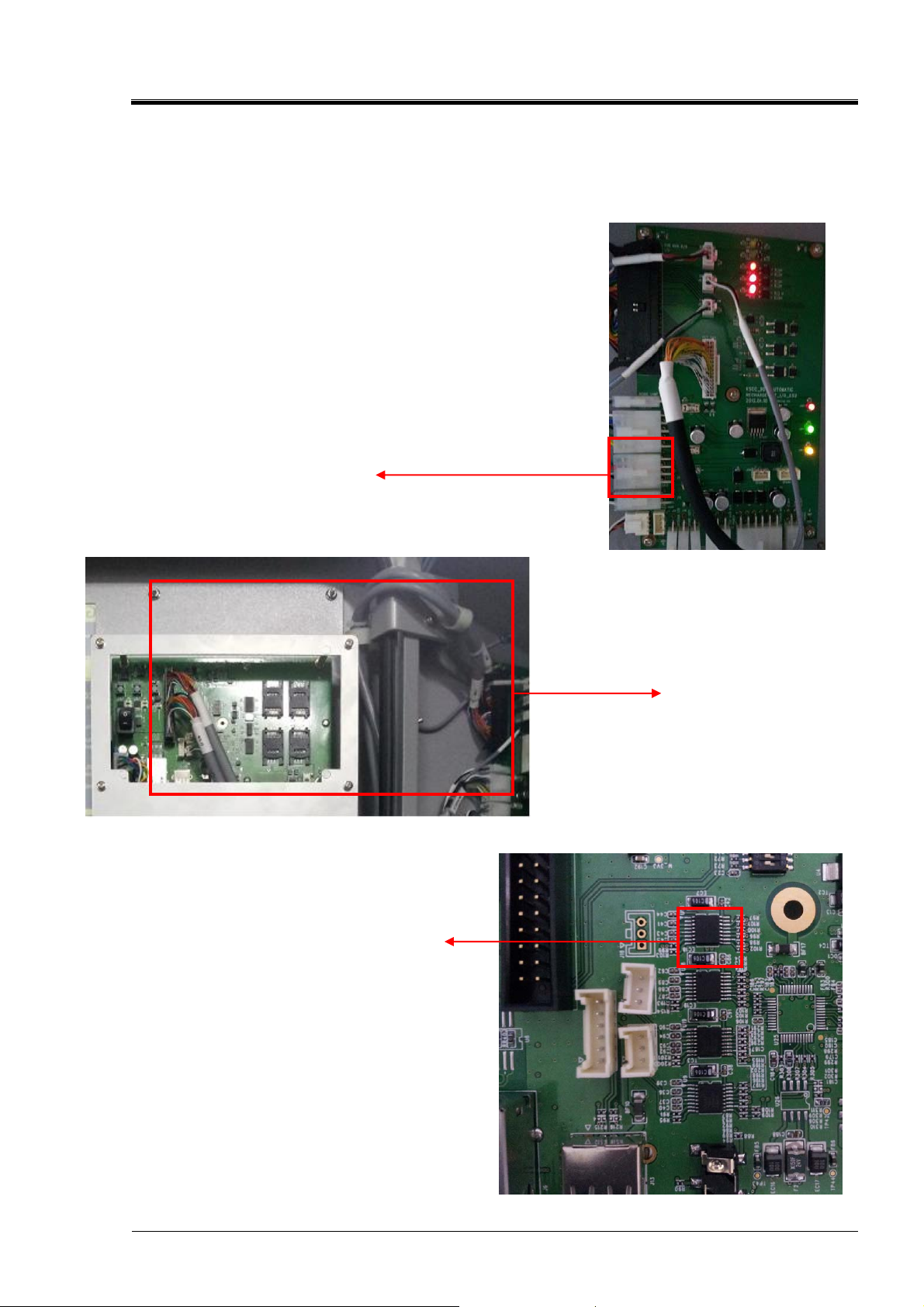

2.1.15 Bill Module Trouble (3/3)
Check I/O Board
Data line
Check I/O Connecter
Check UART Chip
(U10)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２０
of All
Page 26
Bogota SIRCI Project User Requirement Definition
2.1.16 Printer Trouble (1/2)
Printer Trouble
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２１
of All
Page 27
Bogota SIRCI Project User Requirement Definition
2.1.17 Printer Trouble (2/3)
Check Printer
Check Data Cable
Check I/O Board
Data line
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２２
of All
Page 28
Bogota SIRCI Project User Requirement Definition

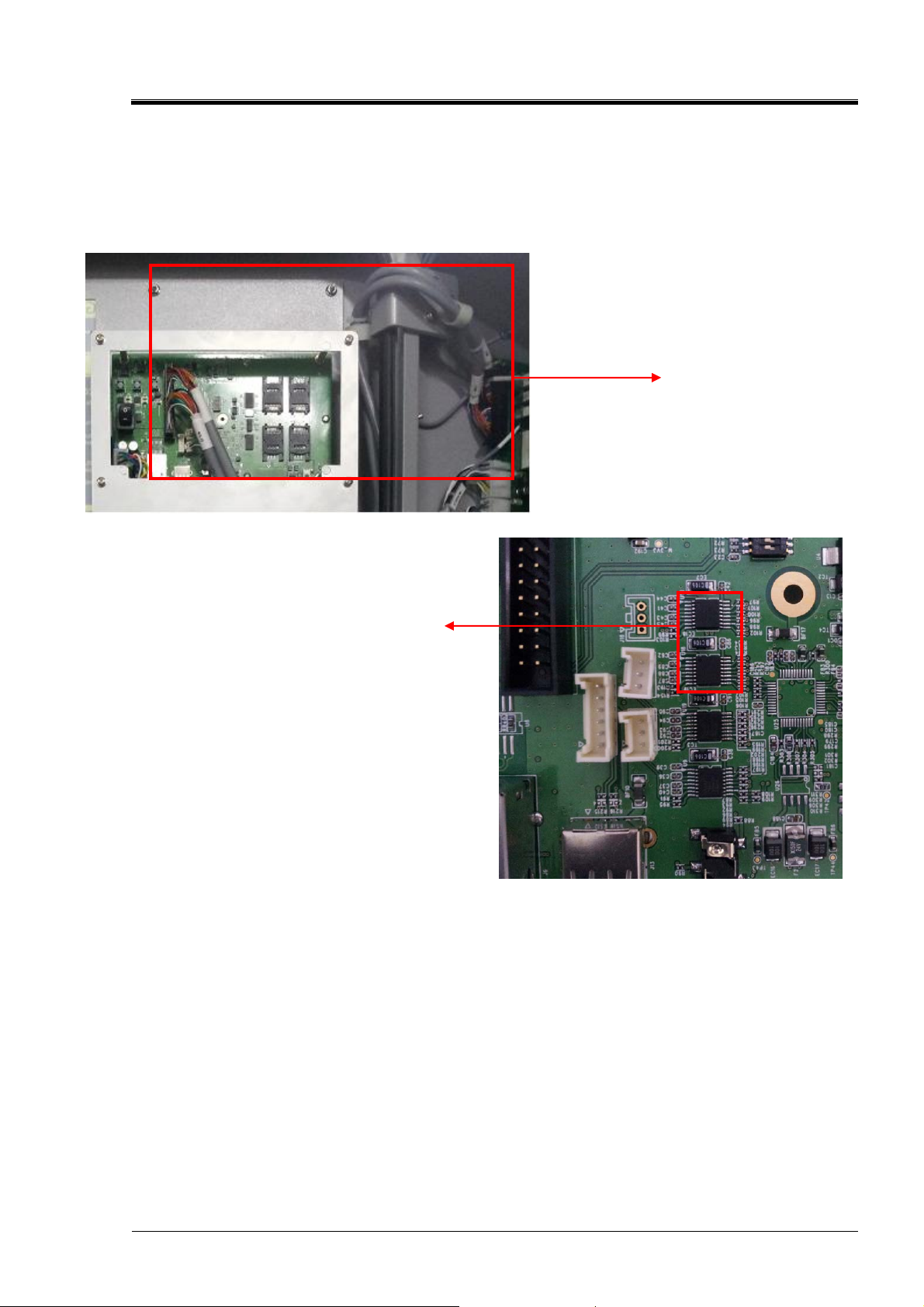

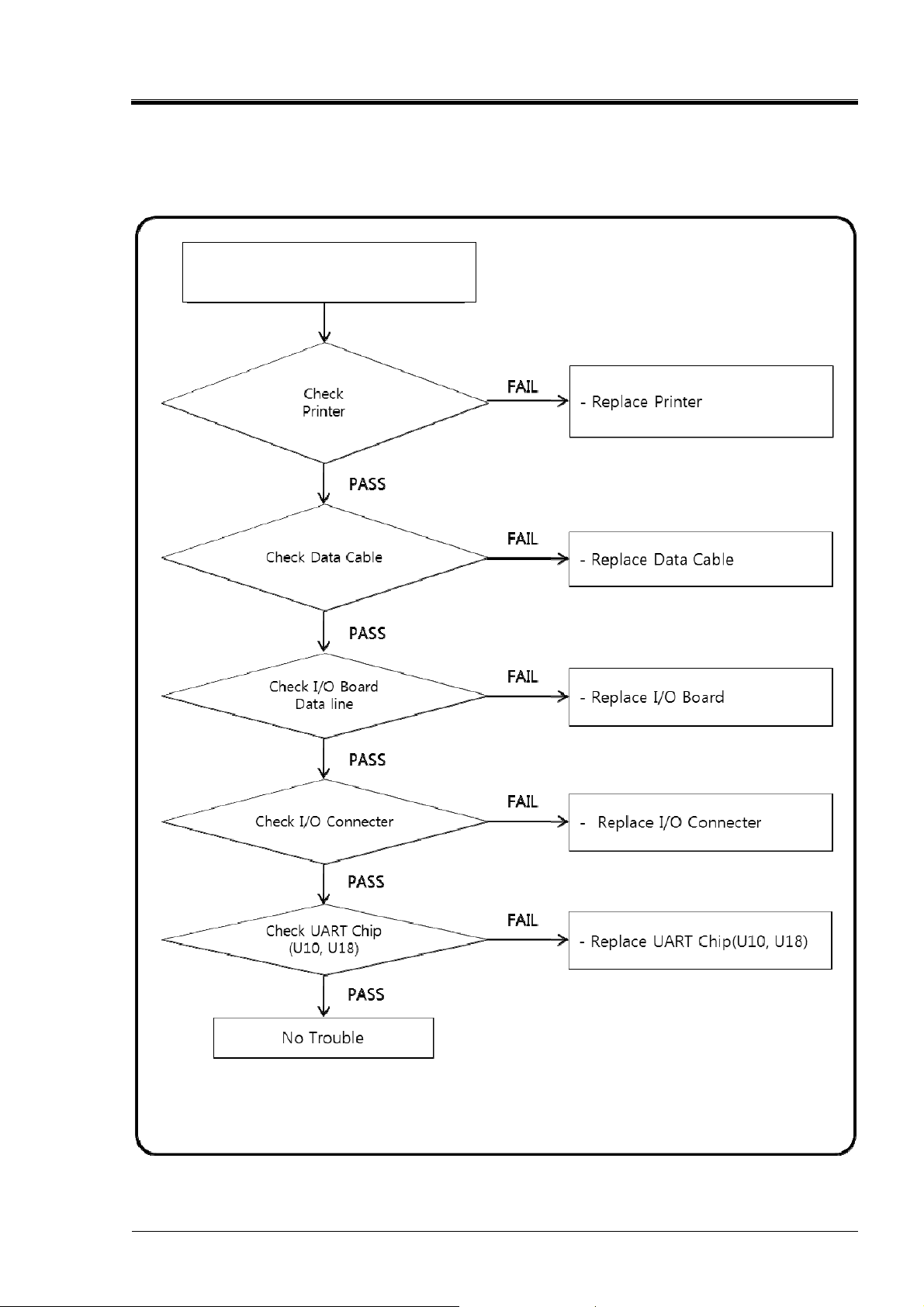

2.1.18 Printer Trouble (3/3)
Check I/O Connecter
Check UART Chip
(U10, U18)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２３
of All
Page 29
Bogota SIRCI Project User Requirement Definition
y
3. Device Maintenance
3.1 Automatic Recharger
3.1.1 Outline
3.1.2 Structure
CPU, SUB,
LCD Board
Speaker
Antenna
Keypad
Printer
SMPS
Bill Module
Batter
Power Panel
Page
２４
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 30
Bogota SIRCI Project User Requirement Definition
3.1.3 Specification
1) CPU Specification
EXT_UART
USB
Controller IC
CPU Board is the core board and plays main program also control the
communication of module.
ETHERNET
RC531
S3C2440
SDRAM
CPU
- S3C2440(ARM9 Core) : 400MHz
Memory
- SDRAM : 128MByte
- Nor : 8MByte
- Nand : 512Myte
RF Module
- RC531 (Type A)
EXT_UART
- SB16C554A
USB Controller
- UBI9033
NAND FLASH
NOR FLASH
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２５
of All
Page 31
Bogota SIRCI Project User Requirement Definition
ETHERNET
- W5100 (WIZNET)
2) SUB Main Board Specification
Communicate with CPU Board and control various I/O device.
AC97 Codec
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２６
of All
Page 32
Bogota SIRCI Project User Requirement Definition
POWER PART
RS-232
SIM Slot
Debug
Exterior PORT
- Ethernet : 1
- USB : 1
- RS -232 : 5
: Printer 1, Bill Module1, RFID Reader1, Debug 1, Spare Port 1
SAM
- Socket 4EA(SIM Type)
-
Sound
- SW Codec control
- Speaker : 5W * 1
Input Power
- DC12V Input from I/O Board
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２７
of All
Page 33
Bogota SIRCI Project User Requirement Definition
r
er
r

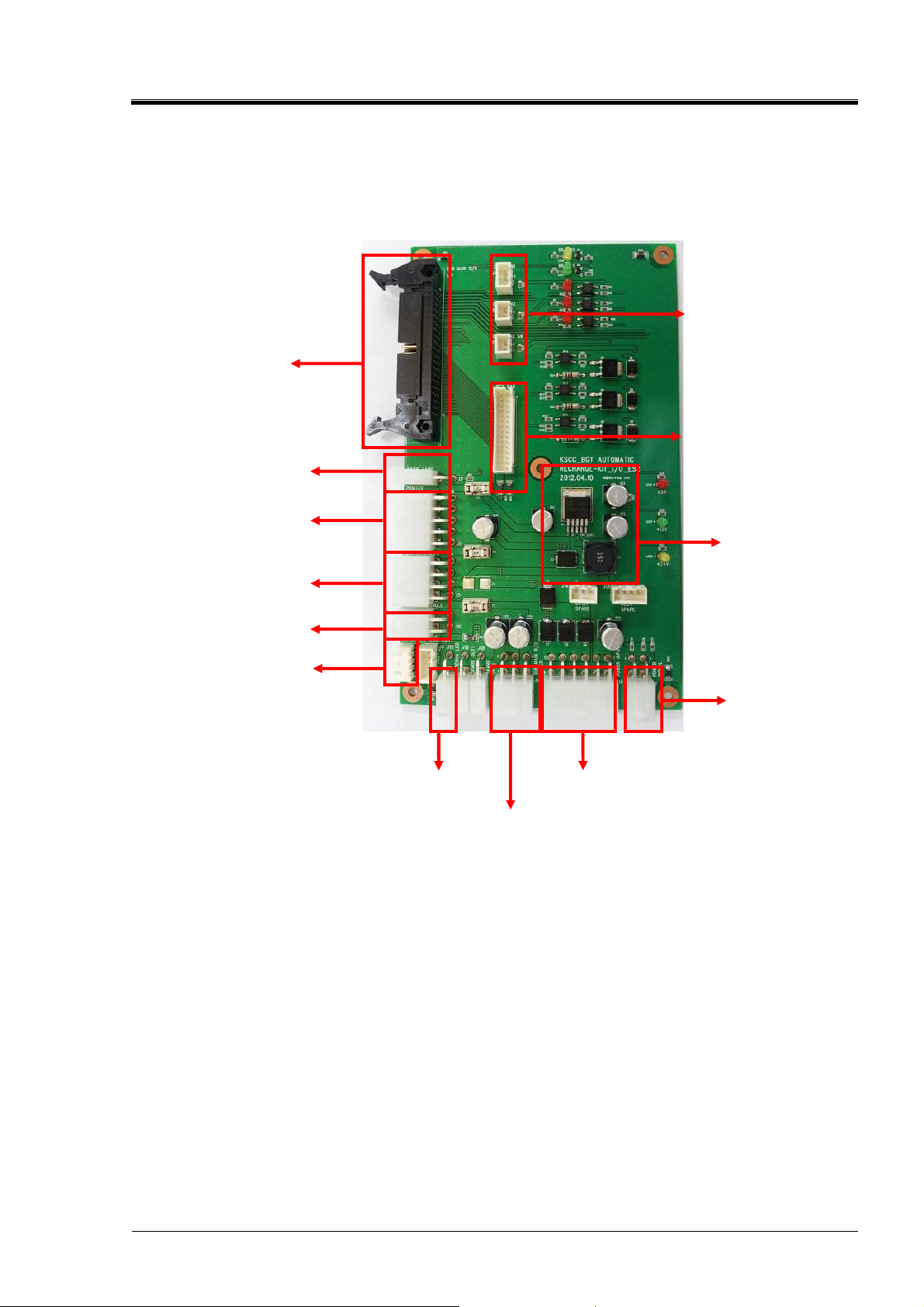

3) I/O Board Specification
Communicate with CPU Board, Sub main board and control I/O device.
Senor Connecte
I/O Connecte
KEYPAD Connect
Inside Lamp Connecter
Printer Connecter
Power Part
Bill Module Connecter
RFID Module Connecter
Spare RS-232 Connecter
Antenna LED Connecter
Sub Main Power Connecter
4) Antenna Board Specification
Recognize card connecting CPU Board RC531.
5) Keypad Specification
Power Signal Connecter
Main Power Connecter
Page
２８
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 34
Bogota SIRCI Project User Requirement Definition
Transfer entered Key value through I/O Board to CPU Board.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
２９
of All
Page 35
Bogota SIRCI Project User Requirement Definition
6) SMPS and Battery Specification
- SMPS : Supplied power from Power Panel and output DC 12/24V.
- Battery : 140W(Max) for 2minute.
7) Power Panel Specification
- Supply power from outside power.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３０
of All
Page 36
Bogota SIRCI Project User Requirement Definition
3.1.4 Replacement Method

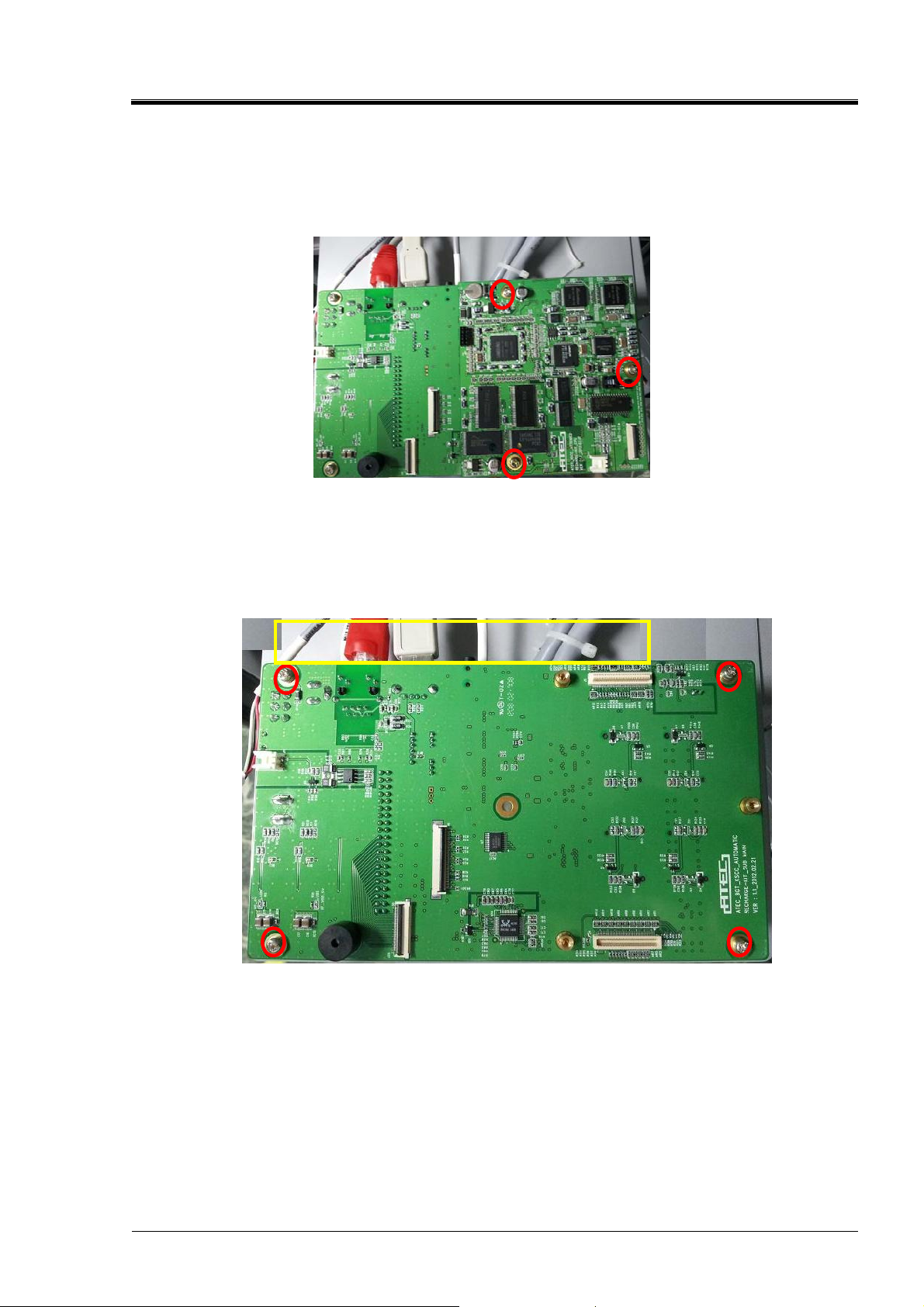

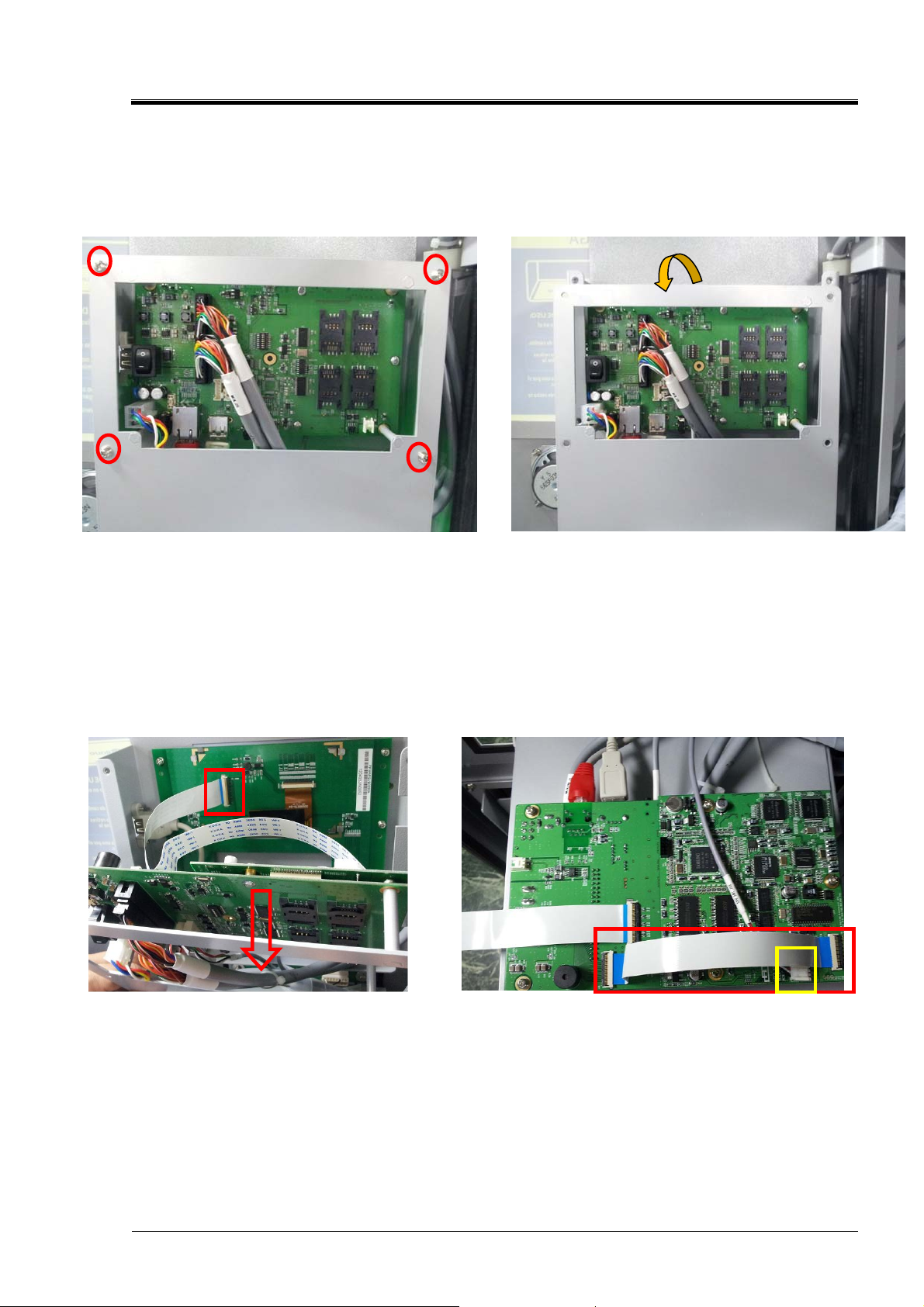

1) CPU Board Separation
① Unfasten the screw which is fixed to Sub Main Bracket and let down it.
② Remove 40Ping FFC cable which is connecting LCD Board and let it down in
direction of arrow.
③ Remove 30Pin FFC cable and Antenna Cable which is connecting Sub Main Board.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３１
of All
Page 37
Bogota SIRCI Project User Requirement Definition
④ Unfasten fixed screw which is connecting Sub Main Board and separate Sub
Main Board.
2) Sub Main Board Separation
① Unfasten fixed screw which is connecting Sub Main Bracket and separate
Sub main Board.
② Separate Connector which is connecting Sub Main Board.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３２
of All
Page 38
Bogota SIRCI Project User Requirement Definition

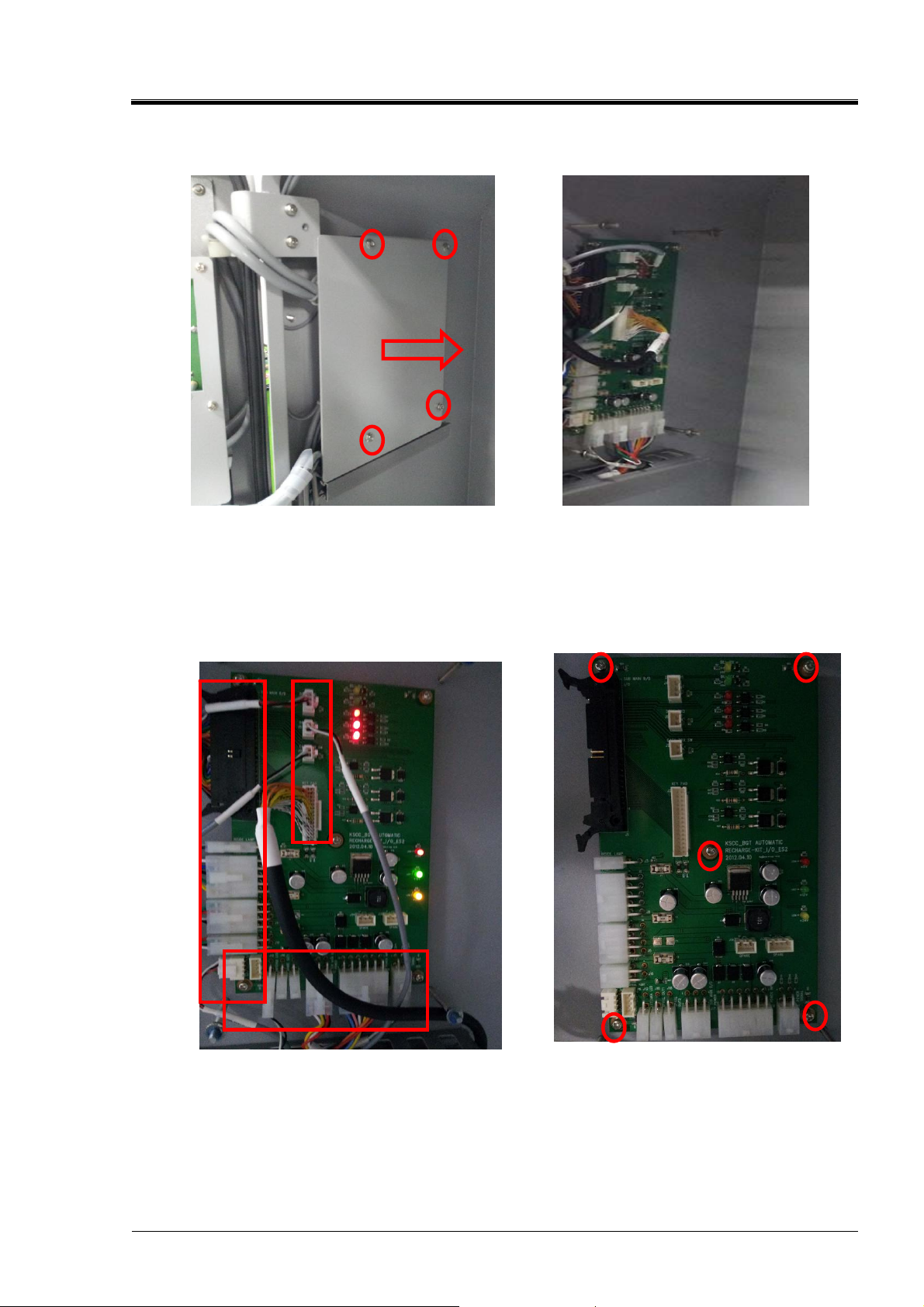

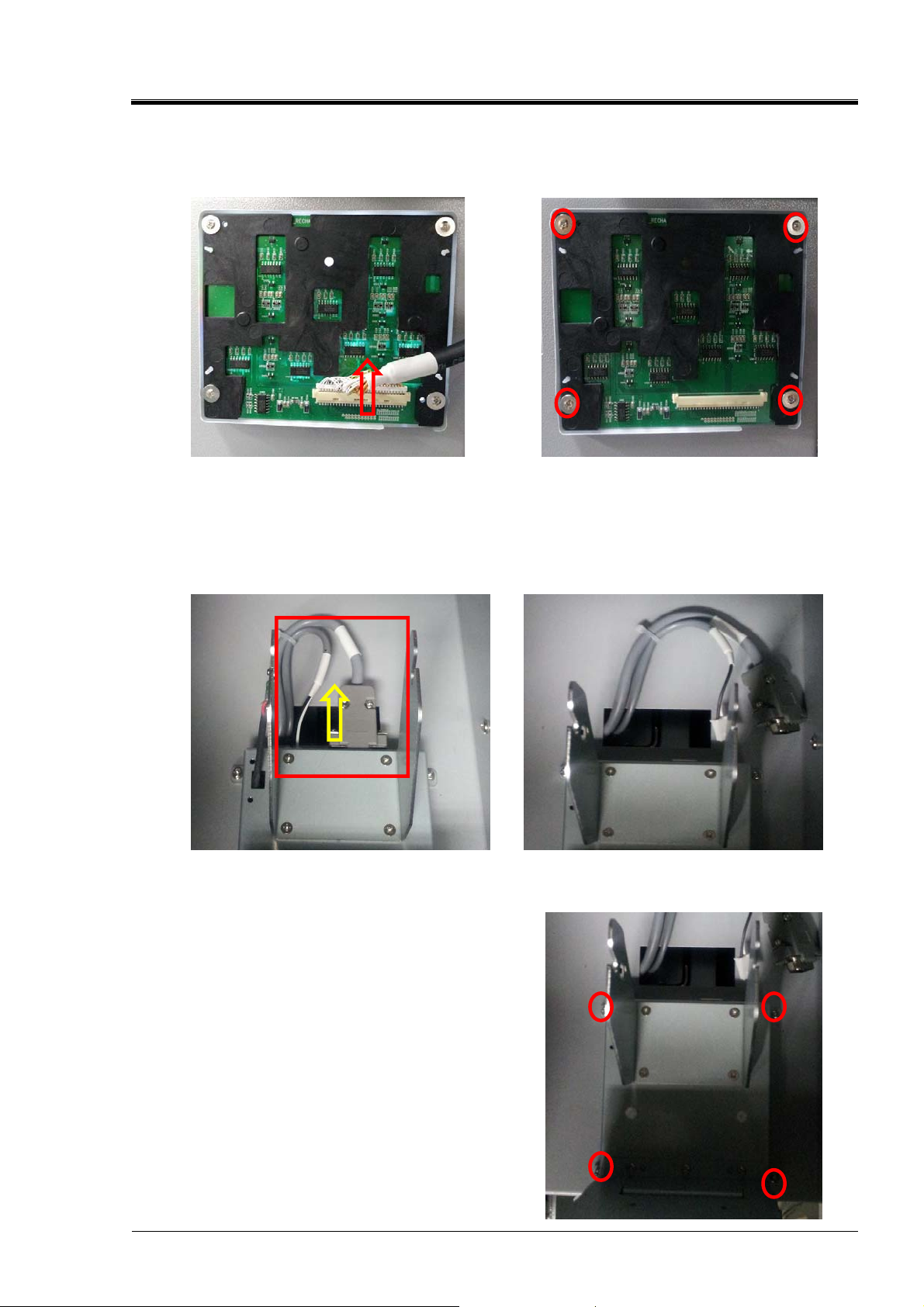

3) I/O Board Separation
① Unfasten fixed screw connecting I/O Cover and separate in direction of arrow.
② Remove connector connecting I/O Board.
③ Unfasten fixed screw which is connecting I/O Board and separate it.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３３
of All
Page 39
Bogota SIRCI Project User Requirement Definition
4) KEYPAD Board Separation
① Remove Connector which is connecting.
② Separate fixed screw which is connecting KEYAPAD and separate KEYPAD.
-
5) PRINTER Separation
① Separate Connector which is connecting Printer.
② Unfasten fixed screw which is
Connected to exterior mechanism
and separate it.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３４
of All
Page 40
Bogota SIRCI Project User Requirement Definition

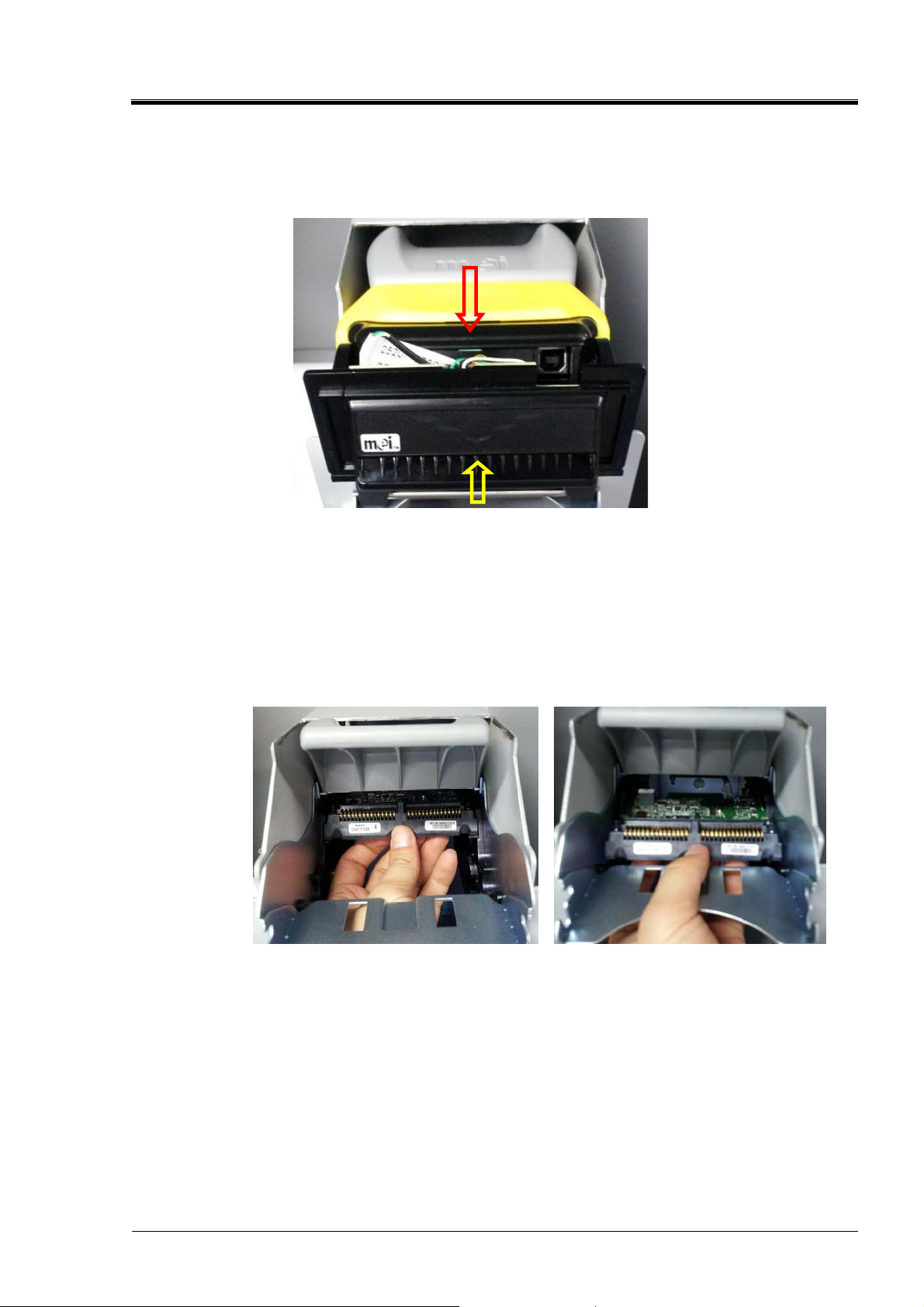

6) BILL MODUEL Separation
① Pull Silver Bar of Bill Module up and separate it in the direction of red arrow.
② Hold the bottom of Bill Module PCB and pull forward.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３５
of All
Page 41
Bogota SIRCI Project User Requirement Definition
7) SMPS 및 BATTERY Separation
① Separate Connector which is connecting SMPS and Battery.
② Unfasten fixed screw which is connecting to exterior and pull forward.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３６
of All
Page 42
Bogota SIRCI Project User Requirement Definition

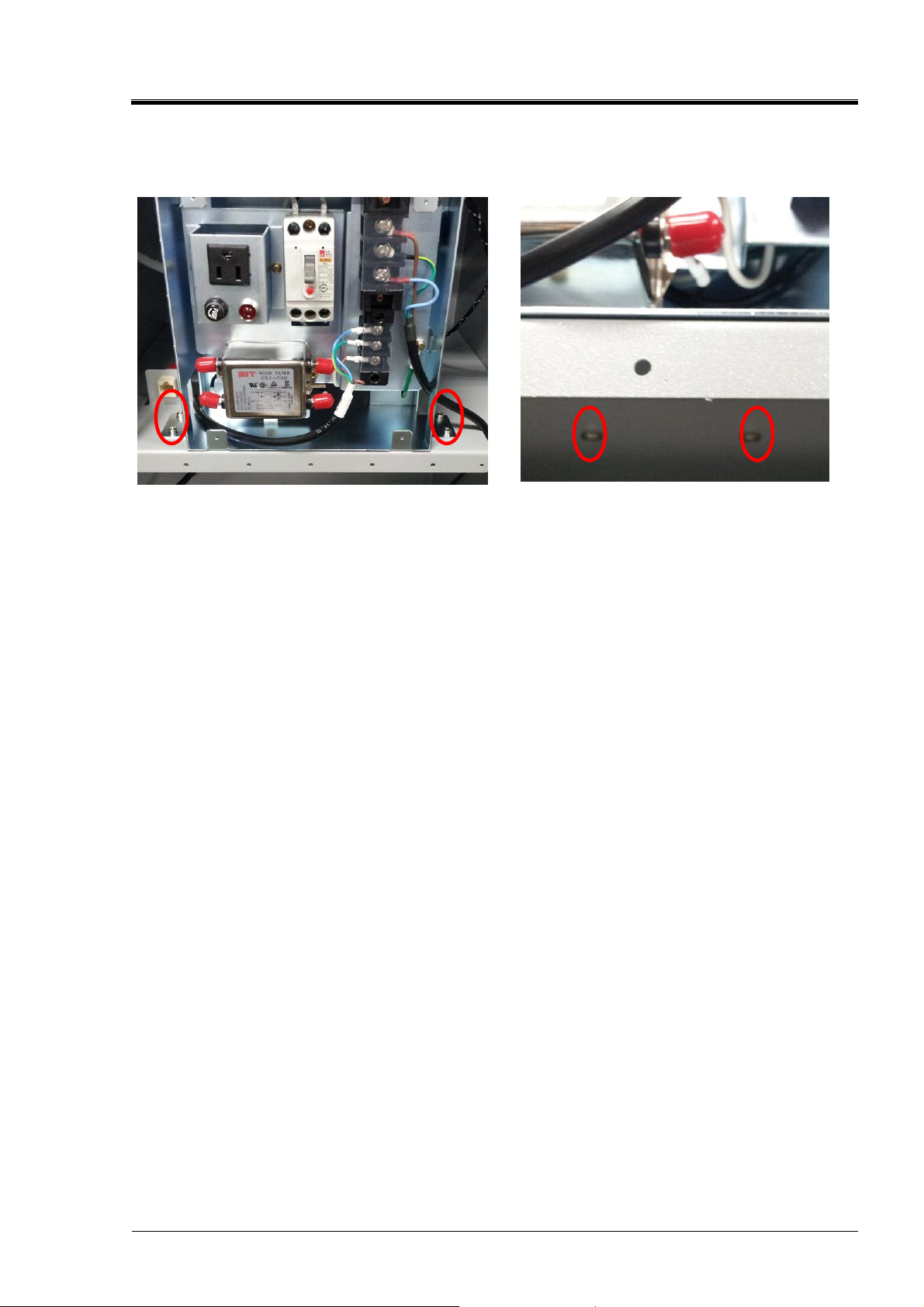

8) POWER PANEL Separation
Separate the fixed screw which is connected device.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３７
of All
Page 43
Bogota SIRCI Project User Requirement Definition
3.1.5 Connector Specification

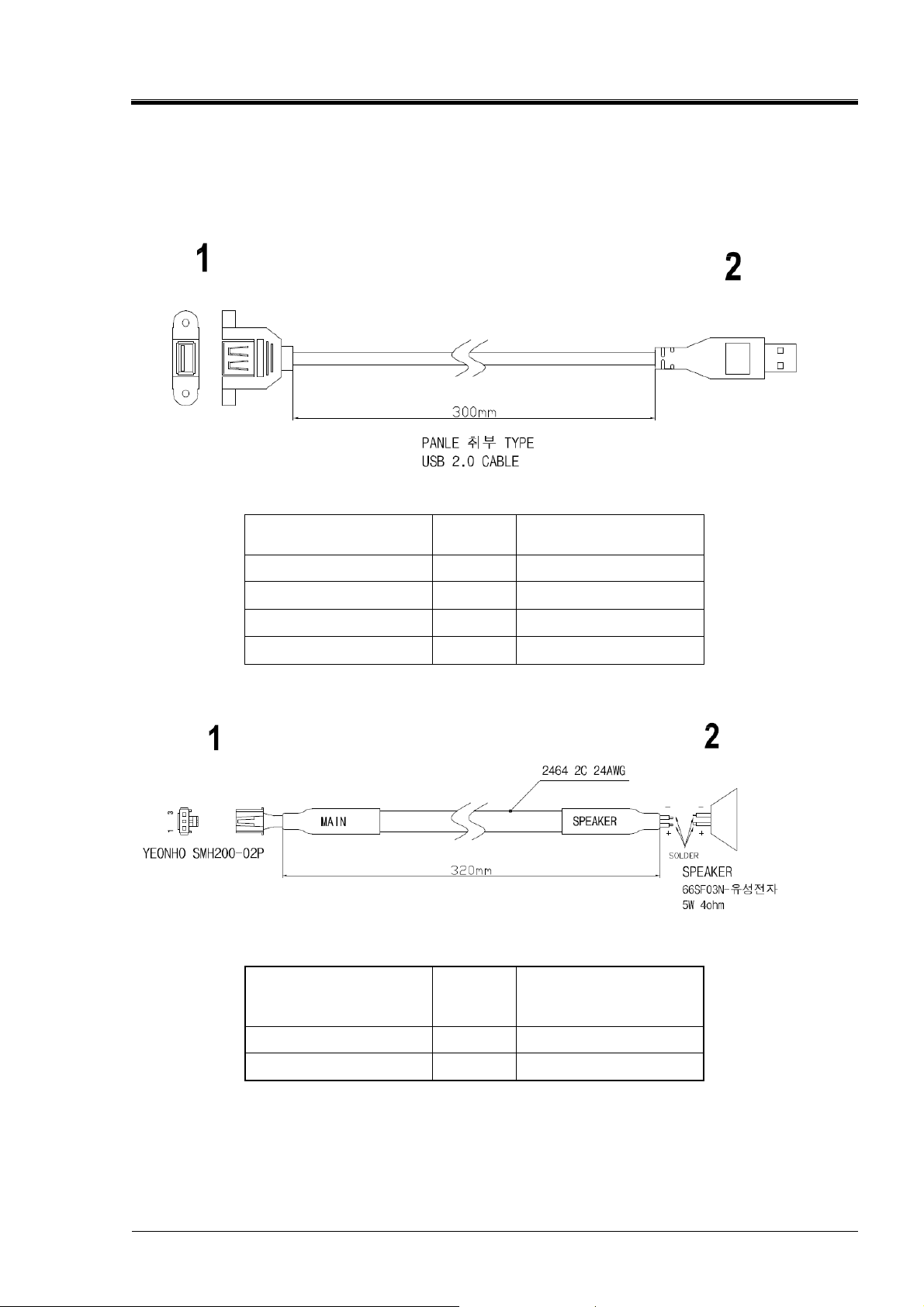

1) USB2.0 Cable
CON '1’
(USB2.0)
Color
1 1
CON '2’
(Sub Board J13)
2 2
3 3
4 4
2) Speaker Cable
CON '1’
'(Sub Board J11,J12)
1 WHITE 1
Color
CON '2’'
(66SF03N-
5W 4ohm)
2 BLACK 2

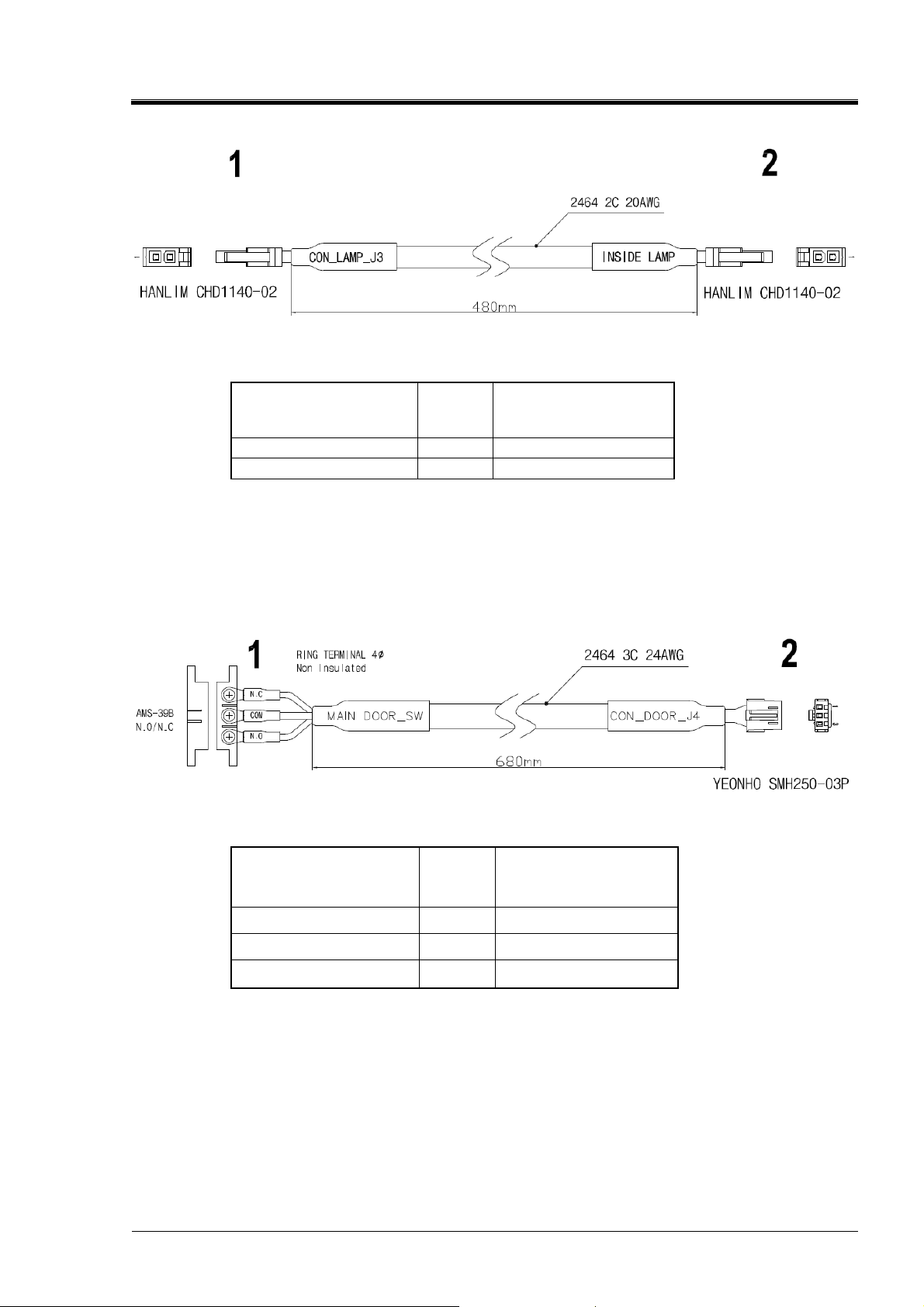

3) Inside Lamp Cable
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３８
of All
Page 44
Bogota SIRCI Project User Requirement Definition
CON '1'
(Connecter Board J3)
Color
CON '2'
(INSIDE LAMP)
1 12V 2
2 GND 1
4) Main Door_SW Cable
CON '1'
(Main Door_SW)
1 BLACK 3
2 RED 2
3 WHITE 1
Color
CON '2'
(Connecter
Board_J4)
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
３９
of All
Page 45
Bogota SIRCI Project User Requirement Definition

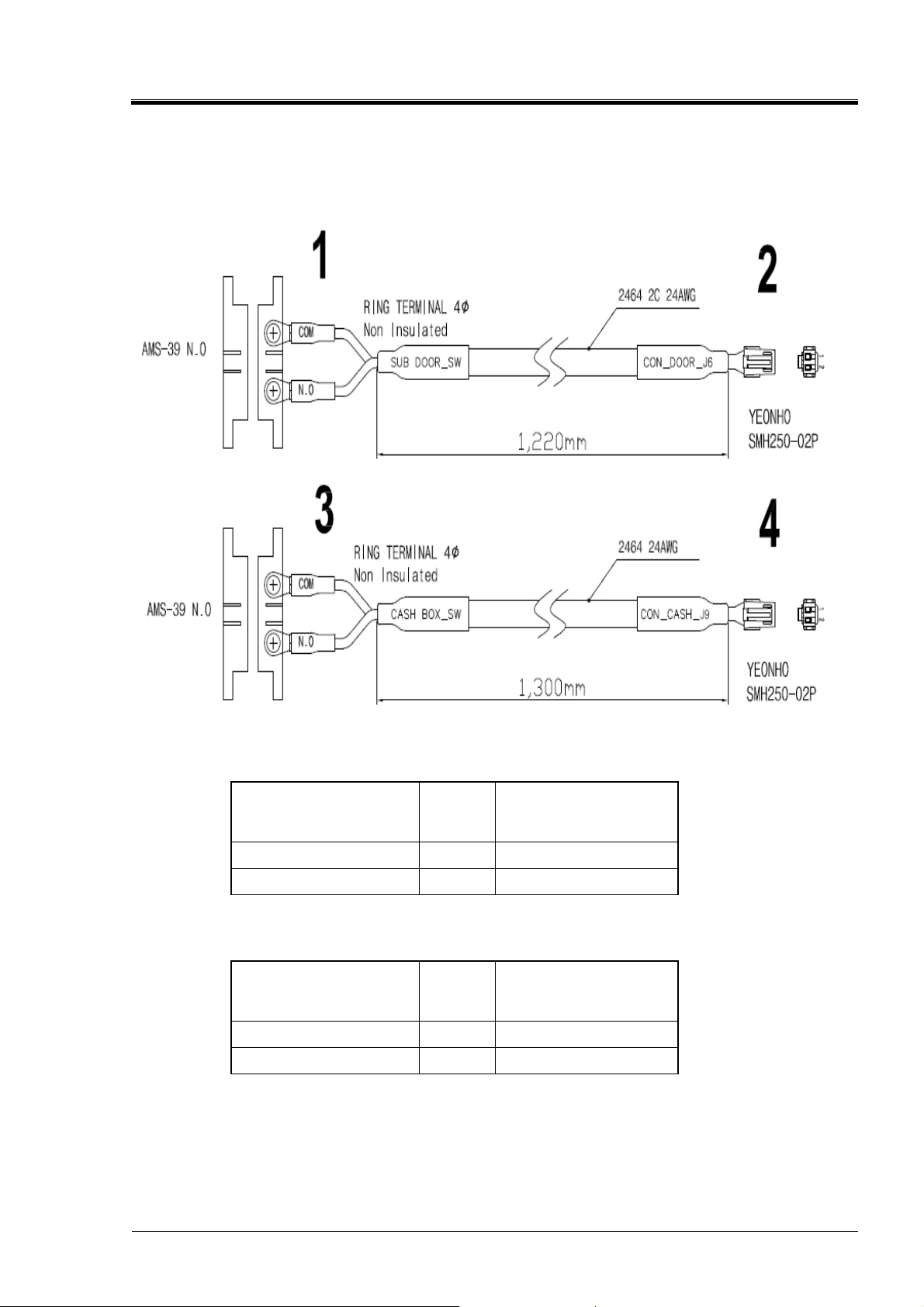

5) SUB DOOR, CASH BOX S/W Cable
CON '1'
(SUB Door_SW)
Color
CON '2'
(Connecter
Board_J6)
COM BLACK 2
N. O WHITE 1
CON '3'
(CASH BOX_SW)
Color
CON '4'
(Connecter
Board_J9)
COM BLACK 2
N. O WHITE 1

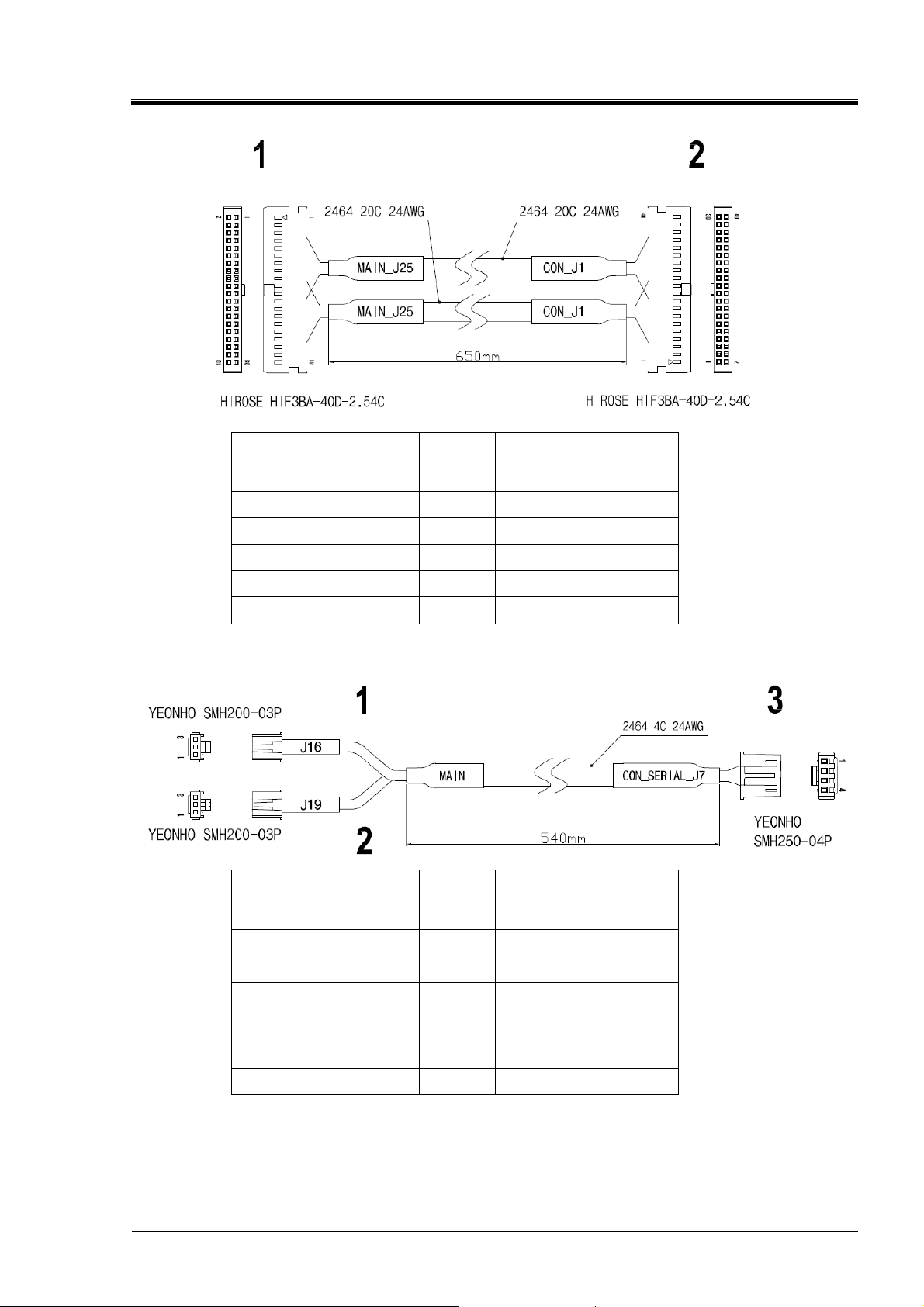

6) MAIN IF Cable
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４０
of All
Page 46
Bogota SIRCI Project User Requirement Definition
CON '1'
(SUB Board_J25)
Color
CON '2'
(Connecter
Board_J1)
1 1
2 2
…. ….
39 39
40 40
7) Main Serial Cable
CON '1'
(SUB Board_J16)
Color
CON '3'
(Connecter
Board_J7)
1 1
2 2
CON '2'
(SUB Board_J16)
Color
CON '3'
(Connecter
Board_J7)
1 3
2 4
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４１
of All
Page 47
Bogota SIRCI Project User Requirement Definition

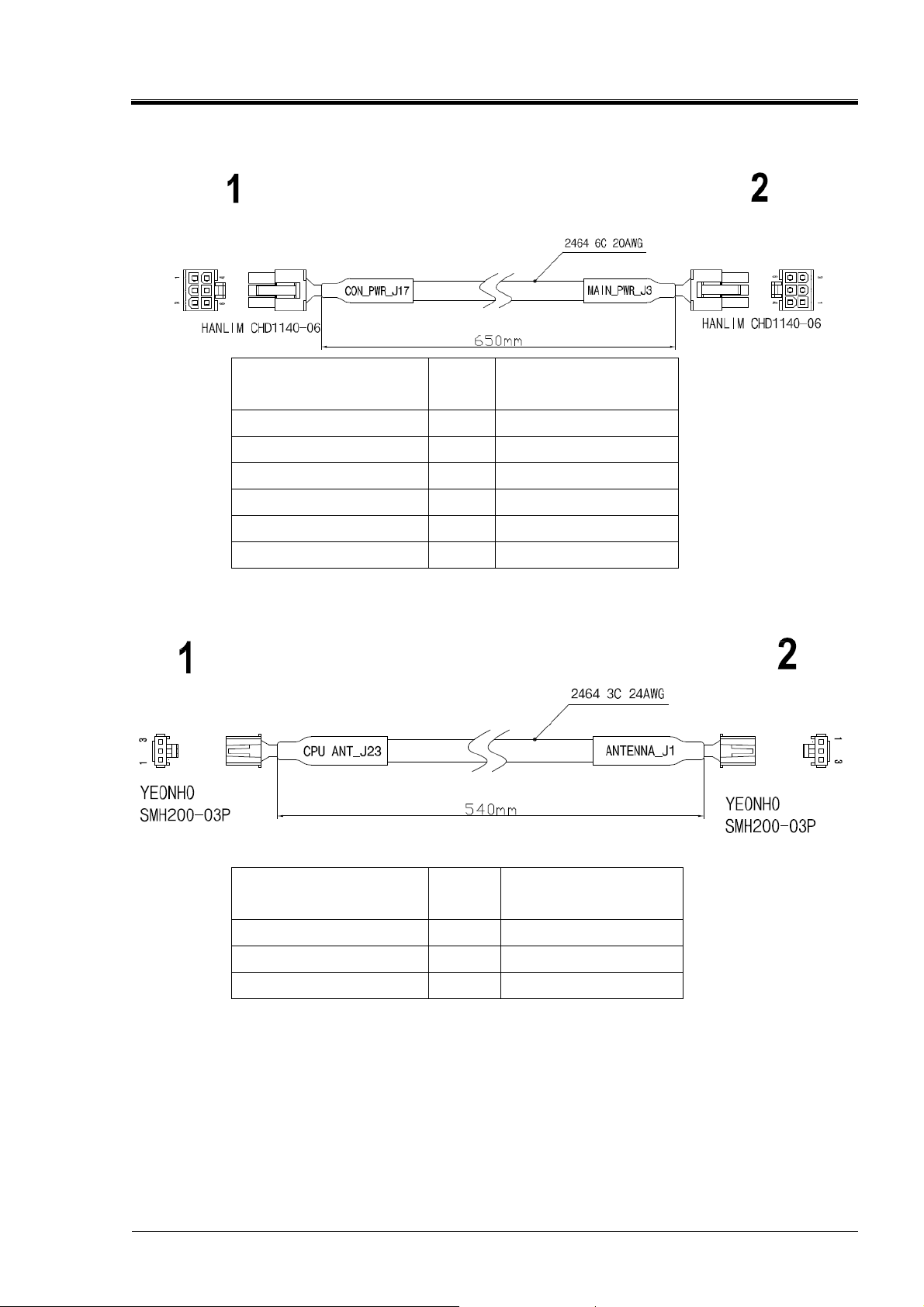

8) Main Power Cable
CON '1'
(Connector Board_J17)
Color
CON '2'
(Sub Board_J3)
1 1
2 2
3 3
4 4
5 5
6 6
9) Antenna Cable
CON '1'
(CPU Board_J23)
Color
(Antenna Board_J1)
1 RED 1
2 WHITE 2
3 BLACK 3
CB-EDR-HM-00-V1.0 Automatic Recharger
CON '2'
Page
４２
of All
Page 48
Bogota SIRCI Project User Requirement Definition

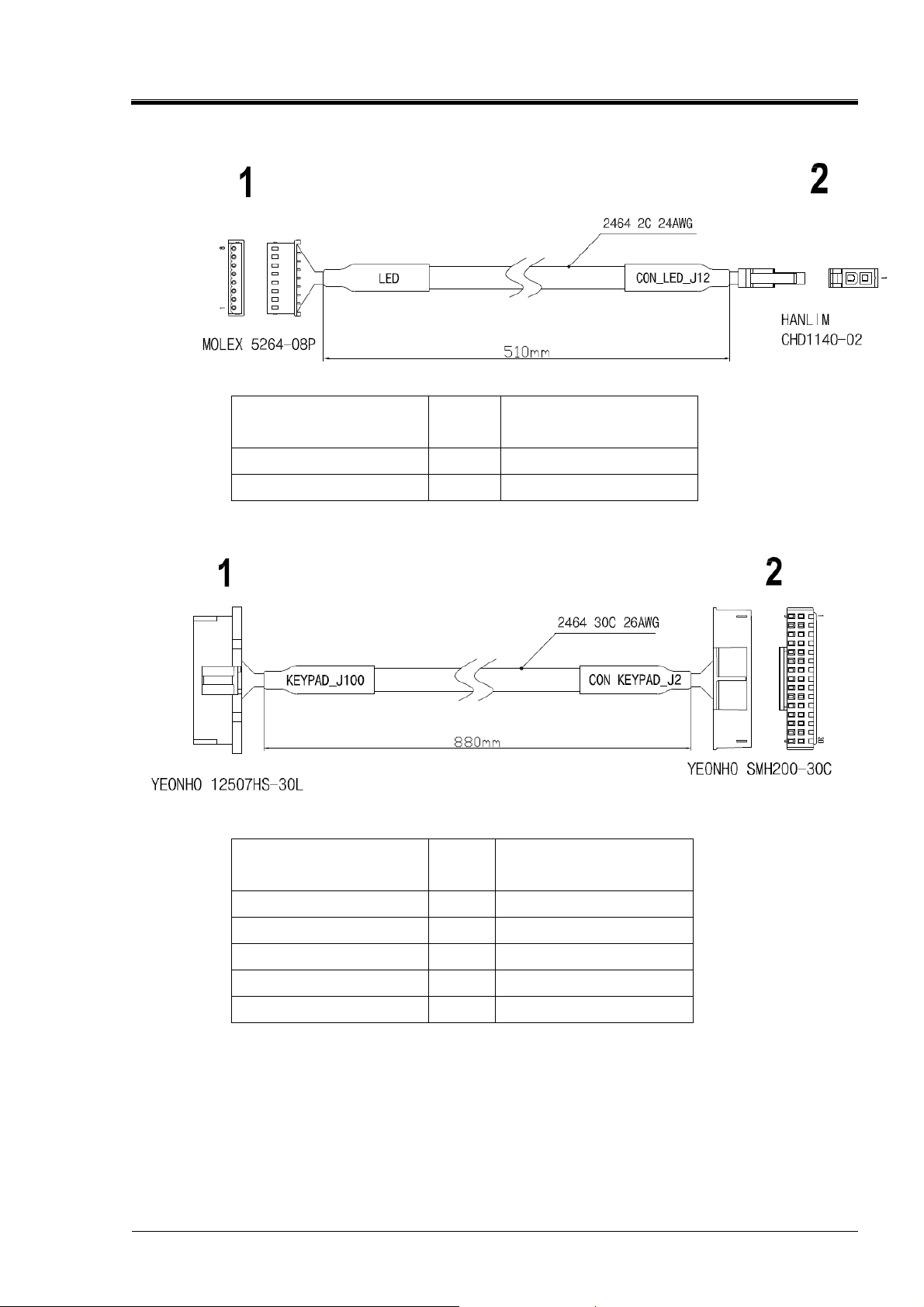

10) Antenna LED Cable
CON '1'
(LED Board)
Color
(Connecter Board_J12)
CON '2'
1 WHITE 1
6 BLACK 2
11) KEYPAD Cable
CON '1'
(KEYPAD Board)
Color
(Connecter Board_J2)
CON '2'
1 1
2 2
… …
29 29
30 30
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４３
of All
Page 49
Bogota SIRCI Project User Requirement Definition

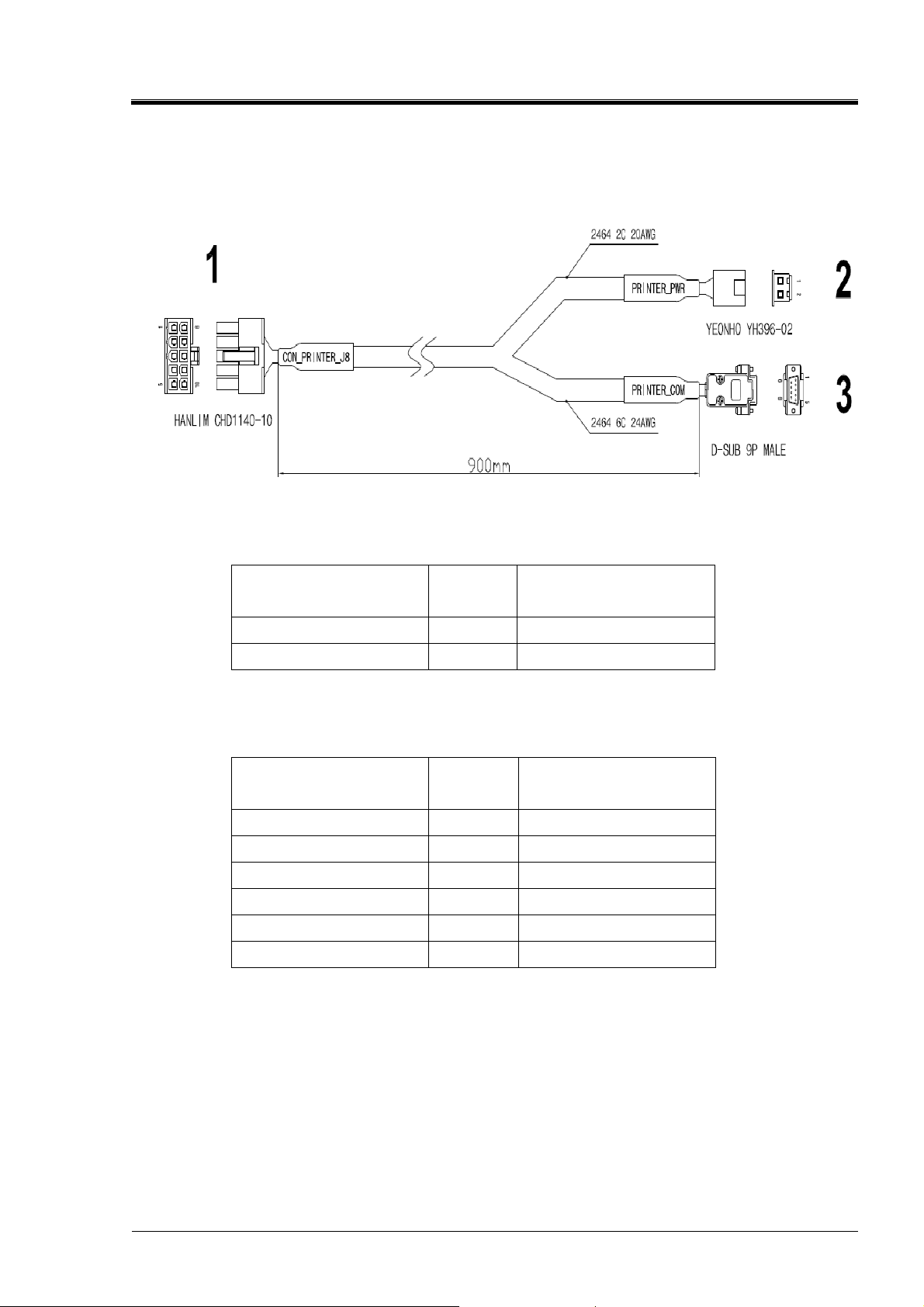

12) Printer Cable
CON '1'
(Connector Board J8)
Color
CON '2'
(PRINTER_PWR)
1 RED 1
3 BLACK 2
CON '1'
(Connector Board J8)
Color
CON '2'
(PRINTER_PWR)
4 BLACK 5
5 ORANGE 2
6 YELLOW 3
7 GREEN 6
9 BLUE 8
10 PINK 7
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４４
of All
Page 50
Bogota SIRCI Project User Requirement Definition

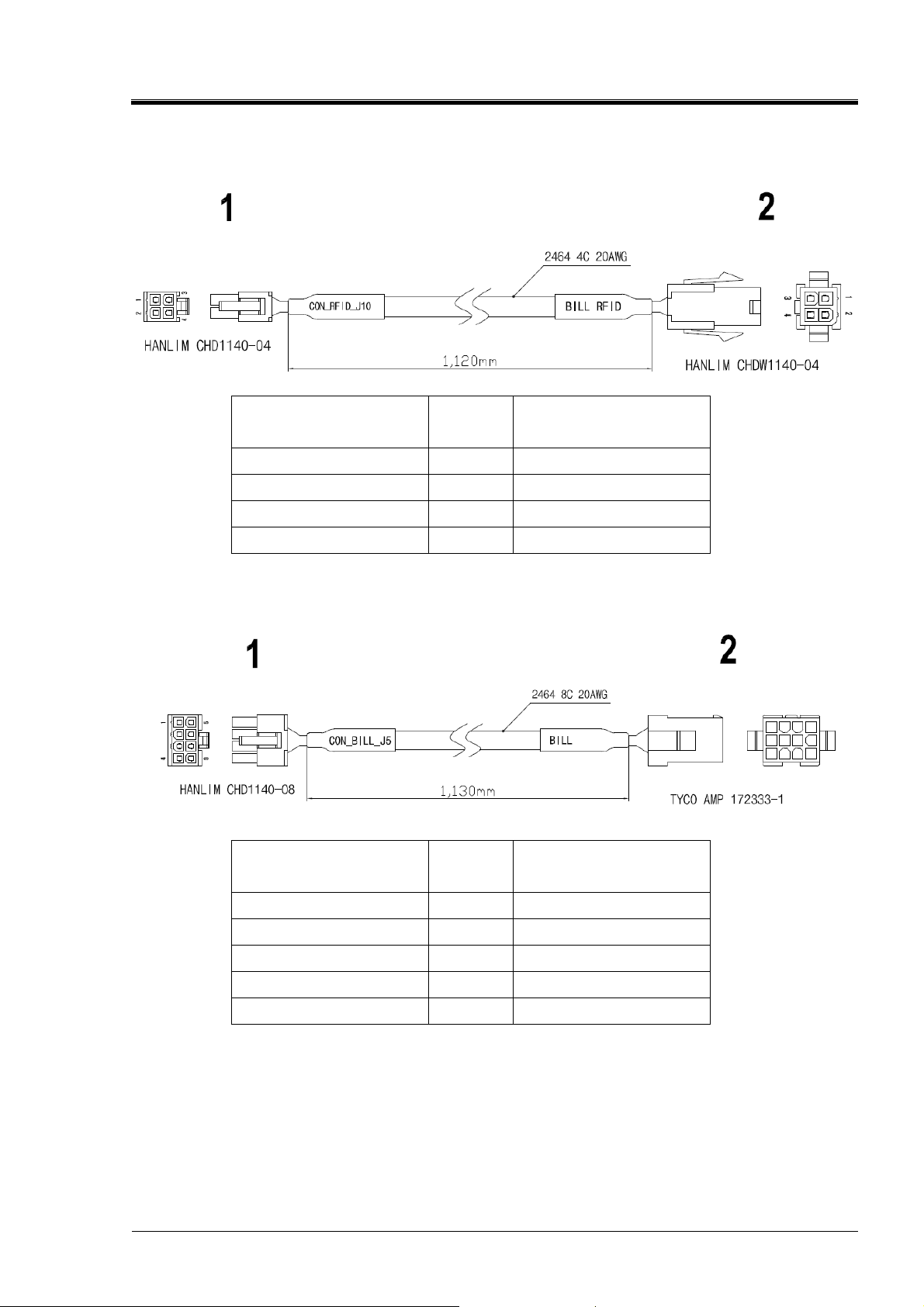

13) BILL RFID READER Cable
CON '1'
(Connector Board J10)
Color
CON '2'
(BILL RFID)
1 RED 1
2 BLACK 2
3 BLUE 3
4 WHITE 4
14) BILL Module Cable
CON '1'
(Connector Board J5)
Color
1 BLACK 5
2 WHITE 11
3 BLACK 7
7 RED 6
8 GREEN 12
CB-EDR-HM-00-V1.0 Automatic Recharger
CON '2'
(BILL Module)
Page
４５
of All
Page 51
Bogota SIRCI Project User Requirement Definition

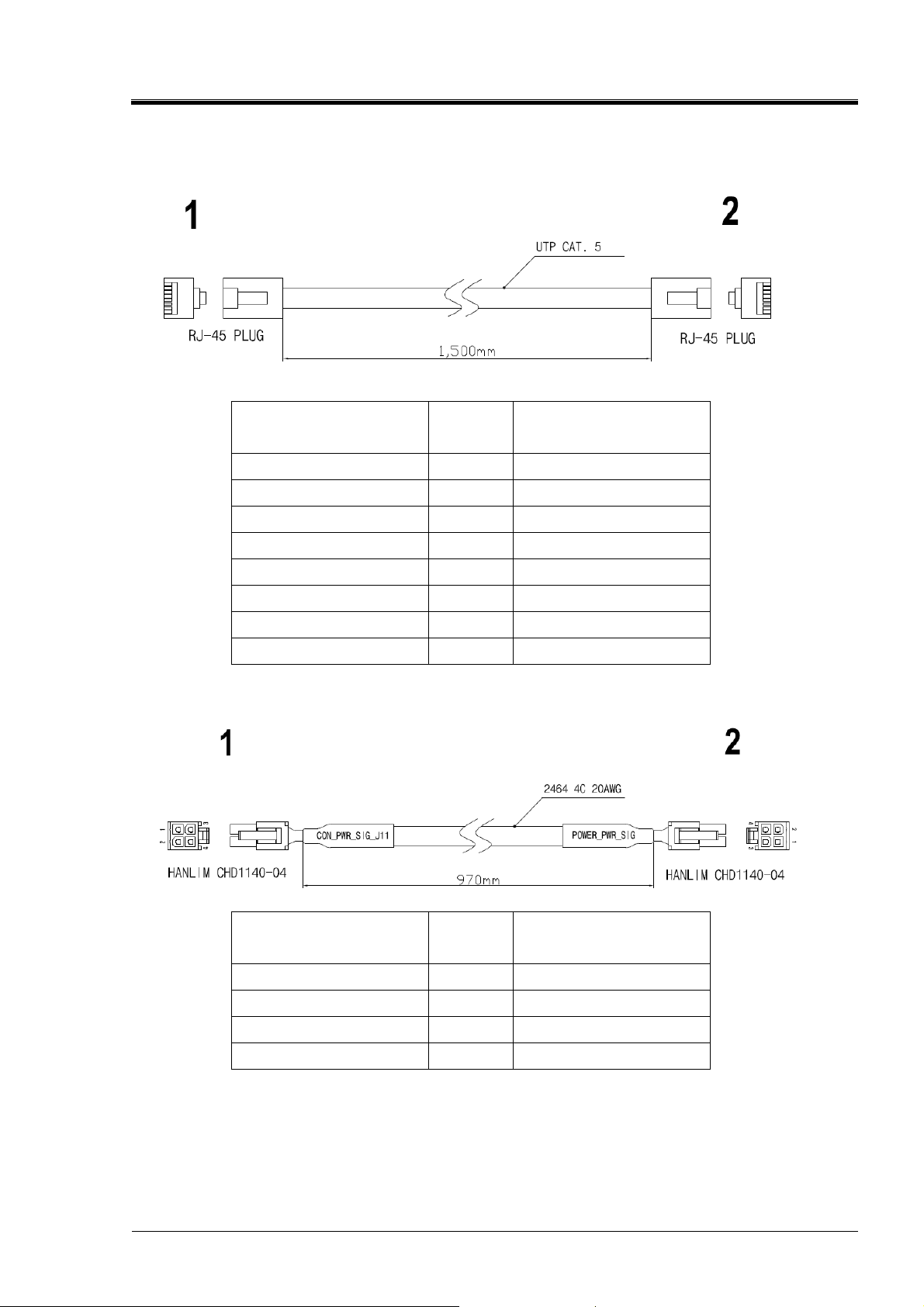

15) LAN Cable
CON '1'
(RJ-45)
Color
CON '2'
(RJ-45)
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
16) Power Signal Cable
CON '1'
(Connector Board J11)
Color
CON '2'
(SMPS SIGNAL)
1 RED 1
2 BLACK 2
3 BLUE 3
4 WHITE 4
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４６
of All
Page 52
Bogota SIRCI Project User Requirement Definition

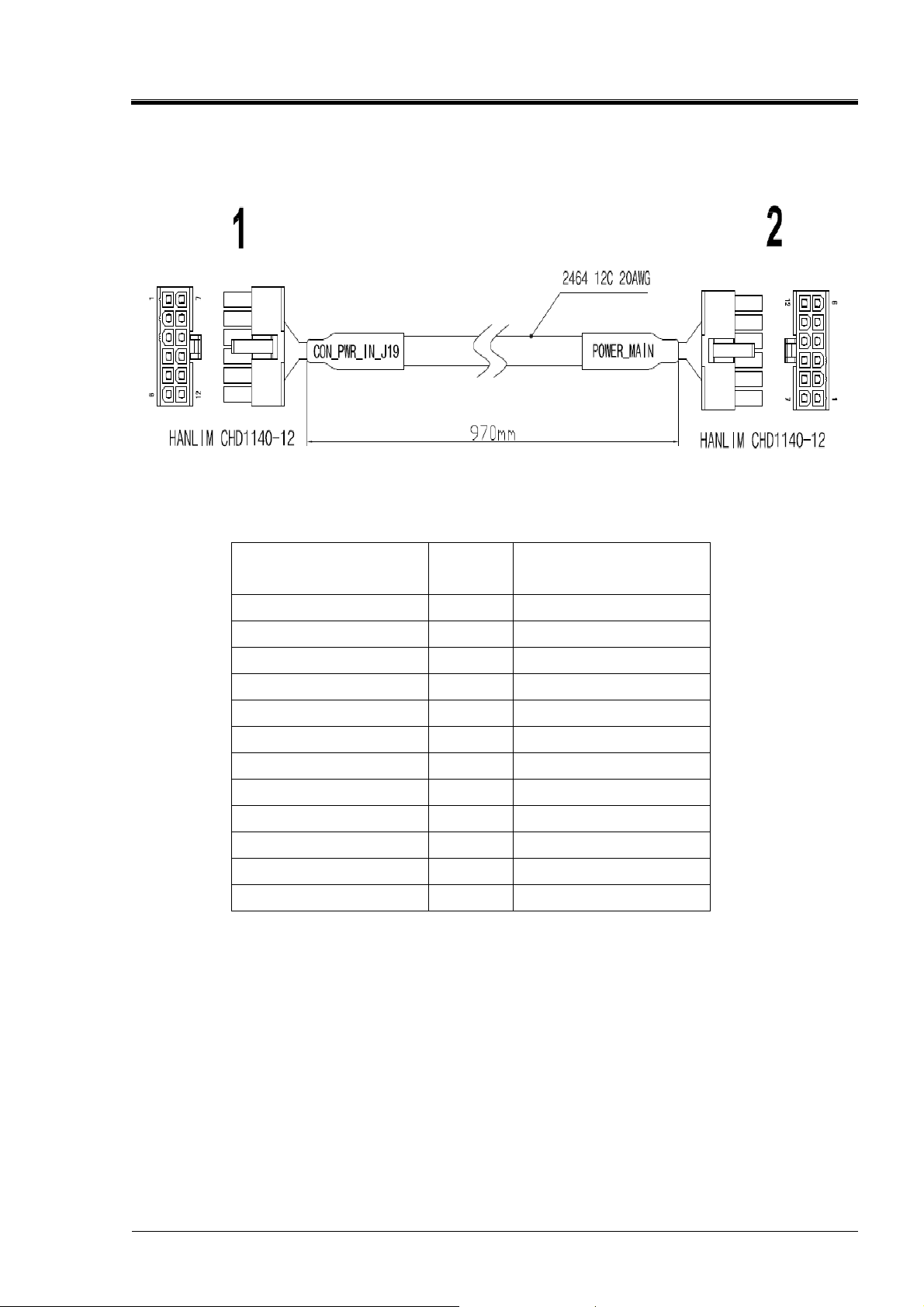

17) Power Input Cable
CON '1'
(Connector Board J19)
Color
CON '2'
(Sub Main)
1 BLACK 1
2 BLACK 2
3 BLACK 3
4 BLACK 4
5 BLACK 5
6 BLACK 6
7 RED 7
8 RED 8
9 WHITE 9
10 WHITE 10
11 WHITE 11
12 WHITE 12
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４７
of All
Page 53
Bogota SIRCI Project User Requirement Definition

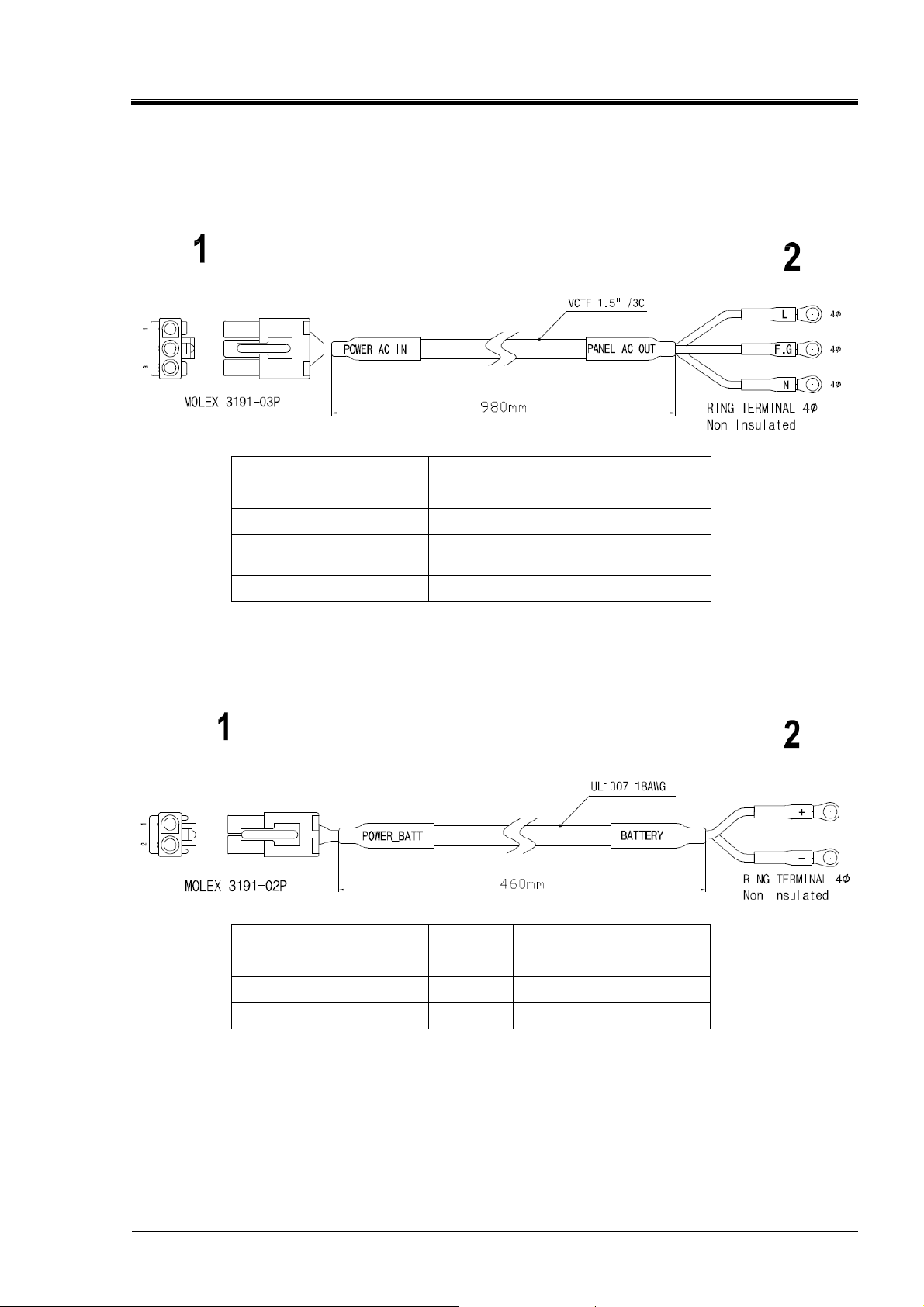

18) AC Input Cable
CON '1'
(SMPS AC IN)
Color
CON '2'
(POWER_AC OUT)
1 BROWN L
2
Greenish
yellow
F. G
3 BLUE AC_N
19) Battery Cable
CON '1'
(SMPS BATT_OUT)
Color
1 RED VCC
2 BLACK GND

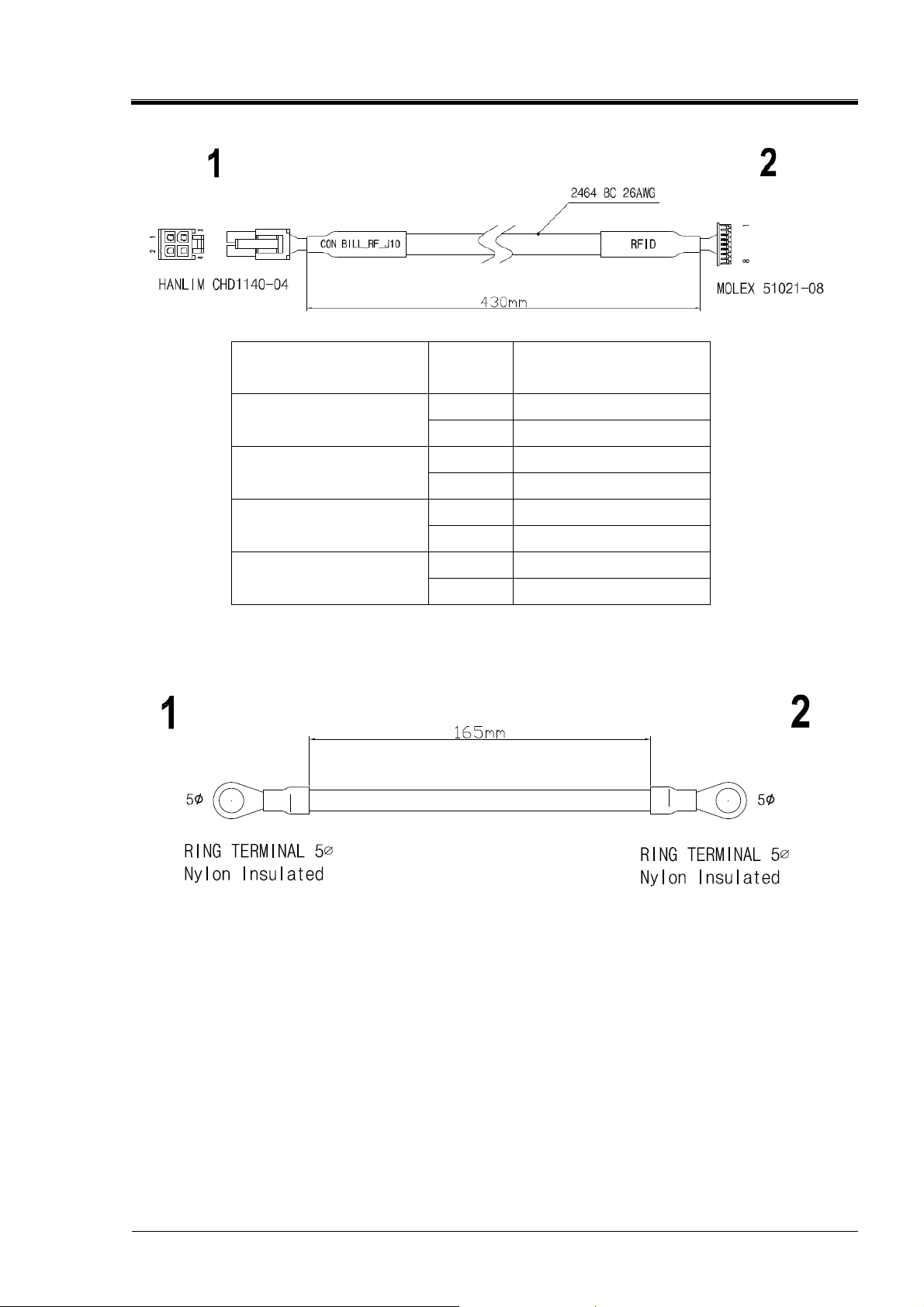

20) RFID Cable
CB-EDR-HM-00-V1.0 Automatic Recharger
CON '2'
(BATTERY)
Page
４８
of All
Page 54
Bogota SIRCI Project User Requirement Definition
CON '1'
(SMPS BATT_OUT)
Color
CON '2'
(BATTERY)
1
2
3
4
21) FREME Ground
Red 1
Red 2
BLACK 7
BLACK 8
BLUE 3
BLUE 4
WHITE 5
WHITE 6
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
４９
of All
Page 55
Bogota SIRCI Project User Requirement Definition

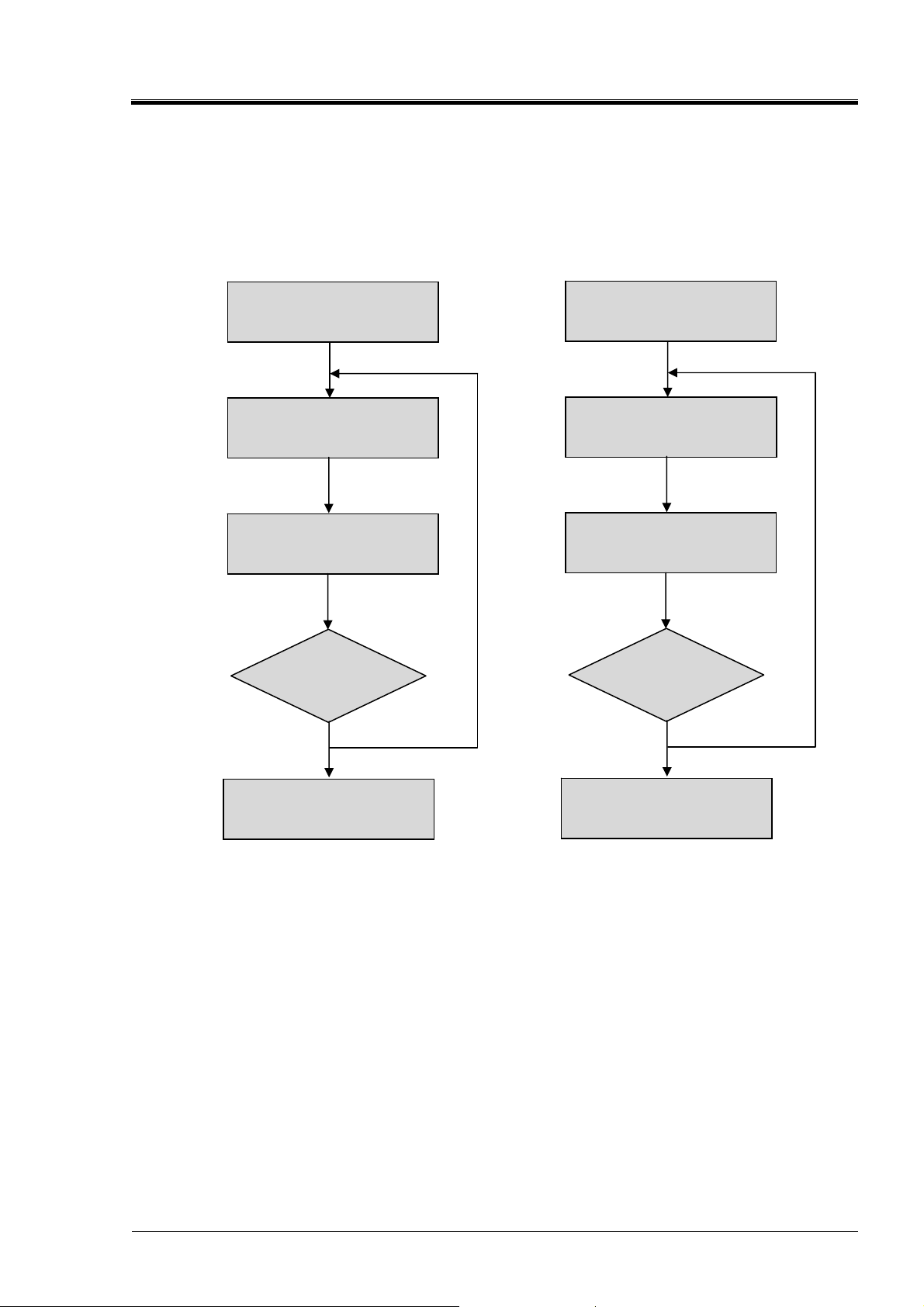

3.2 Maintenance Flow chart
Error
Check ERROR CODE
Device maintenance
and replacement due to
MANUAL
Conduct
TEST
OK
NO
Repair complete
1) Tool : Screwdriver, Tester
2) Notice
- Check each part of the adjustment value for every 12months or in a tim
ely
manner.
Receive replacement
parts
Check maintenance
referral and ERROR CODE
Device repair due to
MANUAL
Conduct
TEST
NO
OK
Repair complete
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５０
of All
Page 56
Bogota SIRCI Project User Requirement Definition
)
3) Detail check items
Inspection cycle
No Items
1
month
3months 6months 12months
Remarks
1 Power/Voltage Check
2 Operation of Printer
3 Operation of KEYPAD
4 Check of LCD Operation
5 Check of SMPS Operation
6 Check of BATTERY Operation
7 Check of BILL MODULE Operation
8 Check of POWER panel Operation
4. Automatic Recharger Installation and update
4.1 Automatic Recharger Installation
4.1.1 Procedure
No Division Contents
1
Device
registration
… … … …
1) Power ON

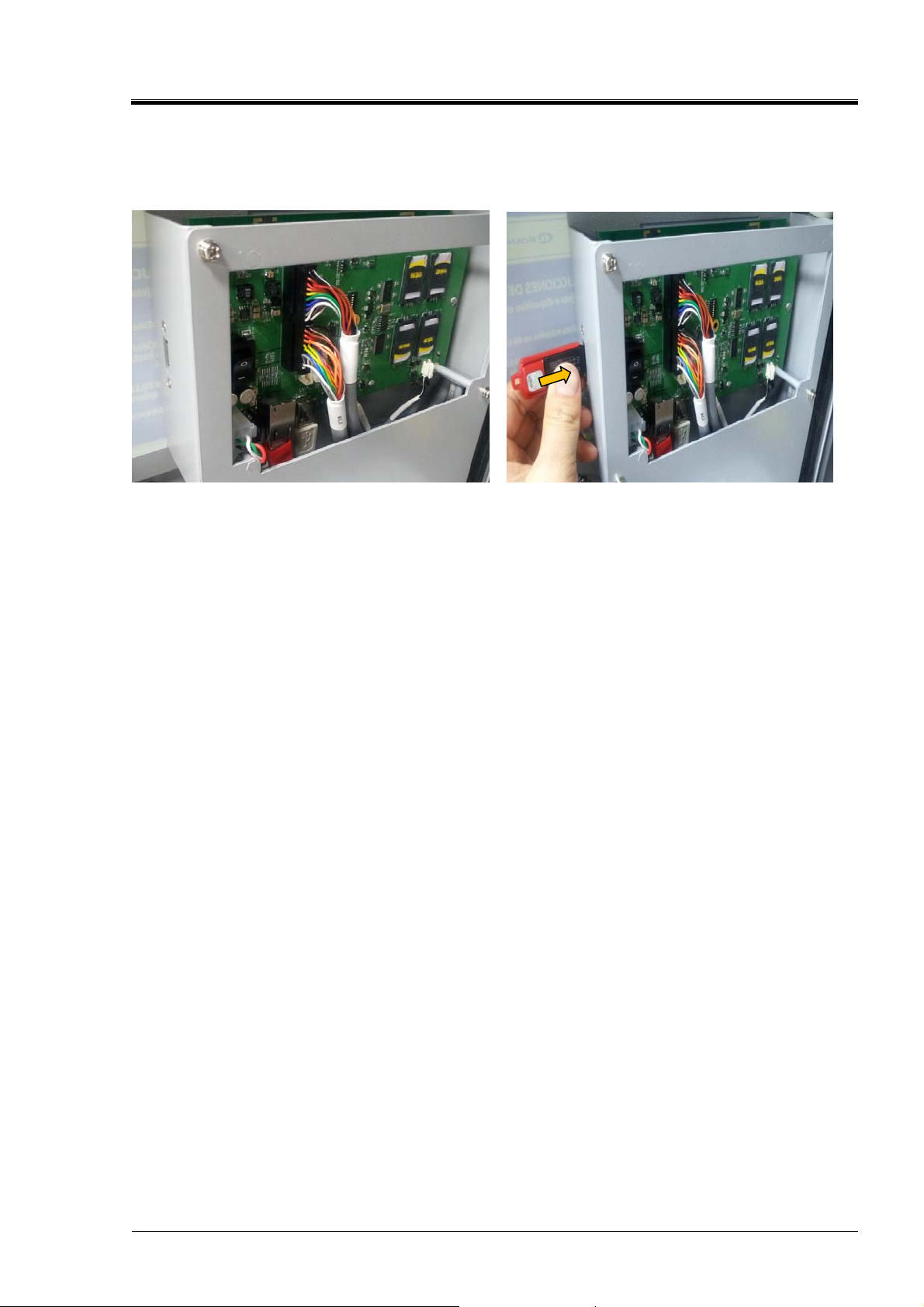

2) SAM Mounting Method
USB Mounting Method
3
비고
Page
５１
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 57
Bogota SIRCI Project User Requirement Definition

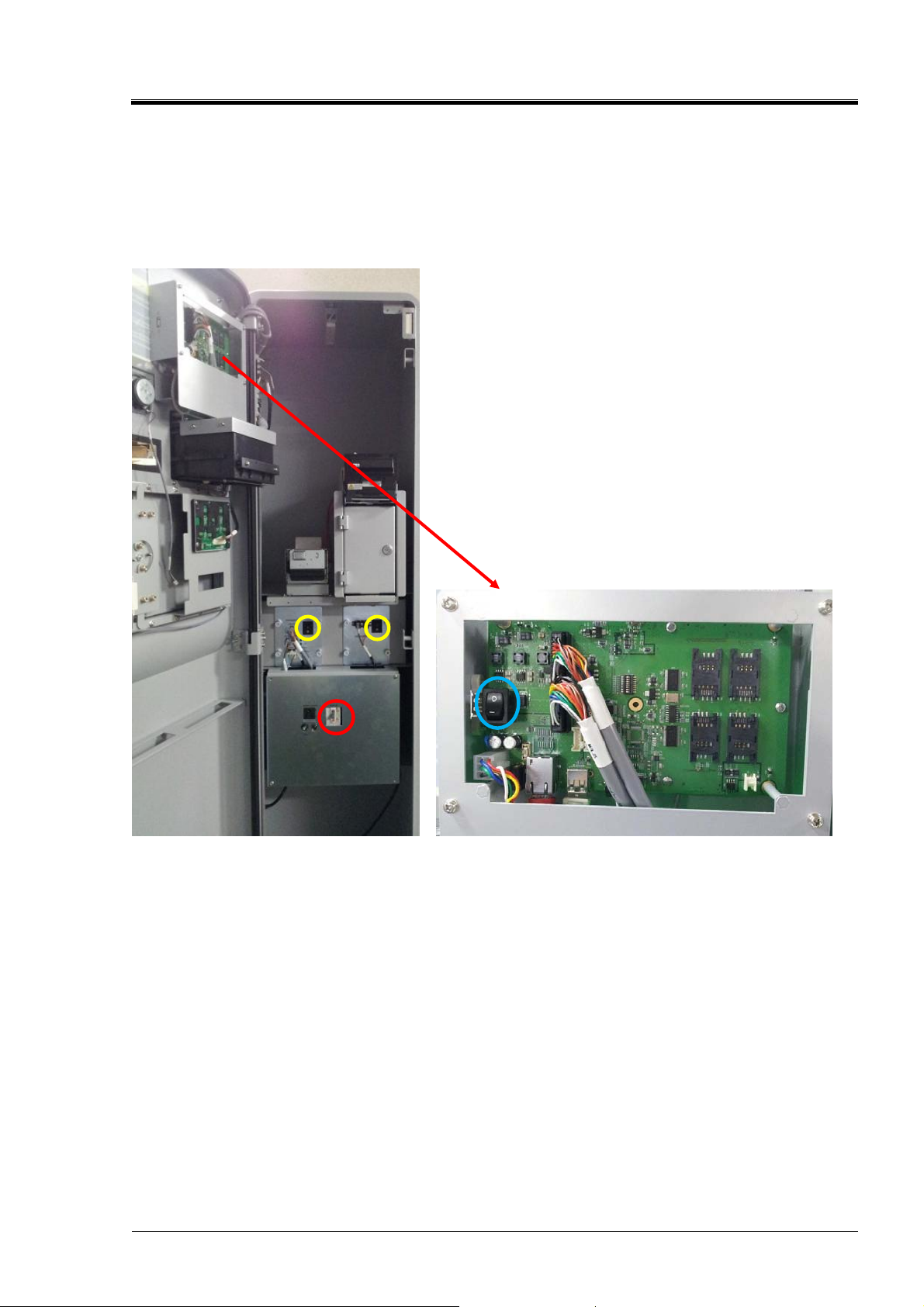

4.1.2 Device Registration
4.1.2.1 Power ON
2
1
2
3

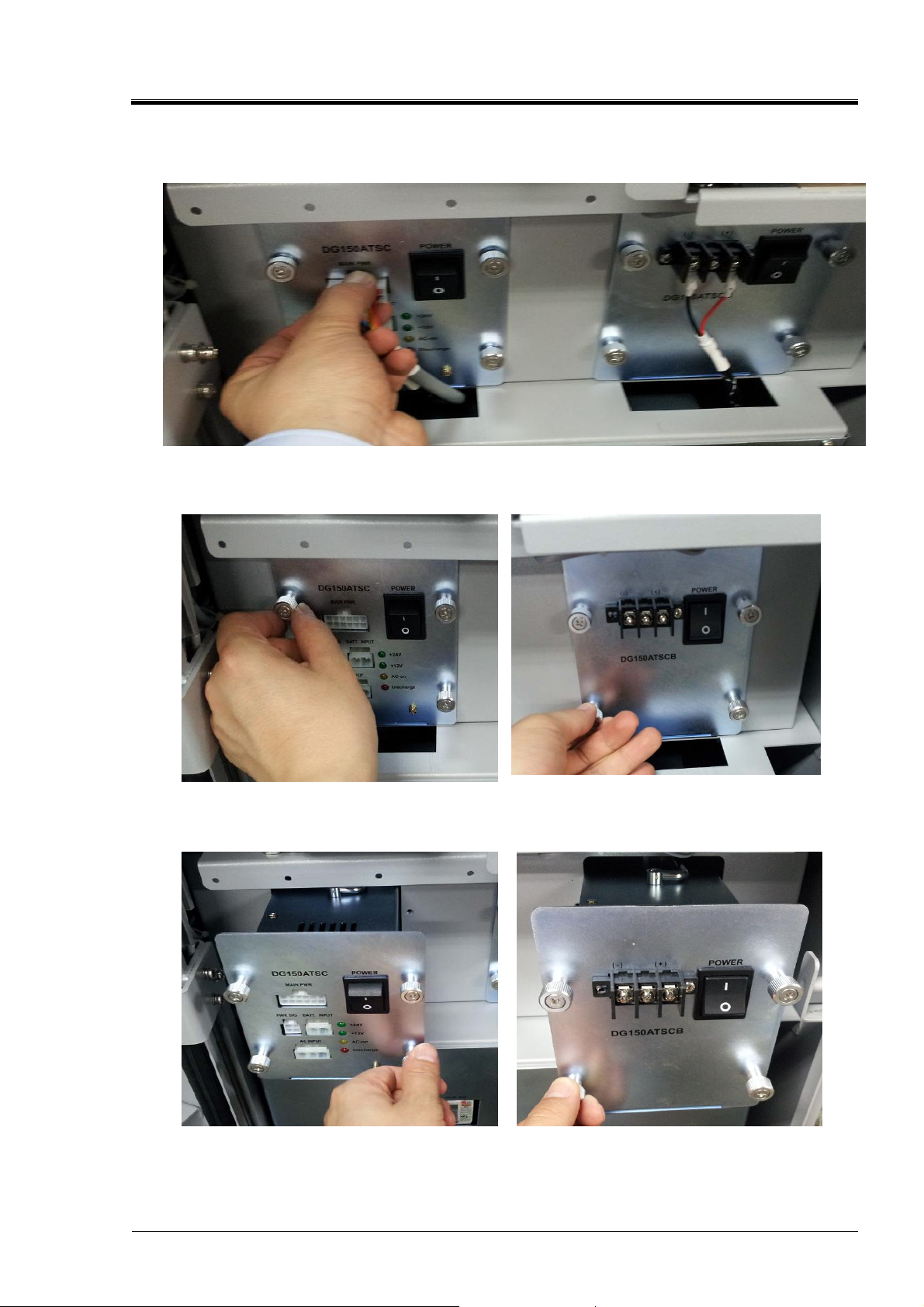

① Power Panel Power S/W ON
② SMPS Power S/W ON, Battery S/W ON
③ Sub Main Board S/W ON
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５２
of All
Page 58
Bogota SIRCI Project User Requirement Definition

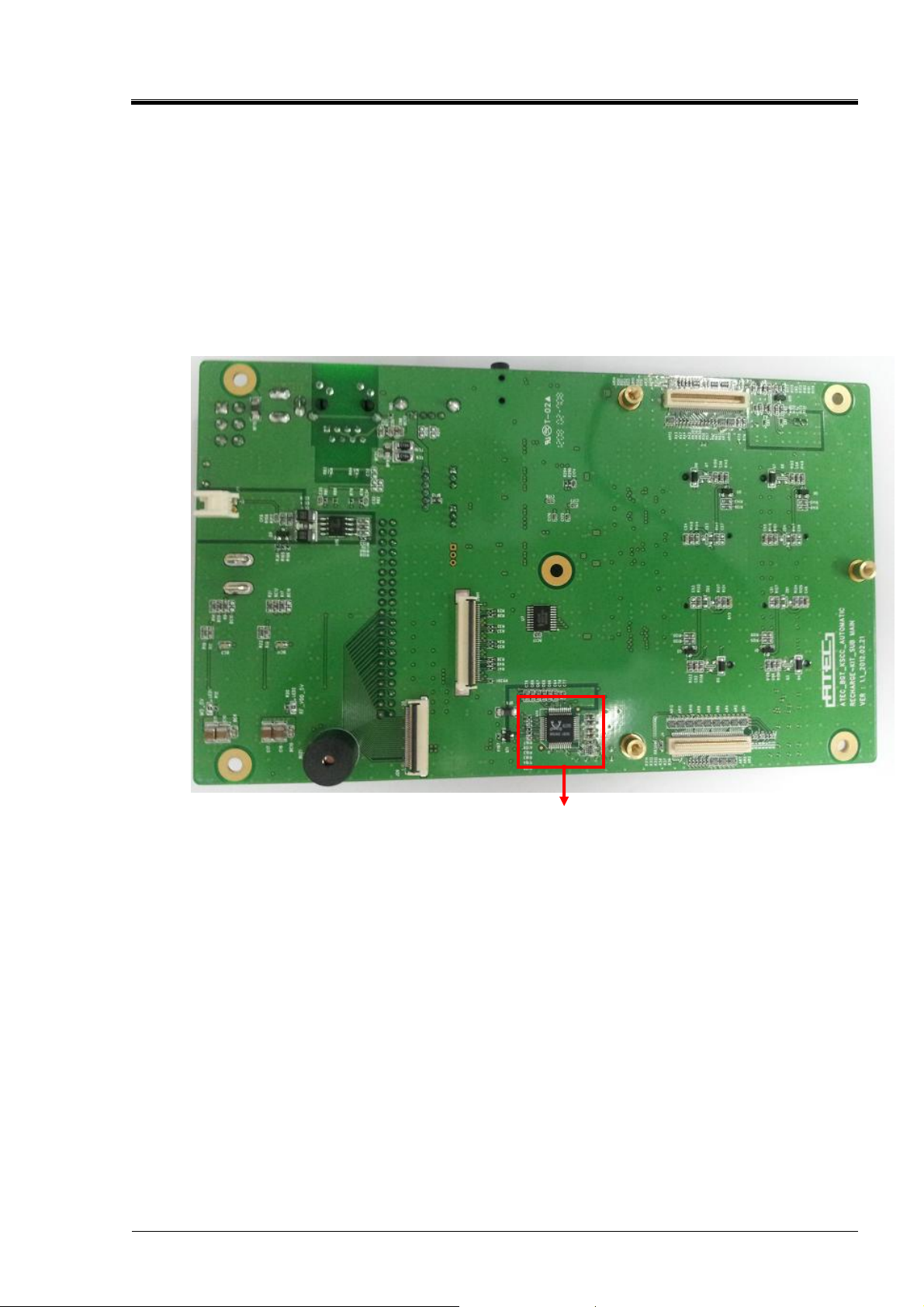

4.1.2.2 SAM Card Mounting
<Picture 1> <Picture 2>
① Push the SAM slot like Picture 1 and lift the cover in direction of the arrow like
<Picture 3> <Picture 4>
② Combine the SAM card like picture 3 and push and fix SAM Slot in direction of the
arrow like picture 4.
③ Insert the rest of 3 slots using same method.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５３
of All
Page 59
Bogota SIRCI Project User Requirement Definition
4.1.2.3 USB Mounting Method
① Turn off the module
② Insert USB to USB PORT and power on
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５４
of All
Page 60
Bogota SIRCI Project User Requirement Definition
y
5. Automatic Recharger Heavy Maintenance
5.1 CPU Board
5.1.1 CPU BOARD Specification
5.1.1.1 CPU Board Specification
CPU Board : Main board of the attended recharger and operate main program so that
control all of module communication and function.
Division Specification Remarks
CPU
Memory
RF Module ISO 14443 Type A
S3C24440
SDRAM : 128MByte
Nor Flash : 8MByte
Nand Flash : 512 MB
te
5.1.1.2 CPU Board Block Diagram
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５５
of All
Page 61
Bogota SIRCI Project User Requirement Definition

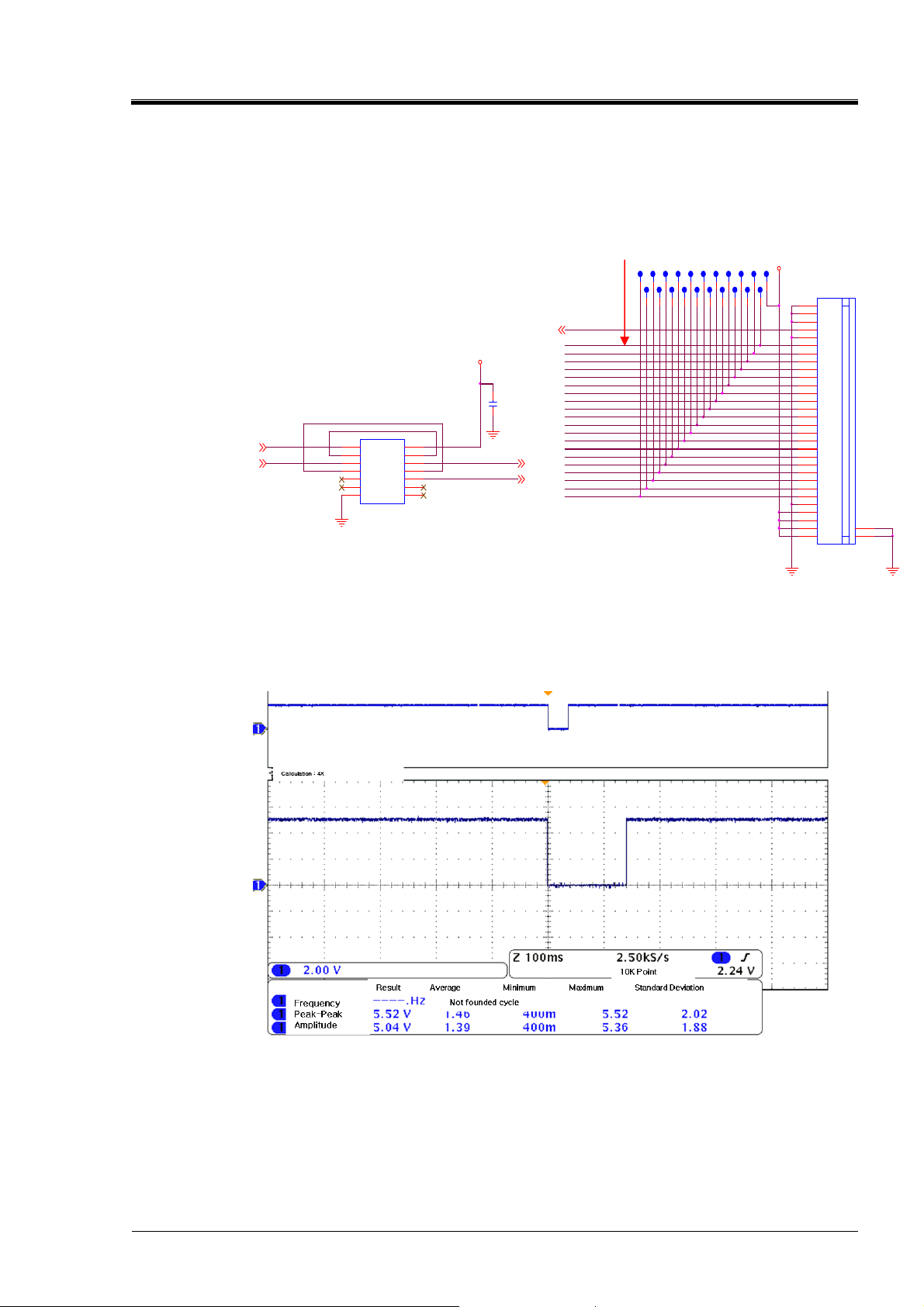

5.1.1.3 CPU Board Check point
- KEYPAD
M_#KEY_IRQ1
KEY_5.0V
C116
100nF
C-1608
3_I
2_I
1
2
3
4
5
6
U107
74HC14D
SOIC14(P1.27-W7.0)\74HC14D
1A
VCC
1Y
2A
2Y
3A
3Y
GND74Y
14
13
6A
12
6Y
11
5A
10
5Y
9
4A
8
3
2
Test Point
M_#KEY_IRQ1
1
1K
5K
CORRECTION
7
4
2
0
8
5
10K
MENU
KIND
6
9
CANCEL
PAYMENT
REFUND
OK
TP100
TP101
TP102
TP104
TP103
TP105
TP112
TP110
TP108
TP106
TP109
TP107
M5.0V
TP118
TP116
TP114
TP120
TP119
TP117
TP115
TP1133TP111
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
DST520-030
DST520-030
① Circuit description
: Invert input signal and send it to CPU.
(Check other signal’s frame is same as others or not.)
② Waveform measurements
J100
31
31
32
32
<Normal key input waveform>
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５６
of All
Page 62
Bogota SIRCI Project User Requirement Definition
A
y
5.1.2 Sub BOARD Specification
5.1.2.1 Sub Main Board Specification
- Communicated with CPU Board and control I/O.
riticle Specification Remarks
CPU S3C24440
SDRAM : 128MByte
Memory
RF Module ISO 14443 Type A
5.1.2.2 Sub Main Board Block Diagram
Nor Flash : 8MByte
Nand Flash : 512 MB
te
Page
５７
CB-EDR-HM-00-V1.0 Automatic Recharger
of All
Page 63
Bogota SIRCI Project User Requirement Definition

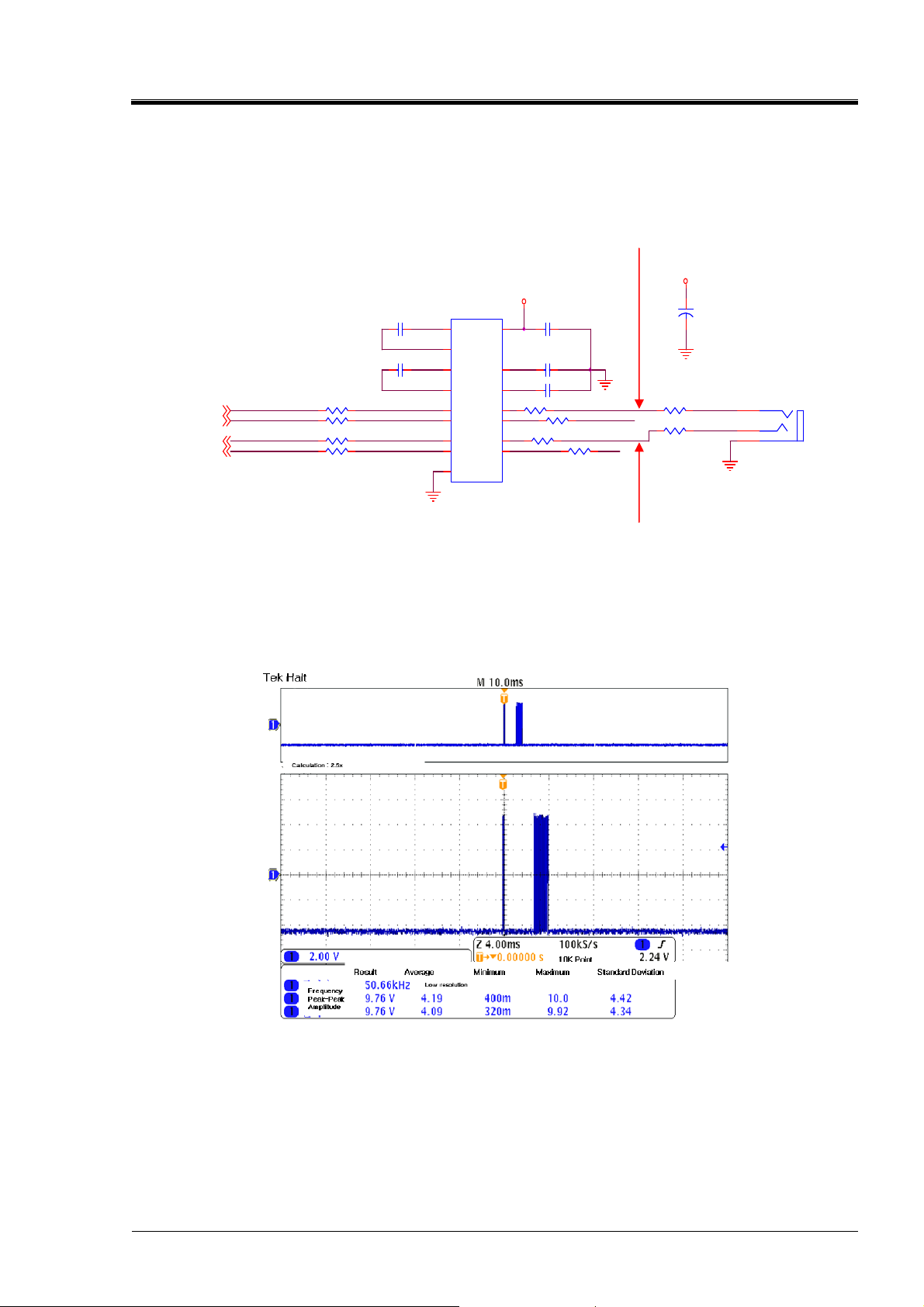

5.1.2.3 Sub Main Check point
- RS-232
VDD_3.3V
U9
C-1005
C-1005
1
C1+
3
C1-
4
C2+
5
C2-
11
T1IN
10
T2IN
12
R1OUT
9
R2OUT
15
GND
C36 100nF
C37 100nF
DBG_TX[3]
CUSTOM_TX[3]
DBG_RX[3]
CUSTOM_RX[3]
DBG_TX
DBG_RX
R86 100R R-1005
R89 100R R-1005
R92 100R R-1005
R94 100R R-1005
VCC
T1OUT
T2OUT
R1IN
R2IN
16
2
V+
6
V-
14
7
13
8
C38 100nF
C39 100nF
C40 100nF
R87 1K R-1005
R93 1K R-1005
SP3232EY
TSSOP16
TX Test Point
C-1005
C-1005
C-1005
R91 1K R-1005
R95 1K R-1005
RX Test Point
VDD_3.3V
12
TC3
10uF/16V
TC-3216-A
R88 100R R-1005
R90 100R R-1005
CPU DEBUGER
2
3
1
J7
TSH-3813
STEREO-JACK-SH381D-PA9T-A
③ Circuit description
: Change UART signal into RS -232 signal
④ Waveform measurements
< Normal TX waveform >
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５８
of All
Page 64
Bogota SIRCI Project User Requirement Definition
< Normal TX waveform >

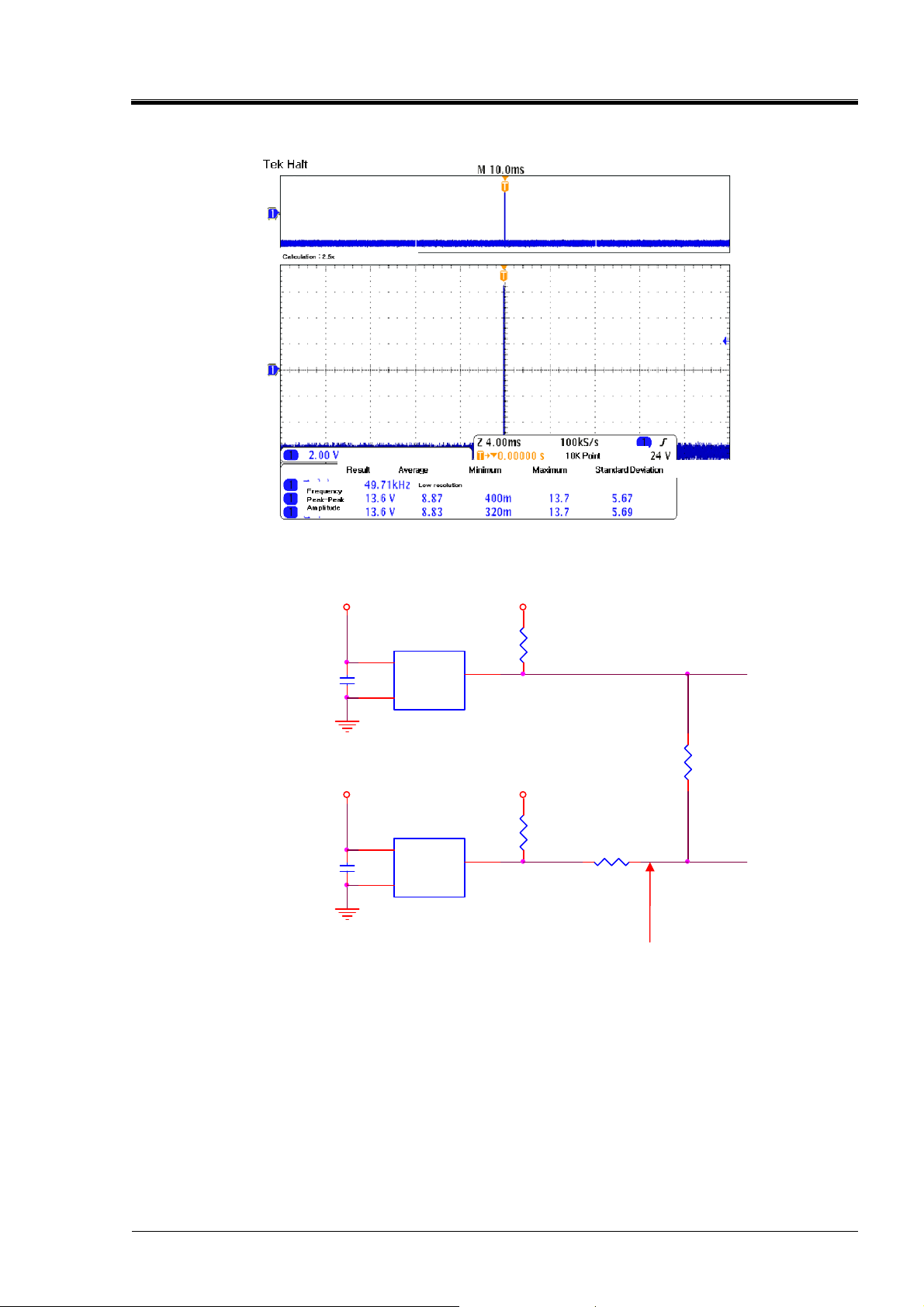

- SIM Part (Clock)
SAM5.0VSAM5.0V
Y1
4
VCC
C47
100nF
C-1608
C86
100nF
C-1608
2
1 2
1 2
GND
3.6864MHz(SCO-105)
Y3
4
VCC
2
GND
3.6864MHz(SCO-105)
① Circuit description
: Circuit that supply the stable Clock to allow SIM Card to operate.
OUT
OUT
R124
1K
3
SAM5.0VSAM5.0V
3
R-1608
R201
1K
R-1608
R1003 0R R-1608
SIM_CLK1
R1002
Z_0R
R-1608
SIM_CLK2
Test Point
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
５９
of All
Page 65
Bogota SIRCI Project User Requirement Definition

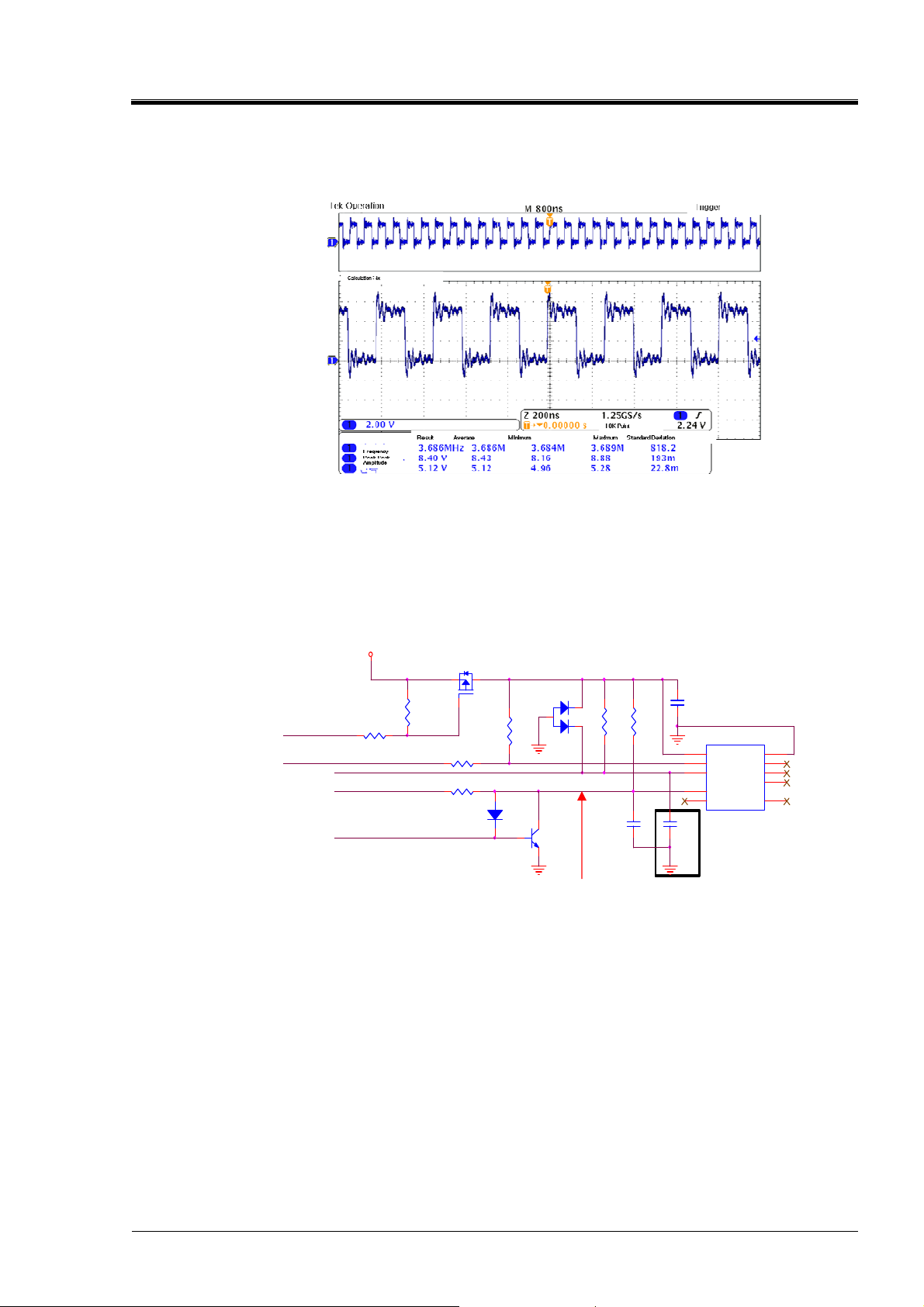

② Waveform measurements
<Normal Clock Wavement>
- SIM Part (Signal)
SIM_PWR_ON1_5V
SIM_RESET_ON1_5V
SAM5.0V
R129 1K
SIM_CLK1
SIM_RX1_A
SIM_TX1_A
R-1608
Q1
SI2301DS(SOT-23)
R125
1
10K
R-1608
R134 100R
R136 100R R-1608
D4
SD103B(SOD123)
32
R-1608
R126
10K
12
1
2 3
Test Point
ZD1
Z_L16513
2
3
1
Q3
Z_MMBT3904(SOT-23)
R127
1K
R-1608
R128
1K
R-1608
C50
30pF
C-1608
C48
100nF
C-1608
SM1
GND
1
VCC
2
RST
CLK3FU1
7
SIO
9
S1
DRC017S
C51
Z_10pF
SIM SOCKET #1
C-1608
GND
VPP
FU2
5
6
4
8
10
S2
① Circuit description
: Circuit that realize to recognize SIM CARD
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
６０
of All
Page 66
Bogota SIRCI Project User Requirement Definition

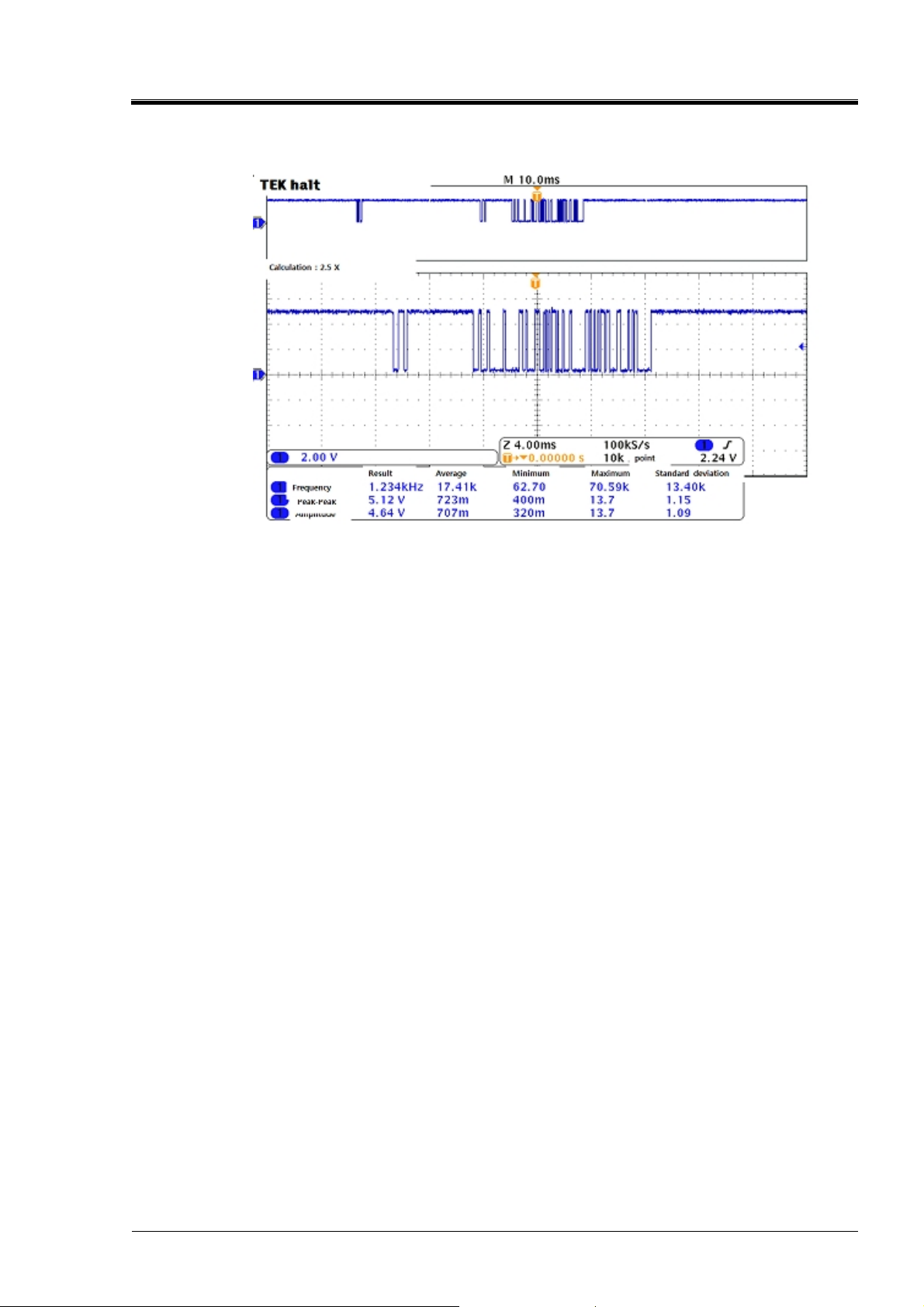

② Waveform measurements
<Waveform when normally recognize SIM CARD>
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
６１
of All
Page 67
Bogota SIRCI Project User Requirement Definition
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications to the equipment not expressly approved by the party responsibl e for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
.
CB-EDR-HM-00-V1.0 Automatic Recharger
Page
６２
of All
Loading...
