Maintenance and Repair Manual
(Heavy)
Equipment Name
CB-EDR-HM-00-V1.0
Copyright LG CNSⓒ
It is forbidden to copy and distribute on certain or whole part of this content without precedent approval of LG CNS
Page 2
Bogota SIRCI Project
Document Prepared by: Reviewed by: Approved by:
Maintenance and
Repair Manual (Heavy)
User Requirement Definition
CB-EDR-HM-00-V1.0
Attended
Recharger
Page i of All
Page 3
Bogota SIRCI Project
User Requirement Definition
Document History
Previous
Version
Present
Document
Date Numeral Changes Type
CB-EDR-HM-00-V1.0
Attended
Recharger
Page ii of All
Page 4
Bogota SIRCI Project
User Requirement Definition
Table Of Contents
1. ATTENDED RECHARGER STRUCTURE .................................. １
1.1 Outline .............................................................. １
1.2 External/Internal structure and main module ............................ １
1.2.1 External structure ................................................... １
1.2.2 Main module structure I .............................................. ３
1.2.3 Internal structure .................................................... ５
1.2.4 Main module structure II .............................................. ６
2. ERROR HANDLING ......................................................... ７
2.1.1 Supply the power (1/2) ............................................ ７
2.1.2 Supply the power (2/2) ............................................ ８
2.1.3 USB Trouble (1/2) ................................................. ９
2.1.4 USB Trouble (2/2) ............................................... １０
2.1.5 LCD Screen Trouble (1/2) ........................................ １１
2.1.6 LCD Screen Trouble (2/2) ........................................ １２
2.1.7 Keypad Trouble (1/2) ............................................ １３
2.1.8 Keypad Trouble (2/2) ............................................ １４
2.1.9 RTC Trouble (1/2) ............................................... １５
2.1.1 RTC Trouble (2/2) ............................................... １６
3. DEVICE MAINTENANCE ................................................... １７
3.1 CPU Board .......................................................... １７
3.1.1 Outline ......................................................... １７
3.1.2 Structure ....................................................... １７
3.1.3 Spec ............................................................ １８
3.1.4 Replacement method .............................................. ２２

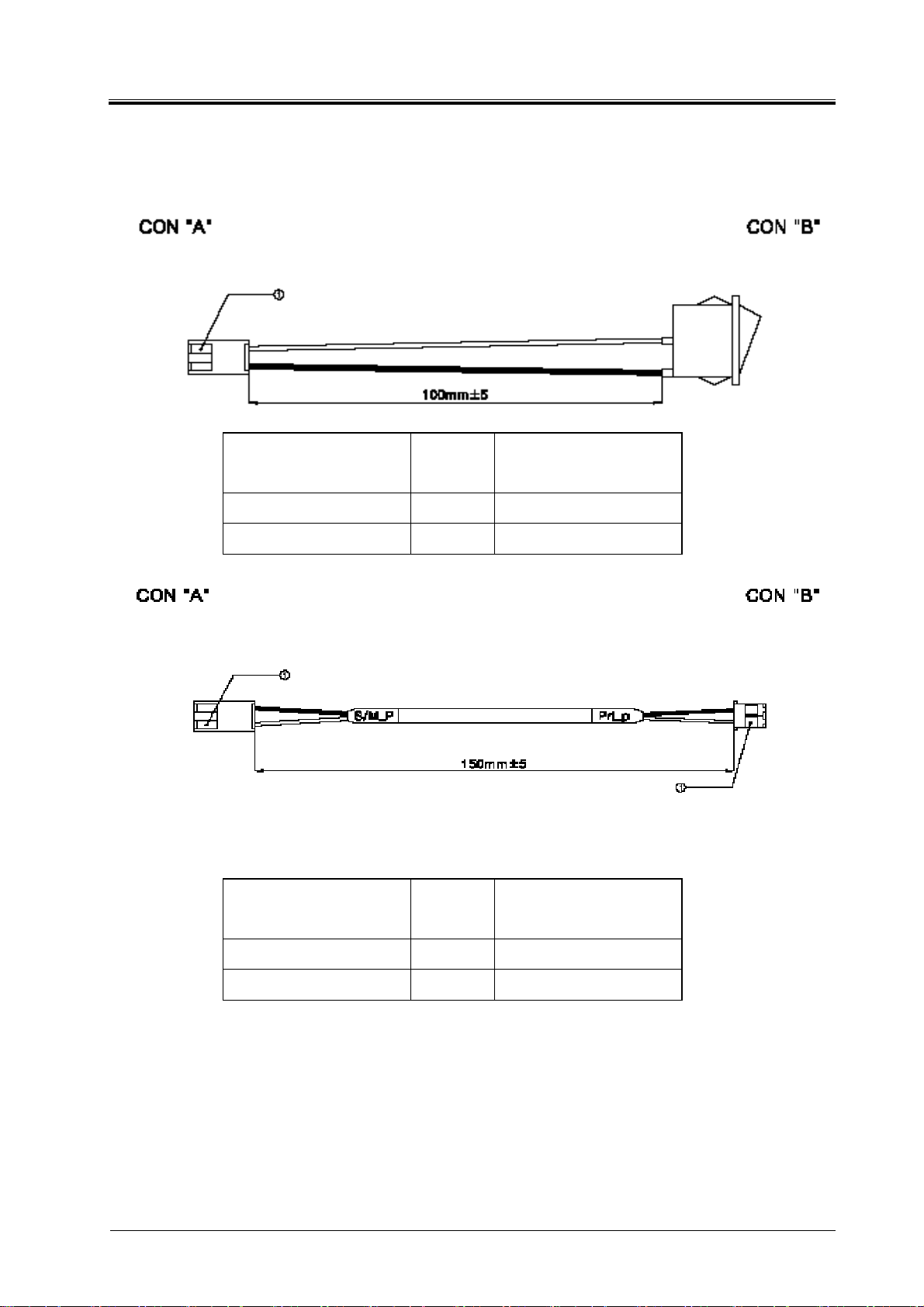

3.1.5 Connector Spec .................................................. ２５
3.2 Customer Display ................................................... ２８
3.2.1 Outline ......................................................... ２８
3.2.2 Structure ....................................................... ２８
3.2.3 Spec ............................................................ ２９
3.2.4 Replacement method .............................................. ３０
3.3 Maintenance Flow chart ............................................. ３１
4. ATTENDED RECHARGER INSTALLATION AND UPDATE............................ ３２
4.1 Attended recharger installation ..................................... ３２
4.1.1 Process ......................................................... ３２
4.1.2 Device registration ............................................. ３２
CB-EDR-HM-00-V1.0
Attended
Recharger
Page iii of All
Page 5
Bogota SIRCI Project
User Requirement Definition
1. Attended recharger structure
1.1 Outline
Attended recharger is the device that recharges passenger’s card and managed by the crews.
1.2 External/Internal structure and main module

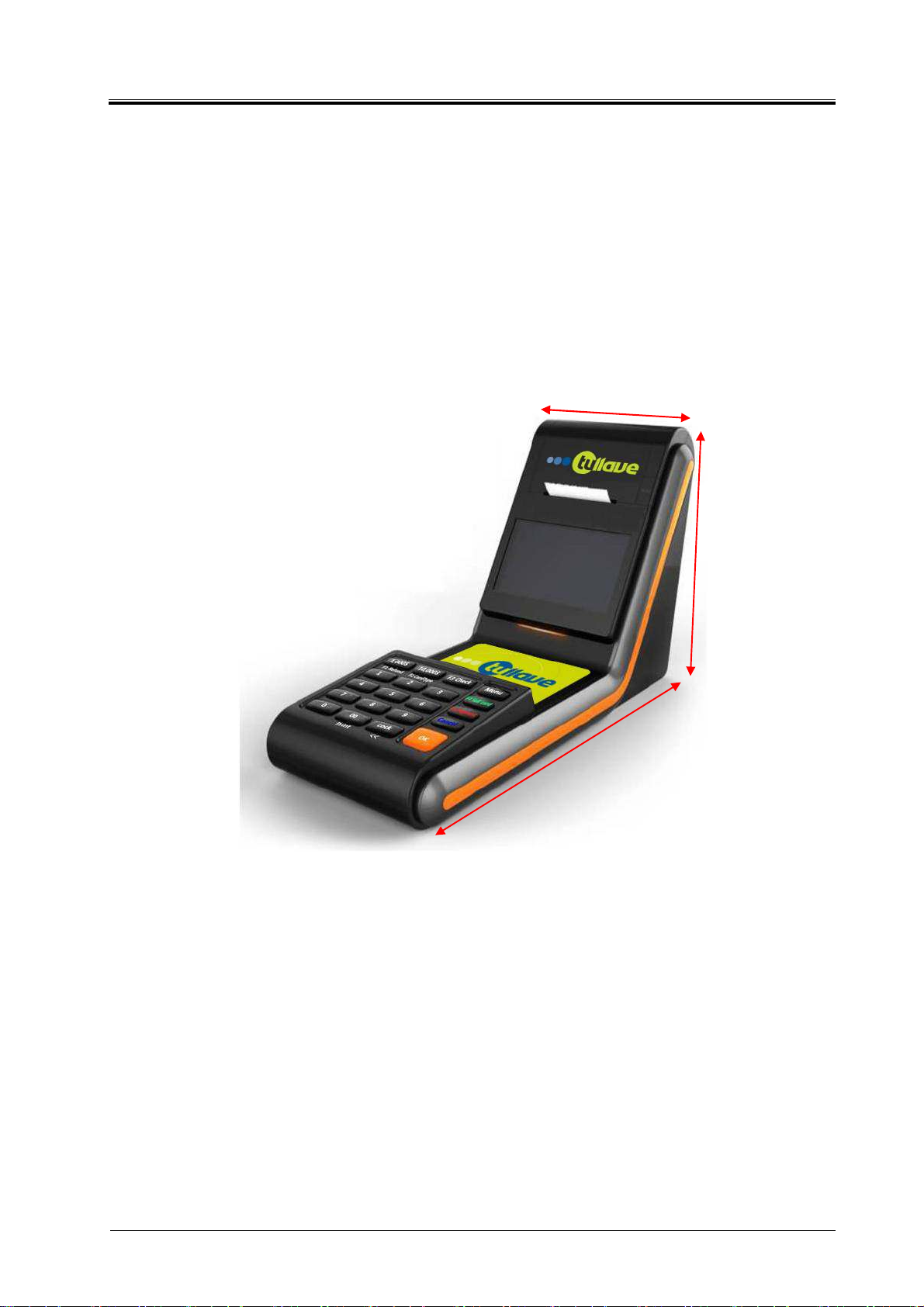

1.2.1 External structure
132mm (W)
185mm (H)
320mm (D)
[Attended Recharger]
CB-EDR-HM-00-V1.0 Attended Recharger
Page
１ of All
Page 6
Bogota SIRCI Project

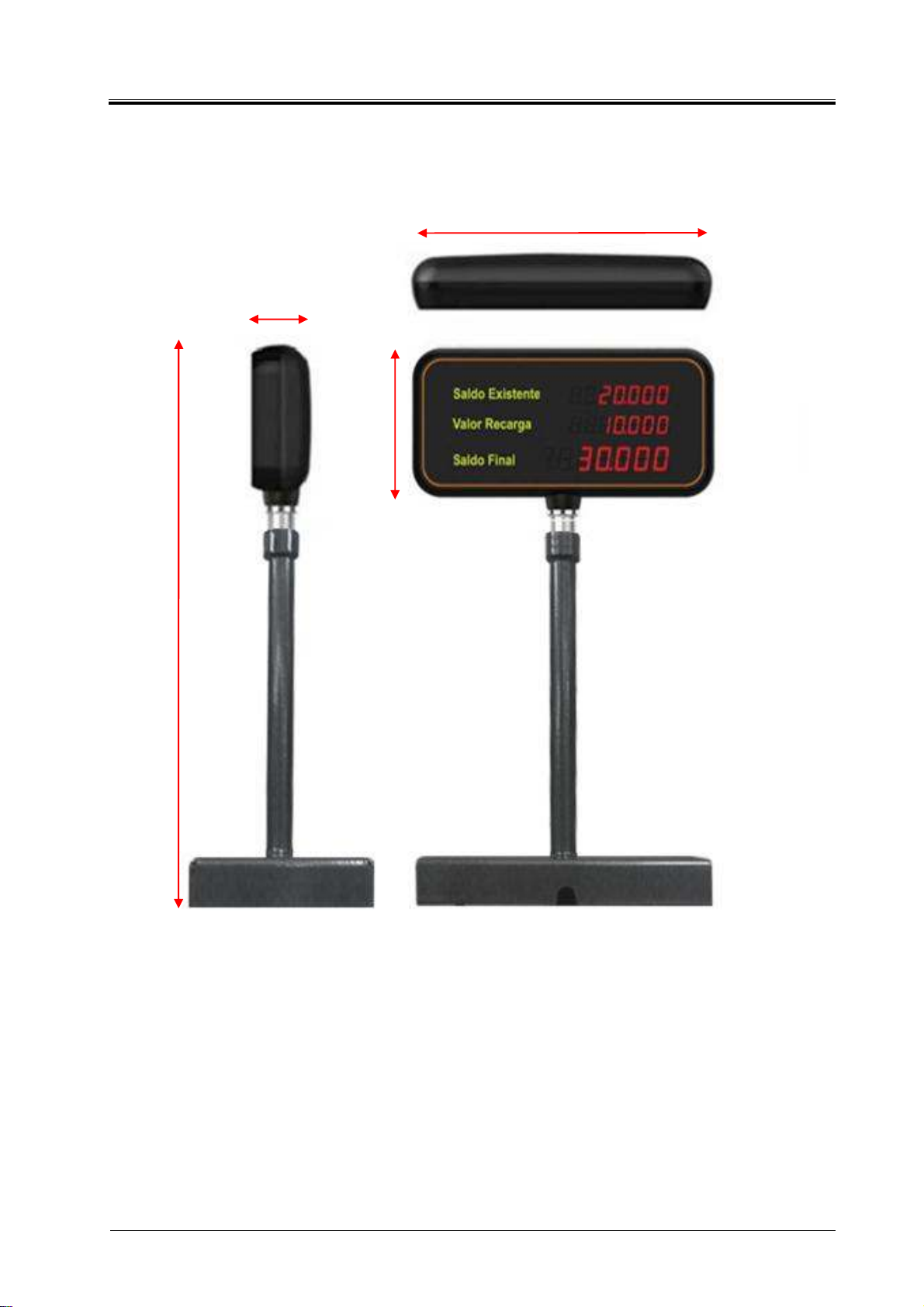

342.6mm (H)
User Requirement Definition
200mm (W)
35.6mm (D)
96mm (H)
[Customer Display]
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２ of All
Page 7
Bogota SIRCI Project
1)
2)
3)
4)
Division Contents
User Requirement Definition
Size
320mm(D) x 185mm(H) x 132mm(W)
Material PC+ABS

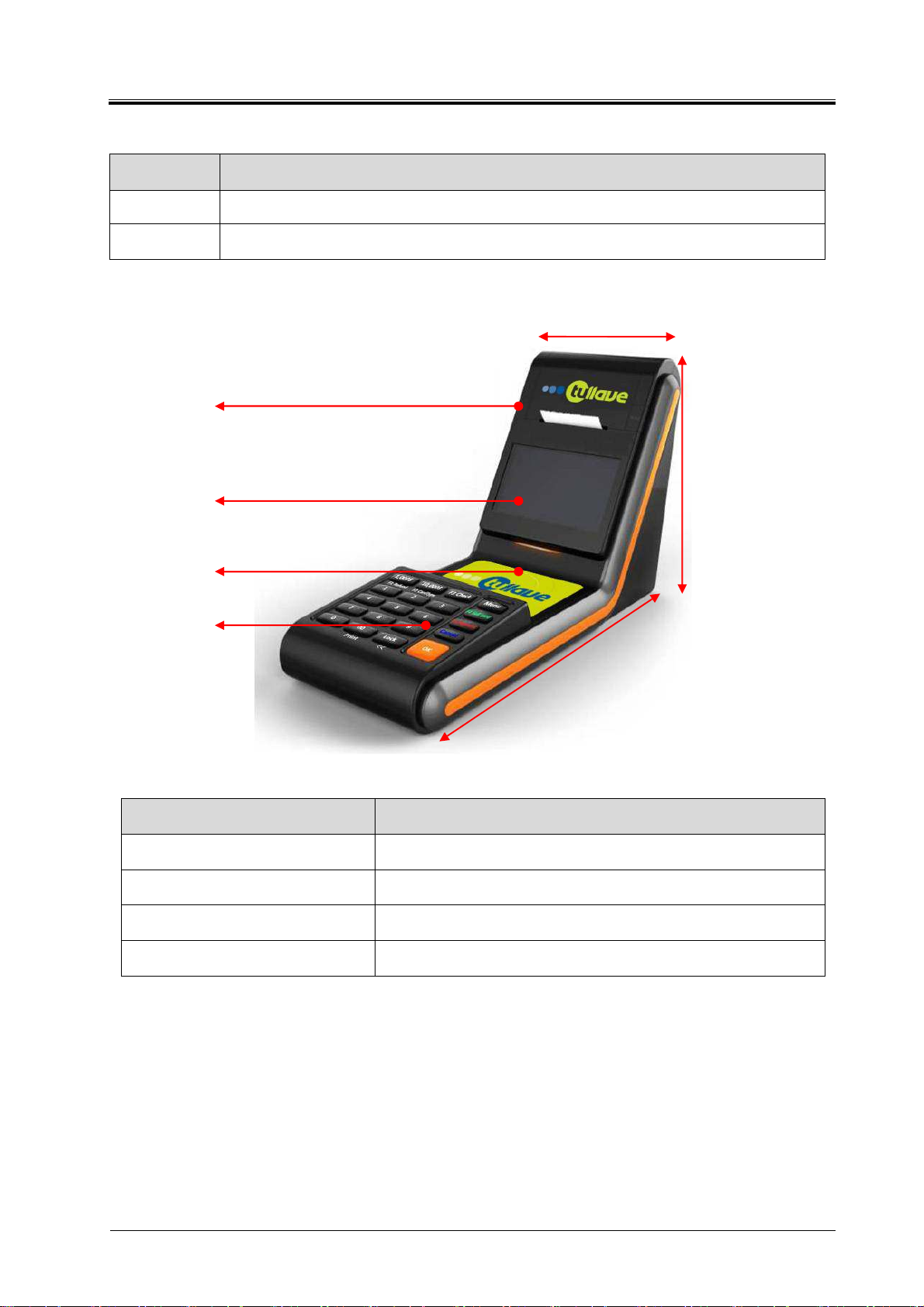

1.2.2 Main module structure I
132mm(W)
185mm(H)
320mm(D)
Attended Recharger
Name Explanation
1) Printer Print card recharging details
2) 4.3’ LCD Display attended recharger operation
3) RFID Antenna ISO14443 Type A/B, 13.56Mhz recognition and charging
4) KEYPAD Input the amount of recharge and information
CB-EDR-HM-00-V1.0 Attended Recharger
Page
３ of All
Page 8
Bogota SIRCI Project
1)
2)
3)
Division Contents
User Requirement Definition
Size
35.6mm(D) x 96mm(H1) x 342.6mm(H2) x 200mm(W)
Material PC+ABS
342.6mm(H2)
200mm(W)
35.6mm(D)
96mm(H1)

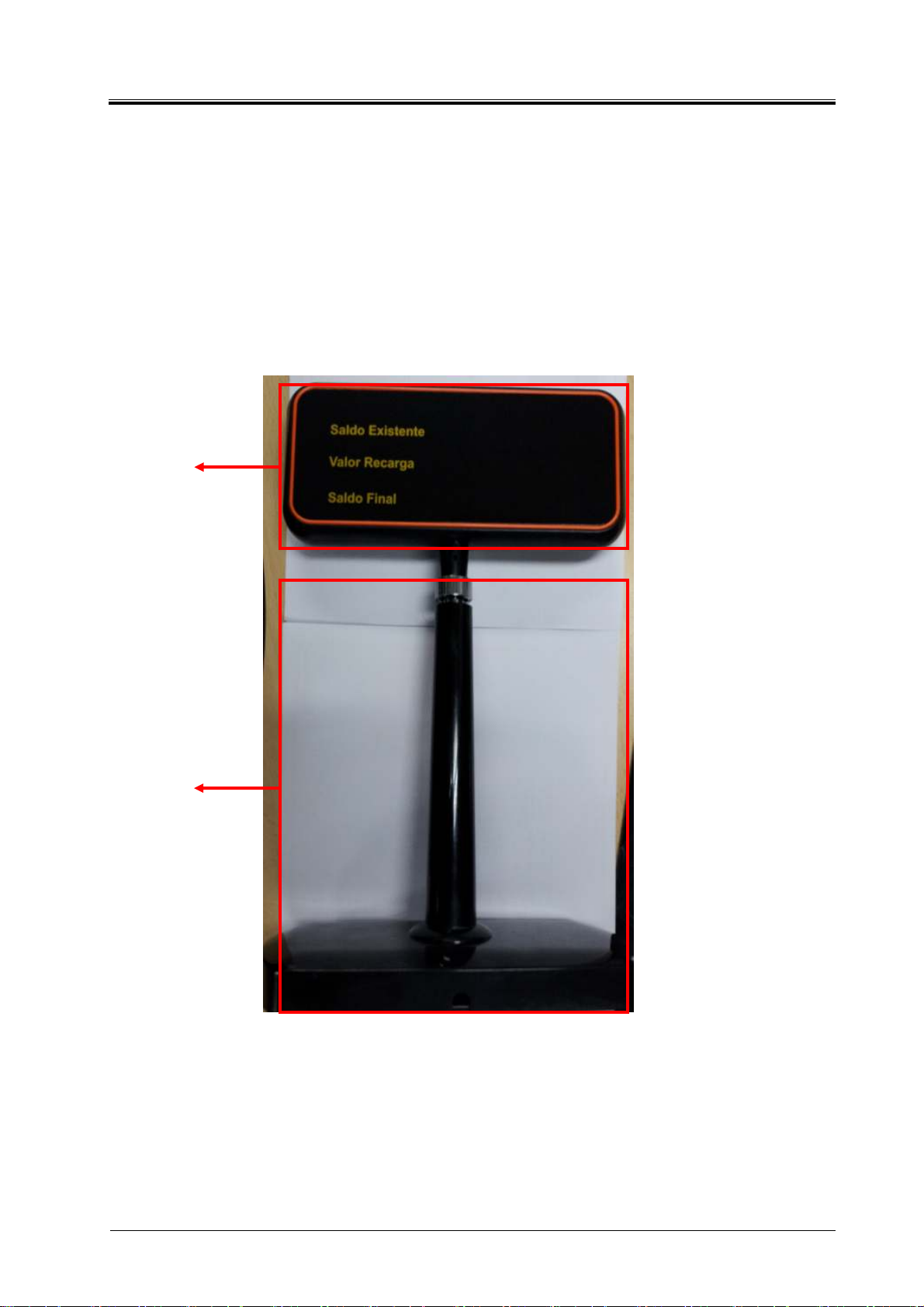

Customer Display

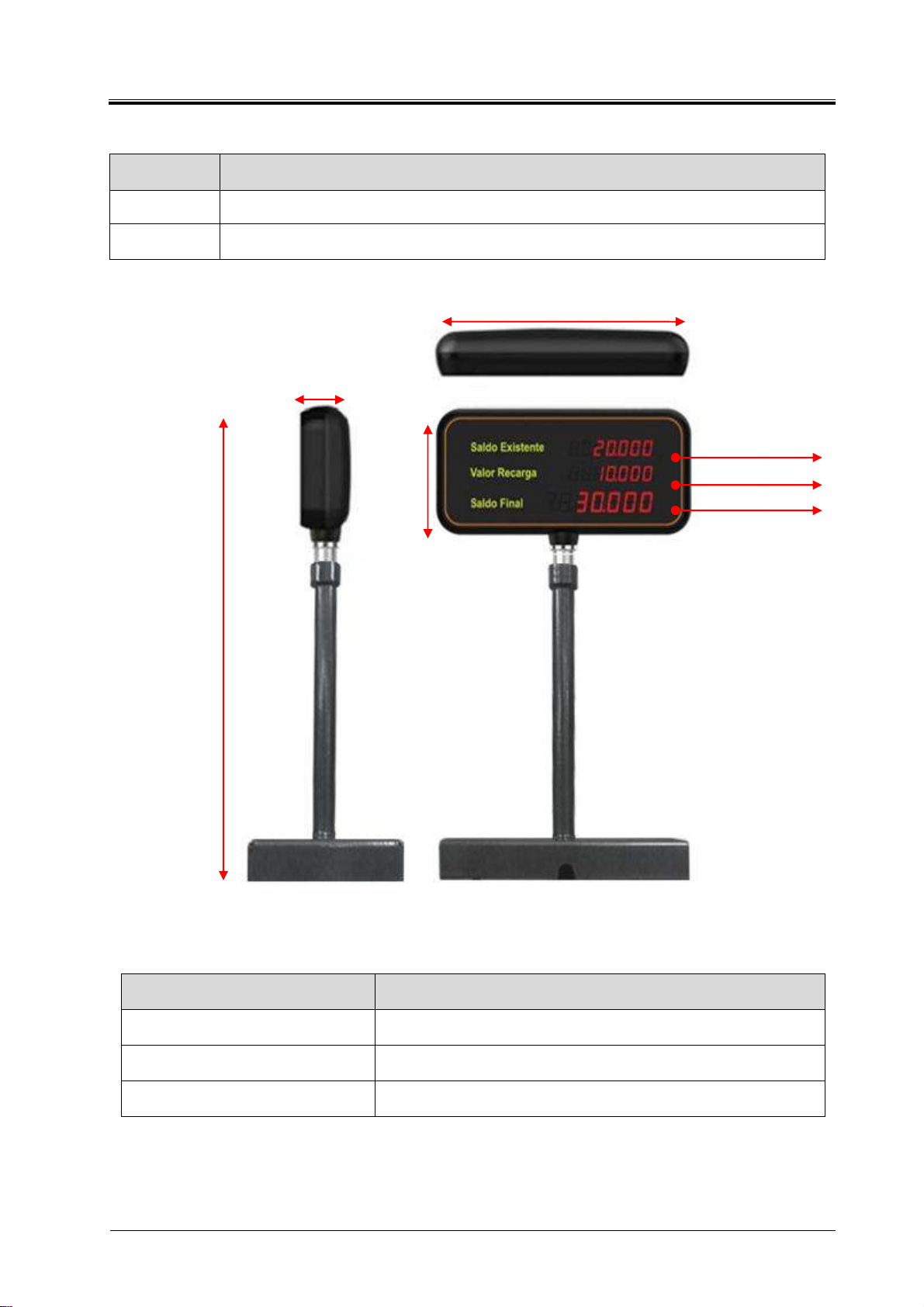

Name Explanation
1) The amount before charging Display the amount before charging
2) The amount of charging Display the amount of charging
3) The amount after charging Display the amount after charging
CB-EDR-HM-00-V1.0 Attended Recharger
Page
４ of All
Page 9
Bogota SIRCI Project
Printer Module
Printer & L
CD Board
RFID Antenna
KEYPAD Board
Sub Main Board
CPU Board

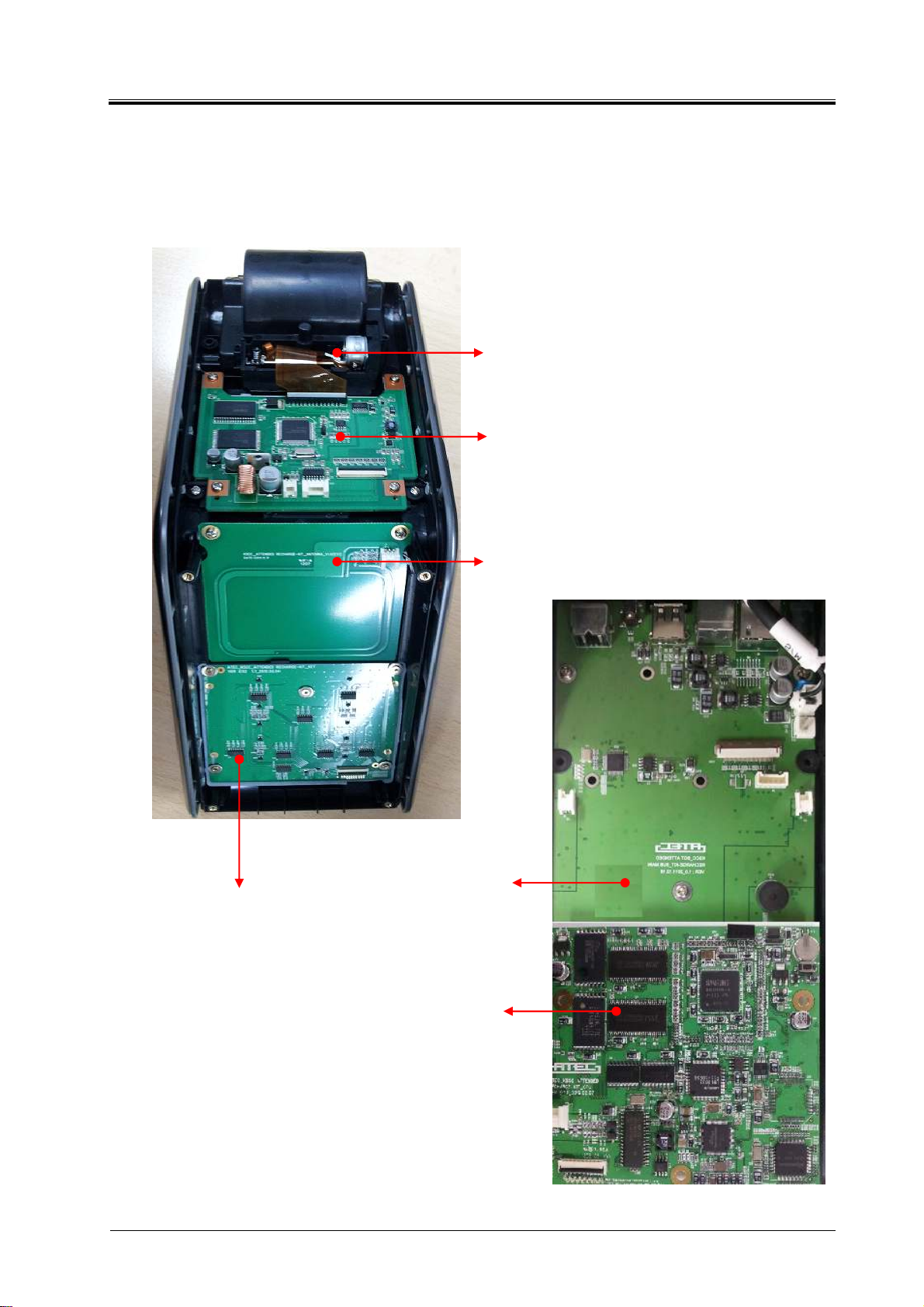

1.2.3 Internal structure
User Requirement Definition
CB-EDR-HM-00-V1.0 Attended Recharger
Page
５ of All
Page 10
Bogota SIRCI Project
1.2.4 Main module structure II
1) 4.3’ LCD
Display attended recharger operation
2) Printer
Print various finishes, accounting journals and data etc.
3) RFID Antenna
RF interface that be able to read 13.56MHz RF Card
Available card : ISO 14443 Type A, B
4) CPU Board
Control all part of the attended recharger and transfer processed information to the main server.
CPU
- S3C2440(ARM9 Core) : 400MHz
Memory
- SDRAM : 128MByte
- Nor : 8MByte
- Nand : 512Myte
RF module
- RC531( Type A,B)
5) Sub Board
Communicate with CPU Board and control I/O devices.
External PORT
- Ethernet : 1EA
- USB 2.0 : 1EA
- External 3G Modem : 1EA
- RS -232 : 3EA
SAM
- Socket 6EA(SIM Type)
Sound
- SW Codec control
- Speaker : 1W * 2 EA
User Requirement Definition
Page
CB-EDR-HM-00-V1.0 Attended Recharger
６ of All
Page 11
Bogota SIRCI Project
2. Error handling

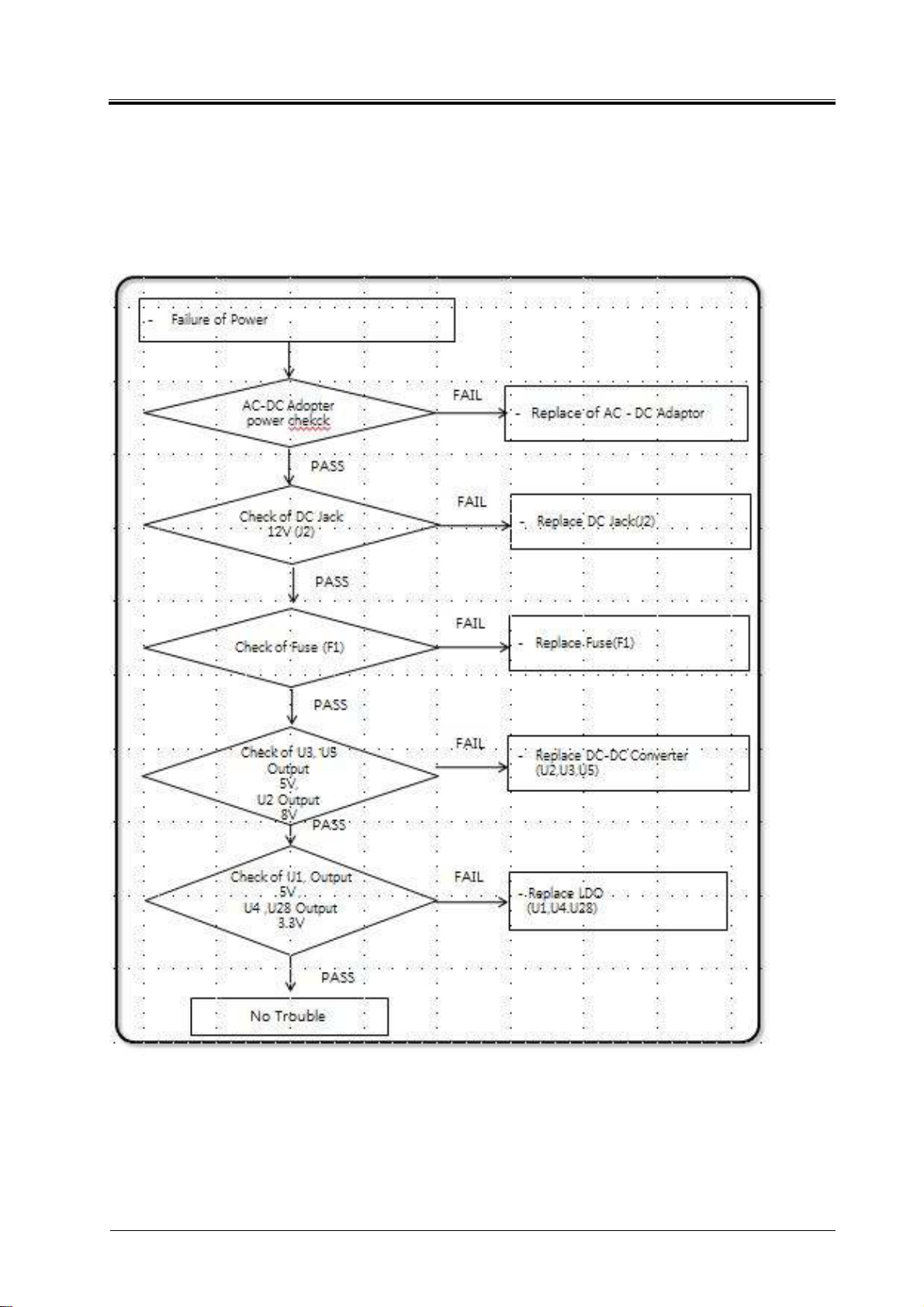

2.1.1 Supply the power (1/2)
User Requirement Definition
Page
CB-EDR-HM-00-V1.0 Attended Recharger
７ of All
Page 12
Bogota SIRCI Project
Check
U
1 Output
5V

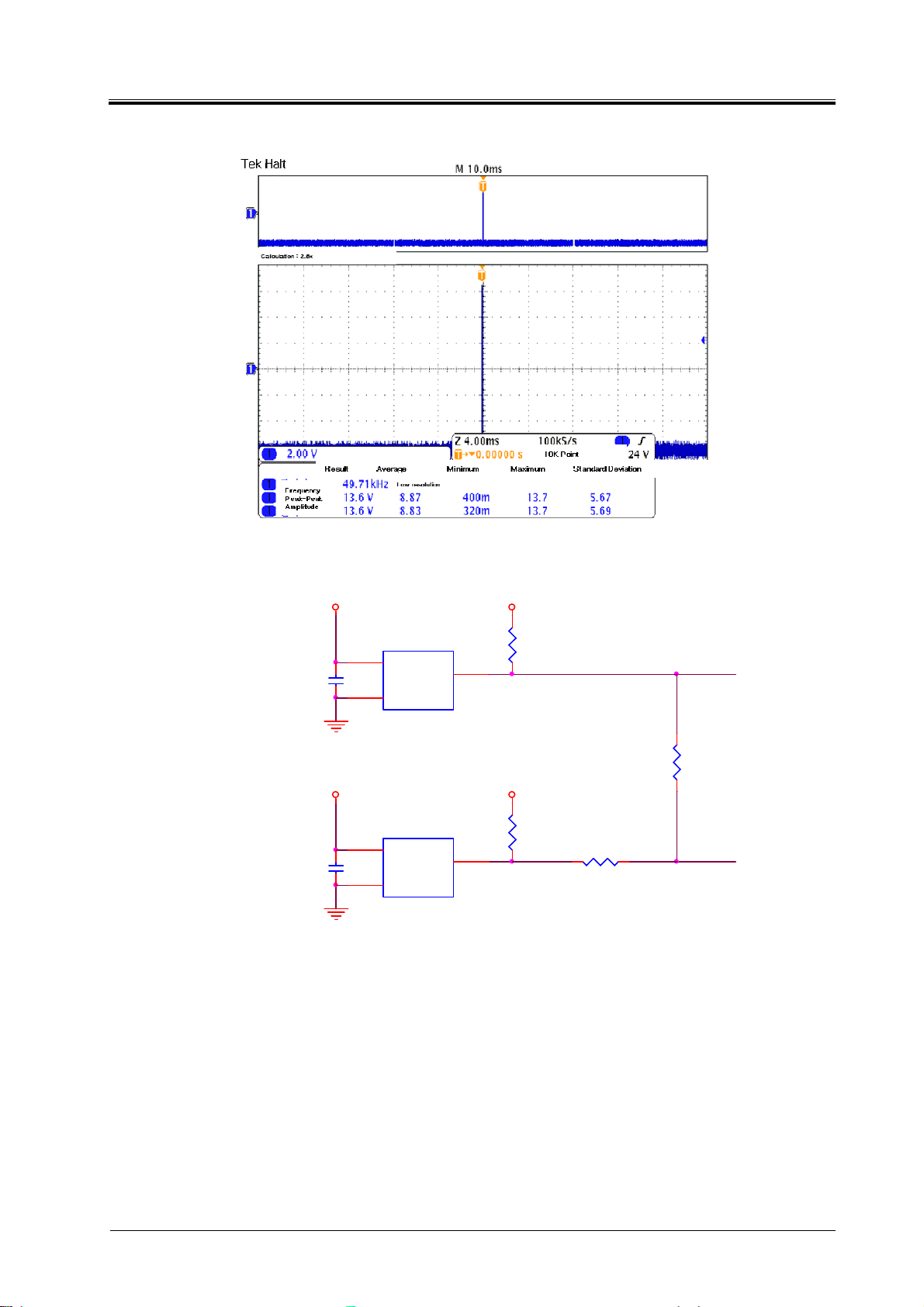

Check
U4
Output
3.3V

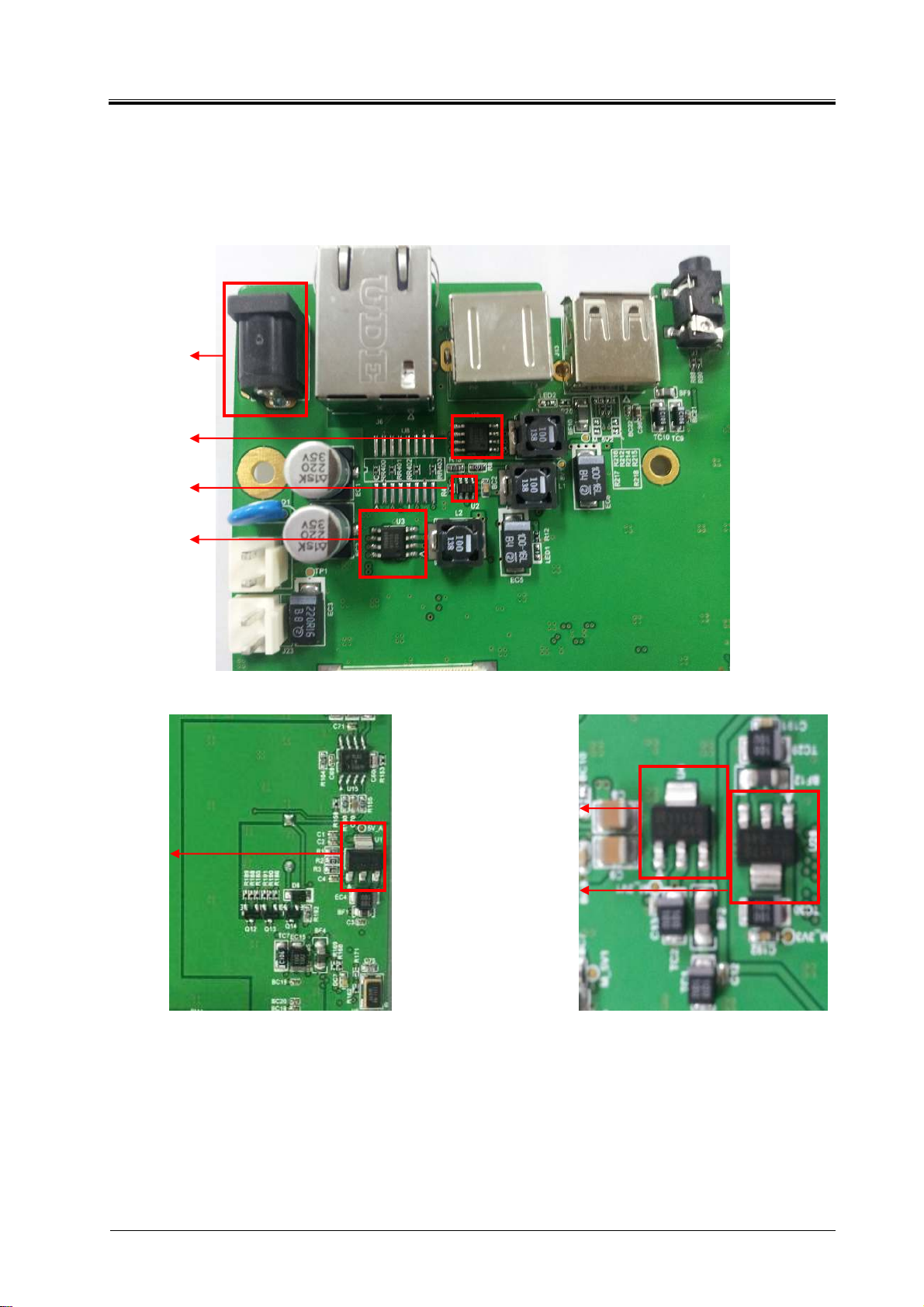

2.1.2 Supply the power (2/2)
Check DC Jack (J2)
12V
Check U5 Output 5V
Check U2 Output 8V
User Requirement Definition
Check U3 Output 5V
Check U28 Output
3.3V
CB-EDR-HM-00-V1.0 Attended Recharger
Page
８ of All
Page 13
Bogota SIRCI Project

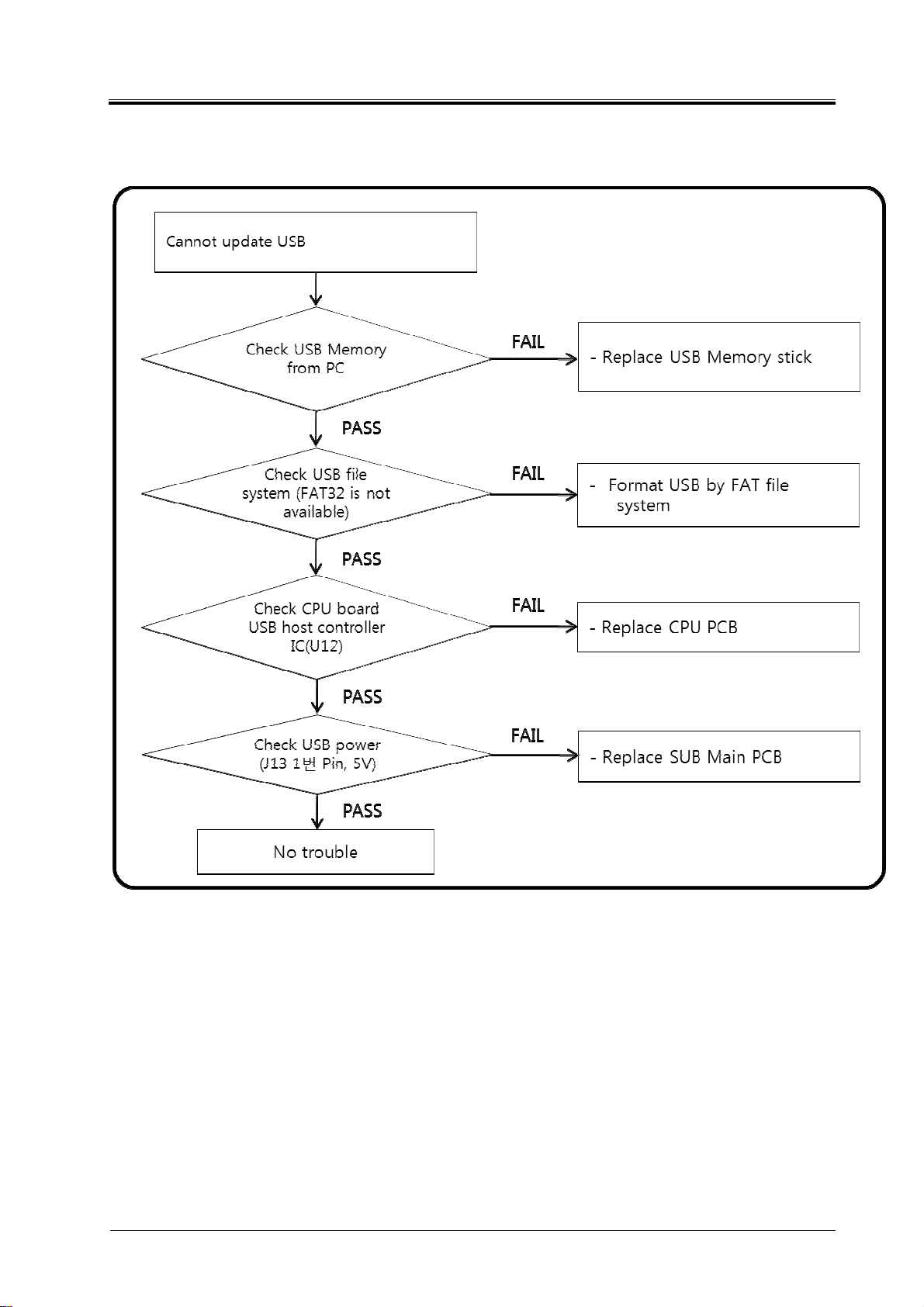

2.1.3 USB Trouble (1/2)
User Requirement Definition
Page
CB-EDR-HM-00-V1.0 Attended Recharger
９ of All
Page 14
Bogota SIRCI Project
2.1.4 USB Trouble (2/2)

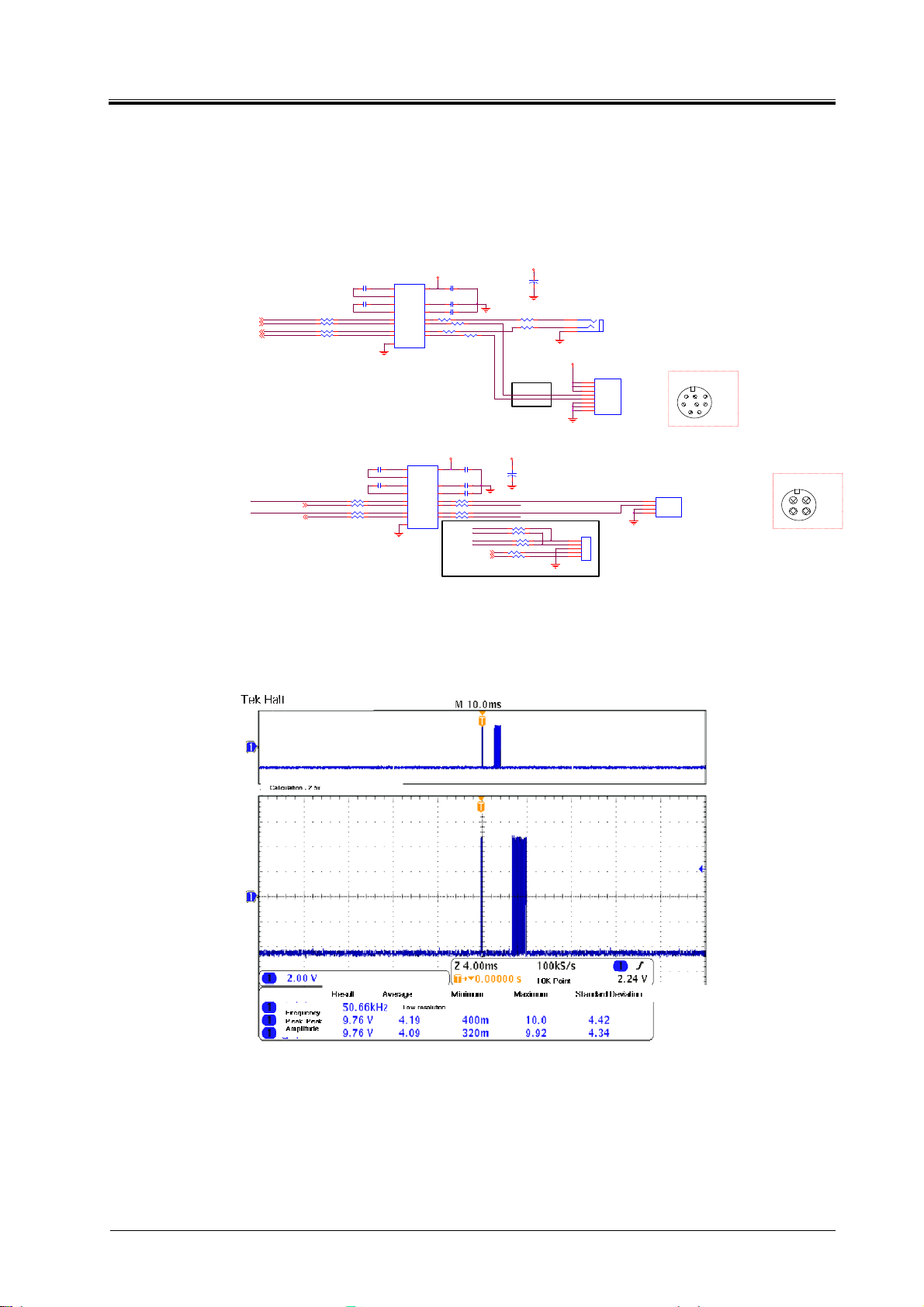

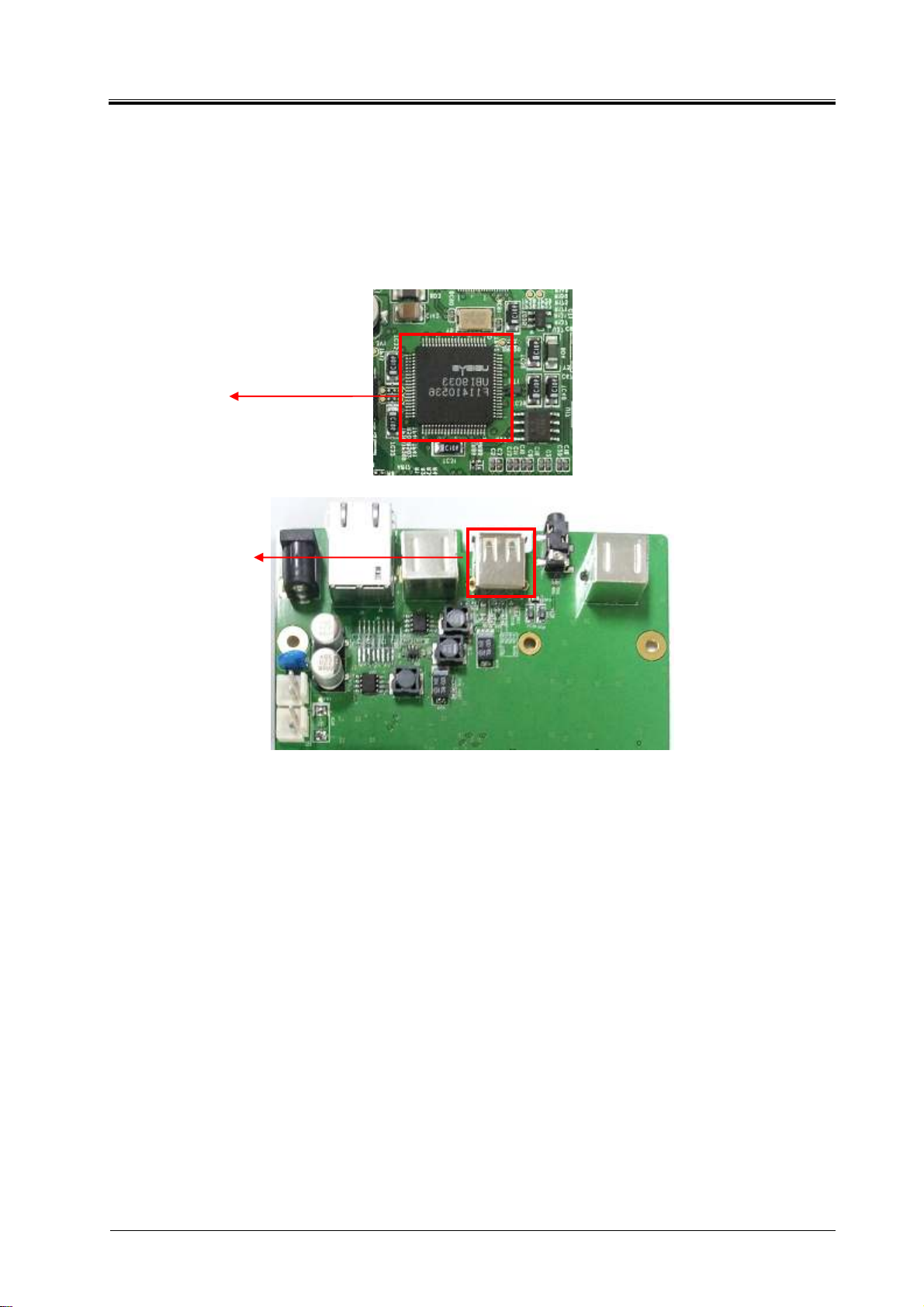

Check U21 USB HOST
Controller
User Requirement Definition
Check USB Power
Pin No.1 and 5V
Page
CB-EDR-HM-00-V1.0 Attended Recharger
１０ of All
Page 15
Bogota SIRCI Project

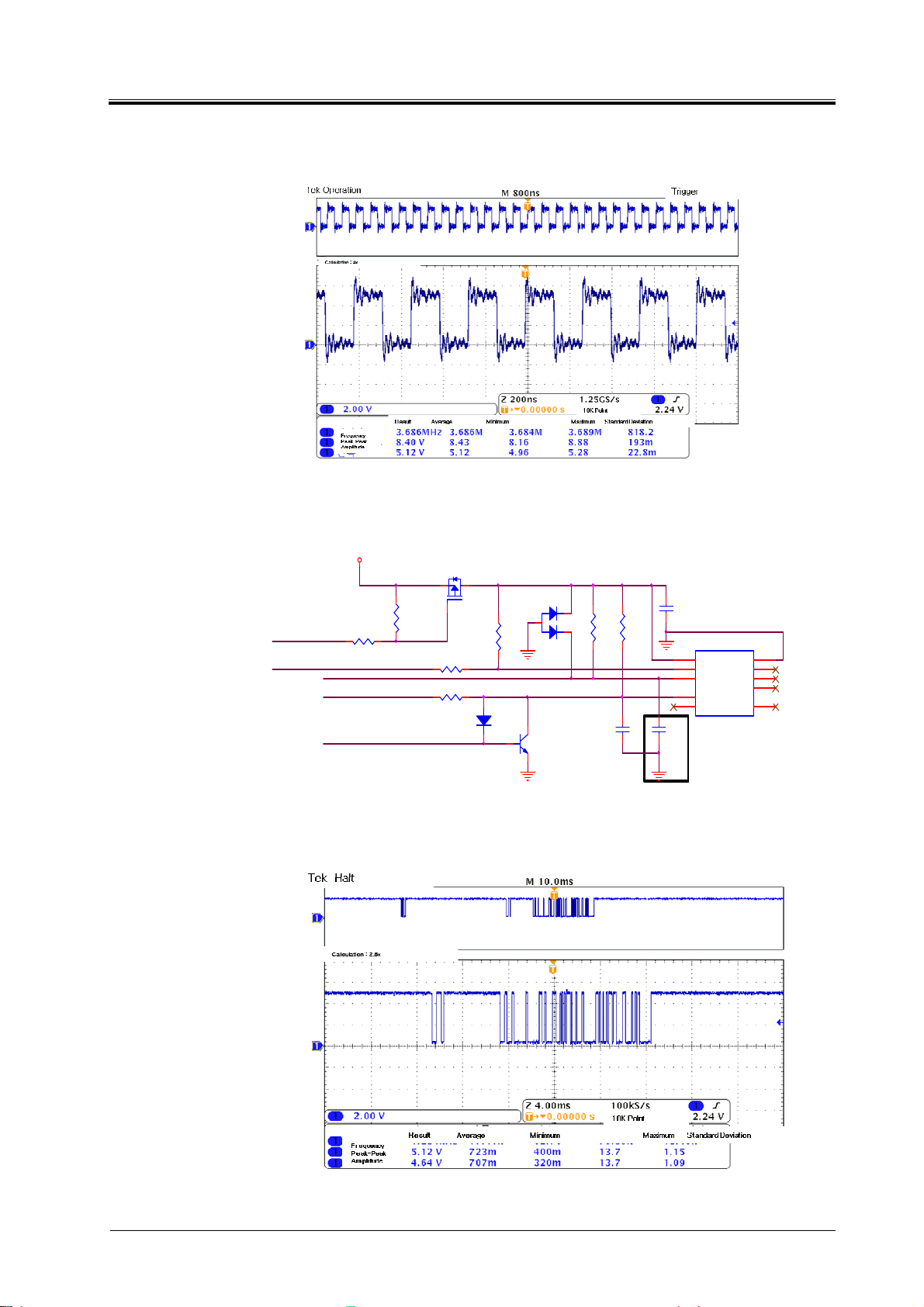

2.1.5 LCD Screen Trouble (1/2)
User Requirement Definition
Page
CB-EDR-HM-00-V1.0 Attended Recharger
１１ of All
Page 16
Bogota SIRCI Project

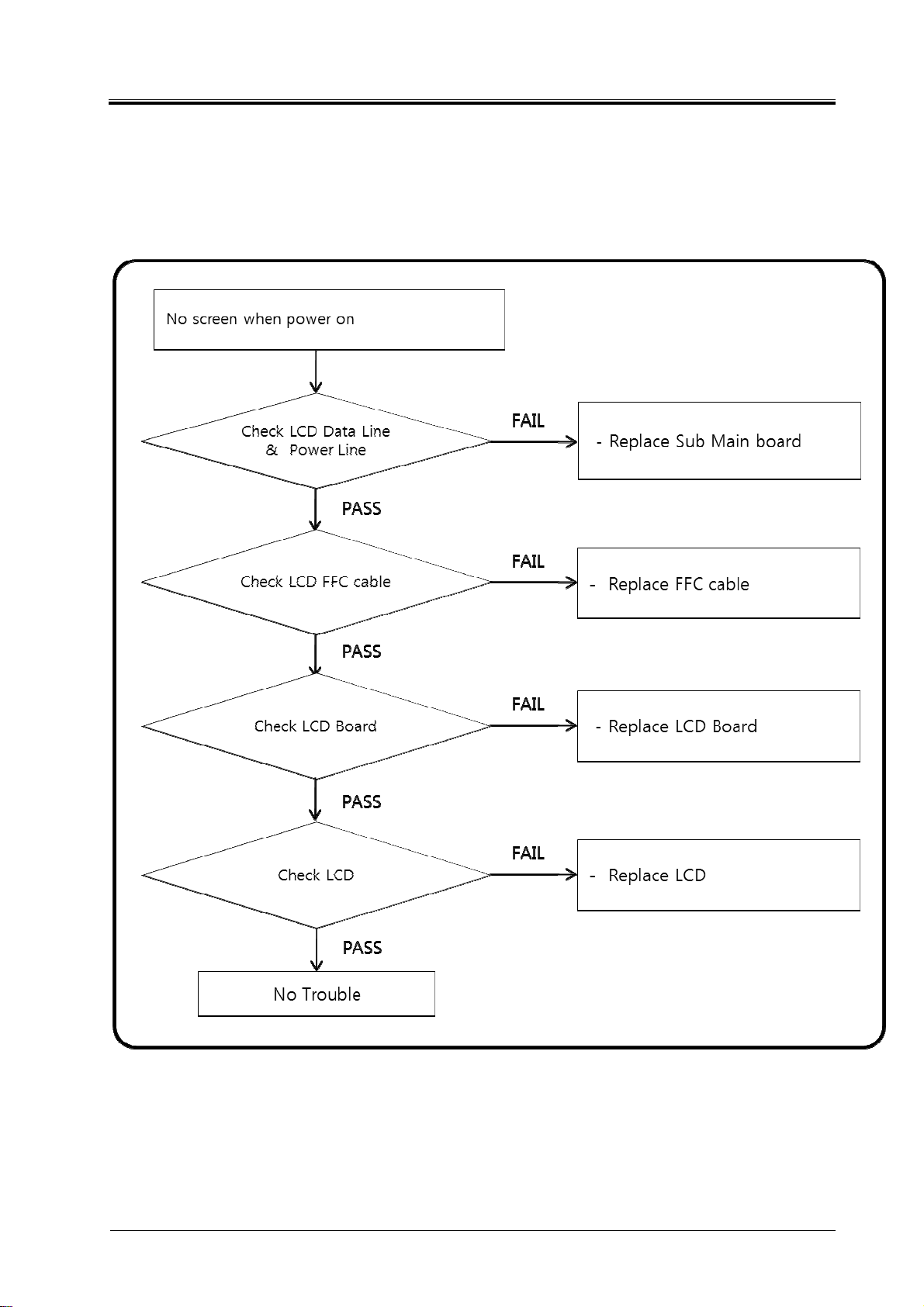

2.1.6 LCD Screen Trouble (2/2)

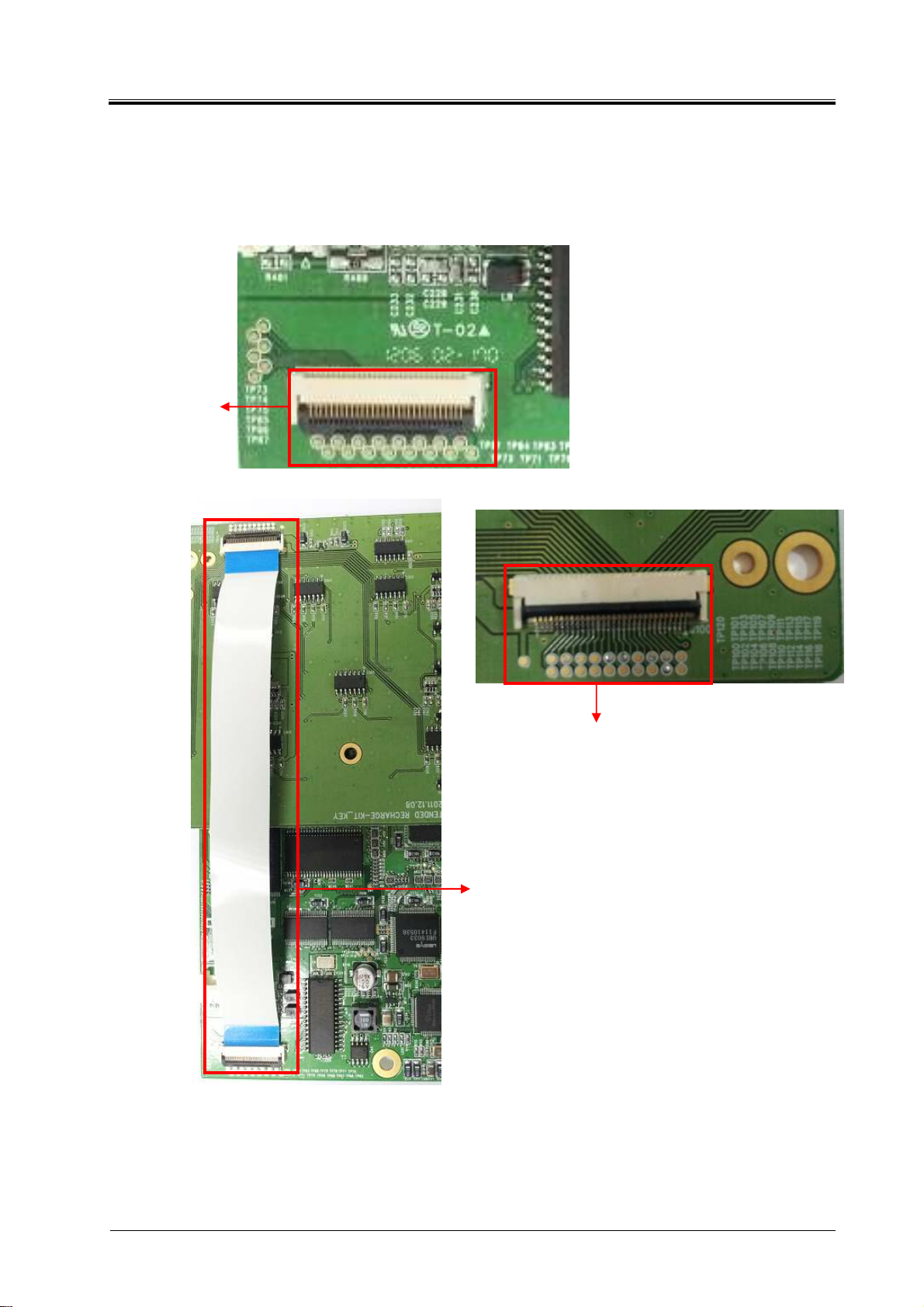

Check LCD Data &
Power Line
(Sub Main B/D)
Check LCD Data &
Power Line (Print B/D)
User Requirement Definition

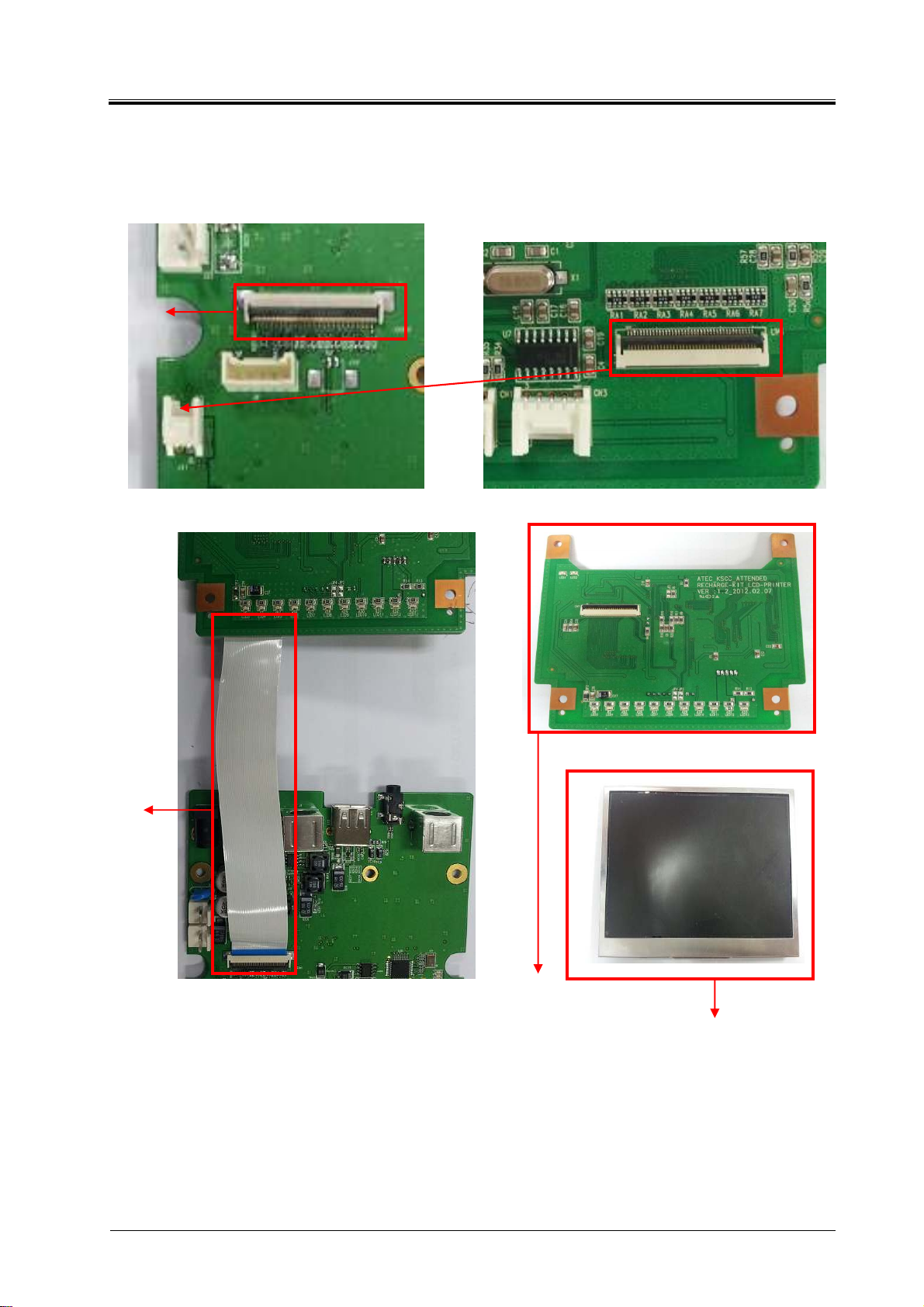

Check FFC Cable
Check LCD Board
Check LCD
Page
CB-EDR-HM-00-V1.0 Attended Recharger
１２ of All
Page 17
Bogota SIRCI Project

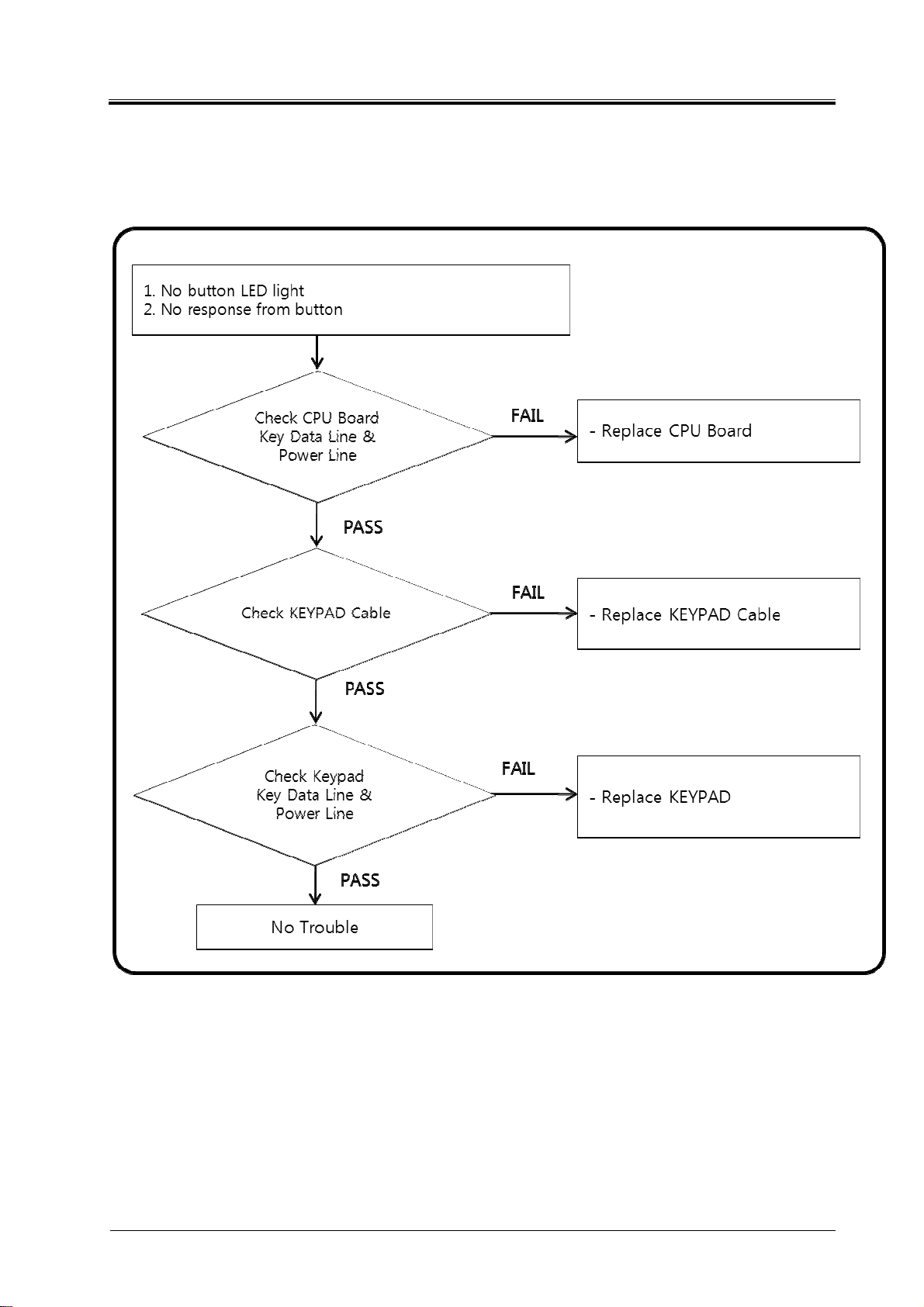

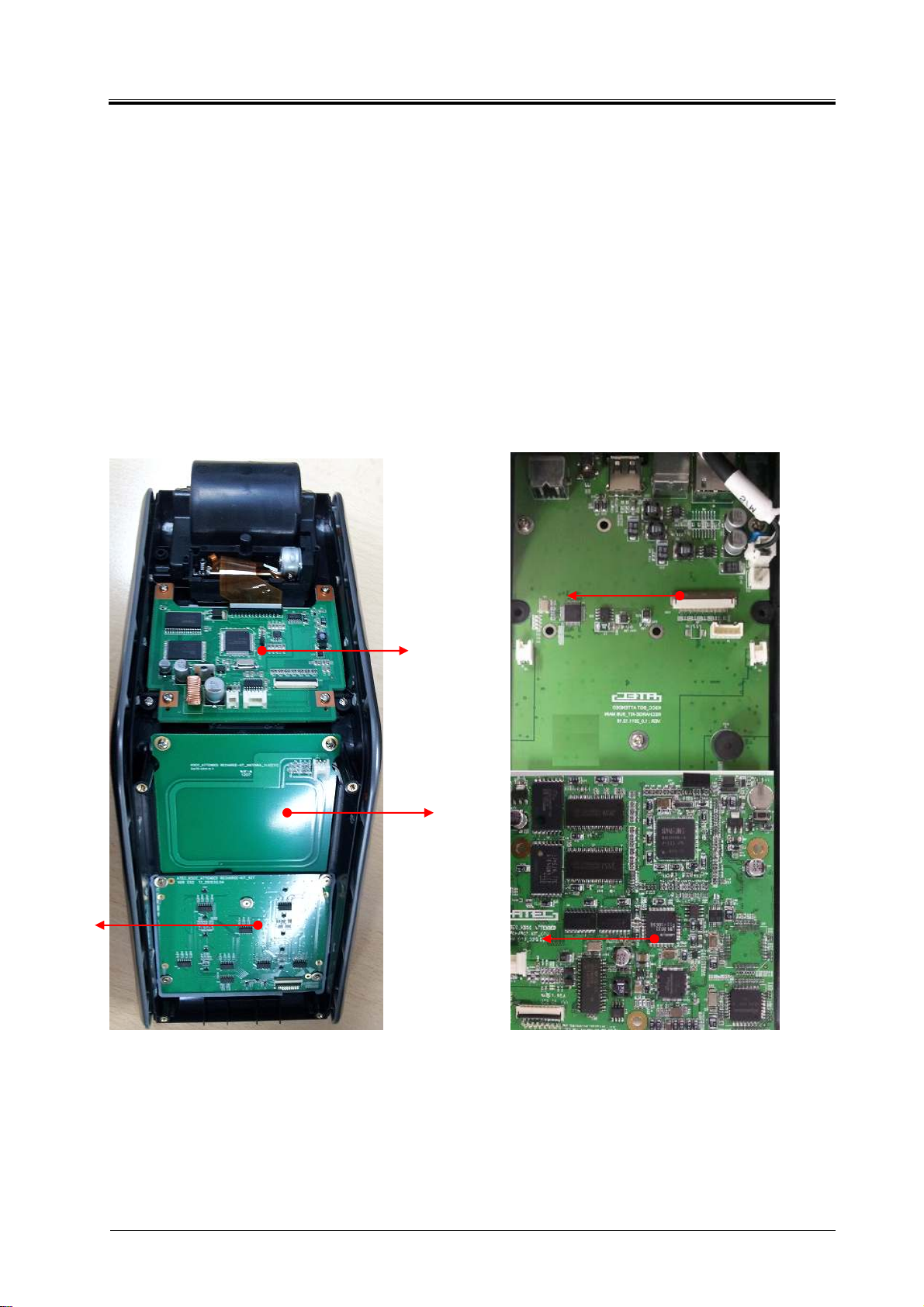

2.1.7 Keypad Trouble (1/2)
User Requirement Definition
Page
CB-EDR-HM-00-V1.0 Attended Recharger
１３ of All
Page 18
Bogota SIRCI Project
2.1.8 Keypad Trouble (2/2)
Check CPU Board
Key Data Line
User Requirement Definition
& Power Line
Check Key Board
Key Data Line
& Power Line
Check KEYPAD
Cable
Page
CB-EDR-HM-00-V1.0 Attended Recharger
１４ of All
Page 19
Bogota SIRCI Project

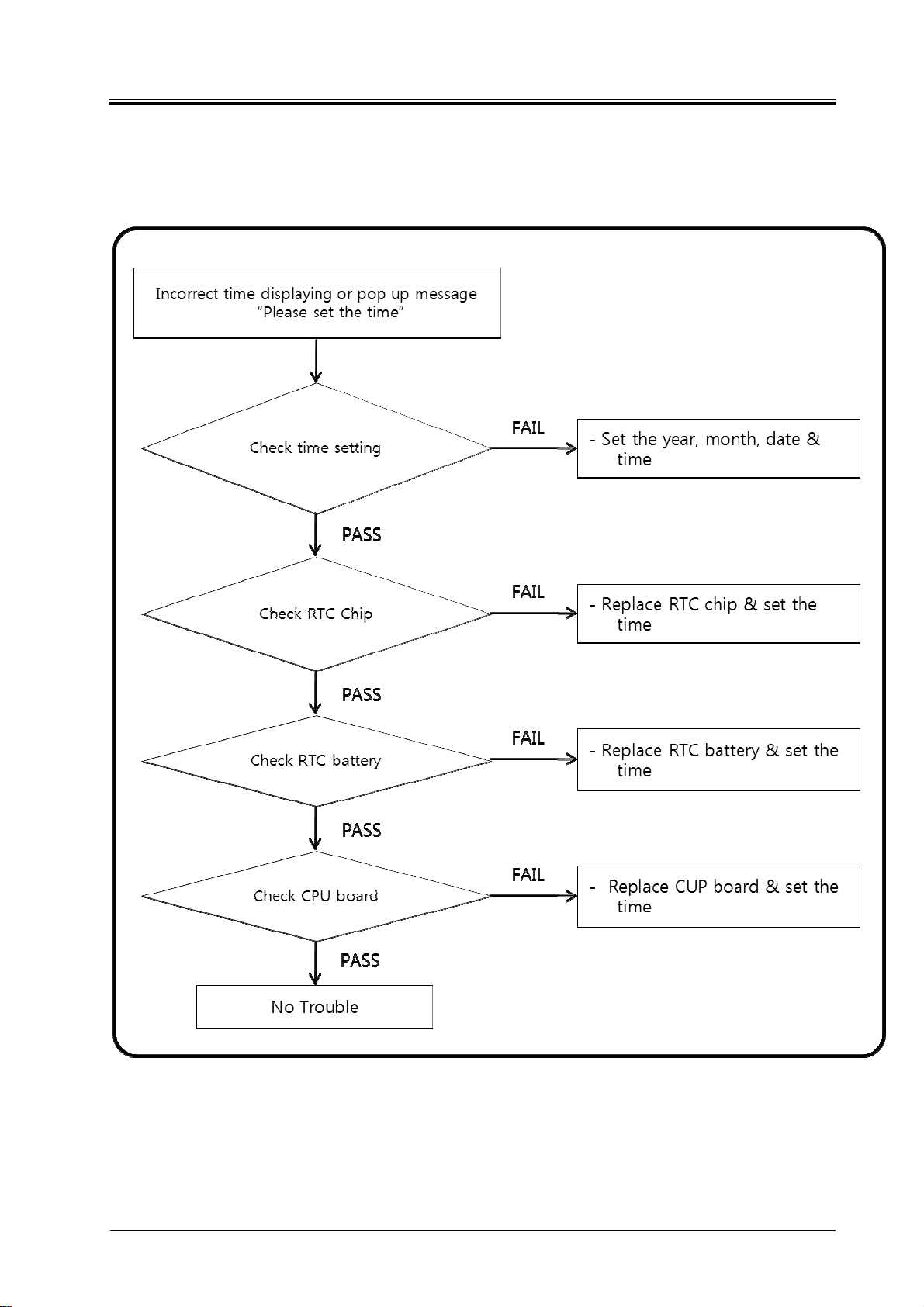

2.1.9 RTC Trouble (1/2)
User Requirement Definition
Page
CB-EDR-HM-00-V1.0 Attended Recharger
１５ of All
Page 20
Bogota SIRCI Project

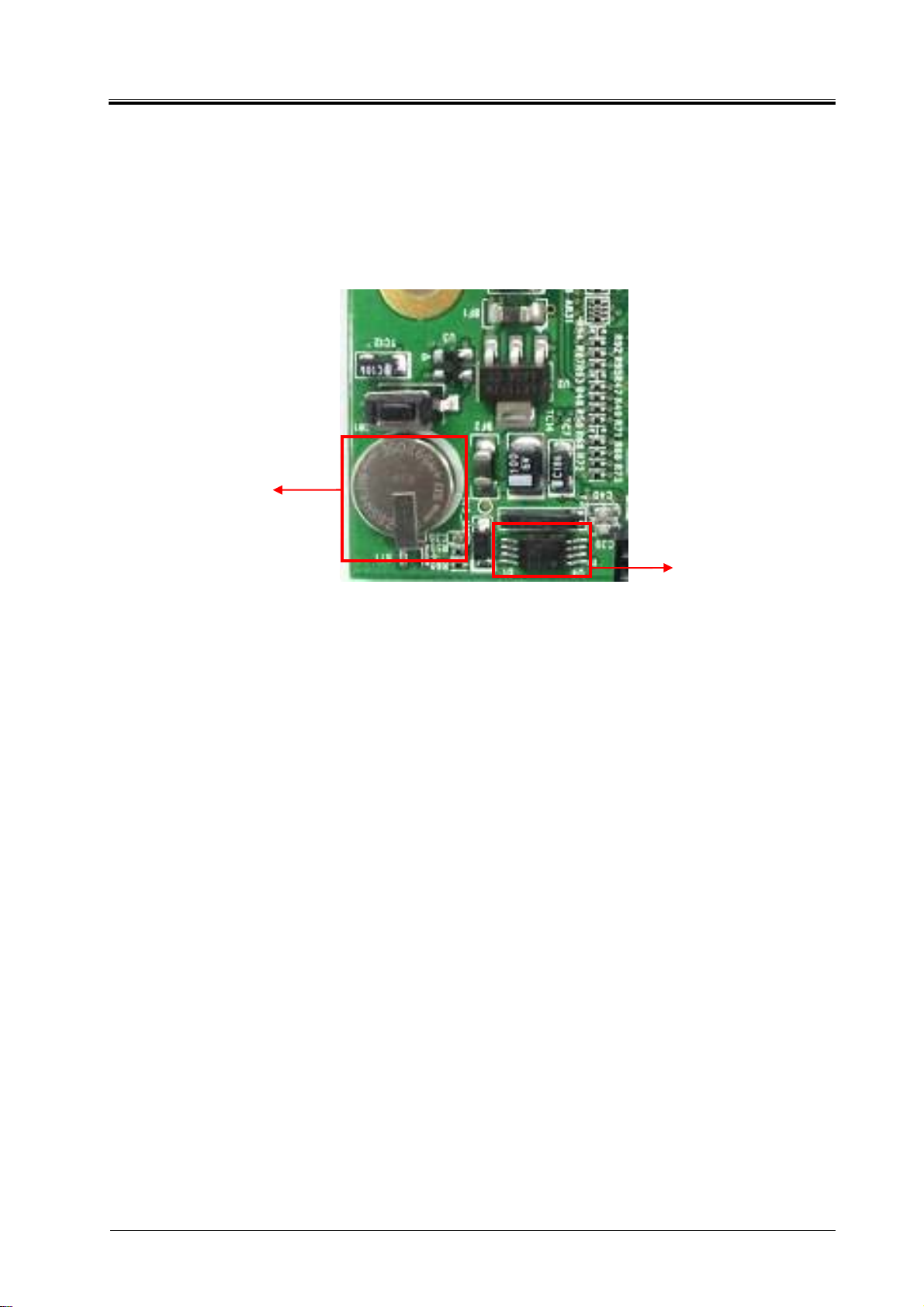

2.1.1 RTC Trouble (2/2)
Check RTC Battery
User Requirement Definition
Check RTC IC
Page
CB-EDR-HM-00-V1.0 Attended Recharger
１６ of All
Page 21
Bogota SIRCI Project
TOP COVER
BOTTOM COVER
Printer & LCD Board
RFID Antenna
KEYPAD
Sub Main Board
CPU Board
User Requirement Definition
3. Device maintenance
3.1 CPU Board
3.1.1 Outline
Control all part of the attended recharger and transfer processed information to the main server.
3.1.2 Structure
CB-EDR-HM-00-V1.0 Attended Recharger
Page
１７ of All
Page 22
Bogota SIRCI Project
EXT_UART
USB 2.0
S3C2440
RC531
ETHERNET
NAND FLASH
NOR FLASH
SDRAM

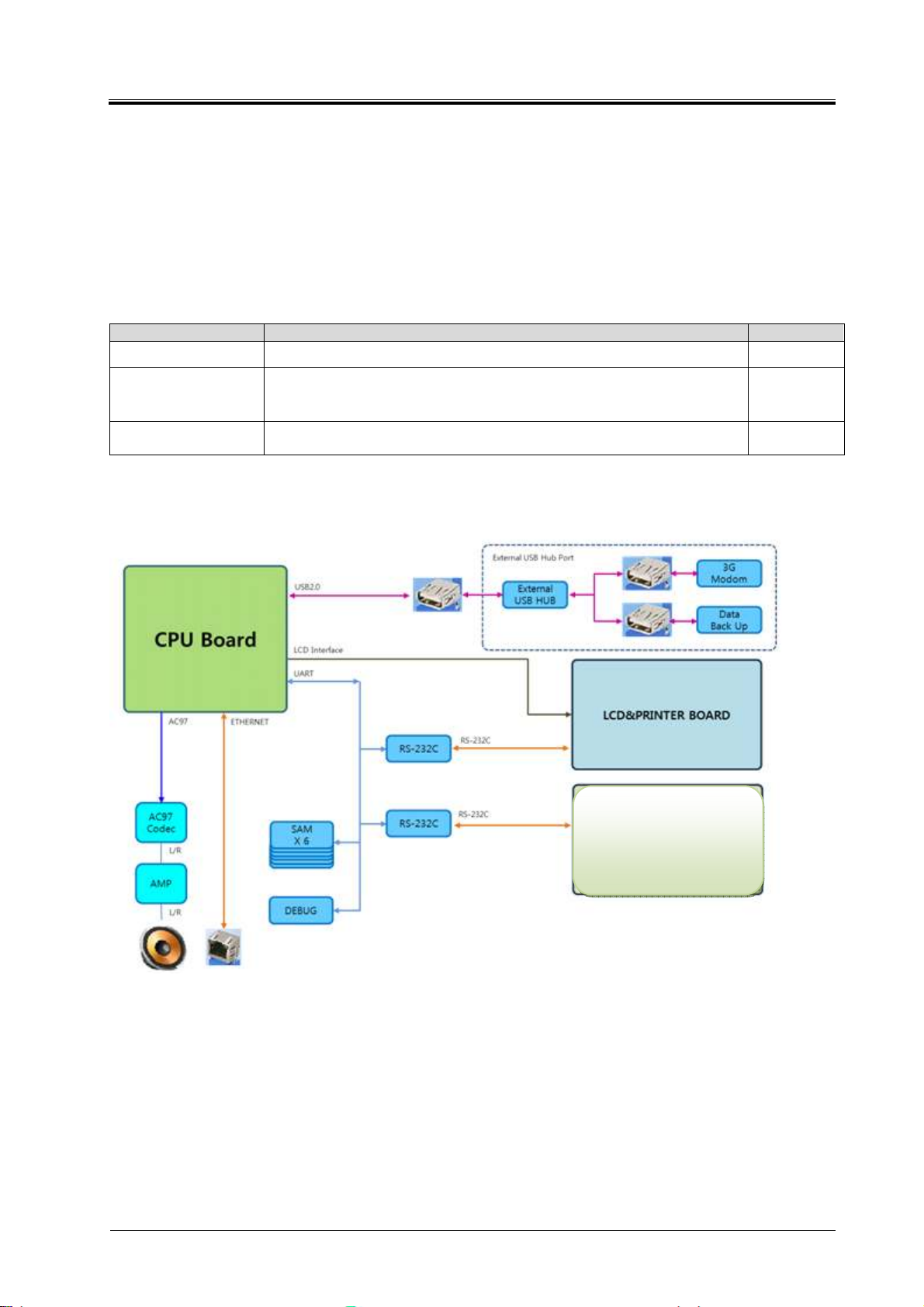

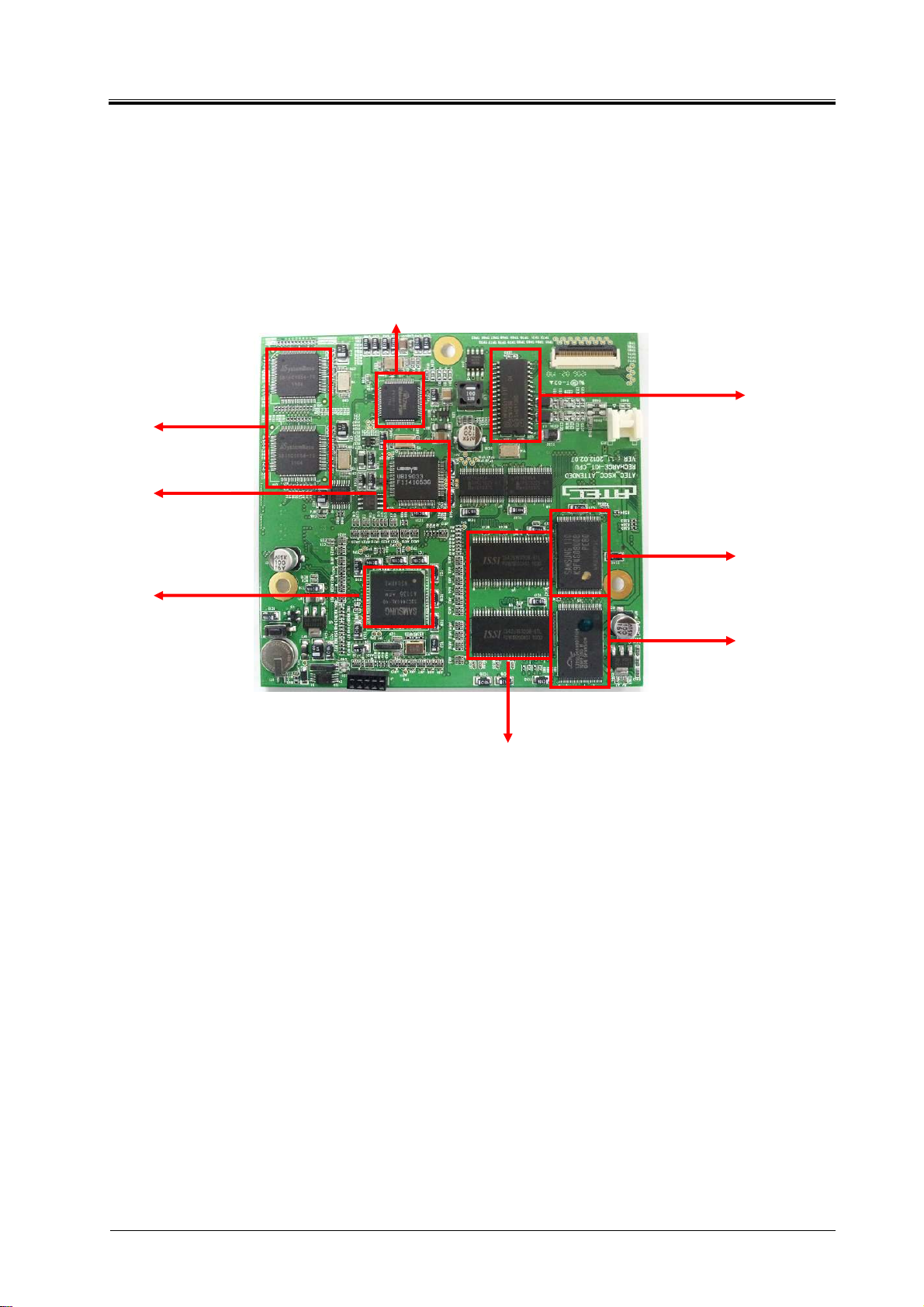

3.1.3 Spec
1) CPU Spec
User Requirement Definition
CPU Board: The core board of attended recharger and drive main program so that
manage all of communication and configuration modules.
CPU
- S3C2440(ARM9 Core) : 400MHz
Memory
- SDRAM : 128MByte
- Nor : 8MByte
- Nand : 512Myte
RF module
- RC531( Type A,B)
EXT_UART
- SB16C1054A (SYSTEMBASE)
USB 2.0
- UBI9033 (UBISYS)
ETHERNET
CB-EDR-HM-00-V1.0 Attended Recharger
Page
１８ of All
Page 23
POW
ER Part
AC97 Codec
RS-232
SIM Slot
Spare
RS -232
Debug
USB2.0
C/D
Ethernet
Bogota SIRCI Project
- W5100 (WIZNET)

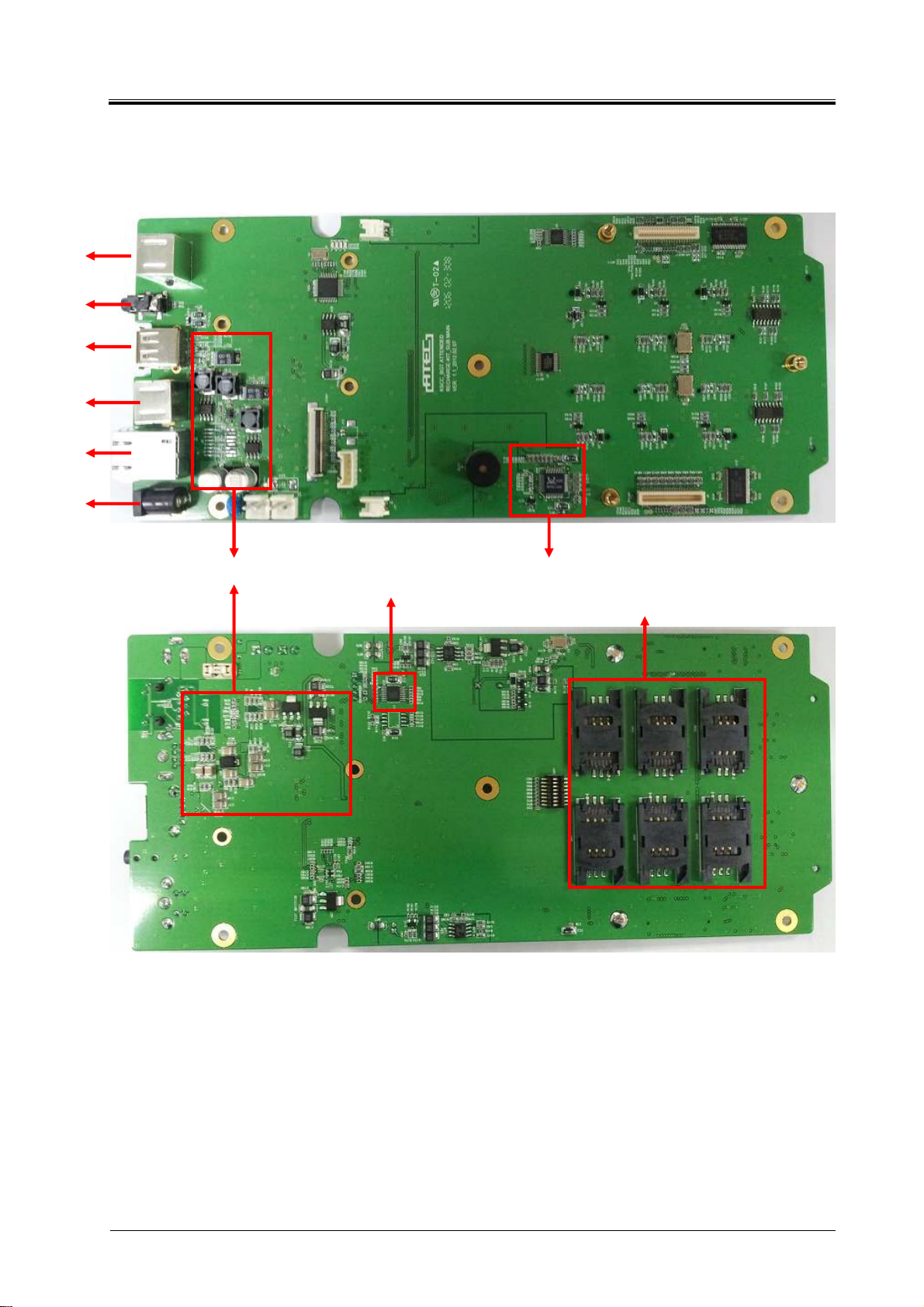

2) SUB Board Spec
User Requirement Definition
Power
Communicate with CPU Board and control various I/O device.
External PORT
- Ethernet : 1EA
- USB2.0 : 1EA
- External 3G Modem : 1EA
- RS -232 : 3EA
: C/D(Customer Display) 1, Debug 1, Spare Port 1
SAM
- Socket 6EA(SIM Type)
-
CB-EDR-HM-00-V1.0 Attended Recharger
Page
１９ of All
Page 24
Bogota SIRCI Project
Sound
- SW Codec control
- Speaker : 1W * 2ea
Input power
- DC 12V/5A, use adopter

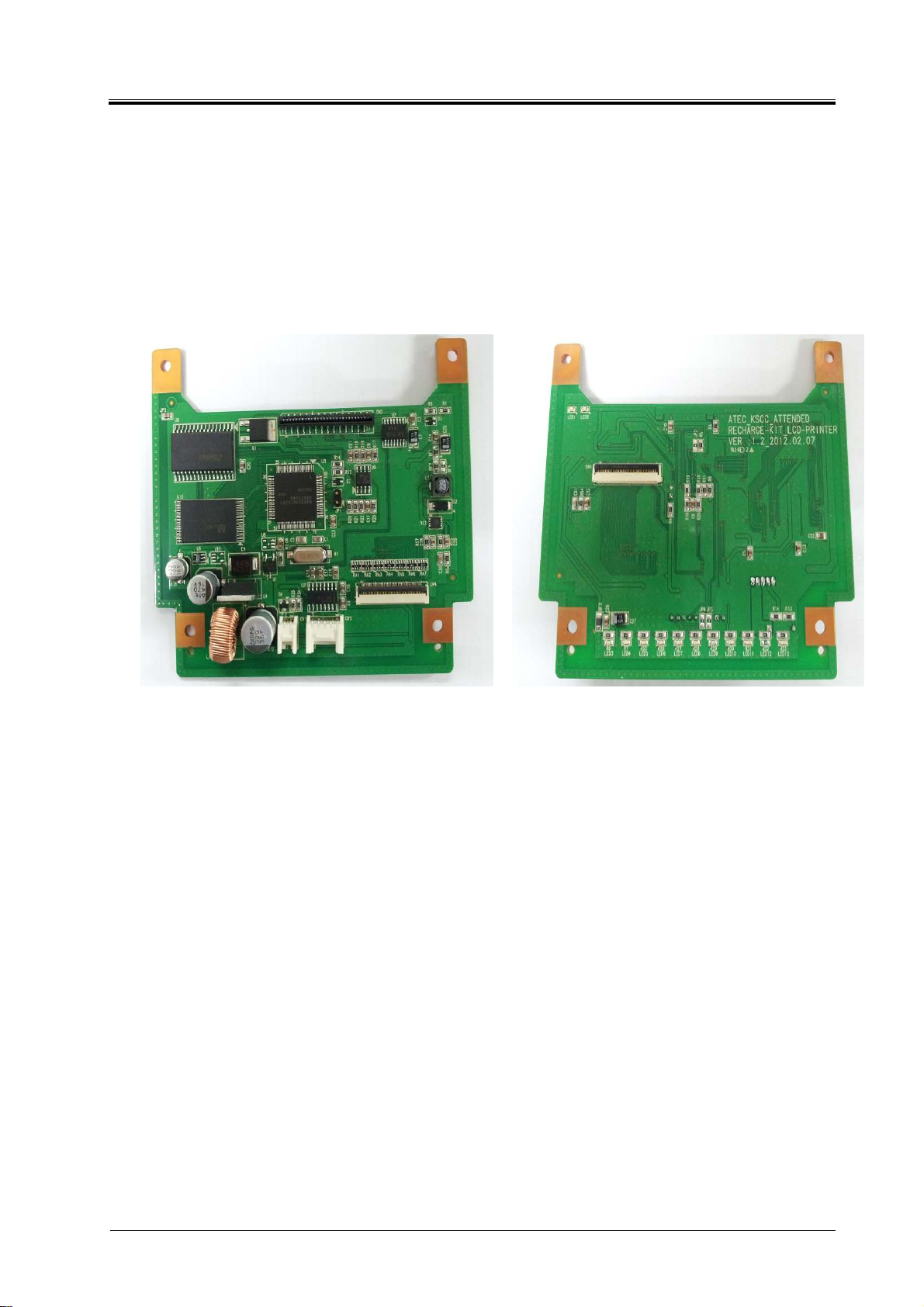

3) Printer & LCD Board Spec
User Requirement Definition
Communicate with Sub Main Board and control Printer & LCD.
LCD
- DC 3.3V input, GPIO communication
Printer
- DC 12V input, RS-232 communication
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２０ of All
Page 25
Bogota SIRCI Project

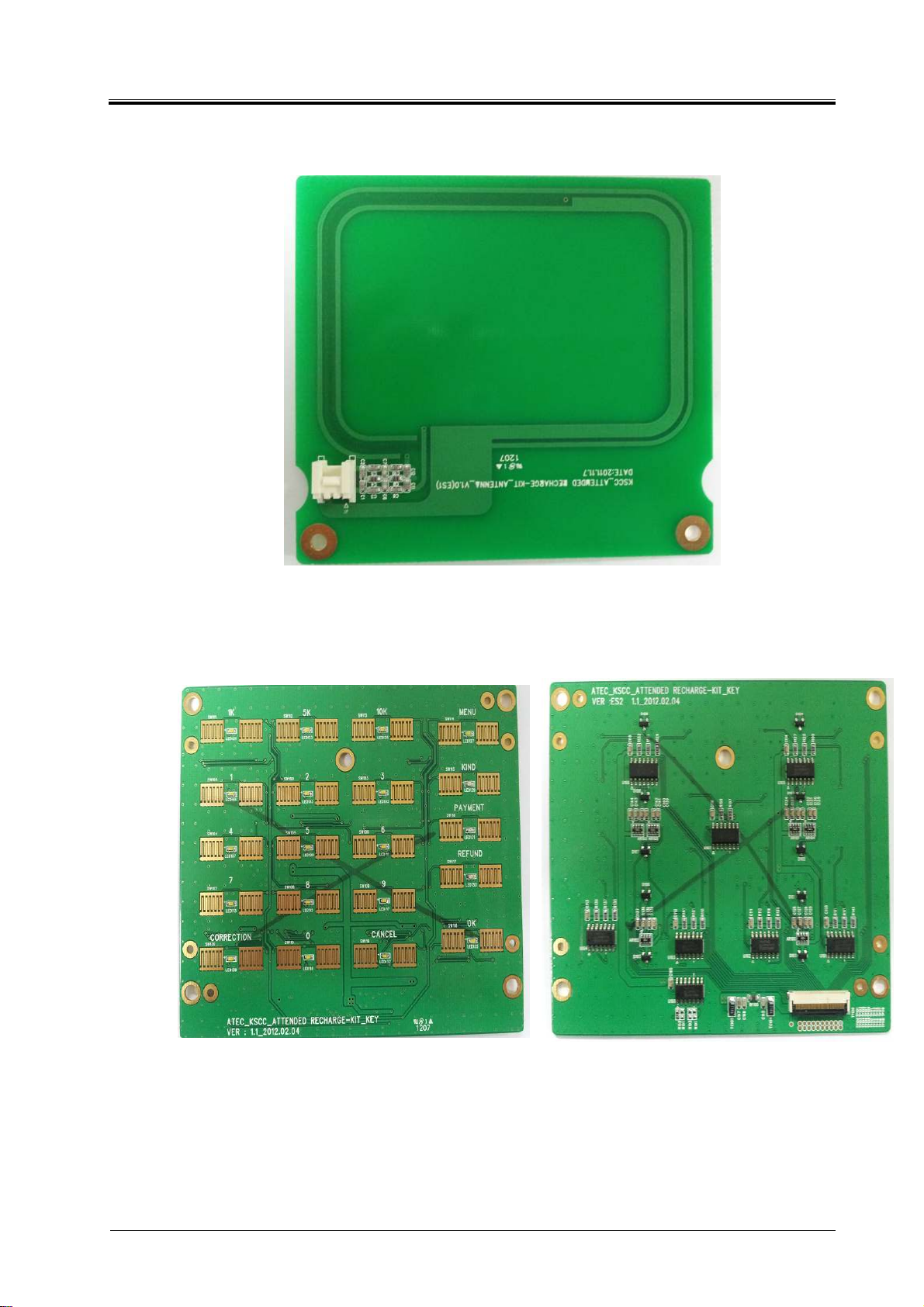

4) Antenna Board Spec
User Requirement Definition
Connected at CPU Board RC531, recognize the card.
5) Keypad Spec
Transfer input key information to CPU Board.
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２１ of All
Page 26
Bogota SIRCI Project

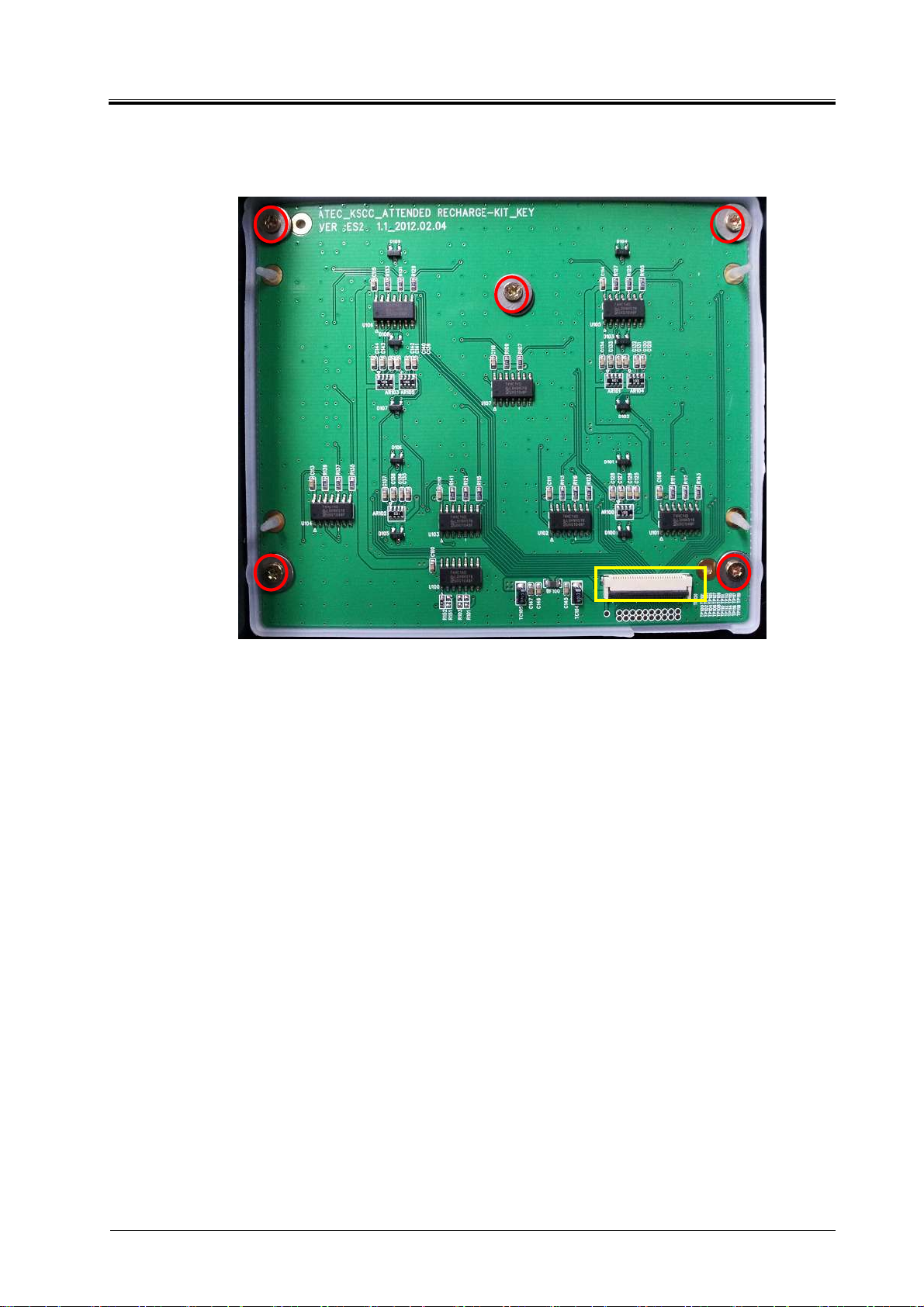

3.1.4 Replacement method
1) CPU board desorption

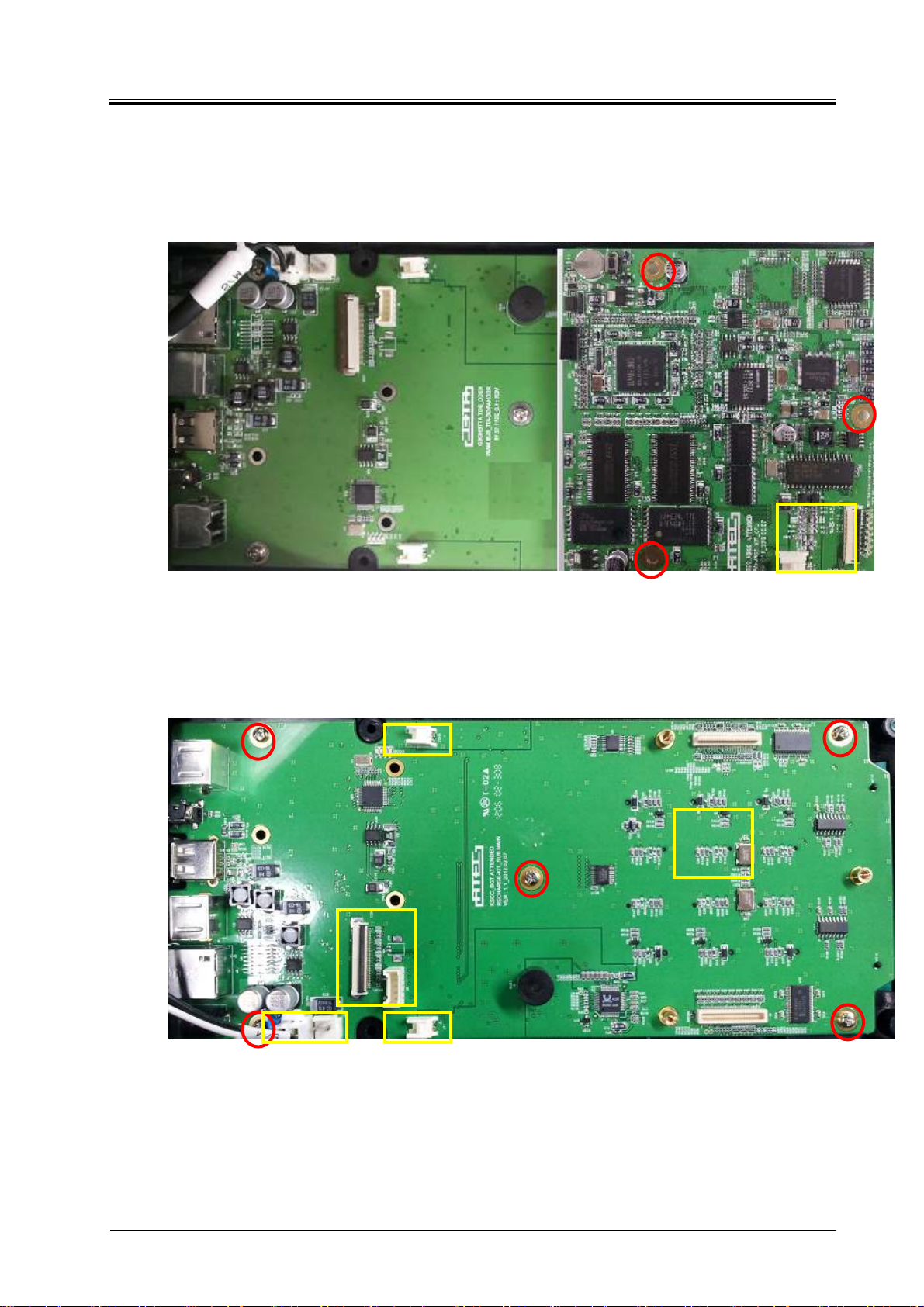

①Separate FFC Cable that associated with Keypad and 3Pin Connector the associated
with antenna board.
②Loosen the fixed bolts with Sub Board and separate Sub Board.
2) Sub Board desorption
User Requirement Definition
2
2
2
1
1
2
1
2
1
2
1
1
①Remove the cable the connected to Sub Board.
②Loosen fixed five bolts with Bottom Cover and separate Bottom Cover.
2
2
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２２ of All
Page 27
Bogota SIRCI Project

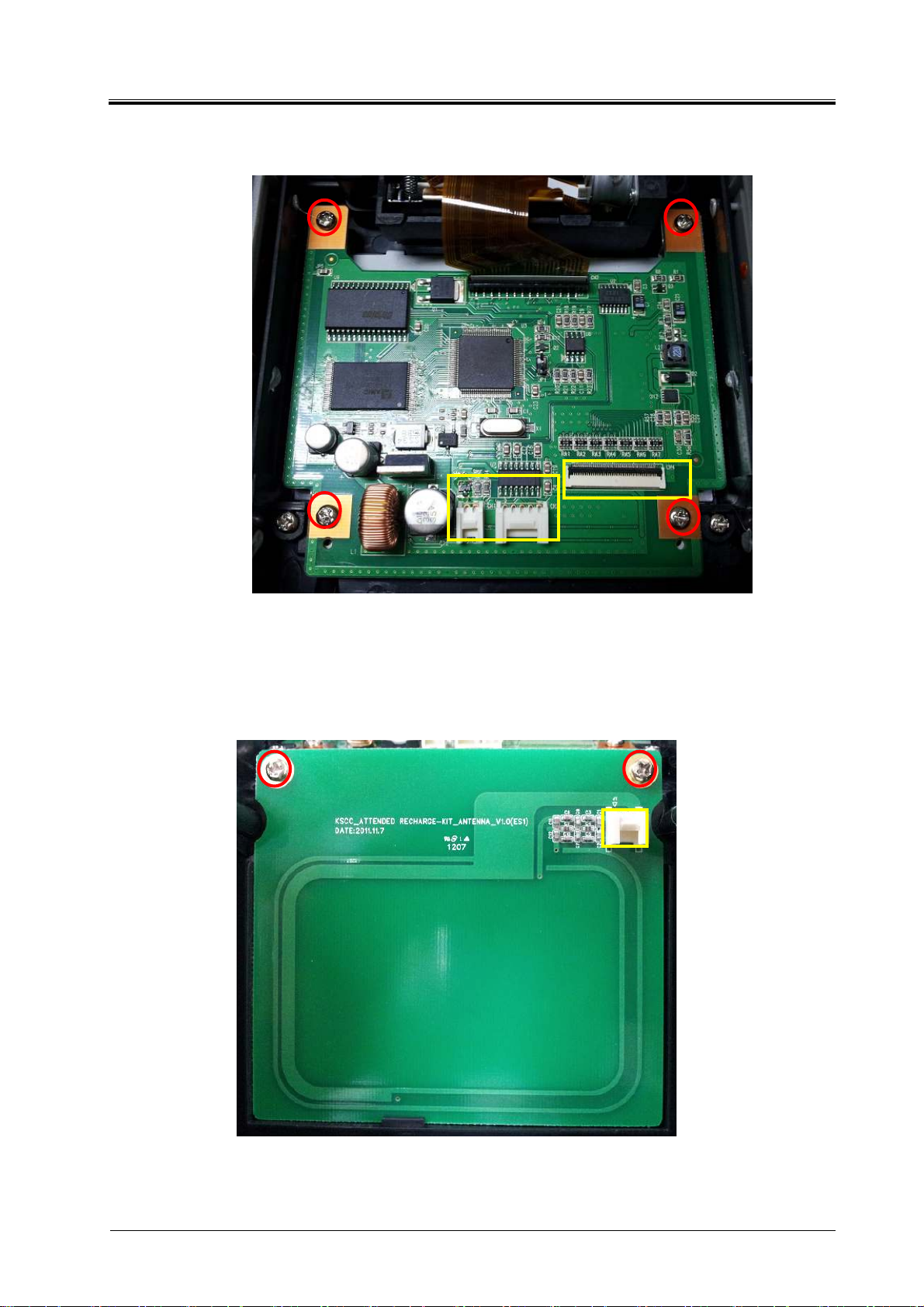

3) Printer & LCD Board desorption
2
User Requirement Definition
2
2
① Remove cable that connected to Printer & LCD Board.
② Loosen fixed four bolts with TOP Cover and separate TOP Cover.
4) Antenna Board desorption
2 2
1
2
1
1
① Remove cable that connected to Antenna Board.
② Loosen fixed two bolts TOP Cover and separate TOP Cover.
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２３ of All
Page 28
Bogota SIRCI Project
5) KEYPAD desorption
User Requirement Definition
2
2
1
2
① Remove cable that connected to KETPAD.
② Loosen fixed five bolts with TOP Cover and separate TOP Cover.
2
2
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２４ of All
Page 29
Bogota SIRCI Project

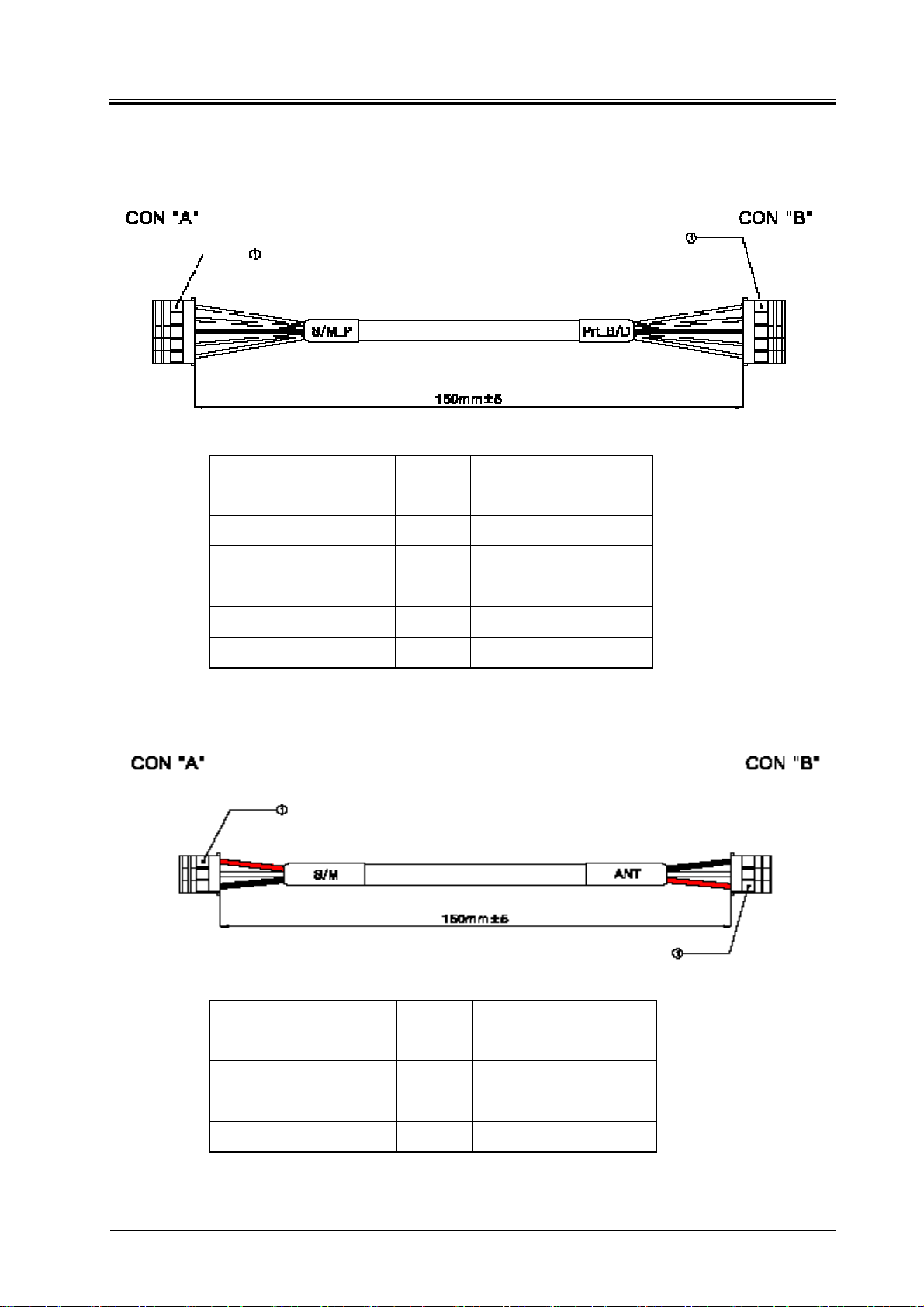

3.1.5 Connector Spec
A. POWER Cable
CON 'A
User Requirement Definition
CON 'B
'(SUB B/D J1)
'(SWITCH)
1 WHITE 1
1 BLACK 1A
B. PRINTER POWER Cable
CON 'A
'(SUB B/D J23)
CON 'B'
(PRINTER B/D CN1)
1 WHITE 1
2 BLACK 2
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２５ of All
Page 30
Bogota SIRCI Project
C. PRINTER DATA Cable
User Requirement Definition
CON 'A'
CON 'B'
(SUB B/D J9)
(PRINTER B/D CN3)
1 TX 2
2 RX 1
3 GND 3
4 DTR 4
5 DECO 5
D. Antenna Cable
CON 'A'
CON 'B'
MATCH
(CPU B/D J23)
(ANTENNA B/D CN1)
1 RED 1
2 WHITE
2
3 GND 3
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２６ of All
Page 31
Bogota SIRCI Project

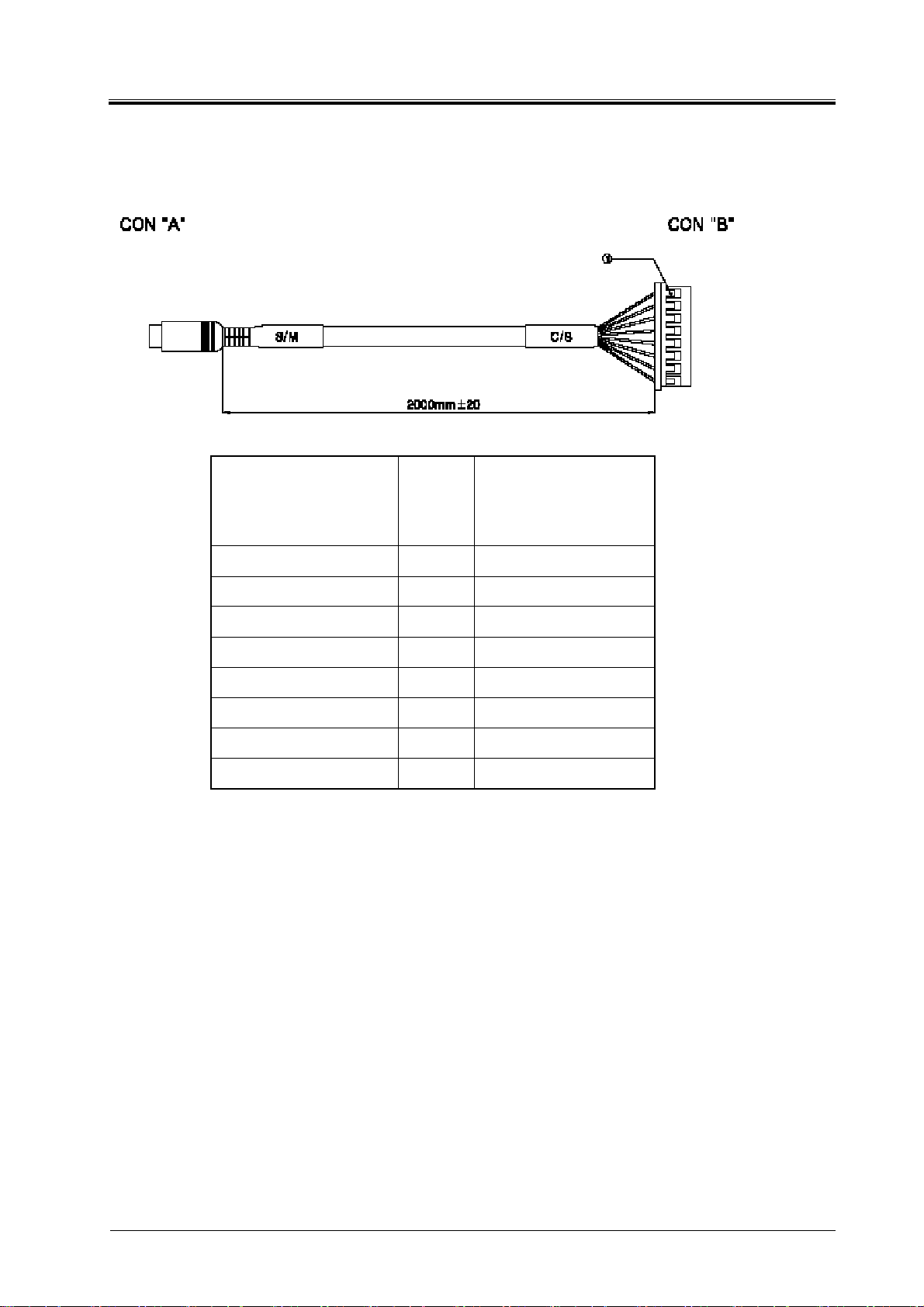

E. Customer Display
User Requirement Definition
CON 'A'
CON 'B'
(CUSTOM DISPALY
(SUB B/D J8)
B/D J103)
1 VCC 1
2 VCC 2
3 TX 5
4 GND 6
5 VCC 3
6 GND 7
7 RX 4
8 GND 8
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２７ of All
Page 32
Bogota SIRCI Project
3.2 Customer Display
3.2.1 Outline
Communicate with the attended recharger, display the amount before recharging, the
amounting of recharging, the amount after recharging.
3.2.2 Structure
Customer
Display
Stand
User Requirement Definition
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２８ of All
Page 33
Bogota SIRCI Project

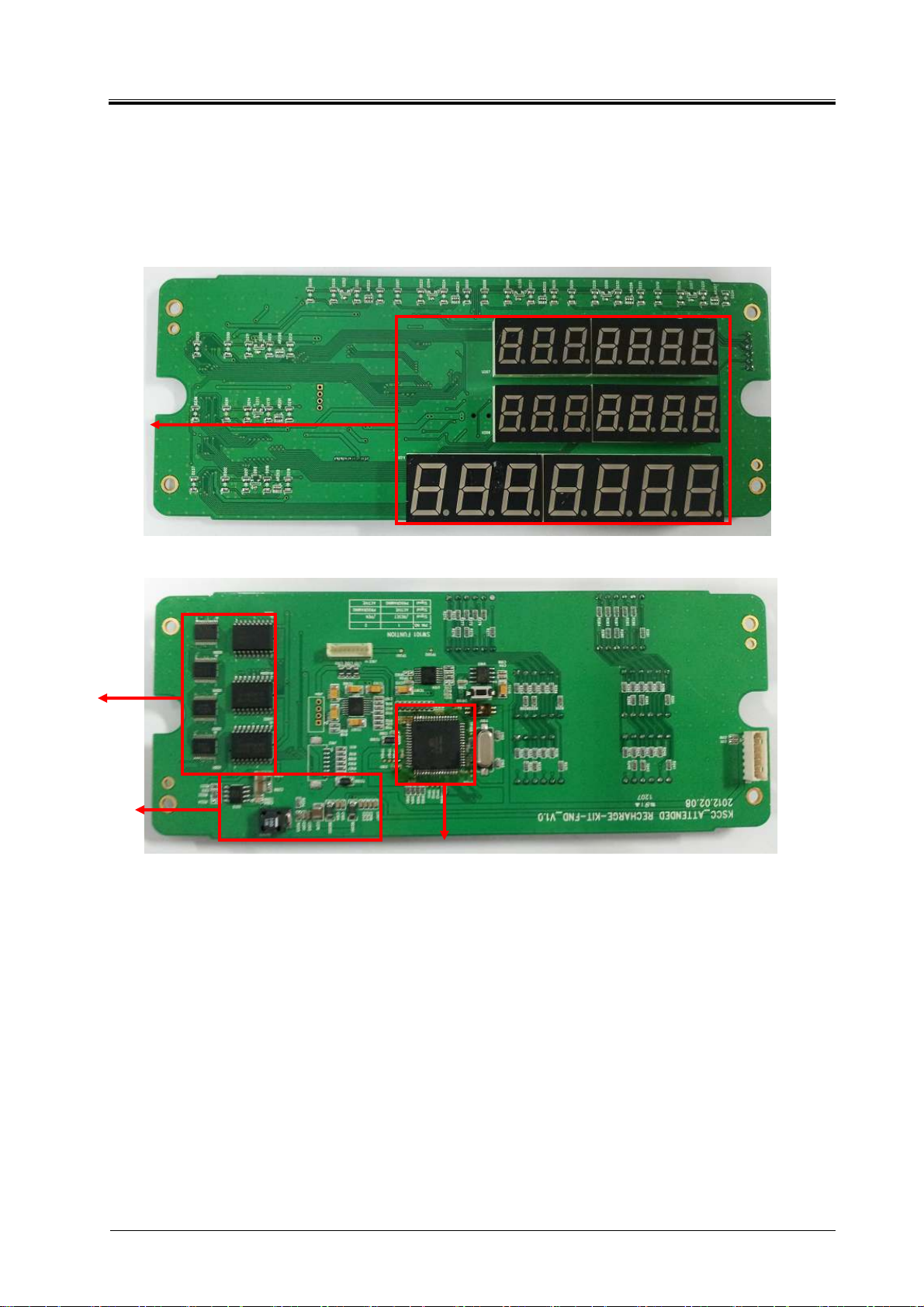

3.2.3 Spec
1) Customer Display Spec
FND
User Requirement Definition
FND
control
Power
CPU
Customer Display communicate with Attended Recharger, display the amount before recharging,
the amount of recharging, the amount after recharging.
CPU
- ATMEGA64A
Power
- Attended Recharger supply DC 12V
Communication
- RS – 232
Page
CB-EDR-HM-00-V1.0 Attended Recharger
２９ of All
Page 34
Bogota SIRCI Project
User Requirement Definition
3.2.4 Replacement method
1) Customer Display

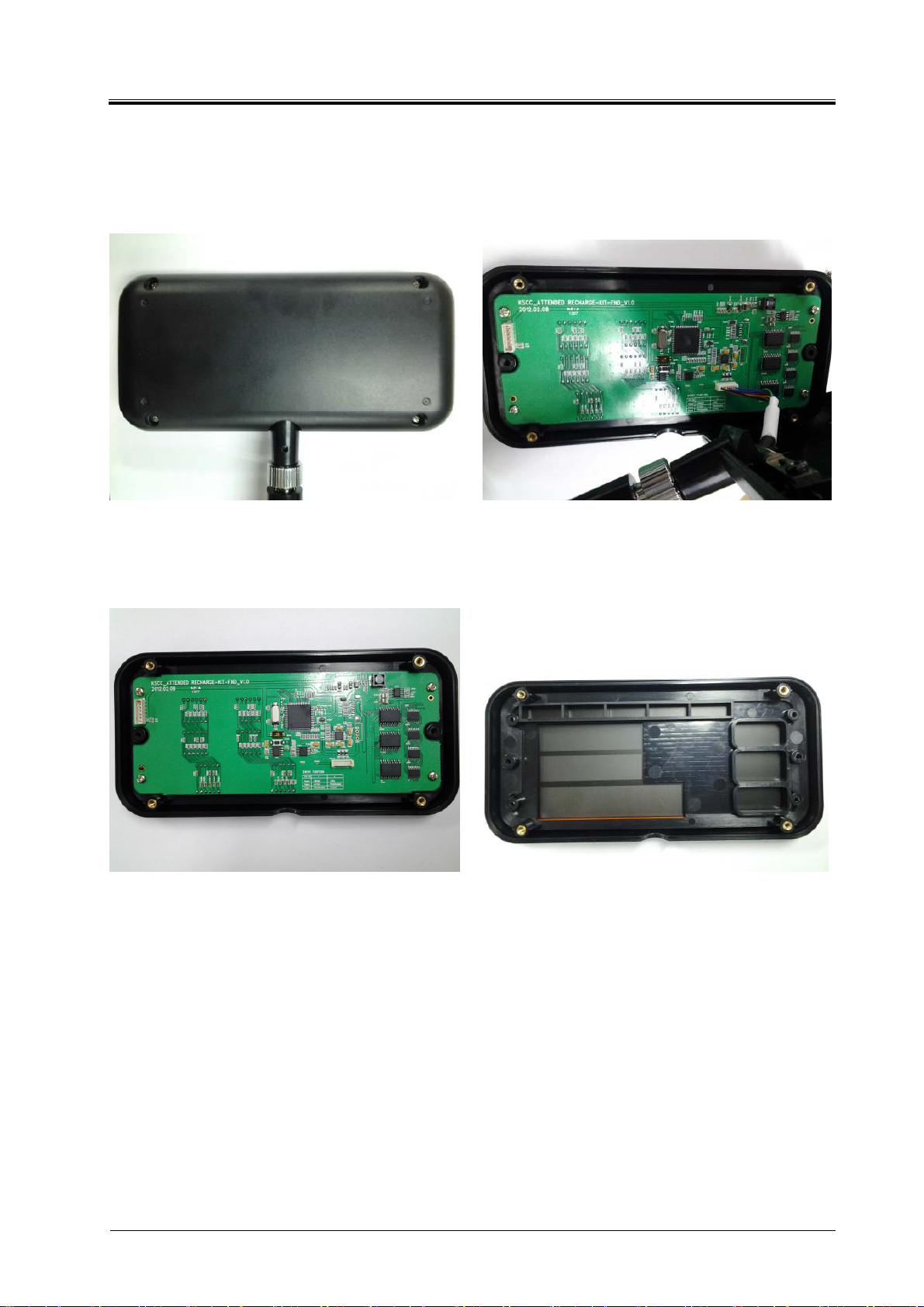

<Picture 1> <Picture 2>
A. Picture 1: Loosen 4 fixed bolts, separate back cover.
B. Picture 2: The process of separating back cover, disconnect cable that connected to
connector and separate back cover completely.
<Picture 3> <Picture 4>
A. Picture 3: Loosen 4 fixed bolts and separate PCB completely.
B. Picture 4: When separate completely, PCB and front cover of balance inquiry are
separated completely as shown in the Picture 4 .
C. Assemble is in reverse order.
Page
CB-EDR-HM-00-V1.0 Attended Recharger
３０ of All
Page 35
Bogota SIRCI Project
Conduct
Check
ERROR CODE
Device maintenance
Repair complete
OK NO
Conduct
Receive replacement
ERROR CODE
Repair com
plete
OK
NO
3.3 Maintenance Flow chart
and replacement due to
2) Required tool: Driver, tester, etc.
2) Precautions
- Check each part of the adjustment value for every 12months or in a timely
manner.
Error
MANUAL
TEST
User Requirement Definition
parts
Check maintenance
referral and
Device repair due to
MANUAL
TEST
CB-EDR-HM-00-V1.0 Attended Recharger
Page
３１ of All
Page 36
Bogota SIRCI Project
Inspection cycle
1
month
3months
6months
12months
Customer display
operation check
No Division
Contents
Note
1 Device
1) USB mounting method
3) P
ower on
3) Detail check items
User Requirement Definition
No Items
1 Power/ Voltage check
2 Printer operation check
3 Keypad operation check
4 LCD operation check
5
4. Attended recharger installation and update
4.1 Attended recharger installation
4.1.1 Process
Note
registration
2) SAM mounting
… … … …

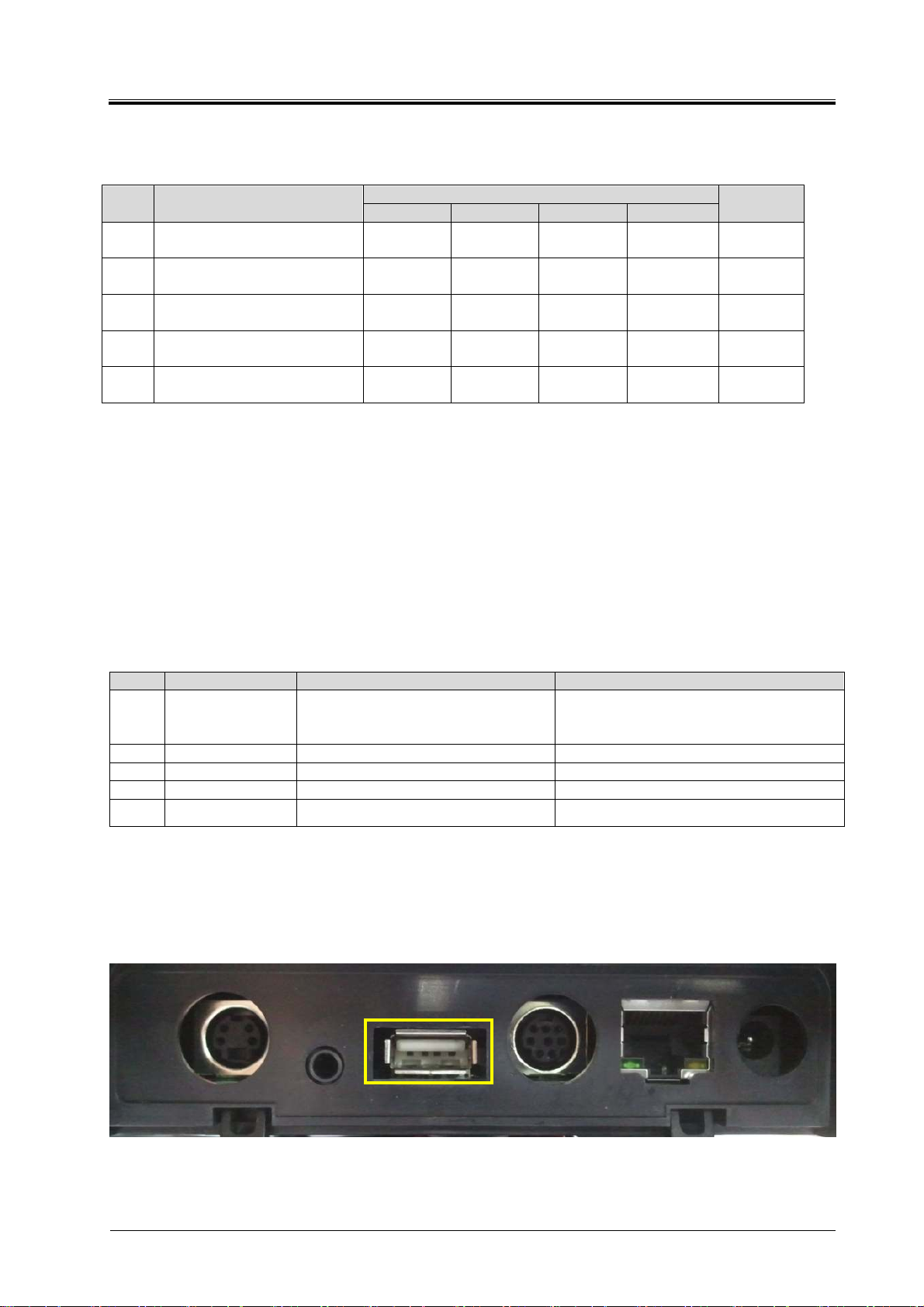

4.1.2 Device registration
4.1.2.1 USB mounting method
① Turn OFF the terminal.
CB-EDR-HM-00-V1.0 Attended Recharger
Page
３２ of All
Page 37
Bogota SIRCI Project
② Insert USB TO USB PORT and turn on.
③ After update, reboot the theminal.

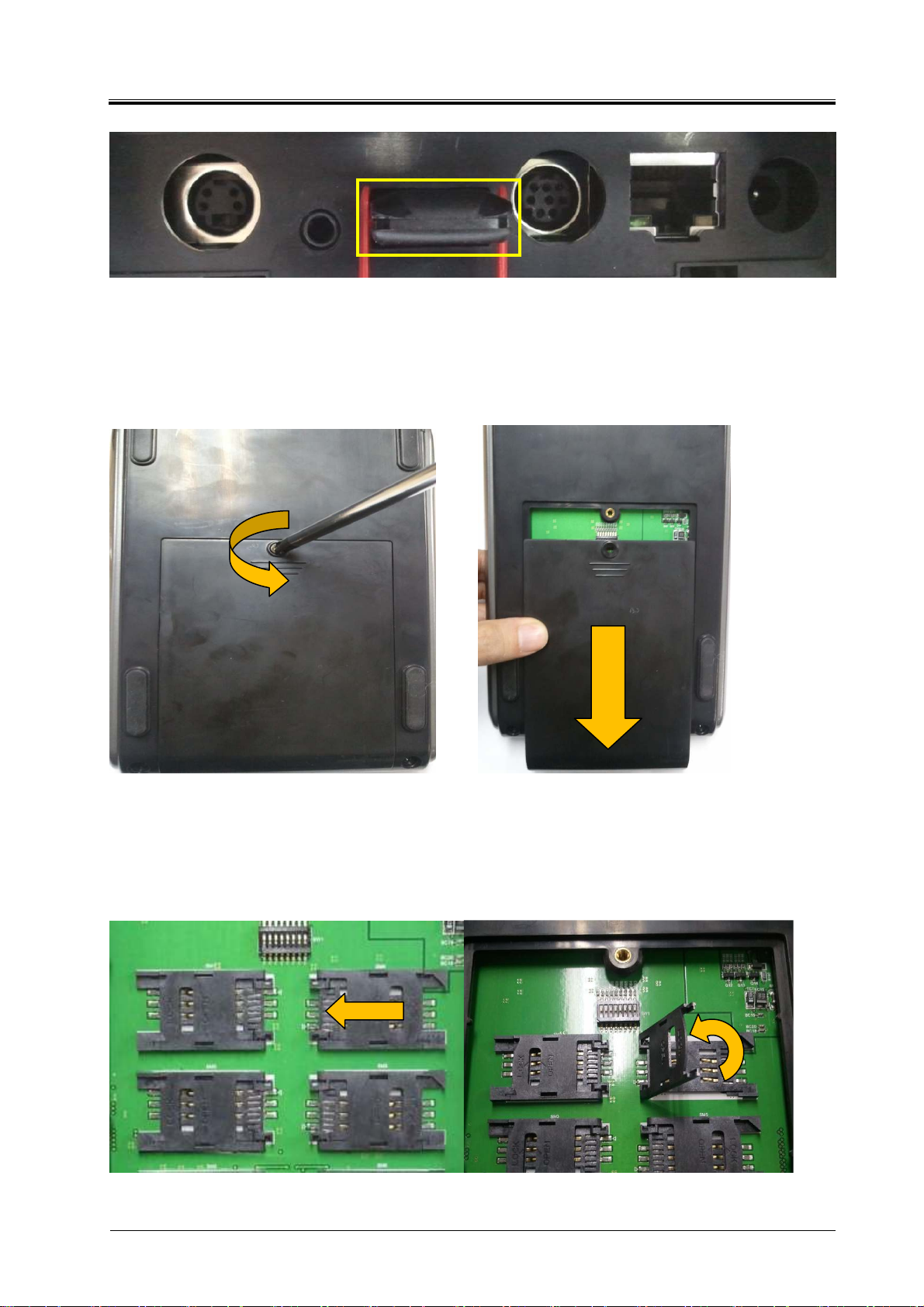

4.1.2.2 SAM Card mounting
User Requirement Definition

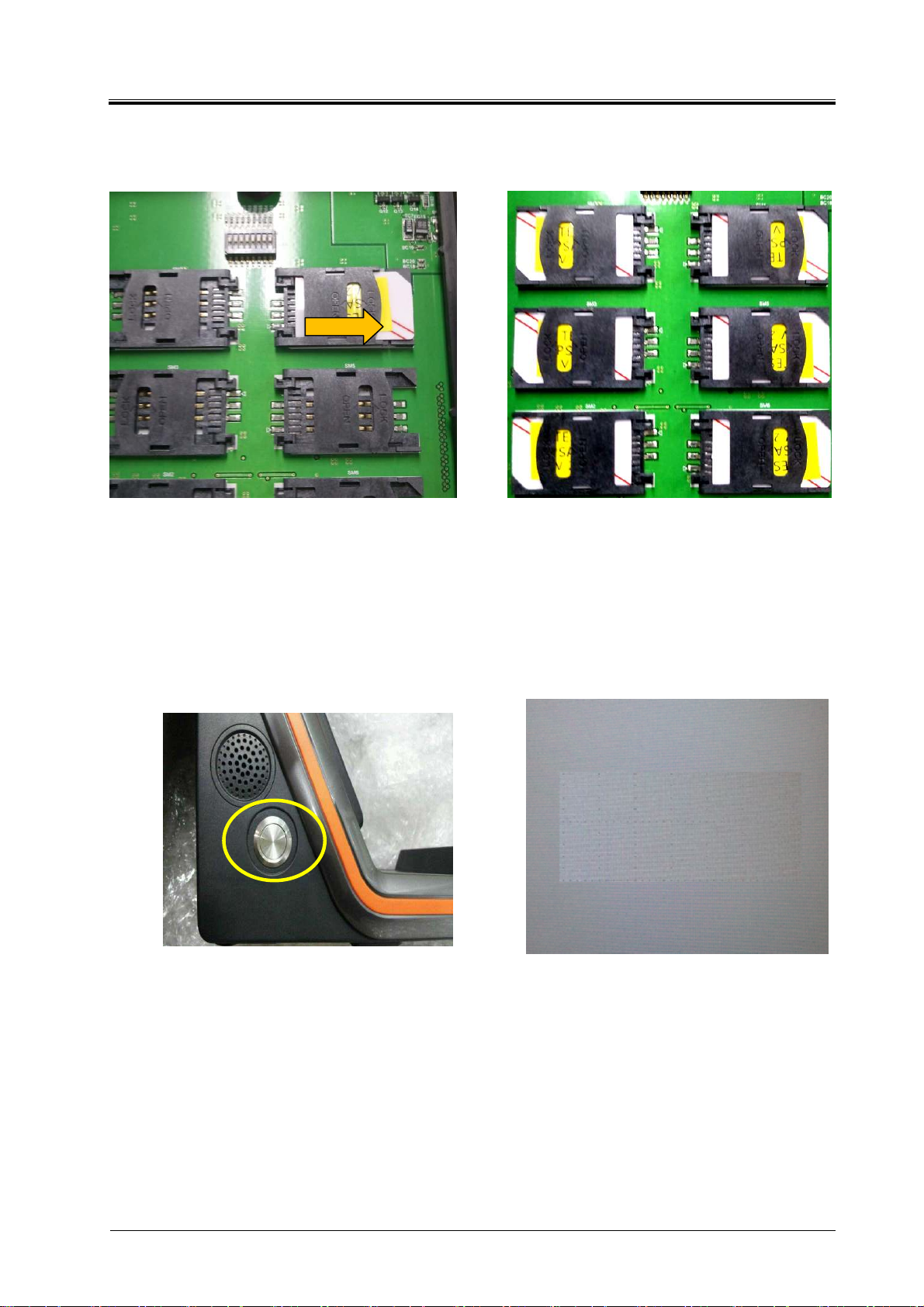

< Picture 1 > < Picture 2 >
① Picture 1: Loosen fixed bolts.
② Picture 2: Push in the direction of the arrow and separate completely.
< Picture 3 > < Picture 4 >
Page
CB-EDR-HM-00-V1.0 Attended Recharger
３３ of All
Page 38
Bogota SIRCI Project
User Requirement Definition
③ As shown in the Picture 3, push SAM slot in the direction of the arrow and lift SAM
slot like as shown in the Picture 4l
④ After combine the SAM Card, push SAM slot in the direction of the arrow and
secure
⑤ After SAM Card combined, assemble the back case.
4.1.2.3 Power ON
① Turn on power switch.
② Check T money logo on the screen after booting.
Page
CB-EDR-HM-00-V1.0 Attended Recharger
３４ of All
Page 39
Bogota SIRCI Project
User Requirement Definition

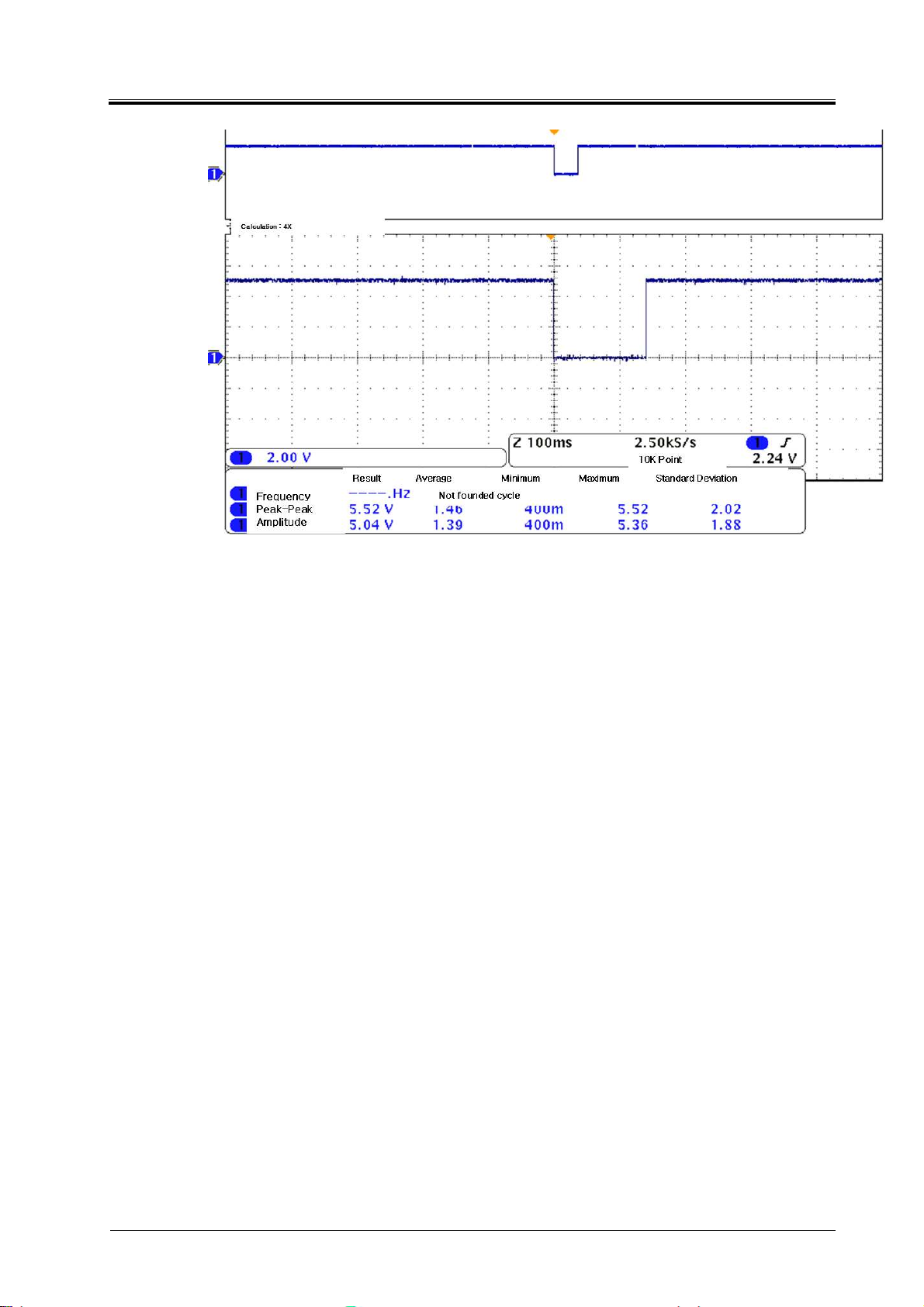

< Normal key input waveform>
Page
CB-EDR-HM-00-V1.0 Attended Recharger
３５ of All
Page 40
Bogota SIRCI Project
Division
Standard
Note
SDRAM : 128MByte
N
and Flash : 512 MByte
4.1.3 Sub BOARD spec
4.1.3.1 Sub Main Board spec
Communicate with CPU Board and control I/O device.
CPU S3C24440
User Requirement Definition
Memory
Nor Flash : 8MByte
RF Module ISO 14443 Type A,B
4.1.3.2 Sub Main Board block diagram
Customer
Display board
CB-EDR-HM-00-V1.0 Attended Recharger
Page
３６ of All
Page 41
Bogota SIRCI Project
4.1.3.3 Sub Main I/O
- RS-232
DBG_TX
DBG_TX[3]
CUSTOM_TX[3]
DBG_RX
DBG_RX[3]
CUSTOM_RX[3]
EXT-UART_TX
EXT-UART_RX
① Circuit desctiprion
② Waveform measurements
User Requirement Definition
10uF/16V
TC-3216-A
R88 100R R-1005
R90 100R R-1005
CUSTOM_232_TX
CUSTOM_232_RX
VDD_3.3V
+
PRINT_232_TX
PRINT_232_RX
R104 100R
R105 100R
R106 Z_100R
R107 Z_100R
RR500 100R R-1 005
R316 100R
VDD_3.3V
12
TC3
2
3
1
12V_DISP
Custome r Displa y RS-23 2C
EC7
10uF/16V
TC-3216-A
SMW200-5P
SMW200-05
CPU DEB UGER
J7
TSH-3813
STEREO-JACK-SH381D-PA9T-A
J8
1
12V_DISP
2
12V_DISP
3
12V_DISP
4
TX_DISP
5
RX_DISP
6
GND
7
GND
8
GND
5749267-1(DIN_CON)
J14
5749181-1(DIN_CON)
1
TX_DISP
2
RX_DISP
3
GND
4
GND
J9
Spare R S-232C / PRINTE R MODUL E
1
2
* SELECT ION Of PRINT 2 32-LEVEL
3
4
5
<2011.12.9 >
- J9
- RR500(1005)
<J8 Pin Assign>
5
(3P->5P)
PRINT_TX[3]
PRINT_RX[3]
C36 100nF
C37 100nF
R86 100R R-1005
R89 100R R-1005
R92 100R R-1005
R94 100R R-1005
R96 100R R -1005
PRINT_TX
R98 100R R -1005
R100 100R R-1005
PRINT_RX
R102 100R R-1005
C-1005
C-1005
C41 100nF
C43 100nF
C-1005
C-1005
1
3
4
5
11
10
12
9
15
U9
C1+
C1-
C2+
C2-
T1IN
T2IN
R1OUT
R2OUT
GND
SP3232EY
TSSOP16
U10
1
3
4
5
11
10
12
9
15
VDD_3.3V
16
C38 100nF
VCC
2
C39 100nF
V+
6
C40 100nF
V-
14
R87 1K R-1005
T1OUT
7
T2OUT
13
R93 1K R-1005
R1IN
8
R2IN
<2011.12.9 >
- NET
C1+
VCC
C1-
C2+
V+
C2-
V-
T1IN
T1OUT
T2IN
T2OUT
R1OUT
R1IN
R2OUT
R2IN
GND
SP3232EY
TSSOP16
C-1005
C-1005
C-1005
R91 1K R-1005
R95 1K R-1005
(CUSTOM_232_T X/CUSTOM_232_R X)
VDD_3.3V
16
C42 100nF
C-1005
2
C44 100nF
C-1005
6
C45 100nF
C-1005
14
R97 33R R -1005
7
R99 33R R -1005
13
R101 33R R-1005
8
R103 33R R-1005
PRINT_232_TX
PRINT_232_RX
PRINT_TX
PRINT_RX
PRINT_DTR[3]
DECO_LED#1[3]
: Circuis that change UART signal into RS -232 signal
6
78
3
4
12
<2011. 12.10 >
Spare RS-232C
, NET
<J14 Pin Assign>
3
4
2
1
<Normal TX waveforms>
Page
CB-EDR-HM-00-V1.0 Attended Recharger
３７ of All
Page 42
Bogota SIRCI Project
- SIM Part (Clock)
User Requirement Definition
<Normal RX waveforms>
SAM5.0VSAM5.0V
Y1
4
C47
100nF
C-1608
C86
100nF
C-1608
2
1 2
3.6864MHz(SCO-105)
Y3
4
2
1 2
3.6864MHz(SCO-105)
① Circuit description
: Circuit that supply the stable Clock to allow SIM Card to operate.
VCC
GND
VCC
GND
OUT
OUT
R124
1K
3
SAM5.0VSAM5.0V
3
R-1608
R201
1K
R-1608
R1003 0R R-1608
SIM_CLK1
R1002
Z_0R
R-1608
SIM_CLK2
Page
CB-EDR-HM-00-V1.0 Attended Recharger
３８ of All
Page 43
Bogota SIRCI Project
② Waveform measurements
- SIM Part (Signal)
① Circuit description
② Waveform measurements
User Requirement Definition
<Normal Clock waveform>
SIM_PWR_ON1 _5V
SIM_RESET_ON1_5V
SAM5.0V
R129 1K
SIM_CLK1
SIM_RX1_A
SIM_TX1_A
R-1608
Q1
SI2301DS(SOT-23)
R125
1
10K
R-1608
R134 100R
R136 100R R-1608
D4
SD103B(SOD123)
32
R-1608
ZD1
Z_L16513
2
3
R126
10K
12
1
Q3
Z_MMBT3904(SOT-23)
2 3
R127
1
1K
R-1608
: Circuit that realize to recognize SIM CARD .
R128
1K
R-1608
C50
30pF
C-1608
C48
100nF
C-1608
SM1
GND
1
VCC
2
RST
CLK3FU1
7
SIO
9
S1
DRC 017S
C51
Z_10pF
SIM SOCKET #1
C-1608
GND
VPP
FU2
5
6
4
8
10
S2
<Waveform when normally recognize SIM CARD>
Page
CB-EDR-HM-00-V1.0 Attended Recharger
３９ of All
Page 44
Bogota SIRCI Project
User Requirement Definition
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
.
Page
CB-EDR-HM-00-V1.0 Attended Recharger
４０ of All
Loading...
