OWNER’S MANUAL

WASHING MACHINE

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the washer is installed correctly and safely. Leave these instructions near the washer after installation for future reference.

WS0906WHT

MFL68801015

www.lg.com

Made in Korea

Contents

Contents....................................2

Product Features......................3

Important safety instructions

Important safety instructions .................4

Basic safety precautions .......................5

Save these instructions.........................6

Safety instructions for use.....................7

Specifications...........................8

Installation

Removing packing ................................9

Removing transit bolts ..........................9

Installation place requirements ...........10

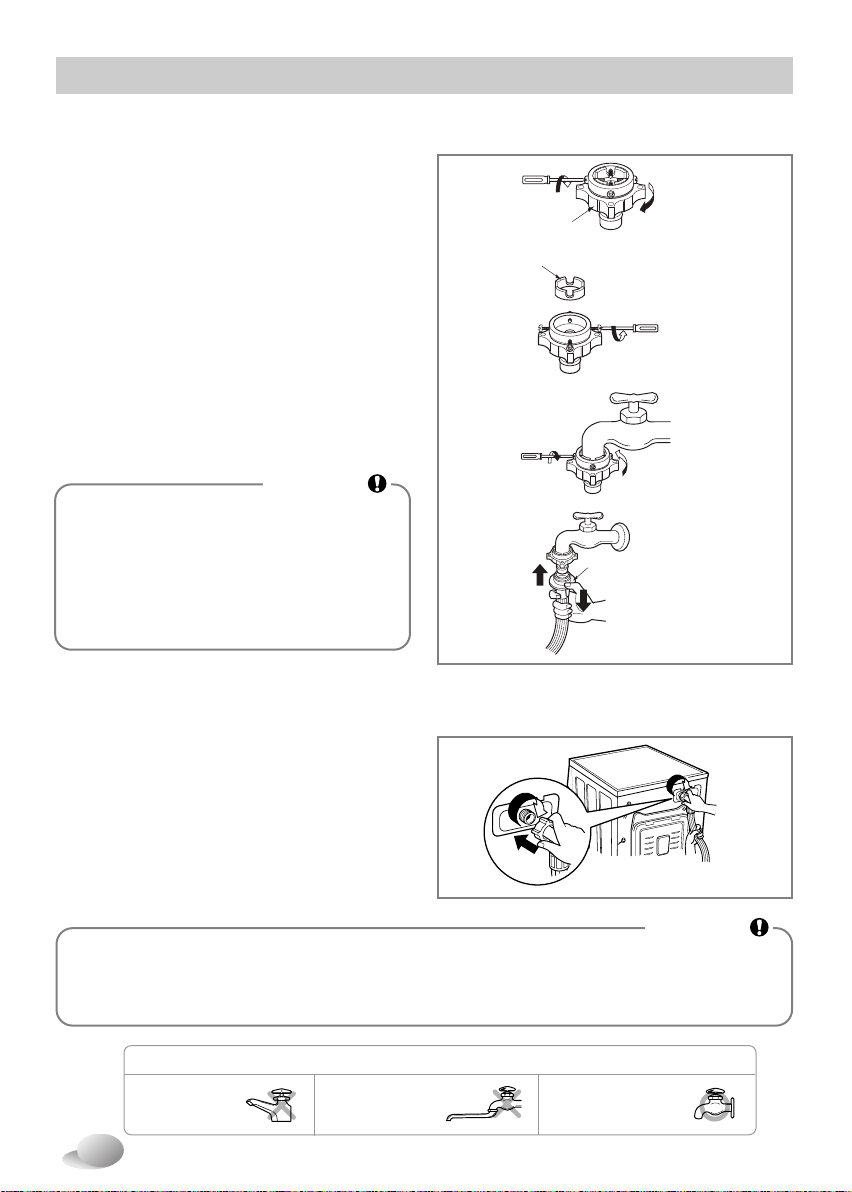

Connecting water supply hose............12

Installation of drain hose .....................14

Leveling...............................................15

How to use washer

Operating washing machine ...............17

Care before washing...........................18

Washing program table.......................19

Drying Program Table.........................20

Extra options .......................................21

Operating data ....................................21

Control panel.......................................22

Options................................................23

- Pre Wash ..........................................23

- Favorite.............................................23

- Steam (Wash and Softener) .............23

- Delay.................................................24

- Wash.................................................24

- Temp.................................................24

- Rinse.................................................24

- Spin...................................................24

Child Lock ...........................................25

Beep On/Off ........................................25

Tub Clean ...........................................26

Door Lock & Detecting ........................26

Dry ......................................................27

Thank you for buying a LG Fully Automatic Washing Machine.

Please read your owner’s manual carefully, it provides instruction on safe installation, use and maintenance. Retain it for future reference.

Record the model and serial number of your washing machine.

Model No.

Serial No.

Date of Purchase

Adding detergent

Adding detergent and fabric softener..31

Maintenance

The water inlet filter.............................33

The drain pump filter ...........................34

Dispenser drawer................................35

The washing drum ..............................36

Cleaning your washer .........................36

Cold conditions ...................................36

Troubleshooting guide

Diagnosing problems ..........................37

Error messages...................................39

Using SmartDiagnosis™.....................40

Terms of warranty ..................41

Before using the Tag On function

Turning on the NFC function of the

smart phone...........................................29

The Tag On guide..................................30

추가선택 예약

Product Features

Inverter Direct Drive system

The advanced Brushless DC motor directly drives the drum without belt and pulley.

6 Motion

Washer is able to perform various drum actions or a combination of different actions depending on the wash program selected. Combined with a controlled spin speed and the ability of the drum to rotate both left and right, the wash performance of the machine is greatly improved, giving you perfect results every time.

Tag on

This is a function that may use Diagnosis, Download Cycle, Washing Coach, One Touch Washing, etc. when you touch the Tag On logo of the washing machine by using your smartphone with NFC.

Protection against creases

With the alternating rotation of the drum, creasing is minimized.

More economical with Intelligent Wash system

Intelligent Wash System detects the size of load and water temperature, and then determines the optimum water level and washing time to minimize energy and water consumption.

Child Lock

The Child Lock prevents children from pressing any button to change the settings during operation.

Low noise speed control system

By sensing the amount of load and balance, it evenly distributes load to minimize the spinning noise level.

Auto Restart

Auto Restart allows the program to restart all by itself in case of power failure. It does from the stage where it stopped.

SmartDiagnosis™

Should you experience any technical difficulty with your washing machine, it has the capability of transmitting data by phone to the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis.

Important safety instructions

READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION BEFORE USE.

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

Your Safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION.

These words mean:

DANGER

You will be killed or seriously injured if you don’t immediately follow instructions.

WARNING

You can be killed or seriously injured if you don’t follow instructions.

CAUTION

You may be slightly injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Important safety instructions

■ Basic safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:

• Before installation, check exterior damages. If it has, do not install.

• Do not install or store the washer where it will be exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the user-maintenance instructions or published user-repair instructions that you understand and have the skills to carry out.

• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.

• The appliance is not intended for use by young children or infirm persons without supervision. Do not allow children to play on, with, or inside this or any other appliance.

• Keep small animals away from the appliance.

• Do not leave the washer door open.

An open door could entice children to hang on the door or crawl inside the washer.

• Never reach into washer while it is moving. Wait until the drum has completely stopped.

• The laundry process can reduce the flame retardant of fabrics.

result, carefully follow the garment manufacturer’s wash and care instructions.

To avoid such a

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, etc.) which may ignite or explode. Oil may

remain in the tub after a whole cycle resulting in fire during drying.

So, do not load oiled clothes.

• Do not slam the washer door closed or try to force the door open when locked. This could result in damage to the

washer.

• When the machine runs high temperature, the front door may be very hot. Don’t touch it.

• To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

• When unplugging power cord, do not pull out by grasping the cord.

Otherwise, the power cord may be damaged.

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

Important safety instructions

■ Basic safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:

• Before discarding an old machine unplug it. Render the plug useless. Cut off the cable directly behind the appliance to prevent misuse.

• When a product was under water, Please call service center. There is a

risk of electric shock and fire.

• Appliance connected to the water mains using new hose-sets. Old hosesets should not be reused.

• To reduce the risk of personal injury, adhere to all industry recommended safety procedures including the use of long sleeved gloves and safety glasses. Failure to follow all of the safety

warnings in this manual could result in property, personal injury or death.

• Do not push down the door excessively, when washer door open.

This could topple over the washer.

• This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

WARNING

• A precaution indicates that the hands shall not be inserted into running water-extracting tub.

• A precaution indicates that the washing machine shall not be installed at a humid place.

• A precaution on the washing machine whose lid can be opened during water extraction, that if it

takes 15 s or more for complete stop of water-extraction chamber tub such a case should be understood as a trouble.

■ Save these instructions

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.

• Do not use an adapter this will defeat the grounding plug.

• If you don’t have the proper outlet, consult an electrician.

WARNING

Improper connection of the equipment-grounding conductor can result in electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

Important safety instructions

■ Safety instructions for use

To minimize the risk of fire within the inner bowl, the following should be observed:

• Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent-this will reduce, but not eliminate, the hazard. The ‘ ’ cycle of tumble dryers should be used to reduce the temperature of the items. They should not be removed from the tumble dryer or piled or stacked while hot.

• Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/gasoline, drycleaning solvents or other flammable or explosive substances should not be placed in a tumble dryer. Highly

flammable substances commonly used in domestic environments include acetone, denatured alcohol, petrol/gasoline, kerosene, spot removers (some brands), turpentine, waxes and wax removers.

• Items containing foam rubber (also known as latex foam) or similarly textured rubber like materials should not be dried in a tumble dryer on a heat setting. Foam rubber materials can,

when heated, produce fire by spontaneous combustion.

• Fabric softeners or similar products should not be used during a drying cycle, to eliminate the effects of static

electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or product.

• Undergarments that contain metal reinforcements should not be placed in a tumble dryer.

Damage to the tumble dryer can result if metal reinforcements come loose during drying. When available a drying rack could be used for such items.

• Plastic articles such as shower caps or babies waterproof napkin covers should not be placed in a tumble dryer.

• Rubber-backed articles, clothes fitted with foam rubber pads, pillows, rubber boots and rubber-coated tennis shoes should not be placed in a tumble dryer.

Specifications

Transit bolts

Drawer

(For detergent and

fabric softener)

Drain hose

Door

Adjustable feet

■ Name : Front loading washing machine

■ Power supply : 220 V~, 50/60 Hz

■ Size : 600 mm (W)  610 mm (D)  850 mm (H)

■ Weight : 71 kg

■ Max.Watt : 2100 W (Wash) / 1600 W (Dry)

■ Wash capacity : 9 kg (Wash) / 6 kg (Dry)

■ Permissible water pressure : 100 - 1000 kPa (1.0 - 10.0 kgf / cm

■ IP No.(Degree of Protection) : IPX4

Power plug

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or a similarly qualified person in order to avoid a hazard.

Control panel

Drum

Drain pump filter

Drain plug

Cover cap

)

The appearance and specifications may vary without notice to improve the quality of the unit.

■

Accessories

Inlet hose(1EA) Spanner

Installation

■ Removing packing

1. Remove the cardboard box and styrofoam packing.

2. Lift the washing machine and remove

Washer

Base Packing

Spanner

WARNING

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation ! Keep all packaging well away from children.

■ Removing transit bolts

To prevent internal damage during transport, the 4 special bolts are locked. Before operating the washer, remove the bolts along with the rubber bungs. If they are not removed, it may cause heavy vibration, noise and malfunction.

the base packing.

3. Remove the tape securing the power supply cord and drain hose.

4. Remove the inlet hose from the drum.

NOTE

• Keep the spanner provided for future use.

Transit bolt

1. Unscrew the 4 bolts with

the spanner supplied.

2. Take out the 4 bolts along with the rubber bungs by slightly twisting the bung.

NOTE

• Keep the transit bolts for future use.

3. Close the holes with the caps supplied.

Washer

approx.

2cm

Installation

■ Installation place requirements



Location

• Level floor : Allowable slope under entire washer is 1˚.

• Power outlet : Must be within 1.5 meters of either side of location of washer. Do not overload the outlet with more than one appliance.

• Additional Clearance : For Wall, 10cm:rear / 2cm : right & left side Do not place or store laundry products on top of washer at any time. They can damage the finish or controls.



Positioning

• Install the washer on a flat hard floor.

• Make sure that air circulation around the washer is not impeded by carpets, rugs, etc.

• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar materials under the washer.

• If it is impossible to avoid positioning the washer next to a gas cooker or coal burning stove,an insulating(85x60cm) covered with aluminum foil on the side facing the cooker or stove,must be inserted between the two appliance.

• The washer must not be installed in rooms where the temperature can drop below 0°C.

• Please ensure that when the washer is installed, it is easily accessible for the engineer in the event of a breakdown.

• With the washer installed, adjust all four feet using the transit bolt spanner provided ensuring the appliance is stable, and a clearance of approximately 20mm is left between the top of the washer and the underside of any work-top.

• This equipment is not designed for maritime use or for use in a mobile installations such as caravans, aircraft etc.



Electrical connection

• Do not use an extension cord or double adapter.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard.

• Always unplug the machine and turn off the water supply after use.

• Connect the machine to an earthed socket in accordance with current wiring regulations.

• The appliance must be positioned so that the plug is easily accessible.

• Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service center

• Do not install your washing machine in rooms where temperature below freezing may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

• If the appliance is delivered in the winter months and temperatures are below freezing : Place the washing machine at room temperature for a few hours before putting it into operation.

Installation

CAUTION

CAUTION concerning the Power cord

• Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

• Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in an electric shock or fire.

• Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. If the appliance is supplied from a cord extension set or an electrical portable outlet device, The cord extension set on electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture.

CAUTION

• The appliance is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with appliance.

Installation

■ Connecting water supply hose

• Water supply pressure must be between 100 kPa and 1000 kPa (1.0 - 10.0 kgf / cm2).

• Do not strip or crossthread when connecting inlet hose to the valve.

• If the water supply pressure is more than 1000 kPa, a decompression device should be installed.

• Periodically check the condition of the hose and replace the hose if necessary.



Step1 : Check rubber seal inlet hose

• Two rubber seals are supplied with the water inlet hoses. They are used for preventing water leaks. Make sure the connection to taps is

Hose

connector

Rubber seal



Step2 : Connect hose to water tap

Type-A : Connecting Screw-type hose to tap with thread

sufficiently tight.

• Screw the hose connector onto water supply tap.

Type-B : Connecting Screw-type hose to tap without thread

Upper connector

Rubber packing

1. Unscrew the adapter ring plate and the 4

adapter retaining screws.

2. Push the adapter onto the end of the tap

so that the rubber seal forms a watertight

Fixing screw

connection. Tighten the adapter ring plate and the 4 screws.

3. Push the water supply hose vertically

upwards so that the rubber packing within

Plate

Water supply hose

the hose can adhere completely to the tap and then tighten it by screwing it to the right.

Installation

Type-C : Connecting one touch type hose to tap without thread

1. Unscrew the adapter ring plate and

the 4 adapter retaining screws.

Ring plate

Guide plate

Latch plate

2. Remove the guide plate if the tap is too large to fit the adapter.

3. Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Tighten the adapter ring plate and the 4 screws.

4. Pull the connector latch plate down, push the inlet hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

NOTE

• After connecting inlet hose to water tap, turn on the water tap to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let water drain into a bucket, and check the water temperature.



Step3: Connect hose to washer

• Make sure that there are no kinks in the hose and that they are not crushed.

NOTE

• After completing connection, if water leaks from the hose, repeat the same steps. Use the most conventional type of faucet for water supply. In case the faucet is square or too big, remove the spacing ring before inserting the faucet into the adaptor.

Please use the horizontal tap

Horizontal tap Extension tap Square tap

Installation

 Installation of drain hose

about 100 cm

about 145 cm

about 105 cm

max. 100 cm

• The drain hose should not be placed higher than 100 cm above the floor. Water in the washer does not drain or drains slowly.

• Securing the drain hose correctly will protect the floor from damage due to water leakage.

• If the drain hose is too long, do not force back into the washer. This will cause abnormal noise.

• When installing the drain hose to a sink, secure it tightly with string.

• Securing the drain hose correctly will protect the floor from damage due to water leakage.

Laundry tub

max. 100 cm

Hose

Retainer

max. 100 cm

Tie strap

Installation

■ Leveling

Raise Lower

Lock Nut

Tighten all 4 locknuts securely

1. Leveling the washing machine properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface, preferably in a corner of the room.

NOTE

• Timber or suspended type flooring

may contribute to excessive vibration and unbalance.

2. If the floor is uneven, turn the adjustable feet as required. (do not insert pieces of wood etc. under the feet) Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level. (use a spirit level)

Once the washer is level, tighten the lock

•

nuts up towards the base of the washer. All lock nuts must be tightened.

Diagonal Check

•

When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all (Please, check both directions). If machine rocks when pushing the machine top plate diagonally, adjust the feet again.

NOTE

• If the washing machine is installed on a raised platform, it must be securely fastened in order to eliminate the risk of falling off.

Installation



Concrete floors

• The installation surface must be clean, dry and level.

• Install washer on a flat hard floor.



Tile floors (Slippery floors)

• Position each foot on the Tread Mate and level the machine to suit. (Cut Tread Mate into

70x70 mm sections and stick the pieces on to the dry tile where machine is to be placed.)

• Tread Mate is a self adhesive material used on ladders & steps that prevents slipping.



Wooden floors (Suspended floors)

Wooden floors are particularly susceptible to vibration.

•

To prevent vibration we recommend you place rubber cups under

•

each foot under washer at least 15mm thick, secured to at least

2 floor beams with screws.

If possible install the washer in one of the corners of the room, where the floor is more stable.

•

Fit the rubber cups to reduce vibration.

•

You can obtain the rubber cups (p/no.4620ER4002B) from the LG spares dept.

Rubber Cup

NOTE

• Proper placement and leveling of the washer will ensure long, regular and reliable

operation.

• The washer must be 100% horizontal and stand firmly in position.

• It must not “Seesaw” across corners under load.

• The installation surface must be clean, free from floor wax and other lubricant coatings.

• Do not let the feet of the washer get wet. If feet of the washer get wet, slipping may occur.

How to use washer

 Operating washing machine

1. Sort Laundry. (Refer to 18 page)

2. Open the door and load laundry.

3. Press the Power button.

4. Select a Program.

(Refer to 19~21 page)

Select options at this time (Refer to 23~28 page)

5. Add detergent. (Refer to 31~32 page)

6. Press the Start/Pause button.

How to use washer

■ Care before washing

Wash temperature

Normal machine wash

Permanent press

Hand wash

Sort laundry by...

Soiling

Colour

Delicate

Do not wash

Wash temperature

Fabric type

1. Care Labels Look for a care label on your clothes.

This will tell you about the fabric content of your garment and how it should be washed.

2. Sorting To get the best results, sort clothes into loads that can be

washed with the same wash cycle. Different fabrics need to be washed at varying temperatures and spin speeds. Always sort dark colours from pale colours and whites. Wash separately as dye and lint transfer can occur causing discolouration of white and pale garments. If possible, do not wash heavily soiled items with lightly soiled ones.

• Soil (Heavy, Normal, Light)

Separate clothes according to amount of soil.

• Colour (White, Lights, Darks)

Separate white fabrics from coloured fabrics.

• Lint (Lint producers, Collectors)

Wash lint producers and lint collectors separately.

3. Caring before loading Combine large and small items in a load. Load large items first.

Large items should not be more than half the total wash load. Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.

• Check all pockets to make sure that they are empty. Items such

as nails, hair clip, matches, pens, coins and keys can damage both your washer and your clothes.

• Close zippers, hooks and strings to make sure that these items

don’t snag on other clothes.

• Pre-treat dirt and stains by brushing a little detergent 'dissolved'

in 'water' onto stains to help lift dirt.

• Check the folds of the flexible gasket (gray) and remove any

small articles.

• Check inside of the drum and remove any items from a previous

wash.

• Remove any clothing or items from the flexible gasket to prevent

clothing and gasket damage.

NOTE

• Before the first wash, select a cycle (Cotton 60°C, add a half load of detergent) allow the unit to wash without clothing. This will remove residues and water from the drum that may have been left during manufacturing.

How to use washer

 Washing program table

•

Recommended courses according to the laundry type.

Program

Cotton

Large

Easy Care

Mix

Allergy

Care

Direct

Wear

Steam

Refresh

Duvet

Sports

Wear

Quick 30

Wash+

Dry

Gentle

Care

Stain

Care

Download

Cycle

Description

Provides better performance by combining various drum motions.

Provides optimised washing performance for large amount of laundry with less energy consumption.

This cycle is suitable for casual shirts that do not need ironing after washing.

Enables various fabrics to be washed simultaneously.

Removes allergens such as house mites, pollen, and cat fur.

This cycle provides washing to drying within 1 hour at once for light soiled 1~3 shirts.

Removes wrinkles within 20mins with steam.

This cycle is for large items such as bed cover, pillows, sofa covers, etc.

This cycle is suitable for sports wear such as jogging clothes and running wear.

This cycle provides fast washing time for small loads and lightly soiled clothes.

This cycle provides nonstop process from washing to drying at once.

This cycle is for hand and machine washable delicate clothes such as washable wool, lingerie, dresses etc. (Please use detergent for machine washable woolens).

Wash off several kinds of stain such as wine, juice, dirt, etc. (Water temperature is increased step by step for washing various stains.)

For downloadable cycles. If you did not download any cycles, ‘Rinse+Spin’ is set.

Colour fast garments (shirts, nightdresses, pajamas, etc) and normally soiled cotton load (underwear).

Polyamide, Acrylic, Polyester.

Various kind of fabrics except special garments. (Silk/delicate, sports wear, dark clothes, wool, Duvet/Curtains).

Cotton, underwear, pillow covers, bed sheets, baby wear.

Cotton Mixed, Polyester mixed Dress shirts, blouses.

Cotton mixed, Polyester mixed Dress shirts, blouses.

Cotton bedding except special garments (delicates, wool, silk, etc.) with filling: duvets, pillows, blankets, sofa covers with light filling.

Coolmax, Gore-tex, fleece and Sympatex.

Coloured laundry which is lightly soiled fast.

A small amount of laundry which can be dried.

Wool, hand washable clothes. Delicate, easily damaged laundry.

Cotton blended fabrics. NOT delicate clothes.

Fabric type

Proper

Temp.

40°C

(Cold to 95°C)

60°C

(Cold to 60°C)

40°C

(Cold to 60°C)

40°C

(Cold to 40°C)

60°C

20°C

No choice

40°C

(Cold to 40°C)

20°C

(Cold to 40°C)

40°C

(Cold to 95°C)

20°C

(Cold to 30°C)

40°C

(30°C to 60°C)

Maximum

Load

Rating

Less than

4.0 kg

3 items

1 single size

Less than

3.0 kg

Less than

6.0 kg

Less than

1.5 kg

Less than

3.0 kg

How to use washer

 Drying Program Table

Program Fabric type

Eco ( )

Cupboard ( )

Normal Eco Dry ( )

Low Temp. ( )

Time 30 min. ( )

Time 60 min. ( )

Time 120 min. ( )

•

Water Temperature: Select water temperature to suit your chosen wash cycle.

Cotton or Linen Fabrics such as cotton towels, t-shirts, linen laundries.

Cotton or Linen Fabrics, ready to iron at the end of cycle. Iron ( )

Easy Care Textiles, Synthetic Fabrics Suitable for Easy care, Mix program washable clothes

–

Maximum Load

Less than

6.0 kg

0.5 kg

1.5 kg

3.0 kg

Always follow garment manufacturer's care label or instructions when washing.

• Set program at “Cotton 60°C + Intensive” option for test in accordance in conformity with SASO 2693:2007.

NOTE

• Neutral detergent is recommended.

• Select maximum selectable spin speed of washing programme to ensure the drying result.

• Where the amount of laundry to be washed and dried in one programme does not exceed the maximum weight permitted for the drying programme, washing and drying in one continuous sequence is recommended.

How to use washer

 Extra options

Program

Cotton

Cotton Large

Easy Care

Mix

Allergy Care

Direct Wear

Steam Refresh

Duvet

Sports Wear

Quick 30

Gentle Care

Wash+Dry

Stain Care

Delay

Steam

Wash

Steam

Softener

Favorite

* : This option is automatically included in the cycle and can not be deleted.

 Operating data

Pre

Wash

Time

Intensive

Save

Rinse

Dry

Program

Cotton

Cotton Large

Easy Care

Mix

Allergy Care

Direct Wear

Steam Refresh

Duvet

Sports Wear

Quick 30

Gentle Care

Wash+Dry

Stain Care

Max RPM

1400

1000

1400

1000

800

1400

800

1400

How to use washer

■ Control panel

Power Button

SmartDiagnosis™ function is available only for the products with a SmartDiagnosis™ mark.

Start/Pause Button LED display

Program Button Options

Power

• Touch and release your fingers to turn it on.

• Touch and release your fingers after 1 second to turn it off.

Program button

• Programs are available according to the laundry type.

• Lamp will light up to indicate selected program.

Start/Pause

• This Start/Pause button is used to start wash cycle or pause the wash cycle.

• If temporary stop of wash cycle is needed, touch the Start/Pause button.

• When in Pause, the power is turned off automatically after 4 minutes.

LED display

• The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

Options

• This allows you to select an additional cycle and will light when selected.

• Use these buttons to select the desired cycle options for the selected cycle.

How to use washer

■ Options

Pre Wash ( )

If the laundry is heavily soiled, “Pre Wash” cycle is effective.

1. Touch the Power button.

2. Select a cycle.

3. Touch the Pre Wash button.

4. Touch the Start/Pause button.

Favorite

Favorite program allows you to store a customized wash cycle for future use.

1. Touch the Power button.

2. Select a cycle.

3. Select the cycle.

(Washing method, number of rinses, spin speed, water temperature etc.)

4. Touch and hold Favorite program button for 3 seconds.

The Favorite program is now stored for future use.

To reuse the program, select Favorite program and touch the Start/Pause.

Steam (Wash and Softener)

Steam Wash features enhanced washing performance with low energy consumption. Steam Softener sprays steam after spinning cycle to reduce creases and makes the laundry fluffy.

1. Touch the Power button.

2. For Steam Wash option, select steam

cycles. For Steam Softener option, select Cotton or Cotton Large, Mix, Easy Care.

3. Touch the Steam button once for Steam Wash. Touch the Steam button one more time (twice) for Steam Softener. Touch the Steam button one more time (three time) for Steam Wash and Steam Softener together.

4. Touch the Start/Pause button.

Steam Wash ( )

• For heavily stained clothes, underwear or

baby clothes.

• Available with the Cotton, Cotton Large,

Mix, Easy Care, Duvet, Allergy Care, Steam Refresh, Wash+Dry cycles.

• Do not use Steam Wash for easily

discoloured clothes and delicates such as wool, silk.

Steam Softener ( )

• Good to make Softens and fluffs fabrics

after air drying.

• Available with the Cotton, Cotton Large,

Mix, Easy Care cycles.

• Do not use Steam Softener for easily

discoloured clothes and delicates such as wool, silk.

• Depending on the kind of fabrics, softening

performance may be different.

How to use washer

Delay ( )

You can set a time delay so that the washing machine will start automatically and ﬁnish after a speciﬁed time interval.

NOTE

• The delay time is the time to the end of the programme, not the start. The actual running time may vary due to water temperature, wash load and other factors.

1. Touch the Power button.

2. Select a cycle.

3. Touch the Time Delay button and set time

required.

4. Touch the Start/Pause button.

Wash ( )

• Time Save ( ) : This option can be used to reduce the time of a wash program. It is best used on lightly soiled loads.

• Intensive ( ) : If the laundry is normal and heavily soiled, “Intensive” option is effective.

Rinse ( )

• Rinse plus ( ) :Add rinse once.

Spin

• Spin Speed level can be selected by touching 'Spin' button repeatedly.

• Spin Only

1. Touch the Power button.

2. Touch the Spin button to select RPM.

3. Touch the Start/Pause.

Temp.

• By touching the Temp. button the water temperature can be selected.

- Cold (0)

- 20°C, 30°C, 40°C, 60°C, 95°C

• Water temperature can be selected according to the program.

NOTE

When you select "No Spin(0)", it will still rotate for a short time with low speed to drain quickly.

How to use washer

■ Child Lock

Select this function to lock the buttons on the control assembly to prevent tampering.

Locking the control panel

1. Touch and hold the Child Lock button for

3 seconds.

2. A beeper will sound, and ' ' will appear on the LED display. When the child lock is set, all buttons are locked except the Power button.

NOTE

•

Turning off the power will not reset the child lock function. You must deactivate child lock before you can access any other functions.

Unlocking the control panel

1. Touch and hold the Child Lock button for

3 seconds.

2. A beeper will sound and the remaining time for the current programme will reappear on the LED display.

■ Beep On / Off

1. Touch the Power button.

2. Touch the Start/Pause button.

3. Touch and hold the Temp. and Steam button

simultaneously for three seconds to set Beep on/off function.

Once the Beep on/off function is set, the setting is memorized even after the power is turned off.

NOTE

•

If you want to turn the Beeper off, simply repeat this process.

How to use washer

■ Tub Clean

Tub Clean is a special cycle to clean the inside of the washing machine. A higher water level is used in this cycle at higher spin speed. Perform this cycle regularly.

1. Remove any clothing or items from the washer and close the door.

2. Open the dispenser drawer and add Anti limescale(e.g. Calgon) to the main wash compartment.

3. Close the dispenser drawer slowly.

Power On and then touch and hold Tub

4. Clean button for 3 seconds. Then tub clean pictogram will be displayed on the LED display.

5. Touch the Start/Pause button to start.

6. After the cycle is complete, leave the door

open to allow the washer door opening, flexible gasket and door glass to dry.

NOTE

• Do not add any detergent to the detergent compartments.

• Excessive suds may generate and leak from the washer.

' '

and

CAUTION

• If there is a child, be careful not to leave the door open for too long.

■ Door Lock & Detecting

“Door Lock” - For safety reasons, the

•

door will lock while machine is in use and the “Door Lock” icon will light up. You can safely open the door after the “Door Lock” icon turns off.

•

While "Detecting" is shown on the display the washing machine rotates slowly and detects how much laundry is loaded in the drum. It will take a short time.

+ 62 hidden pages
