LG WM3150HVC User Manual [en, es, fr]
ENGLISH
ESPAÑOL
FRANÇAIS
OWNER’S MANUAL
WASHING MACHINE
Before beginning installation, read these instructions carefully. This will simplify
installation and ensure that the washer is installed correctly and safely.
Leave these instructions near the washer after installation for future reference.
WM3150H*C
P/NO : MFL62526882
www.lg.com
2
PRODUCT FEATURES
PRODUCT FEATURES
INVERTER DIRECT-DRIVE MOTOR
The inverter motor, which is directly connected to the tub, minimizes energy loss and produces little noise and vibration.
SMARTDIAGNOSIS™
Should you experience any technical difficulty with your washing machine, it has the capability of transmitting data by phone to
the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze
the issue, providing a fast and effective diagnosis (Refer to page 38).
TUB CLEAN
Regular cleaning of the tub on a monthly basis using TUB CLEAN will keep the tub clean and fresh.
MAGNETIC DOOR PLUNGER
Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will promote air circulation and allow
the interior of the machine to dry. To use this feature, after the load has been removed, do not close the door completely.
When the magnetic door plunger comes into contact with the metal washer cabinet, it will secure the door slightly open
allowing the interior of the washer to dry.
LARGE CAPACITY STAINLESS STEEL DRUM
The large capacity stainless steel drum offers extreme durability and is tilted to improve efficiency and allow easier access for
large items.
CHILD LOCK
Use this option to disable the controls during a wash cycle. This option can prevent children from changing cycles or operating
the machine.
DETERGENT DISPENSER DRAWER
The four-compartment dispenser drawer makes it easy to separate the pre-wash detergent, the main laundry detergent, liquid
bleach, and fabric softener into different compartments.
3
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION.
These words mean:
DANGER
You will be killed or seriously injured if you don’t immediately follow instructions.
WARNING
You can be killed or seriously injured if you don’t follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
BASIC SAFETY PRECAUTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the
following.
•
Before use, the washer must be properly installed as
described in this manual.
•
Do not wash articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry cleaning
solvents, or other flammable or explosive substances,
they give off vapors that could ignite or explode.
•
Do not add gasoline, dry cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
• Under certain conditions, hydrogen gas may be produced
in a hot water system that has not been used for 2 weeks
or more. HYDROGEN GAS IS EXPLOSIVE.
system has not been used for such a period, before using
the washer, turn on all hot water faucets and let the water
flow from each for several minutes.
accumulated hydrogen gas. As the gas is flammable,
smoke or use an open flame during this time.
•
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children.
•
Before the washer is removed from service or discarded,
remove the door to prevent children from climbing inside.
•
Do not install or store the washer where it will be exposed
to the weather or freezing temperatures.
•
Do not tamper with controls.
•
as
If the hot water
This will release any
do not
Do not repair or replace any part of the washer or attempt
any servicing other than as described in this manual.
strongly recommend that any service be performed by a
qualified technician.
•
See Installation Instructions for grounding requirements.
•
ALWAYS follow the fabric care instructions supplied by the
garment manufacturer.
•
Do not place items exposed to cooking oil in your washer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
•
Use fabric softeners or products to eliminate static only as
recommended by the manufacturer.
• This washer is not designed for maritime use or for mobile
installations such as in RVs, aircraft, etc.
•
Turn off the water faucets and unplug the washer if the
machine is to be left for an extended period of time, such as
during vacations.
•
Do not use to dry articles containing foam rubber or
similarly textured rubber-like materials.
• Packaging material can be dangerous for children. There is a
risk of suffocation!
•
Always check the inside of the washer for foreign objects
before loading laundry. Keep the door closed when not in
use.
•
Do not reach into the appliance if the tub or agitator is
moving.
Keep all packaging from children.
We
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician
or servicer if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the
appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Failure to follow these warnings can
cause serious injury, fire, electric shock, or death.
5
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the
following.
•
Refer to INSTALLATION INSTRUCTIONS for detailed
grounding procedures.
with the washer for installer’s reference. If the washer is
moved to a new location, have it checked and reinstalled by a
qualified service technician. Failure to follow this warning can
cause serious injury, fire, electric shock, or death.
•
Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord.
warning can cause serious injury, fire, electric shock, or
death.
•
For personal safety, this appliance must be properly
grounded.
injury, fire, electric shock, or death.
•
The power cord of this appliance is equipped with a 3-prong
(grounding) plug which mates with a standard 3-prong
(grounding) wall outlet
shock from this appliance.
•
This washer must be plugged into a 120 VAC, 60 Hz
grounded outlet.
serious injury, fire, electric shock, or death.
•
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
•
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
•
Do not install on carpet. Install washer on a solid floor.
Failure to follow this warning can cause serious leak damage.
•
Do not remove ground prong. Do not use an adapter or
extension cord. Plug into a grounded 3-prong outlet.
to follow these warnings can cause serious injury, fire,
electric shock, or death.
Failure to follow this warning can cause serious
Installation instructions are packed
Failure to follow this
to minimize the possibility of electric
Failure to follow this warning can cause
Failure
•
The washer should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the
rating plate.
prevents overloading house wiring circuits which could cause
a fire hazard from overheated wires.
•
Never unplug your washer by pulling on the power cord.
Always grip plug firmly and pull straight out from the outlet.
Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
•
Repair or immediately replace all power cords that have
become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either end.
injury, fire, electric shock, or death.
•
When installing or moving the washer, be careful not to
pinch, crush, or damage the power cord.
this warning can cause serious injury, fire, electric shock, or
death.
•
The washer must be installed and electrically grounded by
a qualified service person in accordance with local codes
prevent shock hazard and assure stability during operation.
•
The washer is heavy. Two or more people may be needed
to install and move the appliance.
in back or other injury.
•
Store and install the washer where it will not be exposed
to temperatures below freezing or exposed to outdoor
weather conditions.
serious leak damage.
•
Do not install the washer in humid spaces to reduce the risk
of electric shock
serious injury, fire, electric shock, or death.
•
To reduce the risk of injury to persons, adhere to all industry
recommended safety procedures including the use of long
sleeved gloves and safety glasses.
the safety warnings in this manual could result in property
damage, injury to persons or death.
This provides the best performance and also
Failure to follow this warning can cause serious
Failure to follow
Failure to do so can result
Failure to follow this warning can cause
. Failure to follow this warning can cause
Failure to follow all of
to
6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING, AND DISPOSAL
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the
following.
•
Unplug the washer before cleaning
electric shock.
•
Never use harsh chemicals, abrasive cleaners, or solvents
to clean the washer.
•
Do not put oily or greasy rags or clothing on top of the
washer.
the materials.
•
Do not wash items that are soiled with vegetable or cooking
oil.
to the remaining oil, the fabric may smoke or catch fire by
itself.
•
Disconnect this appliance from the power supply before
attempting any user maintenance. Turning the controls to
the OFF position does not disconnect this appliance from
the power supply.
serious injury, fire, electric shock, or death.
•
Do not combine laundry products for use in one load unless
specified on the label.
•
Do not mix chlorine bleach with ammonia or acids such
as vinegar. Follow package directions when using laundry
products.
resulting in serious injury or death.
•
Do not reach into the washer while parts are moving.
Before loading, unloading, or adding items, press the START/
PAUSE button and allow the drum to coast to a complete
stop before reaching inside.
can cause serious injury, fire, electric shock, or death.
These substances give off vapors that could ignite
These items may contain some oil after laundering. Due
Incorrect usage can produce poisonous gas,
to avoid the risk of
They will damage the finish.
Failure to follow this warning can cause
Failure to follow this warning
•
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer
is used near children. As children grow, teach them the
proper, safe use of all appliances.
these warnings could result in serious injury to persons or
death.
•
Destroy the carton, plastic bag, and other packing materials
after the washer is unpacked. Children might use them for
play. Cartons covered with rugs, bedspreads, or plastic
sheets can become airtight chambers.
with these warnings could result in serious injury to persons
or death.
•
Keep laundry products out of children’s reach. To prevent
injury to persons, observe all warnings on product labels.
Failure to comply with these warnings could result in serious
injury to persons or death..
•
Remove the door to the washing compartment to avoid the
danger of children or small animals getting trapped inside
before your washer is removed from service or discarded.
Failure to do so can result in serious injury to persons or
death.
Failure to comply with
Failure to comply
SAVE THESE INSTRUCTIONS
7
TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
2 PRODUCT FEATURES
3 IMPORTANT SAFETY INSTRUCTIONS
4 BASIC SAFETY PRECAUTIONS
4 GROUNDING INSTRUCTIONS
5 SAFETY INSTRUCTIONS FOR INSTALLATION
6 SAFETY INSTRUCTIONS FOR USE, CARE, CLEAN-
ING, AND DISPOSAL
8
INTRODUCING YOUR WASHING MACHINE
8 Parts and Accessories
9 Control panel features
11 INSTALLATION INSTRUCTIONS
11 Preview installation order
12 Checking and choosing the proper location
13 Unpacking and removing shipping bolts
14 Connecting the water lines
15 Connecting the drain line
16 Leveling the washing machine
17 Plugging in the power cord and grounding
17 Test run
24 - Heavy soiled items, HEAVY DUTY
24 - Sheer items,
24 - Items labeled wool or hand-washable,
WASH/WOOL
25 - Quick wash, SPEED WASH
25 - Rinse, drain and spin only, RINSE + SPIN
25 Cycle setting buttons
25 Setting options before cycle
25 - Setting the water temperature, WASH TEMP.
26 - Setting spin speed, SPIN SPEED
26 - Setting soil level of laundry, SOIL LEVEL
26 - Prewashing, PRE-WASH
26 - Tumbles clothes to prevent wrinkle, FRESH CARE
27 - Adding extra rinse cycle, EXTRA RINSE
27 - Adding extra water to the washing and rinse
cycle, WATER PLUS
27 - Presetting the start time, DELAY WASH
27 - Improved stain treatment, STAIN CARE
28 - Saving energy, COLDWASH™
28 - Tuning on/off melody and button tones, SIGNAL
ON/OFF
28 Setting the options during cycle
28 - Button lock feature, CHILD LOCK
28 - Detecting weight of load, LOAD SIZE
DELICATES
HAND
18 PREPARATION
18 Sorting wash loads
18 - Precautions for fabric care before wash cycle
19 - Fabric care labels
19 - Sorting laundry
20 Using detergent/fabric softener
20 - Recommended detergent
20 - Loading the dispenser
22 USING YOUR WASHING MACHINE
22 Basic operation
23 Cycle guide
24 Main cycle
24 - Reduce bacteria on laundry, SANITARY
24 - For towels,
24 - For few items, SMALL LOAD
24 - For white fabrics,
24 - Blankets or bulky items, BULKY/LARGE
24 - Wrinkle free items,
24 - Normal items, COTTON/NORMAL
TOWELS
BRIGHT WHITES
PERM. PRESS
™
29 MAINTENANCE
29 Care
29 - Care after wash
29 - Care in cold climates
30 Cleaning
30 - Clean your the drum, TUB CLEAN
31 - Cleaning the detergent dispenser drawer
32 - Cleaning the water inlet filters
33 - Cleaning the drain pump filter
34 - Cleaning the door seal
35 TROUBLESHOOTING
35 Checking error messages
36 Before calling for service
37 SPECIFICATIONS
38 USING SMARTDIAGNOSIS™
39 WARRANTY
8
INTRODUCING YOUR WASHING MACHINE
INTRODUCING YOUR WASHING MACHINE

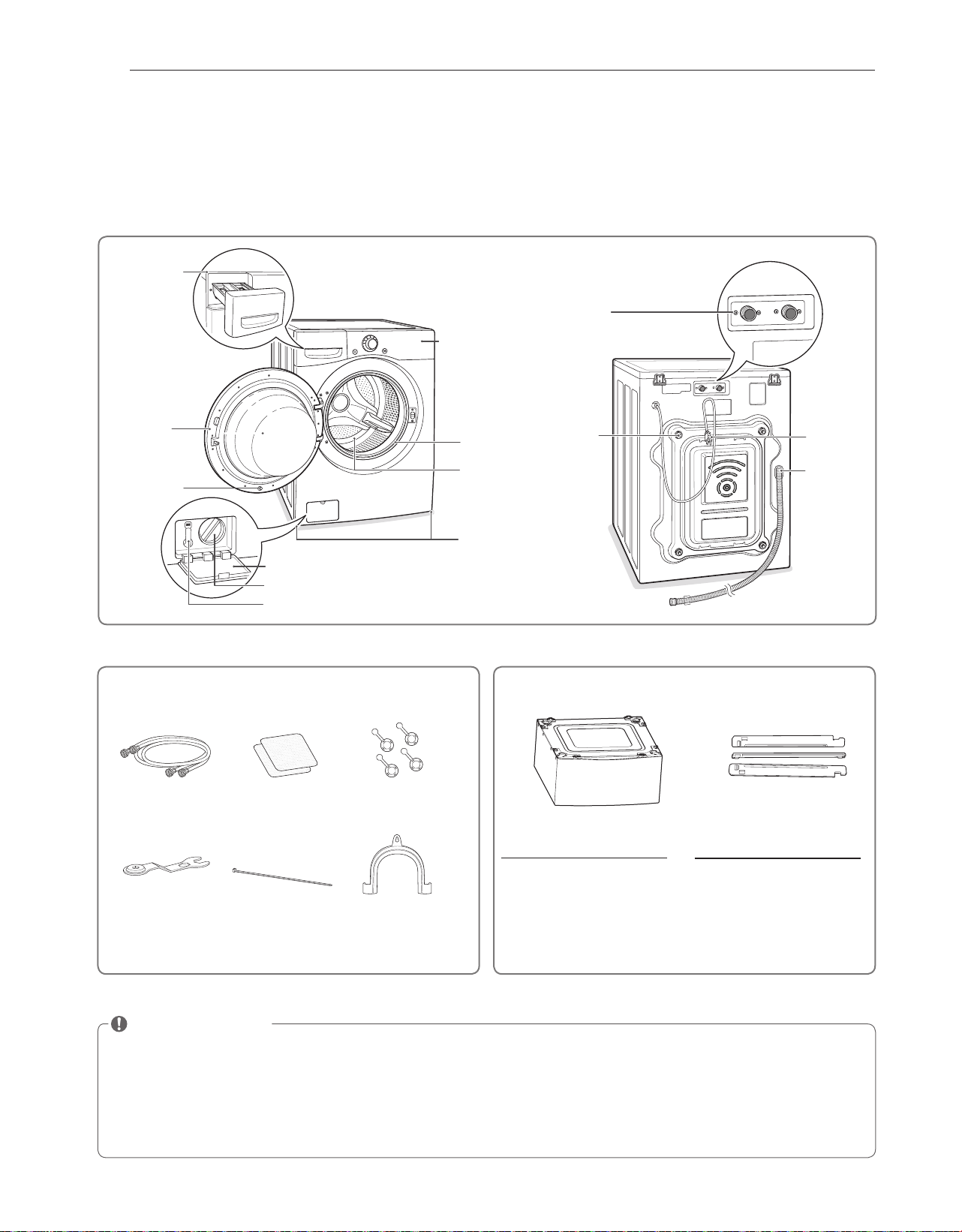

Parts and Accessories
Parts
Detergent
dispenser
drawer
(See page 20)
Control panel
(See page 9)
Water inlets
Door
Magnet Door
Plunger
(see page 2)
Door
seal
Tub
Leveling
feet
Drain pump filter cover
Drain pump filter
Drain hose
Shipping
bolts
Accessories
In c l u d e d Accessories Op t I O n a l Accessories
Hot/cold water hoses Non-skid pads
Caps for covering
shipping bolt holes
Pedestal Stacking kit
Power cord
Drain hose
Wrench Tie strap Elbow bracket
(for securing drain hose)
14" Pedestal Color
WDP4C Chardonnay
WDP4R Wild Cherry Red
WDP4S Titanium
WDP4V Graphite Steel
WDP4W White
WDP4N Midnight Blue
Stacking Kit Color
CSTK1 Chardonnay
RSTK1 Wild Cherry Red
SSTK1 Titanium
GSTK1 Pearl Gray
WSTK1 White
NSTK1 Midnight Blue
NOTE
Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing.
y
For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for
y
product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.
The images in this guide may be different from the actual components and accessories, and are subject to change by the
y
manufacturer without prior notice for product improvement purposes.
9
INTRODUCING YOUR WASHING MACHINE
ENGLISH
Control panel features
Cycle selector
Power
Button
Operation
Button Description
Operation
Start/
Pause
Button
Water
Temperature
Selection
Button
Turns the washing machine on and off.
y
(During the wash cycle) stops operation, and cancels the settings.
y
Display
Spin
Speed
Selection
Button
Soil
Level
Selection
Button
SANITARY
y
- For underwear, diaper etc. (see page 24)
TOWELS
y
- For towels (see page 24)
SMALL LOAD
y
- For few items (see page 24)
BRIGHT WHITES™
y
- For white fabrics (see page 24)
BULKY/LARGE
y
- For blankets or large bulky items (see page 24)
PERM. PRESS
y
- For wrinkle-free fabrics (see page 24)
COTTON/NORMAL
y
- For general laundry, such as cotton T-shirts or towels (see page 24)
HEAVY DUTY
y
- For heavy soiled cotton fabrics (see page 24)
DELICATES
y
- For sheer and delicate fabrics (see page 24)
HAND WASH/WOOL
y
- For wool or hand-wash fabrics (see page 24)
SPEED WASH
y
- For small quantities of lightly soiled items (see page 25)
RINSE + SPIN
y
- For items that only require rinsing and spinning (see page 25)
Starts or pauses the washing machine cycle.
y
- If you do not press the C button within 4 minutes of selecting a cycle, the washing machine will
turn off automatically.
(Press repeatedly) Selects the water temperature for the wash cycle (see page 25).
y
- Select water temperature from 5 settings.
(Press repeatedly) Selects the spin speed in the desired level (see page 26).
y
- Selects spin speed from 5 settings.
(Press repeatedly) Selects a wash cycle by soil level (see page 26).
y
- Selects soil level from 5 settings.
10
INTRODUCING YOUR WASHING MACHINE
Operation (continued)
Button Description
(Press before wash cycle) Pre-wash heavily soiled laundry (See
y
(Press and hold during wash cycle) Lock/Unlock the button (See
y
(Press before wash cycle) Tumbles clothes to prevent wrinkle (See
y
(Press and hold during wash cycle) Displays the load size after detecting the weight of the laundry
y
(See page. 28).
(Press before wash cycle) Add extra rinse cycle to the selected one (See
y
(Press and hold) Clean the wash tub (See
y
(Press before wash cycle) Add water during wash and rinse cycle (See
y
(Press and hold) Tuning on/off melody and button tones (See
y
Set delay time of starting cycle (See
y
Use this option for heavily soiled loads that need improved stain treatment (
y
Use this option to save your energy consumption (
y
page. 30).
page. 27).
See page. 28).
page. 26).
page. 28).
page. 26).
page. 27).
page. 27).
page. 28).
See page. 27).
Display
Load size sensing indicator
(See page. 28)
Cycle
process
indicator
Button Description
At the beginning of the cycle, the washer tumbles the load and detects the weight of the clothes.
y
The display will indicate the approximate load size in the LOAD SIZE display. This allows you to
adjust the amount of detergent and other additives for best results and improved efficiency.
This portion of the display shows which stage of the wash cycle is currently underway (LOAD
y
SENSING, WASH, RINSE or SPIN).
Indicates that the door is locked. The washer door will lock while the washer is operating. The door
y
can be unlocked by pressing the START/ PAUSE button to stop the washer.
This indicator shows that the washer has been set for DELAY WASH. The washer will start
y
automatically after the set delay time has passed.
Door lock
indicator
Delay
wash
indicator
Estimated time remaining/
error message display
(See page 35)
When the START/PAUSE button is pressed, the washer automatically detects the wash load (weight)
y
and optimizes the washing time, based on the selected cycle and options. The display will then
indicate the estimated time remaining for the selected wash cycle.
11
INSTALLATION INSTRUCTIONS
ENGLISH
INSTALLATION INSTRUCTIONS
Preview installation order
Checking and choosing the
proper location
Unpacking and removing
shipping bolts
Connecting the water line
Connecting the drain line Leveling the washing
Test run
WARNING
Washer is heavy! Two or more people are required when moving and unpacking the washer.
y
back or other injury.
Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather
y
conditions.
Properly ground washer to conform with all governing codes and ordinances.
y
serious injury, fire, electric shock, or death.
To reduce the risk of electric shock, do not install the washer in humid spaces.
y
serious injury, fire, electric shock, or death.
The base opening must not be obstructed by carpeting when the washer is installed on a carpeted floor.
y
Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet.
y
follow this warning can cause serious injury, fire, electric shock, or death.
Failure to follow this warning can cause serious injury, fire, electric shock, or death.
machine
Plugging in the power cord
and grounding
Failure to do so can result in
Failure to follow this warning can cause
Failure to follow this warning can cause
Failure to
12
INSTALLATION INSTRUCTIONS
293/4"
(75.6 cm)
4"
(10 cm)
51"
(129.5 cm)
22
1
/4"
(57 cm)
27"
68.6 cm
1"
(2.5 cm)
1"
(2.5 cm)
29 3/4"
(75.6 cm)
4"
(10 cm)
27"
(68.6 cm)
1"
(2.5 cm)
1"
(2.5 cm)
771/2"
(196.8 cm)

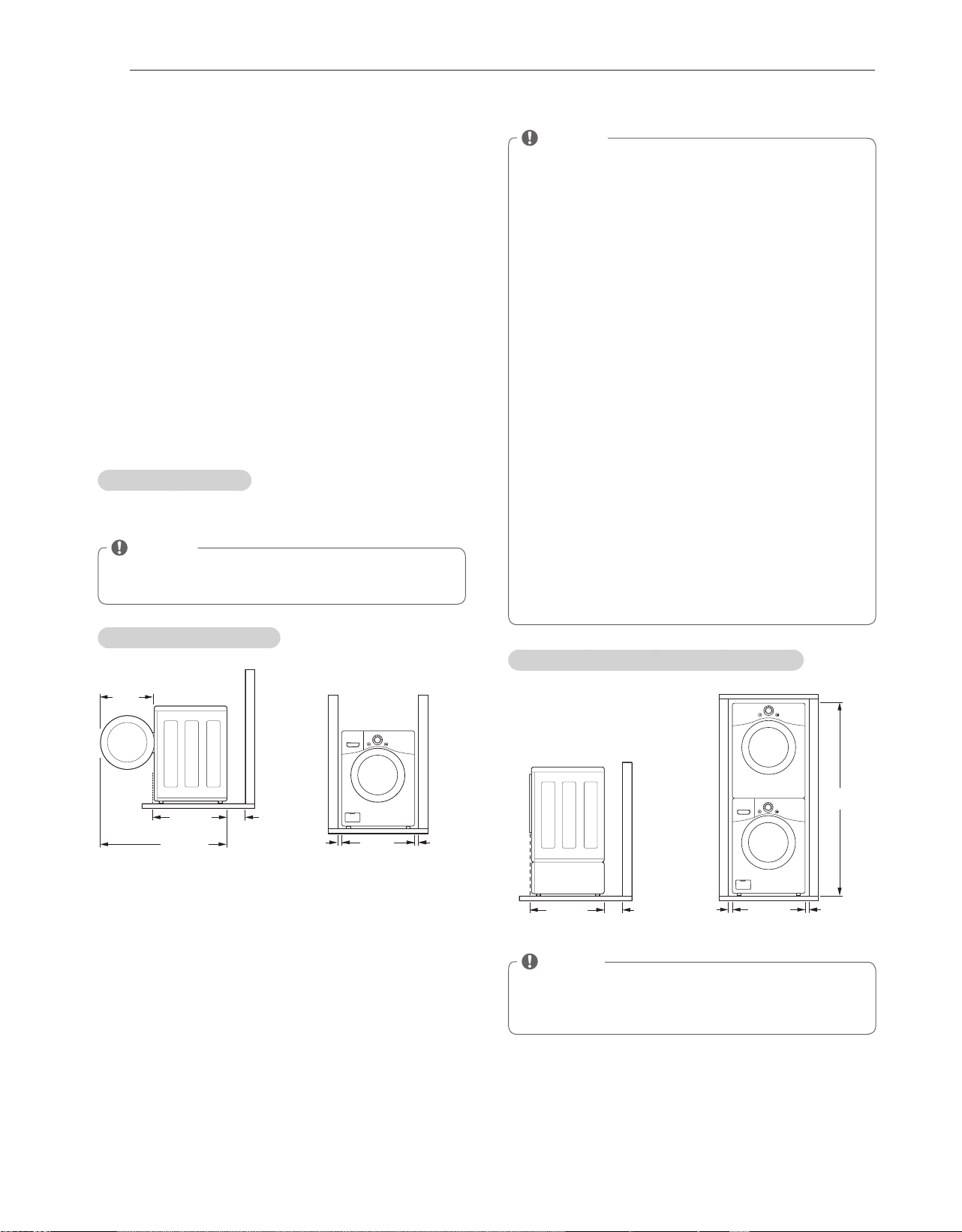

Checking and choosing the proper
location
Install the washing machine on a solid floor that is strong and
rigid enough to support the weight of the washing machine,
even when fully loaded, without flexing or bouncing. If the
floor has too much flex, you may need to reinforce it to make
it more rigid. If the floor is not solid, it may cause severe
vibration and noise.
Clean the floor before installation.
1
- Make sure to select solid and smooth ground.
Two or more people are needed for moving and
2
unpacking the washing machine.
Allow for sufficient space between the walls and the
3
washing machine for installation.
Space requirements
You must allow sufficient space for water lines, the drain
line, and airflow.
NOTE
Be sure to allow for wall, door, or floor moldings that
y
may increase the required clearances.
NOTE
The floor
y
must be strong and rigid enough to support
the weight of the washer, when fully loaded, without
flexing or bouncing. If your floor has too much flex,
you may need to reinforce it to make it more rigid.
A floor that is adequate for a top-loading washer may
not be rigid enough for a front loading washer, due to
the difference in the spin speed and direction. If the
floor is not solid, your washer may vibrate and you may
hear and feel the vibration throughout your house.
Before installing the washer, make sure the floor is
y
clean, dry and free of dust, dirt, water and oils so the
washer feet can not slide easily. Leveling feet that can
move or slide on the floor can contribute to excess
vibration and noise due to poor contact with the floor.
If a drip pan must be used, take extra care to follow the
y
instructions provided with the drip pan and make sure
the leveling feet are adjusted for firm and even contact
with the pan. Use of drip pans and failure to properly
level the machine may result in increased vibration and
noise during operation.
Installing on a pedestal or stacking kit
Installing on a floor
NOTE
Refer to the instructions packaged with the optional
y
PEDESTAL or STACKING KIT before installing with a
PEDESTAL or a STACKING KIT.
13
INSTALLATION INSTRUCTIONS
ENGLISH
Unpacking and removing shipping bolts
When removing the washer from the carton base, be sure to
remove the foam drum support in the middle of the carton
base.
If you must lay the washer down to remove the base
packaging materials, always lay it carefully on its side.
Do NOT lay the washer on its front or back.
Remove the bottom two shipping bolts with the wrench
1
(included) to fully loosen all four shipping bolts by turning
them counterclockwise and then pulling them out.
Retainer
Shipping
bolt
Locate the four hole caps included in the accessory pack
2
and install them in the shipping bolt holes.
Cap
NOTE
Save the bolt assemblies for future use. To prevent
y
damage to internal components, DO NOT transport the
washer without reinstalling the shipping bolts.
Failure to remove shipping bolts and retainers may
y
cause severe vibration and noise, which can lead to
permanent damage to the washer. The cord is secured
to the back of the washer with a shipping bolt to help
prevent operation with shipping bolts in place.
14
INSTALLATION INSTRUCTIONS
Connecting the water lines
Check the rubber seals on both sides of the hose.
1
- Insert a rubber seal into the threaded fittings on each
hose to prevent leaking.
Connect the hoses to the water inlets tightly by hand and
4
then tighten another 2/3 turn with pliers.
- Connect the blue hose to the cold water inlet and the
red hose to the hot water inlet.
Rubber seal
Rubber seal
Water hose
(To faucet)
Water hose
(To water inlet on the
washing machine)
Connect the water supply hoses to the HOT and COLD
2
water faucets tightly by hand and then tighten another
2/3 turn with pliers.
- Connect the blue hose to a cold water faucet and the
red hose to a hot water faucet.
WARNING
Damage to the coupling can result.
Do not overtighten.
y
After connecting inlet hose to water faucets, turn on the
3
water faucets to flush out foreign substances (dirt, sand
or sawdust) in the water lines. Let water drain into a
bucket, and check the water temperature.
Cold
water
inlet
WARNING
Do not overtighten.
y
Check for leaks by turning on the faucets.
5
- If water leaks, check steps 1 to 4 again.
NOTE
For your safety, and for extended product life, use
y
only authorized components. The manufacturer is not
responsible for product malfunction or accidents caused
by the use of separately purchased unauthorized parts.
Use new hoses when you install the washing machine.
y
Do not reuse old hoses. Use only the inlet hoses
provided with the washer. LG does not recommend the
use of aftermarket hoses.
Periodically check the hoses for cracks, leaks and wear,
y
and replace the hoses every 5 years.
Do not stretch the water hoses intentionally, and make
y
sure that they are not crushed by other objects.
Water supply pressure must be between 14.5 PSI and
y
116 PSI (100~800 kPa). If the water supply pressure is
more than 116 PSI, a pressure reducing valve must be
installed.
To provide optimum washing performance the hot
y
water temperature should be set at 120-135°F (48-57°C)
and the cold at 60°F (15°C).
Damage to the coupling can result.
Hot water
inlet
15
INSTALLATION INSTRUCTIONS
ENGLISH

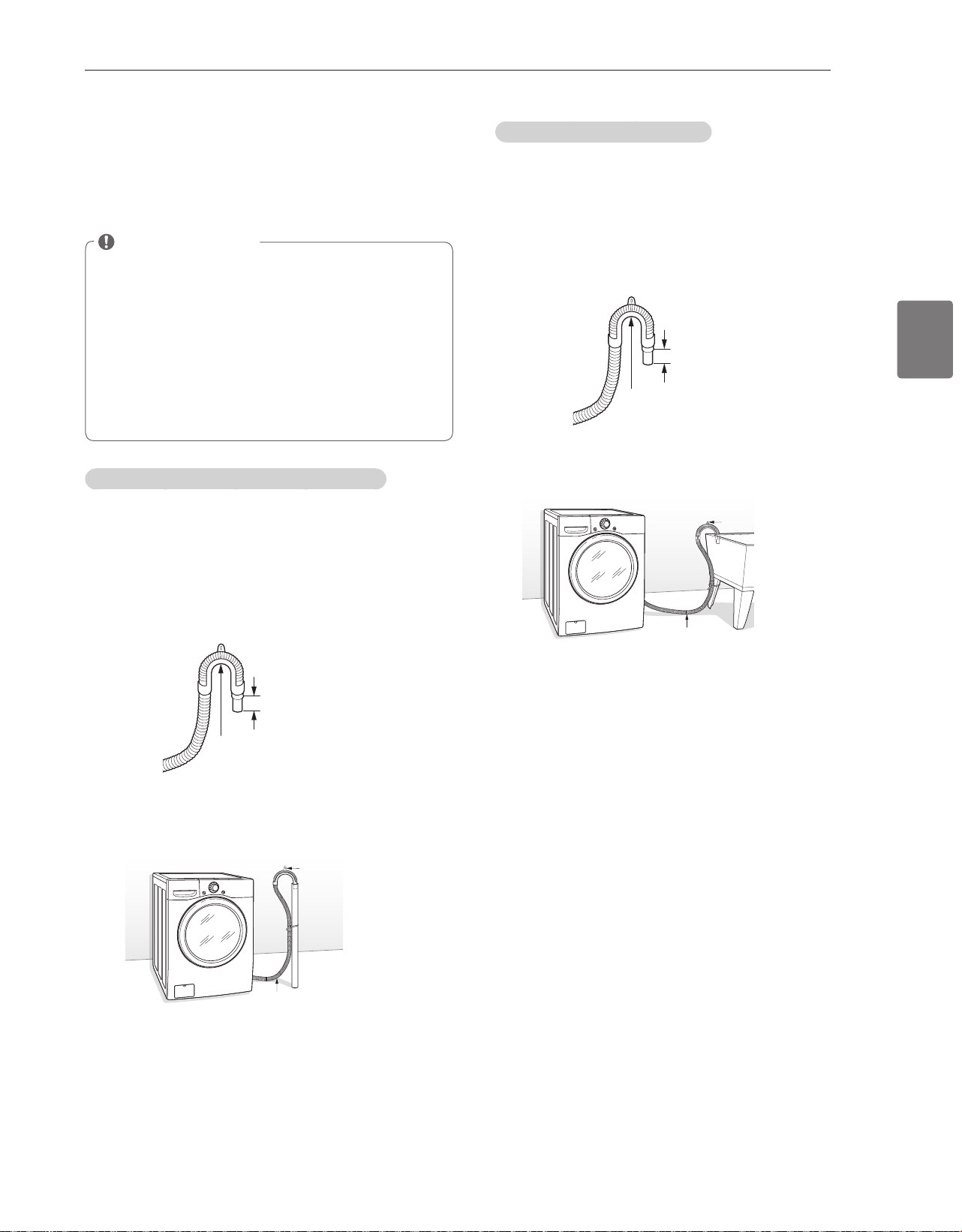

Connecting the drain line
Secure the drain hose in place to prevent moving and leaking.
NOTE
The drain hose should be properly secured. Failure to
y
properly secure the drain hose can result in flooding
and malfunction.
Total height of the house end should not exceed 96
y
inches (244.8 cm) from the bottom of the washer.
The drain must be installed in accordance with any
y
applicable local codes and regulations.
Make sure that the water lines are not stretched,
y
pinched, crushed, or kinked.
Using a standpipe
Clip the end of the hose into the elbow bracket.
1
- Connect the elbow bracket within 4 inches (10 cm) from
the end of the drain hose. If the drain hose is extended
more than 4 inches (10 cm) beyond the end of the
elbow bracket, mold or microorganisms could spread to
the inside of the washer.
Using a laundry tub
Clip the end of the hose into the elbow bracket.
1
- Connect the elbow bracket within 4 inches (10 cm) from
the end of the drain hose. If the drain hose is extended
more than 4 inches (10 cm) beyond the end of the
elbow bracket, mold, or microorganisms could spread to
the inside of the washer.
No more than
4 inches (10 cm)
Elbow bracket
Hang the end of the drain hose over the side of the
2
laundry tub.
Elbow Bracket
No more than
4 inches (10 cm)
Elbow bracket
Insert the end of the drain hose into the standpipe.
2
Elbow Bracket
Drain Hose
Use a tie strap to secure the drain hose in place.
3
Drain Hose
Use a tie strap to secure the drain hose in place.
3
16
INSTALLATION INSTRUCTIONS

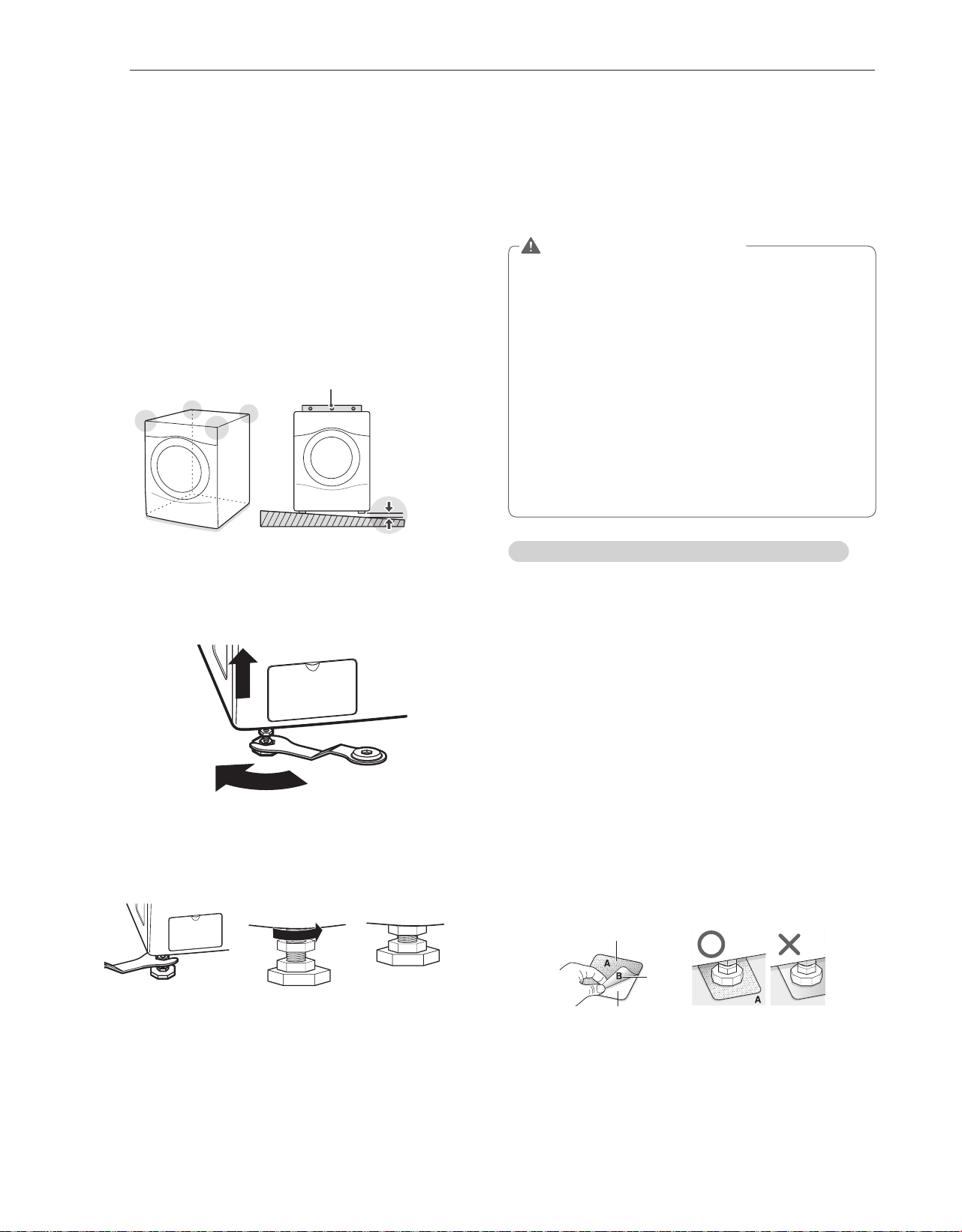

Leveling the washing machine
The washer tub of your new washing machine spins at very
high speeds. To minimize vibration, noise, and unwanted
movement, the floor must be perfectly level and solid.
Check the washing machine’s level.
1
- Check the precise level by rocking the top edges of
the washing machine or placing a level on the washing
machine. The slope beneath the washing machine must
not exceed 1°, and all four leveling feet must rest firmly
on the floor.
Level
1°
Check the washing machine’s level again.
4
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does not
rock.
- If the washing machine rocks, repeat steps 1 to 3.
WARNING
Using the washing machine without leveling, it may
y
result in malfunction caused by the production of
excess vibration and noise.
If you are installing the washing machine on the
y
optional pedestal, you must adjust the leveling feet
on the pedestal to level the washing machine. The
washing machine´s leveling feet should be minimized
and turn the locknuts counterclockwise to secure.
Use the leveling feet only when you level the washing
y
machine.
may cause abnormal vibration of the washing machine.
If you raise the leveling feet unnecessarily, it
Turn the lower leveling feet clockwise to level the
2
washing machine.
- Turning the lower leveling feet clockwise raises the
washing machine.
Raise
Turn the locknuts counterclockwise and tighten them
3
when the washing machine is level.
Tighten all 4 lock
nuts securely using
the wrench.
Using non-skid pads (optional)
If you install the washing machine on a slippery surface, it
may move because of excessive vibration. Incorrect leveling
may cause malfunction through noise and vibration. In the
event of this, lay the non-skid pads under the leveling feet
and adjust the level.
Clean the floor to attach the non-skid pads.
1
- Use a dry rag to remove and clean foreign objects or
moisture. If moisture remains, the non-skid pads may
slip.
Adjust the level after placing the washing machine in the
2
installation area.
Place the adhesive side of the non-skid pad on the floor.
3
- It is most effective to install the non-skid pads under the
front legs. If it is hard to place the pads under the front
legs, place them under the back legs.
This side up
Adhesive
side
Remove
backing
Check the washing machine’s level again.
4
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does not
rock. If the washing machine rocks, level the washing
machine again.
17
INSTALLATION INSTRUCTIONS
ENGLISH
Plugging in the power cord and
grounding
Make sure to ground the washing machine to prevent a short
circuit or an electric shock when plugging in.
Using a 3-prong outlet
Plug in the electrical outlet without additional grounding.
WARNING
The power outlet must be within 60 inches (1.5 m) of either
y
side of the washer.
The appliance and outlet must be positioned so that the plug
y
is easily accessible.
Do not overload the outlet with more than one appliance.
y
The outlet must be grounded in accordance with current
y
wiring codes and regulations.
Time-delay fuse or circuit breaker is recommended.
y
It is the personal responsibility and obligation of the product
y
owner to have a proper outlet installed by a qualified
electrician.
Do not use a worn or damaged power cord or power plug.
y
Replace or repair it immediately.
in death, fire, electric shock, or malfunction.
Do not modify the power cord and take care not to damage it
y
when installing or moving the washing machine.
so may result in death, fire, electric shock, or malfunction.
Make sure that the washing machine is grounded.
y
Connect this washing machine to a grounded outlet
y
conforming to the rating prior to use.
result in fire, electric shock, or malfunction.
Do not use adaptors or extension cords.
y
machine should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the
rating plate. Failure to do so may result in fire, electric shock
or disorder.
Do not damage or cut off the ground prong of the power
y
Doing so may cause death, fire, electric shock, or
cord.
product malfunction.
Failure to do so may result
Failure to do
Failure to do so may
The washing
Test run
Check if the washing machine is properly installed and run a
test cycle.
Load the washing machine with 6 pounds of laundry.
1
Press
2
Turn B to RINSE + SPIN.
3
Press C.
4
Check if water is supplied, that the washing machine
5
A
- The wash cycle starts.
does not rock or vibrates excessively, and that it drains
well during the spin cycle.
- If water leaks during water supply, see page 14,
Connecting the water lines
- If the washing machine rocks and vibrates excessively,
see page 16,
again.
- If the drain does not work, see page 15,
drain line
Leveling the washing machine
to install it properly.
to connect them properly.
to level it
Connecting the
18
PREPARATION
PREPARATION
Sorting wash loads
Precautions for fabric care before wash cycle
Read and observe the following to prevent shrinkage or damage to clothes.
Check all pockets to make sure that they are empty.
u
-Items such as clips, matches, pens, coins, and keys can
damage both your washer and your clothes.
Close zippers, hooks, and drawstrings to prevent these
u
items from snagging or tangling on other clothes.
Pretreat heavily stained areas before washing.
u
- Doing so will produce clean, stain-free results.
Combine large and small items in a load. Load large items
u
first.
Large items should not be more than half of the total
u
washload.
The washer can be fully loaded, but the drum should not be
u
tightly packed with items.
-The door of the washer should close easily.
Do not wash single items, except for bulky items such as
u
blankets. Make sure to wash laundry in similar types of
loads.
- Washing a single small item may result in the tub
becoming unbalanced, vibrating and making a noise.
Brush heavy soil, dust, or hair off fabrics before washing.
u
- Laundry may not wash clean if there is dirt or sand on
the fabrics, or they may damage due to particles rubbing
against sheer fabrics.
Wash blankets individually.
u
- Washing more than one blanket together may produce
unclean results due to tangling or an unbalanced load.
Always separate fabrics according to their colors and wash
u
them separately to prevent colors from running.
- Fabrics may damage or become stained due to fabric dyes
running, or due to foreign objects transferring from one
fabric to another.
Do not wash waterproof clothes.
u
- This may cause abnormal vibration, or may cause the load
to bounce, which could damage the tub.
Check if there are any other foreign objects in the door seal
u
and take extra care that clothes do not get caught there.
- Foreign objects in the door seal may stain clothes, and
water may leak if clothes get caught in the door seal.
Wash underwear or small, light items in a laundry net.
u
- Small, light items may get caught in the door seal, and a
brassiere hook may damage other items or the tub.
19
PREPARATION
ENGLISH
Fabric care labels
Most articles of clothing feature fabric care labels that include
instructions for proper care.
Category Label Directions
Hand Wash
Machine Wash, Normal Cycle
Use Permanent Press/Wrinkle
Resistant washing machine
setting (which has a cool down or
cold spray before the reduced
spin)
Washing
Water Temperature
Use Gentle/Delicate washing
machine setting (slow agitation
and/ or reduced wash time).
Do Not Wash
Do Not Wring
Hot
Warm
Cold/Cool
Any Bleach (When Needed)
Only Non-Chlorine Bleach (When
Bleach symbols
Needed)
Do Not Bleach
Sorting laundry
It is recommended that you sort laundry into similar loads
that are washable in the same cycle.
Refer to the following chart for sorting clothes
Colors
Soil
Fabric
Lint
Whites / Lights / Darks
Heavy / Normal / Light
Delicates / Easy Care / Sturdy Cottons
Lint Producers / Lint Collectors
20
PREPARATION
Using detergent/fabric softener
Recommended detergent
Make sure to use HE (High-Efficiency) detergent for frontloading washing machines. HE detergents dissolve more
efficiently and produce fewer suds to ensure efficient
washing and rinsing. Use the correct amount of detergent as
indicated on the label of the detergent packaging.
Designed specially to use only
HE (High-Efficiency) detergent
NOTE
Only use HE detergents, since using a regular
y
detergent may produce excessive suds.
HE detergents produce fewer suds, dissolve more
y
efficiently to improve washing and rinsing performance,
and help to keep the interior of your washer clean.
Use less detergent for soft water.
y
Wipe up any spills immediately, as liquids could
y
damage the finish and the control panel of the washing
machine.
Using too much detergent can cause a build-up in
y
the tub resulting in unsatisfactory performance and
machine malfunction.
If you use a detergent that does not dissolve easily or a
y
detergent with high viscosity, it will leave a residue on
the tub, which may not rinse properly.
Loading the dispenser
The detergent dispenser drawer of the washing machine has
a dispenser compartment for each detergent type. Add the
appropriate detergents into its respective compartments.
Pull out the detergent dispenser drawer.
1
Add the appropriate detergent to its allocated
2
compartment.
- If you use a liquid detergent, check if the liquid
detergent cup is in place.
- If you use a powdered detergent, remove the liquid
detergent cup and put the powder in the main wash
detergent compartment.
Liquid chlorine
bleach
compartment
Liquid fabric
Liquid
detergent
Cup
softener
compartment
Main wash
detergent
compartment
Close the detergent dispenser drawer slowly.
3
- Slamming the detergent dispenser drawer may result in
the detergent overflowing into another compartment or
pouring into the tub earlier than programmed.
NOTE
It is normal for a small amount of water to remain in
y
the dispenser compartments at the end of the cycle.
Pre-wash
detergent
compartment
21
PREPARATION
ENGLISH
Pre-wash Detergent Compartment
Add liquid or powdered detergent to this compartment when
using the pre-wash option. Always use HE (High-Efficiency)
detergent with your washing machine.
NOTE
If liquid detergent is to be used for the main wash
y
when using the pre-wash option, the liquid detergent
cup accessory must be used in main wash dispenser
to prevent the main wash liquid detergent from being
dispensed immediately.
The amount of detergent added for the pre-wash option
y
is 1⁄2 the amount recommended for the main wash
cycle. For example, if the main wash cycle requires one
measure of detergent, add 1⁄2 measure for the pre-
wash option.
Main Wash Detergent Compartment
This compartment holds laundry detergent for the main wash
cycle, which is added to the load at the beginning of the
cycle. Always use HE (High-Efficiency) detergent with your
washing machine.
Never exceed the manufacturer’s recommendations when
adding detergent. Using too much detergent can result
in detergent buildup in clothing and the washer. Either
powdered or liquid detergent may be used.
NOTE
Liquid or powdered color-safe bleach may be added
y
to the main wash compartment with detergent of the
same type.
When using liquid detergent, make sure the liquid
y
detergent cup and insert are in place. Do not exceed
the maximum fill line.
When using powdered detergent, remove the insert
y
and liquid detergent cup from the compartment.
Powdered detergent will not dispense with the liquid
detergent cup and insert in place.
Liquid Bleach Compartment
This compartment holds liquid chlorine bleach, which will be
dispensed automatically at the proper time during the wash
cycle.
NOTE
Do not add powdered or liquid color-safe bleach to this
y
compartment.
Always follow the manufacturer’s recommendations
y
when adding bleach. Do not exceed the maximum fill
line. Using too much bleach can damage fabrics.
Never pour undiluted liquid chlorine bleach directly onto
y
the load or into the drum. Fabric damage can occur.
Fabric Softener Compartment
This compartment holds liquid fabric softener, which will be
automatically dispensed during the final rinse cycle.
NOTE
Always follow the manufacturer’s recommendations
y
when adding fabric softener. Do not exceed the
maximum fill line. Using too much fabric softener may
result in stained clothes.
Dilute concentrated fabric softeners with warm water.
y
Do not exceed the maximum fill line.
Never pour fabric softener directly onto the load or into
y
the drum.
USING YOUR WASHING MACHINE
22
USING YOUR WASHING MACHINE

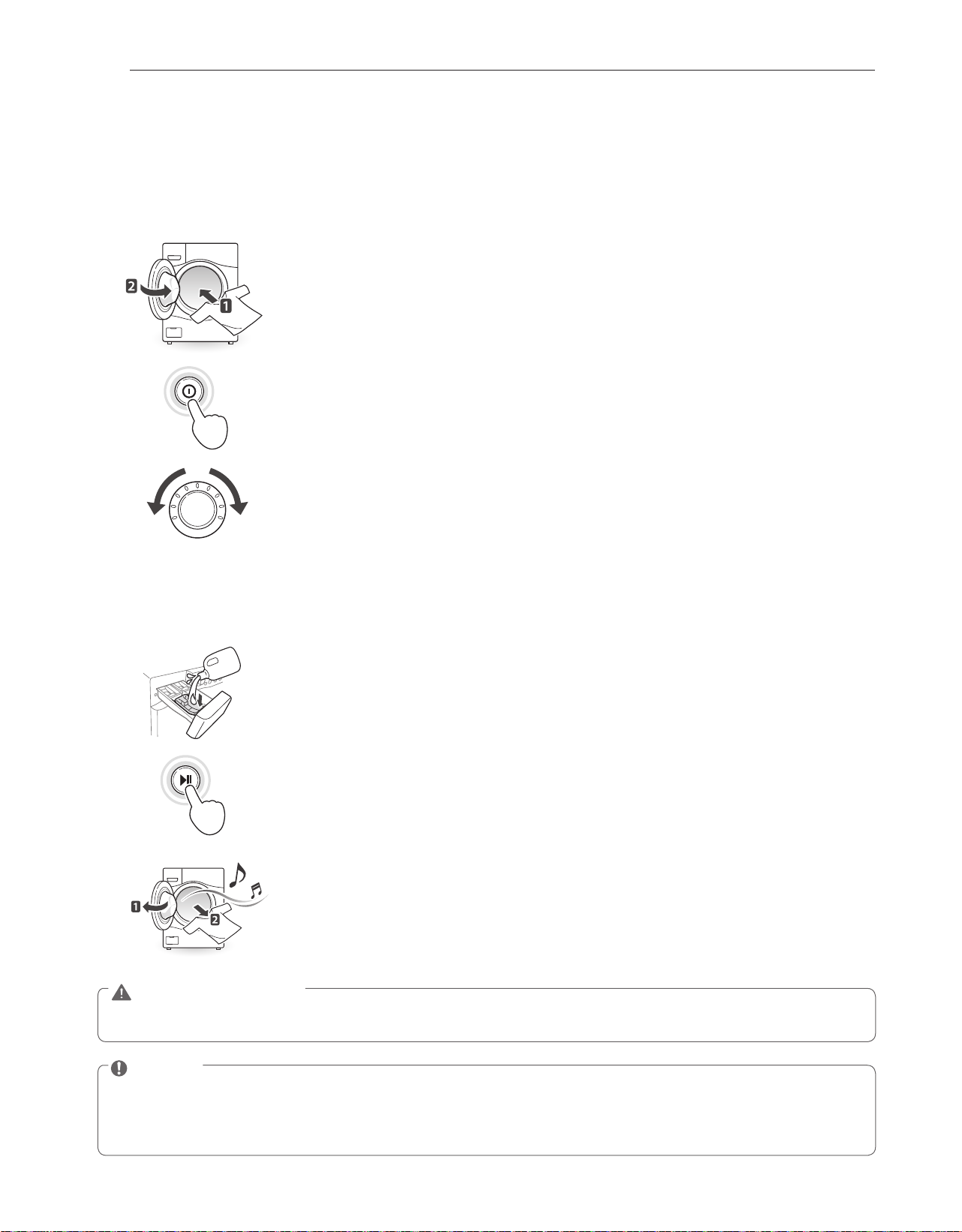

Basic operation
1
2
3
4
Load the laundry into the washing machine and close the door.
Press A.
- The lights around the cycle selector knob will illuminate and a chime will sound.
Turn
- The proper default option is automatically set according to the wash cycle. See page 23,
- See page 24,
- To change the options, press the option button and select the desired option. See page 25,
- Skip to step 4 to use the default setting without changing the options.
Add the proper amount of detergent and additions (bleach, softener) into the detergent dispenser
drawer.
- See page 20,
to the desired cycle.
B
, for more detailed default options for each cycle.
guide
Main cycle
Setting options before cycle
Using detergent/fabric softener
, for details on the wash cycles.
, for more details on options.
Cycle
, for more details on using detergent.
5
6
WARNING
To reduce the risk of fire, electric shock, or injury to persons,
y
operating this appliance.
NOTE
The front-load washing machine rotates the laundry in a way that allows it to use less water while still fully saturating your
y
clothing. It is normal to not be able to see water during the wash cycle.
If the temperature or the water level inside the machine is too high, the door locks and cannot be opened. To open the door
y
while washing, use the Rinse + SPIN feature.
Press
- The washing machine will start.
When the melody plays, the wash cycle is finished.
- When the washing cycle is finished, the door will unlock. Open the door and remove the
laundry immediately.
- Make sure to check around the door seal when taking out the finished load. Small items may
be caught in the door seal.
C
.
read the IMPORTANT SAFETY INSTRUCTIONS before
USING YOUR WASHING MACHINE
23
Cycle guide
The cycle guide below shows the options and recommended fabric types for each cycle.
CYCLE FABRIC TYPE
SANITARY Heavily soiled
DISPLAY
TIME(MIN)
99~108
underwear, work
clothes, diapers, etc.
TOWELS Towels 56~66 HOT
SMALL LOAD Normally soiled and
46~49
small loads.
BRIGHT
WHITES
BULKY/
LARGE
White Fabrics 67~77 HOT
™
Large items such as
blankets and
57 HOT
comforters
PERM.
PRESS
Dress shirts/pants,
wrinkle-free clothing,
54~63 HOT
poly/cotton blend
clothing, tablecloths
COTTON/
NORMAL
Cotton, linen, towels,
shirts, sheets, jeans,
45~57 HOT
mixed loads
HEAVY DUTY
Heavy soiled Cotton
91~116 HOT
Fabrics
DELICATES Dress shirts/blouses,
42
nylons, sheer or lacy
garments
BASIC OPTION (=DEFAULT) ADDITIONAL OPTIONS
WASH
TEMP.
EXTRA HOT
WARM
COLD
TAP COLD
HOT
WARM
COLD
TAP COLD
WARM
COLD
TAP COLD
WARM
COLD
TAP COLD
WARM
COLD
TAP COLD
WARM
COLD
TAP COLD
WARM
COLD
TAP COLD
WARM
COLD
TAP COLD
SPIN
SPEED
( )
EXTRA HIGH
HIGH
( )
( )MEDIUM
(---)LOW
(•)NO SPIN
( )
EXTRA HIGH
HIGH
)
(
(
)MEDIUM
(---)LOW
(•)NO SPIN
( )
EXTRA HIGH
HIGH
( )
( )MEDIUM
(---)LOW
(•)NO SPIN
( )
EXTRA HIGH
HIGH
( )
( )MEDIUM
(---)LOW
(•)NO SPIN
(
)MEDIUM
(---)LOW
(•)NO SPIN
HIGH
( )
)MEDIUM
(
(---)LOW
(•)NO SPIN
( )
EXTRA HIGH
HIGH
( )
( )MEDIUM
(---)LOW
(•)NO SPIN
( )
EXTRA HIGH
HIGH
( )
(
)MEDIUM
(---)LOW
(•)NO SPIN
(
)MEDIUM
(---)LOW
(•)NO SPIN
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
SOIL
LEVEL
PRE-
WASH
FRESH
CARE
EXTRA
RINSE
WATER
PLUS
= Available option
●
DELAY
STAIN
WASH
CARE
WASH™
ENGLISH
COLD
HAND WASH/
WOOL
SPEED
WASH
RINSE +
Items labeled
“hand-washable”
Lightly soiled
clothing
and small loads
Rinse and Spin 19
WARM
56
COLD
TAP COLD
15 HOT
WARM
COLD
TAP COLD
COLD
SPIN
Cycle time depends on water pressure, type and amount of load and chosen additional options.
(---)LOW
(•)NO SPIN
( )
EXTRA HIGH
HIGH
)
(
(
)MEDIUM
(---)LOW
(•)NO SPIN
( )
EXTRA HIGH
HIGH
( )
( )MEDIUM
(---)LOW
(•)NO SPIN
NORMAL
LIGHT
HEAVY
NORMAL
LIGHT
To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.
24
USING YOUR WASHING MACHINE
Main cycle
You can wash laundry items more thoroughly by selecting
the wash cycle that best suits the type of items to be
washed. Turn the
a wash cycle, the light for the corresponding wash cycle will
turn on. See page 22,
operating methods.
Reduce bacteria on laundry,
This cycle washes reduces 99.9% bacteria on laundry
through high temperature.
Sanitization Performance of Residential and
Commercial, Family Sized Clothes Washers
For towels,
This cycle is for quickly washing lightly soiled towels,
spinning at a high RPM to remove excess water.
For few items,
This cycle is for normally soiled and small loads.
to the desired cycle. When you select
B
Basic operation
, for more details on
SANITARY
Protocol P172
TOWELS
SMALL LOAD
Normal items,
Use this cycle to wash all normal items, except delicate
fabrics such as wool or silk.
NOTE
If you press
y
another cycle, the washing machine proceeds to
c
Heavy soiled items,
This cycle is for washing heavily soiled laundry though more
powerful tub rotation.
Sheer items,
This cycle is for washing lingerie or sheer and lacy clothes
which can easily be damaged.
c
and then C without selecting
A
.
HEAVY DUTY
f
Items labeled wool or hand-washable,
g
This cycle is for washing shrinkable woolen or hand-washable
items requiring delicate care. Only wash woolen items that
are labeled machine washable or hand-washable.
For white fabrics,
This cycle is for washing white items only.
Blankets or bulky items,
This cycle is for washing blankets or bulky items.
Wrinkle free items,
This cycle is for washing items such as wrinkle-free clothes
or tablecloths to minimize wrinkles.
BRIGHT WHITES™
b
d
NOTE
Laundry weight should be less than 8 pound (3.6 kg) to
y
prevent damage to the fabric.
Use only natural or wool-safe detergent harmless to
y
fabrics and load 1/2 of the normal amount of detergent.
The HAND WASH/WOOL
y
tumble rotation angle and low speed spin for the
ultimate fabric care.
The wool wash cycle of this machine has been
approved by Woolmark for the washing of
machine washable Woolmark products provided
that the products are washed according to the
instructions on the garment label and those
issued by the manufacturer of this washing
machine, M0807
cycle uses a gentle
25
USING YOUR WASHING MACHINE
ENGLISH
Quick wash,
Use the Speed Wash cycle to quickly wash lightly soiled
clothing and small load. For high wash and rinse efficiency,
it is recommended to wash small loads of 2-3 lightly soiled
garments.
NOTE
Use a little detergent in this cycle. If you want more
y
rinsing, you can add extra rinse by using the option
button.
Rinse, drain and spin only,
Use this cycle to rinse detergent from load.
h
RINSE+SPIN
Cycle setting buttons
Each cycle has preset settings that are selected
automatically. You may also customize the settings using the
cycle setting buttons. Press the button for that option to view
and select other settings.
The washer automatically adjusts the water level for the
type and size of wash load for best results and maximum
efficiency. It may seem there is no water inside the drum in
some cycles, but this is normal.
NOTE
To protect your garments, not every wash/rinse
y
temperature, spin speed, soil level, or option is available
with every cycle. See the Cycle Guide for details.
Setting options before cycle
You can select and add the desired optional functions before
you start the washing machine.
Setting the water temperature,
WASH TEMP.
Set the water temperature for the wash cycle. Set the
appropriate temperature, as specified in the fabric care label.
Press A and turn B to the desired cycle.
1
Press repeatedly to select the desired water
2
temperature:
- When an optional item is selected, an indication light for
the corresponding optional item turns on.
Press the desired option button to use the other options.
3
- Skip to step 4 to use the default setting without
changing the options.
Press C.
4
NOTE
Cold rinses use less energy.
y
Your washer features a heating element to boost the
y
hot water temperature for Extra Hot settings. This
provides improved wash performance at normal water
heater settings.
Select the water temperature suitable for the type of
y
load you are washing. Follow the fabric care label for
best results.
26
USING YOUR WASHING MACHINE
Setting spin speed, SPIN SPEED
You can set the desired spin speed.
Use this feature properly according to the characteristics of
the load.
Press A and turn B to the desired cycle.
1
Press repeatedly to select the desired spin speed.
2
- When an optional item is selected, an indication light for
the corresponding optional item turns on.
Press the desired option to use the other options.
3
- Skip to step 4 to use the default setting without
changing the options.
Press C.
4
NOTE
The Spin Speed button also activates the Drain & Spin
y
cycle to drain the tub and spin clothes; for example,
if you want to remove clothes before the cycle has
ended.
Prewashing, PRE-WASH
Pre-wash for 16 minutes when clothes are covered in dirt or
dust. This feature is suitable for heavily soiled items.
Press A and turn B to the desired cycle.
1
Press .
2
-
3 Press the desired option to use the other options.
- Skip to step 4 to use the default setting without
changing the options.
Press C.
4
light will turn on.
Tumbles clothes to prevent wrinkle,
FRESH CARE
Use this function when you are not able to unload your
clothes, soon after the wash cycle ends.
Press A and turn B to the desired cycle.
1
Setting soil level of laundry,
SOIL LEVEL
You can wash your laundry more thoroughly by setting the
proper soil level on the washing machine.
Press A and turn B to the desired cycle.
1
Press repeatedly to select a soil level.
2
- When an optional item is selected, an indication light for
the corresponding optional item turns on.
Press the desired option to use the other options.
3
- Skip to step 4 to use the default setting without
changing the options.
Press C.
4
NOTE
This feature needs more time for heavily soiled loads or
y
less time for lightly soiled loads.
Press .
2
-
3 Press the desired option to use the other options.
- Skip to step 4 to use the default setting without
changing the options.
Press C.
4
NOTE
This function provides periodic tumbling for up to about
y
8 hours to prevent wrinkles. If you press the START/
PAUSE or ON/ OFF button, you can unload your laundry
at anytime.
light will turn on.
27
USING YOUR WASHING MACHINE
ENGLISH
Adding extra rinse cycle, EXTRA RINSE
You can add an extra rinse cycle to the default rinse cycle.
Press A and turn B to the desired cycle.
1
Press .
2
-
Press the desired option to use the other options.
3
- Skip to step 4 to use the default setting without
changing the options.
Press C.
4
light will turn on.
Adding extra water to the washing and
rinse cycle, WATER PLUS
You can rinse the load more thoroughly by adding extra water
to the washing and rinse cycle.
Press A and turn B to the desired cycle.
1
Press .
2
-
Press the desired option button to use the other options.
3
- Skip to step 4 to use the default setting without
changing the options.
Press
4
light will turn on.
C
Presetting the start time, DELAY WASH
You can set the desired start time.
Press A and turn B to the desired cycle.
1
Press the desired option to use the other options.
2
Press repeatedly to select the desired start
3
time.
-
- The set start time appears on the display panel.
- Each press of the button increases the delay time by
one hour, up to 19 hours.
Press C.
4
light will turn on.
Improved stain treatment, STAIN CARE
Use this option for heavily soiled loads that need improved
stain treatment. When STAIN CARE is selected, the water
temperature for the selected cycle will begin as warm water
to help prevent the setting of certain types of stains. Then
as the cycle progresses, the water will be heated to higher
temperatures to help remove stains that require treatment
at higher temperatures. This option is designed for optimum
stain removal.
Press A and turn B to the desired cycle.
1
Press . The washer will automatically adjust the cycle
2
settings.
Set any other desired options.
3
Press C.
4
NOTE
yIf STAIN CARE is selected with the SANITARY cycle,
the cycle will begin with very hot water since that is
default for that cycle and cannot be changed.
USING YOUR WASHING MACHINE
28
Saving energy, COLDWASH
Adding the COLDWASH™ option reduces energy usage and
provides the same washing performance as a warm water
wash.
By using 6 different washing motion (Tumbling, Rolling,
Stepping, Scrubbing, Swing, Filtration), fabrics get the
cleaning benefits, without the energy usage.
Press A and turn B to the desired cycle.
1
Press
2
settings.
Set any other desired options.
3
Press C.
4
NOTE
When you select the COLDWASH™ option, wash time
y
will be increased up to 10 minutes.
For high wash efficiency, it is recommended to use
y
less than 8 pounds.
. The washer will automatically adjust the cycle
™
Tuning on/off melody and button tones,
SIGNAL ON/OFF
The washing machine plays a melody when the wash cycle
is finished. The buttons make a sound each time a button is
pressed. The melody and button tones can be turned on and
off as desired.
To enable signal off
To enable child lock
Press and hold for 3 seconds during the wash
cycle.
- When the CHILD LOCK is enabled, a N message and the
remaining wash time are displayed, in turn, on the display
panel of the washing machine.
To disable child lock
(When the CHILD LOCK is activated.)
Press and hold
cycle.
NOTE
CHILD LOCK lasts after the end of cycle. If you want to
y
deactivate this function, Press and hold the PREWASH
button for 3 seconds.
for 3 seconds during the wash
Detecting weight of load, LOAD SIZE
Loading the washing machine and pressing the start button
triggers the machine to detect the weight of the load, and
displays the load size icon
seconds. If the load size icon
the weight of the load again during the cycle. This feature
will help you set the detergent amount so as to wash clothes
efficiently based on the detected load size.
Press and hold
- The load size icon
on the display panel for 10
is not on, you can check
for 3 seconds during the cycle.
appears on the display.
Press and hold for 3 seconds during the wash
cycle.
- Once signal OFF is set, the signal beeps once.
To enable signal on
(When the-end-of-cycle signal is disabled)
Press and hold
cycle.
- Once signal ON is set, the beeper beeps once.
for 3 seconds during the wash
Setting options during cycle
You can add the desired options during the wash cycle.
Button lock feature, CHILD LOCK
You can lock the washing machine to prevent children or
others from changing the cycle settings by pressing the
buttons during the cycle.
NOTE
If the washer has detected a small load size, the display
y
may only show one lighted bar. Only a small amount
of detergent should be used, because the amount of
clothing and the quantity of water that will be used is
small.
The load detection routine only works with dry clothes.
y
Since the detection system is detecting the WEIGHT of
the load, it will be affected by unusually heavy articles
in the load. For example, a garment that is already wet
that is loaded with other items will cause the LOAD
SIZE reading to be inaccurate.
MAINTENANCE
29
MAINTENANCE
Care
Care after wash
After the cycle is finished, wipe the door and the inside of
the door seal to remove any moisture. Leave the door open
to dry the washer tub interior. Wipe the body of the washing
machine with a dry cloth to remove any moisture.
WARNING
Unplug the washer before cleaning to avoid the risk of
y
electric shock.
serious injury, fire, electric shock or death.
Never use harsh chemicals, abrasive cleaners, or
y
solvents to clean the washer.
Do not use volatile substances (benzene, paint thinner,
y
alcohol, acetone, etc.) or detergents with strong
chemical components when cleaning the washing
machine.
to the machine, or it may cause a fire.
Failure to follow this warning can cause
They will damage the finish.
Doing so may cause discoloration or damage
Press A to turn off the washing machine and pull out
8
the power plug.
Dry the tub interior of the washer tub with a soft cloth,
9
and close the door.
Press down hard on the disengage button and pull out
10
the detergent dispenser drawer.
Drain the water from the detergent dispenser drawer
11
and dry out each compartment.
Store the washing machine in an upright position.
12
ENGLISH
Care in cold climates
Storing the washing machine for an extended period of time
Follow the instructions for storing the washing machine
if you do not use it for an extended period of time in cold
climates below freezing point.
Turn off the faucets connected with the water lines.
1
Unscrew the water lines from back of the washer.
2
Empty any water out of the water lines.
3
Press A.
4
Open the door and add 1 gallon (3.8 L) of nontoxic
5
recreational vehicle (RV) antifreeze to the empty washer
tub. Close the door.
NOTE
To remove the antifreeze after storing the washing
y
machine, add detergent to the dispenser, and run one
cycle. Do not load any laundry at this time.
When the water line is frozen
Turn off the faucets connected with the water lines.
1
Pour hot water on the frozen faucets to thaw the water
2
lines and pull them out.
Immerse the water lines in hot water to thaw them.
3
Connect the water lines with the water inlets of the
4
washing machine and faucets.
- See page 14,
Turn on the faucets.
5
Press A.
6
Turn
7
8
B
Press C.
- Verify the water fills properly.
Connecting the water lines
to
RINSE + SPIN.
for details.
Press for draining and spinning.
6
Press C.
7
- Drain the water from the washing machine for 1 minute.
Not all of the RV antifreeze will be expelled.
30
MAINTENANCE
When the Drain Line is Frozen
Pour hot water in the washer tub and close the door.
1
- Leave it for 10 minutes.
Press A after 10 minutes.
2
Press for draining and spinning.
3
Press C.
4
- Check if the water drains.
Cleaning
Periodically clean the washing machine to maintain its
performance and to prevent malfunction.
Clean your the drum, TUB CLEAN
Using the washing machine in a humid space for a long
period of time may lead to a buildup of black mold and germs
in the air inside the washer tub and affect your health. If you
clean the washer tub regularly on a monthly basis using TUB
CLEAN it will keep the washer tub clean for hygienic use.
Add tub cleaner or lime scale remover into the detergent
1
dispenser drawer.
- Do not exceed the maximum detergent limit line when
you add it. Detergent may remain in the washer tub
after cleaning.
-
When you use liquid chlorine bleach,
liquid chlorine bleach compartment.
-
When you use a powdered cleaner,
detergent cup and add it into the main wash detergent
compartment.
-
When you use cleaning tablets,
the washer tub. (Do not add tablet cleaner to the drawer.)
load it into the
pull out the liquid
place them directly into
Press A.
2
Press and hold for 3 seconds to select TUB
3
CLEAN.
- O message appears in the display.
- The indication light for TUB CLEAN turns on.
Press C.
4
NOTE
Never load laundry while using TUB CLEAN. The
y
laundry may damage or become contaminated. Make
sure to clean the washer tub when it is empty.
It is recommended to leave the door open after
y
finishing the laundry to keep the tub clean.
It is recommended that TUB CLEAN should be
y
repeated monthly.
If mildew or musty smell already exists, run TUB
y
CLEAN for 3 consecutive weeks.
Safely and conveniently secure the door slightly ajar
y
with a magnetic door plunger. This will promote air
circulation and allow the interior of the machine to dry.
Loading...
