Product Features

The Turbo Drum DD washing machine does not operate with the lid open.

If the lid is opened during wash, rinse and spin cycles, the machine will stop automatically.

Please close the door gently. Closing the door in an agressive manner can cause damage and or injury.

The advanced Brushless DC motor rotates the Tub directly without belt and clutch, thereby reducing the noise of the washer.

The washing machine adjusts to optimum speed according to the type of clothing in the load.

Low Noise Direct Drive System

It is the technology to transmit the anomalies to the service center when there is a problem with the washer. It provides the service that gives faith and trust to the customers through precise and fast analysis.

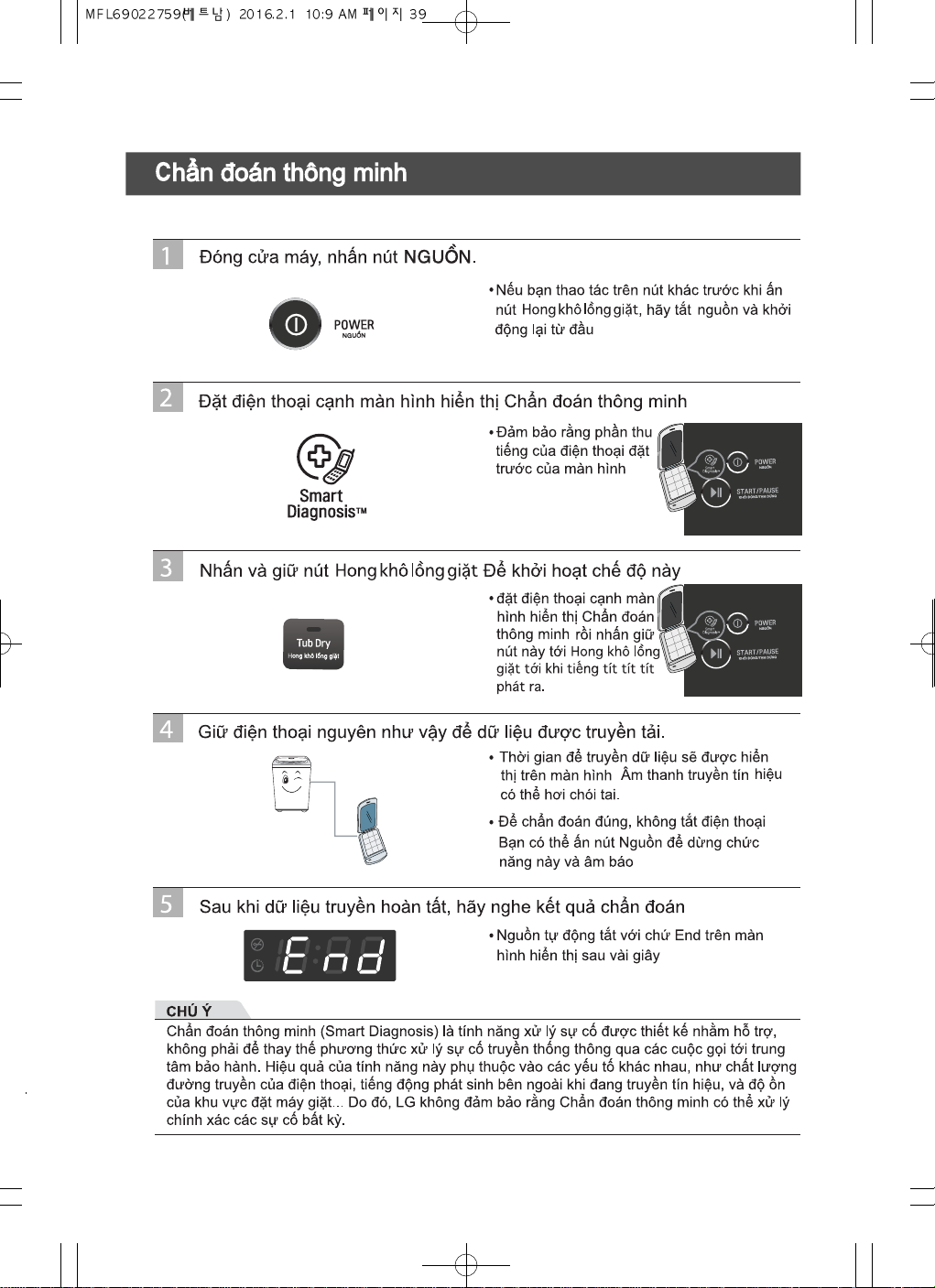

SmartDiagnosis

New DD type washing with fabric care

Fast revolution accelerates

detergent dissolving and

soaks thoroughly into the

clothes.

Laundry blade

revolution to either

side in turn to remove

stains in the laundry.

Fast revolution of

tub creates the

current of water.

Smart Drum achieved by DD Motor Technology

Smart Drum with Drum Washing Type is more hygienic and cleaner washer tub that protects the fabric and prevents damages.

Automatic heating system

Using heating type laundry like drum type laundry machine, it has a uniform laundry performance and sterilizing effect even with cold water.

Tub rotates to either

side to balance and

unwind laundry.

START

WASHING

AUTO

POWER

OFF

SENSING

Laundry Sensor

Water Level Sensor

SETTING

Optimum Washing Condition

Normal logic control

A built-in load sensor automatically detects and measures the laundry load and amicroprocessor optimizes washing conditions such as ideal water consumption and washing time.

Advanced technology is built into the Electronic Control System which ensures the best washing result.

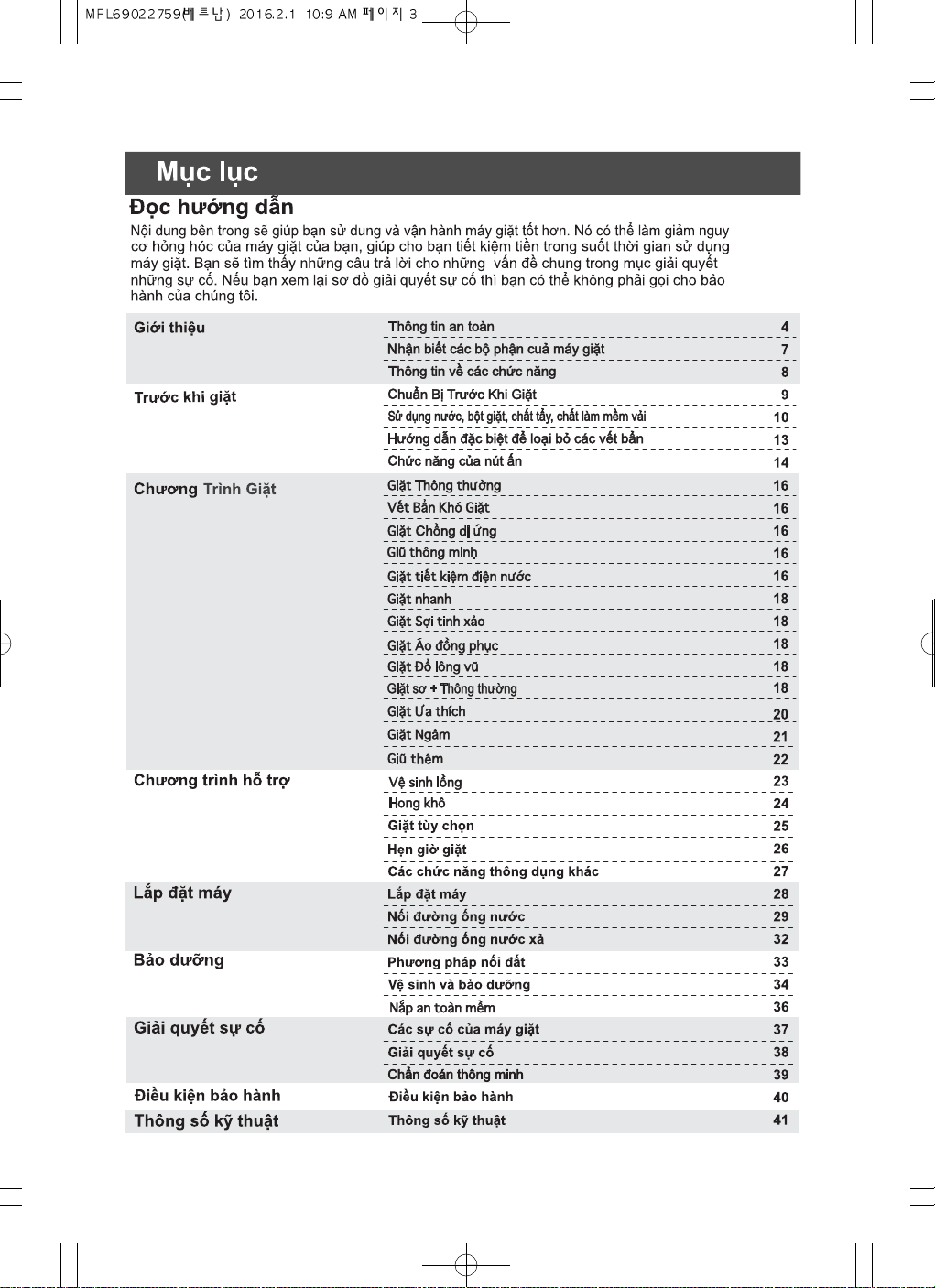

Contents

Introduction

Before Starting to Wash

Washing Course

Additional Function Course

Installation

Care and Maintenance

Troubleshooting

Specification

Terms of Warranty

Safety Information 4 Identification of Parts 7 Function Information 8 Preparation Before Washing 9 Use of Water, Dispenser Drawer, Detergent, Bleach and Softener

10 Special Guide for Stain Removal 13 Function of each Button 14 Normal Wash 16 Stain Care Wash 16 Allergy Care Wash 16 Smart Rinse 16 Eco Wash 16 Quick Wash 18 Delicates Wash 18 School Care Wash 18 Duvet Wash 18 Normal Wash 18 Favorite Wash 20 Soak Wash 21 Intensive Rinse 22 Tub Clean 23 Air Dry 24 Option Washing 25 Time Delay (RESERVATION) Wash 26 Other Useful Functions 27 Placing and Leveling 28 Connecting Water Supply Hose 29 Connecting Drain Hose 32 Grounding Method 33 Cleaning and Maintenance 34 Soft Safety Door 36 Common washing problems 37 Troubleshooting 38 SmartDiagnosis

39 Terms of Warranty 40 Specification 41

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Pre Wash+Pre Wash+

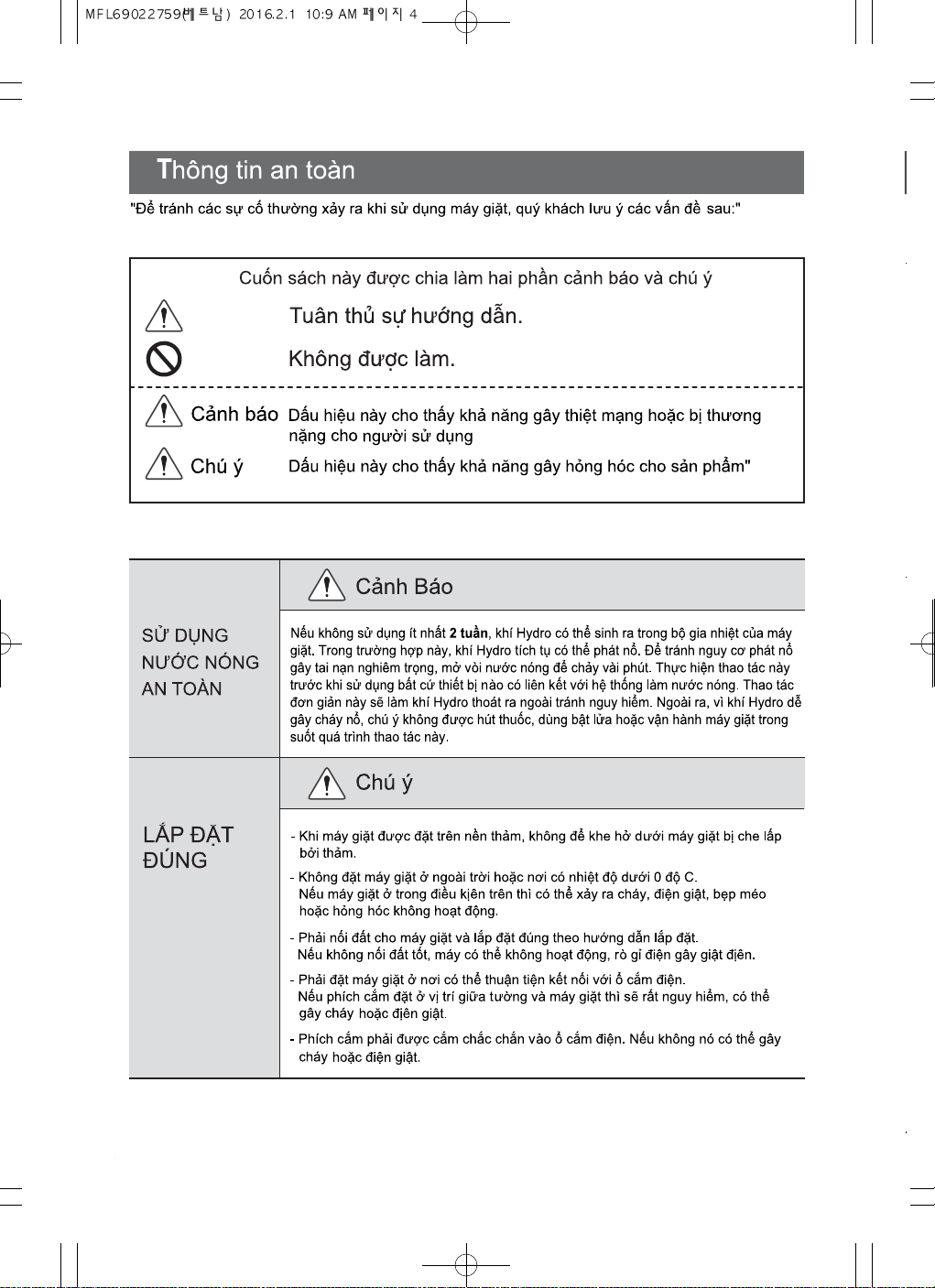

Safety Information

Read carefully and thoroughly through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product.

This booklet is divided into 2 parts : Warning and Caution.

: This is a warning sign specifying user’s applications which might

be dangerous.

: This is a sign specifying ‘Strictly Forbidden’ applications.

WARNING

: Failure to comply with the instructions under this

sign may result in major physical injuries or death.

CAUTION

: Failure to comply with the instructions under this

sign may result in minor physical injuries or damages to the product.

WARNING

• Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances. If the HOT water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all Hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the HOT water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

• The base opening must not be obstructed by carpeting when the washing machine is installed on a

carpeted floor.

• Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.

If the product is exposed to such conditions, electric shock, fire, break down or deformation may occur.

• Properly ground washer to conform with all governing codes and ordinances. Follow details in

Installation Instructions.

If not grounded properly, break down and leakage of electricity may occur, which may cause electric shock.

• Must be positioned so that the plug is accessible.

If the plug is placed between the wall and the machine, it may get damaged, possibly causing fire or electric shock.

• Make sure the plug is completely pushed into the outlet.

Failure to do so may cause electric shock and fire due to overheating.

WATER HEATER SAFETY

CAUTION

PROPER INSTALLATION

Safety Information

WARNING

• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc.

Operating with such materials around the machine may trigger explosion or fire.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Young Children should be supervised to ensure that they do not play with appliance.

There is potential danger that children might drown in the tub.

Do not touch the power plug with a wet hand.

It will cause electric shock

Do not put your hand, foot or anything under the washing machine while the washing machine is in operation.

There is a rotating mechanism under the machine, so you could be injured.

• Make sure that drainage is working properly.

If water is not drained properly, your floor may get flooded. Flooded floors may induce electricity leakage, further resulting in electric shock or fire.

• If, during spinning, opening the lid does not stop the tub within about 15 seconds, immediately discontinue operating the machine.

Call for repair. A machine that spins with its door open may cause injuries.

Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the lid.

Even slow rotation can cause injury.

Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

Operating with a damaged plug may cause electric shock.

Do not use water hotter than 50°C.

Use of excessively hot water may cause damage to fabrics or cause leakage of water.

• Use this appliance only for its intended purpose as described in this Owner’s Manual.

• The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer’s wash and care instructions.

• To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

YOUR LAUNDRY AREA

CAUTION

WHEN USING THE WASHER

NOTE : Pressing Circuit button to turn off does NOT

disconnect the appliance from the power supply.

Safety Information

WARNING

Do not use a plug socket and wiring equipment for more than their rated capacity.

Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts.

Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover.

Mixing different chemicals can produce toxic gases which may cause death.

Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, drycleaning solvents, kerosene, etc). Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.

It may ignite or explode.

• Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they may need replacement after 5years.

• When the air temperature is high and the water temperature is low, condensation may occur and thus wet the floor.

• Wipe off dirt or dust on the contacts of the power plug.

Using unclean power plug may cause fire.

• Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.

Children may be trapped and suffocated if the lid is left intact.

Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner’s Manual, or in published user-repair instructions that you understand and have the skills to carry out.

Operating the machine with improperly replaced parts may be a cause for fire or electric shock.

Do not tamper with controls.

It may lead to electric shock, fire , break down, deformation.

Do not yank the power cord in an attempt to disconnect the power plug. Securely hold the power plug to unplug the machine.

Failure to observe these instructions may cause electric shock or fire due to short-circuit .

When you are cleaning the washing machine, do not apply water directly to any part of the washing machine.

It will cause short circuit and electric shock.

WHEN USING THE WASHER

CAUTION

WHEN NOT IN USE

Identification of Parts

DRAIN HOSE for non pump model

WATER SUPPLY HOSE Make sure the water does not leak.

JET SPRAY CAP

FUNCTION SELECTOR

TUB

BASE

ADJUSTABLE LEGS Use to level the washing machine for correct balance & spin operation.

DRAIN HOSE for pump model Check if the drain hose is hung up before operating the washing machine.

DOOR SWITCH

POWER PLUG If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard.

START/PAUSE BUTTON Use to start or stop the washing machine temporarily.

POWDER AND LIQUID DETERGENT BOX

SOFT SAFETY DOOR

TEMPERED GLASS

BLEACH DISPENSER

Body

“ ” Part can be different according to the model.

NOTE

* Picture might be different by model.

Accessories

Drain hose Anti-rat cover (option)

Water supply hoses

One hose

Quick Wash

Soak Wash

Time Delay (RESERVATION) Wash

Option Wash

Favorite Wash

This setting allows you to store your Favorite wash conditions in the normal cycle memory. (refer to page 20)

Quick

Wash

can be selected to wash lightly soiled clothes of less than 3.0 kg in a short time. (refer to page 18)

Soak Wash can be selected to wash heavily soiled laundry by soaking in water for some time to remove dirt and grime. (refer to page 21)

Intensive Rinse

Use Intensive Rinse to remove detergents more effectively. (refer to page 22)

Time Delay(RESERVATION) Wash is used to delay the finishing time of the operation. The number of hours to be delayed can be set by the user accordingly. (refer to page 26)

When the user needs only Spin, Rinse/Spin, Rinse, Wash/Rinse, Wash, Wash/Rinse/Spin, Soak/Wash/Rinse/Spin (refer to page 25)

Tub Clean

Use this Course to clean the inside of washing machine especially Inner tub & Outer tub . (refer to page 23)

Washing according to the condition of laundry

Other washing method

Duvet Wash

Use for blanket or duvet with (hand wash) sign.

(refer to page 18)

Function Information

Our machine provides various washing methods which suits various conditions and types of laundry.

Normal Wash

Smart Rinse

Delicates Wash

Use this Course for everyday washing e.g. sheets, towels, T-shirts.

(refer to page 16)

Eco Wash

To save water and detergent for less than 7kg of laundry that is not too dirty

. (refer to page 16)

Stain Care Wash

Washing is the best temperature (40 degrees) by heating the clean clothes when you want to use.

(refer to page 16)

Allergy Care Wash

This cycle is a powerful, high temperature cycle designed specifically to reduce certain allergens.

(refer to page 16)

School Care Wash

Use this Course to wash School Uniform.

(refer to page 18)

Use this Course to get better rising performance. (refer to page 16)

Wool clothes (lingerie, wool, etc.) which may be easily damaged can be washed. (refer to page 18) The fibers of machine washable woolens have been specifically modified to prevent felting when they are machine washed. Most handknitted garments are not made of machine washable wool and we recommend that you hand wash them

• Before washing your woolens check the care label for the washing instructions.

• When washing woolens use a mild Detergent recommended for washing wool.

• Hand washed woolens may be spun in a washing machine to reduce the time they take to dry.

• To dry woolens lay down them flat on a towel and pat into shape. Dry woolens out of direct sunlight. (The heat and tumble action of a dryer may cause shrinkage or felting of woolen garments.) Some wool underlays and sheepskin products can be washed in a washing machine but may cause pump blockages. (Ensure that the whole article is suitable for machine washing and not just the backing material.) You may wish to handwash these articles and place them in the machine to spin dry.

Different types of laundry washing

Normal Wash

Pre Wash+

Washing laundry with Normal cycle that pretreats immediate stain without hand-wash. i.e. Necessary for clothes which could be smelled badly without prompt laundry. (refer to page 18)

Pre Wash+

Prepar ation Before Washing

• Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins, and keys can damage both your washer and your clothes.

• Mend any torn garments or loose buttons. Tears or holes may become larger during washing.

• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.

• Pretreat any dirt and stains.

• Make sure the clothes are washable in water.

• Check the washing instructions.

• Remove tissue in pockets.

To get the best results, different fabrics need to be washed in different ways.

• SOIL (Heavy, Normal, Light)

Separate clothes according to the type and amount of soil.

• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.

• LINT (Lint producers, Collectors) Separate lint producers and lint collectors. Lint Producers Terry cloth, Chenille, Towels, Nappies, Diapers Lint Collectors Synthetics, Corduroy, Permanent Press, Socks

WIRE

Sorting

Check before Loading

* Look for a care label on your clothes. This will tell you about the fabric content of your garment

and how it should be washed. Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.

Care Labels

CAUTION

Long laundry items

Use nylon nets for long, DELICATE items. For laundry with long strings or long length, a net will prevent tangling during washing.

Fasten zippers, hook, and strings to make sure that these items don't

snag on other clothes.

Nylon net is not supplied by LG.

Light and Large-sized clothing

Clothes like downs and woollens are light weight, large and float easily. Use a nylon net and wash them in a small amount of water. If the laundry floats during the wash cycle, it may become damaged. Use dissolved Detergent to prevent the Detergent from clumping.

Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).

Load Size

The WATER LEVEL should just cover the clothes. Adjust the load size accordingly. Loosely load clothes no higher than the top row of holes in the washer tub. To add items after washer has started, press Start button and submerge additional items. Close the lid and press Start button again to restart.

Do not wash or spin any item labeled or known to be water-proof or water-resistant, even if the product care label on the item permits machine washing. Failure to follow these instructions could result in severe damage to

your laundry, your washer and/or property damage as a result of abnormal vibration of the washer.

- Examples of water-proof or water-resistant items include certain mattress pads, mattress covers, rain gear, camping gear, skiing apparel , outdoor gear and similar items.

• Use ‘PreWash+Normal’ cycle for very soiled clothes. In case of heavily soiled clothes, pretreatment may require before the cycle.

• Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer. Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.

• Use a pretreat soil and stain remover. Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove. (For

more detail refer to page13)

Pretreatment on stains or heavy soil

WARNING

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids. No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils). Doing so can result in death, explosion, or fire.

Use of W at er, Dispenser Dra wer, Det erg ent, Bleac h and Sof tener

• The machine sets the appropriate temperature automatically according to the wash Course.

• The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of:

- HOT 49~60°C…(120-140˚F) White items, diapers, underclothing and heavily soiled, colorfast items.

- WARM 29~40°C…(85-105˚F) Most items

- COLD* 18~24°C…(65-75˚F) Only very bright colors with light soil.

• When washing in COLD water additional steps may be needed:

- Adjust Detergent amount and pre-dissolve Detergent in WARM water

- Pretreat spots and stains

- Soak heavily soiled items

- Use appropriate bleach

* Temperature below 18°C…(65˚F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.

In addition, Detergent manufactures and care labels define COLD water as 26~29°C…(80-85˚F). If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.

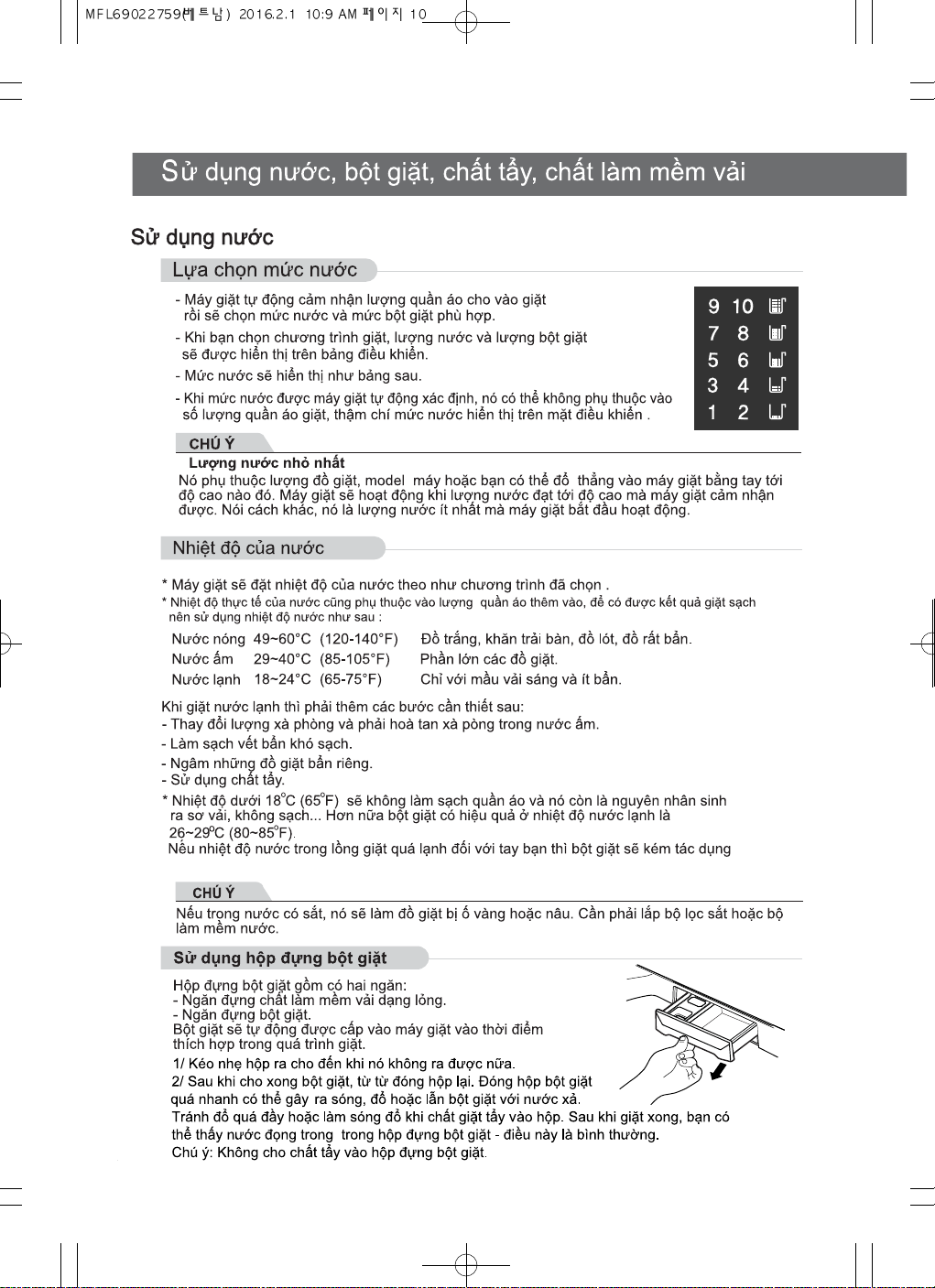

Water Temperature

Using Water

Using Dispenser Drawer’

• This machine detects the quantity of laundry automatically, then sets the Water Level and proper amount of Detergent.

• When you select a wash Course, the Water Level will be shown on the control panel.

• The following table shows the amount of water.

• When the Water Level is automatically detected, it may differ depending on the quantity of laundry even though the same Water Level is indicated on the control panel.

Amount of WATER LEVEL

Using the Dispenser Drawer

NOTE

If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.

NOTE

[ Minimum water amount ]

It depends on laundry load and washer model. Or manually you can pour a certain amount water into tub directly to some height. That’s because if water level reaches to the some height sensed by washer itself, washer automatically operates. In other words, it is needed to pour water to the point when washer starts operating.

The dispenser drawer contains 2 compartments:

• Liquid Fabric Softener

• Liquid or Powder Low-Sudsing, High-Efficiency Detergent

The dispenser automatically dispenses additives at the proper time in the wash cycle.

1. Slowly open the dispenser drawer by pulling the drawer out until it stops.

2. After adding laundry products, slowly close the dispenser drawer. Closing the

drawer too quickly could result in early dispensing of additives.

• Avoid overfilling or splashing when adding laundry products to the dispenser. Doing so could result in early dispensing of laundry products.

At the end of the cycle, you may see water in the compartments. This is part of the normal operation of the washer.

NOTE : Do not use bleach in the dispenser drawer.

How much Detergent

The correct amount of Detergent will vary depending on the amount of soil in your clothes (Jeans and work clothes may need more Detergent, while bath towels usually need less.). For liquid and concentrated Detergents, follow the recommendations of the Detergent manufacturer.

Note: To check you are using the correct amount of Detergent, lift the lid of your machine about halfway through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough Detergent has been used; soil and lint can settle back on the clothes or the washing machine. If excess Detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental pollution, so use it accordingly.

Add measured detergent to the detergent compartment of the dispenser drawer.

Detergent is flushed through the dispenser at the beginning of the wash phase. Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.

Avoid using too much detergent in your washer, as it can lead to oversudsing and detergent residue being left on the clothes.

Adding Detergent

Using Detergent

Detergent

Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems. Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.

Choosing the right Detergent

We recommend the use of domestic Detergent, (powder, liquid or concentrated). Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens remember to use Detergent suitable for washing woolens.

Attention

Using liquid detergent without diluting, or leaving laundry for a long time after pouring diluted liquid detergent into the tub might cause damage, bleaching or discoloration of cloth.

Note : Using Liquid detergent

- Dilute Liquid detergent with water and pour into the tub, start the cycle.

- Delay wash course is not available if you use liquid detergent.

Use of W at er, Dispenser Dra wer, Det erg ent, Bleac h and Sof tener

Using Fabric Softener

If you wish to use fabric softener we recommend

Attention

Do not mix with Detergent or bleach. Never pour fabric softener directly on clothes. It may stain them. Do not stop the washer during the first spin for timely dispensing. Option washing is not designed to be used with fabric softener dispenser.

If desired, pour the recommended amount of liquid fabric softener into the right-hand compartment.

Use only liquid fabric softener. Dilute with water to the maximum fill line.

• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric

softener, which could stain clothes. NOTE : Do not pour fabric softener directly on the

wash load. It may stain the clothes.

Scrud(Waxy Build up)

Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into contact with Detergent. This build-up is not brought about by a fault in the machine.

If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant smell in your washer.

• Using fabric softener sparingly.

• When filling the dispenser, do not splash or overfill.

• Clean dispenser as soon as the cycle is finished.

• Clean your machine regularly. (refer to page 23 or 34)

• Cold water washing increases the chance of this build-up occurring. We recommend a regular WARM or HOT wash e.g. every 5th wash should be at least a warm one.

• Fabric softener of thinner consistency is less likely to leave residue on the dispenser and contribute to a build-up.

Bleach dispenser

• Check clothing care label for special instructions and separate the

laundry to be bleached

• Dilute liquid chlorine bleach.

• Measure the recommended amount of liquid bleach carefully

following instructions on the bottle.

• Before starting the washer, pour measured amount of bleach directly

into bleach dispenser. Avoid splashing or overfilling. Powdered bleach should be mixed with water before pouring.

Using Liquid Bleach

NOTE

Never pour undiluted liquid bleach directly onto clothes or into the wash basket. This may cause change of color or damage the laundry. Do not pour powdered bleach into bleach dispenser.

Special Guide for Stain Removal

For successful stain removal:

• Remove stains promptly.

• Use ‘PreWash+Normal’ cycle for very soiled clothes. In case of heavily soiled clothes, pretreatment may require before the cycle.

• Determine the kind of stain, then follow the recommended treatment in the stain removal chart below.

• To pretreat stains, use a prewash product, liquid Detergent, or a paste made from granular Detergent and water.

• Use COLD water on unknown stains because HOT water can set stains.

• Check care label instructions for treatments to avoid on specific fabrics.

• Check for colorfastness by testing stain remover on an inside seam.

• Rinse and wash items after stain removal.

Follow fabric care

label instructions

WARNING

TREATMENT

Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death. To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:

• Read and comply with all instructions on stain removal products.

• Keep stain removal products in their original labeled containers and out of children’s reach.

• Thoroughly wash any utensil used.

• Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.

• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.

• Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

Stain Removal

STAIN

Adhesive tape, chewing gum, rubber cement

Baby formula, dairy products, egg Beverages (coffee, tea, soda, juice,

alcoholic beverages) Blood

Candle wax, crayon

Chocolate Collar or cuff soil, cosmetics Dye transfer on white fabric Grass

Grease, oil, tar (butter, fats, salad dressing, cooking oils, car grease, motor oils)

Ink

Mildew, scorch

Mud Mustard, tomato Nail polish

Paint, varnish

Rust, brown or yellow discoloration

Shoe polish

Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or nonflammable dry cleaning fluid.

Use product containing enzymes to pretreat or soak stains. Pretreat stain. Wash using COLD water and bleach safe for fabric.

Rinse with COLD water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using bleach safe for fabric.

Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.

Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric. Pretreat with prewash stain remover or rub with bar soap. Use packaged color remover. Wash using bleach safe for fabric. Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric. Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply

nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse throughly. Wash using hottest water safe for fabric.

Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol or nonflammable dry cleaning fluid.

Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water before washing. Badly mildewed fabrics may be permanently damaged.

Brush off dry mud. Pretreat or soak with product containing enzymes. Pretreat with prewash stain remover. Wash using bleach safe for fabric. May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.

Repeat, replacing paper towels frequently. Do not use on acetate fabrics. WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed,

OIL BASED AND VARNISH : Use solvent recommended on can label. Rinse throughly before washing. For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and

nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration. LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric.

Pretreat with prewash stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash using bleach safe for fabric.

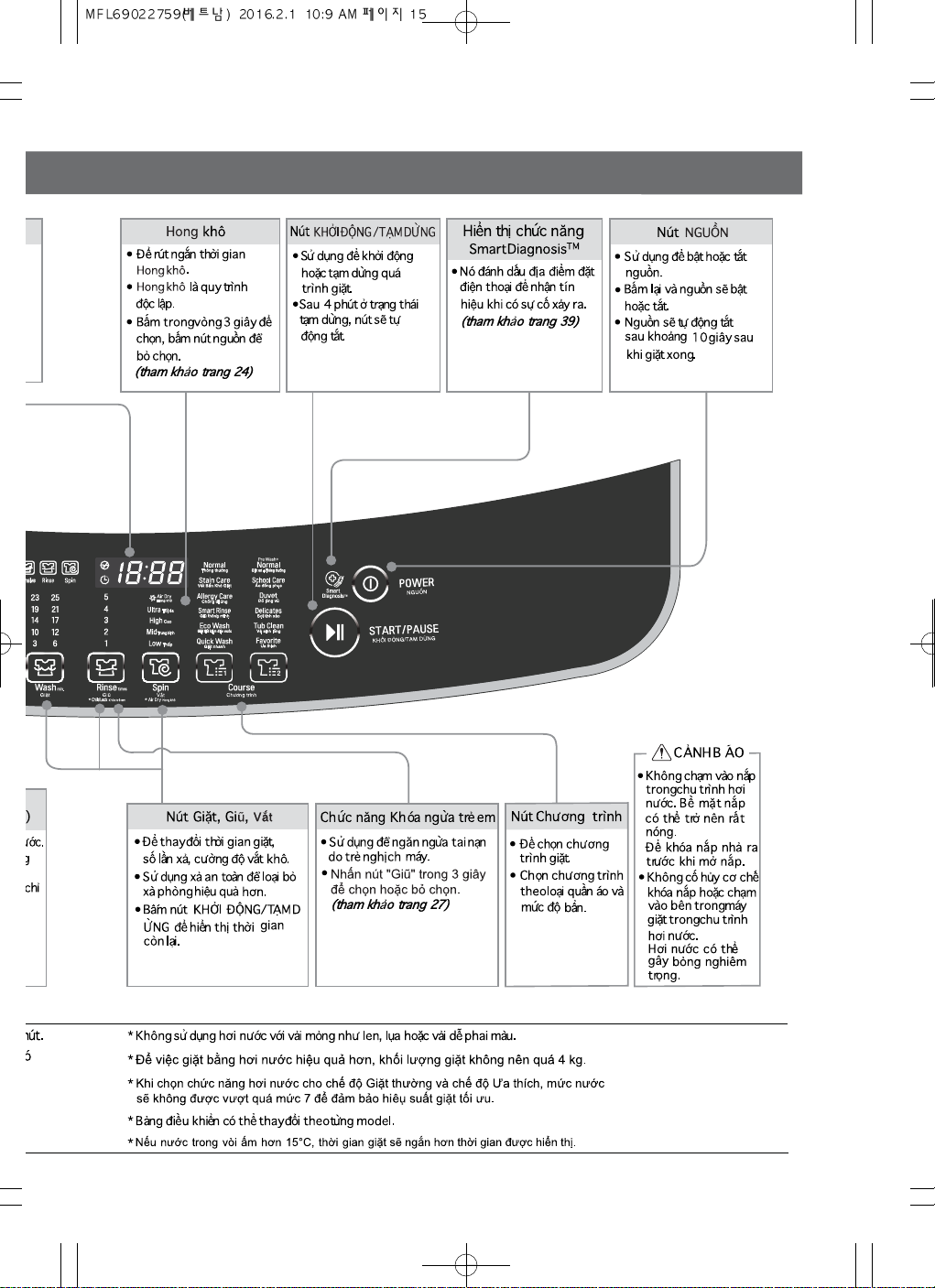

unction of each But ton

NOTE

* For optimizing the washing algorithm, the displaying time may be changed during washing-increased by

8minutes at maximum and decreased by 4 minutes at maximum.

* The standard detected by the sensor changing the algorithm is set by the normal standard. It may not be same to

the washing habit of a specific user. So, it does not matter that the user uses it according to her/his washing habit. * The steam option cannot be used with all cycles. * Steam may not be clearly visible during the steam cycles.

This is normal. Too much steam could damage clothing.

* Do n * For * Whe

leve * The * If ta

* Do not use steam with delicate fabrics such as wool, silk, or easily discolored fabrics. * For optimal steam cleaning performance, limit laundry loads to 4 kg or less. * When the steam option is selected for the Normal or Favorite Courses, the water level will not exceed

level '7' in order to maintain optimal performance. * The control panel may differ according to different models. * If tap water is warmer than 15°C, the laundry time will be shorter than the displayed time.

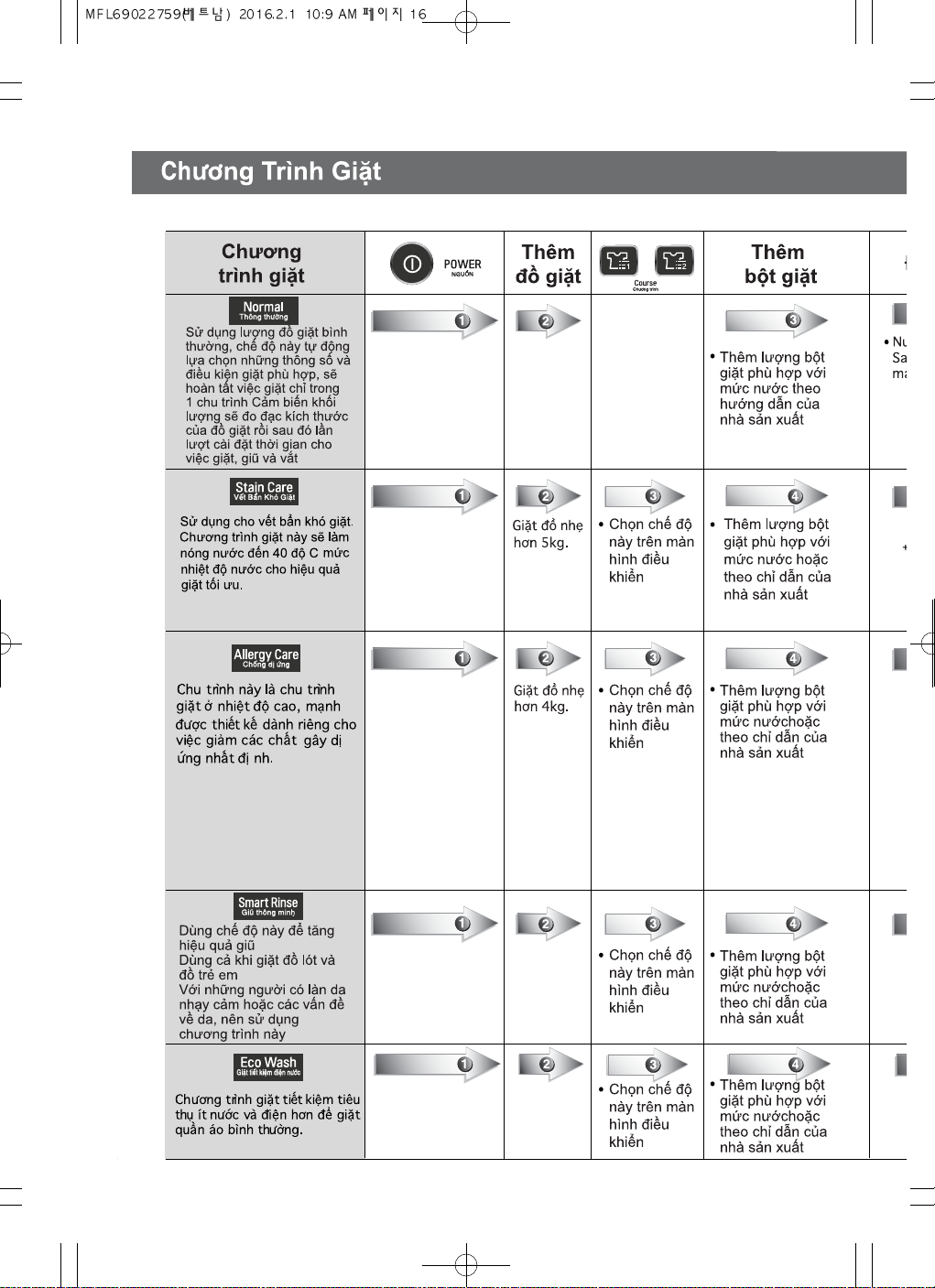

Washing Course

Washing

Course

Add the laundry

Add

the Detergent

Used for normal loads, this mode automatically selects the most appropriate conditions and completes the sequence in one operation. The built-in sensor detects the size of the load and the ideal wash power and wash, rinse and spin times are set accordingly.

Use when clean laundry is needed. This will heat water to 40 degree which laundry works best.

This cycle is a powerful, high temperature cycle designed specifically to reduce certain allergens.

Use this Course to increase rinsing performance. This would include underwear and baby clothes. If someone has sensitive skin or skin trouble,use this Course.

• Add the appropriate quantity of Detergent As indicated by the Water Level. Or follow the Detergent Manufacturer's instructions.

• Wat Afte laun be st

Eco course consumes less water and electricity to wash normal clothes.

•

Select the

Eco Wash

Course on the Control panel.

• Select the Smart Rinse Course on the Control panel.

• Add the appropriate quantity of Detergent As indicated by the Water Level. Or follow the Detergent Manufacturer's instructions.

• Select the

Stain Care

Course on the Control panel.

• Make laundry lighter than 5kg.

• Make laundry lighter than 4kg.

• Select the

Allergy Care

Course on the Control panel.

• Add the appropriate quantity of Detergent As indicated by the Water Level. Or follow the Detergent Manufacturer's instructions.

•

Add designated amount of detergent by Water Level and close the door. Use exclusive neutral detergent or dry detergent for home

• Add the appropriate quantity of Detergent as indicated by the Water Level. Or follow the Detergent manufacturer's instructions

Close the lid Finish Caution & Note

• Tub will rotate more than once without water (While Water Level LED blinking) to recognize Water Level.

• Then the Water Level and the amount of Detergent to be used will be shown and water will be supplied.

• Water will be supplied. After supplying, laundering will be started.

• When the wash Course ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

• If water is already in the tub, or putting wet laundry into the tub before starting will increase the Water Level.

• With lightweight bulky loads, Water Level can be set low.

• During water supplying, water supply valve might repeat

on/off to meet adequate temperature for laundry. Stain Care course use more warm water than other course

as it has higher set temperature for heating.

Stains that easily removed at 40°C: coffee, cola, orange

juice, grape juice, soy sauce etc.

• While heating, laundry tub will rotate to a direction slowly.

This is a part of normal operation.

• While heating, because of humidity difference, there might

be water drops at the glass of door. This is normal phenomenon. Just wipe it after laundry.

• Please be attention that exterior of the machine is hot by

heating.

• During water supplying, water supply valve might repeat on/off to meet adequate temperature for laundry.

Allergy Care course use more warm water than other course as it has higher set temperature for heating. Stains that easily removed at 60°C: milk, blood, sebum, egg, animal and vegetable oil.

• While heating, laundry tub will rotate to a direction slowly. This is a part of normal operation.

• While heating, because of humidity difference, there might be water drops at the glass of door. This is normal phenomenon. Just wipe it after laundry.

• Please be attention that exterior of the machine is hot by heating.

• Selecting the Allergy Care course automatically incorporates steam into the wash cycle.

• The Allergy Care course can reduce allergens in bedding and clothing.

• Due to the higher energy and temperatures used, the Allergy Care course is not recommended for wool, silk, leather, or any other delicate or temperature sensitive items.

• During rinse, tub will rotate while water is supplied. "Water supply -Tub rotation - Drain will be repeated 3 times. Water supply and drain is executed during rinse and this is a part of normal operation.

uantity

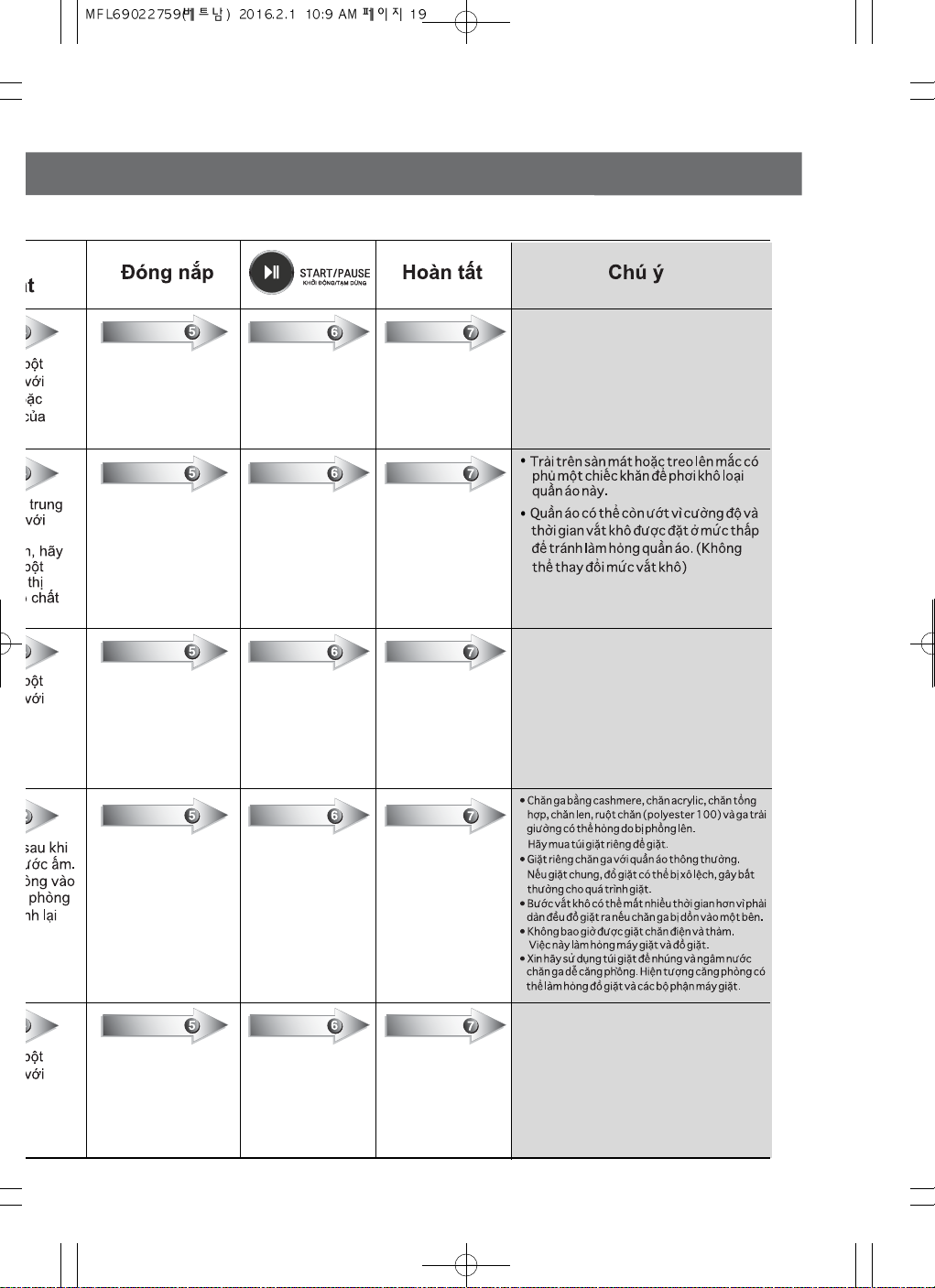

Washing Course

Washing

Course

Add the

laundry

Add

the Detergent

Use this mode when washing lightly soiled clothes for a short time. The highly recommended laundry amount is under 3.0kg.

• Add the appropriate quantity of Detergent as indicated by the Water Level. Or follow the Detergent manufacturer’s instructions

Use for blanket or bedclothes with

hand wash sign.

Use this Course to wash School Uniform.

• Select the Duvet

Course on the Control panel.

• Add the appropriate quantity of Detergent as indicated by the Water Level. Or follow the Detergent manufacturer's instructions

•

Select the School Care Course on the Control panel.

• Add the appropriate quantity of Detergent As indicated by the Water Level

. Or follow the Detergent Manufacturer's instructions.

• Pour detergent after dissolve at warm water. If detergent is pour into cold water, it might cause leftover detergent in bedclothes.

• Select the

Quick Wash

Course on the Control panel.

• Select the

Delicates

Course on the Control panel.

Use this Course for washing delicate fabrics such as lingerie and woolens. (wash only “water washable” clothes) Before washing your woolens check the care label for the washing instructions. (wash only water washable clothes)

• Use neutral Detergent appropriate for the laundry.

• When washing woolens use a mild Detergent recommend for washing wool.

Washing laundry with Normal cycle that pretreats immediate stain without hand-wash. i.e. Necessary for clothes which could be smelled badly without prompt laundry.

Pre Wash+

•

Select the Normal Course on the Control panel

Pre Wash+

Close the lid Finish Caution & Note

uctions

•

Lay out in cool floor or on a hanger covered by a towel to dry these type of clothes.

•

It might have damped clothes because spin dry intensity and time are set to short to prevent damage of clothes. (Spin dry cannot be changed)

• Cashmere bedclothes, acrylic blanket, mixed spinning blanket, woolen blanket, infilling (polyester 100), and bed sheet might be damaged by floating. Please purchase a separate laundry net to wash.

• Separate bed clothes to general clothes. It might cause laundry to askew and results in abnormal washing.

• Spin dry might take longer to spread out laundry if bedclothes are lumped to a side.

• Never laundry an electric blanket and a carpet. It cause damage to a laundry machine and the laundry.

• Please use laundry net to soak and sink bedclothes that are easy to be inflated. It might cause damage on laundry and machine parts if inflated.

ater. into

ent

nt shing

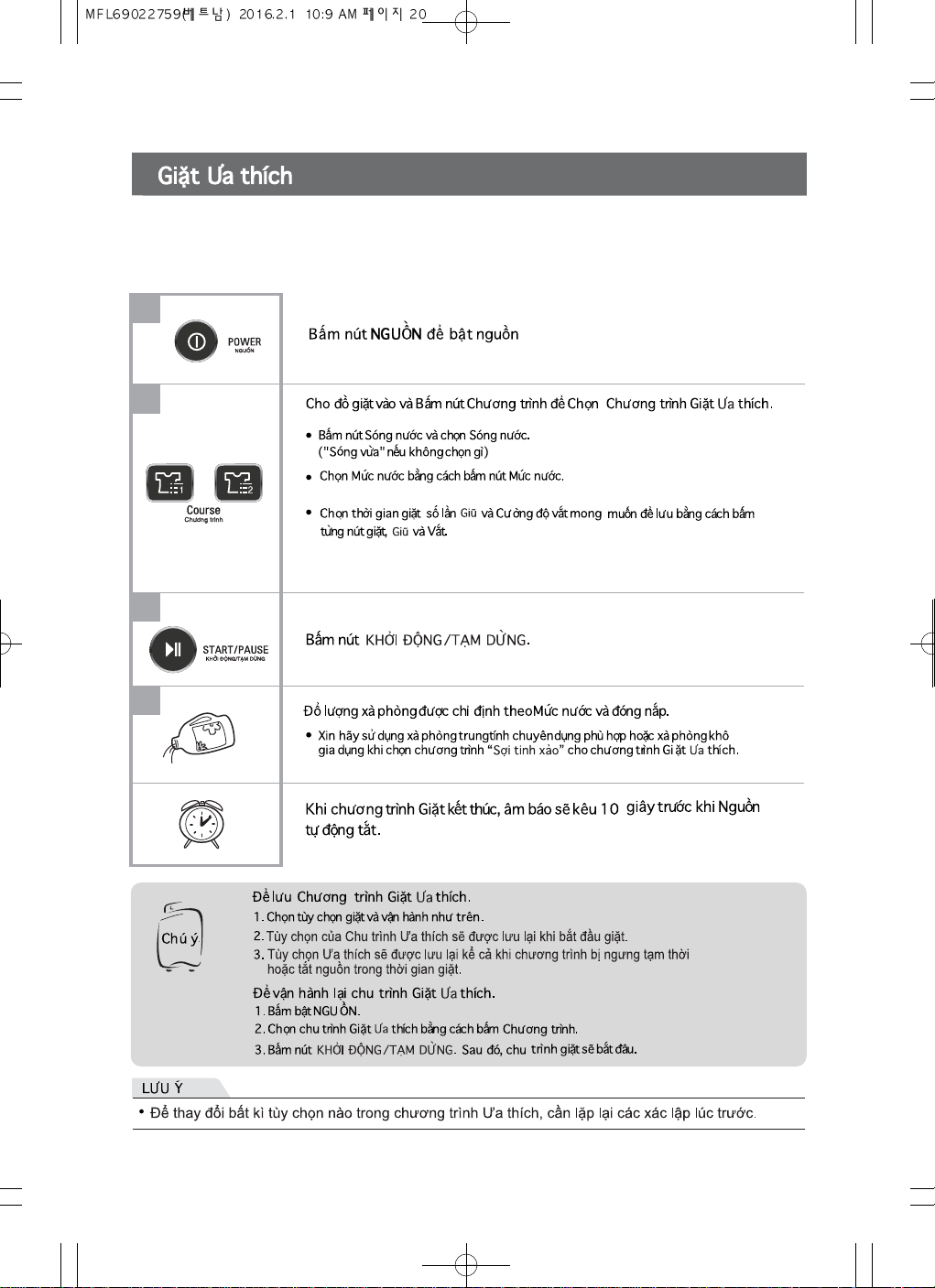

Favorite Wash

Press the POWER button to turn power on.

Press the START/PAUSE button.

When the wash Course ends, the chime will sound for 10 seconds before the Power goes off automatically.

Add designated amount of detergent by Water Level and close the door.

Please use appropriate exclusive neutral detergent or dry detergent for home when "Delicates" course is selected for Favorite Course.

Put laundry in and Press the

Course

button to Select Favorite

Course

Press Water Wave button and select Water Wave. ("Medium Wave" if nothing is selected)

Select Water Level by pressing Water Level button. Select laundry time, number of rinse, and Spin intensity desire to save by

pressing each of laundry, rinse and Spin button.

To save Favorite Course.

1. Select laundry options and operate as above.

2. The Favorite settings will be stored when the operation starts.

3. The Favorites setting will remain stored after it has been saved even when the program is paused or the power is turned off during the wash.

To recall your

Favorite

cycle.

1. Press POWER on.

2. Select the Favorite cycle by pressing the Course.

3. Press the START/PAUSE button. Then the wash cycle starts.

• To change any settings in the Favorite Course, the Favorites setting must be repeated.

NOTE

Soak Wash

Press the POWER button to turn power on.

Put laundry in and Press the

Course

button to Select Washing

Course

Normal,

Stain Care, Allergy Care, Delicates, Quick Wash, Tub Clean Course

do not suppose soak laundry.

Press each of rinse and Spin button to select number of Rinse and Spin.

Press the START/PAUSE button.

Water will be supplied. After supplying, laundry will be started.

Add designated amount of detergent by Water Level and close the door.

When the wash Course ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

Press soak laundry button.

“Soak laundry” can be selected by pressing button and indicated by light on soak indicator( )

Soak selection : 15 30 45 1:00 2:00 3:00 off 15

Pre Wash+

times times times times times times times times

times

timestimes

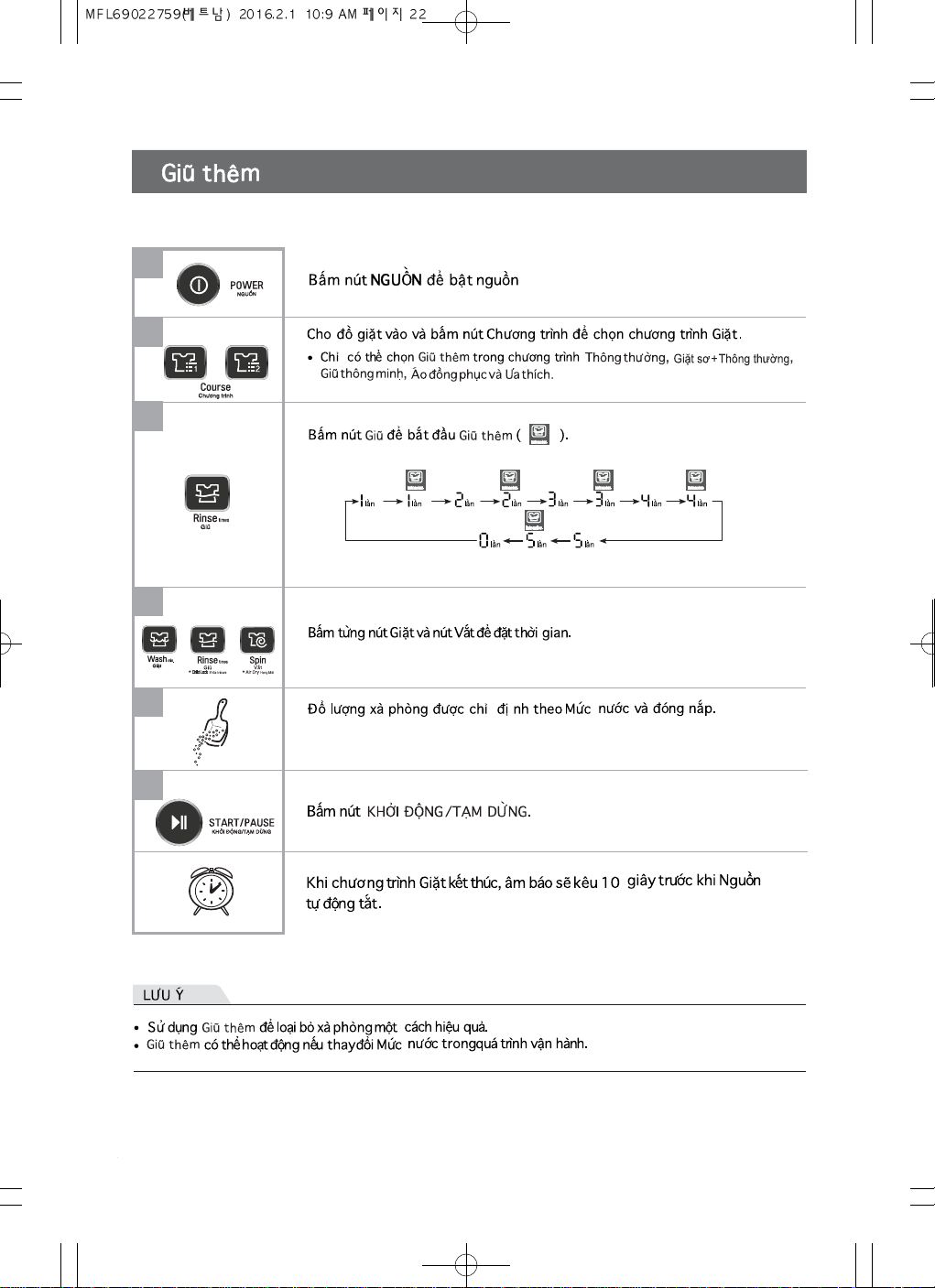

Intensive Rinse

Press Rinse button to start Intensive Rinse( ).

Press the POWER button to turn power on.

Put laundry in and Press the Course button to Select Washing Course.

Intensive Rinse can only be selected only under Normal, Normal, Smart Rinse, School Care, and Favorite.

Press the START/PAUSE button.

Press each of Wash button and Spin button to set duration.

When the wash Course ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

Add designated amount of detergent by Water Level and close the door.

• Use Intensive Rinse to remove detergents more effectively.

• Intensive Rinse might work if Water Level changed during operation.

NOTE

Pre Wash+

Tub Clean

Press the POWER button to turn power on.

When the wash Course ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

Press the

Course

button to Select Tub Clean

Course

Press the START/PAUSE button.

Time will be displayed on screen.

Add chlorine bleach or tub cleaner and close the door. (Note : Do not add any laundry detergent or fabric softener to the

drawer when using Tub Clean.)

If scrud is allowed to build-up in the machine it can result in stains on your clothes or unpleasant smell in your washer. Scrud is the way build-up that can occur within any washer when the fabric softener comes into contact with Detergent, and according to particular degree of dirtiness or quality of water to be use, in these case, use this Course to clean inner tub and outer tub.

Recommended cleaner :

(1) Powder bleaching agent :

Purchase a product at a market and refer to usage instruction at the back of the product.

(2) Liquid bleaching agent:

Dilute to 300 times of water capacity of washing machine.

Do not put laundry for laundry tub course.

• Clean laundry tub per month using laundry tub course.

• Please clean laundry tub if there are fuzz.

• It is convenient to use laundry tub course at night or during an outing.

Automatic detection of time to clean Tub

• After Power On button pressing, if is blinking in the display, it is the time for

Tub Cleaning.

•If you want to skip the Tub Clean, press option buttons to select desired cycle.

• After performing tub clean, will disappear until next cleaning time.

• Tub Clean time is detected automatically as per the usages of washer (Generally once

after 30 usages)

Air Dry

Press the POWER button to turn power on.

Press the START/PAUSE button.

When the wash Course ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

Press Spin for 3 seconds to select Air Dry.

Other function cannot be selected during Air Dry. Automatically set to 60 minutes upon selection. Press Spin button again to select duration (90min 120 min 60 min.) To deselect Air Dry press power button.

When you select Air Dry for more than 60 minutes

1) You can reduce the drying time by minimzing the moisture in the laundry.

2) Always keep the laun dry amount to 2kg or less and make sure to spread it out evenly.

3) Select 60 minutes for cotton laundry and 120 minutes for synthetic fiber laundry for effective Moisture removal.

Option Washing

Add the laundry into the washing tub.

Press the START/PAUSE button.

Press the Water Level button, to control the water level according to the amount of laundry. If you do not choose anything, it is set the middle water level automatically.

Add the detergent and close the lid.

4 5

Press the POWER button to turn power on.

• When a Wash, Wash/Rinse or Rinse only option is selected, after the wash is completed the water will not be drained off. If you wish to drain the water, press Spin button and wait until the water in the tub has drained completely. Then press the START/PAUSE button.

• If you do not specify the water level, then Medium will be automatically selected.

• If only Rinse is selected, the process will start from Water Supply.

NOTE

Press the

Rinse

button to select the desired times of rinse.

Only Rinse

Press the

Spin

button to select the desired times of spin.

Only Spin

Press the

Wash

button to

select the desired timing.

Only Wash

Press the

Rinse

button to select the desired times of rinse.

Press the

Spin

button to select the desired times of spin.

Only Rinse,Spin

When you want to only drain, wait until the water in the washing tub drains completely.

Only Drain

Press the

Wash

button to

select the desired timing.

Press the

Rinse

button to select the desired times of rinse.

You can use this option for preventing wrinkles of laundry

Only Wash,Rinse

When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually.

Time Delay (RESERVATION) Wash

Press the POWER button to turn power on.

Put laundry in and detergent and Press the

Course

button to Select

Washing

Course

Put detergent in a slot for reserved synthetic powder detergent. This Course will not work in Delicates and Tub Clean Course.

Close the door and press START/PAUSE button.

Reservation lamp will blink and remaining time will be displayed

Laundry will be done at reserved time.

Ending time might be slightly different by water pressure

Press Time Delay (RESERVATION) button to set reservation time.

If reservation button is pressed, it will turn on reservation lamp and show up 3:00.

Reservation can be made up to 3~18 hours by 1 hour interval up to 3~12hours and 2 hour interval for 12~18 hours.

Less than 3 hour is cannot be reserved.

ex) It is 1:00 PM and if you want to finish laundry by 7:00 PM

Keep press reservation button to set desired laundry ending time. (7:00-1:00=6hours)

If door is opened during reservation. Press “START/PAUSE” button to reschedule reservation. Then close the door and press

“START/PAUSE” button.

To cancel reservation, press Time Delay (Reservation) button repeatedly until the reservation is canceled or press power button to turn off and on power.

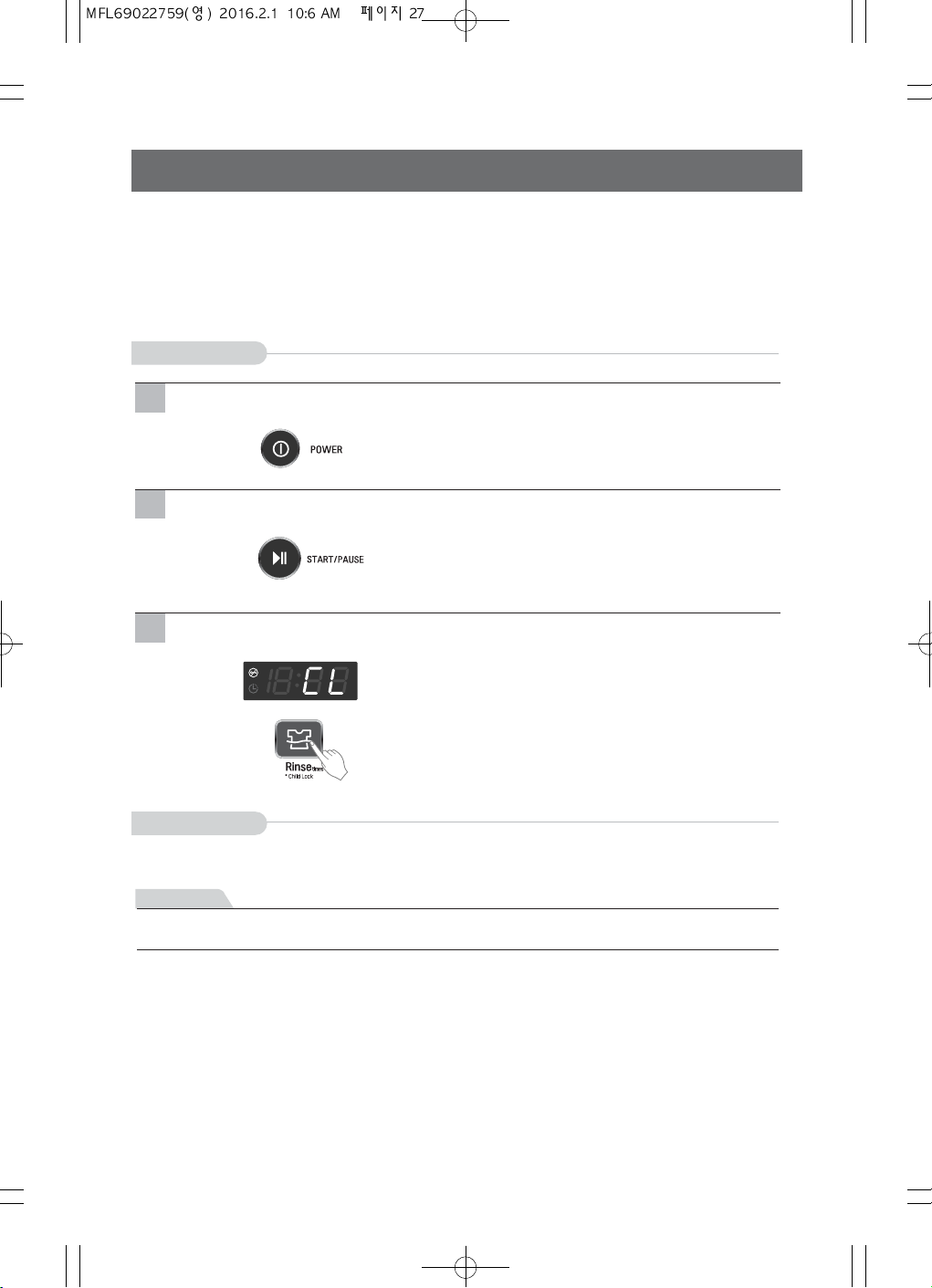

Other Useful Functions

• After all washing conditions are set according to the manual.

Press the POWER button.

Press the START/PAUSE button to start washing.

• Turn Power on.

If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option.

Child Lock Function

How to Lock

•

The button lock is set, it will not be released automatically if the cycle is terminated.

•

Thus, you should turn power on washing machine and then terminate the function by pushing "Rinse button.

Press the Rinse button.

If you want to unlock during wash, press the Rinse again.

How to Unlock

• “CJ” & the remaining time are alternatively shown on the display while they are locked.

NOTE

Placing and Leveling

Please ensure that transit restraint has been removed before operating your machine.

If the washer is installed on a uneven,weak or tilted floor causing excessive vibration, spin failure or “ ” error can happen to it. It must be placed on a firm and level floor to prevent spin failure.

Top view of the machine

more than 10 cm

more than 2 cm

Place the machine on a flat and firm surface which allows proper clearance.

We suggest a minimum clearance of 2 cm to the right side and left sides of the machine for ease of installation. At the rear, a minimum clearance of 10 cm is suggested.

Make sure that the washer is properly Level

Open the lid and look from above to see if it is same as shown.

Leveling the machine

Lift the front of the washing machine and twist the Adjustable Leg until the surface bubble is placed in the center.

NOTE

Adjustable legs

SETTING SCREW

Anti-Rat Cover

Install Anti-Rat Cover (option)

When you are Installing it, lay the washing machine backwards. Get rid of the sponge attached on the base. Below following the picture, Install the Anti-Rat Cover with 8

screws into the holes. Be careful your feet or hands when you are laying or raising the washing machine.

Caution

If the power is supplied from a cord extension set or generator, the cord extension set or electrical

portable outlet device should be positioned so that it is not exposed to splashing or ingress of moisture.

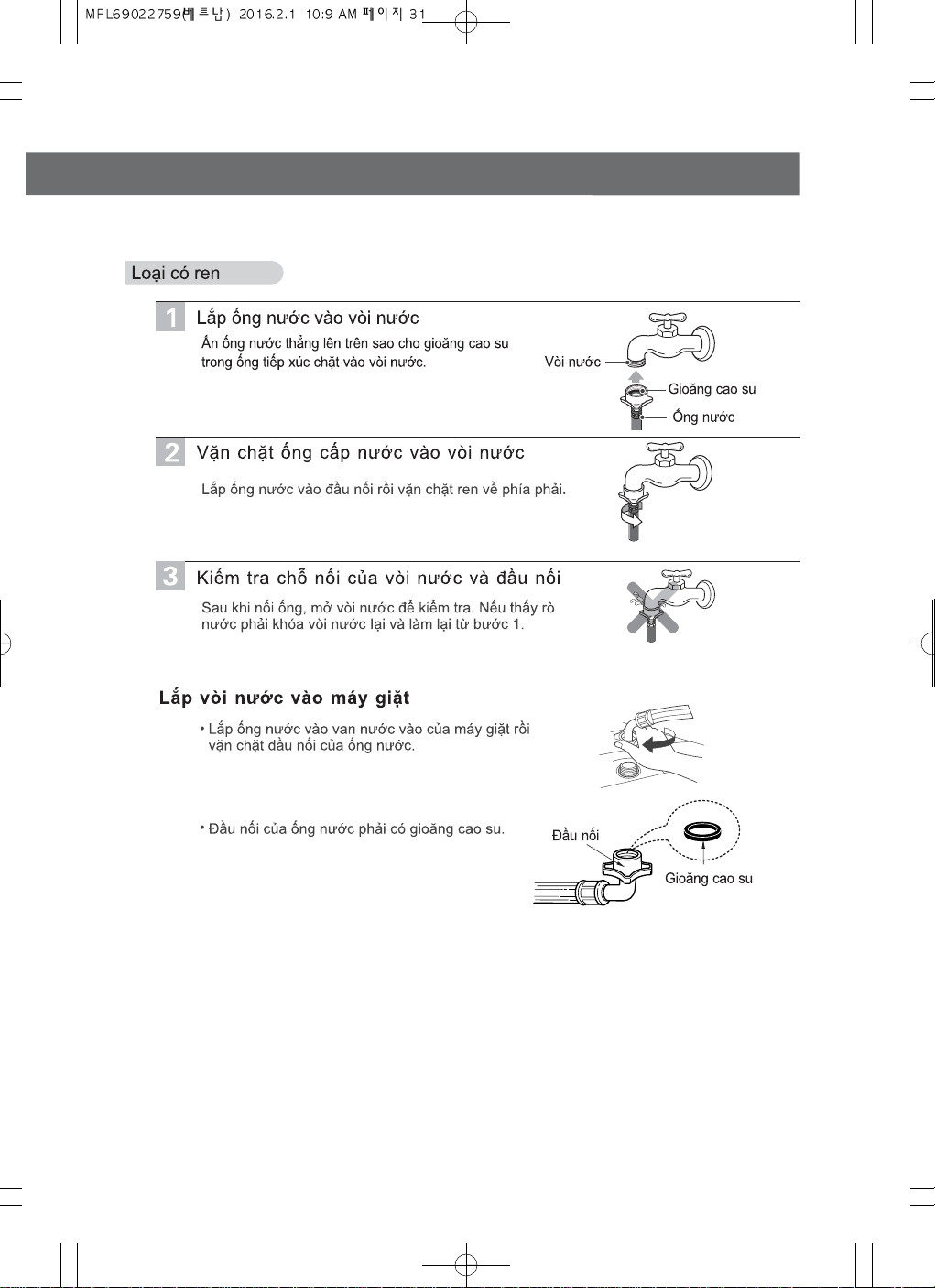

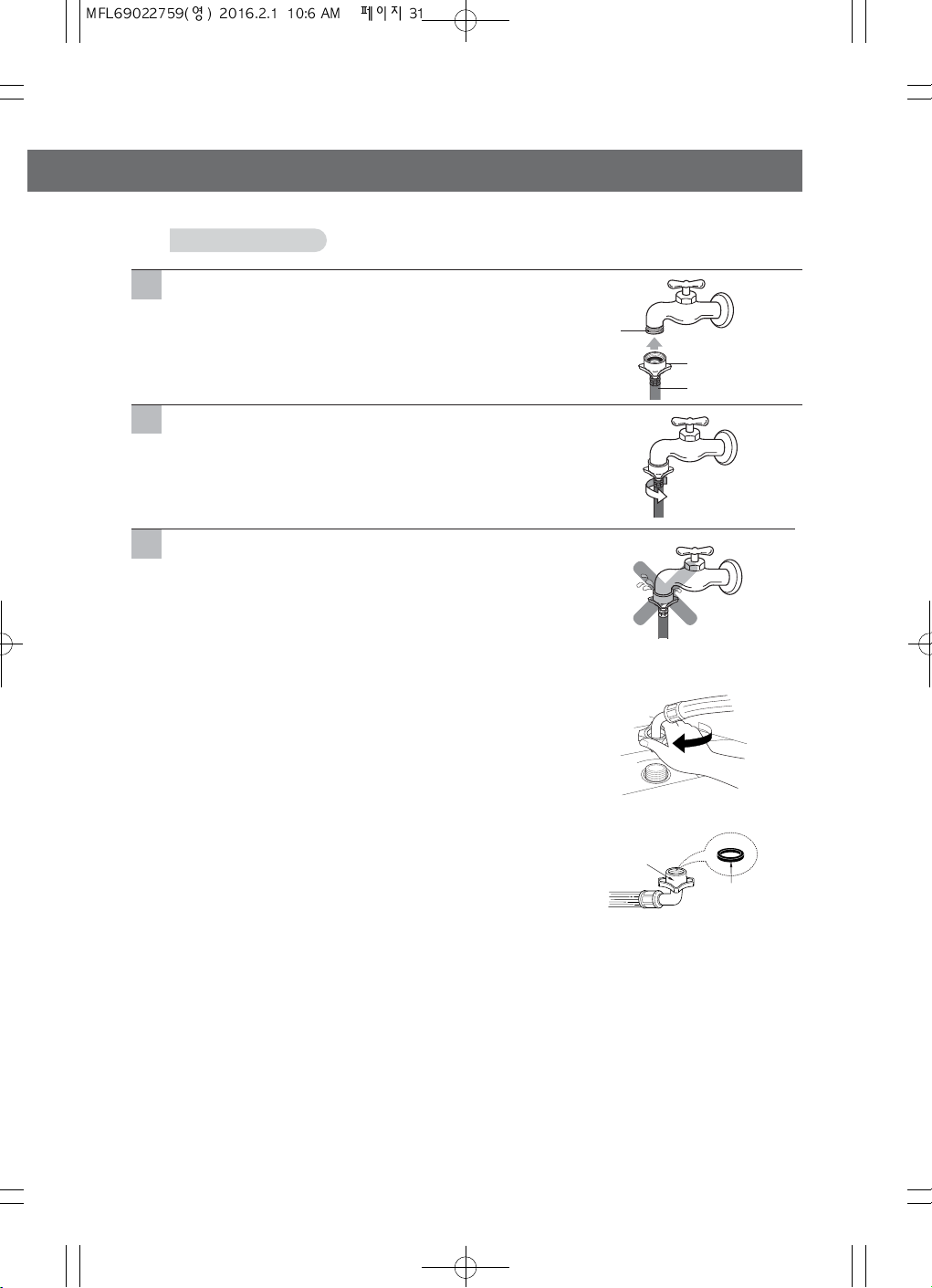

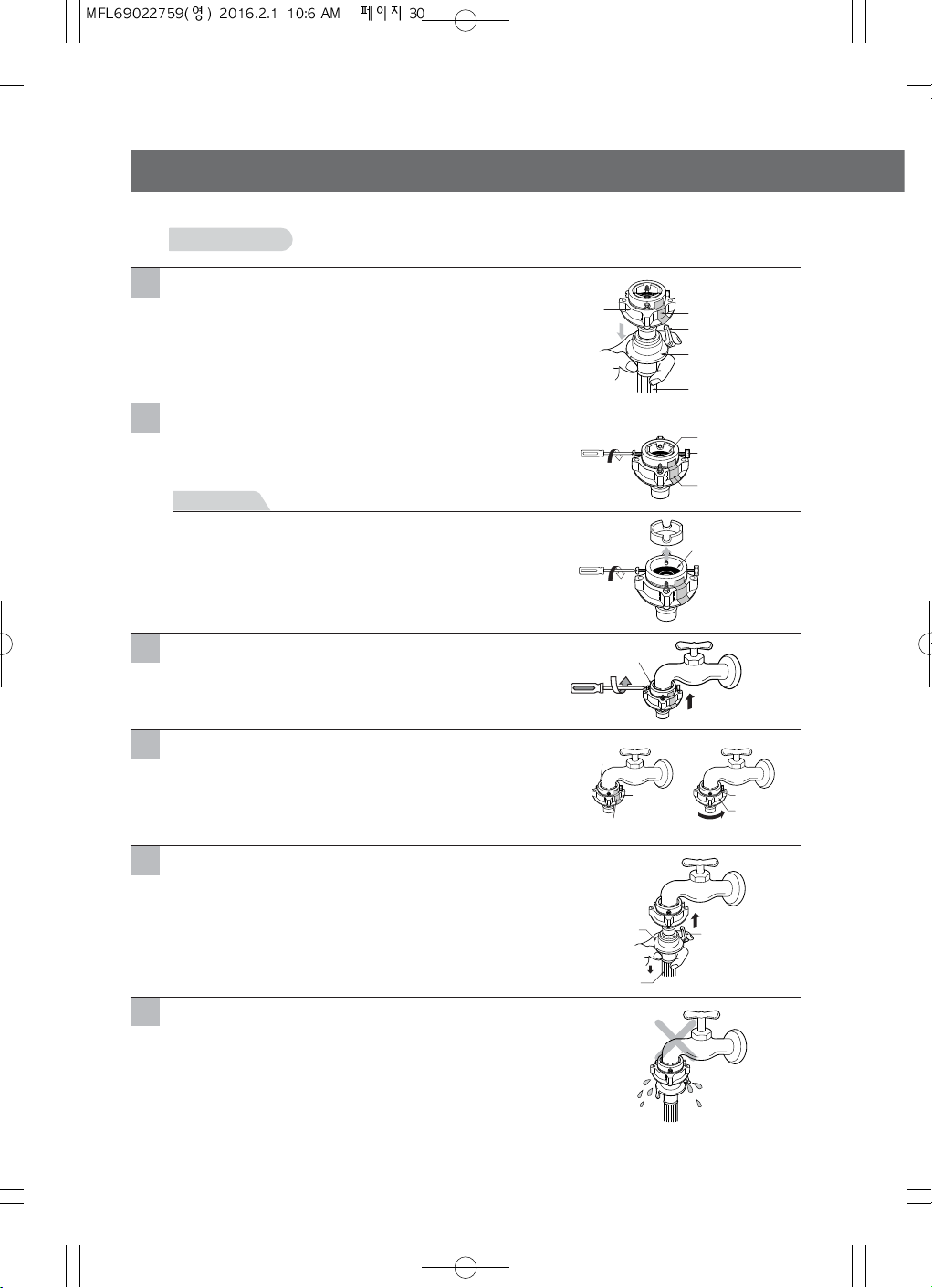

Connecting Water Supply Hose

Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under. Note that the Water Supply Hose supplied may vary from country to country, Make sure to connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap.

Connecting Water Supply Hose to water tap

Connector

Water Supply Hose

screw

Untighten the screw

Untighten the screw of the connector so that the tap can be placed in the middle.

Fixing the connector to the tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Attach the water supply hose securely to the connector

Push the water supply hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap.

Check the connection of water supply hose and the connector

After connecting the hose, open the tap to check for any water leakage. If the water leaks, close the tap and start again from step 1

Fixing the connector to the water supply hose

Attach the water supply hose to the connector and then tighten it by screwing it to the right.

Normal Type

(Normal tap without thread & screw type inlet hose.)

Rubber packing

NOTE

The washing machine is to be connected to the water mains using new hose-sets and old hose-sets should not be reused.

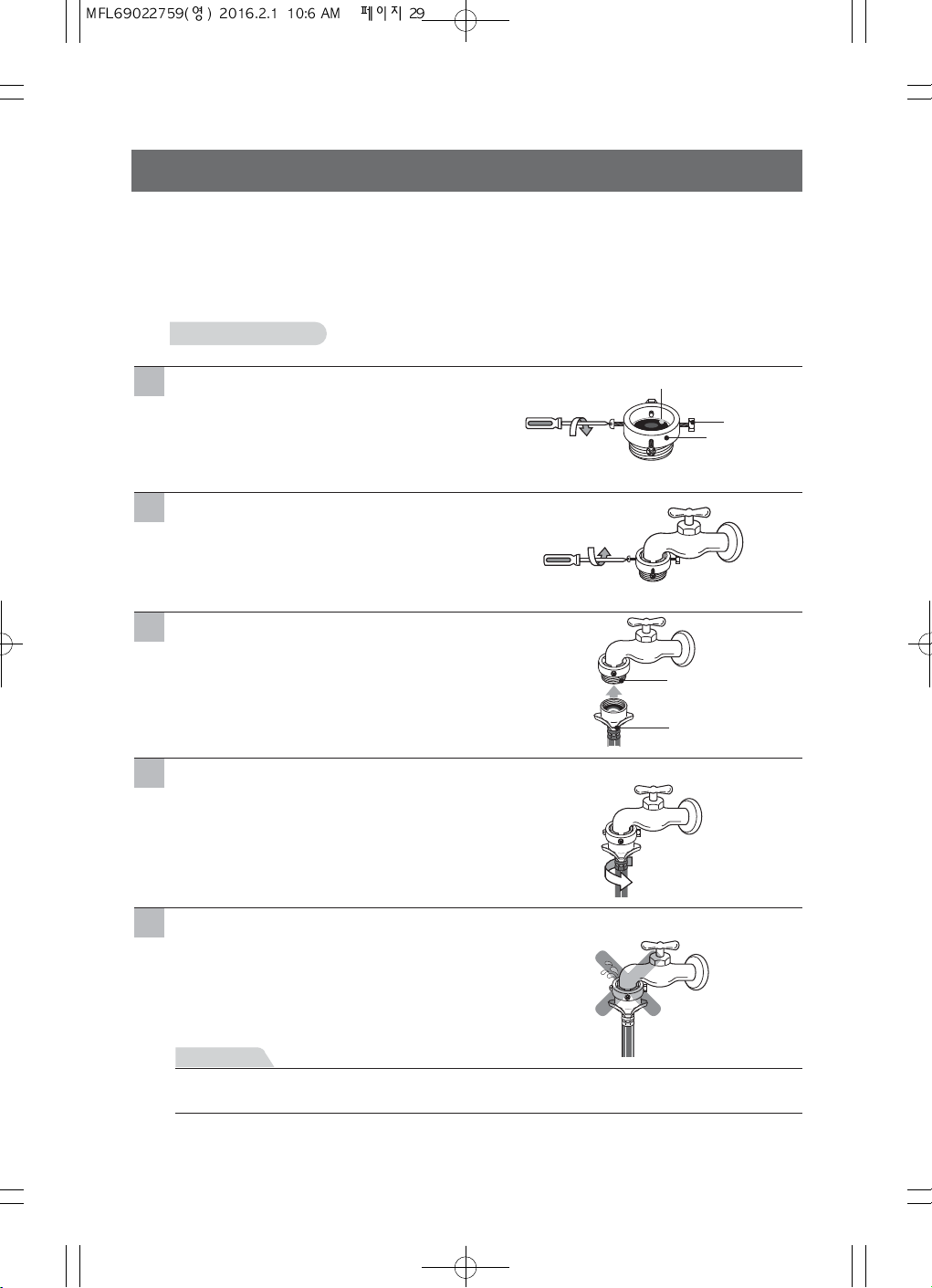

Connecting Water Supply Hose

Separate Middle connector from Water Supply Hose

Separate Middle connector from the Water Supply Hose by pulling the Pressing Rod and the Pressing Handle that is attached to the Water Supply Hose.

Loosen the fixed nuts to connect the connector to the tap

Untighten the screw of the connector so that the tap can be placed in the middle.

Fixing Connectors to the Tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Fixing Upper Connector and Middle Connector

Remove the fixed sticker in between the Upper and Middle Connectors. Tighten the connectors by holding one connector and twist middle connector to the right.

Connecting Middle Connector and Water Supply Hose

Press down the pressing rod of the Water Supply Hose which was separated from middle connector (refer to Step1) and then join it to the middle connector.

Normal Type

Fixed Sticker Pressing Handle

Pressing Rod

Water Supply Hose

Middle

Connector

Pressing Rod

Fixed sticker

screw

Pressing Rod

Guide plate

Connector

Middle Connector

Fixed sticker

Pressing handle

Pressing rod

Water Supply Hose

If the tap diameter is too large or is square, untighten the 4 screws and remove the guide plate. Then follow step1.

In case tap is too large.

NOTE

Check for water leakage

After connecting the hose, open the tap to check for any water leakage. If the connection leaks, close the tap and start again from step 1. If you skip step 1, water leakage may occur.

(Normal tap without thread & one touch type inlet hose.)

Water tap

Rubber Packing

Water Supply Hose

Rubber seal

Hose connector

Attach the water supply hose to the tap.

Push the water supply hose up so that the rubber packing within the hose can adhere completely to the tap.

Connect the water supply hose to the tap.

Connect the water supply hose to the tap and then tighten it by screwing it to the right.

Check water leakage.

After connecting the hose, open the tap to check for any water leakage.

• Connect the water supply hose to inlet valve of the washing machine, and then lock it by turning the hose connecting part.

• Check to see if there is a rubber seal inside the connector.

Screw Type

Connecting Water Supply Hose to the machine

Connecting Drain Hose

Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions.

Before connecting

Ensure that the hose clip is set as indicated here.

Connect the Elbow Hose

Push the elbow hose toward the body of the washing machine.

Place the Drain Hose

To change the direction of the hose, pull out the elbow hose and change the direction.Repeat Step 2.

Clip

Non-Pump Model

Pump Model

Note

Firmly insert the free end of the drain hose into the drain opening of your home. Make sure the soft rubber end is completely inside the drain opening.

• If the water valves and drain are built into the wall, fasten the drain hose to one of the water hoses with the cable tie (ribbed side on inside).

• If your drain is a standpipe, fasten the drain hose to the standpipe with the cable tie provided.

The discharge height should be approximately 0.9~1.2m from the floor.

0.9~1.2m

Cable Tie

0.9~1.2m

Grounding Method

Earth wire should be connected. If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage .

Grounding Method with Ground insert space Terminal

Other Grounding Method

If the AC current outlet has a ground terminal, then separate grounding is not required. Note that AC power outlet configurations may differ from country to country

Connect the ground Wire to the socket provided exclusively for Grounding.

If grounding methods described above are not possible, a separate circuit breaker should be employed and installed by a qualified electrician

Ground Terminal

Outlet with ground terminal.

Ground Wire

Short-circuit breaker

• To prevent a possible explosion, do not connect ground to a gas pipe

• Do not connect ground to telephone wires or lightning rods. This may be dangerous during electrical storms

• Connecting ground to plastic has no effect

• Ground wires should be connected when an extension cord is used.

Using Ground Wire

Using a Short Circuit Breaker

Connect the Ground Wire to a Ground Copper Plate and bury it more than 75cm in the ground.

Burying Copper Plate

Caution

75cm

Caution

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Ground Copper Plate

Cleaning and Maintenance

When water supply into the tub is not clean or the filter is clogged with particles (such as sand), clean the filter in the inlet valve occasionally.

(The figure of power cord and water tap may vary according to the country)

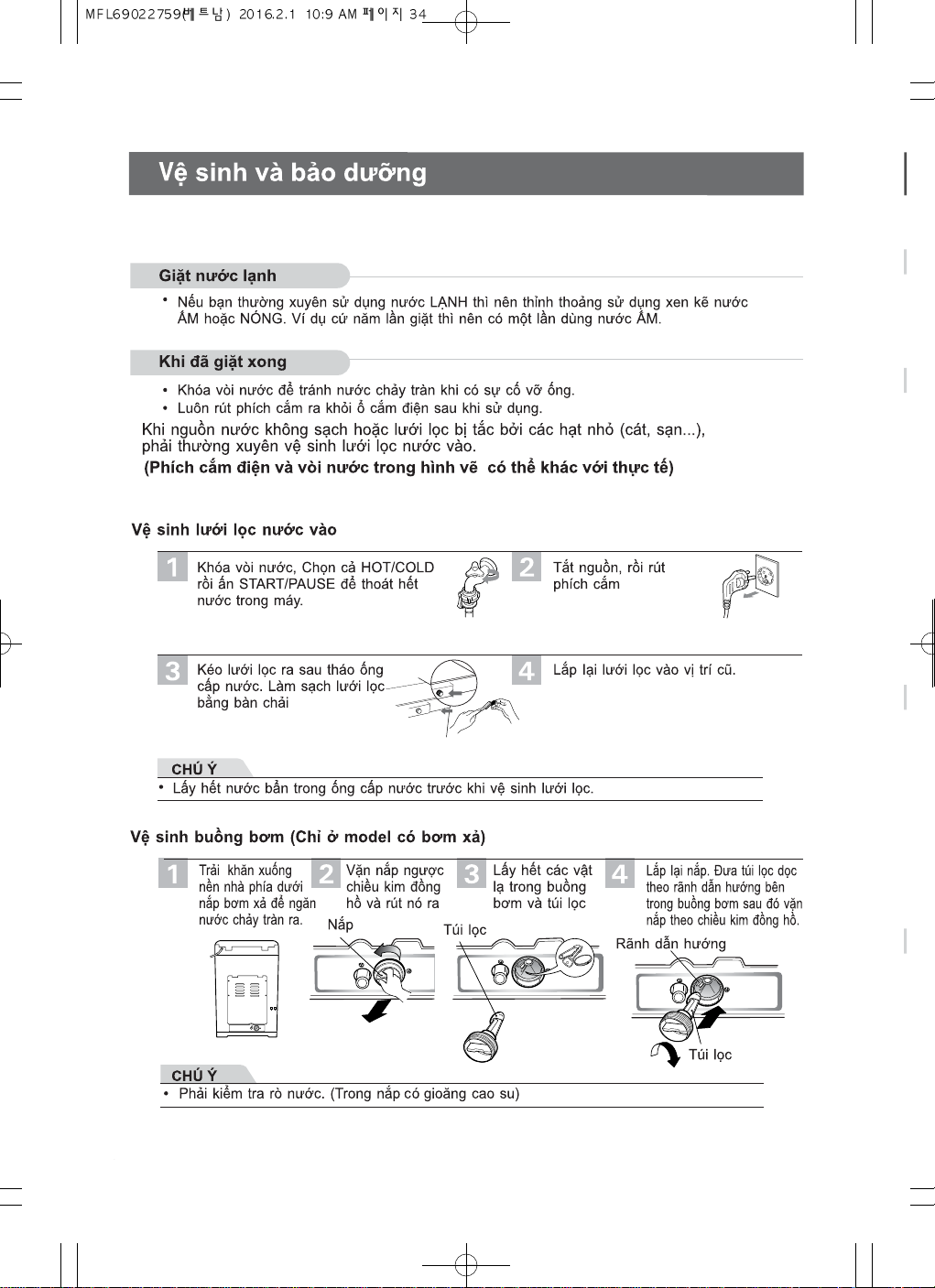

To Clean the Filter in the Inlet Valve

Cold water washing

Close the tap before turning off the power. HOT/COLD(WARM) and then press the [START/PAUSE] button to remove water from the machine completely.

• If you always use COLD water, we recommend that a WARM or HOT wash be used at a regular intervals e.g. every 5th wash should be at least a WARM one.

When you have finished

• Turn off taps to prevent the chance of flooding should a hose burst.

• Always unplug the power cord after use.

After removing the water supply hose pull out the filter. Then use a brush to clean the filter.

Turn off the power before pulling out the cord.

Replace the filter after cleaning it.

1 2

3 4

NOTE

• Before cleaning the filter, the impurities in the water supply hose should be removed.

NOTE

• Check if water leaks after reassembling. (The Rubber ring is in the cap)

To Clean the Pump casing (for pump model)

Place a towel on the floor under the drain pump cap. Excess water may flow out.

Remove any foreign objects and fluff inside pump casing and from the filter.

Replace the cap. Insert the filter along the guide ribs inside the pump casing. Filter must face the guide ribs inside pump casing and securely turn the cap clockwise.

1 2 3 4

Turn the cap counterclockwise and pull it out.

Filter

Cap

Guide rib

Filter

Cleaning and Maintenance

Wash Inner-tub Leave the lid open after washing to allow moisture to evaporate. If you want to clean

the inner-tub use a clean soft cloth dampened with liquid Detergent, then rinse. (Do not use harsh or gritty cleaners.)

Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.

Exterior Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with

sharp objects.

Long Vacations Be sure water supply is shut off at faucets. Drain all water from hoses if weather will

be below freezing.

When there is a fear of freezing

If frozen

• Remove the water supply hose, and immerse it in HOT water at approx.. 40˚C.

• Pour approx.. 2 liters of HOT water at approx.. 40˚C, into the bowl and let it stand for 10 minutes.

• Connect the water supply hose to the water tap and confirm that the washing machine performs the supply and drainage of water.

• Close the water taps and remove the Water Supply Hose.

• Remove the water which remains in the water supply.

• Lower the drain hose and drain the water in the bowl and the drain hose by spinning.

Cleaning the Inside of your Washer

If you use fabric softener or do regular COLD water washing, it is very important that you occasionally clean the inside of your washer.

• Fill your washer with HOT water.

• Add about two cups of a powdered Detergent that contains phosphate.

• Let it operate for several minutes.

• Stop the washer, open the lid and leave it to soak overnight.

• After soaking, drain the washer and run it through a normal cycle.

Or use TUB CLEAN COURSE periodically. We do not recommend that you wash clothes during this procedure.

Products that might damage your washing machine

• Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of your washer.

• Hydrocarbon solvents i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic and blister paint (Be careful when washing garments stained with these solvents as they are flammable DO NOT put them in washer or dryer.)

• Some pretreatment sprays or liquids can damage your washer’s control panel.

• Use of dyes in your washer may cause staining of the plastic components. The dye will not damage the machine but we suggest you thoroughly clean your washer afterwards. We do not recommend the use of dye strippers in your washer.

• Do not use your washer lid as a work surface.

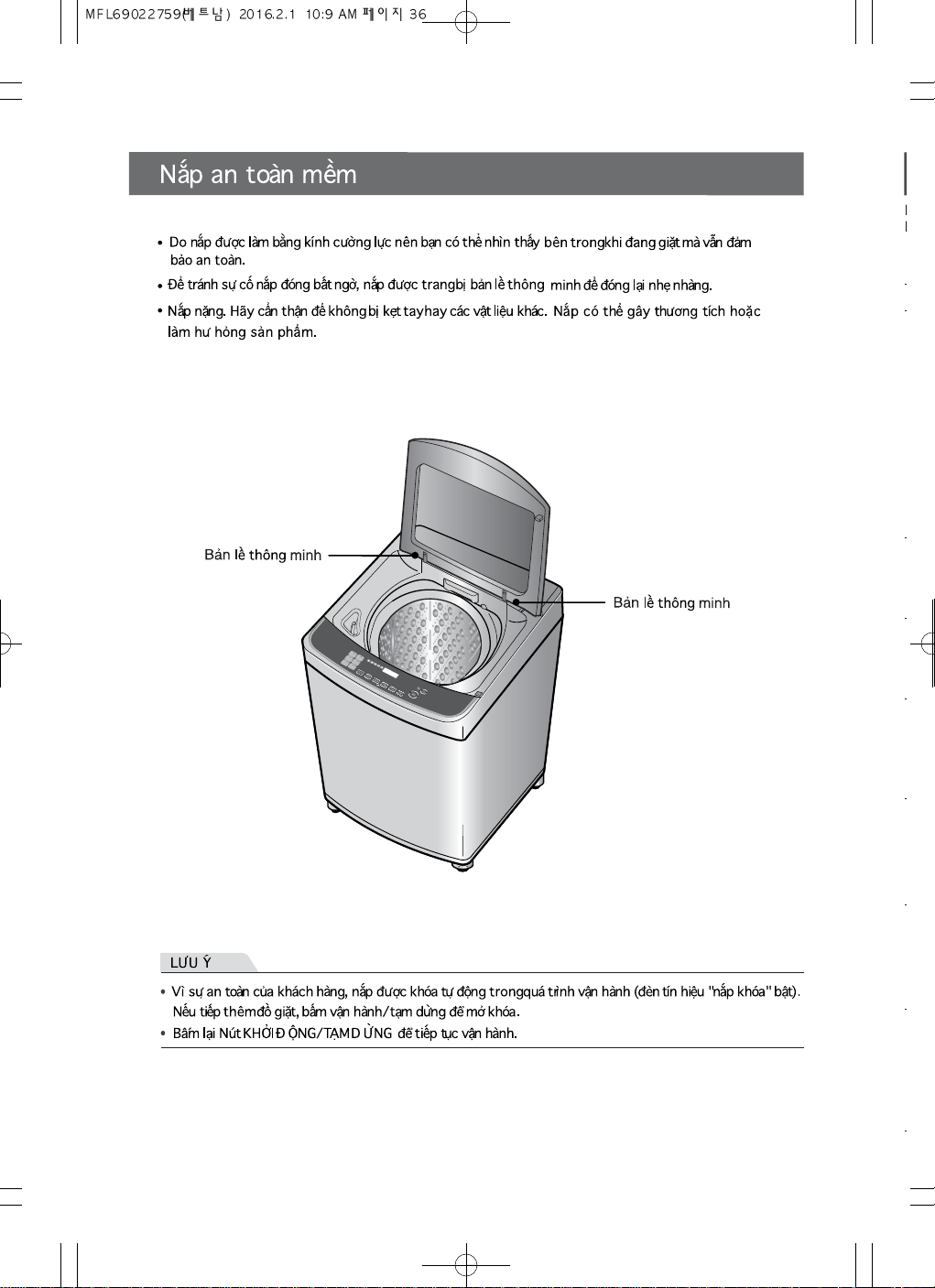

Soft Safety Door

Using tempered glass, inside can be seen while washing and safety is guaranteed. To prevent sudden close of door, it uses smart hinge so the door closes softly. Door is heavy. Be careful not to be caught in hand or other material. It might cause injury or damage on product.

Smart Hinge

NOTE

• For customer safety, the door will be locked automatically during operation (Light turn on "door lock" )sign. If there are additional laundry to put in, press operate/pause to unlock.

• Press START/PAUSE Button again to resume operation.

Common washing problems

Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions.

WASH PROBLEM

Possible Causes

Problems

Solutions & Preventive Measures

• Use correct amount of Detergent for load size, amount of soil and water Hardness.

• Different Water Temperature may be required according to soil type.

• Reduce load size.

• Wash with PREWASH+NORMAL or DUVET or SOAK & DUVET wash cycle for heavy soiled laundry.

• Separate heavily soiled items from lightly soiled ones.

• Pretreat stain and heavy soil according to directions shown on page 9.

• Rub the stain with bar soap. Wash.

• Do not overfill fabric softener dispenser and do not pour liquid fabric softener directly onto fabric. See page 12 for more instructions.

• Keep the recommendations against Scrud(waxy buildup). (refer to scrud page12.)

• Use correct amount of Detergent for load size, amount of soil and water Hardness.

• To restore discolored load of whites, use rust remover safe for fabric.

• Install nonprecipitating water softener or an iron filter in your water supply system for an ongoing problem.

• Before washing, run water for a few minutes to clear lines.

• Wash lint givers eg towels, flannelette sheets, separately from lint collectors eg synthetic fabrics and remove tissues in pockets before wash. See page 9 for sorting and caring before loading.

• Do not overload the washer

• Do not overload the washer.

• Some Detergents need to be pre-dissolved, check the Detergent instructions. Try predissolving the Detergent.

• Increase Water Temperature using HOT water safe for fabric.

• Use proper amount of Detergent.

• Never pour chlorine bleach directly on fabric. See page 11 for adding liquid bleach.

• Fasten zippers, hooks, and buckles.

• Remove objects in pockets. See page 9 for caring before loading.

• Do not overload the washer.

Poor soil removal

• Not enough Detergent

• Wash Water Temperature too low.

• Overloading the washer

• Incorrect wash cycle

• Incorrect sorting

• Do not pretreat stain

• Undiluted fabric softener dispensed directly onto fabric

• A buildup caused by the interaction of fabric softener and Detergent can flake off and mark clothes

• Not enough Detergent

• Iron or manganese in water supply, water pipes, or water heater

• Incorrect sorting

• Tissues left in pocket

• Overloading the washer

• Undissolved Detergent

• Use too much Detergent

• Incorrect use of chlorine bleach.

• Unfastened zippers, hooks, buckles

• Ribs, tears and broken threads

• Overloading the washer

• Degradation of fabric

Blue Stains

Holes, tears, or snags

Black or gray marks on clothes

Yellow or brown rust stains

Lint

Residue or Detergent

Troubleshooting

Before calling for service, check the problem against the list bellows.

Symptom Error Message

Check up

• Is the water tap shut off?

• Is the water supply cut off ?

• Is the tap or water supply hose frozen ?

• Is the water pressure low or is the filter of the inlet valve clogged with impurities?

• Is the Hot hose connected to cold?

• Is the Cold hose connected to hot?

Water Supply

Failure

Drainage Failure

Spin Failure

Door(Lid) Open

Door(Lid) Close

Foreign objects

• Is the drain hose positioned correctly?

• Is the drain hose bent or placed too high?

• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?

• Check if electric power has gone off.

• Is the laundry evenly balanced?

• Is the washing machine placed on a flat surface?

• Is the lid closed?

• Make sure that the lid is closed properly and press the START/PAUSE button. The washer will not operate unless the lid is locked.

• Make sure that nothing is caught under the lid, including shipping material or clothing.

• Are there foreign objects, Such as coins, pins, etc., caughtbetween the wash plate and the inner basket ?

• Turn off the washer and then press the Power button. Press the spin speed button without selecting a cycle to drain and spin the load. When the spin is complete, remove the clothes and then find and remove any objects caught in the wash plate.

• Please call your nearest LG Electronics service center for help.

Tub Clean Alarm

• Please empty the tub, insert bleach into the detergent dispenser and select the Tub Clean cycle.

• If you want to skip the Tub Clean, press option buttons to select desired cycle. In this case, you would see the message again after few washing times. Once performed Tub Clean cycle, will disappear until next point of time to clean the tub.

SmartDiagnosis

Close the washer door, and press the

POWER

button.

Place the phone to SmartDiagnosis

display.

Hold the phone while data is transmitted.

Long press

Tub Dry button to activate smart diagnosis.

After the data transmission is completed, listen to the diagnosis result from the consultant.

•

If you manipulated other button or dial before pressing Tub Dry button, turn off the power and start again from the beginning.

•

Make sure that the speaking side of the phone to face SmartDiagnosis

display

•

Place the phone near the SmartDiagnosis

display, and long press Tub Dry button until tak tatk tak sounds.

•

Keep placing phone to SmartDiagnosis

display while data for smart diagnosis is being transmitted. The time remaining for data transmission will be displayed on screen.

•

Transmission sound may be irritating. For proper diagnosis, do not take off the phone. You can press power button to stop diagnosis function and the sound.

•

When data transmission is completed, the power is automatically turned off with End display after a few seconds.

NOTE

Smart Diagnosis is a troubleshooting feature designed to assist, not replace, the traditional method of troubleshooting through service calls. The effectiveness of this feature depends upon various factors, including, but not limited to, the reception of the cellular phone being used for transmission, any external noise that may be present during the transmission, and the acoustics of the room where the machine is located. Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue.

Terms of Warranty

What Is Not Covered:

• Service trips to your home to teach you how to use the product.

• If the product is connected to any voltage other than that shown on the rating plate.

• If the fault is caused by accident, neglect, misuse or Act of God.

• If the fault is caused by factors other than normal domestic use or use in accordance with the owner's manual.

• Provide instruction on use of product or change the set-up of the product.

• If the fault is caused by pests for example, rats or cockroaches etc..

• Noise or vibration that is considered normal for example water drain sound, spin sound, or warming beeps.

• Correcting the installation for example, levelling the product, adjustment of drain.

• Normal maintenance which recommended by the owner's manual.

• Removal of foreign objects / substances from the machine, including the pump and inlet hose filter for example, grit, nails, bra wires, buttons etc.

• Replace fuses in or correct house wiring or correct house plumbing.

• Correction of unauthorized repairs.

• Incidental or consequential damage to personal property caused by possible defects with this appliance.

• If this product is used for commercial purpose, it is not warranted.

(Example : Public places such as public bathroom, lodging house, training center, dormitory)

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by the owner.
