P/No.: MFL30138490
Washing Machine
OWNER’S MANUAL
WD-14440FDS
WD-14445FDS
Thank you for buying a
LG Fully Automatic Washing machine.
Please read your owner’s manual carefully, it provides
instructions on safe installation, use and maintenance.
Retain it for future reference.
Record the model and serial numbers of your washing machine.
2
roduct Feature
P
ontents
C
Warnings ....................................................................................................................3
Specification ................................................................................................................4
Installation ...................................................................................................................5
Care before washing .................................................................................................11

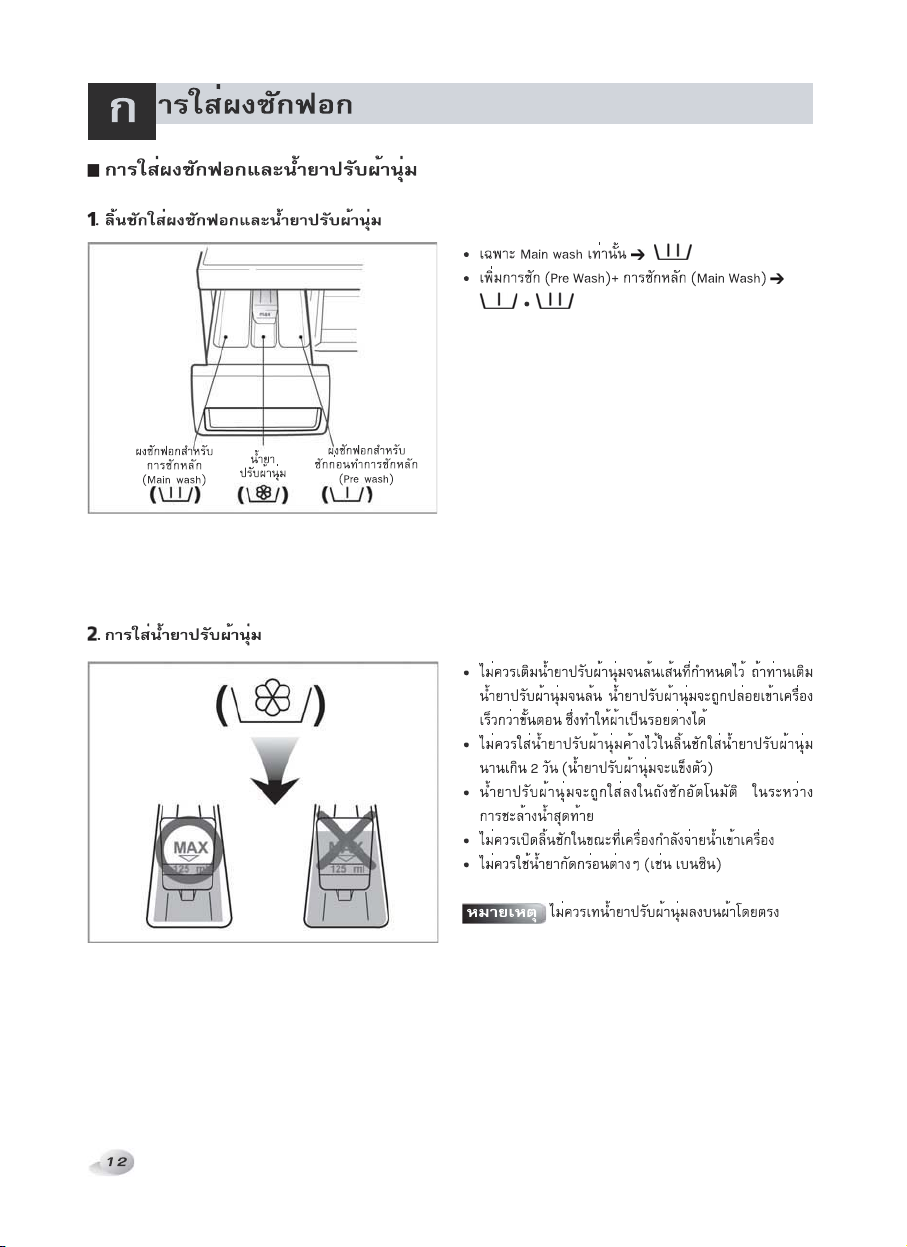

Adding detergent .......................................................................................................12

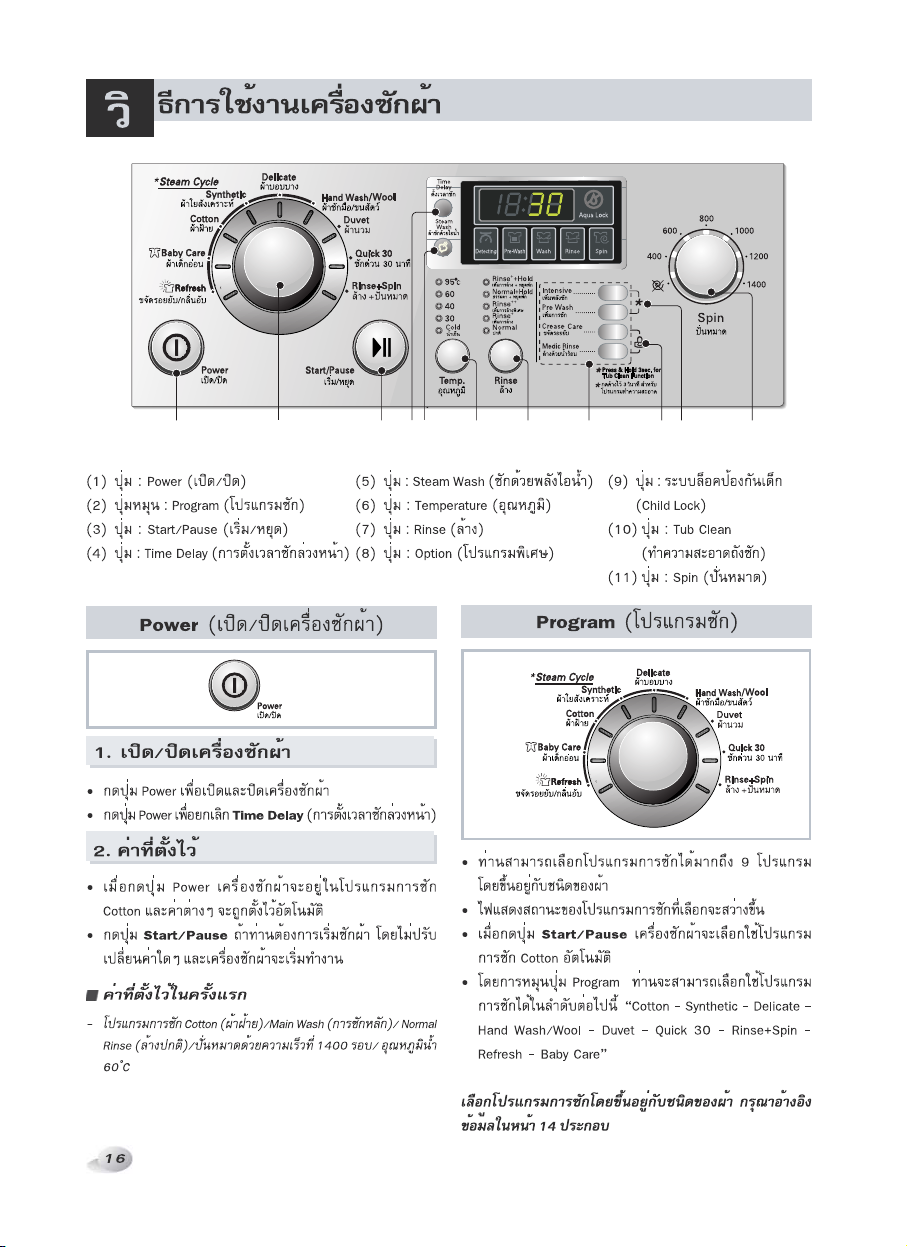

Function ..................................................................................................................14
How to use washer ....................................................................................................15

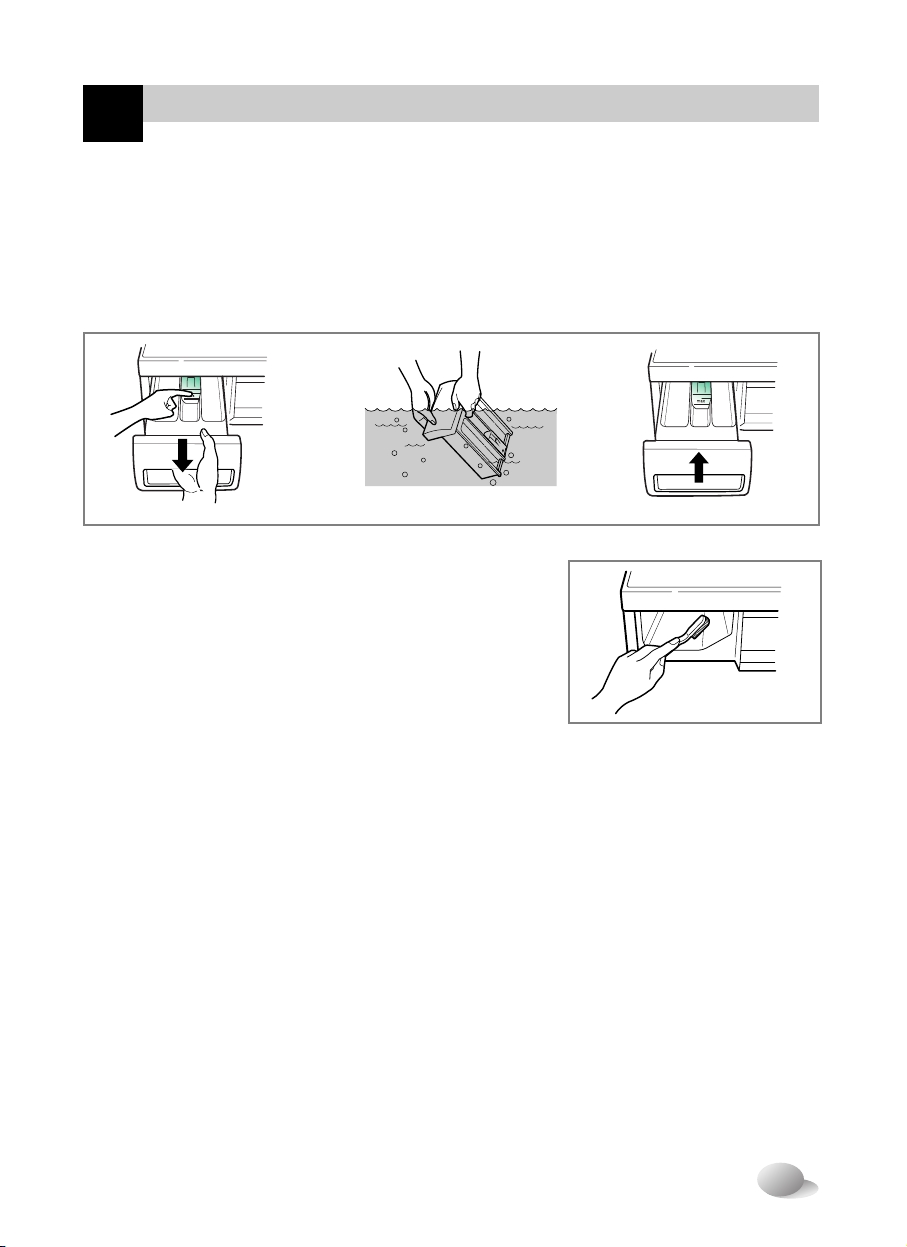

Maintenance ..............................................................................................................23

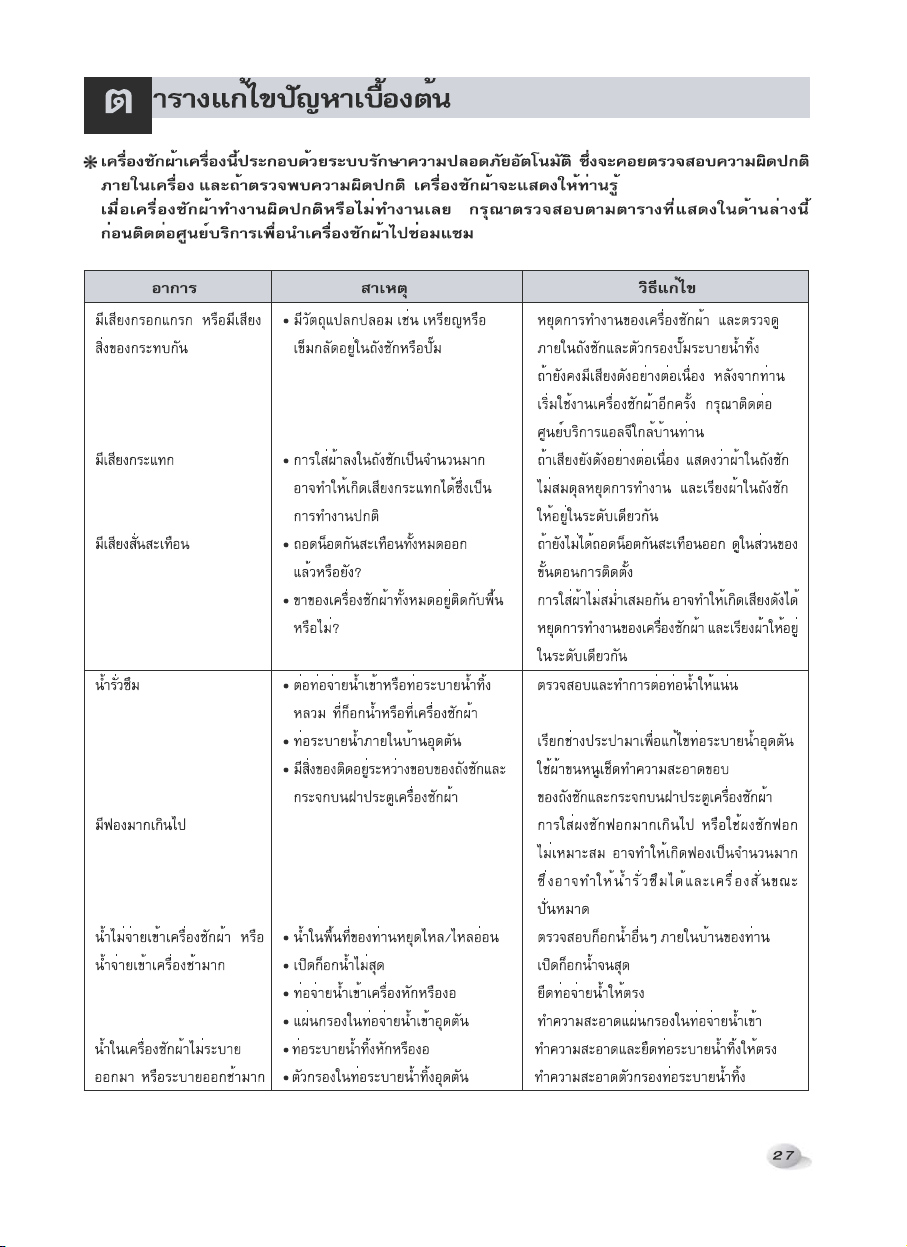

Troubleshooting guide ...............................................................................................27

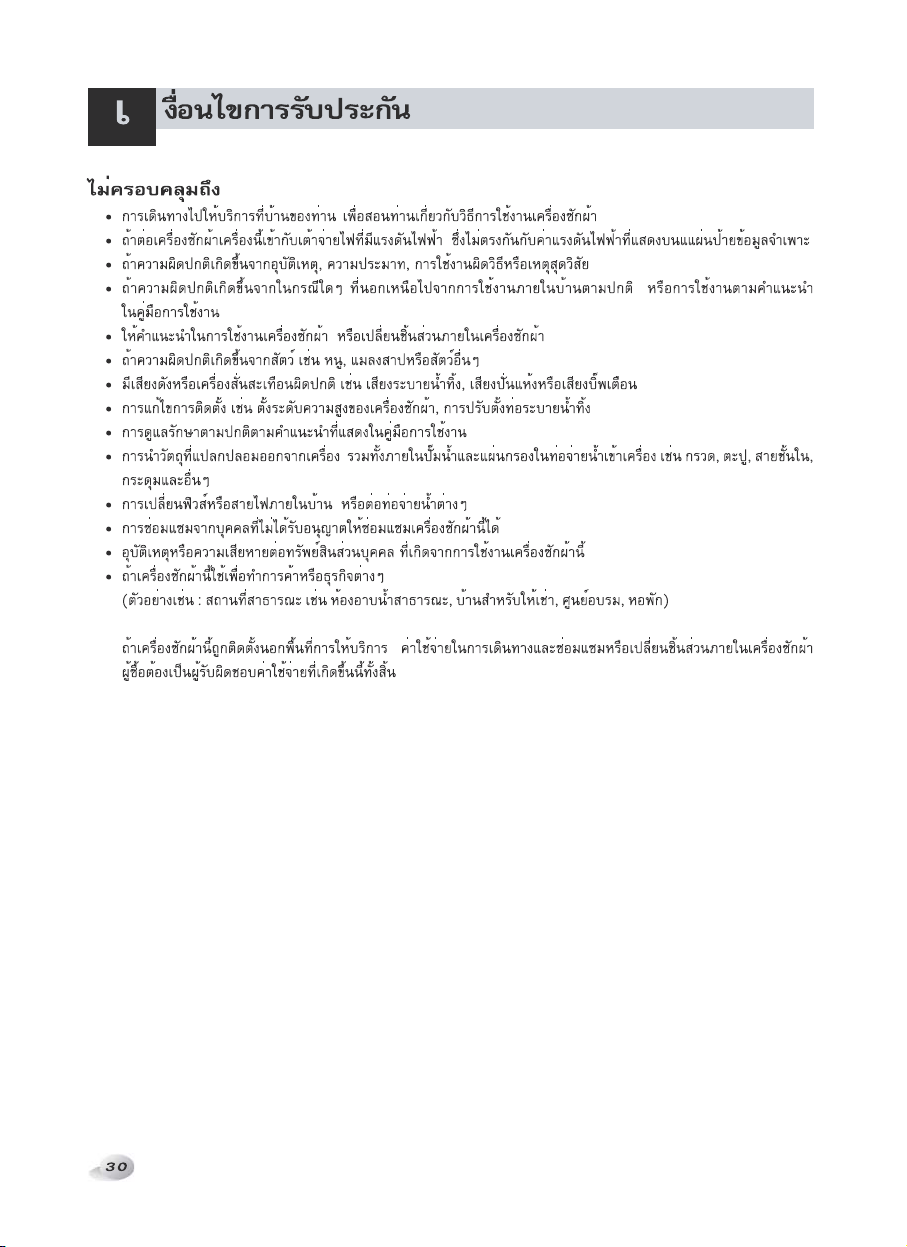

Terms of Warranty.....................................................................................................30
Direct Drive System
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
Water Circulation
Spray detergent solution and water onto the load continuously.
Clothes are soaked more quickly and thoroughly during wash cycle.
The detergent suds can be removed more easily by the water shower during rinse
cycle. The water circulation system uses both water and detergent more efficiently.
Built-in Heater
Internal heater automatically heats the water to the best temperature on selected
cycles.
Child Lock
The Child lock prevents children from pressing any button to change the settings
during operation.
More economical by Intelligent Wash System
Intelligent Wash System detects the amount of load and water temperature, and then
determines the optimum water level and washing time to minimize energy and water
consumption.
Low noise speed control system
By sensing the amount of load and balance, it evenly distributes load to minimize the
spinning noise level.
Safety device (Aqua lock)
Aqua lock System is designed for detecting water leak during operation to prevent
water from flooding over the floor.
Steam Washing and Refresh
Steam Washing features upgraded washing performance with low energy
consumption. Refresh cycle reduces wrinkles from dry clothes.
Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
추가선택, 예약,
3
arnings
W
For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, electric shock, or to prevent property damage,
personal injury, or loss of life.
!
READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION BEFORE USE
WARNING!
❊ Do not push down the door excessively, when washer door open.
This could topple over the washer.
• Before installation, check exterior damages. If it has,
do not install.
• Do not install or store the washer where it will
be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer
or attempt any servicing unless specifically
recommended in the user-maintenance instructions
or published user-repair instructions that you
understand and have the skills to carry out.
• Keep the area underneath and around your
appliances free of combustible materials such as
lint, paper, rags, chemicals, etc.
• Close supervision is necessary if this appliance is
used by or near children or infirm persons.
Do not allow them to play on, with, or inside this
or any other appliance.
• Keep washer away from fire.
• Do not leave the washer door open.
An open door could entice children to hang on the
door or crawl inside the washer.
• Never reach into washer while it is running.
Wait until the drum has completely stopped.
• The laundry process can reduce the flame retardant
of fabrics.
• To avoid such a result, carefully follow the garment
manufacturer’s wash and care instructions.
• Do not wash or dry articles that have been cleaned
in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax,
oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or
explode. Oil may remain in the tub after a whole
cycle resulting in fire during drying. So, do not load
oiled clothes.
• Do not slam the washer door closed or try to force
the door open when locked. This could result in
damage to the washer.
• When the machine runs at high temperature, the
front door may be very hot. Don’t touch it.
• To minimize the possibility of electric shock, unplug
this appliance from the power supply or disconnect
the washer at the household distribution panel by
removing the fuse or switching off the circuit breaker
before attempting any maintenance or cleaning.
• When unplugging power cord, do not pull out by
grasping the cord. Otherwise, the power cord may
be damaged.
• Never attempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled, or
has missing or broken parts, including a damaged
cord or plug.
• Before discarding an old machine unplug it. Render
the plug useless. Cut off the cable directly behind
the appliance to prevent misuse.
• When a product was under water, Please call
service center. The risk of electric shock and fire.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path
of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.
• Do not use an adapter or otherwise defeat the grounding plug.
• If you don’t have the proper outlet, consult an electrician.
IMPORTANT SAFETY INSTRUCTIONS
WARNING : To reduce the risk of fire, electric shock, or injury to persons when using
the washer, follow basic precautions, including the following:
SAVE THESE INSTRUCTIONS
WARNING :
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with
a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify
the plug provided with the appliance - if it does not fit the outlet, have a proper outlet installed by a qualified electrician.
4
pecification
S
Drawer
Inlet hose(1EA)
Spanner
Accessories
Name : Front loading washing machine
Power supply : 220V~, 50 Hz
Size : 600mm(W) x 640mm(D) x 850mm(H)
Weight : 64 kg
Wash capacity : 10.2 kg
Max.Watt : 2100W (Wash) / 1100W (Steam)
Spin speed : /400/600/800/1000/1200/1400
Water consumption : 52ℓ(5.1ℓ/ kg)
Permissible water pressure : 0.3-10 kgf/cm
2
(30-1000 kPa)
❋ The appearance and specifications may be varied without notice to raise the units quality.
5
nstallation
I
1. To prevent internal damage during
transport, the special 4 bolts are locked.
Before operating the washer, remove
the bolts along with the rubber bungs.
• If they are not removed, it may cause heavy
vibration, noise and malfunction.
3. Take out the 4 bolts along with the rubber
bungs by slightly twisting the bung. Keep
the 4 bolts and the spanner for the future
use.
• Whenever the appliance is transported, the
transit bolts must be refitted.
The appliance is fitted with transit bolts to prevent internal damage during transport.
• Packing and all transit bolts must be
removed before using the washer.
When unpacking the base, be
sure to remove the additional
packing support in the middle of
the base packing.
2. Unscrew the 4 bolts with
the spanner supplied.
4. Close the holes with the caps supplied.
Transit bolts
Install or store where it will not be exposed to temperature below freezing or exposed to the
weather.
Properly ground washer to conform with all governing codes and ordinances.
The base opening must not be obstructed by carpeting when the washing machine is installed on a
carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other
vermin, pay particular attention to keeping the appliance and its surroundings in clean condition at
all times.
Any damage which may be caused by cockroaches or other vermin will not be covered by the
appliance guarantee.
Removing transit bolts
(Packing support may not
be used depending on
models.)
6
nstallation
I
Level floor :
Allowable slope under entire washer is 1˚
Power outlet :
Must be within 1.5 meters of either side of location of
washer. Do not overload the outlet with more than one
appliance.
Additional Clearance :
For wall, door and floor modeling is required.
(10cm : rear /2cm:right & left side)
Do not place or store laundry products on top of washer at
any times.
They can damage the finish or controls.
Installation place requirement
Positioning
Install the washer on a flat hard floor.
Make sure that air circulation around the washer is not impeded by carpets, rug etc.
• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar
materials under the washer.
• If it is impossible to avoid positioning the washer next to a gas cooker or coal burning stove,
an insulation(85x60cm) covered with aluminum foil on the side facing the cooker or stove,
must be inserted between the two appliance.
• The washer must not be installed in rooms where the temperature can drop below 0°C.
• Please ensure that when the washer is installed, it is easily accessible for the engineer in the
event of a breakdown.
• Adjust all four feet using the transit bolt spanner provided ensuring the appliance is stable,
and a clearance of approximately 20mm is left between the top of the washer and the
underside of the work-top.
7
nstallation
I
▶Water supply pressure must be between 30kPa and 1000kPa
(0.3~10kgf/cm
2
)
▶Don’t strip or crossthread when connecting Inlet hose to the valve.
▶If the water supply pressure is more than 1000kPa, a decompression
device should be installed.
• Two rubber seals are supplied with the water inlet hoses. They
are used for preventing water leaks.
• Make sure the connection to taps is tight enough.
• Periodically check the condition of the hose and replace the
hose if necessary.
• Make sure that there is no kink on the hose and that it is not
crushed.
■
Washing Machine is to be connected to the water mains using new hose-sets and old hose-sets should
not be used.
■
Connecting water supply hose
1. Do not use an extension cord or double adapter.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly
qualified person in order to avoid a hazard.
3. Always unplug the machine and turn off the water supply after use.
4. Connect the machine to an earthed socket in accordance with current wiring regulations.
5. The appliance must be positioned so that the plug is easily accessible.
• Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center
• Do not install your washing machine in rooms where temperature below freezing may occur. Frozen hoses may burst
under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
• If the appliance is delivered in the winter months and temperatures are below freezing : Place the washing
machine at room temperature for a few hours before putting it into operation.
■
Electrical connection
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits. Check the
specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where
the cord exits the appliance.
CAUTION
NOTE
After completing connection, if water leaks from the hose, repeat the same steps. Use the most conventional type
of faucet for water supply. In case the faucet is square or too big, remove the spacing ring before inserting the
faucet into the adaptor.
8
nstallation
I
Normal Tap without thread & screw type inlet hose
Normal Tap without thread & one touch type inlet hose
1. Unscrew the fixing screw to
attach the tap.
2. Push the connector up till the
rubber packing is in tight contact
with the tap. Then tighten the 4
screws.
3. Push the water supply hose
vertically upwards so that the
rubber packing within in the
hose can adhere completely to
the tap and then tighten it by
screwing it to the right.
1. Untighten the upper connector
screw.
2. Push the upper connector up till
the rubber packing is in tight
contact with the tap. Then
tighten the 4 screws.
3. Connect the water supply hose
to the middle connector,
pushing the plate down.
• Make sure that there are no
kinks in the hose and that it is
not crushed.
• Make sure that the rubber seal
is inside the hose connector.
• In case the diameter of the tap is
large remove the guide plate.
• Unable water Tap for connectoring
hose.
• Turn the middle connector not
to have water leaked.
• To separate the water supply
hose from the middle connector
shut off the tap. Then pull the
inlet hose down, pushing the
plate down.
9
nstallation
I
Installation of drain hose
• The drain hose should not be placed higher
than 100 cm above the floor. Water in the
washer does not drain or drains slowly.
• Proper securing of the drain hose will
protect the floor from damage due to water
leakage.
• When the drain hose is too long, do not
force back into the washer. This will cause
abnormal noise.
• When installing the drain hose sink,
secure it tightly with a string.
• Proper securing of the drain hose will
protect the floor from damage due to
water leakage.
This equipment is not designed for maritime use or for use mobile installations such as
caravans, aircraft etc.
Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday),
especially if there is no floor drain(gully) in the immediate vicinity.
When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the
door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk
of suffocation ! Keep all packaging well away from children
10
nstallation
I
Level adjustment
Concrete floors
Wooden floors (Suspended floors)
1. Adjusting the washing machine level properly prevents excessive
noise and vibration.
Install the appliance on a solid and level floor surface, preferably in a
corner of the room.
2. If the floor is uneven, adjust the adjustable feet as required.
(do not insert pieces of wood etc. under the feet)
Make sure that all four feet are stable and resting on the floor and
then check that the appliance is perfectly level. (use a spirit level)
※※
After the washer is level, tighten the lock nuts up towards of the base of
the washer. All lock nuts must be tightened.
❊ Diagonal Check
When pushing down the edges of the washing machine top plate diagonally, the machine
should not move up and down at all. (Please, check both of two directions)
If machine rocks when pushing the machine top plate diagonally, adjust the feet again.
• The installation surface must be clean, dry and level.
• Install washer on a flat hard floor.
Tile floors (Slippery floors)
• Position each foot on the Tread Mate and level the machine to suit. (Cut Tread Mate into 70x70 mm
sections and stick the pieces on to the dry tile where machine is to be placed.)
※※
Tread Mate is a self adhesive material used on ladders & steps that prevents slipping.
• Wooden floors are particularly susceptible to vibration.
• To prevent vibration we recommend you place rubber cups under each foot,
at least 15mm thick under the washer, secured to at least 2 floor beams with screws.
• If possible install the washer in one of the corners of the room, where the floor is more stable.
※※
Insert the rubber cups to reduce vibration.
※※
You can obtain the rubber cups (p/no.4620ER4002B) from the LG svc dept.
Important!
• Proper placement and levelling of the washer ensure long, regular and reliable operation.
• The washer must be absolutely horizontal and stand firmly in position.
• It must not “Seesaw” across corners under load.
• The installation surface must be clean, free from floor wax and other lubricant coatings.
• Do not let the feet of the washer get wet. If feet of the washer get wet, slipping may occur.
Timber or suspended type flooring may contribute to
excessive vibration and unbalance errors.
In the case that the washing machine is installed on a raised
platform, it must be securely fastened in order
to eliminate the risk that it might fall off.
NOTE
NOTE
11
are before washing
C
1. Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your garment and
how it should be washed.
2. Sorting
To get the best results, Sort clothes into loads that can be washed with the same wash cycle.
Water temperature and spin speed and different fabrics need to be washed in different ways.
Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can
occur causing discoloration of white etc. If possible, do not wash heavily soiled items with lightly
soiled one.
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white fabrics from colored fabrics.
Lint (Lint producers, Collectors) Wash lint producers and lint collectors
separately.
3. Caring before loading
Caring before washing
Before the first washing
Combine large and small items in a load. Load large items first. Large items should not be more than half
the total wash load.
Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.
• Check all pockets to make sure that they
are empty. Items such as nails, hair clip,
matches, pens, coins and keys can damage
both your washer and your clothes.
• Close zippers, hooks and strings to
make sure that these items don’t
snag on other clothes.
• Pre treat dirt and stains by brushing a little
detergent dissolved in water onto stains like
collars and cuffs to help shift dirt.
• Check the folds of the flexible gasket (gray) and
remove any small articles,if any.
• Check inside of the drum and remove any left
items in it for next wash cycle.
• Remove any clothing or items on the flexible
gasket to prevent clothing and the gasket
damages.
Select a cycle (COTTON 60°C, add a half load of detergent) allow the unit to wash
without clothing. This will remove residues and water from the drum that may have been left
during manufacturing.
12
dding detergent
A
• Main wash only
➔
• Pre Wash + Main Wash
➔
• Do not exceed the maximum fill line.
Close the dispenser drawer slowly.
Overfilling can cause early dispensing
of the fabric softener which could stain
clothes.
• Do not leave the fabric softener in the
detergent drawer for more than 2 days.
(Fabric softener could harden)
• Softener will automatically be added
during the last rinse cycle.
• Do not open the drawer when water is
supplied.
• Solvents(benzene, etc) are not
allowable.
1. The Dispenser Drawer
2. Adding Fabric Softener
Adding detergent and fabric softener
Do not pour fabric softener
directly on the cloths
NOTE
13
dding detergent
A
• The detergent should be used according to the
instruction of the detergent manufacture.
• If too much detergent is used, too many suds
can occur and this will decrease the washing
result or cause heavy load to the motor.
• Use powder detergent only for the front
loading washer.
❇
If suds occur too much, pleas reduce the
detergent amount.
• Detergent usage may need to be adjusted
for water temperature, water hardness,
size and soil level of the load. For best
results, avoid oversudsing.
4. Water softener
• A water softener, such as Anti limescale
(Clagon) can be used to cut down on the
use of detergent in extremely hard water
areas. Dispense according to the amount
specified on the packaging.
First add detergent and then the water
softener.
• Use the quantity of detergent as for soft
water.
❋
Tips
Full load : according to
manufacturer’s recommendation.
Part load : 3/4 of the normal
amount.
Minimum load : 1/2 of full load.
• Detergent is flushed from the dispenser
at the beginning of the cycle.
1) Open the door and Tablets into the
drum.
3. Detergent dosage
5. Using the Tablets
MAXMAX
2) Load the laundry into the drum.
3) Close the door.
14
unction
F
Recommended courses according to the laundry type
Cotton
Synthetic
Baby
Care
Delicate
Duvet
Quick 30
Rinse+
Spin
Refresh
Hand
Wash
/Wool
Color fast garments
(shirts, night dresses,
pajamas...)and lightly soiled
white cotton(underwear)
Polyamide, Acrylic, Polyester
Lightly soiled baby wear
Delicate laundry easily
damaged
“Hand wash” marked
delicate and wool laundry
Cotton bedding with filling
duvet, pillow, blanket, sofa
cover with light filling
Colored laundry which is
lightly soiled fast
Cotton mixed, Polyeter
mixed Dress shirts, blouses
- Time Delay
- Steam Wash
- Intensive
- Pre Wash
- Crease Care
- Medic Rinse
- Time Delay
- Intensive
- Crease Care
- Crease Care
- Medic Rinse
- Time Delay
- Steam Wash
❋ Water Temperature : Select the water temperature to the wash cycles.
Always follow garment manufacture’s care label or instructions when laundering.
❋ Intensive : If the laundry is heavily soiled “Intensive” option is effective.
❋ Program setting with “Cotton 60°C + Steam Wash + Intensive” option for test in accordance or in
conformity with EN60456 and IEC60456.
❋ Pre Wash : If the laundry is heavily soiled, “Pre Wash” Cotton is recommended. Pre Wash is available
in Cotton, Synthetic and Baby Care program.
❋ Crease Care : If you want to prevent crease, select Crease Care button.
❋ Medic Rinse : For high effectiveness or more purity in rinse operation you can choose Medic Rinse
option. Medic Rinse is default in Baby Care program.
60°C
(Cold, 30°C,
40°C, 95°C)
40°C (Cold,
30°C, 60°C)
40°C
(Cold, 30°C)
30°C
(Cold, 40°C)
No Choose
No Choose
95°C
(40°C, 60°C)
Rating
Less than 4.0kg
Less than 4.0kg
Less than 3.0kg
1 king size
(9 Tog)
Less than 2.0kg
Less than 2.0kg
Rating
3 items
Maximum Load
Option
Water
Temp.
(Option)
Fabric Type
Program
15
ow to use washer
H
• Press the Power( ) button to start.
• Press the Start/Pause( ) button.
• Initial condition
- Wash : Main wash
- Rinse : 3 times
- Spin : 1400 rpm
- Water temperature : 60˚C
- Program : Cotton
• Press the Power( ) button to start.
• Select the conditions which you want to
use, by pressing each button.
For selecting the each conditions, please
refer to the page16~page22.
• Press the Start/Pause button.
1. Cotton automatically
selected upon power on.
2. Manual Selecting
16
ow to use washer
H
Program
• 9 programs are available according to the
laundry type.
• Lamp will light up to indicate selected program.
• When Start/Pause button is pressed, the
Cotton program is automatically selected.
- By turning the Program dial, the program is
selected in order of “ Cotton – Synthetic –
Delicate – Hand Wash/Wool – Duvet – Quick 30
– Rinse+Spin – Refresh – Baby Care”.
Regarding to the laundry type for each program
Please refer to the page14.
1. Power
2. Initial Program
Power
• Press the Power button to turn power on and off.
• To cancel the Time Delay function, the Power
button should be pressed.
• When the Power button is pressed, the washer
is ready for Cotton program. And the other initial
conditions as follows.
• So, if you want to advance into the washing
cycle without changing the program, just press
Start/Pause button and then the washer will
proceed.
■
Initial program
-Cotton Program / Main Wash /
Normal Rinse / 1400 rpm / 60˚C
(1) Button : Power
(2) Dial : Program
(3) Button : Start/Pause
(4) Button : Time Delay
(5) Button : Steam Wash
(6) Button : Temperature
(7) Button : Rinse
(8) Button : Option
(9) Button : Child Lock
(10) Button : Tub Clean
(11) Dial : Spin
(1) (2) (3) (6) (7) (8) (9) (10) (11)(4) (5)
17
ow to use washer
H
Start/Pause
• This Start/Pause button is used to start
wash cycle or pause the wash cycle.
• If temporary stop of wash cycle is needed,
press “Start/Pause” button.
• When in Pause, the power is turned off
automatically after 4 minutes.
• NB. The door will not open before 1 to 2
minutes when Pause is selected,
or at the end of the wash cycle.
1. Start
2. Pause
• While the "Detecting" is shown in the display
the machine rotates slowly and detects how
many laundries are loaded in the drum. It
will take a few seconds.
• Available in Cotton, Synthetic and Baby
Care program.
Time Delay
Preparing washing before starting “Time Delay”
- Turn on the water tap.
- Load laundry and close the door.
- Place the detergent and fabric softener in
the drawer.
• How to set “Time Delay”
- Press Power button.
- Turn the Program dial to select
the program you require.
- Press Time Delay button and set the
desired time.
- Press the Start/Pause button.
• If Time Delay button is pressed, “3:00” is
displayed. The maximum delayed time is
19:00 hours and the minimum time is 3:00
hours.
• Each pressing of the button advances time
delay by one hour.
• To cancel the time delay, press the
Power button.
• Time Delay is ‘expected time’ from the
present to the completion of washing cycle
or selected process (Wash, Rinse, Spin).
• According to the condition of water supply and
temperature, the delayed time and the actual
washing time may vary.
• Lights whenever the door of the washer is
locked.
• The door can be unlocked by pressing the
Start/Pause button to stop the washer.
• The door can be opened after a short delay.
Detecting
Door Lock
18
ow to use washer
H
Steam Wash
By pressing the Steam Wash button, Steam
Function Can be selected.
When Steam Function is selected, Steam wash
( ) LED lights on.
Steam Wash is
• For tough stained clothes, underwear, or baby
clothes.
• Steam Wash is available with Cotton, Synthetic,
Baby Care program.
Refresh cycle is fixed Steam wash.
• This option features upgraded washing
performance with low energy.
• Do not load delicates such as wool, silk, and
easily discolored clothes.
NOTE:
- Steam wash is a highly concentrated and
efficient.
It may seem there is no water inside the
drum(normal condition).
- During the steam cycle the strong steam
spray may not be seen through the door
(normal condition).
- During the steam operation, a spraying sound
will be heard. (normal condition)
- Do not try to open the door while operating.
Steam can cause severe burns.
CAUTION:
- Do not reach into the washer while operating.
Steam can cause severe burns.
Refresh
■ Refresh cycle
• For slightly wrinkled clothes which have
been stored for an extended time.
It just makes wrinkled clothes easy to iron
(Do not load wet clothes).
• Wrinkles will be reduced.
■ How to use Refresh cycle
1. Turn on the washer and select the Refresh program.
2. Load 3 items or less and close the door.
3. Press the Steam Wash button repeatedly until the
desired and correct number of items is displayed.
Initial display is 2 items
4. Press the Start/Pause button
CAUTION:
- Do not reach into the washer while operating.
Steam can cause severe burns.
- Keep pets away from the washer.
[Precautionary Notes]
- The Refresh cycle is not like other washing or
drying cycles.
- Due to the characteristic of cotton fibers, this cycle
is not recommended for 100% cotton clothing.
- Remove stains from clothing before using the
Refresh cycle to prevent permanently setting the
stains by high heat.
- Be sure that the faucet is open. This cycle uses a
little water to produce steam.
- Be careful not to touch the door. It can be very hot.
- Do not open the door while operating.
Steam can cause severe burns.
- After removing clothes from the Refresh cycle they
may feel slightly damp wait at least 10 minutes
before putting the clothes on.
- Best result are achieved when articles are of similar
size and fabric type. Do not overload
(Load less than 3 dress shirtes)
Time Left
Use on tough stained clothes.
Press the
Steam Wash button
!
!
Program
Cotton
Synthetic
Baby Care
Temperature
60°c (30°c, 40°c, 95°c)
40°c (30°c, 60°c)
95°c (40°c, 60°c)
19
ow to use washer
H
1. Normal
2. Rinse+& Rinse
++
3. Rinse Hold
Rinse
• By pressing the Rinse
button, the Rinse type can
be selected.
• Cotton, Synthetic, Baby Care performs 3
Rinses
• Hand Wash/Wool, Quick 30, Delicate,
Duvet performs 2 Rinses
• Used to additional rinse, which may assist
in removing traces of detergent residue.
• By selecting Rinse+or Rinse
++
function,
the Rinse Time and the Rinse water are
increased.
• Is selected by pressing the Rinse button
repeatedly. This function leaves clothes in
the washer; suspended in the water after a
rinse without entering into spin.
• To proceed through to a drain or spin, once
the rinse hold function is completed using to
program dial scroll to the required program.
The required lamp will light up for
identification.
Water Temp.
• By pressing the Temp.
button, the water
temperature can be
selected.
- Cold
- 30˚C / 40˚C / 60˚C / 95˚C
• Water temperature can be selected as
below according to the program.
- Baby Care
40˚C – 60˚C – 95°C
- Cotton
Cold – 30˚C – 40˚C – 60˚C – 95˚C
- Synthetic
Cold – 30˚C – 40˚C – 60˚C
- Delicate & Quick 30 & Hand Wash/Wool
& Duvet
Cold – 30˚C – 40˚C
The required temperature lamp will light up for
identification.
For the more detailed information, please refer
to the page14.
20
ow to use washer
H
Option
By pressing each the button, each function
will be selected.
2. Pre Wash
• Use this option for load that need
pretreatment. Add 16 minutes pre wash and
drain.
- When using Pre Wash option, do not use
liquid detergent in the main wash
comportment. Use powder for the main
wash.
• Available in Cotton, Synthetic and Baby Care
program.
3. Crease Care
• If you want to prevent crease, select this
button with spin speed.
4. Medic Rinse
• For high effectiveness or more purity in rinse
operation you can choose Medic Rinse option.
• Available in Cotton, Synthetic and Baby Care
program.
• Medic Rinse is default in Baby Care program.
The required temperature lamp will light up for
identification.
1. Intensive
• If the laundry is heavily soiled “Intensive”
option is effective.
• By selecting the Intensive option, the wash
time may be extended, depending on the
program selected.
• To use this option, press the intensive button
once before the wash program is started.
Child lock
If you choose to lock the buttons on the
control assembly to prevent tampering, this
function may be selected.
• Child lock can be set by pressing and
holding the Crease Care and Medic Rinse
button simultaneously.
(About three seconds)
• When child lock is set, all buttons are
inoperable, except Power button
• To deactivate Child lock system, press and
hold the Crease Care and Medic Rinse
button simultaneously again.
(About three seconds)
• To change to the desired program, whilst in
child lock mode.
1. Press and hold both Crease Care and
Medic Rinse button together once again.
(About three seconds)
2. Press the Start/Pause button.
3. Select the desired program and press the
Start/Pause button again.
• The child lock can be set at any time and it
is automatically canceled when operational
errors occur. Also Child lock works when
power is off.
21
ow to use washer
H
Tub Clean
Tub Clean course can be set by pressing
and holding Intensive and Pre Wash button
simultaneously.
When Tub Clean course is set, display
“ ”, and all buttons are inoperable.
TUB CLEAN is special cycle to clean the
inside of the washer. This cycle uses higher
water level with higher spin speed. Perform
this cycle regularly.
How to use the Tub Clean cycle:
1. Remove any clothing or items from the
washer and close the door.
2. Open the dispenser drawer and add Anti
limescale (Calgon) to the Main wash
compartment.
NOTE: Do not add any detergent to the
detergent compartments. Excessive
suds may generate and leak from the
washer.
3. Close the dispenser drawer slowly.
4. Power On and then press and hold
Intensive and Pre Wash button for 3 seconds.
then
“ ”
is displayed in LED
5. Press the Start/Pause button to start.
6. After the cycle is complete, leave the door
open to dry around the washer door
opening, flexible gasket and door glass.
CAUTION: If there is a small child, be
careful not to leave the door
open for too long.
!
1. Spin selection
2. No spin ( )
3. Spin Only
Spin
• Spin speed is available according to the program as
follows.
- Cotton & Quick 30 & Rinse+Spin
No Spin – 400 – 600 – 800 – 1000 – 1200 – 1400
- Synthetic & Hand Wash/Wool & Duvet &
Baby Care
No Spin – 400 – 600 – 800 – 1000
- Delicate
No Spin – 400 – 600 – 800
• If “No Spin” is selected, the washer stops after
draining water.
1. Press the Power button.
2. Set the desired spin speed by turnning spin dial.
3. Press the Start/Pause button.
The required lamp will light up for identification.
• By turning the Spin dial, the spin
speed can be chosen.
22
ow to use washer
H
• If the washer encounters a fault during
operation, the associated fault will be
displayed.
“ ” : Water pressure sensing error
“ ” : Problem of overfilling water
“ ” : Door is not closed
“ ” : Over load in motor
“ ” : Water inlet trouble
“ ” : Drainage trouble
“ ” : Unbalanced load
“ ” : Water temperature trouble
“ ” : Water leaks
“ ” : The washer experienced a
power failure.
If these error letters are displayed, please
refer to the troubleshooting page27 and
follow the guide.
Display
• When Child lock is selected, the
“ ” lamp is on.
• When time delay is selected, it shows
the remaining times to finish the selected
program.
• When washing cycle is completed,
“ ” is displayed on the “Multi display”.
• During washing cycle, the remaining washing
time is displayed.
• Recommended program by manufacturer.
- Cotton : around 1 hour and 51 minutes
- Synthetic : around 1 hour and 24 minutes
- Delicate : around 1 hour and 12 minutes
- Hand Wash/Wool : around 57 minutes
- Quick 30 : around 30 minutes
- Duvet : around 1 hour and 12 minutes
- Baby Care : around 2 hours and 37 minutes
- Rinse + Spin : around 23 minutes
- Refresh : around 19 minutes
• The washing time may vary by the amount
of laundry, water pressure, water
temperature and other washing conditions.
• If an unbalanced load is detected or if the
suds removing program operates, the wash
time may be extended.
(Max. increasing time is 45 minutes.)
1. Special function display
3. Completion of washing
4. Time left
2. Self diagnose display
Est. Time Remaining
Status Indicator
• This display shows the estimated time
remaining in the cycle when operating.
• This washer automatically detects the
wash load (weight) and optimizes the
washing time. After detecting, the display
will show the adjusted time remaining.
• It shows elapsed time of the cycle the
washer is operating.
23
aintenance
M
The water inlet filter
- " " error message will blink on the control panel when water does not enter the
detergent drawer.
- If water is very hard or contains traces of lime deposit, the water inlet filter may
become clogged.
It is therefore a good idea to clean it from time to time.
❋ Before cleaning the washer interior, unplug the electrical power cord to avoid electrical
shock to avoid electrical shock hazards.
❋ When disposing of the appliance, cut off the mains cable, and destroy the plug Disable
the door lock to prevent young children being trapped inside.
1. Turn off the water tap.
2. Unscrew the water inlet hose.
3. Clean the filter using a hard bristle
brush.
4. Tighten up the inlet hose.
24
aintenance
M
3
2
The drain pump filter
❋ The drain filter collects threads and small objects left in the laundry.
Check regularly that the filter is clean to ensure smooth running of your machine.
CAUTION First drain using the drain hose and then open the pump filter to
remove whatever any threads or objects.
Be careful when draining if the water is hot.
❋ Allow the water to cool down before cleaning the drain pump, carrying out
emergency emptying or opening the door in an emergency.
!
1. Open the lower cover cap () by using
a coin.
Drain plug () to pull out the hose.
2. Unplug the drain plug (), allowing the
water to flow out. At this time use a
vessel to prevent water flowing on to the
floor. When water does not flow any
more, turn the pump filter () open to
the left.
3. Remove out any foreign material from
the pump filter.
4. After cleaning, turn the pump filter ()
clockwise and insert the drain plug ()to
the original place. close the lower cover
cap.
100
1
3
2
25
aintenance
M
Dispenser drawer
❋ After a while detergents and fabric softeners leave a deposit in the drawer.
• It should be cleaned from time to time with a jet of running water.
• If necessary it can be removed completely from the machine by pressing the catch
downward and by pulling it out.
• To facilitate cleaning, the upper part of the fabric softener compartment can be removed.
The drawer recess
❋ Detergent can also accumulate inside the recess which should
be cleaned occasionally with an old toothbrush.
• Once you have finished cleaning, replace the drawer and run a
rinse cycle without laundry.
MAX
MAX
The washing drum
• If you live in a hard water area, limescale may continuously build up in places where it cannot be
seen and thus not easily removed.
Over time the build up of scale clogs appliances, and if it is not kept in check these may have to be
replaced.
• Although the washing drum is made of Stainless steel, specks of rust can be caused by small metal
articles (paper clips, safety pins) which have been left in the drum.
• The washing drum should be cleaned from time to time.
• If you use descaling agents, dyes or bleaches, make sure they are suitable for washing machine
use.
❋ Descaler may contain chemicals that may damage part of your washing machine.
❋ Remove any spots with a stainless steel cleaning agent.
❋ Never use steel wool.
MAX
MAX
26
aintenance
M
The water circulation nozzle & Steam nozzle
• Clean the water circulation nozzle and Steam nozzle, if clogged.
Cleaning your washer
1. Exterior
Proper care of your washer can extend its life.
The outside of the machine can be cleaned with warm water and a neutral non abrasive
household detergent.
Immediately wipe off any spills. Wipe with damp cloth.
Try not to hit surface with sharp objects.
❋
IMPORTANT: Do not use methylated spirits, diluents or similar products.
2. Interior
Dry around the washer door opening, flexible gasket and door glass.
Run washer through a complete cycle using hot water.
Repeat process if necessary.
Winterizing instructions
If the washer is stored in an area where freezing may occur or moved in freezing
temperatures, follow these instructions to prevent damage to the washer:
1. Turn off water supply tap.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1gallon(3.8L) of nontoxic recreational vehicle(RV) antifreeze into an empty wash drum.
Close the door.
5. Set spin cycle and let washer spin for 1minute to drain out all water.
Not all of the RV antifreeze will be expelled.
6. Unplug electrical power cord, dry the drum interior, and close the door.
7. Remove dispenser drawer, drain and dry excessive water from the compartments.
8. Store washer in an upright position.
9. To remove antifreeze from washer after storage, run empty washer
through a complete cycle using detergent. Do not add wash load.
Remove hard water deposits using only cleaners labeled as safe for washing
machine.
NOTE
27
roubleshooting guide
❋ This washing machine is equipped with automatic safety functions which detect and
diagnose faults at an early stage and react appropriately.
When the machine does not function properly or does not function at all, check the
following points before you contact your service provider.
Symptom Possible Cause Solution
Rattling and
clanking noise
Thumping sound
Vibrating noise
Water leaks.
Oversudsing
Water does not enter
washer or it enters
slowly
Water in the washer
does not drain or
drains slowly.
• Foreign objects such as coins or
safety pins maybe in drum or
pump.
• Heavy wash loads may produce
a thumping sound. This is usually
normal.
• Have all the transit bolts and
packing been removed?
• Are all the feet resting firmly on
the ground?
• Fill hoses or drain hose are loose
at tap or washer.
• House drain pipes are clogged.
• Water supply is not adequate in
area.
• Water supply tap is not
completely open.
• Water inlet hose(s) are kinked.
• The filter of the inlet hose(s) are
clogged.
• Drain hose is kinked or clogged.
• The drain filter is clogged.
Stop washer and check drum
and drain filter.
If noise continues after washer
is restarted, call your authorized
service centre.
If sound continues, washer is
probably out of balance. Stop and
redistribute wash load.
If not removed during
installation, refer to Installation guide
for removing transit bolts.
Wash load may be unevenly
distributed
in drum. Stop washer and
rearrange wash load.
Check and tighten hose connections.
Unclog drain pipe. Contact plumber
if necessary.
Too much detergent or unsuitable
detergent may cause excessive
foaming which may result in water
leaks.
Check another tap in the house.
Fully open tap.
Straighten hose(s).
Check the filter of the inlet hose(s).
Clean and straighten the drain hose.
Clean the drain filter.
T
28
roubleshooting guide
Washer does not start
Washer won’t spin
Door does not open
Wash cycle time
delayed
• Electrical power cord may not
be plugged in or connection
may be loose.
• House fuse blown, circuit
breaker tripped, or a power
outage has occurred.
• Water supply tap is not turned
on.
❋ Check that the door is firmly
shut.
Make sure plug fits tightly in wall
outlet.
Reset circuit breaker or replace fuse.
Do not increase fuse capacity.
If problem is a circuit overload, have
it corrected by a qualified electrician.
Turn on water supply tap.
Close the door and press the
Start/Pause button. After pressing
the Start/Pause button, it may take
a few moments before the washer
begins to spin. The door must lock
before spin can be achieved.
Once started, the door can not be
opened for safety reasons.
Wait one or two minutes before
opening the door to give the electric
locking mechanism time to release.
The washing time may vary by the
amount of laundry, water
pressure, water temperature and
other using conditions.
If the imbalance is detected or if the
suds removing program works, the
wash time shall be increased.
Symptom Possible Cause Solution
T
29
roubleshooting guide
Symptom Possible Cause Solution
• Water supply is not adequate in area
• Water supply taps are not completely
open.
• Water inlet hose(s) are kinked.
• The filter of the inlet hose(s) are clogged.
• Drain hose is kinked or clogged.
• The drain filter is clogged.
• Load is too small.
• Load is out of balance.
• The appliance has an unbalance
detection and correction system. If
individual heavy articles are loaded (ex.
bath mat, both robe, etc.), this system
may stop spinning or even interrupt the
spin cycle altogether.
• If the laundry is still too wet at the end of
the cycle, add smaller articles of laundry
to balance the load and repeat the spin
cycle.
• Is the door opened or not
completely closed?
• Water overfills due to the faulty water
valve.
• Water level sensor has malfunctioned.
• Over load in motor.
• Water leaks
• The washer experienced a power failure.
Check another tap in the house.
Fully open tap.
Straighten hose(s).
Check the filter of the inlet hose(s).
Clean and straighten the drain hose.
Clean the drain filter.
For more detailed information,
please refer to “The drain pump filter”
on page52
Add 1 or 2 similar items to help
balance the load.
Rearrange load to allow proper
spinning
Close the door completely.
❋ If “ ”is not released, call for service.
Unplug the power plug and call for service.
Close the water tap.
Unplug the power plug.
Call for service.
Call for service.
Restart the cycle.
T
30
erms of Warranty
What Is Not Covered:
• Service trips to your home to teach you how to use the product.
• If the product is connected to any voltage other than that shown on the rating plate.
• If the fault is caused by accident, neglect, misuse or Act of God.
• If the fault is caused by factors other than normal domestic use or use in accordance
with the owner's manual.
• Provide instruction on use of product or change the set-up of the product.
• If the fault is caused by pests for example, rats or cockroaches etc..
• Noise or vibration that is considered normal for example water drain sound, spin
sound, or warming beeps.
• Correcting the installation for example, levelling the product, adjustment of drain.
• Normal maintenance which recommended by the owner's manual.
• Removal of foreign objects / substances from the machine, including the pump and
inlet hose filter for example, grit, nails, bra wires, buttons etc.
• Replace fuses in or correct house wiring or correct house plumbing.
• Correction of unauthorized repairs.
• Incidental or consequential damage to personal property caused by possible defects
with this appliance.
• If this product is used for commercial purpose, it is not warranted.
(Example : Public places such as public bathroom, lodging house, training
center, dormitory)
If the product is installed outside the normal service area, any cost of
transportation involved in the repair of the product, or the replacement of a
defective part, shall be borne by the owner.
T
WD-14440FDS
WD-14445FDS
(1) (2) (3) (6) (7) (8) (9) (10) (11)(4) (5)
Loading...
