User’s Guide
W1934S
W2234S
W1934SE
W2234SE
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
Important Precautions
This unit has been engineered and manufactured to ensure your personal safety,
however improper use may result in potential electrical shock or fire hazards. In
order to allow the proper operation of all safeguards incorporated in this display,
observe the following basic rules for its installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display:
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
A1
Important Precautions
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
Do not shock or scratch the front and sides of the screen with metallic objects.
Otherwise, it may cause damage to the screen.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
A2
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Connecting the stand
1. Place the monitor with its front facing downward on a soft cloth.
.
2
Check the direction of the Stand Body, and connect it into the Hinge Body as shown in the
picture.
Hinge Body
Stand Body
3. Check the direction of the Stand Base, and connect it into the Stand Body.
4. Once assembled take the monitor up carefully and face the front side
Stand Body
Stand Base
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
A3
Connecting the Display
Disassembling the stand
1. Put a cushion or soft cloth on aflat
surface.
2. Place the monitor face Down on
the cushion or soft cloth.
Stand Base
Part
3.
Hold the Head Part with one hand and
hold the Stand Base Part with the other
as shown in the picture and pull the
Stand Base Part lightly upward
5.
Please pull the stand body lightly to separate it from the hinge body.
4. Pushing Latch inside, Take the
stand base from stand body.
Head Part
A4
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -5˚~20˚
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the monitor should not exceed 5 degrees.
A5
Connecting the Display
Using the Computer
1. Make sure to turn off the computer and product.
Connect Signal cable and Power cord in order, then tighten the screw of the
1
signal cable.
A
Connect Dsub Cable (PC)
B
Connect Dsub Cable (Mac)
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain standard
compliance for the product.
Power Cord
2
Wall-outlet type
2
Signal Cable
1
Varies according to model.
PC
MAC
For Apple Macintosh use, a separate plug adapter is needed
to change the 15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2 row connector.
Mac adapter
2. Press button on the front switch panel to turn the
power on. When monitor power is turned on, the 'Self
Image Setting Function' is executed automatically.
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically
adjusts the display to optimal settings for individual input signals.
‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred
letters, screen flicker or tilted screen while using the device or after changing screen
resolution, press the AUTO/SET function button to improve resolution.
A6
Control Panel Functions
5
6
Front Panel Controls
4 : 3 in Wide
Button
4 : 3 IN WIDE
WIDE
WIDE mode
MENU Button
It allows you to adjust the size of screen you are watching
now.
• WIDE : Switch to full screen mode according to input
image signal.
• 4 : 3 : Change the image signal ratio into 4:3.
4 : 3 IN WIDE
4 : 3
4 : 3 display mode
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
A7
Control Panel Functions
Buttons
AUTO/SET
Button
Use these buttons to select or adjust functions in the On
Screen Display.
LightView hot key
DAY
NIGHT
Use this button to enter a selection in the On Screen
Display.
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO/SET button before entering the On Screen
Display(OSD). This will automatically adjust your
display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is
- W1934S : 1440 x 900
- W2234S : 1680 x 1050
- W1934SE : 1440 x 900
- W2234SE : 1680 x 1050
This feature lets you easily select the best desired
image condition optimized to the environment
(ambient illumination, image types etc).
• DAY : Bright ambient illumination
• NIGHT : Dark ambient illumination
• TEXT : For text images (Word processing etc.)
• MOVIE : For animation images in videos
• PHOTO : For pictures or drawings
•
NORMAL
or movies
: This is under normal operating
conditions
Power Button
Power Indicator
Use this button to turn the display on or off.
This Indicator lights up blue when the display operates
normally(On Mode). If the display is in Sleep Mode
(Energy Saving), this indicator color changes
to amber.
A8
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.

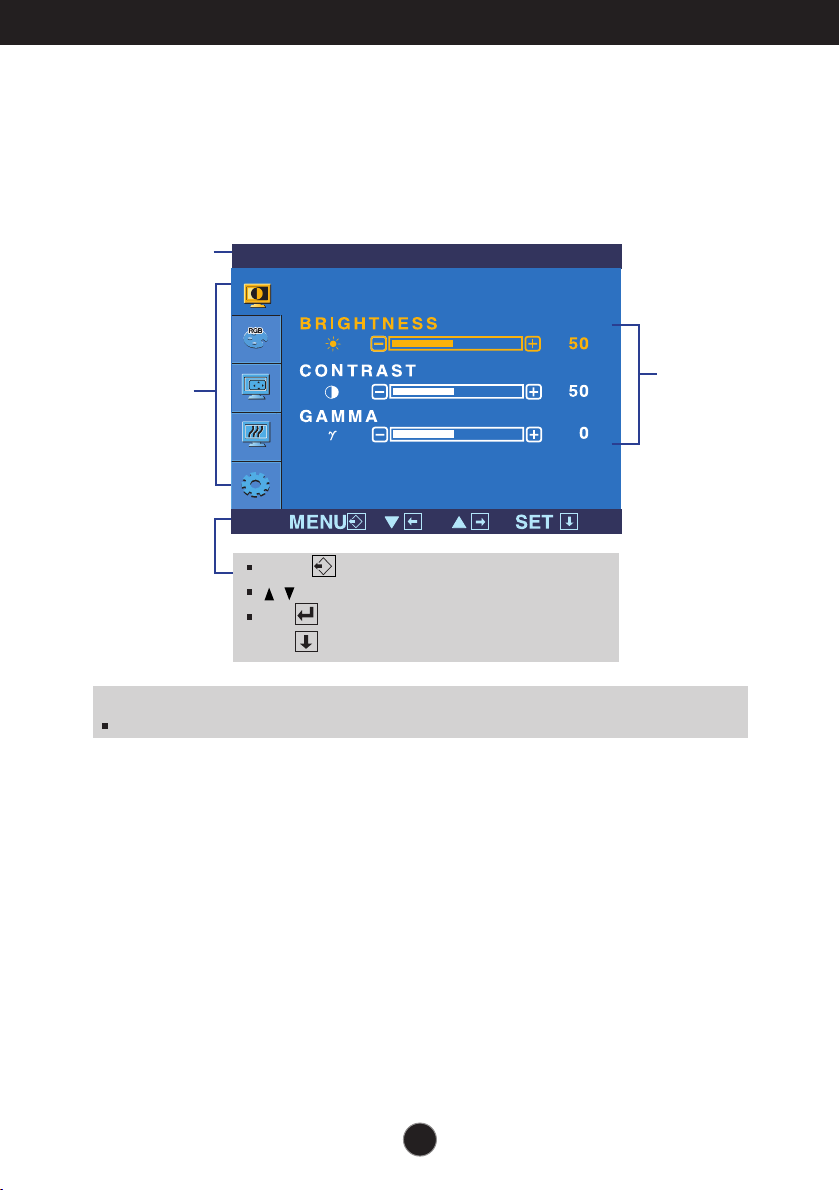

To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the AUTO/SET Button.
Use the / Buttonsto adjust the image to the desired level. Use the
AUTO/SET Button to select other sub-menu items.
Push the MENU Buttononce to return to the main menu to select another
function. Push the MENU Buttontwice to exit from the OSD.
A9
On Screen Display(OSD) Selection and Adjustment
The following table indicates all the On Screen Display control, adjustment,
and setting menus.

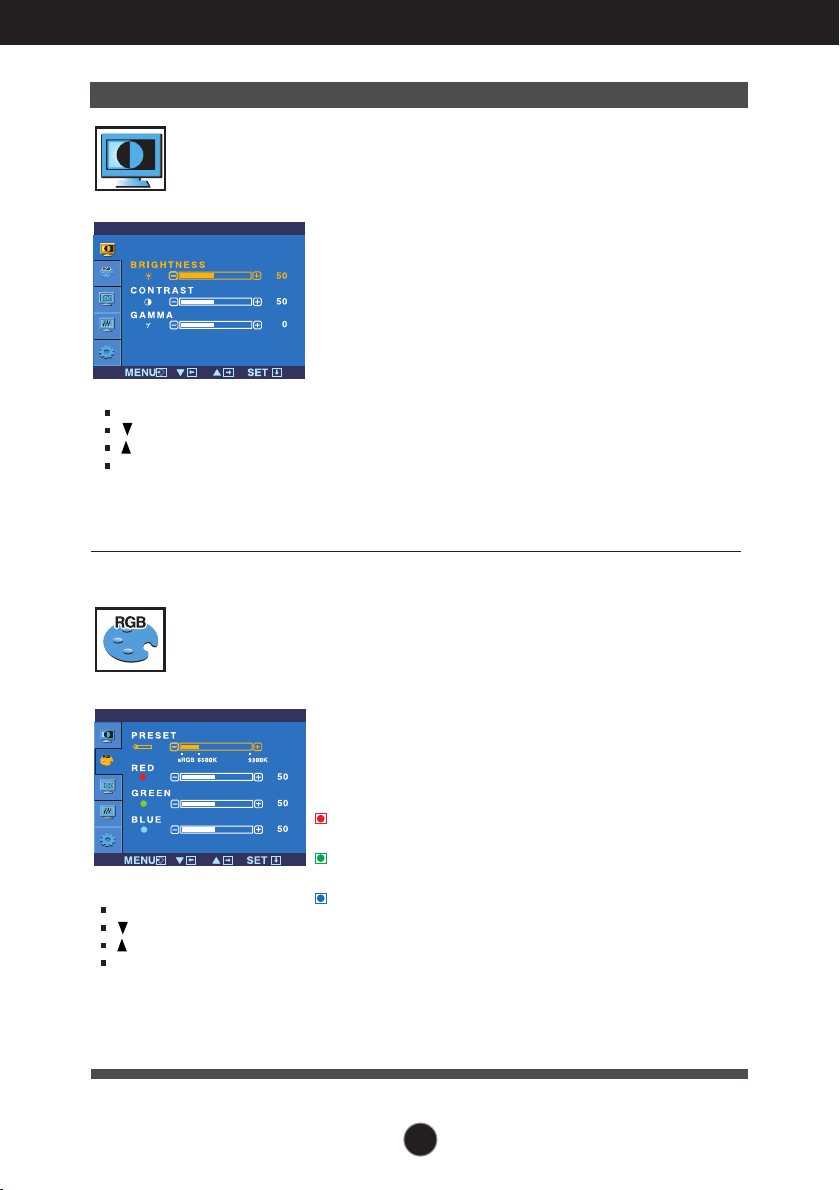

Main menu Sub menu Reference
COLOR
POSITION
TRACKING
SETUP
BRIGHTNESS
CONTRAST
GAMMA
PRESET sRGB
6500K
9300K
RED
GREEN
BLUE
HORIZONTAL
VERTICAL
CLOCK
PHASE
SHARPNESS
LANGUAGE
OSD
POSITION
WHITE BALANCE
HORIZONTAL
VERTICAL
To adjust the brightness,
contrast and gamma of the
screen
To customize the color of the
screen
To adjust the position of the
screen
To improve the clarity and
stability, sharpness of the
screen
To customize the screen
status for a user's operating
environment
POWER INDICATOR
FACTORY RESET
: Adjustable
NOTE
The order of icons may differ depending on the model (A10~A14).
A10
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Press the MENU Button, then the main menu of the OSD appears.
Menu Name
Icons
Button Tip
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
Sub-menus
MENU : Exit
: Adjust (Decrease/Increase)
SET : Enter
: Select another sub-menu
A11
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
BRIGHTNESS
CONTRAST
GAMMA
COLOR
COLOR
PRESET
Adjusts the brightness of the screen.
Adjusts the contrast of the screen.
Set your own gamma value. : -50/0/50
On the monitor, high gamma values
display whitish images and low gamma
values display high contrast images.
Selects the color temperature.
• sRGB: Set the screen color to fit the
sRGB standard color
specification.
• 6500K: Slightly reddish white.
• 9300K: Slightly bluish white.
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
RED
GREEN
BLUE
Adjusts red color levels.
Adjusts green color levels.
Adjusts blue color levels.
A12
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
POSITION
POSITION
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
HORIZONTAL
VERTICAL
TRACKING
TRACKING
CLOCK
Adjusts the screen image left and right.
Adjusts the screen image up and down.
Adjusts any vertical bars or stripes
visible on the screen background.
The horizontal screen size will also
change.
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
PHASE
SHARPNESS
Adjusts the focus of the display.
This item allows you to remove any
horizontal noise and clear or sharpen
text.
Adjust the clearness of the screen.
A13
On Screen Display(OSD) Selection and Adjustment
SETUP
SETUP
Main menu Sub menu Description
SETUP
LANGUAGE
OSD
POSITION
WHITE
BALANCE
MENU : Exit
: Adjust
: Adjust
SET : Select another sub-menu
POWER
INDICATOR
To choose the language in which the
control names are displayed.
To adjust position of the OSD window
on the screen.
If the output of the video card is
different the required specifications, the
color level may deteriorate due to
video signal distortion. Using this
function, the signal level is adjusted to
fit into the standard output level of the
video card in order to provide the
optimal image.
Activate this function when white and
black colors are present in the screen.
Use this function to set the power
indicator on the front side of the monitor
to ON or OFF.
If you set OFF, it will go off.
If you set ON at any time, the power
indicator will automatically be turned on.
FACTORY
RESET
If this does not improve the screen image, restore the factory default settings.
If necessary, perform the white balance function again. This function will be enabled only when
the input signal is an analog signal.
Restore all factory default settings except
"LANGUAGE."
Press the button to reset immediately.
A14
Troubleshooting
Check the following before calling for service.
No image appears
No image appears
● Is the power cord of the
display connected?
● Is the power on and the
power indicator blue or
green?
● Is the power indicator
amber?
● Do you see an "OUT OF
RANGE" message on
the screen?
● Do you see a "CHECK
SIGNAL CABLE"
message on the
screen?
•
Check and see if the power cord is connected
properly to the power outlet.
Adjust the brightness and the contrast.
•
•
If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.
• Try to turn on the PC
•
This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.
•
This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.
.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD
●
LOCKED” when you
push MENU button?
• You can secure the current control settings,
so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED” will appear.
A15
Troubleshooting
Display image is incorrect
● Display Position is
incorrect.
● On the screen
background, vertical
bars or stripes are
visible.
● Any horizontal noise
appearing in any
image or characters
are not clearly
portrayed.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, adjust the image
position using the H position and V position icon
in the on screen display.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
vertical bars or stripes using the CLOCK icon in
the on screen display.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
horizontal bars using the PHASE icon in the on
screen display.
•
Check Control Panel --> Display --> Settings
and adjust the display to the recommended
resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits
(true color).
Important
Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
Reasons for Recommending Optimal Resolution : The aspect ratio is 16:10.
If the input resolution is not 16:10 (for instance, 16:9, 5:4, 4:3), you might encounter
problems such as blurred letters, blurry screen, cut-off screen display or tilted screen.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.
A16
Troubleshooting
Display image is incorrect
● The screen color is
mono or abnormal.
● The screen blinks.
•
Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.
•
Make sure the video card is properly inserted in
the slot.
Set the color setting higher than 24 bits (true color)
•
at Control Panel - Settings.
•
Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.
Have you installed the display driver?
●
Have you installed the
display driver?
•
Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lge.com.
●
Do you see an
"Unrecognized monitor,
Plug&Play (VESA DDC)
monitor found"
message?
•
Make sure to check if the video card supports
Plug&Play function.
A17
Specifications W1934S
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
& Weight
Range
Power Input
Environmental
Conditions
Stand Base
Power cord
19 inches (48 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size : 48 cm
0.285 mm pixel pitch
Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.
SOG (Sync On Green)
Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
Max VESA 1440 x 900 @ 75 Hz
Recommend VESA 1440 x 900 @ 60 Hz
DDC 2B
On Mode
Sleep Mode ≤ 1 W
Off Mode ≤ 1 W
Width 44.836 cm / 17.65 inches 44.836 cm / 17.65 inches
Height 37.575 cm / 14.79 inches 29.995 cm / 11.81 inches
Depth 18.30 cm / 7.20 inches 6.00 cm / 2.36 inches
Weight(excl. packing) 3.2 kg (7.05 lbs)
Tilt -5˚~20˚
AC 100-240V~ 50/60Hz 0.8A
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached ( ), Detached ( O )
Wall-outlet type or PC-outlet type
: 36W(Typ.)
With Stand Without Stand
NOTE
Information in this document is subject to change without notice.
A18
Specifications W2234S
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
& Weight
Range
Power Input
Environmental
Conditions
Stand Base
Power cord
22 inches (55.8 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size : 55.8 cm
0.282 mm pixel pitch
Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.
SOG (Sync On Green)
Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
Max VESA 1680 x 1050 @ 60 Hz
Recommend VESA 1680 x 1050 @ 60 Hz
DDC 2B
On Mode
Sleep Mode ≤ 1 W
Off Mode ≤ 1 W
Width 50.93 cm / 20.15 inches 50.93 cm / 20.15 inches
Height 43.13 cm / 16.98 inches 33.86 cm / 13.33 inches
Depth 20.60 cm / 8.11 inches 6.05 cm / 2.38 inches
Weight(excl. packing) 4.7 kg (10.36 lbs)
Tilt -5˚~20˚
AC 100-240V~ 50/60Hz 1.0A
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached ( ), Detached ( O )
Wall-outlet type or PC-outlet type
: 40W(Typ.)
With Stand Without Stand
NOTE
Information in this document is subject to change without notice.
A19
Specifications W1934SE
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
& Weight
Range
Power Input
Environmental
Conditions
Stand Base
Power cord
19 inches (48 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size : 48 cm
0.285 mm pixel pitch
Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.
SOG (Sync On Green)
Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
Max VESA 1440 x 900 @ 75 Hz
Recommend VESA 1440 x 900 @ 60 Hz
DDC 2B
On Mode
Sleep Mode ≤ 1 W
Off Mode ≤ 1 W
Width 44.836 cm / 17.65 inches 44.836 cm / 17.65 inches
Height 37.575 cm / 14.79 inches 29.995 cm / 11.81 inches
Depth 18.30 cm / 7.20 inches 6.00 cm / 2.36 inches
Weight(excl. packing) 3.2 kg (7.05 lbs)
Tilt -5˚~20˚
AC 100-240V~ 50/60Hz 0.8A
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached ( ), Detached ( O )
Wall-outlet type or PC-outlet type
: 22W(Typ.)
With Stand Without Stand
NOTE
Information in this document is subject to change without notice.
A20
Specifications W2234SE
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
& Weight
Range
Power Input
Environmental
Conditions
Stand Base
Power cord
22 inches (55.8 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size : 55.8 cm
0.282 mm pixel pitch
Horizontal Freq. 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate Sync.
SOG (Sync On Green)
Signal Input 15 pin D-Sub Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
Max VESA 1680 x 1050 @ 60 Hz
Recommend VESA 1680 x 1050 @ 60 Hz
DDC 2B
On Mode
Sleep Mode ≤ 1 W
Off Mode ≤ 1 W
Width 50.93 cm / 20.15 inches 50.93 cm / 20.15 inches
Height 43.13 cm / 16.98 inches 33.86 cm / 13.33 inches
Depth 20.60 cm / 8.11 inches 6.05 cm / 2.38 inches
Weight(excl. packing) 4.7 kg (10.36 lbs)
Tilt -5˚~20˚
AC 100-240V~ 50/60Hz 1.0A
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached ( ), Detached ( O )
Wall-outlet type or PC-outlet type
: 25W(Typ.)
With Stand Without Stand
NOTE
Information in this document is subject to change without notice.
A21
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
W1934S
1
VGA
2
VGA
3
VGA
4
VESA
5
VESA
6
VESA
7
MAC
8
VESA
9
VESA
10
MAC
11
VESA
12
VESA
13
VESA
14
*15
*12
VESA
VESA
16
VESA
Display Modes (Resolution)
1
VGA
2
VGA
3
VGA
4
VESA
5
VESA
6
VESA
7
VESA
8
VESA
9
VESA
10
VESA
11
VESA
VESA
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1152 x 870
1152 x 900
1280 x 1024
1280 x 1024
1440 x 900
1440 x 900
1440 x 900
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1680 x 1050
1680 x 1050
31.469
31.468
31.469
37.500
37.879
46.875
49.725
48.363
60.123
68.681
61.805
63.981
79.976
55.469
55.935
70.635
70
70
60
75
60
75
75
60
75
75
65
60
75
60
60
75
W2234S
Horizontal Freq. (kHz) Vertical Freq. (Hz)
31.468
31.469
37.500
37.879
46.875
48.363
60.123
67.500
63.981
79.976
64.674
65.290
70
60
75
60
75
60
75
75
60
75
60
60
A22
*Recommend Mode
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
W1934SE
1
VGA
2
VGA
3
VGA
4
VESA
5
VESA
6
VESA
7
MAC
8
VESA
9
VESA
10
MAC
11
VESA
12
VESA
13
VESA
14
*15
VESA
VESA
16
VESA
Display Modes (Resolution)
1
VGA
2
VGA
3
VGA
4
VESA
5
VESA
6
VESA
7
VESA
8
VESA
9
VESA
10
VESA
11
VESA
*12
VESA
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1152 x 870
1152 x 900
1280 x 1024
1280 x 1024
1440 x 900
1440 x 900
1440 x 900
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1680 x 1050
1680 x 1050
31.469
31.468
31.469
37.500
37.879
46.875
49.725
48.363
60.123
68.681
61.805
63.981
79.976
55.469
55.935
70.635
70
70
60
75
60
75
75
60
75
75
65
60
75
60
60
75
W2234SE
Horizontal Freq. (kHz) Vertical Freq. (Hz)
31.468
31.469
37.500
37.879
46.875
48.363
60.123
67.500
63.981
79.976
64.674
65.290
70
60
75
60
75
60
75
75
60
75
60
60
Indicator
MODE
On Mode
Sleep Mode
Off Mode
*Recommend Mode
LED Color
Blue
Amber
Off
A23
Installing the Wall mount plate
This monitor satisfies the specifications of the Wall mount plate or
the interchange device.
1. Put a cushion or soft cloth on aflat
surface.
3.
Hold the Head Part with one hand and
hold the Stand Base Part with the other
as shown in the picture and pull the
Stand Base Part lightly upward
2. Place the monitor face Down on
the cushion or soft cloth.
Stand Base
Part
Head Part
4. Pushing Latch inside, Take the
stand base from stand body.
5.
Please pull the stand body lightly to separate it from the hinge body.
A24
Installing the Wall mount plate
6.
Install the Wall mount plate.
Wall mount plate(Separate purchase)
This is stand-type or wall mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more
details, which is provided when Wall mount
plate is purchased.
Kensington Security Slot
Connected to a locking cable that
can be purchased separately at
most computer stores.
A25
Digitally yours
Loading...
