OWNER’S MANUAL

LG CORDLESS

VACUUM CLEANER

This information contains important instructions for the safe use and

maintenance of the vacuum cleaner. Especially, please read all of the

information on page 3, 4, 5 for your safety. Please keep this manual in

an easily accessible place and refer to it anytime.

Table of contents

Important safety instructions .............................................................................. 3~5

How to use .......................................................................................................... 6~15

Assembling vacuum cleaner .............................................................................................6~7

Operating vacuum cleaner ................................................................................................... 8

Using carpet and floor nozzle and Hard floor nozzle ............................................................ 9

Using accessory nozzles ..................................................................................................... 10

Charging the Vacuum Cleaner ............................................................................................ 11

Emptying dust tank ............................................................................................................. 12

Cleaning dust tank ............................................................................................................. 13

Cleaning air filter and motor safety filter ............................................................................. 14

Cleaning exhaust filter ........................................................................................................ 15

What to do if your vacuum cleaner does not work ............................................ 16

What to do when the vacuum cleaner does not work ......................................................... 16

What to do when the suction performance decreases ....................................................... 16

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal

injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur.

Always contact your service agent or manufacturer about problems that you do not understand. This appliance

complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”

These words mean:

This symbol will alert you to hazards or unsafe practices which could cause serious

bodily harm or death.

This symbol will alert you to hazards or unsafe practices which could cause bodily

injury or property damage.

CAUTION

WARNING

1. This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience

and knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they

do not play with the appliance.

3. If the supply cord is damaged, it must be replaced

by LG Electronics Service Agent in order to avoid

a hazard.

4. This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall

not be made by children without supervision.

WARNING

CAUTION: This hose contains electrical connections:

– do not use to suck up water ;

– do not immerse in water for cleaning;

– the hose should be checked regularly and must

not be used if damaged.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

• Disconnect electrical supply before servicing or

cleaning the unit or when cleaner is not in use.

Failure to do so could result in electrical shock or

personal injury.

• Do not use vacuum cleaner to pick up anything that is

burning or smoking such as cigarettes, or hot ashes.

Doing so could result in death, fire or electrical shock.

• Do not vacuum flammable or explosive substances

such as gasoline, benzene, thinners, propane (liquids

or gases).

The fumes from these substances can create a fire

hazard or explosion. Doing so could result in death or

personal injury.

• Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

• Do not unplug by pulling on cord.

Doing so could result in product damage or electrical

shock. To unplug, grasp the plug, not the cord.

• Keep hair, loose clothing, fingers, and all parts of the

body away from openings and moving parts.

Failure to do so could result in electrical shock or

personal injury.

• The hose contains electrical wires. Do not use it if it is

damaged, cut punctured.

Failure to do so could result in death, or electrical shock.

• Do not allow to be used as toy. Close attention is

necessary when used by or near children.

Personal injury or product damage could result.

• Do not use the vacuum cleaner if the power cord or

plug is damaged or faulty.

Personal injury or product damage could result. In these

cases, contact LG Electronics Service Agent to avoid

hazard.

• Do not use vacuum cleaner if it has been under water.

Personal injury or product damage could result. In these

cases, contact LG Electronics Service Agent to avoid

hazard.

• Do not continue to vacuum if any parts appear

missing or damaged.

Personal injury or product damage could result. In these

cases, contact LG Electronics Service Agent to avoid

hazard.

•

Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the

motor and possible injury to the user. Proper voltage is

listed on the bottom of vacuum cleaner.

• Turn off all controls before unplugging.

Failure to do so could result in electrical shock or

personal injury.

• Do not change the plug in any way.

Failure to do so could result in electrical shock or

personal injury or product damage. Doing so result in

death. If plug does not fit, contact a qualified electrician to

install the proper outlet.

If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

• Repairs to electrical appliances may only be

performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

• Do not wash the body of the vacuum cleaner with

water.

•

Do not allow any metals to touch the charging terminal

and the connecting joints of the body and hose.

• Before cleaning the body, unplug the power cord and

turn off the main power. Always use a dry cloth to

clean the body.

• Avoid placing the product, the battery in particular,

near any heat source or direct sunlight.

There is danger of an explosion or a fire.

• When disposing of batteries, please follow

appropriate disposal methods.

There is danger of an explosion.

• Do not use the product in bathrooms.

• When a problem occurs with the product, stop

vacuuming and turn off the main power.

• Do not place the product near industrial oil fumes or

metal particulates.

Doing so could result in fire or damage to the product.

• If the battery has leaked, avoid contact with the skin

or eyes. If the battery fluid gets on your skin or in

your eyes, immediately rinse the affected part with

plenty of water and seek medical attention.

Battery fluid may cause a burn on your skin or loss of

eyesight.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor

overheating. If the vacuum cleaner suddenly shuts off, turn off the main power switch. Check the

vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or

clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting

to use the vacuum cleaner. After the 30 minute period, turn on the main power switch.

If the vacuum cleaner still does not run, contact a qualified electrician.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

• Do not put any objects into openings.

Failure to do so could result in product damage.

• Do not use with any opening blocked: keep free of

dust, lint, hair, and anything that may reduce air

flow.

Failure to do so could result in product damage.

• Do not use vacuum cleaner without the dust tank

and/or filters in place.

Failure to do so could result in product damage.

• Always clean the dust bin after vacuuming carpet

cleaners or fresheners, powders and fine dust.

These products clog the filters, reduce airflow and can

cause damage to the cleaner. Failure to clean the dust

bin could cause permanent damage to the cleaner.

• Do not use vacuum cleaner to pick up sharp hard

objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

• Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent

tripping over it.

• The vacuum cleaner is not intended to use by young

children or infirm people without supervision.

Failure to do so could result in personal injury or product

damage.

• Only use parts produced or recommended by LG

Electronics Service Agents.

Failure to do so could result in product damage.

• Use only as described in this manual. Use only with

LG recommended or approved attachments and

accessories.

Failure to do so could result in personal injury or product

damage.

• To avoid personal injury and to prevent the machine

from falling when cleaning stairs, always place it at

the bottom of stairs.

Failure to do so could result in personal injury or product

damage.

• Do not grasp the tank handle when you are moving

the vacuum cleaner.

The vacuum cleaner’s body may fall when separating

tank and body. Personal injury or product damage could

result.

You should grasp the carrier handle when you are

moving the vacuum cleaner. (Page 12)

• Make sure the filters (motor safety filter and air filter)

are completely dry before replacing in the machine.

Failure to do so could result in product damage.

• Do not dry the filter in an oven or microwave.

Failure to do so could result in fire hazard.

• Do not dry the filter in a clothes dryer.

Failure to do so could result in fire hazard.

• Do not dry near an open flame.

Failure to do so could result in fire hazard.

• Do not use filters that is not dried.

• If the power cord is damaged, it must be replaced by

an approved LG Electronics Service Agent to avoid

a hazard.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience

and knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

• The battery for the main body is designed for this

vacuum cleaner only. Never use it for any other

product.

Doing so could result in re or damage to the product.

• Do not use the oor nozzle to clean high areas.

• When you dry the lter, do not use a heating device

such as a dryer or heater. Leave it in an airy place

and let it dry completely.

• Do not carry the vacuum cleaner with the nozzle

head connected to the body.

• Empty the dust bin frequently to keep it clean.

• Always use the vacuum cleaner with the lter unit

assembled in the dust bin.

• Never remove the hose or pipe when the main power

is On.

• Use this vacuum cleaner for household use only.

How to use Assembling vacuum cleaner

Spring latch

Telescopic pipe

Hose Handle

➊ Carpet and floor nozzle (depend on model)

Push the nozzle into the telescopic pipe.

➋

Telescopic pipe

• Push telescopic pipe firmly into hose

handle.

• Grasp the spring latch to expand.

• Pull out the pipe to desired length.

Fitting pipe

Flexible Hose

Button

Battery indicator

Charging terminal

Attachment Point

Click!

➌ Connecting the hose to the vacuum cleaner

Push the fitting pipe on the flexible hose into the

attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum

cleaner,press the button situated on the fitting pipe, then

pull the fitting pipe out of the vacuum cleaner.

How to use Operating vacuum cleaner

➋

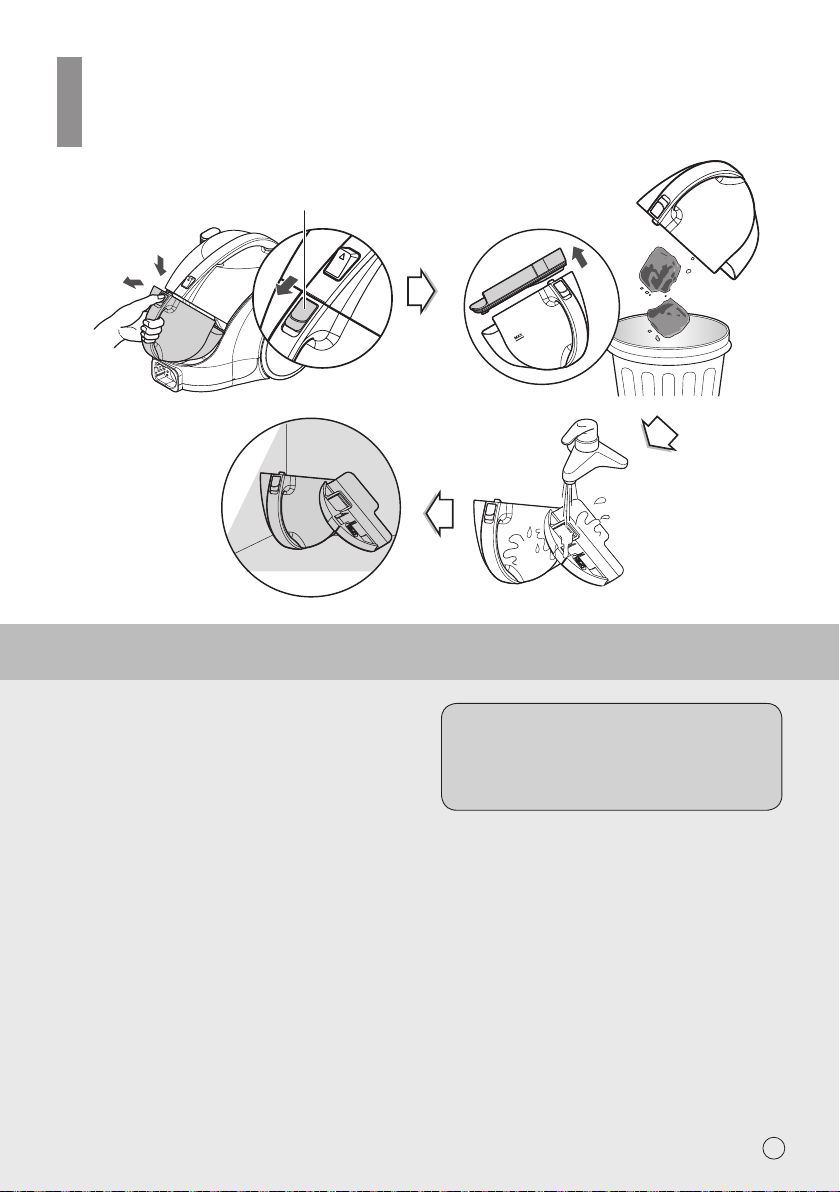

Emptying the dust tank

• Always empty the dust

tank when the dust tank

level reaches the MAX

line.

➊ How to operate

• Please disconnect the

charging cord from the

product.

• To operate the vacuum

cleaner, press down the

power button for about

1 second.

• When you turn it on, Mode

is the Middle power.

• You can control Mode of

the power using ‘ + ’, ‘ – ’

Button.

• To turn off, Push the power

button.

• After the used, Please

connect the charging cord

to the product.

Charging terminal

Control Button

Power button

MAX line.

Control mode button

Main power switch

➌ Park mode

• Turn off the Main

power switch before

park.

• To store during

vacuuming, for

example to move a

small piece of furniture

or a rug, use park

mode to support the

flexible hose and

nozzle.

- Slide the hook on the

nozzle into the slot on

the side of vacuum

cleaner.

➍ Storage

• After the used

product, please

connect the charging

cord to the product.

• You can store your

vacuum cleaner in a

vertical position by

sliding the hook on

the nozzle into the

slot on the underside

of the vacuum

cleaner.

WARNING

No liquid suction.

Liquid suction can cause defects.

How to use Using carpet and floor nozzle and Hard floor nozzle

Carpet

Floor

Pedal

• Cleaning carpet and floor nozzle

• Clean the hole and brush

of nozzle.

➊

Carpet and floor nozzle (depend on model)

• The 2 position nozzle This is equipped with

a pedal which allows you to alter its position

according to the type of floor to be cleaned.

• Carpet or rug position Press the pedal ( ) to

lower brush.

• Hard floor position (tiles, parquets floor) Press

the pedal (

) to lift the brush up.

➋

Hard floor nozzle (depend on model)

• Efficient cleaning of hard floors

(wood, linoleum, etc)

➌ Crevice tool

Crevice tool is for vacuuming

in those normally hard-to-

reach places such as reaching

cobwebs or between the

cushions of a sofa.

➍ Upholstery nozzle

Upholstery nozzle is for

vacuuming upholstery,

mattresses etc.

NOTICE

Be cautious to use the product

on TV, LCD, Monitor or furniture,

it can cause small scratch.

• Accessory nozzles are included in the "PE BAG"

with owner's manual.

• PE BAG •

3 4 5

➎ Dusting brush

Dusting brush is for

vacuuming picture frames,

furniture frames, books and

other irregular surfaces.

How to use Using accessory nozzles

Push the button

Pull the cover

Dusting brushUpholstery nozzleCrevice tool

+ 22 hidden pages
