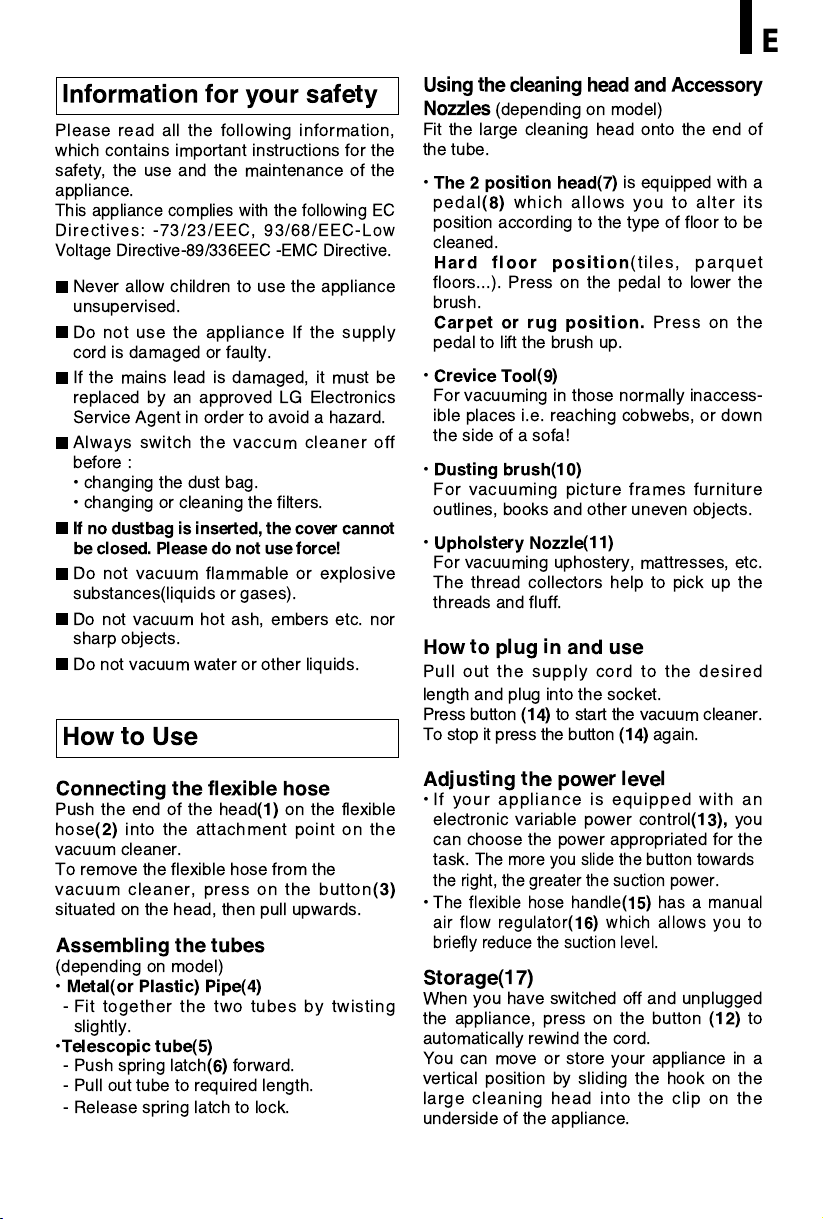

Please read all the following information,
which contains important instructions for the
safety, the use and the maintenance of the
appliance.
This appliance complies with the following EC
Directives: -73/23/EEC, 93/68/EEC-Low
Voltage Directive-89/336EEC -EMC Directive.
Never allow children to use the appliance
unsupervised.
Do not use the appliance If the supply
cord is damaged or faulty.
If the mains lead is damaged, it must be
replaced by an approved LG Electronics
Service Agent in order to avoid a hazard.
Always switch the vaccum cleaner off
before :
¥ changing the dust bag.
¥ changing or cleaning the filters.
If no dustbag is inserted, the cover cannot
be closed. Please do not use force!
Do not vacuum flammable or explosive
substances(liquids or gases).
Do not vacuum hot ash, embers etc. nor
sharp objects.
Do not vacuum water or other liquids.
Connecting the flexible hose
Push the end of the head
(1)
on the flexible
hose
(2)
into the attachment point on the
vacuum cleaner.
To remove the flexible hose from the
vacuum cleaner, press on the button
(3)
situated on the head, then pull upwards.
Assembling the tubes
(depending on model)
¥
Metal(or Plastic) Pipe(4)
- Fit together the two tubes by twisting
slightly.
¥
Telescopic tube(5)
- Push spring latch
(6)
forward.
- Pull out tube to required length.
- Release spring latch to lock.
Using the cleaning head and Accessory
Nozzles
(depending on model)
Fit the large cleaning head onto the end of
the tube.
¥
The 2 position head(7)
is equipped with a
pedal
(8)
which allows you to alter its
position according to the type of floor to be
cleaned.
Hard floor position
(tiles, parquet
floors...). Press on the pedal to lower the
brush.
Carpet or rug position.
Press on the
pedal to lift the brush up.
¥
Crevice Tool(9)
For vacuuming in those normally inaccess-
ible places i.e. reaching cobwebs, or down
the side of a sofa!
¥
Dusting brush(10)
For vacuuming picture frames furniture
outlines, books and other uneven objects.
¥
Upholstery Nozzle(11)
For vacuuming uphostery, mattresses, etc.
The thread collectors help to pick up the
threads and fluff.
How to plug in and use
Pull out the supply cord to the desired
length and plug into the socket.
Press button
(14)
to start the vacuum cleaner.
To stop it press the button
(14)
again.
Adjusting the power level
¥ If your appliance is equipped with an
electronic variable power control
(13),
you
can choose the power appropriated for the
task.
The more you slide the button towards
the right, the greater the suction power.
¥
The flexible hose handle
(15)
has a manual
air flow regulator
(16)
which allows you to
briefly reduce the suction level.
Storage(17)
When you have switched off and unplugged
the appliance, press on the button
(12)
to
automatically rewind the cord.
You can move or store your appliance in a
vertical position by sliding the hook on the
large cleaning head into the clip on the
underside of the appliance.
Information for your safety
How to Use
E
E
- 6 -
E
CLEANING THE DUST TANK AND
FILTER ASSEMBLY
For best cleaning results, the dust tank
should be cleaned often.
1.Unplug cord from wall outlet.
2. Pull lid release out and up, then lift filter
cover
.
3. Pull the dust tank assembly (29) up.
4. Push the release lever (30) of the filter
assembly (31) and pull it out of the dust
tank (32)
5. Wash the dust tank with sponge or soft
cloth under cold running water.
6. Brush (33) is for cleaning the filter
assembly(31). It is on the back of the
filter assembly.
7. Pull the filter supporter (34) down from the
filter assembly (31).
8.Clean the filter assembly (31) and the filter
supporter (34) with the brush under cold
running water.
Do not use detergent or wash in washing
machine or dishwasher.
9.Allow the filter assembly (31) and filter
supporter (34)to dry in shaded location for
a day
Do not tumble or spin dry, nor microwave or
place in oven or in path of direct heat.
Ensure both the filter and filter supporter
are completely dry before placing it back into
the vacuum.
.
.
HOW TO FIT THE BAG MOUNT
AND THE DUST BAG
If you want to use a dust bag instead of
the dust tank, please:
1.Unplug cord from wall outlet.
2.Pull the cover release out and up, then
lift canister hood.
3.Pull the dust tank assembly (29) up.
4.Fit the bag mount (21) with the spring,
ensure the bosses on both sides of th
bag mount into the slots near the handl
on the bas
5.To fit a bag push the cardboard support
of a new bag into the bag mount until
will go no further
.
e
e
it
e
