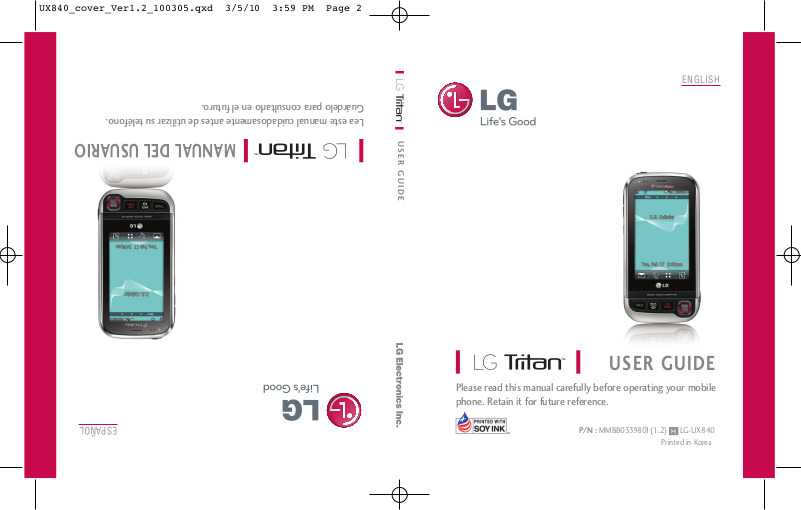

Page 1

ENGLISH

Guárdelo para consultarlo en el futuro. Lea este manual cuidadosamente antes de utilizar su teléfono.

MANUAL DEL USUARIO

USER GUIDE

Please read this manual carefully before operating your mobile phone. Retain it for future reference.

ESPAÑOL

P/N : MMBB0339801(1.2) LG-UX840

Printed in Korea

Page 2

Copyright ©2010 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners.

Tel. 1-800-793-8896 or Fax. 1-800-448-4026

HOW TO GET WARRANTY SERVICE:

Page 3

Important Safety Precautions

Read these instructions. Breaking the rules may be dangerous or illegal. Further detailed information is given in this user guide.

WARNING! Violation of the instructions may cause serious injury or death.

1. Never use an unapproved battery since this could damage the phone and/or battery and could cause the battery to explode.

2. Never place your phone in a microwave oven as it will cause the battery to explode.

3. Never store your phone in temperatures less than

-4°F or greater than 122°F.

4. Do not dispose of your battery by fire or with hazardous or flammable materials.

5. When riding in a car, do not leave your phone or set up the hands-free kit near to the air bag. If wireless equipment is improperly installed and the air bag is deployed, you may be seriously injured.

6. Do not use a hand-held phone while driving.

7. Do not use the phone in areas where its use is prohibited. (For example: aircraft)

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 1

Page 4

Important Safety Precautions

1. Do not expose the battery charger or adapter to direct sunlight or use it in places with high humidity, such as a bathroom.

2. Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. This could cause a fire.

3. Do not drop, strike, or shake your phone severely. It may harm the internal circuit boards of the phone.

4. Do not use your phone in high explosive areas as the phone may generate sparks.

5. Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it is loose as it may cause a fire or electric shock.

6. Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may cause electric shock or fire.

7. Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone.

8. Do not disassemble the phone.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 2

Page 5

Important Safety Precautions

1. Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause electric shock or fire.

2. Do not hold or let the antenna come in contact with your body during a call.

3. Make sure that no sharp-edged items such as animal’s teeth or nails, come into contact with the battery. This could cause a fire.

4. Store the battery out of reach of children.

5. Be careful that children do not swallow any parts (such as rubber plugs, earphone, connection parts of the phone, etc.) This could cause asphyxiation or suffocation resulting in serious injury or death.

6. Unplug the power cord and charger during lightning storms to avoid electric shock or fire.

7. Only use the batteries and chargers provided by LG. The warranty will not be applied to products provided by other suppliers.

8. Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty.

9. Your service provider programs one or more emergency phone numbers, such as 911, that you can call under any circumstances, even when your phone is locked. Your phone’s preprogrammed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 3

Page 6

Table of Contents

Important Safety Precautions 1

Table of Contents 4 Welcome 9 Technical Details 10

FCC RF Exposure Information 12 Bodily Contact During Operation 12 Vehicle-Mounted the External

Antenna 13 FCC Notice and Cautions 13 Caution 14 Part 15.21 statement 14 Part 15.19 statement 14 Part 15.105 statement 14

Phone Overview 16 Menus Overview 21 Getting Started with Your

Phone 25

The Battery 25 Charging the Battery 25 Battery Charge Level 26 Turning the Phone On and Off 26

Signal Strength 27 Screen Icons 27 Making Calls 27 Correcting Dialing Mistakes 28 Redialing Calls 28 Receiving Calls 28

Quick Access to Convenient Features 29

Lock Mode 29 Speaker Phone Function 29 Volume Quick Adjustment 29 Call Waiting 29 Caller ID 30 Speed Dialing 30

Entering and Editing Information 31

Contacts in Your Phone’s Memory 32

The Basics of Storing Contacts Entries 32

Phone Numbers With Pauses 32 Searching Your Phone’s Memory 34 Accessing Options 34

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 4

Page 7

Table of Contents

Making a Call From Your Phone’s Memory 35

Using Phone Menus 36

Contacts 36

1. New Contact 36

2. Contact List 37

3. Speed Dials 37

4. Groups 38

5. My Name Card 38

Recent Calls 39

1. Missed Calls 39

2. Received Calls 40

3. Dialed Calls 40

4. All Calls 40

5. Call Timer 40

6. Data Counter 41

Your Navigator 41

Speed Dials 42

Messaging 42

1. New Text Message 42

2. New Picture Message 44

3. Inbox 45

4. Outbox 47

5. Drafts 48

6. Voicemail 48

7. Templates 49

8. Delete All 49

New Text Message 49

Browser 50

easyedge 58

Take Photo 59

Music 60

1. Now Playing/ Recently Played 61

2. All Songs 61

3. Artists 61

4. Albums 62

5. Genres 62

6. My Playlists 62

7. Settings 63

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 5

Page 8

Table of Contents

7.1 Repeat 63

7.2 Shuffle 63

7.3 Background Music 63

Record Video 64

My Stuff 65

Record Voice 65

Documents 66

PAC-MAN 66

Games 66

Voice Command 67

1. Start Command 67

1.1 Call <Name> or <Number> 67

1.2 Voicemail 67

1.3 Missed Calls 67

1.4 Messages 68

1.5 Time & Date 68

1.6 Help 68

2. Command Mode 69

3. Announce Alert 69

4. Train Word 69

5. Best Match 70

Alarm Clock 70

Organizer 71

1. Calendar 71

2. Date Finder 71

World Clock 71

Tools 72

1. Calculator 72

2. Ez Tip Calculator 73

3. Unit Converter 73

Stopwatch 74

Drawing Panel 74

Notepad 75

Sound 76

1. Ringers 76

2. Volume 76

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 6

Page 9

Table of Contents

3. Message Alerts 76

4. Alert Type 77

5. Service Alerts 77

6. Power On/Off Tones 78

7. Slide Tone 78

Display 79

1. Wallpaper 79

1.1 Screen 79

1.2 Shuffle 79

2. Banner 80

3. Backlight 80

4. Brightness 80

5. Menu Style 81

6. Languages 81

7. Clock & Calendar 81

8. Font Settings 82

9. Name Match for Dialing 82

Touch 83

1. Touchscreen Calibration 83

2. Touchscreen Effect 83

3. Thumbpad Effect 84

Bluetooth

1. Power 85

2. Add New 85

3. Paired Devices 86

4. Settings 86

4.1 My Visibility 86

4.2 Device Name 87

4.3 My Bluetooth Info 87

System 88

1. Network 88

1.1 System Select 88

1.2 Set NAM 88

1.3 Auto NAM 88

1.4 Serving System 89

2. Location 89

Phone Settings 90

1. Power Save 90

2. Auto Lock 90

3. Security 90

3.1 Lock Phone 90

3.2 Restrictions 91

3.3 Emergency Numbers 92

3.4 Change Lock Code 92

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 7

Page 10

Table of Contents

4. Memory 93

5. USB Connection Mode 93

6. Phone Info 93

6.1 My Number 94

6.2 ESN/MEID 94

6.3 Icon Glossary 94

6.4 Version 94

7. Master Reset 95

Call Settings 95

1. Answer Options 95

2. Auto Retry 96

3. One-Touch Dial 96

4. Voice Privacy 96

5. Auto Volume 97

6. Airplane Mode 97

7. TTY Mode 97

Message Settings 98

1. All Messages 98

2. Text Message 99

3. Picture Message 99

4. Voicemail Number 99

Safety 100

TIA Safety Information 100 Safety Information 104 Warning! Important safety

information`` 108 FDA Consumer Update 110 10 Driver Safety Tips 120 Consumer Information

on SAR 124 FCC Hearing-Aid Compatibility

(HAC) Regulations for Wireless Devices 127

Accessories 130 Limited Warranty

Statement 131 Index 135

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 8

Page 11

Welcome

Thank you for choosing the

cellular phone designed to operate with the latest digital mobile communication technology, Code Division Multiple Access (CDMA). Along with the many advanced features of the CDMA system, such as greatly enhanced voice clarity, this compact phone offers:



Music capability and microSD

™

card slot.



Significantly enhanced voice clarity



Slim and sleek design with internal antenna (Internal antenna described as antenna throughout this user guide).



Large, easy-to-read, 9-line backlit LCD with status icons.



Paging, messaging, voice mail, and caller ID.



8 physical keys, a Touch Screen and a full QWERTY keypad.



Speakerphone feature.



3.0 Megapixel camera



Menu-driven interface with prompts for easy operation and configuration.



Any key answer, auto answer, auto retry, one-touch and speed dialing with 99 memory locations.



Bilingual (English and Spanish) capabilities.



Bluetooth®wireless technology.

Note

The Bluetooth®word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 9

Page 12

Technical Details

Important Information

This user’s guide provides important information on the use and operation of your phone. Please read all the information carefully prior to using the phone for the best performance and to prevent any damage to or misuse of the phone. Any unapproved changes or modifications will void your warranty.

FCC Part 15 Class B Compliance

This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that causes undesired operation.

Technical Details

The is an all digital phone that operates on both Code Division Multiple Access (CDMA) frequencies: Cellular services at 800 MHz and Personal Communication Services (PCS) at

1.9 GHz. CDMA technology uses a feature

called DSSS (Direct Sequence Spread Spectrum) that enables the phone to keep communication from being crossed and to use one frequency channel by multiple users in the same specific area. This results in a 10-fold capacity increase when compared with analog mode. In addition, features such as soft / softer handoff, hard handoff, and dynamic RF power control technologies combine to reduce call interruptions.

The Cellular and PCS CDMA networks consist of MSO (Mobile Switching Office), BSC (Base Station Controller), BTS (Base Station Transmission System), and MS (Mobile Station).

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 10

Page 13

Technical Details

* TSB-74: Protocol between an IS-

95A system and ANSI J-STD008

Its battery life is twice as long as IS-95. High-speed data

transmission is also possible. The following tab lists some

major CDMA standards.

CDMA Standard

Basic Air Interface

TIA/EIA-95A TSB-74 ANSI J-STD-008 TIA/EIA-IS2000

CDMA Dual-Mode Air Interface

14.4kbps radio link protocol and interband operations IS-95 adapted for PCS frequency band CDMA2000 1xRTT Air Interface

MAS-BS PCSC-RS Intersystem operations Non-signaling data comm.

CDMA2000 High Rate Packet Data Air Interface

1xEV-DO Inter-Operability Specification for CDMA2000 Access Network Interfaces

Recommended Minimum Performance Standards for CDMA2000 High Rate Packet Data Access Terminal Test Application Specification (TAS) for High Rate Packet Data Air Interface

TIA/EIA/IS-634 TIA/EIA/IS/651 TIA/EIA/IS-41-C TIA/EIA/IS-124

TIA/EIA/IS-856 TIA/EIA/IS-878

TIA/EIA/IS-866

TIA/EIA/IS-890

TIA/EIA/IS-96-B TIA/EIA/IS-637 TIA/EIA/IS-657 IS-801 TIA/EIA/IS-707-A

Speech CODEC Short Message Service Packet Data Position Determination Service (gpsOne) High Speed Packet Data

Network

Service

1x EV-DO Related

interface

Designator

Description

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 11

Page 14

Technical Details

FCC RF Exposure Information

WARNING! Read this information before operating the phone.

In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.

Bodily Contact During Operation

This device was tested for typical use with the back of the phone kept 0.79 inches (2.0 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of

0.79 inches (2.0 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Thirdparty belt-clips, holsters, and similar accessories containing metallic components should not be used. Avoid the use of accessories that cannot maintain

0.79 inches (2.0 cm) distance between the user’s body and the back of the phone and have not been tested for compliance with FCC RF exposure limits.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 12

Page 15

Technical Details

Vehicle-Mounted the External Antenna

(Optional, if available.)

To satisfy FCC RF exposure requirements, keep 8 inches (20 cm) between the user / bystander and vehicle-mounted the external antenna. For more information about RF exposure, visit the FCC website at www.fcc.gov.

FCC Notice and Cautions

Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Use only the supplied antenna. Use of unauthorized antennas (or modifications to the antenna) could impair call quality, damage the phone, void your warranty and/or violate FCC regulations.

Don't use the phone with a damaged antenna. A damaged antenna could cause a minor skin burn. Contact your local dealer for a replacement antenna.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 13

Page 16

Welcome

Caution

Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair call quality, damage the phone, void your warranty and/or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin a minor burn may result. Contact your local dealer for a replacement antenna.

Part 15.21 statement

Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Part 15.19 statement

This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions:

(1) This device & its accessories

may not cause harmful interference.

(2) This device & its accessories

must accept any interference received, including interference that may cause undesired operation.

Part 15.105 statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 14

Page 17

Welcome

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 15

Page 18

Phone Overview

1.Earphone Jack Allows the use of a

headset to hear caller's voice.

2.Proximity Sensor

When close (within 2-3 cm) to this sensor during a call, LCD turns off allowing you to only adjust volume or end the call so that you don't inadvertently activate a feature.

3 Earpiece Lets you hear the caller.

4. Slide Slide open to access the QWERTY

keyboard.

5.LCD Screen Displays incoming calls,

messages and indicator icons as well as viewing a wide variety of content you select to view.

6.TALK Key Use to place or answer calls.

You can also press to access your most Recent Calls.

7. BACK Key

Deletes single spaces or characters with a quick press, but press and hold to delete entire words. Will also back you out of menus, one level at a time.

8.Thumbpad Use as a mouse when

browsing the internet, or use to scroll through menu options,

9.PWR/END Key Use to turn the power

on/off and to end a call. Also returns to standby mode.

10.

Microphone

Lets callers hear you.

11. Alphanumeric Keypad Use to enter

numbers and characters and select menu items.

12.

Camera Lens

Used to take photos and record video. Keep it clean for optimal photo quality.

13.

Speaker

Lets you hear the caller's voice,

music and video in speakerphone mode.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 16

Page 19

Phone Overview

1.Side Camera Key Use for quick

access to Camera functions.

2.Side Volume Keys Use to adjust the

ringer volume in standby mode and the earpiece volume during a call.

3.HOLD Key Use to lock your phone

when the slide is closed. To unlock, press

()or open the slide.

4.Charger Port Connects the phone

to the battery charger or other available accessories.

Touch Sensitive Soft Keys

( , , , )

1. Make sure your hands are clean and dry. Remove moisture from the surface of your hands. Don't use the touch keys in a humid environment.

2. Touch key sensors are sensitive to your light touch. You don't need to press them forcefully to use them. Protect

your phone from severe impact because touch key sensors may become damaged from harsh use.

3. Use the tip of your finger to touch the center of a touch key. If you touch off-center it may activate the nearby function instead.

4. The touch feedback level can be adjusted to your preference.

microSD™card slot

(accommodates optional microSD

™

card up to

16GB.) Insert microSD

™

card for external memory. Use LG-approved microSD

™

card. To access

the microSD

™

card slot you must remove the side cover located on the side of your phone.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 17

Page 20

Phone Overview

5. When the LCD screen is off, touch keys are deactivated. Press the Unlock Key ( ) to turn on the Touch Screen and touch keys.

6. The Screen Lock feature protects against accidental key presses during phone calls with the flip closed.

7. Keep metal and other conductive material away from the surface of touch keys because contact may cause electronic interference.

WARNING



Do not put heavy objects on the Touch Screen.



Do not sit on your phone because it may damage the Touch Screen.



Do not drag or scratch your phone with any sharp materials.



Do not keep your phone in extreme conditions (places that are too humid, hot, or cold).



Keep chemicals away from your phone because they may change the cosmetic or functional features of your phone.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 18

Page 21

TIP

Keep in mind that the smaller the text appears on the screen, the smaller the area of touch activation. Try zooming the screen in, if available, to increase the touch area.

Phone Overview

The Touch Screen is a great way to interact with the ’s software. Take a little time to become accustomed to using it. If it doesn’t react as you expect, you can adjust the Touch Screen calibration.

Standby Mode Home Screens

Customize your Touch Screen to have instant access to features you want to keep as close as a single finger touch.

The has four Standby Mode Home Screens for quick, direct access to several frequently used device features.

Main:

Displays your Clock and/or Calendar. Customize your

preferences through the Display Settings menu.

Widget:

Customize for quick access to Widgets, My Menu items,

Bookmarks and easyedge Apps.

Contacts:

Displays favorite Contacts. Touch the contact and make call,

send message, view contact or to delete it.

Multimedia:

Displays favorite images, music and videos so you can

show them off at a moment’s notice without having to search.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 19

Page 22

Phone Overview

Main MultimediaWidget

Contacts

Set the features and items you want on each home screen and even display different backgrounds for each one.

1.Message Displays the Messaging Menu.

2.Call Displays the Dialing Touchpad.

3.Menu Displays the Main Menu.

4.Contacts Displays your Contact List.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 20

Page 23

Menus Overview

Communication

Contacts

New Contact Contact List Speed Dials Groups My Name Card

Recent Calls

Missed Calls Received Calls

Dialed Calls All Calls Call Timer Data Counter

Your Navigator

Speed Dials

Messaging

New Text Message New Picture Message Inbox Outbox Drafts Voicemail Templates Delete All

Delete Inbox Delete Outbox Delete Drafts Delete All

Messages

New Text Message

Browser

easyedge

Multimedia

Take Photo

Music

Now Playing/ Recently Played

All Songs Artists Albums Genres My Playists Settings

Repeat Shuffle Background Music

Record Video

My Stuff

Images

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 21

Page 24

Menus Overview

Videos Audios Documents

Record Voice

Documents

PAC-MAN

Games

Dart Homerun Derby Pac Man More games

Utilities

Voice Command

Start Command Command Mode Announce Mode Train Word Best Match

Alarm Clock

Organizer

Calendar Date Finder

World Clock

Tools

Calculator Ez Tip Calculator Unit Converter

Stopwatch

Drawing Panel

Notepad

Settings

Sound

Ringers

All Calls Caller ID No Caller ID Restricted Calls Shuffle

Volume

Master Volume Keypad Earpiece Speaker

Message Alerts

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 22

Page 25

Menus Overview

Text Message Picture Message Voicemail All Messages Message Reminder

Alert Type

Call Alert Message Alert Schedule Alert Alarm Alert

Service Alerts

Minute Beep Call Connect

Low Battery Power On/Off Tones Slide Tone

Display

Wallpaper

Screen

Main Widget

Contacts Multimedia Lock Screen

Shuffle

Screen

Repeat Banner Backlight

Display Keypad

Brightness

Auto Brightness

Brightness Level Menu Style Languages Clock & Calendar Font Settings

Font Type

Dial Font Size Name Match for

Dialing

Touch

Touchscreen Calibration

Touchscreen Effect Thumbpad Effect

Thumbpad Calibration

Thumbpad Sensitivity

Bluetooth

System

Network Location

Phone Settings

Power Save Auto Lock Security

Lock Phone Restrictions Emergency

Numbers Change Lock Code

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 23

Page 26

Memory

Handset Common Memory

Handset Reserved Memory

External Memory Primary Storage

Setting

Images Videos Audios Documents

USB Connection Mode

Phone Info

My Number ESN/MEID Icon Glossary Version

Master Reset

Call Settings

Answer Options Auto Retry One-Touch Dial Voice Privacy Auto Volume Airplane Mode TTY Mode

Message Settings

All Messages

Auto Save Auto Delete Entry Mode Signature

Text Messages

Auto View Auto Play Callback Number

Picture messages

Auto Receive

Voicemail Number

Menus Overview

Menu Access

Touch the MENU Touch Key to have access to phone menus. To access the MENU, unlock first by pressing down the unlock key on the left side of your phone. To go back to standby mode, touch

or press at the bottom center of your phone.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 24

Page 27

Getting Started with Your Phone

The Battery

The phone comes with a rechargeable battery. Keep the battery charged while not in use in order to maximize talk and standby time. The battery charge level is shown at the top of the LCD screen.

Installing the Battery

Insert the bottom of the battery into the opening on the back of the phone, then push the battery down until it snaps into place.

Removing the Battery

Turn power off. Slide the battery cover up, then pull the bottom side of the battery up to remove it.

Charging the Battery

Your device comes with a cableless travel adapter and a USB data cable which are connected together to charge your phone. To charge your phone:

Connect the cableless wall adapter and USB data cable. When connecting as shown below, the LG logo on the USB cable should face toward you.

Note

Please use only an approved charging accessory to charge your LG phone. Improper handling of the charging port, as well as the use of an incompatible charger, may cause damage to your phone and void the warranty.

Note

It is important to fully charge the battery before initial use of the phone.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 25

Page 28

2. Gently uncover the accessory charging port, then plug the end of the AC adapter into the phone’s charger port and the other end into an electrical outlet.

3. The charge time varies depending upon the battery level.

Battery Charge Level

The battery charge level is shown at the top right of the LCD screen. When the battery charge

level becomes low, the low battery sensor alerts you in three ways: sounding an audible tone, blinking the battery icon, and displaying a warning message. If the battery charge level becomes exceedingly low, the phone automatically switches off and any function in progress is not saved.

Turning the Phone On and Off

Turning the Phone On

1. Install a charged battery or connect the phone to an external power source.

2. Press for about 3 seconds until the LCD screen lights up.

Turning the Phone Off

1. Press and hold until the display turns off.

Getting Started with Your Phone

Notice

Please make sure that the 'B' Side faces up before inserting a charger or data cable into the charger port of your phone.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 26

Page 29

Getting Started with Your Phone

Signal Strength

Call quality depends on the signal strength in your area. The signal strength is indicated on the screen as the number of bars next to the signal strength icon

. The more bars, the better the signal strength. If the signal quality is poor, move to an open area. If you are in a building, the reception may be better near a window.

Screen Icons

To see the icon glossary, touch

Settings

Phone Settings

Phone Info ->

Icon Glossary

on your phone.

Making Calls

lf the phone is locked, press the Unlock Key on the left side of your phone.

1. Touch and touch the phone number (include the area code if needed).

2. Press or touch .

4. Press to end the call.

Note

If the phone is restricted, you can only dial phone numbers saved in the Emergency Numbers or your Contact List. To turn off this function:

Menu -> Settings -> Phone Settings -> Security -> Restrictions -> Outgoing Calls -> Allow All.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 27

Page 30

Correcting Dialing Mistakes

If you make a mistake while dialing a number, press or touch once to erase the last digit entered, or hold down or touch and hold for at least 2 seconds to go to standby mode.

Redialing Calls

1. Press twice to redial the last number you dialed. The last 150 numbers (received, dialed and missed) are stored in the call history list and you can also select any of these to redial.

Receiving Calls

1. When the phone rings or vibrates, press to answer.

2. Press to end the call.

Tip

Call Settings Menu allows you to choose answer options:

Slide Open/ Any Key/ TALK Key Only/ Auto Answer

Getting Started with Your Phone

Note

If you press or (the side keys), while the phone is ringing, the ringing or vibration is muted for that call.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 28

Page 31

Quick Access to Convenient Features

Lock Mode

Sets your phone to require a 4digit password in order to use the phone. To set lock mode on, touch

Settings

Phone Settings

Security

Lock Phone

-> Touch

When

Switch On

Immediately

Speaker Phone Function

This Function can be used during a phone call.

Touch / to transfer call sounds between the Speakerphone and the Earpiece.

Volume Quick Adjustment

Use the side keys to adjust the ringer volume in standby mode, and the earpiece volume during a call. The upper key increases the volume and the lower key decreases the volume.

Call Waiting

Your cellular service may offer call waiting. While a call is in progress, a beep indicates another incoming call. When call waiting is enabled, you may put the active call on hold while you answer the other incoming call. Check with your cellular service provider for information about this function.

Note

Until you change it, the default lock code/password is the last 4 digits of your phone number.

Note

Keypad Volume is adjusted through the Sounds Volume Menu. (

Settings

Sound

Volume ->Keypad).

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 29

Page 32

1. Press to receive a waiting call.

2. Press again to switch between calls.

Caller ID

Caller ID displays the phone number or name of the incoming call. If the caller’s identity is stored in Contacts, the name will appear along with the phone number. Check with your service provider to ensure they offer this feature.

Speed Dialing

Speed dialing is a convenient feature that allows you to make phone calls quickly. A number key can be assigned to a specific phone number. By pressing and holding down a number key, your phone will recall the phone number associated from the Contact List and display it briefly

while simultaneously dialing that phone number for you. Speed Dial Number 1 is set to Voice Mailbox by default and is unchangeable.

Dialing Single Digit Speed Dials (from 2 to 9)

Press and hold the Speed Dial number.

OR Enter the Speed Dial number

and press .

Dialing Double Digit Speed Dials (from 10 to 99)

Press the first digit and then press and hold the key of the second digit.

OR Enter the first and second

digits and press .

Quick Access to Convenient Features

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 30

Page 33

Entering and Editing Information

Text Input

Each time you touch a data entry field, the Touch Screen automatically displays Touch Keys allowing you to change the input. For example, in a name field, alphabet Touch Keys appear, but you can touch to select and enter numbers instead.

ENTER TEXT Options.

Insert/ Save To/ Priority Level/ Callback Number/ Copy Text/ Paste

Touch to clear text.

Touch to change the text input modes.

XT9 Mode

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 31

Page 34

Contacts in Your Phone’s Memory

The Basics of Storing Contacts Entries

1. Open the slide to reveal the keypad and enter the phone number you want to save (up to 48 digits).

2. Touch .

Touch Save and select either

Add New Contact or Update Existing

on the pop-up screen.

4. Touch a Phone Label.

Mobile1/ Home/ Office

Mobile2/ Fax

5. Touch the Name field and enter a name for the phone number (up to 32 characters). Then touch

Done

and

Save

A confirmation message is displayed briefly.

Phone Numbers With Pauses

When you call automated systems such as voice mail or credit billing numbers, you often have to enter a series of numbers to navigate through the system. Instead of entering these numbers by hand, you can store the numbers in your Contacts separated by special pause characters (W, P). There are two different types of pauses you can use when storing a number:

Wait (W)

The phone stops dialing until you select

Release

to advance to

the next number.

Note

Use

Existing Entry

to add another phone number to a contact already stored in memory.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 32

Page 35

Contacts in Your Phone’s Memory

2-Sec Pause (P)

The phone waits 2 seconds before sending the next string of digits.

Storing a Number with Pauses

1. Touch .

2. Touch

Contacts

3. Touch

New Contact

4. Enter a name (up to 32 characters) and touch the number field to enter a number.

5. Touch and select

Wa it

2-Sec Pause

6. Enter additional number(s) then touch and then

Adding a 2-Sec Pause to an Existing Number

1. Touch .

2. Touch

Contacts

3. Touch

Contact List

4. Scroll through the list and touch the Contact entry you wish to edit. Touch .

5. Touch

Edit

6. Touch the number.

7. Touch .

8. Touch

Wa it

2-Sec Pause

9. Touch and then

Save

Done

Save

Done

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 33

Page 36

Searching Your Phone’s Memory

The phone is able to perform a dynamic search of the Contacts in your phone’s memory. A dynamic search compares entered letters or numbers against the entry names in your Contacts. A matching list is displayed in descending order. You can then select a number from the list to call or edit.

Scrolling Through Your Contacts

1. Touch to display your Contacts alphabetically.

2. Scroll through the list.

Searching by Letter

1. Touch to display your contacts alphabetically.

2. Press (or press repeatedly) the key on the keypad that corresponds with the search letter.

Accessing Options

1. Touch .

2. Touch .

3. Touch one of the available options:

Send Message

: Send a text message or picture message to the selected contact.

Delete

: Delete the selected entry

from your Contacts.

Sort By:

Sort contact list in

Ascending or Descending order.

Send via Bluetooth:

Send a

contact(vCard) via Bluetooth

. In

case Bluetooth

power is not on, a notice pops up to turn Bluetooth

on.

Contacts in Your Phone’s Memory

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 34

Page 37

Contacts in Your Phone’s Memory

Delete All

Delete all Contacts in

the list.

Making a Call From Your Phone’s Memory

Once you have stored phone numbers in your Contacts, you can place calls to those numbers quickly and easily.



By highlighting a phone number in Contacts or Recent Calls, and pressing or touching

Call



By using Speed Dialing.

From Contacts

1. Touch to display your Contacts.

2. Touch the Contact entry.

3. Touch the phone number to place the call.

From Recent Calls

1. Touch .

2. Touch

Recent Calls

3. Touch the type of recent call.

Missed Calls/ Received Calls/ Dialed Calls/ All Calls

4. Touch the phone number.

5. Touch or press to place the call.

Speed Dialing

For a single-digit Speed Dial, press and hold the digit or press the digit, then press . For a double-digit Speed Dial, press the first digit and hold the second digit or press the first and second digit, then press

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 35

Page 38

Using Phone Menus

Communicate

Contacts

The Contacts Menu allows you to store names, phone numbers and other information in your phone’s memory.

1. New Contact

Allows you to add a new contact to your Contact List.

1. Touch .

2. Touch .

3. Touch

New Contact

4. Enter the name.

5. Continue entering Contact information by touching the corresponding field and entering the desired information.

6. Touch to save your new Contact.

Save

Note

Using this submenu, the number is saved as a new Contact. To save the number into an existing Contact, edit the Contact entry.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 36

Page 39

Communicate

2. Contact List

Allows you to view your Contact List.

1. Touch .

2. Touch .

3. Touch

Contact List

4. Choose from the following options:



Scroll through your Contacts alphabetically.



Touch to select one of the following:

Send Message/ Delete/ Sort By/ Send via Bluetooth/ Delete All



Touch

New Contact

to store new contact information.

3. Speed Dials

Allows you to view your Speed Dials list, designate new Speed Dials, or remove Speed Dial designations entered in your Contacts.

1. Touch .

2. Touch .

3. Touch

Speed Dials

4. Touch the desired Unassigned Speed Dial.

5. Touch the contact to assign, a confirmation message is displayed.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 37

Page 40

Communicate

4. Groups

Allows you to view your grouped Contacts, add a new group, change the name of a group, or delete a whole group.

1. Touch .

2. Touch .

3. Touch

Groups

4. Choose from the following options:



Touch a group to view.



Touch a group, then touch

to choose from the

following options:

Send Message/ Rename Group/ Remove from Group/ Group Ringtone/ Send via Bluetooth/ Delete/ Delete All

5. My Name Card

Allows you to view all of your personal Contact information including name and phone numbers.

1. Touch .

2. Touch .

3. Touch

My Name Card

4. Touch

Edit

5. Touch the field you want to edit.

6. Edit the information as necessary and touch

Save

Note

You cannot edit your mobile phone number, but you can add an additional phone number.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 38

Page 41

Communicate

Recent Calls

The Recent Calls Menu is a list of phone numbers or Contact entries for calls you placed, accepted, or missed. It is continually updated as new numbers are added to the beginning of the list and the oldest entries are removed from the bottom of the list.

1. Missed Calls

Allows you to view the list of missed calls; up to 50 entries.

1. Touch .

2. Touch .

3. Touch

Missed Calls

4. Touch the entry. Or Touch for the following options:

Go To Contact/ Go To Dialing/ Delete/ Delete All/ Call Timer

5. Press to return to

standby mode.

Shortcut

To view a quick list of all your recent calls, press

TALK Key

from standby mode.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 39

Page 42

Communicate

2. Received Calls

Allows you to view the list of incoming calls; up to 50 entries.

1. Touch .

2. Touch .

3. Touch

Received Calls

4. Touch the entry.

3. Dialed Calls

Allows you to view the list of outgoing calls; up to 50 entries.

1. Touch .

2. Touch .

3. Touch

Dialed Calls

4. Touch the entry.

4. All Calls

Allows you to view a list of the most recent Missed, Received and Dialed calls.

1. Touch .

2. Touch .

3. Touch

All Calls

4. The list with the most recent calls is displayed.

5. Call Timer

Allows you to view the duration of selected calls.

1. Touch .

2. Touch .

3. Touch

Call Timer

4. Call times are displayed for the following types of calls:

Last Call/ Home Calls

Roam Calls/ All Calls

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 40

Page 43

Communicate

6. Data Counter

Allows you to view the list of received and transmitted data calls.

1. Touch .

2. Touch .

3. Touch

Data Counter

4. Transmitted data are displayed for the following types:

Received Data/Sent Data

All Data

Your Navigator

Download application form Mobile Shop. Now you can find the address of a great restaurant or the nearest ATM. Check movie times. Discover the latest hot spots. And know exactly how to get where you're going. Navigator puts all the advanced features of the latest GPS devices and systems on your wireless device at a fraction of the price.

1. Touch .

2. Touch .

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 41

Page 44

Communicate

Speed Dials

Refer to page 30 for more infomation

1. Touch .

2. Touch .

Messaging

The can store up to 535 messages and notifications (including a maximum of 200 SMS and 100 MMS in the Inbox).The information stored in the message is determined by phone model and service capability. Other limits such as available characters per message may exist, please check with your service provider for system features and capabilities.

1. New Text Message

Allows you to send text messages, pages, and e-mail transmissions.

The Basics of Sending a Text Message

1. Touch

Messaging

and

New Text Message

2. Touch to enter the recipient's address or to add contact.

3. Touch the Text field to access the message screen.

Type your message (text or e-mail).

5. Touch , then touch

A confirmation message is displayed.

Send

Done

Contacts

Enter Number

Shortcut

From standby mode, touch .

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 42

Page 45

Communicate

Customizing the Text Message Using Options

1. Touch

Messaging

and

New Text Message

2. Touch .

3. Touch the option(s) to customize.

Save to Draft

Save the current message draft.

Priority Level

Choose

High/

Normal

to set the priority level

of your message.

Callback Number

Choose

On/Off

to set your callback

number to

Off.

4. Complete and send the message.

Text Options

While you are composing the text of a message, you have various options to customize the text.

1. Touch

Messaging

and

New Text Message

2. Touch the Text field to access the Enter Text screen.

3. Touch .

4. Touch the option(s) to customize.

Insert Templates/ Signature/

Name & Number

Save To Draft/Template Priority Level High/ Normal Callback Number On/ Off Copy Text

5. Complete your message and send or save it.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 43

Page 46

Communicate

2. New Picture Message

Allows you to send messages with Text, Image/ Video, and Audio.

1. Touch

Messaging

and

New Picture Message

2. Touch to enter the recipient's address or to add contact.

3. Touch the corresponding field to add Text, Image/ Video, and Audio to your message.

Options with Image/Video:

Image/ Video/ Take Photo/ Record Video

4. Touch the file you want to add.

Contacts

Enter Number

Single Address Multi-Address

Description Normal High Normal High

Sent Fail Pending Unread Delivery Acknowledgement Read Incomplete WAP Push Msg Voicemail Msg (With unread Msg) Draft

Single Address Multi-Address

Normal High Normal High

Message Icon Reference

Text Message Picture Message

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 44

Page 47

Communicate

5. When you touch the

Audio

field, your have the option of attaching a saved Audio file, or Recording a new one.

6. Options with the Menu:

Insert Slide

Inserts slide to add

more picture message.

Preview

Shows your message

before sending.

Save to Draft

Saves the current

message as a Draft.

Priority Level High/ Normal Remove Image/Video

Audio

Slide/ Subject

7. Touch to send.

3. Inbox

The phone alerts you in 3 ways when you receive a new message by:



Displaying a notification message on the screen.



Displaying the message icon

(It blinks when the

message is urgent).



Playing an audio tone or vibrating, depending on your personal sound settings.

Received text messages, page messages, picture messages and e-mail lists may be searched and the contents viewed. Received messages are displayed from newest to oldest.

Send

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 45

Page 48

Communicate

Viewing Your Inbox

Up to 400 messages (200 SMS + 100 MMS + 100 MMS Notification Messages) can be stored in the Inbox.

1. Touch

Messaging

and

Inbox

2. Touch an Inbox message.



Touch to reply to the message.



Touch to delete the message.



Touch to view the conversation in Chat view mode.



Touch to choose from the following options:

Forward

Forwards a received message to other destination address(es).

Save Contact

Stores the callback number, e-mail address, and numbers in the received message into your Contacts.

Go to website

Accesses the website by starting Browser. (Only for messages containing a URL.)

Lock/Unlock

Locks or unlocks

the selected message.

Callback

Calls the number in the

received message.

Extract Address

Allows the address included in the message to be extracted for viewing.

Message Info

Shows message info, such as Type, Priority level, size and time.

Save To Templates

Allows you to

save the message as a template.

Chat

Delete

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 46

Page 49

Communicate

4. Outbox

Up to 100 messages (50 sent SMS messages + 50 sent MMS messages) can be stored in the Outbox folder. View the contents of sent messages and verify whether the transmission was successful or not.

1. Touch

Messaging

and

Outbox

2. Touch an Outbox message. While viewing the selected Outbox message, touch

, , or to

view the following options:

Play Again

Allows you to play

the sound or the picture.

Delete

Deletes the selected

message.

Forward

Forwards a received message to other destination address(es).

Save Contact

Choose

Add New

Contact / Update Existing

to save the phone number in your Contacts.

Save Media

Choose

Image/

Audio

to save the attached media to your phone. (Only for messages with Images or Audio attached.)

Lock/Unlock

Locks or unlocks

the selected message.

Go to website

Accesses the website by starting Axcess Web. (Only for messages containing a

URL.)

Extract Address

Allows you to extract address from the sent message.

Message Info

Shows the message's Type, Priority, Status Subject, Size and Attachment.

EditResend

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 47

Page 50

Communicate

5. Drafts

Displays saved messages and draft messages.

1. Touch

Messaging

and

Drafts

2. Touch to choose from the following options:

Delete

Deletes the selected

message from the Drafts.

Lock/Unlock

Locks a message so that it is not erased if the Erase Saved or Erase All feature is used.

New Message Sort by Delete All

Deletes multiple

messages at one time.

4. Touch a saved Draft message to Edit it.



When you are finished editing the message, press Send to send it.

6. Voicemail

Allows you to view new voice messages recorded in your voice mail box. Your phone will alert you when you receive a new voice message.

Checking Your Voicemail Box

1. Touch

Messaging

and

Voicemail

2. Choose from the following options:

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 48

Page 51

Communicate



Touch to clear the voice mail count.



Touch to listen to the message(s).

7. Templates

Allows you to display, edit, and add text phrases. These text strings allow you to reduce manual text input into messages.

1. Touch

Messaging

and

Templates

2. Touch

New

to add new

template.

3. After adding new template, touch to

save

it.

8. Delete All

Allows you to erase all the messages stored in your Inbox, Outbox, or Drafts messages folders. You can also erase all messages at the same time.

1. Touch

Messaging

and

Delete All

2. Touch Delete Inbox/ Delete

Outbox/ Delete Drafts/ Delete All Messages.

New Text Message

Refer to page 42~43 for more information.

1. Touch .

2. Touch .

Save

Call

Clear

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 49

Page 52

Communicate

Browser

The Browser feature allows you to view Internet content. Accessibility and selections within this feature are dependent upon your service provider. For specific information on Web contact your service provider.

Start Browser

Allows you to initiate an Web session.

1. Touch .

2. Touch

Web

3. After a few seconds, you will see the home page.

Ending an Web Session

End an Web session by pressing

Browser Navigation

Links embedded in content

Select items or links by touching it on the screen.

Scrolling / Fast Scrolling

Use your fingertip to scroll the screen contents in the direction you move your finger. How quickly you move your finger determines the quickness of the scroll.

Thumbpad

Use as a mouse when browsing the internet, or use to scroll through menu options.

CAUTION

Do not use a sharp item for your pen-like stylus because it could scratch your screen.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 50

Page 53

Communicate

Command Bar icons:

The Items Command Bar provides the following toolbar buttons.



Back

to go back to the

previous page.



Forward

(if available) takes you back to the next page.



Refresh

Allows you to

reload the current Web page.



Home

Returns to Home

Page.



Zoom

Allows you to

zoom the screen in or out.



Bookmarks

Takes you to

the Bookmarks menu.



Allows you to enter a

Web address to go to.



Allows access to Browser

Menu.

Using the Browser Menu

Touch (in the Browser Command Bar) to view Browser menu items.

Browser Menu Items



Full Screen View

Use the whole screen including the annunciator and command bar area to view pages.



Display Rendering

Allows mode selection that changes the layout of contents.

Standard

Displays a standard Browser screen with vertical and horizontal page navigation.

NOTE

You may have to scroll down to see some of the menu items listed below.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 51

Page 54

Communicate

Screen Optimized

Displays vertically aligned contents of the Web page which fit the size of the screen. Allows vertical navigation only.

Text Only

Displays only text and excludes images used in the Web page.



Send URL

Allows you to send the link of the current page via a text message.



Search Text

Allows you to search for text you want to find in the web page. (Search Text is not case-sensitive.)



History

Displays list of visited

web pages.



Settings

Homepage

Allows you to set

your Home Page.

Display

Allows you to define the Thumbnail, Scroll and Fit to width settings.

JavaScript On/ Off

Timer

Set the duration of the Key Press or Connection Time Out.

Encryption

Displays the Security settings menu and certificates in device.

RSS Reader

Show image/

Update interval

Flash On / Off

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 52

Page 55

Communicate



Manage Memory

Manages

memory used by browser.



Information Show URL

Redisplays current

Web page.

About

Displays the current

browser information.

Thumbnail Option in Browser Menu

This option displays the entire outline of the Web page in the screen corner, which is helpful to find out where you are on the page and move to where you want to go on the Web page.

1. Touch Menu to access the menu.

2. Touch the Browser icon .

3. Touch .

4. Touch ->

-> then choose one of the following options:



: thumbnail screen image is always displayed in one corner of the screen.



Off

: thumbnail screen image is never displayed on the screen (by default).



Auto

: thumbnail screen image is displayed whenever you are quickly scrolling through a page.

Thumbnail

DisplaySettings

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 53

Page 56

Communicate

Entering/Deleting Text, Numbers or Symbols

When text, numbers or symbols need to be entered on the screen, a Touch Keypad will pop up when you touch the text field, on the screen. Simply touch the characters you want and touch

to delete.

Flash Contents

has FlashLite engine that supports Flash content with the following Codecs:

- Video codec: sorenson, on2

- audio codec: mp3

How to play Flash contents: Touch or image box.

Unsupported Flash media:



Flash media that requires a higher version of Flash available on the .



Error messages may result in the following circumstances:

- Server times out. If the server does not respond within 60 seconds, the Flash content will not load and result in an error.

- Out of memory. If the Flash content requires more memory than what is available on the , an Out of Memory error will occur.

NOTE

Sometimes it is necessary to touch the text field more than once in order to bring up the Touch Keypad.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 54

Page 57

Communicate

Using RSS reader

RSS (Really Simple Syndication) is a family of web feed formats used to publish frequently updated content such as blog entries, news headlines or podcasts. An RSS document, which is called a feed, web feed, or channel, contains either a

summary of content from an associated web site or the full text. RSS makes it possible for people to keep up with their favorite web sites in an automated manner that is easier than checking them manually.

[Pages management Screen]

[Multi-Windows Screen]

Pages management / Count icon

Window Tab with title

Touch this to close the window.

Using Tabbed Browsing

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 55

Page 58

Communicate

To add an RSS feed

You must first be on a website that supports RSS. The RSS registration indicator will show the RSS icon if the site has RSS.

Touch the RSS registration indicator next to the URL field (as shown in the first screenshot below) to add the RSS Feed to your Feeds.

RSS registration indicator

After adding an RSS feed, registered FEEDS are displayed.

NOTE

This example uses a demo web site.

[Step 1: Touch Bookmarks]

[Step 2: Touch Feeds]

[Step 3: Touch a saved Feed]

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 56

Page 59

Communicate

Fit To Width

A browser function that resizes the current webpage to fit better with the width of the screen.

Fit To Width icon: Allows you to adjust zoom level of Browser screen. To configure the Fit To Width settings, follow the steps below:

Browser Menu > Settings > Display > Fit to width (Manual/ Automatic)

[Before Fit To Width] [After Fit To Width]

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 57

Page 60

Communicate

easyedge

easyedgeSMallows you to do more than just talk on your phone. easyedge

is a technology and service that allows you to download and use applications on your phone. With easyedge

, it is quick and easy to personalize your phone to your lifestyle and tastes. Just download the applications that appeal to you including ringtones, games to productivity tools, you can find something useful, practical, or down right entertaining. There are new applications constantly available for your use.

Downloading Applications

You can download applications and use easyedge

where

service is available.

Incoming Calls

While downloading an application, incoming calls will automatically

be sent to your voice mail, if available. If you do not have voice mail, downloading will not be interrupted by an incoming call, and the caller will receive a busy signal. When using applications, an incoming call will automatically pause the application and allow you to answer the call. When you complete your call, you can resume using the application.

easyedge Apps

Allows you to download selected applications while displaying the entire application list retrieved from the easyedge

server

connection.

1. Touch .

2. Touch .

3. Touch

MobileShop

4. Touch either

Catalog

browse or

to search

the available applications.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 58

Page 61

Entertainment

Take Photo

1. Touch .

2. Touch .

3. Touch

Take Photo

or use the one of the following options to customize your settings:

Back Record Video Changes from

Camera mode to Video mode.

Zoom (not available at

highest resolution).

Brightness Shot Mode Multishot/

Templates

Self Timer Off/ 3 Seconds/

5 Seconds/ 10 Seconds

My Images

Photo Tab Settings

Resolution 2048 X1536/

1600X1200/ 1280X960/ 640X480/ 320X240

Night Mode On/ Off Color Effects Normal/

Negative/ Aqua/ Sepia/ Mono/ Solarize

White Balance Auto/

Sunny/ Cloudy/ Fluorescent/ Glow

Macro On/ Off Quality Normal/ Fine/

Super Fine

Zoom

Back

Record Video

Settings My Images

Self Timer Shot Mode

Brightness Take Photo

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 59

Page 62

Entertainment

Others Tab Settings

Memory Storage Internal/

External

Auto Focus On/ Off View Option Actual View/

Full Screen

Shutter Sound Shutter/ No

Sound/ Say “Cheese”/ Ready! 1 2 3/

Auto Save On/ Off Send Reminder On/ Off Reset On/ Off

4. Take a picture by pressing the Camera button or

Ta k e


5. A Send options menu will popup, allowing you to send the picture taken. If you do not wish to Send the picture, select Cancel.

6. Touch to save the picture.

7. A prompt will ask you where you wish to have the picture saved.

Music

Allows you to listen to songs stored in your memory card. To access this feature, there should be music already in your memory card.

Notes

Be sure to use only recommended microSDTMcards. Using nonrecommended microSDTMcards could cause data loss and damage your phone.

The microSD

card and its adapter can be easily damaged by improper operation. Please be careful when inserting, removing, or handling it.

Do not remove a microSD

card while files are being accessed or transferred. It may result in loss or damage of data.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 60

Page 63

Entertainment

1. Now Playing/ Recently Played

Allows you to view the most recently played songs (if applicable).

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

Now Playing

Recently Played

5. Select the music file and

touch to play.

2. All Songs

Allows you to play All Songs.

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

All Songs

5. Select the music file and touch to

play

or touch

Options

Now Playing/ Add to Playlist/ Use Bluetooth Headset/ Send Via Bluetooth/ Delete/ Copy/ Move/ Delete All

Options available while playing music:

/ / / /

, or touch for the

following options:

Minimize/ Go to my music/ Song Info

3. Artists

Allows you to view and listen to your music by Artists.

1. Touch .

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 61

Page 64

Entertainment

2. Touch .

3. Touch

Music

4. Touch

Artists

and touch the

Artist you want to listen to.

4. Albums

Allows you to view and listen to your music by Album.

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

Albums

and touch the

Album you want to listen to.

5. Genres

Allows you to view and listen to your music by Genre.

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

Genres

and touch the

Genre you want to listen to.

6. My Playlists

Allows you to view, listen to and create Playlists.

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

My Playlists

5. Create a new Playlist by touching . Then name and Add Songs to the playlist.

Create

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 62

Page 65

Entertainment

7. Settings

Allows you to customize music playback settings.

7.1 Repeat

Allows you to set repeat settings.

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

Settings

5. Touch

Repeat

Repeat One/ Repeat All/ Off

7.2 Shuffle

Allows you to set shuffle settings.

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

Settings

5. Touch

Shuffle

ON/ OFF

7.3 Background Music

Allows you to configure background music preferences.

1. Touch .

2. Touch .

3. Touch

Music

4. Touch

Settings

5. Touch

Background Music

Prompt/ Always On/ Always Off

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 63

Page 66

Entertainment

Record Video

1. Touch .

2. Touch .

3. Touch

Record Video

and use the one of the following options to customize your settings:

Back Take Photo Changes from

Video mode to Camera mode.

Zoom Brightness

Resolution

320X240/176X144

My Videos

Video Tab Settings

Color Effects Normal/

Negative/ Aqua/ Sepia/ Mono/ Solarize

White Balance Auto/

Sunny/ Cloudy/ Fluorescent/ Glow

Quality Fine/ Normal/

Super Fine

Record Time For Send/ For

Save

Zoom

Back

Take Photo

Settings My Videos

Resolution Brightness

Stop recording Begin recording

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 64

Page 67

Entertainment

Others Tab Settings

Memory Storage Internal/

External

Mute On/ Off Auto Save On/ Off Send Reminder On/ Off Reset On/ Off

4. Press the Camera button or to begin recording.

5. Press the Camera button or to stop recording.

6. A Send options menu will

popup, allowing you to send the video taken. If you do not wish to Send the video, select Cancel.

7. Touch to save the video.

The video is stored in

Videos

My Stuff

Allows you to view images, videos, audios and documents saved in phone.

1. Touch .

2. Touch .

3. Touch

My Stuff

4. Touch

Images/ Videos/

Audios/ Document.

Record Voice

Allows you to record short verbal reminders.

1. Touch .

2. Touch .

3. Touch Record Voice .

4. Start recording by pressing .

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 65

Page 68

Entertainment

Touch to stop. Touch to pause.

5. After recording, voice memo is automatically saved in your phone.

Documents

Allows you to view documents saved in phone.

1. Touch .

2. Touch .

3. Touch

Documents

Touch the Document to open it. For memory options, touch

Options and select

Memory Manager

Select from the following options:

Handset Memory/ External Memory

PAC-MAN

Opens the PAC-MAN game for your enjoyment. Please note that the game may have to be downloaded.

1. Touch .

2. Touch .

3. Touch

PAC-MAN

Games

Allows you to enjoy various games.

1. Touch .

2. Touch .

3. Touch

Games

Select from the following games/options:

Dart/ Homerun Derby/ Pac Man/ More games

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 66

Page 69

Utilities

Voice Command

Allows you to make phone calls quickly and easily by voice. Your phone recalls the number from your Contacts, displays it briefly, and then dials it. This menu also includes a feature for those who are driving or blind. It delivers time and date information by voice and allows you to check missed calls, messages and voicemails.

1. Start Command

1.1 Call <Name> or <Number>

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Start Command

5. Say

Call <Name> or

6. Say the name as it is saved in your Contact List or say the number.

1.2 Voicemail

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Start Command

5. Say

Voicemail

6. The phone will announce any new Voicemail(s).

1.3 Missed Calls

You can hear details about missed calls.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 67

Page 70

Utilities

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Start Command

5. Say

Missed Calls

1.4 Messages

This voice command feature will read out information from messages received.

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Start Command

5. Say

Messages

1.5 Time & Date

This voice command feature will read out the current time & date.

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Start Command

5. Say

Time & Date

1.6 Help

Allows you to view more information about the features in Voice Command.

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Start Command.

5. Say

Help

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 68

Page 71

Utilities

2. Command Mode

Allows you to choose between Normal or Speed settings. The Speed setting allows you to access the Voice Command functions more quickly with a non-verbal prompt.

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Command Mode

5. Select options.

Normal/ Speed

3. Announce Alert

Allows you to customize the Announce Alert function. Alert Announce allows you to hear more information about an incoming call in addition to, or instead of, the Ring/Ringtone.

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Announce Alert

5. between the options:

Disable/

Announce/ Announce + Ring

4. Train Word

Allows you to train the voice recognition for improved results.

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Train Word.

5. Select options.

Voice Command/ Answer/ Digit Dial

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 69

Page 72

Utilities

5. Best Match

Allows you to customize Best Match settings.

1. Touch .

2. Touch .

3. Touch

Voice Command

4. Touch

Best match

5. Select options.

1 Match/ 4 Matches

Alarm Clock

Allows you to set up to Five alarms. At the alarm time, any set alarm will sound and/or vibrate (according to your sound settings) the tone of your choice, and a notification message will be displayed on your screen.

1. Touch .

2. Touch .

3. Touch

Alarm Clock

, and

4. Touch the

Set Time

field to

set the alarm time.

5. Touch the

Repeat

field to set the Recurrence for the alarm. Options are:

Once/ Daily/ Mon - Fri

Weekends

6. Touch the

Ringtone

field to

set the ringtone for the alarm.

7. Touch to save.

Save

Add

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 70

Page 73

Utilities

Organizer

1. Calendar

Allows you to store and access your agenda(s). Simply store your appointments in your Calendar and your phone will alert you with a reminder.

1. Touch .

2. Touch .

3. Touch

Organizer

, and

Calendar.

4. Touch the calendar day (twice).

5. Touch .

6. Enter your schedule information including:



SubjectStart Time



End TimeRepeat



Until



On Time



TonesVibrate

7. Touch to save.

2. Date Finder

Allows you to find a date after, or before, the Start date you enter.

1. Touch .

2. Touch .

3. Touch

Organizer

4. Touch

Date Finder

World Clock

Allows you to determine the current time in another time zone or country.

1. Touch .

2. Touch .

3. Touch

World Clock

Save

Add

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 71

Page 74

Utilities

4. Scroll through the continents by touching the arrows under the globe.

5. Touch to view the cities.

6. Touch a city to view the current date and time in that city.

5. Touch to choose from a list of available cities.

6. Touch a city from the list. Touch to view the current date and time.

7. Touch to turn Daylight Savings Time on or off.

Tools

1. Calculator

Allows you to perform simple mathematical calculations. You can enter numbers up to the sixth decimal place.

1. Touch .

2. Touch .

3. Touch .

4. Touch

Calculator

5. Enter data.



Touch the keypad that pops up to enter numbers.



Touch to enter decimals.



Touch to delete the last digit entered.

Set DST

Cities

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 72

Page 75

Utilities



Touch the corresponding Touch Keys to enter functions ( +, -, x, / ).



Touch to complete equation.

2. Ez Tip Calculator

Allows you to quickly and easily estimate the tip and total amount of a bill by inputting the bill amount before tip, the tip percentage, and divide it by the number of people paying.

1. Touch .

2. Touch .

3. Touch .

4. Touch

Ez Tip Calculator

5. Enter the variable fields (Total bill, Tip %, Split).



Touch the Total bill field to display a keypad to enter the amount.



Touch the left and right arrow keys to increase or decrease the Tip % and Split amount(s). Corresponding calculation fields (tip and total for each person) appear automatically.

6. Touch when the keypad is displayed for another calculation.

3. Unit Converter

Allows you to convert units of measurement.

1. Touch .

2. Touch .

3. Touch .

Reset

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 73

Page 76

Utilities

4. Touch

Unit Converter

5. Touch the unit of measurement you want to convert:

Currency/ Area/ Length/ Mass/ Temperature/ Volume/ Velocity

Stopwatch

Allows you to use your phone as a Stopwatch.

1. Touch .

2. Touch .

3. Touch .

4. Touch to start, and touch to stop.



You can use the Lap function by pressing touch

to record up to 20

laps and lap times.

5. Touch to reset.

Drawing Panel

This function allows you to draw freely so that you can simply save the image, send it in a message or set it as a Wallpaper.

1. Touch .

2. Touch .

3. Touch .

4. Touch to write a new note.

5. Create a drawing, then touch

to save it.

A confirmation message displays briefly, then displays your list of Drawings.

Add

Reset

Lap

Stop

Start

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 74

Page 77

Utilities

Options for a Drawing Pad Entry

1. Access Drawing Pad and select the entry.

2. To erase, touch . To edit, touch . To send as a Picture Message,

touch .

Notepad

Allows you to add, read, edit, and erase notes to yourself.

1. Touch .

2. Touch .

3. Touch

Notepad

4. Touch to write a new note.

5. Type the note, then touch .

A confirmation message displays briefly, then displays your list of notes.

Viewing a Notepad Entry

1. Access Notepad and select

the entry.

2. To erase, touch select list

then, touch .

To Add or Erase All, touch select list then, touch or .

Erase All

Add

Erase

Save

Add

Send

Edit

Erase

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 75

Page 78

Settings

Sound

Options to customize the phone’s sounds.

1. Ringers

Allows you to assign ringtones for incoming calls.

1. Touch .

2. Touch .

3. Touch

Sound

and

Ringers

4. Touch

All Calls/Caller ID

No Caller ID/ Restricted Calls

Shuffle

5. Touch a ringer to Set.

2. Volume

Allows you to set various volume settings.

1. Touch .

2. Touch .

3. Touch

Sound

and

Volume

4. Touch

Master Volume

Keypad/ Earpiece/ Speaker

5. Adjust the volume by dragging the volume levels up and down, then touch to save the setting.

3. Message Alerts

Allows you to select the alert tones for new messages.

1. Touch .

2. Touch .

Set

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 76

Page 79

Settings

3. Touch

Sound

and

Message Alerts

4. Touch

Text Message/Picture

Message

Voicemail/All

Messages

Message

Reminder.

5. Touch a ringtone. For the

Message Reminder

option, choose from the following settings:

Once/ Every 2 Minutes/ Every 15 Minutes/ Off

4. Alert Type

Allows you to select the alert types.

1. Touch .

2. Touch .

3. Touch

Sound

and

Alert Type

4. Touch the option you want to customize:

Call Alert/Message Alert

Schedule Alert/Alarm Alert

5. Choose from the following settings:

Ring Only/ Vibrate Only/ Ring & Vibrate

5. Service Alerts

Allows you to configure the following 3 Service Alert options.

1. Touch .

2. Touch .

3. Touch

Sound

and

Service Alerts

4. Touch an alert option.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 77

Page 80

Settings

Minute Beep

Alerts you 10 seconds before the end of every minute during a call.

Call Connect

Alerts you when the call is connected.

Low Battery

Alerts you when the battery charge level is low.

Announce/ Tone

6. Power On/Off Tones

Allows you to set the phone to sound a tone when the phone is powered on and off.

1. Touch .

2. Touch .

3. Touch

Sound

and scroll

down to

Power On/Off

Tones

4. Toggle the setting between the two options:

On/ Off

7. Slide Tone

Allows you to set a slide tone that will play when you slide your phone open or closed.

1. Touch .

2. Touch .

3. Touch

Sound

and scroll

down to

Slide Tone

4. Toggle the setting between the two options:

On/ Off

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 78

Page 81

Settings

Display

Options to customize your phone's display screen.

1. Wallpaper

Allows you to choose the kind of background to be displayed on the phone.

1.1 Screen

1. Touch .

2. Touch .

3. Touch

Display

Wallpaper

then

Screen.

4. Touch a submenu.

Main/ Widget/ Contacts/ Multimedia/ Lock Screen

5. Touch your choice, then touch .

1.2 Shuffle

1. Touch .

2. Touch .

3. Touch

Display

Wallpaper

then

Shuffle.

4. Touch the Screen options slider:

On/ Off

You will be prompted to add items to the Shuffle folder, select

Ye s

5. Mark the items you wish to add to the Shuffle folder, then touch. .

6. Toggle the Screen setting between On/Off.

7. Select the desired amount of time between Screen changes for the Shuffle function:

Every 5 Sec/ Every 1 Min/ Every 1 hour/ Every 1 Day

Done

Wallpaper

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 79

Page 82

Settings

2. Banner

Allows you to enter a string of characters which display on the Main Home Screen and Lock screen.

1. Touch .

2. Touch .

3. Touch

Display

and

Banner

4. Touch the Status field and touch

On/ Off

5. Touch the Text field and type your Banner text.

6. When you are finished, touch

3. Backlight

Allows you to set the duration of the Display and Keypad backlight.

1. Touch .

2. Touch .

3. Touch

Display

and

Backlight

4. Touch a submenu.

Display/ Keypad

5. Touch a duration time:

7 seconds/ 10 seconds/ 15 seconds/ 30 seconds/ Always On

4. Brightness

1. Touch .

2. Touch .

3. Touch

Display

and

Bightness

4. Touch a setting for Auto Brightness.

On/ Off

(If Auto Brightness is off, you can set the brightness level to:

Dimmer/ Middle/

Brighter

)

Save

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 80

Page 83

Settings

5. Menu Style

Allows you to choose the style in which the Main Menu displays.

1. Touch .

2. Touch .

3. Touch

Display

and

Menu Style

4. Touch a setting.

Claro Style/ 3D Icon Style

6. Languages

Allows you to use the bilingual feature according to your preference. Choose between English and Spanish.

1. Touch .

2. Touch .

3. Touch

Display

and

Languages

4. Touch

English

Spanish

7. Clock & Calendar

Allows you to select the type of clocks displayed on the Main Home Screen.

1. Touch .

2. Touch .

3. Touch

Display

and

Clock & Calendar

4. Use your finger to slide from left to right (and vice versa) through the available options:

Off/ Normal/ Analog/ Large Analog/ Digital 12/ Large Digital 12/ Digital 24/ Large Digital 24/ Dual/ Calendar

5. Touch .

Set

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 81

Page 84

Settings

8. Font Settings

Allows you to select the type of font displayed on LCD.

1. Touch .

2. Touch .

3. Touch

Display

and

Font Settings

4. Touch a sub-menu.

Font Type/ Dial Font Size

Options for Font Type

LG Gothic/ LG Serif/ LG Joy/ LG Script

Options for Dial Font Size

Normal/ Large

9. Name Match for Dialing

Matches a saved Contact entry with the corresponding letters entered on the Dialpad.

1. Touch .

2. Touch .

3. Touch

Display

and

Name Match for Dialing

4. Touch the Status field and

touch

On/ Off

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 82

Page 85

Settings

Touch

1. Touchscreen Calibration

Allows you to calibrate the Touch Screen to ensure it is working properly.

1. Touch .

2. Touch .

3. Touch

Touch

and

Touchscreen Calibration

4. Touch the screen to start

calibration, then touch the target each time it appears.

Touchscreen Effect

Allows you to customize your Touch Screen effects' sound and vibration settings.

1. Touch .

2. Touch .

3. Touch

Touch

and

Touchscreen Effect

4. Touch the option you want to customize:



Tone Type Vibraphone/ High Pitch/ Glass/ Water Drop



Tone Level Off/ Level 1/ Level 2/ Level 3/ Level 4/ Level 5



Vibrate Type Short/ Double/ Long



Vibrate Level Off/ Low/ Medium/ High

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:07 AM Page 83

Page 86

Settings

3. Thumbpad Effect

Allows you to customize the Thumbpad Calibration and Thumbpad Sensitivity.

1. Touch .

2. Touch .

3. Touch

Touch

and

Thumbpad Effect

4. Touch a sub-menu.

Thumbpad Calibration/ Thumbpad Sensitivity

Bluetooth

The is compatible with devices that support the Bluetooth

headset, stereo headset and hands-free profile(s)*. You may create and store 20 pairings within the

and connect to one device at a time. The approximate communication range for Bluetooth

wireless technology is up to 30 feet (10 meters).

Bluetooth QD ID B014799

Note

Read user guide of each

Bluetooth

accessory that you are trying to pair with your phone because the instructions may be different.

Note

Do not touch the Thumbpad during Thumbpad Calibration.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 84

Page 87

Settings

1. Power

Allows you to set the power On/Off.

1. Touch .

2. Touch .

3. Touch

Bluetooth .

4. Touch a setting.

On/ Off

2. Add New

Pairing is the process that allows the handset to locate, establish and register a 1-to-1 connection with the target device.

Pairing a new Bluetooth

device

1. Touch .

2. Touch .

3. Touch

Bluetooth

and

4. Follow the Bluetooth

accessory instructions to set the device to pairing mode.

Note

By default, your device’s

Bluetooth

functionality is turned off.

Note

The

Bluetooth

features of this handset may not be compatible with all

Bluetooth

enabled devices. Your service provider or handset manufacturer cannot be held responsible for compatibility issues with devices not sold by the service provider or handset manufacturer.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 85

Page 88

Settings

5. If Bluetooth®power is set to off, you will be prompted to turn power on. Touch Ye s .

6. The device will appear in the Devices Found menu once it has been located. Touch the device.

7. The handset may prompt you for the passkey. Consult the Bluetooth

accessory instructions for the appropriate passkey (typically “0000” - 4 zeroes). Enter the passkey and touch .

8. Once pairing is successful, you will be asked to choose

Always Ask

Always

Connect

before connecting

with the Paired Device.

Once connected, you will see the device listed in the Paired Devices menu.

3. Paired Devices

Allows you to view the list of paired devices with your phone.

1. Touch .

2. Touch .

3. Touch

Bluetooth

, listed

will be your

Paired Devices

4. Settings

4.1 My Visibility

Allows you to set the visibility of your

Bluetooth®feature.

1. Touch .

2. Touch .

3. Touch

Bluetooth

and

My Visibility.

4. Touch a setting.

On/ Off

Pair

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 86

Page 89

Settings

4.2 Device Name

Allows you to edit the name of the Bluetooth

device.

1. Touch .

2. Touch .

3. Touch

Bluetooth

and

My Bluetooth Info.

4. Touch

5. Hold down to clear the existing name.

6. Enter a new alias.

7. Touch to save and exit.

4.3 My Bluetooth Info

Allows you to view your phone's Bluetooth

information.

1. Touch .

2. Touch .

3. Touch

Bluetooth

and

My Bluetooth Info.

Save

Rename Device

Note

If you turn on My Visibility, your device is able to be searched by other in-range

Bluetooth

devices.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 87

Page 90

Settings

System

The System menu allows you to designate specific system network settings.

1. Network

1.1 System Select

Allows you to set up the phone producer’s management environment. Leave this setting as the default unless you want to alter system selection as instructed by your service provider.

1. Touch .

2. Touch .

3. Touch

System

Network

and

System Select

4. Touch a setting.

Home Only/ Automatic A/ Automatic B

1.2 Set NAM

Allows you to select the phone’s NAM (Number Assignment Module) if the phone is registered with multiple service providers.

1. Touch .

2. Touch .

3. Touch

System

Network

and

Set NAM

4. Touch a setting.

NAM1/ NAM2

1.3 Auto NAM

Allows the phone to automatically switch between programmed telephone numbers corresponding to the service provider area.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 88

Page 91

Settings

1. Touch .

2. Touch .

3. Touch

System

Network

and

Auto NAM

4. Touch a setting.

On/ Off

1.4 Serving System

Identifies the channel number of a system that is served as a SID Number. This information should only be used for technical support.

1. Touch .

2. Touch .

3. Touch

System

Network

and

Serving System

2. Location

Menu for GPS (Global Positioning System: Satellite assisted location information system) mode.

1. Touch .

2. Touch .

3. Touch

System

and

Location

4. Touch

a setting

Location On/ E911 Only

Note

GPS satellite signals are not always transmitted, especially under bad atmospheric and environmental conditions, indoors etc.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 89

Page 92

Settings

Phone Settings

1. Power Save

Allows you to set power save mode.

1. Touch .

2. Touch .

3. Touch

Phone Settings

and

Power Save

4. Touch a setting.

ON/ OFF

2. Auto Lock

Allows you to set the automatic screen lock.

1. Touch .

2. Touch .

3. Touch

Phone Settings

and

Auto Lock.

4. Touch a setting.

ON/ OFF

3. Security

The Security menu allows you to secure the phone electronically.

3.1 Lock Phone

Keeps your phone from unauthorized use. Once the phone is locked, it is in restricted mode until the lock code is entered. You can still receive phone calls and make emergency calls. You can modify the lock code by navigating to

Change

Lock Code

within the Security

menu.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Security

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 90

Page 93

Settings

4. Touch

Lock Phone

5. Touch one of the following options:

None

The phone is not locked (though, Lock mode can still be used).

When Switch On

The phone

is locked when it is turned on.

Immediately

The phone is always locked. When locked, you can receive incoming calls and make only emergency calls.

6. Enter the four-digit lock code to confirm. The default lock code is commonly the last 4 digits of your phone number.

3.2 Restrictions

Allows you to restrict incoming and/or outgoing calls.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Security

4. Touch a Restrictions submenu, then the setting.

Incoming Calls

(Allow All/

Contacts Only/ Block All)

Outgoing Calls

(Allow All/

Contacts Only/ Block All)

Incoming Messages

(Allow

All/ Block All)

Outgoing Messages

(Allow

All/ Block All)

Camera

(Unlock/ Lock)

Data

(Unlock/ Lock)

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 91

Page 94

Settings

5. Enter the four-digit lock code to confirm. The default lock code is commonly the last 4 digits of your phone number.

3.3 Emergency Numbers

Allows you to enter 3 emergency numbers. You can call these emergency numbers and 911, even when the phone is locked or restricted.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Security

4. Touch

Emergency Numbers

5. Touch the emergency number you want to edit.

3.4 Change Lock Code

Allows you to enter a new fourdigit lock code.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Security

4. Touch

Change Lock Code

5. Touch

Phone Only

Call & Applications

6. Enter the current lock code.

7. Enter a new 4-digit lock code.

8. For confirmation, it will ask you to enter the new lock code again.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 92

Page 95

Settings

4. Memory

Allows you to check out the memory status of your phone.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Memory

4. Touch an option:

Handset Common Memory/ Handset Reserved Memory/ External Memory/ Primary Storage Setting

USB Connection Mode

Allows you to select the PC connection mode for your device.

1. Touch .

2. Touch .

3. Touch

Phone Settings

USB Connection Mode

4. Touch a setting.

USB Modem/ USB Mass Storage

6. Phone Info

The Phone Information menu provides you with specific information pertaining to your phone model.

1. Touch .

2. Touch .

Note

When Clear All is set on Handset Common Memory or External Memory, all contents including

locked contents are removed.

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 93

Page 96

Settings

3. Touch

Phone Settings

Phone Info

6.1 My Number

Allows you to view your phone number.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Phone Info

and

My Number

6.2 ESN/MEID

Allows you to view the ESN and/or MEID information of your phone.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Phone Info

and

ESN/ MEID

6.3 Icon Glossary

Allows you to view all the icons and their meanings.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Phone Info

and

Icon

Glossary

6.4 Version

Allows you to view the versions of various applications.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Phone Info

and

Version

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 94

Page 97

Settings

7. Master Reset

Allows you to reset your phone to the factory default settings.

1. Touch .

2. Touch .

3. Touch

Phone Settings

Master Reset

4. Touch .

5. A message will pop up that says "All settings will revert to factory default."

6. Touch / .

7. Enter the four-digit lock code, the phone will then revert to the default settings.

Call Settings

The Call Settings menu allows you to designate how the phone handles both incoming and outgoing calls.

1. Answer Options

Allows you to determine how to answer an incoming call.

1. Touch .

2. Touch .

3. Touch

Call Settings

and

Answer Options

4. Touch a setting.

Slide Open/Any Key/TALK Key Only

Auto Answer

CancelRevert

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 95

Page 98

Settings

2. Auto Retry

Allows you to set the length of time the phone waits before automatically redialing a number when the attempted call fails.

1. Touch .

2. Touch .

3. Touch

Call Settings

and

Auto Retry

4. Touch a setting.

Off/ Every 10 Seconds

Every 30 Seconds/ Every 60 Seconds

3. One-Touch Dial

Allows you to initiate a speed dial call by pressing and holding the speed dial digit. If set to Off, Speed Dial numbers designated in your Contacts will not function.

1. Touch .

2. Touch .

3. Touch

Call Settings

and

One-Touch Dial

4. Touch a setting.

ON/ OFF

4. Voice Privacy

Allows you to set the voice privacy feature for CDMA calls as Enhanced or Standard. CDMA offers inherent voice privacy. Check with your service provider for availability.

1. Touch .

2. Touch .

3. Touch

Call Settings

and

Voice Privacy

4. Touch a setting.

Enhanced/ Standard

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 96

Page 99

Settings

5. Auto Volume

When this feature is enabled, it provides a better audio experience by controlling the dynamic range and volume of the sending and receiving voices across different environments and conditions.

1. Touch .

2. Touch .

3. Touch

Call Settings

and

Auto Volume

4. Touch a setting.

ON/ OFF

6. Airplane Mode

Only allows you to use features on your phone that do not require wireless communications.

1. Touch .

2. Touch .

3. Touch

Call Settings

and

Airplane Mode

4. Read the disclaimer and touch .

5. Touch a setting.

ON/ OFF

7. TTY Mode

Allows you to attach a TTY (Teletype writer) device enabling you to communicate with parties also using a TTY device. A phone with TTY support is able to translate typed characters to voice. Voice can also be translated into characters and then displayed on the TTY.

1. Touch .

2. Touch .

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 97

Page 100

Settings

3. Touch

Call Settings

and

TTY Mode

4. Read the disclaimer and touch .

5. Touch a setting.

TTY Full/TTY + Talk/ TTY + Hear

TTY Off

Message Settings

Allows you to configure settings for Messaging:

1. Touch .

2. Touch .

3. Touch

Message Settings

4. Touch

All Messages/ Text Messages/ Picture Messages/ Voicemail Number

Messaging Settings Sub-Menu Descriptions

1. All Messages

1. Auto Save (Auto Save/ Prompt/ Do Not Save)

With this feature on, messages are automatically saved in the Outbox folder when transmitted.

2. Auto Delete (ON/ OFF)

With this feature on, read messages are automatically deleted when you exceed the storage limit.

3. Entry Mode

Allows you to select the default input method between

XT9, Abc and 12 3 .

UX840_Eng_ver1.1_090723.qxd 7/23/09 11:08 AM Page 98
