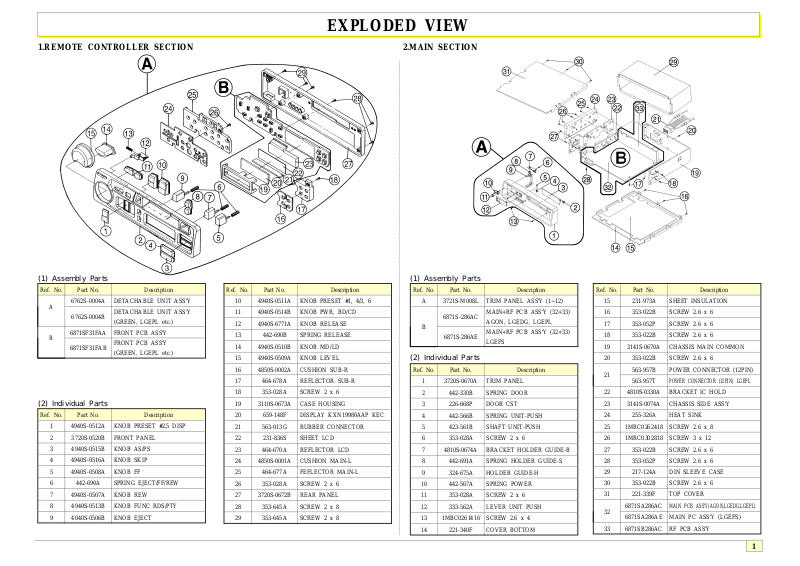

Page 1

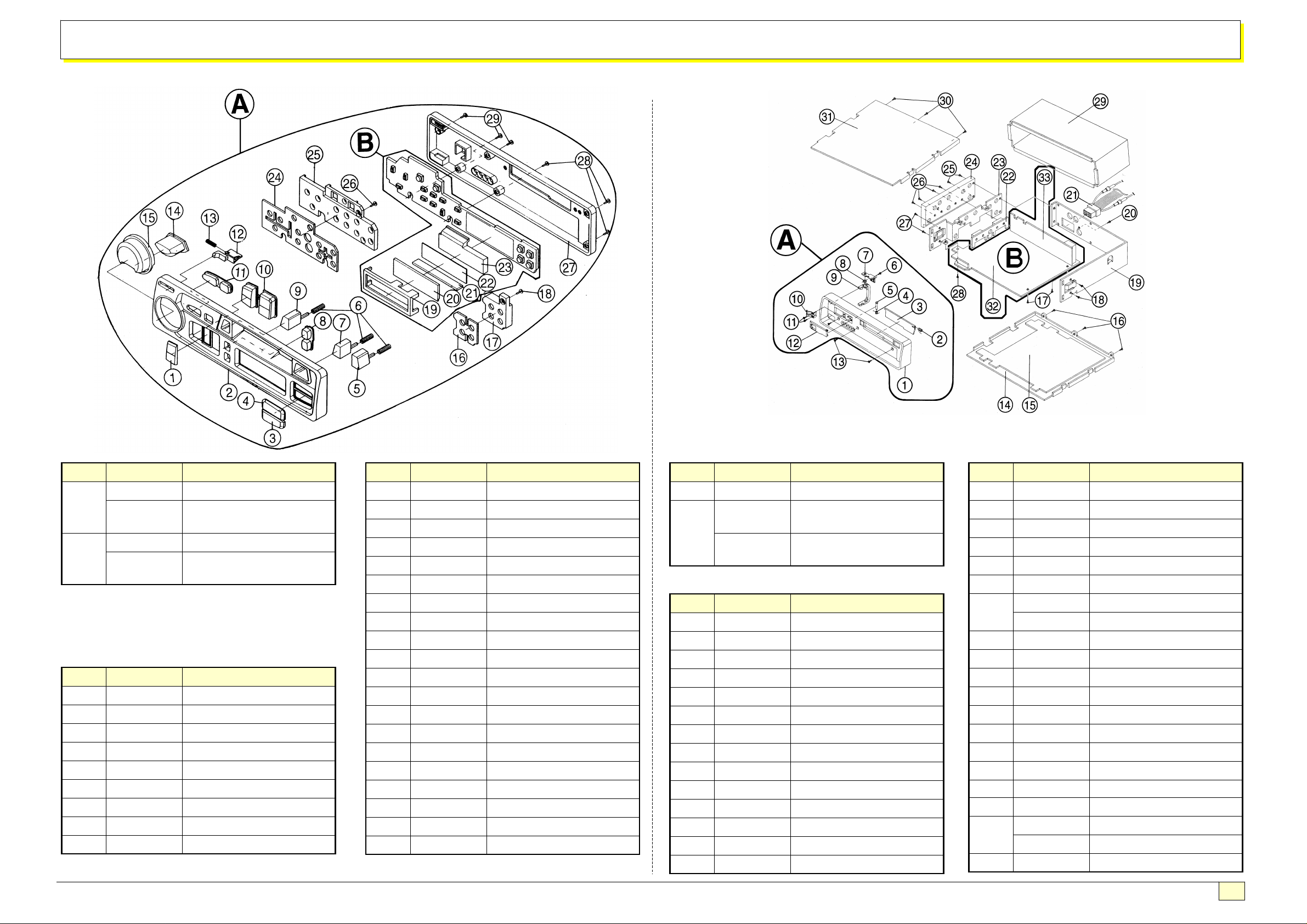

EXPLODED VIEW
1.REMOTE CONTROLLER SECTION 2.MAIN SECTION
(1) Assembly Parts
Ref. No. Part No. Description
A
B
6762S-0004A DETACHABLE UNIT ASS'Y
6762S-0004B
6871SF31FAA FRONT PCB ASS'Y
6871SF31FAB
DETACHABLE UNIT ASS'Y
(GREEN, LGEPL etc.)
FRONT PCB ASS'Y
(GREEN, LGEPL etc.)
(2) Individual Parts
Ref. No. Part No. Description
1 4940S-0512A KNOB PRESET #2,5 DISP
2 3720S-0520B FRONT PANEL
3 4940S-0515B KNOB AS/PS
4 4940S-0516A KNOB SKIP
5 4940S-0508A KNOB FF
6 442-690A SPRING EJECT/FF/REW
7 4940S-0507A KNOB REW
8 4940S-0513B KNOB FUNC RDS/PTY
9 4040S-0506B KNOB EJECT
Ref. No. Part No. Description
10 4940S-0511A KNOB PRESET #1, 4/3, 6
11 4940S-0514B KNOB PWR, BD/CD
12 4940S-6771A KNOB RELEASE
13 442-690B SPRING RELEASE
14 4940S-0510B KNOB MD/LD
15 4940S-0509A KNOB LEVEL
16 4850S-0002A CUSHION SUB-R
17 464-678A REFLECTOR SUB-R
18 353-028A SCREW 2 x 6
19 3110S-0673A CASE HOUSING
20 659-148F DISPLAY KXN19980AAP KEC
21 563-013G RUBBER CONNECTOR
22 231-836S SHEET LCD
23 464-670A REFLECTOR LCD
24 4850S-0001A CUSHION MAIN-L
25 464-677A FEFLECTOR MAIN-L
26 353-028A SCREW 2 x 6
27 3720S-0672B REAR PANEL
28 353-645A SCREW 2 x 8
29 353-645A SCREW 2 x 8
(1) Assembly Parts
Ref. No. Part No. Description
A 3721S-M008L TRIM PANEL ASS'Y (1~12)
6871S-286AC
B
6871S-286AE
MAIN+RF PCB ASS'Y (32+33)
AGON, LGEDG, LGEPL
MAIN+RF PCB ASS'Y (32+33)
LGEFS
(2) Individual Parts
Ref. No. Part No. Description
1 3720S-0670A TRIM PANEL
2 442-330B SPRING DOOR
3 226-668P DOOR CST
4 442-566B SPRING UNIT-PUSH
5 423-561B SHAFT UNIT-PUSH
6 353-028A SCREW 2 x 6
7 4810S-0674A BRACKET HOLDER GUIDE-B
8 442-691A SPRING HOLDER GUIDE-S
9 324-675A HOLDER GUIDE-H
10 442-567A SPRING POWER
11 353-028A SCREW 2 x 6
12 333-562A LEVER UNIT PUSH
13 1MBC0261416 SCREW 2.6 x 4
14 221-340F COVER BOTTOM
Ref. No. Part No. Description
15 231-973A SHEET INSULATION
16 353-022B SCREW 2.6 x 6
17 353-052P SCREW 2.6 x 6
18 353-022B SCREW 2.6 x 6
19 3141S-0670A CHASSIS MAIN COMMON
20 353-022B SCREW 2.6 x 6
21
22 4810S-0330A BRACKET IC HOLD
23 3141S-0074A CHASSIS SIDE ASS'Y
24 255-326A HEAT SINK
25 1MRC0262418 SCREW 2.6 x 8
26 1MRC0302818 SCREW 3 x 12
27 353-022B SCREW 2.6 x 6
28 353-052P SCREW 2.6 x 6
29 217-124A DIN SLEEVE CASE
30 353-022B SCREW 2.6 x 6
31 221-339F TOP COVER
32
33 6871SB286AC RF PCB ASS'Y
563-957B POWER CONNECTOR (12PIN)
563-957T
6871SA286AC
6871SA286AE MAIN PC ASS'Y (LGEFS)
POWER CONNECTOR (12PIN) LGEPL
MAIN PCB ASS'Y(AGON,LGEDG,LGEPL)
1
Page 2

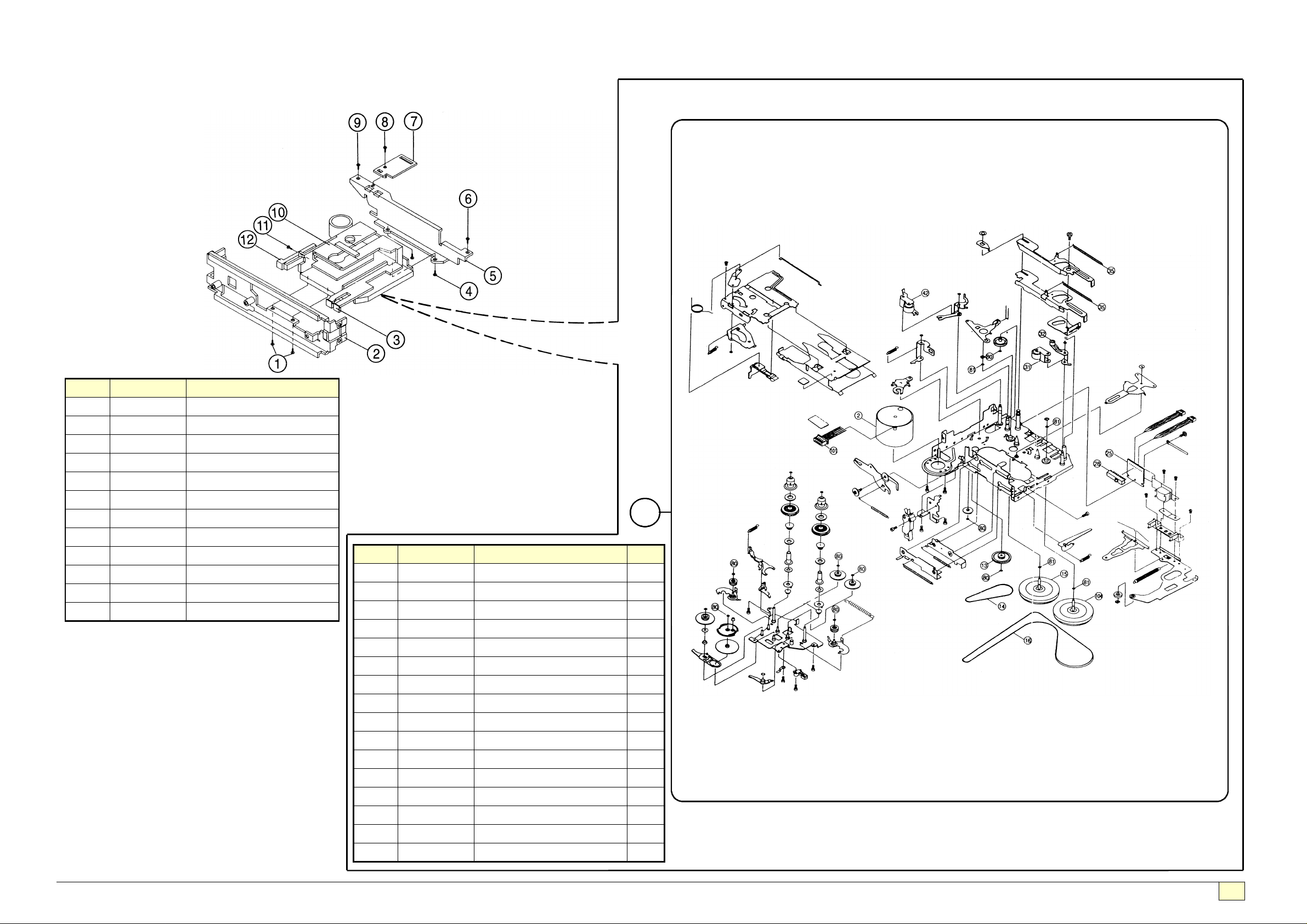

3.DECK SECTION
Ref. No. Part No. PART NAME
1 1MPC0301418 SCREW 3 x 4
2 3140S-0673A CHASSIS FRONT-C
3 324-674A HOLDER FF/REW-H
4 1MPC0301418 SCREW 3 x 4
5 4810S-0673A BRACKET DECK-B
6 1MPC0301418 SCREW 3 x 4
7 4810S-0675A BRACKET PCB
8 353-022B SCREW 2.6 x 6
9 1MPC0301418 SCREW 3 x 4
10 419-600E DECK ADC1205DSW
11 353-022B SCREW 2.6 x 6
12 324-673A HILDER EJECT-H
A
Ref. No. Part No. PART NAME Q'TY
A 419-600E DECK ADC1205DSW 1
2 6768S-Q002A ASS'Y-MOTOR 1
13 6768S-L002A PULLEY-C 1
14 6768S-B002A BELT-SUB 1
15 6768S-L003A ASS'Y-FLYWHEEL F 1
16 6768S-B003A BELT-MAIN 1
25 6768S-H002A WIRE-HEAD 1
28 6768S-T002A SLIDE-S/W 1
31 6768S-R001B ASS'Y-ARM-PINCH-L 1
32 6768S-P002A ASS'Y-ARM-CR 1
35 6768S-S002A SPRING-LEVER 2
42 6768S-R001A ASS'Y-ARM-PINCH-R 1
80 6768S-W002A P-WASHER(1.2x3x0.25) 9
81 6768S-W002B P-WASHER(2.1x3.5x0.25) 4
101 6768S-X001A CONNECTOR-WIRE 1
104 6768S-L003B ASS'Y-FLYWHEEL R 1
2
