LG tcc5611explod Datasheet

A003

A004

A007

A008

A010

A014

A014

A0

A01

A016

A016

A017

A016

A018

- 1 -

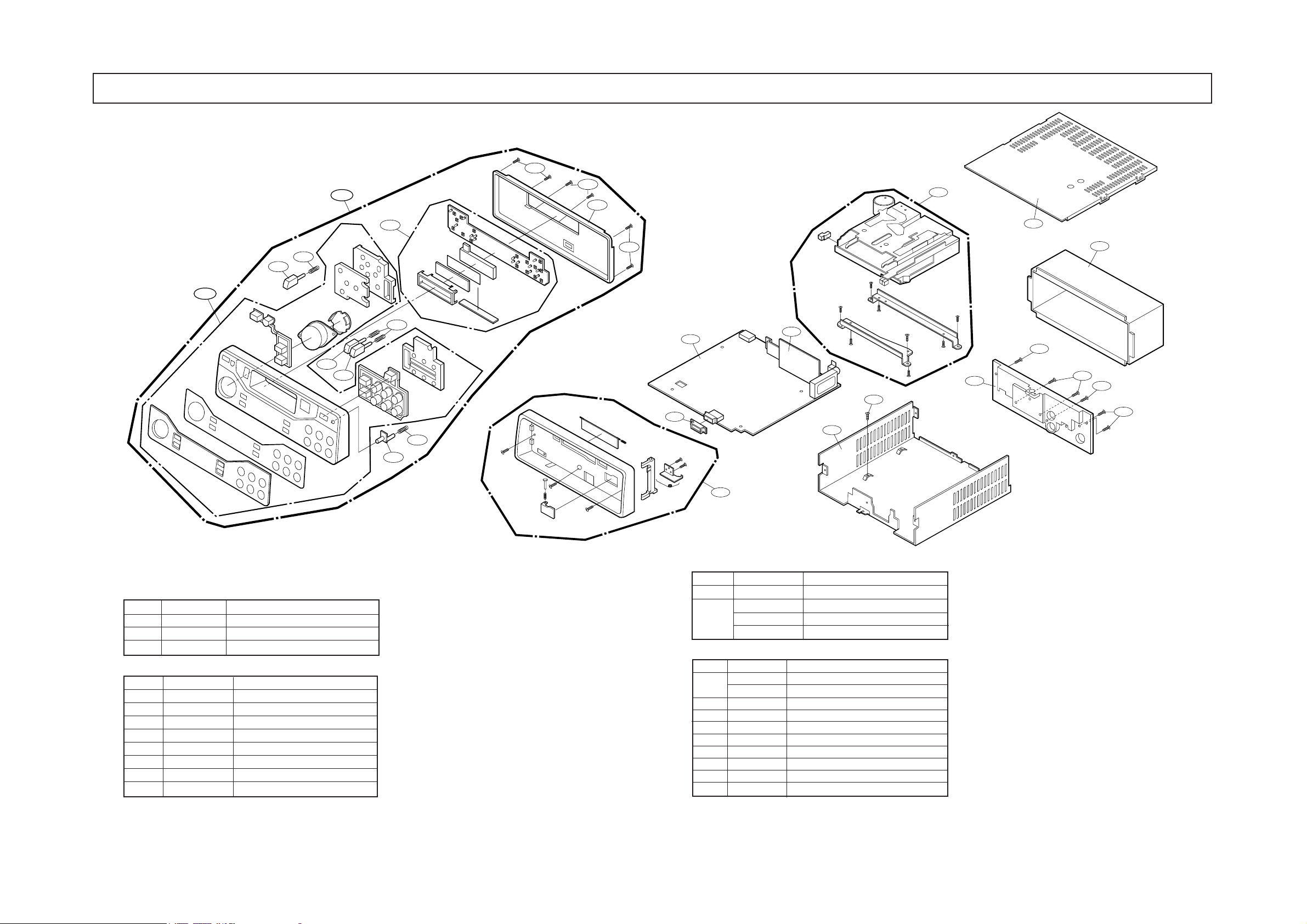

1. Detachable Front Panel Section(TCC-5611)

AB07

AB06

AB02

AB0202

AB04

AB05

AB08

AB09

AC

AB01

AB05

AB0203

AB03

AB05

2. Main Section(TCC-5611)

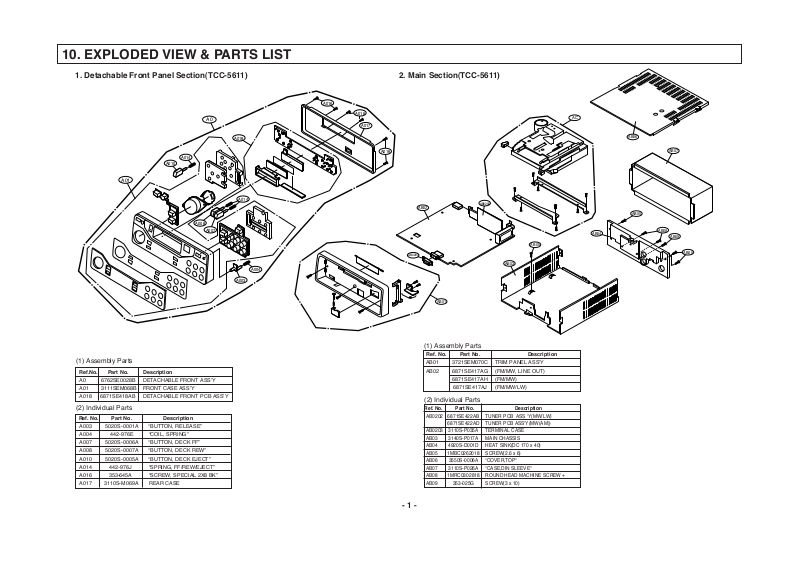

10. EXPLODED VIEW & PARTS LIST

Ref.No. Part No. Description

A0 6762SE0028B DETACHABLE FRONT ASSÕY

A01 3111SEM068B FRONT CASE ASSÕY

A018 6871SE418AB DETACHABLE FRONT PCB ASSÕY

Ref. No. Part No. Description

AB01 3721SEM070C TRIM PANEL ASSÕY

AB02 6871SE417AG (FM/MW, LINE OUT)

6871SE417AH (FM/MW)

6871SE417AJ (FM/MW/LW)

(1) Assembly Parts

(2) Individual Parts

(1) Assembly Parts

Ref. No. Part No. Description

A003 5020S-0001A ÒBUTTON, RELEASEÓ

A004 442-976E ÒCOIL, SPRINGÓ

A007 5020S-0006A ÒBUTTON, DECK FFÓ

A008 5020S-0007A ÒBUTTON, DECK REWÓ

A010 5020S-0005A ÒBUTTON, DECK EJECTÓ

A014 442-976J ÒSPRING, FF/REW/EJECTÓ

A016 353-645A ÒSCREW, SPECIAL 2X8 BKÓ

A017 3110S-M069A REAR CASE

Ref. No. Part No. Description

AB0202 6871SE422AB TUNER PCB ASS ÔY(MW/LW)

6871SE422AD TUNER PCB ASSÔY(MW(AM))
AB0203 3110S-P035A TERMINAL CASE
AB03 3140S-P017A MAIN CHASSIS
AB04 4920S-D001D HEAT SINK(DC 170 x 40)
AB05 1MBC0262018 SCREW(2.6 x 6)
AB06 3550S-0006A ÒCOVER,TOPÒ
AB07 3110S-P026A ÒCASE,DIN SLEEVEÒ
AB08 1MRC0302818 ROUND HEAD MACHINE SCREW +
AB09 353-025G SCREW(3 x 10)

(2) Individual Parts

A003

A007

A008

A010

A020

A020

A0

A01

A016

A016

A019

A016

A018

A004

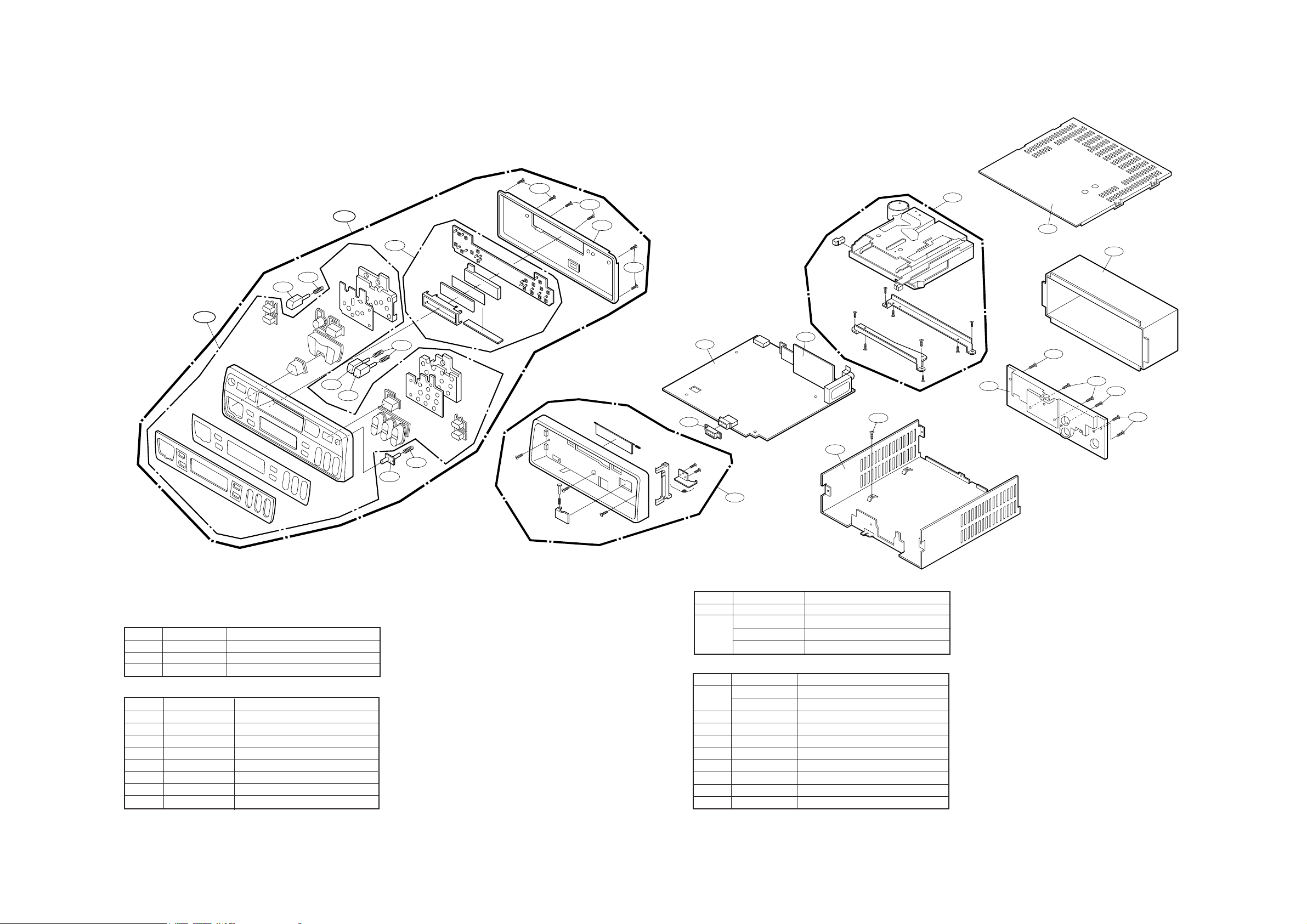

3. Detachable Front Panel Section(TCC-5621)

AB07

AB06

AB02

AB0202

AB04

AB05

AB08

AB09

AC

AB01

AB05

AB0203

AB03

AB05

4. Main Section(TCC-5621)

Ref.No. Part No. Description

A0 6762SE0029B DETACHABLE FRONT ASSÕY
A01 3111SEM072B FRONT CASE ASSÕY
A018 6871SE41DAB DETACHABLE FRONT PCB ASSÕY

Ref. No. Part No. Description

AB01 3721SEM071B TRIM PANEL ASSY
AB02 6871SE417AG (FM/MW, LINE OUT)

6871SE417AH (FM/MW)

6871SE417AJ (FM/MW/LW)

(1) Assembly Parts

(2) Individual Parts

(1) Assembly Parts

Ref. No. Part No. Description

A003 5020S-0016A ÒBUTTON,RELEASEÓ
A004 442-976E ÒCOIL,SPRINGÓ
A007 5020S-0019A ÒBUTTON,DECK FF Ó
A008 5020S-0018A ÒBUTTON,DECK REW Ó
A010 5020S-0017A ÒBUTTON,EJECT Ó
A016 353-645A SCREW( 2X8 )
A019 3110S-M069A REAR CASE
A020 442-976J SPRING, FF/REW/EJECT

Ref. No. Part No. Description

AB0202 6871SE422AB TUNER PCB ASSÕY(MW/LW)

6871SE422AD TUNER PCB ASSÕY(MW(AM)
AB0203 3110S-P035A TERMINAL CASE
AB03 3140S-P017A MAIN CHASSIS
AB04 4920S-D001D HEAT SINK
AB05 1MBC0262018 SCREW(2.6 x 6)
AB06 3550S-0006A ÒCOVER,TOPÓ
AB07 3110S-P026A ÒCASE,DIN SLEEVEÓ
AB08 1MRC0302818 SCREW (3 x 12)
AB09 353-025G SCREW(3 x 10)

(2) Individual Parts

- 2 -

AC01

AB05

AC04

AC05

AC

AC06

AC01

AC02

AC03

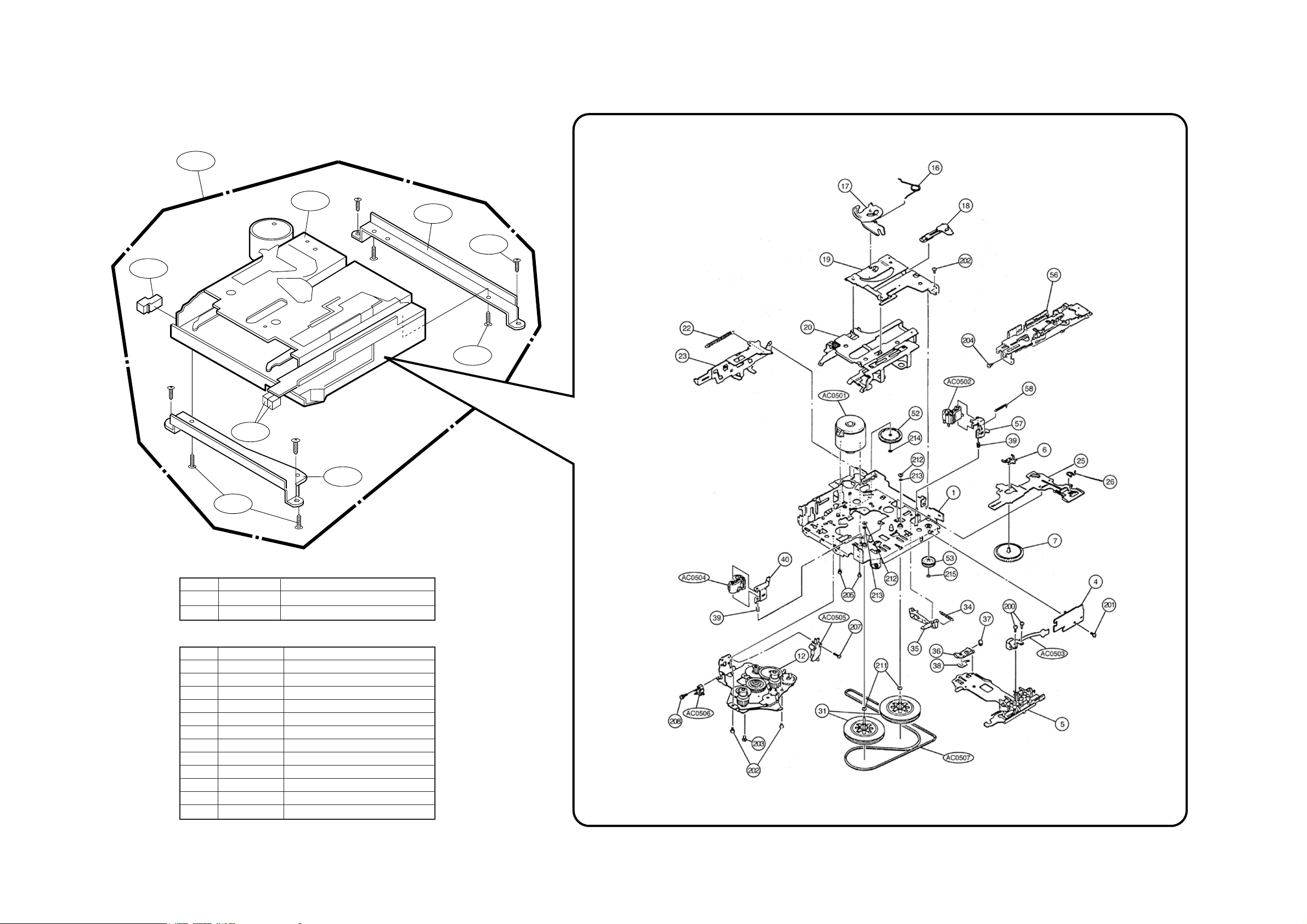

7. DECK SECTION

- 3 -

Ref. No. Part No. Description

AC 6731SEK003A DECK MECHANISM ASSY

AC05 6730S-K002A DECK MECHANISM

(1) Assembly Parts

Ref. No. Part No. Description

AC01 IMPC0301418 SCREW(M3 x 4)

AC02 4810S-1012A BRACKET(DECK-REAR)

AC03 324-974B ÒHOLDER, FF/REWÓ

AC04 4810S-1013A BRACKET(DECK-REAR)

AC0501 6768S-OT01A MOTOR ASSY TND EG5

AC0502 6768S-AT01A ARM TND

AC0503 6768S-HT02A HEAD TND MS35P-SF00

AC0504 6768S-AT01B ARM TND

AC0505 6768S-TT01A SWITCH TND QAS-1229

AC0506 6768S-TT01B SWITCH TND SW-230-0

AC0507 6768S-BT01A BELT/FELT TND

AC06 324-973B EJECT HOLDER

(2) Individual Parts
