Page 1
AB05
AB0106
A01
AB0101
AB0102
AB0101
AB0105
AB0107
AB0108
AB0109
AB0111
AB0110
AB02
AB0202
AB0204
AB0201
AB03
AB08
AB0103
AB0104
AB01
AB04
AB06
A007
A008
A006
A001
A002
A010
A014
A009
A011
A012
A003
A004
A013
A005
AB07
AB0203
AB07
AC
AB07
AB07
- 25 -

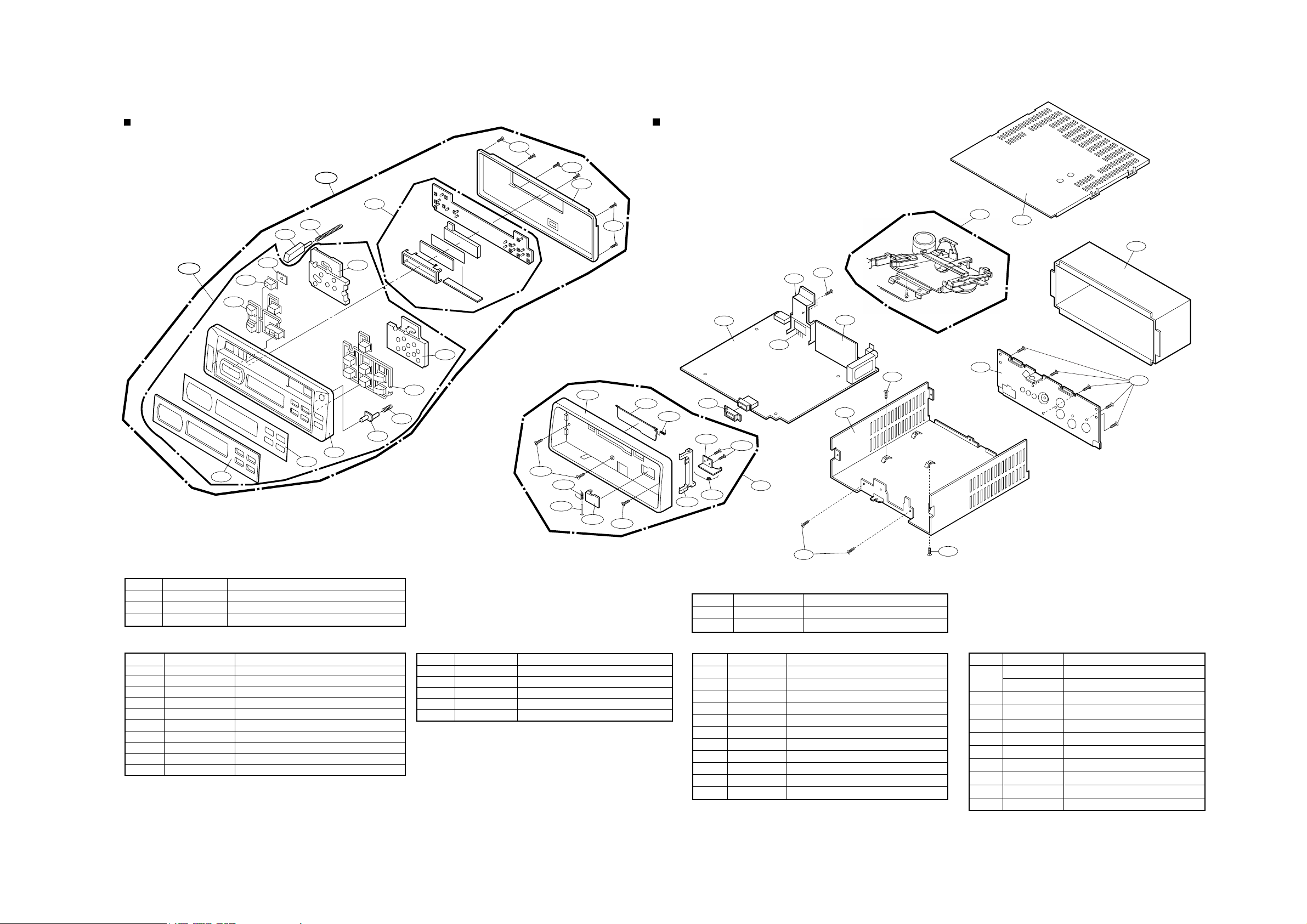

Detachable Front Panel Section (TCC-2010)
Main Section (TCC-2010)
Ref.No. Part No. Description
A0 6762SE0032B DETACHABLE FRONT ASS¡flY(TCC-2010)
A01 3111SEM074A FRONT CASE ASS ÔY
A015 6871SD41GAD DETACHABLE FRONT PCB ASS¡flY
Ref. No. Part No. Description
AB01 3721SEM074A TRIM PANEL ASSY
AB02 6871SE41FAB OIRT MAIN PCB ASS¡flY(BWT)
Ref. No. Part No. Description
A011 5020S-0010B BUTTON,MD/LD
A012 4850S-0021A CUSHION,MD/LD
A013 3040S-0007A LEFT REFLECTOR
A014 3034S-0008A RIGHT REFLECTOR
A016 3110S-M071A REAR CASE
(1) Assembly Parts
(2) Individual Parts
Ref. No. Part No. Description
AB0201 6871SE422AB TUNER PCB ASS¡flY(MW/LW)
(OPTION)
6871SE422AD TUNER PCB ASS¡flY MW(AM)
AB0202 4810S-1019A IC POWER BRACKET
AB0203 3110S-P035A TERMINAL CASE
AB0204 OIPH151900A POWER IC
AB03 3140S-P017B MAIN CHASSIS
AB04 3140S-P018A BACK CHASSIS
AB05 3550S-0006A ¡ COVER,TOP¡–
AB06 3110S-P026A ¡ CASE,DaIN SLEEVE¡–
AB07 IMBC0262018 SCREW(2.6 x 6)
AB08 IMPCO301418 SCREW(3 x 4)
(1) Assembly Parts
Ref. No. Part No. Description
A001 5020S-0011A BUTTON,RELEASE
A002 447-976E COIL,SPRING(RELEASE)
A003 5020S-0015A BUTTON,EJECT
A004 4970S-0001A COIL,SPRING(EJECT)
A005 353-645A SCREW( 2X8 )
A006 3110S-M070C CASE,FRONT
A007 3790S-M066C DEKO,WINDOW
A008 3858S-X070A ETC SHEET
A009 5020S-0008B BUTTON,TUNE/POWER
A010 5020S-0009B BUTTON,PRESET/BAND
Ref. No. Part No. Description
AB0101 1MBC0261416 SCREW(2.6 x 4)
AB0102 442-566E SPRING, UNIT PUSH
AB0103 423-561F SHAFT, UNIT PUSH
AB0104 4510S-0016A LEVER, UNIT PUSH
AB0105 3720S-M005C TRIM PANEL
AB0106 3580S-A016A CASSETTE DOOR
AB0107 442-333A SPRING DOOR
AB0108 4510S-0025A LOCK LEVER
AB0109 442-565A SPRING L-LEVER (0.5)
AB0110 4810S-0018A BRACKET L-LEVER
AB0111 353-028A SCREW, TAP TITE 2X6
(2) Individual Parts
A0
A01
A015
AB02
AB0202
AB0204
AB0201
A007
A008
A006
A001
A002
A010
A014
A009
A011
A012
A003
A004
A013
A015
A005
A005
A005
A016
AB07
Page 2
AC01
AC02
AC03
AC04
AC05
AC36
AC
AC29
AC32
AC31
AC30
AC27
AC21
AC20
AC36
AC44
AC25
AC46
AC42
AC16
AC43
AC45
AC24
AC41
AC06
AC18
AC49
AC19
AC34
AC37
AC38
AC35
AC40
AC09
AC14
AC08
AC15
AC10
AC16
AC12
AC28
AC10
AC49
AC48
AC47
AC13
AC38
AC22
AC26
AC39

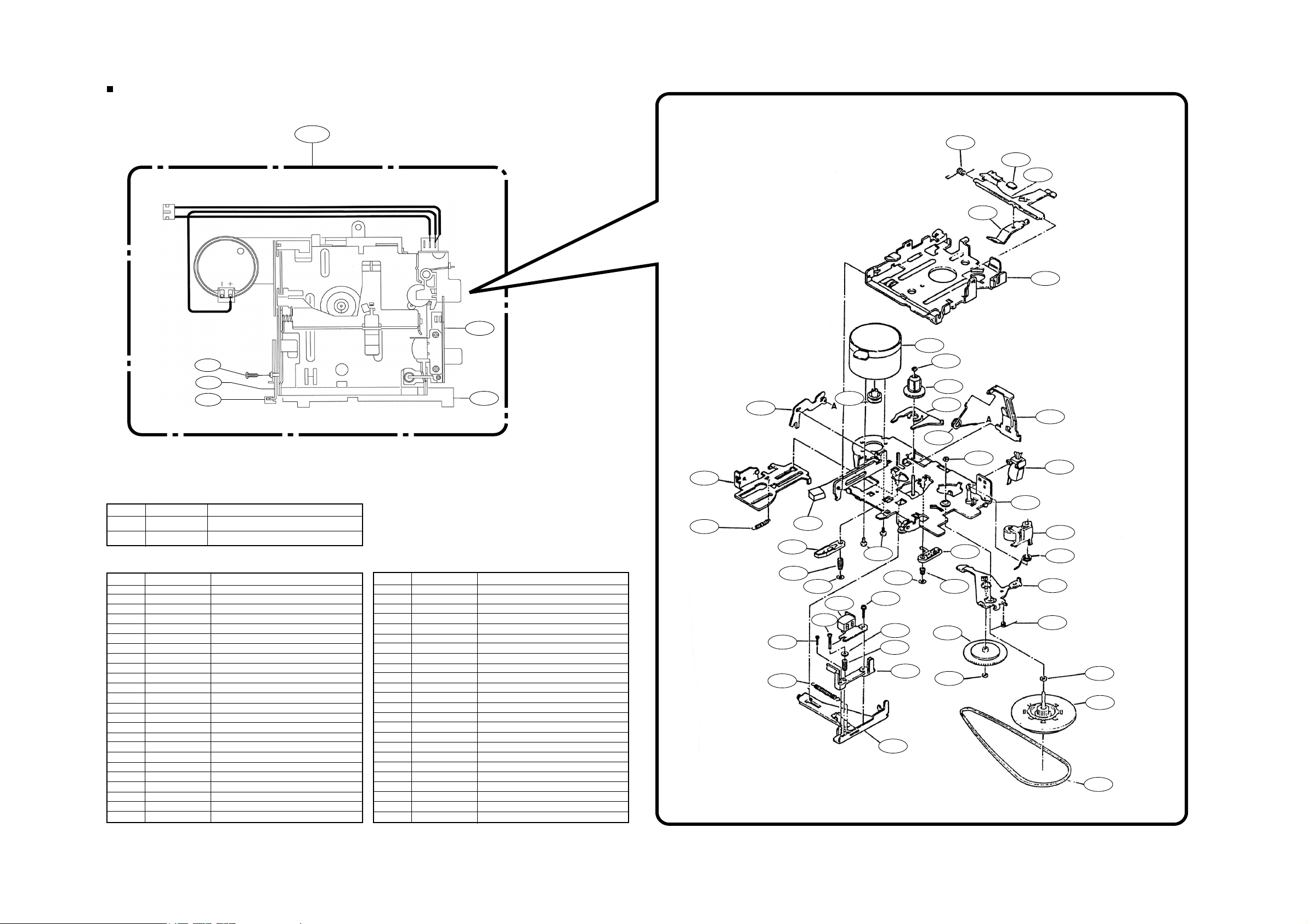

Deck Section (TCC-2010)
- 27 -
Ref. No. Part No. Description
AC 6731SEK004A DECK
MECHANISM ASSÕY(TN 301NX-219)
AC05 419-020M DECK
MECHANISM (TN 301NX-219)
(1) Assembly Parts
Ref. No. Part No. Description
AC01 1MBC0261416 SCREW(2.6 x 4)
AC02 4810S-1017A EJECT BRACKET
AC03 4930S-0059A EJECT HOLDER
AC04 4810S-1016A DECK FIX BRACKET
AC06 99T-5501 Chassis AssÕy
AC07 99T-5503 Screw
AC08 99T-5504 Head Panel Spring
AC09 99T-5505 Head Panel AssÕy
AC10 99T-5506 Azimuth Spring
AC11 99T-5507 Head MS15P
AC12 99T-5508 Screw
AC13 99T-5509 Azimuth Screw
AC14 99T-5510 Head Base
AC15 99T-5511 Camera Screw
AC16 99T-5512 Washer
AC17 99T-5513 Anti-Vibration
AC18 99T-5514 Pinch Roller AssÕy
AC19 99T-5515 Pinch Roller Spring
AC20 99T-5517 Reel Gear AssÕy
AC21 99T-5518 Washer Cut
AC22 99T-5521 Flywheel AssÕy
AC23 99T-5522 Washer
AC24 99T-5523 Washer Cut
AC25 99T-5526 Motor Pulley
(2) Individual Parts
Ref. No. Part No. Description
AC26 99T-5527 Main Belt
AC27 99T-5528 Motor, EG530YD2F
AC28 99T-5529 Screw
AC29 99T-5530 Brake Shoe
AC30 99T-5532 Cassette Case
AC31 99T-5533 Kick Plate
AC32 99T-5534 CST Holder Spring Plate
AC33 99T-5535 Kick Plate Spring
AC34 99T-5538 Gear Plate AssÕy
AC35 99T-5539 Cam Gear
AC36 99T-5540 Sensor
AC37 99T-5541 G. Lock Lever
AC38 99T-5542 G. Lock Lever Spring
AC39 99T-5543 Gear Plate Spring
AC40 99T-5544 Washer Cut
AC41 99T-5545 Leaf Switch
AC42 99T-5547 Function Lever Spring
AC43 99T-5548 Push Plate
AC44 99T-5549 Lift Up Lever
AC45 99T-5550 Reverse Spring
AC46 99T-5551 Function Lever
AC47 99T-5552 FF Lock Lever
AC48 99T-5553 Lock Lever Spring
AC49 99T-5554 Washer
