LG SA560, SA565 User Manual

Owner's Manual

LASER PROJECTOR

Please read the safety information carefully before using the product.

SA560
SA565

www.lg.com

(Brazil : www.lge.com/br)

2

LICENSE

LICENSE

Supported licenses may differ by model. For more information about licenses,
visit www.lg.com.

Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video format created by

DivX, LLC, a subsidiary of Rovi Corporation. This is an ofcial DivX
Certied® device that plays DivX video. Visit divx.com for more
information and software tools to convert your les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device

must be registered in order to play purchased DivX Video-on­Demand (VOD) movies. To obtain your registration code, locate the

DivX VOD section in your device setup menu. Go to vod.divx.com

for more information on how to complete your registration.

“DivX Certied® to play DivX® video up to HD 1080p, including

premium content.”

“DivX®, DivX Certied® and associated logos are trademarks of

Rovi Corporation or its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274”

The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674;

5,974,380; 6,487,535 & other U.S. and worldwide patents issued
& pending. DTS, the Symbol, & DTS and the Symbol together are
registered trademarks & DTS 2.0 Channel is a trademark of DTS,

Inc. Product includes software. © DTS, Inc. All Rights Reserved.

This device meets the EMC requirements for home appliances (Class B) and is
intended for home usage. This device can be used in all regions.

NOTE

Image shown may differ from your projector.

y

Your projector’s OSD (On Screen Display) may differ slightly from that shown in

y

this manual.

SAFETY INSTRUCTIONS

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SAFETY INSTRUCTIONS

Please take note of the safety instructions to prevent any potential
accident or misuse of the projector.

Safety precautions are given in two forms, i.e. Warning and Caution as detailed below.

y

WARNING: Failure to follow the instructions may cause serious injury and even death.
CAUTION: Failure to follow the instructions may cause injury to persons or damage to

the product.

Read the owner's manual carefully and keep it to hand.

y

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning ash with

arrowhead symbol, within

an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure

that may be of sufcient magnitude to

constitute a risk of electric shock to
persons.

The exclamation point within

an equilateral triangle is
intended to alert the user to

the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE

AND ELECTRIC SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

3

4

SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.
Heed all warnings.

Follow all instructions.

Indoor Installation

WARNING

Do not place the projector in direct

y

sunlight or near heat sources such as
radiators, fires, stoves, etc

- This may result in fire.
Do not place flammable materials

y

such as aerosols near the projector.

- This may result in fire.
Do not allow children to cling to or

y

climb up to the projector.

- This may cause the projector to fall,
causing injury or death.

Do not install the product in a place

y

with no ventilation (e.g., on a book­shelf or in a closet) or on a carpet or
cushion.

- This may result in fire due to the
increase in internal temperature.

Do not place the projector close to

y

sources of steam or oil such as a
humidifier or kitchen counter.

- This may result in fire or electric
shock.

Do not place the projector where it

y

might be exposed to dust.

- This may result in fire.

Do not use the projector in a damp

y

place such as a bathroom where it is
likely to get wet.

- This may result in fire or electric
shock.

.

Do not allow a tablecloth or curtain to

y

block the air vent.

- This may result in fire due to the
increase in the internal temperature.

Ensure good ventilation around the

y

projector. The distance between the
projector and the wall should be

least 30 cm

- This will prevent fire due to the
increase in the internal temperature.

When installing the projector on a

y

ceiling or wall, a professional techni­cian should install the product using
the authorized tools.

- If installed improperly, the projec­tor may fall, causing personal injury
or property damage. To install the
product, please contact the customer
support center.

When installing or adjusting a

y

mounting
lubricant for the purpose to prevent
loosening of screws
adhesive oil or lubricant
tor,
and the projector to fall. This may
also cause serious personal injury
and damage to the projector when
there is a person under the mounting
device.

.

device, do not use oil or

. If you apply an

to the projec-

this may cause the case to crack

at

CAUTION

When placing the projector on a table

y

or shelf, be careful not to put it near
the edge.

- The projector could fall due to bal- The projector could fall due to bal-The projector could fall due to bal­ance problems, which may cause
personal injury or damage to the
product. Make sure to use the pro­jector cabinet or stand that fits the
projector.

When moving the projector

y

sure to switch it off
power plug and cords.

- The power cord may be damaged,
resulting in fire or electric shock.

Do not place the projector on an

y

unstable or vibrating surface such as
a wobbly shelf or a slope.

- It may fall and cause injury.

Be careful not to tip the projector over

y

when connecting external devices to

the projector.

- This may cause personal injury or
damage to the projector.

and remove the

, make

Power

WARNING

The grounding wire should be con-

y

nected.

- Ensure that you connect the ground­ing cable to avoid electric shock.
If it is not possible to ground the unit,

have a qualied electrician install a

separate circuit breaker.
Do not try to ground the projector
by connecting it to telephone wires,
lightning rods or gas pipes.

SAFETY INSTRUCTIONS

The power plug should be inserted

y

fully into the power outlet.

- An unstable connection may cause
a fire.

Do not place heavy objects on the

y

power cord.

- This may result in fire or electric
shock.

Never touch the power plug with wet

y

hands.

- This may result in electric shock.

Do not plug too many devices into

y

one multi-power outlet.

- This may result in fire due to the
power outlet overheating.

Prevent dust from collecting on the

y

power plug pins or outlet.

- This may result in fire.

To turn off the main power, remove

y

the power plug, which should be
positioned so it is easy to access for
operation.

CAUTION

Hold the plug firmly when unplugging.

y

- A damaged wire may create a fire
hazard.

Ensure the power cord and plug are

y

not damaged, modified, severely
bent, twisted, pulled, sandwiched
or hot. Do not use the product if the
power outlet is loose.

- This may result in fire or electric shock.

Keep the power cord away from heating

y

devices.

- The wire's sheath may melt, which
may result in fire or electric shock

5

.

6

SAFETY INSTRUCTIONS

Place the projector where people will

y

not trip over or tread on the power
cord to protect the power cord and
plug from any damage.

- This may result in fire or electric shock.
Do not turn the projector on or off

y

plugging in the power plug or unplug­ging it from the power outlet.
(Do not use the power plug as a switch.)

- This may result in electric shock or
damage to the product.

Do not insert a conductor into the other

y

side of the wall outlet while the power
plug is inserted into the wall outlet.
In addition, do not touch the power
plug immediately after it is disconnected
from the wall outlet.

- This may result in electric shock.

Only use the official power cord pro-

y

vided by LG Electronics. Do not use
other power cords.

- This may result in fire or electric
shock.

Check the power cord specifications.

y

Do not use an inappropriate power
cable.

- This may result in electric shock.

Pull the plug to reduce the power

y

consumption to zero.

by

When in Use

Do not place anything containing

y

liquid on top of the projector such as
a vase, flower pot, cup, cosmetics, or
medicine; or ornaments, candles, etc.

- This may result in fire or electric

When there is smoke or a strange

y

smell coming out from the projector
or a foreign object falls into the pro­jector, please switch it off and unplug
it from the power outlet and contact
our service center.

-

In the event that there is a heavy

y

impact or the cabinet is damaged,
switch it off, unplug it from the power
outlet and contact an authorized ser­vice

- This may result in electric shock.
Do not insert pieces of metal such as

y

coins, hairpins or metal debris, nor
flammable materials such as paper or
matches into the projector.

- This is to prevent electric shock or fire.
In the event that liquid or a foreign

y

object falls into the projector, switch it
off and unplug it from the power outlet
and contact our service center.

- This may result in fire or electric
shock.
Make sure that a child does not swal-

y

low the batteries when you replace
the old remote control batteries with

new ones. Keep batteries out of reach

of children.

- If a child swallows a battery, consult

WARNING

shock, or cause injury due to falling.

Otherwise, this may result in fire or

electric shock.

center

.

a doctor immediately.

SAFETY INSTRUCTIONS

7

Never open any cover on the projector.

y

-

There is a high risk of electric shock

Do not look directly into the lens

y

.

when the projector is in use.

- The bright light may damage your
eyes.

When the lamp is on or has just been

y

turned off, avoid touching the air vent
or lamp, because these will be very hot.
If there is a gas leak in the room with

y

the projector, do not touch the projector
or power outlet. Open the windows
for ventilation.

- Sparks may cause fire or burns.

Unplug the power cord from

y

during a lightning storm.

the outlet

- This will prevent shock or damage

to the projector.

Do not use the projector near

y

electronic devices that generate a
strong magnetic field.
Do not put the plastic package used

y

to pack the projector around your
head.

- This may cause suffocation.

Do not keep your hand on the projector

y

for a long time when it is running.
When you play a game by connecting

y

a game console to a projector, it is
recommended that you maintain

a
distance of more than four times the
diagonal length of the screen.

- Make sure that the connecting cable is

long enough.
may fall causing
damage to the product.

Do not place the projector or its

y

Otherwise, the product

personal injury or

remote control with battery in an
extremely high temperature
environment.

- This may result in fire.

CAUTION

Do not place heavy objects on the

y

projector.

- It may fall down and cause personal
injury.

Be careful not to allow any impact to

y

the lens during transport.
Do not touch the lens of the projector.

y

- The lens may be damaged.

Do not use any sharp tools on the

y

projector such as a knife or hammer,
because this may damage the casing.
In the event that no image appears

y

on the screen or no sound is heard,
stop using the projector. Switch off the
projector, unplug it from the power out­let

and contact our service center

.

- This may result in fire or electric shock.

Do not drop anything onto

y

the projector or allow anything to
bang into the projector.

- This may cause damage to the projector
or personal injury.

It is recommended that you maintain

y

a distance of more than 5 - 7 times
the diagonal length of the screen.

- If you watch the screen at a close
distance for a long time, your eye
sight may become worse.

Do not block the light beam emitted

y

from the projector using a book or
other object.

- Lengthy exposure to the projector
beam may result in fire. In addition,
the lens may be overheated and
damaged by the reflected heat
Disable the AV function to stop projection

.

temporarily or turn off the power.

Do not start the projector with the

y

volume turned up high.

- High volume may damage hearing.

8

SAFETY INSTRUCTIONS

Cleaning

WARNING

Do not spray the projector with

y

water when cleaning. Make sure water
does not flow into the projector

- This may result in fire or electric
shock.

Use air spray, a soft cloth or

y

a cotton swab moistened with a
lens cleaning chemical
remove dust or stains on the front
projection lens.

CAUTION

Contact your seller or our service

y

center once a year to clean the inter­nal parts of the projector.

- If you do not clean the projector for
a long period of time, dust will
accumulate, which may result in fire
or damage to the projector.

When cleaning plastic parts such as

y

the projector case,
first and wipe with a soft cloth. Do not
spray with water or wipe with a wet
cloth. Never use glass cleaner, auto­mobile or industrial shiner, abrasives,

wax, benzene, or alcohol as these

can damage the projector.

- This can result in fire, electric
shock or cause damage to the product
(deformation and corrosion).

Remove the plug from the outlet before

y

cleaning the product.

- Otherwise, this may result in electric
shock.

or alcohol to

unplug the power

.

Others

WARNING

When you go out, place the projector

y

out of reach of animals, and remove
the power plug from the wall outlet.

- Using a damaged power cord may
result in short circuit or fire.

Do not use the projector near

y

high-precision electronic devices
or those that transmit weak radio
signal.

- This may affect the operation of the
product, causing an accident.

Only a qualified technician can

y

disassemble or modify the projector.
For diagnosis, adjustment, or repair,
contact your seller or our service
center.

- This may result in fire or electric
shock.

CAUTION

Do not use or store the projector out-

y

doors for a long time

Do not mix new batteries with old

y

.

ones.

- Burst or leaking batteries may result
in damage or injury.

Be sure to unplug if the projector is not

y

to be used for a long

period

.

- Accumulated dust may result in fire or
electric shock due to overheating, igni­tion, or poor insulation.

Only use the specified type of battery.

y

- Burst or leaking batteries may result in
damage or injury.

Do not charge the battery using any

y

devices other than the one provided with
the product.

- This may result in damage to the
battery or fire.

Dispose of used batteries properly.

y

- This may result in explosion or fire. The
correct method of disposal may vary
depending on your country or region.
Dispose of the battery pack
as instructed.

Do not throw or disassemble the battery.

y

- This may result in fire or explosion
due to damage to the battery.

Always use batteries approved and

y

certified by LG Electronics.

- This will prevent damage or fire.

Store batteries away from metallic

y

objects, such as keys and paper clips.

- Excess current may cause a rapid
increase in temperature, resulting in
fire or burns.

SAFETY INSTRUCTIONS

Do not store the batteries near any

y

heat source, such as a heater.

- This may result in fire or damage to
the product.
Do not store batteries at temperatures

y

higher than 60 °C or in high humidity.

- This may result in explosion or fire.
Keep the batteries and remote out of

y

reach of children.

- This will prevent personal injury or
damage to the product.
Make sure that the battery is installed

y

correctly.

- This prevent explosion or fire.

The battery contains lithium-ion, so it

y

must be handled with care.

- This may result in explosion or fire.

Make sure you use the same type of

y

batteries for replacement.
Incorrect battery replacement may

y

cause fire.

9

10

MEZ38075821

SAFETY INSTRUCTIONS

Laser

WARNING

This laser projector contains a laser

y

module.
modify the projector as this could be
dangerous.

You risk being exposed to laser

y

radiation if you manipulate or alter the
projector in a way not specified in the
user manual.

This laser projector is a class 2 laser

y

device that meets safety standard IEC

60825-1.

Do not disassemble or

CAUTION

Laser projector standard:

class 2 laser product
Wavelength: 446 nm - 546 nm
Wave source: 66.7mW or less

Radiation angle: 71 °

Built-in laser standard:

Class 4 laser module
Wavelength: 446 nm - 546 nm

Power: 1.6 W * 24 EA

LASER RADIATION

DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT

- This laser projector is a Risk Group 2 device

that meets safety standard IEC 62471

standard.

Risk Group 2

CAUTION. Possibly hazardous optical

radiation emitted from this product. Do not

stare at operating lamp. May be harmful to

the eye.

The label of this laser projector is attached to

the bottom of the product.

Laser projector label

Laser beam
direction

Viewing
direction

Screen

Laser warning symbol and danger symbol

CONTENTS

CONTENTS

11

LICENSE 2

SAFETY INSTRUCTIONS 3

PREPARATION 13

Accessories 13
Optional Extras 14
Parts and Components 15

- Front & Top 15

- Bottom 16

- Back 17

- Control Panel 18

Projector Status Indicators 19
Installation 20

- Installation Precautions 20

- Projection Distance per Screen Size

21

- Assembling the Cover 22

- Kensington Security System 22

REMOTE CONTROL 23

USING THE PROJECTOR 25

Watching Projector 25

- Initial Setup 25

- Focus and Position of the Screen

Image 26

- Watching with the Projector 26

Additional Options 27

- Adjusting Aspect Ratio 27

- Using the Keystone Function 28

- Using the Input List 28

Using the Quick Menu 29

ENTERTAINMENT 30

Network Settings 30

- One-Click Network Connection 30

- Expert Settings for Network

Connection 30

- Wireless Network Connection 31

- Tips for Network Settings 32

To use the Wi-Fi Direct function 33
To use the Intel(R) WiDi function 34

SMARTSHARE 35

Before Using 35

- Connecting a USB Storage Device

35

- To disconnect the USB storage

device 35

- Connecting DLNA 36

- SmartShare™ PC SW Installing &

Setting 38

Using SmartShare™ 40

- Watching Videos 41

- Viewing Photos 44

- Listening to Music 46

- Viewing Files 47

MAGICAL MIRRORING 48

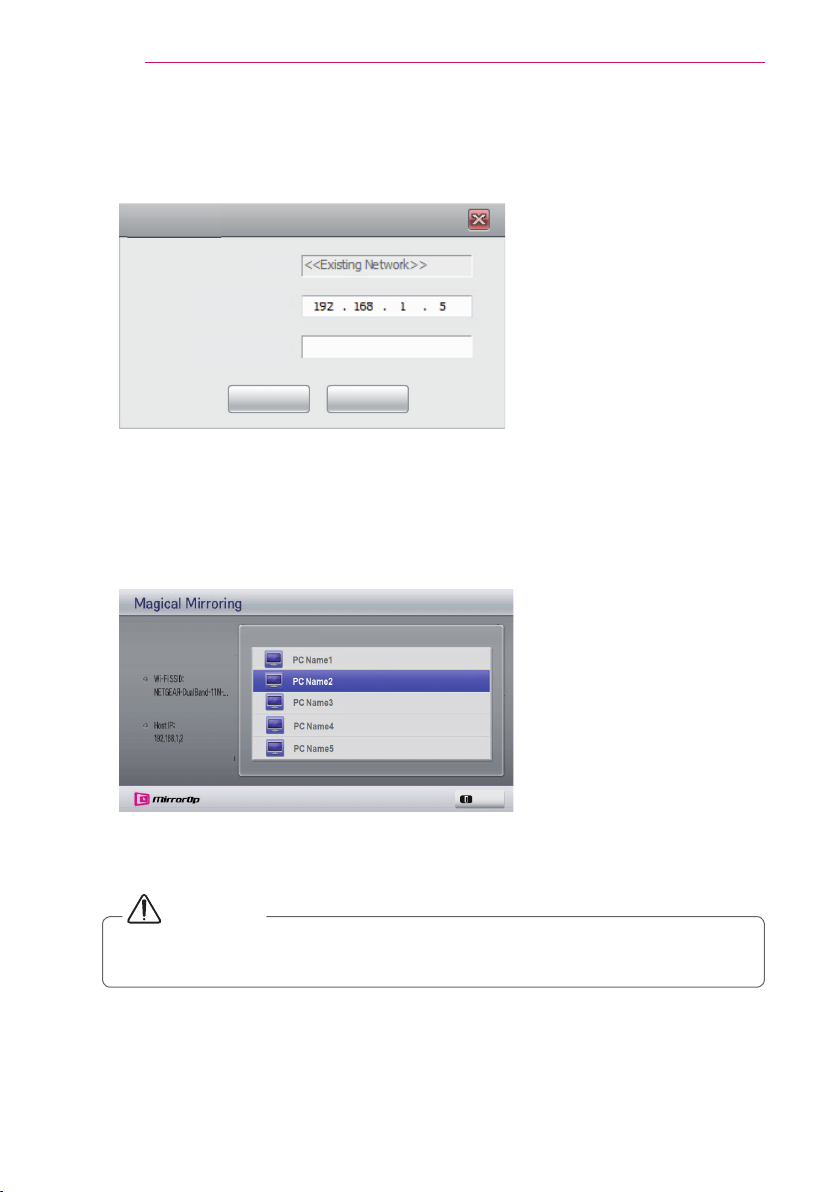

Using Magical Mirroring 48

- Installing Magical Mirroring 48

- Running Magical Mirroring 49

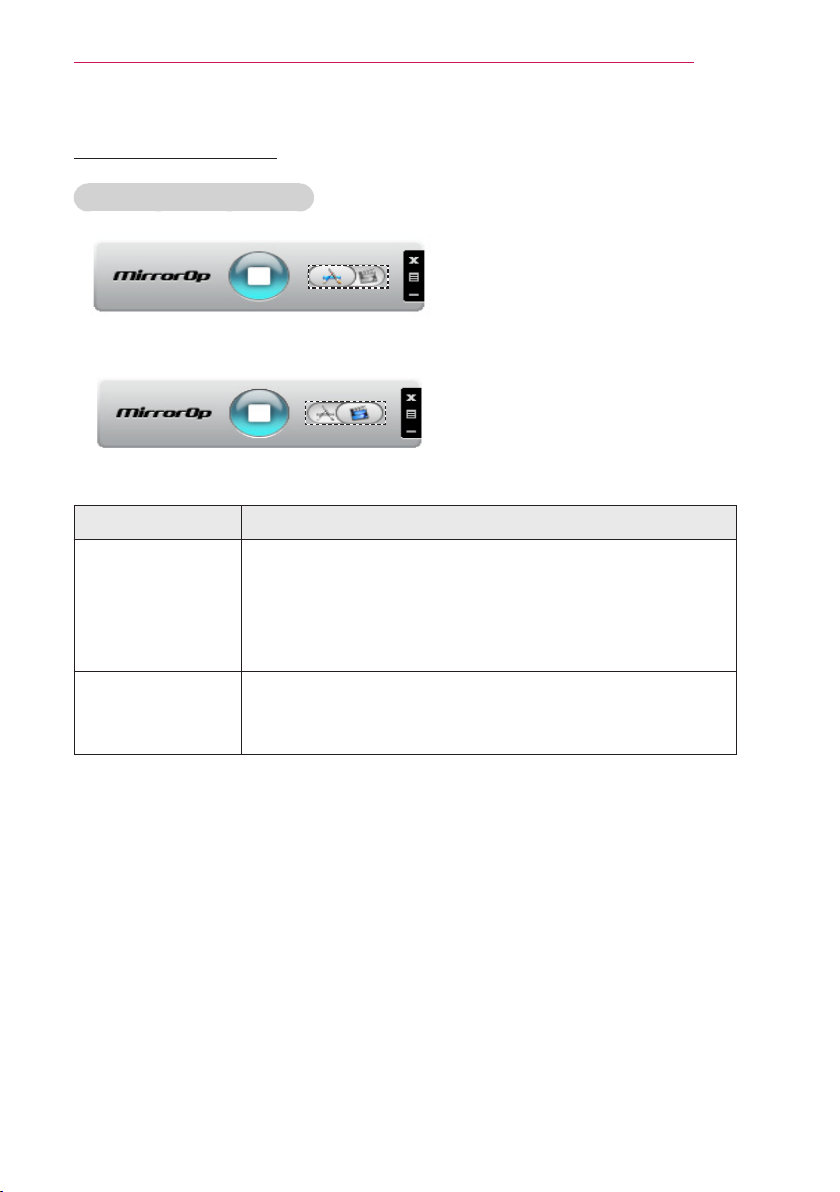

- MirrorOp Sender 51

CUSTOMIZING SETTINGS 54

SETUP Menu 54

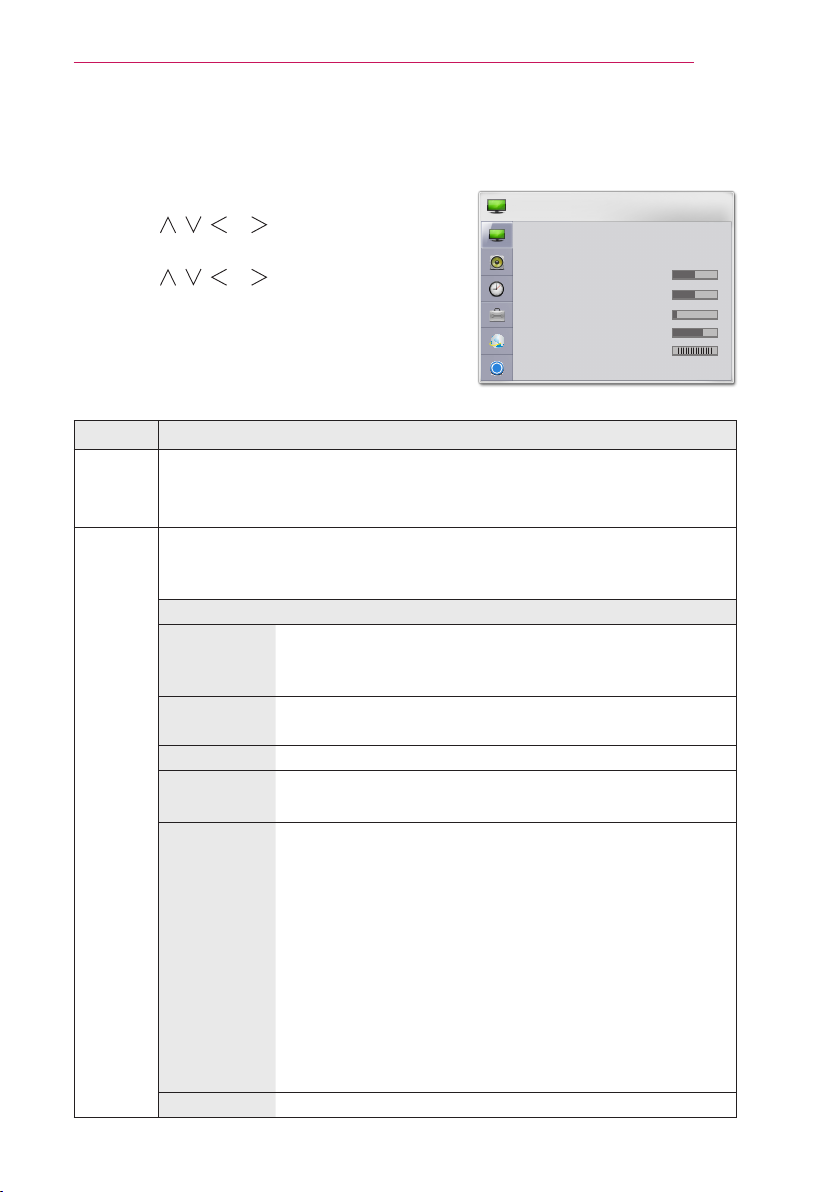

PICTURE Settings 55
SOUND Settings 59

12

CONTENTS

TIME Settings 60
OPTION Settings 61
NETWORK Settings 62
SUPPORT 64

CONNECTING DEVICES 65

Connecting to HD Receiver, DVD, or
VCR Player 66

- HDMI Connection 66

- HDMI to DVI Connection 66

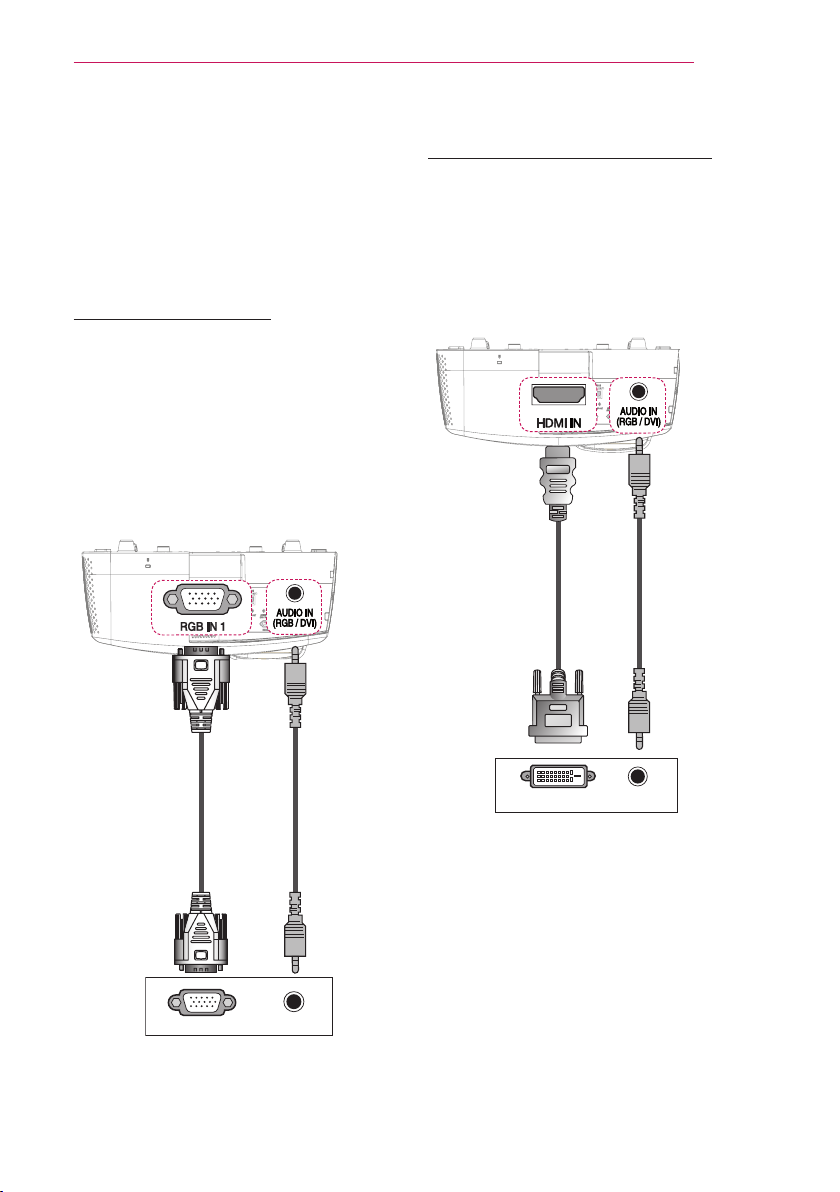

PC Connection 67

- RGB Connection 67

- HDMI to DVI Connection 67

- HDMI Connection 68

- RGB to DVI Connection 68

Connecting to External Devices 69

- AV Connection 69

- Component Connection 69

Connecting to Headphones 70

- Headphone Connection 70

Connecting to a Microphone 70

- Microphone Connection 70

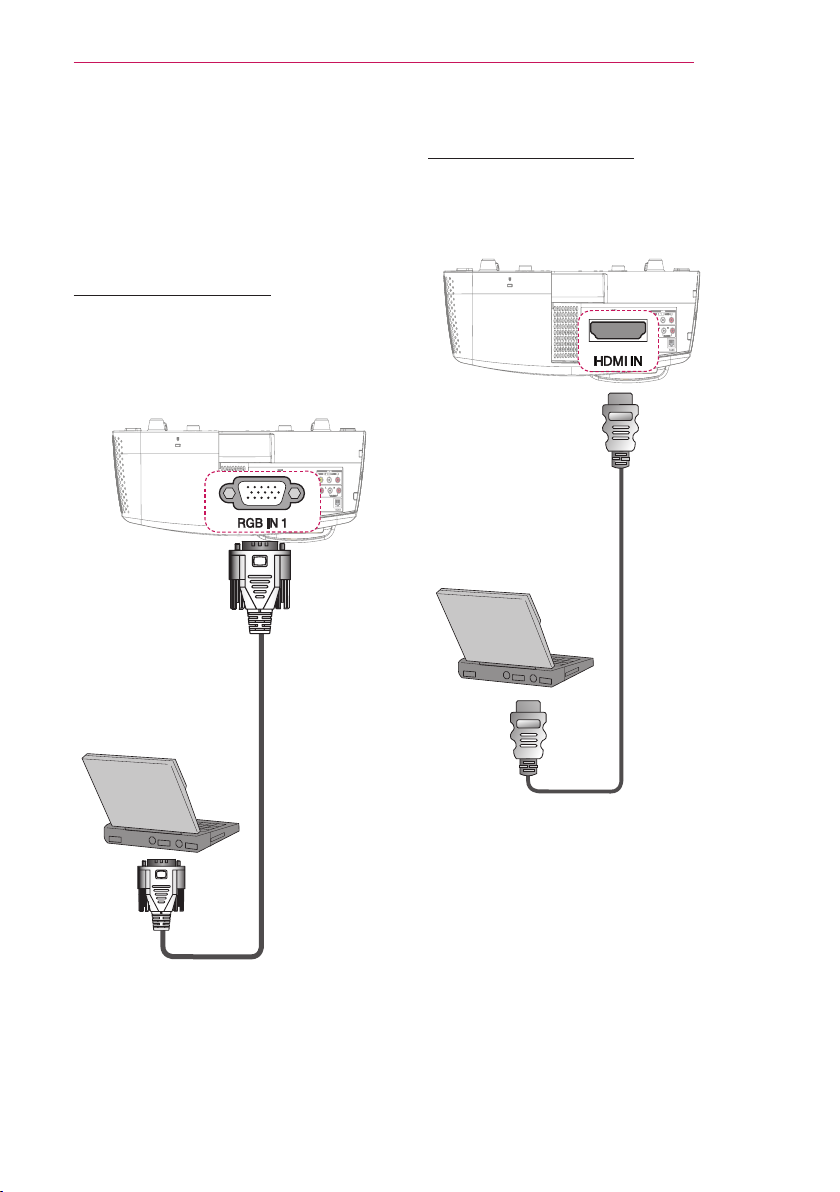

Connecting to a Laptop 71

- RGB Connection 71

- HDMI Connection 71

INTERACTIVE FUNCTION 73

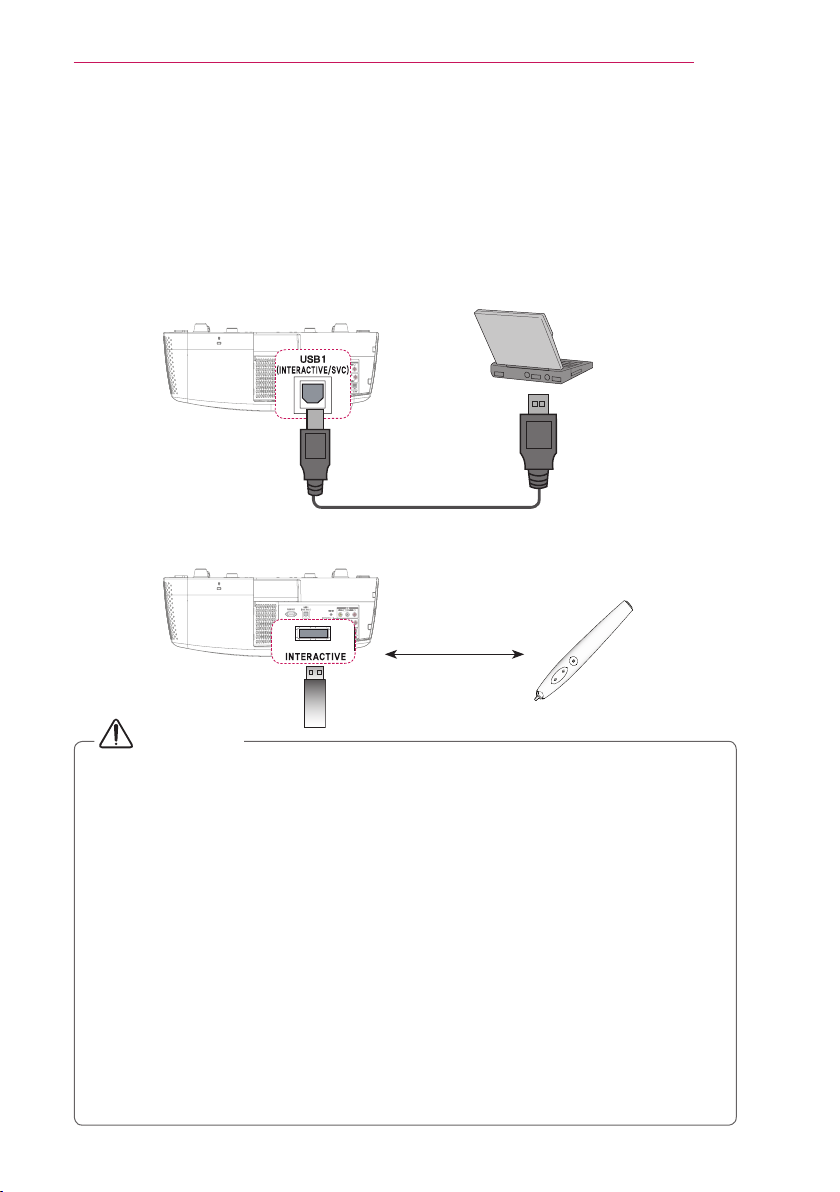

To Connect the Interactive Pen to the
PC 73
Using The Interactive Pen 74

- Interactive Pen and Button 74

- Using the Interactive Pen Button 75

- To Charge the Interactive Pen 76

- Description of LED Interactive Pen

Indicators 77

- To Replace the Pen tip 78

- How to Use the Strap 78

- To Clean Interactive Pen 78

- Operating Range with Interactive

Pen 79

- To Use the Interactive Pen Functions

80

- Troubleshooting the Interactive Pen

Function 81

SERIAL COMMUNICATION
FUNCTION 82

Using Serial Communication 82
Establishing Serial Communication 82
Communication Parameter Setup 83
Communication Protocol 83
Command Reference List 85
Key Code 90

MAINTENANCE 91

Cleaning 91

- Cleaning the Lens 91

- Cleaning the projector case 91

Updating Software 92

WIRELESS SPECIFICATIONS

93

Wireless Specications of the

Interactive Dongle/Pen 93

SPECIFICATIONS 94

PREPARATION

*/165.*$&/&3(: 64#

4-&&1

45*--

70- 1"(&

#-"/,

3"5*0

.&/6

"650 2.&/6

1*$563&

&9*5

,&:4

,&:4

"7.0%&

)&-1













4"7*/(

.65&

0,

13

PREPARATION

Accessories

Accessories included with the project are show below. The pictures may differ slightly
from the actual product. Accessories are subject to change without prior notice. New
accessories may be added or old ones removed.

Remote Control

Two AAA Batteries

eZ-Net Manager

Program CD

Owner's Manual Power Cord Computer Cable

Magical Mirroring

Program CD

CD Owner's manual

(For SA565 only)

Interactive Pen Interactive Dongle Tip

Recharge Cable Wrist strap

WizTeach

Software CD

USB A to B

Cable

Hard case

14

PREPARATION

Optional Extras

To purchase optional accessories, visit an electronics store or online shopping site or
contact the retail store where you purchased the product. Optional accessories are
subject to change without prior notice.

Projection Screen HDMI Cable

Video Cable Audio Cable HDMI to DVI cable

RS232C cable LAN cable

When connecting an HDMI or USB cable, or connecting

y

a USB flash drive to the HDMI or USB port, use a
product that has a width of 18 mm or less and a height
of 10 mm or less. If the USB cable or USB flash drive

does not fit the USB ports of the projector, use an

extension cable that supports USB 2.0.

PC Audio Port Connection

Cable

PREPARATION

Parts and Components

The projector is manufactured using high-precision technology. You may, however,

y

see tiny black dots and/or bright colored dots (red, blue or green) that continuously
appear on the projector screen. This is a normal result of the manufacturing process
and does not indicate a malfunction.

Front & Top

Speaker

15

Control
Panel

Remote Control
Signal Receiver

2

Lens

Focus Ring

Speaker

1 Due to the high temperature of vent area, do not get close to the vent area.

2 Do not touch the lens while using the projector. The lens may be damaged.

Vent

1

Inlet

16

PREPARATION

Bottom

Front Adjustable

Four Attachment Points

Foot

Ceiling Mount

Rear Foot

When installing the projector on a ceiling or wall, a professional technician should

y

install the product using the authorized tools. If installed improperly, the projector
may fall.

- This may cause personal injury or property damage. For installation of the product,
please contact the customer support center.

When installing or adjusting a mounting device, do not use oil or lubricant for the

y

purpose
projector, this may cause cracks in the projector case or the projector may fall

- This may also cause serious personal injury and damage to the projector if there is

to prevent loosening of screws. If you apply an adhesive, oil, or lubricant to the

.

a person under the mounding device.

Back

(For SA560 only)

(For SA565 only)

PREPARATION

17

18

PREPARATION

Control Panel

Button Description

POWER Turns the projector on or off.

MENU Displays or closes the Settings menu.
AUTO Adjusts the picture position and minimizes image shaking.

INPUT Selects the input signal (RGB, component, HDMI and external input).

-, + Adjusts the volume level, or enters a sub menu and changes the settings.

Moves between menus and changes the settings.

,

OK Shows the current mode and saves changes to the settings.

Projector Status Indicators

PREPARATION

19

LED Indicator

Temperature

Indicator

LED Indicator

Off Power off state

Red Power standby state

Green (blinking)

Green The projector is being operated.

Orange (blinking)

Red (blinking)

Off Normal operation

Orange

Red (blinking)

Temperature Indicator

The projector is being turned on or off.

The projector has been turned off due to a
problem related to a projector color wheel.
Please contact a local service center.

The projector has been turned off due to a
problem related to an internal fan.
Please contact a local service center.

High temperature warning

Turn off the power and check around the
projector.

The projector has been turned off due to
high temperature inside or outside of the
projector.

20

PREPARATION

Installation

Installation Precautions

Place the projector in a well-ventilated

y

environment.

- To prevent internal heat build-up,
install the projector in a well-ventilated
place.
Do not place anything near the
projector as this may block its air
vents. If the air vents are blocked,
the internal temperature will increase.

- Do not place the projector on a
carpet or rug. If the vent is on the
bottom, use the projector on a solid
level surface
not blocked.

- Be sure to prevent foreign objects
such as paper debris from entering
the projector.

and ensure the vent

is

Do not place the projector in a hot

y

or humid environment.

- Do not place the projector in a hot,
cold, or humid environment.

Do not place the projector in a place

y

where it will easily attract dust.

- This may result in fire.

Never open any cover on the

y

projector. There is a high risk of
electric shock.
The projector is manufactured using

y

high-precision technology. You may,
however, see tiny black dots and/
or bright colored dots (red, blue or
green) that continuously appear on
the projector screen. This is a normal
result of the manufacturing process
and does not indicate a malfunction.
The remote control may not work

y

in an environment where a lamp
equipped with electronic ballasts or
a three-wavelength fluorescent lamp
is installed. Replace the lamp with an
international standard lamp for the
remote control to work normally.

- Leave enough distance (30 cm or

more) around the projector.

PREPARATION

21

Projection Distance per Screen Size

1 Place the projector on a sturdy, level surface, together with the PC or audio/video

source.

2 Place the projector an appropriate distance away from the screen. The distance

between the projector and the screen determines the actual size of the image.

3 Position the projector so that the lens is at a right angle to the screen. If the projector

is not at a right angle, the projected image will look distorted.

To correct the distortion, use the Keystone function.

4 Connect the power cord of the projector and the connected device to the wall outlet.

A

B

C

D

E

Ratio of upward projection : 128 %

Screen

(Unit: mm)

16:10 Ratio

ARC

(Width x
Height)

A 497 562 627 691 756

B 452 517 582 646 711

C 29 94 159 223 288

D 349 386 423 460 497

E 196 233 270 307 344

1778 2032 2286 2540 2794

1580 x 942 1723 x 1077 1939 x 1212 2154 x 1346 2369 x 1481

22

PREPARATION

Assembling the Cover

①

③

Insert the upper edge of the cover into the groove.

Slide the cover to the right until it latches into the groove.

Insert the screw into the hole and tighten it.
Check that the cover is securely fastened and cannot move.

* You can remove the cover in reverse order.
* If you locate the projector on the desk to use, remove the cover before using.

Otherwise, a cable might keep the cover from closing properly.

②

Kensington Security System

This projector has a Kensington Security Standard connector. Connect a Kensington

y

Security System cable as shown below.

For more information on installation and use of the Kensington Security System,

y

refer to the user’s guide provided with the Kensington Security System.
The Kensington Security System is an optional accessory.

y

What is Kensington?

y

Kensington is a company that provides security systems for laptops and other elec­tronic devices. Website: http://www.kensington.com

REMOTE CONTROL

*/165.*$&/&3(: 64#

4-&&1

45*--

70- 1"(&

#-"/,

3"5*0

.&/6

"650 2.&/6

1*$563&

&9*5

,&:4

,&:4

"7.0%&

)&-1













4"7*/(

.65&

0,

Open the lid at the back of the remote control and insert
the batteries as described in the instructions.

Use new batteries and do not mix regular or rechargeable
batteries. (1.5 V AAA)

CAUTION

Do not mix new batteries with old ones.

y

POWER

Turns the projector on or off.

ENERGY SAVING

Adjusts the screen brightness.

MIC

Turns the microphone on/off.

INPUT

Changes the input source.

USB

Shows the SmartShare menu.

Number buttons

Enters a number.

SLEEP

Sets the sleep timer.

STILL

Stops the video being played.

VOL +, -

Adjusts the volume level.

BLANK

Blanks the screen.

RATIO

Changes the aspect ratio of the screen
per pressing of the button.

MUTE

Mutes the sound of the projector.

PAGE

Moves to the previous/next page.

REMOTE CONTROL

23

*/165.*$&/&3(: 64#

4-&&1

45*--

70- 1"(&

#-"/,

3"5*0

.&/6

"650 2.&/6

1*$563&

&9*5

,&:4

,&:4

"7.0%&

)&-1













4"7*/(

.65&

0,

24

REMOTE CONTROL

MENU

Brings up or closes the settings menu.

AUTO

Optimizes the screen automatically in RGB-PC input
mode.

Q.MENU

Allows you to change the settings easily.

Up/Down/Left/Right buttons

Selects or sets an option of the selected menu.

OK ꔉ

Shows the current mode and saves changes to the
settings.

ꕣ

Returns to the previous screen.


Changes the picture mode per press of the button.

EXIT ꕯ

Exits the menu.

Color buttons

Sets additional settings for each menu.

Playback control buttons

Controls the playback of multimedia content on the
SmartShare.

KEY.S ▲, ▼

Adjusts the Keystone function.

AV MODE

Selects AV mode for the genre of the program being
watched.

HELP

Enables the self-diagnosis.

NOTE

For seamless operation, do not block the IR receiver.

y

USING THE PROJECTOR

USING THE PROJECTOR

Watching Projector

Initial Setup

1 Connect the power cord correctly.
2 After waiting for a moment, press the POWER button on the remote control or the

control panel.

3 When you turn on the Projector for the rst time, a setting screen appears as shown

below. Here, you can specify the items required for watching the Projector more easily.

25

26

USING THE PROJECTOR

Focus and Position of the Screen Image

When an image appears on the screen,

check if it is in focus and ts the screen

properly.

Focus Ring

To adjust the focus of the image,

y

rotate the focus ring.

Watching with the Projector

1 In Standby mode, press the POWER

button to turn the projector on.

2 Press the INPUT button and select

the input signal you want.

3 Control the projector using the

following buttons while watching
projec tor.

Button Description

VOL -, + Adjusts the volume level.
MUTE Mutes the sound of the

projector.

Q.MENU Enters the quick menu.

KEY.S

▲, ▼

Adjusts the Keystone

function.

4 To turn the projector off, press the

POWER button.

Additional Options

Adjusting Aspect Ratio

You can adjust the aspect ratio of the
picture by pressing RATIO while
watching with the projector.

NOTE

Available options may vary depend-

y

ing on the input signal.
You can also use the

y

MENU button.

- Full : Displays the picture in full

screen regardless of the aspect
ratio.

-

16:9 : Resizes the picture with a 16:9

ratio

.

- Just Scan : Displays the picture in

the original size without cutting off
the edges.

Q.MENU or

USING THE PROJECTOR

27

- 4:3 : Resizes the picture with a 4:3

ratio.

- Zoom : Enlarges an image to t the

screen width. The top and bottom of
the image may be truncated.
Press the or button to zoom in

y

or out of the image.
Press the or button to move

y

the image.

- Cinema Zoom 1 : Resizes the

picture with a cinemascope ratio of

2.35:1. It ranges from 1 to 16.

Press the or button to zoom in

y

or out of the image.
Press the or button to move

y

the image.

Just Scan

NOTE

For Just Scan, you may see image

y

noises at the edges of the screen.

- Set By Program : Displays the pic-

ture in the same aspect ratio as the
original image.

Set By Program

NOTE

If you enlarge or reduce the picture,

y

it may be distorted.

28

USING THE PROJECTOR

Using the Keystone Function

To prevent the screen image from
becoming trapezoidal, Keystone adjusts
the top and bottom width of the image
if the projector is not set up at a right
angle to the screen.
Because the Keystone function may
cause inferior screen image quality, use
this function only when it is not possible
to set up the projector at an optimal
angle.

•Keystone 0

- +

CLOSE

1 Press the KEY.S ꔌ or KEY.S ꔍ but-

ton to adjust the picture.

Keystone can be adjusted

y

from -40 to 40.

2 Press the OK button when done.

Using the Input List

Using the Input List

1 Press the INPUT button to display the

input selection screen.

- The connected input mode appears

rst.

Input List

Select an input device to view.

Component RGB-PC 2RGB-PC 1 HDMI

AV

Change Device Name

2 Select an input signal using the

remote control's INPUT button to
connect the projector to the desired
input. You can use the or
button to switch between all the input
modes.

Adding Input Label

Displays which devices are connected to
which input ports.

Input List

Select an input

Input Label

Component RGB-PC2RGB-PC1 HDMI

AV

Select a device to change name.

Close

Change Device Name

1 Press the INPUT button to display the

input selection screen.

2 Press the red button.
3 Press the or button to go to the

desired input and press the OK button.

4 User the , , or button to

select a device name.

Using the Quick Menu

You can customize frequently used
menus.

1 Select the Q.MENU button.
2 User the or button to select a

desired item and press OK.

Menu Description
Aspect
Ratio
Mode
Sound
Mode
Sleep
Timer

Energy
Saving
AV
Mode
Caption Sets whether to display

USB
Device

3 Use the , , or button

Resizes the picture.

Changes the picture mode.

Sets the sound mode.

Sets the projector to be

turned off at the specied

time.

Adjusts the brightness.

Sets the genre.

captions.
Allows you to remove a
connected USB device in a
safe manner.
(Displayed only when a USB
device is connected.)

to scroll through the menu items.

USING THE PROJECTOR

29

30

ENTERTAINMENT

ENTERTAINMENT

Network Settings

To use the DLNA function and the
Magical Mirroring function, the wireless
connection to the Internet is required.

One-Click Network Connection

You can make a wireless network
connection easily.

1 Press the MENU button.
2 Use the , , or button to

select NETWORK and press the OK
button.

3 Use the , , or button to

specify the Network Connection and
press the OK button.

4 The network is connected

automatically.

See the Help provided by the

projector.

Expert Settings for Network Connection

When used in a specic environment
such as ofce (where xed IP, etc. is

used).

1 Press the MENU button.
2 Use the , , or button to

select NETWORK and press the OK
button.

3 Use the , , or button to

specify the Network Connection and
press the OK button.

4 Select Set Expert in the network

connection list.

5 Select one of the following network

connection methods.

Item Description

AP List

Enter
the
SSID

WPS­PBC

WPS­PIN

Ad-hoc

Select a network from a
router list.
Directly enter the name of
the wireless router to
connect.
Press the WPS button on the
wireless router (if supported)
to connect to the router in a
simple manner.
Enter the PIN number from
the menu of the wireless
router to connect to the
router in a simple manner.
Use to connect directly to
the projector with out using
a router.

ENTERTAINMENT

31

Wireless Network Connection

You can use a wireless network by using the built-in wireless network module as shown
below.
A wireless router must be installed and operating at this time. Refer to the wireless
router's user manual to see how to install it.
The network settings and connection may be different depending on the network envi­ronment. Set up the router as instructed in its user manual.

Wired/Wireless

Router

PCProjector

32

ENTERTAINMENT

Tips for Network Settings

Modem reconfiguration may cause

y

network connection problems. If
it does, turn off the modem and
disconnect it from the projector; then
turn on the modem again.
LG Electronics is not responsible for

y

any Internet connection problems, or
any failure, error or malfunction due
to your Internet connection.
The network connection may not

y

be working properly because of the
Internet Service Provider (ISP).
DSL service requires a DSL modem,

y

and cable service requires a cable
modem. Internet connections may be
limited due to an agreement with an
Internet service provider (ISP), and
the projector might not connect to a
network. (When only one device is
allowed per line, if a PC is already
connected, other devices are not
available for use.)
The wireless network may be affected

y

by interference from a device that

uses 2.4 GHz frequency, such as

a wireless telephone, Bluetooth
device or microwave. Interference
may also be caused by a device that

uses 5 GHz frequency such as Wi-Fi

devices.
The wireless network service may

y

run slowly depending on surrounding
wireless environment.
Some devices may have a network

y

traffic jam if any of local home
networks is turned on.

To connect to a wireless router,

y

a router that supports wireless
connection is necessary; the
wireless connection function of the
corresponding router must also be
activated. Ask the router manufacturer
whether the router supports wireless
connection.
To connect to a wireless router, verify

y

the SSID and security settings of
the wireless router. Please refer to
the user guide of the corresponding
router regarding SSID and security
settings of the wireless router.
The projector may not work properly if

y

network devices (wire/wireless router
or hub, etc.) are incorrectly set up. Be
sure to install the devices correctly by
referring to their user guides before
configuring network connection.
When Ad-hoc is used, it may not be

y

able to connect depending on the

device (for example, laptop) that is

connected.
The connection method may vary

y

according to the manufacturer of the
wireless router.

To use the Wi-Fi Direct function

Wi-Fi Direct is a function that allows your
projector to connect with a Wi-Fi Direct
device without Internet connection. With

SmartShare™, you can watch the les

stored on a device connected via Wi-Fi
Direct.

Press the MENU button on the

y

remote control. Select NETWORK →
Wi-Fi Direct.

1 Set Wi-Fi Direct to On. (If you do not

use it, please change it to Off.)

2 Enable the Wi-Fi Direct settings on the

device that you want to connect to.

3 A list of devices that can be

connected to the projector is
displayed.

4 Select a device to connect.
5 Select Yes, when the connection

request message appears.

6 If the device that you want to connect

accepts the request, Wi-Fi Direct is
connected.

ENTERTAINMENT

33

34

ENTERTAINMENT

To use the Intel(R) WiDi function

You can view the screen of a device
with Intel(R) WiDi technologies on
your projector. Contact the device

manufacturer to nd out if the device

supports this function.

Press the MENU button on the

y

remote control. Select NETWORK →
Intel(R) WiDi.

1 Set Intel(R) WiDi to On. (If you do

not use it, please change it to Off.)

2 Enable the Intel(R) WiDi settings on

the device that you want to connect
to.

3 A list of devices that can be

connected to the projector is
displayed.

4 Select a device to connect.
5 Select Yes, when the connection

request message appears.

6 If the device that you want to connect

accepts the request, Intel(R) WiDi is
connected.
When Wi-Fi Direct is set to Off, if you

y

set Intel(R) WiDi to On, Wi-Fi Direct
is automatically set to On.
When you set the Intel(R) WiDi

y

function to Off, Wi-Fi Direct returns
to the previous setting.

NOTE

It is recommended to connect a

y

laptop using Intel(R) WiDi within
close range.
Though Intel(R) WiDi can be

y

connected without a wireless router,
it is recommended to connect the
wireless router first for optimal
performance.
You may not connect your projector

y

to a non-LG Electronics device even
when it is detected.
It is recommended you to connect a

y

device to a 5 GHz router.

The response rate may vary

y

depending on the user’s environment.
For more information on the device

y

you want to connect to, refer to its
owner’s manual.

SMARTSHARE

35

SMARTSHARE

Before Using

Connecting a USB Storage Device

Connect a USB storage device

HDD or USB ash drive) to the USB

port of the projector to view multimedia
content.
You cannot write to or delete data from the
USB storage device.

Connect a USB ash drive as shown

below.

USB

ash drive

To disconnect the USB storage device

1 Press the Q.MENU button.
2 Use the or button to move

to USB Device and press the OK
button.

3 Remove the USB device.

(external

Tips for Using a USB Device

A USB storage device installed using

y

an automatic recognition program
or its own driver might not be
recognizable.
Some USB devices may not be

y

supported or will not work properly.
Please use only a USB storage

y

device formatted as a FAT32 or NTFS
file system provided by Windows.

It is recommended to use an external

y

USB hard disk with rated voltage of 5 V

or less and rated current of 500 mA or

less.
It is recommended to use a USB hub

y

or hard disk drive with its own power
supply. (If the power supplied is not
enough, the USB storage device may
not be detected properly.)
It is recommended to use a USB flash

y

drive which is 32 GB or less and a
USB hard drive which is 2 TB or less.

If a USB external hard drive with the

y

power saving function does not work,
turn the hard drive off and on again
to make it work properly. See the
owner's manual of the USB hard drive
for more information.
The data of a USB device may be

y

damaged, so it is recommended to
backup any important files. Users are
responsible for data management.
The manufacturer bears no
responsibility.

NOTE

After the USB storage device is

y

disconnected, it cannot be read.
Remove the USB storage device
and connect it again.

36

SMARTSHARE

Supported Files for SmartShare™

Maximum data transmission rate:

y

20 Mbps (Megabit per second)
Supported external subtitle formats:

y

*.smi, *.srt, *.sub (MicroDVD,

SubViewer 1.0/2.0), *.ass, *.ssa,
*.txt (TMPlayer), *.psb (PowerDivX)

Supported internal subtitle formats:

y

XSUB (subtitles from DivX6 are
supported)

Subtitle Language

Subtitle

Language

Latin1 English, Spanish,

Latin2 Bosnian, Polish,

Latin4 Estonian, Latvian,

Cyrillic Bulgarian, Macedonian,

Greek Greek
Turkish Turkish
Hebrew Modern Hebrew
Chinese Simplied Chinese
Korean Korean
Arabic Arabic

Language

French, German, Italian,
Swedish, Finnish, Dutch,
Portuguese, Danish,
Romanian, Norwegian,
Albanian, Gaelic, Welsh,
Irish, Catalan, Valencian

Croatian, Czech, Slovak,
Slovenian, Serbian,

Hungarian

Lithuanian

Russian, Ukranian,

Kazakh

Connecting DLNA

Digital Living Network Alliance (DLNA)
allows you to enjoy videos, music and
photos saved on your projector through
a home network.

Connecting a DLNA-Certified

Mobile Device

The projector and mobile device must

y

be connected via the same network.

1 Check if Wi-Fi is enabled on your

mobile device.

2 Install and run an app that allows you

to share les on your mobile device.

3 Choose to share on your mobile

device.

4 Select the type of le (video/audio/

photo) to play.

5 Select the video, music or photo to

play on the projector.

6 Click the Add icon to open the

Browse Folder window.

7 On the device where the le will play,

select the projector model.

(You can nd the projector model on

the product label.)

8 Press Play ► to watch the selected

le using the projector.

SMARTSHARE

37

Connecting DLNA DMR

(Digital Media Renderer)

If the PC's operating system is

y

Windows 7 or Window 8 or the DLNA-

certified device (e.g. mobile phone)
is connected via a network, you
can play music / videos / photos on
projector without installing a separate
program.

1 Congure projector and PC on the

same network. Congure Windows
7 or Window 8-installed PC on the

network.

2 Right-click the music / video / photo

le that you want to play and use the

Remote Playback

with Windows 7 or Window 8.
To play on your mobile device, see its
owner's manual.

feature that comes

3 Even when multiple projectors are

connected, the selected le is played

through only one projector. The
playback rate may vary depending
upon the network connection.

Connecting DLNA DMP

(Digital Media Player)

With a PC having SmartShare PC

y

Software, music / video / photo files
may be replayed on the projector by
linking them via home networking.

1 Congure the projector and PC on

the same network. The DLNA service
is available only when the projector
and all the devices are connected to
a single router.

2 Install SmartShare PC Software on

the PC from the website. Before

installation, exit all programs running
in the PC such as rewall, anti-virus,

etc.

3 The sever should be running in order

to watch the shared le on your

projector.

NOTE

For how to use the SmartShare PC

y

software, refer to the software help.

38

SMARTSHARE

SmartShare™ PC SW Installing & Setting

Install the SmartShare™ PC SW(DLNA) programme on your PC.

1 Download the setup le from the path below in order to use the DLNA function.

http://liu.lge.com/smartshare/release/smartshare.zip

2 Install the downloaded SmartShare™ PC software.
3 You can run the programme when installation is complete.

NOTE

DLNA or Media Link service is only available if projector and other devices are

y

connected via a single router.

PC requirement for installing LG SmartShare™

Item Minimum Specications

CPU

RAM 1 GB or higher 2 GB or higher

VGA

Hard Disk Drive 200 MB or higher

Operating

System

Network

Environment

Program speed can be delayed depending on the system performance and the

y

network environment.

Intel Pentium4 2.0 G or higher/
AMD Sempron 2000 or higher

64 MB RAM, 1024 x 768 or

higher resolution, and a video

card that supports 16 bit or

more colors

Windows XP (Service Pack 2 or later), Windows Vista,

Windows 7, Windows 8

l Windows Media Player: 11.0.5721.5280 or higher is

recommended

100 MB Ethernet, Wireless LAN (WLAN) IEEE 802.11g or higher

Recommended

Specications

Intel Pentium Dual Core or

higher/AMD Athlon 64 x 2 or

higher

128 MB RAM, 1024 x 768 or

higher resolution, and a video

card that supports 16 bit or

more colors

In case of a DLNA malfunction

Check your network settings when the

y

DLNA option does not work properly.

To watch the 1080p video through

y

DLNA, a router that uses 5 GHz
frequency is required. If a 2.4 GHz

router is used, the video does not
play properly.
When playing a video in DLNA mode,

y

the Multi Audio and Closed Caption
features are not supported.
If more than one projector is

y

connected to a single server in DLNA
mode, the content may not play
depending upon server performance.
Subtitles are only supported on some

y

DMC devices.
The DLNA function may not work

y

properly depending on the network
environment.
The DLNA function may not be

y

supported for a router that does
not support multi-cast. For more
information, refer to the user guide
that came with your router or contact
to the manufacturer.
Even for the file format supported by

y

the projector, the supported file format
may differ depending on the DLNA
server environment.

SMARTSHARE

If there are too many folders or files in

y

39

a folder, it may not work properly.
The information on the file imported

y

from the DLNA server may not be
displayed correctly.
When viewing video subtitles on a

y

DLNA server, we recommend that
you use SmartShare PC Software.
When a subtitle file is added later,

y

disable the shared folder and then
enable it again.
The DRM file and document file in the

y

DLNA server are not played.

40

SMARTSHARE

Using SmartShare™

Press the USB button on the remote control.

You can watch the photo, music, video and document on the projector by connecting

a USB or home network (DLNA). The photo, music, video and document les of all
devices connected to the projector are displayed. (For the document les, only those in

the devices connected via USB are displayed.)

SMART SHARE

Contents Type

More...

Recently Watched

More...

All

VIDEOS

PHOTOS

File Viewer

MUSIC

You can hide specific devices' contents at Settings > Privacy.

Newly Added

Settings

More...

Linked Device

Component

AV

RGB-PC1

RGB-PC2

HDMI

Connecting guide

More...

SMARTSHARE

Watching Videos

* In Movie List, you can watch movies stored on the connected USB device.

Tips for Playing Videos

Some subtitles created by a user may

y

not work.
A video file and its subtitle file must

y

be located in the same folder. A video
file name and its subtitle file name
must be identical in order to display
the subtitle properly.
Streaming files which include GMC

y

(Global Motion Compensation) or
Qpel (Quarterpel Motion Estimation)
is not supported.

H.264/AVC profile level 4.1 or below

y

is supported.
The file sizes that can be played

y

may be different depending on the
encoding environment.
Video files created by some encoders

y

may not be played back.
Video files in formats other than

y

the ones specified here may not be
played back.
Videos stored on a USB device that

y

does not support high-speed playback
may not play properly.
The DTS is supported only for

y

playback of USB video file.

41

42

SMARTSHARE

Supported Video Codecs

Maximum resolution: 1920 x 1080 @ 30p

Extension Codec

.asf

.wmv

.divx

.avi

.mp4
.m4v
.mov

.mkv

.ts

.trp

.tp

.vob

.mpg

.mpeg

.dat

Video VC-1 Advanced Prole, VC-1 Simple and Main Prole

Audio WMA Standard, WMA 9 Professional

Video

Audio

DivX3.11, DivX4, DivX5, DivX6,
XViD, H.264/AVC, Motion Jpeg

MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital,

Dolby Digital Plus, LPCM, ADPCM, DTS

Video H.264/AVC, MPEG-4 Part 2

Audio AAC

Video H.264/AVC

Audio HE-AAC, Dolby Digital

Video H.264/AVC, MPEG-2, VC-1

Audio

MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)
Dolby Digital, Dolby Digital Plus, AAC

Video MPEG-1, MPEG-2

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

Video MPEG-1

Audio MPEG-1 Layer I, II

Controlling Video Playback

You can control playback using the following buttons.

SMARTSHARE

43

Item Description

Shows the current playing position. Use the or button to move forward

◀▶

or backward.

ꕗ

Stops playing and returns to Movie List.

ꕖ

Resumes normal playback.

Pauses the media player.

ꕘ

ꕘ ꕙ

Displays in slow motion.

Whenever this button is pressed, the playback speed is changed.

ꕎ

Option

Sets the option.

List

Stops the playback and returns to the list.

Option

List

44

SMARTSHARE

Viewing Photos

You can view photos stored on a connected device.

Photo File

File Format Item Prole

Supported format SOF0: Baseline

SOF1: Extend Sequential

2D

(jpeg, jpg,

jpe)

Size Min. 64 x 64

SOF2: Progressive

Max. Normal Type (mm): 15360 (W) x 8640 (H)

Progressive Type (mm): 1920 (W) x 1440 (H)

Controlling Photo Playback

You can control playback using the following buttons.

SMARTSHARE

45



Slideshow

BGM

Item Description

,

Selects the previous or next photo.

If no picture is selected, all photos in the current folder are displayed in a

Slideshow

BGM

slide show. If some photos are selected, those photos are displayed in a
slide show.

Set Slide Speed in the Option → Set Photo View. menu.

y

You can listen to music while viewing full-size photos.

Set BGM in the Option → Set Photo View. menu.

y

Rotates photos.

Rotates a photo 90 °, 180 °, 270 °, 360 ° clockwise.

y

Photos cannot be rotated if their width is greater than the height of the

y

maximum supported resolution.

Enlarges or reduces the photo.
Use the Up/Down/Left/Right buttons to select a page and press the OK

button.

Option A setting popup window will appear.

List Stops the playback and returns to the list.

Option

List

46

SMARTSHARE

Listening to Music

You can play audio les stored on the connected device.

Audio File

File Format Item Profile

Bit rate 32 kbps - 320 kbps

MP3

Sample freq. 16 kHz, 48 kHz

Support MPEG1, MPEG2, Layer2, Layer3

Controlling Music Playback

You can control playback using the following buttons.

Item Description

Changes the playing position.

◀▶

ꕗ

Stops playing.

ꕖ

Resumes normal playback.

ꕘ

Pauses the media player.

ꕎ

Plays the previous/next le.

Sets the repeat playback.

Sets the random playback.

Option Sets Option for the music list.

List Returns to a list.

ꕊ

Option List

SMARTSHARE

Viewing Files

You can see document les stored on a connected device.

Supported File Formats

XLS, DOC, PPT, TXT, XLSX, PPTX, DOCX, PDF, HWP
Microsoft Ofce 97/2000/2002/2003/2007 version
Adobe PDF 1.0/1.1/1.2/1.3/ 1.4 version
Hangul 97/2000/2002/2005/2007

File Viewer realigns a document, so it may look different from what is displayed on a

y

PC.
For documents that include images, the resolution may look lower during the

y

realigning process.
If the document is large or has many pages, it may take longer to load.

y

Unsupported fonts may be replaced by other fonts.

y

The file viewer may not open for Office documents that contain many high resolution

y

images. In that case, reduce the image file size, save it on a USB storage device
and run the file viewer again or connect your PC to the projector and open the file on
your PC.

47

Browsing File Viewer

You can control playback using the following buttons.

Press the Go Page button to move to the previous or next page.

y

Press the volume button to zoom in or zoom out.

y

1. Press the OK button.

2. Press the Up/Down/Left/Right buttons to move to Go Page or Zoom.

[125%] 11.pptx 1/2 31 KB

GoPage Zoom Option List

Item Description

Go Page Moves to the page you specify.

Zoom Enlarges or reduces the photo.

Option Sets Option for File Viewer.

List Returns to a list.

ꕊ

48

MAGICAL MIRRORING

MAGICAL MIRRORING

Using Magical Mirroring

The magical mirroring feature is used to wirelessly transmit and project the screen of a network­connected laptop (PC) to a projector. To use this feature, the MirrorOp Sender, an application for
PC, should be installed in the user's laptop (PC).
Please install this PC program using the Magical Mirroring program CD provided with this
product.

Installing Magical Mirroring

1 Select the Magical Mirroring software on the main window of the provided CD to

start the installation.

2 After the installation is complete, the program starts checking the user PC

performance.

3 The user PC screen may blink or resolution may be changed automatically during

the performance check.

4 When the check is nished, press the EXIT button to end the program.

System Requirements

CPU Dual core 1.8 GHz or higher (excluding Atom processor)

Display Adaptor nVIDIA or ATI graphic card with 64 MB VRAM or above

Operating System

WiFi 802.11 n

Windows Vista(32 bit/ 64 bit), Windows 7(32 bit/ 64 bit),

Windows 8(32 bit/ 64 bit)

MAGICAL MIRRORING

Ͱ

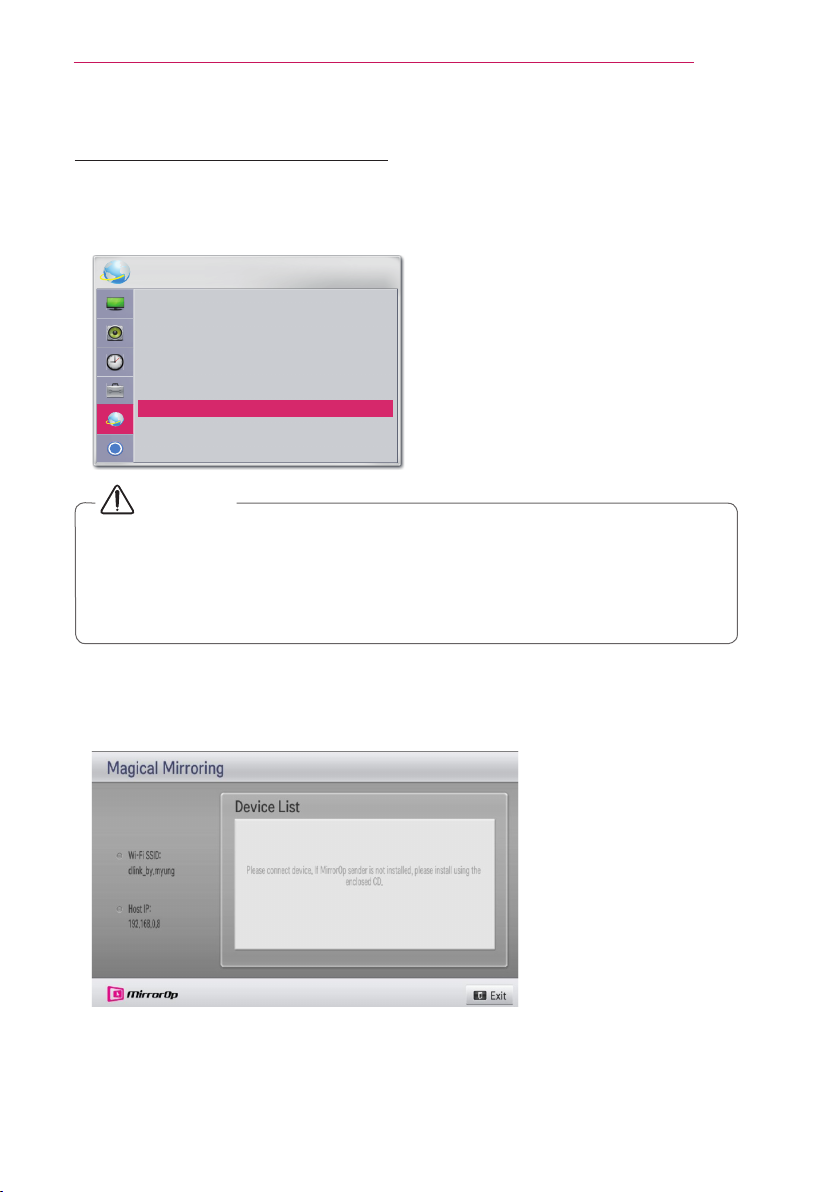

Running Magical Mirroring

1 Select Magical Mirroring from the NETWORK.

NETWORK

• Network Connection

• Network Status

• Wi-Fi Direct

• Intel(R) WiDi

• Smart Share Setting

• Magical Mirroring

• eZ-Net Manager

CAUTION

Magical Mirroring is available only when a network is connected.

y

When Magical Mirroring is running, only the following buttons are available on the

y

remote control and control panel: Power, Volume, Previous and Exit.
When Magical Mirroring is running, XGA (1024 x 768) is recommended for the

y

screen resolution. A video and audio may not play properly at a high resolution.

49

2 After running Magical Mirroring, execute the MirrorOp Sender program in the PC on

a standby screen as follows.

50

Exit

Device List

MAGICAL MIRRORING

3 To the Remote Device IP eld of the MirrorOp Sender, enter the IP which is the

same as the host IP of the Magical Mirroring and press Connect.

Quick Connect

SSID

Host IP

User Name

Connect Rescan

<PC Screen>

4 When the MirrorOp Sender is connected properly, the connected PC is displayed

under Magical Mirroring Device List as shown below. Then, the PC's screen is
projected.

If the MirrorOp Sender is not connected, check whether the PC and the projector
are connected to the same wireless router.

CAUTION

While running Magical Mirroring, the video or audio transmitted from the PC may

y

be interrupted due to PC performance or wireless network status.

MAGICAL MIRRORING

MirrorOp Sender

Changing MirrorOp Mode

ꔈMove the button to this position to change the transfer mode to Application Mode.

ꔈMove the button to this position to change the transfer mode to Movie Mode.

Mode Description

Application Mode When MirrorOp is set to this mode, the software will transfer

images with greater quality. When you run applications such
as games, you can set to this mode. This mode requires large
bandwidth, so we suggest you to use the wired network when
using this mode.

51

Movie Mode This mode is only for movies. When you play a movie on your

PC, you can change to this mode. In this mode, the mouse and
other applications do not work in real time.

52

MAGICAL MIRRORING

Configuring MirrorOp

- Search Remote Box

Select this option to search devices available on the connected network.

y

- Projection Quality

Select this option to change the projected image quality. If the network connection is

y

good, select the Best; if not, Normal.

- Projection Source

Select this option to set the screen to show through the projector. The default value

y

is Main Screen. If Virtual Extended Screen is selected, it displays the desktop's

extended screen.

- Remote Cusor Size

Select this option to adjust the size of the mouse cursor. (1x, 2x, 3x)

y

MAGICAL MIRRORING

- TV Offset Compensation

Select this option to adjust the screen size projected by the projector.

y

horizontal/vertical offset and click the Apply button.

Adjust the

- Auto Power Management

Select this option when running the MirrorOp application on a laptop.

y

When you choose this option, a Wi-Fi network will provided at an optimum level.

53

- Auto WiFi Connect

When you choose this option, you MirrorOp will automatically connect to the server

y

and log in.

- Advanced Screen Capture

Different PCs have different video output designs. When this option is not selected,

y

some layers might not be captured, for example if you play a movie using a special

media player. When you play a movie on your pc, and cannot see the picture on the
projector, make sure to choose this option.

54

CUSTOMIZING SETTINGS

CUSTOMIZING SETTINGS

SETUP Menu

1 Press the MENU button.
2 Use the , , or button to select the desired item and press the OK button.
3 Use the , , or button to set up the desired item and press the OK button.
4 Press the EXIT button when completed.

Menu Description

PICTURE Adjusts the image quality for optimal viewing.

SOUND Adjusts the sound quality and volume level.

TIME Sets time-related settings.

OPTION Customizes the general settings.

NETWORK Sets the network.

SUPPORT Shows the projector information.

PICTURE Settings

CUSTOMIZING SETTINGS

55

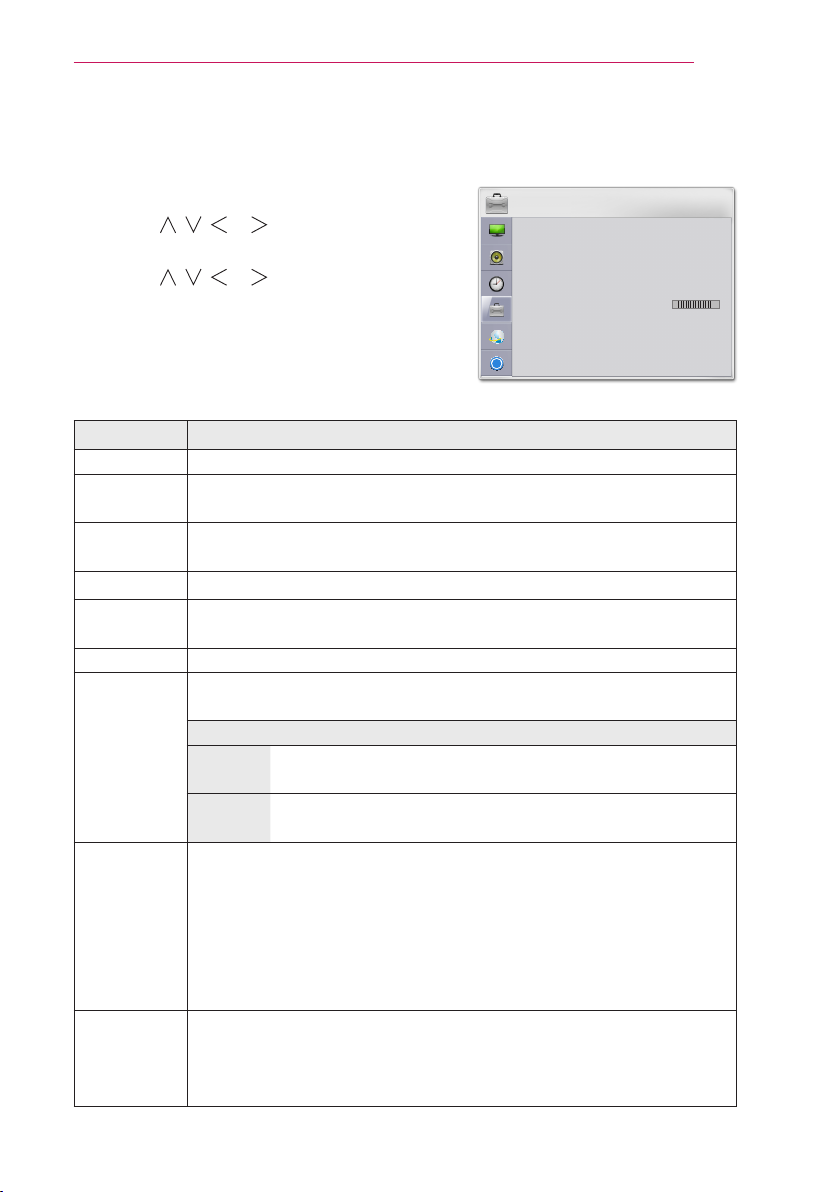

1 Press the MENU button.
2 Use the , , or button to select PICTURE

and press the OK button.

3 Use the , , or button to set up the de-

sired item and press the OK button.

- To return to the previous menu, press the ꕣ
button.

The available picture settings are described as follows.

Item Description

Energy
Saving

Adjusts the brightness.

If the temperature around the projector is high, mode changing is limited

y

to protect the internal system.

Mode

Selects one of the preset images or customizes options in each mode for
the best screen performance.
You can also customize advanced options for each mode.

Mode
Vivid Maximizes the visual effect of video.

Displays a crystal clear picture by enhancing contrast,
brightness, and sharpness.

Standard Displays the picture with normal contrast, brightness and

sharpness.

Cinema Optimizes the image for a movie.
Game Optimizes the image for playing games on fast-moving

screens.

Black Mode Provides optimized picture quality on a dark-colored screen

or a chalkboard by removing the input image's colors and
reversing the contrast.

Black mode is only available when the external input is

y

set to either of RGB1, RGB2 or HDMI and the resolution
is set to 1280 x 800.
If you change the resolution to other value than 1280 x

y

800 while the picture mode is set to the black mode, the

picture mode is automatically reset to the default value.
You cannot control the picture settings when the picture

y

mode is set to the black mode.

Expert1/2 Adjusts the detailed image settings.

?


• ꕊ Energy Saving : Maximum

• Picture Mode : Standard

︿

• Contrast 50

• Brightness 50

• Sharpness 5

• Color 70

• Tint

﹀

R G

0

56

CUSTOMIZING SETTINGS

Item Description

Contrast Increases or decreases the gradient of the video signal.
Bright­ness
Sharp­ness

Adjusts the base level of the video signal to make the image brighter or
darker.
Adjusts the level of sharpness in the edge between the light and dark
areas of the picture. The lower the level is, the softer the image looks.

Horizontal and Vertical Sharpness are available only in Expert1/2.

Color Adjusts the intensity of all colors.
Tint Adjusts the balance between red and green levels.
Ad-

Customizes the advanced settings.

vanced
Control

Sets optional settings.

Option

Restores each mode's options to the factory default.

Reset
Aspect

Resizes the picture.

Ratio
Screen
(RGB­PC)

Adjusts the picture quality in RGB-PC input.

Item
Resolution Available

resolutions

are 768 resolution (1024 x 768/
1280 x 768/ 1360 x 768, 60 Hz) and 1050 resolution
(1400 x 1050/ 1680 x 1050, 60 Hz).

Auto Cong. Provides optimized picture quality by automatically calibrat-

ing mismatched horizontal width and shaky picture caused

by conicts between the internal settings of the projector

and various PC graphic signals.

You can also use the AUTO button on the remote

y

control.

Position Moves the image up/down/left/right.
Size Changes the screen size.
Phase Makes the picture look clear by removing horizontal noise.
Reset

Restores all the settings to the factory default.

CUSTOMIZING SETTINGS

Advanced Control

Item Description

Dynamic
Contrast
Dynamic Color
Clear White Makes the white area of the screen look brighter and whiter.

Preferred
Color

Super Reso­lution
Color Tem­perature
Gamma Sets a gradation curve between video input and output signal.
Color Gamut Selects the range of colors to display.

* Available options may differ depending on input signal or video mode, etc.

Adjusts the contrast to keep it at the best level for the brightness of
the screen.
Adjusts screen colors so that they look natural.

Skin Color

Grass Color Adjusts only the natural color area of e.g., eld and

Sky Color Adjusts only the color of the sky.

Improves blurry and unclear parts in the picture to make the picture
more vivid.
Adjusts the overall color of the picture.
You can select Warm, Cool, Medium or Natural.

Standard: Displays the original colors of an input signal regard-

y

Wide: Makes use of the display's rich colors.

y

Adjusts

the skin color in the picture to your preference.

mountain.

less of the display features.

57

Expert Control

Item Description

Dynamic
Contrast

Super
Resolution

Color Gamut Selects the range of colors to display.

Edge
Enhancer

xvYCC Displays much richer colors.
Color Filter Accurately adjusts color and tint by filtering a specific color area of

Gamma Sets a gradation curve between video input and output signal.

Adjusts the contrast to keep it at the best level for the brightness of
the screen.

Improves blurry and unclear parts in the picture to make the picture
more vivid.

Standard: Displays the original colors of an input signal regard-

y

less of the display features.

Wide: Makes use of the display's rich colors.

y

Provides much sharper and clearer edges to the picture.

RGB space.

58

CUSTOMIZING SETTINGS

Item Description

White Balance

Adjusts white balance. Detailed adjustment is possible as shown below.

Color Temperature: Select Warm, Cool, Medium or Natural.

y

a. Method: 2 points

- Pattern: Inner, Outer

- Contrast Red/Green/Blue, Brightness Red/Green/Blue:

Adjustable range -50 - +50.

b. Method: 20 point IRE

- Pattern: Inner, Outer

- Institute of Radio Engineers (IRE) is the unit indicating the size

of a video signal and can be set to 5, 10, 15, ... 100. You can

fine-tune for each setting as shown below.

- Luminance: If you set up luminance for 100 IRE, a luminance

value satisfying each gamma is automatically

calculated for each step from 10 IRE to 90 IRE.

- Red/Green/Blue: The adjustment range is -50 - +50.

Color
Management
system

Adjusts Red/Green/Blue/Cyan/Magenta/Yellow colors. Allows an

expert to adjust the tint using a test pattern. Six colors (Red/Green/

Blue/Cyan/Magenta/Yellow) can be selectively adjusted without
affecting other colors.
You may not see colors change on a normal picture even after adjustment.

- Chroma Red/Green/Blue/Yellow/Cyan/Magenta,
Tone Red/Green/Blue/Yellow/Cyan/Magenta:

The adjustment range is -30 - +30 each.

* Available options may differ depending on input signal or video mode, etc.

Picture Option

Item Description

Noise
Reduction

MPEG Noise
Reduction

Black Level Compensates the brightness and contrast of a screen to balance with

Real Cinema
TruMotion Makes the picture look smooth by compensating it.

If the video signal is 60 Hz, TruMotion may not work.

y

Removes noise in the picture.

Reduces the noise produced while creating digital video signals.

the black level of the video input.
Provides optimal picture quality for watching a movie.

Mode
Smooth The De-Judder value is set to 3.
Clear The De-Judder value is set to 6.
Clear plus The De-Judder value is set to 7.
User

You can set this function manually.

y

De-Judder: Adjusts the juddering on a screen.

SOUND Settings

CUSTOMIZING SETTINGS

59

1 Press the MENU button.
2 Use the , , or button to select SOUND

and press the OK button.

3 Use the , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press
the ꕣ button.

SOUND

• Sound Mode : Standard

• Volume Mode

• Virtual Surround : Off

• Clear Voice II : Off ꕅ 2

• AV Sync. : Off

• Sound Setting

?

The available sound settings are described as follows.

Item Description

Sound Mode Sets the sound mode.

Mode
Standard Suitable for all types of video.
Music / Cinema /

Sets audio optimized for a specific genre.

Sport / Game
Vivid Delivers distinct voices with rich bass and

clear, high-pitched sounds.

User Setting Adjusts the volume to a level of your choice

using the User EQ.

User EQ Allows you to adjust the treble and bass sound.

* It is activated when User Setting is selected in Sound Mode.

Mode
100 Hz / 300 Hz /

1 kHz / 3 kHz / 10 kHz
Reset

Sets EQ by manual adjustment of sound
bands.

Resets the equalizer value changed by the user.

Volume Mode Sets the projector volume.

Virtual

Provides realistic stereo sound.

Surround
Clear Voice II Makes the voice from the projector crisp and clear.
AV Sync.

Allows you to manually adjust picture and audio when they are not
synced.

Sound
Setting

Mic Setting

Adjusts left/right audio balance.

Allows you to connect and use a microphone.
* When using a microphone, it is normal to only hear sound from the

microphone.

* You can adjust the microphone volume using the volume key.

* The microphone function is only available for external inputs

(RGB, HDMI, AV, or Component).

︿

• User EQ

﹀

60

CUSTOMIZING SETTINGS

TIME Settings

1 Press the MENU button.
2 Use the , , or button to select TIME and

press the OK button.

3 Use the , , or button to set up the

desired item and press the OK button.

TIME

• Sleep Timer : Off

• Auto Off : 60 min.

• Automatic Standby : 4 hours

• Presentation Timer

- To return to the previous menu, press
the ꕣ button.

?

The available time settings are described as follows.

Item Description

Sleep Timer The projector is turned off at the preset time.
Auto Off If there is no signal, the projector automatically turns off after the

preset time has elapsed.

Automatic
Standby
Presentation
Timer

Turns off the projector automatically if there is no input for the
given time.

Time Alarm Displays an alarm at the specied time.

* If you set the time to 5 minutes, the time is

displayed on the screen at a 1 minute interval.
If you set the time to 10 minutes or more, the

time is displayed at a 5 minute interval. If the
remaining time is less than 5 minutes, it is

displayed at a 1 minute interval.

* You can set the time to 5, 10, ..., 60 minutes in

5-minute increments.

Time Keeper Displays the time remaining until the time specied

on the screen.

* For between 1 and 10 minutes, the time can be

set in increments of 1 minute; and for between
10 and 60 minutes, in increments of 5 minutes.

OPTION Settings

CUSTOMIZING SETTINGS

61

1 Press the MENU button.
2 Use the , , or button to select OPTION

and press the OK button.

3 Use the , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press
the ꕣ button.

OPTION

• Language

• Caption : Off

• Set ID : 1

• PJT Mode : Front

• KeyStone 1

• Blank Image : Blue

• Auto Power : Off

?

︿

- +

﹀

The available option settings are described below.

Item Description

Language Selects the desired language.
Caption If the language for the AV input is set to Korean, captions can be

turned on or off.

Set ID Sets the unique number of a projector when it is being remotely

controlled by PC.

PJT Mode Turns the projected image upside down or ips it horizontally.

Keystone Compensates for the trapezoidal image shape created when projecting

an image from an angle not perpendicular to the screen.

Blank Image Selects the background for blank image.
Auto Power Makes the projector turn on automatically when the power cord is con-

nected.

Item
On When the power cord is connected to the projector, it turns

on automatically.

Off When the power cord is connected to the projector, it goes

into standby mode.

Interactive Sets the Interactive mode. (For SA565)

Operate only in RGB/HDMI input mode.

y

Only Full Screen, 16:9 and 4:3 are available for Aspect Ratio when

y

the Interactive function is enabled.
If you enable the Interactive function when Aspect Ratio is set to

y

either Just Scan, Set By Program, Zoom or Cinema Zoom, Aspect
Ratio will be changed to Full Screen.

High
Altitude

If the projector is used at an altitude higher than 1,200 meters, turn this

option on. When High Altitude is not enabled, the projector may over­heat or its protection function may be activated. If this happens, turn
the projector off and then on again after waiting for several minutes.

62

CUSTOMIZING SETTINGS

Item Description

Monitor Out You can select one of the two RGB inputs connected as an output of

the RGB OUT port.
When Auto is selected, the current input you are watching is dis­played, among RGB1 and RGB2 inputs.

Auto Input
Search

Automatically searches for and displays the input signal type when it is

received. It is available only with external inputs (RGB, HDMI, AV, and

Component).

Balloon

Enables/disables the balloon help.

Help
Initial

Resets all projector settings to the factory default.

Setting

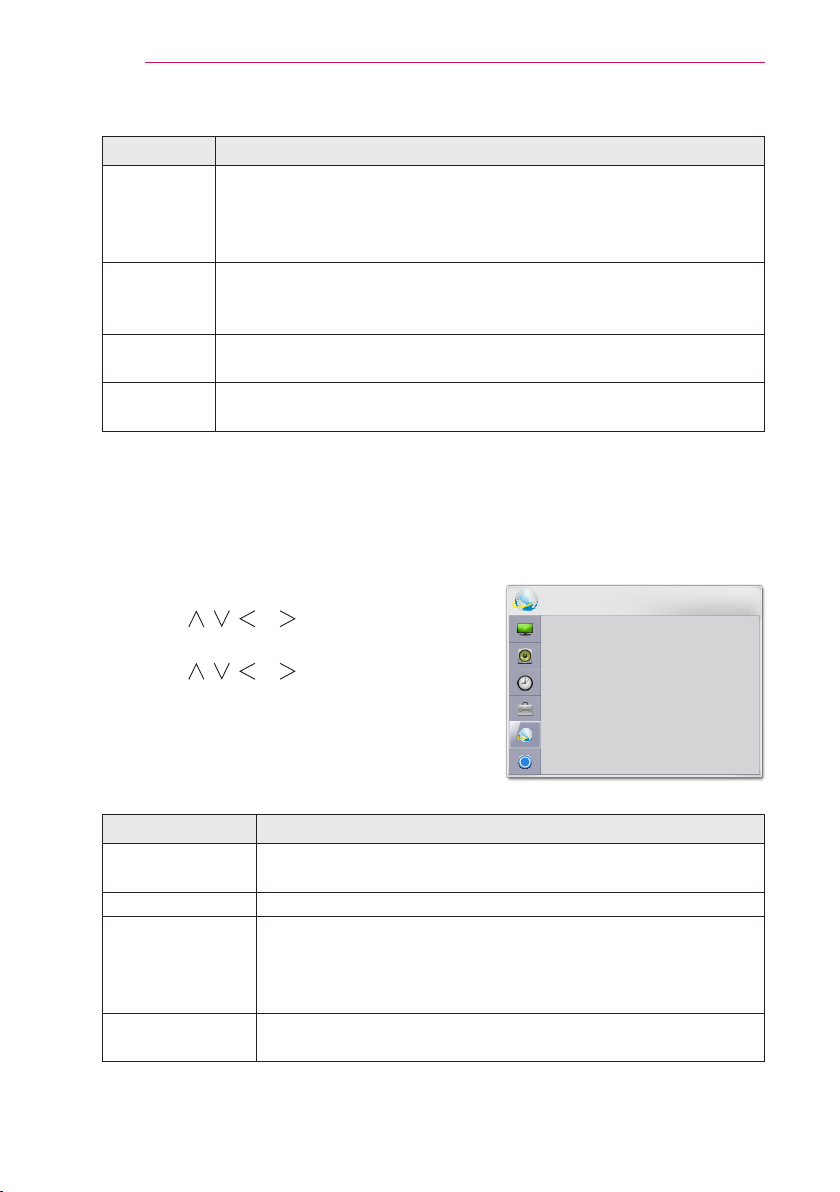

NETWORK Settings

1 Press the MENU button.
2 Use the , , or button to select

NETWORK and press the OK button.

3 Use the , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press
the ꕣ button.

NETWORK

• Network Connection

• Network Status

• Wi-Fi Direct

• Intel(R) WiDi

• Smart Share Setting

• Magical Mirroring

• eZ-Net Manager

?

The available network settings are described below.

Item Description

Network

Connects a wireless network.

Connection
Network Status Displays the connection status of the wireless network.
Wi-Fi Direct Wi-Fi Direct is a function that allows your projector to connect

with a Wi-Fi Direct device without Internet connection. With

SmartShare™, you can watch the les stored on a device

connected via Wi-Fi Direct.

Intel(R) WiDi You can view the screen of a device with Intel(R) WiDi

technologies on your projector.

CUSTOMIZING SETTINGS

Item Description

Smart Share
Setting

Changes the settings for SmartShare.

Item
Projector
Name
Share My
Projector

Changes the name that appears when searching for
the Projector from other devices.
Allows / prevents connection to the Projector from
other devices. Turns DMR (Digital Media Renderer)
connection on/off.

Auto
Play on

Accepts / rejects content transferred from other
devices.

Receive
DivX(R)
VOD

Registers or releases DivX.
Checks DivX Registration Code for playing DivX-

protected videos. Register at http://vod.divx.com.

Uses Registration Code to rent or purchase movies

at www.divx.com/vod.

Rented/purchased DivX files cannot be played if

y

the DivX Registration Code of a different device
is used. Use only the DivX Registration Code
granted to this device.
Converted files not conforming to the DivX Codec

y

Standard may not play or may produce abnormal
images and sound.

Magical Mirroring Transmits wirelessly and projects the screen of a network-

connected laptop (PC) to a projector.

eZ-Net Manager Allows you to control one or more projectors in an easier way

through a local area network.
* For more information about how to install and set the eZ-Net

Manager program, refer to the owner's manual for eZ-Net
Manager.

63

64

CUSTOMIZING SETTINGS

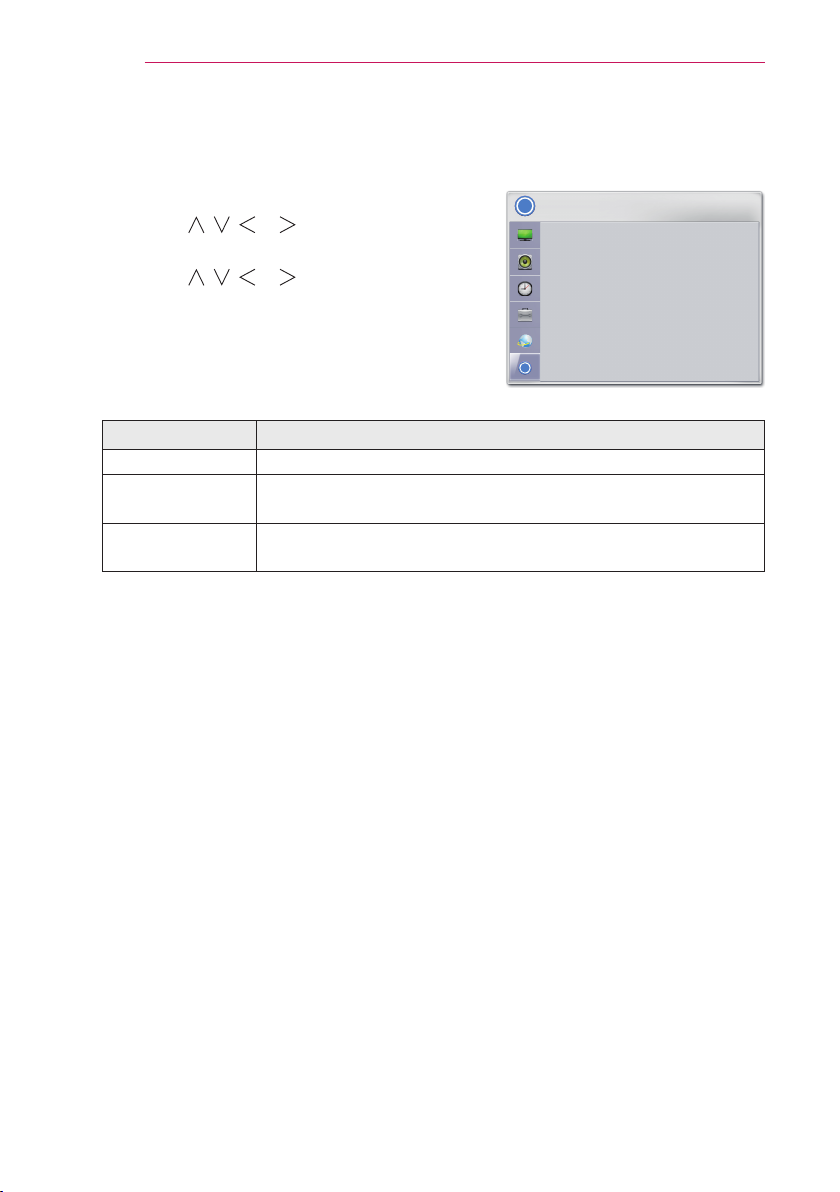

SUPPORT

1 Press the MENU button.
2 Use the , , or button to select SUP-

PORT and press the OK button.

3 Use the , , or button to set up the

desired item and press the OK button.

- To return to the previous menu, press
the ꕣ button.

The available support settings are described below.

Item Description

Software Update Updates to the latest software.
Product/Service
Info.
Self Diagnosis

Shows the product/service information.

Troubleshoots functional problems that can arise while using
the product.

SUPPORT

Ͱ

• Software Update

• Product/Service Info.

• Self Diagnosis

Ͱ

CONNECTING DEVICES

CONNECTING DEVICES

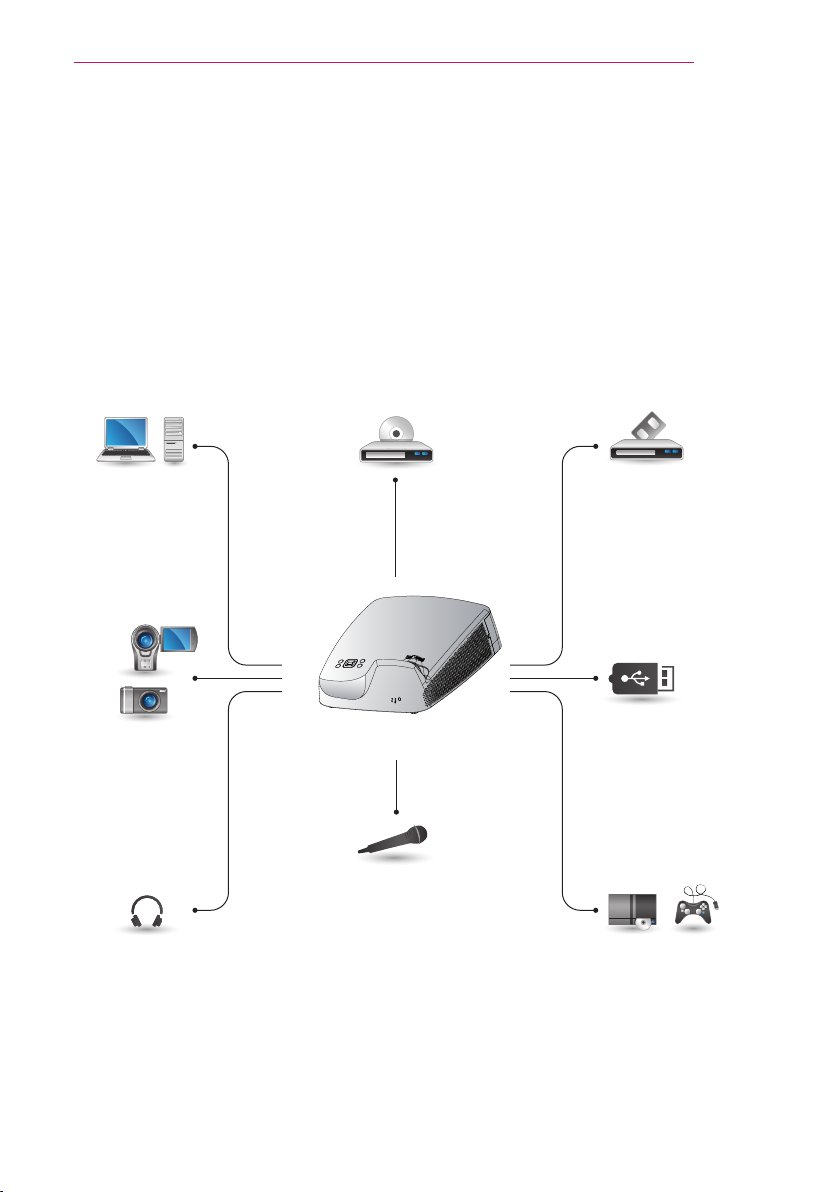

You can connect various external devices to the projector.

The ports on the back of the projector are designed for the ceiling installation, so

y

their label is printed upside down for your convenience.
The picture may be different from the actual product.

y

Computer/Notebook VideoDVD

Digital Device

USB

65

Headphones

Game Console

Microphone

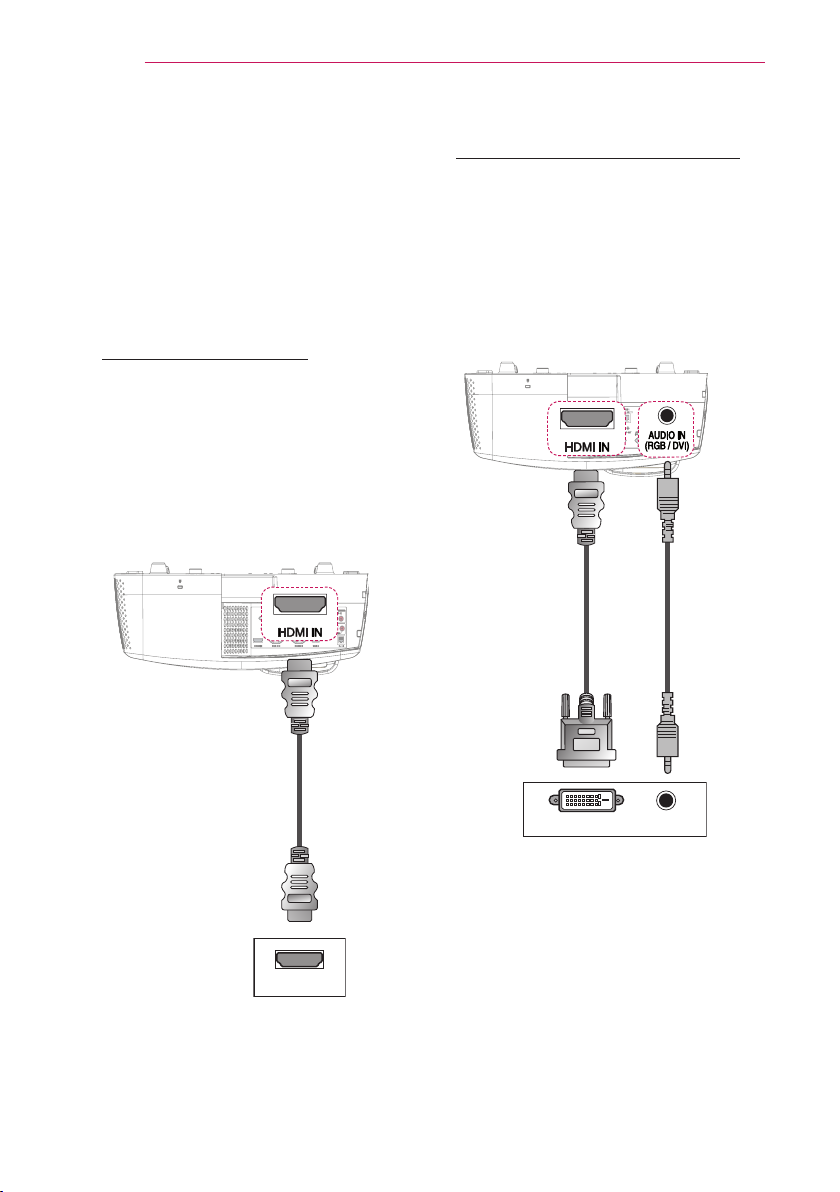

HDMI - Page 66

Component - page 69
Composite (AV) - page 69
RGB - page 67
USB Devices - page 35

Microphone - page 70
Headphones - page 70

66

CONNECTING DEVICES

Connecting to HD Receiver, DVD, or VCR Player

Connect an HD receiver, DVD, or VCR

player to the projector and select an
appropriate input mode.

HDMI Connection

With an HDMI cable, you can enjoy

high quality picture and sound

the projector's HDMI IN port to the

output port.
Press the INPUT button on the remote
control to select HDMI.

. Connect

HDMI

HDMI to DVI Connection

Using an HDMI to DVI cable,
connect the projector's HDMI IN port to

the DVI OUT port. To output audio,
use an audio cable for connection.
Press the INPUT button on the remote
control to select HDMI.

* Optional

Extras

(Video)

* Optional

Extras

(Audio)

* Optional Extras

+'0,

DVI OUT AUDIO OUT

CONNECTING DEVICES

67

PC Connection

The projector supports Plug & Play. Your

PC will automatically detect the projector
and requires no driver installation.

RGB Connection

Connect the PC output and the PC video
input port of the projector with the RGB
cable.

Connect the projector's RGB IN 1 or

RGB IN 2 port to the RGB out port.
To output the audio, connect the PC to
the projector

using an audio cable.

HDMI to DVI Connection

Using an HDMI to DVI cable,
connect the projector's HDMI IN port to

the DVI OUT port.
use an audio cable to connect the PC
to the projector.

* Optional

Extras

(Video)

To output audio,

* Optional

Extras

(Audio)

* Accessories

(Video)

AUDIO OUTRGB OUT (PC)

* Optional

Extras

(Audio)

DVI OUT AUDIO OUT

68

CONNECTING DEVICES

HDMI Connection

With an HDMI cable, you can enjoy

high quality picture and sound

the projector's HDMI IN port to the

output port.
Press the INPUT button on the remote
control to select HDMI.

* Optional Extras

. Connect

HDMI

RGB to DVI Connection

Connect the projector's RGB IN 1 or

RGB IN 2 port to the DVI OUT port.
To output the audio, connect the PC to
the projector using an audio cable.

* Optional

Extras

(Video)

* Optional

Extras

(Audio)

+'0,

DVI OUT AUDIO OUT

CONNECTING DEVICES

GREEN

RED

BLUE

RED

WHITE

YELLOW

RED

WHITE

RED

GREEN

RED

BLUE

YELLOW

GREEN

RED

BLUE

WHITE

YELLOW

GREEN

RED

BLUE

RED

WHITE

RED

BLUE

RED

WHITE

RED

RED

WHITE

RED

WHITE

RED

YELLOW

GREEN

YELLOW

GREEN

BLUE

YELLOW

GREEN

RED

BLUE

YELLOW

GREEN

RED

BLUE

WHITE

YELLOW

69

Connecting to External Devices

AV Connection

Connect the output ports of an external

device and the AV INPUT ports of the
projector. Press the INPUT button
to select the AV.

YELLOW

WHITE

RED

* Optional Extras

RED

WHITE

YELLOW

Component Connection

You can enjoy vivid images when you

connect an external device with a

component port to the COMPONENT IN
port of the projector. Press the INPUT
button on the remote control to select
Component.
The output jack Y, PB or, PR of
the DVD player may be marked as Y,
B-Y, R-Y/Y,
on the model.

Cb, Cr/Y, Pb, or Pr depending

BLUE

GREEN

* Optional

Extras

(Video)

RED

WHITE

RED

* Optional

Extras

(Audio)

$9287

/HIW 5LJKW

$8',2287

GREEN

BLUE

% 35 5LJKW

$9287

RED

WHITE

/HIW< 3

RED

$8',2287

70

CONNECTING DEVICES

Connecting to Headphones

Headphone Connection

You can listen to the audio through a
headphone.

* Optional

Extras

Connecting to a Microphone

Microphone Connection

You can connect a microphone to the
MIC IN port of the projector.

* Optional

Extras

CONNECTING DEVICES

71

Connecting to a Laptop

You can connect the projector to a
laptop to use various functions.

RGB Connection

You can connect your laptop to the
RGB IN 1 or RGB IN 2 port of the
projector.

HDMI Connection

Connect the projector's HDMI IN port to
the HDMI output port.

* Optional

Extras

* Accessories

72

CONNECTING DEVICES

The table below shows examples of

switching the output. For more infor­mation, refer to the External Output,
Connecting to an External Monitor, or
similar sections of the owner's manual of
your computer.

Brand Switching Output

NEC [Fn]+[F3]

Panasonic [Fn]+[F3]

Toshiba [Fn]+[F5]

IBM [Fn]+[F7]

Sony [Fn]+[F7]

Fujitsu [Fn]+[F10]

LG [Fn]+[F7]

Samsung [Fn]+[F4]

Macintosh Adjust the control panel

to

enable mirroring after

start-up.

INTERACTIVE FUNCTION

(For SA565 only)

INTERACTIVE FUNCTION

To Connect the Interactive Pen to the PC

73

Connect the USB A to B cable from the projector's
and a PC USB port.

Connect the interactive dongle to the projector's INTERACTIVE port.

USB 1 (INTERACTIVE/SVC)

Pairing

port

CAUTION

Up to two pens can be used at the same time.

y

Pairing is not available when one of the paired pens is in use.

y

In the Fixed Pairing mode, up to 10 pens can be paired one at a time.

y

You must install the WizTeach program in the CD provided with the accessories

y

on your PC before using the Annotation Software. The product key required to
install the WizTeach program is attached to the back of the enclosed WizTeach
software CD case. Make sure that you do not lose the product key.

If the interactive pen is not used for more than 30 seconds, it will switch to low

y

power mode. Press any button to return the pen to normal mode.
Use the remote control within the specified range (see Operating Range with

y

Interactive Pen). You may experience communication failures when using the

device outside the coverage area or if there are obstacles within the coverage area.

You may experience communication failures depending on the accessories. Devices

y

such as a microwave oven and wireless LAN operate in the same frequency band

(2.4 GHz) as the interactive pen. This may cause communication failures.

Make sure not to block the image when using the interactive pen.

y

74

INTERACTIVE FUNCTION

(For SA565 only)

Using The Interactive Pen

Interactive Pen and Button

Front

Back

❶

❷
❸

❹

Function/ Button Description

❶
❷

❸

❹
❺

❻

❼

❽

❾

Power Button Turns the interactive pen on/off.

Used for pairing.

Functions the same as a right mouse button.

Functions the same as a left mouse button.

USB charging port Charges the product using the charging cable.

Eyelet for strap Connects the strap to the interactive pen.

LED

Indicators

Firmware upgrade

port

Pen tip

Shows the battery status.

Shows the pen status.

Used to upgrade the interactive pen rmware for

maintenance.

You can write text or draw gures using the Pen tip.

❺
❻

❼

❽

❾

(For SA565 only)

Using the Interactive Pen Button

Function Description

INTERACTIVE FUNCTION

75

Left Mouse Click

Right Mouse Click

Enter Fixed mode

Enter Open mode

Wake Up

Make sure that the interactive pen is not pointing toward the screen when entering

y

each mode.

If the interactive pen is not used for more than 30 seconds and is not pointing

y

toward the screen, it will automatically enter Energy Saving mode.

The projector operates in Open mode by default, while Fixed mode is only used

y

for pairing the pen with the projector. The projector automatically returns to Open

mode from Fixed mode after 10 seconds regardless of whether the pairing is

successful or not.

Press the button or push the Pen tip.

Press the button.

Go to Interactive and set Pairing Mode to Fixed. Then,
press and hold the button more than three seconds within

ten seconds.

Press both the pen's button and button simultaneously
for 3 seconds.

Press any one of the button, button, or button.
Or, push the pen tip.

76

INTERACTIVE FUNCTION

(For SA565 only)

To Charge the Interactive Pen

To charge the battery, connect the interactive pen to the PC with the charging cable.
(Check that the PC is turned on before connection.)
The battery light stays on during charging and will turn off when charging is complete.
When charging is complete, disconnect the charging cable in order to use the pen. Alternatively,
use the interactive pen while connected by the charging cable if charging is not complete.

Warning message (low battery)

y

- When the battery voltage is 3.6 V or
lower, the low battery warning message
is displayed. The interactive pen will

work for about 10 minute after this

message is displayed.

- The interactive pen may not work
when the battery level is 3.4 V or lower.

When you use the pen for the first time,

y

charge the battery for at least 3 hours.

The fully charged battery lasts 20 hours

when it is continuously used, or four
weeks in standby mode.

WARNING

Do not replace or repair the battery yourself.

y

To charge the interactive pen, use the charging cable provided to connect the pen

y

to USB port of the PC.

INTERACTIVE FUNCTION

(For SA565 only)

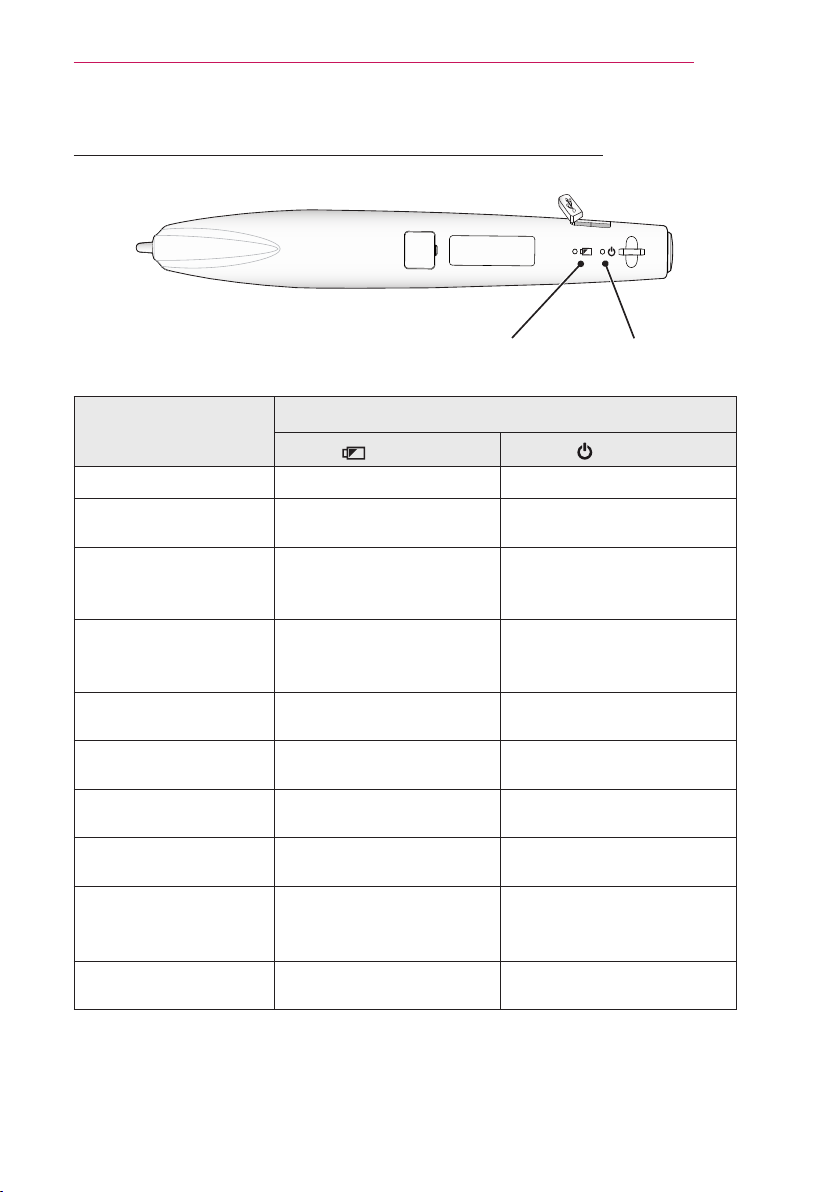

Description of LED Interactive Pen Indicators

LED 1 LED 2

77

Pen Operation

LED Indicators

(LED 1) (LED 2)

Charging battery The green light is on -

Battery charging
required
Open Mode

- Searching a projector
to connect

Fixed Mode

- Searching a projector
to connect

Attempting to pair -

Enter Open mode, or
pairing is complete

Pairing failed -

The pen is connected to
the projector

When the pen is pointing
the projector screen

Entering low power
mode

The red LED ashes once

every four seconds.

-

-

-

-

-

The red light has ashed

once.

The green light quickly

ashes twice per second.

The green light ashes
twice at xed intervals every

second.

The green light ashes very

quickly.

The green light slowly ashes

three times.

The red light slowly ashes
ve times.
The green light ashes every

three seconds.

The red light is on or ashing

quickly.

The red light has ashed

once.

-

LED 1 relates to the battery for the interactive pen and LED 2 relates to the operation status

y

of the interactive pen.

78

INTERACTIVE FUNCTION

(For SA565 only)

To Replace the Pen tip

When the pen tip is worn out, replace it as shown in the gure below.

Open Close

Turn the pen tip to the right to
remove it from the interactive
pen, as shown in the figure
below.

Turn the pen tip to the left to
install it onto the interactive
pen, as shown in the figure
below.

How to Use the Strap

Use the strap to prevent dropping the interactive pen. Use the pen safely so as not to cause
injury or damage to nearby objects.

CAUTION

Be sure to wear the strap on your wrist when using the interactive pen.

y

Store the interactive pen in the hard case.

y

To Clean Interactive Pen

If the lens of the interactive pen does not work properly, clean it as shown in the picture below.

CAUTION

If there are foreign objects or dust on the lens at the tip of the interactive pen,

y

gently wipe with a cotton swab.
Foreign objects or dust on the lens surface may cause malfunction of the

y

interactive pen.

INTERACTIVE FUNCTION

(For SA565 only)

Operating Range with Interactive Pen

It is designed to work on the screen with the size of 1778 mm - 2540 mm.

y

You can use two Interactive pens at the same time.

y

Actual operating range may slightly differ from the diagram.

y

If the projector screen darkens due to the surrounding environment, the operating

y

range of the interactive pen may be affected.

The screen's gain rate is in the range of 1 to 1.5.

y

Operating range

Angle Distance

0 ° 9 m

20 ° 7 m

Angle

Distance

45 ° 5 m

79

Angle

Screen

Distance

80

Ͱ

INTERACTIVE FUNCTION

(For SA565 only)

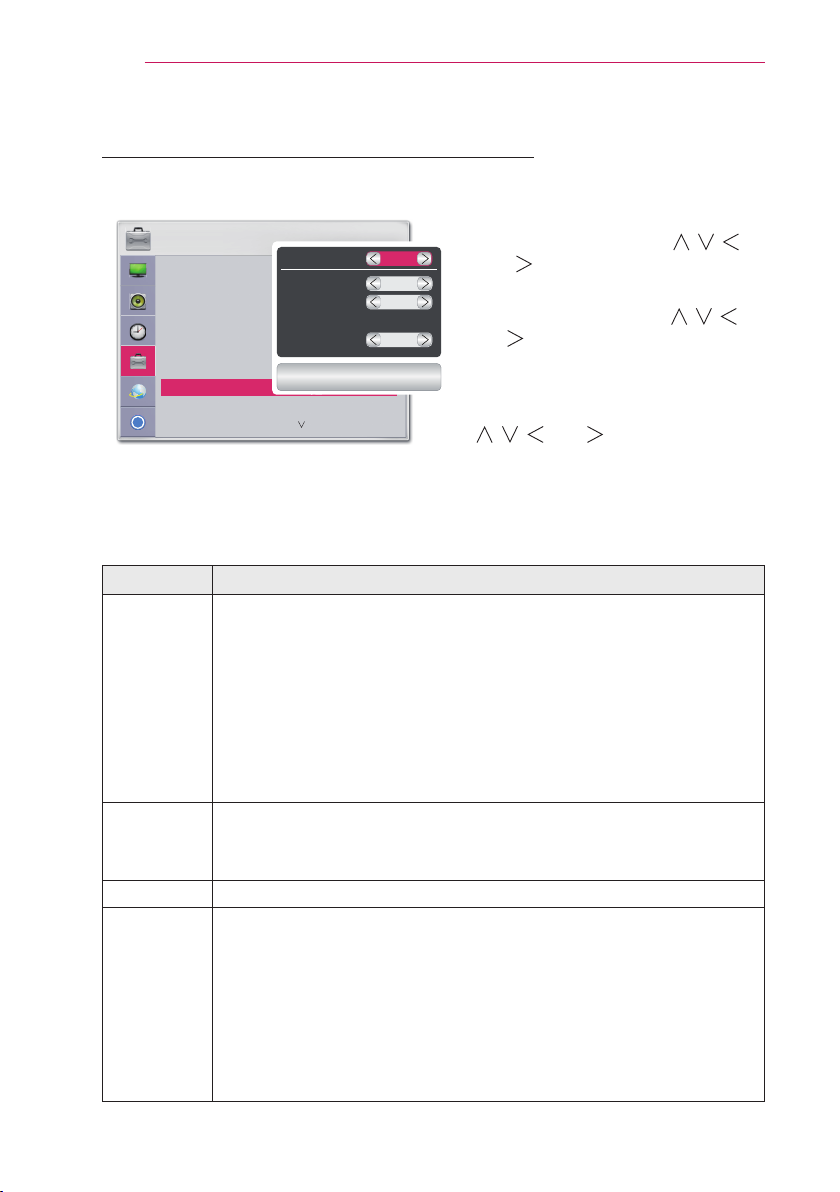

To Use the Interactive Pen Functions

Make sure that the Computer/Laptop screen is displayed on the projector screen.

y

1 Press the MENU button.

OPTION

• Caption

• Set ID

• PJT mode

• KeyStone

• Blank Image

• Auto Power

• Interactive

Interactive

Channel

• Set Channel

Pen Setting

• Pairing Mode

Close

Single Pen

Auto

0

Open

2 Select OPTION using the

, and

buttons, and press the OK

, ,

button.

3

Select Interactive using the , , ,
and buttons, and press the OK button.

- To return to the previous screen,
press the ꕣ button.

4 Select which item you want using the

, ,

, and

buttons, and press

the OK button.

- After the settings have been
changed, press the Close button to
close the window.

The interactive function settings are as follows:

Item Description

Interactive

channel

Set Channel A maximum of 29 channels (0 - 28) are available.

Pairing
Mode

There are four function modes: Off, Single, Double Pen, or Multi Touch.

Off: Disables the interactive pen function.

y

Single Pen: Use one interactive pen.

y

Double Pen: Use two interactive pens at the same time.

y

(It is recommended to install the

WizTeach program

provided on your PC prior to use.)

Multi Touch:

y

Use the Multi Touch function with two interactive pens.
The Multi Touch function does not work on any PC,
operating system or program that does not support it.

You can select a channel in Auto or Manual mode.

Auto: A channel is automatically selected.

y

Manual: Select a channel manually.

y

Set the Pairing mode to either Open or Fixed.

Open: Follow the on-screen instructions to set the interactive pen to

y

Open mode.(While the interactive pen is pointing at a screen,
the pen can be used with any projector.)

Fixed: Follow the on-screen instructions to set the interactive pen to

y

Fixed mode.

(The interactive pen can be used only with a

paired projector.)

- Up to 10 pens can be paired to one projector.

INTERACTIVE FUNCTION

(For SA565 only)

Troubleshooting the Interactive Pen Function

Problem Troubleshooting

Check that the interactive pen function is turned on.
Check that the interactive dongle is connected to the

I can't use or connect
the interactive pen.

The interactive pen
does not work from
time to time.
The projector screen
looks abnormal when
the interactive pen
function is enabled.
The interactive pen is
showing in a different
position.

The interactive pen does
not work smoothly.

The LED is not
working.
The red LED indicating
low battery level

ashes once every four

seconds.

projector.
Press the interactive pen's power button to check that the

power is turned on.
Check that the Interactive pen is paired.
Make sure that the computer screen is displayed on the
projector screen.

Connect the interactive USB cable to another USB port
and try to use the interactive pen again.

Check that the projector and computer are connected
properly.

Make sure that the computer screen is displayed on the
projector screen.

Check whether the projector is too far away from the
computer or if there are too many obstacles between them.
Check whether too many applications are running on the
PC.(It is not recommended to run other applications while
running the interactive program (WizTeach software).)

Check whether the battery is dead.

The battery is low.
Charge the interactive pen.

81

82

(TV)

SERIAL COMMUNICATION FUNCTION

SERIAL COMMUNICATION FUNCTION

Using Serial Communication

If the projector is connected to a PC through an RS-232C cable, you can use the
PC to control functions of the projector such as power On/Off or input selection, etc.
It cannot be used with the eZ-Net Manager concurrently. For serial communication,
use RJ45 Off in the eZ-Net Manager.
This function may not be available for a particular menu or input mode.

Establishing Serial Communication

Connect the RS-232C (serial connector) of the PC to the RS-232C connector at the
back of the projector.
You need to purchase a cable to connect the RS-232C connectors as it is not pro­vided as an accessory.

PC Projector

* A RS-232C cable is necessary for the remote control of the projector (see Figure 1).

[Figure 1] RS-232 Connection Diagram

RXD

2

TXD

3

DTR

4

GND

5

DSR

6

RTS

7

CTS

8

PC

* There is no connection to Pin 1 and Pin 9.

2

3

4

5

6

7

8

Projector

RXD

TXD

DTR

GND

DSR

RTS

CTS

9 6

15

SERIAL COMMUNICATION FUNCTION

Communication Parameter Setup

y Baud Rate: 9600 bps (UART) y Stop bit: 1 bit

y Data Length: 8 bits y Flow Control: none
y Parity: none y Communication code

: ASCII code

Communication Protocol

Transmission

[Command1] [Command2] [ ] [Set ID] [ ] [Data] [Cr]

[Command1]: The first command to control the projector (k. j, x, m, n ASCII code, 1 Character)
[Command2]: The second command to control the projector (ASCII code, 1 character)
[Set ID]: You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment

range is 1 to 99. When selecting Set ID ‘00’, every connected set is controlled. Set ID is
indicated as decimal (1 to 99) on menu and as Hexa decimal (0x01 to 0x63) on transmission/

receiving protocol.

[Data]: To transmit command data (hexadecimal).

Transmit FF data to read status of command.

[Cr]: Carriage Return - It corresponds to ASCII code ‘0x0D’.
[ ]: ASCII code ‘space (0x20)

83

OK Acknowledgement

[Command2] [ ] [Set ID] [ ] [OK] [Data] [x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this

time, if the data is data read mode, it indicates present status data. If the data is data write mode, it
returns the data of the PC computer.

84

SERIAL COMMUNICATION FUNCTION

Error Acknowledgement

[Command2] [ ] [Set ID] [ ] [NG] [Data] [x]

* If a set receives an abnormal piece of data such as a non-supported function or there is a

communication error, it returns ACK in the above format.

Data [00] : illegal code (This command is not supported.)

Data Structure

10 16

0 00

1 01

2 02

3 03

4 04

5 05

6 06

7 07

8 08

9 09

10 0A

10 16 10 16 10 16 10 16 10 16 10 16 10 16 10 16 10 16

11 0B 21 15 31 1F 41 29 51 33 61 3D 71 47 81 51 91 5B

12 0C 22 16 32 20 42 2A 52 34 62 3E 72 48 82 52 92 5C

13 0D 23 17 33 21 43 2B 53 35 63 3F 73 49 83 53 93 5D

14 0E 24 18 34 22 44 2C 54 36 64 40 74 4A 84 54 94 5E

15 0F 25 19 35 23 45 2D 55 37 65 41 75 4B 85 55 95 5F

16 10 26 1A 36 24 46 2E 56 38 66 42 76 4C 86 56 96 60

17 11 27 1B 37 25 47 2F 57 39 67 43 77 4D 87 57 97 61

18 12 28 1C 38 26 48 30 58 3A 68 44 78 4E 88 58 98 62

19 13 29 1D 39 27 49 31 59 3B 69 45 79 4F 89 59 99 63

20 14 30 1E 40 28 50 32 60 3C 70 46 80 50 90 5A 100 64

SERIAL COMMUNICATION FUNCTION

Command Reference List

Command 1 Command 2 Data (Hexadecimal)

01. Power

02. Aspect Ratio

03. Blank Image

04. Contrast

05. Brightness

06. Color

07. Tint

08. Sharpness

09. OSD Select

10.

Key Lock

11. Color Temperature

12. Black Level

13. Energy Saving

14. Auto Cong.

15. Input Select

16. Key

17. Picture Mode

18. Mute

19. Volume

20. Monitor Out

k a 00 - 01

k c *

k d 00 - 01

k g 00 - 64

k h 00 - 64

k i 00 - 64

k j 00 - 64

k k 00 - 32

k l 00 - 01

k m 00 - 01

k u 00 - 04 (excluding 03)

n m 00 - 01

n p 00 - 02

j u 01

x b *

m c Key Code

n s 00 - 08(excluding 02, 04)

k e 00 - 01

k f 00 - 64

n r 00 - 02

85

For more information about the data (*), refer to next page.

y

When playing a video or photo file stored on a storage media (USB flash drive or HDD,

y

etc.) that is connected through USB, all commands are disabled, other than Power (ka),

Key (mc) and Blank Image (kd). If a command cannot be used in a specific menu or

input state, it is processed as NG.

86

SERIAL COMMUNICATION FUNCTION

01. Power (Command: ka)

► Powers the set on/off.

Transmission [k][a][][Set ID][][Data][Cr]

Data 00:

Ack [a][][Set ID][][OK][Data][x]

Data 00:

► Shows the power on status.

(Only working when the projector is turned on)

Transmission [k][a][][Set ID][][FF][Cr]

Ack [a][][Set ID][][OK][Data][x]

Data 01:

* As with other functions, if data is transmitted as

0xFF in the above
each function is returned as a feedback
data.

Power Off

Power On

01 :

Power Off

Power On

01:

Power On

format, the current status of

in Ack

02. Aspect Ratio (Command: kc)

► Adjusts the aspect ratio.

Transmission[k][c][][Set ID][][Data][Cr]

Data

01: 4:3 02: 16:9

Zoom

04:

Full

08:

10 to 1F:

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

Data

01: 4:3 02: 16:9

04:

08:

10 to 1F:

Cinema Zoom 1 - 16

Zoom

Full

Cinema Zoom 1 - 16

Set By Program

06:

Just Scan

09:

Set By Program

06:

Just Scan

09:

03. Blank Image (Command: kd)

► Enables/disables the blank image.

Transmission [k][d][][Set ID][Data][Cr]

Data 00:
01:

Data 00:
01:

Screen Mute Off (picture on)
Screen Mute On (picture off)

Ack [d][][Set ID][][OK][Data][x]

Screen Mute Off (picture on)
Screen Mute On (picture off)

04. Contrast (Command: kg)

► Adjusts the contrast.

Disabled when the Black Mode is selected.

Transmission [k][g][][Set ID][][Data][Cr]

Data Min: 0H - Max: 64H

(* Transmitted in hexadecimal code)

* See the data structure.

Ack [g][][Set ID][][OK][Data][x]

Data Min: 0H - Max: 64H

05. Brightness (Command: kh)

► Adjusts the brightness.

Disabled when the Black mode is selected.

Transmission [k][h][][Set ID][][Data][Cr]

Data Min: 0H - Max: 64H

(* Transmitted in hexadecimal code)

* See the data structure.

Ack [h][] [Set ID][][OK][Data][x]

Data Min: 0H - Max: 64H

SERIAL COMMUNICATION FUNCTION

87

06. Color (Command: ki)

► Adjusts the color.

Disabled when the Black mode is selected.

Transmission [k][i][][Set ID][][Data][Cr]

Data Min: 0H - Max: 64H

(* Transmitted in hexadecimal code)

* See the data structure.

Ack [i][][Set ID][][OK][Data][x]

Data Min: 0H - Max: 64H

07. Tint (Command: kj)

► Adjusts the tint.

Disabled when the Black mode is selected.

Transmission [k][j][][Set ID][][Data]

Data Red: 0H - Green: 64H

(* Transmitted in hexadecimal code)

* See the data structure.

Ack [j][][Set ID][][OK][Data][x]

Data Red: 0H - Green: 64H

08. Sharpness (Command: kk)

► Adjusts the sharpness.

Disabled when the Black mode is selected.

Transmission [k][k][][Set ID][][Data][Cr]

Data Min: 0H - Max: 32H

(* Transmitted in hexadecimal code)

* See the data structure.

Ack [k][][Set ID][][OK][Data][x]

Data Min: 0H - Max: 32H

[Cr]

09. OSD Select (Command: kl)

► Selects OSD On/Off.

Transmission [k][l][][Set ID][][Data][Cr]

Data 00:

Ack [l][][Set ID][][OK][Data][x]

Data 00:

OSD selection mode off

OSD selection mode on

01:

OSD selection mode off

OSD selection mode on

01:

10. Key Lock (Command: km)

► To Set the function of locking the remote con-

trol and front panel control on the projector.

Transmission [k][m][][Set ID][][Data][Cr]

Data 00:

Data 00:

* This function is congured when the keys on the

remote control or control panel are not used. If
the unit is fully discharged after its power plug is

pulled out of a wall outlet, the LOCK function is

cleared.

* If the unit is in the key lock standby mode, the

projector will not respond to the power button on
the remote control or control panel.

Lock Off

Ack [m][] [Set ID][][OK][Data][x]

Lock Off

01:

01:

Lock On

Lock On

11. Color Temperature (Command: ku)

► Adjusts the color temperature.

Disabled when the Black mode is selected.

Transmission [k][u][][Set ID][][Data][Cr]

Data 00:

* Data 03 is not used.

Data 00:

Medium
Warm

02:

(* Transmitted in hexadecimal code)

Ack [u][][Set ID][][OK][Data][x]

Medium
Warm

02:

01:
04:

01:
04:

Cool
Natural

Cool
Natural

88

SERIAL COMMUNICATION FUNCTION

12. Black Level (Command: nm)

► Adjusts the black level.

Disabled when the Black mode is selected.

Transmission [n][m][][Set ID][][Data][Cr]

Data 00:

Data 00:

Low

01:

(* Transmitted in hexadecimal code)

Ack [m][][Set ID][][OK][Data][x]

Low

01:

High

High

13. Energy Saving (Command: np)

► Sets the energy saving mode.

Transmission [n][p][][Set ID][][Data][Cr]

Data

Data

Minimum

00:

Maximum

02:

(* Transmitted in hexadecimal code)

Ack [p][] [Set ID][][OK][Data][x]

Minimum

00:

Maximum

02:

01:

01:

Medium

Medium

14. Auto Cong. (Command: ju)

►

Optimizes the screen automatically in PC
input mode.

Transmission [j][u][][Set ID][][Data][Cr]

Data 01:

To set

(* Transmitted in hexadecimal code)

Ack [u][] [Set ID][][OK][Data][x]

15. Input Select (Command: xb)

► Select the input signal of the set.

Transmission [x][b][][Set ID][][Data][Cr]

Data

AV

20:
60: RGB 1 61: RGB 2
90: HDMI

(* Transmitted in hexadecimal code)

Ack [b][] [Set ID][][OK][Data][x]

Data

AV

20:
60: RGB 1 61: RGB 2
90: HDMI A0: HDMI-PC

Component

40:

Component

40:

16. Key (Command: mc)

► Sends a key code of the IR remote control.

Transmission [m][c][][Set ID][][Data][Cr]

Data Key Code: see page 90 .

(* Transmitted in hexadecimal code)

Ack [c][] [Set ID][][OK][Data][x]

Data 01:

To set

SERIAL COMMUNICATION FUNCTION

89

17. Picture Mode (Command: ns)

► Sets the

Data

00:
03:
06:
08:

Data

00:
03:
06:
08:

picture mode.

Transmission [n][s][][Set ID][][Data][Cr]

Vivid
Cinema
Black Mode

Expert 2

(* Transmitted in hexadecimal code)

Ack [s][] [Set ID][][OK][Data][x]

Vivid
Cinema
Black Mode

Expert 2

(* Transmitted in hexadecimal code)

01:
05:
07:

01:
05:
07:

Standard
Game

Expert

Standard
Game

Expert

18. Mute (Command: ke)

► Enables/disables the mute function.

Transmission [k][e][][Set ID][][Data][Cr]

Data

Mute On (Volume Off)

00:

Mute Off (Volume On)

01:

Ack [e][] [Set ID][][OK][Data][x]

20. Monitor Out (Command: nr)

► Select either RGB1 or RGB2 input as an output

of the RGB OUT port.

Transmission [n][r][][Set ID][][Data][Cr]

Data

00: RGB 1 01: RGB 2

Auto

1

1

02:

Ack [r][] [Set ID][][OK][Data][x]

Data

00: RGB 1 01: RGB 2

Auto

02:

Data

Mute On (Volume Off)

00:

Mute Off (Volume On)

01:

19. Volume (Command: kf)

► Adjusts the volume.

Transmission [k][f][][Set ID][][Data][Cr]

Data Min: 0H to Max: 64

(* Transmitted in hexadecimal code)

* See the data structure.

Ack [f][] [Set ID][][OK][Data][x]

Data Min: 0H(Vol 0) to Max: 64H(Vol 100)

H

90

SERIAL COMMUNICATION FUNCTION

Key Code

Key Name Key Code Key Name Key Code

∧

∨

>

<

POWER 0x08 HELP 0x81

INPUT

MENU 0x43

(BACK)

OK 0x44 1

ENERGY SAVING 0x95 2

RATIO 0x79 3

BLANK 0x84 4 0x14

PICTURE 0x4D 5

AUTO

Q.MENU

SLEEP

AV MODE 0x30 9

VOL + 0x02

VOL - 0x03

Red 0x72

Green 0x71

Yellow 0x63

Blue

KEY.S ▲

0x40 KEY.S ▼

0x41

0x06 USB

0x07 MUTE

0xEF

0x28 0

0x92

0x45

0x0E

0x61 0xB1

0xA4 0xBA

MIC 0xE4

STILL 0xBC

ꕯ

EXIT

6

7

8

∧

PAGE

∨

PAGE

0xA5

0x7C

0x09

0x5B

0x10

0x11

0x12

0x13

0x15

0x16

0x17

0x18

0x19

0x00

0x01

0x8E

0x8F

0xB0

MAINTENANCE

Clean your projector to keep it in optimal
condition.

Cleaning

Cleaning the Lens

If there is any dust or staining on the
lens surface, you must clean the lens.
Use an air spray or a cleaning cloth to
clean the lens.
To remove dust or stains, use an air
spray or apply a small amount of clean­ing agent onto a swab or soft cloth to
lightly rub the lens.

Please be aware that liquid may ow

into the lens if the product is sprayed
directly onto the lens.

MAINTENANCE

91

Cleaning the projector case

To clean the projector case, rst unplug

the power cord.
To remove dust or stains, use only a dry,
lint-free, nonabrasive cloth to polish the
lens.
Do not use alcohol, benzene, thinners,
or other chemicals, which may damage
the case.

92

MAINTENANCE

Updating Software

When software update is required, run the software update to obtain the latest
software version.
You can manually check for and download any software updates.

1 Press the MENU button.
2 Select SUPPORT and go to Software Update.

Item Description

Software Update Enable this option.

When an update file is found, it is downloaded
automatically.
When the update file is finished downloading, a software
update window appears.

Check Update
Version

The update service to get the latest version is provided through an Internet connection.

y

If the software is not updated, some functions may not work well.

y

If an update file of a higher version exists after checking

the latest update version, you can proceed with the
update manually.

WIRELESS SPECIFICATIONS

WIRELESS SPECIFICATIONS

Wireless Specications of the Interactive
Dongle/Pen

(For SA565 only)

The interactive pen communicates with the interactive a projector's interactive dongle.

y

Frequency Range 2400 MHz - 2483.5 MHz

Modulation MSK

Transmission power 0 dBm

Receive sensitivity -82 dBm

Data Rate 500 kbps

93

94

SPECIFICATIONS

SPECIFICATIONS

Model

Resolution (Pixel) 1280 (Horizontal) × 800 (Vertical)

Aspect ratio 16:10 (Horizontal:Vertical)

Panel size (mm) 16.51

Projection distance

(Video size)

Ratio of upward

projection

Audio output 7 W + 7 W

Reception type

Height (mm) 147.5 (without foot), 162 (with foot)

Width (mm) 468.0

Depth (mm) 415.0

Weight (kg) 8.5

Headphone, ear-

phone

USB Device 5 V, 0.5 A (Max.)

POWER AC 100 V ~ 240 V, 50 Hz/ 60 Hz

Standby power ≤ 0.5 W

Temperature

Operation 0 °C to 40 °C

Operation environ-

ment

Storage -20 °C to 60 °C

Relative humidity

Operation 0 % - 80 %

Storage 0 % - 85 %

0.452 m - 0.711 m (177.8 cm - 279.4 cm)

Impedance: 16 Ω / Output power: 10 mW /

SA560 (SA560-JP) /

SA565 (SA565-JP)

128 %

NTSC, PAL-B, D, G, H, I,

PAL M, PAL N, PAL 60, SECAM

Jack thickness: 3.5 mm

* Contents in this manual may be changed without prior notice due to upgrade of

product functions.

SPECIFICATIONS

95

Supported Monitor Display

Horizontal

Resolution

720 x 400 31.469 70.08

640 x 480 31.469 59.94

800 x 600 37.879 60.31

1024 x 768 48.363 60.00

1152 x 864 54.348 60.053

1280 x 800 49.68 60

1280 x 1024 63.981 60.020

1400 x 1050 65.317 59.979

1680 x 1050 65.3 60

If an invalid signal is input into the

y

Frequency

(kHz)

projector, it will not be displayed prop­erly on the screen or a message such
as No Signal or Invalid
displayed.

The projector supports the DDC1/2B type

y

as the Plug & Play function (Auto-recogni­tion of PC monitor).
PC sync signals supported: Separate

y

Sync.

In PC mode, 1280 x 800 is recommended

y

for the best picture quality.

The 1400 x 1050 resolution

y

be supported depending on the PC
type.

Vertical

Frequency

(Hz)

Mode will be

may not

Component Port Connection

Signal

480i / 576i

480p / 576p o

720p / 1080i o

1080p o

Component

o

HDMI/DVI-DTV mode supported

Horizontal

Resolution

480p

576p 31.25 50

720P

1080i

1080p

Frequency

(kHz)

31.5 60

31.469 59.94

37.5 50

44.96 59.94

45 60

28.125 50

33.716 59.94

33.75 60

56.25 50

67.432 59.94

67.5 60

67.432 59.939
27 24

26.97 23.976

28.125 25

33.75 30

33.71 29.97

Vertical

Frequency

(Hz)

Open Source Software Information

To obtain the source code under GPL,
LGPL, MPL and other open source
licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all
referred license terms, warranty
disclaimers and copyright notices are
available for download.
LG Electronics will also provide open
source code to you on CD-ROM for a
charge covering the cost of perform­ing such distribution (such as the
cost of media, shipping and handling)

upon email request to opensource@

lge.com. This offer is valid for three
(3) years from the date on which you
purchased the product.

The model and serial number of the projec­tor are located on the back or on the side
of the projector. Record them below should
you ever need service.

MODEL

SERIAL
