LG S09AN User Manual

LG Room
Air Conditioner

OWNER'S MANUAL

LG

MODELS:S07A_Series

S09A_Series
S12A_Series
S18A_Series
S24A_Series

IMPORTANT

• Please read this owner's manual carefully and thoroughly
before installing and operating your room air conditioner.

• Please retain this owner's manual for future reference after
reading it thoroughly.

Prior to installation, this air­conditioning unit must be
submitted for approval by the utility
service which provides electricity
(EN 61000-2, EN 61000-3 Norm).

website http://www.lgservice.com

ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH GREEK

2 Room Air Conditioner

Room Air Conditioner Owner’s Manual

TABLE OF CONTENTS

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■ Staple your receipt to this page in the event you need
it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use
and maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your air conditioner.

You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call
for service at all.

PRECAUTION

• Contact the authorized service technician for

repair or maintenance of this unit.

• Contact the installer for installation of this unit.

• The air conditioner is not intended for use by

young children or invalids without supervision.

• Young children should be supervised to ensure

that they do not play with the air conditioner.

• When the power cord is to be replaced,

replacement work shall be performed by
authorized personnel only using only genuine
replacement parts.

• Installation work must be performed in

accordance with the National Electric Code by
qualified and authorized personnel only.

Safety Precautions.........................3

Prior to Operation ..........................6

Introduction ....................................7

Operating Instructions...................8

Maintenance and Service ............22

Owner's Manual 3

Safety Precautions

ENGLISH

Safety Precautions

To prevent the injury of the user or other people and property damage, the following instructions must be
followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified
by the following indications.

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to properties only.

■ The meanings of the symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

■ Installation

Ensure that an installation
frame of the outdoor unit is
not damaged due to use for
a long time.

• It may cause injury or an

accident.

Do not disassemble or
repair the product
randomly.

• It will cause a fire or electrical
shock.

Do not install the product at
a place that ther is concern
of falling down.

• Otherwise, it may result in
personal injury.

Use caution when
unpacking and installing.

• Sharp edges may cause injury.

Always perform grounding.

• Otherwise, it may cause
electrical shock.

Don’t use a power cord, a
plug or a loose socket
which is damaged.

• Otherwise, it may cause a fire
or electrical shock.

For installation of the product,
always contact the service
center or a professional
installation agency.

• Otherwise, it may cause a fire,
electrical shock, explosion or
injury.

Securely attach the
electrical part cover to the
indoor unit and the service
panel to the outdoor unit.

• If the electrical part cover of the
indoor unit and the service
panel of the outdoor unit are not
attached securely, it could result
in a fire or electric shock due to
dust, water, etc.

Always install an air leakage
breaker and a dedicated
switching board.

• No installation may cause a fire
and electrical shock.

Do not keep or use
flammable gases or
combustibles near the air
conditioner.

• Otherwise, it may cause a fire
or the failure of product.

4 Room Air Conditioner

Safety Precautions

Do not share the outlet with
other appliances.

• It will cause an electric shock or
a fire due to heat generation.

Do not use the damaged
power cord.

• Otherwise, it may cause a fire
or electrical shock.

Do not modify or extend the
power cord randomly.

• Otherwise, it may cause a fire
or electrical shock.

Take care so that the power
cord may not be pulled
during operation.

• Otherwise, it may cause a fire
or electrical shock.

Unplug the unit if strange
sounds, smell, or smoke
comes from it.

• Otherwise, it may cause
electrical shock or a fire.

Keep the flames away.

• Otherwise, it may cause a fire.

Take the power plug out if
necessary, holding the head
of the plug and do not touch
it with wet hands.

• Otherwise, it may cause a fire
or electrical shock.

Do not use the power cord
near the heating tools.

• Otherwise, it may cause a fire
and electrical shock.

Do not open the suction
inlet of the indoor/outdoor
unit during operation.

• Otherwise, it may electrical
shock and failure.

Do not allow water to run
into electrical parts.

• Otherwise, it may cause the
failure of machine or electrical
shock.

Hold the plug by the head
when taking it out.

• It may cause electric shock and
damage.

Never touch the metal parts
of the unit when removing
the filter.

• They are sharp and may cause
injury.

Ventilate the room well
when using this appliance
together with a stove, etc.

• An oxygen shortage may occur.

When cleaning the unit, first
make sure the power and
breaker are turned off.

• Otherwise, it may cause
electrical shock.

Turn off the main power
switch when not using the
product for a long time.

• Otherwise, it may cause the
failure of product or a fire.

Do not step on the
indoor/outdoor unit and do
not put anything on it.

• It may cause an injury through
dropping of the unit or falling
down.

Do not place a heavy object
on the power cord.

• Otherwise, it may cause a fire
or electrical shock.

When the product is
submerged into water, always
contact the service center.

• Otherwise, it may cause a fire
or electrical shock.

Take care so that children
may not step on the outdoor
unit.

• Otherwise, children may be
seriously injured due to falling
down.

■ Operation

Owner's Manual 5

Safety Precautions

ENGLISH

Do not insert the hands or bars through the
air inlet or outlet during operation.

• Otherwise, it may cause personal injury.

Do not drink water coming out of the air
conditioner.

• Otherwise, it may cause stomachache.

Avoid excessive cooling and perform
ventilation sometimes.

• Otherwise, it may do harm to your health.

Use a soft cloth to clean. Do not use wax,
thinner, or a strong detergent.

• The appearance of the air conditioner may
deteriorate, change color, or develop surface
flaws.

When gas leaks, open the window for
ventilation before operating the unit.

• Otherwise, it may cause explosion, and a fire.

Do not use an appliance for special
purposes such as preserving animals
vegetables, precision machine, or art
articles.

• Otherwise, it may damage your properties.

Do not place obstacles around the flow inlet
or outlet.

• Otherwise, it may cause the failure of appliance or
an accident.

Always insert the filter securely. Clean it
every two weeks.

• Operation without the filter will cause failure.

Install the drain hose to ensure that drain
can be securely done.

• Otherwise, it may cause water leakage.

Install the product so that the noise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.

• Otherwise, it may cause dispute with the
neighbors.

Always inspect gas leakage after the
installation and repair of product.

• Otherwise, it may cause the failure of product.

Keep level parallel in installing the product.

• Otherwise, it may cause vibration or water
leakage.

■ Installation

■ Operation

6 Room Air Conditioner

Prior to Operation

Prior to Operation

1. Contact an installation specialist for installation.

2. Plug in the power plug properly.

3. Use a dedicated circuit.

4. Do not use an extension cord.

5. Do not start/stop operation by plugging/unplugging the power cord.

6. If the cord/plug is damaged, replace it with only an authorized replacement part.

1. Being exposed to direct airflow for a long time may be hazardous to your health. Do not expose
occupants, pets, or plants to direct airflow for a long time.

2. Due to the possibility of oxygen deficiency, ventilate the room when using the appliance together with
stoves or other heating devices.

3. Do not use this air conditioner for non-specified special purpose (e.g. preserving precision devices,
food, pets, plants, or art objects). Such use may damage your properties.

1. Do not touch the metal parts of the unit when removing the filter. Injury can occur.

2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation,
leading to electric shock.

3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a
very high speed during operation. There is a possibility of injury if the unit’s power is triggered while
cleaning inner parts of the unit.

For repair and maintenance, contact your authorized service dealer.

Preparing for Operation

Usage

Cleaning and Maintenance

Service

ENGLISH

Owner's Manual 7

Introduction

Introduction

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that may cause harm to the
air conditioner.

This symbol indicates special notes.

NOTICE

Features

Symbols used in this Manual

Air Intake Vents

Air Outlet Vents

Air Intake Vents

Air Outlet Vents

Connecting
Wires

Connecting
Wires

Piping

Piping

Drain Hose

Drain Hose

Base Plate

Base Plate

Power Cord

Forced Operation Button

Front Grille

Air Inlet

Air Filter

Air Discharge

Horizontal Air deflector

Vertical Air deflector

Operation Indication Lamps/

Signal Receptor

Indoor

Outdoor

WARNING: This appliance should be installed in accordance with national wiring
regulations. This guide acts as a guide to help to explain product features.

Signal

receptor

Operation indication lamps

Operation

indicator

Shape of

display

Setting

temp.

Standard Too hot Hot Cold Too cold

Jet

(Cool, Heat)

Test

operation

Comfortable

A.I operation mode

Cooling
heating

dehumidifi-

cation

Energy-saving

cooling mode

8 Room Air Conditioner

Operating Instructions

Operating Instructions

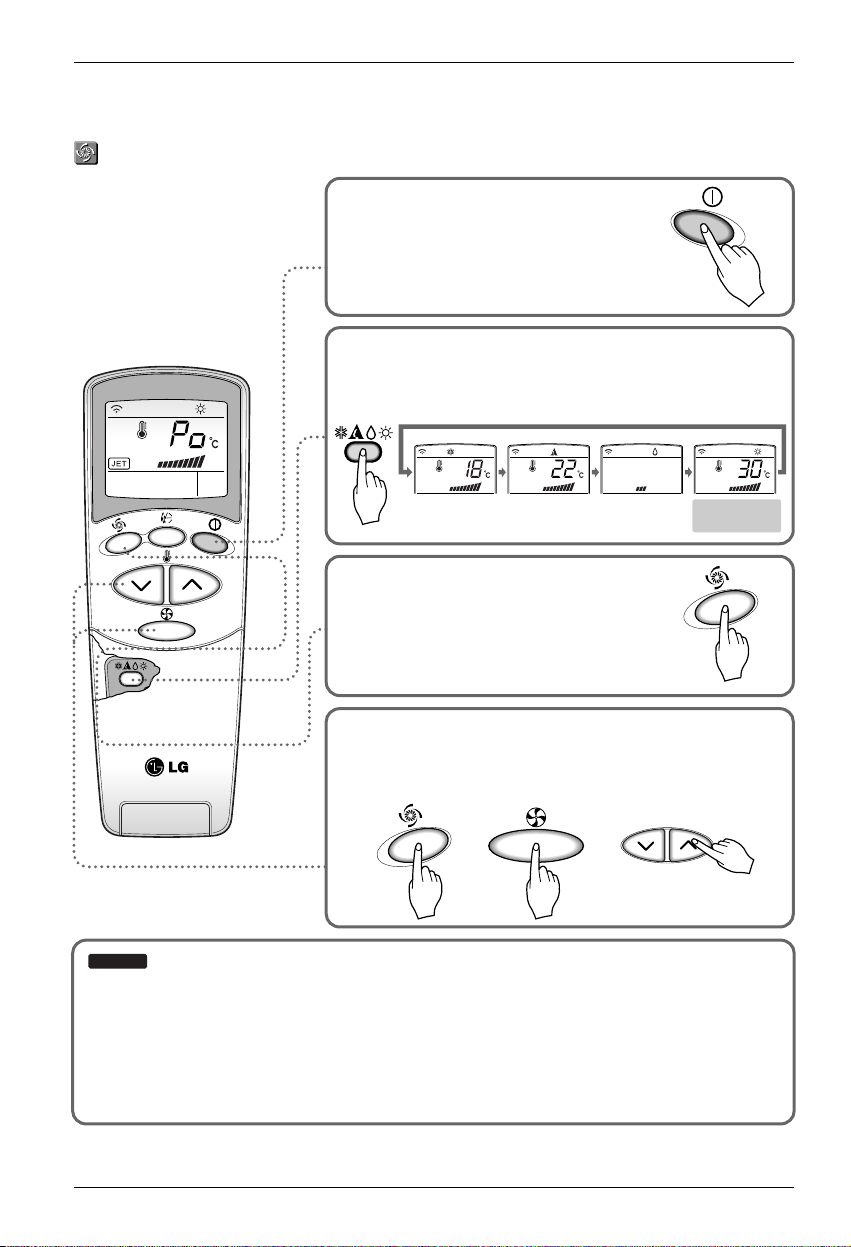

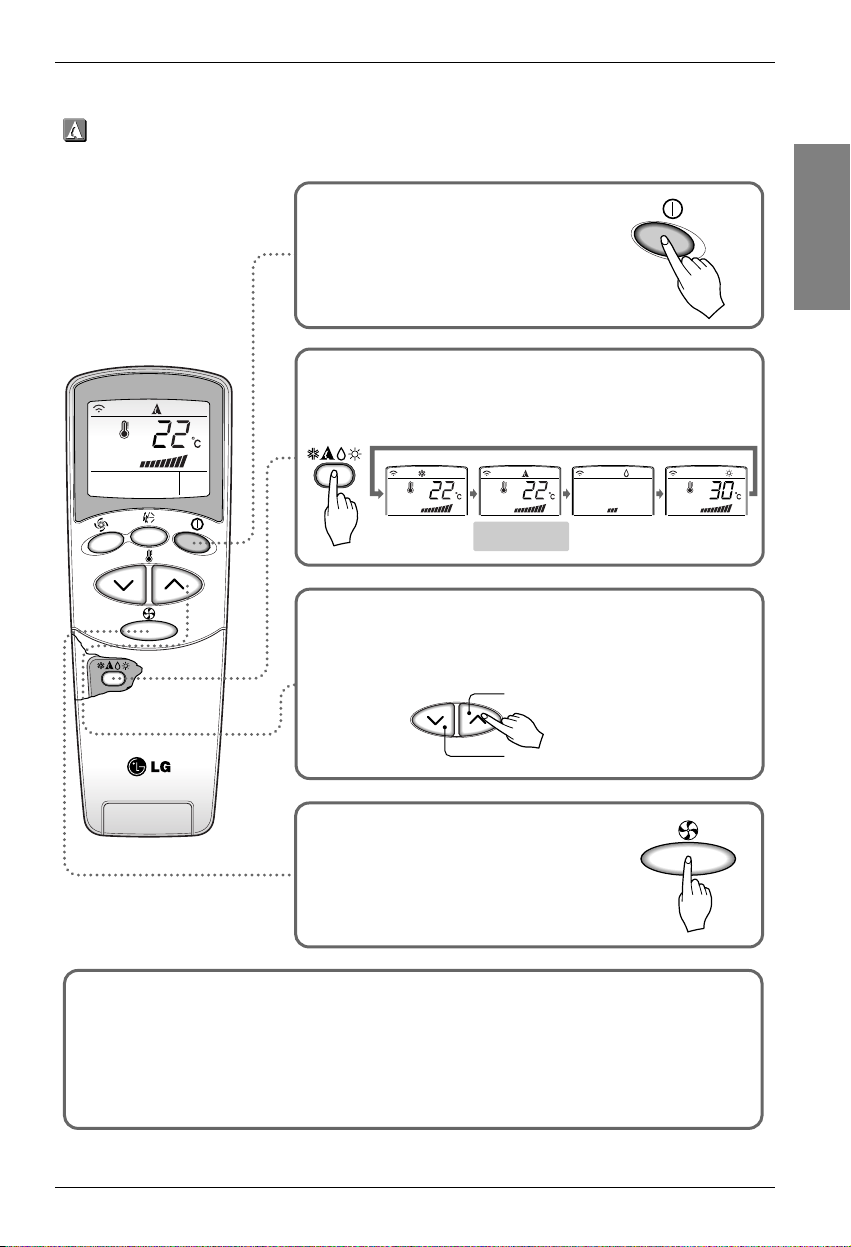

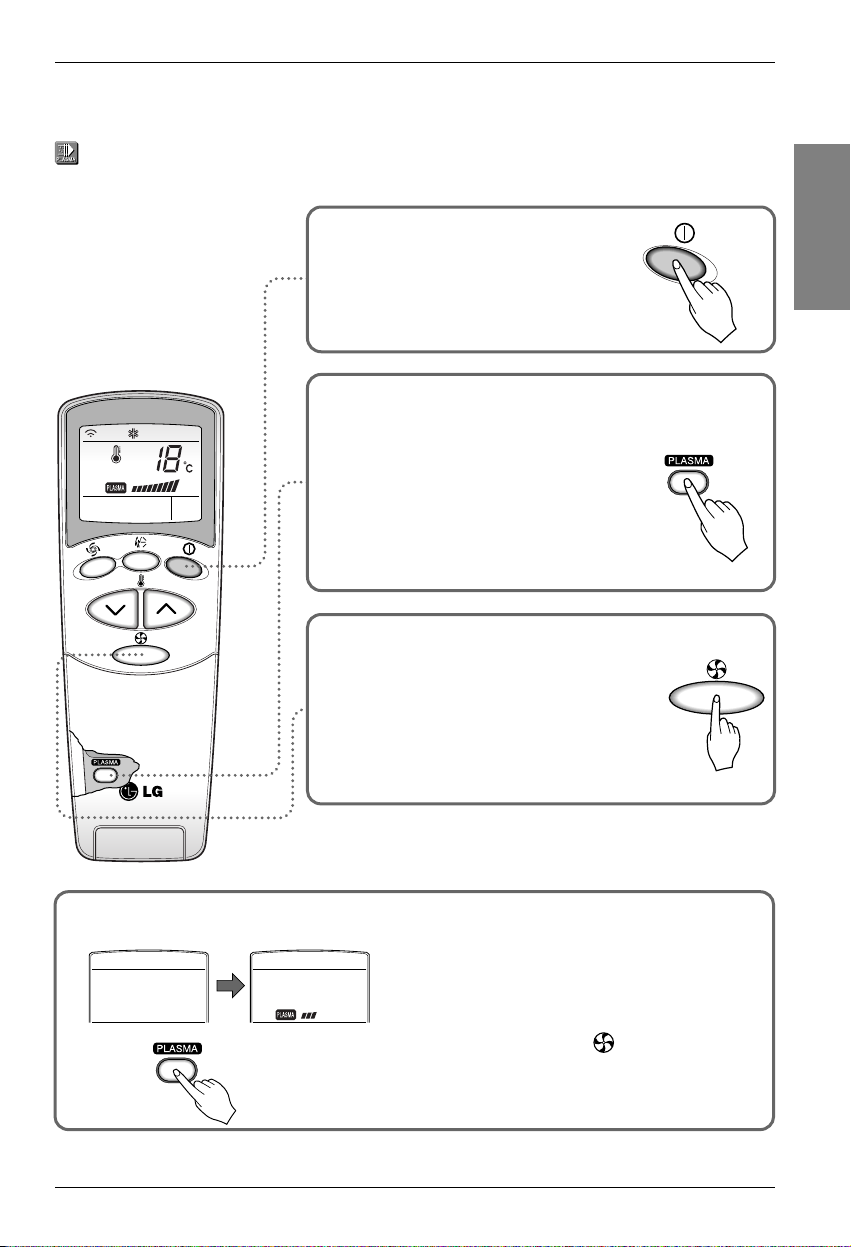

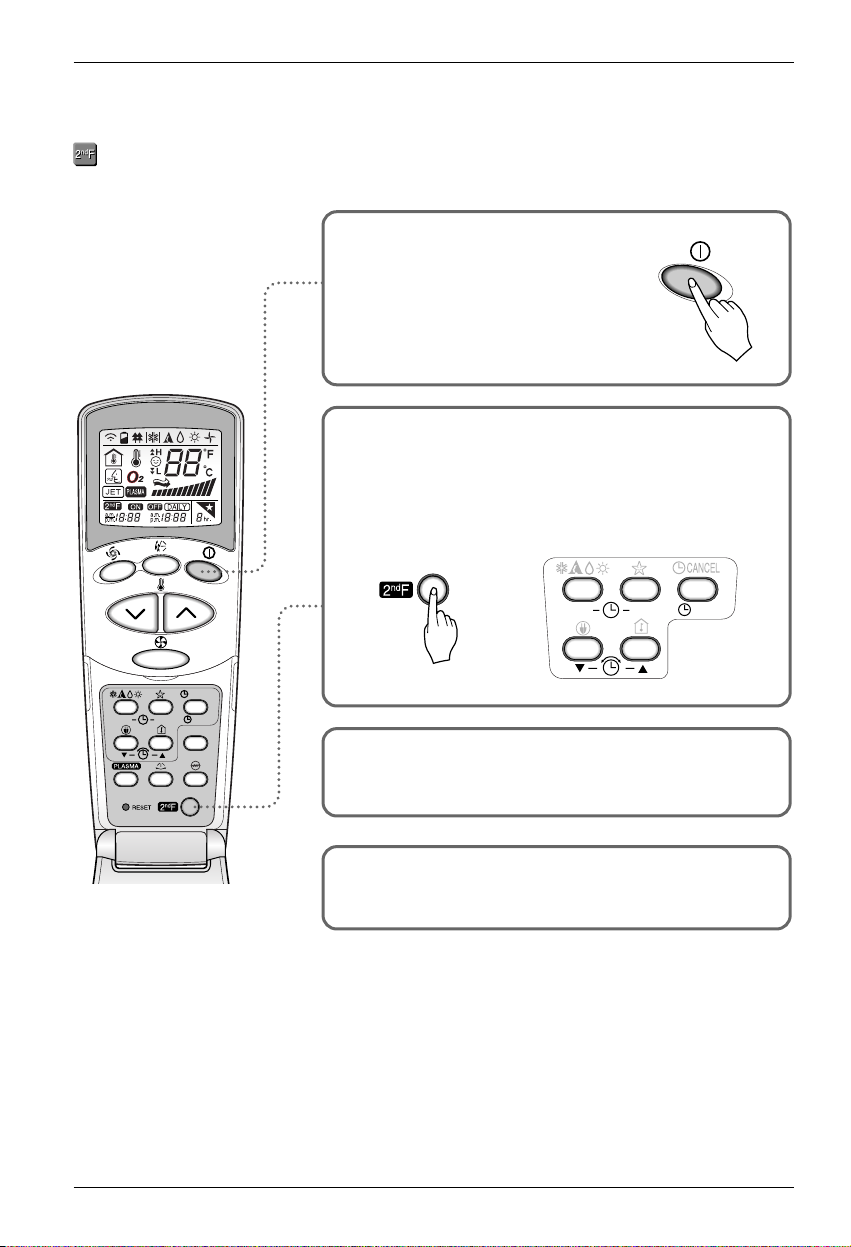

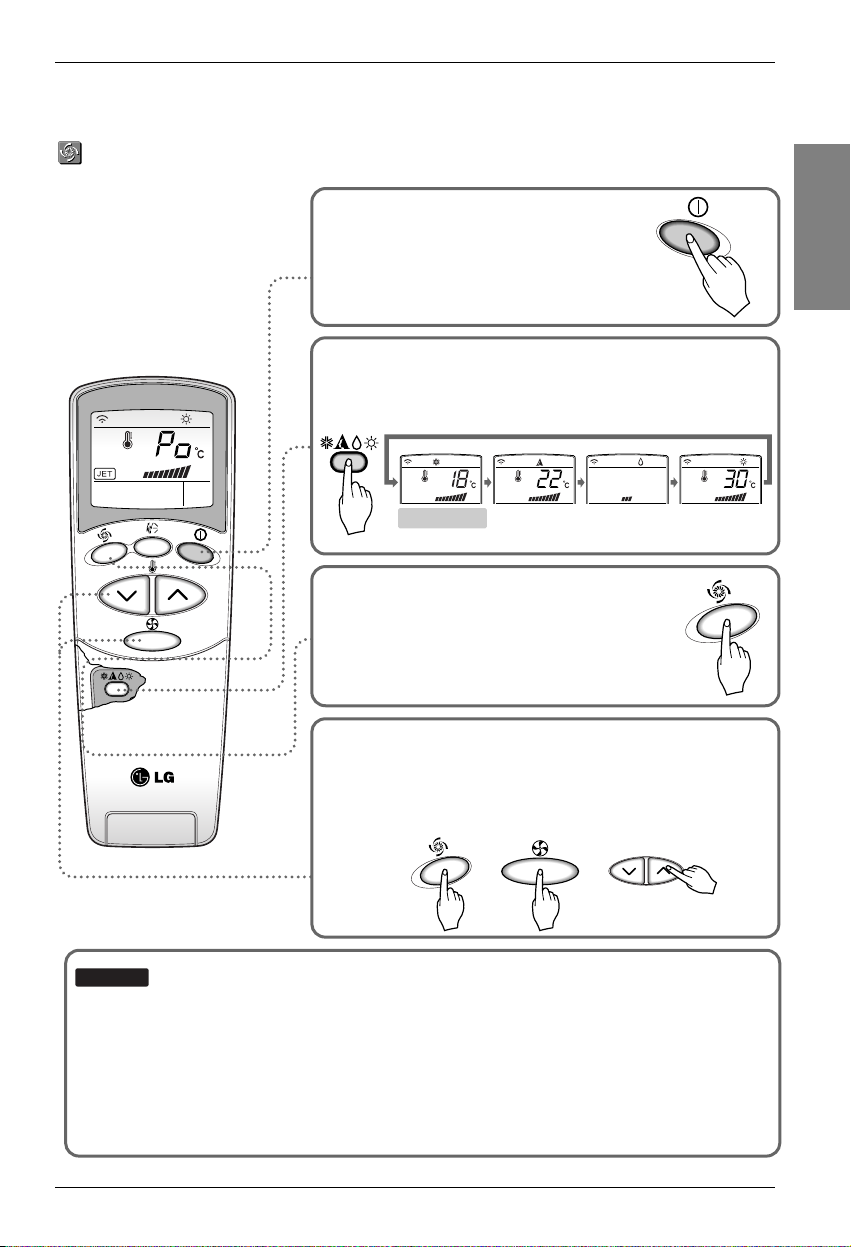

Remote Controller

Storage and Tips for using the Remote Controller

1. Remove the battery cover by pulling it according to the arrow
direction.

2. Insert new batteries making sure that the (+) and (-) of battery are
installed correctly.

3. Reattach the cover by sliding it back into position.

Use 2 AAA(1.5volt) batteries.
Do not use rechargeable batteries.

NOTICE

• The remote controller may be stored by mounting

it on a wall.

• To operate the room air conditioner, aim the
remote controller at the signal receptor.

Signal Receptor

Receives the signals from the remote control.(Signal receiving sound: two short beeps or one long beep.)

Operation Indication Lamps

On/Off : Lights up during the system operation.

Sleep Mode : Lights up during Sleep Mode Auto operation.

Timer : Lights up during Timer operation.

Preheat Mode : Lights up during Defrost Mode or Hot

Start operation (Heat pump model only)

: Lights up during outdoor unit operation.

(Cooling model only)

: Indicates the setting temperature and the

operating frequency of compressor.(4 steps)

PLASMA Plasma : Light up during PLASMA purification operation.(optional)

Energy-Saving : Light up during Energy-Saving cooling mode operation. (optional)

OUT

DOOR

OUTDOOR UNIT
OPERATION

Power Display

Owner's Manual 9

Operating Instructions

ENGLISH

Cooling Operation

Auto Operation or Auto Changeover

Healthy Dehumidification Operation

Heating Operation

•

Cooling Model( ), Heat Pump Model( )

Operation Mode

ON

OFF

CANCEL

SET

1

3

5

4

9

10

12

14
16

7

2

8

13

15

11

6

Flip-up door
(opened)

Signal transmitter

17
18

AUTO CLEAN

The controls will look like the following.

Remote Control Operations

1. START/STOP BUTTON

Operation starts when this button is pressed
and stops when the button is pressed again.

2. OPERATION MODE SELECTION BUTTON

Used to select the operation mode.

3. ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

4. INDOOR FAN SPEED SELECTOR

Used to select fan speed in four steps
low, medium, high and CHAOS.

5. JET COOL / HEAT

Used to start or stop the speed cooling or heating.
(Speed cooling or heating operates super high fan
speed in cooling or heating mode.)

6. CHAOS SWING BUTTON

Used to stop or start louver movement and
set the desired up/down airflow direction.

7. ON/OFF TIMER BUTTONS

Used to set the time of starting and stopping operation.
(See page 19)

8. TIME SETTING BUTTONS

Used to adjust the time. (See page 19)

9. TIMER SET/CANCEL BUTTON

Used to set the timer when the desired time is obtained and
to cancel the Timer operation. (See page 19)

10. SLEEP MODE AUTO BUTTON

Used to set Sleep Mode Auto operation.
(See page 19)

11. ENERGY-SAVING COOLING MODE BUTTON
(OPTIONAL)

Used to set Energy-Save in cooling mode.

12. ROOM TEMPERATURE CHECKING BUTTON

Used to check the room temperature.

13. PLASMA(OPTIONAL)

Used to start or stop the plasma-purification function.
(See page 17)

14. HORIZONTAL AIRFLOW DIRECTION CONTROL
BUTTON (NOT ON ALL MODELS)

Used to set the desired horizontal airflow direction.
(See page 20)

15. RESET BUTTON

Used prior to resetting time or after replacing batteries.

16. 2nd F BUTTON

Used prior to using modes printed in blue at the bottom of
buttons. (See page 18)

17. AUTO CLEAN(OPTIONAL)

Used to set Auto Clean mode.

18. HEATER(OPTIONAL)

ON

Cooling

Healthy

Dehumidification

Heating

(Heat pump model only)

To lower the temperature

To raise the temperature

Auto

changeover

10 Room Air Conditioner

Operating Instructions

Press the Start/Stop button.
The unit will respond with
a beep.

Open the door on the remote control.
To select Cooling Operation or Healthy Dehumidification

Operation.

Press the Jet Cool button to operate the speed cooling mode
and the unit will operate in super high fan speed on cooling
mode for 30 minutes.

To cancel the Jet Cool mode, press
the Jet Cool button or the fan speed
button or the room temperature setting
button again and the unit will operate in
high fan speed on cooling mode.

1

2

3

4

Natural wind by the CHAOS logic

❏ For fresher feeling, press the Indoor fan speed selector and set to CHAOS mode. In this mode, the wind

blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

Cooling operation

ENGLISH

Owner's Manual 11

Operating Instructions

ON

Cooling

Healthy

Dehumidification

Auto

changeover

Heating

(Heat pump model only)

To lower the temperature

To raise the temperature

Auto changeover operation

Press the Start/Stop button.
The unit will respond with
a beep.

Open the door of the remote controller. To select Auto Changeover
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is shifted in the
direction of the arrow.

1

2

Close the door of the remote controller. Set the temperature
lower than the room temperature. The temperature can be
set within a range of 18°C~30°C at intervals of 1°C.

Set the fan speed again with the door
of the remote controller still closed.
You can select the fan speed in four
steps-low, medium, high and CHAOS.
Each time the button is pressed, the
fan speed mode is shifted.

3

4

During Auto changeover Operation

❏ The air conditioner changes the operation mode automatically to keep indoor temperature. When room

temperature vary over ±2°C with respect to setting temperature, air conditioner keeps the room
temperature within ±2°C with respect to setting temperature by auto changeover mode.

12 Room Air Conditioner

Operating Instructions

ON

Cooling

Healthy

Dehumidification

Auto

Heating

(Heat pump model only)

To lower the temperature

To raise the temperature

Press the Start/Stop button.
The unit will respond with
a beep.

Open the door of the remote controller. To select Auto
Operation, press the operation mode selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.

The temperature and fan speed are automatically set by the
electronic controls based on the actual room temperature. If
you want to change the set temperature, press the Room
Temperature Setting buttons. The cooler or warmer you feel,
the more times (up to two times) you should press the button.
The set temperature will be changed automatically.

During Auto Operation

❏ You cannot control the indoor fan speed. It has already been set by the Fuzzy rule.
❏ If the system is not operating as desired, manually switch to another mode. The system will not

automatically switch from the cooling mode to the heating mode, or from heating mode to cooling
mode, it must be done by manually resetting.

❏ During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and

down automatically. If you want to stop auto-swing, press the chaos swing button again.

1

2

3

Auto operation (Optional)

Owner's Manual 13

Operating Instructions

ENGLISH

ON

Cooling

Healthy

Dehumidification

Heating

(Heat pump model only)

Auto

changeover

Press the Start/Stop button.
The unit will respond with
a beep.

Open the door of the remote controller. To select Healthy
Dehumidification Operation, press the Operation Mode
Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.

1

2

Set the fan speed again with the door
of the remote controller still closed.
You can select the fan speed in four
steps-low, medium, high, or CHAOS.
Each time the button is pressed, the
fan speed mode is shifted.

3

Natural wind by the CHAOS logic

❏ For fresher feeling, press the Indoor Fan Speed Selector and set

to CHAOS mode. In this mode, the wind blows like a natural
breeze by automatically changing fan speed according to the
CHAOS logic.

Healthy dehumidification operation

During Healthy Dehumidification Operation

❏ If you select the dehumidification mode on the operation selection button, the A/C starts to run the

dehumidification function. It automatically sets the room temp. and airflow volume to the best
condition for dehumidification, based on the sensed current room temp.

In this case, however, the setting temp. is not displayed on the remote controller and you are not able to
control the room temp. either.

❏ During the healthy dehumidification function, the airflow volume is automatically set according to the

optimization algorithm responding to the current room temp. status, so that the room condition is kept
healthy and comfortable even in the very humid season.

14 Room Air Conditioner

Operating Instructions

ON

Cooling

Healthy

Dehumidification

Heating

(Heat pump model only)

To lower the temperature

To raise the temperature

Auto

changeover

Heating operation (Heat pump model only)

Press the Start/Stop button.
The unit will respond with
a beep.

Open the door of the remote controller. To select Heating
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.

Close the door of the remote controller.
Set the temperature higher than the room temperature.
The temperature can be set within a range of 16°C~30°C at
intervals of 1°C.

Set the fan speed again with the door of the
remote controller still closed. You can
select the fan speed in four steps–low,
medium, high and CHAOS. Each time the
button is pressed, the fan speed mode is
shifted.

1

2

3

4

Natural wind by the CHAOS logic

❏ For fresher feeling, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the

wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

ENGLISH

Owner's Manual 15

Operating Instructions

or or

Cooling

Heating

(Heat pump model only)

Healthy

Dehumidification

Auto

changeover

ON

❏ During the JET COOL function at any moment, the A/C starts to blow the cool air at extremely high

speed for 30 minutes setting the room temp. automatically to 18°C. It is especially used to cool the

room temp. quickly in a hot summer.
In heat pump mode, neuro fuzzy mode, or auto changeover mode however, the JET COOL function
is not available.

❏ In order to return to the normal cooling mode from the JET COOL mode, just press the operation

mode selection button, airflow volume selection, temp. setting button or the JET COOL button again.

NOTICE

Press the Start/Stop button.
The unit will respond with
a beep.

Press the Jet Cool button to operate the speed cooling mode
and the unit will operate at super high fan speed on cooling
mode for 30 minutes.

To cancel the Jet Cool mode, press the Jet
Cool button, the fan speed button or the room
temperature setting button again and the unit
will operate at high fan speed on cooling
mode.

1

2

3

To cancel the Jet Cool mode, press the Jet Cool button or
the fan speed button or the room temperature setting button
again and the unit will operate in high fan speed on cooling
mode.

4

Jet cool operation

16 Room Air Conditioner

Operating Instructions

Cooling

Heating

(Heat pump model only)

Healthy

Dehumidification

Auto

changeover

ON

or or

❏ During the JET HEAT function at any moment, the A/C starts to blow the heat air at extremely high speed for

60 minutes setting the room temp. automatically to 30°C. It is especially used to heat the room temp. quickly
in a cool winter.
On cooling, healthy dehumidification mode or auto changeover mode, however, the JET HEAT function is not
available.

❏ In order to return to the normal heating mode from the JET HEAT mode, just press the operation mode

selection button, airflow volume selection, temp. setting button or the JET HEAT button again.

NOTICE

Press the Start/Stop button.
The unit will respond with
a beep.

Press the Jet Heat button to operate the
speed heating mode and the unit will
operate at super high fan speed on heating
mode for 60 minutes.

To cancel the Jet Heat mode, press the Jet Heat button,
the fan speed button or the room temperature setting
button again and the unit will operate at high fan speed on
heating mode.

Jet heat operation (Optional)

1

3

4

Open the door of the remote controller.
To select Heating Operation.

2

Owner's Manual 17

Operating Instructions

ENGLISH

Press the Start/Stop button.
The unit will respond with a
beep.

1

Open the door of the remote
controller. Press the PLASMA
button.

Operation will start when the button
is pressed and stop when the button
is pressed again.

2

Set the fan speed again with the door of the remote
controller closed. You can select the fan speed in four
steps-low, medium, high or CHAOS.
Each time the button is pressed, the fan
speed mode is shifted.

❈ Air purifying operation ( PLASMA) can be

with cooling, Heating or any other operations.

NANO PLASMA Air Purifying Operation only

If you press the only PLASMA button, only
PLASMA purification function operates.
Then, fan speed is low. You can select the fan
speed in four steps-low, medium, high or
CHAOS.
Each time the button ( ) is pressed, the fan
speed mode is shifted.

3

PLASMA purification operation(Optional)

ON

OFF

SET

ON

OFF

CANCEL

SET

AUTO CLEAN

18 Room Air Conditioner

Operating Instructions

Press the Start/Stop button.
The unit will respond with
a beep.

Open the door of the remote control and press the 2nd
Function button to operate functions printed in blue unter
buttons.
(Check the indication of 2nd function on the display of the
remote controller.)
These buttons can set the timer as follows:

2nd function disappears in a short time automatically or when
the button is pressed again.

1

2

3

2nd F operation

For more details, refer to functions next pages.

ENGLISH

Owner's Manual 19

Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer

Operating Instructions

Sleep mode

1. Press the Sleep Mode Auto button to set the time you want the unit to stop automatically.

2. The Timer is programmed in one-hour increments by pressing the Sleep Mode Auto button 1 to 7 times. The
sleep mode is available for 1 to 7 times. To alter the time period in steps of 1 hour, press the Sleep Mode
Button while aiming at air conditioner.

3. Make sure the Sleep Mode Auto LED lights up.
To cancel the Sleep Mode, press the sleep Mode Auto button several times until the star
( ) disappears from the operation display.

The Sleep Mode will be operated at slow fan speed (cooling) or medium fan speed (heat pump
only) for a comfortable sleep.

In sleep mode: Chaos Swing function does not operate.

In cooling mode or healthydehumidification mode:

The temperature will automatically rise by 1°C over the next 30 minutes and by 2°C in 1 hour for a comfortable
sleep.

NOTICE

Setting the time

1. Time can be set only when you press the Reset button. Having replacing the batteries,
you should press the reset buttons to reset the time. Press the Start/Stop button.

2. Press 2nd F button and check if 2nd F icon is on.

3. Press the Time Setting buttons until the desired time is set.

4. Press the Timer SET button.

Check the indicator for A.M. and P.M.

NOTICE

1. Make sure the time is set correctly on the display of the remote controller.

2. Press 2nd F button.

3. Press the ON/OFF Timer buttons to turn Timer on or off.

4. Press the Time Setting buttons until the desired time is set.

5. To set the selected time, press the Timer setting button aiming the remote controller at the
signal receptor.

To cancel the timer setting

Check if 2nd F icon is off.
Press the Timer Cancel button aiming the remote controller at the signal receptor.
(The timer lamp on the air conditioner and the display will go out.)

Delay start/Pre-set stop

Select one of the following four types of operation.

NOTICE

with the unit running

ON

OFF

CANCEL

SET

CANCEL

SET

CANCEL

SET

Additional Features

20 Room Air Conditioner

Operating Instructions

The left/right(Horizontal Airflow) can be adjusted by using the remote control.
Press the Start/Stop button to start the unit.
Open the door on the remote control. Press the Airflow Direction Start/Stop button and the
louvers will swing left and right. Press the Horizontal Airflow Direction Control Button again to
set the horizontal louver at the desired airflow direction.

Vertical Airflow Direction Control

Horizontal Airflow Direction Control (Optional)

Energy-Saving Cooling Mode (Optional)

Energy-Saving Cooling Mode Can save energy in Cooling and Healthy Dehumidification Operation, because it can
operate efficiently by setting body-adaptation time according to the change of time and temperature and adjusting
automatically desired temperature.

1. Press the Start/Stop button to start the unit.

2. Open the door on the remote control.
Select Cooling Operation or Healthy Dehumidification Operation.

3. Press the Energy-Saving Cooling Mode button.

4. To cancel the Energy-Saving Cooling Mode, press the Energy-Saving Cooling Model
button and unit will operate in previous Mode(Cooling or Healty Dehumidification
Mode).

The up/down airflow (Vertical Airflow) can be adjusted
by using the remote control.

1. Press the Start/Stop button to start the unit.

2. Press Chaos Swing button and the louvers will
swing up and down.
Press the Chaos Swing button
again to set the vertical louver
at the desired airflow direction.

❏ If you press the CHAOS swing button, the horizontal airflow

direction is changed automatically based on the CHAOS
algorithm to distribute the air in the room evenly and at the
same time to make the human body feel most comfortable,
as if enjoying a natural breeze.

❏ Always use the remote control to adjust the up/down

airflow direction. Manually moving the vertical airflow
direction louver by hand, could damage the air
conditioner.

❏ When the unit is shut off, the up/down airflow direction

louver will close the air outlet vent of the system.

NOTICE

Heater Operation(Optional)

1. Pressing the Heater button during Heating Operation enables the built-in heater
to operate a strong heating function.

2. If Heater Operation is on, Ho (Heater On) is shown at the Operation indication
lamps and there is no change at the remote controller.

❏

The heater consumes much electricity, so Heater Operation may cost more.

❏

If the Start/Stop button is pressed during Heater Operation, the indoor fan is
operated to cool the heater for about 15 seconds and the unit stops
operating.

NOTICE

ENGLISH

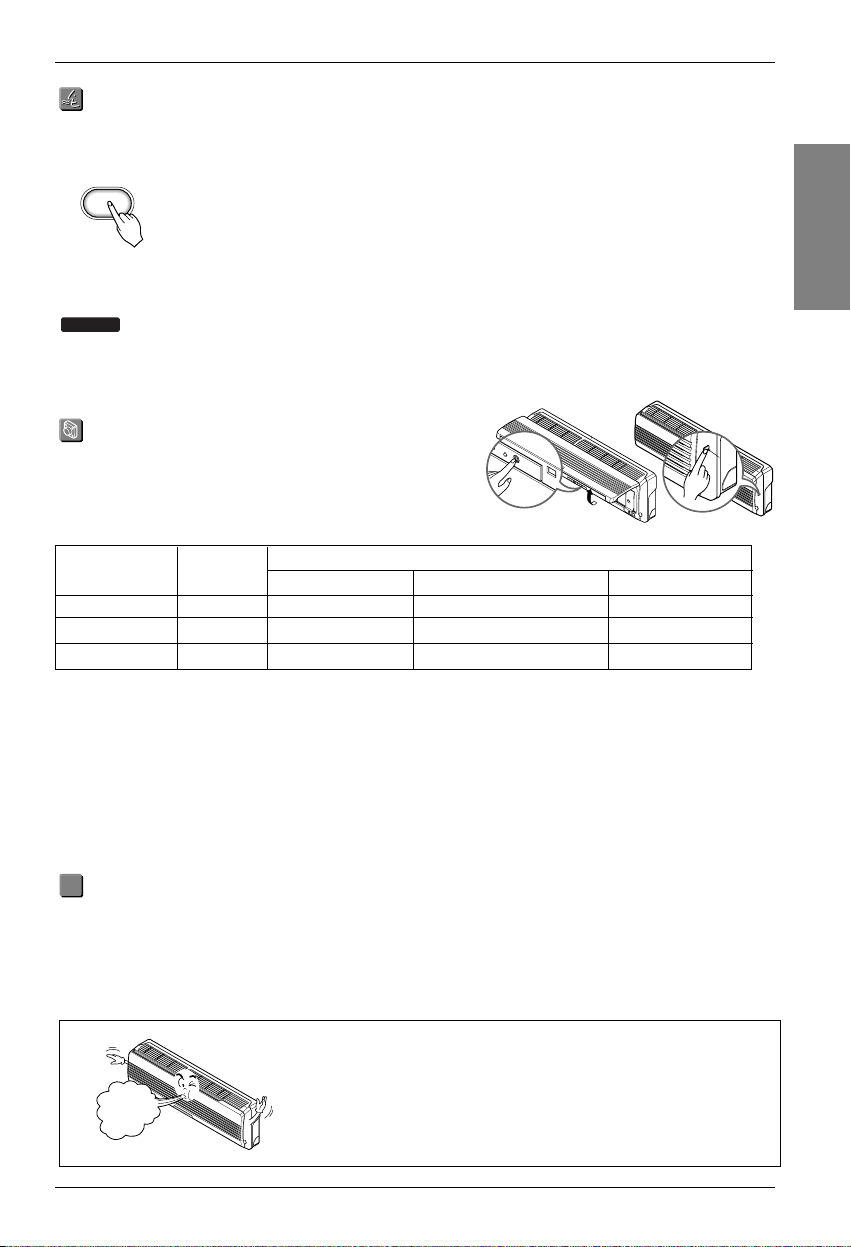

Owner's Manual 21

Operating Instructions

This function is to remove unpleasant smells from mold and other bacteria in the air-conditioner, and to remove
humidity automatically during humidly summer, which supplies the indoor with purified air.

NOTICE

Auto clean(Optional)

1. Whenever you press the Auto Clean button, Auto Clean Function will be reserved and cancelled.

2. Auto Clean function works before and after cooling or dehumidification mode. For details, refer
to the below points.

3. When the unit is started after the reservation of Auto Clean ,the Cool Start function operates and
indoor Fan is started after 20 seconds.

4. When you press Start/Stop button to turn off the unit after the you have reserved Auto Clean
function, the air-conditioner circulates the indoor air in the Auto Clean mode with no more
Cooling or Dehumidification operation. For Cooling only model, it lasts for 30 minutes for Heat
pump model, for 16 minutes.

5. If you press the auto clean button again during the product operation , Auto Clean function will
be cancelled.

Power
button

AUTO CLEAN

Open the front
panel upward

High

Speed

Power
button

Power
button

Operation procedures when the remote control can't be used.
The operation will be started if the power button is pressed.
If you want to stop operation, re-press the button.

Forced operation

Auto restart

In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate
procedures automatically to the previous operating conditions.
So there is no need of activating this function by pressing any key or button.
In the initial mode, the fan operates at a low speed and the compressor starts 2.5~3 minutes later.
As the compressor starts, the fan speed also resumes its previous setting mode.

Heat pump Model

Cooling Model

Room Temp. ≥ 24°C21°C ≤ Room Temp. < 24°C Room Temp. < 21°C

Operating mode Cooling Cooling Healthy Dehumidification Heating

Indoor FAN Speed

High High High High

Setting Temperature

22°C22°C23°C24°C

Helpful information

Fan speed and cooling capacity.
The cooling capacity indicated in the specification is the value when the
fan speed is set to high, and the capacity will be lower at low or medium
fan speed.
High fan speed is recommended when you wish to cool the room quickly.

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room
temperature and resets in 18 minutes.
During test operation, if remote controller signal is received, the unit operates as remote controller sets.
If you want to use this operation, open the front panel upward and Press the power button let it be pressed for
about 3 seconds.
If you want to stop the operation, re-press the button.

22 Room Air Conditioner

Maintenance and Service

CAUTION: Before performing any maintenance, turn off the main power to the system.

Maintenance and Service

Indoor Unit

Grille, Case, and Remote Control

Turn the system off before cleaning. To clean, wipe with a soft, dry
cloth. Do not use bleach or abrasives.

Supply power must be disconnected before cleaning
the indoor unit.

Air filters

The air filters behind the front grille should be checked and cleaned
once in every 2 weeks or more often if neccessary.

1. Lift the front access panel and pull the filter tab slightly forward to
remove the filter.

2. Clean the filter with a vacuum cleaner or warm, soapy water.

• If dirt is conspicuous, wash with a solution of detergent
in lukewarm water.

• If hot water (40°C or more) is used, it may be deformed.

3. After washing with water, dry well in the shade.

4. Re-install the air filter.

Plasma filter, TRIPLE DEODORIZING filter
(Optional)

The PLASMA filter behind the air filters should be checked and

cleaned once in every 3 months or more often if necessary.

1. After removing the air filters, pull slightly forward to remove the
PLASMA filter.

2. Dip the PLASMA filter into the water mixed with neutral
detergent, for 20~30 minutes.

3. Dry the PLASMA Filter in the shade for a day (Especially, the
humidity must be removed perfectly on this parts).

4. Note the cuts of electric discharge lines.

5. Re-install the PLASMA filter to the original position.

1. After removing the air filters, pull slightly forward to remove the
DEODORIZER filter.

2. Dry in the sunlight for two hours.

3. Re-install the DEODORIZER filter to the original position.

NOTICE

Vertical louver

Horizontal louver

Air filters
(behind front panel)

Air outlet ventAir inlet vent

G

a

s

o

l

i

n

e

P

o

w

d

e

r

DEODORIZER
Filter

PLASMA
Filter

CAUTION: Don’t touch this PLASMA Filter within 10 seconds
after opening he inlet grille, it may cause an electric shock.

Never use any of the followings:

• Water hotter than 40°C
Could cause deformation and/or discoloration.

• Volatile substances
Could damage the surfaces of the air conditioner.

ENGLISH

Owner's Manual 23

Maintenance and Service

(Side)

(Rear)

Air intake
vents

Air outlet
vents

(Side)

(Rear)

Drain Hose

Air intake vents

Air outlet vents

Piping

(Side)

(Rear)

Piping

Drain Hose

Air intake
vents

Air outlet
vents

Piping

Drain Hose

Air filter

Air purifying filter

3

2

Replacement of purifying filter(Optional)

Recomended use period : About 2 years

1. Open front panel and remove air filters.

2. Remove Triple deodorizing Filters.

3. Insert new Triple deodorizing Filters.

4. Reinsert air filters and close front panel.

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly.
If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam
cleaned.

Dirty or clogged coils will reduce the
operating efficiency of the system and
cause higher operating costs.

NOTICE

Outdoor Unit

24 Room Air Conditioner

Maintenance and Service

When the air conditioner is not going to be used for a long time.

Operate the air conditioner on mode for 2 to
3 hours.

• This will dry out the internal mechanisms.

When air conditioner is not going to be
used for a long time.

When the air conditioner is to be used again.

Turn off the circuit breaker, and disconnect
the plug.

Remove the batteries from the remote
control.

CAUTION:

Turn off the circuit
breaker when the air conditioner is not
going to be used for a long time.

Dirt may collect and may cause a fire.

Clean the air filter and install it in the indoor
unit.
(Refer to page 22 for cleaning filters.)

Check that the air inlet and outlet of the
indoor/outdoor unit are not blocked.

Do not overcool the room.

This is not good for the health
and wastes electricity.

Make sure that the doors
and windows are shut tight.

Avoid opening doors and
windows as much as possible
to keep the cool air in the room.

Keep blinds or curtains
closed.

Do not let direct sunshine enter
the room when the air
conditioner is in operation.

Clean the air filter regularly.

Blockages in the air filter
reduces the airflow and lowers
the cooling and dehumidifying
effects. Clean at least once in
every two weeks.

Keep the room temperature
uniform.

Adjust the vertical and
horizontal airflow direction to
ensure a uniform temperature
in the room.

Ventilate the room
occasionally.

Since windows are kept closed,
it is a good idea to open them
and ventilate the room now and
then.

Operation Tips

ENGLISH

Owner's Manual 25

Maintenance and Service

Check the following points before requesting repairs or service.... If the fault persists, please contact your dealer

or service center.

Case Explanation See page

The air conditioner does not
operate.

The room has a peculiar
odor.

It seems that condensation
is leaking from the air
conditioner.

Air conditioner does not
operate for about 3 minutes
when restarted.

Does not cool or heat
effectively.

The air conditioner
operation is noisy.

Remote control display is
faint, or no display at all.

Crack sound is heard.

• Have you made a mistake in timer operation?

• Has the fuse blown or has the circuit breaker

been tripped?

• Check that this is not a damp smell exuded by
the walls, carpet, furniture, or cloth items in the
room.

• Condensation occurs when the airflow from
the air conditioner cools the warm room air.

• This is the protector of the mechanism.

• Wait about three minutes and operation will

begin.

• Is the air filter dirty? See air filter cleaning
instructions.

• Has the temperature been set incorrectly?

• Are the indoor unit's air inlet or outlet vents

obstructed?

• For a noise that sounds like water flowing.

-This is the sound of freon flowing inside the
air conditioner unit.

• For a noise that sounds like the compressed
air releasing into atmosphere.

-This is the sound of the dehumidifying water
being processed inside the air conditioning
unit.

• Are the batteries depleted?

• Are the batteries inserted in the opposite (+)

and (-) directions?

• This sound is generated by the
expansion/constriction of the front panel, etc.
due to changes of temperature.

19

-

-

-

-

22

10, 14

-

-

8

-

Troubleshooting

26 Room Air Conditioner

Memo

P/No.: 3828A20397T

After reading this manual, keep it in a place easily accessible to the user for future reference.

Printed in Korea
