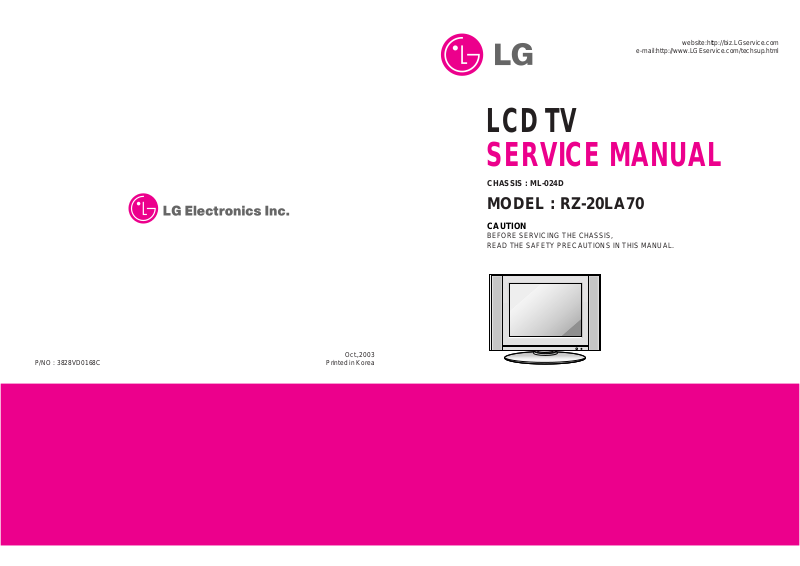

Page 1
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : ML-024D
MODEL : RZ-20LA70
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
Oct.,2003
Printed in KoreaP/NO : 3828VD0168C
Page 2
- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
DESCRIPTION OF CONTROLS .............................................................. 4
ADJUSTMENT INSTRUCTION .................................................................7
TROUBLE SHOOTING............................................................................13
PRINTED CIRCUIT BOARD....................................................................14
BLOCK DIAGRAM...................................................................................17
EXPLODED VIEW .................................................................................. 18
EXPLODED VIEW PARTS LIST..............................................................19
REPLACEMENT PARTS LIST ............................................................... 20
SVC. Sheet .................................................................................................
Page 3
- 3 -
PRODUCT SAFETY
IMPORTANT SAFETY NOTICE
This manual was prepared for use only by properly trained audiovisual service
technicians. When servicing this product, under no circumstances should the
original design be modified or altered without permission from LG Electronics
Inc. All components should be replaced only with types identical to those in the
original circuit and their physical location, wiring, and lead dress must conform
to original layout upon completion of repairs. If any fuse (or Fusible Resistor) in
this TV receiver is blown, replace it only with the factory specified fuse type and
rating. When replacing a high wattage resistor (Oxide Metal Film Resistor, over
1W), keep the resistor 10mm away from PCB. Always keep wires away from
high voltage or high temperature parts.
Special components are also used to prevent shock and fire hazard.
These components are indicated by the letter “x” included in their component
designators and are required to maintain safe performance. No deviations are
allowed without prior approval by LG Electronics Inc. Service work should be
performed only after you are thoroughly familiar with these safety checks and
servicing guidelines.
Circuit diagrams may occasionally differ from the actual circuit used.
This way, implementation of the latest safety and performance improvement
changes into the set is not delayed until the new service literature is printed.
CAUTION: Do not attempt to modify this product in any way.
Never perform customized installations without manufacturer’s
approval.
Unauthorized modifications will not only void the warranty, but may
lead to property damage or user injury.
GENERAL GUIDANCE
An isolation Transformer should always be used during the servicing
of a receiver whose chassis is not isolated from the AC power line. Use a
transformer of adequate power rating to protect against personal injury from
electrical shocks. It will also protect the receiver and its components from being
damaged by accidental shorts of the circuitry that may be inadvertently
introduced during the service operation.
Before returning the receiver to the customer, always perform an AC leakage
current check on the exposed metallic parts of the cabinet, such as antennas,
terminals, etc., to be sure the set is safe to operate
without damage of electrical shock.
LEAKAGE CURRENT COLD CHECK
(ANTENNA COLD CHECK)
With the instrument’s AC plug removed from AC source, connect an electrical
jumper across the two AC plug prongs. Place the AC switch in the on position,
connect one lead of ohm-meter to the AC plug prongs tied together, and touch
other ohm-meter lead in turn to each exposed metallic parts such as antenna
terminals, phone jacks, etc. If the exposed metallic part has a return path to the
chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When
the exposed metal has no return path to the chassis the reading must be
infinite. Any other abnormality that exists must be corrected before
the receiver is returned to the customer.
ELECTROSTATICALLY SENSITIVE DEVICES
Some semiconductor (solid-state) devices can be damaged easily by static
electricity. Such components commonly are called Electrostatically Sensitive
(ES) Devices. Examples of typical ES devices are integrated circuits and some
field-effect transistors and semiconductor “chip” components. The following
techniques should be used to help reduce the incidence of component damage
caused by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic charge on the
body by touching a known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device, which should be
removed for potential shock reasons prior to applying power to the unit under
test.
2. After removing an electrical assembly equipped with ES devices, place the
assembly on a conductive surface such as an ESD mat, to prevent
electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices
not classified as “anti-static” can generate electrical charges sufficient to
damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charge
sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until
immediately before you are ready to install it. (Most replacement ES devices
are packaged with leads electrically shorted together by conductive foam,
aluminum foil, or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a
replacement ES device, touch the protective material to the chassis or circuit
assembly into which the device will be installed.
Caution: Be sure no power is applied to the chassis or circuit, and observe
all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES
devices. (Otherwise, seemingly harmless motion, such as the brushing
together of your clothing or the lifting of your foot from a carpeted floor, can
generate static electricity sufficient to damage an ES device.)
Page 4
DESCRIPTION OF CONTROLS
- 4 -
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the side
panel of the set.
Remote control handset
Before you use the remote control handset, please install the batteries. See the next page.
1. MUTE
switches the sound on or off.
2. TV/AV
selects TV or AV monitor mode.
clears the menu from the screen.
switches the set on from standby.
3. LIST
displays the programme table.
4. Q.VIEW
returns to the previously viewed programme.
selects a favourite programme.
5.
D / E
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
F / G (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
6. NUMBER BUTTONS
switches the set on from standby or directly select a number.
7. SSM (Sound Status Memory)
recalls your preferred sound setting.
8. SLEEP
sets the sleep timer.
POWERMUTE
TV/AV I/II
LIST
PR
PR
VOL
OK
123
456
789
SSM PSM
0
VOL
Q.VIEW MENU
SLEEP TEXT
UPDATE
TIME
SIZE MIX
HOLD
REVEAL
INDEX MODE
?
i
M
1
9
10
11
12
13
2
3
4
5
6
7
8
Page 5
- 5 -
9. POWER
switches the set on from standby or off to standby.
10. I/II
selects the language during dual language broadcast.
selects the sound output (option).
11. MENU
selects a me
12. PSM (Picture Status Memory)
recalls your preferred picture setting.
13. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
*
: No function
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or programme edit.
POWERMUTE
TV/AV I/II
LIST
PR
PR
VOL
OK
1 2 3
4 5 6
7 8 9
SSM PSM
0
VOL
Q.VIEW MENU
SLEEP TEXT
UPDATE
TIME
SIZE MIX
HOLD
REVEAL
INDEX MODE
?
i
M
1
9
10
11
12
13
2
3
4
5
6
7
8
Page 6
- 6 -
1. ON/OFF (O/I)
switches the set on from standby or off to
standby.
Note : Power line lives even when the power
is off.
2. TV/AV
selects TV or AV monitor mode.
clears the menu from the screen.
switches the set on from standby.
3. MENU
selects a menu.
4. OK
accepts your selection or displays the current
mode.
5. FF / GG (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
6.
DD / EE
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
7. POWER/STANDBY INDICATOR (O)
illuminates red in standby mode.
illuminates green when the set is switched on.
8. REMOTE CONTROL SENSOR
9. HEADPHONE SOCKET
Connect the headphone plug to this socket.
10. AUDIO/VIDEO IN SOCKETS (AV2)
Connect the audio/video out sockets of external equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (SAV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connects the audio out sockets of the SVIDEO VCR to the audio sockets as in AV2.
Back panel
Side panel
RL
VIDEO
AV2
AUDIO
(MONO)
H/P
S-VIDEO
TV/AVMENUOKVOLPR
/I
ON/OFF
7
8
9 10
6
5
4
3
2
1
• RZ- 20LA70 series
Page 7
- 7 -
1. Application Object
This instruction is for the application to the LCD TV.
2. Notes
(1) This set uses an adapter, so connect the adapter and the
set correctly before adjustment.
(2) The adjustment must be performed under the correct
sequence.
(3) The adjustment must be performed in the circumstance of
25
!5cC of temperature and 65!10% of relative humidity if
there is no specific designation.
(4) The set must be operated for 15 minutes preliminarily
before adjustment if there is no specific designation.
[ ‘Heat Run’ must be performed with the full white signal or TV
noise signal in the internal part of the set.
[ The time for ‘Heat Run’ can be changed owing to production
plan.
[ Line Test condition (TV): standard color signal 65!1dBuV
ADJUSTMENT INSTRUCTION
Page 8
- 8 -
OPTION
Data
200PR
TEXT
I/II SV
TOP
A2 ST SYS
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
SCART
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
OPTION
Data
200PR
TEXT
I/II SV
TOP
A2 ST SYS
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
SCART
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
4. Option 1 data setting (200PR ~ A2 ST:1bit, SYS:2bit composition)
Page 9
- 9 -
OPTION
Data
200PR
TEXT
I/II SV
TOP
A2 ST SYS
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
SCART
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
OPTION
Data
200PR
TEXT
I/II SV
TOP
A2 ST SYS
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
SCART
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
Page 10
- 10 -
OPTION
Data
200PR
TEXT
I/II SV
TOP
A2 ST SYS
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
SCART
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
OPTION
Data
200PR
TEXT
I/II SV
TOP
A2 ST SYS
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
01
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
SCART
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
Page 11
- 11 -
OPTION
Data
200PR
TEXT
I/II SV
TOP
A2 ST SYS
248
249
250
251
252
253
254
255
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
1
2
3
0
1
2
3
SCART
1
1
1
1
1
1
1
1
5. Option2 data(ACMS~BBACK:1bit,LANG:3bit)
OPTION
Data
ACMS
VOL
BBACK LANG
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
OPTION
Data
ACMS
VOL
BBACK LANG
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
Page 12
- 12 -
6. Option3 data(IIC AFT~CH+AU:1bit)
OPTION
Data
HiDEV
TSS
IIC T MONO CH+AUS
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Page 13
- 13 -
1 No sound Defective Reset IC of IC604. 1) Check volume and speaker.
- Speaker Defective MSP3410G of IC601. - Sound comes out only when being inputted into Audio
- Earphone Defective B+(8V) of IC604. L/R.
2) Check after replacing IC603.
3) Replace IC601.
4) Check and replace B+ of IC604.
2 Video color beat noise Earphone shield case being touched.
Check the mould of shield and SJ209, Replace shield case.
Soldering IC501. 1) Check signal of Video input.
2) Check signal of R.G.B output.
3) Re-soldering
1 No screen Input error of inverter connector 1) Bend the pin legs of
P802B
connector -> recheck them
2) Check and repair IC805 SI4925.
P1 and Pin 50 connector 1) Check and fix P1 connector
being slipped out
Cracked components and 1)Check and repair tuner board and main board
soldering at tuner board 2)Solder Q403
2 Dark screen 1) Defective LCD lamp 1) Replace the inverter
2) Defective inverter 2) Replace the LCD lamp
3) Input error of inverter connector 3) Check the connector input.
TROUBLE SHOOTING
1. General Features
No. Symptom Cause Check Point
Check Point
2. TV and external input
No. Symptom Cause
Page 14
- 14 -
PRINTED CIRCUIT BOARD
MAIN(TOP)
Page 15
- 15 -
MAIN(BOTTOM)
Page 16
- 16 -
POWER
CONTROL
Page 17
BLOCK DIAGRAM
- 17 -
Page 18
- 18 -
EXPLODED VIEW
400
310
120
560
530
250
340
360
380
370
330
350
210
300
112
520
230
430
Page 19
- 19 -
112 6306V20002A LCD MODULE,V201V1-T01 VGA CHIMEI TFT COLOR
120 6400GKTX01A SPEAKER,FULLRANGE F1527C-6428 K-TONE 8OHM 7/12W 83DB OTHERS
210 4811V00076A BRACKET ASSEMBLY,REAR AV RZ-20LA70 ML024D .
230 4950V00192A METAL,SHIELD SBHG ML024
4950V00192C METAL,SHIELD SBHG 20LA70 C/SKD
250 4950V00188A METAL,FRAME SBHG FOR CMO MODULE
4950V00188B METAL,FRAME SBHG C/SKD
300 3091V00587A CABINET ASSEMBLY,RZ-20LA70 NON NON ML024D SET,LGEIS
3091V00587C CABINET ASSEMBLY,RZ-20LA70 STEREO ML024D C/SKD
310 5020V00871A BUTTON,CONTROL RZ-20LA70 ABS 8KEY .
330 4950V00157E METAL,HINGE ASSY NON 20LA70
340 4810V00767A BRACKET,STAND 20LA60 ML012B NON HINGE FRONT
350 4810V00768A BRACKET,STAND 20LA60 ML012B NON HINGE COVER
360 4810V00924A BRACKET,STAND RZ-20LA70 NON ABS .
370 4950V00193A METAL,STAND SPCC(CR) BASE(20LA70)
380 4950V00194A METAL,STAND SPCC(CR) SUPPORTER(LA70)
400 3809V00407A BACK COVER ASSEMBLY,RZ-20LA70 NON (STUH),LGEIS
3809V00407C BACK COVER ASSEMBLY,RZ-20LA70 1SCART 3850VC0002F(LGERU)
3809V00407D BACK COVER ASSEMBLY,RZ-20LA70 1SCART C/SKD
430 3550V00383A COVER,REAR AV RZ-20LA70 HIPS 60HR .
520 6871VMMR05A PWB(PCB) ASSEMBLY,MAIN ML-024D RZ-20LA70
530 6871VSMQ31A PWB(PCB) ASSEMBLY,SUB CONT ML024D 70TOOL CONTROL ASSY
560 6871VSMQ30A PWB(PCB) ASSEMBLY,SUB POWER ML024D 70TOOL POWER ASSY
EXPLODED VIEW PARTS LIST
No.
PART NO.
DESCRIPTION
Page 20
REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION
Q404
Q405
Q406
Q407
Q501
Q502
Q510
Q551
Q602
Q603
Q701
Q703
Q706
Q801
Q802
R1211
R1212
D100
D1101
D1102
D1103
D1104
D1105
D1106
D701
D702
D704
D706
D707
D710
D711
ZD1101
ZD1102
ZD202
ZD203
ZD400
ZD701
ZD704
C10
C101
C1101
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR322709AA
0TR387500AA
0TR150400BA
0TF492509AA
0TF492509AA
0DD181009AB
0DD181009AB
0DD181009AB
0DD181009AB
0DD181009AB
0DD181009AB
0DD181009AB
0DRSA00150A
0DD100009AM
0DD100009AM
0DR060009AA
0DRSD00091A
0DR340009AA
0DR340009AA
0DZRM00178A
0DZRM00178A
0DZRM00178A
0DZRM00178A
0DZ330009BA
0DZ910009AJ
0DZ110009AD
0CE227DF618
0CE107BF618
0CC15003G06
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
KTC3227-Y,TP(KTC1627A),KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SA1504S(ASY) KEC
SI4925DY TP TEMIC 30V 6.1A SO-8
SI4925DY TP TEMIC 30V 6.1A SO-8
KDS181 TP KEC - 85V - - - 300MA
KDS181 TP KEC - 85V - - - 300MA
KDS181 TP KEC - 85V - - - 300MA
KDS181 TP KEC - 85V - - - 300MA
KDS181 TP KEC - 85V - - - 300MA
KDS181 TP KEC - 85V - - - 300MA
KDS181 TP KEC - 85V - - - 300MA
RBV-406 BK USC 600V 4A 80VA .SEC
EU1ZV(1) TP SANKEN
EU1ZV(1) TP SANKEN
TVR06J TP DO41 600V 0.6A - - SF20JC10 ST FTO220(4115) 100V 20A
MBRS340 TP - 40V 3A 80A - 2MA
MBRS340 TP - 40V 3A 80A - 2MA
UDZS TE-17 5.1B 0.2W 5.1V 5MA -PF
UDZS TE-17 5.1B 0.2W 5.1V 5MA -PF
UDZS TE-17 5.1B 0.2W 5.1V 5MA -PF
UDZS TE-17 5.1B 0.2W 5.1V 5MA -PF
ZENER HZT33 TAPING
MTZJ9.1B TP DO34 0.5W 9.1V 5UA MTZJ11B TP DO34 - 11V 5UA -
220UF STD 16V M FL TP5
100UF KME 16V M FL TP5
15PF D 3KV 10%,-10% SL FMTW
LOCA. NO PART NO DESCRIPTION
IC100
IC101
IC102
IC1101
IC1110
IC1111
IC1112
IC1121
IC1122
IC351
IC352
IC501
IC502
IC601
IC603
IC604
IC650
IC701
IC702
PC1
PC2
Q101
Q102
IC1102
IC1103
IC1104
IC1105
IC1223
IC1224
IC2
Q1
Q100
Q1101
Q1101
Q1102
Q1103
Q1200
Q200
Q202
Q353
Q402
Q403
0ISM555000B
0IAL241610B
0IFA752700A
0IMCRO2001A
0IMCRRH005A
0IMCRRH005A
0IMCRRH005A
0IMCRMZ001A
0IMCRMZ001A
0IMCRFA010A
0ISO204000A
0IMCRTW001B
0ICTMMO005A
0IMCRMN011D
0IKE704200J
0IMCRFA009A
0IMCRTI022D
0IPMGSK012A
0IMCRFA007A
0ILI817000G
0ILI817000G
0IFA270000A
0IFA270000A
0TFFC80044A
0TFFC80044A
0TFFC80044A
0TFFC80044A
0TF492509AA
0TF492509AA
0TF492509AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
SDA555XFL 52DIP ST FLASH MEMORY
AT24C16A-10PI-2.7 8PIN DIP ST EEPROM
KA75270Z 3 TP RE-SET IC MC-007
OZ960S O2MICRO 20P SSOP R/TP
UM6K1N ROHM 6P SOT363 R/TP 30V 0.1A
UM6K1N ROHM 6P SOT363 R/TP 30V 0.1A
UM6K1N ROHM 6P SOT363 R/TP 30V 0.1A
MP1583DN 8P TSOP R/TP DC-DC
MP1583DN 8P TSOP R/TP DC-DC
KA7809R, FAIRCHILD 2P D-PAK, R/TP
CXA2040AQ 32P,QFP BK IIC BUS VIDEO
LG8801-H TECHWELL 160P QPFD TRAY
SC786109DWR2 MOTOROLA SOIC 16P
MSP3410G QA B8 V3 MICRONAS 80P QFP
KIA7042AF SOT-89 TP 4.2V VOLTAGE
KA78M08RTM, FAIRCHILD 2P D-PAK
TPA3004D2 48P PQFP TRAY 9WSTEREO
STR-W6853P SANKEN 6P T0-220 ST
KA431Z FAIRCHILD 3DIP,TO-92 TP
LTV817M-VB 4P,DIP BK PHOTO COUPLER
LTV817M-VB 4P,DIP BK PHOTO COUPLER
2N7000TA TO-92, 3P TP LEVEL SHIFT
2N7000TA TO-92, 3P TP LEVEL SHIFT
FDS8958A FAIRCHILD R/TP SO-8 30V 7A
FDS8958A FAIRCHILD R/TP SO-8 30V 7A
FDS8958A FAIRCHILD R/TP SO-8 30V 7A
FDS8958A FAIRCHILD R/TP SO-8 30V 7A
SI4925DY TP TEMIC 30V 6.1A SO-8
SI4925DY TP TEMIC 30V 6.1A SO-8
SI4925DY TP TEMIC 30V 6.1A SO-8
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SC3875S(ALY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SA1504S(ASY) KEC
CHIP 2SA1504S(ASY) KEC
IC
TRANSISTOR
- 20 -
DIODE
CAPACITOR
For Capacitor & Resistors, the
charactors at 2nd and 3rd digit
in the P/No. means as follows;
CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible
Page 21
- 21 -
LOCA. NO PART NO DESCRIPTION
C1102
C1103
C1104
C1105
C1106
C1107
C1127
C1128
C113
C1140
C1141
C1142
C1143
C1144
C1145
C1146
C1147
C1150
C1151
C1200
C1201
C1202
C1207
C1208
C1209
C1210
C1211
C1222
C1223
C1226
C1227
C1228
C1229
C1230
C1231
C1234
C1235
C200
C201
C209
C211
C212
C215
C216
C219
C220
C289
C331
0CC15003G06
0CC15003G06
0CC15003G06
0CC15003G06
0CC15003G06
0CE4772J618
0CK105DF64A
0CK105DF64A
0CE107BF618
0CK225DFK4A
0CK225DFK4A
0CK225DFK4A
0CK225DFK4A
0CK225DFK4A
0CK225DFK4A
0CK225DFK4A
0CK225DFK4A
0CE227BH618
0CE227BH618
0CE227DH618
0CN475FH67A
0CN475FH67A
0CK105DF64A
0CK105DF64A
0CK105DF64A
0CK105DF64A
0CK105DF64A
0CN475FH67A
0CN475FH67A
0CK105DF64A
0CK105DF64A
0CK105DF64A
0CK105DF64A
0CN475FH67A
0CK105DF64A
0CK105DF64A
0CE107DD618
0CK105DF64A
0CK105DF64A
0CE476DF618
0CE106DF618
0CE227DD618
0CE106DF618
0CE106DF618
0CE226DF618
0CE226DF618
0CE104DK618
0CE107DF618
15PF D 3KV 10%,-10% SL FMTW
15PF D 3KV 10%,-10% SL FMTW
15PF D 3KV 10%,-10% SL FMTW
15PF D 3KV 10%,-10% SL FMTW
15PF D 3KV 10%,-10% SL FMTW
470UF KMF 35V 20% TP 5 FL
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
100UF KME 16V M FL TP5
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
2.2UF 2012 16V 20%,-20% F(Y5V) R/TP
220UF KME 25V M FL TP5
220UF KME 25V M FL TP5
220UF STD 25V M FL TP5
4.7UF 3225 25V 20% R/TP X5R
4.7UF 3225 25V 20% R/TP X5R
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
4.7UF 3225 25V 20% R/TP X5R
4.7UF 3225 25V 20% R/TP X5R
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
4.7UF 3225 25V 20% R/TP X5R
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
100UF STD 10V M FL TP5
1UF 2012 16V 20% R/TP F(Y5V)
1UF 2012 16V 20% R/TP F(Y5V)
47UF STD 16V M FL TP5
10UF STD 16V M FL TP5
220UF STD 10V M FL TP5
10UF STD 16V M FL TP5
10UF STD 16V M FL TP5
22UF STD 16V M FL TP5
22UF STD 16V M FL TP5
0.1000UF STD 50V M FL TP5
100UF STD 16V M FL TP5
LOCA. NO PART NO DESCRIPTION
C351
C353
C354
C356
C357
C362
C364
C380
C381
C383
C403
C404
C408
C410
C412
C413
C499
C501
C523
C526
C541
C581
C613
C614
C616
C617
C617
C620
C621
C624
C625
C629
C633
C643
C700
C701
C703
C704
C706
C707
C708
C709
C710
C717
C718
C719
C720
C725
0CE227DF618
0CE475DK618
0CE476DF618
0CE106DF618
0CE106DF618
0CE107DF618
0CE336DF618
0CE105DK618
0CE106DF618
0CE106DF618
0CE476DH618
0CE108DD618
0CE106DK618
0CE227DF618
0CE105DK618
0CK224DF56A
0CE476DK618
0CE107DF618
0CE104DK618
0CE107DF618
0CE107DF618
0CE107DF618
0CE106DF618
0CE106DF618
0CE107DF618
0CE107BH618
0CE107BF618
0CE335DK618
0CE107BF618
0CK224DF56A
0CK224DF56A
0CE107DF618
0CE107DF618
0CE476BF618
181-091D
0CF474285B0
181-120P
181-120P
0CE226DK618
0CE1072V610
181-091D
181-120K
181-120K
181-091D
181-091D
0CE227DJ618
181-091D
0CE4772J618
220UF STD 16V M FL TP5
4.7UF STD 50V 20% FL TP 5
47UF STD 16V M FL TP5
10UF STD 16V M FL TP5
10UF STD 16V M FL TP5
100UF STD 16V M FL TP5
33UF STD 16V M FL TP5
1UF STD 50V M FL TP5
10UF STD 16V M FL TP5
10UF STD 16V M FL TP5
47UF STD 25V 20% FL TP 5
1000UF STD 10V M FL TP5
10UF STD 50V M FL TP5
220UF STD 16V M FL TP5
1UF STD 50V M FL TP5
220000PF 2012 16V 10% R/TP X7R
47UF STD 50V M FL TP5
100UF STD 16V M FL TP5
0.1000UF STD 50V M FL TP5
100UF STD 16V M FL TP5
100UF STD 16V M FL TP5
100UF STD 16V M FL TP5
10UF STD 16V M FL TP5
10UF STD 16V M FL TP5
100UF STD 16V M FL TP5
100UF KME 25V M FL TP5
100UF KME 16V M FL TP5
3.3UF STD 50V 20% FL TP 5
100UF KME 16V M FL TP5
220000PF 2012 16V 10% R/TP X7R
220000PF 2012 16V 10% R/TP X7R
100UF STD 16V M FL TP5
100UF STD 16V M FL TP5
47UF KME TYPE 16V 20% FL TP 5
DEHR33A102KN2A 1000PF 1KV 10%,-10%
0.47UF S 275V 10% PCX2 337 BULK
470 PF 4KV K JE R FL 10
470 PF 4KV K JE R FL 10
22UF STD 50V M FL TP5
100UF KMF 450V 20% FL BULK
DEHR33A102KN2A 1000PF 1KV 10%,-10%
2200PF 4KV M E FMTW LEAD 4.5
2200PF 4KV M E FMTW LEAD 4.5
DEHR33A102KN2A 1000PF 1KV 10%,-10%
DEHR33A102KN2A 1000PF 1KV 10%,-10%
220UF STD 35V M FL TP5
DEHR33A102KN2A 1000PF 1KV 10%,-10%
470UF KMF 35V 20% TP 5 FL
For Capacitor & Resistors, the
charactors at 2nd and 3rd digit
in the P/No. means as follows;
CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible
Page 22
- 22 -
LOCA. NO PART NO DESCRIPTION
C726
C727
C728
C730
C731
C733
C734
C743
C744
C745
C746
C747
C777
C832
L1201
L1202
L1203
L1204
L174
L175
L176
L177
L401
L705
L706
T1101
T1102
T1103
T1104
T1105
T1106
T701
P1
P100
P101
P1101
P1102
P601
P602
FR704
L502
L503
0CK10101515
0CE226DK618
0CE476BK618
0CE4772J618
0CE227DJ618
181-120K
0CE4772J618
0CE477DD618
0CE227DK618
0CE477DD618
0CE477DD618
0CE477DD618
181-091D
0CE107DF618
6140VR0005B
6140VR0005B
6140VR0005B
6140VR0005B
0LC0233002A
0LC0233002A
0LC0233002A
0LC0233002A
0LA0272K139
6140VR0008B
6140VR0008B
6170VH0002A
6170VH0002A
6170VH0002A
6170VH0002A
6170VH0002A
6170VH0002A
6170VMCA65A
6602T10002D
366-932E
6602V20005L
6631V20014E
387-A07B
366-932B
366-932C
0RP0020J809
0RRZVTA001A
0RRZVTA001A
100PF D 1KV 10% B(Y5P) TR
22UF STD 50V M FL TP5
47UF KME 50V M FL TP5
470UF KMF 35V 20% TP 5 FL
220UF STD 35V M FL TP5
2200PF 4KV M E FMTW LEAD 4.5
470UF KMF 35V 20% TP 5 FL
470UF STD 10V M FL TP5
220UF STD 50V M FL TP5
470UF STD 10V M FL TP5
470UF STD 10V M FL TP5
470UF STD 10V M FL TP5
DEHR33A102KN2A 1000PF 1KV 10%,-10%
100UF STD 16V M FL TP5
COIL,ENERGY SLF7045T-330MR82
COIL,ENERGY SLF7045T-330MR82
COIL,ENERGY SLF7045T-330MR82
COIL,ENERGY SLF7045T-330MR82
INDUCTOR,CHIP 3.3UH CERATECH R/TP
INDUCTOR,CHIP 3.3UH CERATECH R/TP
INDUCTOR,CHIP 3.3UH CERATECH R/TP
INDUCTOR,CHIP 3.3UH CERATECH R/TP
INDUCTOR,AXIAL LEAD 27UH K 4X10.5 TP
COIL,ENERGY SLF12575T-150M3R2 15UH
COIL,ENERGY SLF12575T-150M3R2 15UH
TRANSFORMER,UI-11.7 860000UH 1-CH
TRANSFORMER,UI-11.7 860000UH 1-CH
TRANSFORMER,UI-11.7 860000UH 1-CH
TRANSFORMER,UI-11.7 860000UH 1-CH
TRANSFORMER,UI-11.7 860000UH 1-CH
TRANSFORMER,UI-11.7 860000UH 1-CH
TRANSFORMER,SMPS[COIL] EER3019
ETC 50P FH12-50S-0.5H HIROSE .
2.5MM 6P GIL-G LG CABLE S (STICK)
2.0MM 12P GIL-S LG CABLE STRAIGHT
12P 2.0MM 300MM (LGC)GIL-S (LGC)GIL-T
7P 2.5MM 150MM GIL-G GIL-J NON
2.5MM 3P GIL-G LG CABLE S (STICK)
2.5MM 4P GIL-G LG CABLE S (STICK)
0.02 OHM 1 W 20% TA52
MNR-14-E0A-J-101 R OHM 100 OHM 5%
MNR-14-E0A-J-101 R OHM 100 OHM 5%
LOCA. NO PART NO DESCRIPTION
L504
L505
L506
L507
L518
R702
R703
R704
R705
R706
R706
R711
R712
R714
R715
R727
R736
SW1101
SW1102
SW1103
SW1104
SW1105
SW1106
SW1107
SW1108
L101
L1101
L1101
L119
L1200
L1205
L1206
L200
L200
L201
L201
L202
L202
L204
L205
L206
L207
L208
L209
0RRZVTA001A
0RRZVTA001A
0RRZVTA001A
0RRZVTA001A
0RRZVTA001A
0RKZVTA001C
0RKZVTA001K
0RS5602K619
0RS5602K619
0RS5602K619
0RS1203K607
0RS5602K619
0RS5602K619
0RS5602K619
180-A01E
0RD0472H609
0RD0472H609
140-313A
140-313A
140-313A
140-313A
140-313A
140-313A
140-313A
140-313A
6210TCE001G
6210TCE001A
6210TCE001G
6210TCE001A
6210TCE001G
6210TCE001G
6210TCE001G
6200JB8010L
6210TCE001A
6210TCE001A
6200JB8010L
6210TCE001A
6200JB8010L
6210TCE001A
6210TCE001A
6210TCE001G
6200JB8010L
6210TCE001A
6210TCE001A
MNR-14-E0A-J-101 R OHM 100 OHM 5%
MNR-14-E0A-J-101 R OHM 100 OHM 5%
MNR-14-E0A-J-101 R OHM 100 OHM 5%
MNR-14-E0A-J-101 R OHM 100 OHM 5%
MNR-14-E0A-J-101 R OHM 100 OHM 5%
8.2M OHM 1/2 W 5% TA52 UL
0.47M OHM 1/2 W 5% TA52
56K OHM 2 W 5.00% TR
56K OHM 2 W 5.00% TR
56K OHM 2 W 5.00% TR
120K OHM 2 W 5.00% TA62
56K OHM 2 W 5.00% TR
56K OHM 2 W 5.00% TR
56K OHM 2 W 5.00% TR
2 W RW ROUND G 2W 0.33J TA31(63)
47 OHM 1/2 W 5.00% TA52
47 OHM 1/2 W 5.00% TA52
TACT 2LEAD 100G(TA) NON 5V 0.001A
TACT 2LEAD 100G(TA) NON 5V 0.001A
TACT 2LEAD 100G(TA) NON 5V 0.001A
TACT 2LEAD 100G(TA) NON 5V 0.001A
TACT 2LEAD 100G(TA) NON 5V 0.001A
TACT 2LEAD 100G(TA) NON 5V 0.001A
TACT 2LEAD 100G(TA) NON 5V 0.001A
TACT 2LEAD 100G(TA) NON 5V 0.001A
HH-1M3216-501 3216MM R/TP
HB-1S2012-080JT 2012MM CHIP-BEAD
HH-1M3216-501 3216MM R/TP
HB-1S2012-080JT 2012MM CHIP-BEAD
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
MLB-201209-1000L-N2
HB-1S2012-080JT 2012MM CHIP-BEAD
HB-1S2012-080JT 2012MM CHIP-BEAD
MLB-201209-1000L-N2
HB-1S2012-080JT 2012MM CHIP-BEAD
MLB-201209-1000L-N2
HB-1S2012-080JT 2012MM CHIP-BEAD
HB-1S2012-080JT 2012MM CHIP-BEAD
HH-1M3216-501 3216MM R/TP
MLB-201209-1000L-N2
HB-1S2012-080JT 2012MM CHIP-BEAD
HB-1S2012-080JT 2012MM CHIP-BEAD
FILTER & CRYSTAL
For Capacitor & Resistors, the
charactors at 2nd and 3rd digit
in the P/No. means as follows;
CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible
SWITCH
COIL & INDUCTOR
CONNECTOR
RESISTOR
Page 23
- 23 -
LOCA. NO PART NO DESCRIPTION
L351
L400
L402
L501
L515
L516
L517
L580
L581
L601
L602
L603
L701
L702
L703
L704
L801
L802
L803
L99
LF701
R1108
R1109
R1110
R1111
R1112
R226
R228
R229
R230
R505
R710
Z100
Z500
Z600
A1
A1
A1
A1
A1
A1
A1
A1
A1
A2
A3
6210TCE001G
6210TCE001G
6210TCE001G
6210TCE001G
6210TCE001G
6210VC0004A
6210TCE001G
6210TCE001A
6210TCE001A
6210TCE001G
6210TCE001G
6210TCE001G
125-022K
125-022K
6210TCE001G
6210TCE001G
6210TCE001G
6210TCE001G
6210TCE001G
6210TCE001G
6200JB8012Q
6200JB8010L
6200JB8010L
6200JB8010L
6200JB8010L
6200JB8010L
6200JB8010L
6200JB8010L
6200JB8010L
6200JB8010L
6210TCE001A
125-022K
156-A01L
156-A02X
156-A02M
3828VA0448B
3828VA0448C
3828VA0448D
3828VA0448F
3828VA0448G
3828VA0448H
3828VA0448J
3828VA0448K
3828VA0448R
6710V00091G
6410VPH001A
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
BK3216 4S600 3.2X1.6X0.8MM R/TP
HH-1M3216-501 3216MM R/TP
HB-1S2012-080JT 2012MM CHIP-BEAD
HB-1S2012-080JT 2012MM CHIP-BEAD
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
FERRITE 1UH TAPING
FERRITE 1UH TAPING
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
HH-1M3216-501 3216MM R/TP
OR 14*7*7.5H SMC BK 6.0-11.0MH
MLB-201209-1000L-N2
MLB-201209-1000L-N2
MLB-201209-1000L-N2
MLB-201209-1000L-N2
MLB-201209-1000L-N2
MLB-201209-1000L-N2
MLB-201209-1000L-N2
MLB-201209-1000L-N2
MLB-201209-1000L-N2
HB-1S2012-080JT 2012MM CHIP-BEAD
FERRITE 1UH TAPING
RESONATOR,CRYSTAL HC49U 6.000MHZ
RESONATOR,CRYSTAL HC49U 27.000MHZ
RESONATOR,CRYSTAL 18.432MHZ 30PPM
MANUAL,OWNERS ML024D LGEBN
MANUAL,OWNERS ML024D LGEHS
MANUAL,OWNERS ML024D LGEUK
MANUAL,OWNERS ML024D LGEIS
MANUAL,OWNERS ML024D LGEES
MANUAL,OWNERS ML024D STUH
MANUAL,OWNERS ML024D LGEFS
MANUAL,OWNERS ML024D LGESW
MANUAL,OWNERS ML024D LGERU
REMOTE CONTROLLER,ML012B FULL .
POWER CORD,SP023+IS034 (LGERU)
LOCA. NO PART NO DESCRIPTION
A3
A3
A3
A3
F701
LED1
P701
PA1101
RJ201
SC204
TH701
TU401
VA701
6410VEH008A
6410VEH008C
6410VEH008D
6410VBH005A
131-098B
0DL200000CA
6620VZ0002A
6726VV0006D
6613V00008F
381-091B
163-048D
6700PF0002A
164-003K
POWER CORD,SP022+ISO34 (LGEBN)
POWER CORD,SP023+ISO34 (STUH)
POWER CORD,SP28+IS-034 (LGEIS)
POWER CORD,SP60+IS034 (LGEUK)
FUSE,SLOW BLOW 4000MA 250 V 5.2X20
LED SAM5670(DL-2LRG) BK Y-GREEN SOCKET (CIRC),DRAWING IS7007
REMOTE CONTROLLER RECEIVER ,38.0KHZ
JACK ASSY,PMJ014F E/P(ST)+S-VHS+3P H6.5
JACK,SCART S-091B UGCOM SCART 21
THERMISTOR,KL15L2R5 +/- 15% 125V
TUNER,TAFH-S321D LG PAL FS 4SYS
VARISTOR,SVC621D-14A ILJIN 620V 0%
ACCESSORIES
MISCELLANEOUS
Page 24
P/NO:3854VA0135A-S1
2003.10.13
Page 25
SVC. SHEET : 3854VA0135A-S1
Loading...
