LG RN9 User Guide
MFL71690811
Additional Information
(R03)
(R03)
ENGLISH
Specifications
Power Requirements
Power Consumption
Dimensions (W x H x D)
Bus Power Supply (USB)
Design and specications are subject to change without
notice.
Refer to the main label on
the unit.
Refer to the main label on
the unit.
Approx. 330.0 mm x
1,056.0 mm x 368.0 mm
5 V 0 500 mA
Caution
y Connect the power cord to wall outlet directly if
possible. Or when you use an extension cable, it is
highly recommended to use an extension cable of 110
V / 15 A or 230 V / 15 A, otherwise the unit may not
operate properly because of the lack of power supply.
y Do not overload the extension cord with excessive
electrical load.
Note
y Do not look directly at the light emitting part when the
LIGHTING is turned on.
y If the illumination brightness is glaring, switch on the
room lights or turn off the LIGHTING of the unit.
Replacement of battery

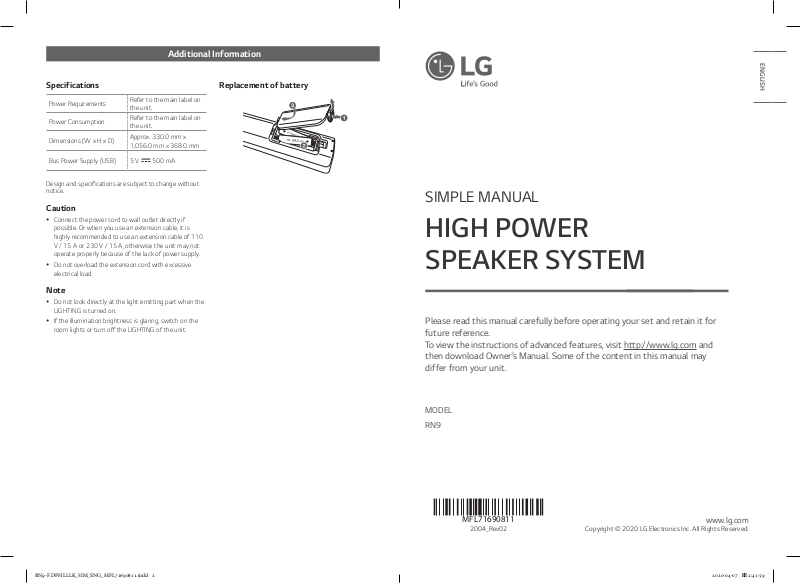

SIMPLE MANUAL
HIGH POWER
SPEAKER SYSTEM
Please read this manual carefully before operating your set and retain it for
future reference.
To view the instructions of advanced features, visit http://www.lg.com and
then download Owner’s Manual. Some of the content in this manual may
differ from your unit.
MODEL
RN9
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.2004_Rev02
RN9-F.DPHLLLK_SIM_ENG_MFL71690811.indd 2 2020-04-07 2:41:59
Top panel
n
l
k i
j
d
Front panel / Rear panel
c
e
b
a
o
m
(Standby)
a 1
Turns the power on or off.
USB REC / DEMO
b
- Records to USB.
- Stops recording.
- In power off status, if you press USB REC / DEMO, show
demo mode.
USB 1 Port
c
You can play sound les by connecting the USB device.
Display window
d
USB 2 Port
e
You can play sound les by connecting the USB device.
F (Function)
f
Selects the function and input source.
LIGHTING
g
Selects the lighting mode.
TWIN
h 3
Connects two units for TWIN mode in WIRELESS PARTY LINK.
i C/V
N (Play/Pause)
- Starts or pauses playback.
- Selects stereo/mono.
(Skip/Search)
- Skips backward or forward.
- Searches for a section within a le.
- Selects the radio stations.
- Bluetooth connection lock (BT LOCK): Select the Bluetooth
function by pressing F repeatedly. And long press N to limit
Bluetooth connection to only BT and LG TV.
AUTO DJ
VOL (Volume) -/+
f
MIC (Microphone) / GUITAR -/+
g
h
j
k
EQ
l
Selects CLUB, DRUM or USER sound effect to mix.
1, 2, 3 (DJ PAD)
Press a desired sound pad.
m
VOCAL EFFECTS
KEY CHANGER (l/L)
n
o
SEARCH
OK
USER EQ
Selects the equalizer created by your own.
Multi jog
- Searches a folder or a file.
- Turns clockwise or counterclockwise to control the USER EQ
- Chooses special equalizer.
Selects the AUTO DJ mode.
Adjusts speaker volume.
Adjusts Microphone volume or Guitar volume.
(Auto Music Play)
Plays the audio currently playing by tagging the mobile (with
“LG XBOOM” App) to this unit. (Android Only)
VOICE CANCELLER
You can reduce the vocal tones during music playback from
various input sources.
Chooses sound impressions.
CLUB, DRUM, USER (DJ PAD)
(If you want to use USER, you have to register a source with
“LG XBOOM” app. (Android Only))
MIC (Microphone) ECHO
Selects ECHO mode.
Selects various vocal effects mode.
Changes the key to suit your vocal range.
Remote sensor
SPECIAL EQ / BASS BLAST (or BASS BLAST+)
- Chooses special equalizer.
- Press and hold to select BASS (or BASS+) effect directly.
Moves to folder or file in selection mode.
Selects a folder when searching a file.
level.
Lighting
a
Remote sensor
b
a
Controller App
b
e
d
c
OPTICAL IN: Connect an optical device.
c
GUITAR IN: Connect a guitar.
d
MIC (Microphone) IN: Connect a microphone.
e
ANTENNA (FM)
f
AC IN socket
g
f
Make sure to properly align and connect the
optical cable; improper alignment may cause
damage to the jack.
LG Sound Sync
g
Android iOS
Download the LG XBOOM App to your device.
For more information, download the online owner’s
manual. http://www.lg.com
