LG RM-20LA66K Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : ML-041B

MODEL : RM-20LA66K

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ..................................................................................3

SPECIFICATION........................................................................................6

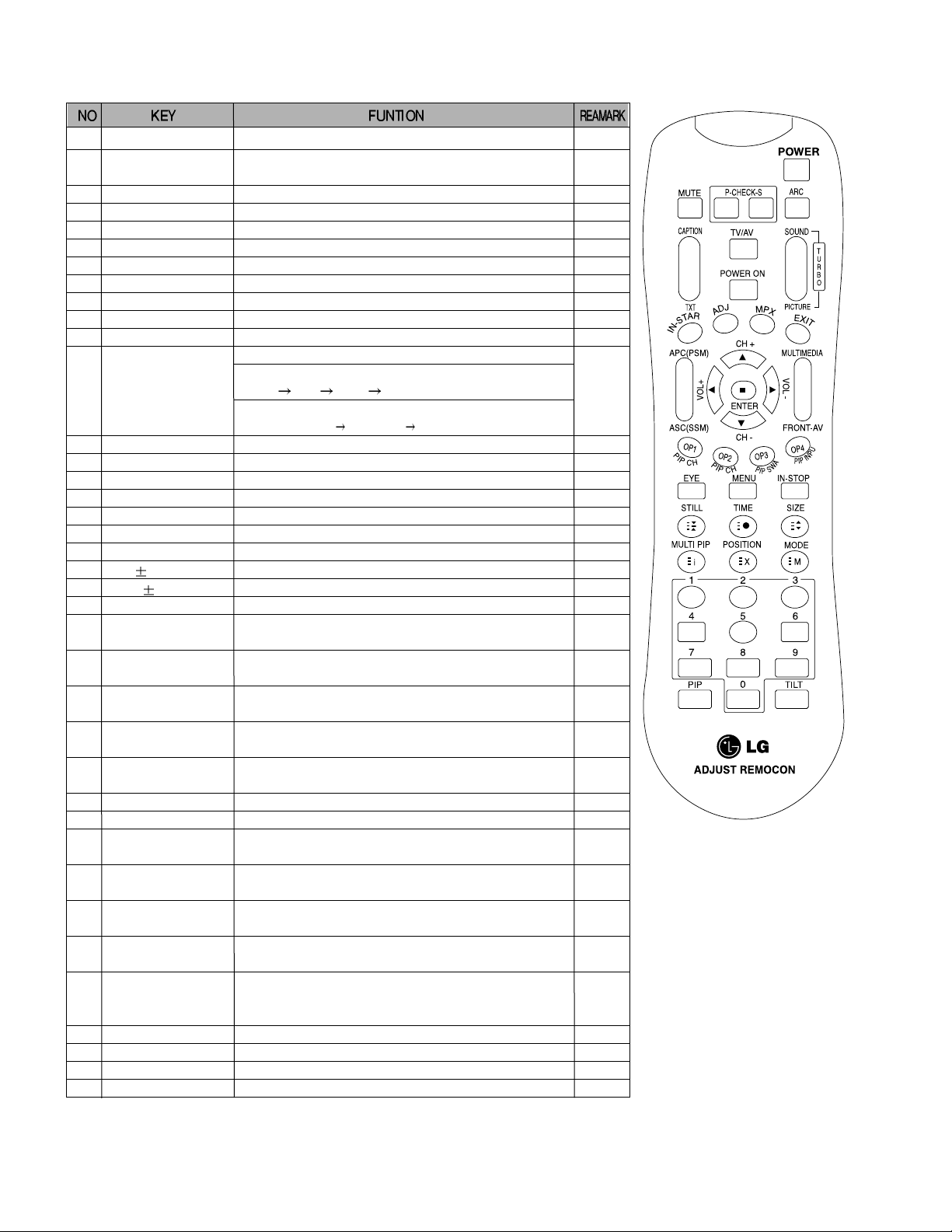

ADJUSTMENT INSTRUCTION ...............................................................10

TROUBLE SHOOTING............................................................................12

BLOCK DIAGRAM...................................................................................17

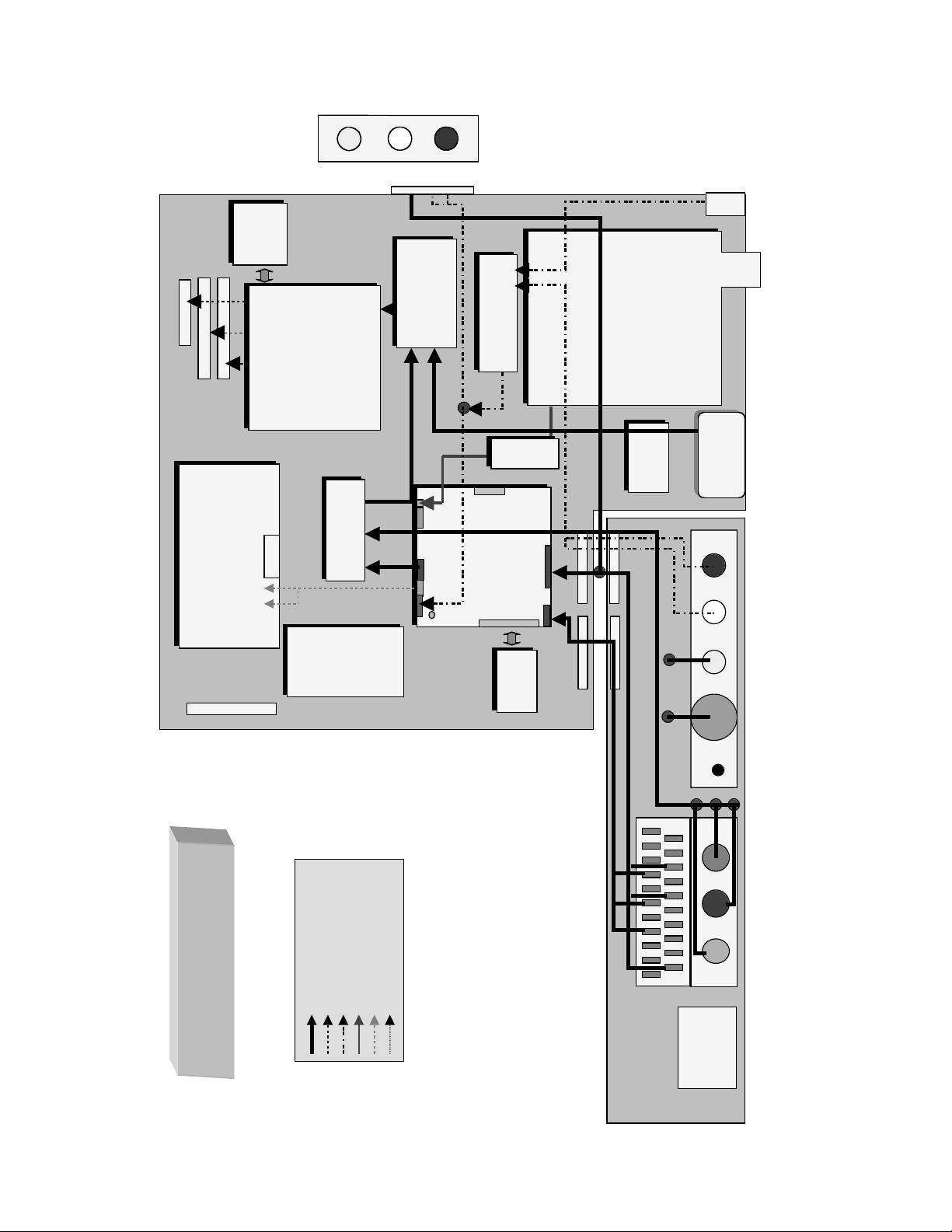

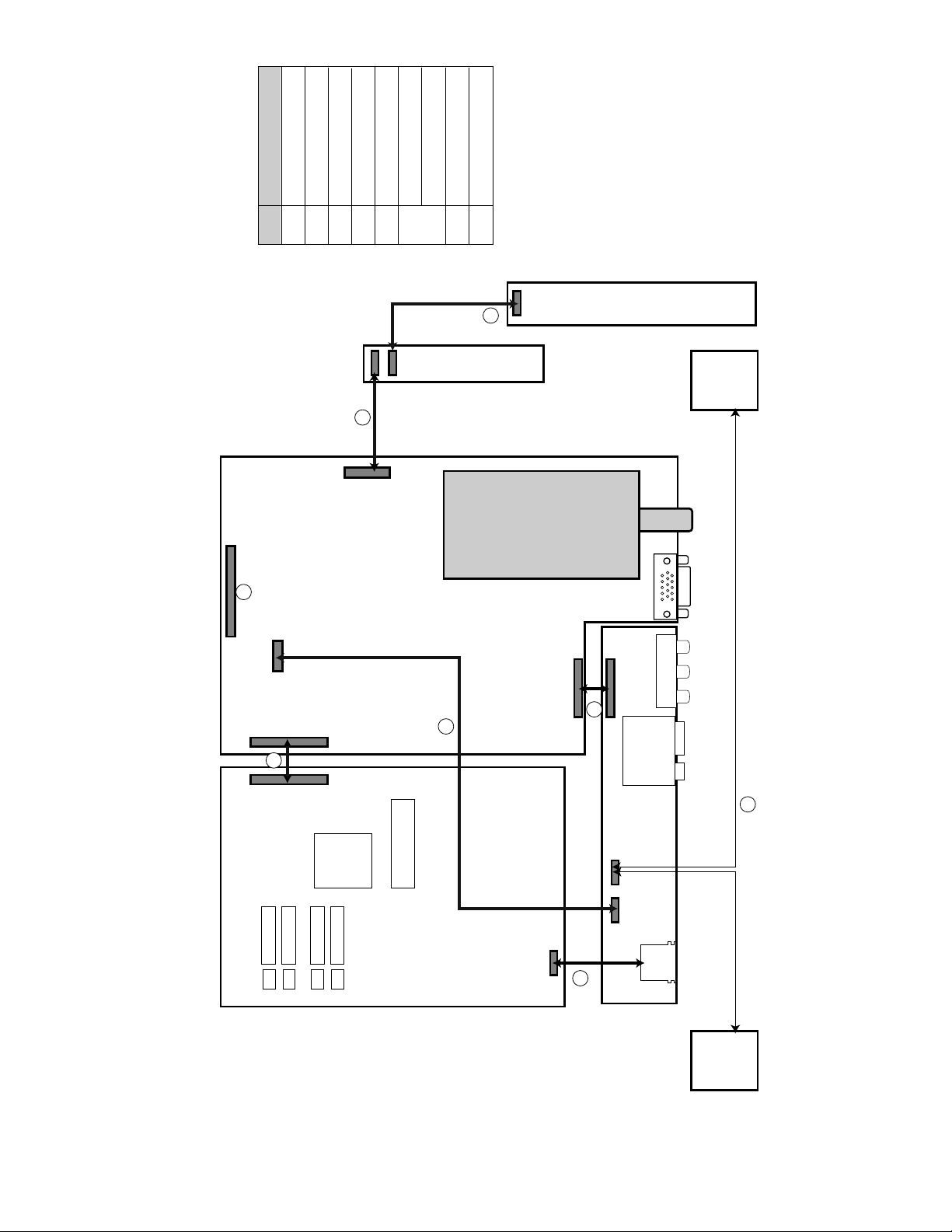

WIRING DIAGRAM..................................................................................19

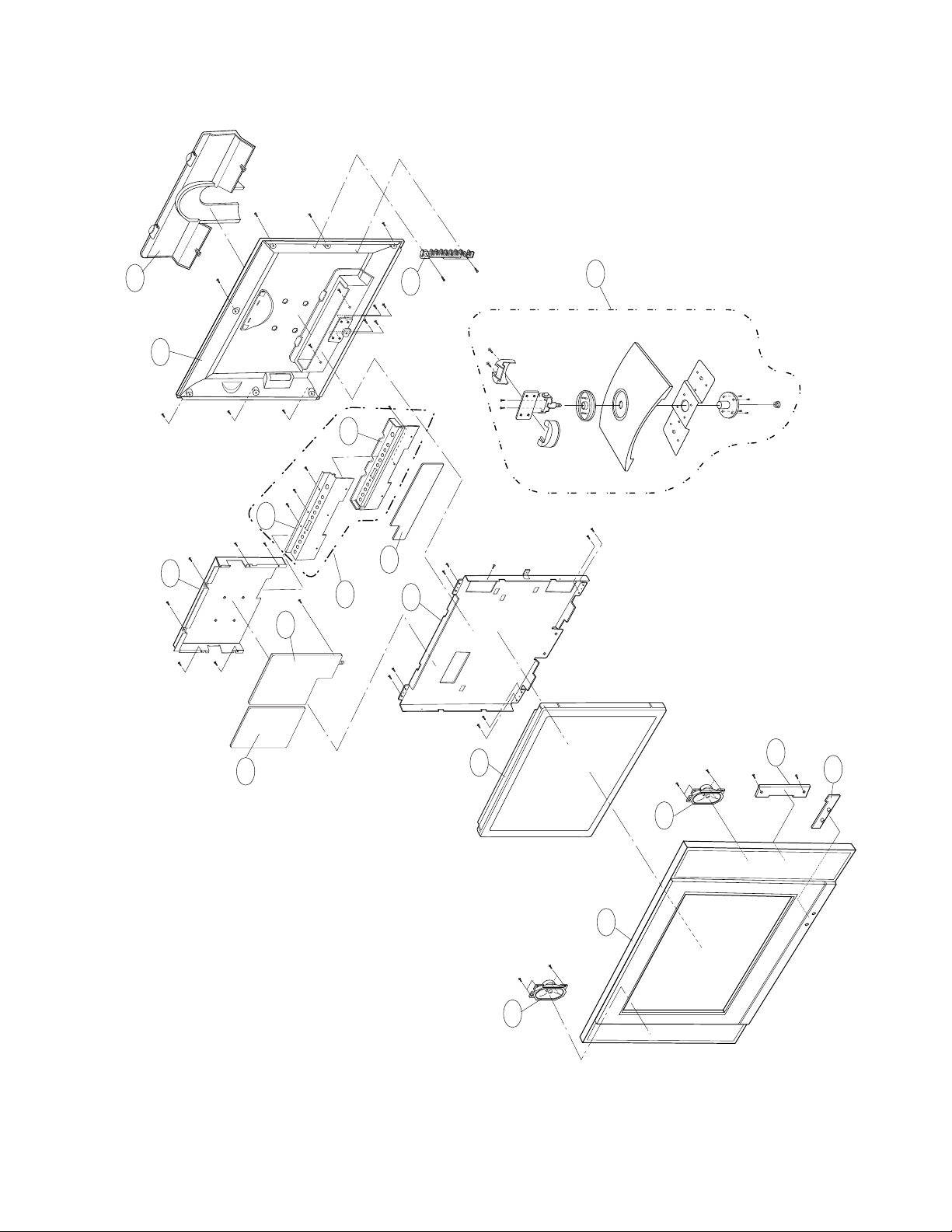

EXPLODED VIEW .................................................................................. 20

EXPLODED VIEW PARTS LIST..............................................................21

REPLACEMENT PARTS LIST ............................................................... 22

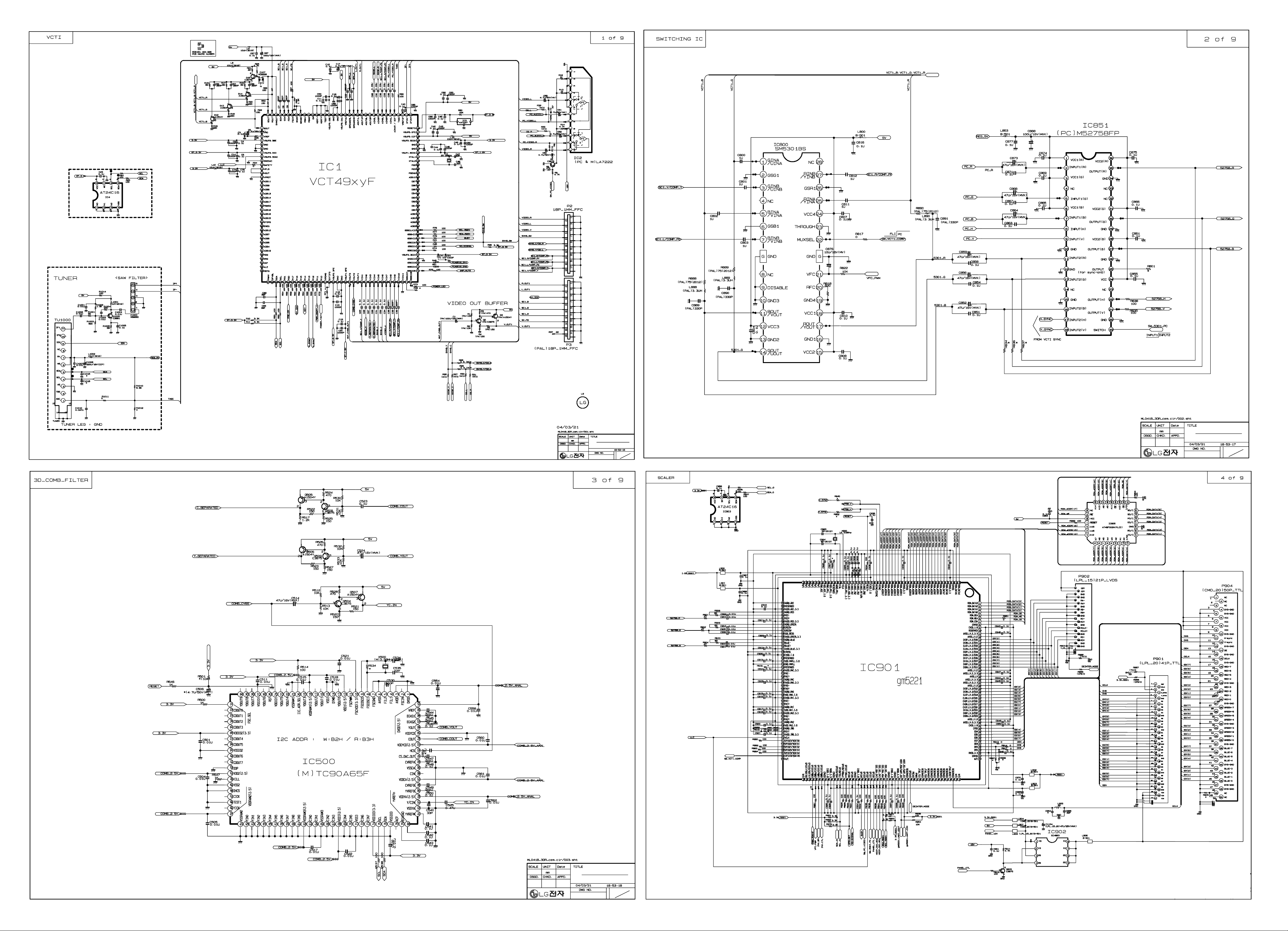

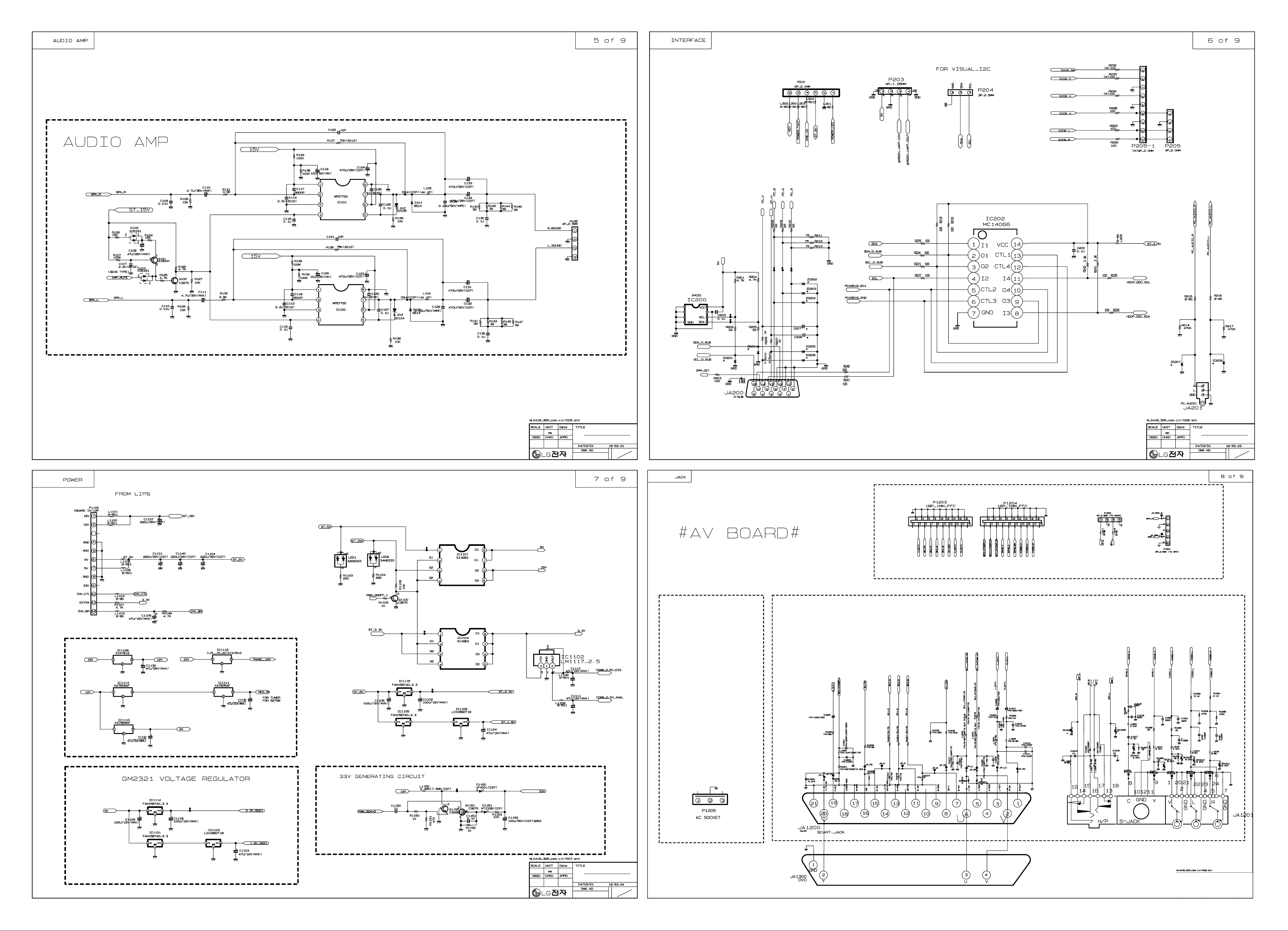

SVC. SHEET ...............................................................................................

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate high
impedance HV meter.

Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate

23.5

1.5KV: 14-19 inch, 26 1.5KV: 19-21 inch,

29.0

1.5KV: 25-29 inch, 30.0 1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service and
correction is required to prevent the possibility of premature
component failure.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the High
Voltage Section and the LCD PANEL.
For continued X-RAY RADIATION protection, the replacement
panel must be the same type panel as specified in the
Replacement Parts List.

IMPORTANT SAFETY NOTICE

0.15uF

To Instrument's
exposed
METALLIC PARTS

AC Volt-meter

1.5 Kohm/10W

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

- 4 -

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power

source before;
a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.

2. Test high voltage only by measuring it with an appropriate high

voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its

assemblies.

4. Unless specified otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which

receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its

electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver

chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500

F to 600 F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.

(500

F to 600 F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the
circuitboard printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500

F to 600 F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as
possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 -

1. Application range

This specification is applied to ML-041B chassis.

2. Requirement for Test

Testing for standard of each part must be followed in below
condition.

(1) Temperature: 25°C ± 2°C
(2) Humidity: 65% ± 10%
(3) Power: Standard input voltage (AC 100-240V, 50/60Hz)
(4) Measurement must be performed after heat-run more than

30min.

(5) Adjusting standard for this chassis is followed a special

standard.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

3.General Specification

1

2

3

Maker
Type
ActiveDisplay Area
Pixel Pitch [mm]
Electrical Interface
Color Depth
Size [mm]
Surface Treatment
Operating Mode
Back light Unit
R/T Typ.
Maker
Type
ActiveDisplay Area
Pixel Pitch [mm]
Electrical Interface
Color Depth
Size [mm]
Surface Treatment

Operating Mode

Back light Unit
R/T Typ.
Maker
Type
ActiveDisplay Area
Pixel Pitch [mm]
Electrical Interface
Color Depth
Size [mm]
Surface Treatment

Operating Mode

Back light Unit
R/T Typ.

LPL
TFT Color LCD Module

20.1 inches(380.16mm) diagonal(Aspect 4:3)

0.6375mm(H)x0.6375mm(V)xRGB
TTL
8BIT, 16,777,216 colors
450(H)x 348.7(V)x20(D)
Glare, Hard Coating(3H)
Normally Black
6 CCFL(6 lamps)
16ms(R.T.:7/10ms + F.T.:18/20ms)
AUO
TFT Color LCD Module

20.1 inches(510.00mm) diagonal

0. 6376mm(H)x0.6375mm(V)xRGB
TTL
8-BIT 16,777.216 Colors
434(H)x331.6(V)x29.6(D)
Hard Coating, AR,Glare (3H)
Normally Black
6 CCFL(6 lamps)
16ms
CMO
TFT Color LCD Module

20.1 inches(510.00mm) diagonal

0. 6375mm(H)x0.6375mm(V)xRGB
TTL
8-BIT 16,777.216 Colors
448(H)x339.6(V)x25(D)
Anti Glare, Hard Coating(3H)
Normally Black
6 CCFL(6 lamps)
16ms(R.T.:5/7ms + F.T.:11/14ms)

Item Specification Remark

No.

LPL

AUO

CMO

4. Feature and Function

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

Teletext
REMOCON
CVBS VIDEO Input
S-VIDEO Input
Component input
PERI TV Connector
H/p input
RS-232
Discrete IR
2 Carrier Stereo
NICAM Stereo
2 Carrier Dual
NICAM Dual
DW(Double Window) Mode
MW(Multi Window) Mode
Film Mode
Noise Reduction
Progressive Scan
Motion Detection
SRS WOW
wivel Speaker
Ez-pip
ARC
DRP
DCDI
HDCP

TOP, FLOF

NEC Code

1
1
1

Full SCART : 1

1
NO
NO

BG, DK

BG, I, LL'

BG, DK

BG, I, LL'

X

X

O
X
O
X
X
X
X
O
O
X
X

Item Specification Remark

No.

Top(option)
PAL/ NTSC
Rear
Rear
Rear (option, NT)
Rear (option,EU)
Rear

5.Optical Character

Item RemarkSpecification

Viewing Angle
<CR

10>

Luminance

Contrast Ratio
CIE Color Coordinates

Typical
MAX/MIN
ALL white/All black

R/L,
U/D
Luminance(cd/

)

Variation

LPL
85/85
85/85

400

1.3

400

0.289

0.335

0.692

0.335

0.289

0.583

0.143

0.909

WHITE

RED

Green

Blue

W

X

W

Y

W

r

Y

r

X

g

Y

g

Xb
Yb

Typ.
Typ.
Typ.
Typ.
Typ.
Typ.
Typ.
Typ.

CMO
80/80
75/65

450

1.3

500

0.285

0.293

0.692

0.332

0.276

0.601

0.142

0.075

CMO
85/85
90/90

450

1.3

600

0.31

0.33

0.64

0.34

0.29

0.61

0.14

0.07

No.

1

2

3
4

- 8 -

6.Engineering Specification

1

2

3

4

5

Power Supply

Normal

Stand By
Suspend Mode
DPM Off Mode

Cut-off Switch off

ITEM

D-SUB Pin Configuraion

Control Function

Comoponent Jack

D4 Jack

(525i, 525p, 750p, 1125i)

H/V Sync

On/On
Off/On
On/Off
Off/Off

-

Spectification
1: RED
3: Blue:
5: S.T(GND)
7: Green GND
9: N.C
11: ID0(GND)
13: H-Sync
15: SCL

1) Contrast/Brightness

2) H-Position/V-Position

3) Tracking : Clock/ Phase

4) Auto Configure
RESET
1: Y
3: Pb
5: Pr
1: Y GND
2: Pb
5: Pr
7: LINE1 Ready
9: Line2
11: Line3
13: Line3 ready

2: Green
4: ID2(GND)
6: RED GND
8: Blue GND
10: D-GND
12: SDA
14: V-Sync
Shell: GND

2: Y GND
4: Pb GND
6: Pr GND
8: LINE1
10: Line2 Ready
12: SWITCH GND
14: SWITCH

Remark

10: Digital GND

Middle east/

NTSC Area

JAPAN Only

Video

Active

Off

-

Power Consumption

65W

1W
1W
1W

0W

PBP SWAP

ON/OFF

Item Specification Remark

No.

LED Color

GREEN

LED

OFF

- 9 -

6-2.Power

NO

1
2
3
4
5

6
7

8

9

10
11

AC Power Shut Down Voltage
DC Voltage, Inverter
DC Voltage, LCD Panel
DC Voltage, Audio
DC Voltage, Tuner(5)
DC Voltage, Tuner(9)
DC Voltage, Tuning(31)
DC Voltage, VCTi(5)
DC Voltage, VCTi(8)
DC Voltage, VCTi(3.3)
DC Voltage, VCTi(1.8)
DC Voltage, GM2221 (3.3)
DC Voltage, GM2221 (1.8)
DC Voltage, Digital (3.3)
DC Voltage, Digital (5)

90

22.8

11.4

14.0

4.5

8.5
31

4.5

7.5

3.1

1.6

3.1

1.6

2.8

4.5

24
12
15

5
9

33

5
8

3.3

1.8

3.3

1.8

3.3
5

264

25.2

12.6

16.0

5.5

9.5
35

5.5

8.5

3.5

2.0

3.5

2.0

3.8

5.5

V
V
V
V
V
V
V
V
V
V
V
V
V
V
V

Japan only

Item Min Typ Max Unit Remark

6-3. External Interface

NO

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

Video Input Level
Audio Input Level
Audio Input Frequency Response
Audio Input S/N
Audio Input Distortion
Audio Input Dynamic Range
Video Output Level
Video Output Frequency Response
Video Output S/N
Audio Output Level
Audio Output Frequency Response
Audio Output S/N
Audio Output Distortion
Video Input Level, R/G/B
Video Input Level, Component(Y, PB, PR)
RGB Input Resolution, Vertical
RGB Input Resolution, Horizontal
RGB Input Horizontal Frequency
RGB Input Frame Rate

0.85

0.4

0.1
40

2

0.85

3.8
40

0.4

0.1
40

0.6

0.6

1

0.5

1

0.5

0.7

0.7
768

1280

1.15

0.6
7

2

1.15

0.6
7

2

0.8

0.8

Vpp

V

KHz

DB

%

V
Vpp
MHz

DB

V
KHz

DB

%
Vpp
Vpp

Pixel
Pixel

KHz

Hz

EN-50049
NTSC:0.4Vrms(Typ)

75 ohm
75 ohm
Only 20" 640 Pixel

480
See table 5-5
See table 5-5

Item Min Typ Max Unit Remark

6-4. The Others

NO

1
2
3
4
5
6

Search Sensitivity
Soft Ware Functionality Test
REMOCON Working Sensitivity, Straight
REMOCON Working Sensitivity, T/B/L/R
Closed Caption Sensitivity
Teletext Sensitivity

0.1

0.1

-85

10

9

-70

-70

dBm

m

m
dBm
dBm

LGE Specification

30 degree

NTSC ONLY

Item Min Typ Max Unit Remark

- 10 -

1. Application Object

This instruction is for the application to the LCD TV.

2. Adjustment

2.1 Adjustment overview

The unit is set to automatically adjust using the
factory automation equipment. However when errors
occur, it should be adjusted manually.

2.2 Auto Gain/Offset adjustment

2.2.1 RF Mode adjustment

2.2.1.1 Adjustment preparation

Conduct Heat Run at the RF fog signals for more than

30 minutes.

2.2.1.2 Auto Gain/Offset adjustment

Press IN-START Key to convert to the adjustment

mode using the adjustment (SVC) remote controller,
and press VOL+ Key at the Auto Gain menu.

(In case of RM-20LA70, press IN-START Key twice)

Once the adjustment is completed, press the Enter

Key to save and finish the adjustment.

2.2.2 Component Mode adjustment

2.2.2.1 Adjustment preparation

Conduct Heat Run at the RF fog signals for more than

30 minutes.

Connect the Pattern Generator to the Component

Jack (Y, Pb, Pr) of LCD TV.

2.2.2.2 Auto Gain/Offset adjustment
Convert the input mode to the component input.
Using the Pattern Generator (801GF, VG819) adjust

480P for resolution and Color Bar

signals for patterns. Or adjust Color Bar signals in

accordance with VG819.

Press the IN-START Key to convert into the

adjustment mode using the adjustment (SVC) remote
controller, and press VOL+ Key at the Auto Gain
menu.

Once the adjustment is completed, press the Enter

Key to save and finish the adjustment

ADJUSTMENT INSTRUCTION

- 11 -

SVC REMOCON

1 POWER
2 POWER ON
3 MUTE

4 P-CHECK
5 S-CHECK
6 ARC
7 CAPTION
8 TXT
9 TV/AV
10 TURBO SOUND
11 TURBO PICTURE

12 IN-START

13 ADJ
14 MPX
15 EXIT
16 APC(PSM)
17 ASC(SSM)
18 MULTIMIDIA
19 FRONT-AV
20 CH
21 VOL
22 ENTER

23 PIP CH-(OP1)

24 PIP CH+(OP2)

25 PIP SWAP(OP3)

26 PIP INPUT(OP4)

27 EYE
28 MENU

29 IN-STOP
30 STILL

31 TIME

32 SIZE

33 MULTI PIP

34 POSITION

35 MODE
36 PIP
37 TILT
38 0~9

To turn the TV on or off
To turn the TV on automatically if the power is supplied to the TV. (Use the
POWER key to deactivate): It should be deactivated when delivered.
To activate the mute function.
To check TV screen image easily.
To check TV screen sound easily
To select size of the main screen (Normal, Spectacle, Wide or Zoom)
Switch to closed caption broadcasting
To toggle on/off the teletext mode
To select an external input for the TV screen
To start turbo sound
To start turbo picture
To enter adjustment mode when manufacturing the TV sets.
To adjust the screen voltage (automatic):
In-start

mute Adjust AV(Enter into W/B adjustment mode)
W/B adjustment (automatic):
After adjusting the screen W/B adjustment Exit two times (Adjustment completed)
To enter into the adjustment mode. To adjust horizontal line and sub-brightness.
To select the multiple sound mode (Mono, Stereo or Foreign language)
To release the adjustment mode
To easily adjust the screen according to surrounding brightness
To easily adjust sound according to the program type
To check component input
To check the front AV
To move channel up/down or to select a function displayed on the screen.
To adjust the volume or accurately control a specific function.
To set a specific function or complete setting.
To move the channel down in the PIP screen.
To use as a red key in the teletext mode
To move the channel in the PIP screen
To use as a green key in the teletext mode
To switch between the main and sub screens
To use as a yellow key in the teletext mode
To select the input status in the PIP screen
To use as a blue key in the teletext mode
To set a function that will automatically adjust screen status to match
the surrounding brightness so natural color can be displayed.
To select the functions such as video, voice, function or channel.
To set the delivery condition status after manufacturing the TV set.
To halt the main screen in the normal mode, or the sub screen at the PIP screen.
Used as a hold key in the teletext mode (Page updating is stopped.)
Displays the teletext time in the normal mode
Enables to select the sub code in the teletext mode
Used as the size key in the PIP screen in the normal mode
Used as the size key in the teletext mode
Used as the index key in the teletext mode (Top index will be
displayed if it is the top text.)
To select the position of the PIP screen in the normal mode
Used as the update key in the teletext mode (Text will be
displayed if the current page is updated.)
Used as Mode in the teletext mode
To select the simultaneous screen
To adjust screen tilt
To manually select the channel.

Shortcut keys
Shortcut keys
Shortcut keys

Use the AV
key to enter
the screen
W/B
adjustment
mode.

Shortcut keys
Shortcut keys

Shortcut keys

- 12 -

TROUBLESHOOTING

No power
(LED indicator off)

Check short of main B/D
or Change Lips

Change IC1107, IC1104

Change LED Assy

Check 15V or 5V

of Lips

Check Output of

IC1107, IC104

Check LED Assy

Check P1100, P210 Connector

Fail

Fail

Change Q1100

Check Output of

Q1100

Fail

Pass

Fail

Pass

Pass

Pass

:[A]Process

- 13 -

No Raster

Check LED Status

on display unit

Check the input/

Output of IC901

Check L900,L901

L902,L903

Check inverter

Connector or inverter

Check input source cable and jack

Repeat A PROCESS

Fail

Change L900,L901,
L902,L903

Fail

Change IC901

Fail

Change inverter
connector or inverter

Fail

Change panel link
cable or module

Fail

Change module

Fail

Check panel link
Cable or module

Pass

Pass

Pass

Pass

:[B]Process

- 14 -

No Raster on Component signal

Check JA1200 or
RCA CABLE

Check the signal of

L1200, L1202, L1203

Repeat

[A] Process

Check the input/

output of IC1

Check the input/

output of IC901

Check input source cable and jack

Fail

Re-soldering or
Change the defect part,
Check X11

Fail

Re-soldering or
Change the defect part,
Check X900

Fail

Pass

Pass

Pass

Check the input/output

of IC800, IC851

Re-soldering or
Change the defect part

Fail

Pass

- 15 -

No Raster on AV Signal
(Video, S-Video)

No Raster on TV(RF) signal

Change L1209, L1210,
L1212

Check the signal of

L1209, L1210, L1212

Repeat

[A] Process

Check the output of

TU1000

Check the input/output

of IC1

Check the input/output

of IC800, IC851

Check input source cable and jack

Fail

Fail

Fail

Fail

Re-soldering or
Change the defect part
Chek X11

Fail

Re-soldering or
Change the defect part

Check 5V, 33V of TU1000
Re-soldering or
Change the defect part

Pass

Pass

Pass

Check the input/output

of IC901

Fail

Re-soldering or
Change the defect part
Check X900

Pass

Pass

- 16 -

No Sound

Check the speaker wire

Change source input

Check the

input source

Fail

Pass

Re-soldering or
Change the defect part
Check X11

Check the input/output

of IC1

Fail

Pass

Re-soldering or
Change the defect part

Check the input/output

of IC100,IC101

Fail

Pass

Change speaker

Check the speaker

Fail

Pass

BLOCK DIAGRAM

- 17 -

UT

LVDS 1 O

TTL 2 OUT

TTL 1 OUT

Audio Amp

IC100 IC101

IC905

AT49F

L, R

SIDE_AV

IC851

M52758FP

IC901

GM2221

PC RGB

SM5301BS IC800

RGB OUT

SIDE_L,R

LA7222 IC2

S

Z1000

IC1

VCTI

SIDE V

A

W

IF+,-

Tuner

TU1000

IC202

14066

PC L,R

PC

AUDIO

D-SUB

L,R

ML-041B Block Diagram

POWER

IC500

TC90A65F

DIGITAL SIGNAL

ANALOG SIGNAL

IF +,- INPUT

SOUND INPUT

SOUND OUTPUT

IC4

AT24C16

SCART V,L,R

SCART R,G,B

V

COMPONENT

S-VHS

H/P

b Pr

YP

AC IN

BLOCK DIAGRAM DESCRIPTION

- 18 -

1. Video Controller Unit & Display Data Conversion Unit

The video controller unit receives the video signals inputted through the tuner, AV port (AV1, AV2, S-Video,
component), and converts them into an analog RGB signal through the microcomputer (VCTI) combined with
the video decoder that integrates various functions in one chip.

Either the analog RGB, component YPbPr or PC RGB signal is selected by the switching IC and inputted to a

scaler (GM2221), which is sent to the LCD module after being modified to an LVDS signal through the
integrated LVDS IC.
Or, it is sent to the LCD module as a TTL output.

VCTi is the main microprocessor that handles video signal processing and sound signal processing. It also

manages the RF signals received from the tuner.

The scaler can control timing to fit into the LCD panel, and can also control the size and position of the input

signal.

2. Power Supply Unit

The power supply unit provides 15V and 5V DC power to the mainboard.

The PWM Step-Up DC/DC Converter circuit is used to generate the 33V used for the tuner.
15V power is directly used by the sound amplifier IC and is also used to generate 5V power through the
regulator. 12V power is used for the LCD panel power, and 5V power is converted to 3.3V and 1.8V power
through the regulator, which in turn supplies electrical power for ICs such as VCTI and scaler.

- 19 -

WIRING DIAGRAM

No. Part No.

1

2

3

4

5

6

7

8

Wiring Part List

6631T25019Y

6631T11021A

6631T20028G

6631T20033G

6631T25021A

6620K00007C

or 6620K00007A

6631T11017R

6631T25023B

2

3

5

LOCAL KEY

IR_LED

4

7

1

8

6

SPEAKER SPEAKER

- 20 -

EXPLODED VIEW

170

030

150

140

160

040

110

100

090

130

120

080

020

060

070

050

010

050

- 21 -

EXPLODED VIEW PARTS LIST

No.

PART NO.

DESCRIPTION

3091TKD004C CABINET ASSEMBLY, RM-20LA62 BRAND 3090V00442 ML041B(N_AMERICA)NO INDEX
3091TKD004L

CABINET ASSEMBLY, RM-20LA66K BRAND 3090V00442 N_AMERICA, C/SKD OF 3091TKD004C

6304FLP171A

LCD(LIQUID CRYSTAL DISPLAY), LC201V02-A3K7 LG PHILPS TFT COLOR VGA, 450NIT, 25MS, POL CHANGE

or 6304FLP139A

LCD(LIQUID CRYSTAL DISPLAY), LC201V02-A3K3 LG PHILPS TFT COLOR 20.1" VGA,IPS,450NITS,LVDS

or 6304FLP188A

LCD(LIQUID CRYSTAL DISPLAY), LC201V02-A3KA LG PHILPS TFT COLOR PB FREE MODULE , SS D-IC

6304FLP188A

LCD(LIQUID CRYSTAL DISPLAY), LC201V02-A3KA LG PHILPS TFT COLOR PB FREE MODULE , SS D-IC

3809TKD003W BACK COVER ASSEMBLY, RM-20LA66K 3808V00366 FOR N.AMERICA, N/BLACK

3809TKD003V

BACK COVER ASSEMBLY, RM-20LA66K 3808V00366 FOR N.AMERICA, N/B, CSKD OF 3809TKD003H
3043TKK176E TILT SWIVEL ASSEMBLY, RM-20LA62 . N/BLACK(N_AMERICA)
3043TKK176F TILT SWIVEL ASSEMBLY, RZ-20LA61 . N/BLACK SKD

6400GKTX01C

SPEAKER,FULLRANGE, F1527C-6428-4 K-TONE FULL-RANGE(GENERAL) 4 OHM 7/12W 85DB OTHERS 40*70MM TRACK TYPE
6871TST633A PWB(PCB) ASSEMBLY,SUB, RM-15LA66 SUB TOTAL BRAND CONTROL BOARD
6871TST977A

PWB(PCB) ASSEMBLY,SUB, RM/RT/RZ-15/20LA66 CONTROL BOARD CONTROL TOTAL BRAND (MAIN ML-041B) LF
6871TST679A PWB(PCB) ASSEMBLY,SUB, RZ-20LA66_CMO SUB TOTAL BRAND IR B/D ML-041B
6871TST973A

PWB(PCB) ASSEMBLY,SUB, RM/RT/RZ-20LA66 IR BOARD LED & P/SW TOTAL BRAND (MAIN ML-041B) LF
4950TKS279B METAL, FRAME SBHG1-A FOR LPL MODULE
4950TKS279E METAL, FRAME FOR LPL MODULE, CKD
3313TN2026A MAIN TOTAL ASSEMBLY, RM-20LA70 LPL BRAND ML-041B MAIN
6871TPT280K

PWB(PCB) ASSEMBLY,POWER, RM(RZ)20LA70(77,50,90) POWER TOTAL LIEN CHANG LIPS FOR LPL 20.1 PB FREE

or 6871TPT280B PWB(PCB) ASSEMBLY,POWER, RM-20LA77 POWER TOTAL LIEN CHANG LIPS FOR LPL

4951TKK186K METAL ASSEMBLY, SHIELD METAL (LPL IPS MODULE) 20LA66/70/90

4951TKK186L METAL ASSEMBLY, SHIELD METAL (LPL IPS MODULE) C/SKD 20LA90

6871TST561A

PWB(PCB) ASSEMBLY,SUB, RM-20LA70 ML041B SUB TOTAL BRAND JACK(DVD) BOARD ASSY
6871TST964A

PWB(PCB) ASSEMBLY,SUB, RM/RT-15,17,20 DVD JACK BOARD VIDEO TOTAL BRAND ML-041B LF
3551TKK526K COVER ASSEMBLY, RT-20LA66 REAR A/V ML041B
4810V00925G BRACKET, REAR AV RZ-15LA66 ML024E HIPS 407AF 70B SPRAY
4950TKK916A METAL, PLATE 15,20LA70 REAR A/V PHONE

5020V00776C BUTTON, CONTROL RU-20LA61 ABS, HF-380 8KEY .
3550V00297B COVER, REAR AV RU-20LA60 ABS, HF-380 .

010

020

030

040

050
060

070

080

090
100

110

120

130
140
150
160
170

- 22 -

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C1008 0CE227CF638 "220UF SHL,SD 16V M FM5 TP 5"
C1101 0CE227BH638 220U KME 25V M FM5 TP5

C1104 0CE227BH638 220U KME 25V M FM5 TP5
C1107 0CE477BH618 470UF KME TYPE 25V M FL TP 5
C1140 0CE227BH638 220U KME 25V M FM5 TP5
C1152 0CE107BK638 100UF KME 50V M FM5 TP5
C123 0CE477BH618 470UF KME TYPE 25V M FL TP 5
C124 0CE477BH618 470UF KME TYPE 25V M FL TP 5
C131 0CE477BH618 470UF KME TYPE 25V M FL TP 5
C132 0CE477BH618 470UF KME TYPE 25V M FL TP 5
C133 0CE477BH618 470UF KME TYPE 25V M FL TP 5
C134 0CE477BH618 470UF KME TYPE 25V M FL TP 5
C1150 0CH3105F946 1UF 16V Z F 2012 R/TP
C1151 0CH3104K946 100000PF 50V Z F 2012 R/TP
C127 0CH3104K946 100000PF 50V Z F 2012 R/TP
C128 0CH3104K946 100000PF 50V Z F 2012 R/TP
C135 0CH3104K946 100000PF 50V Z F 2012 R/TP
C136 0CH3104K946 100000PF 50V Z F 2012 R/TP
C15 0CH3104K946 100000PF 50V Z F 2012 R/TP
C16 0CH3104K946 100000PF 50V Z F 2012 R/TP
C19 0CH3104K946 100000PF 50V Z F 2012 R/TP
C4 0CH3104K946 100000PF 50V Z F 2012 R/TP
C41 0CH3104K946 100000PF 50V Z F 2012 R/TP
C44 0CH3104K946 100000PF 50V Z F 2012 R/TP
C49 0CH3104K946 100000PF 50V Z F 2012 R/TP
C6 0CH3104K946 100000PF 50V Z F 2012 R/TP
C803 0CH3105F946 1UF 16V Z F 2012 R/TP
C804 0CH3104K946 100000PF 50V Z F 2012 R/TP
C808 0CH3104K946 100000PF 50V Z F 2012 R/TP
C810 0CH3104K946 100000PF 50V Z F 2012 R/TP
C812 0CH3105F946 1UF 16V Z F 2012 R/TP
C851 0CH3104K946 100000PF 50V Z F 2012 R/TP
C855 0CH3104K946 100000PF 50V Z F 2012 R/TP
C858 0CH3104K946 100000PF 50V Z F 2012 R/TP
C861 0CH3104K946 100000PF 50V Z F 2012 R/TP
C863 0CH3104K946 100000PF 50V Z F 2012 R/TP
C865 0CH3104K946 100000PF 50V Z F 2012 R/TP
C866 0CH3104K946 100000PF 50V Z F 2012 R/TP
C867 0CH3104K946 100000PF 50V Z F 2012 R/TP
C869 0CH3104K946 100000PF 50V Z F 2012 R/TP
C871 0CH3104K946 100000PF 50V Z F 2012 R/TP
C874 0CH3104K946 100000PF 50V Z F 2012 R/TP
C875 0CH3104K946 100000PF 50V Z F 2012 R/TP
C877 0CH3104K946 100000PF 50V Z F 2012 R/TP
C909 0CH3104K946 100000PF 50V Z F 2012 R/TP
C910 0CH3104K946 100000PF 50V Z F 2012 R/TP
C917 0CH3104K946 100000PF 50V Z F 2012 R/TP
C920 0CH3104K946 100000PF 50V Z F 2012 R/TP
C925 0CH3104K946 100000PF 50V Z F 2012 R/TP
C926 0CH3104K946 100000PF 50V Z F 2012 R/TP
C927 0CH3104K946 100000PF 50V Z F 2012 R/TP
C928 0CH3104K946 100000PF 50V Z F 2012 R/TP

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C929 0CH3104K946 100000PF 50V Z F 2012 R/TP
C930 0CH3104K946 100000PF 50V Z F 2012 R/TP
C934 0CH3104K946 100000PF 50V Z F 2012 R/TP
C935 0CH3104K946 100000PF 50V Z F 2012 R/TP
C936 0CH3104K946 100000PF 50V Z F 2012 R/TP
C937 0CH3104K946 100000PF 50V Z F 2012 R/TP
C938 0CH3104K946 100000PF 50V Z F 2012 R/TP
C939 0CH3104K946 100000PF 50V Z F 2012 R/TP
C940 0CH3104K946 100000PF 50V Z F 2012 R/TP
C943 0CH3104K946 100000PF 50V Z F 2012 R/TP
C944 0CH3104K946 100000PF 50V Z F 2012 R/TP
C945 0CH3104K946 100000PF 50V Z F 2012 R/TP
C946 0CH3104K946 100000PF 50V Z F 2012 R/TP
C947 0CH3104K946 100000PF 50V Z F 2012 R/TP
C948 0CH3104K946 100000PF 50V Z F 2012 R/TP
C949 0CH3104K946 100000PF 50V Z F 2012 R/TP
C950 0CH3104K946 100000PF 50V Z F 2012 R/TP
C956 0CH3104K946 100000PF 50V Z F 2012 R/TP
C964 0CH3104K946 100000PF 50V Z F 2012 R/TP
C965 0CH3104K946 100000PF 50V Z F 2012 R/TP
C967 0CH3104K946 100000PF 50V Z F 2012 R/TP
C968 0CH3104K946 100000PF 50V Z F 2012 R/TP
C97 0CH3104K946 100000PF 50V Z F 2012 R/TP
C970 0CH3104K946 100000PF 50V Z F 2012 R/TP
C13 0CH6102K406 1000PF 50V J SL 2012 R/TP
C14 0CH6102K406 1000PF 50V J SL 2012 R/TP
C2 0CH6102K406 1000PF 50V J SL 2012 R/TP
C20 0CH6102K406 1000PF 50V J SL 2012 R/TP
C21 0CH6102K406 1000PF 50V J SL 2012 R/TP
C46 0CH6102K406 1000PF 50V J SL 2012 R/TP
C50 0CH6102K406 1000PF 50V J SL 2012 R/TP
C59 0CH6102K406 1000PF 50V J SL 2012 R/TP
C7 0CH6221K416 220PF 50V J NP0 2012 R/TP
C8 0CH6221K416 220PF 50V J NP0 2012 R/TP
C9 0CH6221K416 220PF 50V J NP0 2012 R/TP
C907 0CH6331K416 330PF 50V J NP0 2012 R/TP
C923 0CH6080K116 8PF 50V D NP0 2012 R/TP
C924 0CH6080K116 8PF 50V D NP0 2012 R/TP
C129 181-007F "MPE ECQ-V1H224JL3(TR), 50V 0"
C130 181-007F "MPE ECQ-V1H224JL3(TR), 50V 0"
C1003 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1007 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1010 0CK273DK51A 27000PF 2012 50V 10% B(Y5P)
C107 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C109 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C110 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1108 0CK106EF56A 10UF 3216 16V 10% X7R R/TP
C1112 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1113 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1114 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1114 0CK106EF56A 10UF 3216 16V 10% X7R R/TP
C1115 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C113 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C900 0CH3103K516 10000PF 50V 10% B(Y5P) 2012

REPLACEMENT PARTS LIST

MAIN BOARD
CAPACITOR

For Capacitor & Resistors, the
charactors at 2nd and 3rd digit in the
P/No. means as follows;

CC, CX, CK, CN, CH : Ceramic
CQ : Polyestor
CE : Electrolytic
CF : Fixed Film

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RH : CHIP, Metal Glazed(Chip)
RR : Drawing

- 23 -

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C902 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1001 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C1002 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C1004 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C1005 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C11 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T"
C114 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C115 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C116 0CK562CK51A 5600PF 1608 50V 10% R/TP B(Y
C117 0CK562CK51A 5600PF 1608 50V 10% R/TP B(Y
C118 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C12 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C125 0CK105EK56A 1UF 3216 50V 10% X7R R/TP
C126 0CK105EK56A 1UF 3216 50V 10% X7R R/TP
C200 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C22 0CK822CK56A 8200PF 1608 50V 10% X7R R/TP
C23 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C24 0CK822CK56A 8200PF 1608 50V 10% X7R R/TP
C25 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C26 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C27 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C28 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(Y"
C29 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C3 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C30 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(Y"
C31 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C32 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(Y"
C33 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(Y"
C34 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C35 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(Y"
C37 0CK334CF94A "0.33UF 1608 16V 80%,-20% F(Y"
C40 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C42 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C45 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C52 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C67 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C75 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C800 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F"
C801 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F"
C802 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F"
C807 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C811 0CK105CF94A "1UF 1608 16V 80%,-20% R/TP F"
C816 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C82 0CK474CH94A "0.47UF 1608 25V 80%,-20% R/T"
C901 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C903 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C904 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C905 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C906 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y
C911 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C912 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C913 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C914 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C915 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C916 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C918 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C919 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C921 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C922 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C961 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C1015 0CH5390K416 39PF 50V 5% NP0 2012 R/TP
C1016 0CH5390K416 39PF 50V 5% NP0 2012 R/TP

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C955 0CH5390K416 39PF 50V 5% NP0 2012 R/TP
C121 0CC100CK41A 10PF 1608 50V 5% R/TP NP0
C122 0CC100CK41A 10PF 1608 50V 5% R/TP NP0
C43 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C47 0CC220CK41A 22PF 1608 50V 5% R/TP NP0
C48 0CC220CK41A 22PF 1608 50V 5% R/TP NP0
C53 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C56 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C57 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C58 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C74 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C83 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C85 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C86 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C88 0CC390CK41A 39PF 1608 50V 5% R/TP NP0
C89 0CC390CK41A 39PF 1608 50V 5% R/TP NP0
C98 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C1106 0CE477BD618 470UF KME TYPE 10V 20% FL TP
C108 0CE476VH6DC 47UF MV 25V 20% R/TP(SMD) SM
C1100 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1102 0CE227WF6DC 220UF MVK 16V 20% R/TP(SMD)
C1103 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1109 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C111 0CE475WJ6DC 4.7UF MVK 35V 20% R/TP(SMD)
C1118 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1118 0CE227WF6DC 220UF MVK 16V 20% R/TP(SMD)
C112 0CE475WJ6DC 4.7UF MVK 35V 20% R/TP(SMD)
C1124 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1130 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1132 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1134 0CE227WF6DC 220UF MVK 16V 20% R/TP(SMD)
C1135 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1137 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C1149 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C119 0CH8106F691 10UF 16V 20% 105STD (CYL) R/
C120 0CH8106F691 10UF 16V 20% 105STD (CYL) R/
C17 0CE475WJ6DC 4.7UF MVK 35V 20% R/TP(SMD)
C5 0CE475WJ6DC 4.7UF MVK 35V 20% R/TP(SMD)
C55 0CE475VK6DC 4.7UF MV 50V 20% R/TP(SMD) S
C60 0CE475VK6DC 4.7UF MV 50V 20% R/TP(SMD) S
C852 0CH8476F691 47UF 16V 20% 105STD (CYL) R/
C859 0CH8476F691 47UF 16V 20% 105STD (CYL) R/
C87 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C876 0CH8106F691 10UF 16V 20% 105STD (CYL) R/
C96 0CE107WF6DC 100UF MVK 16V 20% R/TP(SMD)
C99 0CH8106F691 10UF 16V 20% 105STD (CYL) R/

D100 0DRFC00288A SS14 FAIR CHILD R/TP SMA 20­D101 0DRFC00288A SS14 FAIR CHILD R/TP SMA 20­D1150 0DRGS00199A UF4001 GENERAL SEMICONDUCTOR
D102 0DS181009AA KDS181 TP KEC SOT-23 80V 3
D103 0DS181009AA KDS181 TP KEC SOT-23 80V 3
D107 0DS226009AA KDS226 TP KEC SOT-23 80V 30
ZD104 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD105 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD200 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD209 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD201 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323
ZD211 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323
D1151 0DZ330009DF MTZJ33B TP ROHM-K DO34 0.5W

DIODEs

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

IC905 0IZZTSA047A "ML-041B VGA NT 20"" LPL ATMEL"
IC3 0IKE702700D "KIA7027AF 3, SOT-89 TP RESET"
IC4 0IMCRAL006A AT24C16AN-10SI-2.7 ATMEL 8P
IC903 0IMCRAL006A AT24C16AN-10SI-2.7 ATMEL 8P
IC100 0IMCRMZ002A MP7720 MONOLITHIC POWER SYST
IC101 0IMCRMZ002A MP7720 MONOLITHIC POWER SYST
IC1 0IPRPMN003C VCT49XYF C7(NTSC+PAL) MICRON
IC800 0IPRPNP001A "SM5301BS(ATSC DTV) NPC 28P,H"
IC901 0IPRPGN015C "GM2221-BC-LF,PB FREE GENESIS"
IC1101 0IPMGFA061A "FAN1587AD33X FAIRCHILD 3P,DP"
IC1103 0IPMGSG018D "LD1086DT18TR SGS-THOMSON 3P,"
IC1108 0IMCRKE010A KIA7812AF KEC 2P DPACK R/TP
IC1110 0IPMG00003A "KIA78M08F KEC 3P,DPAK R/TP 8"
IC1111 0IPMG00004A "KIA7805AF KEC 3P,DPAK R/TP 5"
IC1112 0IMCRKE010A KIA7812AF KEC 2P DPACK R/TP
IC1113 0IPMG00003A "KIA78M08F KEC 3P,DPAK R/TP 8"
IC1105 0IPMGFA061A "FAN1587AD33X FAIRCHILD 3P,DP"
IC1106 0IPMGSG018D "LD1086DT18TR SGS-THOMSON 3P,"
IC1114 0IPMGFA061A "FAN1587AD33X FAIRCHILD 3P,DP"
IC1115 0IPMGFA061A "FAN1587AD33X FAIRCHILD 3P,DP"
IC202 0IMO140662A "MC14066BDR2 14P,SOIC TP BILA"

L104 6140TBZ045A "38.5UH(DIP), 6A, P7.5, DR8.3"
L105 6140TBZ045A "38.5UH(DIP), 6A, P7.5, DR8.3"
L1150 150-985B DR8*11 2.4MH 0.16MM 270.5T
L1100 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L1101 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L1103 6210TCE001A HB-1S2012-080JT CERATEC 2012
L1105 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L1106 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L1107 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L200 6210TCE001A HB-1S2012-080JT CERATEC 2012
L201 6210TCE001A HB-1S2012-080JT CERATEC 2012
L202 6210TCE001A HB-1S2012-080JT CERATEC 2012
L203 6210TCE001A HB-1S2012-080JT CERATEC 2012
L204 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L853 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L900 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L901 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L902 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L903 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L1102 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L205 6210TCE001A HB-1S2012-080JT CERATEC 2012
L800 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L906 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L908 6210TCE001G HH-1M3216-501 CERATEC 3216MM
L10 0LC1032101A 10UH 10% 3216 R/TC FI-C3216­L1001 0LC1020101A 1UH 10% 2012 R/TC FI-B2012-1
L1002 0LC1032101A 10UH 10% 3216 R/TC FI-C3216­L15 0LC1032101A 10UH 10% 3216 R/TC FI-C3216­L2 0LC1032101A 10UH 10% 3216 R/TC FI-C3216­L8 0LC1032101A 10UH 10% 3216 R/TC FI-C3216-

IC902 0TF492509AA SI4925DY TP TEMIC 30V 6.1A
IC1107 0TF492509AA SI4925DY TP TEMIC 30V 6.1A
Q1150 0TR322809AB KTC3228-Y(KTC2383) TP KEC TO

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Q1 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q603 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q900 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q100 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q1000 0TR388109AA KTC3881 CHIP TP KEC - ­Q101 0TR150400BA CHIP 2SA1504S(ASY) BK KEC ­Q1100 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q1151 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q12 0TR150400BA CHIP 2SA1504S(ASY) BK KEC ­Q13 0TR150400BA CHIP 2SA1504S(ASY) BK KEC ­Q14 0TR150400BA CHIP 2SA1504S(ASY) BK KEC ­Q15 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­IC1104 0TFVI80005A VISHAY SI4963DY R/TP SO-8 -2

L1104 0RH2202D622 22K 1/10W 5 D.R/TP
R1004 0RH3000D622 300 1/10W 5 D.R/TP
R1010 0RH7501D622 7.5K 1/10W 5 D.R/TP
R1012 0RH7502D622 75K 1/10W 5 D.R/TP
R106 0RH1500D622 150 1/10W 5 D.R/TP
R107 0RH1003D622 100K 1/10W 5 D.R/TP
R1108 0RH1003D622 100K 1/10W 5 D.R/TP
R1109 0RH1003D622 100K 1/10W 5 D.R/TP
R1151 0RH4700D622 470 1/10W 5 D.R/TP
R1153 0RH1000D622 100 1/10W 5 D.R/TP
R126 0RH4701D622 4.7K 1/10W 5 D.R/TP
R132 0RH1003D622 100K 1/10W 5 D.R/TP
R133 0RH1003D622 100K 1/10W 5 D.R/TP
R134 0RH1003D622 100K 1/10W 5 D.R/TP
R135 0RH1003D622 100K 1/10W 5 D.R/TP
R14 0RH4701D622 4.7K 1/10W 5 D.R/TP
R140 0RH0392D622 39 1/10W 5 D.R/TP
R141 0RH0392D622 39 1/10W 5 D.R/TP
R142 0RH0392D622 39 1/10W 5 D.R/TP
R143 0RH0392D622 39 1/10W 5 D.R/TP
R144 0RH0392D622 39 1/10W 5 D.R/TP
R145 0RH0392D622 39 1/10W 5 D.R/TP
R146 0RH0392D622 39 1/10W 5 D.R/TP
R147 0RH0392D622 39 1/10W 5 D.R/TP
R57 0RH1000D622 100 1/10W 5 D.R/TP
R59 0RH1201D622 1.2K 1/10W 5 D.R/TP
R6 0RH4702D622 47K 1/10W 5 D.R/TP
R74 0RH1000D622 100 1/10W 5 D.R/TP
R818 0RH8200D622 820 1/10W 5 D.R/TP
R9 0RH4701D622 4.7K 1/10W 5 D.R/TP
R908 0RH0822D622 82 1/10W 5 D.R/TP
R910 0RH0822D622 82 1/10W 5 D.R/TP
R915 0RH3600D622 CHIP 360-J 1/10 W
R920 0RH2200D622 220 1/10W 5 D.R/TP
R934 0RH1000D622 100 1/10W 5 D.R/TP
R989 0RH8200D622 820 1/10W 5 D.R/TP
R999 0RH1000D622 100 1/10W 5 D.R/TP
R136 0RH8202D622 82K 1/10W 5 D.R/TP
R137 0RH8202D622 82K 1/10W 5 D.R/TP
C854 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
C931 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
C932 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
L905 0RH0222D622 22 OHM 1 / 10 W 2012 5.00% D
R1002 0RH1501D622 1.5K OHM 1 / 10 W 2012 5.00%
R1011 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R1106 0RH1002D622 10K OHM 1 / 10 W 2012 5.00%

- 24 -

COIL & CORE & INDUCTOR

FET & TRANSISTOR

RESISTORs

IC

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R1152 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R1154 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R1155 0RH1002D622 10K OHM 1 / 10 W 2012 5.00%
R12 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R128 0RH1002D622 10K OHM 1 / 10 W 2012 5.00%
R129 0RH1002D622 10K OHM 1 / 10 W 2012 5.00%
R13 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R148 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R149 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R36 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R37 0RJ1802D677 18K OHM 1/10 W 5% 1608 R/TP
R7 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R817 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R822 0RH1002D622 10K OHM 1 / 10 W 2012 5.00%
R918 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R961 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R964 0RH1002D622 10K OHM 1 / 10 W 2012 5.00%
R995 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R10 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R1001 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP
R1003 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP
R1005 0RJ0682D677 68 OHM 1/10 W 5% 1608 R/TP
R1014 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R11 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R1105 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R1107 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R1150 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP
R124 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R125 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R127 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP
R130 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP
R131 0RJ1202D677 12K OHM 1/10 W 5% 1608 R/TP
R138 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R139 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R15 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP
R16 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP
R17 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP
R18 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP
R19 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP
R20 0RJ2200D677 220 OHM 1/10 W 5% 1608 R/TP
R203 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R21 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R218 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R219 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R22 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R221 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R224 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R225 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R226 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R227 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R229 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R23 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/TP
R24 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R240 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R25 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R28 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R29 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R34 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R41 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R43 0RH1802D622 18K 1/10W 5 D.R/TP
R45 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R46 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R50 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R51 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R52 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R53 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R54 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R55 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R56 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R58 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R60 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R62 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R64 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R66 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R68 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R69 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R70 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R72 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R73 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R75 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R76 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R77 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R78 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R8 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R80 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP
R834 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R836 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R837 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R901 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R902 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R904 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R907 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R909 0RJ0822D677 82 OHM 1/10 W 5% 1608 R/TP
R911 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R912 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R913 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R914 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R917 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R928 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R929 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R930 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R931 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R932 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R935 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R936 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R938 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R939 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R940 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R941 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R942 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R943 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R944 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R945 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R946 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R947 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R950 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R952 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R953 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R954 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R96 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R979 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R980 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R981 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R982 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP

- 25 -

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R983 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R984 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R988 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R991 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP
R992 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/TP

Z1000 6200QL3002F "X6966M EPCOS ST SIP5K, 6200Q"
X11 6202TST003C HC-49/SM5H KONY CHIP 20.25MH
X900 6202VDT002B SX-1 SUNNY SC14.3MHZ +/- 30
IC905 6620F00017A CCSD-32T-SM WOOYOUNG 32P PLC
TU1000 6700VS0003D TAEW-G052P LGIT MULTI VS RCA

R2200 0RN1101F409 1.10K 1/6W 1% TA52
R2201 0RN8200F409 820 1/6W 1% TA52
R2202 0RN5600F409 560 1/6W 1% TA52
R2203 0RN4700F409 470 1/6W 1 TA52
R2204 0RN3900F409 390 1/6W 1% TA52
R2205 0RN3300F409 330 1/6W 1% TA52
R2206 0RN2700F409 270 1/6W 1% TA52
R2207 0RN3301F409 3.30K 1/6W 1% TA52
R2208 0RN2000F409 200 1/6W 1% TA52
SW2200 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2200 140-313B TACT 2LEAD 160G(TA) LG C&D N
SW2201 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2201 140-313B TACT 2LEAD 160G(TA) LG C&D N
SW2202 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2202 140-313B TACT 2LEAD 160G(TA) LG C&D N
SW2203 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2203 140-313B TACT 2LEAD 160G(TA) LG C&D N
SW2204 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2204 140-313B TACT 2LEAD 160G(TA) LG C&D N
SW2205 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2205 140-313B TACT 2LEAD 160G(TA) LG C&D N
SW2206 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2206 140-313B TACT 2LEAD 160G(TA) LG C&D N
SW2207 140-313A TACT 2LEAD 100G(TA) LG C&D N
SW2207 140-313B TACT 2LEAD 160G(TA) LG C&D N

C1215 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1216 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1221 0CH6331K416 330PF 50V J NP0 2012 R/TP
C1223 0CH6471K416 470F 50V J NP0 2012 R/TP
C1224 0CH6471K416 470F 50V J NP0 2012 R/TP
L1200 0RH0752D622 75 1/10W 5 D.R/TP
L1202 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
L1203 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
L1206 6210TCE001A HB-1S2012-080JT CERATEC 2012
L1207 6210TCE001A HB-1S2012-080JT CERATEC 2012
L1208 6210TCE001A HB-1S2012-080JT CERATEC 2012
L1211 6210TCE001A HB-1S2012-080JT CERATEC 2012
L1212 0LC0233002A 3.3UH CERATECH R/TP
L1213 6210TCE001A HB-1S2012-080JT CERATEC 2012
L1214 6210TCE001A HB-1S2012-080JT CERATEC 2012
L1215 6210TCE001A HB-1S2012-080JT CERATEC 2012
R1201 0RH0000D622 0 OHM 1 / 10 W 2012 5.00% D
R1202 0RH0752D622 75 1/10W 5 D.R/TP

DATE: 2005. 01.28.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R1217 0RH0752D622 75 1/10W 5 D.R/TP
R1218 0RH0752D622 75 1/10W 5 D.R/TP
R1219 0RH0752D622 75 1/10W 5 D.R/TP
R1220 0RH0752D622 75 1/10W 5 D.R/TP
R1224 0RJ1000H680 100 OHM 1/2 W 5% 5025 R/TP
R1225 0RJ1000H680 100 OHM 1/2 W 5% 5025 R/TP
R1230 0RH0752D622 75 1/10W 5 D.R/TP
R1231 0RH0752D622 75 1/10W 5 D.R/TP
R1232 0RH5101D622 5.1K 1/10W 5 D.R/TP
R1233 0RH4703D622 470K 1/10W 5 D.R/TP
R1234 0RH5101D622 5.1K 1/10W 5 D.R/TP
R1235 0RH4703D622 470K 1/10W 5 D.R/TP
ZD1200 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD1206 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD1207 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD1212 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD1213 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD1214 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
C1217 0CH3104K946 100000PF 50V Z F 2012 R/TP
C1218 0CH6331K416 330PF 50V J NP0 2012 R/TP
C1219 0CH6331K416 330PF 50V J NP0 2012 R/TP
C1220 0CH6331K416 330PF 50V J NP0 2012 R/TP
L1209 0LC0233002A 3.3UH CERATECH R/TP
L1210 0LC0233002A 3.3UH CERATECH R/TP
R1226 0RH0472D622 47 1/10W 5 D.R/TP
R1227 0RH0752D622 75 1/10W 5 D.R/TP
R1228 0RH0752D622 75 1/10W 5 D.R/TP
R1229 0RH0752D622 75 1/10W 5 D.R/TP
ZD1210 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20
ZD1211 0DZ620009HB UDZ S 6.2B TP ROHM SOD323 20

C2101 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
L2101 6210TCE001A HB-1S2012-080JT CERATEC 2012
Q2101 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q2102 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­Q2103 0TR387500AA CHIP 2SC3875S(ALY) BK KEC ­R2101 0RH1000D622 100 1/10W 5 D.R/TP
R2102 0RH1000D622 100 1/10W 5 D.R/TP
R2103 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R2104 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R2105 0RH1001D622 1K OHM 1 / 10 W 2012 5.00% D
R2106 0RH1000D622 100 1/10W 5 D.R/TP
R2111 0RH4301D622 4.3K 1/10W 5 TA
LED1 0DL200000CA SAM5670(DL-2LRG) BK Y-GREEN
PA1101 6726TV0001A TSOP4838SO1 VISHAY 38.0KHZ L

- 26 -

IR BOARD

JACK BOARD

CONTROL BOARD

OTHERs

Date: 2004. 05. 07
P/No.:3854TN1001A

Date: 2004. 05. 07
P/No.:3854TN1001A

Jan., 2005

Printed in KoreaP/NO : 3828TSL108Z
