LG RLM10, RLM20K User Manual

Remote Laundry Monitor and PLC Modem

OWNER’S MANUAL

RLM20K RLM10

Thank you for buying a Remote Laundry Monitor and PLC Modem. Please read your owner's manual carefully. Provides instructions on safe installation, use, and maintenance. Retain it for future reference.

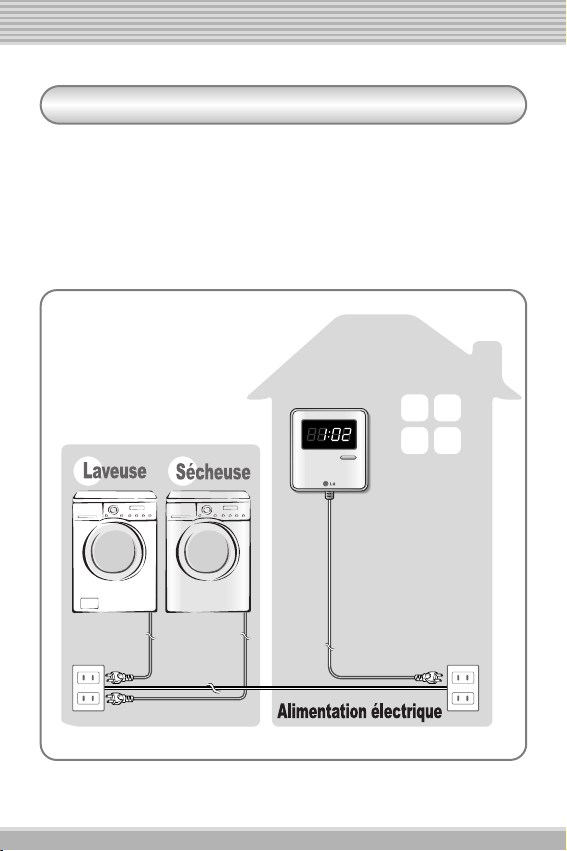

What is a Remote Laundry Monitor

A Remote Laundry Monitor (RLM) is a small digital display unit that uses your home’s existing electrical wiring to receive information from your LG Washing Machine and Dryer in your laundry room and display it for you in any other location that you choose within your home.

Important Safety Instructions 4

Components 8

1. Washing Machine (and/or) Dryer 8

2. Monitor 9

3. PLC Modem 10

Installation 11

PLC (Power Line Communication) Modem

2. RLM (Remote Laundry Monitor) 12

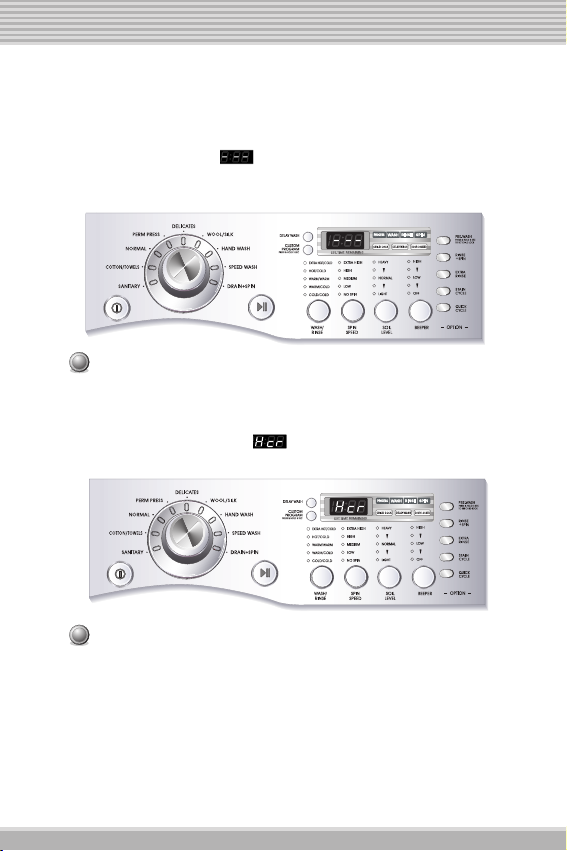

3. Setting Home Code 13

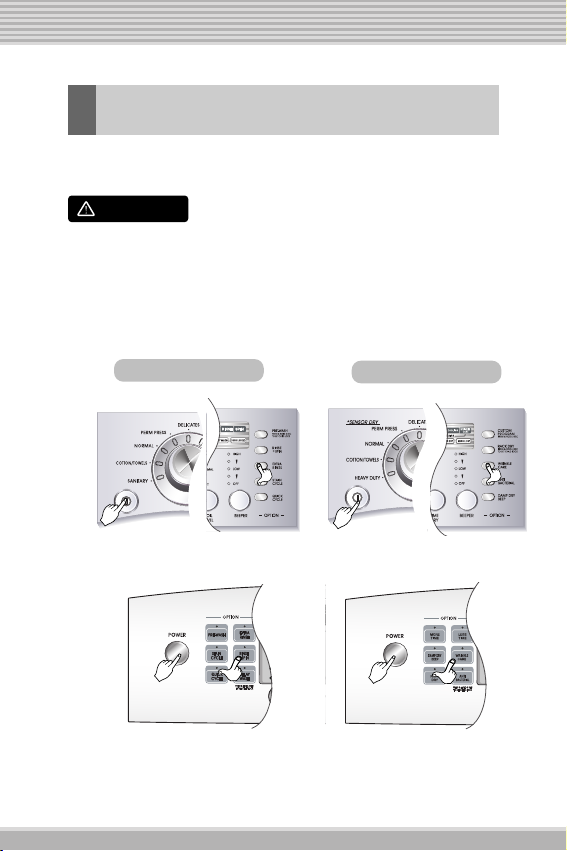

4. Home Code Clear 14

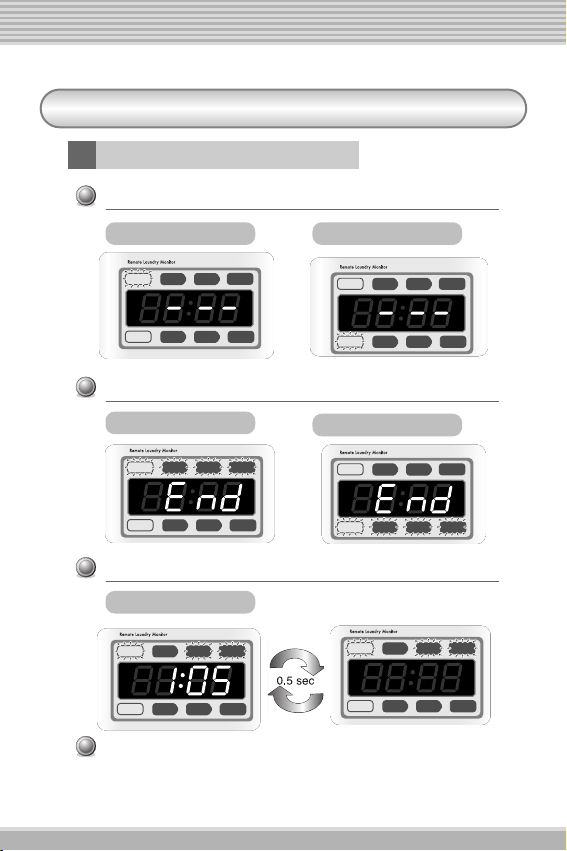

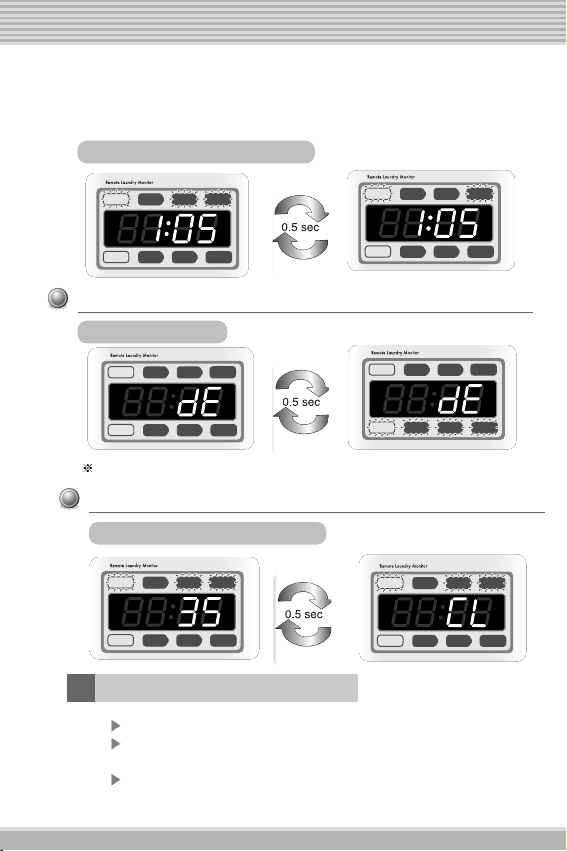

Monitor Display Explanation 16

Troubleshooting 18 Warranty 37

Contents

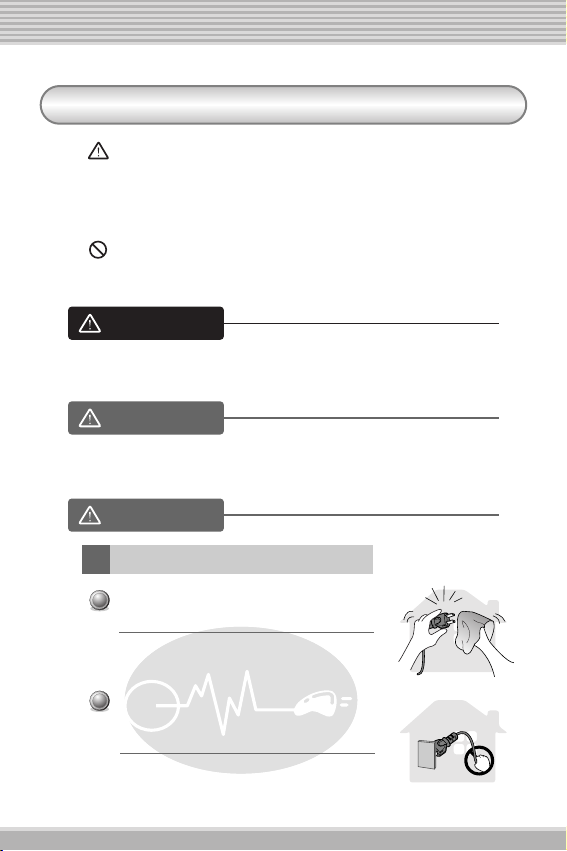

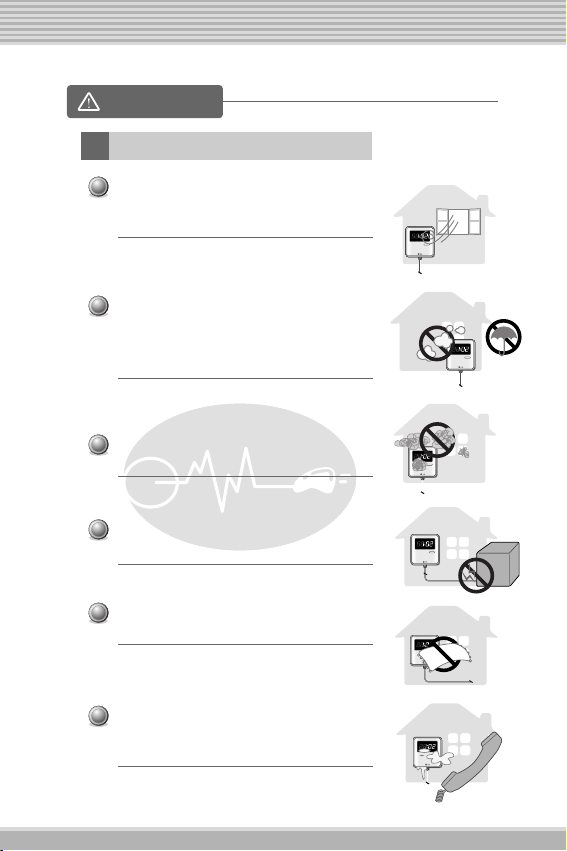

Important Safety Instructions

An Exclamation Mark inside a triangle is used in this

manual to alert the reader to a situation of possible danger to the user and/or the equipment. Please read and be sure you understand these warnings.

This symbol is used to alert the user to an unsafe practice or condition which must not be permitted.

Indicates the existence of a hazard that could result in bodily injury if the safety instruction is not observed.

WARNING

Indicates the existence of a hazard that could result in property damage if the safety instruction is not observed.

CAUTION

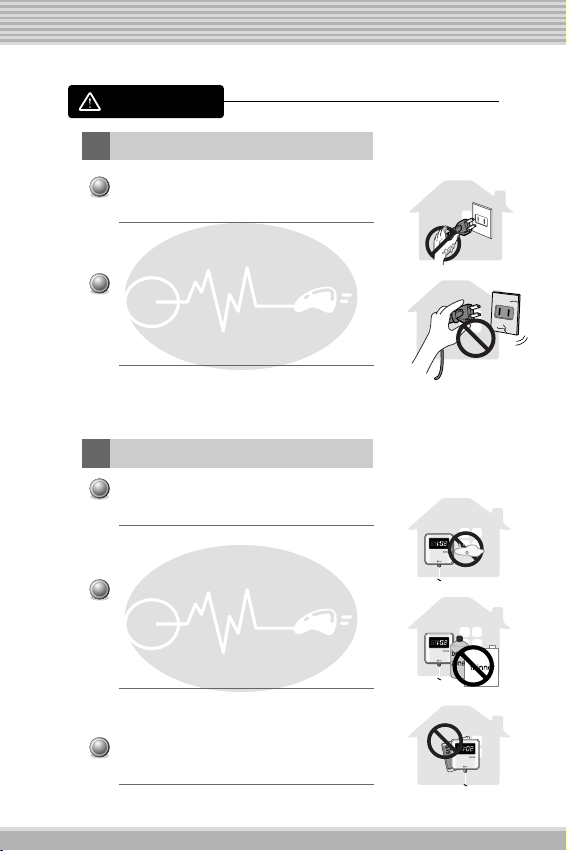

Connecting the Power

If the pins of the power plug are contaminated, wipe it clean.

It may cause electric shock or fire.

Always grasp the plug when you unplug the power cord.

Unplugging the power cord by pulling on the cord itself could damage the cord, resulting in overheating or fire.

CAUTION

When Using Products

Do not install the monitor in an enclosed place. It must have unrestricted air flow.

Overheating may cause plastic components to deform and may even cause fire.

Do not install where the unit might get wet (near a bath tub or sink), or where it might be exposed to rain (on a patio or deck).

It may cause electric shock, fire, malfunction, or warpage.

Do not install the unit in a dusty environment.

It may cause fire or electric shock.

Do not place heavy objects on the power cord.

It may cause fire or electric shock.

Do not cover the power cord with a rug.

If the covered power cord is damaged, it may cause fire or electric shock.

If the inside of the unit has been exposed to water, unplug the unit, then call the Service Center.

Continued use may cause an electric shock.

WARNING

Connecting the Power

Do not touch the plug with wet hands.

This may result in electric shock.

If the power cord or plug is damaged, or the wall outlet is loose, do not use the unit.

A damaged power cord may cause fire or electric shock.

When Using Products

The unit should not be exposed to water.

This may cause fire or electric shock.

Do not store flammable materials near the unit. This includes gasoline, kerosene, benzene, paints, thinner, etc.

This can cause an explosion or fire.

Do not operate the unit with the cover removed.

This may cause the risk of fire or electric shock.

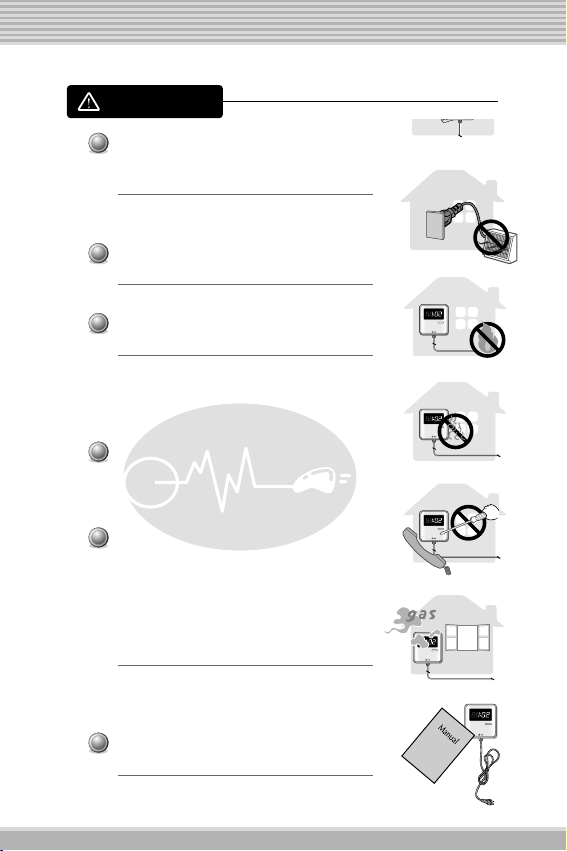

WARNING

Do not place the power cord near a heating device.

The cover of the cord may melt, causing fire or electric shock.

Never place the unit near heat sources.

This may cause fire.

Stop using the unit if smoke or strange smell occurs.

If the unit is subsequently used, it may cause fire or electric shock. If it occurs, unplug the unit and call an authorized service center.

Do not disassemble or modify the unit. Take the unit to an authorized service center when service is required.

If a gas leak occurs, do not touch the power plug or operate the equipment. Open a window to ventilate. Do not use your home or cellular telephone. Do not operate any switches or appliances.

Call the appropriate emergency personnel (911, fire, rescue, gas company) from a neighbor’s phone.

Install the unit by following the Operating Instructions.

Improper installation may cause fire or electric shock.

Components

Washing Machine (and/or) Dryer

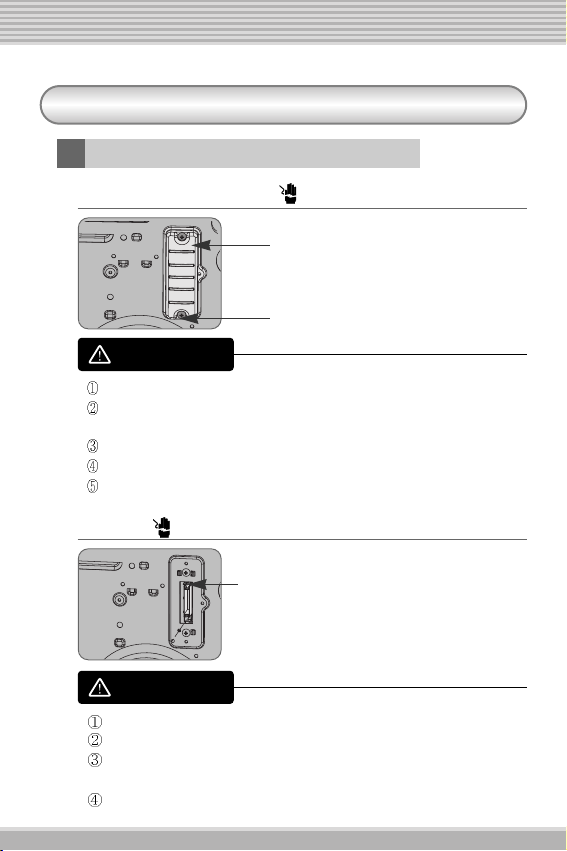

1) Safety Cover ( )

Do not remove the Safety Cover except when using the RLM. Be sure to keep the Safety Cover and be careful not to lose the Gasket on the back of the Safety Cover . When installing the Safety Cover, make sure two screws are reinstalled. Unplug, when removing or installing Safety Cover. Failure to follow these instructions can damage your appliance and can be dangerous for the user.

WARNING

2) Housing ( )

Do not touch the pins in the connector. Do not allow any water into the Housing. Do not use excessive force or impact on the Housing. Failure to follow these instructions can damage your appliance and can be dangerous for the user.

WARNING

Safety Cover : To be removed only when installing a PLC Modem.

Screw(2)

Housing :

The PLC Modem connector is protected by a plastic Safety Cover, which must be removed to install the modem. Leave the cover in place if no modem is installed. Retain it for future use in the event the modem must be removed for repair or replacement.

Monitor

1) The front of the Monitor

WASHER

SPINRINSEWASH

DRYER

WRINKLE CARE

COOLING

DRY

Do not get any water into the monitor. Do not use excessive force or impact on the monitor. Failure to follow these instructions can damage your monitor.

WARNING

Washing Machine operating condition display

Power Cord

Digital LED Display

Dryer operating condition display

Button

2) The Rear of the Monitor

Hanger

4) 2 Screws

3) Hanger Holder

5) Monitor Stand

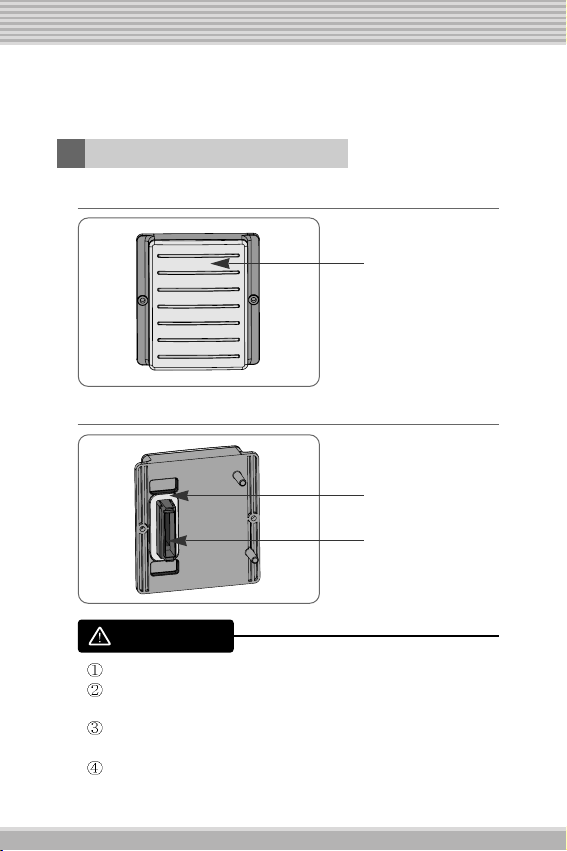

PLC Modem

1) The front of the PLC Modem

2) The rear of the PLC Modem

Do not get any water into the modem. Do not use excessive force or impact on the modem. Be careful not to lose the gasket when moving, installing or removing the PLC Modem. Failure to follow these instructions can damage your modem and can be dangerous for the user.

WARNING

PLC Modem

Gasket

Housing

Installation

PLC (Power Line Communication) Modem

The PLC (Power Line Communication) Modem is necessary in order to use the Remote Laundry Monitor.

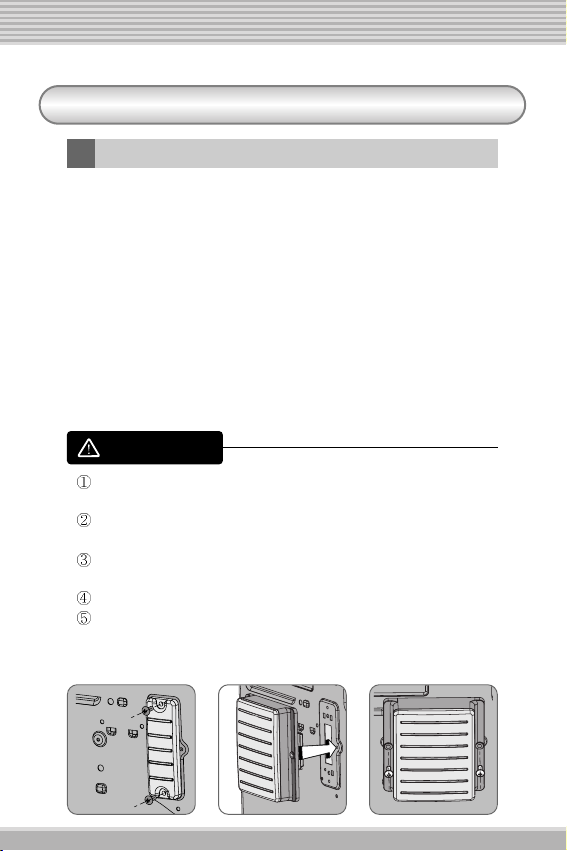

1. Remove the 2 Screws of the Safety Cover on the rear of the Washing Machine or Dryer. (ref. Picture 1)

2. Place the PLC Modem into position on the appliance. (ref. Picture 2)

3. Secure the modem with the 2 screws removed from the safety cover (Refer to Picture 3).

4. Locate the Washing Machine or Dryer where you want.

[Picture 1] [Picture 2] [Picture 3]

Make sure that the appliance is unplugged from the power outlet before removing the safety cover and installing the modem. Do not use excessive force when installing the PLC Modem. Make sure the rubber gasket is in place when the modem is installed. Tighten the two screws. Failure to follow these instructions can damage your modem and can be dangerous for the user.

WARNING

RLM (Remote Laundry Monitor)

1. Unpack the Monitor parts.

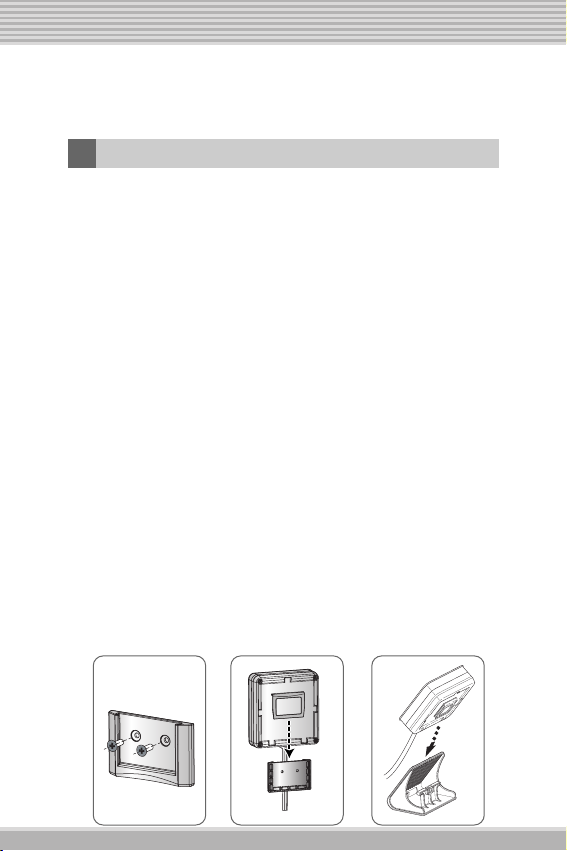

2. (Wall mount) When installing the monitor attach the wall Hanger Holder with the supplied Screws (2EA) in the place you have chosen for the monitor. The Hanger Holder must be mounted securely (See Picture 1.)

3. Insert the monitor's hanger into the wall Hanger Holder (Picture 2) or the Monitor Stand (Picture 3).

4. Plug the monitor's power cord into an available outlet.

5. Turn on the Washing machine or Dryer with the assembled PLC modem.

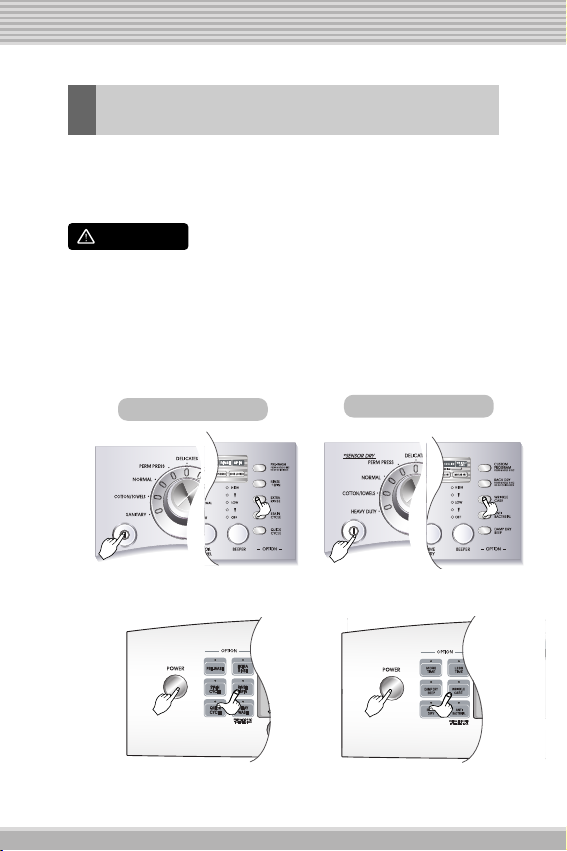

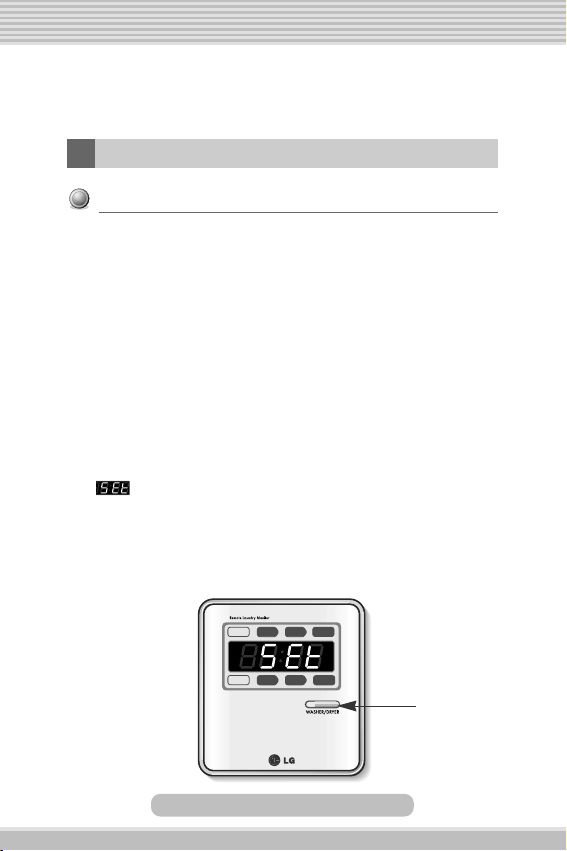

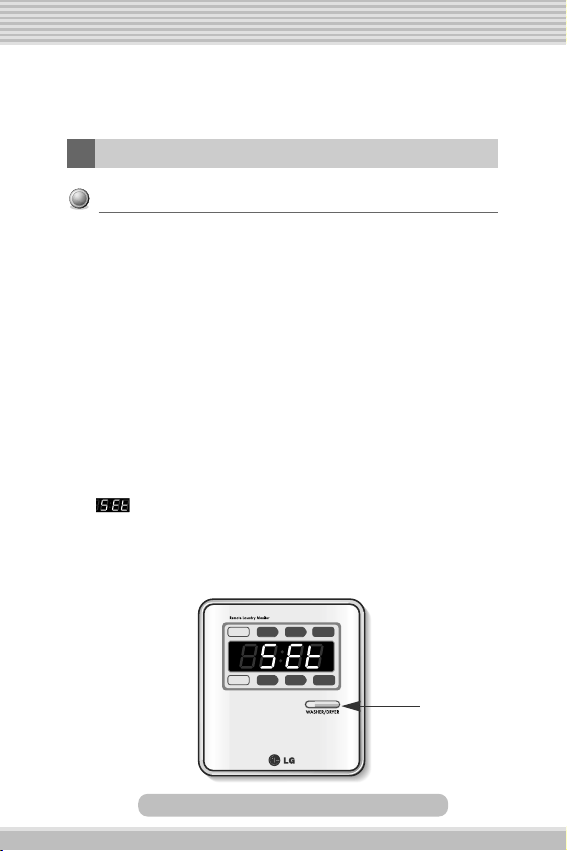

6. Press the Monitor Button and hold it for 3 seconds. (This is necessary the first time for setting the Home Code.

For more information see Setting the Home Code on the next page.)

7. You can monitor the operating condition of the Washing Machine or Dryer.

NOTE: The RLM may take a minute or more to turn on after

installation.

(Reference) Do not let the cord hang loosely or drape in the way where it can cause someone to trip or fall.

[Picture 1] [Picture 2]

[Picture 3]
