LG RL28CZ20RX Schematic

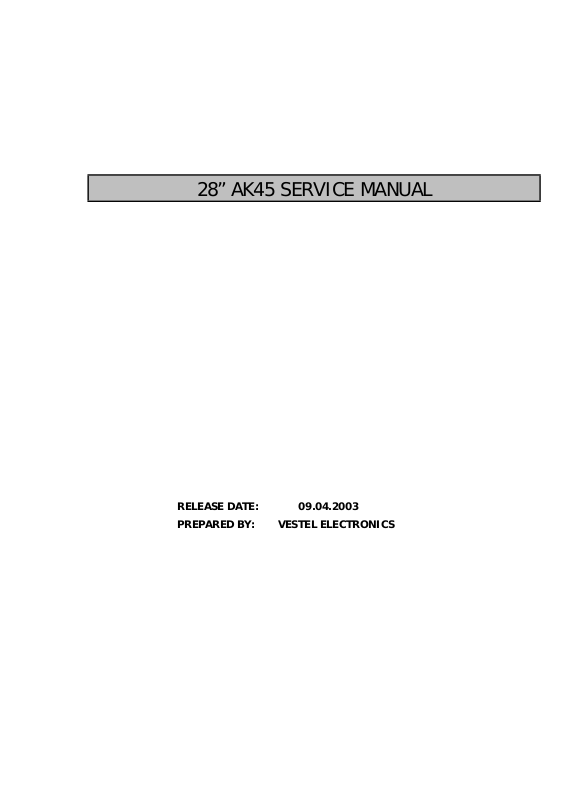

28” AK45 SERVICE MANUAL

RELEASE DATE: 09.04.2003
PREPARED BY: VESTEL ELECTRONICS

TABLE OF CONTENTS

1.INTRODUCTION ....................................................................................................................................1

2.TUNER....................................................................................................................................................1

3.IF PART (TDA9885/86).......................................................................................................................... 1

4.VIDEO SWITCH TEA6415 .....................................................................................................................2

5.MULTI STANDARD SOUND PROCESSOR..........................................................................................2

6.SOUND OUTPUT STAGE WITH TDA7269A ........................................................................................2

7.BERTICAL OUTPUT STAGE WITH STV9379FA.................................................................................2

8.VIDEO OUTPUT AMPLIFIER TDA6108................................................................................................2

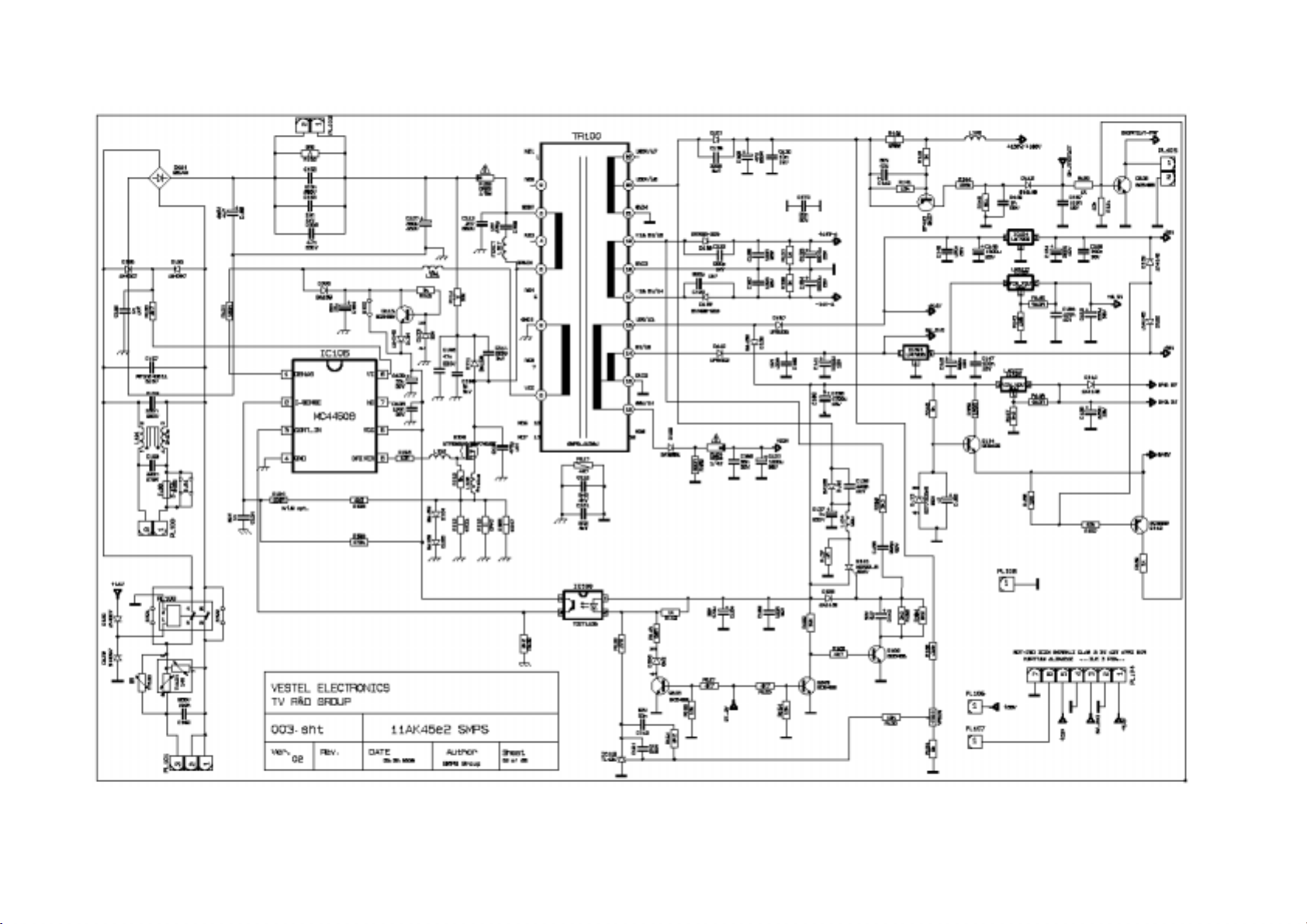

9.POWER SUPPLY (SMPS) .....................................................................................................................3

10.MICROCONTROLLER SDA55XX .......................................................................................................3

10.1.General Features..........................................................................................................................3

10.2.External Crystal and Programmable Clock Speed ...................................................................3

10.3.Microcontroller Features.............................................................................................................3

10.4.Memory..........................................................................................................................................3

10.5.Display Features...........................................................................................................................3

10.6.Acquisition Features....................................................................................................................4

10.7.Ports ..............................................................................................................................................4

11.CLASS AB STEREO HEADPHONE DRIVER TDA1308 ....................................................................4

12.SAW FILTERS......................................................................................................................................4

13.IC DESCRIPTIONS ..............................................................................................................................5

13.1.LM317T..........................................................................................................................................5

13.1.1.Description.............................................................................................................................5

13.1.2.Features..................................................................................................................................5

13.2.TDA1308T...................................................................................................................................... 5

13.2.1.General Description ..............................................................................................................5

13.2.2.Features..................................................................................................................................5

13.2.3.Pinning....................................................................................................................................6

13.3.MSP34X0G (MSP3410G)..............................................................................................................6

13.3.1.Description.............................................................................................................................6

13.3.2.Features..................................................................................................................................7

13.3.3.Pin connections.....................................................................................................................7

13.4.VDP313xY......................................................................................................................................8

13.4.1.Introduction............................................................................................................................8

13.4.2.Features..................................................................................................................................9

13.4.3.Pin Connections and short descriptions............................................................................ 9

13.5.TEA6415C....................................................................................................................................10

13.5.1.General Description ............................................................................................................10

13.5.2.Features................................................................................................................................10

13.5.3.Pinning..................................................................................................................................11

13.6.STV9379FA..................................................................................................................................11

13.6.1.Description...........................................................................................................................11

13.6.2.Features................................................................................................................................11

13.6.3.Pinning..................................................................................................................................11

13.7.TDA7269A ...................................................................................................................................11

13.7.1.Description...........................................................................................................................11

13.7.2.Features................................................................................................................................12

13.8.LM7800 (LM7805/LM7808)......................................................................................................... 12

13.8.1.Description...........................................................................................................................12

13.8.2.Features................................................................................................................................12

13.9.AT24C08......................................................................................................................................12

13.9.1.Description...........................................................................................................................12

13.9.2.Features................................................................................................................................12

13.9.3.Pin Configurations .............................................................................................................. 13

13.10.SDA5555....................................................................................................................................13

13.10.1.General definition..............................................................................................................13

13.10.2.Features..............................................................................................................................13

13.11.MC44608....................................................................................................................................14

13.11.1.Description.........................................................................................................................14

i

13.11.2.General Features............................................................................................................... 15

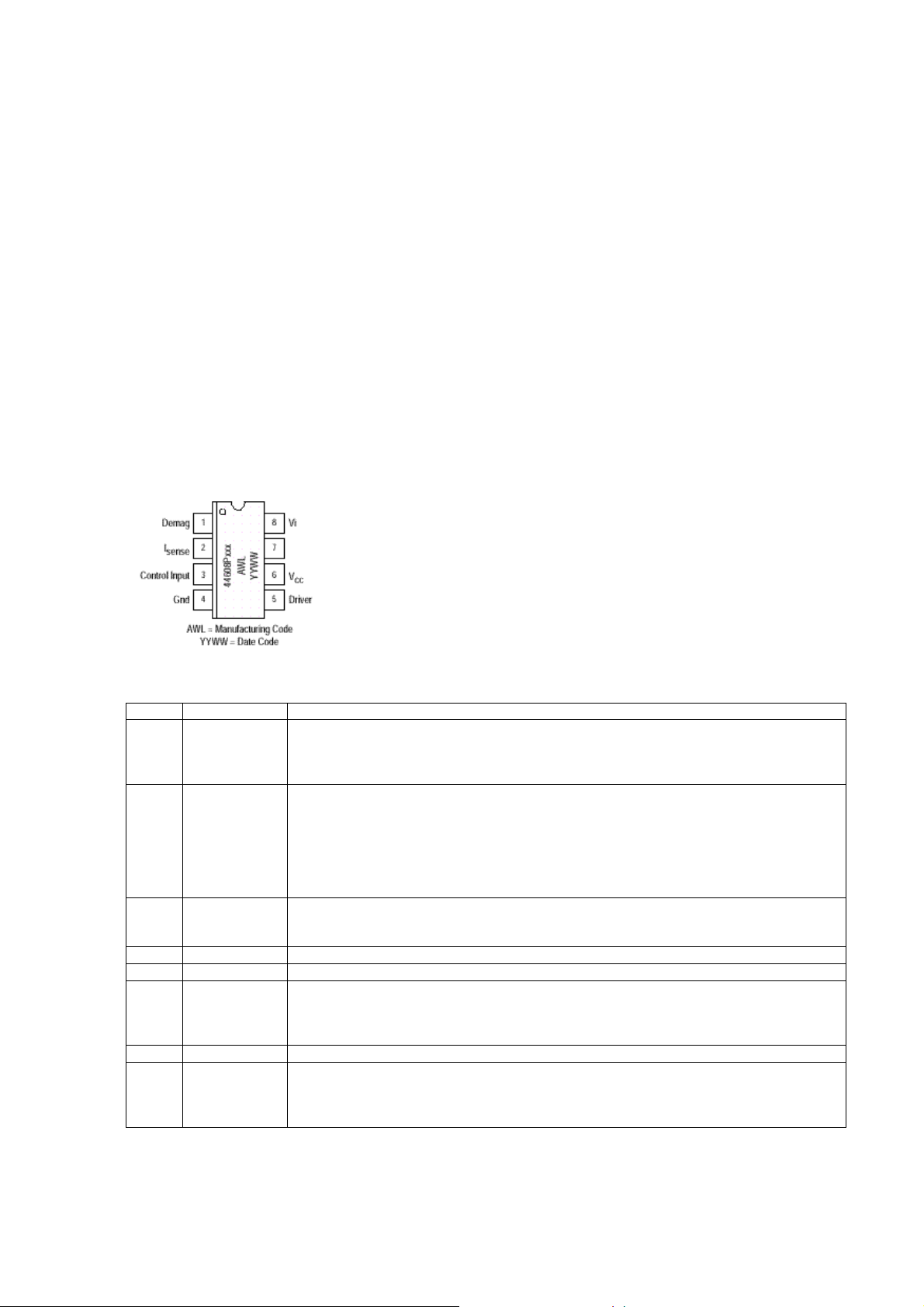

13.11.3.Pin Connections................................................................................................................15

13.12.TCET1102G...............................................................................................................................16

13.12.1.Description.........................................................................................................................16

13.12.2.Applications.......................................................................................................................16

13.12.3.Features..............................................................................................................................16

13.13.TDA9885T..................................................................................................................................16

13.13.1.General Description ..........................................................................................................16

13.13.2.Features..............................................................................................................................16

13.13.3.Pinning................................................................................................................................17

13.14.PI5V330......................................................................................................................................17

13.14.1.General Description ..........................................................................................................17

14.AK45 CHASSIS PRODUCTION SERVICE MODE ADJUSTMENTS ...............................................18

14.1.SERVICE MENU..........................................................................................................................18

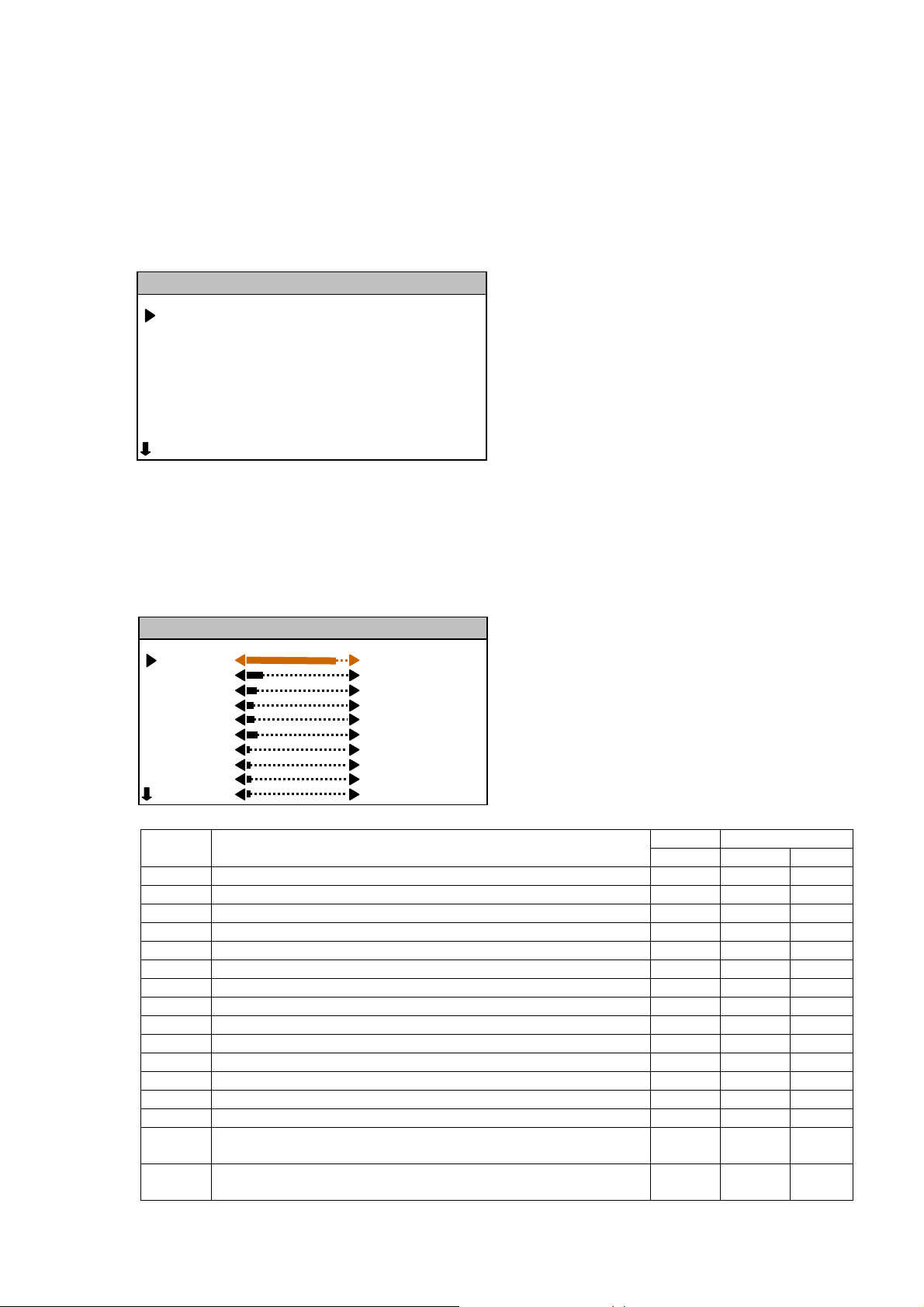

14.2.ADJUST MENU ...........................................................................................................................18

14.3.OPTIONS MENU..........................................................................................................................21

Option 0. Video Processor Crystal Indication............................................................................. 21

Option 1. (0x01) Video Processor Decoder Mode Register........................................................21

Option 2. (0x18) Video Processor Blanking Control...................................................................21

Option 3. (0x19) Video Processor Cathode Drive Level.............................................................22

Option 4...........................................................................................................................................22

Option 5. CTI Avaliable, Mono AVL...............................................................................................22

Option 6...........................................................................................................................................22

Option 7. OPTIONHOTELACTIVE, PLL_VST, PIP Zoom Mode, PIP Position ...........................22

Option 8. Tube Size, Default Zoom Mode, IF Frequency............................................................23

Option 9. Standard Available.........................................................................................................23

Option 10. Scart, Combfilter, Teletext, Language....................................................................... 24

Option 11. PLL Tuner Control 1 Byte............................................................................................24

Option 12. PLL Tuner Control 2 Low Byte...................................................................................24

Option 13. PLL Tuner Control 2 Mid Byte....................................................................................25

Option 14. PLL Tuner Control 2 High Byte .................................................................................. 25

Option 15. PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte..........................................25

Option 16. PLL Tuner VHF LOW – VHF HIGH Crossover High Byte .........................................25

Option 17. PLL Tuner VHF HIGH – UHF Crossover Low Byte ...................................................25

Option 18. PLL Tuner VHF HIGH – UHF Crossover High Byte...................................................25

Option 19. PIP PLL Tuner Control 1 Byte.....................................................................................26

Option 20. PIP PLL Tuner Control 2 Low Byte ............................................................................26

Option 21. PIP PLL Tuner Control 2 Mid Byte ............................................................................. 26

Option 22. PIP PLL Tuner Control 2 High Byte............................................................................26

Option 23. PIP PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte...................................26

Option 24. PIP PLL Tuner VHF LOW – VHF HIGH Crossover High Byte...................................26

Option 25. PIP PLL Tuner VHF HIGH – UHF Crossover Low Byte.............................................27

Option 26. PIP PLL Tuner VHF HIGH – UHF Crossover High Byte............................................27

Option 27. Language Available 1..................................................................................................27

Option 28. Language Available 2..................................................................................................27

Option 29. Language Available 3 and Zoom Mode Available ....................................................27

Option 30. Country .........................................................................................................................28

Option 31. Prescaler MSP FM (AVL=OFF).................................................................................... 28

Option 32. Prescaler MSP NICAM (AVL=OFF).............................................................................28

Option 33. Prescaler MSP SCART (AVL=OFF) ............................................................................28

Option 34. Prescaler MSP I2S (AVL=OFF)....................................................................................29

Option 35. Not used........................................................................................................................29

Option 36. Not used........................................................................................................................29

Option 37. Reserved for USA ........................................................................................................29

Option 38. TV Teletext Mode Selection, Child Lock, Equalizer Country................................... 29

Option 39. Personal Preferance Equalizer Band 1......................................................................30

Option 40. Personal Preferance Equalizer Band 2......................................................................30

Option 41. Personal Preferance Equalizer Band 3......................................................................30

Option 42. Personal Preferance Equalizer Band 4......................................................................30

Option 43. Personal Preferance Equalizer Band 5......................................................................30

Option 44. Sound Efect (Standard; Music; Speech; Jazz; Pp)...................................................30

ii

Option 45. Volume Offset Left.......................................................................................................30

Option 46. Volume Offset Right ....................................................................................................30

Option 47. Volume Offset Center.................................................................................................. 30

Option 48. Volume Offset Rear......................................................................................................30

Option 49. Surround Delay............................................................................................................ 30

Option 50. FM Prescale..................................................................................................................31

Option 51. NICAM Prescale ........................................................................................................... 31

Option 52. Scart Input Prescale ....................................................................................................31

Option 53. I2S Prescale..................................................................................................................31

Option 54. Scart Output Prescale .................................................................................................31

Option 55. Speaker Setup..............................................................................................................31

Option 56. Audio Options Available Or Not.................................................................................31

Option 57. Stereo Threshold .........................................................................................................32

Option 58. MSP Audio Flags..........................................................................................................32

Option 59. NICAM Threshold......................................................................................................... 33

Option 60. Power Delay Time........................................................................................................33

14.4.OPTION TABLE RECOMMENDED VALUES.............................................................................35

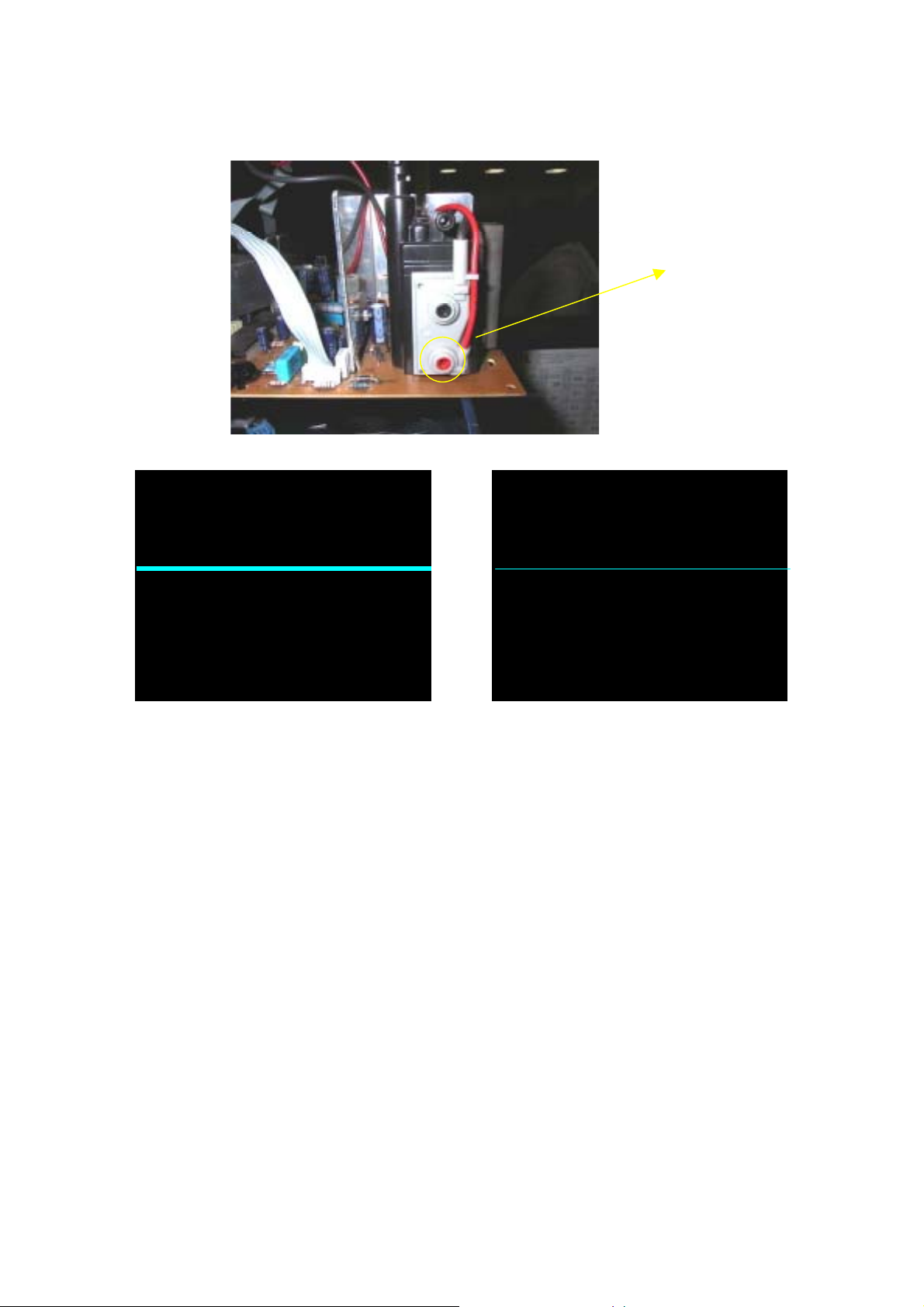

14.5.SCREEN ADJUSTMENT (FBT SCREEN)..................................................................................37

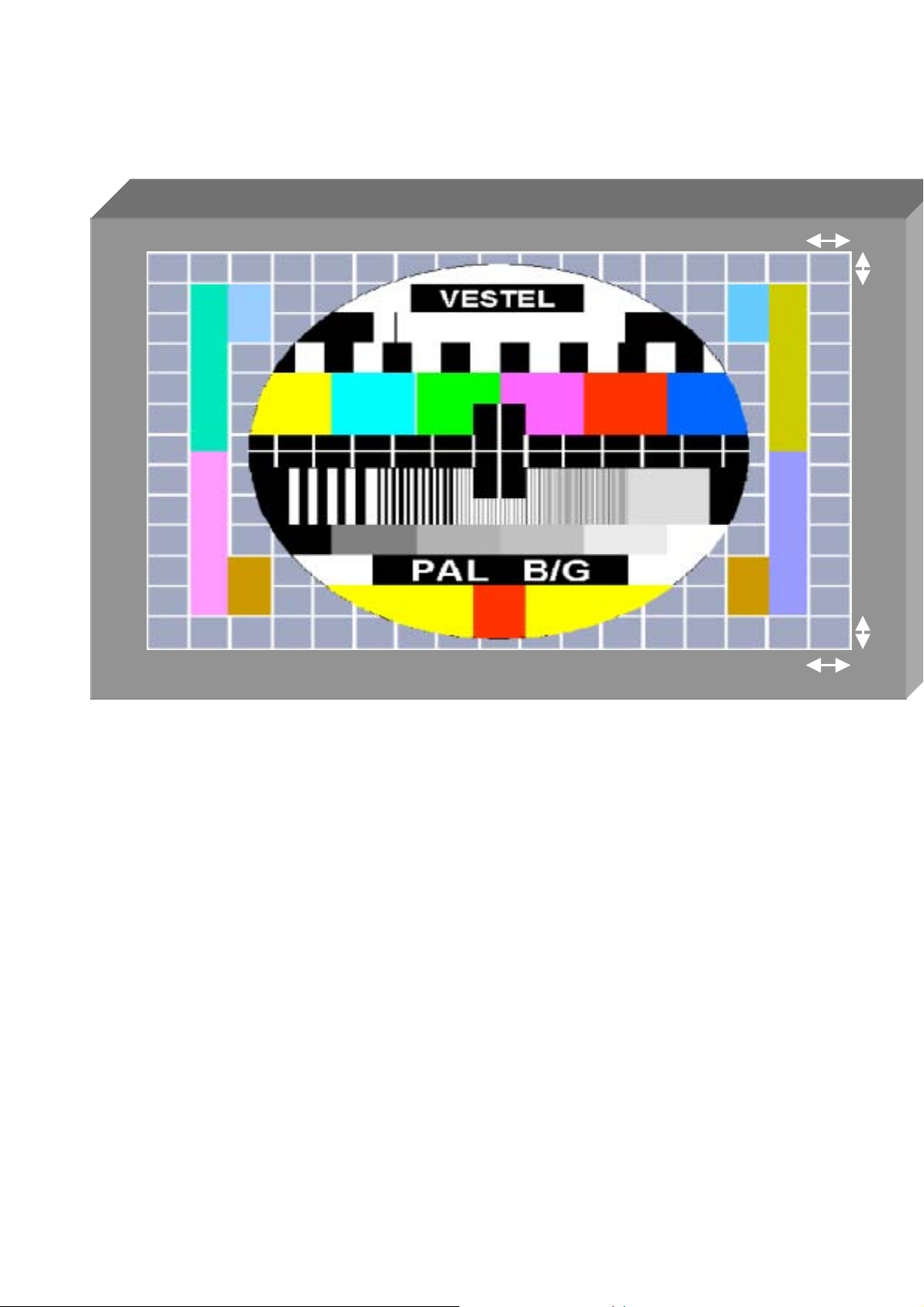

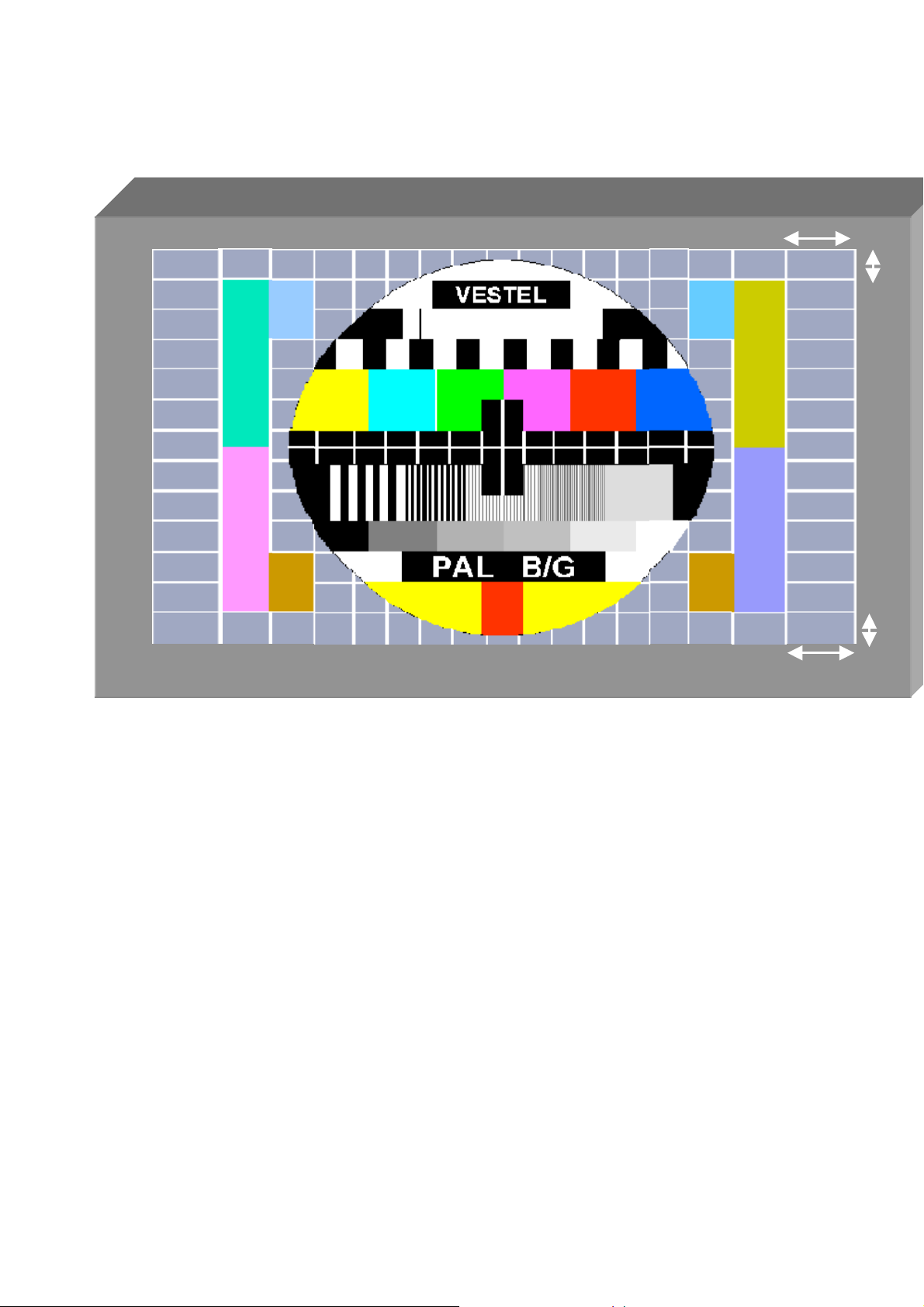

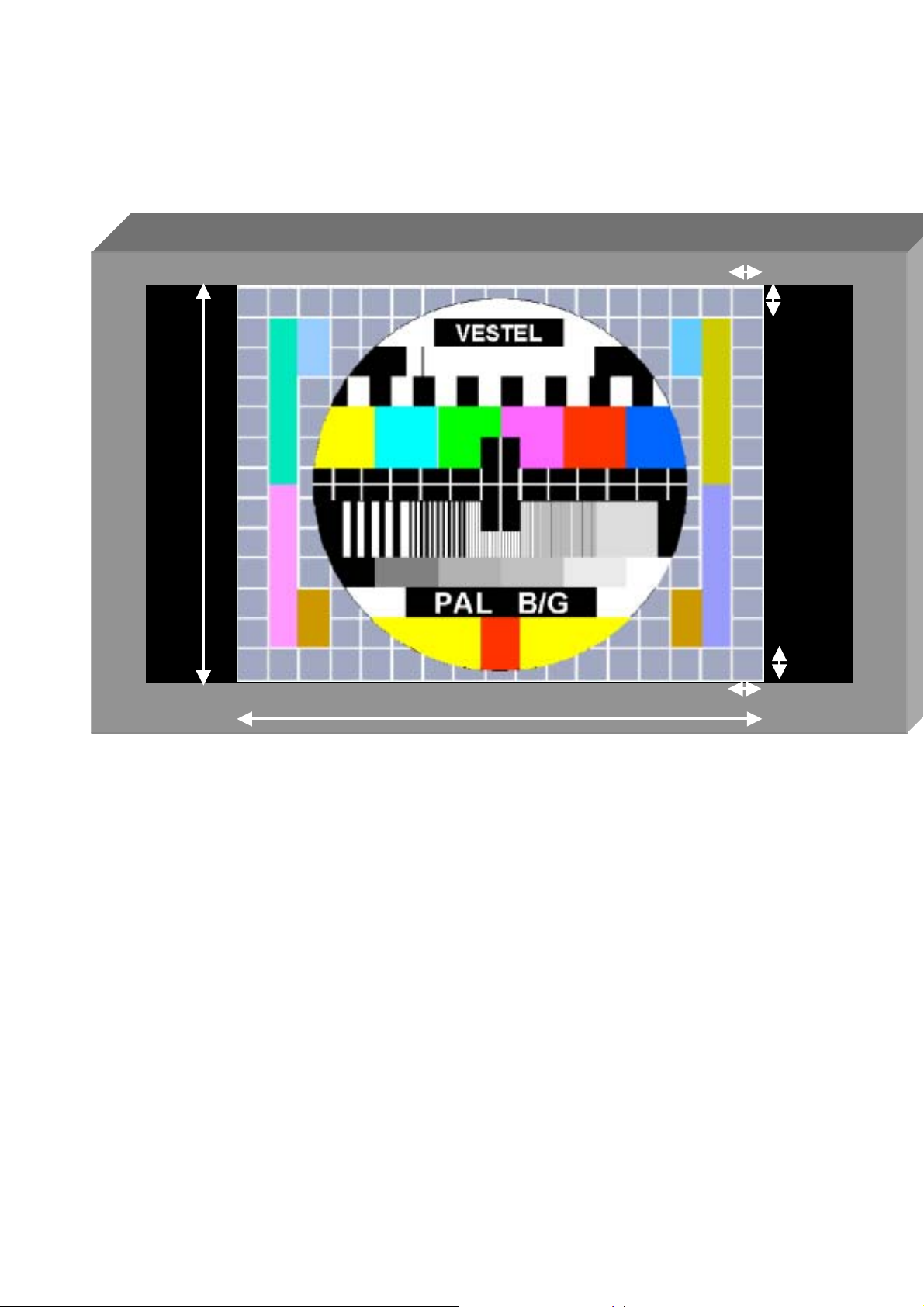

14.6.GEOMETRY ADJUSTMENT.......................................................................................................38

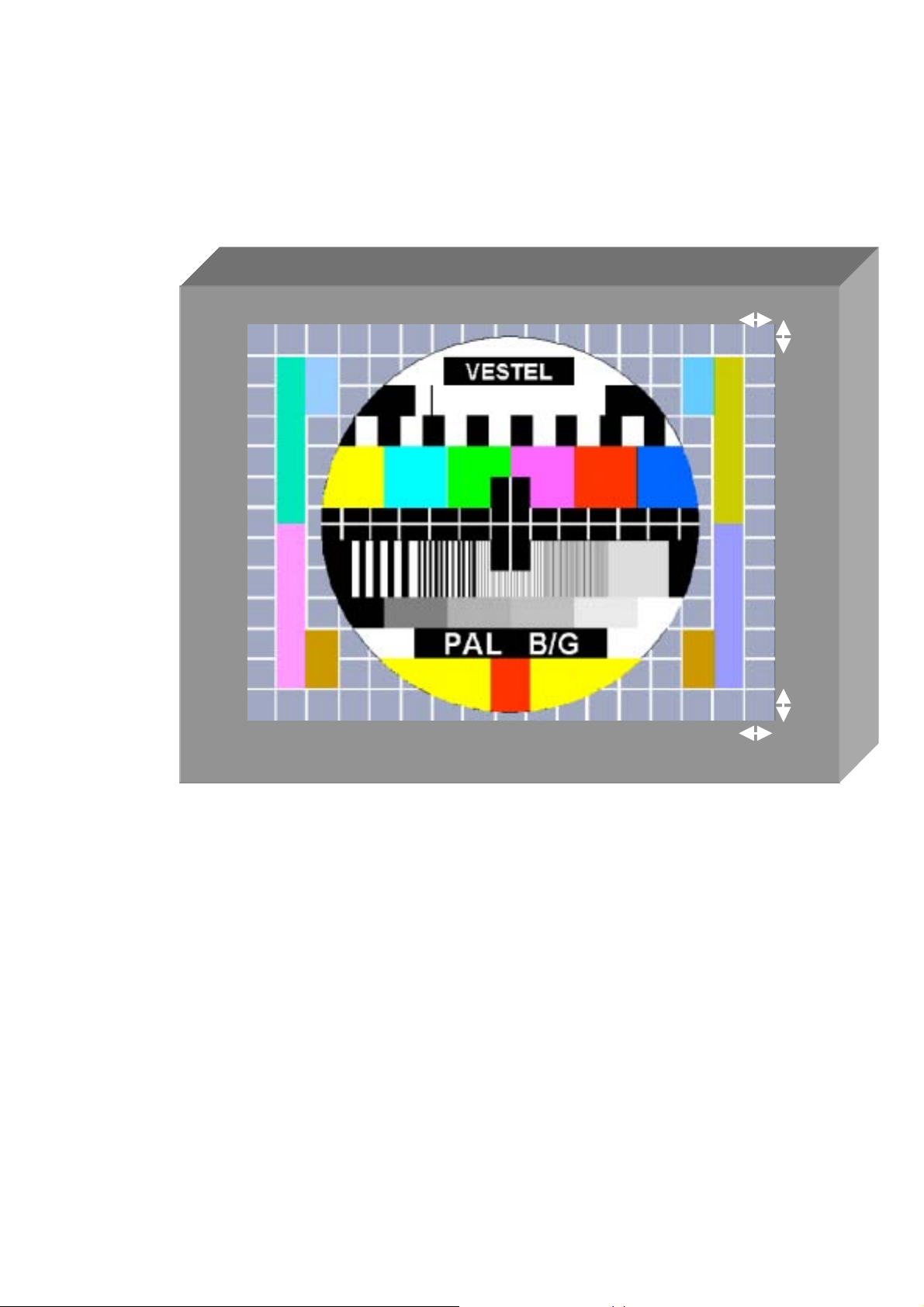

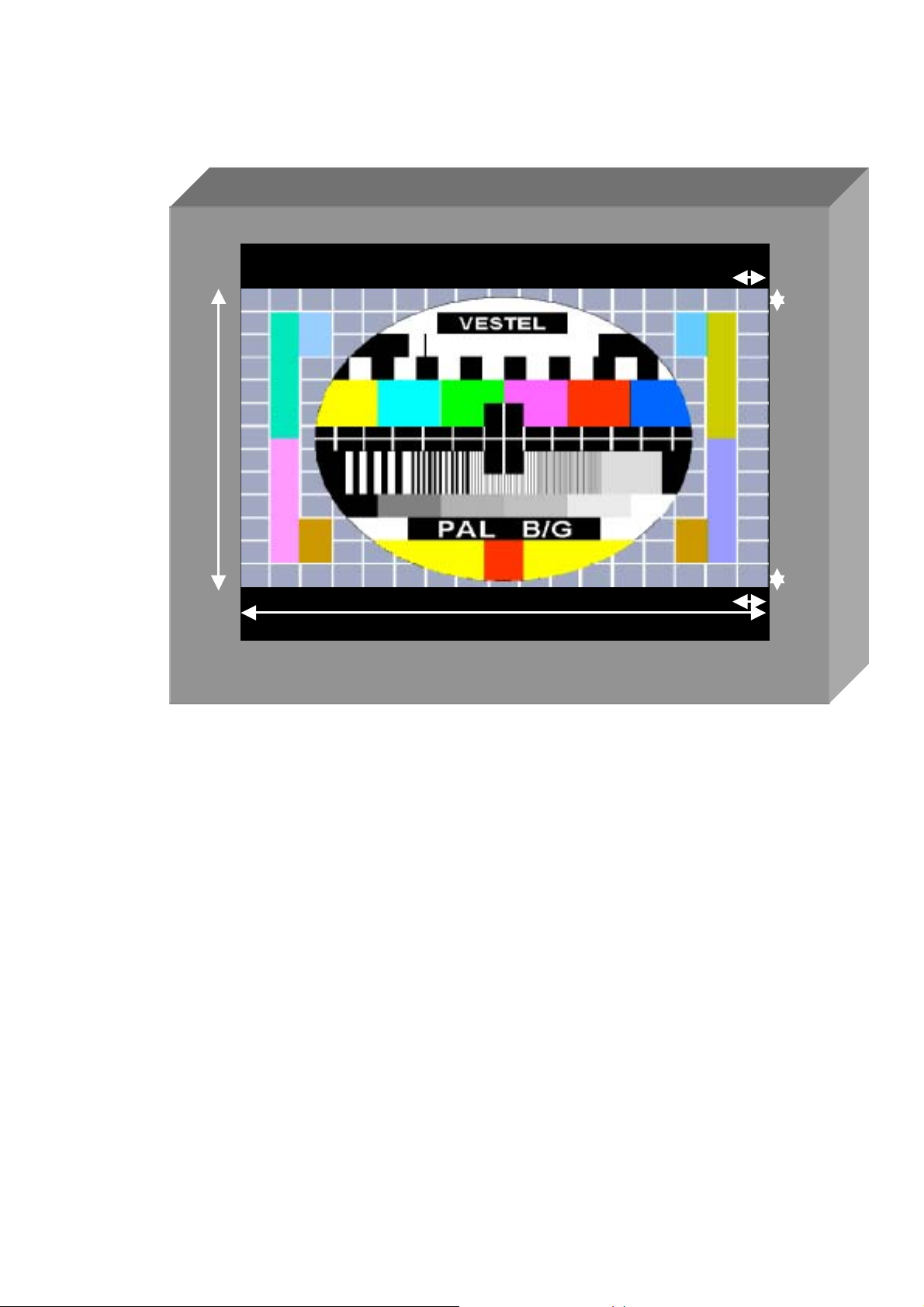

4:3 FORMATS..................................................................................................................................38

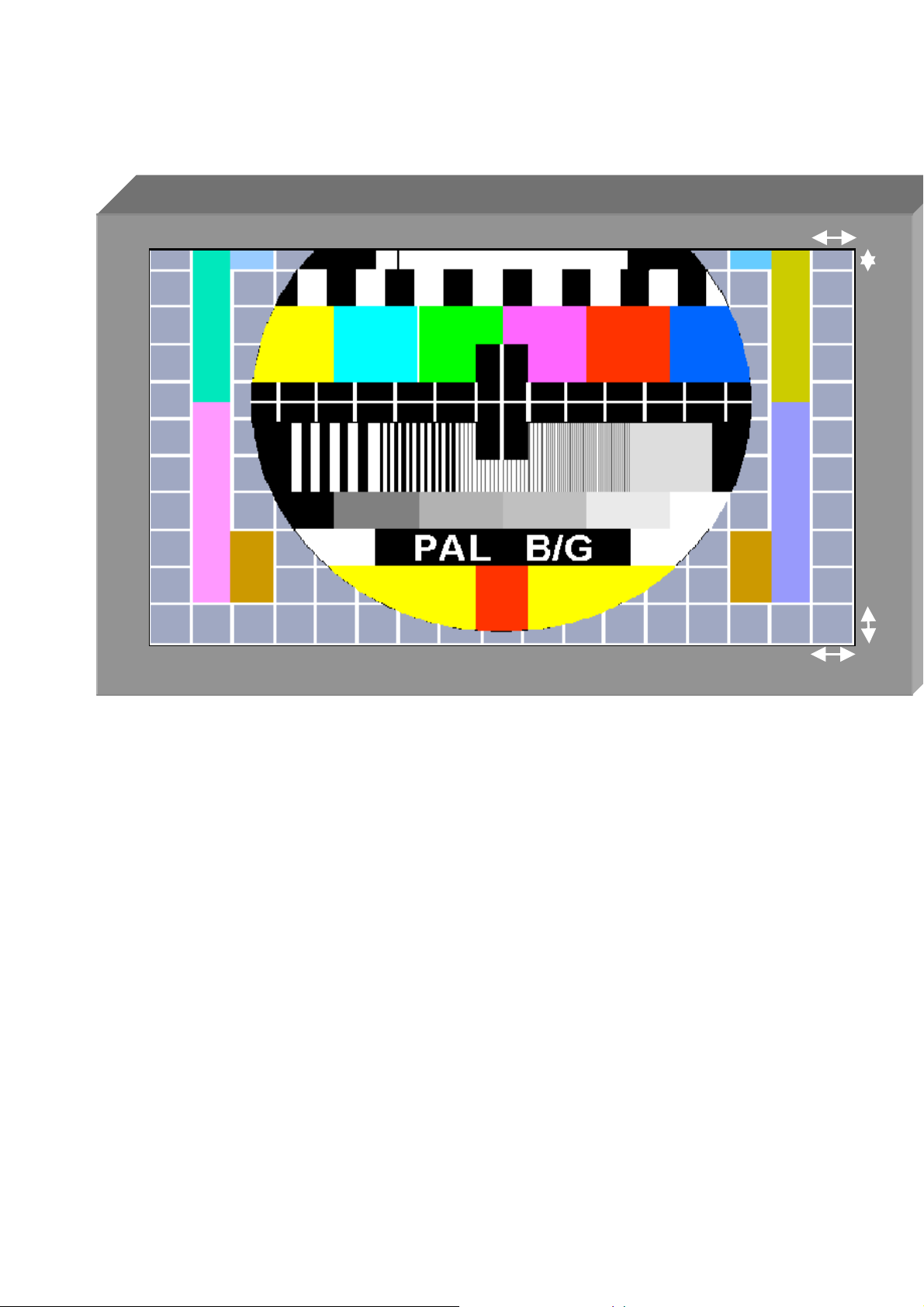

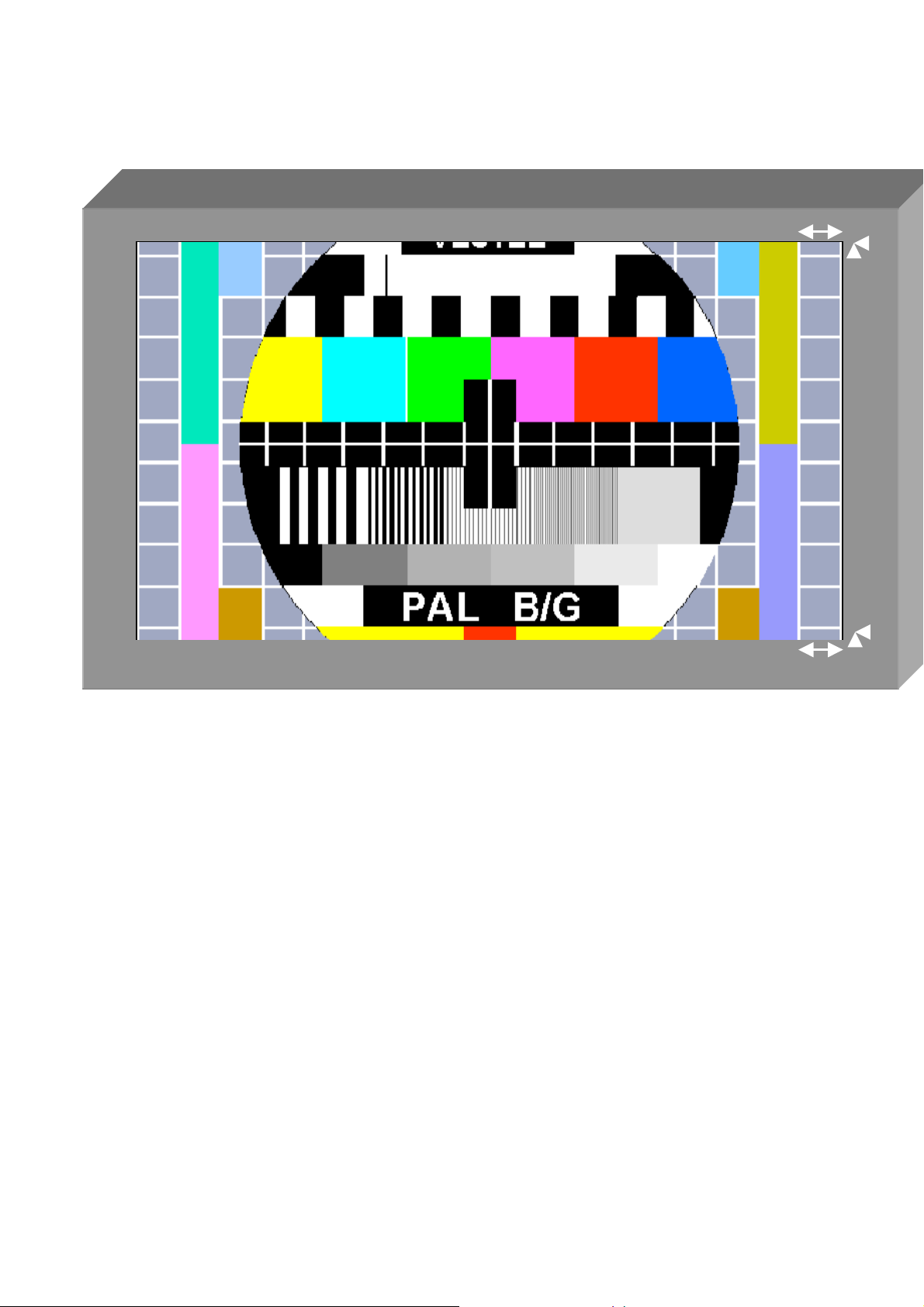

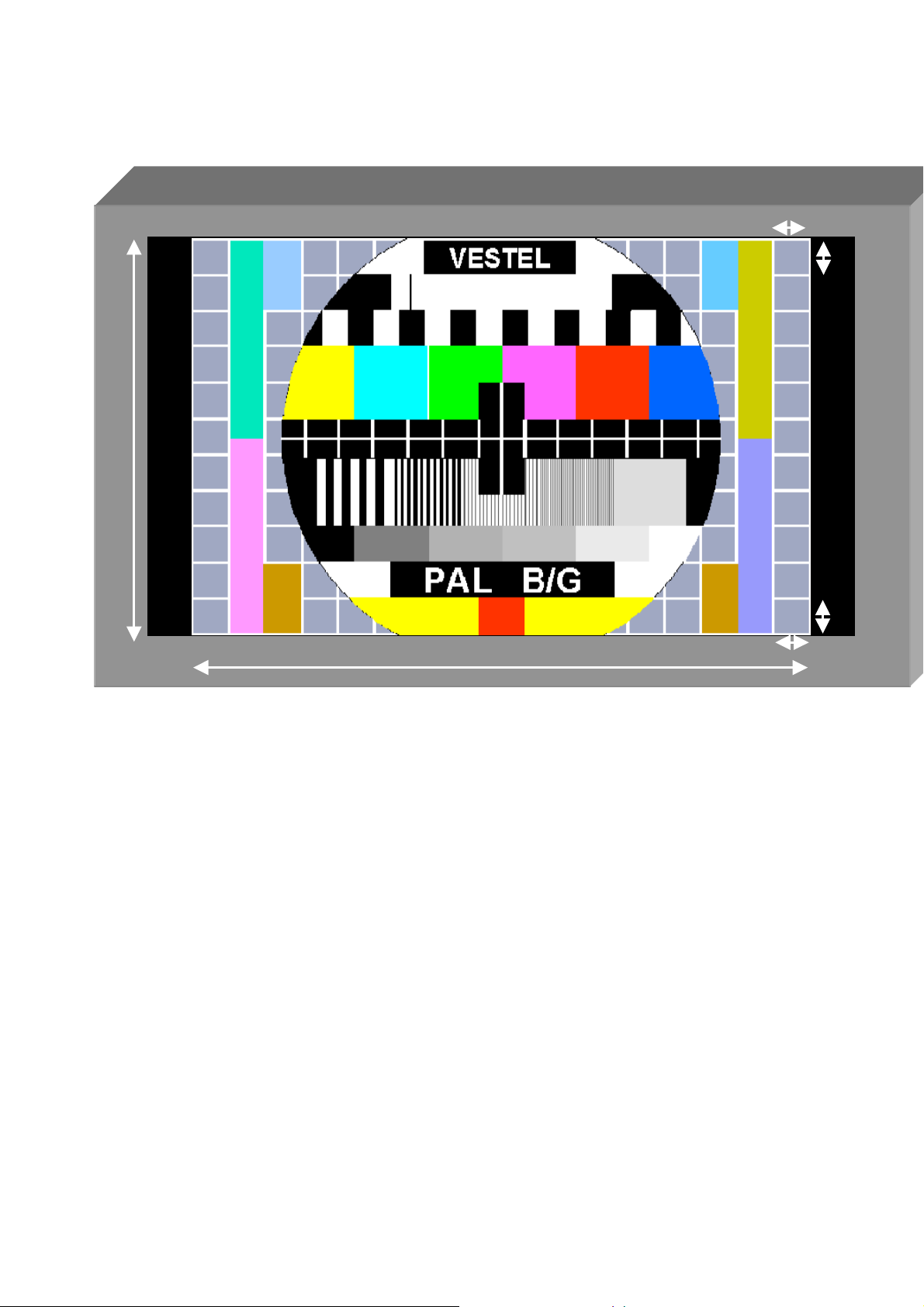

16:9 FORMATS................................................................................................................................40

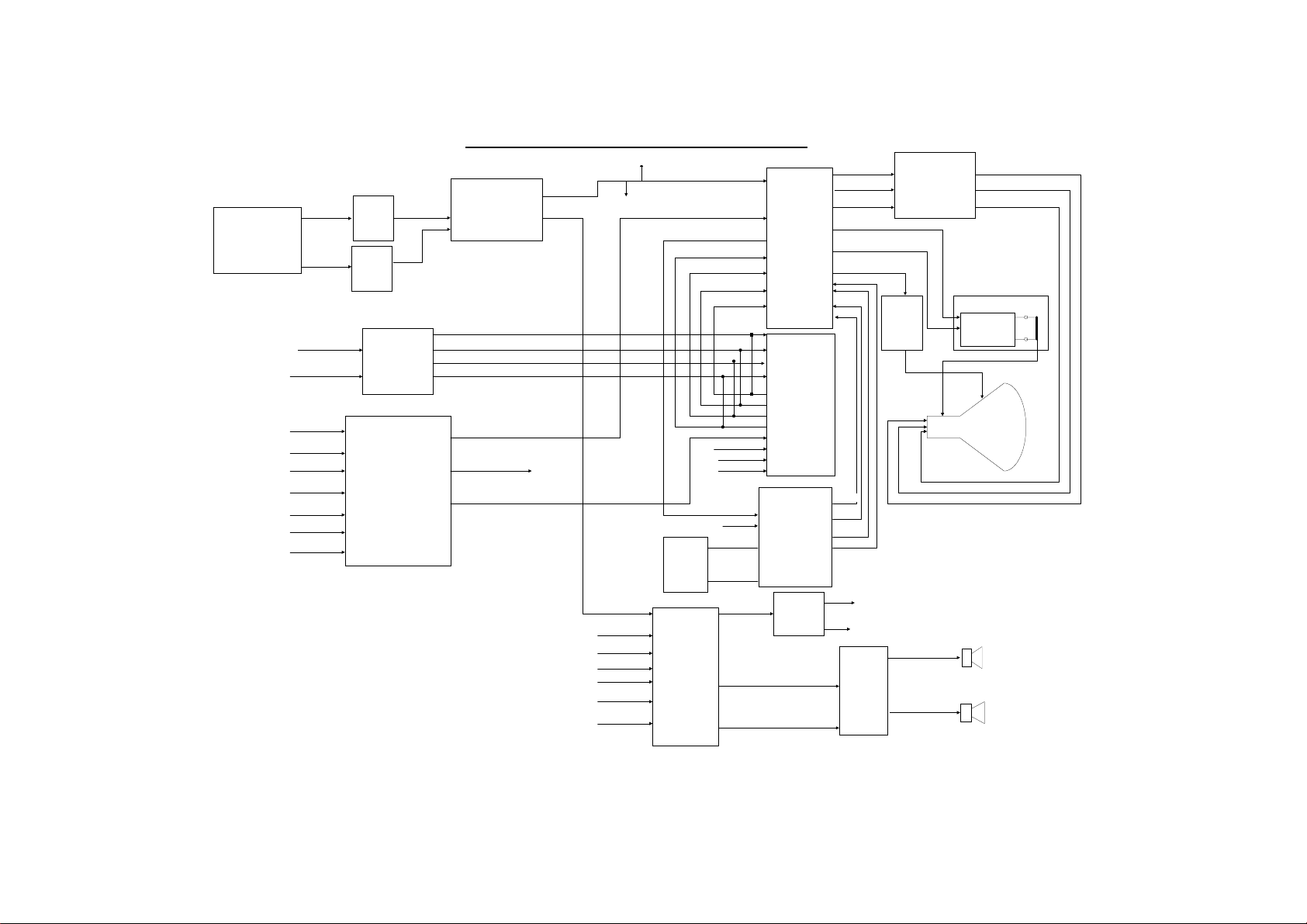

15.BLOCK DIAGRAM.............................................................................................................................46

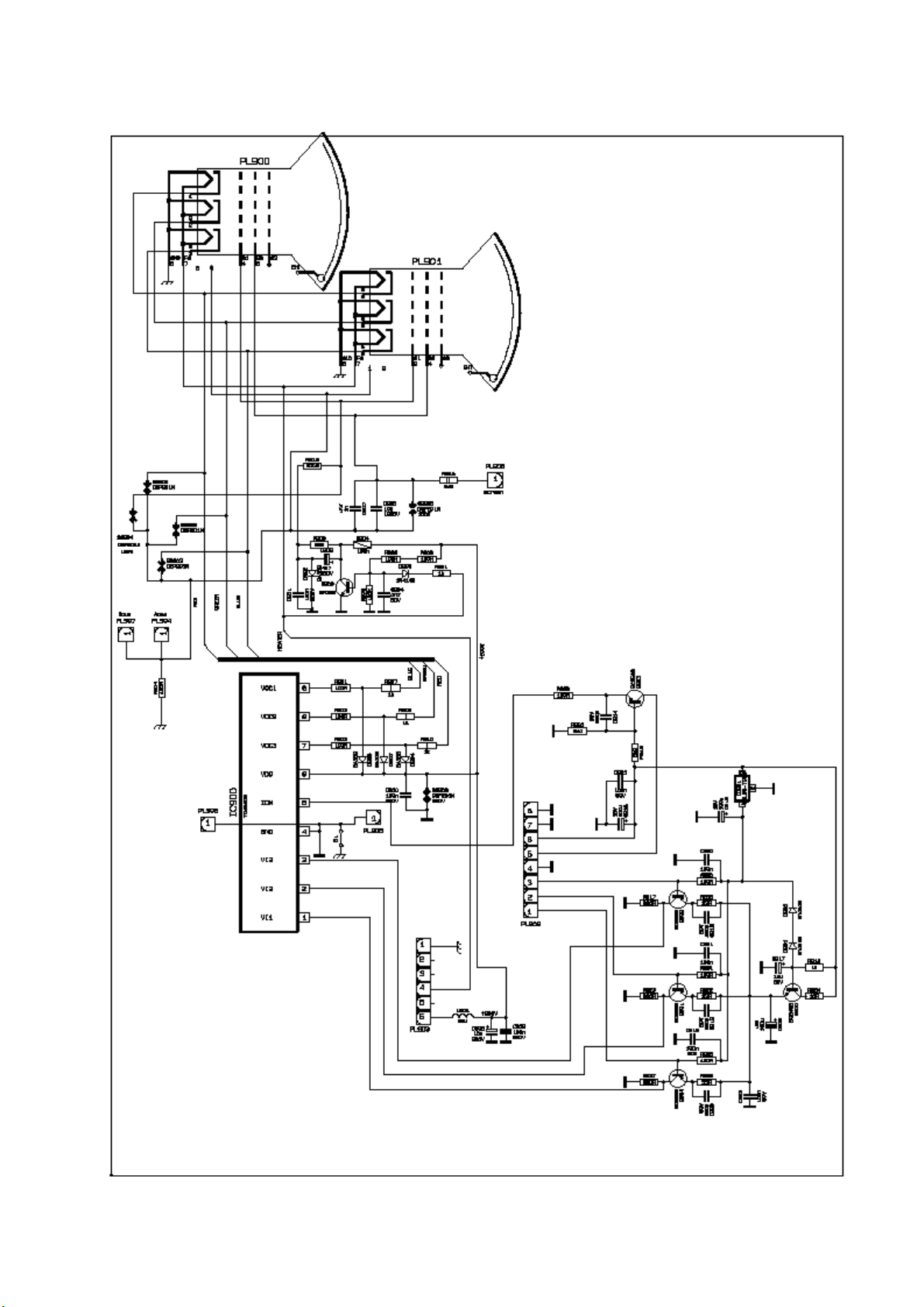

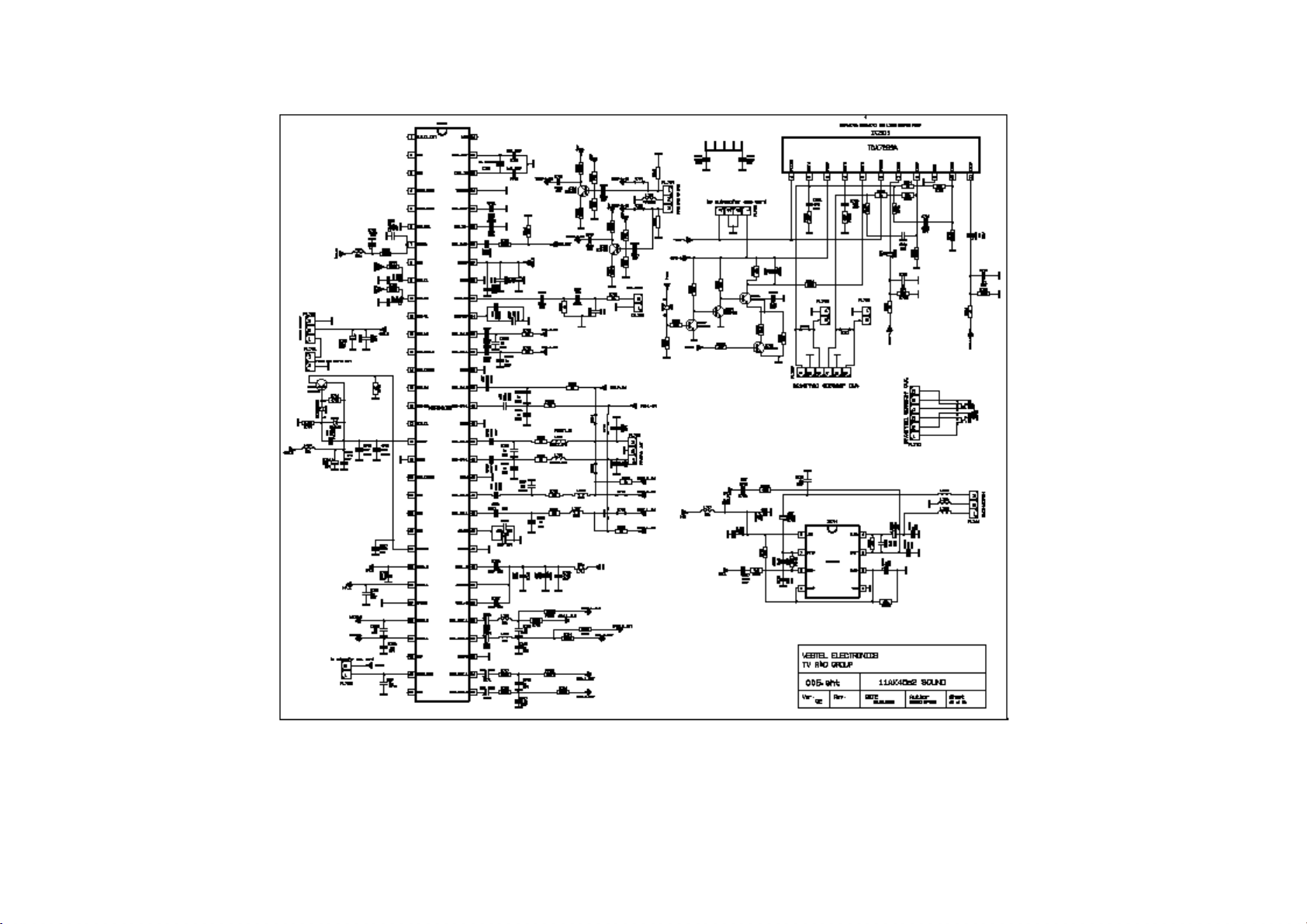

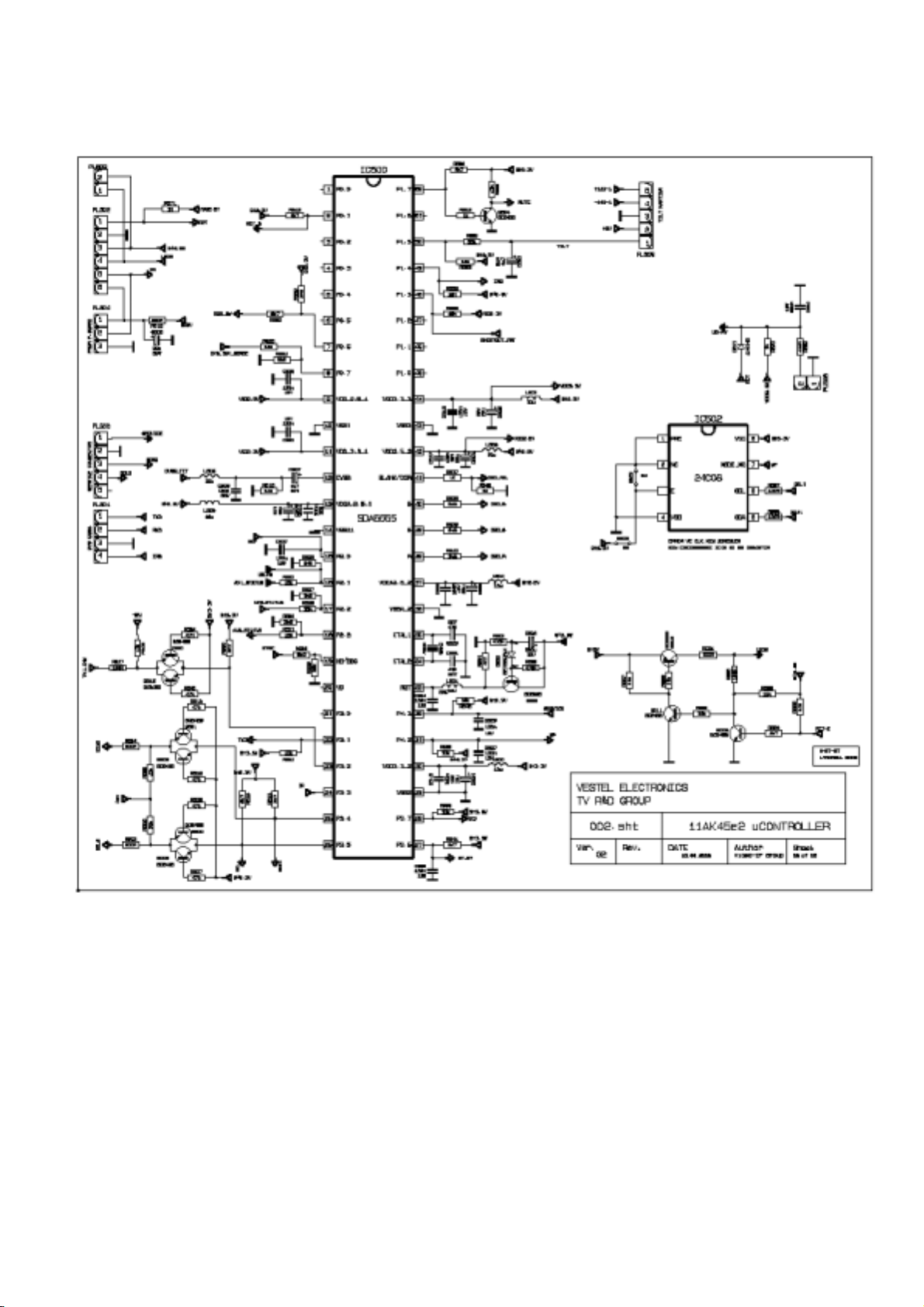

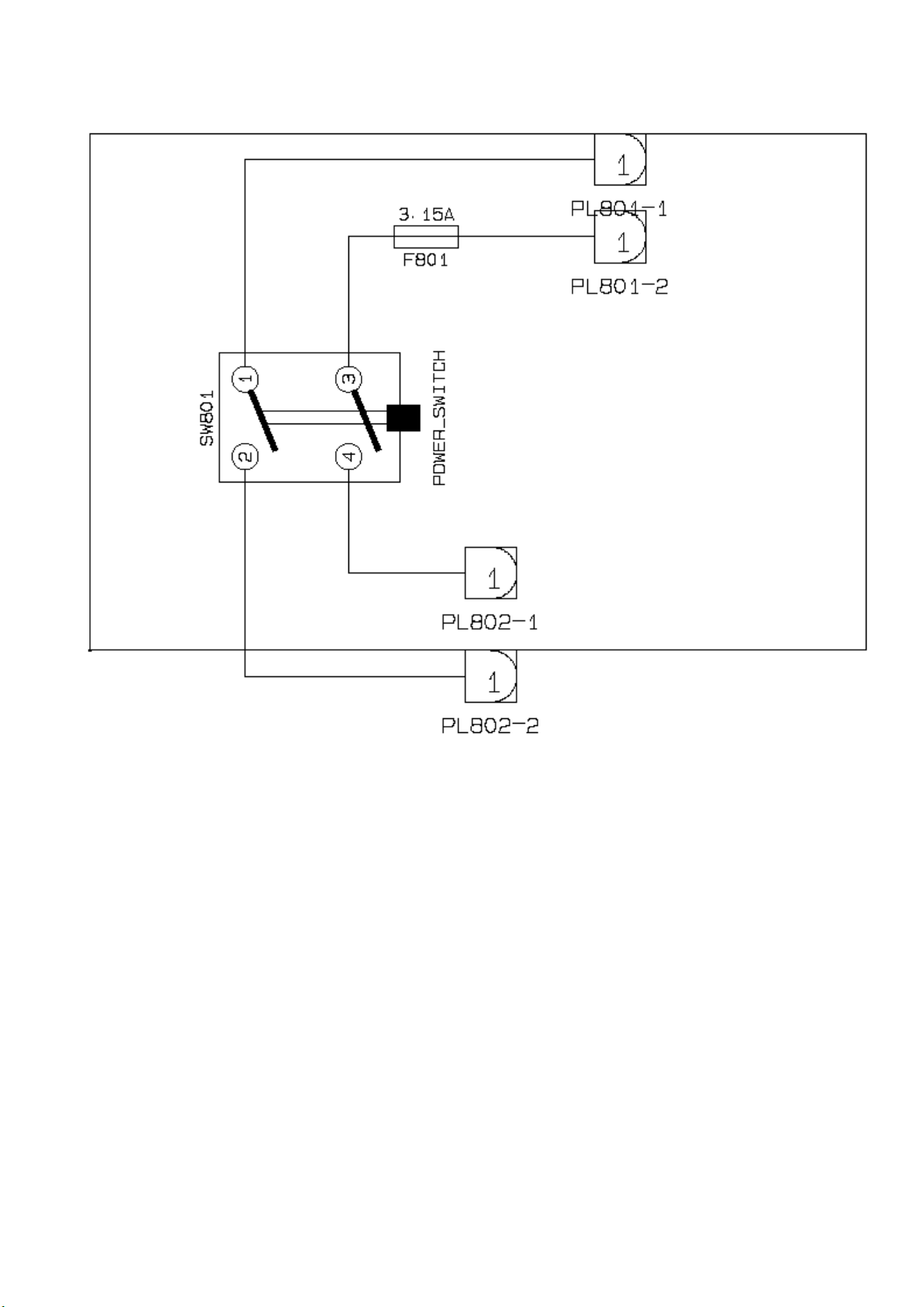

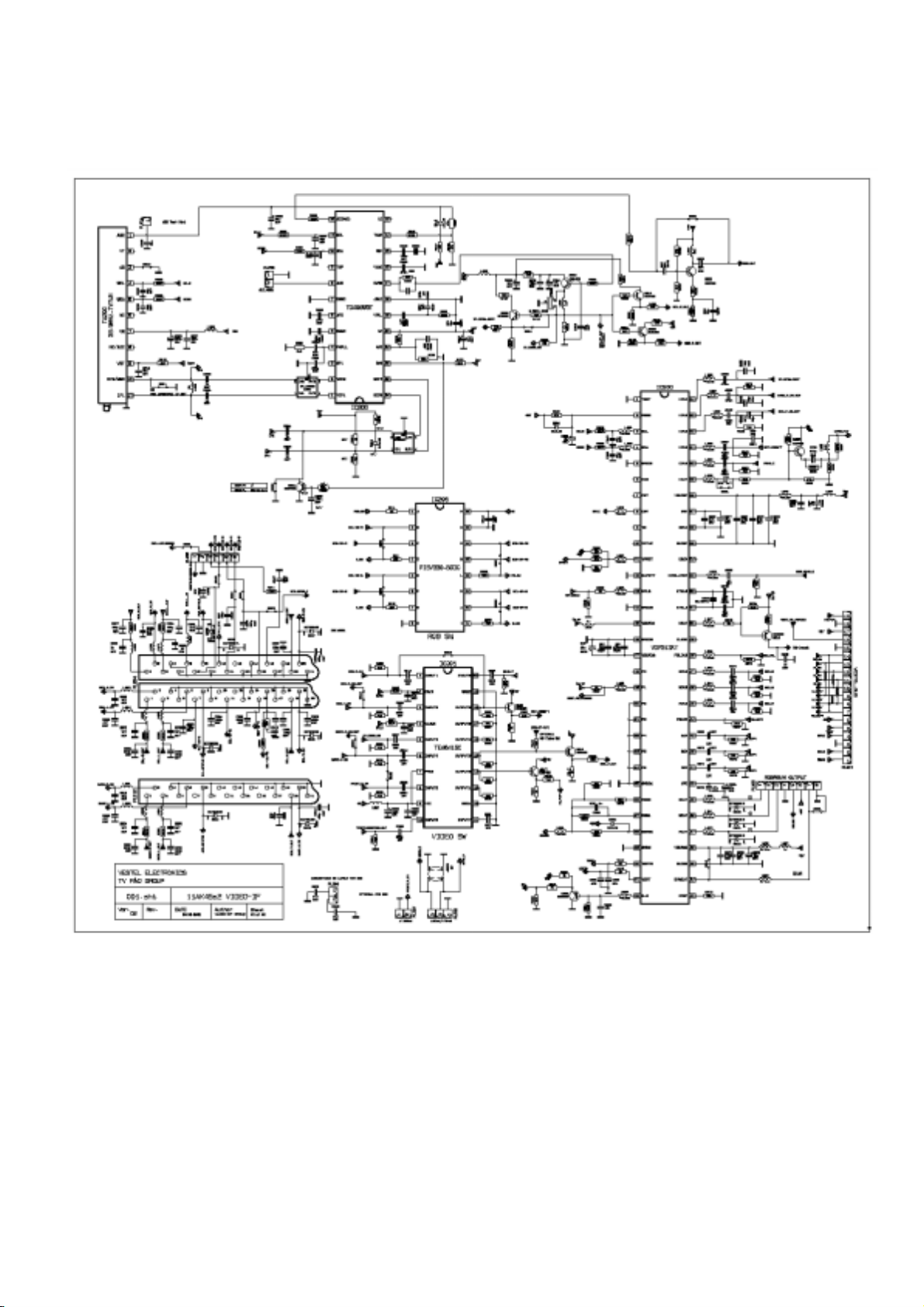

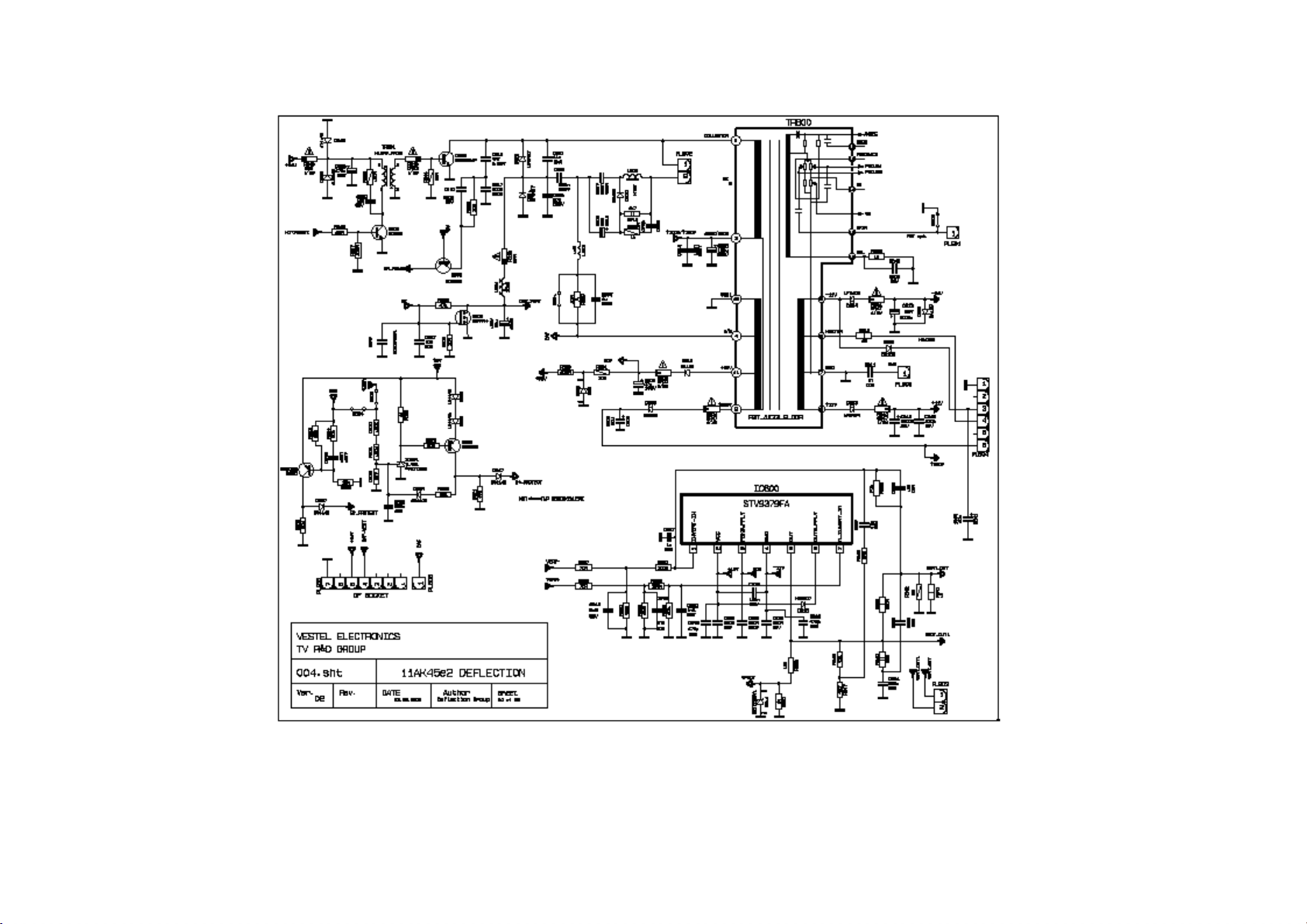

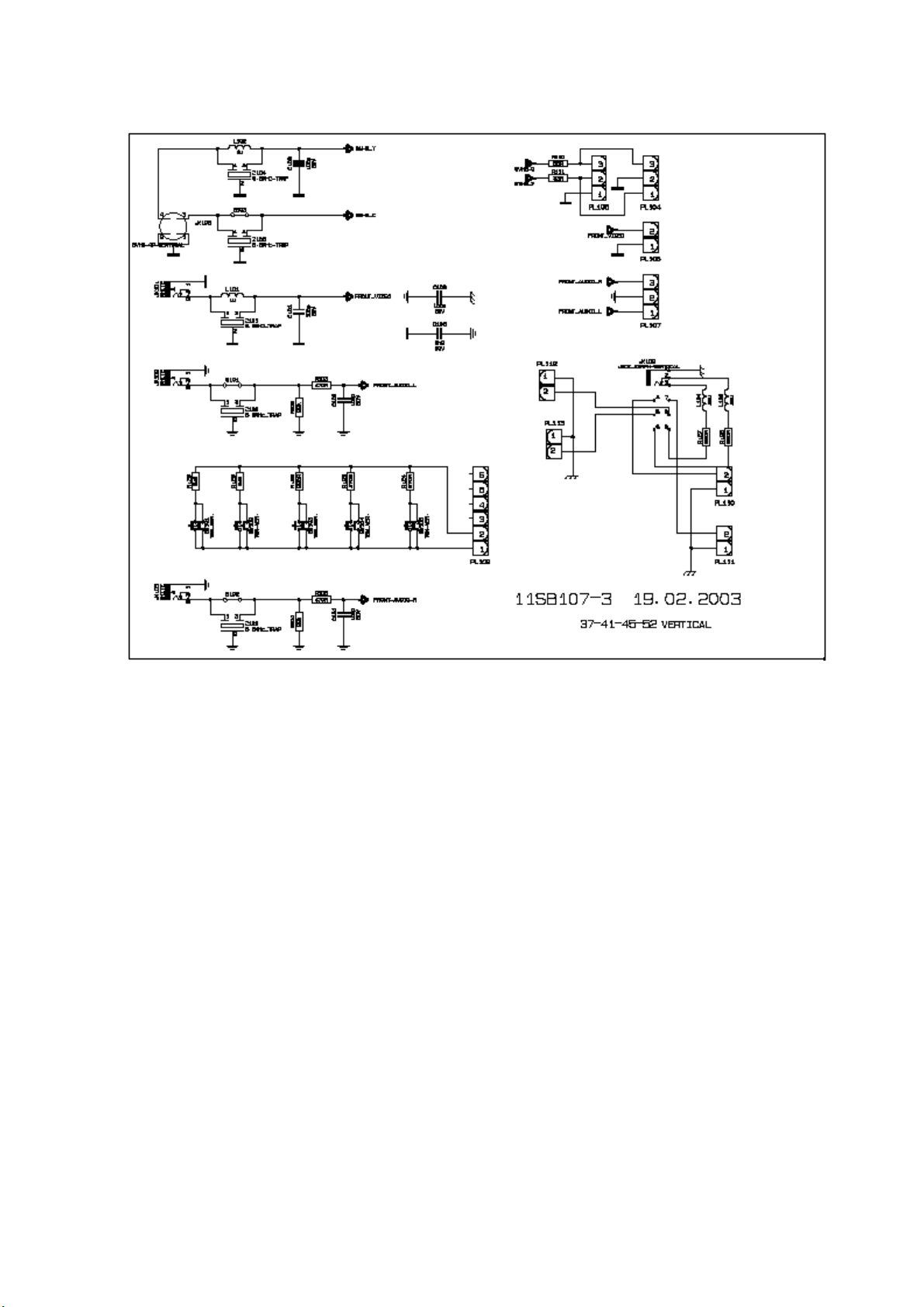

16.CIRCUIT DIAGRAMS......................................................................................................................... 47

iii

1.INTRODUCTION

11AK45 is a 50Hz colour television capable of driving 24” + CRT sizes( beginning from 24” 16:9 up to
33”).
The chassis is capable of operation in PAL, SECAM, NTSC (playback) colour standards and multiple
transmission standards as B/G, D/K, I/I’, and L/L´.
Sound system output is supplying 2x10W (10%THD) for left and right outputs of 8ohm speakers.
TV supports FASTTEXT. It is possible to decode transmissions including high graphical data.
The chassis is equipped with three full EuroScarts, only one of them supports RGB input, one
headphone output, one FAV input, one SVHS input (via SCART)

2.TUNER

The hardware and software of the TV is suitable for tuners, supplied by different companies, which are
selected from the Service Menu. These tuners can be combined VHF, UHF tuners suitable for CCIR
systems B/G, H, L, L´, I/I´, and D/K. The tuning is available through the digitally controlled I

2

C bus (PLL).

Below you will find info on one of the Tuners in use.

General description of UV1316:

The UV1316 tuner belongs to the UV 1300 family of tuners, which are designed to meet a wide range of
applications. It is a combined VHF, UHF tuner suitable for CCIR systems B/G, H, L, L’, I and I’. The low
IF output impedance has been designed for direct drive of a wide variety of SAW filters with sufficient
suppression of triple transient.

Features of UV1316:

1. Member of the UV1300 family small sized UHF/VHF tuners

2. Systems CCIR: B/G, H, L, L’, I and I’; OIRT: D/K

3. Digitally controlled (PLL) tuning via I

2

C-bus

4. Off-air channels, S-cable channels and Hyperband

5. World standardized mechanical dimensions and world standard pinning

6. Compact size

7. Complies to “CENELEC EN55020” and “EN55013”

Pinning:

1. Gain control voltage (AGC) : 4.0V, Max: 4.5V

2. Tuning voltage

3. I²C-bus address select : Max: 5.5V

4. I²C-bus serial clock : Min:-0.3V, Max: 5.5V

5. I²C-bus serial data : Min:-0.3V, Max: 5.5V

6. Not connected

7. PLL supply voltage : 5.0V, Min: 4.75V, Max: 5.5V

8. ADC input

9. Tuner supply voltage : 33V, Min: 30V, Max: 35V

10. Symmetrical IF output 1

11. Symmetrical IF output 2

3.IF PART (TDA9885/86)

The TDA9885 is an alignment-free single standard (without positive modulation) vision and sound IF signal
PLL.
The TDA9886 is an alignment-free multistandard (PAL, SECAM and NTSC) vision and sound IF signal PLL
Both devices can be used for TV, VTR, PC and set-top box applications.
The following figure shows the simplified block diagram of the integrated circuit.
The integrated circuit comprises the following functional blocks:
VIF amplifier, Tuner and VIF-AGC, VIF-AGC detector, Frequency Phase-Locked Loop (FPLL) detector, VCO
and divider, Digital acquisition help and AFC, Video demodulator and amplifier, Sound carrier trap, SIF
amplifier, SIF-AGC detector, Single reference QSS mixer, AM demodulator, FM demodulator and acquisition
help, Audio amplifier and mute time constant, I
voltage stabilizer.

2

C-bus transceivers and MAD (module address), Internal

1

4.VIDEO SWITCH TEA6415

In case of three or more external sources are used, the video switch IC TEA6415 is used. The main
function of this device is to switch 8 video-input sources on the 6 outputs.
Each output can be switched on only one of each input. On each input an alignment of the lowest level
of the signal is made (bottom of sync. top for CVBS or black level for RGB signals).
Each nominal gain between any input and output is 6.5dB.For D2MAC or Chroma signal the alignment
is switched off by forcing, with an external resistor bridge, 5VDC on the input. Each input can be used
as a normal input or as a MAC or Chroma input (with external Resistor Bridge). All the switching
possibilities are changed through the BUS. Driving 75ohm load needs an external resistor. It is possible
to have the same input connected to several outputs.

5.MULTI STANDARD SOUND PROCESSOR

The MSP 34x10G family of single-chip Multi-standard Sound Processors covers the sound processing
of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound
processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on
a single chip.
The DBX noise reduction, or alternatively, MICRONAS Noise Reduction (MNR) is performed alignment
free. Other processed standards are the Japanese FM-FM multiplex standard (EIA-J) and the FM
Stereo Radio standard.

6.SOUND OUTPUT STAGE WITH TDA7269A

The TDA7269A is class AB dual Audio power amplifier assembled in the Multi-watt package, specially
designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

7.BERTICAL OUTPUT STAGE WITH STV9379FA

The IC STV9379FA is the vertical deflection booster circuit. Two supply voltages, +14V and –14V are
needed to scan the inputs VERT+ and VERT-, respectively. And a third supply voltage, +60V for the
flyback limiting are needed. The vertical deflection coil is connected in series between the output and
feedback to the input.

8.VIDEO OUTPUT AMPLIFIER TDA6108

The TDA6108Q includes three video output amplifiers is intended to drive the three cathodes of a
colour picture tube.

2

9.POWER SUPPLY (SMPS)

The DC voltages required at various parts of the chassis are provided by an SMPS transformer
controlled by the IC MC44608, which is designed for driving, controlling and protecting switching
transistor of SMPS. The transformer generates 145V for FBT input, +/-14V for audio amplifier, 5V and

3.3V stand by voltage and 8V, 12V and 5V supplies for other different parts of the chassis.
An optocoupler is used to control the regulation of line voltage and stand-by power consumption. There
is a regulation circuit in secondary side. This circuit produces a control voltage according to the
changes in 145V DC voltage, via an optocoupler (TCET1102G) to pin3 of the IC.
During the switch on period of the transistor, energy is stored in the transformer. During the switch off
period energy is fed to the load via secondary winding. By varying switch-on time of the power
transistor, it controls each portion of energy transferred to the second side such that the output voltage
remains nearly independent of load variations.

10.MICROCONTROLLER SDA55XX

10.1.General Features

• Feature selection via special function register

• Simultaneous reception of TTX, VPS, PDC, and WSS (line 23)

• Supply Voltage 2.5 and 3.3 V

• ROM version package PSDIP52-2, PMQFP64-1

• Romless version package PMQFP100-2, PLCC84-2

10.2.External Crystal and Programmable Clock Speed

• Single external 6MHz crystal, all necessary clocks are generated internally

• CPU clock speed selectable via special function registers.

• Normal Mode 33.33 MHz CPU clock, Power Save mode 8.33 MHz

10.3.Microcontroller Features

• 8bit 8051 instruction set compatible CPU.

• 33.33-MHz internal clock (max.)

• 0.360 ms (min.) instruction cycle

• Two 16-bit timers

• Watchdog timer

• Capture compare timer for infrared remote control decoding

• Pulse width modulation unit (2 channels 14 bit, 6 channels 8 bit)

• ADC (4 channels, 8 bit)

• UART (rxd, txd)

10.4.Memory

• Non-multiplexed 8-bit data and 16 … 20-bit address bus (ROMless Version)

• Memory banking up to 1Mbyte (Romless version)

• Up to 128 Kilobyte on Chip Program ROM

• Eight 16-bit data pointer registers (DPTR)

• 256-bytes on-chip Processor Internal RAM (IRAM)

• 128bytes extended stack memory.

• Display RAM and TXT/VPS/PDC/WSS-Acquisition-Buffer directly accessible via MOVX

• UP to 16KByte on Chip Extended RAM (XRAM) consisting of;

- 1 Kilobyte on-chip ACQ-buffer-RAM (access via MOVX)

- 1 Kilobyte on-chip extended-RAM (XRAM, access via MOVX) for user software

- 3 Kilobyte Display Memory

10.5.Display Features

• ROM Character Set Supports all East and West European Languages in single device

• Mosaic Graphic Character Set

• Parallel Display Attributes

• Single/Double Width/Height of Characters

• Variable Flash Rate

• Programmable Screen Size (25 Rows x 33...64 Columns)

• Flexible Character Matrixes (HxV) 12 x 9...16

• Up to 256 Dynamical Redefinable Characters in standard mode; 1024 Dynamical Redefinable
Characters in Enhanced Mode

• CLUT with up to 4096 color combinations

3

• Up to 16 Colors per DRCS Character

• One out of Eight Colors for Foreground and Background Colors for 1-bit DRCS and ROM Characters

• Shadowing

• Contrast Reduction

• Pixel by Pixel Shiftable Cursor With up to 4 Different Colors

• Support of Progressive Scan and 100 Hz.

• 3 X 4Bits RGB-DACs On-Chip

• Free Programmable Pixel Clock from 10 MHz to 32MHz

• Pixel Clock Independent from CPU Clock

• Multinorm H/V-Display Synchronization in Master or Slave Mode

10.6.Acquisition Features

• Multi-standard Digital Data Slicer

• Parallel Multi-norm Slicing (TTX, VPS, WSS, CC, G+)

• Four Different Framing Codes Available

• Data Caption only limited by available Memory

• Programmable VBI-buffer

• Full Channel Data Slicing Supported

• Fully Digital Signal Processing

• Noise Measurement and Controlled Noise Compensation

• Attenuation Measurement and Compensation

• Group Delay Measurement and Compensation

• Exact Decoding of Echo Disturbed Signals

10.7.Ports

• One 8-bit I/O-port with open drain output and optional I

2

C Bus emulation support (Port0)

• Two 8-bit multifunction I/O-ports (Port1, Port3)

• One 4-bit port working as digital or analogue inputs for the ADC (Port2)

• One 2-bit I/O port with secondary function (P4.2, 4.3, 4.7)

• One 4-bit I/O-port with secondary function (P4.0, 4.1, 4.4) (Not available in P-SDIP 52)

11.CLASS AB STEREO HEADPHONE DRIVER TDA1308

The TDA1308 is an integrated class AB stereo headphone driver contained in a DIP8 plastic package.
The device is fabricated in a 1 mm CMOS process and has been primarily developed for portable digital
audio applications.

12.SAW FILTERS

K3953M:

Standard

B/G, D/K, I, L/L’

Features

TV IF filter with Nyquist slopes at 33,90 MHz and 38,90 MHz
Constant group delay
Suitable for CENELEC EN 55020

Terminals

Tinned CuFe alloy

Pin configuration

1 Input
2 Input - ground
3 Chip carrier - ground
4 Output
5 Output

K3958M:

Standard

B/G, D/K, I, L/L’

Features

TV IF filter with Nyquist slopes at 33.90 MHz and 38.90 MHz
Constant group delay
Terminal and Pin configuration are the same with

K3953M

4

K9356M:

Standard

B/G, D/K, I, L

Features

TV IF audio filter with pass band for sound carriers at 32,40 MHz (D/K, L), 32,90 MHz (I) and 33,40 MHz
(B/G)
Terminal and Pin configuration are the same with

K3953M

K9656M:

Standard

B/G, D/K, I, L/L’

Features

TV IF audio filter with two channels
Channel 1 (L’) with one pass band for sound carriers at 40,40 MHz (L’) and 39,75 MHz (L’- NICAM)
Channel 2 (B/G, D/K, L, I) with one pass band for sound carriers between 32,35 MHz and 33,40 MHz
Terminal and Pin configuration are the same with

K3953M

13.IC DESCRIPTIONS

LM317T TDA1308T
MSP3410G VDP3130Y
TEA6415 STV9379FA
TDA7269A LM7805/LM7808
24C08 SDA55XX
MC44608 TCET1102G
TDA9885T

13.1.LM317T

13.1.1.Description

The LM317T is an adjustable 3 terminal positive voltage regulator capable of supplying in excess of 1.5
amps over an output range of 1.25 to 37 volts. This voltage regulator is exceptionally easy to use and
requires only two external resistors to set the output voltage. Further, it employs internal current limiting,
thermal shutdown and safe area compensation, making it essentially blow–out proof. The LM317
serves a wide variety of applications including local, on card regulation. This device can also be used to
make a programmable output regulator, or by connecting a fixed resistor between the adjustment and
output, the LM317 can be used as a precision current regulator.

13.1.2.Features

• Output Current in Excess of 1.5 A

• Output Adjustable between 1.2 V and 37 V

• Internal Thermal Overload Protection

• Internal Short Circuit Current Limiting Constant with Temperature

• Output Transistor Safe–Area Compensation

• Floating Operation for High Voltage Applications

• Available in Surface Mount D

2

PAK, and Standard 3–Lead Transistor Package

• Eliminates Stocking many Fixed Voltages

13.2.TDA1308T

13.2.1.General Description

The TDA1308 is an integrated class AB stereo headphone driver contained in an SO8 or a DIP8 plastic
package. The device is fabricated in a 1 mm CMOS process and has been primarily developed for
portable digital audio applications. It gets its input from two analog audio outputs (DACA_L and
DACA_R) of MSP 34x0G. The gain of the output is adjustable by the feedback resistor between the
inputs and outputs.

13.2.2.Features

Wide temperature range

•

No switch ON/OFF clicks

•

Excellent power supply ripple rejection

•

5

Low power consumption

•

Short-circuit resistant

•

High performance

•

high signal-to-noise ratio

•

High slew rate

•

Low distortion

•

Large output voltage swing.

•

13.2.3.Pinning

SYMBOL PIN DESCRIPTION

OUTA 1 Output A
INA(neg) 2 Inverting input A
INA(pos) 3 Non-inverting input A
VSS 4 Negative supply
INB(pos) 5 Non-inverting input B
INB(neg) 6 Inverting input B
OUTB 7 Output B
VDD 8 Positive supply

13.3.MSP34X0G (MSP3410G)

13.3.1.Description

The MSP 34x0G family of single-chip Multi standard Sound Processors covers the sound processing of
all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound
processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on
a single chip. Figure shows a simplified functional block diagram of the MSP 34x0G.

This new generation of TV sound processing ICs now includes versions for processing the multi
channel television sound (MTS) signal conforming to the standard recommended by the Broadcast
Television Systems Committee (BTSC). The DBX noise reduction, or alternatively, MICRONAS Noise
Reduction (MNR) is performed alignment free. Other processed standards are the Japanese FM-FM
multiplex standard (EIA-J) and the FM Stereo Radio standard. Current ICs have to perform adjustment
procedures in order to achieve good stereo separation for BTSC and EIA-J. The MSP 34x0G has
optimum stereo performance without any adjustments.
All MSP 34x0G versions are pin and software downward compatible to the MSP34x0D. The MSP34x0G
further simplifies controlling software. Standard selection requires a single I

2

C transmission only.
The MSP 34x0G has built-in automatic functions: The IC is able to detect the actual sound standard
automatically (Automatic Standard Detection). Furthermore, pilot levels and identification signals can be
evaluated internally with subsequent switching between mono/stereo/bilingual; no I2C interaction is
necessary (Automatic Sound Selection).

6

13.3.2.Features

2

Standard Selection with single I

C transmission
Automatic Standard Detection of terrestrial TV standards
Automatic Sound Selection (mono/stereo/bilingual), new registers MODUS, STATUS
Two selectable sound IF (SIF) inputs
Automatic Carrier Mute function
Interrupt output programmable (indicating status change)
Loudspeaker / Headphone channel with volume, balance, bass, treble, loudness
AVC: Automatic Volume Correction
Subwoofer output with programmable low-pass and complementary high-pass filter
5-band graphic equalizer for loudspeaker channel
Spatial effect for loudspeaker channel
Four Stereo SCART (line) inputs, one Mono input; two Stereo SCART outputs
Complete SCART in/out switching matrix
Two I2S inputs; one I2S output
Dolby Pro Logic with DPL 351xA coprocessor
All analog FM-Stereo A2 and satellite standards; AM-SECAM L standard
Simultaneous demodulation of (very) high-deviation FM-Mono and NICAM
Adaptive deemphasis for satellite (Wegener-Panda, acc. to ASTRA specification)
ASTRA Digital Radio (ADR) together with DRP 3510A
All NICAM standards
Korean FM-Stereo A2 standard

13.3.3.Pin connections

NC = not connected; leave vacant
LV = if not used, leave vacant
X = obligatory; connect as described in circuit diagram
DVSS: if not used, connect to DVSS
AHVSS: connect to AHVSS

Pin No.

PLCC
68-pin

1 16 14 9 8 ADR_WS OUT LV ADR word strobe
2 - - - - NC LV Not connected
3 15 13 8 7 ADR_DA OUT LV ADR Data Output
4 14 12 7 6 I2S_DA_IN1 IN LV I2S1 data input
5 13 11 6 5 I2S_DA_OUT OUT LV I2S data output
6 12 10 5 4 I2S_WS IN/OUT LV I2S word strobe
7 11 9 4 3 I2S_CL IN/OUT LV I2S clock
8 10 8 3 2 I2C_DA IN/OUT X I2C data
9 9 7 2 1 I2C_CL IN/OUT X I2C data
10 8 - 1 64 NC LV Not connected
11 7 6 80 63 STANDBYQ IN X Stand-by (low-active)
12 6 5 79 62 ADR_SEL IN X I2C bus address select
13 5 4 78 61 D_CTR_I/O_0 IN/OUT LV D_CTR_I/O_0
14 4 3 77 60 D_CTR_I/O_1 IN/OUT LV D_CTR_I/O_1
15 3 - 76 59 NC LV Not connected
16 2 - 75 58 NC LV Not connected
17 - - - - NC LV Not connected

18 1 2 74 57 AUD_CL_OUT OUT LV

19 64 1 73 56 TP LV Test pin
20 63 52 72 55 XTAL_OUT OUT X Crystal oscillator
21 62 51 71 54 XTAL_IN IN X Crystal oscillator
22 61 50 70 53 TESTEN IN X Test pin

23 60 49 69 52 ANA_IN2+ IN

24 59 48 68 51 ANA_IN- IN

25 58 47 67 50 ANA_IN1+ IN LV IF input 2
26 57 46 66 49 AVSUP X Analog power supply 5v

- - - 65 - AVSUP X Analog power supply 5v

PSDIP
64-pin

PSDIP
52-pin

PQFP
80-pin

PLQFP
64-pin

Pin Name

Type

Connection
(if not used)

AVSS via 56
pF/LV

AVSS via 56
pF/LV

Short Description

Audio clock output
(18.432 MHz)

IF Input 2 (can be left
vacant, only if IF input 1 is
also not in use)
IF common (can be left
vacant, only if IF input 1 is
also not in use)

7

- - - 64 - NC LV Not connected

- - - 63 - NC LV Not connected
27 56 45 62 48 AVSS X Analog ground

- - - 61 - AVSS X Analog ground
28 55 44 60 47 MONO_IN IN LV Mono input

- - - 59 - NC LV Not connected

29 54 43 58 46 VREFTOP X

30 53 42 57 45 SC1_IN_R IN LV SCART 1 input, right
31 52 41 56 44 SC1_IN_L IN LV SCART 1 input, left
32 51 - 55 43 ASG1 AHVSS Analog Shield Ground 1
33 50 40 54 42 SC2_IN_R IN LV SCART 2 input, right
34 49 39 53 41 SC2_IN_L IN LV SCART 2 input, left
35 48 - 52 40 ASG2 AHVSS Analog Shield Ground 2
36 47 38 51 39 SC3_IN_R IN LV SCART 3 input, right
37 46 37 50 38 SC3_IN_L IN LV SCART 3 input, left
38 45 - 49 37 ASG4 AHVSS Analog Shield Ground 4
39 44 - 48 36 SC4_IN_R IN LV SCART 4 input, right
40 43 - 47 35 SC4_IN_L IN LV SCART 4 input, left
41 - - 46 - NC LV or AHVSS Not connected
42 42 36 45 34 AGNDC X Analog reference voltage
43 41 35 44 33 AHVSS X Analog ground

- - - 43 - AHVSS X Analog ground

- - - 42 - NC LV Not connected

- - - 41 - NC LV Not connected
44 40 34 40 32 CAPL_M X Volume capacitor MAIN
45 39 33 39 31 AHVSUP X Analog power supply 8V
46 38 32 38 30 CAPL_A X Volume capacitor AUX
47 37 31 37 29 SC1_OUT_L OUT LV SCART output 1, left
48 36 30 36 28 SC1_OUT_R OUT LV SCART output 1, right
49 35 29 35 27 VREF1 X Reference ground 1
50 34 28 34 26 SC2_OUT_L OUT LV SCART output 2, left
51 33 27 33 25 SC2_OUT_R OUT LV SCART output 2, right
52 - - 32 - NC LV Not connected
53 32 - 31 24 NC LV Not connected
54 31 26 30 23 DACM_SUB OUT LV Subwoofer output
55 30 - 29 22 NC LV Not connected
56 29 25 28 21 DACM_L OUT LV Loudspeaker out, left
57 28 24 27 20 DACM_R OUT LV Loudspeaker out, right
58 27 23 26 19 VREF2 X Reference ground 2
59 26 22 25 18 DACA_L OUT LV Headphone out, left
60 25 21 24 17 DACA_R OUT LV Headphone out, right

- - - 23 - NC LV Not connected

- - - 22 - NC LV Not connected
61 24 20 21 16 RESETQ IN X Power-on-reset
62 23 - 20 15 NC LV Not connected
63 22 - 19 14 NC LV Not connected
64 21 19 18 13 NC LV Not connected
65 20 18 17 12 I2S_DA_IN2 IN LV I2S2-data input
66 19 17 16 11 DVSS X Digital ground

- - - 15 - DVSS X Digital ground

- - - 14 - DVSS X Digital ground
67 18 16 13 10 DVSUP X Digital power supply 5V

- - - 12 - DVSUP X Digital power supply 5V

- - - 11 - DVSUP X Digital power supply 5V
68 17 15 10 9 ADR_CL OUT LV ADR clock

Reference voltage IF A/D
converter

13.4.VDP313xY

13.4.1.Introduction

The VDP 313xY is a video IC family of high-quality single-chip video processors. Modular design and a
sub-micron technology allow the economic integration of features in all classes of TV sets. The VDP

RCB

313xY family is based on the VDP 31xxB including YC

inputs for DVD component signals.
The VDP 313xY includes complete video, display and deflection processing. All processing is done
digitally, the video frontend and video backend are interfacing to the analog world. Most functions of the
VDP can be controlled by software via I2C-Bus interface

8

13.4.2.Features
Video Decoding and Processing

– four CVBS, one S-VHS input, one YC

R C B

component input
– integrated high-quality A/D converters and associated clamp and AGC circuits
– adaptive 2H comb filter Y/C separator
– multistandard color decoder PAL/NTSC/SECAM including all substandards
– multistandard sync decoder
– automatic standard recognition
– black-line detector
– linear horizontal scaling (0.25...4), as well as nonlinear horizontal scaling “Panoramavision”
– black-level expander
– dynamic peaking
– soft limiter (gamma correction)
– color transient improvement

RGB Processing and Deflection

– programmable RGB matrix
– two analog RGB / Fastblank inputs
– half-contrast switch
– picture frame generator
– scan velocity modulation output
– high-performance H/V deflection
– separate ADC for tube measurements
– EHT compensation
– angle and bow correction
– one 20.25 MHz crystal, few external components

2

C-Bus Interface

–I
– 64-pin PSDIP package

13.4.3.Pin Connections and short descriptions

NC = not connected LV = if not used, leave vacant
X = obligatory; connect as described in circuit diagram IN = Input
OUT = Output SUPPLY = Supply Pin

Pin no
PSDIP 64-pin

1 TEST IN GNDD Test Input
2 RESQ IN X Reset Input
3 SCL IN/OUT X I2C Bus Clock
4 SDA IN/OUT X I2C Bus Data
5 GNDD SUPPLY X Digital Ground
6 HCS IN LV Half Contrast Switch Input
7 FSY OUT LV Front Sync Output
8 CSY OUT LV Composite Sync Output
9 VS OUT LV Vertical Sync Output

10 INTLC OUT LV Intefrace Control Output
11 VPROT IN GNDAB Vertical Protection Input
12 SAFETY IN GNDAB Safety Input
13 HFLB IN HOUT Horizontal Flyback Input
14 GNDD SUPPLY X Digital Ground
15 VSUPD SUPPLY X Digital Supply Voltage (3.3V)
16 GNDD SUPPLY X Digital Ground
17 VSUPD SUPPLY LV Digital Supply Voltage (3.3V)
18 P0 IN/OUT LV Port 1, Bit 0
19 P1 IN/OUT LV Port 1, Bit 1
20 P2 IN/OUT GNDD Port 1, Bit 2
21 P3 IN/OUT GNDD Port 1, Bit 3
22 P4 IN/OUT GNDD Port 1, Bit 4
23 P5 IN/OUT GNDD Port 1, Bit 5
24 P6 IN/OUT GNDD Port 1, Bit 6

Pin name Type Connection

(if not used)

Short description

(=VS Bit of MSY for TPU)

9

25 GNDD SUPPLY X Digital Ground
26 RSW2 OUT GNDAB Range Switch 2 for Measurement ADC
27 RSW1 OUT GNDAB Range Switch 1 for Measurement ADC
28 SENSE IN GNDAB Sense ADC Input
29 GNDM SUPPLY X Ground, MADC ınput
30 VERTQ OUT LV Inverted Vertical Sawtooth Output
31 VERT OUT LV Vertical Sawtooth Output
32 E/w OUT LV Vertical Parabola Output
33 XREF IN X Reference Input for RGB DACs
34 SVMOUT OUT VSUPAB Analog Scan Velocity Modulation Output
35 GNDAB SUPPLY X Analog Ground Backend
36 VSUPAB SUPPLY X Analog Supply Voltage (5.0V) Backend
37 ROUT OUT VSUPAB Analog Red Output
38 GOUT OUT VSUPAB Analog Green Output
39 BOUT OUT VSUPAB Analog Blue Output
40 VRD IN X DAC Reference
41 RIN IN GNDAB Analog Red Input
42 GIN IN GNDAB Analog Green Input
43 BIN IN GNDAB Analog Blue Input
44 FBLIN IN GNDAB Fast Blank Input
45 RIN2 IN GNDAB Analog Red Input2
46 GIN2 IN GNDAB Analog Green Input2
47 BIN2 IN GNDAB Analog Blue Input2
48 FBLIN2 IN GNDAB Fast Blank Input2
49 CLK20 OUT LV 20.25 MHz System Clock Output
50 HOUT OUT X Horizontal Drive Output
51 XTAL 1 IN X Analog Crystal Input
52 XTAL 2 OUT X Analog Crystal Output
53 CIN 2/CRIN LV Analog Chroma 2/Component CR Input
54 CBIN IN LV Component CB Input
55 GNDAF SUPPLY X Analog Ground Frontend
56 SGND IN GNDAF Signal Ground for Analog Input
57 VRT IN X Reference Voltage Top, Video ADC
58 VSUPAF SUPPLY X Analog Supply Voltage (5.0V) Frontend
59 VOUT OUT LV Analog Video Output
60 CIN1 IN VRT Analog Chroma 1 Input
61 VIN1 IN VRT Analog Video 1 Input
62 VIN2 IN VRT Analog Video 2 Input
63 VIN3 IN VRT Analog Video 3 Input
64 VIN4 IN VRT Analog Video 4 Input

13.5.TEA6415C

13.5.1.General Description

The main function of the IC is to switch 8 video input sources on 6 outputs. Each output can be
switched on only one of each input. On each input an alignment of the lowest level of the signal is made
(bottom of synch. top for CVBS or black level for RGB signals). Each nominal gain between any input
and output is 6.5dB. For D2MAC or Chroma signal the alignment is switched off by forcing, with an
external resistor bridge, 5 V

DC on the input. Each input can be used as a normal input or as a MAC or

Chroma input (with external resistor bridge). All the switching possibilities are changed through the BUS.
Driving 75 load needs an external transistor. It is possible to have the same input connected to
several outputs. The starting configuration upon power on (power supply: 0 to 10V) is undetermined. In
this case, 6 words of 16 bits are necessary to determine one configuration. In other case, 1 word of 16
bits is necessary to determine one configuration.

13.5.2.Features

• 20MHz Bandwidth

• Cascadable with another TEA6415C (Internal address can be changed by pin 7 voltage)

• 8 Inputs (CVBS, RGB, MAC, CHROMA,...)

• 6 Outputs

• Possibility of MAC or chroma signal for each input by switching-off the clamp with an external resistor
bridge

• Bus controlled

10

• 6.5dB gain between any input and output

• 55dB crosstalk at 5mHz

• Fully ESD protected

13.5.3.Pinning

1. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

2. Data : Low level : -0.3V Max: 1.5V,
High level : 3.0V Max : Vcc+0.5V

3. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

4. Clock : Low level : -0.3V Max: 1.5V,
High level : 3.0V Max : Vcc+0.5V

5. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

6. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

7. Prog

8. Input : Max : 2Vpp, Input Current: 1mA, Max: 3mA

9. Vcc : 12V

10. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

11. Input : Max : 2Vpp, Input Current: 1mA, Max : 3mA

12. Ground

13. Output : 5.5Vpp, Min : 4.5Vpp

14. Output : 5.5Vpp, Min : 4.5Vpp

15. Output : 5.5Vpp, Min : 4.5Vpp

16. Output : 5.5Vpp, Min : 4.5Vpp

17. Output : 5.5Vpp, Min : 4.5Vpp

18. Output : 5.5Vpp, Min : 4.5Vpp

19. Ground

20. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

13.6.STV9379FA

13.6.1.Description

Designed for monitors and high performance TVs, the STV9379FA vertical deflection booster can
handle flyback voltage up to 90V. Further to this, it is possible to have a flyback voltage, which is more
than the double of the supply (Pin 2). This allows to decrease the power consumption, or to decrease
the flyback time for a given supply voltage. The STV9379FA operates with supplies up to 42V and
provides up to 2.6APP output current to drive the yoke. The STV9379FA is offered in HEPTAWATT
package.

13.6.2.Features

Power Amplifier
Thermal Protection
Output Current Up To 2.6

APP

Flyback Voltage Up To 90V (on Pin 5)
Suitable For DC Coupling Application
External Flyback Supply

13.6.3.Pinning

Pin1 : Output Stage Supply
Pin2 : Output
Pin3 : GND or Negative Supply
Pin4 : Flyback Supply
Pin5 : Supply Voltage
Pin6 : Inverting Input
Pin7 : Non-inverting Input

13.7.TDA7269A

13.7.1.Description

The TDA7269A is class AB dual Audio power amplifier assembled in the Multiwatt package, specially
designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

11

13.7.2.Features

Wide Supply Voltage Range Up To ±20V
Split Supply
High Output Power
14 + 14W @THD =10%, R

=8,V

L

= +16V

S

No Pop at Turn-On/Off
Mute (Pop Free)
Stand-By Feature (Low I

)

q

Short Circuit Protection To Gnd
Thermal Overload Protection

13.8.LM7800 (LM7805/LM7808)

13.8.1.Description

The L7800 series of three-terminal positive regulators is available in TO-220 TO-220FP TO-3 and D 2
PAK packages and several fixed output voltages, making it useful in a wide range of applications.
These regulators can provide local on-card regulation, eliminating the distribution problems associated
with single point regulation. Each type employs internal current limiting, thermal shutdown and safe
area protection, making it essentially indestructible. If adequate heat sinking is provided, they can
deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices
can be used with external components to obtain adjustable voltages and currents.

13.8.2.Features

Output Current Up To 1.5 A
Output Voltages of 5; 5.2; 6; 8; 8.5; 9; 12; 15; 18; 24V
Thermal Over load protection
Short Circuit Protection
Output Transition SOA Protection

13.9.AT24C08

13.9.1.Description

The AT24C01A/02/04/08/16 provides 1024/2048/4096/8192/16384 bits of serial electrically erasable
and programmable read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits
each. The device is optimized for use in many industrial and commercial applications where low-power
and low-voltage operation are essential. The AT24C01A/02/04/08/16 is available in space-saving 8-pin
PDIP, (AT24C01A/02/04/08/16), 8-lead TSSOP (AT24C01A/02/04/08/16) and 8-lead JEDEC SOIC
(AT24C01A/02/04/08/16) packages and is accessed via a 2-wire serial interface. In addition, the entire
family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to

5.5V) versions.

13.9.2.Features

• Low-voltage and Standard-voltage Operation
– 5.0 (V CC = 4.5V to 5.5V)
– 2.7 (V CC = 2.7V to 5.5V)
– 2.5 (V CC = 2.5V to 5.5V)
– 1.8 (V CC = 1.8V to 5.5V)

• Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K)

• 2-wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bi-directional Data Transfer Protocol

• 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility

• Write Protect Pin for Hardware Data Protection

• 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes

• Partial Page Writes are Allowed

• Self-timed Write Cycle (10 ms max)

• High-reliability
– Endurance: 1 Million Write Cycles

12

– Data Retention: 100 Years

• Automotive Grade and Extended Temperature Devices Available

• 8-lead JEDEC SOIC, 8-pin PDIP and 8-lead TSSOP Packages

13.9.3.Pin Configurations

Pin name Function

A0-A2 Address Inputs
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
NC No Connect

13.10.SDA5555

13.10.1.General definition

The SDA55XX is a single chip teletext decoder for decoding World System Teletext data as well as
Video Programming System (VPS), Program Delivery Control (PDC), and Wide Screen Signalling
(WSS) data used for PAL plus transmissions (Line 23). The device also supports Closed caption
acquisition and decoding. The device provides an integrated general-purpose, fully 8051-compatible
Microcontroller with television specific hardware features. Microcontroller has been enhanced to provide
powerful features such as memory banking, data pointers, and additional interrupts etc. The on-chip
display unit for displaying Level 1.5 teletext data can also be used for customer defined on screen
displays. Internal XRAM consists of up to 16 Kbytes. Device has an internal ROM of up to 128 KBytes.
ROMless versions can access up to 1 MByte of external RAM and ROM. The SDA 55XX supports a
wide range of standards including PAL, NTSC and contains a digital slicer for VPS, WSS, PDC, TTX
and Closed Caption, an accelerating acquisition hardware module, a display generator for Level 1.5
TTX data and powerful On screen Display capabilities based on parallel attributes, and Pixel oriented
characters (DRCS).

13.10.2.Features
General

• Feature selection via special function register

• Simultaneous reception of TTX, VPS, PDC, and WSS (line 23)

• Supply Voltage 2.5 and 3.3 V

• ROM version package PSDIP52-2, PMQFP64-1

• Romless version package PMQFP100-2, PLCC84-2

External Crystal and Programmable Clock Speed

• Single external 6MHz crystal, all necessary clocks are generated internally

• CPU clock speed selectable via special function registers.

• Normal Mode 33.33 MHz CPU clock, Power Save mode 8.33 MHz

Microcontroller Features

• 8bit 8051 instruction set compatible CPU.

• 33.33-MHz internal clock (max.)

• 0.360ms (min.) instruction cycle

• Two 16-bit timers

• Watchdog timer

• Capture compare timer for infrared remote control decoding

• Pulse width modulation unit (2 channels 14 bit, 6 channels 8 bit)

• ADC (4 channels, 8 bit)

• UART

Memory

• Non-multiplexed 8-bit data and 16 … 20-bit address bus (ROMless Version)

• Memory banking up to 1Mbyte (Romless version)

• Up to 128 Kilobyte on Chip Program ROM

• Eight 16-bit data pointer registers (DPTR)

• 256-bytes on-chip Processor Internal RAM (IRAM)

• 128bytes extended stack memory.

• Display RAM and TXT/VPS/PDC/WSS-Acquisition-Buffer directly accessible via MOVX

13

• UP to 16KByte on Chip Extended RAM (XRAM) consisting of;

- 1 Kilobyte on-chip ACQ-buffer-RAM (access via MOVX)

- 1 Kilobyte on-chip extended-RAM (XRAM, access via MOVX) for user software

- 3 Kilobyte Display Memory

Display Features

• ROM Character Set Supports all East and West European Languages in single device

• Mosaic Graphic Character Set

• Parallel Display Attributes

• Single/Double Width/Height of Characters

• Variable Flash Rate

• Programmable Screen Size (25 Rows x 33...64 Columns)

• Flexible Character Matrixes (HxV) 12 x 9...16

• Up to 256 Dynamical Redefinable Characters in standard mode; 1024 Dynamical Redefinable
Characters in Enhanced Mode

• CLUT with up to 4096 color combinations

• Up to 16 Colors per DRCS Character

• One out of Eight Colors for Foreground and Background Colors for 1-bit DRCS and ROM Characters

• Shadowing

• Contrast Reduction

• Pixel by Pixel Shiftable Cursor With up to 4 Different Colors

• Support of Progressive Scan and 100 Hz.

• 3 X 4Bits RGB-DACs On-Chip

• Free Programmable Pixel Clock from 10 MHz to 32MHz

• Pixel Clock Independent from CPU Clock

• Multinorm H/V-Display Synchronization in Master or Slave Mode

Acquisition Features

• Multistandard Digital Data Slicer

• Parallel Multi-norm Slicing (TTX, VPS, WSS, CC, G+)

• Four Different Framing Codes Available

• Data Caption only Limited by available Memory

• Programmable VBI-buffer

• Full Channel Data Slicing Supported

• Fully Digital Signal Processing

• Noise Measurement and Controlled Noise Compensation

• Attenuation Measurement and Compensation

• Group Delay Measurement and Compensation

• Exact Decoding of Echo Disturbed Signals

Ports

• One 8-bit I/O-port with open drain output and optional I

2

C Bus emulation support (Port 0)

• Two 8-bit multifunction I/O-ports (Port 1, Port 3)

• One 4-bit port working as digital or analog inputs for the ADC (Port 2)

• One 2-bit I/O port with secondary functions (P4.2, 4.3, 4.7)

• One 4-bit I/O-port with secondary function (P4.0, 4.1, 4.4) (Not available in P-SDIP 52)

13.11.MC44608

13.11.1.Description

The MC44608 is a high performance voltage mode controller designed for off–line converters. This high
voltage circuit that integrates the start–up current source and the oscillator capacitor, requires few
external components while offering a high flexibility and reliability. The device also features a very high
efficiency stand–by management consisting of an effective Pulsed Mode operation. This technique
enables the reduction of the stand–by power consumption to approximately 1W while delivering 300mW
in a 150W SMPS.

• Integrated Start–Up Current Source

• Lossless Off–Line Start–Up

• Direct Off–Line Operation

• Fast Start–Up

14

13.11.2.General Features

• Flexibility

• Duty Cycle Control

• Under voltage Lockout with Hysteresis

• On Chip Oscillator Switching Frequency 40, or 75kHz

• Secondary Control with Few External Components

Protections

• Maximum Duty Cycle Limitation

• Cycle by Cycle Current Limitation

• Demagnetization (Zero Current Detection) Protection

CC

• “Over V

Protection” Against Open Loop

• Programmable Low Inertia Over Voltage Protection Against Open Loop

• Internal Thermal Protection

GreenLineTM Controller

• Pulsed Mode Techniques for a Very High Efficiency Low Power Mode

• Lossless Startup

• Low dV/dT for Low EMI Radiations

13.11.3.Pin Connections

13.11.4.Pin Function description

Pin Name Description

1 Demag The Demag pin offers 3 different functions: Zero voltage crossing detection (50mV),

24mA current detection and 120mA current detection. The 24mA level is used to detect
the secondary reconfiguration status and the 120mA level to detect an Over Voltage

status called Quick OVP.

2 ISENSE The Current Sense pin senses the voltage developed on the series resistor inserted in

the source of the power MOSFET. When I sense reaches 1V, the Driver output (pin 5)
is disabled. This is known as the Over Current Protection function. A 200mA current
source is flowing out of the pin 3 during the start–up phase and during the switching
phase in case of the Pulsed Mode of operation. A resistor can be inserted between the
sense resistor and the pin 3; thus a programmable peak current detection can be
performed during the SMPS stand–by mode.

3 Control Input A feedback current from the secondary side of the SMPS via the opto–coupler is

injected into this pin. A resistor can be connected between this pin and GND to allow

the programming of the Burst duty cycle during the Stand–by mode.
4 Ground This pin is the ground of the primary side of the SMPS.
5 Driver The current and slew rate capability of this pin are suited to drive Power MOSFETs.
6 VCC This pin is the positive supply of the IC. The driver output gets disabled when the

voltage becomes higher than 15V and the operating range is between 6.6V and 13V.

An intermediate voltage level of 10V creates a disabling condition called Latched Off

phase.
7 This pin is to provide isolation between the Vi pin 8 and the VCC pin 6.
8 Vi This pin can be directly connected to a 500V voltage source for start–up function of the

IC. During the Start–up phase a 9 mA current source is internally delivered to the V

pin 6 allowing a rapid charge of the V

current source is disabled.

CC

capacitor. As soon as the IC starts–up, this

CC

15

13.12.TCET1102G

13.12.1.Description

The TCET110/ TCET2100/ TCET4100 consists of a phototransistor optically coupled to a gallium
arsenide infrared-emitting diode in a 4-lead up to 16-lead plastic dual inline package. The elements are

mounted on one lead frame using a coplanar technique, providing a fixed distance between input and

output for highest safety requirements.

13.12.2.Applications

Circuits for safe protective separation against electrical shock according to safety class II (reinforced
isolation):
For appl. class I – IV at mains voltage 300 V
For appl. class I – III at mains voltage 600 V

According to VDE 0884, table 2, suitable for: Switch-mode power supplies, line receiver, computer

peripheral interface, microprocessor system interface.

13.12.3.Features
VDE 0884 related features:

IOTM

Rated impulse voltage (transient overvoltage) V
Isolation test voltage (partial discharge test voltage) V
Rated isolation voltage (RMS includes DC) V
Rated recurring peak voltage (repetitive) V

IOWM

IORM

= 8 kV peak

pd

= 600 V

= 600 V

= 1.6 kV

RMS

RMS

(848 V peak)

General features:

CTR offered in 9 groups
Isolation materials according to UL94-VO
Pollution degree 2 (DIN/VDE 0110 / resp. IEC 664)
Climatic classification 55/100/21 (IEC 68 part 1)

Special construction: Therefore, extra low coupling capacity of typical 0.2pF, high Common Mode
Rejection

Low temperature coefficient of CTR
G = Leadform 10.16 mm; provides creepage distance > 8 mm, for TCET2100/ TCET4100 optional;
suffix letter ‘G’ is not marked on the optocoupler
Coupling System U

13.13.TDA9885T

13.13.1.General Description

The TDA9885 is an alignment-free single standard (without positive modulation) vision and sound IF signal
PLL.

13.13.2.Features

• 5 V supply voltage

• Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier (AC-coupled)

• Multistandard true synchronous demodulation with active carrier regeneration (very linear demodulation,

good intermodulation figures, reduced harmonics, excellent pulse response)

• Gated phase detector for L/L accent standard

• Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free; frequencies switchable for all

negative and positive modulated standards via I

2

C-bus

• Digital acquisition help, VIF frequencies of 33.4, 33.9, 38.0, 38.9, 45.75 and 58.75 MHz

• 4 MHz reference frequency input [signal from Phase-Locked Loop (PLL) tuning system] or operating as

crystal oscillator

• VIF Automatic Gain Control (AGC) detector for gain control, operating as peak sync detector for negative

modulated signals and as a peak white detector for positive modulated signals

• Precise fully digital Automatic Frequency Control (AFC) detector with 4-bit digital-to-analog converter; AFC

bits via I

• TakeOver Point (TOP) adjustable via I

2

C -bus readable

2

C-bus or alternatively with potentiometer

• Fully integrated sound carrier trap for 4.5, 5.5, 6.0 and 6.5 MHz, controlled by FM-PLL oscillator

• Sound IF (SIF) input for single reference Quasi Split Sound (QSS) mode (PLL controlled)

16

• SIF AGC for gain controlled SIF amplifier; single reference QSS mixer able to operate in high performance

single reference QSS mode and in intercarrier mode, switchable via I

• AM demodulator without extra reference circuit

• Alignment-free selective FM-PLL demodulator with high linearity and low noise

2

• I

C-bus control for all functions

2

C-bus transceiver with pin programmable Module Address (MAD).

• I

2

C-bus

13.13.3.Pinning

SYMBOL PIN DESCRIPTION

VIF1 1

VIF2
OP1
FMPLL
DEEM
AFD
DGND
AUD
TOP
SDA
SCL
SIOMA
n.c.
TAGC
REF
VAGC
CVBS
AGND
VPLL

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

VP 20

AFC
OP2
SIF1
SIF2

21
22
23
24

VIF differential input 1
VIF differential input 2
output 1 (open-collector)
FM-PLL for loop filter
de-emphasis output for capacitor
AF decoupling input for capacitor
digital ground
audio output
tuner AGC TakeOver Point (TOP)
I2C-bus data input/output
I2C-bus clock input
sound intercarrier output and MAD select
not connected
tuner AGC output
4 MHz crystal or reference input
VIF-AGC for capacitor; note 1
video output
analog ground
VIF-PLL for loop filter
supply voltage (+5 V)
AFC output
output 2 (open-collector)
SIF differential input 1
SIF differential input 2

13.14.PI5V330

13.14.1.General Description

The PI5V330 is well suited for video applications when switching composite or RGB analog. A picture­in-picture application will be described in this brief. The pixel-rate creates video overlays so two or more
pictures can be viewed at the same time. An inexpensive NTSC titler can be implemented by
superimposing the output of a character generator on a standard composite video background.

17

14.AK45 CHASSIS PRODUCTION SERVICE MODE ADJUSTMENTS

14.1.SERVICE MENU

All system, geometry and white balance alignments are performed in production service mode. Before
starting the production mode alignments, make sure that all manual adjustments are done correctly. To
start production mode alignments enter the MAIN MENU and then press the digits 4, 7, 2 and 5

respectively or press MUTE and INFO buttons at the same time. The following first menu appears on

the screen.

ADJUST... AK45JA0XX

OPTIONS... AK45JA0XX

You can select Adjust or Options items by pressing Up/Down buttons. Selected parameter will be
highlighted. Inorder to enter the selected parameter, press Left or Right button. To exit the service
menu press MENU button. Entire service menu parameters of AK45 CHASSIS are listed below.

14.2.ADJUST MENU

Select the parameter by pressing up/down buttons. Adjust the parameter by pressing Left/Right buttons.
In ADJUST menu, changed values are stored automatically.

000 255

001 036
002 019
003 020
004 030
005 026
006 003
007 004
008 005
009 005

ADJUST EXPLANATION

000 White Point RED 255 255 255
001 White Point GREEN 74 36 36
002 Whit Point BLUE 101 19 19
003 AGC (Automatic Gain Control) 018 020 020
004 IF-PLL Negative 21 30 30
005 IF-PLL Positive 24 26 26
006 Y-Delay 002 003 003
007 Y-Delay SECAM 004 004 004
008 Y-Delay NTSC 005 005 005
009 Y-Delay OTHER 004 005 005
010 Vertical Position Offset 130 127 127
011 Vertical Amplitude Offset 056 127 127
012 Horizontal Position Offset 132 127 127
013 Horizontal Amplitude Offset 133 127 127
014 Vertical Blank Start (It will be used only at 4:3 tube for 16:9

mode adjustment)

015 Vertical Blank Stop (It will be used only at 4:3 tube for 16:9

mode adjustment)

SERVICE

ADJUST...

2835 2835W
MULTI MULTI PAL I

148 120 120

014 037 037

18

016 Angle 136 129 129
017 Bow 116 128 128
018 Horz. Blank Start (It will be used only at 16:9 tube for 4:3

178 179 179

mode adjustment)

019 Horz. Blank Stop (It will be used only at 16:9 tube for 4:3

114 115 115

mode adjustment)
020 EHTV compensation 054 054 054
021 EHTTM compensation 003 002 002
022 EHTEW compensation 170 170 170
023 WDR 255 255 255
024 WDG 168 225 225
025 WDB 162 205 205
026 CR 252 186 186
027 CG 251 151 151
028 CB 255 177 177
029 COR coring level 029 032 032
030 REGULAR VERT_POS (Vertical Position) 126 129 129
031 REGULAR VERT_AMPL (Vertical Amplitude) 116 056 056
032 REGULAR VERT_SCOR (Vertical S Correction) 128 129 129
033 REGULAR VERT_SSYM (Vertical S Symmetry) 140 133 133
034 REGULAR TRAPEZE 124 128 128
035 REGULAR CUSHION 078 142 142
036 REGULAR HOR_COR_SYM(Horizontal Corner Symmetry) 115 130 130
037 REGULAR HOR_CORNER (Horizontal Corner) 158 121 121
038 REGULAR HORZ_POS (Horizontal Position) 025 049 049
039 REGULAR HORZ_AMPL (Horizontal Amplitude) 204 067 067
040 PANORAMIC VERT_POS 128 128

­041 PANORAMIC VERT_AMPL - 056 056
042 PANORAMIC VERT_SCOR - 129 129
043 PANORAMIC VERT_SSYM - 133 133
044 PANORAMIC TRAPEZE - 130 130
045 PANORAMIC CUSHION - 143 143
046 PANORAMIC HOR_COR_SYM - 130 130
047 PANORAMIC HOR_CORNER - 125 125
048 PANORAMIC HORZ_POS - 036 036
049 PANORAMIC HORZ_AMPL - 019 019
050 14:9 ZOOM VERT_POS - 129 129
051 14:9 ZOOM VERT_AMPL - 045 045
052 14:9 ZOOM VERT_SCOR - 129 129
053 14:9 ZOOM VERT_SSYM - 133 133
054 14:9 ZOOM TRAPEZE - 129 129
055 14:9 ZOOM CUSHION - 147 147
056 14:9 ZOOM HOR_COR_SYM - 132 132
057 14:9 ZOOM HOR_CORNER - 121 121
058 14:9 ZOOM HORZ_POS - 025 025
059 14:9 ZOOM HORZ_AMPL - 042 042
060 16:9 ZOOM VERT_POS - 129 129
061 16:9 ZOOM VERT_AMPL - 035 035
062 16:9 ZOOM VERT_SCOR - 129 129
063 16:9 ZOOM VERT_SSYM - 133 133
064 16:9 ZOOM TRAPEZE - 129 129
065 16:9 ZOOM CUSHION - 152 152
066 16:9 ZOOM HOR_COR_SYM - 132 132
067 16:9 ZOOM HOR_CORNER - 128 128
068 16:9 ZOOM HORZ_POS - 025 025
069 16:9 ZOOM HORZ_AMPL - 022 022
070 16:9 ZOOM SUBTITLE VERT_POS - 145 145
071 16:9 ZOOM SUBTITLE VERT_AMPL - 042 042
072 16:9 ZOOM SUBTITLE VERT_SCOR - 129 129

19

073 16:9 ZOOM SUBTITLE VERT_SSYM - 133 133
074 16:9 ZOOM SUBTITLE TRAPEZE - 123 123
075 16:9 ZOOM SUBTITLE CUSHION - 150 150
076 16:9 ZOOM SUBTITLE HOR_COR_SYM - 133 133
077 16:9 ZOOM SUBTITLE HOR_CORNER - 122 122
078 16:9 ZOOM SUBTITLE HORZ_POS - 025 025
079 16:9 ZOOM SUBTITLE HORZ_AMPL - 022 022
080 OSD Position 205 205 205
081 BCLTHR Beam current threshold 040 036 036
082 BCLG Beam current loop gain 007 007 007
083 ROTATION (TILT) 000 000 000
084 LSLSA Luma soft limiter 003 003 003
085 LSLSB Luma soft limiter 000 000 000
086 LSL2 Luma soft limiter 255 255 255
087 LSLTA Luma soft limiter 000 000 000
088 LSLTB Luma soft limiter 001 000 000
089 REFERENCE WDR RED (NORMAL) 146 146 146
090 REFERENCE WDR GREEN (NORMAL) 066 066 066
091 REFERENCE WDR BLUE (NORMAL) 070 070 070
092 REFERENCE CUTOFF RED 100 062 062
093 REFERENCE CUTOFF GREEN 100 062 062
094 REFERENCE CUTOFF BLUE 100 075 075
095 IBRM 165 165 165
096 WDRV 065 065 065
097 ACC_SAT (COLOUR OFFSET) 134 239 239
098 G2_CUTOFF_REFERENCE 225 150 150
099 G2_WDR_REFERENCE 090 090 090
100 POFS2 (RGB HORIZANTAL SHIFT) 034 033 033
101 REFERENCE WDR RED COOL 096 096 096
102 REFERENCE WDR GREEN COOL 075 075 075
103 REFERENCE WDR BLUE COOL 090 090 090
104 REFERENCE WDR RED WARM 175 175 175
105 REFERENCE WDR GREEN WARM 062 062 062
106 REFERENCE WDR BLUE WARM 060 060 060
107 STANDARD MODE BRIGHTNESS 031 095 095
108 STANDARD MODE COLOUR 040 117 117
109 STANDARD MODE CONTRAST 024 017 017
110 FULL VERT_POS (16:9 MODE) 126 128 128
111 FULL VERT_AMPL 130 055 055
112 FULL VERT_SCOR 127 130 130
113 FULL VERT_SSYM 135 135 135
114 FULL TRAPEZE 129 129 129
115 FULL CUSHION 102 142 142
116 FULL HOR_COR_SYM 107 129 129
117 FULL HOR_CORNER 162 130 130
118 FULL HORZ_POS 026 025 025
119 FULL HORZ_AMPL 202 022 022
120 BRIGHT MODE BRIGHTNESS 063 111 111
121 BRIGHT MODE COLOUR 053 122 122
122 BRIGHT MODE CONTRAST 036 019 019
123 SOFT MODE BRIGHTNESS 024 080 080
124 SOFT MODE COLOUR 021 105 105
125 SOFT MODE CONTRAST 015 013 013
126 PERSONAL MODE FACTORY SETTING BRIGHTNESS 036 032 032
127 PERSONAL MODE FACTORY SETTING COLOUR 044 032 032
128 PERSONAL MODE FACTORY SETTING CONTRAST 033 032 032
129 SCINC FOR PANORAMIC MODE - 032 032
130 SCINC1 FOR PANORAMIC MODE - 032 032
131 VOLUME AFTER APS 032 032 032

20

14.3.OPTIONS MENU

Select the parameter by pressing up/down buttons. Adjust the parameter by pressing Left/Right
buttons. . In OPTIONS menu, some of the changed parameters are not stored automatically. To store
the adjusted parameters, you should turn off and on TV.

OPTIONS...

000 02

001 00
002 22
003 08
004 00
005 10
006 00
007 56
008 39
009 0F

00000010

00000000
00100010
00001000
00000000
00010000
00000000
01010110
00111001
00001111

Option 0. Video Processor Crystal Indication

B7: x = x
B6: x = x
B5: x = x
B4: x = x
B3: x = x
B2: x = x
B1: Xa = note1 (Crystal indication)
B0: Xb = note1 (Crystal indication)

note 1:

Xa,Xb
0,1 : Pal M, Pal N, NTSC M

Pin 34 : 3.58 (1, 2 or 3 crystals)
Pin 35 : No crystal

1,0 : Pal BG, Pal DK, Pal I/I+, Secam BG, Secam DK, Secam L/L’, Secam K1

Pin 34 : No crystal

Pin 35 : 4.43 (1 crystal)

1,1 : Pal BG, Pal DK, Pal I/I+, Secam BG, Secam DK, Secam L/L’, Secam K1, Pal M, Pal N, Ntsc M

Pin 34 : 3.58 (1, 2 or 3 crystals)
Pin 35 : 4.43 (1 crystal)

Option 1. (0x01) Video Processor Decoder Mode Register

B7: x = x
B6: x = x
B5: x = x
B4: x = x
B3: x = x
B2: x = x
B1: x = x
B0: x = x

Option 2. (0x18) Video Processor Blanking Control

B7: SWF = 0 (Subwoofer item at menu)
B6: Vsd = 0 (Vertical scan disable)
B5: PNM = 1 (Panoramic zoom mode)
B4: x = x

21

B3: SWAPI = x
B2: BBAPI = x
B1: LUMA = 1 Luma Soft Limiter Enabled
B0: BB = 1 Blue Background Option

Option 3. (0x19) Video Processor Cathode Drive Level

B7: x = x
B6: x = x
B5: x = x
B4: x = x
B3: x = x
B2: x = x
B1: x = x
B0: country = note 0

Note 0: choice for others country option

1 : BG
0 : DK

Option 4.

B7: x = x
B6: x = x
B5: x = x
B4: x = x
B3: x = x
B2: x = x
B1: x = x
B0: x = x

Option 5. CTI Avaliable, Mono AVL

B7: x = x
B6: x = x
B5: x = x
B4: x = x
B3: x = x
B2: x = x
B1: x = x
B0: x = x

Option 6.

B7: x = x
B6: x = x
B5: x = x
B4: x = x
B3: x = x
B2: x = x
B1: x = x
B0: x = x

Option 7. OPTIONHOTELACTIVE, PLL_VST, PIP Zoom Mode, PIP Position

B7: x = x
B6: x = x
B5: F = note 1
B4: x = x
B3: x = x
B2: PZM = x
B1: AV2 = 1 AV2 Output enabled
B0: x = x

22

note 1:

F :Frequency Mode
1: = Frequency Menu Item available
0: = Frequency Menu Item not available

Option 8. Tube Size, Default Zoom Mode, IF Frequency

B7: Tub = note 1
B6: Z.Def = note 2
B5: IfI = 0 note 3
B4: IfD = 0 note 4
B3: IfM = note 5
B2: Aps = note 6
B1: Hp = note 7
B0: Hue = note 8

note 1:

Tub : Tube size
0 = 16:9 Tube size
1 = 4:3 Tube size

note 2:

Z.Def : Zoom Default Mode

0 = 16:9 mode default

1 = 4:3 mode default

note 3:

IfI
1 = IF I 39.5 MHz Great Britain I , Only UHF Tuner
0 = IF I 38.9 MHz Ireland I+ , Standard Tuner

note 4:

IfD
1 = IF DK 38.0 MHz
0 = IF DK 38.9 MHz

note 5:

IfM
1 = IF M,N 45.75 MHz S&N American Models , Tuner UV1336 (Only Pal M/N, Ntsc M)
0 = IF M,N 38.9 MHz Euro M,N Models , Standard Tuner

Note 6:

Aps ( Only for PLL )
0 = A.P.S. done
1 = A.P.S. set

note 7:

Hp : Headphone available
0 = No headphone
1 = Headphone available

note 8:

Hue : Hue Available
0 = No Hue
1 = Hue available

Option 9. Standard Available

B7: NM = note 1
B6: PN = note 1
B5: PM = note 1
B4: K1 = note 1

23

B3: L = note 1
B2: I = note 1
B1: DK = note 1
B0: BG = note 1

note 1:

0 = Standard not supported
1 = Standard available

Option 10. Scart, Combfilter, Teletext, Language

B7: x = x
B6: x = x
B5: x = x
B4: x = x
B3: FSVHS = note 3
B2: BAV = note 4
B1: Sc2 = note 5
B0: BSVHS = note 6

note 3:

0 = Front S-VHS not supported
1 = Front S-VHS available

note 4:

0 = Back AV (AV-3) not supported
1 = Back AV (AV-3) available

note 5:

0 = Scart 2 not supported
1 = Scart 2 available

note 6:

0 = Back SVHS not supported
1 = Back SVHS available

Option 11. PLL Tuner Control 1 Byte

Pll tuner control 1 byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 1 0 0 0 1 1 1 0
Philips UV1316MK2 1 0 0 0 1 1 1 0
Alps TELE9X062A 1 0 0 0 1 1 1 0
Samsung TEXX2949PG28A 1 0 0 0 1 1 1 0
Siel PT060 1 0 0 0 1 1 1 0
Temic 5001PH5-3X0003 1 0 0 0 1 1 1 0
Thomson CTT5020 1 0 0 0 1 1 1 0

Option 12. PLL Tuner Control 2 Low Byte

Pll tuner control 2 low byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 0 0 0 0 0 0 0 1
Philips UV1316MK2 1 0 1 0 0 0 0 1
Alps TELE9X062A 0 0 0 0 0 0 0 1
Samsung TEXX2949PG28A 0 0 0 0 0 0 0 1
Siel PT060 0 1 1 0 0 0 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 1 0
Thomson CTT5020 0 0 0 0 0 0 1 1

24

Option 13. PLL Tuner Control 2 Mid Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 0 0 0 0 0 0 1 0
Philips UV1316MK2 1 0 0 1 0 0 1 0
Alps TELE9X062A 0 0 0 0 0 0 1 0
Samsung TEXX2949PG28A 0 0 0 0 0 0 1 0
Siel PT060 1 1 0 1 0 0 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 1 0 0
Thomson CTT5020 0 0 0 0 0 1 1 0

Option 14. PLL Tuner Control 2 High Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 0 0 0 0 0 1 0 0
Philips UV1316MK2 0 0 1 1 0 1 0 0
Alps TELE9X062A 0 0 0 0 1 0 0 0
Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0
Siel PT060 0 0 1 1 0 0 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 1
Thomson CTT5020 1 0 0 0 0 1 0 1

Option 15. PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 0 0 1 0 0 0 0 0
Philips UV1316MK2 0 0 0 0 1 0 1 0 (0A hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0
Siel PT060 0 0 0 0 1 0 1 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0
Thomson CTT5020 1 0 1 0 1 0 1 0 (AA hex)

Option 16. PLL Tuner VHF LOW – VHF HIGH Crossover High Byte

Pll tuner VHF LOW - VHF HIGH crossover high byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 0 0 0 0 1 1 0 0
Philips UV1316MK2 0 0 0 0 1 1 0 0 (0C hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 0 0 0 0 1 1 0 1
Siel PT060 0 0 0 0 1 1 0 1
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0
Thomson CTT5020 0 0 0 0 1 0 0 1 (09 hex)

Option 17. PLL Tuner VHF HIGH – UHF Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 0 0 0 0 0 0 1 0
Philips UV1316MK2 1 1 1 0 0 0 1 0 (E2 hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 1 0 1 0 0 0 1 0
Siel PT060 1 0 1 0 0 1 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0
Thomson CTT5020 1 0 1 0 0 0 1 0 (A2 hex)

Option 18. PLL Tuner VHF HIGH – UHF Crossover High Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316T MK3 0 0 0 1 1 1 1 0
Philips UV1316MK2 0 0 0 1 1 1 1 0 (1D hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 0 0 0 1 1 1 1 0
Siel PT060 0 0 0 1 1 1 1 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0

25

Thomson CTT5020 0 0 0 1 1 0 1 1 (1B hex)

Option 19. PIP PLL Tuner Control 1 Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 1 0 0 0 1 1 1 0
Alps TELE9X062A 1 0 0 0 1 1 1 0
Samsung TEXX2949PG28A 1 0 0 0 1 1 1 0
Siel PT060 1 0 0 0 1 1 1 0
Temic 5001PH5-3X0003 1 0 0 0 1 1 1 0
Thomson CTT5020 1 0 0 0 1 1 1 0

Option 20. PIP PLL Tuner Control 2 Low Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 1 0 1 0 0 0 0 1
Alps TELE9X062A 0 0 0 0 0 0 0 1
Samsung TEXX2949PG28A 0 0 0 0 0 0 0 1
Siel PT060 0 1 1 0 0 0 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 1 0
Thomson CTT5020 0 0 0 0 0 0 1 1

Option 21. PIP PLL Tuner Control 2 Mid Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 1 0 0 1 0 0 1 0
Alps TELE9X062A 0 0 0 0 0 0 1 0
Samsung TEXX2949PG28A 0 0 0 0 0 0 1 0
Siel PT060 1 1 0 1 0 0 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 1 0 0
Thomson CTT5020 0 0 0 0 0 1 1 0

Option 22. PIP PLL Tuner Control 2 High Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 0 0 1 1 0 1 0 0
Alps TELE9X062A 0 0 0 0 1 0 0 0
Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0
Siel PT060 0 0 1 1 0 0 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 1
Thomson CTT5020 1 0 0 0 0 1 0 1

Option 23. PIP PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 0 0 0 0 1 0 1 0 (0A hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0
Siel PT060 0 0 0 0 1 0 1 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0
Thomson CTT5020 1 0 1 0 1 0 1 0 (AA hex)

Option 24. PIP PLL Tuner VHF LOW – VHF HIGH Crossover High Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 0 0 0 0 1 1 0 0 (0C hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 0 0 0 0 1 1 0 1
Siel PT060 0 0 0 0 1 1 0 1
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0
Thomson CTT5020 0 0 0 0 1 0 0 1 (09 hex)

26

Option 25. PIP PLL Tuner VHF HIGH – UHF Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 1 1 1 0 0 0 1 0 (E2 hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 1 0 1 0 0 0 1 0
Siel PT060 1 0 1 0 0 1 0 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0
Thomson CTT5020 1 0 1 0 0 0 1 0 (A2 hex)

Option 26. PIP PLL Tuner VHF HIGH – UHF Crossover High Byte

b7 b6 b5 b4 b3 b2 b1 b0
Philips UV1316MK2 0 0 0 1 1 1 1 0 (1D hex)
Alps TELE9X062A 0 0 0 0 0 0 0 0
Samsung TEXX2949PG28A 0 0 0 1 1 1 1 0
Siel PT060 0 0 0 1 1 1 1 0
Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0
Thomson CTT5020 0 0 0 1 1 0 1 1 (1B hex)

Option 27. Language Available 1

B7: L7 = DANISH
B6: L6 = SWEDISH
B5: L5 = ITALIAN
B4: L4 = PORTUGUESE
B3: L3 = SPANISH
B2: L2 = FRENCH
B1: L1 = GERMAN
B0: L0 = ENGLISH
1: Language available
0: Language not available

Option 28. Language Available 2

B7: L15 = CROATIC
B6: L14 = POLISH
B5: L13 = SLOVAK
B4: L12 = CZECH
B3: L11 = HUNGARY
B2: L10 = GREEK
B1: L9 = TURKEY
B0: L8 = NORWEGIAN
1: Language available
0: Language not available

Option 29. Language Available 3 and Zoom Mode Available

B7: ZSP = 16:9 ZOOM SUBTITLE MODE
B6: ZSB = 16:9 ZOOM MODE
B5: ZCN = 14:9 ZOOM MODE
B4: PMK = note 1
B3: L19 = HEBREW
B2: L18 = RUSSIA
B1: L17 = BULGARIAN
B0: L16 = RUMANIAN

1: Available
0: Not available

note 1 :

PMK : Picture mode key
0 : Not available picture mode key from RC
1 : available picture mode key from RC

27

Option 30. Country

B7: C4 = note 1
B6: C3 = note 1
B5: C2 = note 1
B4: C1 = note 1
B3: C0 = note 1
B2: x = x
B1: x = x
B0: x = x

note 1:

C5,C4,C3,C2,C1,C0 = Country

0, 0, 0,0,0 = OTHER, Not allowed
0, 0, 0,0,1 = D, Germany
0, 0, 0,1,0 = A,
0, 0, 0,1,1 = CH,
0, 0, 1,0,0 = I,
0, 0, 1,0,1 = F,
0, 0, 1,1,0 = RSM,
0, 0, 1,1,1 = B,
0, 1, 0,0,0 = DK,
0, 1, 0,0,1 = S,
0, 1, 0,1,0 = N,
0, 1,0,1,1 = FIN,
0, 1,1,0,0 = GB,
0, 1,1,0,1 = IRL,
0, 1,1,1,0 = IS,
0, 1,1,1,1 = NL,
1, 0,0,0,0 = E,
1, 0,0,0,1 = P,
1, 0,0,1,0 = PL,
1, 0,0,1,1 = CZ,
1, 0,1,0,0 = H,
1, 0,1,0,1 = HR,
1, 0,1,1,0 = GR,
1, 0,1,1,1 = TR

Option 31. Prescaler MSP FM (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP FM (AVL = OFF) 0 0 0 0 1 0 0 0

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP FM (AVL = OFF) 0 0 0 0 1 0 0 0 (if virtual dolby option is available)

Option 32. Prescaler MSP NICAM (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP NICAM (AVL = OFF) 0 0 0 1 1 1 1 1

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP NICAM (AVL = OFF) 0 0 0 1 1 1 1 1 (if virtual dolby option is available)

Option 33. Prescaler MSP SCART (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP SCART (AVL = OFF) 0 0 0 0 1 1 0 0

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP SCART (AVL = OFF) 0 0 0 1 1 0 0 1 (if virtual dolby option is available)

28

Option 34. Prescaler MSP I2S (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP I2S (AVL = OFF) not defined yet
(if virtual dolby option is available)

Option 35. Not used

B7: x = note 7
B6: x = note 6
B5: x = note 5
B4: x = note 4
B3: x = note 3
B2: Macro = Macrovision
B1: DP = Dolby Prologic
B0: VD = Virtual Dolby

Option 36. Not used

B7: x = note 7
B6: TAT = 1 Tilt and trapez enabled
B5: SWF = 1 Subwoofer enabled
B4: VLO = 1 Variable line out
B3: VBUS = 1 Vestelbus enabled
B2: FAV = 1 Front av enabled
B1: DVD = 1 DVD enabled
B0: DVB = 1 DVB enabled

Option 37. Reserved for USA

Option 38. TV Teletext Mode Selection, Child Lock, Equalizer Country

B7: VCR = note 7
B6: C = note 6
B5: LM = note 5
B4: EQ = note 4
B3: RGB = note 3
B2: CL = note 2
B1: T1 = note 1
B0: T0 = note 1

note 1:

Teletext selection
T1, T0:
0,0 = No TV Text
0,1 = Simple TV Text ( One page )
1,1 = Fasttext/Toptext TV Text ( Eight pages)

note 2 :

CL = Child Lock
0 = Off
1 = On (Active)

note 3 :

RGB = RGB Menu Item active/inactive
0 = RGB Menu Item inactive
1 = RGB Menu Item active

note 4 :

EQ = Equalizer available
0 = Equalizer not available
1 = Equalizer available

29

note 5 :

LM = List Mode available
0 = List Mode not available
1 = List Mode available

note 6 :

C = Country Line available / Aps available or not
0 = Country Line not available / Aps not available
1 = Country Line available / Aps available

note 7 :

VCR = VCR Menu Item available / not available
0 = VCR Menu Item not available
1 = VCR Menu Item available

Option 39. Personal Preferance Equalizer Band 1

b7 b6 b5 b4 b3 b2 b1 b0
EQUALIZER BAND 1 0 0 0 0 0 1 1 0

Option 40. Personal Preferance Equalizer Band 2

b7 b6 b5 b4 b3 b2 b1 b0
EQUALIZER BAND 2 0 0 0 0 0 1 1 0

Option 41. Personal Preferance Equalizer Band 3

b7 b6 b5 b4 b3 b2 b1 b0
EQUALIZER BAND 3 0 0 0 0 0 1 1 0

Option 42. Personal Preferance Equalizer Band 4

b7 b6 b5 b4 b3 b2 b1 b0
EQUALIZER BAND 4 0 0 0 0 0 1 1 0

Option 43. Personal Preferance Equalizer Band 5

b7 b6 b5 b4 b3 b2 b1 b0
EQUALIZER BAND 5 0 0 0 0 0 1 1 0

Option 44. Sound Efect (Standard; Music; Speech; Jazz; Pp)

b7 b6 b5 b4 b3 b2 b1 b0
SOUND EFFECT 0 0 0 0 0 1 1 0

Option 45. Volume Offset Left

b7 b6 b5 b4 b3 b2 b1 b0
VOLUME OFFSET LEFT 0 0 0 0 0 1 1 0

Option 46. Volume Offset Right

b7 b6 b5 b4 b3 b2 b1 b0
VOLUME OFFSET RIGHT 0 0 0 0 0 1 1 0

Option 47. Volume Offset Center

b7 b6 b5 b4 b3 b2 b1 b0
VOLUME OFFSET CENTER 0 0 0 0 0 1 1 0

Option 48. Volume Offset Rear

b7 b6 b5 b4 b3 b2 b1 b0
VOLUME OFFSET REAR 0 0 0 0 0 1 1 0

Option 49. Surround Delay

b7 b6 b5 b4 b3 b2 b1 b0
SURROUND DELAY 0 0 0 0 0 0 0 1

30

Option 50. FM Prescale

b7 b6 b5 b4 b3 b2 b1 b0
FM PRESCALE for Stereo 0 0 0 0 1 1 0 0

b7 b6 b5 b4 b3 b2 b1 b0
FM PRESCALE for Dolby 0 0 0 0 1 0 0 1

Note: if virtual dolby is available, this option is not used.
Option 51. NICAM Prescale

b7 b6 b5 b4 b3 b2 b1 b0
NICAM Prescale for Stereo 0 0 1 0 1 1 0 1

b7 b6 b5 b4 b3 b2 b1 b0
3D Panorama 0 0 0 0 1 0 1 1

b7 b6 b5 b4 b3 b2 b1 b0

NICAM Prescale for Dolby 0 0 0 0 1 1 1 0

Note: if virtual dolby is available, this option is not used.

Option 52. Scart Input Prescale

b7 b6 b5 b4 b3 b2 b1 b0
Scart Input Prescale for Stereo 0 0 0 0 1 0 0 0

b7 b6 b5 b4 b3 b2 b1 b0

Scart Input Prescale for Dolby 0 0 0 0 1 1 1 1

b7 b6 b5 b4 b3 b2 b1 b0
prescaler MSP Scart (AVL = OFF) 0 0 0 1 1 0 0 1 (if virtual dolby option is available)

Note: if virtual dolby is available, this option is not used.

Option 53. I2S Prescale

b7 b6 b5 b4 b3 b2 b1 b0
I2S Prescale for Stereo 0 0 0 0 0 1 1 0

b7 b6 b5 b4 b3 b2 b1 b0

I2S Prescale for Dolby 0 0 0 0 0 1 1 0

Note: if virtual dolby is available, this option is not used.
Option 54. Scart Output Prescale

b7 b6 b5 b4 b3 b2 b1 b0
Scart Output Prescale 0 1 1 1 1 1 1 1

Option 55. Speaker Setup

b7 b6 b5 b4 b3 b2 b1 b0
Speaker Setup (L/R, L/C/R, L/R/S, L/C/R/S) 0 0 0 0 0 0 0 0

Option 56. Audio Options Available Or Not

Attention: All bits on the Option 56 must be the “0” for MONO TV SETS

B7: nicam = note 7
B6: ASD = note 6
B5: VRS = note 5
B4: CRM = note 4
B3: … = x
B2: LBE = note 2

31

B1: Spa = note 1
B0: Avl = note 0

note 7 :

nicam = nicam available
0 = nicam not available
1 = nicam available

note 6 :

ASD = Auto Sound Detection available/not available
0 = Auto Sound Detection not available
1 = Auto Sound Detection available

note 5 :

VRS = Virtual Surround
0 = VRS not available
1 = VRS available

note 4 :

CRM = CARRIER MUTE OFF/ON
0 = Sound carrier mute is ON in the Stereo Sound IC
1 = Sound carrier mute is OFF in the Stereo Sound IC (i.e. option available)

note 2 :

LBE = LBE (Dynamic Bass)
0 = LBE not available
1 = LBE available

note 1 :

Spa = Spatial Efect available
0 = Spatial Efect not available
1 = Spatial Efect available

note 0 :

Avl = Automatic volume level available on the Menu
0 = Automatic volume level not available
1 = Automatic volume level available

Option 57. Stereo Threshold

B7: b7 = note 1 Remark :
B6: b6 = note 1
B5: b5 = note 1 -Threshold for all FM A2 signals to switch from MONO to STEREO.
B4: b4 = note 1 -For first check after programme change half value is changed (0Ch) 19h/2
B3: b3 = note 1 -For switching from STEREO back to MONO: 19h/4 *3
B2: b2 = note 1
B1: b1 = note 1
B0: b0 = note 1

note 1 :

b7 b6 b5 b4 b3 b2 b1 b0
MSP Stereo/Mono Threshold 0 0 0 1 1 0 0 1

Option 58. MSP Audio Flags

B7: b7 = x
B6: b6 = x
B5: b5 = x
B4: Trs = note 1
B3: Trb = note 1
B2: Bbe = note 1
B1: Spa = note 1
B0: Avl = note 1

32

note 1 :

Defines whether the feature is toggled ON or OFF in the menu and stored.
0 : OFF
1 : ON

Option 59. NICAM Threshold

b7 b6 b5 b4 b3 b2 b1 b0
MSP NICAM Threshold 0 1 1 0 0 1 0 0

Option 60. Power Delay Time

B7: NZ = x
B6: HM = x
B5: L5 = note 3
B4: L4 = note 3
B3: L3 = note 3
B2: L2 = note 3
B1: L1 = note 3
B0: L0 = note 3

note 3:

L7 L6 L5 L4 L3 L2 L1 L0
Default Value : x x 1 1 0 0 0 0
1000 MSEC = 1SN

Number

L7L6L5L4L3L2L1L0

Delay Number

L7L6L5L4L3L2L1L0

Delay

0 00000000 = 4 sec 32 00100000 = 12 sec
1 00000001 = 4,25 sec 33 00100001 = 12,25 sec
2 00000010 = 4,5 sec 34 00100010 = 12,5 sec
3 00000011 = 4,75 sec 35 00100011 = 12,75 sec
4 00000100 = 5 Sec 36 00100100 = 13 sec
5 00000101 = 5,25 Sec 37 00100101 = 13,25 sec
6 00000110 = 5,5 Sec 38 00100110 = 13,5 sec
7 00000111 = 5,75 Sec 39 00100111 = 13,75 sec
8 00001000 = 6 sec 40 00101000 = 14 sec

9 00001001 = 6,25 sec 41 00101001 = 14,25 sec
10 00001010 = 6,5 sec 42 00101010 = 14,5 sec
11 00001011 = 6,75 sec 43 00101011 = 14,75 sec
12 00001100 = 7 sec 44 00101100 = 15 sec
13 00001101 = 7,25 sec 45 00101101 = 15,25 sec
14 00001110 = 7,5 sec 46 00101110 = 15,5 sec
15 00001111 = 7,75 sec 47 00101111 = 15,75 sec
16 00010000 = 8 sec 48 00110000 = 16 sec
17 00010001 = 8,25 sec 49 00110001 = 16,25 sec
18 00010010 = 8,5 sec 50 00110010 = 16,5 sec
19 00010011 = 8,75 sec 51 00110011 = 16,75 sec
20 00010100 = 9 sec 52 00110100 = 17 sec
21 00010101 = 9,25 sec 53 00110101 = 17,25 sec
22 00010110 = 9,5 sec 54 00110110 = 17,5 sec
23 00010111 = 9,75 sec 55 00110111 = 17,75 sec
24 00011000 = 10 sec 56 00111000 = 18 sec
25 00011001 = 10,25 sec 57 00111001 = 18,25 sec
26 00011010 = 10,5 sec 58 00111010 = 18,5 sec
27 00011011 = 10,75 sec 59 00111011 = 18,75 sec
28 00011100 = 12 sec 60 00111100 = 19 sec
29 00011101 = 12,25 sec 61 00111101 = 19,25 sec
30 00011110 = 12,5 sec 62 00111110 = 19,5 sec
31 00011111 = 12,75 sec

63 00111111 = 19,75 sec

33

76543210 Bit Positions 76543210
0 00000000 32 00100000
1 00000001 33 00100001
2 00000010 34 00100010
3 00000011 35 00100011
4 00000100 36 00100100
5 00000101 37 00100101
6 00000110 38 00100110
7 00000111 39 00100111
8 00001000 40 00101000
9 00001001 41 00101001

10 00001010 42 00101010
11 00001011 43 00101011
12 00001100 44 00101100
13 00001101 45 00101101
14 00001110 46 00101110
15 00001111 47 00101111
16 00010000 48 00110000

Colour Code

17 00010001 49 00110001
18 00010010 50 00110010
19 00010011 51 00110011
20 00010100 52 00110100
21 00010101 53 00110101
22 00010110 54 00110110
23 00010111 55 00110111
24 00011000 56 00111000
25 00011001 57 00111001
26 00011010 58 00111010
27 00011011 59 00111011
28 00011100 60 00111100
29 00011101 61 00111101
30 00011110 62 00111110
31 00011111

63 00111111

34

14.4.OPTION TABLE RECOMMENDED VALUES

X listed in the option can be 0 or 1

OPTION 2835 MULTI 2835W MULTI 2835W PAL I

000 X2 XXXXXX10 X2 XXXXXX10 X2 XXXXXX10
001 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
002 23 001XXX11 23 001XXX11 23 001XXX11
003 XX XXXXXXX0 XX XXXXXXX0 XX XXXXXXX0
004 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
005 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
006 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
007 XX XX0XXX1X XX XX0XXX1X XX XX0XXX1X
008 A1 11000001 01 00000001 01 00000001
009 0B 00001111 0B 00001111 04 00001111
010 X2 XXXXX011 X7 XXXXX111 X7 XXXXX111
011 8E 10001110 8E 10001110 8E 10001110
012 03 00000011 03 00000011 03 00000011
013 06 00000110 06 00000110 06 00000110
014 15 10000101 15 10000101 15 10000101
015 AA 10101010 AA 10101010 AA 10101010
016 09 00001001 09 00001001 09 00001001
017 A2 10100010 A2 10100010 A2 10100010
018 1B 00011011 1B 00011011 1B 00011011
019 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
020 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
021 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
022 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
023 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
024 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
025 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
026 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
027 FF 11111111 FF 11111111 FF 11111111
028 FF 11111111 FF 11111111 FF 11111111
029 FF 11111111 EF 11101111 EF 11101111
030 XX XXXXXXX XX XXXXXXX XX XXXXXXX
031 0F 00001111 0F 00001111 0F 00001111
032 23 00100011 23 00100011 23 00100011
033 0E 00001110 0E 00001110 0E 00001110
034 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
035 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
036 X4 XXXXX1XX X4 XXXXX1XX X4 XXXXX1XX
037 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
038 AF 11001111 AF 11001111 AF 11001111
039 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
040 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
041 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
042 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
043 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
044 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
045 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
046 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
047 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
048 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
049 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
050 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX
051 41 01000001 41 01000001 41 01000001
052 1B 00011011 1B 00011011 1B 00011011
053 06 00000110 06 00000110 06 00000110

35

054 75 01110101 75 01110101 75 01110101
055 00 00000000 00 00000000 00 00000000
056 DE 11011110 DE 11011110 DE 11011110
057 19 00011001 19 00011001 19 00011001
058 00 00000000 00 00000000 00 00000000
059 64 01100100 64 01100100 64 01100100
060 10 00010000 10 00010000 10 00010000

36

14.5.SCREEN ADJUSTMENT (FBT SCREEN)

SCREEN
ADJUST
POT

From the option list change option 2 bit 6 from 0 to 1 for disabling vertical scan. Adjust horizontal line
via screen adjust pot. as thin as possible. Then press 0 to leave service menu.

37

14.6.GEOMETRY ADJUSTMENT

4:3 FORMATS

4:3 MODE

VESTEL

1 sq

1 sq

1 sq

1 sq

38

16:9 MODE

1 sq

1 sq

9 u

16 u

1 sq

1 sq

VESTEL

39

16:9 FORMATS

3 u

REGULAR MODE

1 sq

1 sq

1 sq

VESTEL

4 u

1 sq

40

ZOOM 14:9 MODE

9 u

VESTEL

14 u

1 sq

1 sq

1 sq

1 sq

41

q

ZOOM 16:9 MODE

1 sq

1/3
s

1/3
sq

VESTEL

1 sq

42

SUBTITLE ZOOM MODE

1 sq

1/2
sq

1 sq

VESTEL

1 sq

43

FULL MODE

1 sq

1 sq

1 sq

VESTEL

1 sq

44

PANOROMIC MODE

1 sq

1 sq

VESTEL

1 sq

1 sq

45

15.BLOCK DIAGRAM

TU200

38.9MHz-TV TUNER

SC1_RGB

SC2_RGB/DVD/DVB

SDA

SCL

SC1

SC2

IF

SVHS-Y

SC3

Video

Sound

K3958M
EPCOS

SAW
Filter

K9656M
EPCOS

SAW
Filter

PI5V330-SOIC

RGB SW

TEA615C

VIDEO SW

GENERAL BLOCK DIAGRAM OF CHASSIS 11 AK 45

SC3_V_OUT

CVBS

TDA9885T

R

G

B

FB

EXT_CVBS/Y

SC2_V_OUT

TO_PIP

QSS

SC1_V_OUT

SCL

SDA

SC1

SC2

FRONT/SC3

DVD/DVB/BAV

TV_LINK

24CO8

(E2PROM)

MSP34XXG

SCL
SDA

SYNC

R

G

B

FB

CVBS_TEXT

SDA

SCL

VDP313XY

SDA5555

(MicroController)

TDA1308

L

R

PIP

OSD_R

OSD_G

OSD_B

OSD_FBL

L

R

TDA7269A

AMPLIFIER

R

G

B

Headphone

AUDIO

RGB AMPLIFIER

Horizontal

TDA 6107
(PHILIPS)

Vertical Stage

STV9379FA

CRT

8 ohm

8 ohm

12W

12W

R

G

B

Yoke

46

16.CIRCUIT DIAGRAMS

11AK45B4-1

47

11AK45B4-2

48

11AK45B4-3

49

11AK45B4-4

50

11AK45B4-5

51

11TP45B-1

52

11SB107-3

53

11sw01-3

54
