LG RE32FZ30RQ Schematic

COLOR TV
SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : MC-036A

MODEL:RE/RL-28/32FZ30RQ

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS .........................................................................3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION .................................................................8

TROUBLE SHOOTING............................................................................16

BLOCK DIAGRAM...................................................................................20

PRINTED CIRCUIT BOARD....................................................................22

EXPLODED VIEW ............................................................................. 26,28

EXPLODED VIEW PARTS LIST.........................................................27,29

REPLACEMENT PARTS LIST ............................................................... 30

SVC. Sheet .................................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate
high impedance HV meter.

Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate

23.5

!1.5KV: 14-19 inch, 26!1.5KV: 19-21 inch,

29.0

!1.5KV: 25-29 inch, 30.0 ! 1.5KV: 32 inch

If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.

1.5 Kohm/10W

To Instrument's
exposed
METALLIC PARTS

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS

on page 3 of this publication.

NOTE:

If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety
precautions on page 3 of this publication, always follow the
safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC

power source before;
a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or re-connecting any receiver electrical

plug or other electrical connection.

c.

Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.

d. Discharging the picture tube anode.

2. Test high voltage only by measuring it with an appropriate

high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Discharge the picture tube anode only by (a) first connecting

one end of an insulated clip lead to the degaussing or kine
aquadag grounding system shield at the point where the
picture tube socket ground lead is connected, and then (b)
touch the other end of the insulated clip lead to the picture
tube anode button, using an insulating handle to avoid
personal contact with high voltage.

4. Do not spray chemicals on or near this receiver or any of its

assemblies.

5. Unless specified otherwise in this service manual, clean

electrical contacts only by applying the following mixture to
the contacts with a pipe cleaner, cotton-tipped stick or
comparable non-abrasive applicator; 10% (by volume)
Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication
of contacts in not required.

6. Do not defeat any plug/socket B+ voltage interlocks with

which receivers covered by this service manual might be
equipped.

7. Do not apply AC power to this instrument and/or any of its

electrical assemblies unless all solid-state device heat sinks
are correctly installed.

8. Always connect the test receiver ground lead to the

receiver chassis ground before connecting the test receiver
positive lead.
Always remove the test receiver ground lead last.

9.

Use with this receiver only the test fixtures specified in this
service manual.

CAUTION: Do not connect the test fixture ground strap to
any heatsink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called

Electrostatically Sensitive (ES) Devices.

Examples of

typical ES devices are integrated circuits and some field-effect

transistors and semiconductor "chip" components. The
following techniques should be used to help reduce the
incidence of component damage caused by static by static
electricity.

1. Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed to prevent potential shock reasons prior to
applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.

4. Use only an anti-static type solder removal device. Some
solder removal devices not classified as "anti-static" can
generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil or comparable conductive material).

7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
CAUTION:Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such
as the brushing together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static
electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and
appropriate tip size and shape that will maintain tip
temperature within the range or 500

!F to 600!F.

2. Use an appropriate gauge of RMA resin-core solder
composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thorohly clean the surfaces to be soldered. Use a mall
wirebristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.

(500!F to 600!F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static,

suction-type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit-

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal

temperature (500!F to 600!F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

SERVICING PRECAUTIONS

- 5 -

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it
there only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess

or splashed solder with a small wire-bristle brush.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following
technique should be used to remove and replace the IC. When
working with boards using the familiar round hole, use the
standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction­type solder removal device (or with solder braid) before
removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as
close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads
remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the
corresponding leads extending from the circuit board and
crimp the "U" with long nose pliers to insure metal to metal
contact then solder each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heatsink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the
circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heatsink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them
and if necessary, apply additional solder.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board
hollow stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board
to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board.
The following guidelines and procedures should be followed
whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper
pattern side of the circuit board. (Use this technique only on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely
necessary).

2. carefully scratch away the solder resist and acrylic coating
(if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away
copper pattern and let it overlap the previously scraped end
of the good copper pattern. Solder the overlapped area and
clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper
pattern at connections other than IC Pins. This technique
involves the installation of a jumper wire on the component
side of the circuit board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a
hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the
pattern break and locate the nearest component that is
directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of
the nearest component on one side of the pattern break to
the lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so
the it does not touch components or sharp edges.

" Scope

This specification can be applied to all the television related to
MC-035A Chassis.

" Test and Inspection Method

1) performance:Follow the Standard of LG TV test

2) Standards of Etc requirement

" Test Condition

1) Temperature :20¡ 5°C

2) Relative Humidity:65¡ 10%

3) Use the parts only designated in B.O.M.,PARTS SPEC.,or

drawings.

4) Follow each drawing or spec for spec and performance of

parts,based upon P/N of B.O.M

5) Warm up TV set for more than 20min. before the

measurement.

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

Standard input Voltage

AC 230V 50/60Hz

Model Name

RE-32FZ30RX

RE/RL-29FB51RQ

RE-28FZ30RQ

Brand

LG

Compiance

Safety: IEC60065
EMC: EN55020,EN55013
EMC: EN55020,EN55013

Model Name

RE-32FZ30RX

RE/RL-29FB51RQ

RE-28FZ30RQ

Market

No

1

2

3

4
5
6
7
8

9

Item

Receiving System

AV Receiving System

Available Channel

Input Voltage
Market
Screen Size
Tuning System
Operating Environment

Storage Environment

Remark

OPTION

EU

Flat / Wide

Specification
PAL,SECAM-BG
PAL,SECAM-DK,PAL-I/’
SECAM-LL’

1)NTSC M

2)PAL

3)SECAM

1)VHF:E2~E12

2)UHF:E21~E69

3)CATV:S1~S20

4)HYPER:S21~S41
AC 230V 50/60 Hz
EU,CIS
Flat 29”, Wide 28” / 32”
FVS 100Program

1) Temp : 0 ~ 40 deg

2) Humidity: 85% under

1) Temp : -20 ~ 60 deg

2) Humidity: 85% under

" General Specification

- 7 -

" Feature and Function

TOP, FLOF, LIST 8page
NEC code
3
X
Full SCART:1
1
BG,DK
BG,I
BG,DK
BG,I
X
X
X
X
X
X
O
X
O

No

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

Teletext
Remocon
AV input
Component input
PERI TV connector
RGB input
2 Carrier stereo
NICAM stereo
2 Carrier Dual
NICAM Dual
SSC(Split Screen) mode
Multi picture display mode(1,2,12 PIP)
Film mode
Noise reduction
Progressive scan
Motion detection
DBS
Swivel speaker
Digital eye

Option

Side or, Front: 1, Rear: 2

AV1
AV1

Max.: PSM ( Dynamic)
Min.: PSM ( Mild)

Item

Specification

Remark

- 8 -

1. Application Object

These instructions are applied to all of the color TV, MC-036A.

2. Notes

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation
transformer will help protect test instrument.

(2) Adjustment must be done in the correct order.But the

adjustment can be changed by consideration of mass
production.

(3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.

(4) The input AC voltage of the receiver must keep 220V±10%

in adjusting.

(5) The receiver must be operated for about 15 minutes prior

to the adjustment.

3. Focus adjustment

1. Preliminary steps

(1) Tune the TV set to receive a digital pattern.
(SVC mode: Automatically mode change the STANDARD

MODE)

2. Adjustment

(1) Adjust center focus volume of FBT for the best focus of

vertical line (B).

(2) Adjust the upper focus volume of FBT for the best focus of

area (A).

(3) Repeat above step 1) and 2) for the best overall focus.

4. Purity & Convergence adjustment

4-1. Color purity adjustment

(1) Magnetic room set to destination magnetic and horizontal

magnetic set to zero.
(2) It makes CPT or CABINET enough to demagnetization.
(3) Self-adjustment: Adjust by input of Green raster signal

Manual-adjustment: Receive the signal of red raster.

(RF: PG50Ch or A/V input: RED pattern)
(4) Loosen fixed screw of DY and closely to CPT funnel part.
(5) Check the center of screen that purity magnet of CPT by

crossing adjustment. At this time, 4 & 6 pole magnet is
located to magnet of nothing.

(6) Move the DY to make equal red on whole screen and it

does not to make the DY by fixed screw after check a
simple color of Red/Green/Blue and white raster whether
or not it is a pollution of color.

(At this time, take care raster of screen and DY must fixing in

the condition which maintains a horizontality.)

(7) Check the TV set by move direction.

4-2. Convergence adjustment

These adjustments can the best condition of focus after
finished purity adjustment.

(1) Receive the signal of cross hatch that color is black.
(2) Adjust brightness and luminosity till dot appear 9 ~12.
(3)Open angle of the two tab of 4 pole magnet by isogonic

angle and accord with vertical line of red and blue color in
the middle of screen.

(4)Maintain as angle of 3) and rotate the tab to accord with

vertical line of Red and Blue color in the middle of screen.

(5) Open angle of the two tab of 6 pole magnet by isogonic

angle and accord with vertical line of Red/Blue and Green.

(6) Maintain as angle of 5) and rotate the tab to accord with

horizontal line. In case of twisted horizontal line,repeat
adjustment of 3) ~ 5) remembering the movement of
Red/Green/Blue color.

(7) Move the DY to best condition of convergence and attach

the CPT to a rubber-chock for fixed DY.

4-3 Screen voltage adjustment

1. Preliminary steps

(1) Turn on the TV set.
(2)

This adjustment should be performed after warming up for

more than 15 minutes.

2. Adjustment

(1) Adjust in RF non-signal.
(2) Press the ADJ key of SVC remote controller to make

horizontal line.

5. White balance adjustment

This adjustment should be perfomed after screen adjustment.
This adjustment set the self-adjustment rule.

1. Test Equipment

(1) Automatic White balance meter: Incase of self-adjustment
(2) White balance meter(CRT Color Analyzer, CA-100): 1 EA
(3) A SVC remote controller.

ADJUSTMENT INSTRUCTION

2. Preliminary steps

(1) Tune the TV set to receive an 100% white pattern.
(2) This adjustment should be perfomed after screen voltage

adjustment.

3. Adjustment

(1) Press the CH ! ,"#key to select adjustment item.
(2) Press the VOL $ ,% key to change data.
(3) Adjustment preliminary steps.

a.In items of picture adjustment,adjust until “CONTRAST”

and “BRIGHT” become 45 Ft_L(153Cd/m

2

).
b. Press the SVC key to enter adjustment mode.
c. Adjust the Y value of High Light with R-DRIVE and

adjust the X value with B-DRIVE until they have the
color coordinate of High Light as below.

d. In items of picture adjustment,adjust until “CONTRAST”

and “BRIGHT” become 4.5 Ft_L(15.4FT-L).
e. Enter the adjustment mode by pressing the SVC key.
f. Adjust the Y value of Low Light with R-CUTOFF and

adjust the X value with B-CUTOFF until they have the

color coordinate of Low Light as below.

g.Repeat adjusting until the color coordinate of High and

Low Light is satisfied.

h.Check the color coordinate of adjusted condition with

white balance meter.

- 9 -

SERVICE1

Item
CR(0~511)
CG(0~511)
CB(0~511)

WR(0~511)
WG(0~511)
WB(0~511)

SBRI(-255 ~ 254)

YCDEL

PH 32” FLAT

256
256
256
256
256
256

20

-2

SS 29” FLAT

256
256
256
256
256
256

20

-2

SS 28” FLAT

256
256
256
256
256
256

20

-2

Remark
LOW LIGHT adjument
LOW LIGHT adjument
LOW LIGHT adjument
HIGH LIGHT adjustment
HIGH LIGHT adjustment
HIGH LIGHT adjustment
SUB BRIGHT adjustment

OFFSE DATA

IIC WRITE

EEPROM

R AMP

0

30,31

R CUT

3

2A,2B

B AMP

1

34,35

B CUT

2

2E,2F

SUB BRIGHT DATA SAVE

SUB ADD

START BIT

STOP BIT

1C8

8
0

1C3

8
0

1CA

8
0

1C5

8
0

SUB ADD

Color temperarure.

13000K

9000K

X coordinate

266 ± 8

288 ±8

Y coordinate

273 ± 8
295 ± 8

Remark

Non EU(except model)

EU (RE,RL model)

IIC DATA SETTING

SLAVE ADDRESS(WRITE) SUB BRIGHT CONTROL DATA SPEED

IC 8A EEPROM A0

2

- 10 -

6.Deflection & POP position setting data
adjustment.

6.1 Adjustment preparation

(1) Deflection setting data adjustment is operate by SVC

communicator.
(2) Enter the adjustment mode by pressing SVC key.
(3) Enter the deflection mode by pressing ADJUST key.
(4) Use the CH ! ,"#key to select adjustment item.
(5) Use the VOL $ ,% key to increase/decrease data.
(6) Tune the TV set to receive PAL-B/G Digital pattern.

6.2 Adjustment

(1) VL(Vertical Linearity) adjustment:

Adjust the top & bottom size of inner circle to be equal.
(2) VA (Vertical Amplitude) adjustment:

Adjust so that the circle of a digital circle pattern should be

located interval of 6~7mm from the effective screen of the

CPT.
(3) SC (Vertical S correction) adjustment:

Adjust so that all distance between each lattice width of

top/center/bottom are to be the same.
(4) VS (Vertical Shift) adjustment:

Adjust so that the geometric vertical center line is in accord

with vertical center line of CPT.
(5) HS(Horizontal Shift) adjustment:

Adjust so that the geometric horizontal center line is in

accord with horizontal center line of CPT.
(6) EW(East-West Width) adjustment:

Adjust until the outmost left and right lattice of received

pattern is accord with 75% of other lattice width.

(7) ET(East-West Trapezium) adjustment:

Adjust to make the length of top horizontal line same with it

of the bottom of horizontal line.
(8) EP (East-West Parabola) adjustment:

Adjust so that middle portion of the outermost left and right

vertical line look like parallel with vertical lines of the CPT.
(9) CRNU(Upper Corner Correction) adjustment:

After finished EP adjustment,adjust vertical line of left-

top,right-top of screen to the best straight line.
(10)CRNL(Lower Corner Correction) adjustment:

After finished EP adjustment,adjust vertical line of left-

bottom ,right-bottom of screen to the best straight line.
(11) BOW adjustment

A standard is not changing the dafault value.
(12) Angle adjustment.

When you adjust the angle,adjust correctly raster of

left/right screen.
(13) CRNU6(6’ th Order Upper Corner Correction) adjustment

After finished EP adjustment,adjust vertical line of left-

top,right-top of screen to the best straight line.
(14) CRNL6( Lower Corner Correction) adjustment:

After finished EP adjustment,adjust vertical line of left-

bottom ,right-bottom of screen to the best straight line.

(15) OSD P (OSD POSITION) adjustment.
Adjust so that the character “2” of “EHTP2” is in accord with
right of Screen Center Vertical line after finished (1)~ (14)
adjustment. ( Refer to <figure.1> and <figure.2>.)

SERVICE 2 standard DATA

<figure.1>

<figure.2>

Variable

range

-128~127

-128~127

-128~127

-256~255

-512~511

-256~255

-128~127

-256~255

-128~127

-128~127

-512~511

-512~511

-128~127

-128~127
0~2047

0~511

-512~511

-512~511

-512~511

-512~511

0~511

-511~512

-511~512

-15~15

PHILIPS
32”FLAT

0
10
20

0

-152
5
0

234

4
5
2
1

-1

-1

250

60

-61

-20

-97

-22
0

-20

-40
0

S/S

29” FLAT

0
19
30

5

-198

-13
0

228

6
6
0
0

-1

-1

250

60

-61

-20

-97

-22
0

-20

-40
0

S/S

28” FLAT

0
49
20

0

-180
0
0

239

2
3
0
0

-1

-1

250

60

-61

-20

-97

-22
0

-20

-40
0

Item

VL

VA
SC
VS
HS

EW

ET
EP

CRNU
CRNL

BOW
ANGLE
CRNU6
CRNL6
EHTTH

EHT
EHTV1
EHTV2

EHTH1
EHTH2

EHT F
EHTP1
EHTP2
OSD P

SERVICE 3 standard DATA

SERVICE 4 standard DATA

29” Model:
Adjustment must adjust to the N50Hz(Only PAL mode).
W50Hz,N60Hz and W60Hz need not adjustments.(Only 29”
model)
28”/32” WIDE Model:
14:9,4:3 MODE H-SH(H-SHIFT) adjustment addition.
Adjust “H-SHIFT” of 14:9 and 4:3 by 50Hz.

* Caution: Adjustment of 50 Hz is 16:9’s standard format.
When the adjustment is 50Hz wide mode, you must be done
re-check.

At this time, ZOOM1 and ZOOM2 Mode need not
adjustments. Because it can automatically correct in 16:9
mode.

When you want to re-adjust after deflection adjustment,
adjustment is finished after always re-adjustment.

Screen OSD FONT status and adjustment in H-Shift ARC

SVC adjustment.

Deflection adjustment standard DATA

Adjust in PAL100Hz and PAL50Hz,NTSC60Hz and 480I

needed not adjustment.

- 11 -

PHILIPS
32”FLAT

413
128

50
50

496

85
400
113
200

7

4
30
23
14

S/S

29” FLAT

413
128

50

50
496
140
400
230
200

5

4
30
23
15

S/S

28” FLAT

413
128

50

50
496
135
400
200
200

5

4
20
23
14

Item

IBRM
WDRM
CGAIN

WGAIN

MWDR

BCLTH
BCLTC
BCLGA

BCLC

SVDEL

SVD
SVG

VBSO

TML

PHILIPS
32”FLAT

20
83

17
102
102
230

0
45
25

9
11

252

S/S

29” FLAT

20
83

17
102
102
230

0
45
25

9
11

252

S/S

28” FLAT

20
83

17
102
102
230

0
45
25

9
11

252

Item

FP
NP
SP

S1 VOL
S2 VOL

AGC-L
VPC-L

M-STR

M-HMC

M-HP

M-LP

M-LIM

No.

1
2
3
4
5

ARC MODE

16:9

14:9
ZOOM1
ZOOM2

4:3

SVC OSD FONT(50Hz,PAL)

50W

50 149

50 Z1
50 Z2

50 N

H-SHIFT
Adjustment
Adjustment
Adjustment X
Adjustment X
Adjustment

Item

VL
VA
SC
VS
HS

EW

ET
EP

CRNU

CRNL

BOW

ANGLE

CRNU6

CRNL6
PFGHE
PFGHB

EHTTH

EHTS
EHTV1
EHTV2

EHTH1
EHTH2

EHT F
EHTP1
EHTP2
OSD P

Variable

range

-128~127

-128~127

-128~127

-256~255

-512~511

-256~255

-128~127

-256~255

-128~127

-128~127

-512~511

-512~511

-128~127

-128~127
0~1024
0~1024
0~2047

0~511

-512~511

-512~511

-512~511

-512~511

0~511

-511~512

-511~512

-15~15

PAL

100Hz

0
10
20

0

-152
5
0

234

4
5
2
1

-1

-1
0
0

250

60

-61

-20

-97

-22
0

-20

-40
0

480I

0
10
20

0

-152
5
0

234

4
5
2
1

-1

-1
0
0

250

60

-61

-20

-97

-22
0

-20

-40
0

- 12 -

3.POP POSITION adjustment. (For PIP MODEL)
(1) Press the YELLOW key of SVC remocon to change POP

mode.

(1) POS adjustment ( H POSITION)

- Adjust POS to the inseparable border between main screen
and POP.

*Caution: Adjustment of this mode only adjust to PAL 50Hz of

main screen. But,you must re-check whether or not it is
PAL mode.

(2) Double Window(POS V) vertical location adjustment

- Adjust POS V to be the same vertical location of main screen
and double window.

* Caution: Adjustment of this mode only adjust to PAL50Hz of

main screen. In case of NTSC60Hz, the adjustment needs
not.

(3) POS 50 adjustment

- Change the main input to PAL signal and then adjust POS50
to identity of vertical location.

(4) POS 60 adjustment

- Change the main input to NTSC signal and then adjust
POS60 to identity of vertical location.

6.

OPTION Adjustment

6-1. Preparation for Adjustment

1) This option adjustment decides funtion in accordance with
model.
Press the SVC TX adjustment button(IN-START button) at
SVC mode,then adjust the option at OPTION 1,2,3,4 mode.

2) Mark the option adjustment data like [111,11,111,11] in BOM.

6-2. Adjustment Method

1) Input data directly by the buttons corresponded with
OPTION1 ??(0~63), OPTION2 ??(0~63), OPTION3
???(0~127).

2) Option4???(0~116) controls correspondinglines directly relate
with OSD and TXT LANG.

3) Select each OPTION function by the CH Up/Down button and
then set up each OPTION by the VOL Up/Down button.

[63,56,112,201]

OPTION 1
OPTION 2
OPTION 3
OPTION 4

!###!##!##!

& Mark of BOM

LEVEL PART NO. SPECIFICATION DESCRIPTION

1. 3141VMN382A MAIN[63.56.112.201] CHASSIS ASSY
The OPTION 1 data is 113,OPTION 2 data is 63,the

oOPTION 3 data is 112,the OPTION 4 data is 201 in this
model.

- 13 -

Table 1. OPTION 1 Function

Table.2 OPTION 2 Function

Table. 3 OPTION 3 Function

0
1
0
1
0
1
0
1
0
1
0
1
0
1
2
3

A2 ST

SYS

EYE

TOP

I II SV

TSEAR

200PR

Option

Code

Function Remark

100 PROGRAM SAVE
200 PROGRAM SAVE
WITHOUT TURBO SEARCH FUNCTION
WITH TURBO SEARCH FUNCTION
NO SAVE DUAL SOUND CONDITION
SAVE DUAL SOUND CONDITION
FLOP TEXT
TOP TEXT
WITHOUT EYE
WITH EYE
FM STEREO/DUAL NON ACTIVE
NICAM AND FM STEREO/DUAL
BG/I/DK
BG/L
BG/I/DK/M
RESERVED

WL/CL model
CT/CE/WT/WE model
EU(WE/WL/CE/C model)
NON-EU (WT/CT model)
Without top text

0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1

WOOF

RESE1

AV SV

SAV3

DVD

HPHON

VOL

ACMS

Option

Code

Function Remark

Without ACMS function
With ACMS function
Normal volume curve
Rushed volume curve
Without headphone
With headphone
Without DVD input
With DVD input
AV3 Y&C not coresspondence
AV3 Y&C coresspondence
Without woofer
With woofer

No save last AV
Last AV save

Australia

EU

0
1
0
1
0
1
0
1
0
1

0
1

RESE3

HOTEL

DOLBY

HEDV

CH+AU

TEXT

WIDE

Option

Code

Function Remark

4:3 TV
16:9 TV
WITHOUT TEXT
WITH TEXT
WITHOUT D/K CHINA or BB SYSTEM
WITH D/K CHINA or BB SYSTEM
WITHOUT HIGH DEVIATION
WITH HIGH DEVIATION
WITHOUT DOLBY VIRTUAL
WITH DOLBY VIRTUAL

WITHOUT HOTEL FUNCTION
WITH HOTEL FUNCTION

High deviation

NON USED

NON USED

RESE2

- 14 -

State

LANG

T-LAN

Default

Language

0:ENG Only
1:EU 5EA
2:EU ETC
3:PARSI
4:ARAB URDU
5:English+Hindi
6:English+I+M+V
7:English+THAI
8:English+China
0:West Europe
1:East Europe1
2:Turkey EU1
3:East EU2

4:Cyrillic 1
5:Cyrillic 2
6:Cyrillic 3
7:Turkey/Greek 1
8:Turkey/Greek 2
9:Turkey/Greek 3
10:Arab/France
11:Arab/English
12:Arab/Hebrew 1
13:Arab/Hebrew 2
14:Farsi/English
15:Farsi/France
16:Farsi all

Function

English
English/German/French/Italy/Spanish
Pol./Hungary/Czecho/Russia/Eng
English/Parsi
English/French/Arab+Urdu
English/Hindi
English/Indonesian/Malaysian/Vietnamese
English/Thai
English/China
English/French/Swedish/Czech/German/Spanish/Italian
Polish/French/Swedish/Czech/German/Slovenian/Italian/Rumanian
English/French/Swedish/Turkish/German/Spanish/Italian
English/Hungarian/Serbian/Czech/German/Polish/Spanish/Italian/
Rumanian
Polish/Russia/Estonian
Polish/Russia/Swedish/Czech/Estonian
English/Russia/Estonian/Czech/German/Ukrainian
English/French/Swedish/Turkish/German/Spanish/Italian/Greek
English/Turkish/German/Greek
English/French/Swedish/Turkish/German/Spanish/Italian/Greek
English/French/Turkish/Arabic
English/French/Turkish/Arabic
Hebrew/Arabic
English/French/Hebrew/Arabic
English/French/Turkish/Parsi
French/Turkish/Parsi

Table 4. OPTION 4 Function

- 15 -

SERVICE1
SERVICE3

SERVICE4

SS 29” FLAT

20
380
120

60

50
496
180
400
170
200
294

4
301
301

21
83

40
110
110

16

0
45
25

9
11

252

REMARK

Don’t change the value

For G2 and Rk setting
For G2 and Rk setting
For G2 and Rk setting

For G2 and Rk setting
For Beam eletrocity setting
For Beam eletrocity setting
For Beam eletrocity setting
For Beam eletrocity setting

Item

S-BRI

IBRM

WDRM

CGAIN
WGAIN
MWDR
BCLTH
BCLTC
BCLGA

BCLC
SVM1

SVM2
PFGHE
PFGHB

FP
NP

SP
S1VOL
S2VOL

SDA-L
VPC-L

M-STR

M-HMC

M-HP

M-LP

M-LTI

PH32” FLAT

20
380
120

60

60
496
181
400
216
200
294

4
301
301

21
83

40
110
110

16

0
45
25

9
11

252

Table 5. OPTION 4 Function

6. Sound Prescaler
Don’t adjust mass-production. Because this value of SVC
setting is set to come up to standard. Only This standard is for
reference.

In case of Phone jack is over 1EA in AV1 & AV2,apply to
Phone standard.

- Audio out level: 500mVrms at 100% modulation ratio.

In case of both of AV1 & AV2 is Scartjack,apply to Scartjack
standard.

- Audio out level 500Vrms at 54% modulation ratio

* MSP3410 Pre-scaler setting value.

Item

FP
NP
SP
S1 vol
S2 vol
VPC-L
M-STR
M-HMC
M-HP
M-LP
M-LIM

Description

FM Pre-scaler
Nicam Pre-scaler
Scart Pre-scaler
Scart1 Pre-scaler
Scart2 Pre-scaler
VPC LEVEL
EFFECT STRENGTH
HARMONIC CONTENT
HIGH PASS CENTER FREQUENCY
LOW PASS CENTER FREQUENCY
AMPLITUDE LIMIT

DATA

20
83

17
102
102

0
45
25

9
11

252

- 16 -

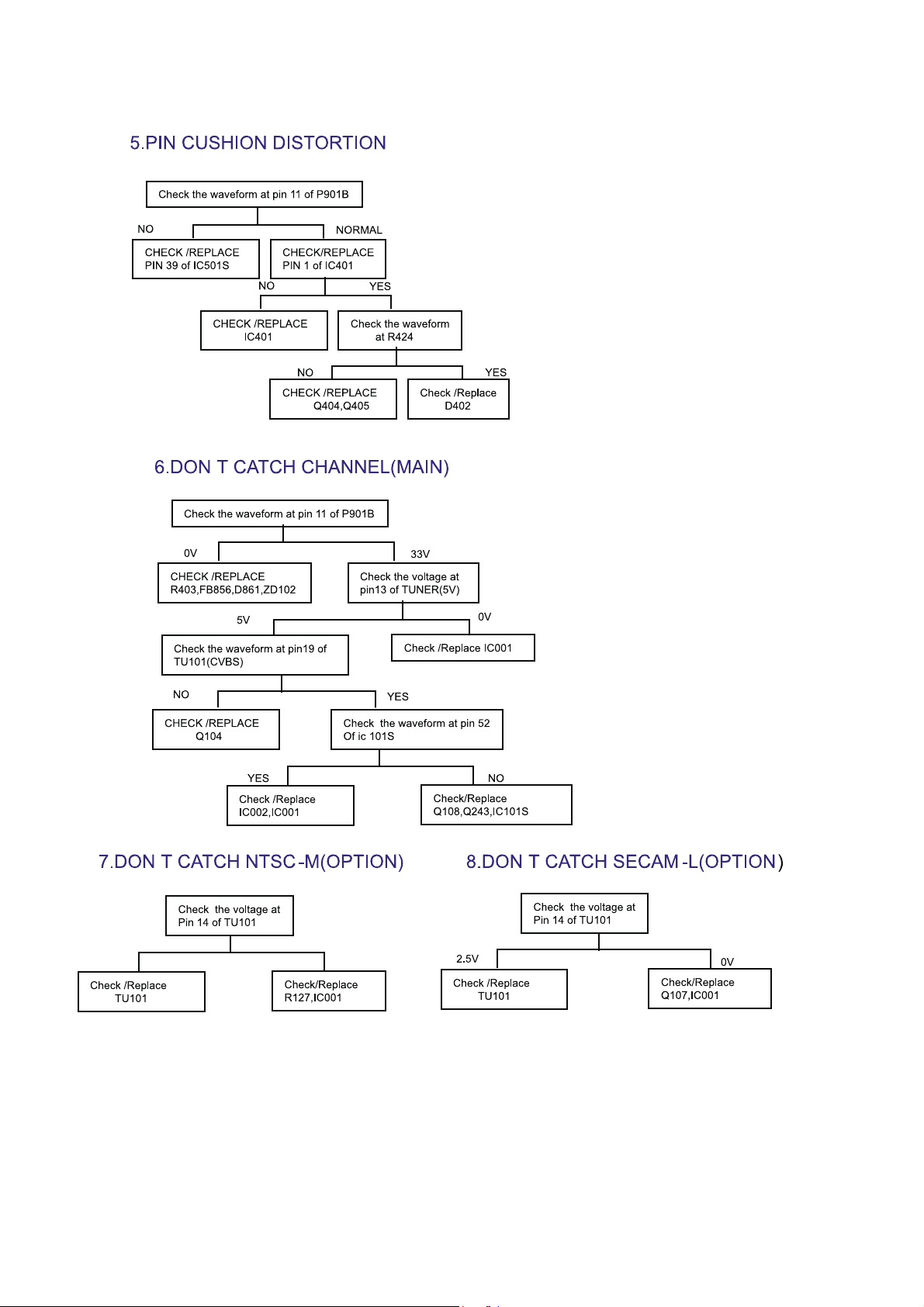

TROUBLE SHOOTING

- 17 -

- 18 -

- 19 -

- 20 -

BLOCK DIAGRAM

1.MAIN

- 21 -

2.SMPS

- 26 -

EXPLODED VIEW(RE/RL-28FZ30)

122

510

150

170

112

913

300

120

120

122

121

121

320

600

700

330

315

310

943

400

501

590

580

550

560

520

- 27 -

112 6335V28003B CPT ASSEMBLY,W66QDE991X +0.4G[V] 0G[H] SDIG WIDE FLAT 100HZ
120 6400VA0025B

SPEAKER,FULLRANGE,8OHM 15/20W 85DB OTHERS 57X160X52.5 FREQ.UPGRADE
121 120-C76G SPEAKER,TWEETER,C050TX-357K14 FOSTER (CONE) 8OHM 15/25W 88DB
122 4810V00689B BRACKET,SPEAKER CKD 32FZ30 MC021A ABS, HF-380 NON
150 6140VC2005G COIL,DEGAUSSING,28 FLAT ASSY SELLA TECH D05P+D07G
170 170-844J CPT EARTH,29” 96T 2LUG 2P HUG .
300 3091V00471D CABINET ASSEMBLY,RE-28FZ30RQ STEREO MC036A C/SKD
310 5020V00746A BUTTON,CONTROL 28FZ30 ABS, HF-380 6KEY
315 3580V00085A DOOR,CONTROL 28FZ30 ABS, HF-380 .
320 320-070H SPRING,COIL
330 5020V00745A BUTTON,POWER 28FZ30 ABS, HF-380 NON .
400 3809V00320D BACK COVER ASSEMBLY,RE-28FZ30RQ 2SCART C/SKD MC-036A
501 4810V00379S BRACKET,MAIN 28FZ30 MC021A HIPS 407AF .
510 6871VSMX40C PWB(PCB) ASSEMBLY,SUB CPT MC036A CKD SS 28”
520 6871VMMQ80E PWB(PCB) ASSEMBLY,MAIN MC-036A RE-28FZ30RQ.KUPLMP8 CKD POLAND
550 6871VSMX44A PWB(PCB) ASSEMBLY,SUB MC036A CKD REACTOR FZ30
560 6871VSMX68A PWB(PCB) ASSEMBLY,SUB A/V MC036A 100HZ CKD W/O PIP
580 6871VSMX42B PWB(PCB) ASSEMBLY,SUB CONT MC036A RE-28FZ30RQ FRONT CTRL
590 6871VSMX41A PWB(PCB) ASSEMBLY,SUB MC036A CKD FZ30 PWR CTRL
600 6871VSMX43A PWB(PCB) ASSEMBLY,SUB A/V MC036A CKD SIDE A/V FZ30
700 0IGL120104A IC,LG SEMICONDUCTOR CDS SENSOR MODULE(P1201-04)
913 332-229A SCREW,DRAWING ASSY,HEXAGON HEAD SPECIAL NON 33 FZMY-1
943 1PTF0403116 SCREW,TAP TITE(P)[TRUSS HEAD]

EXPLODED VIEW PARTS LIST

No.

PART NO.

DESCRIPTION

- 28 -

EXPLODED VIEW(RE/RL-32FZ30)

122

510

150

170

112

913

943

400

300

120

122

121

320

600

700

330

310

501

590

580

550

560

520

- 29 -

112 6335V32008C CPT ASSEMBLY,W76ERF042X +0.4G[V] 0G[H] PHILIPS WIDE FLAT MARK2
120 6400VA0025B SPEAKER,FULL-RANGE(GENERAL) 8OHM 15/20W 85DB OTHERS 57X160X52.5
121 120-C76G SPEAKER,TWEETER,8OHM 15/25W 88DB OTHERS NON
122 4810V00689B BRACKET,SPEAKER CKD 32FZ30 MC021A ABS, HF-380 NON
150 6140VC2006A COIL,DEGAUSSING,- KOREA TRADING 32 TURN L=600
170 170-797X CPT EARTH,32 144T 2LUG 1P*2 .
300 3091V00B57J CABINET ASSEMBLY,RE-32FZ30RQ STEREO MC036A CKD,MA
310 5020V00775A BUTTON,CONTROL RN-32FZ30 ABS, HF-380 6KEY MC-021A
320 320-062E SPRING,KNOB
330 5020V00728B BUTTON,POWER DN-32FZ32H ABS, HF-380 1KEY #102
400 3809V00A93H BACK COVER ASSEMBLY,RE-32FZ30RQ 2SCART CKD,MA
501 4810V00684D BRACKET,MAIN RE-32FZ30RQ MC036A HIPS 407AF V2
510 6871VSMX40A PWB(PCB) ASSEMBLY,SUB CPT MC036A CKD PH32 CPT
520 6871VMMQ80C PWB(PCB) ASSEMBLY,MAIN MC-036A RE-32FZ30RQ.KKPLMU UK
550 6871VSMX44A PWB(PCB) ASSEMBLY,SUB MC036A CKD REACTOR FZ30
560 6871VSMX68C PWB(PCB) ASSEMBLY,SUB A/V MC036A RE-32FZ30RQ.KKPLMU8 UK
580 6871VSMX42A PWB(PCB) ASSEMBLY,SUB MC036A CKD FZ30 FRONT CTRL
590 6871VSMX41A PWB(PCB) ASSEMBLY,SUB MC036A CKD FZ30 PWR CTRL
600 6871VSMX43A PWB(PCB) ASSEMBLY,SUB A/V MC036A CKD SIDE A/V FZ30
700 0IGL120104A IC,LG SEMICONDUCTOR CDS SENSOR MODULE(P1201-04)

913 332-229M SCREW,DRAWING PAN WASHER 7mm 45mm MSWR3/FZY
943 1PTF0403116 SCREW,TAP TITE(P)[TRUSS HEAD]

EXPLODED VIEW PARTS LIST

No.

PART NO.

DESCRIPTION

- 30 -

REPLACEMENT PARTS LIST

LOCA. NO PART NO DESCRIPTION

Q165
Q166
Q167
Q168
Q200
Q240
Q242
Q243
Q244
Q245
Q246
Q2902
Q2907
Q2908
Q2910
Q301
Q301
Q302
Q302
Q308
Q401
Q402
Q404
Q405
Q505
Q506
Q511
Q512
Q513
Q513
Q514
Q515
Q516
Q516
Q517
Q518
Q520
Q520
Q521
Q523
Q524
Q524
Q601
Q602
Q651
Q852
Q855
Q856
Q857
Q871
Q900
T401
T403

0TR945009AA
0TR733009AA
0TR733009AA
0TR945009AA
0TR733009AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR319809AA
0TR126609AA
0TR319809AA
0TR437000BA
0TR150400BA
0TR945009AA
0TR733009AA
0TR150400BA
0TR945009AA
0TF200000AA
0TRMA20001A
0TR127509AC
0TR205900AB
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR127009AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR127009AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR127009AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR127009AA
0TR733009AA
0TR733009AA
0TR945009AA
0TR945009AA
0TR421009AB
0TR102009AB
0TR945009AA
0TR945009AA
0TR127109AA
6170VC0002A
151-E06A

TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSA733C-Y TP SAMSUNG TO-92
TR, KSA733C-Y TP SAMSUNG TO-92
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSA733C-Y TP SAMSUNG TO-92
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, KTC3198 KEC TP TO92 50V 150MA
TR, KTA1266-Y KEC TP TO92 50V 150MA
TR, KTC3198 KEC TP TO92 50V 150MA
TR, KTC4370A-Y TO-220IS KEC
TR, CHIP 2SA1504S(ASY) KEC
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSA733C-Y TP SAMSUNG TO-92
TR, CHIP 2SA1504S(ASY) KEC
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, IRFIBC20G BK I.R 600V - ­TR, 2SC5905 TRAY TOP-3L 1700V 20A
TR, KTA1275-Y TP(KTA1013),KEC
TR, KTD2059-Y TO-220IS KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SA1504S(ASY) KEC
TR, KTA1270-Y KEC TP TO92 50V 100MA
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SA1504S(ASY) KEC
TR, KTA1270-Y KEC TP TO92 50V 100MA
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SA1504S(ASY) KEC
TR, KTA1270-Y KEC TP TO92 50V 100MA
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SA1504S(ASY) KEC
TR, KTA1270-Y KEC TP TO92 50V 100MA
TR, KSA733C-Y TP SAMSUNG TO-92
TR, KSA733C-Y TP SAMSUNG TO-92
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, BF421 TP TELEFUNKEN TO92 KEC
TR, KRC102M(KRC1202) KEC TP NA NA NA
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KTA1271Y KEC TP TO92 50V 100MA
TR, H-DRIVE EER-2619
TR, EER2834 0UH

LOCA. NO PART NO DESCRIPTION

D850
IC001
IC002
IC003
IC012
IC013
IC014
IC015
IC016
IC101S
IC102
IC102S
IC103
IC104
IC301
IC401
IC501
IC501S
IC503
IC504
IC601
IC650
IC652
IC801
IC802
IC851
IC853
IC854
IC856
IC901
IC902
IC903
Q011
Q012

IC2002
L850
Q015
Q016
Q018
Q103
Q104
Q105
Q108
Q1101
Q111
Q161
Q162
Q163
Q164

0ISK100300A
0ISM555000B
0IAL241610B
0IPH743200A
0IFA754207A
0IFA752700A
0IMCRUK002B
0IMCRUK003A
0IAL241610B
0IMCRMN021A
0IMCRSG011A
0ISO204000A
0IMCRSG011A
0ISG111733B
0ISA784500A
0IKE455800E
0IMCRMN024A
0IMCRMN024A
0IKE780900M
0ISG111733B
0IMCRMN011C
0IFA754207A
0ISG729700A
0IMCRSK001A
0ILI817000G
0IKE780500Q
0ISS278050A
0ISS278120A
0ISK135000A
0IPH611190A
0IPH611190A
0IPH611190A
0IFA270000A
0IFA270000A

0TR165900AC
6170VZ0008A
0TR387500AA
0TR387500AA
0TR387500AA
0TR945009AA
0TR127009AA
0TR945009AA
0TR945009AA
0TR319809AA
0TR945009AA
0TR945009AA
0TR733009AA
0TR945009AA
0TR733009AA

IC, DIODE MODULE(RU4AM+FMLG12S) LF816
IC, SDA555XFL 52DIP ST FLASH MEMORY
IC, AT24C16A-10PI-2.7 8PIN DIP ST EEPROM
IC, 74HC32D 14SOP TP QUAD 2-INPUT OR GATE
IC, KA75420ZTA 3P,TO-92 TP 4.2V RESET IC
IC, KA75270Z 3 TP RE-SET IC MC-007
IC, S78DL33L AUK 3P, TO-92L TP 3.3V REGU.
IC, S5225M AUK 5SOP, SOT-25 R/TP 150MA L/D REG.
IC, AT24C16A-10PI-2.7 8PIN DIP ST EEPROM NON
IC, VSP9412A VK B14 MICRONAS 80P MQFP R/TP
IC, LD1086V18 3DIP,TO-220 ST 1.5A-L/DROP REG.
IC, CXA2040AQ 32P,QFP BK IIC BUS VIDEO S/W
IC, LD1086V18 3DIP,TO-220 ST 1.5A-L/DROP REG.
IC, LD1117V33C 3SIP ST REGULATOR ­IC, LA7845 7SIP V/OUT(1.5A) - - - ­IC, KIA4558 8DIP DUAL OP AMP
IC, DDP3315C QA G3 MICRONAS 80P QFP R/TP
IC, DDP3315C QA G3 MICRONAS 80P QFP R/TP
IC, KIA7809API TO220 ST 3P 9V REGULATOR
IC, LD1117V33C 3SIP ST REGULATOR ­IC, MSP3410G PO B8 V3 MICRONAS 52P DIP
IC, KA75420ZTA 3P,TO-92 TP 4.2V RESET IC
IC, TDA7297 15P,SIP BK 2CH 15W DUAL AMP
IC, STR-F6456R SANKEN 5PIN(LF1352) BK STR
IC, LTV817M-VB 4P,DIP BK PHOTO COUPLER
IC, KIA7805API 3P TO-220 ST REGULATOR 5V
IC, KA278R05 4P,TO-220F BK LOW DROP 5V
IC, KA278R12 4P,TO-220F BK LOW DROP 12V
IC, SE135N(LF12) 3P 135V ERROR AMP - - - ­IC, TDA6111Q 9SIP RGB AMP - - - ­IC, TDA6111Q 9SIP RGB AMP - - - ­IC, TDA6111Q 9SIP RGB AMP - - - ­IC, 2N7000TA TO-92, 3P TP 60V/0.2A,MC007A
IC, 2N7000TA TO-92, 3P TP 60V/0.2A,MC007A

TR, KTA1659A-Y TO-220IS BK KEC - ­TR, TS4841 30500UH REACTOR TRANS
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, CHIP 2SC3875S(ALY) KEC
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KTA1270-Y KEC TP TO92 50V 100MA
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KTC3198 KEC TP TO92 50V 150MA
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSA733C-Y TP SAMSUNG TO-92
TR, KSC945C-Y SAMSUNG TP TO92 50V 150MA
TR, KSA733C-Y TP SAMSUNG TO-92

IC

TRANSISTOR

- 31 -

LOCA. NO PART NO DESCRIPTION
T802

T803

D011
D012
D160
D160
D161
D161
D2901
D2902
D2903
D2906
D2907
D2909
D2910
D2911
D301
D339
D349
D351
D402
D410
D413
D414
D425
D505
D506
D507
D802
D803
D804
D851
D852
D853
D854
D855
D856
D857
D858
D861
D866
D900
D903
D909
DB814
ZD012
ZD102
ZD1201
ZD1202
ZD1205

6170VMCC01G
151-D02G

0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD150009CA
0DD150009CA
0DD414809ED
0DD200009AF
0DD200009AF
0DD200009AF
0DD414809ED
0DD011150AA
0DD150009CA
0DD150009CC
0DD100009AE
0DD414809ED
0DD414809ED
0DD414809ED
0DD414809ED
0DD060009AC
0DD100009AM
0DD414809ED
0DD060009AC
0DD060009AC
0DD060009AC
0DD060009AC
0DD060009AC
0DD414809ED
0DD414809ED
0DD420000BB
0DD060009AC
0DD414809ED
0DR060009AA
0DR060009AA
0DR060009AA
0DRGS00011A
0DZ910009AJ
0DZ330009BA
0DZ620009BB
0DZ620009BB
0DZ620009BB

TR, EER5345 410UH MC-036A
TR, EER3541 0UH

DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, RGP15J TP GULF SEMICONDUCTOR LTD
DIODE, RGP15J TP GULF SEMICONDUCTOR LTD
DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, RU2M V(1) TP SANKEN
DIODE, RU2M V(1) TP SANKEN
DIODE, RU2M V(1) TP SANKEN
DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, TO3PF 400V 5A 50A 0.3SEC 10UA
DIODE, RGP15J TP GULF SEMICONDUCTOR LTD
DIODE, RGP15G TP GULF SEMICONDUCTOR LTD.
DIODE, RU1A V(1) TP SANKEN
DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, TVR06J TP - 600V - - 250NSEC ­DIODE, EU1ZV(1) TP SANKEN
DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, TVR06J TP - 600V - - 250NSEC ­DIODE, TVR06J TP - 600V - - 250NSEC ­DIODE, TVR06J TP - 600V - - 250NSEC ­DIODE, TVR06J TP - 600V - - 250NSEC ­DIODE, TVR06J TP - 600V - - 250NSEC ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, D4L20U SHINDENGEN
DIODE, TVR06J TP - 600V - - 250NSEC ­DIODE, 1N4148 TP GRANDE - - - - - ­DIODE, TVR06J TP LTD. DO41 600V 0.6A - - ­DIODE, TVR06J TP LTD. DO41 600V 0.6A - - ­DIODE, TVR06J TP LTD. DO41 600V 0.6A - - ­DIODE, GSIB660 ST 5S 600V 6A 180A 100SEC 0.00001A
DIODE, MTZJ9.1B TP ROHM-K DO34 0.5W 9.1V 5UA ­DIODE, ZENER HZT33 TAPING
DIODE, MTZJ6.2B TP ROHM-K DO34 0.5W 6.2V 5UA ­DIODE, MTZJ6.2B TP ROHM-K DO34 0.5W 6.2V 5UA ­DIODE, MTZJ6.2B TP ROHM-K DO34 0.5W 6.2V 5UA -

LOCA. NO PART NO DESCRIPTION

ZD1206
ZD601
ZD650

C003
C010
C011
C012
C013
C015
C020
C021
C024
C030
C031
C036
C103
C105
C106
C1102
C1103
C1104
C1130
C114
C115
C116
C117
C118
C119
C1204
C1208
C1209
C121
C121
C1210
C1211
C1212
C1213
C123
C124
C124
C125
C126
C126
C126
C127
C129
C133
C133
C135
C136

0DZ620009BB
0DZ820009AH
0DZ910009AJ

0CE106DF618
0CE226DD618
0CE226DD618
0CQ1041N509
0CE477DD618
0CE106DF618
0CE476DD618
0CE226DD618
0CE226DD618
0CE226DD618
0CE226DD618
0CE476DD618
181-007G
0CN1030F679
0CN1030F679
0CE107DD618
0CN1030F679
0CE476DD618
0CQZVBK002D
0CE476DD618
0CX4700K409
0CX4700K409
0CE227DD618
0CX4700K409
0CX4700K409
0CN1040K949
0CN2210K519
0CE475DK618
0CE107DD618
0CE225DK618
0CE475DK618
0CN2210K519
0CE475DK618
0CE475DK618
0CN1030F679
0CE106DF618
0CE107DD618
0CE108DD618
0CE107DD618
0CE477DD618
0CE108DD618
0CE476DD618
0CE106DK618
0CE107DD618
0CE477DD618
0CE107DD618
0CE107DD618

DIODE, MTZJ6.2B TP ROHM-K DO34 0.5W 6.2V 5UA ­DIODE, MTZJ8.2B TP ROHM-K DO34 - 8.2V 5UA ­DIODE, MTZJ9.1B TP ROHM-K DO34 0.5W 9.1V 5UA -

10UF STD 16V M FL TP5
22UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5

0.1U 100V K POLY TP
470UF STD 10V M FL TP5
10UF STD 16V M FL TP5
47UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5
47UF STD 10V 20% FL TP 5
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
10000P 16V M Y TA52
10000P 16V M Y TA52
100UF STD 10V M FL TP5
10000P 16V M Y TA52
47UF STD 10V 20% FL TP 5
A.C 275V 0.47UF K (S=22.5)
47UF STD 10V 20% FL TP 5
47P 50V J SL TA52
47P 50V J SL TA52
220UF STD 10V M FL TP5
47P 50V J SL TA52
47P 50V J SL TA52

0.1M 50V Z F TA52
220P 50V K B TA52

4.7UF STD 50V 20% FL TP 5
100UF STD 10V M FL TP5

2.2UF STD 50V 20% FL TP 5

4.7UF STD 50V 20% FL TP 5
220P 50V K B TA52

4.7UF STD 50V 20% FL TP 5

4.7UF STD 50V 20% FL TP 5
10000P 16V M Y TA52
10UF STD 16V M FL TP5
100UF STD 10V M FL TP5
1000UF STD 10V M FL TP5
100UF STD 10V M FL TP5
470UF STD 10V M FL TP5
1000UF STD 10V M FL TP5
47UF STD 10V 20% FL TP 5
10UF STD 50V M FL TP5
100UF STD 10V M FL TP5
470UF STD 10V M FL TP5
100UF STD 10V M FL TP5
100UF STD 10V M FL TP5

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

CAPACITOR

DIODE

- 32 -

LOCA. NO PART NO DESCRIPTION
C137

C137
C138
C161
C162
C163
C164
C165
C166
C167
C201
C202
C206
C206
C207
C208
C212
C213
C214
C220
C221
C222
C228
C229
C241
C245
C245
C248
C248
C249
C252
C256
C256
C258
C260
C2903
C2909
C2910
C2911
C2912
C2913
C2914
C2915
C2917
C2918
C2919
C2922
C2933
C306
C307
C310
C312

0CE107DD618
0CE477DD618
0CE107DD618
0CN1010K519
0CN2210K519
0CE476DF618
0CN1040K949
0CE105DK618
0CN1030F679
0CN1030F679
0CN1040K949
0CX4700K409
0CE227DD618
0CE107DD618
0CE226DF618
0CE226DF618
0CN4710K519
0CN4710K519
0CN4710K519
0CE106DF618
0CN4710K519
0CN1010K519
0CE226DF618
0CE226DF618
0CE226DD618
0CE106DF618
0CE226DD618
0CE106DF618
0CE226DD618
0CE226DD618
0CE226DD618
0CE106DF618
0CE226DD618
0CE226DD618
0CE336DF618
0CE106DH618
0CE106DH618
0CN1010K519
0CN1010K519
0CK4720W510
0CK4720W510
0CE106DP618
0CE107DK618
0CE107DF618
0CE107DF618
0CE106DP618
0CE106DH618
0CK1010W515
0CN1030F679
0CN1030F679
0CE107BJ618
0CN2710K519

100UF STD 10V M FL TP5
470UF STD 10V M FL TP5
100UF STD 10V M FL TP5
100P 50V K B TA52
220P 50V K B TA52
47UF STD 16V M FL TP5

0.1M 50V Z F TA52
1UF STD 50V M FL TP5
10000P 16V M Y TA52
10000P 16V M Y TA52

0.1M 50V Z F TA52
47P 50V J SL TA52
220UF STD 10V M FL TP5
100UF STD 10V M FL TP5
22UF STD 16V M FL TP5
22UF STD 16V M FL TP5
470P 50V K B TA52
470P 50V K B TA52
470P 50V K B TA52
10UF STD 16V M FL TP5
470P 50V K B TA52
100P 50V K B TA52
22UF STD 16V M FL TP5
22UF STD 16V M FL TP5
22UF STD 10V 20% FL TP 5
10UF STD 16V M FL TP5
22UF STD 10V 20% FL TP 5
10UF STD 16V M FL TP5
22UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5
10UF STD 16V M FL TP5
22UF STD 10V 20% FL TP 5
22UF STD 10V 20% FL TP 5
33UF STD 16V M FL TP5
10UF STD 25V M FL TP5
10UF STD 25V M FL TP5
100P 50V K B TA52
100P 50V K B TA52
4700P 500V K B S
4700P 500V K B S
10UF STD 160V M FL TP5
100UF STD 50V M FL TP5
100UF STD 16V M FL TP5
100UF STD 16V M FL TP5
10UF STD 160V M FL TP5
10UF STD 25V M FL TP5
100P 500V K B TS
10000P 16V M Y TA52
10000P 16V M Y TA52
100UF KME 35V M FL TP5
270P 50V K B TA52

LOCA. NO PART NO DESCRIPTION

C313
C316
C324
C331
C333
C338
C339
C340
C348
C350
C401
C402
C403
C404
C405
C406
C408
C409
C411
C413
C414
C415
C416
C417
C418
C419
C423
C426
C437
C438
C440
C441
C442
C446
C447
C504
C506
C512
C517
C517
C518
C518
C519
C521
C523
C524
C525
C526
C527
C527
C529
C529

0CQ3331N509
0CE228DJ650
0CQ3331N509
0CQ1021N519
0CN2710K519
0CE228DH610
0CK56101515
181-014Z
0CE228BH61A
0CK56101515
181-091D
181-091D
0CK22101515
181-010A
181-014Y
181-091D
181-015L
181-010A
181-013A
181-013M
181-010E
181-013U
0CE107DK618
0CK1030K945
0CN4710K519
0CN1030F679
0CE6851K652
0CQ2731N509
0CK56101515
0CE107DK618
181-091G
181-091G
0CQ5621N509
0CK56102515
0CE476DR618
0CE476DD618
0CE476DD618
0CE476DF618
0CE227DF618
0CE476DF618
0CE227DF618
0CE476DF618
0CE227DF618
0CE476DD618
0CE335DK618
0CK224DF56A
0CK224DF56A
0CK224DF56A
181-007G
0CK224DF56A
0CE477DD618
0CE476DD618

0.033U 100V K POLY TP
2200UF STD 35V M FM7.5 BULK

0.033U 100V K POLY TP

0.001U 100V K POLY NI TP
270P 50V K B TA52
2200UF STD 25V M FL BULK
560P 1KV K B TS
BUP 0.0033UF 1.6KV 5%,-5% FM 28.5*13.5*8.0
2200UF KME 25V M FL TP7.5
560P 1KV K B TS
1000PF 1KV 10%,-10% R/TP DE0905-979
000PF 1KV 10%,-10% R/TP DE0905-979
220P 1KV K B TP5
PP 400V 0.022UF J
MPP 1.6KV 0.0015UF J
1000PF 1KV 10%,-10% R/TP DE0905-979
MPP 1600V 0.0095UF H
PP 400V 0.022UF J

0.33UF 200V 5% FM MPP
MPP 400V 0.22UF J
PP 400V 0.12UF J
MPP 630V 0.1UF J
100UF STD 50V M FL TP5

0.01UF 50V Z F TR
470P 50V K B TA52
10000P 16V M Y TA52

6.8UF SM,SA 50V 20% FM7.5 BP(S)

0.027U 100V K POLY TP
560P 1KV K B TS
100UF STD 50V M FL TP5
470PF 2KV 10%,-10% R/TP DE0907-486
470PF 2KV 10%,-10% R/TP DE0907-486

0.0056U 100V K POLY TP
560P 2KV K B TS
47UF STD 250V 20% FL TP 5
47UF STD 10V 20% FL TP 5
47UF STD 10V 20% FL TP 5
47UF STD 16V M FL TP5
220UF STD 16V M FL TP5
47UF STD 16V M FL TP5
220UF STD 16V M FL TP5
47UF STD 16V M FL TP5
220UF STD 16V M FL TP5
47UF STD 10V 20% FL TP 5

3.3UF STD 50V 20% FL TP 5
220000PF 2012 16V 10% R/TP X7R
220000PF 2012 16V 10% R/TP X7R
220000PF 2012 16V 10% R/TP X7R
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
220000PF 2012 16V 10% R/TP X7R
470UF STD 10V M FL TP5
47UF STD 10V 20% FL TP 5

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 33 -

LOCA. NO PART NO DESCRIPTION
C532

C601
C602
C603
C604
C605
C606
C607
C610
C611
C612
C613
C614
C615
C617
C618
C619
C620
C621
C622
C623
C624
C625
C626
C627
C628
C629
C630
C631
C632
C633
C634
C635
C636
C637
C638
C639
C640
C650
C651
C652
C653
C655
C656
C657
C660
C661
C662
C663
C801
C803
C806

0CH3104K566
0CE475DK618
0CN3320F569
0CN3320F569
0CN2210K519
0CN1520F569
0CE475DK618
0CE475DK618
0CE106DF618
0CN1030F679
0CN1030F679
0CE107DD618
0CN1030F679
0CX5600K409
0CN1040K949
181-007G
181-007G
181-442Z
0CN1030F679
0CN1020K519
0CE106DF618
0CE476DD618
0CX5600K409
0CN4710K519
0CX5600K409
0CC0200K115
0CC0200K115
0CN1030F679
0CX5600K409
0CE476DF618
0CN2720F569
0CN2720F569
0CN2720F569
0CN2720F569
0CN1030F679
0CN1030F679
181-442Z
181-442Z
0CE108DH618
0CN2230H949
0CQ2242K439
0CN3320F569
0CQ2242K439
0CN3320F569
0CE336DD618
181-007G
181-007G
181-007G
181-007G
0CE477DH618
181-091G
181-014Y

0.1UF 50V 10% X7R 2012 R/TP

4.7UF STD 50V 20% FL TP 5
3300P 16V K X TA52
3300P 16V K X TA52
220P 50V K B TA52
1500P 16V K X TA52

4.7UF STD 50V 20% FL TP 5

4.7UF STD 50V 20% FL TP 5
10UF STD 16V M FL TP5
10000P 16V M Y TA52
10000P 16V M Y TA52
100UF STD 10V M FL TP5
10000P 16V M Y TA52
56P 50V J SL TA52

0.1M 50V Z F TA52
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
PE,ECQ-B1H104KF3(TR)
10000P 16V M Y TA52
1000P 50V K B TA52
10UF STD 16V M FL TP5
47UF STD 10V 20% FL TP 5
56P 50V J SL TA52
470P 50V K B TA52
56P 50V J SL TA52
2P 50V D NP0 TS
2P 50V D NP0 TS
10000P 16V M Y TA52
56P 50V J SL TA52
47UF STD 16V M FL TP5
2700P 16V K X TA52
2700P 16V K X TA52
2700P 16V K X TA52
2700P 16V K X TA52
10000P 16V M Y TA52
10000P 16V M Y TA52
PE,ECQ-B1H104KF3(TR)
PE,ECQ-B1H104KF3(TR)
1000UF STD 25V M FL TP5
22000P 25V Z FTA52

0.22UF S 50V 5% M/PE NI TP5
3300P 16V K X TA52

0.22UF S 50V 5% M/PE NI TP5
3300P 16V K X TA52
33UF STD 10V 20% FL TP 5
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
MPE ECQ-V1H334JL3(TR), 50V 0.33UF J
470UF STD 25V M FL TP5
470PF 2KV 10%,-10% R/TP DE0907-486
MPP 1.6KV 0.0015UF J

LOCA. NO PART NO DESCRIPTION

C807
C808
C809
C811
C812
C813
C814
C815
C816
C821
C824
C851
C853
C855
C856
C857
C858
C859
C861
C862
C863
C864
C866
C867
C868
C869
C870
C871
C872
C873
C875
C900
C901
C902
C903
C904
C905
C906
C907
C910
C911
C912
C914
C915
C916
C917
C918
C919
C920
C925
C927
C928

181-091C
0CE107BJ618
0CK1020K515
181-120K
0CK1020K515
181-091D
0CQZVBK002A
181-091C
181-091D
181-001Y
0CQZVBK002C
0CK1020K515
0CE108DF618
0CE477DD618
181-091C
0CE228DF618
0CE108DF618
181-091C
0CE108DF618
0CE475CK636
181-091C
0CE108BH618
0CK4710W515
0CE107DN618
0CE227DD618
0CE106DH618
181-091D
0CE227DP61A
0CE227DP61A
0CQ1041N509
0CE108DF618
0CE475BR618
0CE475BR618
0CE475DR618
0CC0500K115
0CE475BR618
0CK5610W515
0CN1040K949
0CN1040K949
0CE225DK618
0CN1040K949
0CN1040K949
0CE228DF618
0CK5610W515
181-033T
0CN1040K949
0CC0500K115
0CK5610W515
0CC5600K415
0CN1040K949
0CC4700K415
0CC3300K415

470PF 1KV 10%,-10% R/TP DE0705-979F
100UF KME 35V M FL TP5
1000P 50V K B TS
2200PF 4KV M E FMTW LEAD 4.5
1000P 50V K B TS
1000PF 1KV 10%,-10% R/TP DE0905-979
A.C 275V 0.1UF M (S=15)
470PF 1KV 10%,-10% R/TP DE0705-979F
1000PF 1KV 10%,-10% R/TP DE0905-979
330UF 0 450V M VNSN BULK
A.C 275V 0.22UF K (S=22.5)
1000P 50V K B TS
1000UF STD 16V M FL TP5
470UF STD 10V M FL TP5
470PF 1KV 10%,-10% R/TP DE0705-979F
2200UF STD 16V M FL TP5
1000UF STD 16V M FL TP5
470PF 1KV 10%,-10% R/TP DE0705-979F
1000UF STD 16V M FL TP5

4.7UF SHL,SD 50V 20% FM5 BP(D) TP
470PF 1KV 10%,-10% R/TP DE0705-979F
1000UF KME 25V M FL TP5
470PF 500V K B TR
100UF STD 100V M FL TP5
220UF STD 10V M FL TP5
10UF STD 25V M FL TP5
1000PF 1KV 10%,-10% R/TP DE0905-979
220UF STD 160V 20% FL TP 7.5
220UF STD 160V 20% FL TP 7.5

0.1U 100V K POLY TP
1000UF STD 16V M FL TP5

4.7UF KME TYPE 250V 20% FL TP 5

4.7UF KME TYPE 250V 20% FL TP 5

4.7UF STD 250V 20% FL TP 5
5P 50V D NP0 TS

4.7UF KME TYPE 250V 20% FL TP 5
560P 500V K B TS

0.1M 50V Z F TA52

0.1M 50V Z F TA52

2.2UF STD 50V 20% FL TP 5

0.1M 50V Z F TA52

0.1M 50V Z F TA52
2200UF STD 16V M FL TP5
560P 500V K B TS
2KV B 222K TP7.5

0.1M 50V Z F TA52
5P 50V D NP0 TS
560P 500V K B TS
56P 50V J NP0 TP

0.1M 50V Z F TA52
47P 50V J NP0 TP
33P 50V J NP0 TP

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 34 -

LOCA. NO PART NO DESCRIPTION

L010
L011
L012
L013
L014
L015
L101
L102
L1101
L1201
L1202
L204
L205
L206
L207
L209
L211
L213
L215
L241
L401
L402
L403
L404
L407
L510
L511
L512
L513
L603
L605
L853
L901

G18
G19
P012
P013
P1001B
P101A
P102
P1101A
P1101B
P1101B
P1102
P1103
P1103A
P1103B
P1151B

0LC1032101A
0LC1032101A
0LC1032101A
0LC1032101A
0LC1032101A
0LC1032101A
0LC1032101A
0LC1032101A
0LA0102K119
0LA0472K119
0LA0472K119
0LA0102K119
0LA0102K119
0LA0102K119
0LA0102K119
0LC1032101A
0LC1032101A
0LC1032101A
0LC1032101A
0LC0233002A
6140VE0001T
150-C13B
150-C13B
150-W01A
150-717K
0LC1032101A
0LC1032101A
0LC1032101A
0LC1032101A
0LA0102K119
0LA0102K119
150-C02F
0LA0272K139

387-907F
387-907F
366-922B
366-932B
366-932C
366-932E
366-009D
366-009D
366-922C
366-009D
366-009D
387-552Q
366-009D
366-009D
366-922G

INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP
INDUCTOR,AXIAL LEAD 47UH K 2.3*3.4 TP
INDUCTOR,AXIAL LEAD 47UH K 2.3*3.4 TP
INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP
INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP
INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP
INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 3.3UH CERATECH R/TP
COIL,LINEARITY 23.5TURN L81 YL81 5.2UH
COIL,CHOKE 52UH PHY TURN
COIL,CHOKE 52UH PHY TURN
COIL,CHOKE WIDTH 24UH
COIL,CHOKE 1.1UH PHY TURN
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,CHIP 10UH 10% 3216 R/TC
INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP
INDUCTOR,AXIAL LEAD 10UH K 2.3*3.4 TP
COIL,CHOKE 82UH PHY TURN
INDUCTOR,AXIAL LEAD 27UH K 4X10.5 TP

CONNECTOR ASSY,1P NON 350MM R-H UL 1617 AWG 22
CONNECTOR ASSY,1P NON 350MM R-H UL 1617 AWG 22
CONNECTOR (CIRC),WAFER 2.5MM 3P R/A
CONNECTOR (CIRC),WAFER 2.5MM 3P S
CONNECTOR (CIRC),WAFER 2.5MM 4P S
CONNECTOR (CIRC),WAFER 2.5MM 6P S
CONNECTOR (CIRC),WAFER 2.36PAI 1P .
CONNECTOR (CIRC),WAFER 2.36PAI 1P .
CONNECTOR (CIRC),WAFER 2.5MM 4P R/A
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR ASSY,2P 10.0MM 250MM H-H
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.5MM 8P R/A

LOCA. NO PART NO DESCRIPTION

P1152B
P1201B
P1201B
P18
P19
P201B
P202B
P203B
P204B
P2903
P401
P401
P601B
P601B
P650
P651
P803A
P803B
P822A
P822B
P823
P824
P901A
P901B
P902A
P902B
P905
P906

AR101
AR102
F851
F855
F856
FB854
FR2948
FR359
FR360
FR442
FR443
FR448
R110
R1101
R1102
R1103
R1104
R111
R111
R112
R112
R113

387-A08F
366-922G
366-922L
366-009D
366-009D
366-173L
366-173L
366-173L
366-173L
366-932B
366-043K
387-574J
366-921L
387-J12K
366-932C
366-932B
366-009D
366-009D
366-009D
366-009D
366-009D
366-009D
366-921L
366-922L
366-921J
387-A10G
366-009D
366-009D

0RRZVTA001D
0RRZVTA001D
0RP0020J809
0RP0050H709
0RP0020J809
0RF0470H609
0RF1000H609
0RP0050H709
0RP0050H709
0RF0301K607
0RP0050H709
0RP0050H709
0RS0102K607
0RD4702F609
0RD1501F609
0RD3300F609
0RD0102F609
0RD1001F609
0RS0102K607
0RD1002F609
0RS0102K607
0RD0102F609

CONNECTOR ASSY 8P 2.5MM 350MM H-B
CONNECTOR (CIRC),WAFER 2.5MM 8P R/A
CONNECTOR (CIRC),WAFER 2.5MM 12P R/A
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.5MM 12*2P
CONNECTOR (CIRC),WAFER 2.5MM 12*2P
CONNECTOR (CIRC),WAFER 2.5MM 12*2P
CONNECTOR (CIRC),WAFER 2.5MM 12*2P
CONNECTOR (CIRC),WAFER 2.5MM 3P S
CONNECTOR (CIRC),WAFER PLUG(4P)
CONNECTOR ASSY 4P 8.0MM 550MM H-H
CONNECTOR (CIRC),WAFER 2.5MM 12P .
CONNECTOR ASSY 12P 2.5MM 600MM H-H
CONNECTOR (CIRC),WAFER 2.5MM 4P S
CONNECTOR (CIRC),WAFER 2.5MM 3P S
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.5MM 12P .
CONNECTOR (CIRC),WAFER 2.5MM 12P R/A
CONNECTOR (CIRC),WAFER 2.5MM 10P .
CONNECTOR ASSEMBLY 10P 2.5MM 400MM
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M
CONNECTOR (CIRC),WAFER 2.36PAI 1P . K/M

22 OHM 1 / 16 W 1608 5% R/TP 4P E24 SERIES
22 OHM 1 / 16 W 1608 5% R/TP 4P E24 SERIES

0.02 OHM 1 W 20% TA52

0.05 OHM 1/2 W 10% TA52

0.02 OHM 1 W 20% TA52

0.47 OHM 1/2 W 5.00% TA52
100 OHM 1/2 W 5.00% TA52

0.05 OHM 1/2 W 10% TA52

0.05 OHM 1/2 W 10% TA52
3 OHM 2 W 5.00% TA62

0.05 OHM 1/2 W 10% TA52

0.05 OHM 1/2 W 10% TA52
10 OHM 2 W 5.00% TA62
47K OHM 1/6 W 5% TA52

1.5K OHM 1/6 W 5% TA52
330 OHM 1/6 W 5.00% TA52
10 OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
10 OHM 2 W 5.00% TA62
10K OHM 1/6 W 5% TA52
10 OHM 2 W 5.00% TA62
10 OHM 1/6 W 5% TA52

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

COIL & INDUCTOR

CONNECTOR

RESISTOR

R113
R1130
R1151
R1152
R1153
R1154
R1155
R116
R117
R119
R1204
R1206
R1208
R1212
R125
R126
R127
R128
R129
R1292
R130
R131
R132
R133
R134
R135
R136
R137
R138
R160
R161
R162
R163
R164
R165
R166
R167
R168
R169
R170
R171
R172
R173
R200
R201
R202
R208
R211
R218
R219
R220
R220

R2906
R2907
R2908
R2909
R2910
R2911
R2912
R2921
R2922
R2928
R2929
R2930
R2931
R2932
R2933
R2934
R2935
R2936
R2937
R2938
R2939
R2940
R2941
R2942
R2943
R2944
R2945
R2946
R2947
R2955
R2959
R2990
R311
R312
R313
R314
R318
R324
R325
R326
R327
R328
R329
R330
R331
R332
R334
R335
R401
R403
R404
R405

- 35 -

LOCA. NO PART NO DESCRIPTION

0RS0102K607
0RKZVTA001K
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD1002F609
0RD2201F609
0RD0102F609
0RD2403F609
0RD0752F609
0RD2403F609
0RD0752F609
0RD1000F609
0RD1000F609
0RD1000F609
0RD0222F609
0RD1000F609
0RD0752F609
0RD1000F609
0RD2200F609
0RD2200F609
0RD2400F609
0RD1001F609
0RS1801H609
0RD1002F609
0RD1002F609
0RD0102F609
0RD1001F609
0RD3002F609
0RD1002F609
0RD1003F609
0RD1801F609
0RD1801F609
0RD4701F609
0RD4701F609
0RD4701F609
0RD5602F609
0RD2202F609
0RD5103F609
0RD5602F609
0RD1000F609
0RD0752F609
0RD0752F609
0RD0752F609
0RD1000F609
0RD0752F609
0RD0752F609
0RD0752F609
0RD1001F609
0RD2200F609

10 OHM 2 W 5.00% TA62

0.47M OHM 1/2 W 5% TA52 PILKOR
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
10K OHM 1/6 W 5% TA52

2.2K OHM 1/6 W 5.00% TA52
10 OHM 1/6 W 5% TA52
240K OHM 1/6 W 5.00% TA52
75 OHM 1/6 W 5.00% TA52
240K OHM 1/6 W 5.00% TA52
75 OHM 1/6 W 5.00% TA52
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
22 OHM 1/6 W 5.00% TA52
100 OHM 1/6 W 5% TA52
75 OHM 1/6 W 5.00% TA52
100 OHM 1/6 W 5% TA52
220 OHM 1/6 W 5.00% TA52
220 OHM 1/6 W 5.00% TA52
240 OHM 1/6 W 5.00% TA52
1K OHM 1/6 W 5% TA52

1.8K OHM 1/2 W 5.00% TA52
10K OHM 1/6 W 5% TA52
10K OHM 1/6 W 5% TA52
10 OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
30K OHM 1/6 W 5.00% TA52
10K OHM 1/6 W 5% TA52
100K OHM 1/6 W 5% TA52

1.8K OHM 1/6 W 5.00% TA52

1.8K OHM 1/6 W 5.00% TA52

4.7K OHM 1/6 W 5% TA52

4.7K OHM 1/6 W 5% TA52

4.7K OHM 1/6 W 5% TA52
56K OHM 1/6 W 5% TA52
22K OHM 1/6 W 5% TA52
510K OHM 1/6 W 5.00% TA52
56K OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
75 OHM 1/6 W 5.00% TA52
75 OHM 1/6 W 5.00% TA52
75 OHM 1/6 W 5.00% TA52
100 OHM 1/6 W 5% TA52
75 OHM 1/6 W 5.00% TA52
75 OHM 1/6 W 5.00% TA52
75 OHM 1/6 W 5.00% TA52
1K OHM 1/6 W 5% TA52
220 OHM 1/6 W 5.00% TA52

LOCA. NO PART NO DESCRIPTION

0RD1500F609
0RD1600F609
0RD3001F609
0RD1500F609
0RD3001F609
0RD5601F609
0RD3001F609
0RD3000H609
0RD3000H609
0RD0102F609
0RD1000F609
0RD0102F609
0RD1000F609
0RD0822F609
0RD0822F609
0RF0102J607
0RD1202H609
0RD2001H609
0RD5602H609
0RD5602H609
0RD1201H609
0RD1501H609
0RD1501H609
0RD0391H609
0RD0562H609
0RD0391H609
0RD0562H609
0RS8200J607
0RS8200J607
0RD2202H609
0RD5101F609
0RD0222F609
0RD1002F609
0RD2202F609
0RD1001F609
0RD3001F609
0RS0331K619
0RD1001F609
0RD1000F609
0RN1801F409
0RN1801F409
0RS2200K607
0RN0271J607
0RN0221J607
0RN1001F409
0RD1000F609
0RD1002F609
0RD1000F609
0RD1002F609
0RS1001J607
0RS4701K619
180-A01B

150 OHM 1/6 W 5.00% TA52
160 OHM 1/6 W 5.00% TA52
3K OHM 1/6 W 5.00% TA52
150 OHM 1/6 W 5.00% TA52
3K OHM 1/6 W 5.00% TA52

5.6K OHM 1/6 W 5% TA52
3K OHM 1/6 W 5.00% TA52
300 OHM 1/2 W 5.00% TA52
300 OHM 1/2 W 5.00% TA52
10 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
10 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
82 OHM 1/6 W 5.00% TA52
82 OHM 1/6 W 5.00% TA52
10 OHM 1 W 5.00% TA62
12K OHM 1/2 W 5.00% TA52
2K OHM 1/2 W 5.00% TA52
56K OHM 1/2 W 5.00% TA52
56K OHM 1/2 W 5.00% TA52

1.2K OHM 1/2 W 5.00% TA52

1.5K OHM 1/2 W 5.00% TA52

1.5K OHM 1/2 W 5.00% TA52

3.9 OHM 1/2 W 5.00% TA52
56 OHM 1/2 W 5.00% TA52

3.9 OHM 1/2 W 5.00% TA52
56 OHM 1/2 W 5.00% TA52
820 OHM 1 W 5.00% TA62
820 OHM 1 W 5.00% TA62
22K OHM 1/2 W 5.00% TA52

5.1K OHM 1/6 W 5.00% TA52
22 OHM 1/6 W 5.00% TA52
10K OHM 1/6 W 5% TA52
22K OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
3K OHM 1/6 W 5.00% TA52

3.3 OHM 2 W 5% TR
1K OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52

1.8K OHM 1/6 W 1.00% TA52

1.8K OHM 1/6 W 1.00% TA52
220 OHM 2 W 5.00% TA62

2.7 OHM 1 W 5.00% TA62

2.2 OHM 1 W 5.00% TA62
1K OHM 1/6 W 1.00% TA52
100 OHM 1/6 W 5% TA52
10K OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
10K OHM 1/6 W 5% TA52
1K OHM 1 W 5.00% TA62

4.7K OHM 2 W 5% TR
RW ROUND G 2W 0.11 K TA31(63)

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

- 36 -

LOCA. NO PART NO DESCRIPTION
R406

R407
R410
R413
R414
R415
R416
R417
R418
R419
R420
R421
R422
R423
R424
R425
R427
R450
R451
R452
R490
R544
R549
R601
R602
R611
R612
R613
R614
R615
R623
R624
R636
R637
R651
R652
R654
R656
R657
R658
R659
R660
R661
R663
R664
R665
R668
R669
R680
R803
R804
R805

0RS0561K619
0RS1501K607
0RD3301F609
0RN4701F409
0RD6802F609
0RD1000F609
0RN4702F409
0RD4700F609
0RD2001A609
0RN1501F409
0RD1001F609
0RD0221F609
0RD1001A609
0RD2701A609
0RS0561K607
0RD2400A609
0RD1001A609
0RD0221A609
180-C02M
0RS0101J607
180-B01E
0RS0332K607
0RS0331K607
0RD3601F609
0RD3601F609
0RD0102F609
0RD1000F609
0RD1000F609
0RD3302F609
0RD3302F609
0RD1000F609
0RD1000F609
0RD1001F609
0RD1001F609
0RD3001F609
0RD1102F609
0RD4702F609
0RD1102F609
0RD1001F609
0RD1001F609
0RD1001F609
0RD4702F609
0RD3001F609
0RD1002F609
0RD2701F609
0RD2001A609
0RD1001F609
0RD1001F609
0RD3000A609
0RD0201A609
0RD4701F609
0RD1001F609

5.6 OHM 2 W 5% TR

1.5K OHM 2 W 5.00% TA62

3.3K OHM 1/6 W 5.00% TA52

4.7K OHM 1/6 W 1.00% TA52
68K OHM 1/6 W 5.00% TA52
100 OHM 1/6 W 5% TA52
47K OHM 1/6 W 1.00% TA52
470 OHM 1/6 W 0.05 TA52
2K OHM 1/2 W(7.0) 5.00% TA52

1.5K OHM 1/6 W 1.00% TA52
1K OHM 1/6 W 5% TA52

2.2 OHM 1/6 W 5.00% TA52
1K OHM 1/2 W(7.0) 5.00% TA52

2.7K OHM 1/2 W(7.0) 5.00% TA52

5.6 OHM 2 W 5.00% TA62
240 OHM 1/2 W(7.0) 5.00% TA52
1K OHM 1/2 W(7.0) 5.00% TA52

2.2 OHM 1/2 W(7.0) 5.00% TA52

5.6K OHM 1/2 W 10% TA52 ERC12GK562V
1 OHM 1 W 5.00% TA62
RS RECT S 5W 15K J DOUBLE
33 OHM 2 W 5.00% TA62

3.3 OHM 2 W 5.00% TA62

3.6K OHM 1/6 W 5.00% TA52

3.6K OHM 1/6 W 5.00% TA52
10 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
33K OHM 1/6 W 5% TA52
33K OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
100 OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
3K OHM 1/6 W 5.00% TA52
11K OHM 1/6 W 5.00% TA52
47K OHM 1/6 W 5% TA52
11K OHM 1/6 W 5.00% TA52
1K OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
47K OHM 1/6 W 5% TA52
3K OHM 1/6 W 5.00% TA52
10K OHM 1/6 W 5% TA52

2.7K OHM 1/6 W 5% TA52
2K OHM 1/2 W(7.0) 5.00% TA52
1K OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52
300 OHM 1/2 W(7.0) 5.00% TA52
2 OHM 1/2 W(7.0) 5.00% TA52

4.7K OHM 1/6 W 5% TA52
1K OHM 1/6 W 5% TA52

LOCA. NO PART NO DESCRIPTION

R806
R807
R808
R809
R810
R832
R833
R852
R853
R854
R855
R857
R859
R860
R862
R863
R864
R865
R866
R867
R868
R869
R870
R873
R874
R877
R902
R903
R905
R906
R907
R908
R909
R910
R912
R913
R914
R915
R917
R918
R921
R929
R930
R938
R946
R947

SG904
SG911
SG912
SG913

180-A01P
0RKZVTA001C
0RD3001F609
0RS2402K607
0RS2402K619
0RD1600F609
0RD2203A609
0RS0102K607
0RD4701F609
0RD4702F609
0RD4701F609
0RD2701F609
0RD7501F609
0RD4701F609
0RD4702F609
0RD2001F609
0RF0161K607
0RF0161K607
0RS1002H609
0RD7502A609
0RD1002F609
0RD4701F609
0RD4702F609
0RD4701F609
0RD4701F609
0RD4702F609
0RD1002F609
0RS5602K607
0RD1001F609
0RD2200F609
0RS5602K607
0RS4700H609
0RN2201F409
0RF0181K607
0RN3301F409
0RN3301F409
0RD2401F609
0RD1001F609
0RD1803H609
0RS5602K607
0RN1001F409
0RD2401F609
0RS4700H609
0RS4700H609
0RD1001F609
0RD2401F609

6918VAX002H
6918VAX002D
6918VAX002D
6918VAX002D

0.13 OHM 2 W 5% TA62 RWR

8.2M OHM 1/2 W 5% TA52 UL PILKOR
3K OHM 1/6 W 5.00% TA52
24K OHM 2 W 5.00% TA62
24K OHM 2 W 5% TR
160 OHM 1/6 W 5.00% TA52
220K OHM 1/2 W(7.0) 5.00% TA52
10 OHM 2 W 5.00% TA62

4.7K OHM 1/6 W 5% TA52
47K OHM 1/6 W 5% TA52

4.7K OHM 1/6 W 5% TA52

2.7K OHM 1/6 W 5% TA52

7.5K OHM 1/6 W 5.00% TA52

4.7K OHM 1/6 W 5% TA52
47K OHM 1/6 W 5% TA52
2K OHM 1/6 W 5% TA52

1.6 OHM 2 W 5.00% TA62

1.6 OHM 2 W 5.00% TA62
10K OHM 1/2 W 5.00% TA52
75K OHM 1/2 W(7.0) 5.00% TA52
10K OHM 1/6 W 5% TA52

4.7K OHM 1/6 W 5% TA52
47K OHM 1/6 W 5% TA52

4.7K OHM 1/6 W 5% TA52

4.7K OHM 1/6 W 5% TA52
47K OHM 1/6 W 5% TA52
10K OHM 1/6 W 5% TA52
56K OHM 2 W 5.00% TA62
1K OHM 1/6 W 5% TA52
220 OHM 1/6 W 5.00% TA52
56K OHM 2 W 5.00% TA62
470 OHM 1/2 W 5.00% TA52

2.2K OHM 1/6 W 1.00% TA52

1.8 OHM 2 W 5.00% TA62

3.3K OHM 1/6 W 1.00% TA52

3.3K OHM 1/6 W 1.00% TA52

2.4K OHM 1/6 W 5.00% TA52
1K OHM 1/6 W 5% TA52
180K OHM 1/2 W 5% TA52
56K OHM 2 W 5.00% TA62
1K OHM 1/6 W 1.00% TA52

2.4K OHM 1/6 W 5.00% TA52
470 OHM 1/2 W 5.00% TA52
470 OHM 1/2 W 5.00% TA52
1K OHM 1/6 W 5% TA52

2.4K OHM 1/6 W 5.00% TA52

SPARK GAP,AXIAL WSP-122N 1200V -100V,+300V
SPARK GAP,AXIAL WSP-301M 300V 20% TYPE 5MM
SPARK GAP,AXIAL WSP-301M 300V 20% TYPE 5MM
SPARK GAP,AXIAL WSP-301M 300V 20% TYPE 5MM

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

SPARK GAP

- 37 -

LOCA. NO PART NO DESCRIPTION

SW1101
SW1151
SW1152
SW1153
SW1154
SW1155
SW1156

B100
FB001
FB204
FB301
FB801
FB802
FB805
FB853
FB855
FB856
FB902
J121
J59
L102
L601
T1101
T811
X001
X01
X101
X501
X601

A1
A2
A3

F1101
JA1
LD1101
P1102
PA1101
RL801
RL802
SK900
T402
TH801
TH810
TU101

6600VM2002A
140-315A
140-315A
140-315A
140-315A
140-315A
140-315A

6210TCE001G
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
125-022K
150-F06R
150-F06T
156-A01L
156-A01L
6202VDB007B
6202VDB007A
156-A02M

3828VA0421D
3828VD0151A
6710V00112E

0FS4001B53C
6613V00010B
162-002B
174-322D
6726VV0006J
6920VB1001E
6920VB1001E
6620VBD002A
6174V-6003E
163-058D
163-048D
6700MF0001F

SWITCH,PUSH SDKEA3 ALPS IEC 250V 8A 480G
SWITCH,TACT SKHV17910B LG C&D NON 12V
SWITCH,TACT SKHV17910B LG C&D NON 12V
SWITCH,TACT SKHV17910B LG C&D NON 12V
SWITCH,TACT SKHV17910B LG C&D NON 12V
SWITCH,TACT SKHV17910B LG C&D NON 12V
SWITCH,TACT SKHV17910B LG C&D NON 12V

FILTER,EMC HH-1M3216-501 3216MM R/TP
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC FERRITE 1UH TAPING
FILTER,EMC SQE3535 20MH PHY TURN
FILTER,EMC SQE3535 20MH PHY TURN
RESONATOR,CRYSTAL 6.000MHZ 30PPM 16PF BK
RESONATOR,CRYSTAL 6.000MHZ 30PPM 16PF BK
RESONATOR,CRYSTAL 20.250MHZ 30PPM 13PF BK
RESONATOR,CRYSTAL 5.000MHZ 30PPM 16PF BK
RESONATOR,CRYSTAL 18.432MHZ 30PPM 10PF BK

MANUAL,OWNERS UK/WTY LG EN 112DE TX
MANUAL,SERVICE RE/RL-32FZ30R LG EU
REMOTE CONTROLLER MC036A W/O PIP W/TXT

FUSE,SLOW BLOW 4000MA 250 V 5.2X20
JACK ASSY PMJ016B PARK ELEC A/V 3P +
LED LED ASSY (MC51A,M-8.9)
POWER CORD,POWER W/FILTER L=300(179B)VDE
REMOTE CONTROLLER RECEIVER , 38KHZ
RELAY,OEG 5V 0.05A 250V 5A 100 OHM 1A
RELAY,OEG 5V 0.05A 250V 5A 100 OHM 1A
SOCKET (CIRC),CPT PCS029A 9PIN 14/360
FBT,BSC29-5562 29 MUSUN .
THERMISTOR, 7 OHM 20% 80/60
THERMISTOR,KL15L2R5 SSANSHIN +/- 15% 125V
TUNER,TAUD-M230D LG MULTI FS 3SYS

LOCA. NO PART NO DESCRIPTION

VD801
ZN1101

164-003K
164-003K

VARISTOR,SVC621D-14A ILJIN 620V 0%
VARISTOR,SVC621D-14A ILJIN 620V 0%

For Capacitor & Resistors,
the charactors at 2nd and 3rd
digit in the P/No. means as
follows;

CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic

RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible

SWITCH

FILTER & CRYSTAL

ACCESSORIES

MISCELLANEOUS

P/N: 3854VA0121A-S1
DATE: 2003.07.15
