ENGLISH

MAGYAR CEŠTINA HRVATSKI SRPSKI

SIOVENČINA

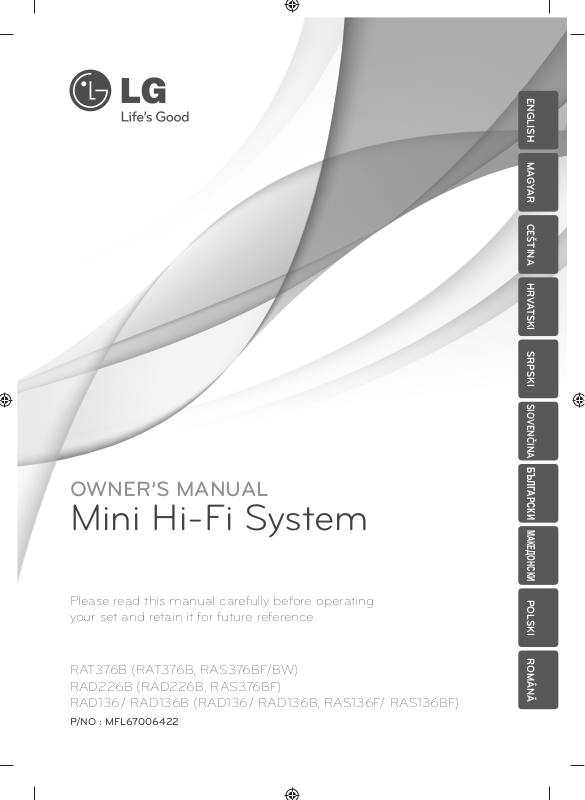

OWNER’S MANUAL

Mini Hi-Fi System

Please read this manual carefully before operating your set and retain it for future reference.

RAT376B (RAT376B, RAS376BF/BW) RAD226B (RAD226B, RAS376BF) RAD136/ RAD136B (RAD136/ RAD136B, RAS136F/ RAS136BF)

P/NO : MFL67006422

БЪЛГАРСКИ

МАКЕДОНСКИ

POLSKI ROMÂNĂ

Getting Started2

Safety Information

Getting Started

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a con ned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This lightning  ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of su cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those speci ed herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the speci cation page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or  re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Getting Started 3

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the

old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine,  re or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects  lled with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city o ce, waste disposal service or the shop where you purchased the product.

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC.

European representative :

LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31–(0)36–547–8888)

Copyrights

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.

(Mastered/ Live File System : Disc format system for Windows Vista)

Getting Started

Table of Contents4

Table of Contents

1 Getting Started

2 Safety Information 6 Unique Features 6 Accesories 6 Playable ﬁ le Requirement 6 – MP3/ WMA music ﬁ le requirement 6 – Compatible USB Devices 6 – USB device requirement 7 Remote control 8 Front panel 10 Rear panel

2 Connecting

11 Connecting to speakers 11 – Attaching the speakers to the unit 11 Optional Equipment Connection 11 – AUX IN Connection 12 – USB Connection 12 – Antenna Connection

3 Operating

13 Basic Operations 13 – CD/ USB Operations 13 Other Operations 13 – Programmed Playback 13 – Displaying ﬁ le information

(ID3 TAG) 13 – Turn off the sound temporarily 13 – DEMO 14 – AUTO DJ playback 14 Radio Operations 14 – Listening to the radio 14 – Presetting the Radio Stations 15 – Deleting all the saved stations 15 – Improving poor FM reception 15 – Seeing information about a Radio

station 15 Sound adjustment 15 – Setting the surround mode 16 Setting the Clock 16 – Using your player as an alarm clock 17 – Sleep Timer Setting 17 – Dimmer 17 Advanced Operations 17 – Listening to music from your external

device 17 – Recording to USB 18 – To select recording bit rate and speed

4 Troubleshooting

19 Troubleshooting 19 – General

5 Appendix

20 Trademarks and Licenses 21 Speciﬁ cations 23 Maintenance 23 – Notes on Discs 23 – Handling the Unit

Table of Contents 5

Getting Started6

Unique Features

USB Direct Recording

Getting Started

Records music to your USB device.

Accesories

Please check and identify the supplied accessories.

FM Antenna (1) Remote Control (1)

Battery (1)

Playable ﬁ le Requirement

Compatible USB Devices

• MP3 Player : Flash type MP3 player.

• USB Flash Drive :

Devices that support USB2.0 or USB1.1.

• The USB function of this unit does not support

all USB devices.

USB device requirement

• Devices which require additional program

installation when you have connected it to a computer, are not supported.

• Do not extract the USB device while in

operation.

• For a large capacity USB, it may take longer than

a few minute to be searched.

• To prevent data loss, back up all data.

• If you use a USB extension cable or USB hub, the

USB device is not recognized.

• Using NTFS  le system is not supported. (Only

FAT(16/ 32)  le system is supported.)

• This unit is not supported when the total

number of  les is 1 000 or more.

• External HDD, Card readers, Locked devices, or

hard type USB devices are not supported.

• USB port of the unit cannot be connected to

PC. The unit cannot be used as a storage device.

MP3/ WMA music ﬁ le requirement

MP3/ WMA  le compatibility with this unit is limited as follows :

• Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA)

• Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA)

• Maximum  les : Under 999

• File extensions : “.mp3”/ “.wma”

• CD-ROM  le format : ISO9660/ JOLIET

• We recommend that you use Easy-CD Creator,

which creates an ISO 9660  le system.

Remote control

Getting Started 7

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert one (size AAA) battery with

and 5 matched correctly

• • • • • • a • • • • • •

(POWER): Switches the unit

ON or OFF.

SLEEP: Sets the system to turn o automatically at a speci ed time. (Dimmer : The display window will be darkening by half.)

(OPEN/CLOSE): Opens and

closes the disc tray.

F (FUNCTION): Selects the fuction and input source.

SOUND EFFECT: Chooses sound impressions.

INFO.: Checks information about your music. MP3  les often come with tags. The tag gives the Title, Artist, Album or Time information.

• • • • • • b • • • • • •

REPEAT: Listens to your tracks repeatedly or randomly.

TUNING -/+: Selects the radio station.

C/V

-Skips Fast backward or Forward.

- Searches for a section within a track.

d/M

pauses playback.

: Stops playback or recording.

(Skip/Search):

(Play/Pause): Starts or

• • • • • • c • • • • • •

FOLDER · PRESET w/s: Searches for a folder of MP3/ WMA  les. When a CD/ USB containing MP3/ WMA  les in several folders is being played, press

FOLDER · PRESET w/s selects

to the folder you want to play. Choose a ‘preset number’ for a radio station.

PROGRAM/MEMO.:

- For storing radio stations if you

have saved radio stations using PROGRAM/MEMO. , you can scroll through them and select one.

- Listens to your tracks in any order.

(MUTE): Mutes the sound.

VOLUME +/-: Adjusts speaker volume.

• • • • • • d • • • • • •

RDS/ PTY : RDS (Radio Data System)/ Searches radio stations by radio type.

AUTO DJ: Selects the AUTO DJ mode. (For more information refer to the page 14)

REC: USB direct recording.

Getting Started

Getting Started8

Front panel

Getting Started

Getting Started 9

(Power)

a 1/!

TIMER

With the TIMER function you can turn CD, USB play and TUNER reception on or o at a desired time.

SET/ DEMO/ RDS

Con rms the setting. / show demo./ RDS (Radio Data System.

CLOCK

For setting the clock and checking the time.

STOP

c Z

BASS BLAST

Reinforces the treble, bass and surround e ect.

/ TUN. - (Skip/Search)

e C

VOLUME

R (REC)

Recoding to USB.

Disc tray

Display window

FUNC.

Selects the function or input source.

ST./ MO.

k d/M

Starts playback and pauses. Selects Mono/ Stereo.

Chooses sound impressions.

/ TUN. + (Skip/Search)

m V

(OPEN/CLOSE)

n B

AUTO DJ

Selects the AUTO DJ mode. (For more informaion refer to the page 14)

USB Port

You can play or recoding sound  les by connecting the USB device.

Getting Started

Rear panel

Getting Started

Getting Started10

Power cord

ANTENNA (FM)

AUX IN connectors

Cooling fan (RAT376B)

Speaker terminal

RAD136(B)/ RAD226B Speaker terminal

Connecting 11

Connecting to speakers

Attaching the speakers to the unit

To connect the cable to the unit, press each plastic  nger pad to open the connection terminals on the unit. Insert the wire and release the  nger pad.

Connect the black stripe of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).

Optional Equipment Connection

AUX IN Connection

Connect an output of auxiliary device(Camcoder, TV, Player, etc) to the AUX AUDIO Input (L/R) connector.

If your device has only one output for audio(mono), connect it to the left (white) audio jack on the unit.

Connecting

Caution

Be careful to make sure children not to put

their hands or any objects into the *speaker duct. *Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).

The speakers contain magnet parts, so color

irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

Make sure to install the speaker with other

people in order to prevent it from falling and causing injuries to the installer.

Connecting12

USB Connection

Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.

Connecting

Note

Removing the USB Device from the unit

1. Choose a di erent function/ mode or press Z STOP twice in a row.

2. Remove the USB device from the unit.

Antenna Connection

Connect the supplied FM antenna for listening to the radio.

Connect the FM wire antenna to the FM antenna connector.

Note

Be sure to fully extend the FM wire antenna. After connecting the FM wire antenna, keep it horizontal.

Operating 13

Basic Operations

CD/ USB Operations

1. Insert the disc by pressing B (OPEN/CLOSE) or connect the USB device to the USB port.

2. Select the CD or USB function by pressing F (FUNCTION) on the remote control or FUNC. on the unit.

3. Select a  le (or track) you want to play by pressing C/V.

To Do this

Stop Press

Playback Press d/

Pause Press d/

Skipping to

the next/

track/  le

Searching

for a section

within a track

Playing

repeatedly or

randomly

M M

During playback, press C/V to go to the next track/  le or to return to the beginning of the current track/  le.

Press C twice brie y to step back to the previous track/  le.

Press and hold C/V during playback and release it at the point you want to listen to.

Press REPEAT on the remote control repeatedly, the display change in the following order, RPT1

-> RPT DIR (only MP3/ WMA) -> RPT ALL -> RANDOM -> OFF

Other Operations

5. Press d/M to play the programmed music  les.

6. To clear your selection, press Z, PROGRAM/ MEMO. and then Z.

Note

The programs are also cleared when the disc or USB device is removed, the unit is powered o or the function is switched to others.

Displaying ﬁ le information (ID3 TAG)

While playing an MP3  le containing  le information, you can display the information by pressing INFO..

Turn off the sound temporarily

Press @ MUTE to mute your unit.

You can mute your unit, for example, to answer the telephone, the “MUTE” is displayed in the display window.

DEMO

In the power o state, it demonstrates the function on display window by pressing DEMO. To cancel the DEMO, press it again.

Note

While DEMO, this unit will keep DEMO

status even if you unplug the power cord connection.

You can enjoy other functions during

the DEMO. Then the DEMO will pause to temporary.

- Without input key in 10 sec, the DEMO will play back automatically.

Operating

Programmed Playback

The program function enables you to store your favorite  les from any disc or USB device.

A program can contain 20 tracks.

1. Insert a CD or USB and wait for it to be order.

2. Press PROGRAM/MEMO. on the remote control in stop status.

3. Press C/V on the unit or on the remote control in stop satus.

4. Press PROGRAM/MEMO. again to save and select a next track.

Operating14

AUTO DJ playback

Auto DJ blends the end of one song into the beginning of another for seamless playback. It equalizes volume across tracks for uninterrupted playback.

Press AUTO DJ on the remote control or unit repeatedly, the display changes as followings. RANDOM (AUTO DJ RANDOM) -> RPT (AUTO DJ SEQUENTIAL) -> (AUTO DJ OFF)

Display

Window

(AUTO DJ OFF)

RANDOM (AUTO DJ

RANDOM)

(AUTO DJ

SEQUENTIAL)

Note

RPT

Operating

Mode

OFF

RANDOM

REPEAT

 Searching for a section within a track or

playing repeatedly or randomly is not supported on the AUTO DJ mode.

 If you move to other functions or stop the

music using Z STOP on the unit (or Z on the remote control) on AUTO DJ mode, AUTO DJ function will be disable.

 AUTO DJ function is not supported in the

music  le whose length is less than 60 seconds.

 During recording, AUTO DJ function is not

available.

 If you change a disc while the AUTO DJ

function is activated, the function is deactivated.

Description

The music is

played randomly

on this mode.

The music is

played repeatedly

on this mode.

Radio Operations

Be sure that FM aerial is connected. (Refer to the page 12)

Listening to the radio

1. Press F (FUNCTION) until FM appears in the display window. The last received station is tuned in.

2. Press and hold TUNING -/+ for about two seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station.

Press TUNING -/+ repeatedly.

3. Adjust the volume by rotating VOLUME on the unit or by pressing VOL +/- on the remote control repeatedly.

Presetting the Radio Stations

You can preset 50 stations for FM .

Before tuning, make sure to turn down the volume.

1. Press F (FUNCTION) until FM appears in the display window.

2. Select the desired frequency by pressing TUNING -/+.

3. Press PROGRAM/MEMO. a preset number will  ash in the display window.

4. Press FOLDER · PRESET w/s to select the preset number you want.

5. Press PROGRAM/MEMO. The station is stored.

6. Repeat steps 2 to 5 to store other stations.

7. To listen a preset station, press FOLDER · PRESET w/s.

Operating 15

Deleting all the saved stations

1. Press and hold PROGRAM/MEMO. for two seconds. “ERASE ALL” will  ash up on the unit display.

2. Press PROGRAM/MEMO. to erase all saved radio stations.

Improving poor FM reception

Press d/M ST./ MO. on the unit or on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

Seeing information about a Radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data

PS (Programme Service Name)

PTY (Programme Type Recognition)

RT (Radio Text)

CT (Time controlled by the channel)

You can search the radio stations by programme type by pressing RDS. The display will show the last PTY in use. Press PTY one or more times to select your preferred programme type. Press and hold

C/V

When a station is found the search will stop.

The name of the channel will appear in the display.

The programme type (e.g. Jazz or News) will appear in the display.

A text message contains special information from the broadcast station. This text may scroll across the display.

This shows the time and date as broadcast by the station.

. The tuner will search automatically.

types. :

Sound adjustment

Setting the surround mode

This system has a number of pre-set surround sound  elds. You can select a desired sound mode by using SOUND EFFECT on the remote control or EQ on the unit.

The displayed items for the Equalizer may be di erent depending on sound sources and e ects.

On Display Description

NATURAL

Local

Specialization

equalizer

AUTO EQ

POP

CLASSIC

JAZZ

ROCK

MP3 -- OPT

BASS

LOUDNESS

VIRTUAL

BYPASS

You can enjoy comfortable and natural sound.

Regionally optimized sound e ect. (FORRO/ FUNK/ SERTANEJO/ DANGDUT/ ARABIC/ PERSIAN/ INDIA/ REGUETON/ MERENGUE/ SALSA/ SAMBA/ CUMBIA/ AFRO)

Realizes the sound equalizer that is the most similar to the genre of which is included in the MP3 ID3 tag of song  les.

This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock pop, jazz or classic concert.

This function is optimized for compressible MP3  le. It improves the treble sound.

Reinforces the treble, bass and surround sound e ect.

Improves the bass and treble sound.

You can enjoy more virtual surround sound.

You can enjoy the sound without equalizer e ect.

Operating

Operating16

Note

 On some speakers, sound may not be heard

or heard in low sound depending on the sound mode.

 Maybe you need reset the surround mode,

after switching the input, sometimes even after the sound track changed.

 By pressing BASS BLAST on the unit you

can directly select the BYPASS or BASS BLAST sound.

Setting the Clock

1. Turn the unit on.

Operating

2. Press CLOCK for at least 2 seconds.

3. Choose time mode by pressing C/V.

- AM 12:00 (for an AM and PM display) or 0:00 (for a 24 hour display)

4. Press SET to con rm your selection.

5. Select the hours by pressing C/V.

6. Press SET.

7. Select the minutes by pressing C/V.

8. Press SET.

Using your player as an alarm clock

1. Turn the unit on.

2. Press TIMER. Each functions  ashes.

3. Press SET when the function you want to be woken by is showing.

4. “ON TIME” will be displayed. This is your desired time to unit turns on. Press C/V to change the hours and minutes and press SET to save.

5. The “OFF TIME” will be displayed. This is your desired time to unit turns o .

6. Press C/V to change the hours and minutes and press SET to save.

7. Press C/V to change the volume and press SET to save. The clock icon "(“ shows that the alarm is set.

8. Press TIMER button 2 times. You can check the setting status.

Note

 If you set the clock time, you can check the

time by pressing CLOCK even when the player is turned o .

 If you set the clock time and alarm, you

can check the alarm icon CLOCK even when the player is turned o .

 If you set the clock time and alarm, you

can check the alarm icon informaiton by pressing TIMER even when the unit is turned o .

“(“ by pressing

“(“ and setting

Operating 17

Sleep Timer Setting

Press SLEEP repeatedly to select delay time between 10 and 180 minutes. After the delay time, unit will turn o .

To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press SLEEP once again while “SLEEP 10” is displayed.

Note

You can check the remaining time before

the unit turns o .

Press SLEEP. The remaining time appears in

the display window.

Dimmer

Press SLEEP once. The display window will be darkening by half. To cancel it, press SLEEP repeatedly until dim o .

Advanced Operations

Listening to music from your external device

The unit can be used to play the music from many types of external device. (Refer to the page 11)

1. Connect the external device to the AUX IN connector of the unit.

2. Turn the power on by pressing

3. Select the AUX function by pressing FUNC. on the unit or F (FUNCTION) on the remote control.

4. Turn the external device and start it playing.

Recording to USB

1. Connect the USB device to the unit.

2. Select a function by pressing FUNC. on the unit or F (FUNCTION) on the remote control.

One track recording - You can record to USB after playing a  le you want.

All tracks recording - You can recording to USB after stop.

Program list recording - After showing the programmed list, you can record it to USB.

3. Start the recording by pressing R on the unit or

REC on the remote control.

4. To stop recording, press Z STOP.

1/!

(Power).

Operating

Operating18

Pausing recording

During recording, press R on the unit or X REC on the remote control to pause recording. Press it again to restart recording. (Only Radio/ AUX)

To select recording bit rate and speed

1. Press R on the unit or X REC on the remote control for longer than 3 seconds.

2. Use C/V on the unit or remote control to select the bit rate.

3. Press R on the unit or X REC on the remote control again to select the recording speed.

4. Press C/V on the unit or on the remote

Operating

control to select a desired recording speed; (Only AUDIO CD)

X1 SPEED

- You can listen to music while recording it.

X2 SPEED

- You can just record the music  le.

5. Press R on the unit or X REC on the remote control to  nish the setting.

Note

You can check the recording percentage

rate for the USB record on the display window during the recording. (MP3/ WMA CD Only)

During recording MP3/ WMA, there is no

sound.

When you stop recording during playback,

the  le that has been recorded at that time will be stored. (AUDIO CD Only)

Do not remove the USB device or turn

o the unit during USB recording. If not, an incomplete  le may be made and not deleted on PC.

If USB recording does not work, the

message like “NO USB”, “ERROR”, “FULL” or “NO REC” is displayed on the display window.

Multi card reader device or External HDD

can not be used for USB recording.

A  le is recorded by about 512 Mbyte when

you record for a long term.

When you stop recording during playback,

the  le will not be stored.

You may not store more than 999  les.

It’ll be stored as follows.

AUDIO CD MP3/ WMA

* : TUNER, AUX and the like.

The making of unauthorized copies of copy-

protected material, including computer

programs,  les, broadcasts and sound

recordings, may be an infringement of copyrights and constitute a criminal o ense. This equipment should not be used for such

purposes.

Be responsible

Respect copyrights

The other

source*

Troubleshooting

General

Problem Cause & Correction

The power cord is not plugged in. Plug in the power cord.

No Power.

No sound.

The unit does not start playback.

Radio stations cannot be tuned in properly.

Check whether electricity failed. Check the condition by operating other

electronic devices.

Check whether you select right function. Press FUNCTION and check the

selected function.

If not, connect speaker cables correctly. Speaker cables connected

correctly.

An unplayable disc is inserted. Insert a playable disc.

No disc is inserted. Insert a disc.

The disc is dirty. Clean the disc. (Refer to the 23 page)

The disc is inserted upside down. Place the disc with the label or printed

side facing upwards.

The antenna is positioned or connected poorly. Connect the antenna

securely.

The signal strength of the radio station is too weak. Tune to the station

manually.

No stations have been preset or preset stations have been cleared (when

tuning by scanning preset channels). Preset some radio stations, see page 14 for details.

Troubleshooting

The remote control does not work properly.

The remote control is too far from the unit. Operate the remote control

within about 23 ft (7 m).

There is an obstacle in the path of the remote control and the unit. Remove

the obstacle.

The batteries in the remote control are exhausted.

with new ones.

Replace the batteries

Appendix20

Trademarks and Licenses

Appendix

Appendix 21

Speciﬁ cations

General

Model RAT376B RAD226B RAD136/ RAD136B

Power requirements 200 - 240 V ~ 50 / 60 Hz

Power consumption 60 W 60 W 30 W

Dimensions (W x H x D) 202 x 307 x 297.5 mm without foot

Net Weight (Approx.) 3.4 kg 3.2 kg 3.1 kg

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Bus Power Supply (USB) DC 5 V 0 500 mA

Inputs/ Outputs

ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

Tuner

FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Ampli er

Model RAT376B RAD226B RAD136/ RAD136B

Stereo mode

Surround mode

Front

Subwoofer

110 W + 110 W (4 Ω at 1 KHz, THD 10 %)

150 W (3 Ω at 60 Hz, THD 10 %)

110 W + 110 W (4 Ω at 1 KHz, THD 10 %)

65 W + 65 W (4 Ω at 1 KHz, THD 10 %)

Appendix

Frequency Response 40 to 20 000 Hz

Signal-to-noise ratio 75 dB

Dynamic range 80 dB

Appendix

Appendix22

Front speaker

Model RAT376B RAD226B RAD136/ RAD136B

Type 2 Way 2 speaker

Impedance 4 Ω

Rated Input Power 110 W 110 W 65 W

Max. Input power 220 W 220 W 130 W

Net Dimensions (W x H x D) 232 x 360 x 265 mm 232 x 360 x 265 mm 214 x 308 x 245 mm

Net Weight 3.15 kg 3.15 kg 2.51 kg

Passive subwoofer

Model RAT376B

Type 1 Way 1 speaker

Impedance 3 Ω

Rated Input Power 150 W

Max. Input power 300 W

Net Dimensions (W x H x D) 250 x 345 x 330 mm

Net Weight 5.35 kg

Design and speci cations are subject to change without notice.

Appendix 23

Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit.

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.

Appendix

LG RAD-136, RAT-376B, RAD-226B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
