LG PTDCQ INSTALLATION INSTRUCTIONS
23mm
23mm
266mm
308mm
Indoor unit
Ceiling
Indoor unit
Ceiling
Detach function

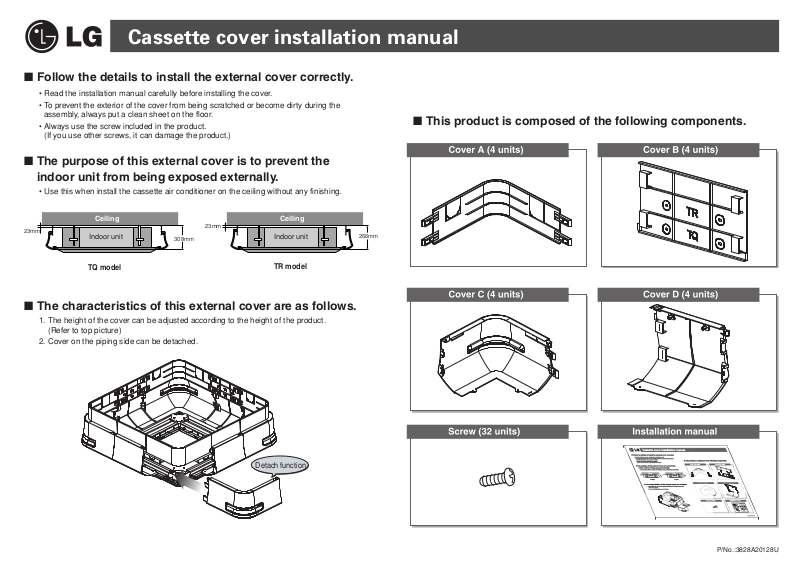

Cassette cover installation manual
■ Follow the details to install the external cover correctly.
• Read the installation manual carefully before installing the cover.
• To prevent the exterior of the cover from being scratched or become dirty during the
assembly, always put a clean sheet on the floor.
• Always use the screw included in the product.
(If you use other screws, it can damage the product.)
■ The purpose of this external cover is to prevent the
indoor unit from being exposed externally.
• Use this when install the cassette air conditioner on the ceiling without any finishing.
■ This product is composed of the following components.
TQ model
TR model
■ The characteristics of this external cover are as follows.
1. The height of the cover can be adjusted according to the height of the product.
(Refer to top picture)
2. Cover on the piping side can be detached.
P/No.:3828A20128U
Check the direction of the front panel and
set the cover on the panel.
(The direction the
connecting wire is coming out is the same as the
location of the detachable cover.)
Use the provided screws to assemble the
cover on the front panel. (14 locations)
After selecting the direction you want,
make holes for pipe and drain hose to fit
the installation environment.
For TR model, drill a hole in cover C as
well.
Hold the front panel while keeping it
leveled to assemble the indoor unit.
(Refer to product installation manual)
Assemble the detachable cover C.
Tighten 4 locations
Tighten 4 locations
Cut when using
the drain hose
When using the pipe When using the drain hose
When using
the drain hose
When using
the pipe
Direction where
the pipe is coming out
Detachable cover
Direct where
the pipe is coming out
Connecting wire
Click
Click
Cassette cover installation manual
■ Installation order
Assemble 4 covers A and 4 covers B as
shown in the picture.
Click
Click
Cover B
Cover A
Take one of the 4 covers C and cut out 3
locations for assembly.
(Cut out by the groove on the assembly part.)
Cut out only 1
cover C
Cover B
Click
Click
Complete the assembly until the
rectangular shape is formed as shown in
the picture.
Assemble the remaining 3 covers C and 4
covers D so that they form a rectangular
shape as shown in the picture.
Do not assemble one cover C of which the assembly part
is cut out so that it can be detached.
Assemble using cover C and D as shown
in the picture and use the provided
screws to tighten the covers. (6 locations)
Drill a hole
before
tightening
the screw
Assembled part with
Cover C
Cover D
Set the assembled part with cover A and B,
and the assembled part with cover C and D to
Cover D
the height of the indoor unit, and tighten the
screws. (8 locations)
For TN and TP, drill a hole before tightening
the screw.
cover C and D
Assembled part with
cover A and B
P/No.:3828A20128U
