Page 1

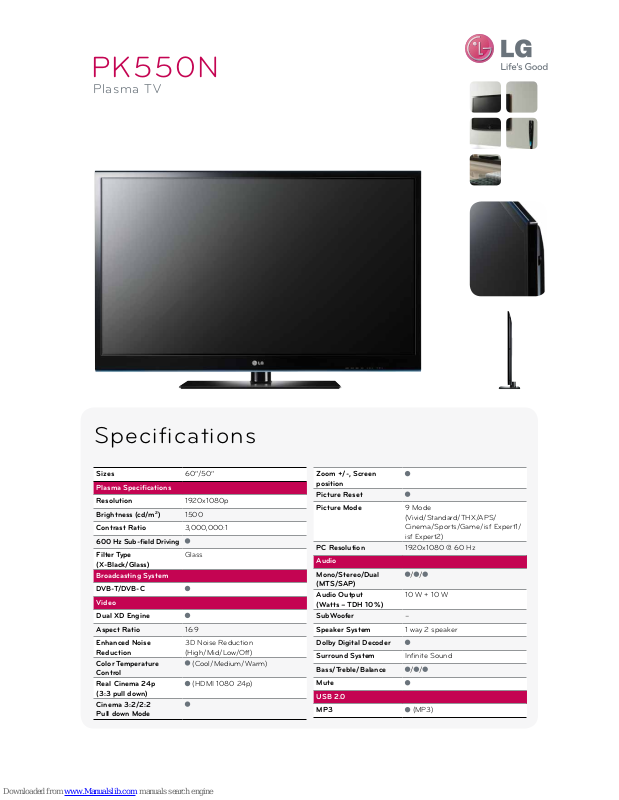

PK550N
Plasma TV
Specifications
Sizes 60”/50”
Plasma Specifications
Resolution 1920x1080p
Brightness (cd/m
2
) 1500
Contrast Ratio 3,000,000:1
600 Hz Sub-field Driving
Filter Type
(X-Black/Glass)
Glass
Broadcasting System
DVB-T/DVB-C
Video
Dual XD Engine
Aspect Ratio 16:9
Enhanced Noise
Reduction
3D Noise Reduction
(High/Mid/Low/Off)
Color Temperature
Control
(Cool/Medium/Warm)
Real Cinema 24p
(3:3 pull down)
(HDMI 1080 24p)
Cinema 3:2/2:2
Pull down Mode
Zoom +/-, Screen
position
Picture Reset
Picture Mode 9 Mode
(Vivid/Standard/THX/APS/
Cinema/Sports/Game/isf Expert1/
isf Expert2)
PC Resolution 1920x1080 @ 60 Hz
Audio
Mono/Stereo/Dual
(MTS/SAP)
/ /
Audio Output
(Watts – TDH 10 %)
10 W + 10 W
SubWoofer –
Speaker System 1 way 2 speaker
Dolby Digital Decoder
Surround System Infinite Sound
Bass/Treble/Balance
/ /
Mute
USB 2.0
MP3
(MP3)
Page 2
JPEG (JPEG)
MPEG 2/4
(HD DivX)
Device
(included USB Hub)
USB Flash Memory, Card Reader,
External HDD (FAT 32, NTFS)
Subtitle for DivX EU (31)
Special
WiFi/DLNA –
THX
Picture Wizard
Intelligent Sensor
EPG (SI)
Wireless Built-in –
Wireless Ready –
Bluetooth
CIFS (PC Contents
Sharing)
–
Broadband –
e-Manual
Moving Picture Playback (HD DivX)
Picture Mute
Energy Saving Mode
(+ Module DPM)
Clear Voice II
(Voice Zoom)
AV Mode
1080p Source Input HDMI 60p/50p/30p/24p
Component 60p/50p
AV Input Navigation
(Auto Link)
Input Labelling
Screen Adjust/Auto
(Manual) Configure –
only RGB signal
Quick View (Flash Back)
Picture Freeze
Rating (DTV)
Key Lock
Simplink (HDMI CEC) (All HDMI)
Teletext
Pages Max 2000
Jack Pack – Side
AV In
(1)
S-Video In –
RGB in (D-sub 15 pin) –
PC Audio Input –
HDMI in
(1) (HDMI 1.3, Simplink)
CI Slot All Europe
USB 2.0
1 (JPEG/MP3/Movie)
Jack Pack – Rear
RF In
(1)
AV In –
AV Out –
S-Video In –
Full Scart
(1) (TV out)
Half Scart
(1) (MNT/DTV Out)
Component in
(Y, PB, Pr) + Audio
(1) (480i/480p/576i/576p/
720p/1080i/1080p)
Digital Audio Out
(1) (Optical)
Variable Audio Out –
HDMI/HDCP Input
(2) Ver. 1.3 (480i/480p/576i/
576p/720p/1080i/1080p)
– 1 Port PC Mode – SIMPLINK
DVI Input –
IEEE 1394/DTCP –
RGB In (D-sub 15 pin) – PC
(1)
PC Audio Input
(1)
Lan (For Modem) –
RS-232C (Control/SVC)
(1) – CONTROL & SVC
Remote Control In Port –
Headphone In –
Cabinet Description
Swivel (*)
(20/20)
VESA Size 60”: 600x400 50”: 400x400
Dimensions
Weight (kg)
Set (w/o stand)
60”: 41,4
50”: 28,6
Weight (kg)
Included stand
60”: 45,9
50”: 31,0
Weight (kg)
Packing (w/ stand)
60”: 54,9
50”: 34,2
WxHxD (mm)
Set (w/o stand)
60”: 1392x852x55,3
50”: 1171,4x728,3x55,3
WxHxD (mm)
Included stand
60”: 1392x915x384
50”: 1171,4x786,2x309,7
WxHxD (mm)
Packing (w/ stand)
60”: 1529x1058x499
50”: 1314x821x314
Power
Consumption
(IEC62087 dynamic
broadcast-content video
signal) / APS mode
60”: 234 W
50”: 190 W
Standby
(Stand by mode)
0,1 W
www.lg.com
We reserve the right to correct any printing errors and make changes to specifications.
