LG Electronics OAT100R User Manual

CodePlus™ OAT100R Off Air

Transcoder System

Installation & Setup Guide

Warranty

P/N: 206-4218 (Rev D)

For Customer Support/Service, please call: 1-888-865-3026

The latest product information and documentation is available online at:

www.LGsolutions.com

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNIN G:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert

the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence

of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such

as vases, shall be placed on the apparatus.

L’appareil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures et de plus qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user should be required to correct the interference at his own expense.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics U.S.A., Inc. Unauthorized modification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc.

2000 Millbrook Drive, Lincolnshire, IL 60069, USA • Phone: 1-847-941-8000

Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.

2000 Millbrook Drive, Lincolnshire, IL 60069

206-4218

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination in order to avoid injury from tip-over.

13.

Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Power Sources

This product should be operated only from the

type of power source indicated on the marking label. If you are not sure of the type of power supply to your INSTALLATION, consult your product dealer or local power company.

15. Overloading

Do not overload wall power outlets and

extension cords as this can result in a risk of fire or electric shock.

16. Disconnect Device

The AC mains plug is used as the disconnect

device. The disconnect device must remain readily operable.

17. Object and Liquid Entry

Never push objects of any kind into this

product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Do not use liquid cleaners or aerosol cleaners.

18. Outdoor Use Warning: To prevent fire or shock hazards, do not expose this product to rain or moisture.

19. Wet Location

Do not use this product near water or mois-

ture or in an area, such as a basement, that might become flooded. The apparatus shall

not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

20. Test Equipment

In some cases, LG has supplied or recommended the use of test equipment and devices for the setup and testing of the equipment. The operation and maintenance of test equipment is described in their associated instruction manuals. Please refer to these manuals for explicit instructions regarding the safe use and handling of the equipment.

(Continued on next page)

206-4218

IMPORTANT SAFETY INSTRUCTIONS

(Continued from previous page)

21. Damage Requiring Service

Unplug this product from the wall power outlet and refer servicing to qualied service personnel under the following conditions:

a. If the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have

fallen into the product.

c. If the product has been exposed to rain or

water.

If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualied technician to restore the product to its normal operation.

e. If the product has been dropped or the

cabinet has been damaged.

f. If the product exhibits a distinct change in

performance.

Caution: Refer all servicing to qualied service personnel.

22. Servicing

23. Replacement Parts

When replacement parts are required, be sure

Caution: These servicing instructions are for use by qualied service

personnel only. To reduce the risk of electrical shock, do not perform any servicing other than that described in the operating instructions unless you are qualied to do so.

the service technician uses replacement parts specied by the manufacturer or that have the same characteristics as the original parts. Unauthorized substitutions may result in re, electric shock, or other hazards.

24. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

OAT100R Rack Installation

(also see pages 12 and 13)

To install the OAT100R in a rack:

• Carefully slide the OAT100R into a standard 19-inch equipment rack.

• When mounting in the rack, make sure to use the appropriate hardware. ALL FOUR MOUNTING SCREWS MUST BE USED.

• This equipment is not designed to support other devices. Do NOT stack other equipment on the top of the OAT100R.

• Rear cabling must be dressed and supported so that the weight of the cabling is not a strain on the OAT100R connectors.

• MOUNTING OF THE EQUIPMENT IN THE RACK SHOULD BE SUCH THAT A HAZARDOUS CONDITION IS NOT ACHIEVED DUE TO UNEVEN MECHANICAL LOADING.

Rack-mount Considerations

A. Elevated Operating Ambient If installed in a closed or multi-unit rack

assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer (see Specifications information in this document).

(Continued on next page)

206-4218

IMPORTANT SAFETY INSTRUCTIONS

(Continued from previous page)

B. Reduced Air Flow Installation of the equipment in a rack should

be such that the amount of air flow required for safe operation of the equipment is not compromised. To ventilate the system normally and avoid overheating, leave at least 1 inch (2.5 cm) on each side (including top and bottom) of the OAT100R. Do NOT stack other equipment on the top of the OAT100R. Also, ensure that the unit’s AC power adapter is never stacked or bundled with other AC power adapters. Each adapter should have adequate ventilation and should be isolated from other heat sources.

C. Circuit Overloading Consideration should be given to the

connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.

D. Reliable Earthing

Maintain reliable earthing of rack-mounted

equipment. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of

power strips).

E. Mains Outlet Earthing

The apparatus with Class I construction must

be connected to a mains socket outlet with a protective earthing connection.

OAT100R Server Installation on a Flat Surface

To install the top, shelf, etc.):

• Install the equipment in an environment compatible with the maximum operating ambient temperature (Tma) specied by the manufacturer (see Specications information in this document).

• Place spacers or rubber feet (not provided) on the bottom of the

• Carefully place the surface.

• To ventilate the system normally and avoid overheating, leave at least 1 inch (2.5 cm) on each side (including top and bottom) of the OAT100R. Do NOT stack other equipment on the top of the OAT100R.

OAT100R

on a level surface (table

on the level

206-4218

Table of Contents

Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Instructions. . . . . . . . . . . . 3 – 5

Table of Contents . . . . . . . . . . . . . . . . . . . . . . 6

OAT100R Product Description . . . . . . . . . . . . 7

Setup Information . . . . . . . . . . . . . . . . . . . . 8 – 9

Packet Identifiers (PIDs) Overview . . . . . . . . 10

Rear and Front Panel Overviews . . . . . . . . . 11

Rack Installation . . . . . . . . . . . . . . . . . . . 12 – 13

Typical Rack Installation . . . . . . . . . . . . . . 12

Rack-mount Considerations . . . . . . . . . . . . 13

System Setup . . . . . . . . . . . . . . . . . . . . . 14 – 21

Typical Setup Flowchart for OAT100R

with RF Output . . . . . . . . . . . . . . . . . . . . . . 14

Typical Setup Flowchart for OAT100R

with IP Output . . . . . . . . . . . . . . . . . . . . . . . 15

Typical System Installation . . . . . . . . . . . . . 16

Network and Communication Setup . . . . . . . 22

Configuration Options via GUI . . . . . . . . 23 – 38

Access the OAT100R Web GUI . . . . . . . . . 23

OAT100R System Status . . . . . . . . . . . . . . 24

Tuner Information . . . . . . . . . . . . . . . . . . . . 25

Tuner Menu Options . . . . . . . . . . . . . . . . . 26

Input Channel Options . . . . . . . . . . . . . . . . 28

OAT100R System Setup Options . . . . . . . 30

MUX Setup Options . . . . . . . . . . . . . . . . . . 35

OAT100R Maintenance Options . . . . . . . . 36

Configuration Options via Command

Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 – 67

the Main Menu . . . . . . . . . . . . . . . . . . . . . . 39

View System Information . . . . . . . . . . . . . . 40

Monitor the System . . . . . . . . . . . . . . . . . . 40

View the System Program Map . . . . . . . . . 41

Tuner Menu Commands . . . . . . . . . . . . . . 42

Setup Menu Commands . . . . . . . . . . . . . . 48

Update Menu Commands . . . . . . . . . . . . . 65

Reset the System . . . . . . . . . . . . . . . . . . . . 67

Exit the Current Session . . . . . . . . . . . . . . 67

Troubleshooting . . . . . . . . . . . . . . . . . . . . 68 – 72

OAT100R Setup . . . . . . . . . . . . . . . . . . . . . 68

OAT100R Communication . . . . . . . . . . . . . 69

Receiver Reception . . . . . . . . . . . . . . . . . . 70

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 73

Document Revision History / Notes . . . . . . . 74

Open Source Software Notice . . . . . . . . . . . . 75

Warranty . . . . . . . . . . . . . . . . . . . . . Back Cover

206-4218

OAT100R Product Description

The LG CodePlus™ OAT100R Off Air Transcoder System provides a flexible solution for system providers who provide terrestrial delivered DTV content to commercial facilities (hotels, hospitals, etc.). The OAT100R incorporates eight RF tuners that receive up to eight off air DTV channels from the terrestrial broadcast service.

Features

• Transcodes broadcast DTV content for distribution on SMATV or IPTV network

• Two output options: either RF or IP

− RF output: The OAT100R generates four contiguous 256-QAM or 64-QAM cable channels. With 256-QAM output, up to two broadcast channels are multiplexed on each QAM channel, with support for up to eight programs per tuner input. This capability provides output of up to 64 programs. With 64-QAM output, one broadcast channel is multiplexed on each QAM channel, with support for up to eight programs per tuner input. This capability provides output of up to 32 programs.

− IP output: The OAT100R provides up to eight multicast streams with support for up to eight programs each if provided in the original broadcast.

• Provides one MPEG-2 video output with up to two AC3 audio outputs per program

• Supports any QAM compatible television

• Transcoded output supports Closed Captions and V-Chip (Parental Control) (if included in the signal source)

• Remote management capability over Ethernet via either graphical user interface (GUI) or command line interface

• Small, lightweight chassis

• 19-inch rack-mountable

• 1U height prole to minimize rack space usage

The OAT100R converts terrestrial DTV programming to a groomed, multiplexed transport stream that is compatible with any digital television that supports QAM tuning.

Note: LG CodePlus PIVD100R (Pro:Idiom ® Video Distribution) and OAT100R units may be combined in the head end to deliver an entire channel lineup of digital programming.

Note: Design and specifications subject to change without prior notice.

206-4218

Setup Information

This document provides installation and setup support only for the OAT100R. One or more VHF and/or UHF antennas must be installed before you proceed to set up the OAT100R. LG recommends that the system be professionally installed.

Check the following items before you begin the OAT100R installation and setup procedures.

VHF and/or UHF Antennas

__ Create a station plan for the OAT100R terrestrial input(s).

__ Install the appropriate antenna(s) in accordance with the desired channels. The VHF and/

or UHF antenna(s) must be located where it/they will have unobstructed access to the terrestrial signals. Amplify the antenna distribution as necessary.

__ Point the antenna(s) so as to achieve the best signal quality (use appropriate equipment

for measurement purposes).

__ Up to eight 75 ohm RG-6 or larger coaxial cables from the terrestrial antenna distribution

system should be available for connection to the OAT100R.

__ Confirm that the installation environment meets the >17 dB specification for the OAT100R

RF input signal-to-noise ratio.

__ Measure the signal level at each of the OAT100R RF inputs. For proper system

performance, the signal level at each RF input must be between +3 dBm (+52 dBmV) and

-83 dBm (-34 dBmV). A nominal value of -53 dBm (-4 dBmV) is recommended. Note that additional equipment (i.e., attenuators) may be required to adjust the signal level.

OAT100R

__ Unpack the OAT100R unit and all accessories.

OAT100R Accessories: • AC Power Cord and Adapter

__ Select the location for mounting the OAT100R. Ensure that adequate ventilation is available

__ Obtain the necessary attachment hardware to mount the OAT100R chassis in its targeted

location.

__ Plan and install the necessary cabling and network (Ethernet) and AC power access for

the OAT100R. You will also need the following to connect a PC directly to the OAT100R for system setup purposes: FTDI TTL-USB cable (P/N TTL-232R-5V-AJ).

Channel Assignments for RF Output

__ Create a channel assignment plan for the installation site, or modify an existing plan to

incorporate the RF output of the OAT100R. Ensure that up to four contiguous CATV broadcast channels are allocated for the OAT100R RF output. The OAT100R uses either a 256-QAM or 64-QAM modulation format, thereby occupying approximately 24 MHz of frequency spectrum.

The RF start channel is user-assigned during system setup, and the remaining channels are then automatically assigned per EIA-542 STD CATV frequency allocation standards. For example, if the RF start channel assignment is channel 2, the three remaining channels

206-4218

Setup Information (Cont.)

will be 3, 4, and 5. However, if the RF start channel assignment is 6, the three remaining channels will be 95, 96, and 97. Refer to EIA-542 STD CATV frequency allocation tables for further information as required.

The highest available RF channel number for the OAT100R is 135. Thus, to allocate all four channels available for OAT100R RF output, the RF start channel must be set no higher than 132.

__ Find a location on the frequency spectrum that is free of existing noise.

Channel Assignments for IP Output

__ The OAT100R outputs IPv4 multicast streams. Ensure the institution’s IP network and

room receivers support IPv4 multicast and that the network is capable of selectively routing multicast traffic. Refer to vendor equipment documentation for further information.

__ Create a channel assignment plan for the installation site, or modify an existing plan to

incorporate the IP output of the OAT100R. Ensure that up to eight unused and unreserved IPv4 multicast addresses, within the designated range 224.0.0.0 to 239.255.255.255, are allocated for the OAT100R IP output.

IP channels are user-assigned during system setup. You may opt to specify an IP start channel and enable the system to auto-increment the remaining channel assignments. For example, if the IP start channel assignment is 227.0.0.40, the remaining channels will be

227.0.0.41, 227.0.0.42, etc. Or, you may opt to manually specify the IP details for each IP channel.

__ Reserve at least one User Datagram Protocol (UDP) port for the multicast data streams.

You can use the system default (1234) or another unassigned port number for each data stream, as required, for example, 50000, 50001, etc. The port(s) must avoid conict with other protocols in use.

Note: Refer to the IANA IPv4 Multicast Address Space Registry and/or the IANA Service Name and Transport Protocol Port Number Registry for further IP address/port information as required.

Packet Identifiers (PIDs)

Note: If Pro:Idiom channels are NOT present in the site’s entertainment system, PIDs do not

need to be set in the OAT100R, and therefore, you will not need to design a PID map for the OAT100R output.

Note: See also “Packet Identiers (PIDs) Overview” on the following page.

__ Survey the PIDs currently used in the system, and design a PID map for the OAT100R

output (ensure that up to 64 PIDs are allocated). Ensure that Pro:Idiom message PIDs are never used by the video/audio PIDs for the OAT100R channels (or any other system elements).

The program start PID is user-assigned during system setup, and the 63 remaining PIDs

are then automatically assigned within the 64-PID contiguous block.

__ PIDs must be specified in the OAT100R system as hexadecimal numbers.

206-4218

Packet Identiers (PIDs) Overview

Each RF channel has ve or more associated PIDs assigned in a hierarchy (see diagram below), and the content of each RF channel is carried in a transport stream.

The transport stream is a packet-based protocol, where each packet has a PID that is used to uniquely identify packets for particular purposes (video, audio, etc.). This allows multiple video and audio streams to be multiplexed without receiver confusion. For example, if a stream contains three video programs, each video program has a unique PID. The PAT PID is always 0x0000 and all other PIDs can be in the range 0x0010 to 0x1ffe, inclusive.

The PAT and PMT are tables that indicate which PIDs are used for which purposes. The PAT contains a list of PMT PIDs. The PMT contains a list of the PIDs of elementary stream data, such as audio or video, etc. Typical transport streams contain one PID for the PAT, as well as three or more PIDs for each program (one for PMT, one for video, and one or more for audio). The PIDs used for each elementary stream must be unique to allow receivers to properly demultiplex.

Pro:Idiom adds a third PID type to each PMT. The Pro:Idiom message PID may fall anywhere in the range 0x0010 to 0x1ffe, inclusive and also must be unique. If Pro:Idiom channels are present in the target system, ensure that Pro:Idiom message PIDs are never used on any other streams in that system. To facilitate PID allocation, the OAT100R uses a block of 64 contiguous PIDs that can be moved by selecting the start PID.

Refer to ISO/IEC 13818-1:2000, Section 2.4.3, “Specication of the Transport Stream syntax and semantics,” for further information.

Typical PID Hierarchy

PAT

Program 1

PMT

Audio 1A

Audio 1B

Video 1

Pro:Idiom *

* For channels with Pro:Idiom encrypted content only.

Program 2

PMT

Audio 2A

Audio 2B

Video 2

Pro:Idiom *

206-4218

OAT100R Rear View

Rear and Front Panel Overviews

RF-OUT

RF-IN 8

RF-IN 7

RF-IN 6

RF-IN 5

RF-IN 4

RF-IN 3

RF-IN 2

RF-IN 1

Feature

Control

Port

POWER

Port

12V

RF IN 8

OUT

IN 1

FEATURE

& CONTROL

(Ethernet) Ports

Disconnect Device

The AC mains plug is used as the disconnect device. The disconnect device must remain readily operable.

OAT100R Front View

Ventilation Holes

Air flow must not be obstructed. To ventilate the system normally and avoid overheating, leave at least 1 inch (2.5 cm) on each side (including top and bottom) of the OAT100R. Do NOT stack other equipment on the top of the OAT100R.

POWER LED

STATUS LED

Service Port

AC Power

Cord & Adapter

SERVICE

PWR STATUS

PORT

USB Port

206-4218

Rack Installation

PWR STATUS

SERVICE

PORT

Typical Rack Installation

1. (Optional) As shipped, the OAT100R mounting brackets are attached ush with the front of

the unit (see diagram a). If desired, the mounting brackets may be detached from the unit and reattached, for example, so that they are ush with the rear of the unit (see diagram b). If you wish to change the location/orientation of the mounting brackets, carefully remove each of the four (M4 x 10 mm) screws and attendant washers (one at and one lock washer per screw) holding each bracket in place. Then, use the same screws and washers to reattach the mounting brackets in the desired location.

2. Carefully slide the chassis into a standard 19-inch equipment rack.

3. Use all four mounting screws to secure the chassis to the rack.

(a)

(b)

To rack

RF-OUT

RF-IN 8

SERVICE

PWR STATUS

PORT

To rack

RF-IN 7

RF-IN 6

RF-IN 5

RF-IN 4

RF-IN 3

RF-IN 2

RF-IN 1

Feature

Control

Port

POWER

Port

12V

Use at washer and lock washer with each M4 x 10 mounting bracket screw.

206-4218

Front View of Rack Cabinet

Rack Installation (Cont.)

1 inch minimum

SERVICE

PWR STATUS

PORT

1 inch minimum

Rack-mount Considerations

A. Elevated Operating Ambient

If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer (see Specifications information in this document).

B. Reduced Air Flow

Installation of the equipment in a rack should be such that the amount of air flow required for

safe operation of the equipment is not compromised. To ventilate the system normally and avoid overheating, leave at least 1 inch (2.5 cm) on each side (including top and bottom) of the OAT100R. Do NOT stack other equipment on the top of the OAT100R. Also, ensure that the unit’s AC power adapter is never stacked or bundled with other AC power adapters. Each adapter should have adequate ventilation and should be isolated from other heat sources.

C. Circuit Overloading

Consideration should be given to the connection of the equipment to the supply circuit and the

effect that overloading of the circuits might have on overcurrent protection and supply wiring.

D. Reliable Earthing

Maintain reliable earthing of rack-mounted equipment. Particular attention should be given to

supply connections other than direct connections to the branch circuit (e.g., use of power strips).

E. Mains Outlet Earthing

The apparatus with Class I construction must be connected to a mains socket outlet with a

protective earthing connection.

206-4218

System Setup

Refer to the following diagrams, and complete the system installation as described on pages 16 to 21.

Caution: Do NOT make system connections until instructed to do so during the system installation procedure. In some instances, configuration steps must be performed before physical connections are made.

Typical Setup Flow Chart for OAT100R with RF Output

Room

Receiver

Distribution

Network

Room

Receiver

Room

Receiver

VHF/UHF Antenna

Use multiple antennas or an amplifier/splitter as necessary. Up to eight (for 256-QAM output) or four (for 64-QAM output) antenna signals may be connected.

(s)

Cable

OAT100R

RF Out

RF IN 8

RF IN 7

RF IN 6

RF IN 5

RF IN 4

RF IN 3

RF IN 2

RF IN 1

Feature Port

Control Port

Service Port Connection

Laptop

Network

206-4218

VHF/UHF Antenna

(s)

OAT100R

Feature Port

Control Port

Laptop

Service Port Connection

Network

RF IN 8

RF IN 7

RF IN 6

RF IN 5

RF IN 4

RF IN 3

RF IN 2

RF IN 1

Cable

Network

Room

Receiver

Room

Receiver

Room

Receiver

RF Out

Use multiple antennas or an amplifier/splitter as necessary. Up to eight (for 256-QAM output) or four (for 64-QAM output) antenna signals may be connected.

Typical Setup Flow Chart for OAT100R with IP Output

VHF/UHF Antenna

Use multiple antennas or an amplifier/splitter as necessary. Up to eight antenna signals may be connected.

(s)

1000BaseT Full Duplex

System Setup (Cont.)

OAT100R

RF Out

RF IN 8

RF IN 7

RF IN 6

RF IN 5

RF IN 4

RF IN 3

RF IN 2

RF IN 1

Feature Port

Control Port

Service Port Connection

Laptop

Room

Receiver

Room

Receiver

Room

Receiver

CAT5E

Cable

Distribution

Network

206-4218

System Setup (Cont.)

Typical System Installation

(see also Typical Setup Flow Charts on the previous pages)

1. If not already done (see setup information on page 8):

• Conrm that the installation environment meets the >17 dB specification for the OAT100R RF input signal-to-noise ratio.

• Measure the signal level at each of the antenna RF inputs. For proper system performance, the signal level at each antenna input must be between +3 dBm (+52 dBmV) and -83 dBm (-34 dBmV). A nominal value of -53 dBm (-4 dBmV) is recommended.

2. Connect a 75 ohm RG-6 or larger coaxial cable from the terrestrial antenna distribution system to each RF IN port to be used on the OAT100R rear panel. Up to eight OAT100R RF tuners may be connected for RF 256-QAM output or IP output; up to four OAT100R RF tuners may be connected for RF 64-QAM output.

3. To enable remote management, connect one end of a CAT5 RJ-45 Ethernet cable to the Control Port on the OAT100R rear panel, and connect the other end of the cable to the institution’s network.

Caution: The subnet 192.168.0.x is reserved for internal communication and cannot be used for the Control Port network subnet. This is the only restriction; for example, you can use 192.168.1.x, 10.x.x.x, etc. Contact your service representative for further information.

4. Connect the OAT100R power supply to the POWER connector on the OAT100R rear panel. Then, plug the AC power cord into a powered AC line receptacle. When power is applied, the PWR (Power) LED on the OAT100R front panel will initially flash red and then turn green.

The boot-up process for the OAT100R may take up to two minutes. When boot-up is complete, the STATUS LED on the OAT100R front panel will light continuously green.

5. Once the STATUS LED is lit continuously (no longer blinking), use the FTDI TTL-232R-5V-AJ cable to connect a PC to the Service Port on the OAT100R front panel.

6. Using HyperTerminal or an equivalent terminal emulation program on the PC, congure the serial port as follows: Bits per second/baud = 115200; Data bits = 8; Parity = None; Stop bits = 1; Flow Control = None

Once the connection is established, you should see a login prompt. If the login prompt is

not automatically displayed, press Enter to refresh the screen.

7. At the

type Password4Partners (case-sensitive) and press Enter.

Note: After the system setup is complete, it is highly recommended that you change the admin user password from its default value. See “Change the Login Password” on page 62 for further information.

prompt, type admin and press Enter. Then, at the

password:

prompt,

(Continued on next page)

206-4218

(Continued from previous page)

System Setup (Cont.)

8. At the

Command >

OAT100R command prompt to view current menu, if desired.)

The initial System Information display identifies OAT100R default configuration settings, including the Control Port IP address, the PID conguration, and the output conguration, for example:

prompt, type info and press Enter. (You can press Enter at any

SN: 201-12301011 Version 2.1 HW id: 12-19 Ctrl MAC: 00:0C:63:3A:FF:EC Ctrl IP: 10.166.60.92 Program PIDs: 0x30 - 0x6f Output: RF RF config: Mode 2, 256-QAM-B, RF: 6 MHz, 5.36 MSps RF channels: 2 3 4 5 Local time: Tue Jan 8 14:42:02 CDT 2014

9. Check the Ctrl IP (Control Port IP address) eld in the System Information display. By

default, the OAT100R uses DHCP; thus, the DHCP server, if congured, assigns an IP address to the OAT100R once the OAT100R successfully connects to the network.

• If the Ctrl IP eld shows an IP address, the OAT100R is up and running on the network. Continue with step 10.

• If the network is congured for DHCP but the Ctrl IP eld is blank, refer to “Network Setup” troubleshooting information on page 68.

• If the network is not congured for DHCP, you will need to congure a static IP address for the OAT100R. Complete steps 10 to 13 (as required), and then set the OAT100R IP address using the commands indicated in step 14.

10. Check the Output eld in the System Information display. If the default value (RF) does not identify the appropriate output type, set the output mode as follows:

a) At the

b) Use the Setup Menu “omode” command to set the appropriate output mode. See “Set

11. The next step depends on the output mode:

• If you are setting up the system for RF output, continue with step 12.

• If you are setting up the system for IP output, go to step 13.

Command >

the Output Mode” on page 49 for further information.

prompt, type setup and press Enter to access the Setup Menu.

206-4218

(Continued on next page)

System Setup (Cont.)

(Continued from previous page)

12. (RF output only) Complete OAT100R RF output configuration as follows:

a) If the

b) Use the Setup Menu “rf” command to congure the RF mode and the RF channels. See

c) Connect RF OUT on the OAT100R rear panel to the RF distribution center combiner,

d) Go to step 14.

13. (IP output only) Complete OAT100R IP output configuration as follows:

a) If the

b) The IP Output Conguration Menu offers two options for configuring output IP channels:

c) (Optional) Use the IP Output Configuration Menu “ttl” command, as necessary, to

d) Once you have completed the output IP conguration, make sure to use the IP Output

e) Connect a CAT5E or better cable between the Feature Port on the OAT100R rear

f) Continue with step 14.

Command >

Setup Menu.

“Configure the RF Output” on page 54 for further information.

and balance the RF signal so that the signal level at the TV(s) is between 0 to +7 dBmV.

Caution: For proper system performance, the OAT100R signal level at the TV input (ANTENNA IN) must be between 0 to +7 dBmV. Note that additional equipment (i.e., attenuators) may be required to adjust the signal level.

Command >

Setup Menu. Then, at the access the IP Output Conguration Menu.

• To manually congure the output IP channels, use the “set’’ command. You will need to specify a multicast IP address and the multicast port number for each tuner.

• To auto-congure output IP channels from a base multicast IP address and port number, use the “ll” command. Once you enter the base multicast IP address and the multicast port number, the system will auto-increment the remaining IP channels.

Refer to “Congure the IP Output” on pages 56 to 59 for further information on the IP Output Conguration Menu commands.

set the multicast TTL, i.e., the number of hops allowed before the multicast data is dropped. If a router is being used on the system, the TTL value should be the number of router hops + 1. If a router is not being used, leave the TTL set to 1 (default).

Note: The option to set the TTL is available only with OAT100R version 2.0 or later software.

Conguration Menu “apply” command to conrm and apply the conguration data to the system. Then, at the next Enter to return to the Setup Menu prompt.

panel and the institution’s IP distribution network.

prompt is on display, type setup and press Enter to access the

Setup Command >

IP Output Command >

prompt, type ipout and press Enter to

prompt, type exit and press

(Continued on next page)

206-4218

System Setup (Cont.)

(Continued from previous page)

14. (Optional) For remote management purposes, you can set a static IP address for the OAT100R Control Port as follows:

a) If the

b) At the

c) Use the Network Configuration Menu “ip” and “dns” commands to configure the Control

Note: Review the New Network Configuration overview carefully before you confirm the Control Port configuration settings. Ensure each of the addresses was entered correctly.

Note: If you change the Control Port configuration, you will be prompted to reset the system. If you intend to modify additional configuration settings during the current session, you may wait until all changes are complete before you reset the system.

15. Once all physical connections to the OAT100R have been made and the Control Port IP address has been assigned or configured, you also have the option to complete the system setup remotely using either the web GUI or the command line interface.

• To complete the system setup in the current session (via the Service Port), continue with

• If you wish to complete the setup remotely, reset the system at this time: At either the

16. (Required only if Pro:Idiom channels are present in the system) Check the Program PIDs field in the System Information display (if necessary, you can rerun the “info” command from either the 0x6f) is not appropriate for this system, set the PIDs as follows:

a) If the

b) Use the Setup Menu “pid” command to configure the program PIDs. See “Configure the

17. (Optional) If desired, you can identify the location in which the OAT100R is installed. The location description will be displayed as part of the System Information in the command line interface and as part of the System Status and Tuner Information screens in the GUI.

Command >

Setup Menu.

Setup Command >

display the current network configuration, followed by the Network Configuration Menu.

Port. See “Configure the Control Port” on page 52 for further information.

step 16.

prompt is on display, type setup and press Enter to access the

prompt, type setip and press Enter. The system will

Command >

When you are ready, establish remote communication with the OAT100R, and then continue with step 16. Note that you may use the GUI to perform the conguration steps, if desired. Refer to “Network and Communication Setup” on page 22 for information on establishing remote communication with the OAT100R and/or “Conguration Options via GUI” on pages 23 to 38 for further information on the GUI.

Setup Menu.

Program PIDs” on page 50 for further information. Note that PIDs must be specified as hexadecimal numbers.

prompt or the

Setup Command >

Command > or Setup Command >

Command >

prompt is on display, type setup and press Enter to access the

prompt, type reset and press Enter.

prompt). If the default range (0x30 -

206-4218

(Continued on next page)

System Setup (Cont.)

(Continued from previous page)

a) If the

b) Use the Setup Menu “location” command to identify the site location. See “Identify the

18. (64-QAM output only) Streams 1, 2, 3, and 4 are congured by default when 64-QAM output is used, though any four of the OAT100R tuners may be mapped to these streams. In the default system conguration, Tuner 1 is mapped to Stream 1, Tuner 2 is mapped to Stream 2, etc. If Tuners 5, 6, 7, and/or 8 are among the four tuners that were connected to the terrestrial antenna distribution system, make sure the tuners are mapped to the appropriate streams, as follows:

a) If the

b) At the

Command >

Setup Menu.

Site Location” on page 64 for further information.

Command >

Tuner Menu.

Enter Tuner number >

port/tuner to congure. Then, press Enter.

The system will identify the current tuner and then display a Tuner Menu command prompt, for example:

prompt is on display, type setup and press Enter to access the

prompt is on display, type tuner and press Enter to access the

prompt, type the number of the rst OAT100R RF IN

Current Tuner: Tuner-5

c) Use the Tuner Menu “output” command to map the tuner to the appropriate stream (1, 2,

3, or 4). See “Configure Tuner/Output Assignments” on page 46 for further information.

d) Repeat step (c) for each of the additional three tuners, as required.

Note: Use the “tuner” command as described on page 43, to access the Tuner Menu for each of the tuners in turn.

e) When you are finished mapping the last tuner stream, at the

prompt, type exit and press Enter to return to the Main Menu

19. (Optional) As part of the system setup, you will need to set tuner channel and program numbers. If you are not sure which RF channels and programs are available on each of the tuners, you may wish to run one or more RF scans before you set the channel and program numbers as described later in this procedure.

a) If the

b) Use the Setup Menu “scan” command to initiate an RF scan. See “Scan for RF

Note that an RF scan takes several minutes. When a scan is complete, the system will provide a listing of the available channels on the selected tuner(s) as well as the program(s) available for each of those channels.

Command >

Setup Menu.

Channels” on page 55 for further information.

prompt is on display, type setup and press Enter to access the

Tuner Command >

Command >

prompt.

(Continued on next page)

206-4218

System Setup (Cont.)

(Continued from previous page)

Repeat this step for additional tuners as necessary; if multiple tuners are connected to one antenna, you do not need to run separate RF scans on each. Make note of the results, and then continue with step 20.

20. If the

21. At the

22. At the

Setup Command >

Main Menu

The next series of steps will guide you through the process of setting the channel and program numbers and verifying the configuration for each tuner.

Command >

prompt, type tuner and press Enter to access the Tuner Menu.

Enter Tuner number >

tuner to congure. Then, press Enter.

The system will identify the current tuner and then display a Tuner Menu command prompt, for example:

prompt is on display, type exit and press Enter to return to the

prompt.

prompt, type the number of the rst OAT100R RF IN port/

Current Tuner: Tuner-1

Tuner-1 Command >

23. Use the Tuner Menu “channel” and “prog” commands, respectively, to set the channel and program(s) for the tuner. Refer to “Set the Tuner Channel” and “Program Mapping” on pages 44 and 45 for further information.

24. At the next following elds in the Tuner Information display:

• SNR: To avoid interference, the signal-to-noise ratio should be greater than 18.

• FEC Errors: There should be zero (0) forward error correction (FEC) errors.

• Locked: The tuner should be locked to the antenna signal.

If any of these elds shows a value that is NOT in accordance with the specications above, refer to “Receiver Reception” troubleshooting information on page 70.

25. Repeat steps 23 and 24 for each tuner being used.

Note: Use the “tuner” command, as described on page 43, to access the Tuner Menu for

each of the tuners in turn.

26. If you changed the Control Port configuration (see step 14) and you have not yet reset the system, type exit and press Enter to return to the Main Menu reset the system as follows:

a) At the

b) At the prompt for conrmation, type y and press Enter.

The reset process, during which each of the tuners will also be reinitialized, may take up to two minutes, after which the system resumes normal operation.

27. Check one or more room receivers to make sure all content is properly mapped and available.

Tuner Command >

Command >

prompt, type reset and press Enter.

prompt, type info and press Enter, and then check the

Command >

prompt. Then,

206-4218

Network and Communication Setup

This section describes OAT100R communication options for configuration purposes.

Note: Before you proceed with any additional configuration, the system should be installed and operating as described in the system installation procedure on pages 16 to 21.

Also note that configuration updates periodically require that you reset the OAT100R. Make sure to reset the unit when directed to do so.

There are three options for communicating with the OAT100R.

• When the OAT100R is connected to an IP network, you can use a standard Internet

browser to communicate with the OAT100R via a graphical user interface (GUI).

• When the OAT100R is connected to an IP network, you can also use an SSH client to

communicate with the OAT100R via a command line interface.

• To establish a direct connection to the OAT100R, connect a PC to the serial port on the

OAT100R using the FTDI TTL-USB cable (P/N TTL-232R-5V-AJ). Plug the USB end of the cable into an open USB port on your PC. If necessary, install the device driver. Plug the other end of the cable into the Service Port jack on the OAT100R rear panel.

Using HyperTerminal or an equivalent terminal emulation program on the PC, configure the

serial port as follows:

− Bits per second/baud = 115200

− Data bits = 8

− Parity = None

− Stop bits = 1

− Flow Control = None

OAT100R conguration options via web GUI are described on pages 23 to 38; OAT100R conguration options via command line are described on pages 39 to 67. For security and control purposes, some options available from the command line menus are not available from the GUI.

You will need to know the “admin” user password in order to log in to either the web GUI or the command line interface. The default admin user password is “Password4Partners” (casesensitive). If necessary, for example, if the password has been changed from its default value, consult the system administrator to obtain the current admin user password.

Note: The default network setting for the OAT100R is DHCP, in which case the server assigns an IP address to the OAT100R. If necessary, consult the network administrator to obtain the IP address that has been assigned to the OAT100R.

Note: If you want to connect the PC directly to the OAT100R Control Port using an Ethernet CAT5E cable, in order to establish communication you must rst connect the PC to the OAT100R Service Port and set the OAT100R’s IP address (see “Congure the Control Port” on page 52). The OAT100R’s IP address must be on the same subnet as the PC’s IP address.

206-4218

Conguration Options via GUI

Access the OAT100R Web GUI

Note: The OAT100R must be connected to an IP network for GUI access. See “Network and

Communication Setup” on page 22 for further information.

If necessary, consult the system administrator to obtain the current “admin” user password before proceeding. The default admin user password is “Password4Partners” (case-sensitive).

1. Launch a web browser, and type http://ipaddress in the browser’s address bar, where ipaddress is the network IP address of the OAT100R. Then, press Enter.

2. The system will display a login authentication pop-up window. In the User Name eld, type admin; in the Password eld, type the admin user password. Then, click OK.

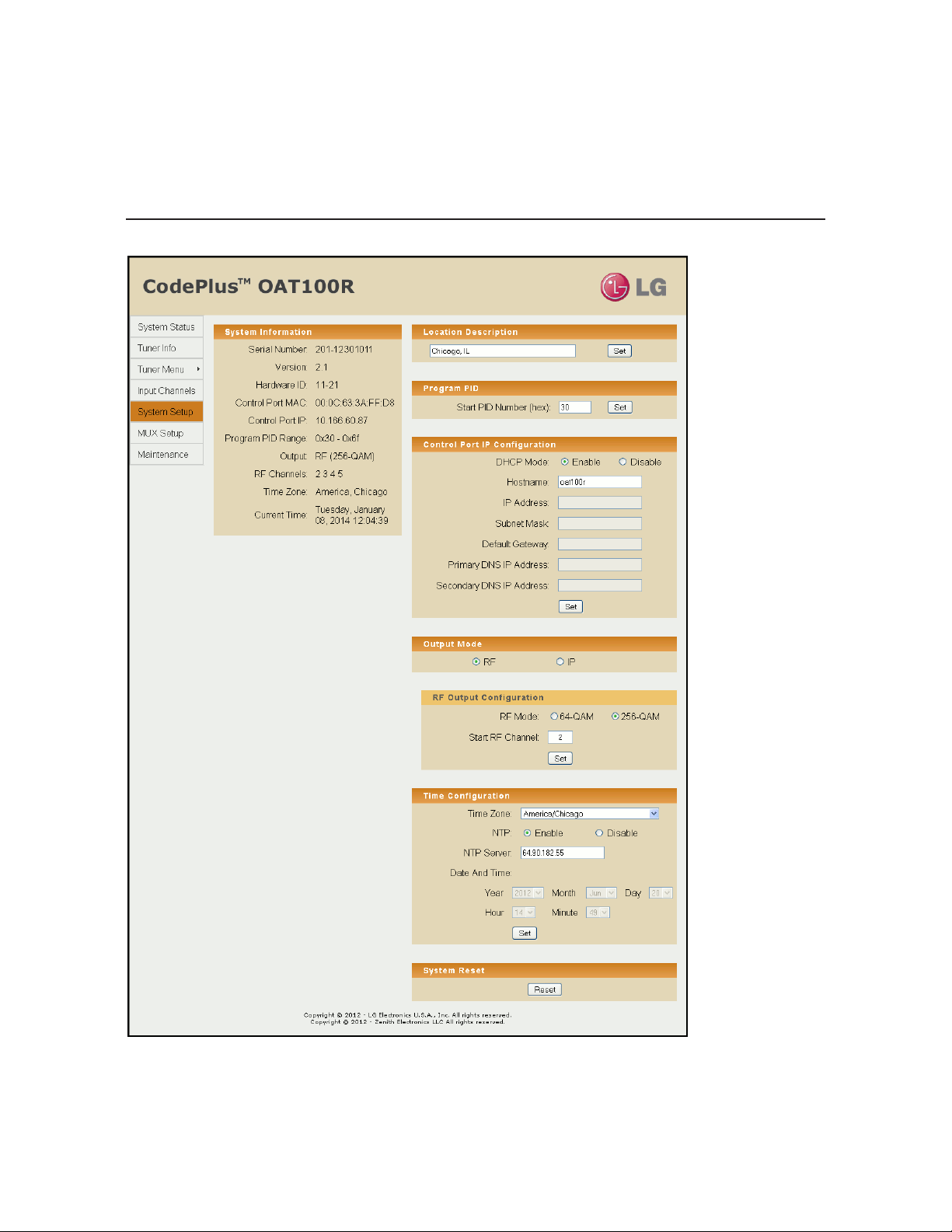

The OAT100R web GUI opens with the System Status on display (see “OAT100R System Status” on the next page for further information). The options panel at the left of the screen enables you to view and congure system settings. The following sections provide detailed information on the configuration settings and commands.

Note: It is possible, if desired, to change the login password via the command line interface Setup Menu “pwd” command as described on page 62.

When you have completed your activities in the OAT100R web GUI, it is recommended that you close your browser to prevent unauthorized access to the system.

206-4218

+ 53 hidden pages
