LG ML041D Service Manual

Download

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : ML-041D

MODEL : 27LZ5RV-ZC

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

DVD / CD PLAYER

SKIP/

OPEN/

SCAN

PLAY

STOP

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ..................................................................................3

SERVICING PRECAUTIONS.....................................................................4

SPECIFICATION........................................................................................6

ADJUSTMENT INSTRUCTION................................................................11

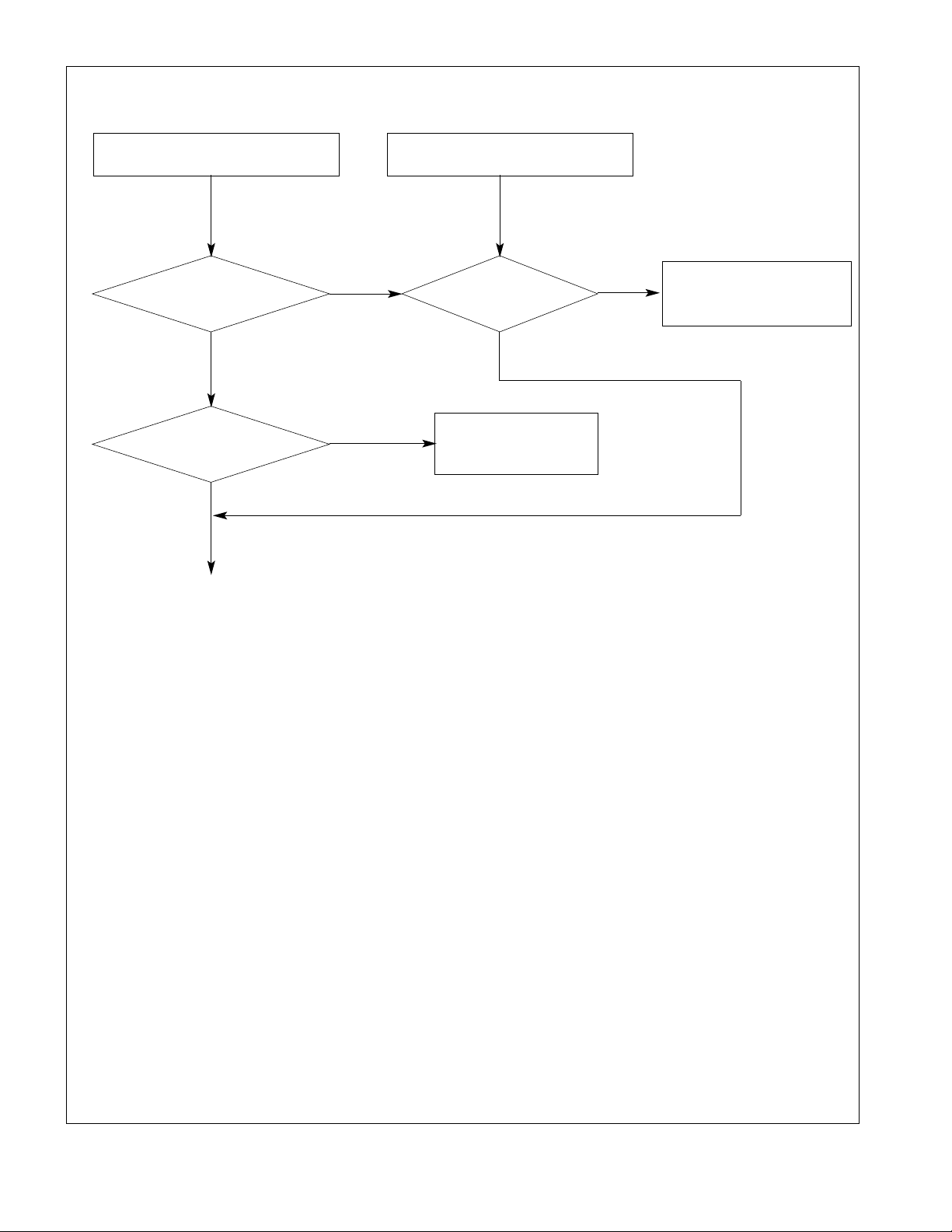

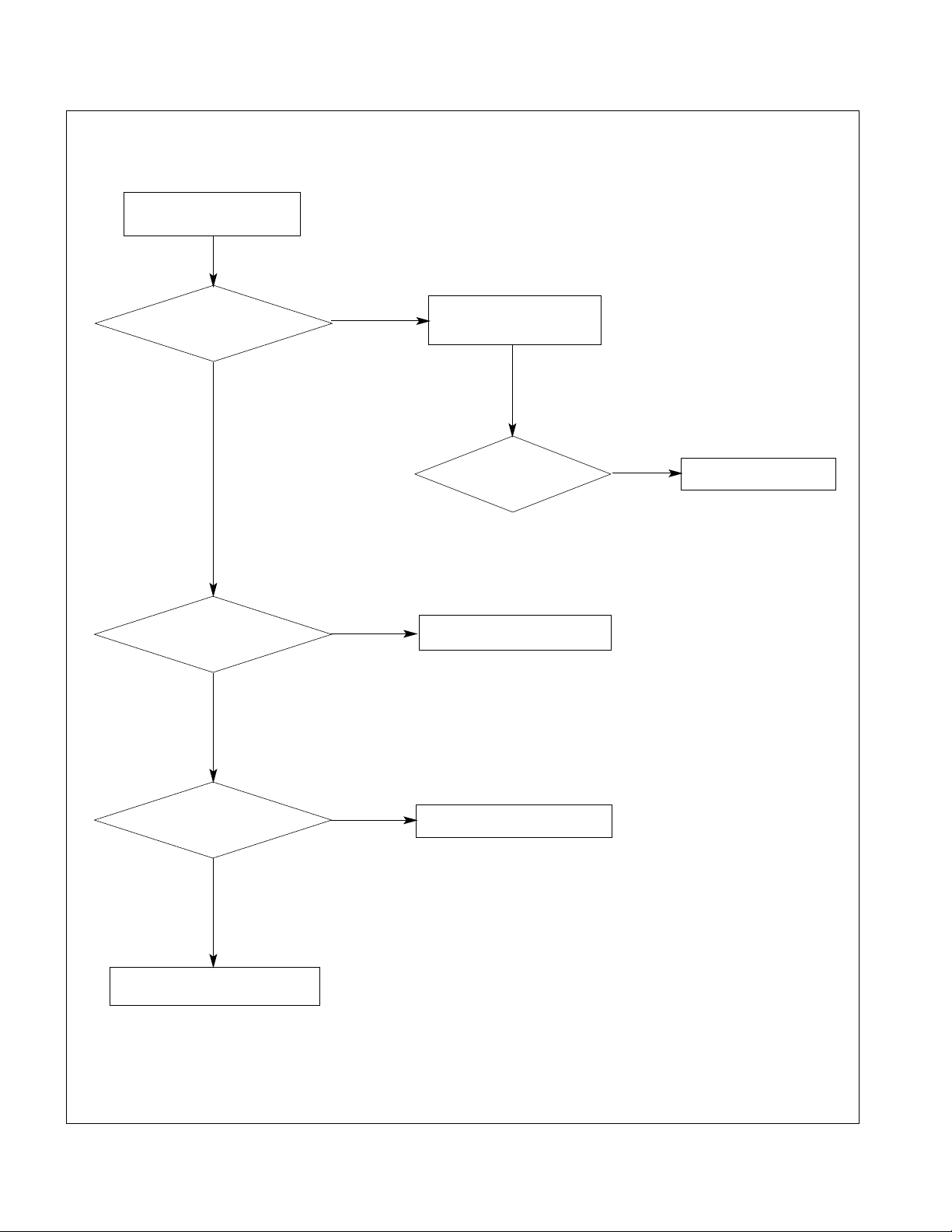

TROUBLE SHOOTING............................................................................15

BLOCK DIAGRAM...................................................................................21

WIRING DIAGRAM..................................................................................24

EXPLODED VIEW .................................................................................. 25

EXPLODED VIEW PARTS LIST..............................................................26

REPLACEMENT PARTS LIST ............................................................... 27

SVC. SHEET ...............................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

IMPORTANT SAFETY NOTICE

0.15uF

To Instrument's exposed METALLIC PARTS

AC Volt-meter

Good Earth Ground such as WATER PIPE, CONDUIT etc.

1.5 Kohm/10W

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500

F to 600 F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500

F to 600 F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500

F to 600 F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

- 6 -

1. Application range

This specification is applied to ML-041D chassis.

2. Requirement for Test

Testing for standard of each part must be followed in below condition.

(1) Temperature: 25°C ± 5°C (2) Humidity: 65% ± 10% (3) Power: Standard input voltage (AC 100-240V, 50/60Hz) (4) Measurement must be performed after heat-run more than

30min.

(5) Adjusting standard for this chassis is followed a special

standard.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

3.General Specification(TV)

No Item Specification Remark

1. Video input applicable system PAL-D/K, B/G, I, NTSC-M, SECAM NTSC 4.43

2. Receivable Broadcasting System 1) PAL/SECAM BG (ZE/TE)

2) PAL/SECAM DK EU/Non-EU

3) PAL I/I (PAL Market)

4) SECAM L/L'

5) NTSC M

6) PAL-N/M 6),7) South America Market

7) NTSC M

7) Except South America NTSC Market (RM)

3. RF Input Channel VHF : E2 ~ E12 PAL UHF : E21 ~ E69 CATV : S1 ~ S20 HYPER : S21~ S41 L/L' : B, C, D FRANCE VHF : 2~13 NTSC UHF : 14~69 CATV : 1~125 VHF Low : 1 ~ M10 JAPAN VHF High : 4~S22 UHF : S23~62

4. Input Voltage AC 100 ~ 240 V/50Hz, 60Hz

5. Market Worldwide

6. Picture Size 603.22 mm 27 inch

7. Tuning System FVS 100 program PAL, 200 PR.(Option) FS NTSC

8. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : 85 %

9. Storage Environment 3) Temp : -20 ~ 60 deg

4) Humidity : 85 %

10. Display LCD Module CMO

- 7 -

4.General Specification

NO Item Specification Unit Remark

1 Panel 27" TFT WXGA LCD 2 Frequency range H : 31 ~ 61Khz DVI-I input

V : 56 ~ 75Hz

3 Control Function 1) Contrast/Brightness

2) H-Position / V-Position

3) Tracking : Clock / Phase

4) Auto Configure

5) Reset

4 Comoponent Jack 1 : Y Middle east

3 : Pb / NTSC Area 5 : Pr 7 : Line1 Ready 9 : LINE2 11: LINE3

13: Line3 Ready D4 Jack 2 : Y GND JAPAN Only (525i,525p,750p,1125i) 4 : Pb GND

6 : Pr GND

8 : LINE1

10:Line2 Ready

12:SWITCH GND

14: SWITCH

5 H/V-Sync Video Power consumption LED

Power ON ON/ON Active ≤ max 170W W Green Stand by OFF/ON OFF ≤ 3.0W W Red DPMS Mode ON/OFF OFF ≤ typ. 35W W Green Power off - - - W *.

6 LCD Module Type CMO 637.55 x 379.8 x 40.7 mm (H) x (V) x (D)

Size

Pixel Pitch CMO 0.1455 x 0.4365 x RGB mm

Pixel Format 1366 horiz. By 768 vert. Pixels

RGB strip arrangement

Coating Hard coating(3H), Anti-glare

treatment of the front polarizer,

Back Light CMO CCFL

- 8 -

5.Optical Feature(LCD Module)

No Item Specification Remark

CMO

1 Viewing Angle R/L, U/D 176,176

<CR

10>

2 Luminance Luminance (cd/m2) 550 Typical

Variation 1.3 MAX / MIN 3 Contrast Ratio 1000 All white / All black 4 CIE Color Coordinates White WX Typ. 0.284 CMO

WY Typ. 0.295

RED Xr Typ. TBD

Yr Typ. TBD

Green Xg Typ. TBD

Yg Typ. TBD

Blue Xb Typ. TBD

Yb Typ. TBD

6.Feature and Function

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

Teletext REMOCON AV input S-AV input Component input PERI TV connector PERI TV connector RGB input RS-232 Discrete IR D-sub audio input 2 Carrier stereo NICAM stereo 2 Carrier dual NICAM dual DW(Double Window) mode MW(Multi Window) mode Film mode Noise reduction Progressive scan Motion detection SRS WOW Swivel Speaker EZ-pip Local Key Local key(DVD)

TOP, FLOF

NEC code

1 1 2

Half SCART: 1

Full SCART: 1

1 1 1 1

BG,DK

BG,I,LL’

BG,DK

BG,I,LL’

X O X O O X X X

Pr+/-, vol+/-, ok, menu, tv/av, power

OPEN/CLOSE, PALY, STOP, SKIP/SCEN

Item Specification Remark

No.

Top(option) PAL/NTSC Rear(TC/MC) Side Side, Rear(TC/MC) Rear(ZC) Rear(ZC) DVI D-Sub 9 pin(MC) (MC) Stereo

- 9 -

7. Component Video Input (Y, PB, PR)

8. PC INPUT Mode table

[Timming chart of Receivable Mode]

No Specification Proposed

Resolution H-freq(kHz) V-freq(Hz)

1. 640x480 15.73 60 SDTV, DVD 480i

2. 640x480 15.63 59.94 SDTV, DVD 480i

3. 720x576 15.625 50.00 SDTV, DVD 625 Line

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

DVI-PC, Analog RGB, Digital RGB 1 640x480 31.469 59.94 25.17 VESA(VGA) 2 800x600 37.879 60.31 40.00 VESA(SVGA) 3 1024x768 48.363 60.00 65.00 VESA(XGA) 4 1280x768 47.693 60.00 80.125 VESA(WXGA) 5 1360x768 47.649 59.936 84.625 VESA(WXGA) 6 1920x1080 33.75 60.00 86.375 HDCP DVI Digital 1080i(MC only) 7 1280x720 45.00 60.00 74.375 HDCP DVI Digital 720p (MC only)

- 10 -

9. Customer Menu Setup

[shipped condition: PAL]

No Item Condition Remark

1 Power Off 2 Volume Level 30 3 Main Picture Input TV 4 Main Last Channel Pr 01 5 Mute Off 6 ARC 16 : 9 7 Station Auto Program

Manual Program Program Edit Favorite Program None

8 Picture PSM Dynamic

Dynamic Contrast 80

Brightness 40 Colour 70 Sharpness 70 Tint 0

NTSC OPTION

9 Sound SSM Flat

AVL Off Balance 0

10 Special Input TV

Child Lock Off Auto sleep Off Language English(Area Management)

11 PC H-Position

V-Position

Variable by each mode

Clock Phase Auto Configue

- 11 -

ADJUSTMENT INSTRUCTION

1. Application Object

This instruction is for the application to the LCD TV.

2. Designation

2.1 The adjustment is according to the order which is

designated and which must be followed, according to the plan which can be changed only on agreeing.

2.2 Power Adjustment : Free Voltage

2.3 Magnetic Field Condition: Nil.

2.4 Input signal Unit : Product specification standard

2.5 Reserve after operation : Above 2 hours

2.6 Adjustment equipments : Pattern Generator( MSPG925F),

DDC Adjustment Jig equipment HDCP Adjustment Jig equipment.

3. Adjustments

3.1 Adjustment Details

: The machine can be adjusted by itself automatically with

factory automatic equipment, in case error occurs, set manual adjustment to standard.

3.2 Adjustment signal Composition of The Auto Adjustment

equipment

3.2.1 RS-232C Interchange 9600bps, Pin#2 : Rx, Pin#3 : Tx, 8bit, STOP bit=1, No Parity

3.2.2 Adjust data save * Save the adjusted data to the EEPROM with default value

3.2.3 Adjust OK

3.2.4 Screen Adjustment Instruction Forms CMD1 CMD2 SetID(0) Value a. CMD1,CMD2 : Instructions operated by Monitor b. SetID L 0h Set always 0 in Adjustment c. VALUE : Adjustment Value

3.3 PC signal Gain/Offset Adjustment

3.3.1 Adjustment Preparation

- Execution of RF no signal during Heat Run over

30min

- Pattern generator signal is connected to the DVI-I

Jack of LCD TV.

3.3.1 Auto Gain/Offset Adjustment .

- To use Pattern Generator(MSPG-925FS), Apply

Model 37, Patten 19 XGA(1024 X 768)60Hz, Half balck and Half white signal (Don't apply 16 gray signal)

- Press IN-START Key by using the Remote

Controller(SVC) , after converting to AdjustmentMode, press VOL+ Key consecutively in Auto-Gain Menu.

- After adjustment is complete, pressing enter key,

stores and completes the process.

* Note) : PC Adjustment must be completed before auto

adjustment.

3.4 Video signal Gain/Offset Adjustment(Auto adjustment)

- Execution of White Pattern during Heat Run over 30min

- Connect to the LCD TV AV1 Scart input terminal with Patten Generator(MSPG-925FS)

- Convert INPUT MODE to Video&Confirm whether PSM

Mode is Standard

- Connect RS-232C Communication Cable to the Auto

Adjustment Equipment and SET's upgrade Port

3.4.1 Low Gray Adjustment

- Apply Gray-Level Gray-Level (Model : 202, pattern :

59) signal by using Pattern Generator(MSPG925FS)

- Check weather color-coordinates (x:0.280, y : 0.280, ±0.005) is operated by using CA-110 equipment

- If color-coordinates is not in Spec, adjust colorcoordinates(x:0.280, y:0.280, ±0.005)by adjusting Red Offset, Blue Offset

3.4.2 White Balance Adjustment

- Apply Gray-Level Gray-Level (Model : 202, pattern :

59) signal by using Pattern Generator(MSPG925FS)

- Check weather color-coordinates (x:0.283, y:0.298, ±0.005) is operated by using CA-110 equipment

- If color-coordinates is not in Spec, adjust colorcoordinates(x:0.283, y:0.298, ±0.005)by adjusting Red Offset, Blue Offset

- All adjustment takes color-coordinates with based on G, changing R and B. If it is not adjusted, adjust with fixed B, changing G and R.

3.5 Component signal Gain/Offset Adjustment(Auto adjustment)

- Execution of RF no signal during Heat Run over 30min

- Connect to the LCD TV Component1 terminal with Patten Generator(MSPG-925FS)

- Convert INPUT MODE to Component1.& Confirm whether PSM Mode is Standard

- Connect RS-232C Communication Cable to the Auto

Adjustment Equipment and SET's upgrade Port

3.5.1 Low Gray Adjustment

- Apply Gray-Level (Model : 210, pattern : 59)signal by using Patten Generator(MSPG925FS)

- Check whether color-coordinates (x:0.280, y:0.280, ±0.005) is operated by using CA-110 equipment

- If color-coordinates is not in Spec, adjust color-

coordinates(x:0.280, y : 0.280, ±0.005) by adjusting Red Offset, Blue Offset

3.5.2 White Balance Adjustment

- Apply full White (Model : 210, pattern : 47) signal by using Patten Generator(MSPG925FS)

- Check whether color-coordinates (x:0.280, y:0.280,

±0.005) is operated by using CA-110 equipment

- If color-coordinates is not in Spec, adjust colorcoordinates (x:0.283, y:0.298, ±0.005)by adjusting Red Gain, Blue Gain

- All adjustment takes color-coordinates with based on R,

changing G and B If it is not adjusted, adjust with fixed G, changing R and R.

ai - 0 - 00

ak - 0 - 00

- 12 -

3.6 EDID (The Extended Display Identification Data)

- Connect D-Sub to DVI-I Cable to DVI-I Jack.

- Confirm the pc display by inputting the Analog signal.

- After displayed, input the Analog EDID data.

- Connect DVI D Cable to DVI Jack.

- Confirm the pc display by inputting the Digital signal.

- After displayed, input the Digital EDID data.

3.6.1 EDID DATA <DDC DATA Analog Set>

< DDC DATA Digital Set>

3.7 HDCP (High-Bandwidth Digital Contents Protection) Setting

3.7.1 When transmitting HD video source of HD STB through DVI(Digital Visual Interface), HDCP function is to execute Display & copy protection for securing contents security.

3.7.2 Confirm whether HDCP function is operated properly by connecting DVI Cable, after storing HDCP Key value on EEPROM(AT24C16)[address 0

x4EE] (Refer to Working

Order for Detailed work content ).

* Reference : HDCP adjustment is not use. We are planning

HDCP adjustment from NTSC.

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 45 75 01 01 01 01 10 00 0E 01 03 01 40 26 78 08 B1 DA A1 56 48 98 24 20 13 48 4B 21 08 00 31 40 01 01 01 01 45 40 01 01 30 61 40 81 80 01 01 4E 1F 00 90 51 00 1B 30 40 88 40 13 00 A2 0B 32 00 00 18 1B 21 50 A0 51 00 1E 30 50 48 88 35 00 A2 0B 32 00 00 1C 00 00 00 FD 00 3B 60 3D 1F 30 09 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 32 37 4C 5A 35 52 56 0A 20 20 20 20 20 00 70

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF 00 1E 6D 46 75 01 01 01 01 10 00 0E 01 03 81 40 26 78 08 B1 DA A1 56 48 98 24 20 13 48 4B 21 08 00 31 40 01 01 01 01 45 40 01 01 30 61 40 81 80 01 01 4E 1F 00 90 51 00 1B 30 40 88 40 13 00 A2 0B 32 00 00 18 1B 21 50 A0 51 00 1E 30 50 48 88 35 00 A2 0B 32 00 00 1C 00 00 00 FD 00 3B 60 3D 1F 30 09 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 32 37 4C 5A 35 52 56 0A 20 20 20 20 20 00 EF

- 13 -

* Option(PAL)

No Item Condition Remark

Option1

1 SideAV 1 0 : SideAV Off

1 : SideAV On

2 SCART 1 0 : SCART Off

1 : SCART On

3 PC 1 0 : PC Off

1 : PC On

4 SideComp 1 0 :SideComp Off

1 :SideComp ON

5 16:9 1 0 : Wide OFF

1 : Wide On

6 200PR 0 0 : 100 Program

1 : 200 Program

7 Text 1 0 : Text Off

1 : Text On

8 ACMS 1 0 : ACMS On

1 : ACMS Off

Option2

1 HiDev 0 0 : HiDev Off

1 : HiDev On

2 Hotel 0 0 : Hotel Off

1 : Hotel On

3 Top 1 0 : Top OFF

1 : Top ON

4 I II SAVE 1 0 : Ch. Sound Non Memory

1 : Ch. Sound Memory

5 Turbo Vol 0 0 : except below area(Off)

1 : Middle-East Area Vol On

6 Ch/Aus 0 0 : except below area(Off)

1 : China, Australia On

Option 3

1 Language 1 0 : Eng Only

1 : EU5 2 : 12 nations (Europe) 3 : Eng + Chinese 4 : Eng + Arab + Urdu 5 : Eng + FARSI

2 Txt Lang 0 0 : WEST EU

1 : EAST EU1 2 : TURKY EU 3 : EAST EU2 4 : CYRILLIC1 5 : CYRILLIC2 6 : CYRILLIC3 7 : TURK GRE1 8 : TURK GRE2 9 : TURK GRE3 10 :ARAB FRAN 11 :ARAB ENG 12 :ARAB HEB1 13 :ARAB HEB2 14 :FARSI ENG 15 :FARSI FRA

16 :FARI ALL 3 Inch opt 0 reserved 4 DDCi Analog Analog : Analog

Digital : Digital

- 14 -

SVC REMOCON

NO KEY FUNTION

REAMARK

1 POWER 2 POWER ON 3 MUTE

4 P-CHECK 5 S-CHECK 6 ARC 7 CAPTION 8 TXT 9 TV/AV 10 TURBO SOUND 11 TURBO PICTURE

12 IN-START

13 ADJ 14 MPX 15 EXIT 16 APC(PSM) 17 ASC(SSM) 18 MULTIMIDIA 19 FRONT-AV 20 CH 21 VOL 22 ENTER

23 PIP CH-(OP1)

24 PIP CH+(OP2)

25 PIP SWAP(OP3)

26 PIP INPUT(OP4)

27 EYE 28 MENU

29 IN-STOP 30 STILL

31 TIME

32 SIZE

33 MULTI PIP

34 POSITION

35 MODE 36 PIP 37 TILT 38 0~9

To turn the TV on or off To turn the TV on automatically if the power is supplied to the TV. (Use the POWER key to deactivate): It should be deactivated when delivered. To activate the mute function. To check TV screen image easily. To check TV screen sound easily To select size of the main screen (Normal, Spectacle, Wide or Zoom) Switch to closed caption broadcasting To toggle on/off the teletext mode To select an external input for the TV screen To start turbo sound To start turbo picture To enter adjustment mode when manufacturing the TV sets. To adjust the screen voltage (automatic): In-start

mute

Adjust AV(Enter into W/B adjustment mode) W/B adjustment (automatic): After adjusting the screen W/B adjustment

Exit two times (Adjustment completed) To enter into the adjustment mode. To adjust horizontal line and sub-brightness. To select the multiple sound mode (Mono, Stereo or Foreign language) To release the adjustment mode To easily adjust the screen according to surrounding brightness To easily adjust sound according to the program type To check component input To check the front AV To move channel up/down or to select a function displayed on the screen. To adjust the volume or accurately control a specific function. To set a specific function or complete setting. To move the channel down in the PIP screen. To use as a red key in the teletext mode To move the channel in the PIP screen To use as a green key in the teletext mode To switch between the main and sub screens To use as a yellow key in the teletext mode To select the input status in the PIP screen To use as a blue key in the teletext mode To set a function that will automatically adjust screen status to match the surrounding brightness so natural color can be displayed. To select the functions such as video, voice, function or channel. To set the delivery condition status after manufacturing the TV set. To halt the main screen in the normal mode, or the sub screen at the PIP screen. Used as a hold key in the teletext mode (Page updating is stopped.) Displays the teletext time in the normal mode Enables to select the sub code in the teletext mode Used as the size key in the PIP screen in the normal mode Used as the size key in the teletext mode Used as the index key in the teletext mode (Top index will be displayed if it is the top text.) To select the position of the PIP screen in the normal mode Used as the update key in the teletext mode (Text will be displayed if the current page is updated.) Used as Mode in the teletext mode To select the simultaneous screen To adjust screen tilt To manually select the channel.

Shortcut keys Shortcut keys Shortcut keys

Use the AV key to enter the screen W/B adjustment mode.

Shortcut keys Shortcut keys

Shortcut keys

- 15 -

TROUBLESHOOTING

No power (LED indicator off)

No Power (LED indicator off)

Change IC1300, IC4 or IC6

Change LED Assy

Check 24V or 12V

of Power B/D

Check Output of

IC1300, IC4 or IC6

Check LED Assy

Check P101 Connector

Faill

Change L3, L1300

Check Output of

L3, L1300

Faill

Pass

:[A]Process

- 16 -

No Raster

Check LED Status

on display unit

Check the input/

Output of IC901

Check L900,L901

L902,L903

Check inverter

Connector or inverter

Check input source cable and jack

Repeat A PROCESS

Faill

Change L900,L901, L902,L903

Faill

Change IC901

Faill

Change inverter connector or inverter

Faill

Change panel link cable or module

Faill

Change module

Faill

Check panel link Cable or module

Pass

:[B]Process

- 17 -

No Raster on Component signal

Change Q310,Q315,Q316

Check the signal of

Q310,Q315,Q316

Repeat

[A] Process

Check the input/

output of IC800

Check the input/

output of IC500

Check input source cable and jack

Faill

Re-soldering or Change the defect part Check IC800

Faill

Re-soldering or Change the defect part Check IC500,X500,IC501

Faill

Pass

Check the input/

output of IC901

Re-soldering or Change the defect part Check X900

Faill

Pass

Check the input/

output of IC600

Re-soldering or Change the defect part Check IC600

Faill

Pass

:[C]Process

- 18 -

No Raster on AV Signa (Scart1.Scart2,S-Video)

No Raster on TV(RF) signal

Change Q317,Q318,Q308,

Q313

Check the signal of

Q317,Q318,Q308,Q313

Repeat

[A] Process

Check the output of

TU1000

Faill

Check 5V,33V of TU1000, Re-soldering of Change the defect part

Pass

:[C]Process

- 19 -

No Raster on DVD Signal

Check the signal of

R1211,R1212,R1213

Repeat

[A] Process

Faill

Check P1200,P1202 or DVD Cable

Pass

:[C]Process

- 20 -

No Sound(RF,SIDE AV) No Sound(Scart1/2,DVD,PC)

Check the speaker wire

Change source input

Check the

input source

Faill

Pass

Re-soldering or Change the defect part Check X11

Check the input/output

of IC1

Faill

Pass

Re-soldering or Change the defect part Check IC403,X601

Re-soldering or Change the defect part Check IC400

Check the input/

output of IC401

Faill

Pass

Check the input/

output of IC400

Faill

Pass

Change the speaker

Check the speaker

Faill

Pass

BLOCK DIAGRAM(26LZ5RV-ZC)

- 21 -

BLOCK DIAGRAM(26LZ5RV-TC)

- 22 -

SIDE_L,R

S-VHS

TPA3008

AMP

TPA3008

SIDE_Comp.

DVD_ LR

IC401

MSP4410K

DVD_Y,Pb,Pr

VCTI

sound_ LR

Comp 1_L,R

AV_L,R

PC_L,R

IC1

VCTI

DVD_POWER & Y,Pb,Pr

IF+,-

Tuner

TU1000

b Pr LR

RAM

IC501

RAM

IC501

POWER

ADC_H/V_sync

MST9883

R/8

G/8

IC600

B/8

IC500

FLI2300

R,G,B

SIDE_Y,Pb,Pr(Comp2)

R,G,B

IC800

AN15865A

FLI_H/V_sync

ROM

IC900

ROM

IC900

GM5221

IC901

R,G,B

Comp1_Y,Pb,Pr

H/V_sync

AUDIO

PC_R,G,B & H/V sync

DVI

LVDS 30 pin

BLOCK DIAGRAM DESCRIPTION

- 23 -

1. Video Controller Unit & Display Data Conversion Unit

The video controller unit receives the video signals inputted through the tuner, AV port, and converts them into an ITU656 signal through the microcomputer (VCTI) combined with the video decoder that integrates various functions in one chip. Either the analog RGB(FLI2300) signal or PC RGB signal is selected by the switching IC and inputted to a scaler (GM2221), which is sent to the LCD module after being modified to an RGB signal through the integrated LVDS Cable. VCTi is the main microprocessor that handles video signal processing and sound signal processing. It also manages the RF signals received from the tuner. The scaler can control timing to fit into the LCD panel, and can also control the size and position of the inputsignal.

2. Power Supply Unit

The power supply unit provides 24V, 12V and 5V DC power to the mainboard. The PWM Step-Up DC/DC Converter circuit is used to generate the 33V used for the tuner. Supplied 24V power is descended by the 13.5V step-down DDC. 13.5V provides source to sound amplifier IC. 24V power is also used to generate 5V and 3.3V power through the Step-Down DC/DC Converter and supplied 12V. 5V power is converted to 3.3V and 1.8V power through the regulator, which in turn supplies electrical power for ICs such as VCTI and scaler.

- 24 -

WIRING DIAGRAM

3P-6631T20033D

5P-6631T25023Y

14P-6631T20032A

10P-6631T20033F

5P-6631T20033C

4P-6631T25023X

12P-6631T25019K

6P-6631T20033B

14P-6631T20033E

20P-6631T11020A

30P-6631T20040A

30P-6631T20040B

3P-6631T20031G

- 25 -

EXPLODED VIEW

030

050

060

190

200

120

110

100

090

020

070

040

180

170

160

150

140

010

130

080

- 26 -

EXPLODED VIEW PARTS LIST

No.

PART NO.

DESCRIPTION

3091TKE018F Cover Assembly, RZ-27LZ50 BRAND 3091TKE012A 407AF LGEWA C/SKD

6304FCI014A

LCD,Panel-TFT, V270B1-L01 27INCH 1366X768 550CD COLOR 75% V270B1-L01 550NITS 8MS 3809TKE013V Cover Assembly, RZ-26LZ50 3808TKE005A 407AF LGEWA PHANTOM 3809TKE013B Cover Assembly, RZ-26LZ50 3808TKE005A 407AF LGEWA C/SKD 4951TKS228B Plate Assembly, BASE , DVDP STAND 2ND TOOL 3550TKK821A Cover, MOLD ABS KZ-26LZ51 REAR DVDP 3550TKK820A Cover, MOLD ABS KZ-26LZ51 CABLE DVDP, BASE REAR 6401TZZ063B Speaker Assembly, KZ-26LZ51 L 5P 6401TZZ063A Speaker Assembly, KZ-26LZ51 R 4P 4951TKS156N Plate Assembly, FRAME 27LZ5RV, CMO MODULE, C/SKD 6871TPT275E PCB Assembly,Power, RM-32LZ50 POWER TOTAL BRAND 26-32INCH PB FREE 33139P2018A Main Total Assembly, 27LZ5RV BRAND MAIN TOTAL ASSEMBLY 4951TKK169S Plate Assembly,REAR SHIELD 26LZ50, LGEMA PHAMTOM 4951TKK169J Plate Assembly, REAR RZ-26LZ50 C/SKD 6871TST762D PCB Assembly,Sub, RZ-26LZ50 WALES SKD LED & P/SW TOTAL BRAND -LF6871TST589D PCB Assembly,Sub, RZ-26LZ50 CONTROL TOTAL BRAND -LF6871TVT370C PCB Assembly, Video, RM-32/26/23LZ50 SIDE A/V SUB TOTAL BRAND LF 6871TST588D PCB Assembly,Sub, RZ-26LZ50 IR SUB TOTAL BRAND -LF4814TKK280A Plate, PRESS SPTE T0.3 REAR POWER 3551TKK516L Cover Assembly, RZ-32LZ50 LGEMA PHANTOM REAR A/V ASSY PHONE 3551TKK516B Cover Assembly, RZ-30LZ50 REAR NON AV C/SKD 6871TST960A PCB Assembly,Sub, KZ-26LZ51 CONTROL TOTAL BRAND DVD LOCAL KEY -LF6871TSTA07A PCB Assembly,Sub, 26LZ5RV-ZC SUB TOTAL BRAND DVD MPEG BOARD ASSY

010 020 030

040 050 060 070 080 090 100 110 120

130 140 150 160 170 180

190 200

- 27 -

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C100 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C1006 0CH8106J691 MVK5.0TP35VC10M 10uF 20% 35 C1008 0CE227WF6DC MVK8.0TP16VC220M 220uF 20% C107 0CE107WH6DC MVK8.0TP25VC100M 100uF 20% C1215 0CE477WF6DC MVK10TP16VC470M 470uF 20% 1 C1216 0CE477WF6DC MVK10TP16VC470M 470uF 20% 1 C17 0CH8106J691 MVK5.0TP35VC10M 10uF 20% 35 C206 0CH8226F691 MVK5.0TP16VC22M 22uF 20% 16

C208 0CH8226F691 MVK5.0TP16VC22M 22uF 20% 16 C219 0CH8226F691 MVK5.0TP16VC22M 22uF 20% 16 C221 0CH8226F691 MVK5.0TP16VC22M 22uF 20% 16 C235 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C236 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C300 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C301 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C302 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C303 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C304 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C307 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C309 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C312 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C314 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C315 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C316 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C317 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C404 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C416 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C418 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C419 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C422 0CE335WK6D8 MVK4.0TP50VC3.3M 3.3uF 20% C423 0CE477WF6DC MVK10TP16VC470M 470uF 20% 1 C442 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C445 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C454 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C457 0CE476WK6DC MVK8.0TP50VC47M 47uF 20% 50 C482 0CE226WJ6DC MVK6.3TP35VC22M 22uF 20% 35 C488 0CE227WJ6DC MVK10TP35VC220M 220uF 20% 3 C493 0CE476WK6DC MVK8.0TP50VC47M 47uF 20% 50 C5 0CE475WJ6DC MVK4.0TP35VC4.7M 4.7uF 20% C5000 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C502 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C503 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C52 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C520 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C525 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16 C54 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C543 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C560 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C604 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C605 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C607 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C62 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C63 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C651 0CE336WH6D8 MVK6.3TP25VC33M 33uF 20% 25 C652 0CE336WH6D8 MVK6.3TP25VC33M 33uF 20% 25

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C68 0CE106VK6DC MV6.3TP50VC10M 10uF 20% 50V C703 0CE107WF6DC MVK6.3TP16VC100M 100uF 20% C805 0CE475WK6DC MVK5.0TP50VC4.7M 4.7uF 20% C836 0CE477WF6DC MVK10TP16VC470M 470uF 20% 1 C837 0CE477WF6DC MVK10TP16VC470M 470uF 20% 1 C839 0CE477WF6DC MVK10TP16VC470M 470uF 20% 1 C864 0CE227WF6DC MVK8.0TP16VC220M 220uF 20% C866 0CE227WF6DC MVK8.0TP16VC220M 220uF 20% C87 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C88 0CH8476H691 MVK8.0TP25VC47M 47uF 20% 25 C888 0CE227WJ6DC MVK10TP35VC220M 220uF 20% 3 C889 0CE227VH6DC MV10TP25VC220M 220uF 20% 25 C900 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C953 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C956 0CH8476H691 MVK8.0TP25VC47M 47uF 20% 25 C957 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C959 0CH8476F691 MVK6.3TP16VC47M 47uF 20% 16 C97 0CH8476H691 MVK8.0TP25VC47M 47uF 20% 25 C972 0CH8476H691 MVK8.0TP25VC47M 47uF 20% 25 C980 0CE227WJ6DC MVK10TP35VC220M 220uF 20% 3 C982 0CE476WK6DC MVK8.0TP50VC47M 47uF 20% 50 C1100 0CE106BF618 ESM106M016T1G5C11G 10uF 20% C1102 0CE107EK638 KMG5.0TP50VB100M 100uF 20% C1112 0CE108EF618 KMG5.0TP16VB1000M 1000uF 20 C1113 0CE108EF618 KMG5.0TP16VB1000M 1000uF 20 C1114 0CE108EF618 KMG5.0TP16VB1000M 1000uF 20 C1115 0CE108EF618 KMG5.0TP16VB1000M 1000uF 20 C1201 0CE477BF618 ESM477M016T1G5G11G 470uF 20 C1204 0CE477EJ618 KMG5.0TP35VB470M 470uF 20% C1214 0CE477EJ618 KMG5.0TP35VB470M 470uF 20% C1304 0CE477EJ618 KMG5.0TP35VB470M 470uF 20% C2000 0CE477EJ618 KMG5.0TP35VB470M 470uF 20% C2005 0CE108EF618 KMG5.0TP16VB1000M 1000uF 20 C890 0CE337ZF638 16SEP330M 330uF 20% 16V 4.7 C1001 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C1002 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C1003 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C1004 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C1007 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C1010 0CK273DK51A C1608Y5P273KGT 27nF 10% 50V C11 0CH3104K566 0805B104K500CT 100nF 10% 50 C12 0CH3104K566 0805B104K500CT 100nF 10% 50 C1209 0CH3104K566 0805B104K500CT 100nF 10% 50 C1210 0CH3104K566 0805B104K500CT 100nF 10% 50 C1211 0CH3104K566 0805B104K500CT 100nF 10% 50 C1212 0CH3104K566 0805B104K500CT 100nF 10% 50 C1213 0CH3104K566 0805B104K500CT 100nF 10% 50 C13 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C1300 0CK105DK94A 0805F105Z500CT 1uF -20TO+80 C1302 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C1303 0CH6101K416 C2012C0G1H101JT 100pF 5% 50 C1305 0CK105DK94A 0805F105Z500CT 1uF -20TO+80 C1307 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C1308 0CH6101K416 C2012C0G1H101JT 100pF 5% 50

REPLACEMENT PARTS LIST

CAPACITOR

For Capacitor & Resistors, the charactors at 2nd and 3rd digit in the P/No. means as follows;

CC, CX, CK, CN, CH : Ceramic CQ : Polyestor CE : Electrolytic CF : Fixed Film

RD : Carbon Film RS : Metal Oxide Film RN : Metal Film RH : CHIP, Metal Glazed(Chip) RR : Drawing

- 28 -

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C14 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C15 0CH3104K566 0805B104K500CT 100nF 10% 50 C16 0CH3104K566 0805B104K500CT 100nF 10% 50 C18 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C19 0CH3104K566 0805B104K500CT 100nF 10% 50 C2 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C20 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C200 0CH6221K416 C2012C0G1H221JT 220pF 5% 50 C2001 0CK105DK94A 0805F105Z500CT 1uF -20TO+80 C2003 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C2004 0CH6101K416 C2012C0G1H101JT 100pF 5% 50 C23 0CH3104K566 0805B104K500CT 100nF 10% 50 C237 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C238 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C3 0CH3104K566 0805B104K500CT 100nF 10% 50 C319 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C321 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C324 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C326 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C327 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C328 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C329 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C331 0CH6150K416 C2012C0G1H150JT 15pF 5% 50V C333 0CH6150K416 C2012C0G1H150JT 15pF 5% 50V C336 0CH6150K416 C2012C0G1H150JT 15pF 5% 50V C338 0CH6150K416 C2012C0G1H150JT 15pF 5% 50V C339 0CH6150K416 C2012C0G1H150JT 15pF 5% 50V C340 0CH6150K416 C2012C0G1H150JT 15pF 5% 50V C341 0CH6150K416 C2012C0G1H150JT 15pF 5% 50V C352 0CC270DK41A C2012C0G1H270JT 27pF 5% 50V C354 0CH6471K416 C2012C0G1H471JT 470pF 5% 50 C355 0CH6471K416 C2012C0G1H471JT 470pF 5% 50 C4 0CH3104K566 0805B104K500CT 100nF 10% 50 C407 0CH6152K406 C2012S2L1H152JT 1.5nF 5% 50 C410 0CH6152K406 C2012S2L1H152JT 1.5nF 5% 50 C411 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C412 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C417 0CH3104K566 0805B104K500CT 100nF 10% 50 C42 0CH3104K566 0805B104K500CT 100nF 10% 50 C421 0CH3104K566 0805B104K500CT 100nF 10% 50 C426 0CH3222K516 C2012Y5P1H222KT 2.2nF 10% 5 C428 0CH3222K516 C2012Y5P1H222KT 2.2nF 10% 5 C43 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C431 0CH3222K516 C2012Y5P1H222KT 2.2nF 10% 5 C432 0CH3222K516 C2012Y5P1H222KT 2.2nF 10% 5 C434 0CH3222K516 C2012Y5P1H222KT 2.2nF 10% 5 C436 0CH3222K516 C2012Y5P1H222KT 2.2nF 10% 5 C44 0CH3104K566 0805B104K500CT 100nF 10% 50 C440 0CK105DK94A 0805F105Z500CT 1uF -20TO+80 C441 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C444 0CK105DK94A 0805F105Z500CT 1uF -20TO+80 C447 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C45 0CH3104K566 0805B104K500CT 100nF 10% 50 C451 0CH5020K116 0805N2R0D500LT 2pF 0.5PF 50 C452 0CH5020K116 0805N2R0D500LT 2pF 0.5PF 50 C459 0CH3104K566 0805B104K500CT 100nF 10% 50 C46 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C460 0CK225DK94A CL21F225ZBFNNNE 2.2uF -20TO C461 0CH3104K566 0805B104K500CT 100nF 10% 50 C462 0CK225DK94A CL21F225ZBFNNNE 2.2uF -20TO C469 0CH3104K566 0805B104K500CT 100nF 10% 50 C471 0CH3104K566 0805B104K500CT 100nF 10% 50

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C472 0CH3104K566 0805B104K500CT 100nF 10% 50 C473 0CH3104K566 0805B104K500CT 100nF 10% 50 C474 0CH3104K566 0805B104K500CT 100nF 10% 50 C477 0CH3104K566 0805B104K500CT 100nF 10% 50 C478 0CH3104K566 0805B104K500CT 100nF 10% 50 C480 0CK225DK94A CL21F225ZBFNNNE 2.2uF -20TO C481 0CK225DK94A CL21F225ZBFNNNE 2.2uF -20TO C49 0CH3104K566 0805B104K500CT 100nF 10% 50 C490 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C491 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C494 0CK225DK94A CL21F225ZBFNNNE 2.2uF -20TO C50 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C500 0CH3104K566 0805B104K500CT 100nF 10% 50 C505 0CH3104K566 0805B104K500CT 100nF 10% 50 C506 0CH3104K566 0805B104K500CT 100nF 10% 50 C507 0CH3104K566 0805B104K500CT 100nF 10% 50 C508 0CH3104K566 0805B104K500CT 100nF 10% 50 C509 0CH3104K566 0805B104K500CT 100nF 10% 50 C510 0CH3104K566 0805B104K500CT 100nF 10% 50 C511 0CH3104K566 0805B104K500CT 100nF 10% 50 C512 0CH3104K566 0805B104K500CT 100nF 10% 50 C513 0CH3104K566 0805B104K500CT 100nF 10% 50 C514 0CH3104K566 0805B104K500CT 100nF 10% 50 C515 0CH6330K416 C2012C0G1H330JT 33p 5% 50V C516 0CH6330K416 C2012C0G1H330JT 33p 5% 50V C517 0CH3104K566 0805B104K500CT 100nF 10% 50 C518 0CH3104K566 0805B104K500CT 100nF 10% 50 C519 0CH3104K566 0805B104K500CT 100nF 10% 50 C521 0CH3104K566 0805B104K500CT 100nF 10% 50 C522 0CH3104K566 0805B104K500CT 100nF 10% 50 C523 0CH3104K566 0805B104K500CT 100nF 10% 50 C526 0CH3104K566 0805B104K500CT 100nF 10% 50 C527 0CH3104K566 0805B104K500CT 100nF 10% 50 C528 0CH3104K566 0805B104K500CT 100nF 10% 50 C529 0CH3104K566 0805B104K500CT 100nF 10% 50 C53 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C530 0CH3104K566 0805B104K500CT 100nF 10% 50 C531 0CH3104K566 0805B104K500CT 100nF 10% 50 C532 0CH3104K566 0805B104K500CT 100nF 10% 50 C533 0CH3104K566 0805B104K500CT 100nF 10% 50 C534 0CH3104K566 0805B104K500CT 100nF 10% 50 C535 0CH3104K566 0805B104K500CT 100nF 10% 50 C536 0CH3104K566 0805B104K500CT 100nF 10% 50 C537 0CH3104K566 0805B104K500CT 100nF 10% 50 C538 0CH3104K566 0805B104K500CT 100nF 10% 50 C539 0CH3104K566 0805B104K500CT 100nF 10% 50 C540 0CH3104K566 0805B104K500CT 100nF 10% 50 C541 0CH3104K566 0805B104K500CT 100nF 10% 50 C544 0CH3104K566 0805B104K500CT 100nF 10% 50 C545 0CH3104K566 0805B104K500CT 100nF 10% 50 C546 0CH3104K566 0805B104K500CT 100nF 10% 50 C547 0CH3104K566 0805B104K500CT 100nF 10% 50 C550 0CH3104K566 0805B104K500CT 100nF 10% 50 C551 0CH3104K566 0805B104K500CT 100nF 10% 50 C553 0CH3104K566 0805B104K500CT 100nF 10% 50 C554 0CH3104K566 0805B104K500CT 100nF 10% 50 C555 0CH3104K566 0805B104K500CT 100nF 10% 50 C556 0CH3104K566 0805B104K500CT 100nF 10% 50 C557 0CH3104K566 0805B104K500CT 100nF 10% 50 C558 0CH3104K566 0805B104K500CT 100nF 10% 50 C559 0CH3104K566 0805B104K500CT 100nF 10% 50 C59 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C6 0CH3104K566 0805B104K500CT 100nF 10% 50 C60 0CH3104K566 0805B104K500CT 100nF 10% 50 C606 0CH3104K566 0805B104K500CT 100nF 10% 50 C608 0CH3104K566 0805B104K500CT 100nF 10% 50 C609 0CH3104K566 0805B104K500CT 100nF 10% 50 C61 0CH3104K566 0805B104K500CT 100nF 10% 50 C614 0CH3104K566 0805B104K500CT 100nF 10% 50 C616 0CH3104K566 0805B104K500CT 100nF 10% 50 C619 0CH3104K566 0805B104K500CT 100nF 10% 50 C620 0CH3104K566 0805B104K500CT 100nF 10% 50 C621 0CH3104K566 0805B104K500CT 100nF 10% 50 C622 0CH3104K566 0805B104K500CT 100nF 10% 50 C623 0CH3104K566 0805B104K500CT 100nF 10% 50 C624 0CH3104K566 0805B104K500CT 100nF 10% 50 C625 0CH3104K566 0805B104K500CT 100nF 10% 50 C627 0CH3104K566 0805B104K500CT 100nF 10% 50 C628 0CH2822K516 0805B822K500CT 8.2nF 10% 50 C629 0CH3823K516 C2012Y5P1H823KT 82nF 10% 50 C632 0CH3104K566 0805B104K500CT 100nF 10% 50 C633 0CH3104K566 0805B104K500CT 100nF 10% 50 C634 0CH3104K566 0805B104K500CT 100nF 10% 50 C635 0CH3104K566 0805B104K500CT 100nF 10% 50 C636 0CH3104K566 0805B104K500CT 100nF 10% 50 C637 0CH3104K566 0805B104K500CT 100nF 10% 50 C638 0CH3104K566 0805B104K500CT 100nF 10% 50 C639 0CH3104K566 0805B104K500CT 100nF 10% 50 C64 0CH3104K566 0805B104K500CT 100nF 10% 50 C640 0CH3104K566 0805B104K500CT 100nF 10% 50 C65 0CH3104K566 0805B104K500CT 100nF 10% 50 C653 0CH3104K566 0805B104K500CT 100nF 10% 50 C654 0CH3104K566 0805B104K500CT 100nF 10% 50 C66 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C67 0CH3104K566 0805B104K500CT 100nF 10% 50 C700 0CH3104K566 0805B104K500CT 100nF 10% 50 C701 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C702 0CH6120K416 C2012C0G1H120JT 12pF 5% 50V C705 0CH3104K566 0805B104K500CT 100nF 10% 50 C74 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C75 0CH3104K566 0805B104K500CT 100nF 10% 50 C751 0CH3104K566 0805B104K500CT 100nF 10% 50 C755 0CH6471K416 C2012C0G1H471JT 470pF 5% 50 C756 0CH6471K416 C2012C0G1H471JT 470pF 5% 50 C757 0CH6471K416 C2012C0G1H471JT 470pF 5% 50 C758 0CH6101K416 C2012C0G1H101JT 100pF 5% 50 C76 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C760 0CH3104K566 0805B104K500CT 100nF 10% 50 C761 0CH3104K566 0805B104K500CT 100nF 10% 50 C77 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C79 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C80 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C803 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C804 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C807 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C808 0CK273DK51A C1608Y5P273KGT 27nF 10% 50V C81 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C82 0CH3104K566 0805B104K500CT 100nF 10% 50 C821 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C822 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C823 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C824 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C826 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C827 0CK474DH56A C2012X7R1E474KT 470nF 10% 2

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C828 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C83 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C84 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C841 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C843 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C857 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C858 0CK474DH56A C2012X7R1E474KT 470nF 10% 2 C86 0CH6102K406 C2012S2L1H102JT 1nF 5% 50V C891 0CH3104K566 0805B104K500CT 100nF 10% 50 C894 0CH3104K566 0805B104K500CT 100nF 10% 50 C908 0CH3104K566 0805B104K500CT 100nF 10% 50 C909 0CH3104K566 0805B104K500CT 100nF 10% 50 C910 0CH3104K566 0805B104K500CT 100nF 10% 50 C911 0CH3104K566 0805B104K500CT 100nF 10% 50 C912 0CH3104K566 0805B104K500CT 100nF 10% 50 C913 0CH3104K566 0805B104K500CT 100nF 10% 50 C914 0CH3104K566 0805B104K500CT 100nF 10% 50 C915 0CH3104K566 0805B104K500CT 100nF 10% 50 C916 0CH3104K566 0805B104K500CT 100nF 10% 50 C917 0CH3104K566 0805B104K500CT 100nF 10% 50 C918 0CH3104K566 0805B104K500CT 100nF 10% 50 C919 0CH3104K566 0805B104K500CT 100nF 10% 50 C920 0CH3104K566 0805B104K500CT 100nF 10% 50 C921 0CH3104K566 0805B104K500CT 100nF 10% 50 C922 0CH3104K566 0805B104K500CT 100nF 10% 50 C923 0CH3104K566 0805B104K500CT 100nF 10% 50 C924 0CH6080K116 C2012C0G1H080DT 8pF 0.5PF 5 C925 0CH6080K116 C2012C0G1H080DT 8pF 0.5PF 5 C926 0CH3104K566 0805B104K500CT 100nF 10% 50 C927 0CH3104K566 0805B104K500CT 100nF 10% 50 C928 0CH3104K566 0805B104K500CT 100nF 10% 50 C929 0CH3104K566 0805B104K500CT 100nF 10% 50 C930 0CH3104K566 0805B104K500CT 100nF 10% 50 C931 0CH3104K566 0805B104K500CT 100nF 10% 50 C935 0CH3104K566 0805B104K500CT 100nF 10% 50 C936 0CH3104K566 0805B104K500CT 100nF 10% 50 C938 0CH3104K566 0805B104K500CT 100nF 10% 50 C939 0CH3104K566 0805B104K500CT 100nF 10% 50 C940 0CH3104K566 0805B104K500CT 100nF 10% 50 C941 0CH3104K566 0805B104K500CT 100nF 10% 50 C942 0CH3104K566 0805B104K500CT 100nF 10% 50 C943 0CH3104K566 0805B104K500CT 100nF 10% 50 C944 0CH3104K566 0805B104K500CT 100nF 10% 50 C945 0CH3104K566 0805B104K500CT 100nF 10% 50 C946 0CH3104K566 0805B104K500CT 100nF 10% 50 C947 0CH3104K566 0805B104K500CT 100nF 10% 50 C948 0CH3104K566 0805B104K500CT 100nF 10% 50 C949 0CH3104K566 0805B104K500CT 100nF 10% 50 C950 0CH3104K566 0805B104K500CT 100nF 10% 50 C951 0CH3104K566 0805B104K500CT 100nF 10% 50 C952 0CH3104K566 0805B104K500CT 100nF 10% 50 C958 0CK225DK94A CL21F225ZBFNNNE 2.2uF -20TO C960 0CH3104K566 0805B104K500CT 100nF 10% 50 C963 0CH3104K566 0805B104K500CT 100nF 10% 50 C969 0CH3104K566 0805B104K500CT 100nF 10% 50 C973 0CH3104K566 0805B104K500CT 100nF 10% 50 C981 0CH3104K566 0805B104K500CT 100nF 10% 50 C983 0CH3104K566 0805B104K500CT 100nF 10% 50 C984 0CH3103K516 C2012Y5P1H103KT 10nF 10% 50 C10 0CK104CK56A 0603B104K500CT 100nF 10% 50 C1301 0CK103CK51A 0603B103K500CT 10nF 10% 50V C1306 0CK103CK51A 0603B103K500CT 10nF 10% 50V

- 29 -

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C2002 0CK103CK51A 0603B103K500CT 10nF 10% 50V C202 0CC101CK41A C1608C0G1H101JT 100pF 5% 50 C203 0CC221CK41A C1608C0G1H221JT 220pF 5% 50 C204 0CC471CK41A C1608C0G1H471JT 470pF 5% 50 C205 0CC471CK41A C1608C0G1H471JT 470pF 5% 50 C207 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C209 0CC101CK41A C1608C0G1H101JT 100pF 5% 50 C21 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C210 0CC101CK41A C1608C0G1H101JT 100pF 5% 50 C211 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C214 0CC101CK41A C1608C0G1H101JT 100pF 5% 50 C217 0CC471CK41A C1608C0G1H471JT 470pF 5% 50 C218 0CC471CK41A C1608C0G1H471JT 470pF 5% 50 C22 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C220 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C222 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C223 0CC101CK41A C1608C0G1H101JT 100pF 5% 50 C224 0CC101CK41A C1608C0G1H101JT 100pF 5% 50 C24 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C25 0CK104CK56A 0603B104K500CT 100nF 10% 50 C26 0CK104CK56A 0603B104K500CT 100nF 10% 50 C27 0CK104CK56A 0603B104K500CT 100nF 10% 50 C29 0CK104CK56A 0603B104K500CT 100nF 10% 50 C31 0CK104CK56A 0603B104K500CT 100nF 10% 50 C343 0CC270CK41A C1608C0G1H270JT 27pF 5% 50V C345 0CC270CK41A C1608C0G1H270JT 27pF 5% 50V C348 0CC270CK41A C1608C0G1H270JT 27pF 5% 50V C35 0CK334CF94A C1608Y5V1C334ZT 330nF -20TO C350 0CC270CK41A C1608C0G1H270JT 27pF 5% 50V C351 0CC270CK41A C1608C0G1H270JT 27pF 5% 50V C353 0CC270CK41A C1608C0G1H270JT 27pF 5% 50V C37 0CK334CF94A C1608Y5V1C334ZT 330nF -20TO C40 0CK104CK56A 0603B104K500CT 100nF 10% 50 C405 0CK103CK51A 0603B103K500CT 10nF 10% 50V C406 0CK104CK56A 0603B104K500CT 100nF 10% 50 C408 0CK222CK51A 0603B222K500CT 2.2nF 10% 50 C409 0CK222CK51A 0603B222K500CT 2.2nF 10% 50 C41 0CK104CK56A 0603B104K500CT 100nF 10% 50 C413 0CK222CK51A 0603B222K500CT 2.2nF 10% 50 C414 0CK222CK51A 0603B222K500CT 2.2nF 10% 50 C415 0CK104CK56A 0603B104K500CT 100nF 10% 50 C420 0CK104CK56A 0603B104K500CT 100nF 10% 50 C424 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C425 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C429 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C437 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C438 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C439 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C453 0CK103CK51A 0603B103K500CT 10nF 10% 50V C455 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C456 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C458 0CK224CF56A 0603B224K160CT 220nF 10% 16 C463 0CK224CF56A 0603B224K160CT 220nF 10% 16 C464 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C465 0CC221CK41A C1608C0G1H221JT 220pF 5% 50 C466 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C47 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C470 0CK105CF94A 0603F105Z160CT 1uF -20TO+80 C476 0CK224CF56A 0603B224K160CT 220nF 10% 16 C479 0CK224CF56A 0603B224K160CT 220nF 10% 16 C48 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C483 0CK104CK56A 0603B104K500CT 100nF 10% 50

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C484 0CK104CK56A 0603B104K500CT 100nF 10% 50 C485 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C486 0CK104CK56A 0603B104K500CT 100nF 10% 50 C487 0CK104CK56A 0603B104K500CT 100nF 10% 50 C5001 0CK104CK56A 0603B104K500CT 100nF 10% 50 C5004 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C5005 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C501 0CC101CK41A C1608C0G1H101JT 100pF 5% 50 C504 0CK104CK56A 0603B104K500CT 100nF 10% 50 C524 0CK104CK56A 0603B104K500CT 100nF 10% 50 C542 0CK104CK56A 0603B104K500CT 100nF 10% 50 C600 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C601 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C602 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C603 0CC220CK41A C1608C0G1H220JT 22pF 5% 50V C610 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C611 0CK473CK56A C1608X7R1H473KT 47nF 10% 50 C612 0CK473CK56A C1608X7R1H473KT 47nF 10% 50 C613 0CK473CK56A C1608X7R1H473KT 47nF 10% 50 C626 0CK104CK56A 0603B104K500CT 100nF 10% 50 C7 0CK104CK56A 0603B104K500CT 100nF 10% 50 C70 0CK104CK56A 0603B104K500CT 100nF 10% 50 C704 0CK104CK56A 0603B104K500CT 100nF 10% 50 C71 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C72 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C73 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C750 0CK104CK56A 0603B104K500CT 100nF 10% 50 C752 0CK104CK56A 0603B104K500CT 100nF 10% 50 C753 0CK104CK56A 0603B104K500CT 100nF 10% 50 C754 0CC471CK41A C1608C0G1H471JT 470pF 5% 50 C759 0CK104CK56A 0603B104K500CT 100nF 10% 50 C78 0CK106EF56A C3216X7R1C106KT 10uF 10% 16 C8 0CK104CK56A 0603B104K500CT 100nF 10% 50 C801 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C802 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C806 0CK103CK51A 0603B103K500CT 10nF 10% 50V C817 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C818 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C819 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C820 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C825 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C829 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C840 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C842 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C844 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C845 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C846 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C847 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C848 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C85 0CC102CK41A C1608C0G1H102JT 1nF 5% 50V C850 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C851 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C853 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C856 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C859 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C860 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C861 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C862 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C863 0CK474CH94A 0603F474Z250CT 470nF -20TO+ C892 0CK104CK56A 0603B104K500CT 100nF 10% 50 C893 0CK104CK56A 0603B104K500CT 100nF 10% 50 C9 0CK104CK56A 0603B104K500CT 100nF 10% 50

- 30 -

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C901 0CK103CK51A 0603B103K500CT 10nF 10% 50V C902 0CK103CK51A 0603B103K500CT 10nF 10% 50V C903 0CK103CK51A 0603B103K500CT 10nF 10% 50V C904 0CK103CK51A 0603B103K500CT 10nF 10% 50V C905 0CK103CK51A 0603B103K500CT 10nF 10% 50V C906 0CK103CK51A 0603B103K500CT 10nF 10% 50V C907 0CK103CK51A 0603B103K500CT 10nF 10% 50V C96 0CK104CK56A 0603B104K500CT 100nF 10% 50 C970 0CK104CK56A 0603B104K500CT 100nF 10% 50 R851 0CK474CH94A 0603F474Z250CT 470nF -20TO+

D711 0DD184009AA KDS184 KDS184 TP KEC - 85V ZD1300 0DR340009AA MBRS340 525MV 40V 4A - - ZD1301 0DR340009AA MBRS340 525MV 40V 4A - - ZD1302 0DR340009AA MBRS340 525MV 40V 4A - - ZD2000 0DR340009AA MBRS340 525MV 40V 4A - - D107 0DS226009AA KDS226 1.2V 85V 300MA 2A 4N D400 0DS181009AA KDS181 1.2V 85V 300MA 2A 4N IC751 0DRSE00018B SRV05-4.TCT 1.2V 6V 17.5V 1 IC754 0DRSE00018B SRV05-4.TCT 1.2V 6V 17.5V 1 D703 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 D704 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD215 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD216 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD217 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD218 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD219 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD220 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD222 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD1000 0DZ330009DF MTZJ33B 33V 30.32TO31.88V 6 D700 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 D701 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 D702 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 D705 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 D706 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD10 0DZ910009FE UDZS9.1B 9.1V 8.85TO9.23V 3 ZD203 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD204 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD205 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD206 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD207 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD208 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD209 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD210 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD211 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD212 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD213 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD214 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD221 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD5001 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD5002 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80 ZD5003 0DZ510009EE UDZS5.1B 5.1V 4.98TO5.2V 80

IC600 0IPRPM3002D MST9883C-LF-110 3TO3.6V 2.2 IC800 0IPRPMA013A "AN15865AAVT,PB 8.5TO9.5V_4." IC2000 0ISTL00026A MC14066BDR2G 3TO18V 0.001mA IC702 0ISTL00024A MC14053BDR2G 3TO18V 0.02mA IC752 0IMCRTI001A SN74HCT157DR 4.5TO5.5V 0.00

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

IC1300 0IPMG00063A MP1593DN-LF-Z 4.75TO28V 1.2 IC1301 0IPMG00063A MP1593DN-LF-Z 4.75TO28V 1.2 IC1302 0IPMG00063A MP1593DN-LF-Z 4.75TO28V 1.2 IC2001 0IPRPJR017A NJU26901E2 2.25TO2.75V 1mA IC749 0IMMRSG036A M24C02-WMN6TP 2KBIT 256X8BI IC753 0IMMRSG036A M24C02-WMN6TP 2KBIT 256X8BI IC907 0IMCRAL006A AT24C16AN-10SU-2.7 16KBIT 2 IC918 0IMCRAL006A AT24C16AN-10SU-2.7 16KBIT 2 IC901 0IPRPGN014C GM5221H-LF-BC 3.15TO3.45V 6 IC1201 0IPMG78341A "AZ1085S-3.3TR/E1,LF 12V 3.3" IC2 0IPMGK2001B AIC1117A-33PYTR(BS33) 2.65T IC4 0IPMGK2001B AIC1117A-33PYTR(BS33) 2.65T IC4007 0IPMGK2001C AIC1117A-25PYTR(BS25) 2.65T IC402 0IPMGK2001B AIC1117A-33PYTR(BS33) 2.65T IC6 0IPMGSG018D LD1086DT18TR-LF 30V 1.8V IC650 0IPMGKE041A KIA78R12F 13TO29V 12V 8W DP IC808 0IPMG78346A AZ1085S-ADJTR/E1 12V - - TO IC888 0IMCRNS007A LM2940S 9.4TO26V 8V - TO263 IC905 0IPMGFA061A FAN1587AD33X 4.8TO10.3V 3.3 IC906 0IPMGSG018D LD1086DT18TR-LF 30V 1.8V IC400 0IPRP00522A TPA3008D2PHPRG4 8.5TO18V IC501 0IMMREB010A M12L64322A-6T 64MBIT 512MX3 IC401 0IMCRMN028B MSP4410K 3.1TO3.5V_4.75TO5. IC1 0IPRPMN003G "VCT49X3F-F2,LF 7.6VTO8.7V,4" IC750 0IMCRSG010A ST3232CDR 3.0TO5.5 - SOP R/ IC500 0IMCRGN002D "FLI2300BD-LF 1.8VTO3.3V,0.0" IC3 0IKE702700D KIA7027AF -0.3TO15V 2.7V 50 IC403 0IKE704200J KIA7042AF -0.3TO15V 4.2V 50 IC8 0IMCRFA015A KA7805R 7TO20V 5V 150W DPAK IC9 0IMCRFA010A KA7809R 11.5TO24V 9V 150W D IC950 0IPMGNS004B LM2676S-ADJ 8TO40V 37V - TO

L100 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L1002 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L1205 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L1206 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L1207 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L1209 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L1210 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L1211 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L3 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L301 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L302 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L304 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L311 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L4 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L401 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L404 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L407 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L410 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L413 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L418 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L420 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L422 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L425 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L426 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L500 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L5000 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L501 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L502 6210TCE001G HH-1M3216-501JT 500OHM 3.2X

- 31 -

COIL & CORE & INDUCTOR

DIODEs

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

L503 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L505 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L600 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L601 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L602 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L701 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L802 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L900 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L901 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L902 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L903 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L908 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L202 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L203 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L204 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L205 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L207 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L208 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L209 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L210 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L504 6210TCE001G HH-1M3216-501JT 500OHM 3.2X L603 6210TCE001A HB-1S2012-080JT 8OHM 2X1.25 L801 6210TCE001G HH-1M3216-501JT 500OHM 3.2X Z1000 6200QL3002F X6966M 36.125MHZ 17.3X3.9X8 L1 0LC1032101A FI-C3216-103KJT 10UH 10% L1001 0LC1020101A FI-B2012-102KJT 1UH 10% - 1 L11 0LC1032101A FI-C3216-103KJT 10UH 10% L13 0LC1032101A FI-C3216-103KJT 10UH 10% L14 0LC1032101A FI-C3216-103KJT 10UH 10% L15 0LC1032101A FI-C3216-103KJT 10UH 10% L17 0LC1032101A FI-C3216-103KJT 10UH 10% L2 0LC1032101A FI-C3216-103KJT 10UH 10% L402 0LC1532101A FI-C3216-153KJT 15UH 10% L403 0LC1532101A FI-C3216-153KJT 15UH 10% L7 0LC1032101A FI-C3216-103KJT 10UH 10% L10 0LC1032101A FI-C3216-103KJT 10UH 10% L12 0LC1032101A FI-C3216-103KJT 10UH 10% L16 0LC1032101A FI-C3216-103KJT 10UH 10% L200 0LC1020101A FI-B2012-102KJT 1UH 10% - 1 L201 0LC1020101A FI-B2012-102KJT 1UH 10% - 1 L306 0LC1532101A FI-C3216-153KJT 15UH 10% L307 0LC1532101A FI-C3216-153KJT 15UH 10% L308 0LC1532101A FI-C3216-153KJT 15UH 10% L309 0LC1532101A FI-C3216-153KJT 15UH 10% L310 0LC1532101A FI-C3216-153KJT 15UH 10% L8 0LC1032101A FI-C3216-103KJT 10UH 10% L9 0LC1032101A FI-C3216-103KJT 10UH 10% L1300 6140VR0008B SLF12575T-150M4R7 15UH 20% L1301 6140VR0008B SLF12575T-150M4R7 15UH 20% L2000 6140VR0008B SLF12575T-150M4R7 15UH 20% L414 6140VR0008A SLF12575T-330M3R2 33UH 20% L415 6140VR0008A SLF12575T-330M3R2 33UH 20% L416 6140VR0008A SLF12575T-330M3R2 33UH 20% L417 6140VR0008A SLF12575T-330M3R2 33UH 20% L910 6200TEZ012L SLF12575T-680M2R0-L 68UH 20

IC1101 0TF492509AA SI4925DY P-CHANNEL -30V +-2 IC902 0TF492509AA SI4925DY P-CHANNEL -30V +-2 Q1000 0TR388109AA KTC3881 NPN 4V 30V 25V 50MA Q1101 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

Q300 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q302 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q303 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q304 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q318 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q410 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q411 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q412 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q700 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q12 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q13 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q14 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q15 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q16 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q17 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q301 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q305 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q306 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q308 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q310 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q313 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q315 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q316 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q317 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q401 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q402 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q403 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q404 0TR150400BA 2SA1504S(ASY) PNP -5V -50V Q500 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q805 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q806 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q807 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50 Q901 0TR387500AA 2SC3875S(ALY) NPN 5V 60V 50

RA600 0RJ1000C687 RCA86TRJ100R 100OHM 5% 1/16 RA601 0RJ1000C687 RCA86TRJ100R 100OHM 5% 1/16 RA602 0RJ1000C687 RCA86TRJ100R 100OHM 5% 1/16 RA603 0RJ1000C687 RCA86TRJ100R 100OHM 5% 1/16 RA604 0RJ1000C687 RCA86TRJ100R 100OHM 5% 1/16 RA605 0RJ1000C687 RCA86TRJ100R 100OHM 5% 1/16 L303 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R10 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8 R1001 0RH0562D622 MCR10EZHJ560 56OHM 5% 1/8W R1002 0RH1501D622 MCR10EZHJ152 1.5KOHM 5% 1/8 R1003 0RH8200D622 MCR10EZHJ821 820OHM 5% 1/8W R1004 0RH3000D622 MCR10EZHJ301 300OHM 5% 1/8W R1005 0RH0682D622 MCR10EZHJ680 68OHM 5% 1/8W R1010 0RH7501D622 MCR10EZHJ752 7.5KOHM 5% 1/8 R1011 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R1012 0RH7502D622 MCR10EZHJ753 75KOHM 5% 1/8W R1014 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R1026 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R104 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R11 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8 R1100 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R1102 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R1105 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R1106 0RH1202D622 MCR10EZHJ123 12KOHM 5% 1/8W R1107 0RH1502D622 MCR10EZHJ153 15KOHM 5% 1/8W R1116 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2

- 32 -

RESISTORs

FET & TRANSISTOR

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R118 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R12 0RH6801D622 MCR10EZHJ682 6.8KOHM 5% 1/8 R1203 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R1204 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R1205 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R1206 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R1207 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R1210 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R1211 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R1212 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R1213 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R1220 0RH2003D622 MCR10EZHJ204 200KOHM 5% 1/8 R1221 0RH2003D622 MCR10EZHJ204 200KOHM 5% 1/8 R13 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R1301 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R1304 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R1350 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R154 0RH0822D622 MCR10EZHJ820 82OHM 5% 1/8W R156 0RH0822D622 MCR10EZHJ820 82OHM 5% 1/8W R158 0RH0822D622 MCR10EZHJ820 82OHM 5% 1/8W R162 0RH2701D622 MCR10EZHJ272 2.7KOHM 5% 1/8 R201 0RH4703D622 MCR10EZHJ474 470KOHM 5% 1/8 R202 0RH1802D622 MCR10EZHJ183 18KOHM 5% 1/8W R203 0RH1802D622 MCR10EZHJ183 18KOHM 5% 1/8W R204 0RH4703D622 MCR10EZHJ474 470KOHM 5% 1/8 R2100 0RH6801D622 MCR10EZHJ682 6.8KOHM 5% 1/8 R2102 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R2103 0RH2202D422 MCR10EZHF223 22KOHM 1% 1/8W R22 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R24 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R25 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R300 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R301 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R302 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R304 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R305 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R306 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R307 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R308 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R309 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R312 0RH4700D622 MCR10EZHJ471 470OHM 5% 1/8W R313 0RH1500D622 MCR10EZHJ151 150OHM 5% 1/8W R314 0RH4700D622 MCR10EZHJ471 470OHM 5% 1/8W R315 0RH1500D622 MCR10EZHJ151 150OHM 5% 1/8W R320 0RH4703D622 MCR10EZHJ474 470KOHM 5% 1/8 R322 0RH1500D622 MCR10EZHJ151 150OHM 5% 1/8W R324 0RH4703D622 MCR10EZHJ474 470KOHM 5% 1/8 R338 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R339 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R342 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R343 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R348 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R349 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R352 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R353 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R354 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R355 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R363 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R367 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R373 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R377 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R379 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R381 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R383 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R394 0RH6800D622 MCR10EZHJ681 680OHM 5% 1/8W R395 0RH6800D622 MCR10EZHJ681 680OHM 5% 1/8W R403 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R418 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R421 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R435 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R44 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R45 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R451 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R453 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R455 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R46 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R460 0RH1500D622 MCR10EZHJ151 150OHM 5% 1/8W R461 0RH1500D622 MCR10EZHJ151 150OHM 5% 1/8W R462 0RH1503D622 MCR10EZHJ154 150KOHM 5% 1/8 R463 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R464 0RH1502D622 MCR10EZHJ153 15KOHM 5% 1/8W R465 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8 R467 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R468 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R5006 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R5008 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R5014 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R502 0RH3301D622 MCR10EZHJ332 3.3KOHM 5% 1/8 R5032 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R505 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R506 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R516 0RH0222D622 MCR10EZHJ220 22OHM 5% 1/8W R517 0RH0222D622 MCR10EZHJ220 22OHM 5% 1/8W R519 0RH0222D622 MCR10EZHJ220 22OHM 5% 1/8W R520 0RH1800D622 MCR10EZHJ181 180OHM 5% 1/8W R527 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R530 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R532 0RH0222D622 MCR10EZHJ220 22OHM 5% 1/8W R607 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R61 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R610 0RH2701D622 MCR10EZHJ272 2.7KOHM 5% 1/8 R703 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R705 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R712 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R713 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R715 0RH1202D622 MCR10EZHJ123 12KOHM 5% 1/8W R716 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R719 0RH1502D622 MCR10EZHJ153 15KOHM 5% 1/8W R725 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R726 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R729 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R730 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R731 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R737 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R738 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R753 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R755 0RH0102D622 MCR10EZHJ100 10OHM 5% 1/8W R756 0RH0102D622 MCR10EZHJ100 10OHM 5% 1/8W R758 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R761 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R809 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R810 0RH7502D622 MCR10EZHJ753 75KOHM 5% 1/8W R83 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R835 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W

- 33 -

- 34 -

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R836 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R837 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R838 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R839 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R848 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R849 0RH0752D622 MCR10EZHJ750 75OHM 5% 1/8W R85 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R852 0RH2200D622 MCR10EZHJ221 220OHM 5% 1/8W R853 0RH2200D622 MCR10EZHJ221 220OHM 5% 1/8W R87 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R89 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R941 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R960 0RH1000D622 MCR10EZHJ101 100OHM 5% 1/8W R963 0RH1002D622 MCR10EZHJ103 10KOHM 5% 1/8W R964 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R969 0RH1202D622 MCR10EZHJ123 12KOHM 5% 1/8W R971 0RH1502D622 MCR10EZHJ153 15KOHM 5% 1/8W R974 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R976 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R978 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R979 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R989 0RH4701D622 MCR10EZHJ472 4.7KOHM 5% 1/8 R990 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R991 0RH9101D622 MCR10EZHJ912 9.1KOHM 5% 1/8 R992 0RH1001D622 MCR10EZHJ102 1KOHM 5% 1/8W R999 0RH0000D622 MCR10EZHJ000 0OHM 5% 1/8W 2 R100 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R1013 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R1015 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R102 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R1027 0RJ1202D677 MCR03EZPJ123 12KOHM 5% 1/10 R1028 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R108 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R109 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R110 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R111 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R1110 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R112 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R113 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R114 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R115 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R116 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R117 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R120 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R1202 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W R121 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R122 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R123 0RJ2202D677 MCR03EZPJ223 22KOHM 5% 1/10 R1300 0RJ6801D477 MCR03EZPF682 6.8KOHM 1% 1/1 R1302 0RJ2202D477 MCR03EZPF223 22KOHM 1% 1/10 R1303 0RJ6801D477 MCR03EZPF682 6.8KOHM 1% 1/1 R1305 0RJ2202D477 MCR03EZPF223 22KOHM 1% 1/10 R15 0RJ4700D677 MCR03EZPJ471 470OHM 5% 1/10 R152 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R153 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R155 0RJ2700D677 MCR03EZPJ271 270OHM 5% 1/10 R157 0RJ2700D677 MCR03EZPJ271 270OHM 5% 1/10 R159 0RJ2700D677 MCR03EZPJ271 270OHM 5% 1/10 R16 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R160 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10 R161 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R163 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R164 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10 R17 0RJ2202D677 MCR03EZPJ223 22KOHM 5% 1/10 R173 0RJ3301D677 MCR03EZPJ332 3.3KOHM 5% 1/1 R175 0RJ3301D677 MCR03EZPJ332 3.3KOHM 5% 1/1 R205 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W R207 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R209 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R210 0RJ2402D677 MCR03EZPJ243 24KOHM 5% 1/10 R211 0RJ5602D677 MCR03EZPJ563 56KOHM 5% 1/10 R212 0RJ4703D677 MCR03EZPJ474 470KOHM 5% 1/1 R213 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R214 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R215 0RJ4703D677 MCR03EZPJ474 470KOHM 5% 1/1 R218 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R220 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R237 0RJ0682D677 MCR03EZPJ680 68OHM 5% 1/10W R238 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R239 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R240 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R241 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R244 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R245 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R246 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R247 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R248 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R249 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R250 0RJ2402D677 MCR03EZPJ243 24KOHM 5% 1/10 R251 0RJ5602D677 MCR03EZPJ563 56KOHM 5% 1/10 R253 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R254 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R256 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R257 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R303 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R317 0RJ2700D677 MCR03EZPJ271 270OHM 5% 1/10 R319 0RJ2700D677 MCR03EZPJ271 270OHM 5% 1/10 R321 0RJ2700D677 MCR03EZPJ271 270OHM 5% 1/10 R323 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10 R326 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R329 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R34 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R35 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R356 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R357 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R358 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R359 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R385 0RJ6800D677 MCR03EZPJ681 680OHM 5% 1/10 R387 0RJ6800D677 MCR03EZPJ681 680OHM 5% 1/10 R390 0RJ6800D677 MCR03EZPJ681 680OHM 5% 1/10 R392 0RJ6800D677 MCR03EZPJ681 680OHM 5% 1/10 R393 0RJ6800D677 MCR03EZPJ681 680OHM 5% 1/10 R401 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R402 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R405 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R406 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R407 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R408 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R409 0RJ3901D677 MCR03EZPJ392 3.9KOHM 5% 1/1 R410 0RJ3901D677 MCR03EZPJ392 3.9KOHM 5% 1/1 R411 0RJ3901D677 MCR03EZPJ392 3.9KOHM 5% 1/1 R412 0RJ3901D677 MCR03EZPJ392 3.9KOHM 5% 1/1 R413 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R414 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R415 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R416 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R417 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R419 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R423 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R424 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R426 0RJ1004D677 MCR03EZPJ105 1MOHM 5% 1/10W R427 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R428 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R429 0RJ0102D677 MCR03EZPJ100 10OHM 5% 1/10W R430 0RJ2201D677 MCR03EZPJ222 2.2KOHM 5% 1/1 R432 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R436 0RJ3301D677 MCR03EZPJ332 3.3KOHM 5% 1/1 R438 0RJ3301D677 MCR03EZPJ332 3.3KOHM 5% 1/1 R439 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R456 0RJ1203D677 MCR03EZPJ124 120KOHM 5% 1/1 R50 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R500 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R5002 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5007 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5009 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R501 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R5013 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R5015 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5016 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5017 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5019 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5020 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5021 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R5030 0RJ4702D677 MCR03EZPJ473 47KOHM 5% 1/10 R5031 0RJ4701D677 MCR03EZPJ472 4.7KOHM 5% 1/1 R504 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R51 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R514 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R515 0RJ4703D677 MCR03EZPJ474 470KOHM 5% 1/1 R518 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R52 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R521 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R522 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R523 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R524 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R525 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R526 0RJ0332D677 MCR03EZPJ330 33OHM 5% 1/10W R528 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R529 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R53 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R533 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R534 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R54 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R55 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R56 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R57 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R58 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R59 0RJ1201D677 MCR03EZPJ122 1.2KOHM 5% 1/1 R60 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R600 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R601 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R602 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R603 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R604 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R606 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R608 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R609 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R62 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R64 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R66 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R68 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R70 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R700 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R701 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R702 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R706 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R71 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R711 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R717 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R718 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R72 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R720 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R721 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R722 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R727 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R728 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R73 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R739 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R740 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R751 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R752 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R754 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R757 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R759 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R760 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R79 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R801 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R802 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R803 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R804 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R805 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R806 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R807 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R808 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R81 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R811 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R812 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R813 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R814 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R815 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R816 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R817 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R820 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R822 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R826 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R827 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R828 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R830 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R831 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R832 0RJ0000D677 MCR03EZPJ000 0OHM 5% 1/10W R834 0RJ1500D677 MCR03EZPJ151 150OHM 5% 1/10 R840 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R841 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R842 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R843 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R845 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R846 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W R847 0RJ0752D677 MCR03EZPJ750 75OHM 5% 1/10W

- 35 -

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R850 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R854 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R855 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R856 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R857 0RJ2200D677 MCR03EZPJ221 220OHM 5% 1/10 R86 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R867 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R868 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R88 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R90 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R901 0RJ0472D677 MCR03EZPJ470 47OHM 5% 1/10W R902 0RJ0472D677 MCR03EZPJ470 47OHM 5% 1/10W R904 0RJ0472D677 MCR03EZPJ470 47OHM 5% 1/10W R906 0RJ0472D677 MCR03EZPJ470 47OHM 5% 1/10W R908 0RJ0822D677 MCR03EZPJ820 82OHM 5% 1/10W R909 0RJ0822D677 MCR03EZPJ820 82OHM 5% 1/10W R910 0RJ0822D677 MCR03EZPJ820 82OHM 5% 1/10W R913 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R917 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R918 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R919 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R920 0RJ4990D477 MCR03EZPF4990 499OHM 1% 1/1 R921 0RJ4990D477 MCR03EZPF4990 499OHM 1% 1/1 R929 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R93 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R930 0RJ3301D677 MCR03EZPJ332 3.3KOHM 5% 1/1 R931 0RJ3301D677 MCR03EZPJ332 3.3KOHM 5% 1/1 R933 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R934 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R935 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R936 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R938 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R939 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R940 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R942 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R944 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R945 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R946 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R947 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R948 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R949 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R95 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R950 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R952 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R953 0RJ1002D677 MCR03EZPJ103 10KOHM 5% 1/10 R970 0RJ1001D677 MCR03EZPJ102 1KOHM 5% 1/10W R972 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R975 0RJ1000D677 MCR03EZPJ101 100OHM 5% 1/10 R981 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R982 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R983 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R984 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R985 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R986 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R987 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W R988 0RJ0222D677 MCR03EZPJ220 22OHM 5% 1/10W

IC900 6620F00017A CCSD-32T-SM 32P 1.27MM SMD X11 6202VDT002E SX-1 20.25MHZ 20.25MHZ 30PP X500 6202VDT002J SX-1 13.5MHZ 30PPM 13.5MHZ

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

X601 6202VDT002H SX-1 18.432MHZ 30PPM 18.432 X900 6202VDT002B SX-1 14.31818MHZ 30PPM 14.3 TU1000 6700VS0003E TAEW-G053D PAL-B/G 45.25HZT

C1500 0CN1040K949 CH UP050 F104Z-B-B Z 100nF L1500 0LA0102K119 LAL02TB100K 10UH 10% - 160M IR1500 6712000013A TSOP4438SO1 4.5TO5.5V 1.5MA

L1700 0LA0102K119 LAL02TB100K 10UH 10% - 160M R1700 0RN8200F409 RN-96T1F820R 820OHM 1% 1/6W R1701 0RN6200F409 RN-96T1F620R 620OHM 1% 1/6W R1702 0RN5100F409 RN-96T1F510R 510OHM 1% 1/6W R1703 0RN4300F409 RN-96T1F430R 430OHM 1% 1/6W R1704 0RN3300F409 RN-96T1F330R 330OHM 1% 1/6W R1705 0RN2700F409 RN-96T1F270R 270OHM 1% 1/6W R1706 0RN2701F409 RN-96T1F2K70 2.7KOHM 1% 1/6 SW1700 140-313A THVV501BBC 1C1P 12VDC 0.05A SW1701 140-313A THVV501BBC 1C1P 12VDC 0.05A SW1702 140-313A THVV501BBC 1C1P 12VDC 0.05A SW1703 140-313A THVV501BBC 1C1P 12VDC 0.05A SW1704 140-313A THVV501BBC 1C1P 12VDC 0.05A SW1705 140-313A THVV501BBC 1C1P 12VDC 0.05A SW1706 140-313A THVV501BBC 1C1P 12VDC 0.05A

C1600 0CN1040K949 CH UP050 F104Z-B-B Z 100nF L1600 0LA0102K119 LAL02TB100K 10UH 10% - 160M Q1601 0TR319809AA KTC3198(KTC1815) NPN 5V 60V Q1602 0TR319809AA KTC3198(KTC1815) NPN 5V 60V Q1603 0TR319809AA KTC3198(KTC1815) NPN 5V 60V R1600 0RD3301Q609 RDM94T1J3K30 3.3KOHM 5% 1/4 R1601 0RD2701Q609 RDM94T1J2K70 2.7KOHM 5% 1/4 R1602 0RD2700Q609 RDM94T1J270R 270OHM 5% 1/4W R1603 0RD1001Q609 RDM94T1J1K00 1KOHM 5% 1/4W R1604 0RD1001Q609 RDM94T1J1K00 1KOHM 5% 1/4W R1605 0RD1001Q609 RDM94T1J1K00 1KOHM 5% 1/4W R1606 0RD1500Q609 RDM94T1J150R 150OHM 5% 1/4W SW1600 140-313A THVV501BBC 1C1P 12VDC 0.05A LED16000DLBE0128AA BL-BUBGE304 ROUND 5MM SUPER

R3201 0RD7501F609 RD-96T1J7K50 7.5KOHM 5% 1/6 R3202 0RD2401F609 RD-96T1J2K40 2.4KOHM 5% 1/6 R3203 0RD9100F609 RD-96T1J910R 910OHM 5% 1/6W R3204 0RD6200F609 RD-96T1J620R 620OHM 5% 1/6W R3205 0RD2400F609 RD-96T1J240R 240OHM 5% 1/6W R3206 0RD3301F609 RD-96T1J3K30 3.3KOHM 5% 1/6 R3207 0RD6201F609 RD-96T1J6K20 6.2KOHM 5% 1/6 SW3201 140-313A THVV501BBC 1C1P 12VDC 0.05A SW3202 140-313A THVV501BBC 1C1P 12VDC 0.05A SW3203 140-313A THVV501BBC 1C1P 12VDC 0.05A SW3204 140-313A THVV501BBC 1C1P 12VDC 0.05A SW3205 140-313A THVV501BBC 1C1P 12VDC 0.05A

- 36 -

OTHERs

CONTROL BOARD

IR BOARD

LED & P/SW BOARD

DVD CONTROL BOARD

DATE: 2006. 3. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C2006 0CN4710K519 RH UP050 B471K-B-B 470pF 10 C2007 0CN4710K519 RH UP050 B471K-B-B 470pF 10 R2001 0RD0752Q609 RDM94T1J75R0 75OHM 5% 1/4W R2002 0RD0752Q609 RDM94T1J75R0 75OHM 5% 1/4W R2003 0RD0752Q609 RDM94T1J75R0 75OHM 5% 1/4W R2004 0RD0752Q609 RDM94T1J75R0 75OHM 5% 1/4W R2005 0RD0752Q609 RDM94T1J75R0 75OHM 5% 1/4W R2006 0RD4703Q609 RDM94T1J470K 470KOHM 5% 1/4 R2007 0RD4703Q609 RDM94T1J470K 470KOHM 5% 1/4

- 37 -

VIDEO BOARD

Mar. 2006

Printed in KoreaP/NO : 38289S0004M

LG ML041D Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
