LG LSMC3086ST User Manual

OWNER’S MANUAL & COOKING GUIDE
MICROWAVE OVEN
Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.
LSMC3086ST LSMC3089BD
www.lg.com
MFL68927903_03
Thank you for purchasing an LG microwave oven.
Please record the model number and serial number of this unit for future reference. We also suggest you record the details of your contact with LG (LG Electronics U.S.A., Inc.) concerning this unit.
Staple your receipt here to prove your retail purchase.
Model No: Serial No: Dealer:
Dealer Phone No:
Customer Relations LG Electronics U.S.A., Inc. Service Division Bldg. #3 201 James Record Rd. Huntsville, AL 35824-0126
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY...
(a) Do not attempt to operate this oven
with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the
oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged.
It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or
loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or
repaired by anyone except properly
qualied service personnel.
- 2 -
TABLE OF CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY ...............................................................2
SAFETY ...............................................................4
Important Safety Instructions .............................4
PRODUCT OVERVIEW ....................................... 6
Location of Model Number
Oven Specications ...........................................6
Electrical Requirements
Grounding Instructions .....................................6
Microwave Oven Features .................................7
Control Panel Features
MICROW
OPERATION ......................................................15
Learn About Your Microwave Oven ..................15
Clock ................................................................15
Child Lock ........................................................15
Timer ................................................................16
Custom Cook ...................................................16
Vent Fan ..........................................................16
Vent Fan Auto Time Set ...................................16
Turntable On/Off ..............................................17
Light On/Off ......................................................17
Cooking at High Power Level ..........................17
Custom Set.......................................................17
Cooking at Lower Power Levels ......................18
Cooking With More Than One Cook Cycle ......18
Cooking Guide for Lower Power Levels ...........19
Sensor Operating Instructions ..........................20
Sensor Cooking Guide ....................................20
Sensor Reheat ................................................20
Sensor Cook ....................................................20
Sensor Popcorn ...............................................20
Sensor Reheat Table .......................................21
Sensor Cook Table ..........................................21
Tips for Convection Cooking ...........................22
Convection ......................................................23
Tips for Combination Cooking ..........................24
Helpful Hints for Combination Cooking ...........24
Combination Roast ...........................................24
Auto Cook ........................................................25
AVE COOKING TIPS ..........................10
.................................6
.....................................6
......................................8
Auto Cook Table ..............................................25
Soften ..............................................................26
Soften Table
Melt ..................................................................26
able ........................................................26
Melt T
Speed Auto Combination .................................27
Speed Auto Combination Chart
Auto Defrost ....................................................28
eight Conversion Table ................................28
W
Operating Tips .................................................28
Auto Defrost Table ...........................................29
Defrosting Tips
COOKING GUIDE
Convection Baking Guidelines ........................32
Meat Roasting Guidelines for Convection
Cooking ...........................................................34
Combination Roast Cooking Guide ..................35
Combination Bake Cooking Guide ..................36
Heating/Reheating Guide .................................37
Fresh Vegetable Guide ....................................38
SMART FEATURES ............................................39
Before Using Tag On .......................................39
Using the Tag On Function Using
MAINTENANCE ..................................................41
Caring for Your Microwave Oven .....................41
Cleaning the Grease Filters .............................42
Charcoal Filter Replacement ............................42
Oven Light Replacement ..................................43
Cooktop/Countertop Light Replacement .........43
Microwave Utensil Guide .................................44
TROUBLESHOOTING ........................................45
Before Calling for Service ................................45
Frequently Asked Questions ...........................45
SMART DIAGNOSIS ...........................................46
WARRANTY ........................... Inside Back Cover
....................................................26
.......................27
................................................31
...............................................32
..............................39
Tag On with Apps ..................................40
- 3 -
SAFETY
IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your oven and avoid harm to yourself or damage to your oven.
WARNING - To reduce the risk of burns,
electric shock, re, injury to persons, or exposure to excessive microwave energy:
Read all the instructions before using your oven.
Do not allow children to use this oven without close supervision.
Read and follow the specic PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY found on page 2.
• Do not use corrosive chemicals or vapors, such as sulde and chloride, in this appliance. This type of oven is specically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
• Do not store this appliance outdoors. Do not use this product near water - for example, near a
kitchen sink, in a wet basement, near a swimming
pool, or similar location.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in
the cavity when not in use.
• Clean the ventilating hood frequently. Do not
allow grease to accumulate on the hood or the
lters.
Use care when cleaning the vent hood lters. Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the lters.
• Do not tamper with the built-in safety switches
on the oven door. The oven has several built-in
safety switches to make sure the power is off when the door is open.
• When food ames under the hood, turn the fan on.
Suitable for use above both gas and electric
cooking equipment 36 inches wide or less.
• Do not use this oven for commercial purposes. It is made for household use only.
• When cleaning the door and the surfaces that touch the door, use only mild, non-abrasive
soaps or detergents and a sponge or soft cloth.
• If your oven is dropped or damaged, have
it thoroughly checked by a qualied service
technician before using it again.
• To avoid a re hazard:
- Do not severely overcook food. Severely
overcooked foods can start a re in the oven. Watch the oven carefully, especially if you have paper, plastic, or other combustibles in the oven.
-
Do not store combustible items (bread, cookies,
etc.) in the oven, because if lightning strikes the
power lines it may cause the oven to turn on.
- Do not use wire twist-ties in the oven. Be sure
to inspect purchased items for wire twist-ties and remove them before placing the item in the oven.
• If a re should start:
- Keep oven door closed
- Turn the oven off
- Disconnect the power cord or shut off power
at the fuse or circuit breaker panel
• To avoid electric shock:
- This appliance must be grounded. Connect only
to a properly grounded outlet. See the electrical GROUNDING INSTRUCTIONS on page 6.
- Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
- Do not immerse the electrical cord or plug in
water.
- Keep cord away from heated surfaces.
- Do not let cord hang over edge of table or
counter.
• Take care when The Door is opened.
There is a possibility of being injured.
• When range or cooktop, located below the microwave, is in operation, PLEASE USE
CAUTION IN OPERATING THE MICROWAVE AS ITS COMPONENTS SUCH AS DOOR HANDLE MAY BE OVERHEATED CAUSING BURNS AND/ OR INJURY.
- 4 -
SAFETY
• To avoid improperly cooking some foods.
- Do not heat any types of baby bottles or baby
food. Uneven heating may occur and possibly cause personal injury.
- Do not heat small-necked containers, such as
syrup bottles.
- Do not deep-fat fry in your microwave oven.
- Do not attempt home canning in your microwave
oven.
- Do not heat the following items in the microwave oven: whole eggs in the shell, water with oil or fat,
sealed containers, or closed glass jars. These items may explode.
Do not cover or block any openings in the oven.
Use your oven only for its intended use as described
in the manual.
Do not run the oven empty.
Secure the cord in the cabinet above the oven.
• Preserve the oven oor:
- Do not heat the oven oor excessively.
- Do not allow the gray lm on special microwave-
cooking packages to touch the oven oor. Put the package on a microwavable dish.
- Do not cook anything directly on the oven oor or
turntable. Use a microwavable dish.
- Keep a browning dish at least 3/16 inch above oor.
Carefully read and follow the instructions for the browning dish. If you use a browning dish incorrectly,
you could damage the oven oor.
• Install or locate this appliance only in accordance with the provided installation instructions.
• This appliance should be serviced only by qualied service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.
• Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from
the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons;
- Do not overheat the liquid.
- Stir the liquid both before and halfway through heating it.
- Do not use straight-sided containers with narrow necks.
-
After heating, allow the container to stand in the microwave oven for a short time before removing the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
SAVE THESE INSTRUCTIONS
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ( U.S.A. ONLY)
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions, may cause interference to radio and television
reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential
installation. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following:
WARNING: This product contains chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm. Wash hands after handling.
• Reorient the receiving antenna of the radio or
television.
• Relocate the Microwave Oven with respect to the
receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that
the microwave oven and the receiver are on different branch circuits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modication to this microwave oven. It is the responsibility of the
user to correct such interference.
- 5 -
PRODUCT OVERVIEW
LOCATION OF MODEL NUMBER
To request service information or replacement parts, the service center requires the complete model number of your microwave oven. The model number is on the oven front as shown in the illustration below.
MODEL NUMBER LABEL
OVEN SPECIFICATIONS
Power Supply 120 V AC, 60 Hz Rated Current Microwave 14.0 A
Convection 14.0 A
Rated Power Input
Power Output Microwave 950 W Overall Dimensions(WxHxD) Oven Cavity Dimensions
(WxHxD) Capacity of Oven Cavity 1.7 cu.ft
Microwave 1650 W
Convection 1650 W
2915/16" x 167/16" x 15 3/8"
21
1
/
4
" x 9
9
/
16
" x 14
3
/
"
16
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
- Improper use of the
WARNING
grounding can result in a risk of electric shock.
Consult a qualied electrician or service person if the
grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Because this appliance ts under the cabinet, it has a
short power-supply cord. Do not use an extension cord.
If the power supply cord is too short, have a qualied
electrician or service person install an outlet near the appliance. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. See the separate Installation Instructions for directions on placing the cord properly.
ELECTRICAL REQUIREMENTS
The oven is designed to operate on a Standard 120 V/60 Hz household outlet. Be sure the circuit is at least 15 A or 20 A and the microwave oven is the only appliance on the circuit. It is not designed for 50 Hz or any circuit other than a 120 V/60 Hz circuit.
Ensure proper ground
exists before use
Keep the electrical power cord dry and do not pinch or crush it in any way.
- 6 -
PRODUCT OVERVIEW
MICROWAVE OVEN FEATURES
1. Metal Shielded Window
prevents microwaves from escaping. It is designed as a screen to allow you to view food as it cooks.
2. Cooking Guide Label
3. Charcoal Filter
4. Vent Grille
5. Glass Tray
food as it cooks for more even cooking. It must be in the oven during operation.
6. Cooktop Light
7. Grease Filter
8. Control Panel
this panel to perform all functions.
9. Model and Serial Number Plate
1
The turntable rotates in both direction to help food cook more evenly. Do not operate the microwave oven without the glass tray in place.
(Behind Vent Grille)
The glass tray moves
Touch the buttons on
The shield
1. Convection Rack
2. Metal Tray/Drip Pan
3. Glass Tray
4. Rotating Ring
5. Shaft
2
3
4
5
- 7 -
PRODUCT OVERVIEW
CONTROL PANEL FEATURES
Use the control panel to select the desired cooking function quickly and easily. Simply touch a command key to select the desired function.
1
For more information on these features, see the OPERATION
section.
10
11
13
16
17
2
4
5
7
8
3
6
9
12
14
15
18
19
20
21
- 8 -
PRODUCT OVERVIEW
1. DISPLAY:
indicators to tell you time of day, cooking time settings, and cooking functions selected.
The Display includes a clock and
ICONS
2. SMART DIAGNOSIS:
of a phone up to this icon when directed to by service center personnel, to help diagnose problems with the oven when calling for service.
3. TAG ON:
activate the NFC function.
Hold a smart phone over this icon to
Hold the mouthpiece
COMMAND KEYS
4. SENSOR REHEAT:
casseroles, dinner plates, pizza slices, and
soups/sauces. The oven’s sensor tells the oven
how long to cook depending on the amount of humidity coming from the food.
5. SENSOR COOK:
potatoes, frozen vegetables, fresh vegetables, canned vegetables, frozen entrées, and rice.
The oven’s sensor tells the oven how long to
cook depending on the amount of humidity coming from the food.
6. SENSOR POPCORN:
popcorn. The oven’s sensor tells the oven
how long to cook depending on the amount of humidity it detects from the popcorn.
7. CUSTOM COOK:
cooking instruction previously programmed into memory.
8. MANUAL COOK:
operate MICROWAVE and CONVECTION, COMBI.
9. CUSTOM SET:
oven’s default settings for sound, clock, display
speed, and defrost weight.
10. AUTO COOK:
fresh rolls and mufns, frozen rolls and mufns, beverages, chicken pieces, and hot
cereal.
- SOFTEN: butter, ice cream, cream cheese, or frozen juice.
- MELT: butter, chocolate, cheese, or marshmallows.
Touch this key to reheat
Touch this key to cook baked
Touch this to pop
Touch this key to recall one
Select the functions to
Touch this key to change the
Touch this key to cook bacon,
11. SPEED AUTO COMBI:
setting weight combination cooking.
12. AUTO DEFROST:
food type and defrost food by weight.
Touch this key when
Touch this key to select
CONTROLS
13. CONTROL DIAL:
temperature, weight and cooking categories. Lengthen or shorten the cooking time at any point by turning the dial(except in defrost mode). Press on the dial to start a function or enter all entries.
14. START:
accept selections, or restart after opening.
15. STOP/CLEAR:
oven or to clear all entries.
16. LIGHT ON/OFF:
cooktop/countertop light on or off.
17. TURNTABLE ON/OFF:
off the turntable. OFF appears in the display.
Note:
cook and defrost modes.
18. TIMER ON/OFF:
timer.
19. VENT ON/OFF:
on/off.
20. VENT 5-SPEED:
one of 5 fan speeds.
21. VENT AUTO TIMESET:
setting the ventilation time. (1, 3, 5, 10, and 30 minutes.)
Touch the key to start a function,
This option is not available in sensor
Set cooking time,
Touch this key to stop the
Touch this key to turn the
Touch this key to turn
Touch this key to set the
Touch this key to turn the fan
Touch this key to choose
Touch this key when
- 9 -
MICROWAVE COOKING TIPS
Amount of Food
• If you increase or decrease
prepare, the time it takes to cook that food will also change. For example, if you double a recipe, add a little more than half the original cooking time. Check for doneness and, if necessary, add more time in small increments.
the amount of food you
Starting Temperature of Food
• The lower the temperature
the microwave oven, the longer it takes to cook. Food at room temperature reheats more quickly than food at refrigerator temperature.
of the food being put into
Composition of Food
• Food with a lot of fat and sugar
food containing a lot of water. Fat and sugar also reach a higher temperature than water during the cooking process.
• The more dense the food,
heat. Very dense food like meat takes longer to heat than lighter, more porous food like sponge cakes.
heats faster than
the longer it takes to
Size and Shape
• Smaller pieces of food
pieces. Also, same-shaped pieces cook more evenly than different-shaped pieces.
• With foods that have different thicknesses,
thinner parts cook faster than the thicker parts Place the thinner parts of chicken wings and legs in the center of the dish.
cook faster than larger
the
Stirring and Turning Foods
• Stirring and turning foods
the center of the dish and avoids overcooking at the outer edges of the food.
spreads heat quickly to
Covering Food
Cover food to:
• reduce
• shorten
• keep
splattering
cooking times
food moist
Releasing Pressure in Foods
• Several foods
sausages, egg yolks, and some fruits) are tightly covered by a skin or membrane. Steam can build up under the membrane during cooking, causing the food to burst. To relieve the pressure and to prevent bursting, pierce these foods before cooking with a fork, cocktail pick, or toothpick.
(for example: baked potatoes,
Using Standing Time
• Always allow food to stand
the oven after cooking power stops. Standing time after defrosting and cooking allows the temperature to evenly spread throughout the food, improving the cooking results. For inside oven standing time, program a 0 power second stage of the cooking cycle. See Cooking with More than One Cook Cycle.
• The length of the standing time
much food you are cooking and how dense it is. Sometimes it can be as short as the time it takes you to remove the food from the oven and take it to the serving table. However, with larger, denser food items, the standing time may be as long as 10 minutes.
either in or out of
depends on how
Arranging Food
For best results, place food evenly on the plate. You can do this in several ways:
• If you are cooking several items of the same food,
such as baked potatoes, place them in a ring pattern for uniform cooking.
• When cooking foods of uneven shapes or
thickness, such as chicken breasts,
smaller or thinner area of the food towards the center of the dish where it will be heated last.
• Layer thin slices of meat
• When you cook or reheat whole sh, score
skin to prevent cracking.
• Do not
of the oven. This will prevent possible arcing.
let food or a container touch the top or sides
on top of each other.
place the
the
- 10 -
MICROWAVE COOKING TIPS
Using Aluminum Foil
Metal containers should not be used in a microwave oven. However, if you have purchased food which is prepackaged in an aluminum foil container, refer to the instructions on the package. When using aluminum foil containers, cooking times may be longer because microwaves will only penetrate the exposed top of the food and not the bottom or the sides. If using aluminum containers without package instructions, follow these guidelines:
• Place
• Always remove
• Use only
• Do not use
• Container must be
• To avoid arcing,
• Always place
• Shield
• Heating food
• Let food stand
the aluminum foil container in a glass bowl and add water so that it covers the bottom of the container, but not more than ¼ in. (.64 cm) deep. This ensures even heating of the container bottom.
the container lid to avoid damage to
the oven.
undamaged containers.
containers taller than ¾ in. (1.9 cm).
at least half lled.
there must be a minimum ¼ in.(.64 cm) between the aluminum container and the walls of the oven and also between two aluminum containers.
the container on the turntable.
parts of food that may cook quickly, such as wing tips and leg ends of poultry, with small pieces of aluminum foil.
in aluminum foil containers usually takes up to double the time compared to reheating in plastic, glass, china, or paper containers. The cooking time will vary depending upon the type of container you use.
for 2 to 3 minutes after heating so
that heat is spread evenly throughout the container.
Removing the Rack
• When popping commercially packaged popcorn,
remove the rack and drip pan from the oven.
Do not place the bag of microwave popcorn on the rack or under the rack. Leave the glass tray in place at all times.
Popping microwave popcorn with rack
CAUTION
:
and drip pan in place can cause re or damage to the microwave oven.
Do Not Can or Sterilize in Oven
• Do not
may explode, resulting in damage to the oven.
• Do not
(baby bottles, etc.). It is difcult to keep the oven at
the high temperature needed for sterilization.
try to can food in the oven. Closed glass jars
use the microwave oven to sterilize objects
- 11 -
MICROWAVE COOKING TIPS
Cooking Comparison Guide
Cooking with your new oven offers a wide variety of food preparation options: microwave cooking, convection cooking, and combination cooking.
Microwave cooking
radio waves. The movement of the microwaves through the food generates heat and cooks most foods faster than regular methods, while retaining their natural texture and moisture. Microwave cooking heats food directly, not the cookware or the interior of the oven. Reheating is easy and defrosting is particularly convenient because less time is spent in food preparation.
COOKING METHOD
uses very short, high-frequency
MICROWAVE CONVECTION COMBINATION
Microwave energy is distributed evenly throughout the oven for fast, thorough cooking of food.
Convection cooking
around the food, creating even browning and sealed-in
avor by the constant motion of hot air over the food
surfaces.
Combination cooking
with convection to cook with speed and accuracy, while browning and crisping to perfection. Timed cooking can be set with microwave cooking, convection cooking, and combination cooking. Preset the desired length of cooking time and the oven turns off automatically.
Hot air circulates around food to produce browned exteriors and sealed-in juices.
constantly circulates heated air
combines microwave energy
Microwave energy and convection heat combine to shorten the cooking time of regular ovens, while browning and sealing in juices.
HEAT SOURCE
BENEFITS
Microwave energy. Circulating heated air. Microwave energy and
circulating heated air.
• Fast, high efciency
cooking.
• Oven and surroundings
do not get hot.
• Easy clean-up
• Aids in browning and seals in avor.
• Cooks some foods faster
than regular ovens.
• Shortened cooking time
from microwave energy.
• Browning and crisping
from convection heat.
- 12 -
MICROWAVE COOKING TIPS
COOKWARE GUIDE
Microwave Cooking
Most heat-resistant, non-metallic cookware is safe for use in the microwave oven. Testing Cookware Before Using
1. Place the empty cookware in the microwave oven.
2. Measure 1 cup of water in a glass measuring cup and place it in the oven beside the cookware.
3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.
Convection Cooking
• Metal pans are recommended for all types of baked
products, but especially where browning or crusting is important.
• Dark or dull nish metal pans are best for breads and
pies because they absorb heat and produce a crisper crust.
• Shiny aluminum pans are better for cakes, cookies,
or mufns because these pans reect heat and help
produce a light, tender crust.
• Glass or glass-ceramic casserole or baking dishes
are best suited for egg and cheese recipes to provide easy cleanup.
COOKWARE MICROWAVE CONVECTION COMBINATION
Heat-Resistant Glass, Ceramic Glass
Ceramics, China
(Do not use china with gold or silver
Metal Cookware
Non Heat-Resistant Glass
Microwave-Safe Plastic
Plastic Wrap, Wax Paper
Paper Products
Straw, Wicker, and Wood
* Use only microwave cookware that is safe to 450°F
Combination Cooking
• Glass or glass-ceramic baking containers are
recommended. Do not use items with metal trim as they may cause arcing (sparking) with oven wall or oven shelf, damaging the cookware, the shelf, or the oven.
• Heat-resistant plastic microwave cookware (safe to
450°F) may be used, but is not recommended for foods that require crusting or all-around browning, because plastic is a poor conductor of heat.
Yes Yes Yes
Yes
trim.)
No Yes No
No No No
Yes No Yes*
Yes No No
Yes No No
Yes No No
Yes Yes
- 13 -
MICROWAVE COOKING TIPS
Glass Tray
: Recommended method
: Do not use
Metal Tray Metal Rack
HOW TO USE ACCESSORIES
MICROWAVE CONVECTION COMBINATION
: Possible to use
Notes:
• Never operate the oven while empty except to preheat in convection mode.
• NEVER operate the microwave mode while the oven is empty.
- 14 -
OPERATION
LEARN ABOUT YOUR MICROWAVE OVEN
This section discusses the concepts behind microwave cooking and introduces you to the basics you need to know to operate your microwave oven. Please read this information before using your oven.
CAUTION
To avoid risk of personal injury or property
damage, do not use stoneware, metal utensils, or
metal trimmed utensils in the oven.
AUDIBLE SIGNALS
Audible signals are available to guide you when setting and using your oven:
• A tone will sound each time you touch a key.
• A melody signals the end of a Timer countdown.
• A melody signals the end of a cooking cycle.
CLOCK
When your microwave oven is rst plugged in or after
a power failure, the display shows PLEASE SET TIME OF DAY. If a time of day is not set, a colon (:) shows on the display until CUSTOM SET is touched.
Example: To set the clock for 10:30(AM).
SET
10
30
AM
1. Touch
2. Turn the dial to select the
3. Turn the dial to set the hour 10.
4. Turn the dial to set the minute 30.
5. Turn the dial to select AM or
6. Touch
CUSTOM SET.
CLOCK SET.
press dial to enter.
Touch enter.
Touch enter.
PM.(AM)
to enter.
Touch
or press the dial to
START
or press the dial to
START
START
or press the dial
START
or
CAUTION
To avoid risk of personal injury
or property damage, do not run oven empty.
INTERRUPTING COOKING
Stop the oven during a cycle by opening the door. The oven stops heating and the fan stops, but the light stays on. To restart cooking, close the door and touch
START. To stop cooking, open the door and touch STOP/ CLEAR.
CHILD LOCK
Use this safety feature to lock the control panel when cleaning the oven, or so children cannot use the oven unsupervised.
Example: To set the child lock.
1. Touch and hold
STOP/CLEAR
appears in the display and a melody sounds. (approximately 3 seconds)
Example: To cancel the child lock.
1. Touch and hold
STOP/CLEAR LOCKED
melody sounds. (approximately 3 seconds)
until
LOCKED
until
disappears and a
Note:
• If you touch
display shows the last time of day set or a colon (:) if no time of day has been set.
STOP/CLEAR
while setting the clock, the
- 15 -
OPERATION
3:00
TIMER
Use this feature for a a general purpose timer. It can be used while cooking in the oven. The timer can be set for up to 99 minutes and 59 seconds.
Example: To set 3 minutes.
1. Touch
2. Turn the dial to set the time. (3:00)
3. Touch
When the time is over a melody sounds and
STOP/CLEAR.
To cancel, press
TIMER ON/OFF.
or
START
or press the dial to enter.
TIMER ON/OFF
displays. Press
END
TIMER ON/OFF.
CUSTOM COOK
CUSTOM COOK allows one cooking instruction to be placed in memory and then recalled quickly.
Example: To memorize a 2-minute microwave cook.
MICROWAVE
POWER 100
2:00
1. Touch
2. Touch
3. Turn the dial to select the
4. Turn the dial to set the power
5. Turn the dial to set the time.
6. Touch
CUSTOM COOK.
MANUAL COOK.
cooking type (MICROWAVE). Touch enter.
level (POWER 100). Touch
START
(2:00)
to enter.
or press the dial to
START
or press the dial to enter.
or press the dial
START
VENT FAN
The bottom of the control panel controls the 5-speed vent fan.
Example: To set Level 4.
1. Touch
2. Touch
Note:
• If the temperature from the range or cooktop below
the oven gets too hot, the vent fan in the vent hood automatically turns on at the 4-Speed setting to protect the oven. It may stay on up to an hour to cool the oven. When this occurs, the VENT does not turn the fan off. The vent fan cannot be
turned off during microwave cooking.
ON/OFF.
The display defaults to the last
level selected.
5 SPEED
appears in the display. Turn off fan when desired.
until
LEVEL 4
ON/OFF
key
VENT FAN AUTO TIME SET
Example: To turn off fan after 30 minutes at level 4.
1. Touch
2. Touch
3. Touch
ON/OFF.
5 SPEED
appears in the display.
AUTO TIMESET
times. 1 time - 1 minute 2 times - 3 minutes
3 times - 5 minutes 4 times - 10 minutes 5 times - 30 minutes
until Level 4
ve
Example: To recall the memory.
1. Touch
2. Touch
When the cook time is over a melody sounds and displays.
CUSTOM COOK.
START
enter.
or press the dial to
COOK END
- 16 -
OPERATION
TURNTABLE ON/OFF
For best cooking results, leave the turntable on. It can be turned off for large dishes. Touch
TURNTABLE ON/OFF
turntable on or off.
Notes:
• This option is not available in sensor cook and defrost
modes.
Sometimes the turntable can become hot to
Be careful when touching the turntable during
touch.
and after cooking.
• Do not run the oven empty.
to turn the
LIGHT ON/OFF
To turn the hood light on, touch
LIGHT ON/OFF
To turn the hood light off, touch
LIGHT ON/OFF
once.
again.
COOKING AT HIGH POWER LEVEL
CUSTOM SET
Use this key to change settings for the clock, beep sound, display speed, and defrost weight. See the following chart for more information.
CATEGORY SELECTION
Hours
Clock set
Sound ON/OFF
Clock ON/OFF
Scroll speed
Defrost weight mode
Example: To change defrost weight mode.(from Lbs. to Kg.)
1. Touch
2. Turn the dial to select
Lbs/Kg
CUSTOM SET.
Lbs/Kg
the dial to enter.
Minutes
AM/PM
Sound ON
Sound OFF
Clock ON
Clock OFF
Slow speed
Normal speed
Fast speed
Touch
START
Lbs.
Kg.
or press
Example: To cook food for 8 minutes 30 seconds.
1. Turn the dial to select the time.
8:30
(8:30)
2. Touch to enter. When the cook time is over a melody sounds and displays.
or press the dial
START
COOK END
Kg
3. Turn the selector dial to select Kg.
4. Touch to enter.
or press the dial
START
- 17 -
OPERATION
E
COOKING AT LOWER POWER LEVELS
HIGH power cooking does not always give the best results with foods that need slower cooking, such as roasts, baked goods, or custards. The oven has 10 power settings in addition to HIGH.
Example: To cook food for 7 minutes 30 seconds
at 70% power.
MICROWAV
POWER 70
7:30
1. Touch
2. Turn the dial to select
3. Turn the dial to set the power
4. Turn the dial to set the time.(7:30)
5. Touch
MANUAL COOK
MICROWAVE
press the dial to enter.
level (POWER 70). Touch or press the dial to enter.
enter. When the cook time is over a melody sounds and displays.
. Touch
or press the dial to
START
.
or
START
START
COOK END
COOKING WITH MORE THAN ONE COOK CYCLE
For best results, some recipes call for one power level for a certain length of time, and another power level for another length of time. The oven can be set to change from one power level to another automatically, for up to
three cycles if the rst heating cycle is defrost.
Example: To cook food for 3 minutes at 100% power
and then 70% power for 7 minutes 30 seconds.
3:00
POWER 70
7:30
When the rst stage is over a melody sounds as the oven
begins the second cook stage.
1. Turn the dial to select the time. (3:00)
2. Touch
3. Turn the dial to set the power
4. Turn the dial to set the time.(7:30)
5. Touch
When the cook time is over a melody sounds and displays.
MANUAL COOK
level (POWER 70). Touch or press the dial to enter.
or press the dial to
START
enter.
COOK END
.
START
Example: To cook at 70% for 3 minutes and then at
50% for 10 minutes.
1. Touch
MICROWAVE
POWER 70
3:00
POWER 50
When the rst stage is over, a melody sounds as the oven
begins the second cook stage.
10:00
2. Turn the dial to select
3. Turn the dial to set the power
4. Turn the dial to set the time (3:00).
5. Touch
6. Turn the dial to set the power
7.
8. Touch
When the cook time is over, a melody sounds and displays.
MANUAL COOK
MICROWAVE
press the dial to enter.
level (POWER 70). Touch or press the dial to enter.
level (POWER 50). Touch or press the dial to enter.
Turn the dial to set the time (10:00).
enter.
. Touch
MANUAL COOK
or press the dial to
START
.
or
START
START
.
START
COOK END
- 18 -
OPERATION
COOKING GUIDE FOR LOWER POWER LEVELS
The nine power levels in addition to HIGH provide a choice of the best level for the food being cooked. Below are listed all the power levels,
POWER LEVEL MICROWAVE OUTPUT USE
examples of foods best cooked at each level, and the amount of microwave power being used.
100
HIGH
90 90% • Heating cream soups
80 80% • Heating rice, pasta, or casseroles
70 70% • Cooking and heating foods that need a cook
60 60% • Cooking requiring special care, such as cheese
50 50% • Cooking ham, whole poultry, and pot roasts
40 40% • Melting chocolate
30 30% • Manually defrosting foods, such as bread, sh,
100% • Quick heating many convenience foods and
foods with high water content, such as soups
and beverages.
• Cooking tender cuts of meat, ground meat
power lower than high (for example, whole sh
and meat loaf) or when food is cooking too fast
• Reheating a single serving of food
and egg dishes, pudding, and custards
• Finishing cooking casseroles
• Simmering stews
• Heating pastries
meats, poultry, and precooked foods
20 20% • Softening butter, cheese, and ice cream
10 10% • Keeping food warm
• Taking the chill out of fruit
00 0% • Standing time in oven
- 19 -
OPERATION
SENSOR OPERATING INSTRUCTIONS
Sensor Cook cooks favorite foods without selecting cooking times and power levels. The oven automatically determines required cooking time for each food item. When the internal sensor detects a certain amount of humidity coming from the food, it tells the oven how much longer to heat. The display shows the remaining heating time. For best results when sensor cooking, follow these recommendations.
1. Food cooked with the sensor system should be at normal storage temperature.
2. The glass tray and the outside of the container should be dry to assure best cooking results.
3. Foods should always be covered loosely with microwavable plastic wrap, waxed paper, or a lid.
4. Do not open the door or touch the sensing time. When sensing time is over, the oven beeps and the remaining cooking time will appear in the display window. At this time you can open the door to stir, turn, or rearrange the food.
STOP/CLEAR
during
SENSOR REHEAT
Use SENSOR REHEAT to reheat common microwave­prepared foods without selecting cooking times and power levels.
Example: To reheat slices of pizza.
PIZZA SLICE
1. Touch
2. Turn the dial to select
3. Touch
When the cook time is over a melody sounds and displays.
REHEAT.
PIZZA SLICE
START
enter.
.
or press the dial to
COOK END
SENSOR COOK
Use SENSOR COOK to heat common microwave­prepared foods without needing to program times and power levels. SENSOR COOK has preset programs for 6 food categories.
Example: To cook rice.
SENSOR COOKING GUIDE
Appropriate containers and coverings help assure good sensor cooking results.
1. Always use microwavable containers and cover them with lids or vented plastic wrap.
2. Never use tight-sealing plastic covers. They can prevent steam from escaping and cause food to overcook.
3. Match the amount to the size of the container. Fill containers at least half full for best results.
4. Be sure the outside of the cooking container and the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning into steam can mislead the sensor.
RICE
1. Touch
2. Turn the dial to select
3. Touch
When the cook time is over a melody sounds and displays.
COOK.
.
RICE
or press the dial to
START
enter. After a slight delay, cooking begins.
COOK END
SENSOR POPCORN
POPCORN lets you pop commercially packaged microwave popcorn. Pop only one package at a time. For best results, use fresh bags of popcorn.
Example: To pop popcorn.
1. Touch
POPCORN.
When the cook time is over a melody sounds and displays.
COOK END
- 20 -
SENSOR REHEAT TABLE
OPERATION
CATEGORY
Dinner Plate
Soup/Sauce
Casserole
Pizza Slice
DIRECTION AMOUNT
Place on a low plate. Cover with vented plastic wrap. Let stand 3 minutes after cooking.
Place in shallow microwavable casserole. Cover with vented plastic wrap. After cooking, stir and let stand 3 minutes.
Place in a microwavable bowl or casserole. Cover with vented plastic wrap. After cooking, stir and let stand 3 minutes.
This function is for re-heating pizza that was cooked previously. It is NOT for raw, ready-to-bake, or frozen pizza. Place the pizza slice(s) on a paper towel or microwave safe plate.
SENSOR COOK TABLE
CATEGORY
Baked Potato
Frozen Vegetable
DIRECTION AMOUNT
Pierce each potato with a fork and place on the oven tray around the edge, at least one inch apart. After cooking, allow to stand for 5 minutes.
Remove from package, rinse off frost under running water. Place in an appropriately sized microwave container. Add amount of water according to the quantity (1 - 2 cups: 2 tablespoons, 3 - 4 cups: 4 tablespoons). Cover with plastic wrap and vent. After cooking, stir and allow to stand for 3 minutes.
1 to 2 servings
1 - 4 cups
1 - 4 cups
1 - 4 slices
1 - 4 medium (approx. 8 to 10 oz. each)
1 - 4 cups
Fresh Vegetable
Canned Vegetable
Frozen Entrée
Rice
Prepare as desired, wash, and leave residual water on the vegetables. Place in an appropriately sized microwave container. Add amount of water according to the quantity (1 ­2 cups: 2 tablespoons, 3 - 4 cups: 4 tablespoons). Cover with plastic wrap and vent. After cooking, stir and allow to stand for 3 minutes.
Remove from the can. Place in an appropriately sized microwave container, cover with plastic wrap, and vent. After cooking, stir and allow to stand for 3 minutes.
Remove from outer package. Slit cover. If not in microwave-safe container, place on a plate. Cover with plastic wrap and vent the
plastic lm by piercing with a fork (3 times). After cooking, allow
to stand for 3 minutes.
Place rice and twice as much liquid (water, chicken or vegetable stock) in a 2-quart microwave dish. Cover with plastic wrap and vent. After cooking, allow to stand for 10
minutes. Stir for ufer rice.
- 21 -
1 - 4 cups
1 - 4 cups
10 to 21 oz.
½ - 2 cups Use medium or long grain rice. Cook instant rice according to directions on the package.
OPERATION
TIPS FOR CONVECTION COOKING
This section provides cooking instructions and procedures for each convection function.
Convection cooking circulates hot air through the oven cavity with a fan. The constantly moving air surrounds the food to heat the outer portion quickly,
creating even browning and sealed-in avor through
the constant motion of hot air over the food surfaces. To use convection cooking, turn the dial to select the Convection or Combination modes.
OVEN WITHOUT THE TURNTABLE IN PLACE.
1.
Always use the metal rack
convection cooking.
2.
Do not cover
aluminum foil. It interferes with the ow of a
4.
Use convection cooking
breads, cookies, angel food cakes, pizza, and for
some meat and sh.
5.
The oven comes
can be used for cooking in convection mode or combination mode.
6.
No special techniques are necessary
favorite oven recipes to convection cooking; but reduce the oven temperature by 25°F from the recommended temperature when cooking packaged foods in convection mode.
7.
When baking
other baked foods, most recipes call for preheating. Preheat the empty oven just as with a regular oven. You can start heavier dense foods such as meats, casseroles, and poultry without preheating.
8.
All heatproof
used in convection cooking.
9.
As in conventional cooking,
food from the heat source affects cooking results. Refer to the charts in this owner's manual.
the turntable or metal rack with
equipped with a metal tray which
cakes, cookies, breads, rolls, or
cookware or metal utensils can be
DO NOT USE THE
on the turntable when
for items like soufés,
to adapt
the distance of the
10.
Use metal utensils
Never use for microwave or combination cooking since arcing and damage to the oven may occur.
11.
After preheating,
the oven automatically holds at the preheated temperature for 30 minutes.
only for convection cooking.
if the door remains closed,
PRECAUTIONS
• The oven cavity, door, turntable, roller rest, metal tray,
metal rack, and cooking utensils become very hot.
USE THICK OVEN GLOVES when removing the food, cooking utensils, metal rack, metal tray, and turntable from the oven after convection cooking.
• Do not use lightweight plastic containers, plastic
wraps, or paper products during any convection cycle.
- 22 -
OPERATION
DISPLA PREHEA
CONVECTION
CONVECTION
During convection cooking, a heating element is used to raise the temperature of the air inside the oven. Convection cooking temperature ranges from 100°F to 450°F. It is best to preheat the oven when convection cooking.
Note: Reduce oven temperature by 25°F from the
temperature recommended on packaged foods. The baking time may vary according to the food condition or individual preference.
Example: To set for convection cooking at 325°F for
45 minutes with preheating.
CONVECTION
325℉
Y SCROLLS
T END
1. Touch
2. Turn the dial to select
3. Turn the dial to set the
4. Touch
5. When the melody sounds, Place
MANUAL COOK.
CONVECTION
press the dial to enter.
temperature (325°F). Touch
START
begin preheating.(Do not enter the time.)
the food in the oven.
. Touch
START
or press the dial to enter.
or press the dial to
START
or
Example: To set for convection cooking at 375°F for
30 minutes without preheating.
1. Touch
2. Turn the dial to select
375℉
30:00
The temperature range has 10 steps from 100°F
Note:
to 450°F.
3. Turn the dial to set the
4. Turn the dial to set the time.
5. Touch
MANUAL COOK.
CONVECTION
press the dial to enter.
temperature (375°F). Touch
START
(30:00)
to enter.
. Touch
START
or press the dial to enter.
or press the dial
START
or
45:00
Notes:
• When the oven reaches the set preheat temperature,
a melody will sound and the display scrolls the message holds that temperature for 30 minutes.
• The oven temperature drops very quickly when the
door is opened; however, this should not prevent food from being fully cooked during normal cooking time.
• During convection cooking, the vent fan in the vent
hood automatically turns on at the 1-speed (lowest speed) setting to protect the oven.
PREHEAT END
6. Turn the dial to set the time. (45:00)
7. Touch enter.
. The oven automatically
or press the dial to
START
- 23 -
OPERATION
TIPS FOR COMBINATION COOKING
This section provides instructions for each combination cooking function. Combination microwave-convection cooking shortens the cooking time for foods that normally need a long time to cook. It also leaves meat juicy on the inside and crispy on the outside. In combination cooking, the convection heat and microwave energy alternate automatically. The oven has three preprogrammed settings that make it easy to use combination cooking.
HELPFUL HINTS FOR COMBINATION COOKING
1.
2.
3.
can be roasted directly on the metal rack or
Meats
in a shallow roasting pan placed on the rack. When using the metal rack, check the cooking guide for information on proper use.
Less tender
tenderized using oven cooking bags.
When baking,
time is up. If not completely done, let stand in oven for a few minutes to complete cooking.
cuts of beef can be roasted and
check for doneness after cooking
PRECAUTIONS
1. All cookware used for combination cooking must be BOTH microwave-safe and oven-safe.
2. During combination baking, some baking cookware may cause arcing when it comes in contact with the oven walls or metal accessory racks. Arcing is a discharge of electricity that occurs when microwaves come in contact with metal.
- If arcing occurs, immediately stop the cooking cycle
and place a heat resistant dish between the pan and the metal rack.
- Use the metal tray supplied with the oven. It has
rubber feet that help prevent arcing.
- If arcing occurs with other baking cookware, do not
use them for combination cooking.
COMBINATION ROAST
Example: To roast with combination cooking for
45 minutes at 400°F.
1. Touch
COMBI
Co-1
400 ℉
45:00
Notes:
• The temperature range has 9 steps from 250°F to
450°F.
• During combination cooking, the exhaust fan in the
vent hood automatically turns on at the 1-speed (lowest) setting to protect the oven.
COMBI CATEGORY DEFAULT
Co-1 Combination
Co-2 Combination
2. Turn the dial to select
3. Turn the dial to select
4. Turn the dial to set the
5. Turn the dial to set the time.
6. Touch
ROAST
BAKE
MANUAL COOK.
Touch enter.
temperature. (400℉)
(45:00)
enter.
or press the dial to
START
or press the dial to
START
TEMPERATURE
Convection
375°F
Convection
325°F
COMBI
Co-1
.
.
- 24 -
OPERATION

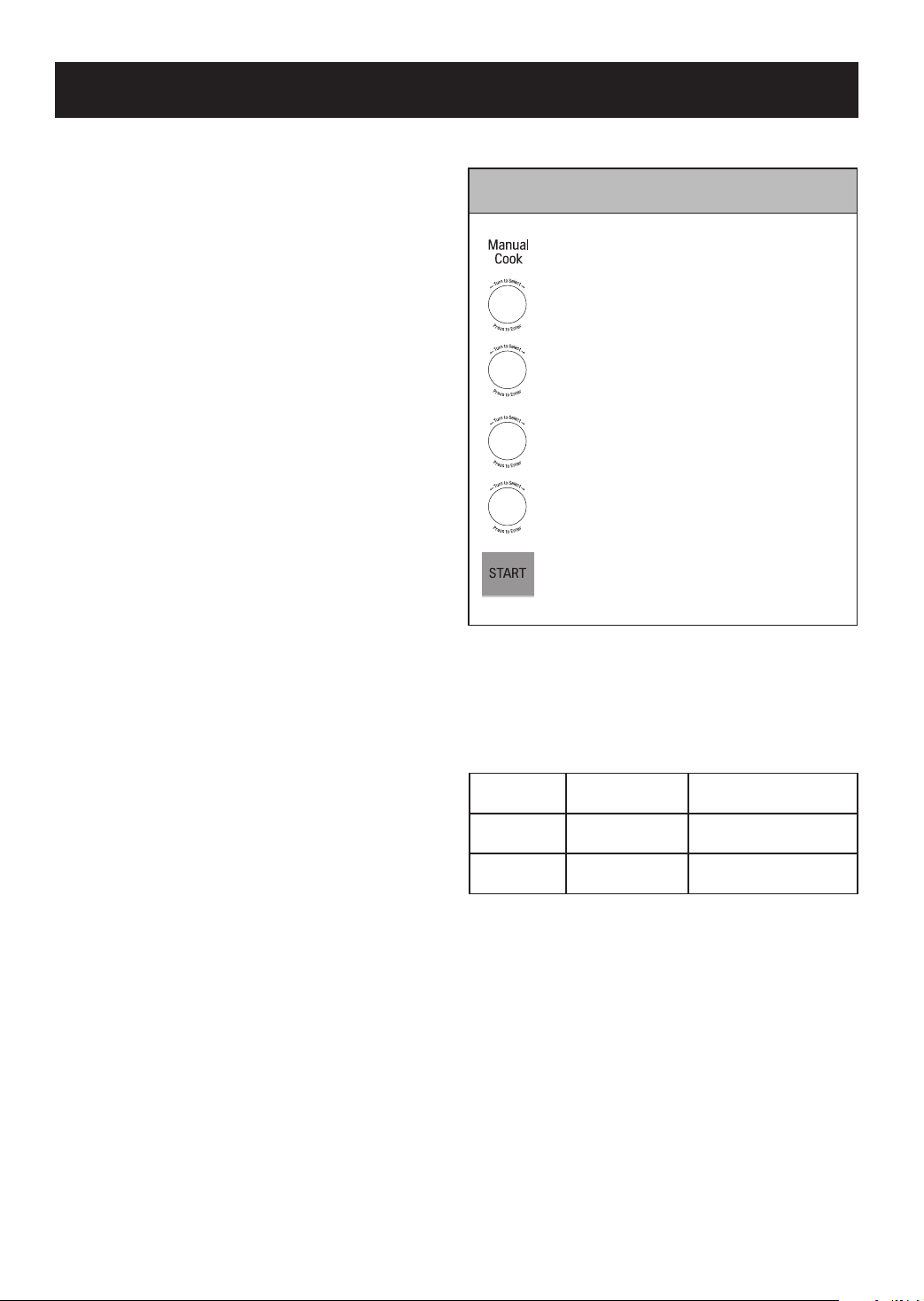

AUTO COOK
Use Auto Cook to heat common microwave-prepared foods without selecting cooking times and power levels. Auto Cook has preset programs for 6 food functions.
Example: To cook bacon 2 slices.
AUTO COOK
BACON
2 SLICES
1. Touch
2. Turn the dial to select
3. Turn the dial to select
4. Turn the dial to select
5. Touch
AUTO COOK.
AUTO COOK
press the dial to enter.
Touch
START
enter.
2 SLICES
START
enter.
AUTO COOK TABLE
CATEGORY
Bacon
Fresh
Roll/Mufn
DIRECTION AMOUNT
Place bacon strips on a microwave bacon rack for best results. (Use dinner plate lined with paper towels if rack is not available).
Remove from package and place on plate. (If mufns are
over 3 oz. each, count each as two when entering quantity).
. Touch
START
BACON
or press the dial to
.
or press the dial to
or
.
2 - 6 slices
1 - 6 pieces (2 - 3 oz. each)
Frozen
Roll/Mufn
Beverage
Chicken Pieces
Hot Cereal
Note:
Do not use recycled paper products in the microwave oven. They sometimes contain impurities that cause arcing and sparking.
NEVER
use paper products in the convection oven.
Remove from display package and place on plate. (If mufns
are over 3 oz. each, count each as two when entering quantity).
Use a wide-mouth mug. Do not cover. (Be careful. The beverage will be very hot! Sometimes liquids heated in cylindrical containers will splash out when the cup is moved).
Place the chicken pieces in an appropriately sized microwavable container, cover with plastic wrap, and vent.
Prepare as directed on package and cook. Stir well before eating. Use only instant hot cereal.
- 25 -
1 - 6 pieces (2 - 3 oz. each)
1 - 2 cups
0.5 - 2 lbs. (0.2 - 0.9 kg)
1 - 6 servings
OPERATION
SOFTEN
The oven uses low power to soften foods (butter, ice cream, cream cheese, and frozen juice). See the following table.
Example for quart of ice cream.
SOFTEN
ICE CREAM
QUART
1. Touch
2. Turn the dial to select
3. Turn the dial to select
4. Turn the dial to select
5. Touch
When the cook time is over a melody sounds and displays.
AUTO COOK
Touch
START
enter.
. Touch
CREAM
the dial to enter.
START
enter.
.
or press the dial to
SOFTEN
ICE
or press
START
.
QUART
or press the dial to
COOK END
SOFTEN TABLE
MELT
The oven uses low power to melt foods (butter, chocolate, processed cheese food, or marshmallows). See the following table.
Example for 8 oz. of chocolate.
1. Touch
.
MELT
CHOCOLATE
8 Oz
2. Turn the dial to select
3. Turn the dial to select
4. Turn the dial to select
5. Touch
When the cook time is over a melody sounds and displays.
AUTO COOK
Touch enter.
CHOCOLATE
press the dial to enter.
enter.
or press the dial to
START
. Touch
or press the dial to
START
MELT TABLE
.
.
MELT
or
START
.
8 Oz
COOK END
CATEGORY DIRECTION AMOUNT
Butter
Ice
Cream
Cream
Cheese
Frozen
Juice
Unwrap and place in microwavable container. Butter will be at room temperature and ready for use in recipe.
Place container in oven. Ice cream will be soft enough to make scooping easier.
Unwrap and place in microwavable Container. Cream cheese will be at room temperature and ready for use in recipe.
Remove top. Place in oven. Frozen juice will be soft enough to mix easily with water.
1, 2 or 3
sticks
Pint,
Quart,
Half
gallon
3 or 8 oz.
6, 12 or
16 oz.
CATEGORY DIRECTION AMOUNT
Butter
Chocolate
Cheese
Marshmallows
Unwrap and place in microwavable container. No need to cover butter. Stir at the end of cooking to complete melting.
Chocolate chips or squares of baking chocolate may be used. Unwrap squares and place in microwavable container. Stir at the end of cycle to complete melting.
Use processed cheese food only. Cut into cubes. Place in a single layer in microwavable container. Stir at the end of cooking to complete melting.
Large or miniature marshmallows may be used. Place in microwavable container. Stir at the end of cycle to complete melting.
1, 2 or 3
sticks
4 or 8 oz.
8 or 16
oz.
5 or 10
oz.
- 26 -
OPERATION
SPEED AUTO COMBINATION
Use to cook food without entering cooking time or power level on combination mode. SPEED AUTO COMBINATION has 4 food categories. See the SPEED AUTO COMBINATION CHART on this page for the settings available.
For best results, place food on the rack. When cooking meats, use the metal tray/drip pan to catch drippings.
Example: To cook 2 lb. roast pork.
ROAST PORK
2.0 Lbs
1. Touch
2. Turn the dial to select
3. Turn the dial to select
4. Touch
SPEED AUTO COMBI.
. Touch
PORK
dial to enter.
enter.
START
or press the dial to
START
ROAST
or press the
.
2.0 Lbs
SPEED AUTO COMBINATION CHART
CATEGORY
Whole
Chicken
Roast Pork
DIRECTION AMOUNT
Thoroughly wash inside and outside of chicken with cold water. Pat chicken dry with paper towels, secure the legs with kitchen twine. Brush outside of chicken with melted butter or margarine. Place chicken breast side down on metal rack on metal tray. After cooking, loosely tent chicken with aluminum foil. Let stand for 10 minutes after cooking.
Pat dry with paper towels. Place roast on metal rack on metal tray. After cooking, loosely tent roast with aluminum foil and let stand 5 to 10 minutes.
2.0 - 4.0 lbs. (0.9 - 1.8 kg)
2.0 - 4.0 lbs.
(0.9 - 1.8 kg)
Frozen
Lasagna
Baked Potatoes
Remove from outer package. Remove lm cover. If lasagna is
not in an ovenproof container, place it on an ovenproof dish. Place on metal rack on metal tray. Let stand for 5 minutes after cooking.
Pierce each potato several times with a fork and place on metal rack on metal tray.
- 27 -
10 or 21 oz.
1 - 4 ea
OPERATION
AUTO DEFROST
Five defrost sequences are preset in the oven. The auto defrost feature provides the best defrosting method for frozen foods. The Auto Defrost Table shows which defrost sequence is recommended. For added convenience, Auto Defrost includes a built­in beep mechanism as a reminder to check, turn over, separate, or rearrange food to get the best defrost results. Five different defrost settings are provided.
1 MEAT 2 POULTRY 3 FISH 4 BREAD 5 QUICK DEFROST
Example: To defrost 1.2 lbs. of meat.
1. Touch
MEAT
1.2 Lbs
When you touch the START or press the
Note:
dial, the display changes to the defrost time count down. When the oven beeps during the DEFROST cycle, open the door and turn, separate, or rearrange the food. Remove any portions that have thawed. Return frozen portions to the oven and touch START to resume the defrost cycle.
2. Turn the selector dial to select
※ Category: Meat, Poultry, Fish,
3. Turn the dial to select the
4. Touch
AUTO DEFROST
the food category. (Meat)
Bread, Quick
weight. (1.2 Lbs)
or press the dial
START
to enter.
.
WEIGHT CONVERSION TABLE
Most food weights are given in pounds and ounces. If using pounds, food weights must be entered into Auto Defrost in pounds and tenths of pounds (decimals). Use the following table if necessary to convert food weights to decimals.
Equivalent Weight
OUNCES
1.6
3.2
4.8
6.4
8.0
9.6
11.2
12.8
14.4
16.0
DECIMAL WEIGHT
.10 .20 .30 .40 .50 One-Half Pound .60 .70 .80 .90
1.00 One Pound
OPERATING TIPS
• For best results, remove sh, shellsh, meat, and
poultry from its original closed paper or plastic package (wrapper). Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the foods to cook.
• For best results, shape the ground meat into the
form of a doughnut before freezing. When defrosting, scrape off thawed meat when the beep sounds and continue defrosting.
• Place foods in a shallow container or on a microwave
roasting rack to catch drippings.
• For more defrost help, read Defrosting Tips following
the Auto Defrost Table.
For best results, loosen or remove coverings on food.
FOOD
Meat 0.1 to 6.0 (0.1 - 4 kg)
Poultry 0.1 to 6.0 (0.1 - 4 kg)
Fish 0.1 to 6.0 (0.1 - 4 kg)
Bread 0.1 to 1.0 (0.1 - 0.5 kg)
Quick Defrost Only 1 lb (0.5 kg only)
WEIGHTS YOU CAN SET
(tenths of a pound)
- 28 -
OPERATION
AUTO DEFROST TABLE Meat setting
FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS
BEEF
Ground Beef, Bulk
Ground Beef, Patties
Round Steak MEAT Turn over. Cover warm areas with
Tenderloin Steak
Stew Beef MEAT Remove thawed portions with fork.
Pot Roast, Chuck Roast
Rib Roast MEAT Turn over. Cover warm areas with
Rolled Rump Roast
MEAT Remove thawed portions with fork
Turn over. Return remainder to oven.
MEAT Separate and rearrange. Do not defrost less than 2 oz. patties.
aluminum foil.
MEAT Turn over. Cover warm areas with
aluminum foil.
Separate remainder. Return remainder to oven.
MEAT Turn over. Cover warm areas with
aluminum foil.
aluminum foil.
MEAT Turn over. Cover warm areas with
aluminum foil.
Meat of irregular shape and large, fatty cuts of meat should have the narrow or fatty areas shielded with foil at the beginning of a defrost sequence.
Do not defrost less than ¼ lb. Freeze in doughnut shape.
Depress center when freezing.
Place on a microwavable roasting rack.
Place on a microwavable roasting rack.
Place in a microwavable baking dish.
Place on a microwavable roasting rack.
Place on a microwavable roasting rack.
Place on a microwavable roasting rack.
LAMB
Cubes for Stew
Chops (1 inch thick)
PORK
Chops (½ inch thick)
Hot Dogs MEAT Separate and rearrange. Place on a microwavable roasting rack.
Spareribs Country-style Ribs
Sausage, Links
Sausage, Bulk
Loin Roast, Boneless
MEAT Remove thawed portions with fork.
Return remainder to oven.
MEAT Separate and rearrange. Place on a microwavable roasting rack.
MEAT Separate and rearrange. Place on a microwavable roasting rack.
MEAT Turn over. Cover warm areas with
aluminum foil.
MEAT Separate and rearrange. Place on a microwavable roasting rack.
MEAT Remove thawed portions with fork.
Turn over. Return remainder to oven.
MEAT Turn over. Cover warm areas with
aluminum foil.
Place in a microwavable baking dish.
Place on a microwavable roasting rack.
Place in a microwavable baking dish.
Place on a microwavable roasting rack.
- 29 -
OPERATION
AUTO DEFROST TABLE (CONT.) Poultry setting
FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS
CHICKEN
Whole (up to 6 lbs.)
Cut-up Separate pieces and rearrange. Place on a microwavable roasting rack.
CORNISH HENS
Whole
TURKEY
Breast (up to 6 lbs.)
POULTRY Turn over (nish defrosting
breastside down). Cover warm areas with aluminum foil.
Turn over. Cover warm areas with aluminum foil.
POULTRY Turn over. Cover warm areas with
aluminum foil.
POULTRY Turn over. Cover warm areas with
aluminum foil.
Place chicken breast-side up on a microwavable roasting rack. Finish defrosting by immersing in cold water. Remove giblets when chicken is partially defrosted.
Finish defrosting by immersing in cold water.
Place on a microwavable roasting rack. Finish defrosting by immersing in cold water.
Place on a microwavable roasting rack. Finish defrosting by immersing in cold water.
Fish setting
FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS
FISH
Fillets
FISH Turn over. Separate llets when
partially thawed if possible.
Place in a microwavable baking dish.
Carefully separate llets under cold
water.
Steaks FISH Separate and rearrange. Place in a microwavable baking dish.
Run cold water over to nish defrosting.
Whole FISH Turn over. Place in a microwavable baking dish.
Cover head and tail with foil; do not let foil touch sides of microwave. Finish defrosting by immersing in cold water.
SHELLFISH
Crabmeat
Lobster tails
Shrimp
Scallops
FISH FISH FISH FISH
Break apart. Turn over.
Turn over and rearrange.
Separate and rearrange.
Separate and rearrange.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
Place in a microwavable baking dish.
- 30 -
OPERATION
AUTO DEFROST TABLE (CONT.) Bread setting
FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS
BREAD
Bagel
Dinner Roll
BREAD
BREAD
Turn over and rearrange. Place on 3 sheets of paper towel.
DEFROSTING TIPS
• When using
is the net weight in pounds and tenths of pounds (the weight of the food minus the container).
• Before starting,
often come with frozen food bags, and replace them with strings or elastic bands.
• Open containers
placed in the oven.
• Always slit
• If food is foil wrapped,
food in a suitable container.
the skins, if any, of frozen food such as sausage.
• Slit
• Bend
defrosting.
• Always underestimate
food is still icy in the center, return it to the microwave oven for more defrosting.
• The length
solidly the food is frozen.
• The shape of the package
food will defrost. Shallow packages will defrost more quickly than a deep block.
Auto Defrost, the weight to be entered
remove the metal twist-ties which
such as cartons before they are
or pierce plastic pouches or packaging.
remove foil and place the
plastic pouches of food to ensure even
defrosting time. If defrosted
of defrosting time varies according to how
affects how quickly
Note:
use recycled paper products in
Do not
the microwave oven. They sometimes contain impurities that cause arcing and sparking.
NEVER
convection oven.
• As food begins to defrost,
Separated pieces defrost more easily.
• Use small pieces of aluminum foil
of food such as chicken wings, leg tips, sh tails, or
areas that start to get warm. Make sure the foil does not touch the sides, top, or bottom of the oven. The foil can damage the oven lining.
• For better results,
(For more information on standing time, see the
Microwave Cooking Tips
• Turn over
Break apart and remove food as required.
food during defrosting or standing time
use paper products in the
separate the pieces
to shield parts
let food stand after defrosting.
section.)
- 31 -
COOKING GUIDE
CONVECTION BAKING GUIDELINES
1. Always use the metal rack when convection baking. Place food directly on rack or place in metal tray and then place tray on rack.
2. Aluminum pans conduct heat quickly. For most
convection baking, light, shiny nishes give best
results because they prevent overbrowning in the time it takes to cook the center areas. Pans with dull
(satin-nish) bottoms are recommended for cake
pans and pie pans for best bottom browning.
FOOD OVEN TEMP. TIME, MIN. COMMENTS
Breads
Cakes
Cookies
Fruits,
Other
Desserts
Refrigerated Biscuits
Corn Bread
Mufns
Popovers
Nut Bread or Fruit Bread
Yeast Bread
Plain or Sweet Rolls
Devil’s Food
Fudge brownies
Coffee Cake
Cup Cakes
Fruit Cake (loaf)
Gingerbread
Butter Cakes, Cake Mixes
9 x 13 inch
Tube Cake
Pound Cake
Chocolate Chip
Sugar
Baked Apples or Pears
Bread Pudding
Cream Puffs
Meringue Shells
375°F
350°F
425°F
325°F
325°F
375°F
350°F 350°F
350°F
325°F
325°F
275°F
300°F
325°F
325°F
325°F
325°F
350°F
350°F
350°F
300°F
400°F
300°F
3. Dark or non-shiny nishes, glass, and pyroceramic
absorb heat which may result in dry, crisp crusts.
4. Preheating the oven is recommended when baking foods by convection.
5. To prevent uneven heating and save energy, open the oven door to check food as seldom as possible.
11 to 14
35 to 40
18 to 22
45 to 55
60 to 70
16 to 23
13 to 16 35 to 40
26 to 30
30 to 35
20 to 25
90 to 100
25 to 30
35 to 45
35 to 45
30 to 40
45 to 55
11 to 14
11 to 14
35 to 40
35 to 40
30 to 35
30 to 35
Allow additional time for large biscuits.
Remove from pans immediately and cool slightly on wire rack.
Pierce each popover with a fork after removing from oven to allow steam to escape.
Interiors will be moist and tender.
Lightly grease baking sheet.
Place cake pan on rack.
Bake 2 layers of brownies at a time.
Interior will be moist and tender.
Turn end for end half way through baking.
Grease and our pan.
Cool in pan 10 minutes before inverting on wire rack.
Place metal tray on rack. Allow extra time for frozen cookie dough.
Place metal tray on rack.
Bake in cookware with shallow sides.
Pudding is done when knife inserted near center comes out clean.
Puncture puffs twice with toothpick to release steam after 25 minutes of baking time.
When done, turn oven off and let shells stand in oven 1 hour to dry.
Notes:
• The oven temperature indicated in the chart above is recommended over the package instruction temperature.
• The baking time in the chart above is only a guideline for reference. Adjust time according to the food condition
or your preference. Check doneness at the minimum time.
- 32 -
COOKING GUIDE
CONVECTION BAKING GUIDELINES (CONT'D)
FOOD OVEN TEMP. TIME, MIN. COMMENTS
Pies, Pastries
Casseroles
Convenience Foods
Main Dishes
Vegetables
Frozen Pie
Meringue-Topped
Two-Crust
Quiche
Pastry Shell
Meat, Chicken, Seafood Combinations
Pasta
Potatoes, scalloped
Vegetable
Frozen Bread Dough
Frozen Entrée
Frozen Pizza Rising Crust
Frozen Pizza
French Fries Crinkle Cut
Frozen Wafe
Frozen Cheese Sticks
Frozen Turnovers Meat Loaf
Oven-Baked Stew
Swiss Steak
Stuffed Peppers
Acorn Squash Halves
Baked Potatoes
Twice-Baked Potatoes
400°F
450°F
400°F
350°F
400°F
350°F
350°F
350°F
350°F
350°F
325°F
400°F
400°F
450°F
400°F
450°F
450°F
400°F
325°F
350°F
350°F
375°F
425°F
400°F
50 to 60
9 to 11
50 to 55
30 to 35
10 to 16
20 to 40
25 to 45
55 to 60
25 to 35
30 to 35
70 to 80
25 to 35
17 to 21
15 to 19
5 to 7
6 to 8
18 to 22
30 to 40
80 to 90
60 to 70
40 to 45
55 to 60
50 to 60
25 to 30
Place metal tray on rack and place in cold oven. Preheat oven, tray and rack to 400°F. When preheated, place frozen pie on metal tray and bake according to package time or
until crust is browned and lling is hot.
Follow package directions for preparation.
Follow package directions for preparation.
Let stand 5 minutes before cutting.
Pierce pastry with fork to prevent shrinkage.
Cook times vary with casserole size and ingredients.
Cook times vary with casserole size and ingredients.
Let stand 5 minutes before serving.
Cook times vary with casserole size and ingredients.
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation. Pizza should not extend over the rack.
Follow package directions for preparation. Pizza should not extend over the rack.
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation.
Let stand 5 minutes after cooking.
Brown meat before combining with liquid and vegetables.
Let stand 2 minutes after cooking.
Use green, red, or yellow peppers.
Pierce skin in several places. Add ½ cup water to dish. Turn squash halves cut side up after 30 minutes of cook time and cover.
Pierce skin with fork before baking.
Pierce skin with fork before baking.
Notes:
• The oven temperature indicated in the chart above is recommended over the package instruction temperature.
• The baking time in the chart above is only a guideline for reference. Adjust time according to the food condition
or your preference. Check doneness at the minimum time.
- 33 -
COOKING GUIDE
MEAT ROASTING GUIDELINES FOR CONVECTION COOKING
FOOD OVEN TEMP. TIME, MIN./LB.
Beef
Ham
Lamb
Pork
Poultry
Seafood
Ribs (2 to 4 lbs.)
Rare
Medium
Well
Boneless Ribs, Top Sirloin
Rare
Medium
Well
Beef Tenderloin
Rare
Medium
Pot Roast (2½ to 3 lbs.)
Chuck, Rump
Meat Loaf (2 lbs.)
Canned (3-lb. fully cooked)
Butt (5-lb. fully cooked)
Shank (5-lb. fully cooked)
Bone-in (2 to 4 lbs.)
Medium Well
Boneless (2 to 4 lbs.)
Medium Well
Bone-in (2 to 4 lbs.) Boneless (2 to 4 lbs.) Pork Chops (½ to 1-inch thick)
2 chops 4 chops 6 chops
Whole Chicken (2½ to 3½ lbs.) Chicken Pieces (2½ to 3½ lbs.) Duckling (4 to 5 lbs.) Turkey Breast (4 to 6 lbs.)
Fish, whole (3 to 5 lbs.) Lobster Tails (6 to 8-oz. each)
300°F
300°F
300°F
300°F
300°F
300°F
300°F
300°F
300°F
400°F
325°F
325°F
325°F
300°F 300°F
300°F 300°F
300°F 300°F
325°F 325°F 325°F
375°F 425°F 375°F 325°F
400°F 350°F
45 to 50
50 to 55
55 to 60
53 to 58
58 to 63
63 to 68
28 to 32
32 to 36
83 to 88
65 to 75
20 to 25
20 to 25
17 to 20
42 to 47 47 to 52
50 to 55 55 to 60
48 to 52 56 to 61
42 to 45 45 to 48 48 to 55
25 to 35 10 to 12 19 to 21 21 to 25
13 to 18 12 to 17
Note:
• The roasting time in the chart above is only a guideline for reference. Adjust time according to the food condition or your preference. Check doneness at the minimum time.
- 34 -
COOKING GUIDE
COMBINATION ROAST COOKING GUIDE
FOOD OVEN TEMP. TIME, MIN./LB.
Beef Turn over after half of cooking time.
Ribs (2 to 4 lbs.)
Rare Medium Well
Boneless Ribs, Top Sirloin
Rare Medium Well
Beef Tenderloin
Rare
Medium Chuck, Rump or Pot Roast (2½ to 3 lbs.) (Use cooking bag for best results.)
Ham Turn over after half of cooking time.
Canned (3-lb. fully cooked) Butt (5-lb. fully cooked) Shank (5-lb. fully cooked)
Lamb Turn over after half of cooking time.
Bone-in (2 to 4 lbs.)
Medium
Well Boneless (2 to 4 lbs.)
Medium
Well
Pork Turn over after half of cooking time.
Bone-in (2 to 4 lbs.) Boneless (2 to 4 lbs.) Pork Chops (¾ to 1-inch thick)
2 chops
4 chops
6 chops
Poultry Turn over after half of cooking time.
Whole Chicken (2½ to 6 lbs.) Chicken Pieces (2½ to 6 lbs.) Cornish Hens (untied)
Unstuffed
Stuffed Duckling Turkey Breast (4 to 6 lbs.)
Seafood
Fish
1-lb. llets
Lobster Tails (6 to 8-oz. each) Shrimp (1 to 2 lbs.) Scallops (1 to 2 lbs.)
375°F 375°F 375°F
375°F 375°F 375°F
375°F 375°F 300°F
300°F 300°F 300°F
300°F 300°F
300°F 300°F
300°F 300°F
350°F 305°F 305°F
375°F 375°F
425°F 375°F 375°F 300°F
350°F 350°F 350°F 350°F
9 to 13 11 to 15 13 to 17
9 to 13 11 to 15 13 to 17
16 to 18 18 to 20 18 to 20
15 to 18 15 to 18 15 to 18
13 to 18 18 to 23
14 to 19 19 to 24
17 to 20 19 to 22
10 to 13 13 to 16 16 to 19
15 to 17 15 to 18
15 to 18 22 to 25 15 to 18 11 to 15
7 to 10 10 to 15
9 to 14
8 to 13
Note:
• The roasting time in the chart above is only a guideline for reference. Adjust time according to the food condition or your preference. Check doneness at the minimum time.
- 35 -
COOKING GUIDE
COMBINATION BAKE COOKING GUIDE
FOOD OVEN TEMP. TIME, MIN. COMMENTS
Pies, Pastries
Convenience Foods
Vegetables
Quiche 425°F 15 to 17
Frozen Entrée
Frozen Pizza Rolls, Egg Rolls
Pizza
Baked Potatoes 450°F 36 to 40
375°F
450°F
450°F
39 to 43
4 to 6
23 to 26
Let stand 5 minutes before cutting.
Follow package directions for preparation.
Follow package directions for preparation.
Follow package directions for preparation.
Pierce skin with a fork before baking.
Place on rack.
- 36 -
COOKING GUIDE
HEATING/REHEATING GUIDE
To heat or reheat successfully in a microwave oven, follow these guidelines: Measure the amount of food in order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room temperature food will heat faster than refrigerated food. Canned foods should be taken out of the can and placed in a microwave-safe container. The food will heat more evenly if covered with a microwave-safe lid or vented plastic wrap. Remove the cover carefully to prevent steam burns. Use the following chart as a guide for reheating cooked food.
ITEMS COOK TIME (AT HIGH) SPECIAL INSTRUCTIONS
Sliced meat 3 slices (¼ -inch thick)
Chicken pieces 1 breast 1 leg and thigh
Fish llet
(6 - 8 oz.)
Lasagna 1 serving (10½ oz.)
Casserole 1 cup 4 cups
Casserole – cream or cheese 1 cup 4 cups
Sloppy Joe or Barbecued Beef 1 sandwich (½ cup
meat lling)without bun
Mashed potatoes 1 cup 4 cups
Baked beans 1 cup 1½ - 3 minutes
Ravioli or pasta in sauce 1 cup 4 cups
Rice 1 cup 4 cups
Sandwich roll or bun 1 roll 15 - 30 seconds
Vegetables 1 cup 4 cups
Soup 1 serving (8 oz.) 1½ - 2½ minutes
1 - 2 minutes Place sliced meat on microwavable plate.
Cover with plastic wrap and vent.
Gravy or sauce helps to keep meat juicy.
Note:
Place chicken pieces on microwavable plate. 2 - 3½ minutes 1½ - 3 minutes
2 - 4 minutes Place sh on microwavable plate.
4 - 6 minutes Place lasagna on microwavable plate.
1 - 3½ minutes
5 - 8 minutes
1½ - 3 minutes
3½ - 5½ minutes
1 - 2½ minutes
1 - 3 minutes 5 - 8 minutes
2½ - 4 minutes
7½ - 11 minutes
1½ - 3½ minutes
4 - 6½ minutes
1½ - 2½ minutes
4 - 6 minutes
Cover with plastic wrap and vent.
Cover with plastic wrap and vent.
Cover with plastic wrap and vent.
COOK covered in microwavable casserole.
Stir once halfway through cooking.
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Reheat lling and bun separately.
Cook lling covered in microwavable casserole.
Stir once.
Heat bun as directed in chart below.
COOK covered in microwavable casserole.
Stir once halfway through cooking.
COOK covered in microwavable casserole.
Stir once halfway through cooking.
COOK covered in microwavable casserole.
Stir once halfway through cooking.
COOK covered in microwavable casserole.
Stir once halfway through cooking.
Wrap in paper towel and place on glass microwavable
rack.
COOK covered in microwavable casserole.
Stir once halfway through cooking.
COOK covered in microwavable casserole.
Stir once
- 37 -
COOKING GUIDE
FRESH VEGETABLE GUIDE
COOK TIME
VEGETABLE AMOUNT
Artichokes (8 oz.each)
Asparagus, Fresh, Spears
Beans, Green and Wax
Beets, Fresh 1 Ib. 12 - 16 Add ½ cup water in 1½ qt. covered casserole.
Broccoli, Fresh, Spears
Cabbage, Fresh, Chopped
Carrots, Fresh, Sliced
Cauliower,
Fresh, Whole
Flowerettes, Fresh Celery, Fresh, Sliced
Corn, Fresh 2 ears 5 - 9 Husk and add 2 tbsp water in 1½ qt. baking dish.
Mushrooms, Fresh, Sliced
Parsnips, Fresh, Sliced
Peas, Green, Fresh
Sweet Potatoes Whole Baking (6-8 oz.each)
White Potatoes, Whole Baking (6-8 oz.each)
Spinach, Fresh, Leaf
Squash, Acorn or Butternut, Fresh
Zucchini, Fresh, Sliced
Zucchini, Fresh, Whole
2 medium 4 medium
1 Ib. 3 - 6 Add ½ cup water. Cover.
1 Ib. 7 - 11 Add ½ cup water in 1½ qt. casserole. Stir halfway
1 Ib. 4 - 8 Place broccoli in baking dish. Add ½ cup water.
1 Ib. 4 - 7 Add ½ cup water in 1½ qt. covered casserole.
2 cups 2 - 4 Add ¼ cup water in 1 qt. covered casserole. Stir
1 lb. 7 - 11 Trim and add ¼ cup water in 1 qt. covered casserole.
2 cups 4 cups
½ Ib. 2 - 3½ Place mushrooms in 1½ qt. covered casserole.
1 Ib. 4 - 8 Add ½ cup water in 1½ qt. covered casserole.
4 cups 7 - 10 Add ½ cup water in 1½ qt. covered casserole.
2 medium 4 medium
2 potatoes 4 potatoes
1 Ib. 4 - 7 Add ½ cup water in 2 qt. covered casserole.
1 medium 6 - 8 Cut squash in half. Remove seeds.
1 Ib. 4½ - 7½ Add ½ cup water in 1½ qt. covered casserole.
1 Ib. 6 - 9 Pierce. Place on 2 paper towels. Turn over and
AT HIGH
(MINUTE)
5 - 8
10 - 13
2½ - 4½
6 - 8
5 - 10 7 - 13
5 - 8
10 - 14
INSTRUCTIONS
Trim. Add 2 tsp water and 2 tsp juice. Cover.
through cooking.
Rearrange halfway through cooking.
Stir halfway through cooking.
halfway through cooking.
Stir halfway through cooking.
Slice and add ½ cup water in 1½ qt. covered casserole. Stir halfway through cooking.
Cover.
Stir halfway through cooking.
Stir halfway through cooking.
Stir halfway through cooking.
Pierce potatoes several times with fork. Place on 2 paper towels. Turn over halfway through cooking.
Pierce potatoes several times with fork. Place on 2 paper towels. Turn over halfway through cooking.
Place in 8 x 8-inch baking dish. Cover.
Stir halfway through cooking.
rearrange halfway through cooking.
STANDING
TIME
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes 2 - 3 minutes
2 - 3 minutes 2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
2 - 3 minutes
- 38 -
SMART FEATURES
BEFORE USING TAG ON
The Tag On function allows you to conveniently use LG Smart Diagnosis™, set the cook mode and communicate with the appliance using a smart phone. To use the Tag On function:
1. Download the SmartThinQ application to a smart phone.
2. Turn on the NFC (Near Field Communication) function in the smart phone.- The Tag On function can only be used with smart phones equipped with the NFC function and based on the Android operating system (OS).
TURNING ON THE SMART PHONE’S NFC FUNCTION
1. Enter the smart phone and select
& Connect
NETWORKS.
Settings
menu of the
Share
under WIRELESS &
2. Set
Beam
and
NFC
to ON and select NFC.
Direct/Android
3. Check Use Read and Write/P2P receive.
NOTE
Depending on the smart phone manufacturer and Android OS version, the NFC activation process may differ. Refer to the manual of the smart phone for details.
USING THE TAG ON FUNCTION
THE TAG ON ICON
Look for the Tag On icon next to the display on the control panel. Position the smart phone next to the icon when using the Tag On function with the LG Smart Diagnosis™, cook mode setting of the SmartThinQ application.
- 39 -
SMART FEATURES
on the appliance. (The position of the antenna cannot
be seen, so the SmartThinQ app will attempt to nd it
and display a target range for the antenna on the smart phone's screen.)
If the app is not able to show a target range, position the center back of the smart phone over the Tag On icon on the appliance. If the connection is not made immediately, move the smart phone very slightly in a
widening circular motion until the application veries the
connection.
Because of the characteristics of NFC, if the transmission distance is too far, or if there is a metal
THE NFC ANTENNA POSITION
When using the Tag On function, position the smart phone so that the NFC antenna inside the back of the smart phone matches the position of the Tag On icon
USING TAG ON WITH APPS
Touch an LG appliance's Tag On logo with an NFC-equipped smart phone, and the SmartThinQ apps use the Tag On function.
sticker or a thick case on the phone, transmission will not be good.
Press [ guide on how to use the Tag On function.
] in the SmartThinQ app for a more detailed
Smart Diagnosis™
Allows you to diagnose and troubleshoot problems with your microwave oven.
IMPORTANT:
the SmartThinQ application could be deleted when the application is updated or your smart phone is changed.
Features could be added or deleted when the SmartThinQ application is updated. Data saved on
Cook Mode Setting
Allows you to set repeatedly and conveniently the cook mode, temperature, and cook time of your favorite dishes.
- 40 -
MAINTENANCE
CARING FOR YOUR MICROWAVE OVEN
To make sure the microwave oven looks good and works well for a long time, maintain it properly. For proper care, follow these instructions carefully.
For interior surfaces: Wash often with warm, sudsy water and a sponge or soft cloth. Use only mild, nonabrasive soaps or a mild detergent.
areas clean where the door and oven frame touch when closed.
Wipe well with a clean cloth. Over time, stains can occur on the surfaces as the result of food particles spattering during cooking. This is normal.
For stubborn soil, boil a cup of water in the oven for 2 to 3 minutes. Steam will soften the soil. To get rid of odors inside the oven, boil a cup of water with some lemon juice or vinegar in it.
Keep the
To clean the glass tray and rotating ring,
mild, sudsy water. For heavily soiled areas use a mild cleanser and scouring sponge. The glass tray and rotating ring are dishwasher safe.
wash in
Metal Rack
Metal Tray
Glass Tray
Rotating Ring
For exterior surfaces and control panel:
sprayed with glass cleaner. Apply the glass cleaner to the soft cloth; do not spray directly on the oven.
Note: Abrasive cleansers, steel wool pads, gritty wash cloths, some paper towels,
etc., can damage the control panel and the interior and exterior oven surfaces.
Use a soft cloth
- 41 -
MAINTENANCE
CLEANING THE GREASE FILTERS
1.
Unplug
2.
To remove
Pull lters downward and push to the other side. The lter will drop out.
3.
Soak
Scrub and swish
grease.
lters with ammonia, corrosive cleaning agents such as lye-based oven cleaners, or place them in a dishwasher. The lters will turn black or
could be damaged.
the microwave oven.
grease lters, slide each lter to the side.
grease lters in hot water and a mild detergent.
to remove embedded dirt and
Rinse well and shake
to dry.
Do not clean
CHARCOAL FILTER REPLACEMENT
If the oven is vented inside, the charcoal lter should
be replaced every 6 to 12 months, and more often
if necessary. The charcoal lter cannot be cleaned. To order a new charcoal lter, contact the Parts
Department at your nearest Authorized Service Center.
1.
Unplug
2.
Remove
3.
Tip
4.
Remove
the microwave oven.
the vent grille mounting screws.
the grille forward, then
the charcoal lter
lift out
to remove.
4.
To replace
on one side of the opening. Push lter upward and
push to the other side to lock into place.
5.
Plug in
grease lters, slide lter in the frame slot
the microwave oven.
5.
6.
7.
a new charcoal lter into place.
Slide
The lter should rest at the angle shown.
the bottom of the vent grille into place.
Slide
the top until it snaps into place.
Push
Replac
e the mounting screws.
Plug in
the microwave oven.
- 42 -
MAINTENANCE
OVEN LIGHT REPLACEMENT
1.
Unplug
2.
Remove
3.
Tip
4.
Remove
5.
Remove
6.
Pull
the microwave oven.
the vent grille mounting screws.
the grille forward, then
charcoal lter.
the screw holding the lamp shield in place.
the lamp shield out.
lift out
to remove.
COOKTOP/COUNTERTOP LIGHT REPLACEMENT
1.
Unplug
2.
Remove
3.
Replace
4.
Replace
5.
Plug in
the microwave oven.
the bulb cover mounting screws.
bulb(s) with candelabra-base 50 watt bulb.
bulb cover and mounting screw.
the microwave oven.
7.
Replace
bulb.
8.
Return
and replace screw and charcoal lter.
9.
Replace
10.
the bulb with a candelabra-base 50 watt
the lamp and lamp shield to original position
the mounting screws.
the microwave oven.
Plug in
- 43 -
MAINTENANCE
MICROWAVE UTENSIL GUIDE
USE DO NOT USE
OVENPROOF GLASS
(treated for high intensity heat): utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles and bowls without metallic trim.
CHINA:
bowls, cups, serving plates, and platters without metallic trim.
PLASTIC:
Plastic wrap (as a cover)- lay the plastic wrap loosely over the dish and press it to the sides. Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. As the food heats it may melt the plastic wrap wherever the wrap touches the food. Use plastic dishes, cups, semi-rigid freezer containers and plastic bags
short cooking time. Use these with care because the plastic may soften from the heat of the food.
only for
METAL UTENSILS:
Metal shields the food from microwave energy and produces uneven cooking. Also avoid metal skewers, thermometers, or foil trays. Metal utensils can cause arcing, which can damage the microwave oven.
METAL DECORATION:
Metal-trimmed or metal-banded dinnerware, casserole dishes, etc. The metal trim interferes with normal cooking and may damage the oven.
ALUMINUM FOIL:
Avoid large sheets of aluminum foil because they hinder cooking and may cause harmful arcing. Use small pieces of foil to shield poultry legs and wings. Keep ALL aluminum foil at least 1 inch from the side walls and door of the oven.
WOOD:
Wooden bowls and boards will dry out and may split or crack when you use them in the microwave oven. Baskets react in the same way.
TIGHTLY COVERED UTENSILS:
Be sure to leave openings for steam to escape from covered utensils. Pierce plastic pouches of vegetables or other food items before cooking. Tightly closed pouches could explode.
PAPER:
Paper towels, waxed paper, paper napkins, and paper plates with no metallic trim or design. Look for the manufacturer's label for use in the microwave oven.
Note:
Do not use recycled paper products in the microwave oven. They sometimes contain impurities that cause arcing and sparking.
NEVER use paper products in the convection oven.
BROWN PAPER:
Avoid using brown paper bags. They absorb too much heat and could burn.
FLAWED OR CHIPPED UTENSILS:
Any utensil that is cracked, awed, or chipped may break in the
oven.
METAL TWIST TIES:
Remove metal twist ties from plastic or paper bags.
They become hot and could cause a re.
- 44 -
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE
Check the following list to be sure a service call is really necessary. A quick reference of this manual as well as reviewing additional information on items to check may prevent an unneeded service call.
If nothing on the oven operates:
• check for a blown circuit fuse or a tripped main circuit
breaker.
• check if oven is properly connected to electric circuit
in house.
• check that controls are set properly.
If the oven interior light does not work
• the light bulb is loose or defective.
If oven will not cook:
• check that control panel was programmed correctly.
• check that door is rmly closed.
• check that Start was pressed.
check that timer wasn’t started instead of a cook function.
If oven takes longer than normal to cook or cooks
too rapidly:
• be sure the Power Level is programmed properly.
If the time of day clock does not always keep
correct time:
• check that the power cord is fully inserted into the
outlet receptacle.
• be sure the oven is the only appliance on the
electrical circuit.
If food cooks unevenly:
• be sure food is evenly shaped.
• be sure food is completely defrosted before cooking.
• check placement of aluminum foil strips used to
prevent overcooking.
If food is undercooked:
• check recipe to be sure all directions (amount, time,
and power levels) were correctly followed.
• be sure microwave oven is on a separate circuit.
• be sure food is completely defrosted before cooking.
If food is overcooked:
• check recipe to be sure all directions (amount, power
level, time, size of dish) were followed.
If arcing (sparks) occur:
• be sure microwavable dishes were used.
• be sure wire twist ties weren’t used.
• be sure oven wasn’t operated when empty.
• make sure metal rack (if used) is properly installed on
4 supports.
If the display shows a time counting down but the
oven is not cooking:
• check that door is rmly closed.
• check that timer wasn’t started instead of a cooking
function.
FREQUENTLY ASKED QUESTIONS
Q. Can I use a rack in my microwave oven to reheat
or cook on two levels at once?
A. Only use the rack that is supplied with your
microwave oven. Use of any other rack can result in poor cooking performance and/or arcing and may damage your oven.
Q. Can I use either metal or aluminum pans in my
microwave oven?
A. Usable metal includes aluminum foil for shielding
(use small, at pieces), and shallow foil trays (if tray is ¾ inch deep and lled with food to absorb
microwave energy). Never allow metal to touch walls or door.
Q. Sometimes the door of my microwave oven
appears wavy. Is this normal?
A. This appearance is normal and does not affect the
operation of your oven.
Q. The glass tray does not move.
A. The glass tray is not correctly in place. It should be
correct-side up and sitting rmly on the center hub. The support is not operating correctly. Remove the glass tray and restart the oven. Cooking without the glass tray can give you poor results.
Q. Why does the dish become hot when I
microwave food in it? I thought that this should not happen.
A. As the food becomes hot it will conduct the heat to
the dish. Use hot pads to remove food after cooking.
Q. What does standing time mean?
A. Standing time means that food should be taken
out of the oven and covered for additional time after
cooking. This process allows the cooking to nish,
saves energy, and frees the oven for other purposes.
Q. Can I pop popcorn in my microwave oven?
How do I get the best results?
A. Yes. Pop packaged microwave popcorn following
manufacturer’s guidelines or use the preprogrammed
Popcorn key. Do not use regular paper bags. Use the listening test by stopping the oven as soon as the popping slows to a pop every one or two seconds. Do not try to repop unpopped kernels. You can also use special microwave poppers. When using a popper, be sure
to follow manufacturer’s directions. Do not pop
popcorn in glass utensils.
Q. Why does steam come out of the air exhaust
vent?
A. Steam is normally produced during cooking. The
microwave oven has been designed to vent steam out of the top vent.
- 45 -
SMART DIAGNOSIS
SMART DIAGNOSIS
Should you experience any problems with your microwave oven, it has the capability of transmitting data to your smart phone using the SmartThinQ Application or via your telephone to the LG call center. Smart Diagnosis™ cannot be activated unless your microwave oven is turned on. If your microwave oven is unable to turn on, then troubleshooting must be done without using Smart Diagnosis™.
USING SMART DIAGNOSIS™
SMART DIAGNOSIS™ USING YOUR SMART PHONE
1. Download the SmartThinQ application on your smart phone.
2. Open the SmartThinQ application on your smart phone. Press the Smart Diagnosis™ button to advance to the next screen.
3. Follow the directions in the application.
Using ‘Tag on’ is recommended but, if it does not
work well, the application will show how to use Audible Diagnosis.
4. Press [ detailed guide on how to use the Tag On function.
] in the SmartThinQ app for a more
SMART DIAGNOSIS™ THROUGH THE CALL CENTER
1. Call the LG call center at: (LG U.S.) 1-800-243-0000 (LG Canada) 1-888-542-2623.
2. When instructed to do so by the call center agent, hold the mouthpiece of your phone over the Smart Diagnosis™ logo on the machine. Hold the phone no more than one inch from (but not touching) the machine.
NOTE
Do not touch any other buttons or icons on the display screen.
3. Press and hold the Start button for three seconds.
4. Keep the phone in place until the tone transmission
has nished. The display will count down the time.
5. Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you in using the information transmitted for analysis.
NOTE
• Call quality differences by region may affect the
function.
• Use the home telephone for better
communication performance, resulting in better service.
• Bad call quality may result in poor data
transmission from your phone to the machine, which could cause Smart Diagnosis™ to malfunction.
NOTE
• For best results, do not move the phone while
the tones are being transmitted.
• If the call center agent is not able to get an
accurate recording of the data, you may be asked to try again.
- 46 -
MEMO
MEMO
LG MICROWAVE OVEN LIMITED WARRANTY-USA
Model LSMC3086ST / LSMC3089BD
LG Electronics, Inc, will repair or replace your product, at LG's option, if it proves to be defective in material or workmanship under normal use, during the warranty period set forth below, effective from the date of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including U.S Territories.
WARRANTY PERIOD:
LABOR: Two Years from the Date of Purchase*.
PAR TS(except as listed below): Two Years from the
Date of Purchase*.
MAG NETRON: Ten Years from the Date of
Purchase*.
Replacement Units and Repair Parts are warranted for the remaining portion of the original unit's warranty period.
* Retain your Sales Receipt to prove the date of
purchase. A copy of your Sales Receipt must be
submitted at the time warranty service is provided.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILIYT OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above exclusion or limitation may nto apply to yor.
This warranty gives you specic legal rights and yor may also have other rights that vary from state to state.
HOW SERVICE IS HANDLED:
Please call 1-800-243-0000 and choose the appropriate option. (Phones are answered 24 hours
a day, 365 days per year.) Please have the product type (Microwave) and your ZIP code ready.
Or visit our website at: www.lg.com
THIS LIMITED WARRANTY DOES NOT APPLY TO:
● Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or
correct wiring, or correction of unauthorized repairs.
● Damages or operating problems that result from misuse, abuse, operation outside environmental specications or contrary to the requirements of precautions in the Operating Guide, accident, vermin, re, ood, improper installation, acts of God, unauthorized modication or alteration, incorrect electrical current or voltage, or
commercial use, or use for other than intended purpose.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
Problem Cause Solution
Wall
d
3/16 Hole on Studs
Microwave oven Installation issue
- Vibration noise
- Unit is not level
- Installation damage
1. Mounting bracket screw not xed
completely
2. Mounting plate not aligned
Minimum 66 From the Floor
A
Center Line
5/8 Hole on Drywall Only
For Wall ­Venting Only
Draw Lines on Studs
Draw
Center Line
Mounting Plate
Check with installer rst
B
C
Support Tab
Mounting
Plate
Space More Than Wall Thickness
Toggle Wings1
Toggle Bolt
Support Tab
Bolt En
3. Product carried/installed improperly
Spark / Arcing Aluminum foil or metal utensil used in
microwave mode
DO NOT use aluminum foil or metal utensils in microwave mode
- Check user instructions
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
Problem Cause Solution
Exhaust Adapter
Damper (hinge side up)
Unit has no power 1. House power turned off (power supply)
2. Tripped breaker
3. The power cord is not installed properly
Vent is not working
1. Improper blower unit direction or installation
- Weak or no ventilation
- Abnormal noise during operation
2. Improper ductwork or damper connection
- Product overheating
Slide exhaust adapter into guides on rear panel.
Locking Tabs
Guides
1. Check house power supply
2. Check proper power cord connection
3. Check extension cord
1. Check blower unit direction and reinstall if necessary.
2. Properly align the exhaust
ports and blower plate opening.
3. Blower unit exhaust ports should be completely exposed
to the outside
4. After installation, check the air
ventilation path
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMER INTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product Infor­mation, or Dealer or Authorized Service Center location:
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center P. O. Box 240007 201 James Record Road Huntsville, Alabama 35824 ATTN: CIC
Call 1-800-243-0000
(24 hours a day, 365 days per
year) and select the appropriate option from the menu.
Or visit our website at: www.lg.com
LG Customer Information Center
1-800-243-0000
USA
Register your product Online!
www.lg.com
Printed in Korea
Loading...
