Congratulations on your purchase of the LSI-1100 Fixed Wireless Telephone. This telephone has been designed to operate on the latest digital mobile communications technology. This technology has greatly enhanced voice clarity and can provide various advanced features.

The telephone provides:

 5-line LCD Display with status indicator  A choice of 10 ring sounds  A menu driven interface with prompts for easy operation  Last Number Redial  Speed Dialing with a 99-number memory  Dial tone  ROH (Receiver Off-Hook) tone  Adjustable Ring Volume  Internal Battery Pack  AC Power Supply  Antenna  Data Port for service and repair (not applicable in the voice only model)  USB Connector for Data service (not applicable in the voice only model)  Back light

LGE CDMA Fixed Wireless Telephone

LSI-1100

1. Important Information

1.1 Safety Information

Warning

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Do not use this product near swimming pools or other bodies of water.

IMPORTANT

Before installing or operating this product read this information.

1.2 Optimal Phone Performance

 Do not operate your product when holding the antenna, or when someone is within four

inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may cause the telephone to operate at a higher power level than needed.

 For the best call quality, keep the antenna free from obstructions and point the antenna

straight up.

 Do not use the unit with a damaged antenna. Have your antenna replaced by a qualified

technician immediately. Use only a manufacturer-approved antenna. Non-approved antennas, modifications, or attachments could impair call quality, damage the phone.

 RF energy may affect improperly installed or inadequately shielded personal medical

devices such as pace markers, hospital monitor. Consult the manufacturer of any personal medical devices to determine if they are adequately shielded from external RF energy. Turn your terminal OFF in health care facilities when any regulations posted in the areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

 If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna

- Increase the distance between the radio or television and the telephone.

- Connect the equipment into an outlet on a circuit different from that to which the

terminal is connected.

- Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.

 Use only the battery, antenna and AC power supply provided by LGIC. Using any other

type will invalidate the warranty.

 Only authorized personnel should service the phone and its accessories. Faulty

installation or service any be dangerous and may invalidate the warranty.

 Do not use the unit in designated “no cellular phone use” area.  Avoid exposure to high temperature or humidity.  Avoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately

and remove the battery and AC power supply. If the unit is inoperable, then return to the service agent for service.

 Avoid shock or impact.



We recommend you to charge the internal battery before initial use. The battery may be

discharged during delivery.

LGE CDMA Fixed Wireless Telephone

LSI-1100

1.3 Care and Service

 Unplug the telephone from the wall outlet and remove antenna (or disconnect antenna

cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

 If the unit fails for any reason, do not attempt to disassemble; contact the telephone

service provider for assistance.

 If any of the following conditions exist; unplug the unit at the wall plug, remove battery,

and call the service provider.

- AC/DC Adapter is damaged or frayed.

- Liquid has been spilled into the unit.

- The unit has been exposed to rain or water.

- The unit has been dropped or damaged.

- The unit does not work normally by following the operating instructions.

LGE CDMA Fixed Wireless Telephone

LSI-1100

2. Introduction

2.1 Front View of the Telephone

① Navigation Left Key : Function for decreasing volume down. ② Navigation Down Key : Function for scrolling down menu in menu state. ③ Softkey 1[MENU] Key : Activate a Menu state. ④ Send Key : Function key to call / Function for 3- way calling In call state ⑤ Redial Key : Function as a redialing ⑥ Navigation Up Key : Function for entering a MSG menu in idle state

/ Function for scrolling up menu in menu state.

⑦ Navigation Right Key : Function for increasing volume up. ⑧ Softkey 2[BOOK] Key : Activate a Book state. ⑨ End Key : Terminate a call or a menu state. ⑩ “ # ”Key : Function as a keypad lock. ⑪ Clear Key : Key to delete the last digit.

LGE CDMA Fixed Wireless Telephone

LSI-1100

2.2 LCD Display

The LCD shows icons on the top of the LCD screen. Different indicator appears based on the phone's operating mode.

1) RSSI indicator : Indicates the signal strength in the service area.

2) No service : The phone is not receiving system signal.

3) In use : Displayed when call is in progress or the phone is in off-hook and dial tone heard.

:No service : In use

4) Text message : Displayed when a text message is received.

5) Voice message : Displayed when a voice message is received.

6) Alarm : Displayed when wake up alarm time was setting.

7) Caller ID : Displayed when caller ID is received.

8) Battery charge level : Indicates charged battery level.

13 May, Mon

4 : 11 PM

BOOKMENU

LGE CDMA Fixed Wireless Telephone

LSI-1100

2.3 Installation

You should follow each step carefully as shown below in order to guarantee proper operation of CDMA Fixed Wireless Telephone.

STEP I. Check Components

 Fixed Wireless Terminal is supplied with the following standard unit and accessories;

1. LSI-110/1100 Main Unit with Antenna -1EA-

2. Battery -1EA-

3. User Guide -1EA-

4. AC/DC Adapter -1EA-

5. Charger -1EA-

 Please make sure that these components are present before you begin the unit

installation. And then compare the following figures and components. If components are missing or damage is found, contact the store where you purchased the unit immediately.

STEP II. Place the Terminal

 Place the terminal on the stable flat secure surface area (desk, table, etc.). Serious

damage may result if the unit falls. Do not place the unit on, or within 1 meter of heaters or radiators. This unit is designed for desktop usage. Avoid direct exposure to the sun lights and damp area.

 Read the SAFETY INFORMATION located at the first part of this document before you

place the terminal

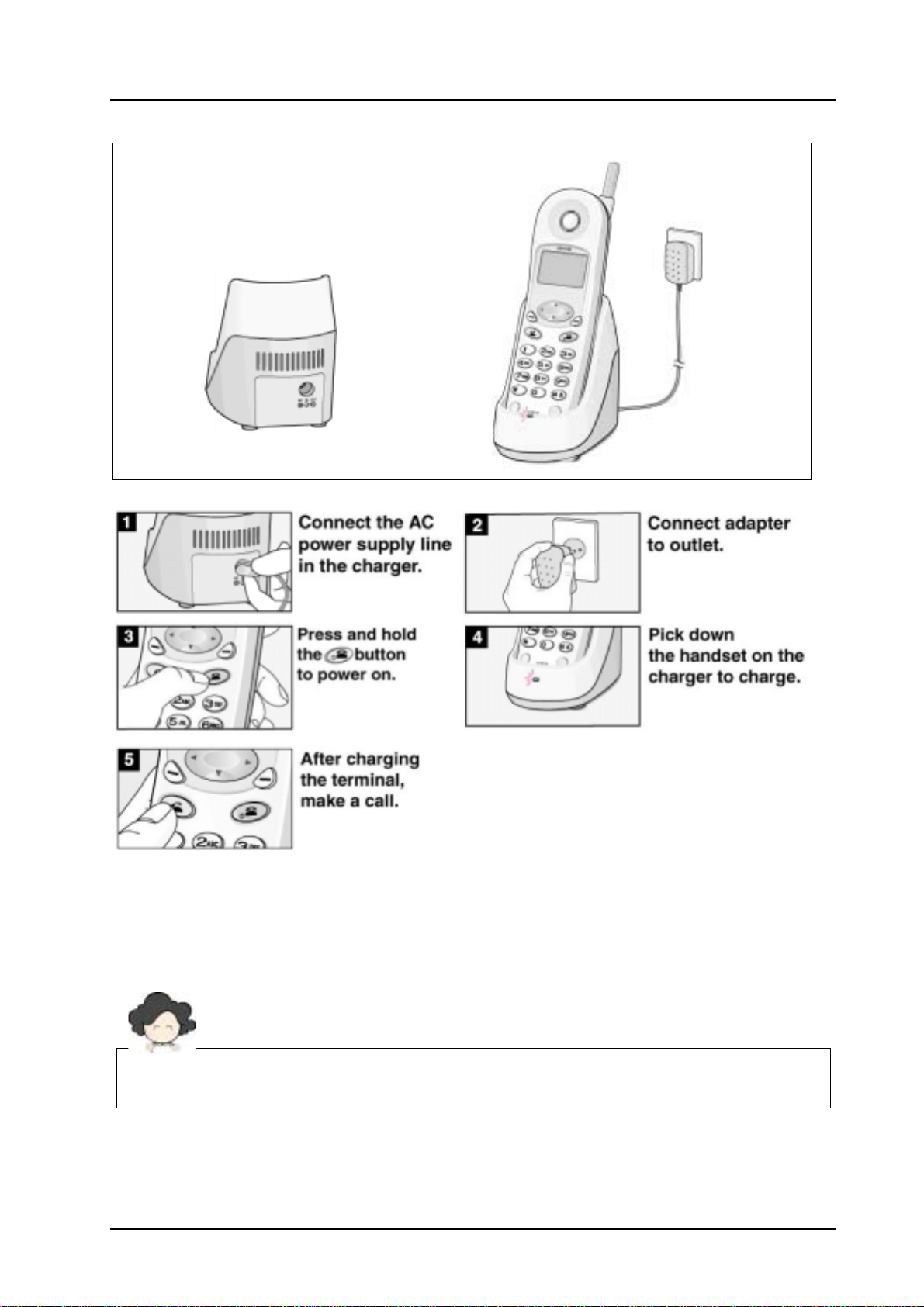

STEP III. Connect Components (See the figures in “Installation Steps”.)

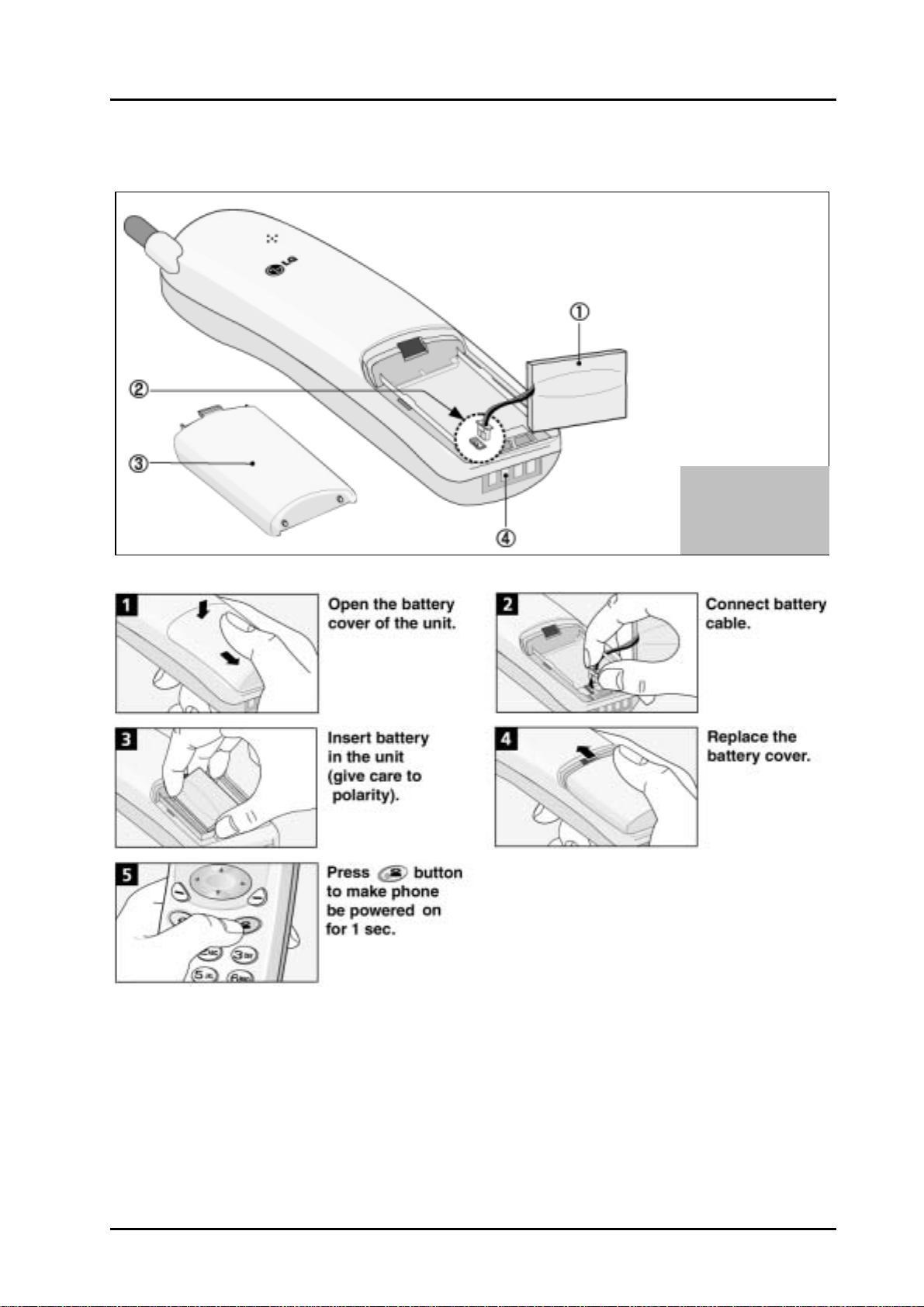

 Open the battery cover, securely connect the battery cord, place the battery and close

the cover.

 Connect the AC/DC Adapter cable to the DC input port located at the rear side of the

charger.

-. If it is good, beep tone is heard.

-. If it is not good, you have to connect the adapter or battery, again.

 Please follow the below to get better voice quality;

1. Keep away from electrical appliances such as TV, computer, radio and so on.

2. Keep terminal in a high and central location with no obstructions, such as metal walls.

3. Raise the integral antenna of terminal to get maximum strength of receive signal

as shown figure at the next page.

LGE CDMA Fixed Wireless Telephone

LSI-1100

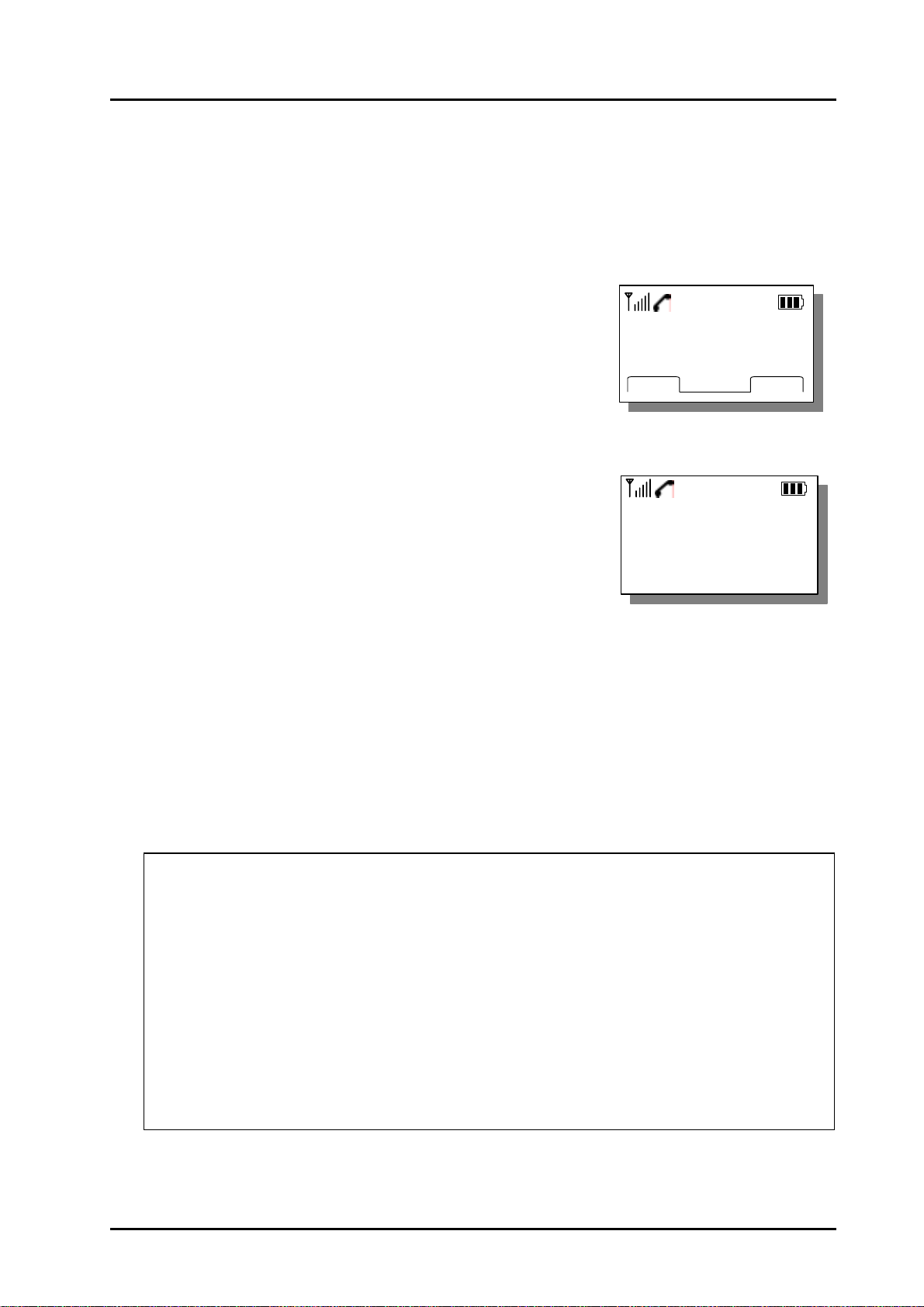

STEP IV. Check the LCD Display

 After you follow the installation instruction step I to step III, please check the LCD for

normal operation.

 If you may not see status of service, please repeat the 2

instruction of step III. And conform Fixed Wireless Telephone to get the proper signal strength from service operator system.

※

The adapter type(with power cord) may be different by country adaptation.
