LG LSI110 Users manual

CDMA Fixed Wireless Telephone

User Guide

Model: LSI-110

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

REVISED HISTORY

DATE	ISSUE	CONTENTS OF CHANGES	REMARK
2002/05/13	ISSUE1	Initial Release

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

Blank Page

FCC RF EXPOSURE INFORMATION

WARNING! Read this information before using your phone

In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.

Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.

To maintain compliance with FCC RF exposure requirements, maintain a 2.54 cm. separation distance between the user’s body and the phone, including the antenna.

For more information about RF exposure, please visit the FCC website at www.fcc.gov

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

CONTENTS

Highlights ...............................................................................................................................			6
1.	Important Information ......................................................................................................		7
	1.1	Safety Information .....................................................................................................	7
	1.2	Optimal Phone Performance.....................................................................................	7
	1.3	Care and Service ......................................................................................................	7
2.	Introduction .....................................................................................................................		9
	2.1	Front View of the Telephone .....................................................................................	9
	2.2	LCD Display ............................................................................................................	10
	2.3	Installation...............................................................................................................	11
	2.4	Installation Steps.....................................................................................................	13
3. Basic Operation ...............................................................................................................			15
	3.1	Making a Call ..........................................................................................................	15
	3.2	Redialing Last Outgoing Number ............................................................................	15
	3.4	Signal Strength........................................................................................................	16
	3.5	Missed Call Message ..............................................................................................	16
4. List of Menu State ............................................................................................................			17
	4.1	Volume / Ring..........................................................................................................	18
		4.1.1 Ring Volume..................................................................................................	18
		4.1.2 Key Volume...................................................................................................	18
		4.1.3 Ear Volume ...................................................................................................	18
		4.1.3 Ring Select....................................................................................................	19
	4.2	Additional feature ....................................................................................................	19
		4.2.1 Wake-up Time...............................................................................................	19
		4.2.2 Minute Alert ...................................................................................................	19
		4.2.3 Set Rx call mode ...........................................................................................	19
		4.2.4 Backlight........................................................................................................	20
		4.2.5 Own number..................................................................................................	20
	4.3	Dial features............................................................................................................	20
		4.3.1 Hot Line.........................................................................................................	20
		4.3.2 Hot Line Time................................................................................................	20
		4.3.3 Auto Time-out................................................................................................	21
		4.3.4 Speed Dial (enable / disable) ........................................................................	21
		4.3.5 Key-tone Length............................................................................................	22
	4.4	Security Features ....................................................................................................	22
		4.4.1 Lock Mode Set ..............................................................................................	22
		4.4.2 Clear Calls.....................................................................................................	22

			4

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

	4.4.3 Clear Memory................................................................................................	23
	4.4.4 Emergency Call.............................................................................................	23
	4.4.5 Restriction Call Service .................................................................................	23
5. Functions while in a call ...................................................................................................		25
5.1	Mute ........................................................................................................................	25
5.2	Ear Volume .............................................................................................................	26
6. Searching, Editing & Dialing ............................................................................................		26
6.1	Retrieving Phone Number by Name .......................................................................	26
6.2	Retrieving Phone Number by Address....................................................................	27
6.3	Retrieving Phone Number by NUMBER .................................................................	28
6.4	Fast Searching........................................................................................................	29
6.5	Clear Memory..........................................................................................................	29
7.SMS (Short Message Service)..........................................................................................		29
7.1	Checking & Deleting Received Message ................................................................	29
	7.1.1 Text Message................................................................................................	29
	7.1.2 Voice Message..............................................................................................	30
	7.1.3 Erasing all Received Message......................................................................	31
7.2	MSG Notification tone select...................................................................................	31
7.3	Message Sending ...................................................................................................	31
	7.3.1 Sending a New Message ..............................................................................	31
	7.3.2 Sending the sent Message or message after editing the Sent Message ......	32
	7.3.3 Erasing a Sent Message ...............................................................................	33
8.Beside Functions ..............................................................................................................		33
8.1	Redial......................................................................................................................	33
8.2	Finding Last Call History .........................................................................................	33
8.3	Flash .......................................................................................................................	34
8.4	Safe mode...............................................................................................................	34
9. Storing Phone Number.....................................................................................................		34
9.1	Storing/Editing Phone Numbers..............................................................................	34
	9.1.1 Storing Phone Numbers................................................................................	34
	9.1.2 Erasing Stored Phone Numbers ...................................................................	37
9.2	Finding Stored Phone Numbers..............................................................................	37
10. General Information .......................................................................................................		38

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

Highlights

Congratulations on your purchase of the LSI-110 Fixed Wireless Telephone. This telephone has been designed to operate on the latest digital mobile communications technology. This technology has greatly enhanced voice clarity and can provide various advanced features.

The telephone provides:

5-line LCD Display with status indicator A choice of 10 ring sounds

A menu driven interface with prompts for easy operation Last Number Redial

Speed Dialing with a 99-number memory Dial tone

ROH (Receiver Off-Hook) tone Adjustable Ring Volume Internal Battery

AC/DC Adapter Antenna

Data Port for service and repair USB Connector for Data service Back light

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

1. Important Information

1.1 Safety Information

Warning

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Do not use this product near swimming pools or other bodies of water.

IMPORTANT

Before installing or operating this product read this information.

1.2 Optimal Phone Performance

Do not operate your product when holding the antenna, or when someone is within four inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may cause the telephone to operate at a higher power level than needed.

For the best call quality, keep the antenna free from obstructions and point the antenna straight up.

Do not use the unit with a damaged antenna. Have your antenna replaced by a qualified technician immediately. Use only a manufacturer-approved antenna. Non-approved antennas, modifications, or attachments could impair call quality, damage the phone.

RF energy may affect improperly installed or inadequately shielded personal medical devices such as pace markers, hospital monitor. Consult the manufacturer of any personal medical devices to determine if they are adequately shielded from external RF energy. Turn your terminal OFF in health care facilities when any regulations posted in the areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna

-Increase the distance between the radio or television and the telephone.

-Connect the equipment into an outlet on a circuit different from that to which the terminal is connected.

-Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help. Use only the battery, antenna and AC power supply provided by LGIC. Using any other type will invalidate the warranty.

Only authorized personnel should service the phone and its accessories. Faulty installation or service any be dangerous and may invalidate the warranty.

Do not use the unit in designated “no cellular phone use” area. Avoid exposure to high temperature or humidity.

Avoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately and remove the battery and AC power supply. If the unit is inoperable, then return to the service agent for service.

Avoid shock or impact.

We recommend you to charge the internal battery before initial use. The battery may be discharged during delivery.

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

1.3 Care and Service

Unplug the telephone from the wall outlet and remove antenna (or disconnect antenna cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

If the unit fails for any reason, do not attempt to disassemble; contact the telephone service provider for assistance.

If any of the following conditions exist; unplug the unit at the wall plug, remove battery, and call the service provider.

-AC/DC Adapter is damaged or frayed.

-Liquid has been spilled into the unit.

-The unit has been exposed to rain or water.

-The unit has been dropped or damaged.

-The unit does not work normally by following the operating instructions.

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

2. Introduction

2.1 Front View of the Telephone

	Navigation Left[ ]
			Navigation Up[ ]
			Navigation Up[ ]
Navigation Down[ ]
Navigation Down[ ]			Navigation Right[ ]
			Navigation Right[ ]
			Soft Key 2[BOOK]
	Soft Key 1[MENU]		Soft Key 2[BOOK]
	Soft Key 1[MENU]
		SEND[SEND]	END[END]
			END[END]

“#” Key : Key Pad Lock

CLEAR[CLEAR]

REDIAL[REDIAL]

Navigation Left Key : Function for decreasing volume down.

Navigation DOWN Key : Function for scrolling down menu in menu state.Menu( Soft 1) Key : Activate a Menu state

Send Key : Function key to call / Function for 3- way calling In call stateREDIAL Key : Function as a redialing

Navigation UP Key : Function for entering a MSG menu in idle state

/Function for scrolling up menu in menu state

Navigation Right Key : Function for increasing volume up.Book( Soft 2) Key : Activate a Book state

	END Key	: Terminate	a	call or a menu state.
	“ # ”Key	: Function	as	a keypad lock.

Clear Key : Key to delete the last digit.

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

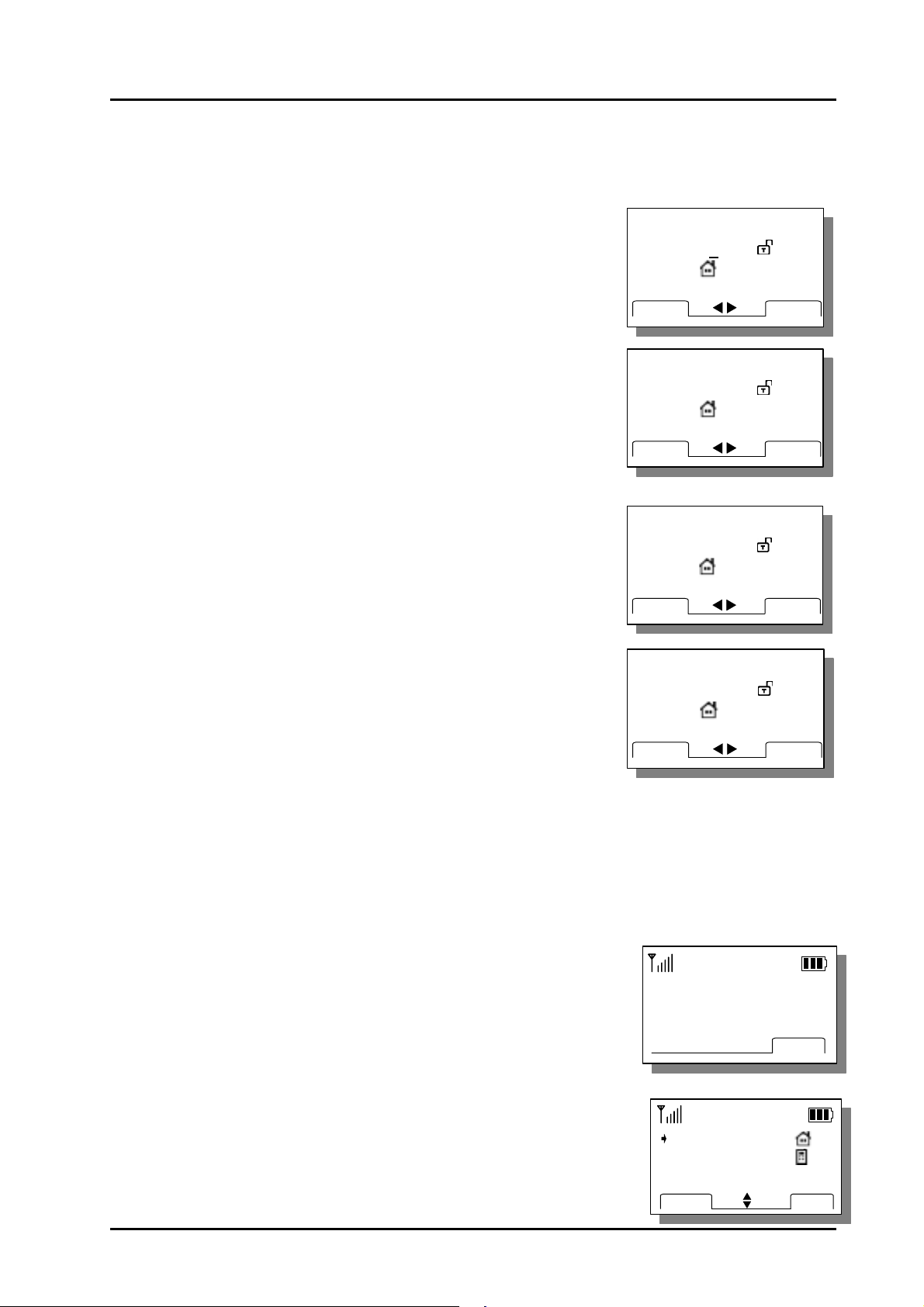

2.2 LCD Display

The LCD shows icons on the top of the LCD screen.

Different indicator appears based on the phone's operating mode.

13 May, Mon
	13 May, Mon
	4 : 11 PM
	4 : 11 PM
MENU	BOOK
MENU	BOOK

1)RSSI indicator : Indicates the signal strength in the service area.

2)No service : The phone is not receiving system signal.

3)In use : Displayed when call is in progress or the phone is in off-hook and dial tone

heard.
: No service	: In use

4)Text message : Displayed when a text message is received.

5)Voice message : Displayed when a voice message is received.

6)Alarm : Displayed when wake up alarm time was setting.

7)Caller ID : Displayed when caller ID is received.

8)Battery charge level : Indicates charged battery level.

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

2.3 Installation

You should follow each step carefully as shown below in order to guarantee proper operation of CDMA Fixed Wireless Telephone.

STEP I. Check Components

Fixed Wireless Terminal is supplied with the following standard unit and accessories;

1.	LSI-110/1100 Main Unit with Antenna	-1EA-
2.	Battery	-1EA-
3.	User Guide	-1EA-
4.	AC/DC Adapter	-1EA-
5.	Charger	-1EA-

Please make sure that these components are present before you begin the unit installation. And then compare the following figures and components. If components are missing or damage is found, contact the store where you purchased the unit immediately.

STEP II. Place the Terminal

Place the terminal on the stable flat secure surface area (desk, table, etc.). Serious damage may result if the unit falls. Do not place the unit on, or within 1 meter of heaters or radiators. This unit is designed for desktop usage. Avoid direct exposure to the sun lights and damp area.

Read the SAFETY INFORMATION located at the first part of this document before you place the terminal

STEP III. Connect Components (See the figures in “Installation Steps”.)

Open the battery cover, securely connect the battery cord, place the battery and close the cover.

Connect the AC/DC Adapter cable to the DC input port located at the rear side of the charger.

-. If it is good, beep tone is heard.

-. If it is not good, you have to connect the adapter or battery, again. Please follow the below to get better voice quality;

1.Keep away from electrical appliances such as TV, computer, radio and so on.

2.Keep terminal in a high and central location with no obstructions, such as metal walls.

3.Raise the integral antenna of terminal to get maximum strength of receive signal as shown figure at the next page.

LGE CDMA Fixed Wireless Telephone

LSI-110/1100

STEP IV. Check the LCD Display

After you follow the installation instruction step I to step III, please check the LCD for normal operation.

If you may not see status of service, please repeat the 2nd instruction of step III. And conform Fixed Wireless Telephone to get the proper signal strength from service operator system.

The adapter type may be different by country adaptation.
