INTRODUCTION

IMPORTANT SAFETY INSTRUCTIONS

Basic Safety Precautions 3, 4 Electrical Safety 4 Before Using the Dishwasher 5

PARTS AND FEATURES

Features 6 Parts 7 Control Panel 8, 9

TROUBLESHOOTING

Before Calling for Service 21, 22

WARRANTY

Product Registration Information 24, 25

Congratulations on your purchase

and welcome to the LG family.

Your new LG Dishwasher combines

quiet, efficient operation with

advanced cleaning technology.

By following the operating and care

instructions in this manual, your

dishwasher will provide you with

many years of reliable service.

THANK YOU!

OPERATING INSTRUCTIONS

Quick Start 10 Selecting a Cycle 11 Loading the Lower Rack 13 Loading for Steam 13 Loading the Upper Rack 14 Loading the Silverware Basket 14 Height-Adjustable Upper Rack 15 Removing the Upper Rack 15 Loading the Cutlery Rack 16 Height Adjustable Tray 16 Adding Detergent to the Dispenser 17 Adding Rinse Aid to the Dispenser 18

CARE AND CLEANING

Cleaning Metallic Parts 19 Cleaning the Lower Spray Arm 19 Cleaning the Upper Spray Arm 19 Cleaning the Top Spray Arm 20 Seasonal Maintenance and Storage 20

SPECIFICATIONS

Specifications 23

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that could eventually result in property damage or serious

bodily harm, even death.

The safety alert symbol will be followed by either the word “WARNING” or “CAUTION,” then an important safety message. These words mean:

WARNING To reduce the risk of fire, electric shock, or injury to persons when using

this appliance, follow basic precautions, including the following:

• This manual contains very important information regarding the installation, use, and maintenance of your dishwasher.

• The manufacturer cannot be responsible for injuries or damage caused by failure to follow these safety and caution instructions.

• Read all instructions carefully before using the dishwasher.

• Use the dishwasher only for its intended function.

• Use only detergents or rinse agents recommended for use in a dishwasher. Keep all dishwasher detergents and additives out of the reach of children.

• This appliance is not intended for use by young children or unqualified persons.

• When loading items to be washed:

1) Load sharp items so that they are not likely to damage the door seal; and

2) Load sharp knives with the handles up to reduce the risk of injury when reaching into the dishwasher.

• Do not wash plastic items in the dishwasher unless they are labeled dishwasher-safe or the equivalent. For plastic items not so labeled, check the manufacturer’s recommendations.

• Do not operate the dishwasher unless all enclosure panels are properly in place.

• Do not tamper with controls.

• Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.

• To reduce the risk of injury, do not allow children to play in or around a dishwasher.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period of time, turn on all hot water faucets and let the water flow for several minutes. This will release any accumulated hydrogen gas. Since hydrogen gas is flammable, do not smoke or use an open flame during this time.

• Remove the door to the wash compartment when disposing of an old dishwasher.

BASIC SAFETY PRECAUTIONS

WARNING

This symbol indicates the possibility of serious bodily harm, even death.

CAUTION

This symbol indicates the possibility of injury or damage to property.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

For a permanently connected dishwasher:

This appliance must be connected to a grounded metal, permanent wiring system or an equipmentgrounding conductor must be run with the circuit conductors and connected to the equipmentgrounding terminal or lead on the appliance. Consult with a qualified electrician.

Tip Hazard

Do not put excessive downward force on the open dishwasher door prior to installation, as this could cause damage to the unit or cause it to tip over. Do not use the dishwasher before installation has been completed in accordance with the Installation Instructions.

BASIC SAFETY PRECAUTIONS

WARNING To reduce the risk of fire, electric shock, or injury to persons when using

this appliance, follow basic precautions, including the following:

ELECTRICAL SAFETY

WARNING

Electrical Shock Hazard

Failure to follow these instructions can result in death, fire, or electrical shock.

• The dishwasher MUST be grounded. Connect the ground wire to the green ground connector in the terminal box.

• Do not use an extension cord with this appliance.

• The dishwasher is designed to be used with standard household current (120 Volts AC, 60 Hz.). Before connecting the dishwasher, ensure that the outlet or cable is properly grounded and polarized by circuit breakers or fuses. Failure to provide adequate grounding of this appliance may cause electrical shock or malfunction of the appliance. Consult with a qualified electrician.

• Do not install or store the dishwasher where it will be exposed to weather conditions. Failure to observe this precaution may result in electrical shock, fire, malfunction, and/or deformation of the dishwasher.

• Do not damage or place heavy items on the power cord of the appliance. Do not use the dishwasher if it has a damaged power cord. Power cord damage may cause fire and electrical shock. Consult with a qualified electrician.

• Do not grasp the power cord or touch the dishwasher controls with wet hands. Do not use the dishwasher if it has a damaged power cord or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock.

• Disassembly or repair must be performed by

experienced service persons. Improper disassembly or repair could lead to product failure or electrical shock.

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

SAVE THESE INSTRUCTIONS

Before using the dishwasher, please read the Important Safety Instructions.

Water supply temperature should be a minimum of 120°F (49°C) for better washing and reasonable cycle time.

For this reason, use the hot water supply only. It is also important that the dishwasher is loaded according to instructions for effective cleaning. When loading the dishwasher, make sure that insoluble items such as bones, toothpicks, and pieces of paper have been removed.

BEFORE USING THE DISHWASHER

When loading the dishwasher, observe the following general guidelines:

1. Place items with deep dish bottoms at an

angle to help water run off and speed the drying process.

2. Remove solid, burned-on scraps from dishes

prior to loading in the dishwasher.

3. Only load items that are dishwasher-safe.

NOTE: Do not load utensils that are not

heat-resistant, have decorative metal trim, etc.

PARTS AND FEATURES

FEATURES

LARGE CAPACITY

LG dishwashers allow you to load very large

items in both the upper and lower racks. The tall tub provides extra overall capacity and the clearance to accommodate large dishes. Extra large items (max. 14 in.) may be loaded in the lower rack by raising the upper rack.

SLIM DIRECT MOTOR™

The new Slim Direct Motor™ is inverter-

controlled. Wash power is controlled based on cycle selection. It also offers high energy efficiency to minimize energy use.

HYBRID DRYING SYSTEM

This system effectively dries dishes without the

use of a heating element that would increase energy consumption.

VARIO SPRAY SYSTEM

Because the water spray alternates between the

upper and lower racks, all of the power from the motor is directed to one rack at a time. This concentrates all the cleaning power of the motor on each rack in turn.

SOFT FOOD GRINDER AND SELF-CLEANING FILTER

For best wash results, your LG dishwasher has

a built-in soft food grinder and a selfcleaning filter. The grinder grinds up soft food and residue into small particles that can be caught in the filter and washed down the

drain. The self-cleaning filter system continuously cleans the wash water as it circulates to separate any residue from the wash water. All dirt and residue is easily washed down the drain.

LIGHT TOUCH BUTTONS AND BLUE LCD

The light touch buttons on the control panel make

selections easy and

convenient, while the

blue LCD display

clearly displays the

selected cycle and

options.

STEAM WASHING

Steam technology provides better cleaning

performance than regular wash systems. Steam is the most energy efficient gentle care for your finest china and stemware.

ENGLISH

PARTS AND FEATURES

PARTS

CONTROL PANEL DOOR HANDLE

FRONT COVER LOWER COVER LEVELING FEET FRONT DISPLAY

(SignaLight™)

BASE

TOP SPRAY ARM UPPER SPRAY ARM STEAM NOZZLE LOWER SPRAY ARM DETERGENT AND RINSE AID

DISPENSER DRYING VENT COVER TUB LAMP

(Illumitub™)

CUTLERY RACK UPPER RACK SILVERWARE BASKET LOWER RACK TOP DISPLAY POWER BUTTON

The WASH, RINSE and DRY lamps twinkle while each phase of washing process. The CLEAN lamp turns on after all procedure is ended for 4 minutes.

EXTRA RINSE( ), SANITARY( )

PARTS AND FEATURES

CONTROL PANEL

CYCLES

Press the cycle that corresponds to your desired wash cycle.

POWER SCRUB

This cycle is for very heavily soiled dishes.

NORMAL

This cycle is for normally soiled, everyday loads.

DUAL INTENSITY

This cycle washes the upper and lower racks at different spray intensities. The default setting for this cycle washes the lower rack with strong spray intensity and the upper rack with soft spray intensity. This provides optimum cleaning performance for mixed loads, including fine china and stemware. If other combinations are desired, use the steps listed below to change the intensities or to use the HALF LOAD feature. How To Use Dual Intensity

1. Press and hold the SPRAY button for three seconds until the UPPER light begins to blink.

2. While the UPPER light is blinking, press the SPRAY button until the desired intensity for the upper rack is selected.

3. Press the HALF LOAD button to switch to the lower rack and use the SPRAY button to adjust to the desired intensity.

4. Selections can be cancelled by selecting any cycle except DUAL INTENSITY.

QUICK WASH

This is a shortened cycle that is perfect for recently used or lightly soiled loads.

STEAM DELICATE

This cycle adds the gentle power of steam to boost the cleaning power of the delicate cycle. The cycle is perfect for effectively cleaning delicate items like fine china or stemware.

STEAM FRESH

This cycle can be used to freshen up dishes that may have been stored or not used for a long time.

CHIME ON/OFF

To enable or disable the chime, press and hold the Quick Wash and Steam Delicate buttons for 2 seconds.

RINSE ONLY

This cycle is a quick rinse for dishes that will not be washed immediately. No detergent should be used.

To select the Rinse Only cycle, press the Power button; then press the Rinse button once without pressing any other cycle buttons.

NOTE: If a main cycle has been selected, the Rinse Only cycle will not be available without first shutting the power off.

CANCEL

To cancel a running cycle, open the door and then press and hold the Dual Intensity and Quick Wash buttons together for 3 seconds. The drain pump will be activated and the cycle will be cancelled.

CYCLE OPTIONS AND DISPLAY

Press the desired cycle option buttons to select and set any of the dishwasher’s options described below. The display will show the selected cycle times and cycle options.

SPRAY (INTENSITY)

Repeated pressing of the Spray button will select the desired spray. The strong, medium, or soft light will show in the top left portion of the display.

RINSE

Repeated pressing of the Rinse button will select the desired Rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra Rinse lights will show in the bottom left portion of the display.

Soft ( ), Medium ( ), Strong ( )

ENGLISH

PARTS AND FEATURES

• The ( ) symbol indicates that sanitary rinse has

been selected. The symbol blinks during the cycle if the sanitary temperature has been achieved. Once the cycle has ended, the symbol will be steady if the sanitary temperature has been achieved.

*NOTE: This high-temperature rinse sanitizes dishware and glassware in accordance with NSF/ANSI Standard 184 for residential dishwashers. Certified dishwashers are not intended for licensed food establishments.

• When you select Extra Rinse, an additional

rinse cycle is added.

• Rinse Only is a wash cycle described on

the previous page.

CHILD LOCK

Lamp will turn on when Child Lock setting is on.

• To lock/unlock the buttons, press and hold the Rinse

and Spray Buttons simultaneously for 3 seconds with the door open.

• Lock the control buttons during cycle operation to

prevent settings from being changed.

RINSE AID

Refill with rinse aid when the lamp turns on.

DIGITAL DISPLAY

The Digital Display on the control panel shows the estimated cycle and option

times. When the dishwasher is powered up, the display will be

blank. When the cycle and options are selected, the display will show the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time.

NOTES:

• The estimated time shown in the display does not

include delay times for heating water, etc.

• If Delay Wash is selected, the display shows the

delay time in hours.

HALF LOAD

• For small loads, you may use just the upper or lower rack to save energy.

• Each press of the Half Load button cycles between upper rack only and lower rack only.

• If Half Load is not pressed, the dishwasher will run normally, with upper and lower spray arms operating alternately.

DELAY START

• To delay the start of a selected cycle, press the Delay Start button.

• Each time Delay Start is pressed will delay the start of the cycle by one additional hour.

• The delay start time can be set from 1 to 19 hours in one-hour increments.

STEAM

• Press the Steam button to add steam to a selected cycle.

• The Steam symbol will be lighted when the STEAM option has been selected.

• The steam symbol will blink while steam is being injected into the dishwasher.

POWER

• Pressing the Power button turns on power to the controls.

• After the cycle is complete, the power

automatically turns off for safety and economy.

• If there is a power surge, power outage,

or disruption of any kind, the power will be automatically turned off for safety, and the cycle will need to be restarted.

CONTROL PANEL (continued)

3 4

WARNING

Steam can cause burns. Use caution in the area of the steam nozzle on the left side of the dishwasher if the door is opened during the steam portion of a cycle. Contact with the steam or the steam nozzle can cause burns.

OPERATING INSTRUCTIONS

QUICK START

CAUTION

Empty the lower rack first and then the upper rack. This will avoid water dripping from the upper rack onto dishes in the lower rack.

WARNING

In general, it is not advisable to open the door while the dishwasher is in operation. If the door is opened, a safety device stops the dishwasher. Care should be taken when opening the door immediately following the cycle, as steam may escape.

AUTO-OFF

The dishwasher will automatically turn off if a cycle is not selected or if the door is not closed within 10 minutes.

NOTE :

If small hard items such as bones, nut shells or plastic or glass pieces get into the pump, they can cause a grinding noise as the soft food disposer in the dishwasher attempts to grind up these hard objects. Some objects that might get into the pump could eventually be ground up and drained away. However, if a grinding noise is heard and it does not go away, call for service to have the objects removed from the pump. Some objects such as pieces of glass could cause damage to the pump if not removed promptly.

LOAD THE DISHES

Scrape the dishes free of excess food, bones, and any other hard, non-soluble residue. Pull each rack out and load the dishes as described on pages 13 and 14.

MEASURE THE DETERGENT

Using the guidelines on page 17, fill the detergent cup with the recommended amount of detergent and close the lid. If a prewash is desired, the recess on top of the lid should also be filled with detergent.

TURN ON THE DISHWASHER

To start the cycle, open the door and press the Power button.

CHECK THE RINSE AID

The Rinse Aid indicator light will illuminate if the level of rinse aid in the dishwasher is low. Add rinse aid if the level is low to maintain the effectiveness of the dry cycle.

SELECT THE CYCLE AND OPTIONS

Select the cycle and options that best fit the load by referring to the chart on page 11. The display will show the estimated time for the cycle and options selected.

CLOSE THE DOOR

The dishwasher will start automatically, after a slight delay, when the door is closed and latched. During the cycle, the display will indicate the estimated time remaining for the cycle and options selected. If the door is opened during the cycle, the dishwasher will stop. When the door is closed, the cycle will resume from the point where it was stopped.

END OF CYCLE

When the cycle is completed, a chime will sound and the display will show “END.” After a short time, the display and controls will shut off for safety and energy conservation.

ENGLISH

SELECTING A CYCLE

Power Scrub

This cycle is for very heavily soiled loads such as cookware.

Normal

Select this cycle for normally soiled, everyday loads.

Dual Intensity

This cycle allows the upper and lower racks to be washed at different spray intensities in the same cycle for a precise balance of cleaning performance and care of the dishes. See page 8.

Quick Wash

This is a shortened cycle that is perfect for recently used or lightly soiled loads.

Steam Delicate

This cycle adds the gentle power of steam to boost the cleaning power of the delicate cycle. The cycle is perfect for effectively cleaning delicate items like fine china or stemware.

Steam Fresh

This cycle can be used to freshen up dishes that may have been stored or not used for a long time.

Rinse Only

If you don’t plan to wash a load of dishes immediately, use this cycle to remove excess soil and soften dried-on residue. To select Rinse Only, press Rinse button without selecting a main cycle. See page 8.

OPERATING INSTRUCTIONS

*Actual water consumption will vary depending on soil level.

**Actual cycle times may vary depending on soil levels and water temperature.

Steam Delicate

113°F

45°C

140°F

60°C

5.5–6.9 gal. 21–26 L

107

Min.

CYCLE

Spray Itensity

Power Scrub

Normal

Dual Intensity

Rinse Only

Wash

Rinse

Dry

*Water

Usage

**Cycle

Time

Prewash Main Wash Rinse 1 Rinse 2

Heated

Rinse

131°–145°F

55°–63°C

154°F

68°C

5.5–9.2 gal. 21–35 L

122–176

Min.

95°–140°F

35°–60°C

149°-153°F

65°-67°C

Strong

Medium

Soft

5.5–6.9 gal. 21–26 L

138

Min.

154°F

68°C

149°F

65°C

5.5 gal. 21 L

Min.

2.6–6.9 gal. 10–26 L

97–124

Min.

Quick Wash

Steam Fresh

1.2–1.5 gal.

4.5-5.5 L

Min.

1.3 gal. 5 L

Min.

154°F

68°C

131°F

55°C

115°F

46°C

OPERATING INSTRUCTIONS

CAUTION

NON-DISHWASHER-SAFE ITEMS

The combination of high water temperature and dishwasher detergents may damage certain items. LG does not recommend washing the following items in the dishwasher:

• Hand-painted silver or gold-leaf dishes

• Wood- or bone-handled utensils

• Iron or other rust-prone utensils

• Plastic items that are not dishwasher-safe

When in doubt, check manufacturers’ recommendations.

ENGLISH

The extra tall tub allows loading of dishes, pans, or other utensils up to 14 inches high.

NOTE: Make sure large items do not interfere with the rotation of the spray arms, and do not prevent the detergent dispenser from opening.

The lower rack is recommended for dinner plates, soup bowls, dishes, pots, pans, lids, and grill trays. Plates should be positioned vertically and facing the center of the rack. Pots, pans, and large bowls must be turned so that the inside faces downward. The silverware basket

may be used in either the lower or upper rack. The lower rack should not be used for small

items like cups, wine glasses, or small plates. These items should be loaded in the upper rack.

Load heavily soiled or stained dishes in the front left side of the lower rack with the dirty side facing out and down. This is the area the stream enters the dishwasher. The use of hot steam maximizes the dishwasher’s cleaning performance.

LOADING THE LOWER RACK

OPERATING INSTRUCTIONS

LOADING 10 PLACE SETTINGS, LOWER RACK

LOADING 12 PLACE SETTINGS, LOWER RACK

Steam Nozzle Area

To maximize the benefits of steam for removing difficult or baked-on soils, load the target dishes on the lower rack to the left side. For best effect, load the dishes so they are facing down and to the left to benefit from both the direct steam spray and the lower spray arm wash action.

LOADING FOR STEAM

Steam Nozzles

OPERATING INSTRUCTIONS

LOADING THE SILVERWARE BASKET

The silverware basket has separators to avoid scratching and tarnishing of delicate silverware. The basket can be separated into three modules that can be used individually in both the upper and lower racks. For small loads of silverware, modules can be removed, allowing extra space for other dishes.

WARNING

Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury.

LOADING THE UPPER RACK

Use the upper rack for small or delicate items such as small plates, cups, saucers, glasses, and dishwasher-safe plastic items. Cups, glasses, and bowls must be positioned upside down. Extra cups or cooking utensils can be laid

on the fold down cup racks, which may also provide support for long stemmed glasses. Make sure items do not interfere with the rotation of the spray arms above and below the upper rack.

LOADING 10 PLACE SETTINGS, UPPER RACK

LOADING 12 PLACE SETTINGS, UPPER RACK

ENGLISH

OPERATING INSTRUCTIONS

The upper rack adjusts up to allow you to place tall and oversized items up to 14 inches high in the lower rack. Or, you can adjust the upper rack down to allow placement of large dishes up to 12 inches high in the upper rack.

NOTE: After adjusting, make sure that dishes in the upper and lower racks do not interfere with the rotation of the spray arm. Do not adjust the rack while it is loaded with dishes.

HEIGHT-ADJUSTABLE UPPER RACK

The upper rack can be removed to make more room for items in the lower rack. NOTE: Always remove dishes from the upper rack before removing it.

REMOVING THE UPPER RACK

To raise the rack:

Simply lift the rack at the center of each side (see illustration) until the rack locks into place in the upper position. It is not necessary to lift the lock levers to raise the rack.

To lower the rack:

Hold the rack at the center of each side to support its weight; then lift the lever on each side to release the rack and lower it to the lower position.

Pull the upper rack out until it stops. Locate the squeeze tab.

Squeeze the tab of the retainer at the end of each side rail and remove it. Be careful not to allow the upper rack to fall off the rails after the retainers are removed. Pull the upper rack out of the slides.

The cutlery rack is best suited for flatware and most cooking or serving utensils.

The separators on the cutlery racks help keep flatware separated to avoid damage and improve cleaning.

Knife, fork, and spoon handles should be positioned between the tines.

If the handles of your flatware are too thick, then reverse the pieces so the handles face the other direction as shown in the bottom figure.

Each side tray can be adjusted independently to a high or low position to accommodate different sizes of utensils or cutlery. Each tray is adjusted by lifting it out and rotating it front to back.

Removable Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.

NOTE :

Always remove cutlery from the rack before removing the rack.

WARNING

Be careful when loading and unloading sharpedged items. Load sharp knives with the blade down in order to reduce the risk of injury.

Pull the rack out to the end of the rails, then lift the front of the rack so the rollers clear the stop on the end of the rail. The rack can now be slid forward and removed from the rails.

Right Wrong

Alternate

Sample 10-place setting.

OPERATING INSTRUCTIONS

LOADING THE CUTLERY RACK HEIGHT ADJUSTABLE TRAY

OPERATING INSTRUCTIONS

ADDING DETERGENT TO THE DISPENSER

• Detergent must be put into the detergent compartment before starting any cycle except Rinse Only.

• If dishes are only lightly soiled, use less detergent.

• The total capacity of the main detergent compartment is 1.4 oz (40 ml). The recommended usage marks in the dispenser are

0.5 oz (15 ml) and 0.9 oz (25 ml). Using excess detergent can leave a film on dishes and in the dishwasher resulting in poor wash performance.

• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

If the lid is closed, press the lever on the bottom side of the lid to open the dispenser.

Add dishwashing detergent to the main wash compartment until the level is between the 15 and 25 lines. Fill to 25 line for hard water or heavily soiled loads or to 15 line for soft water or lightly soiled loads. Adjust amount of detergent to best meet your cleaning needs and conditions.

Close the lid firmly until a click is heard. NOTE: DO NOT add detergent when the

Rinse Only cycle is selected.

Dispenser Latch

If a prewash is desired, fill the recessed prewash compartment area in the lid with detergent.

NOTE: Too much detergent can leave a film on dishes and in the dishwasher resulting in poor wash performance.

Main Wash Compartment

CAUTION

DETERGENT INFORMATION

Use only detergent intended for automatic dishwashers. Incorrect detergent may cause the dishwasher to fill with suds during operation. Excess sudsing may reduce wash performance and may cause the unit to leak. DO NOT use hand dishwashing detergent in this dishwasher.

Prewash Compartment

ENGLISH

NOTE :

Remove the label on the dispenser prior to running the dishwasher.

OPERATING INSTRUCTIONS

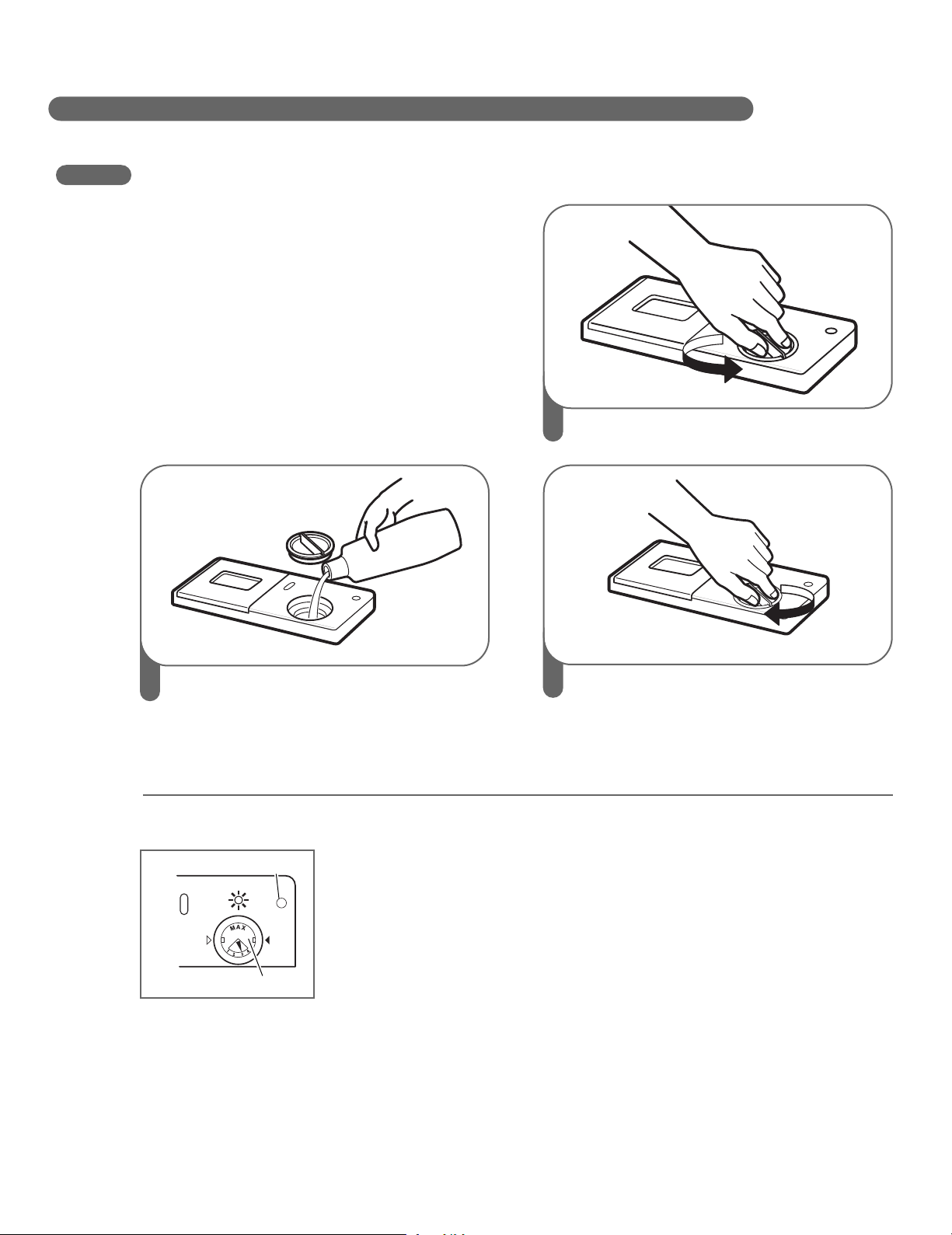

ADDING RINSE AID TO THE DISPENSER

The use of rinse aid products is recommended to prevent spots on dishes from water droplets remaining after the completion of the wash cycle, and to enhance the performance of the dry cycle.

NOTE: Only use liquid rinse aid in this dishwasher.

Rotate the round cap counterclockwise to remove it.

Add a liquid rinse aid to the maximum fill level (max. 4.8 oz [145 ml]).

Replace the cap and turn clockwise to lock. Rinse aid will be dispensed automatically

during the final rinse cycle.

RINSE AID DISPENSER ADJUSTMENT

The rinse aid dispenser is factory-set to level 3,

which should provide the best performance under most conditions. Setting the rinse aid control too low will contribute to spotting and streaking of dishes and poor

drying performance. Setting the control too high can cause foaming, which will cause poor wash performance.

To adjust the rinse aid dispenser setting, remove the cap and adjust the rinse aid lever to the desired setting.

REFILLING THE RINSE AID

The capacity of the rinse aid dispenser is 4.8 oz (145 ml). How often the dispenser will need to be refilled depends on how often dishes are washed and the rinse aid setting used.

If the rinse aid level is low, the Rinse Aid light on the control panel will illuminate.

NOTE :

The dispenser also has a round Rinse Aid Indicator Eye that is dark when the dispenser is full and light when it is empty.

Rinse Aid Indicator Eye

Adjustment Lever

ENGLISH

CLEANING METALLIC PARTS

CARE AND CLEANING

For best results, it is important to periodically check and care for the spray arms.

WARNING To prevent injury during care and maintenance/cleaning, wear

gloves and/or protective clothing.

Some exterior and interior parts can be cleaned with a damp cloth or sponge. A cloudy film may form on the surface of the stainless steel tub, especially with hard water.

CLEANING THE LOWER SPRAY ARM

• Make sure that the water jet holes are not

blocked by food particles.

• When cleaning is necessary, remove the lower

spray arm by pulling up.

• After cleaning the lower spray arm, replace it

by pushing down until it clips into place. Be sure the spray arm turns freely.

CLEANING THE UPPER SPRAY ARM

Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles.

When cleaning is necessary, remove the upper spray arm by turning the nut on the bottom of the spray arm 1/8 turn counterclockwise and pulling down (see illustrations).

After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure the nut locks back into place.

CARE AND CLEANING

CLEANING THE TOP SPRAY ARM

SEASONAL MAINTENANCE AND STORAGE

• During the summer, if you will be absent for

extended periods of time, it is recommended that you close the water valve and unplug the power cord, or turn off the circuit breaker.

• During winter, if you will be absent for extended

periods of time and there is a possibility of freezing temperatures, it is recommended that you winterize the water supply lines and the dishwasher itself. Winterization must be performed by experienced service personnel.

Make sure that the water jet holes are not blocked by food particles.

When cleaning is necessary, use a screwdriver to release the retainer clip from the bracket that holds the top spray arm assembly to the tub.

Then pull the spray arm out.

After cleaning the top spray arm, replace it. Slide it back into place and make sure the retainer clip engages.

ENGLISH

BEFORE CALLING FOR SERVICE

TROUBLESHOOTING

Problem Possible Causes Solutions

If you have followed this troubleshooting guide and the problem persists, or if the problem you are experiencing is not listed here, please call LGE Customer Service at 1-800-243-0000(US), 1-888-542-2623(Canada).

Dishwasher does not operate

Dishwasher operates too long

Odor

Water remains in tub after completion of cycle

Spots and filming on dishes

Door is not completely closed.

Power supply or power cord is

not connected.

Fuse is blown or circuit breaker tripped.

Unit is connected to cold water.

Previous cycle was stopped before

completion.

Drain hose is kinked or clogged.

Low water temperature.

Wrong amount of detergent used.

Overloading.

Improper loading.

Insufficient water pressure.

Insufficient detergent.

Rinse aid dispenser empty.

Extremely hard water.

To remove hard water build up in tub

Make sure the door is completely closed and latched. Connect the power supply or cord properly.

Replace fuse or reset circuit breaker. Check the water supply connection or water heater

setting.(Heating cold water takes longer.) Operate the Quick Wash cycle with detergent without

loading any dishes. Adjust hose or clear blockage.

Water supply should be at least 120°F for best wash performance.

Use the recommended amount of detergent. Load the proper amount of dishes. See the Using Your Dishwasher section. Adjust water pressure to between 20 and 120 psi. Add the recommended amount of detergent.See Using

Your Dishwasher section. Refill rinse aid dispenser.

The best way to eliminate spots on your dishes is to install a whole house water softener in your home. If a water softener is already installed or you do not plan on installing one, try adding an “Extra Rinse”option as part of the wash cycle to help minimize this condition. T o add an Extra Rinse to the cycle,select the wash cycle then press extra rinse.

Note: When selecting the “Extra Rinse”cycle times and water usage will be increased from normal use.

Remove all dishes,silverware and silverware holder from the dishwasher .Only the racks should remain in the tub. Fill a measuring cup with white vinegar approximately 14~17ounces(400~500mL),place the measuring cup in the lower rack. Run a “Normal”cycle and select “Extra Rinse”and “Sanitary”,then close the door. DO NOT USE ANY DETERGENT

Note: Make sure to let the dishwasher complete the entire cycle.The cleaning method should only be

done as needed.

TROUBLESHOOTING

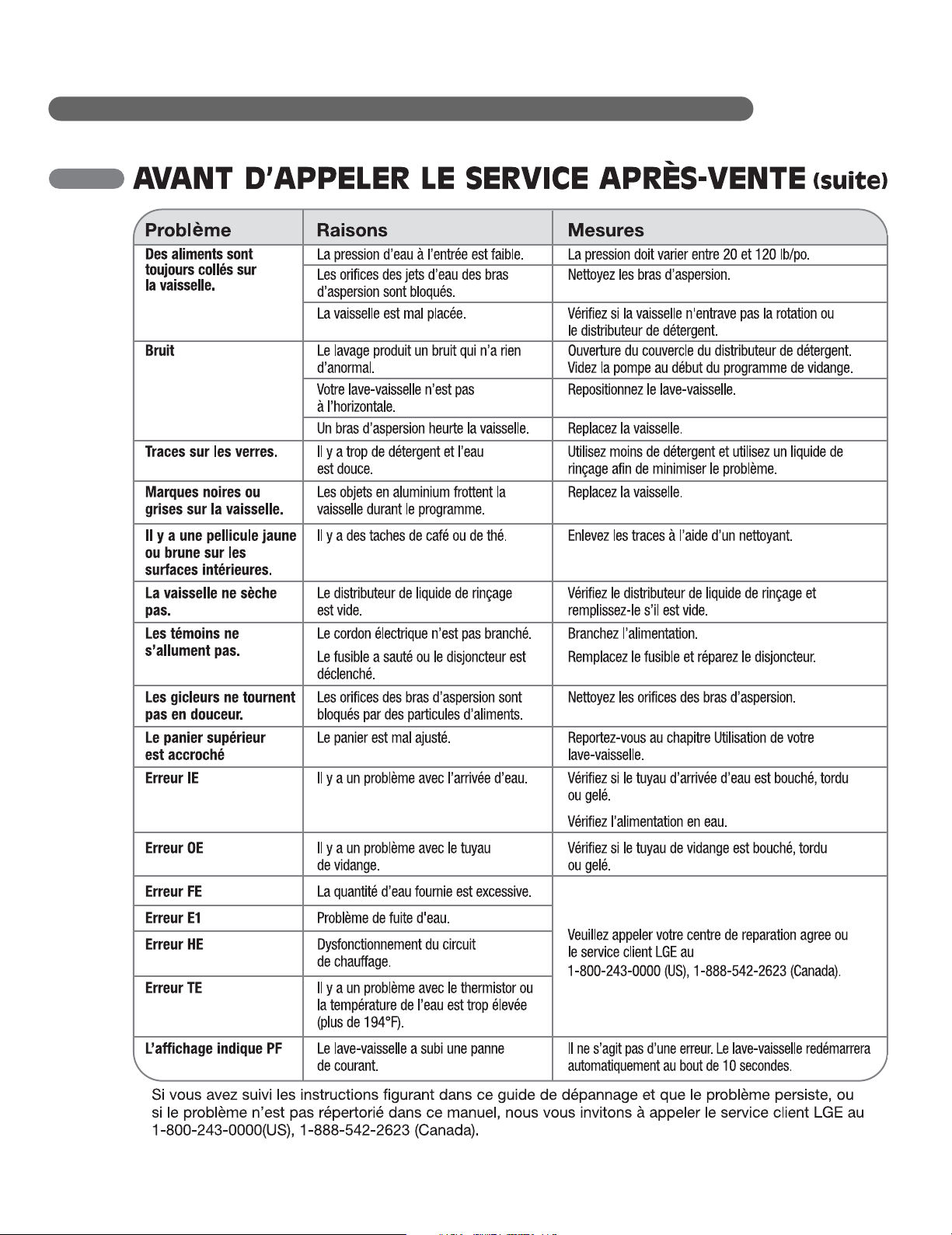

BEFORE CALLING FOR SERVICE (continued)

Problem Possible Causes Solutions

Cloudiness on glassware

Black or gray marks on dishes

Yellow or brown film on inside surfaces of dishwasher

Dishes don’t dry Lamps don’t illuminate

Sprays arms do not rotate smoothly

Upper rack crooked IE Error

OE Error FE Error E1 Error HE Error TE Error

The display shows PF

Combination of excessive detergent and

soft water.

Aluminum items rubbing dishes

during cycle.

Coffee or tea stains.

Rinse agent dispenser empty.

Power is not connected.

Fuse is blown or circuit breaker tripped.

Holes of spray arms are blocked by food

particles.

Rack is poorly adjusted.

Water inlet problem.

Drainage problem.

Excessive water supplied.

Water leakage problem.

Heater circuit failure.

Thermistor failure or very high inlet

water temperature (over 194°F).

The dishwasher experienced a power

failure.

Use less detergent and use a rinse aid to minimize the problem.

Reposition the dishes.

Eliminate the stain by using a stain removal product.

Check and refill the rinse agent dispenser if empty. Connect power supply. Replace fuse or reset circuit breaker. Clean the holes of spray arms.

See Using Your Dishwasher section. Check for clogged,kinked or frozen water inlet hose. Check water supply. Check for clogged,kinked or frozen drain hose.

Please call your Authorized Service Center or LGE Customer Service at 1-800-243-0000(US),1-888-542-2623(Canada).

This is not an error.The dishwasher will restart automatically after 10 seconds.

Food soil remains on dishes

Improper cycle selection.

Water temperature is too low.

Dishwashing detergent was not used.

Low inlet water pressure.

Water jet holes on spray arms blocked.

Improper loading of dishes.

Select correct cycle based on soil level and type of dishware being washed.

Check water supply connection or water heater setting. Use recommended detergent. Water pressure should be between 20 and 120 psi. Clean the spray arms. Make sure dishes do not block spray arm rotation or

interfere with detergent dispenser.

Noise Some level of noise is normal during

operation.

The dishwasher is not level.

Nozzle arm knocking against dishes.

Detergent cover opening. Drain pump at the beginning of drain cycle.

Adjust the leveling feet. Reposition the dishes.

ENGLISH

SPECIFICATIONS

• Power Supply: 120V, 60 Hz AC only, minimum 15A circuit breaker

• Water Pressure: 20–120 psi (140–830 kPa)

• Size (WxDxH): 23 3/4” x 24 5/8” x 33 1/2” (603 mm x 625 mm x 851 mm)

• Inlet Water Temperature: 120°F (49°C) minimum

• Product Weight : 114 lbs.(51.7kg) The appearance and specifications are subject to change without notice.

LG ELECTRONICS, INC.

DISHWASHER LIMITED WARRANTY — USA

Should your LG Dishwasher prove to be defective in material or workmanship under normal use during the warranty period listed below,effective from the date of original consumer purchase of the product, LG Electronics will replace the defective part(s). Replacement parts will meet intended fit and function of the original part. Replacement parts are warranted for the unexpired portion of the original warranty period.This limited warranty is good only to the original purchaser of the product and effective only when used in the United States of America.

No other warranty is applicable to this product. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states

and/or territories do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you.This warranty gives you,the original purchaser, specific legal rights and you may also have other rights that vary from state to state or territory to territor y.

WARRANTY PERIOD:

For the Period of: LG Will Replace: Two years from date Any part of the Dishwasher which fails due to a defect in materials or workmanship. During this full two years

of original purchase warranty, LGE will also provide, free of charge, all labor and on-site service to replace the defective part. Five years from date Electronic control board and dishwasher rack which fails due to a defect in materials or workmanship.

of original purchase During this five-year parts warranty, you will be responsible for any labor or on-site service costs. Ten years from date Direct Drive motor which fails due to a defect in materials or workmanship.

of original purchase During this ten-year warranty, you will be responsible for any labor or on-site service costs. Limited Lifetime Stainless steel door liner and tub (as long as owned by the original purchaser) which fails due to a defect in

materials or workmanship. During this limited lifetime parts warranty, you will be responsible for any labor or on-site service costs.

Replacement units and repair parts may be new or factory remanufactured. Replacement units and repair parts are warranted for the remaining portion of the original unit’s warranty period.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

1. Service calls to your home for delivery or pick-up, installation, instruction, replacement of house fuses, connection of house wiring or plumbing, or to correct unauthorized repairs.

2. Failure of product to perform during power failures and interruptions or inadequate electrical service.

3. Damage caused by transportation or handling.

4. Damage caused to the product by accident,vermin, lightning, winds, fire, floods, or acts of God.

5. Damages caused by leaky or broken water pipes,frozen water pipes, restricted drain lines, or inadequate or interrupted water supply.

6. Damages caused by inadequate supply of air.

7. Damages caused by operating the product in a corrosive atmosphere.

8. Repairs when your LGproduct is used in other than normal, singlefamily household use or contrary to the instructions described in the product User’s Guide.

9. Damage resulting from accident,alteration, misuse, abuse, or improper installation, repair,or maintenance. Improper repair includes the use of parts not approved or specified by LG.

10.Normal maintenance as described in the User’s Guide,such as cleaning or replacing filters,cleaning coils,etc.

11.Use of accessories or components that are not compatible with this product.

12.Products with altered or removed serial numbers.

13.Changes in the appearance of the product that do not affect product performance.

14.Increases in utility costs and additional utility expenses.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

TO CONTACT LG ELECTRONICS BY MAIL:

LG Customer Interactive Center P. O. Box 240007 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC

Product Registration Information

Model Number: ________________________________ Serial Number: ________________________________ You can find these numbers on a label on the side of the

dishwasher. Date of Purchase: ______________________________ Dealer’s Name: ________________________________

+ 56 hidden pages
